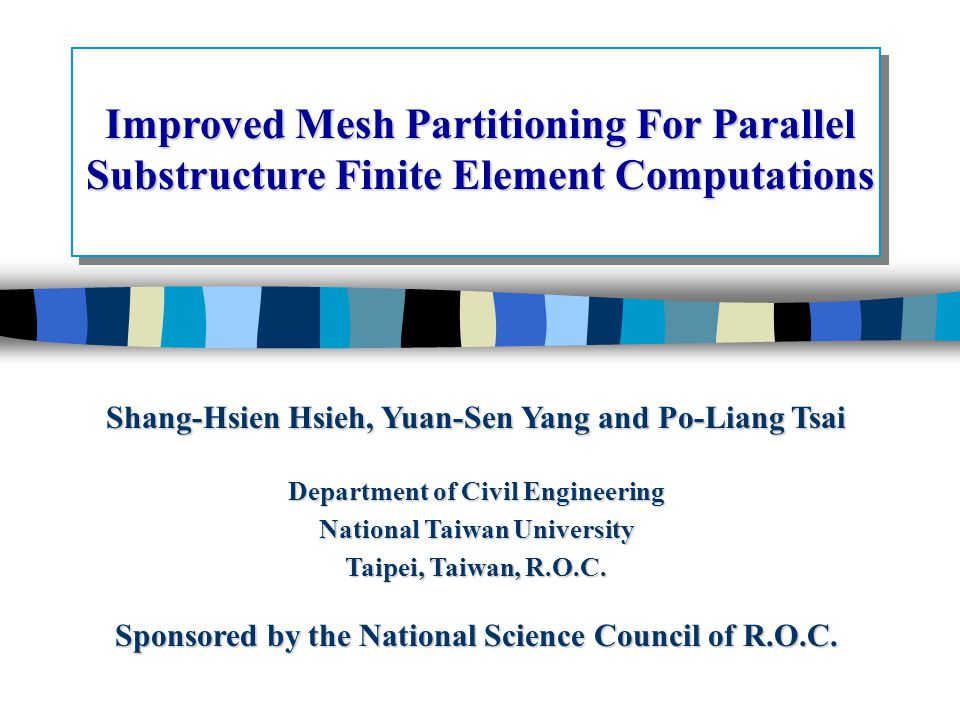

1. Improved Mesh Partitioning For Parallel Substructure Finite Element Computations Shang-Hsien Hsieh, Yuan-Sen Yang and Po-Liang Tsai Department of Civil Engineering National Taiwan University Taipei, Taiwan, R.O.C. Sponsored by the National Science Council of R.O.C.

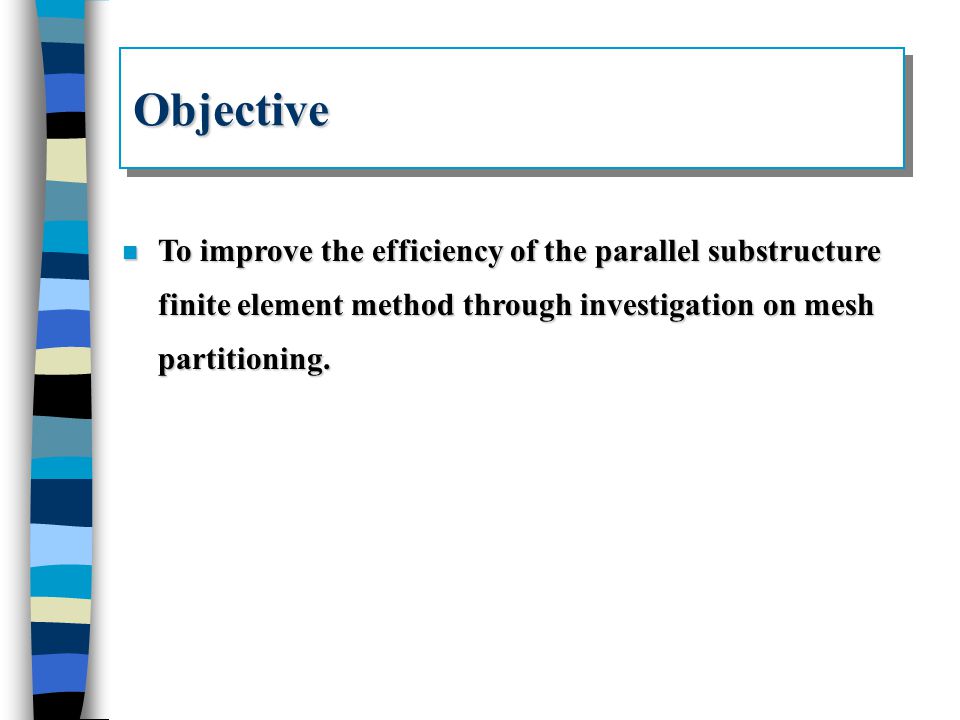

2. Objective n To improve the efficiency of the parallel substructure finite element method through investigation on mesh partitioning.

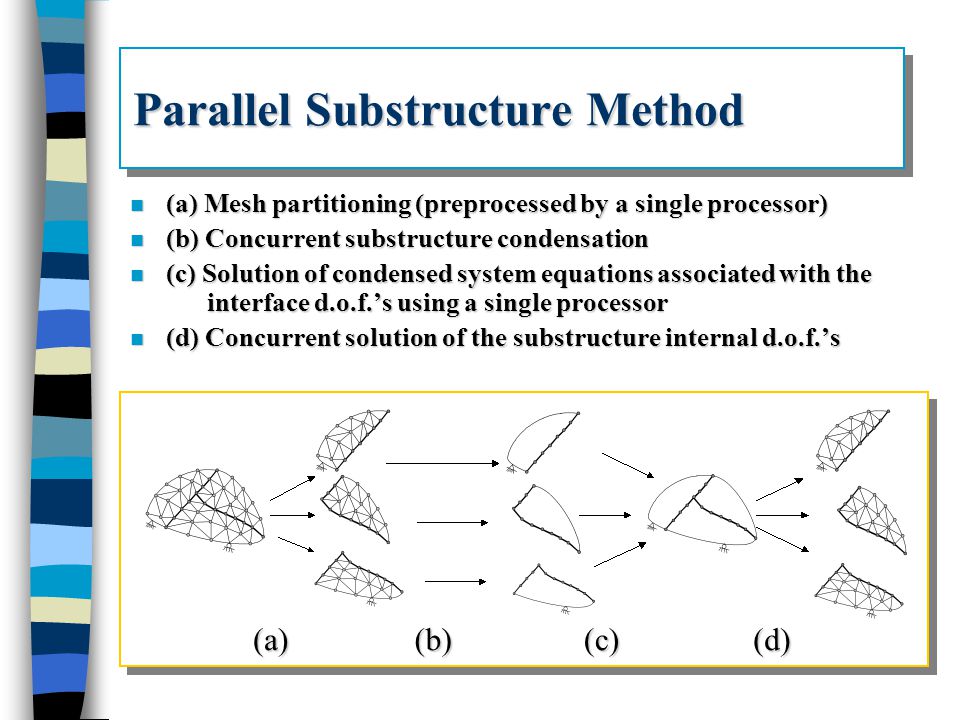

3. Parallel Substructure Method n (a) Mesh partitioning (preprocessed by a single processor) n (b) Concurrent substructure condensation n (c) Solution of condensed system equations associated with the interface d.o.f.’s using a single processor n (d) Concurrent solution of the substructure internal d.o.f.’s (a) (b) (c) (d)

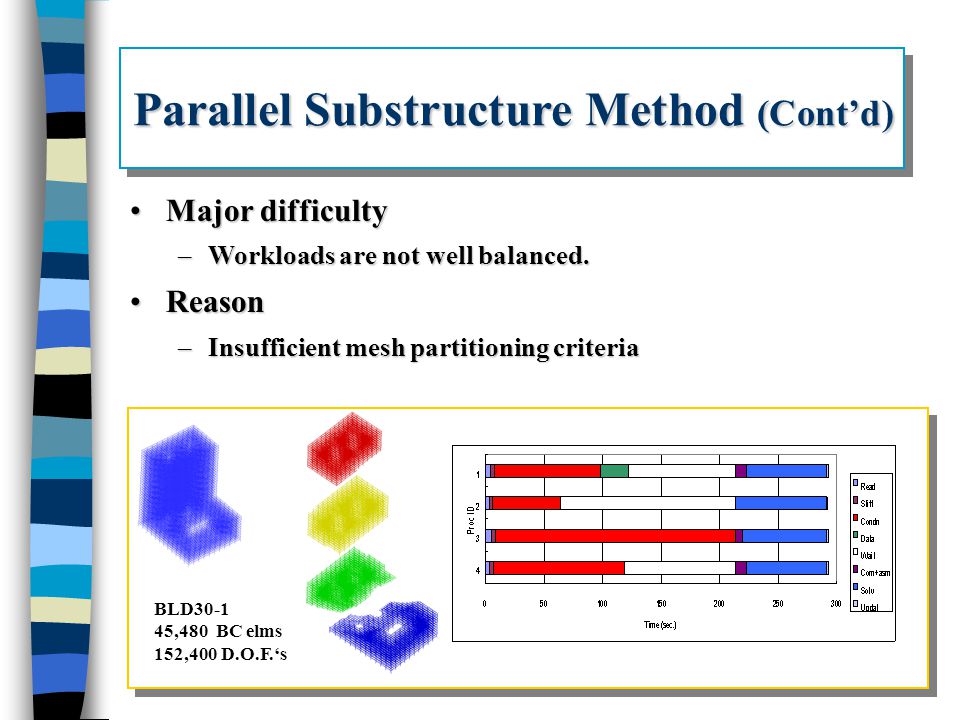

4. Parallel Substructure Method (Cont’d) Major difficultyMajor difficulty –Workloads are not well balanced. ReasonReason –Insufficient mesh partitioning criteria BLD30-1 45,480 BC elms 152,400 D.O.F.‘s

5. n Common criteria used by most of mesh partitioning algorithms: –Balance of number of elements among substructures –Minimization of total number of interface nodes Mesh Partitioning

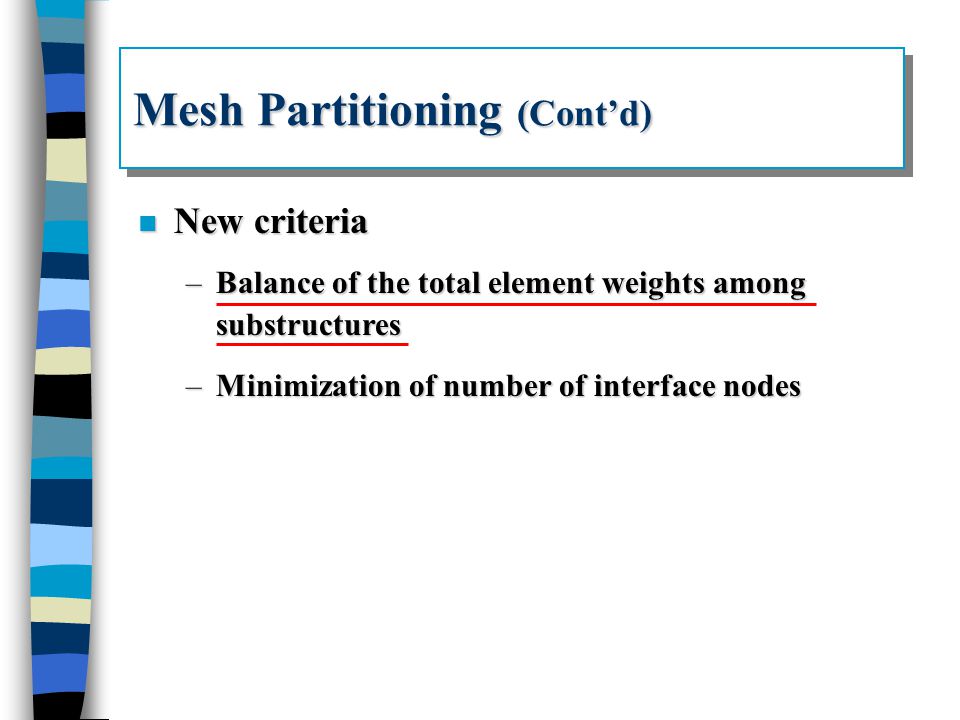

6. Mesh Partitioning (Cont’d) n New criteria –Balance of the total element weights among substructures –Minimization of number of interface nodes

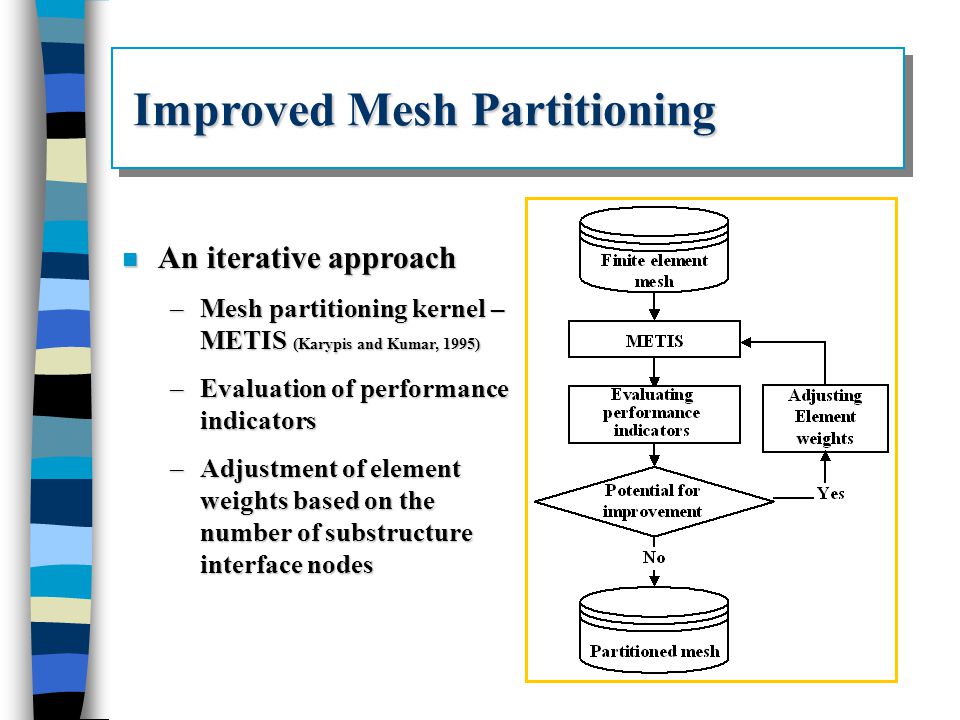

7. n An iterative approach –Mesh partitioning kernel – METIS (Karypis and Kumar, 1995) –Evaluation of performance indicators –Adjustment of element weights based on the number of substructure interface nodes Improved Mesh Partitioning

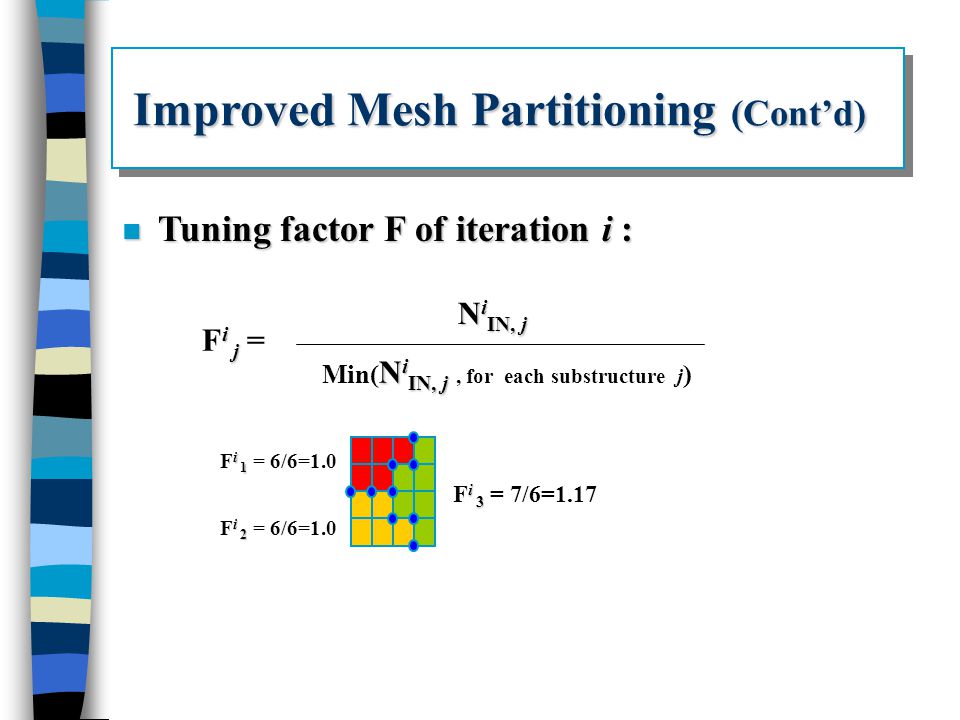

8. Improved Mesh Partitioning (Cont’d) n Tuning factor F of iteration i : N i IN, j N i IN, j Min( N i IN, j, for each substructure j ) i j F i j = 8/13 i 1 F i 1 = 6/6=1.0 i 3 F i 3 = 7/6=1.17 i 2 F i 2 = 6/6=1.0

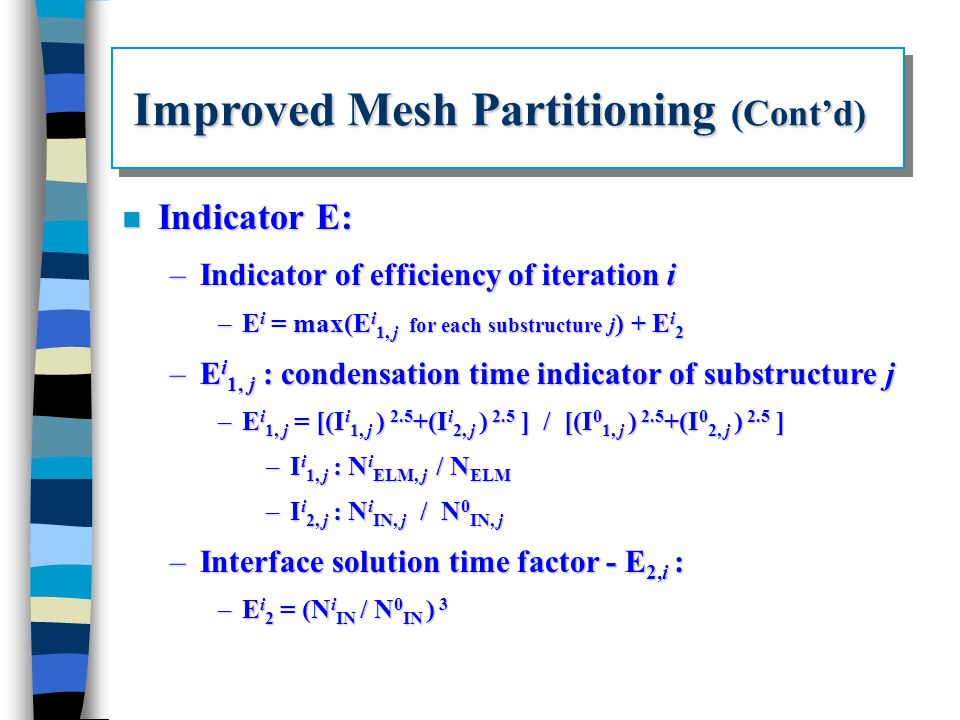

9. Improved Mesh Partitioning (Cont’d) n Indicator E: –Indicator of efficiency of iteration i –E i = max(E i 1, j for each substructure j ) + E i 2 –E i 1, j : condensation time indicator of substructure j –E i 1, j = [(I i 1, j ) 2.5 +(I i 2, j ) 2.5 ] / [(I 0 1, j ) 2.5 +(I 0 2, j ) 2.5 ] –I i 1, j : N i ELM, j / N ELM –I i 2, j : N i IN, j / N 0 IN, j –Interface solution time factor - E 2,i : –E i 2 = (N i IN / N 0 IN ) 3

10. Improved Mesh Partitioning (Cont’d) n Indicator E vs. Total elapsed time T Model: 4E12 3072solid(B20) elements 48,975 D.O.F.‘s (Tsai, 1999) Normalized E or T Iteration i

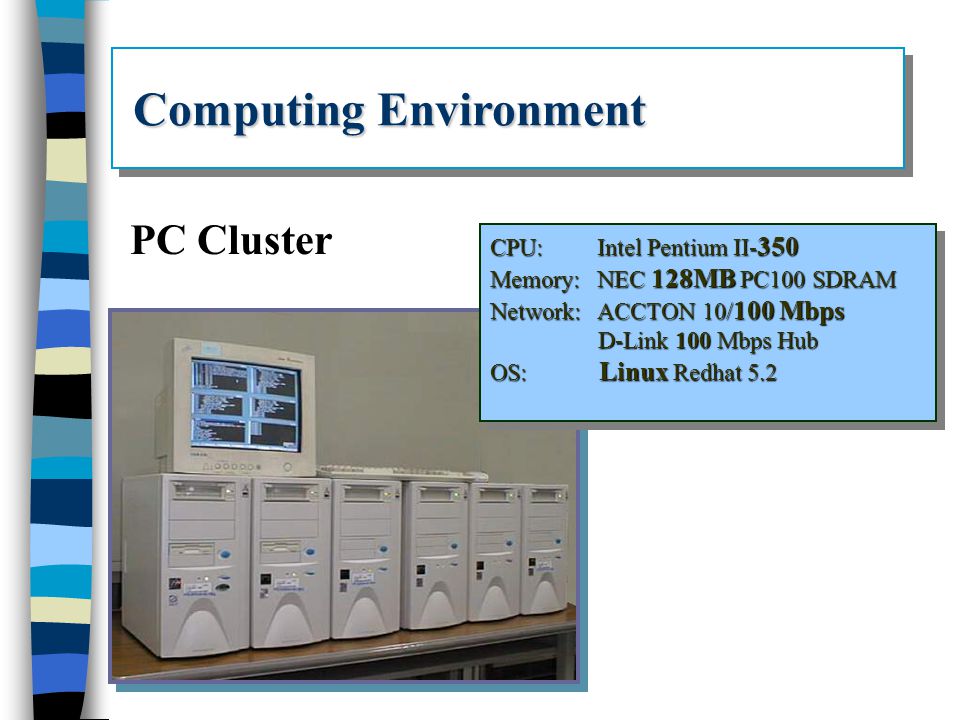

11. CPU: Intel Pentium II- 350 Memory: NEC 128MB PC100 SDRAM Network: ACCTON 10/ 100 Mbps D-Link 100 Mbps Hub D-Link 100 Mbps Hub OS: Linux Redhat 5.2 CPU: Intel Pentium II- 350 Memory: NEC 128MB PC100 SDRAM Network: ACCTON 10/ 100 Mbps D-Link 100 Mbps Hub D-Link 100 Mbps Hub OS: Linux Redhat 5.2 PC Cluster Computing Environment

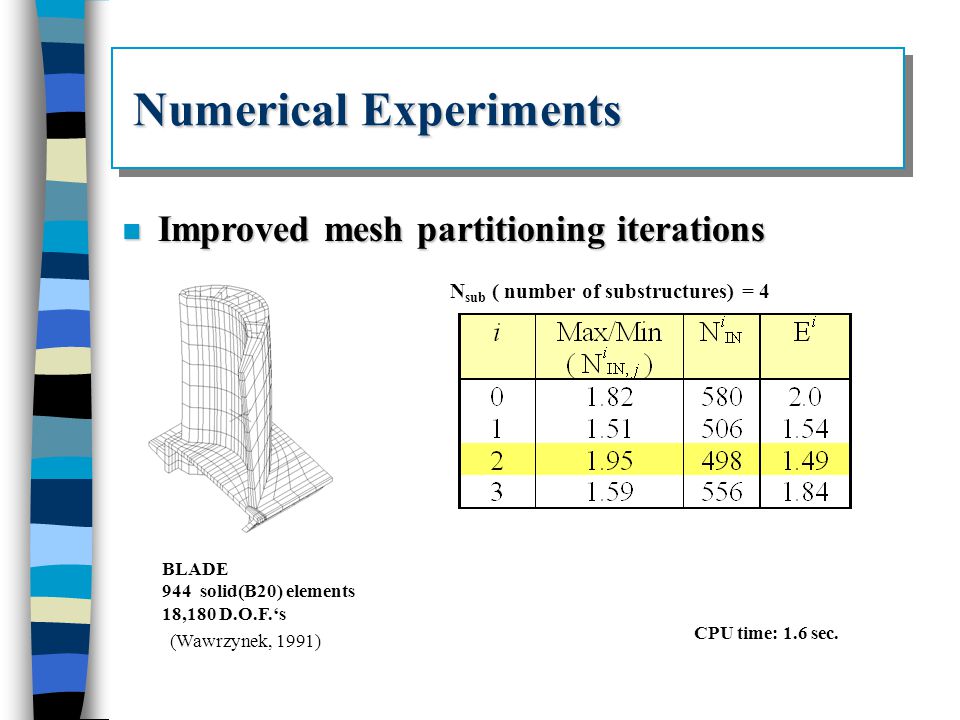

12. Numerical Experiments BLADE 944 solid(B20) elements 18,180 D.O.F.‘s n Improved mesh partitioning iterations (Wawrzynek, 1991) N sub ( number of substructures) = 4 CPU time: 1.6 sec.

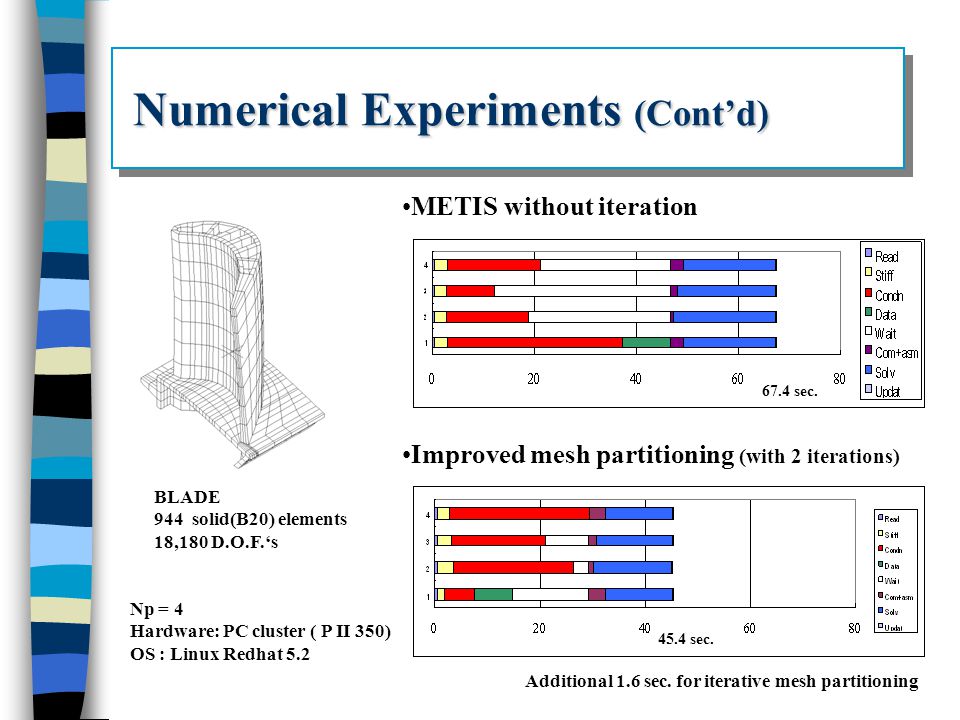

13. METIS without iteration Improved mesh partitioning (with 2 iterations) BLADE 944 solid(B20) elements 18,180 D.O.F.‘s Np = 4 Hardware: PC cluster ( P II 350) OS : Linux Redhat 5.2 Numerical Experiments (Cont’d) 67.4 sec. 45.4 sec. Additional 1.6 sec. for iterative mesh partitioning

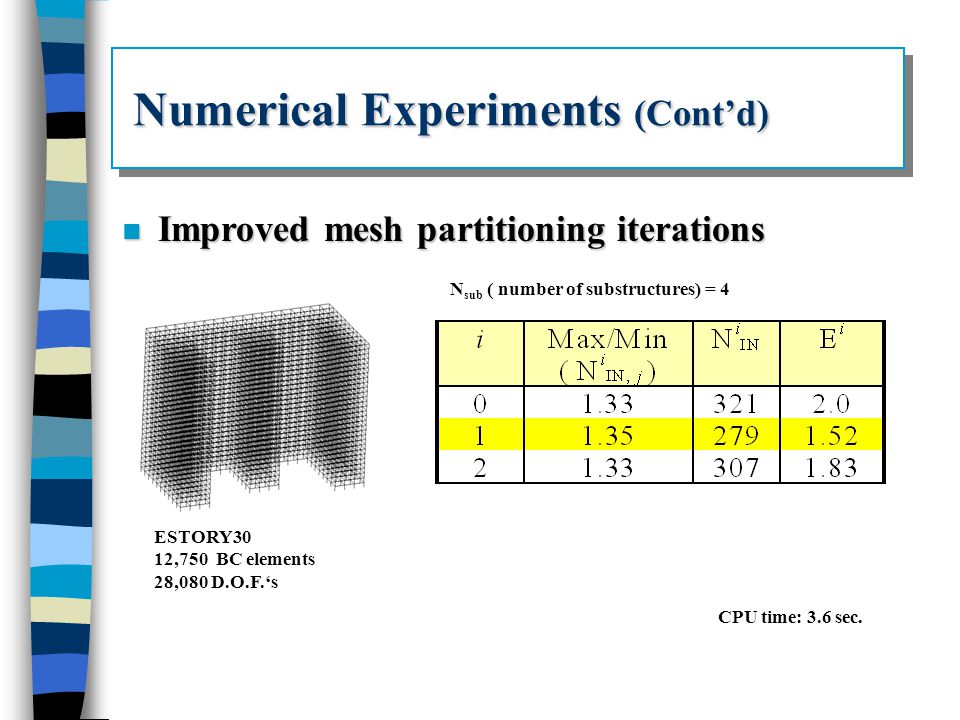

14. Numerical Experiments (Cont’d) n Improved mesh partitioning iterations ESTORY30 12,750 BC elements 28,080 D.O.F.‘s CPU time: 3.6 sec. N sub ( number of substructures) = 4

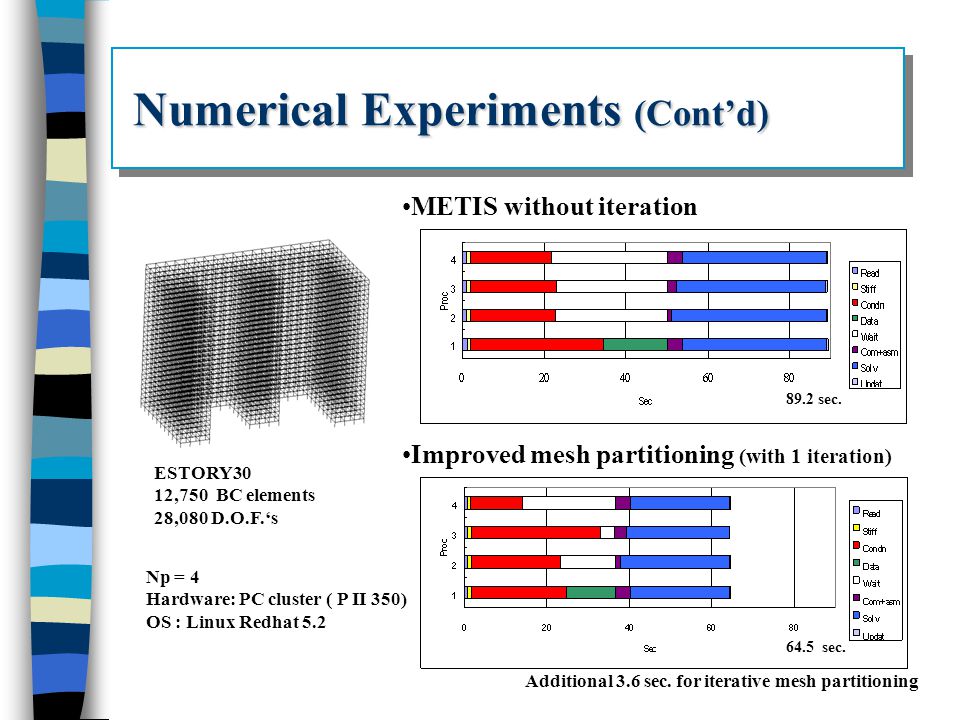

15. METIS without iteration Improved mesh partitioning (with 1 iteration) ESTORY30 12,750 BC elements 28,080 D.O.F.‘s Np = 4 Hardware: PC cluster ( P II 350) OS : Linux Redhat 5.2 Numerical Experiments (Cont’d) 89.2 sec. 56.5 sec. Additional 3.6 sec. for iterative mesh partitioning 64.5 sec.

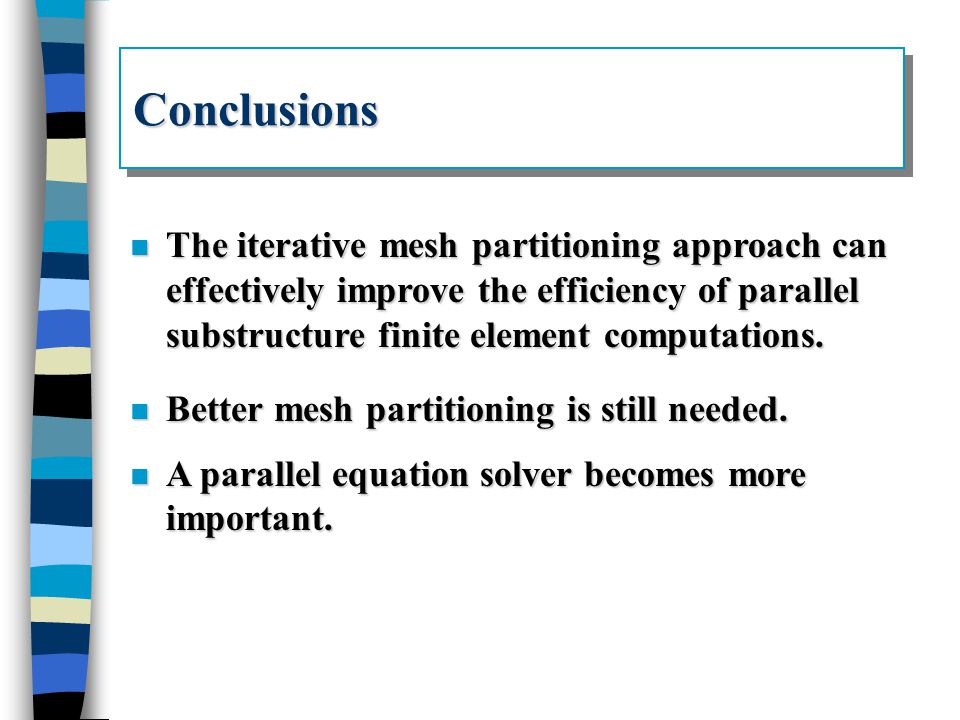

16. Conclusions n The iterative mesh partitioning approach can effectively improve the efficiency of parallel substructure finite element computations. n Better mesh partitioning is still needed. n A parallel equation solver becomes more important.
