1. RADON TRANSFORM A small introduction to RT, its inversion and applications Jaromír Brum Kukal, 2009

2. Johann Karl August Radon Born in Děčín (Austrian monarchy, now North Bohemia, CZ) in 1887 Austrian mathematician living in Vienna Discover the transform and its inversion in 1917 as pure theoretical result No practical applications during his life Died in 1956 in Vienna

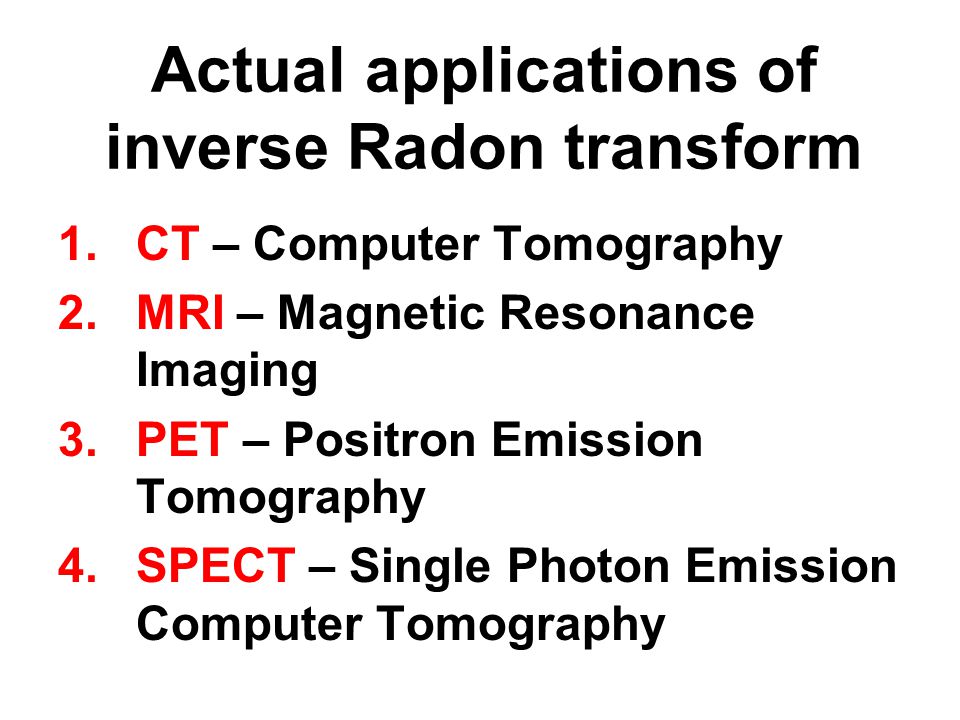

3. Actual applications of inverse Radon transform 1.CT – Computer Tomography 2.MRI – Magnetic Resonance Imaging 3.PET – Positron Emission Tomography 4.SPECT – Single Photon Emission Computer Tomography

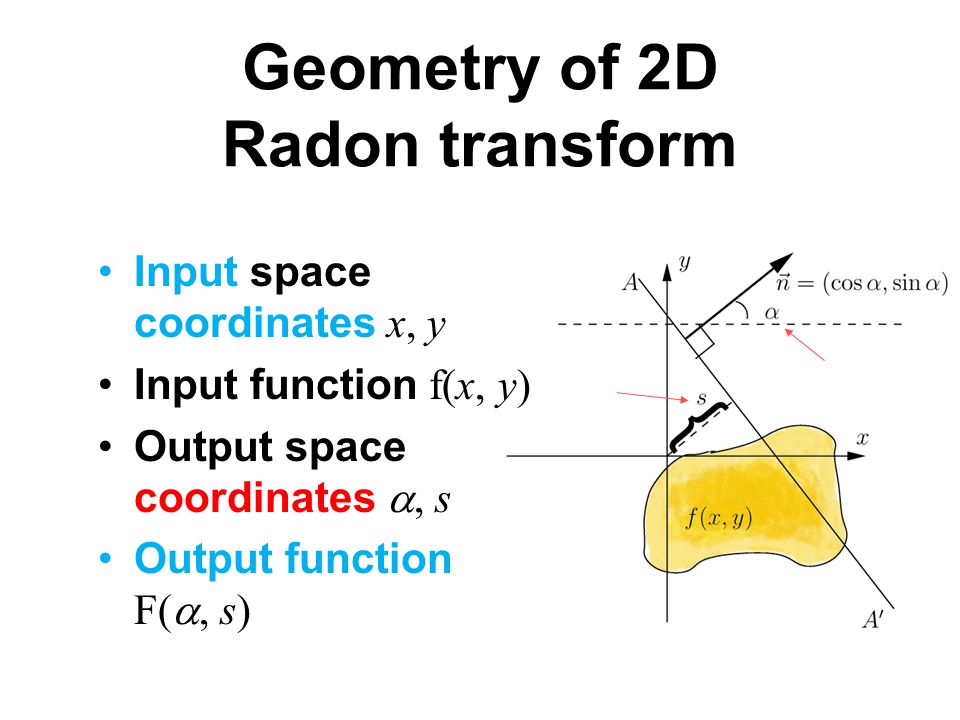

4. Geometry of 2D Radon transform Input space coordinates x, y Input function f(x, y) Output space coordinates , s Output function F( , s)

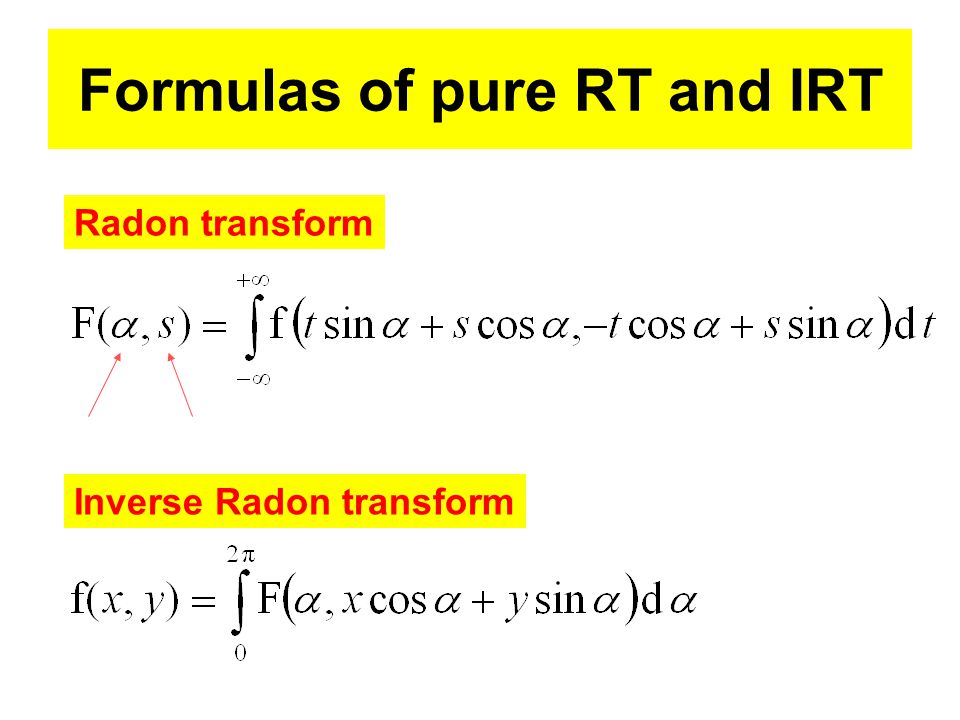

5. Formulas of pure RT and IRT Radon transform Inverse Radon transform

6. Example of Radon Transform

7. Full circle in RT

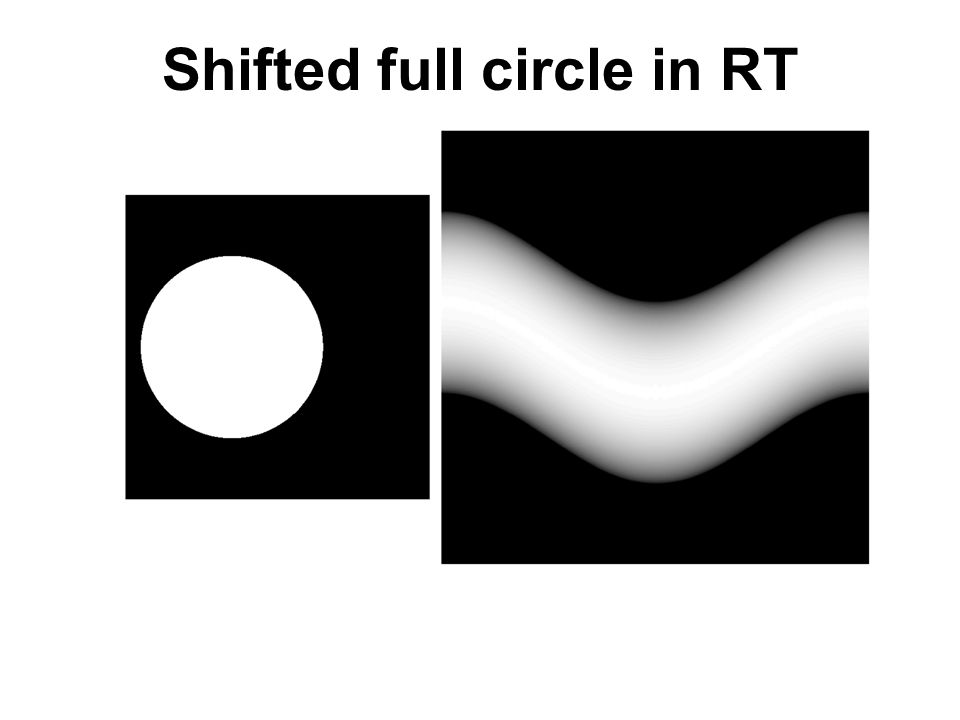

8. Shifted full circle in RT

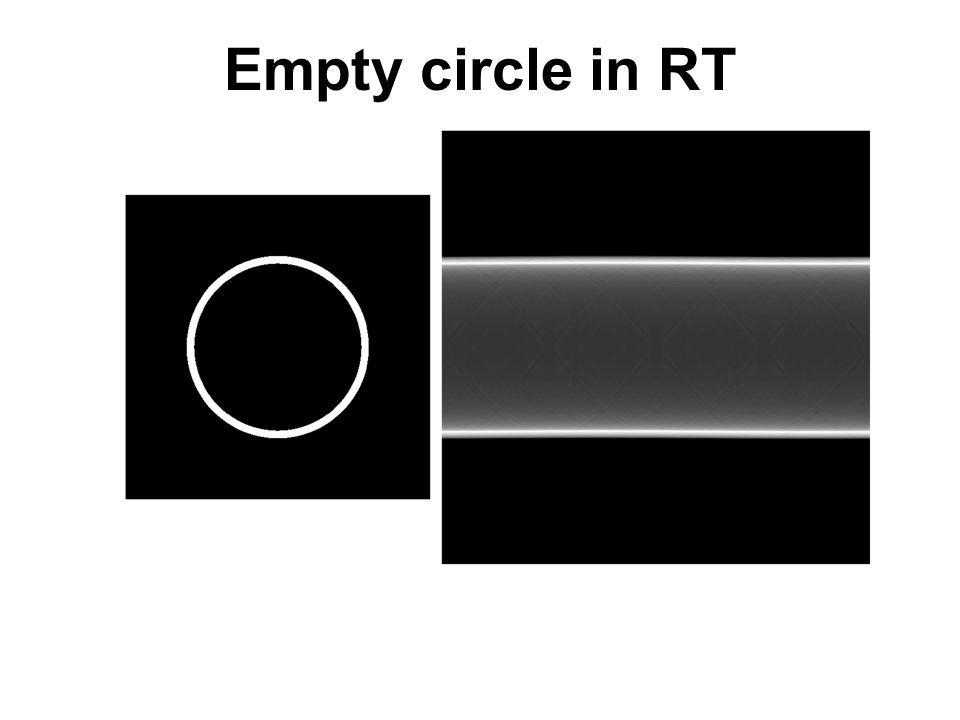

9. Empty circle in RT

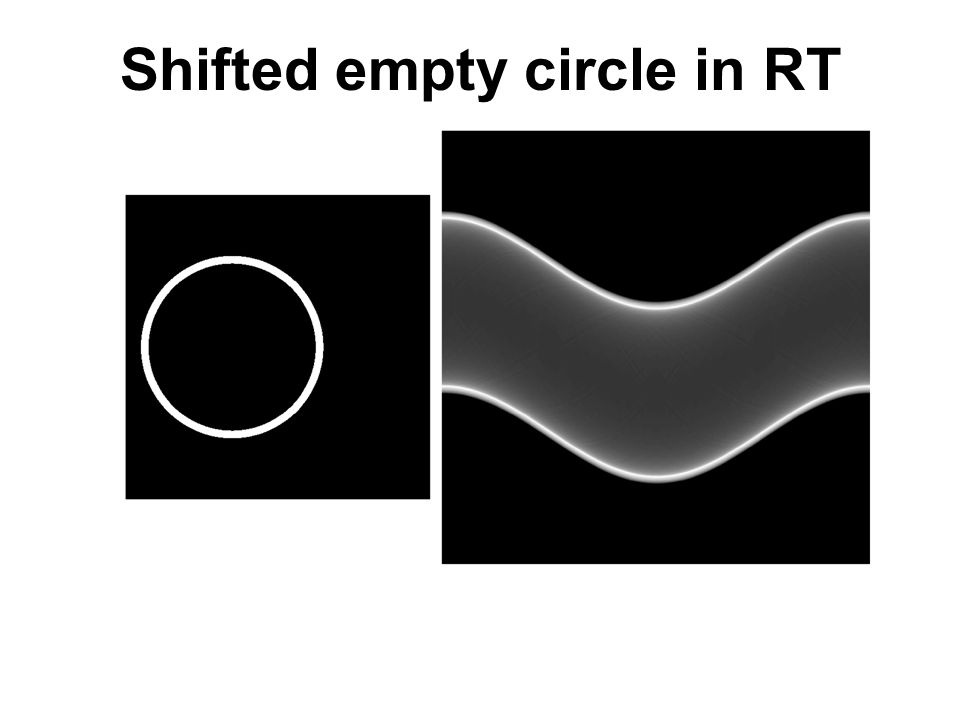

10. Shifted empty circle in RT

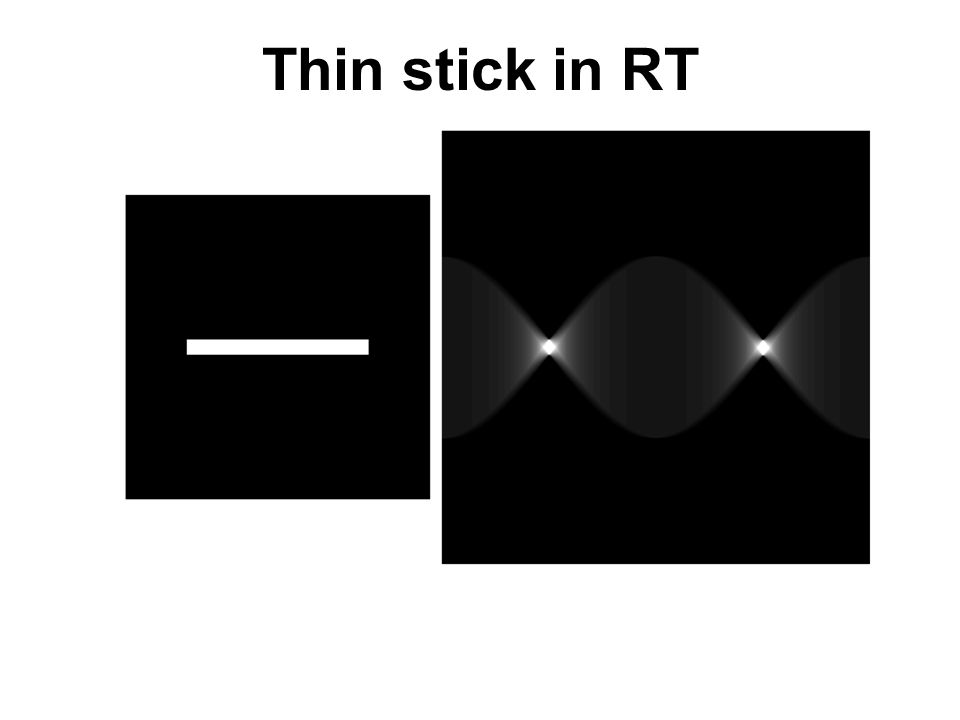

11. Thin stick in RT

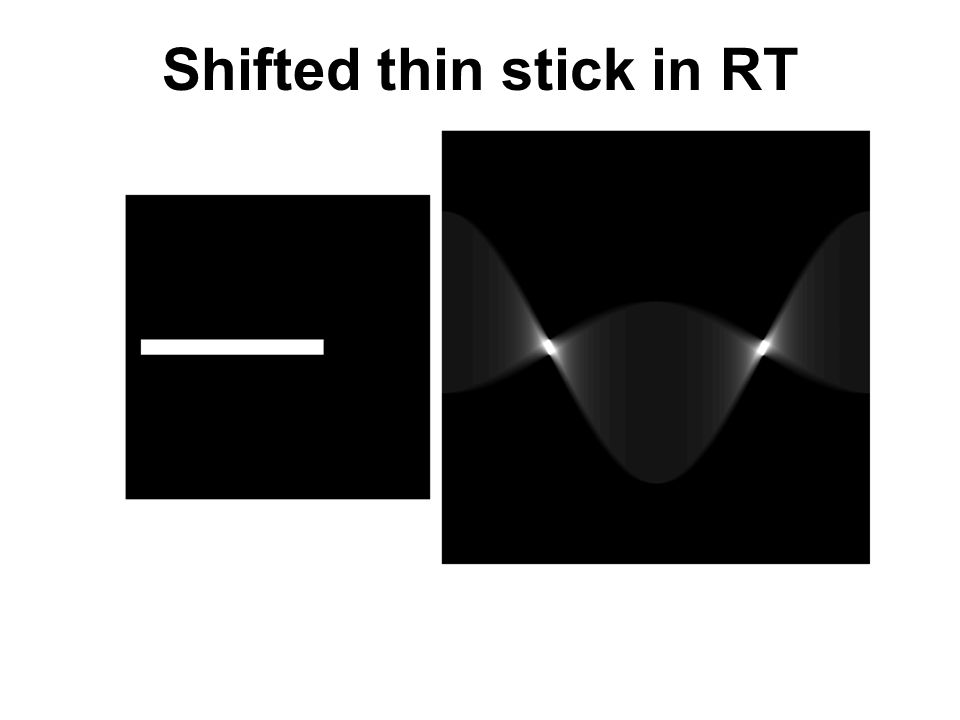

12. Shifted thin stick in RT

13. Full triangle in RT

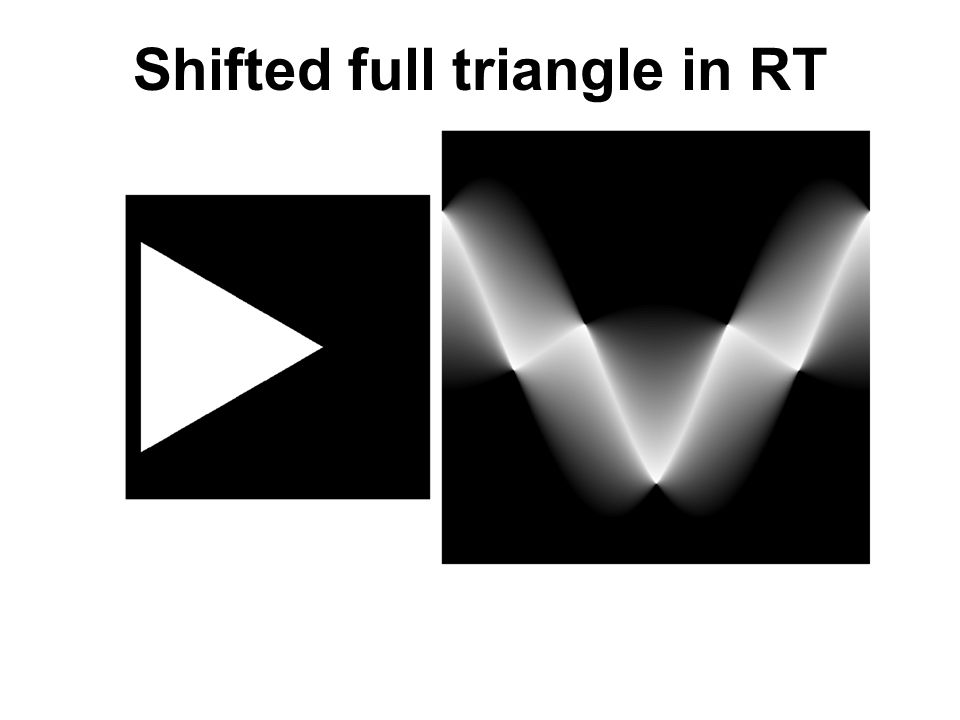

14. Shifted full triangle in RT

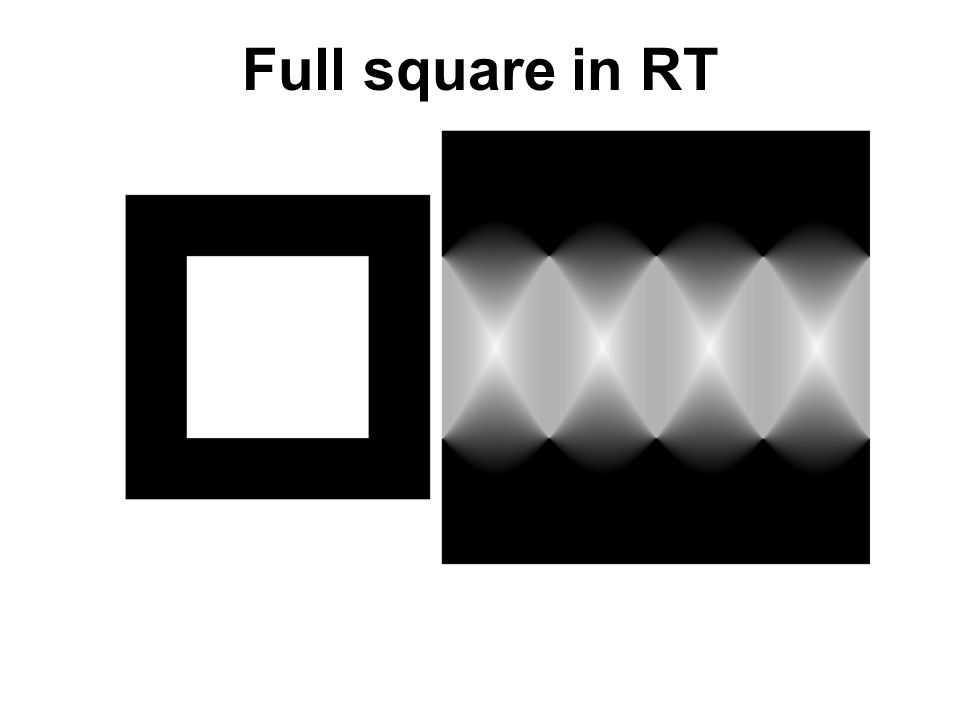

15. Full square in RT

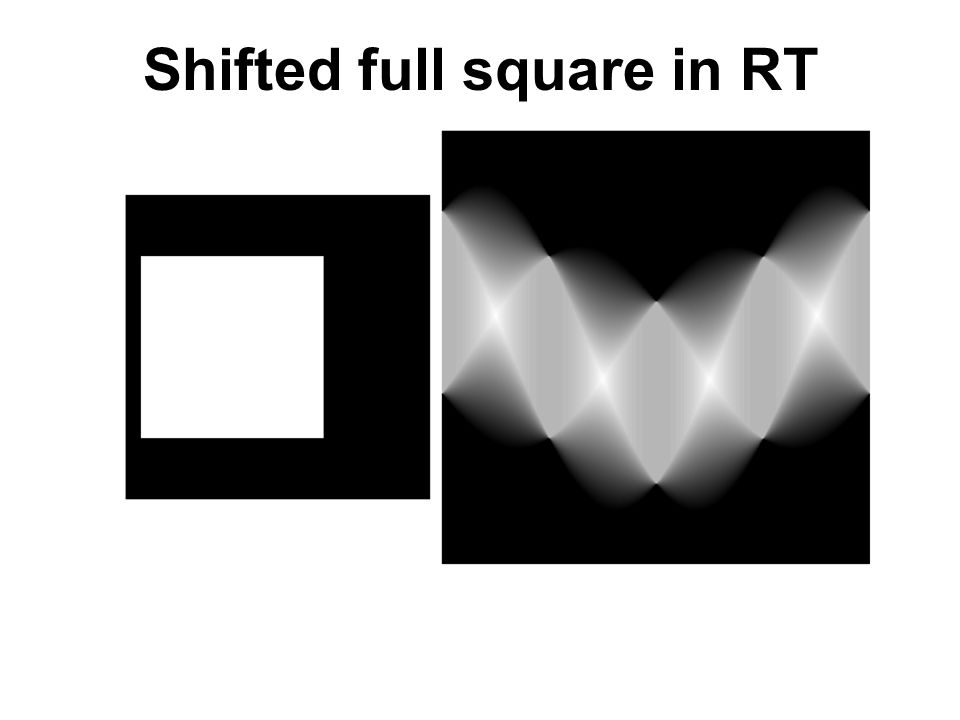

16. Shifted full square in RT

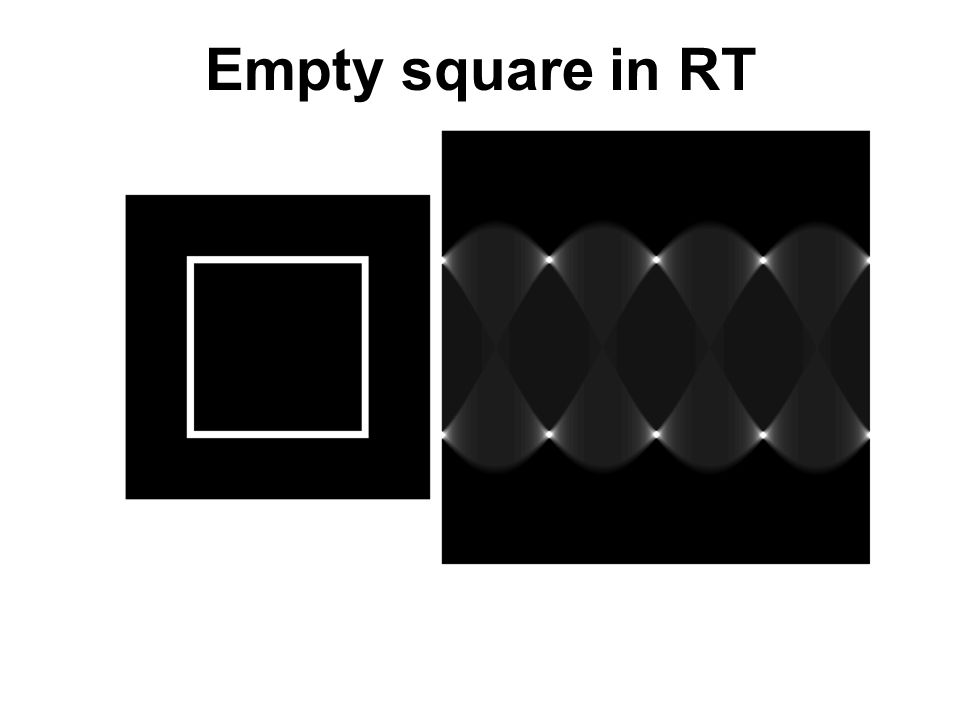

17. Empty square in RT

18. Shifted empty square in RT

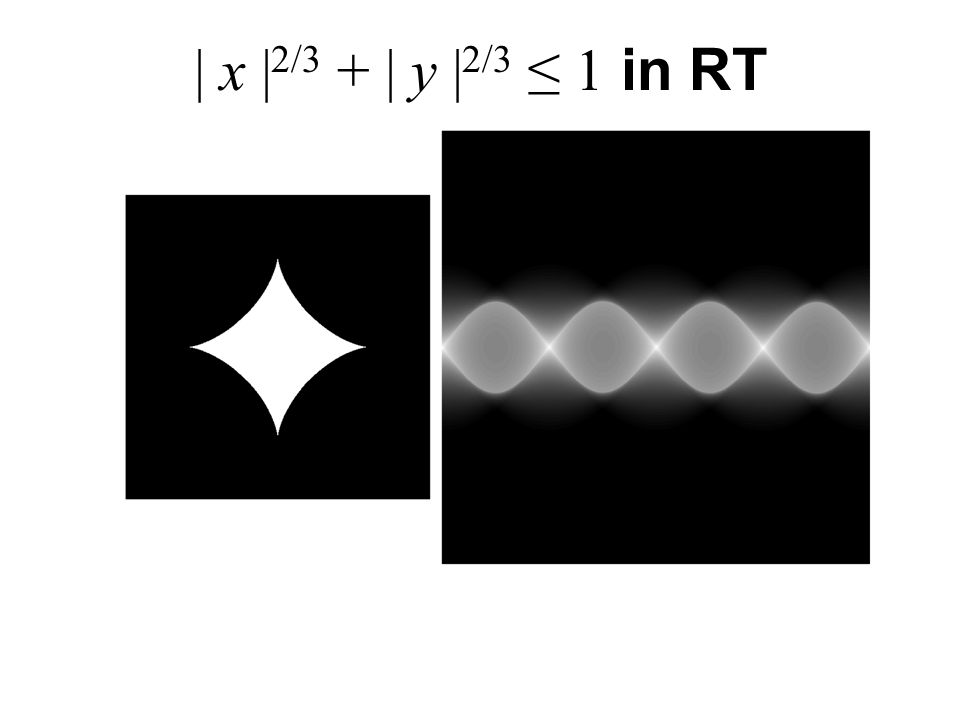

19. | x | 2/3 + | y | 2/3 ≤ 1 in RT

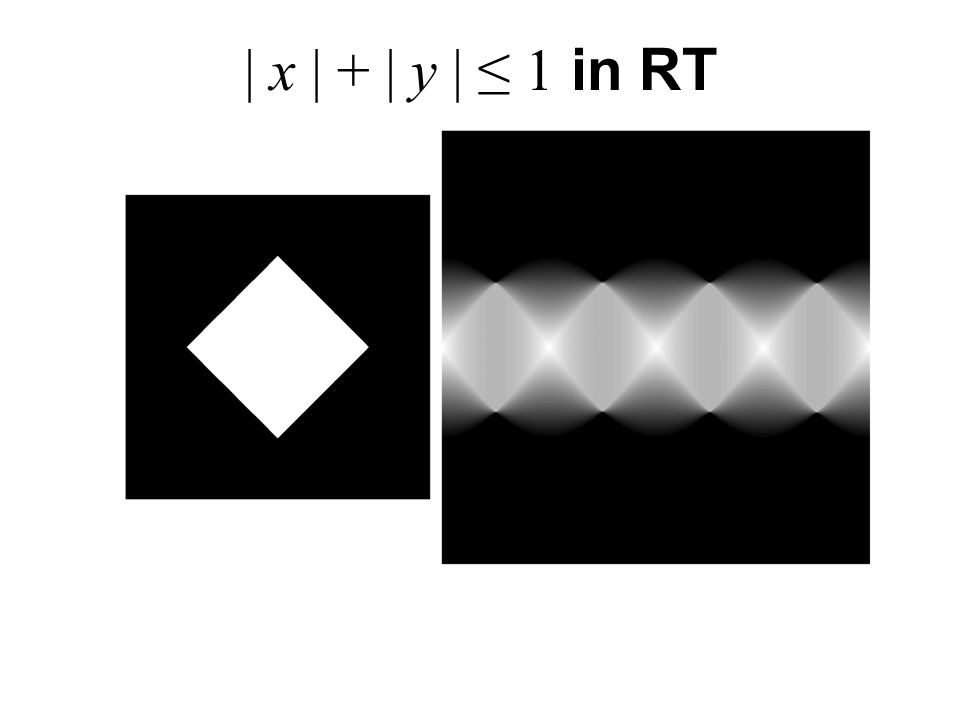

20. | x | + | y | ≤ 1 in RT

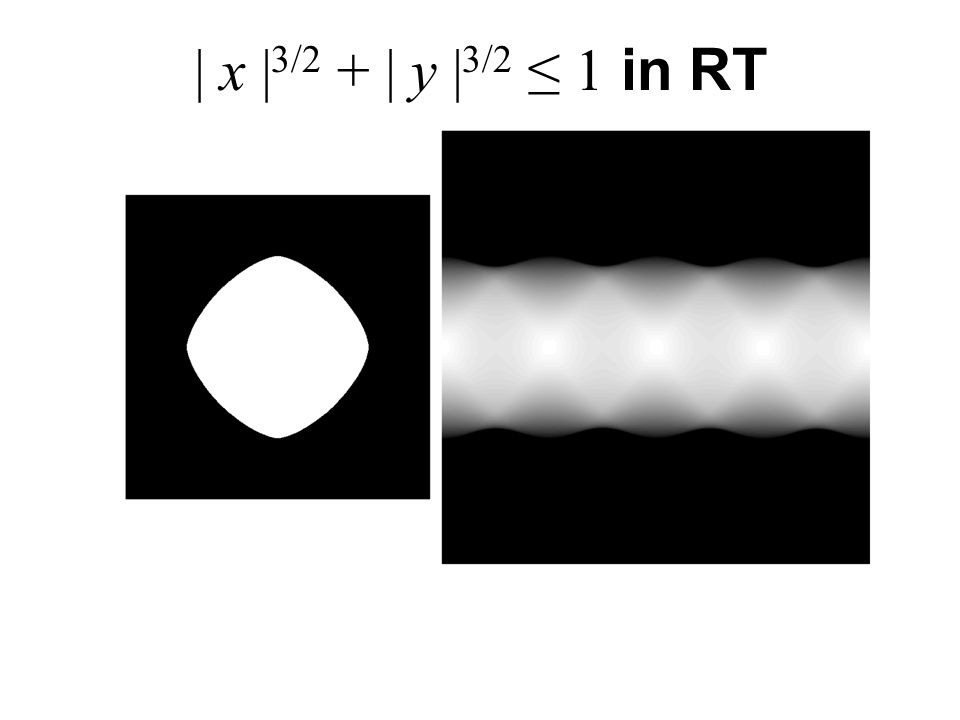

21. | x | 3/2 + | y | 3/2 ≤ 1 in RT

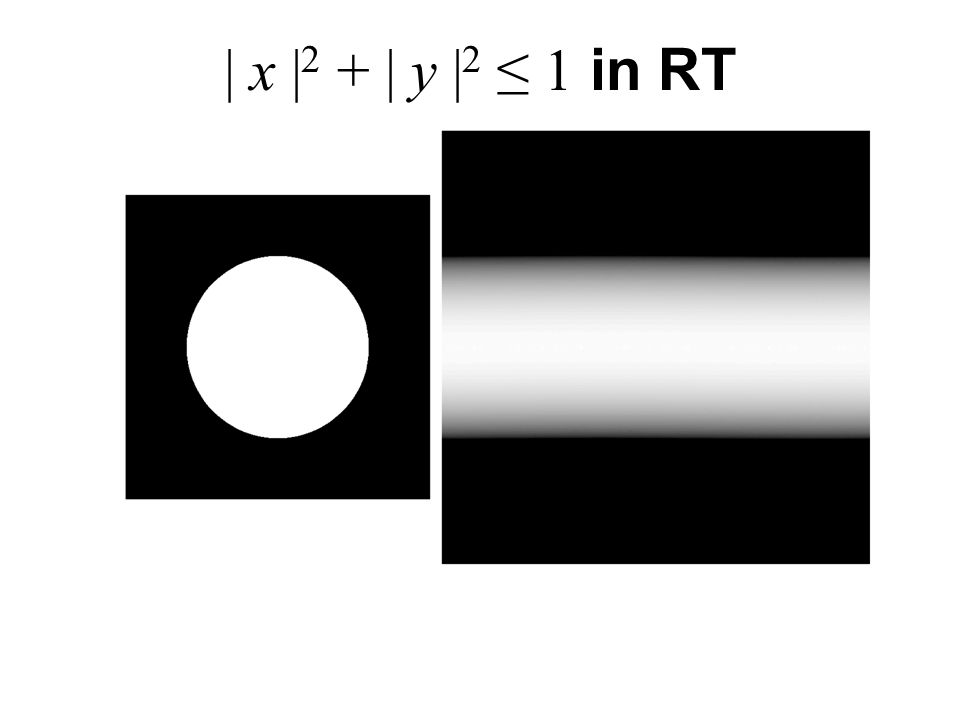

22. | x | 2 + | y | 2 ≤ 1 in RT

23. | x | 6 + | y | 6 ≤ 1 in RT

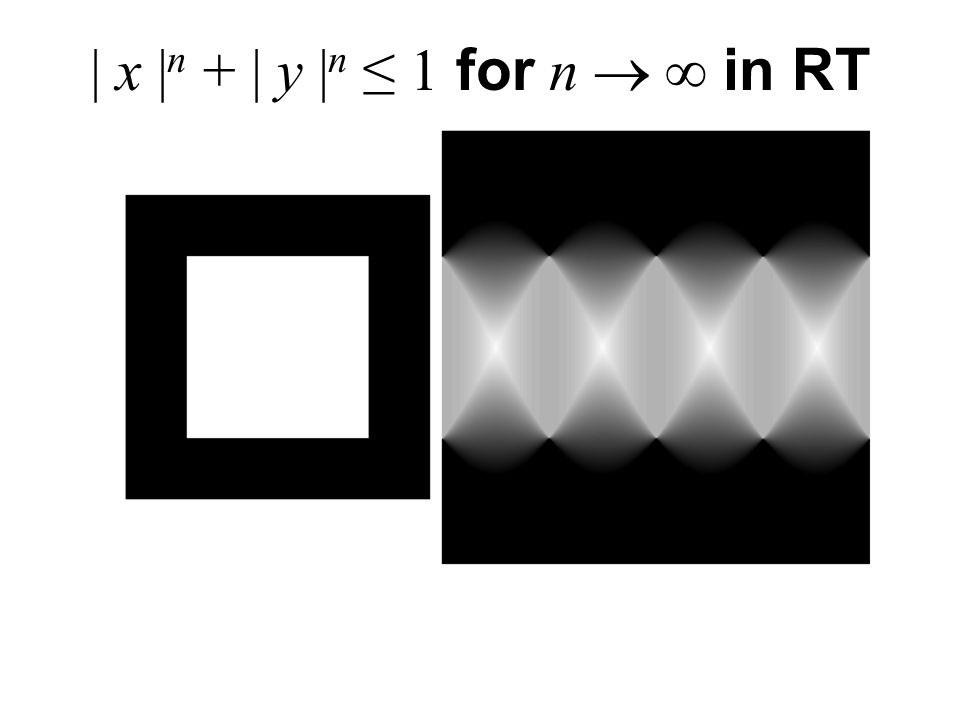

24. | x | n + | y | n ≤ 1 for n   in RT

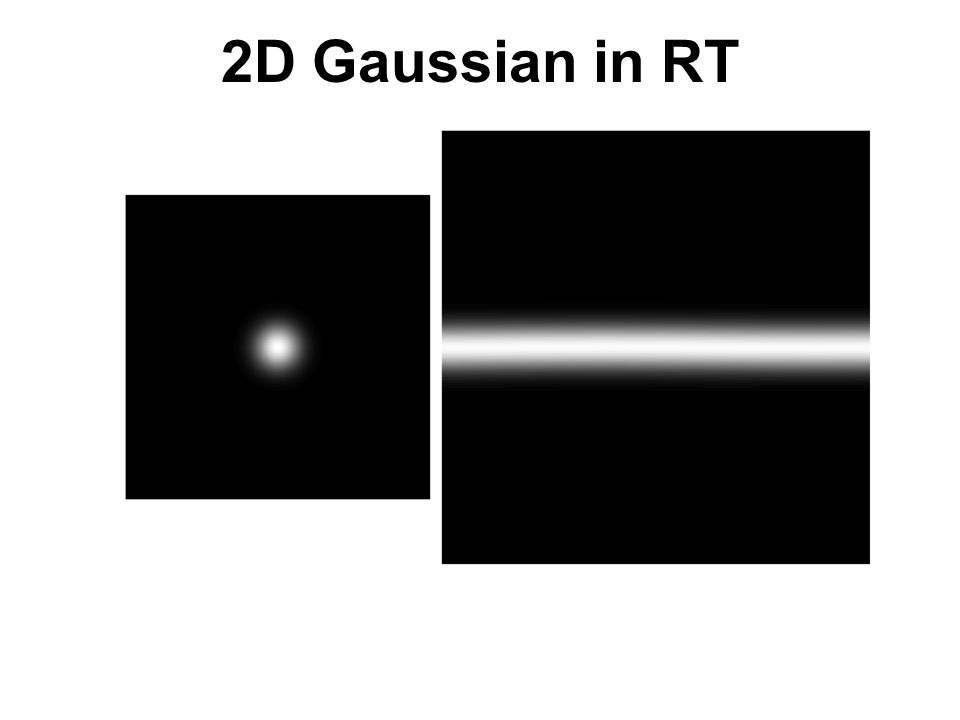

25. 2D Gaussian in RT

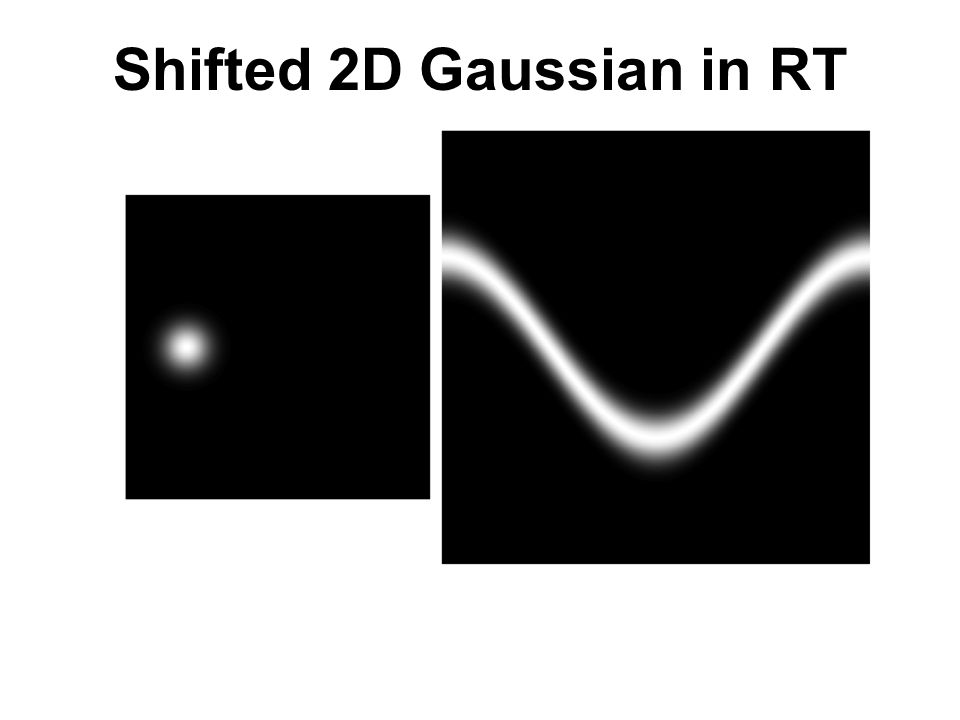

26. Shifted 2D Gaussian in RT

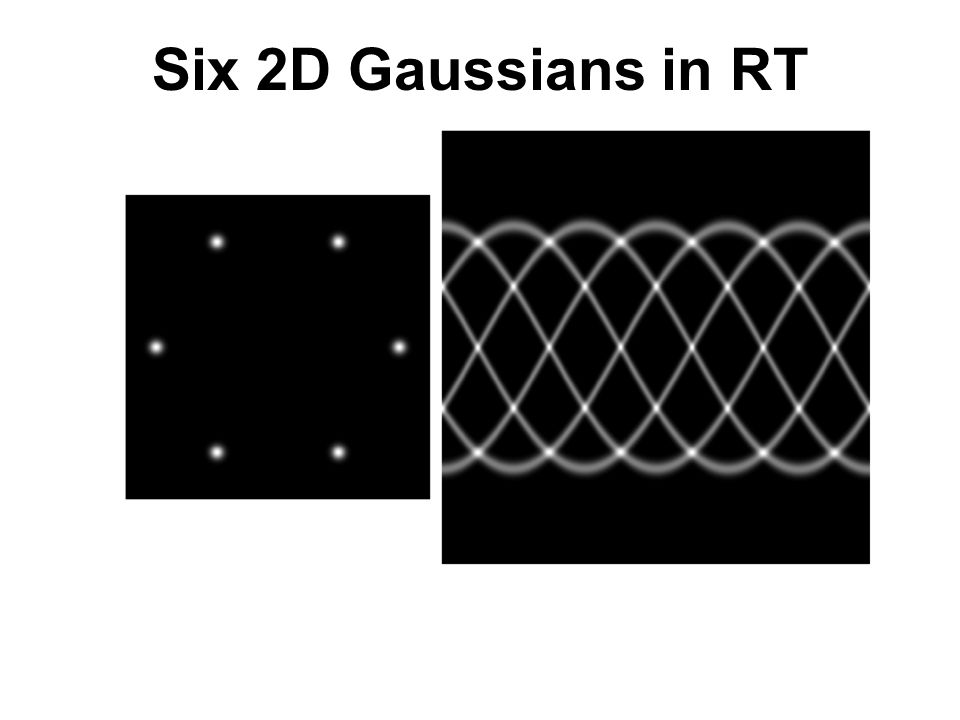

27. Six 2D Gaussians in RT

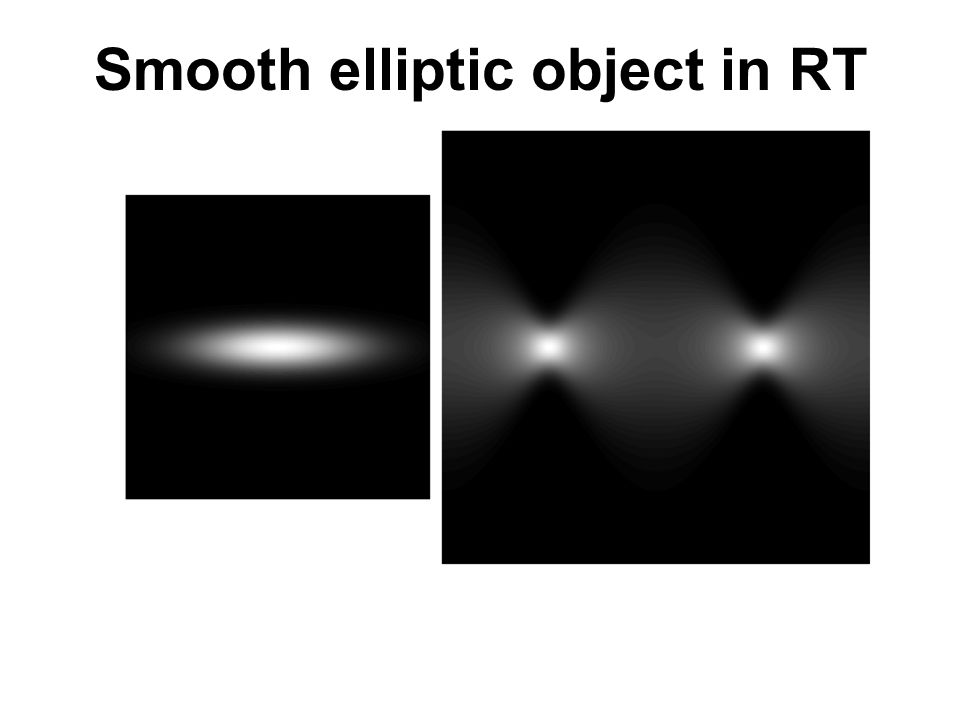

28. Smooth elliptic object in RT

29. Radon Transform Properties

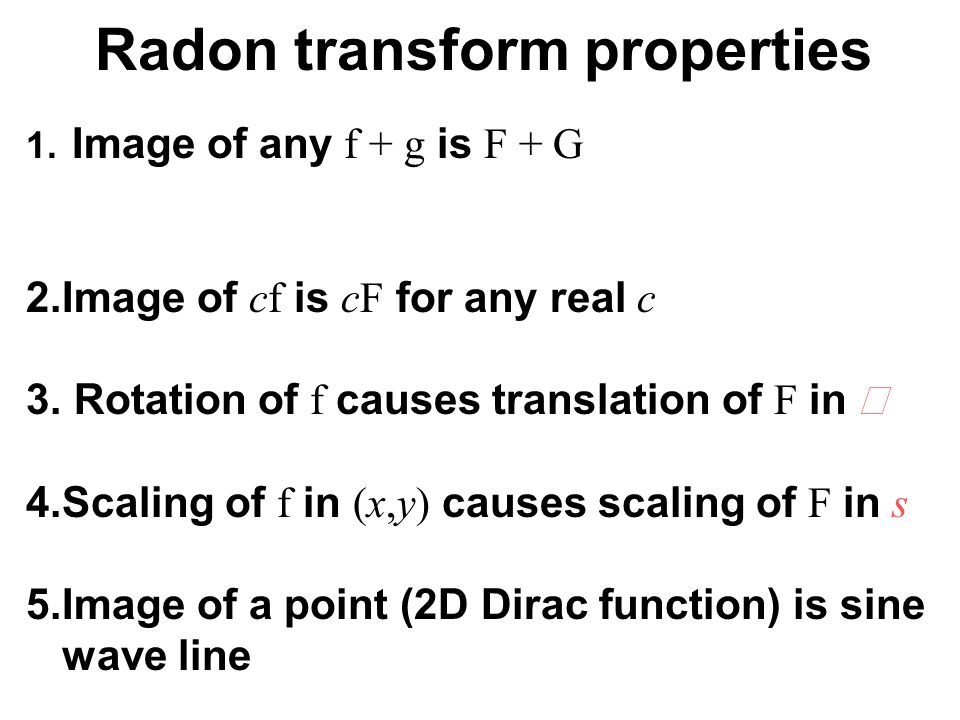

30. Radon transform properties 1. Image of any f + g is F + G 2.Image of cf is cF for any real c 3. Rotation of f causes translation of F in  4.Scaling of f in (x,y) causes scaling of F in s 5.Image of a point (2D Dirac function) is sine wave line

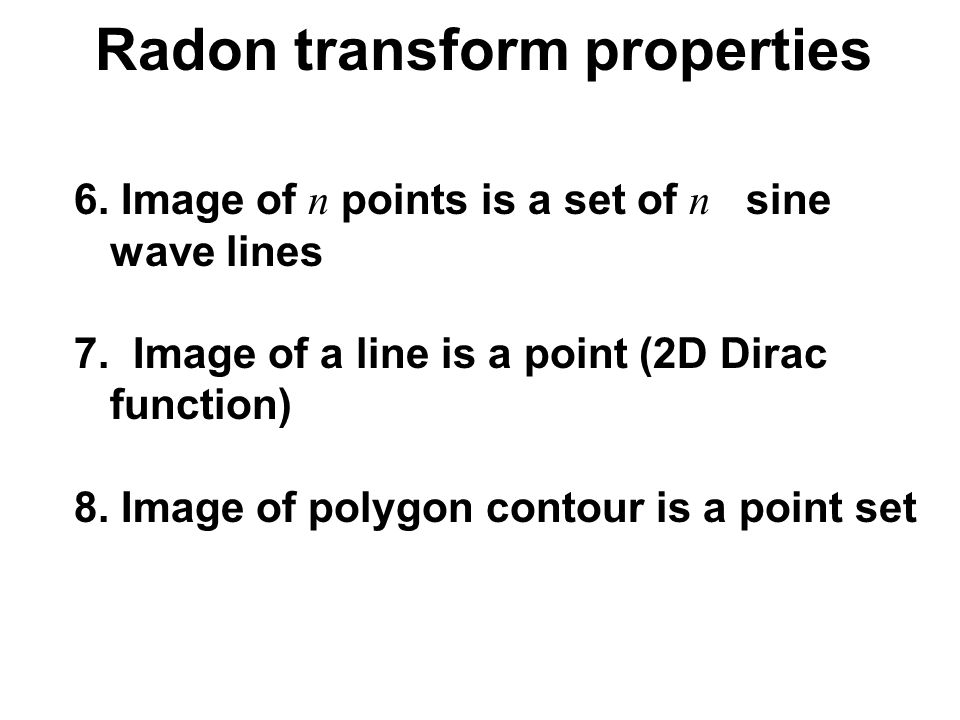

31. Radon transform properties 6. Image of n points is a set of n sine wave lines 7. Image of a line is a point (2D Dirac function) 8. Image of polygon contour is a point set

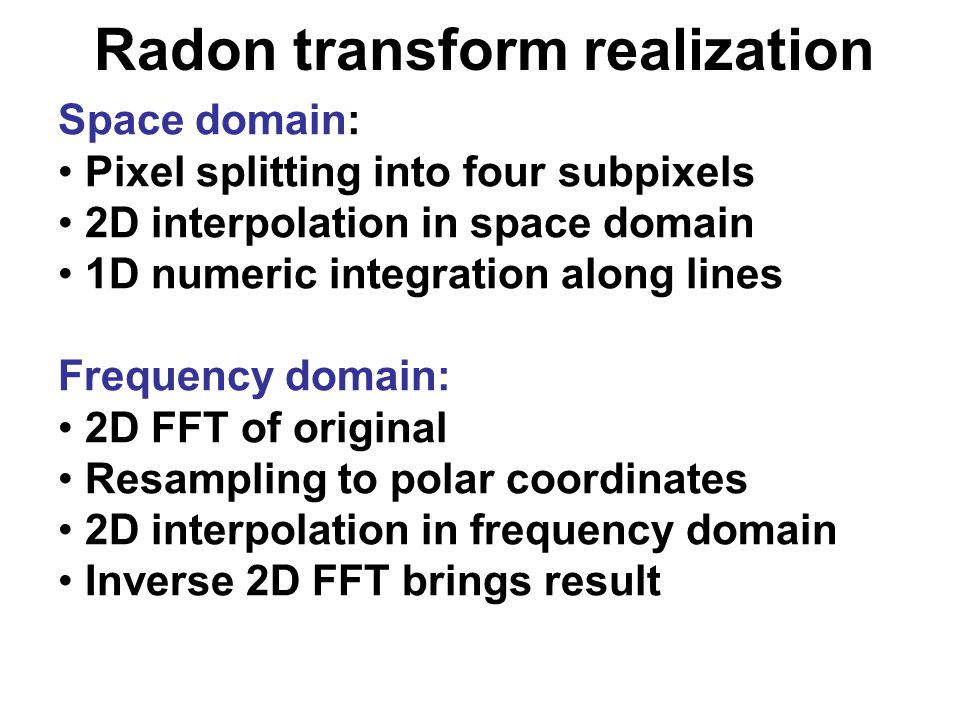

32. Radon transform realization Space domain: Pixel splitting into four subpixels 2D interpolation in space domain 1D numeric integration along lines Frequency domain: 2D FFT of original Resampling to polar coordinates 2D interpolation in frequency domain Inverse 2D FFT brings result

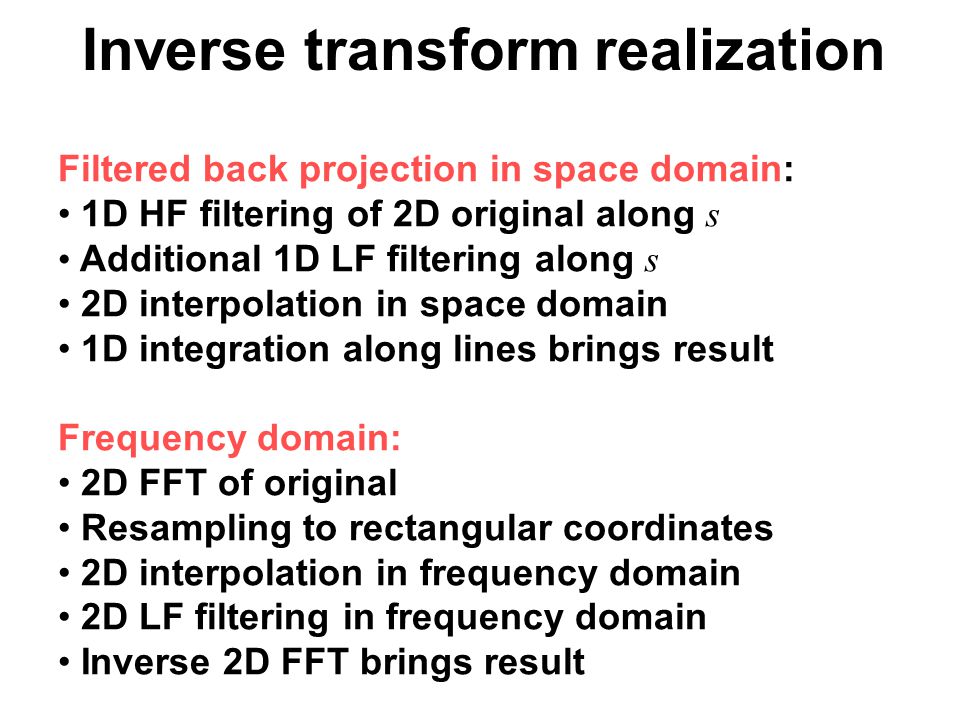

33. Inverse transform realization Filtered back projection in space domain: 1D HF filtering of 2D original along s Additional 1D LF filtering along s 2D interpolation in space domain 1D integration along lines brings result Frequency domain: 2D FFT of original Resampling to rectangular coordinates 2D interpolation in frequency domain 2D LF filtering in frequency domain Inverse 2D FFT brings result

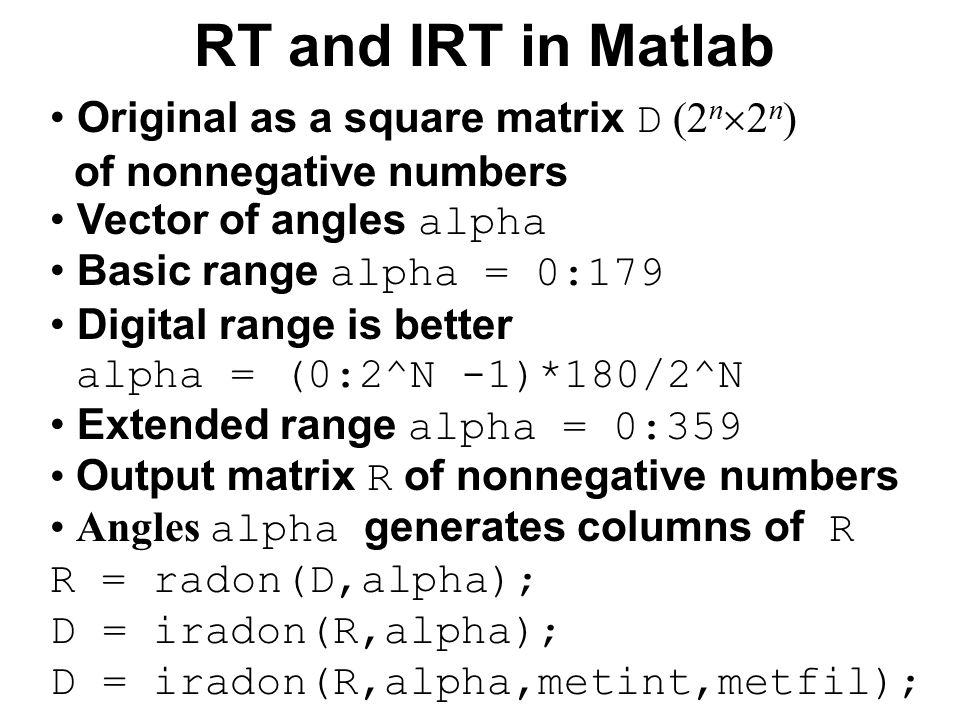

34. RT and IRT in Matlab Original as a square matrix D (2 n  2 n ) of nonnegative numbers Vector of angles alpha Basic range alpha = 0:179 Digital range is better alpha = (0:2^N -1)*180/2^N Extended range alpha = 0:359 Output matrix R of nonnegative numbers Angles alpha generates columns of R R = radon(D,alpha); D = iradon(R,alpha); D = iradon(R,alpha,metint,metfil);

35. Radon Transform - Reconstruction

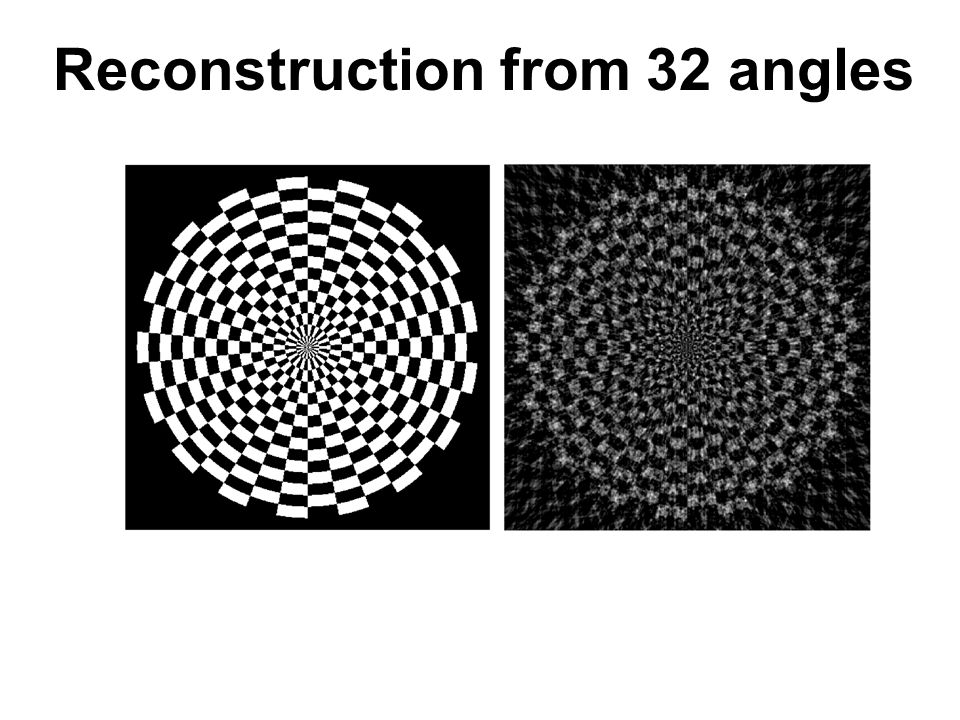

36. Reconstruction from 32 angles

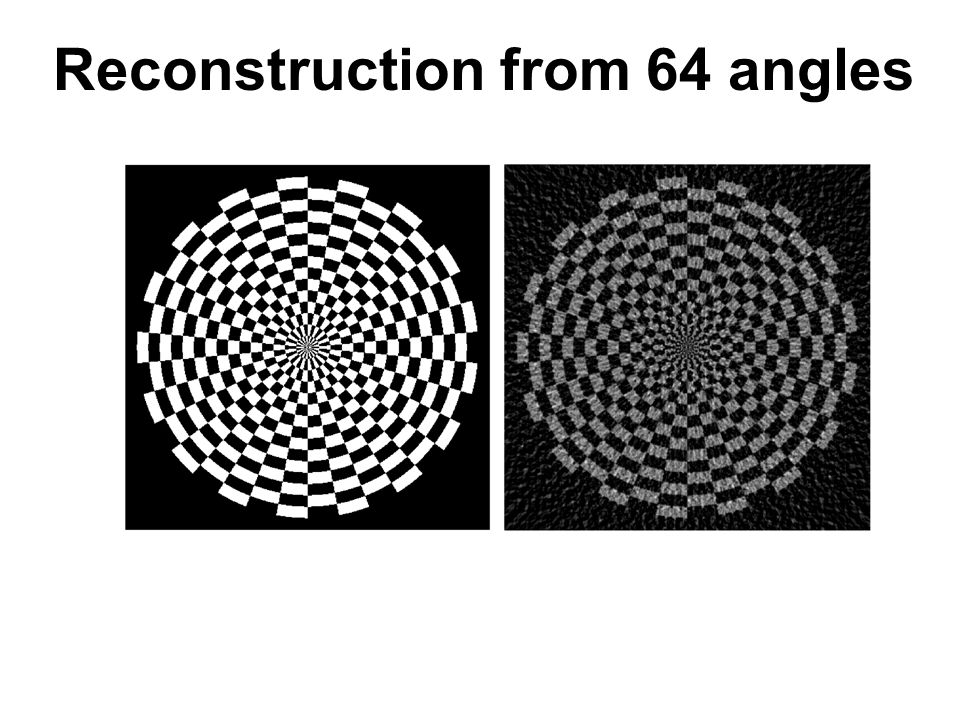

37. Reconstruction from 64 angles

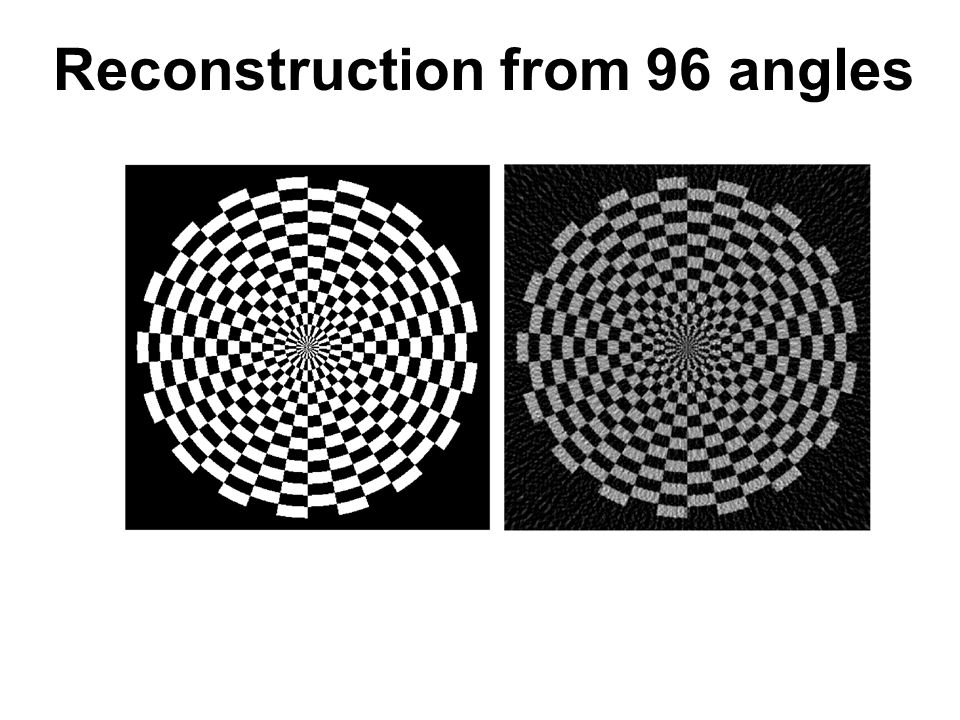

38. Reconstruction from 96 angles

39. Reconstruction from 128 angles

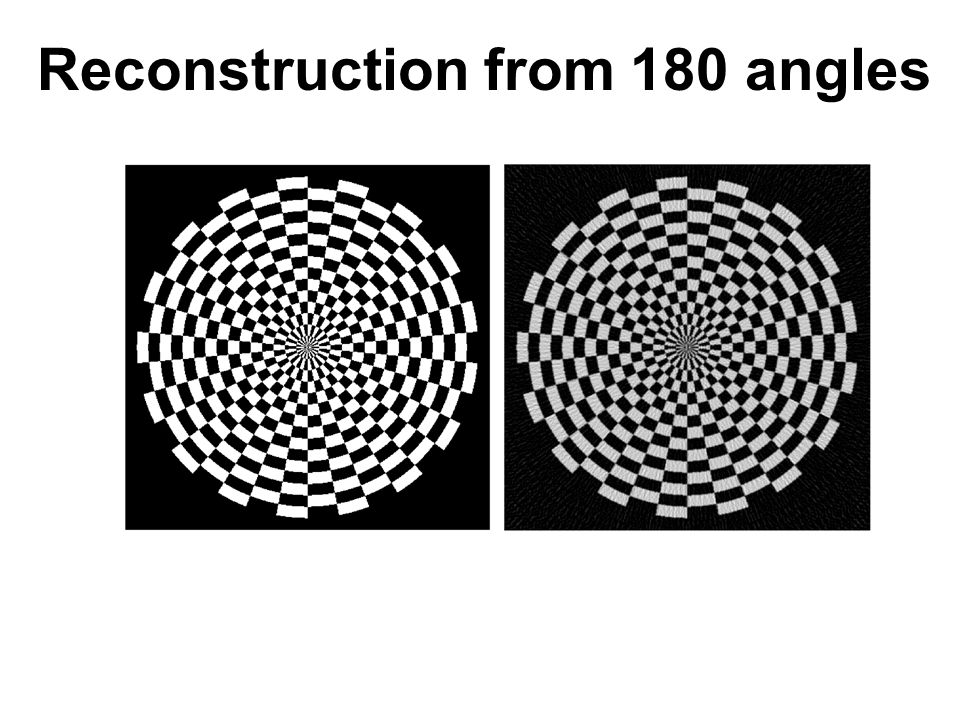

40. Reconstruction from 180 angles

41. Reconstruction from 256 angles

42. Reconstruction from 360 angles

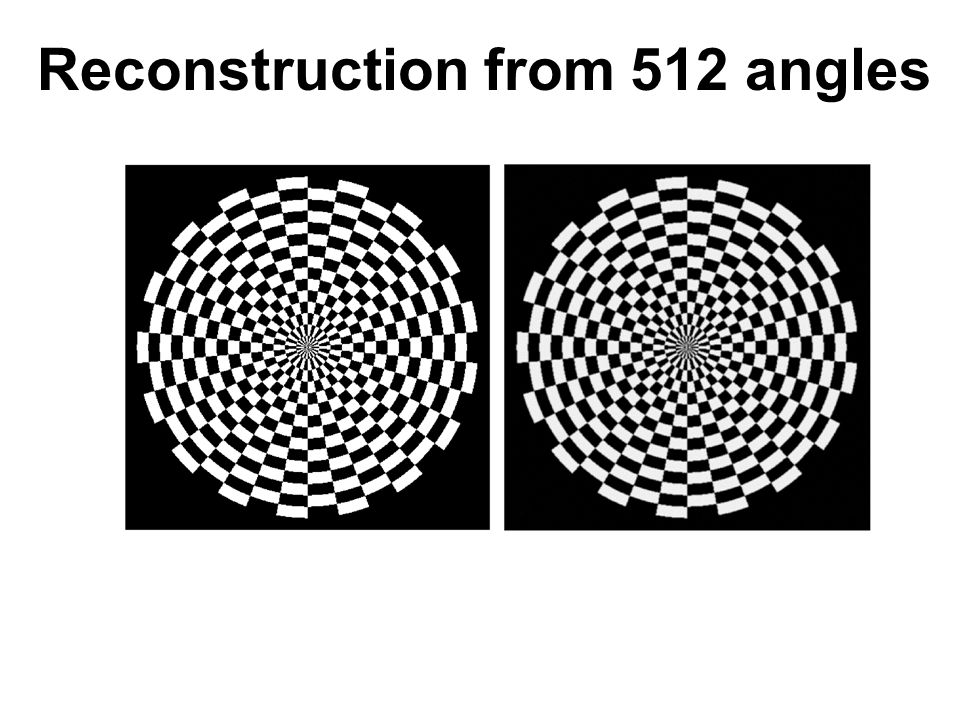

43. Reconstruction from 512 angles

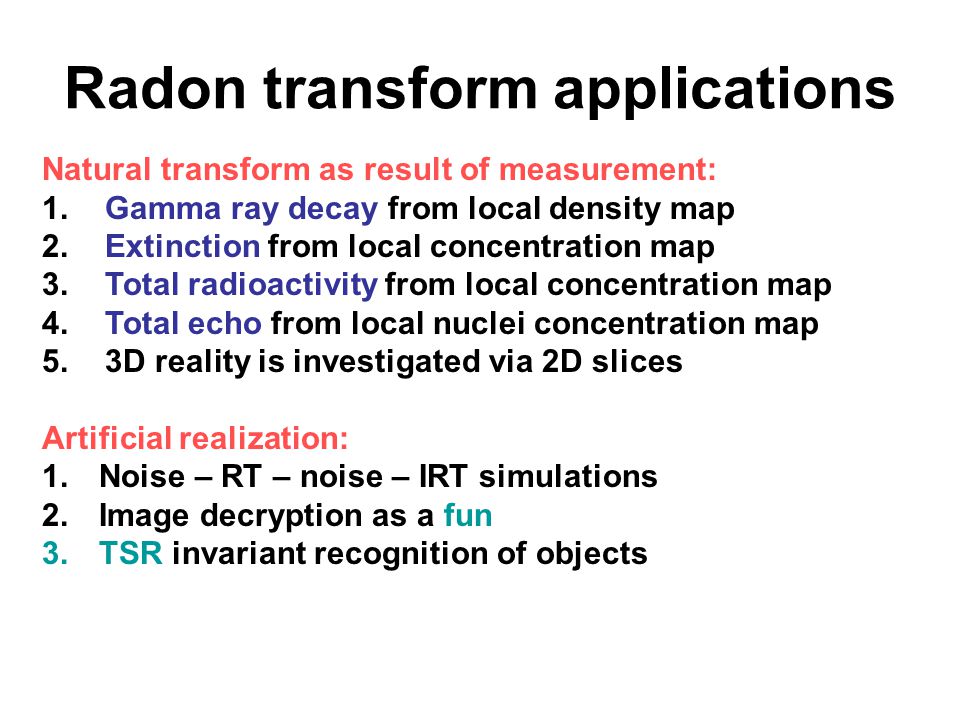

44. Radon transform applications Natural transform as result of measurement: 1. Gamma ray decay from local density map 2. Extinction from local concentration map 3. Total radioactivity from local concentration map 4. Total echo from local nuclei concentration map 5. 3D reality is investigated via 2D slices Artificial realization: 1. Noise – RT – noise – IRT simulations 2. Image decryption as a fun 3. TSR invariant recognition of objects
