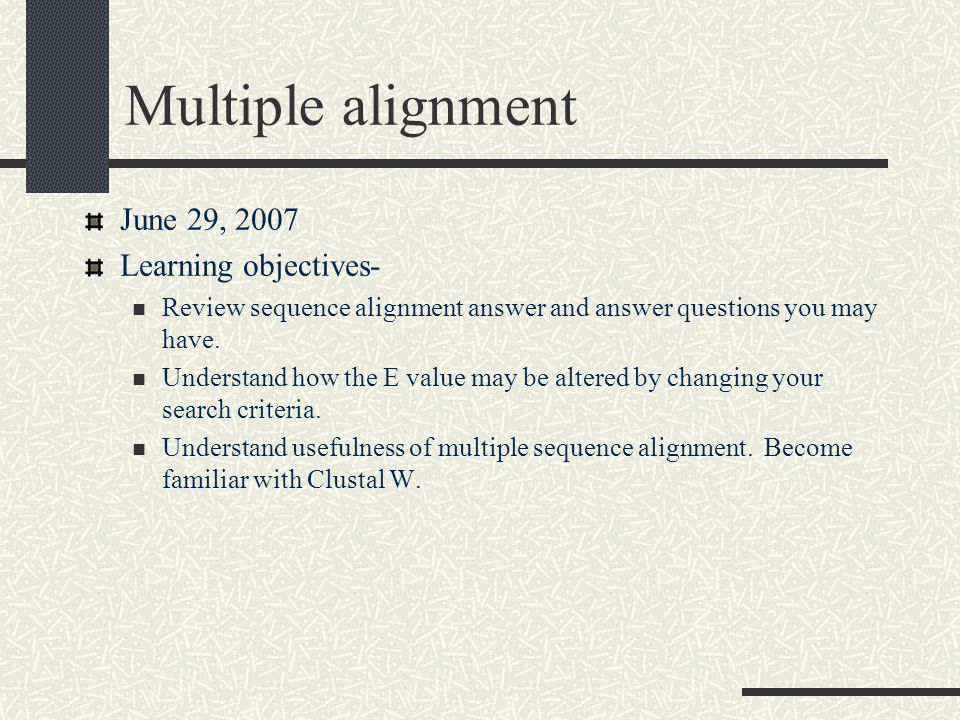

1. Multiple alignment June 29, 2007 Learning objectives- Review sequence alignment answer and answer questions you may have. Understand how the E value may be altered by changing your search criteria. Understand usefulness of multiple sequence alignment. Become familiar with Clustal W.

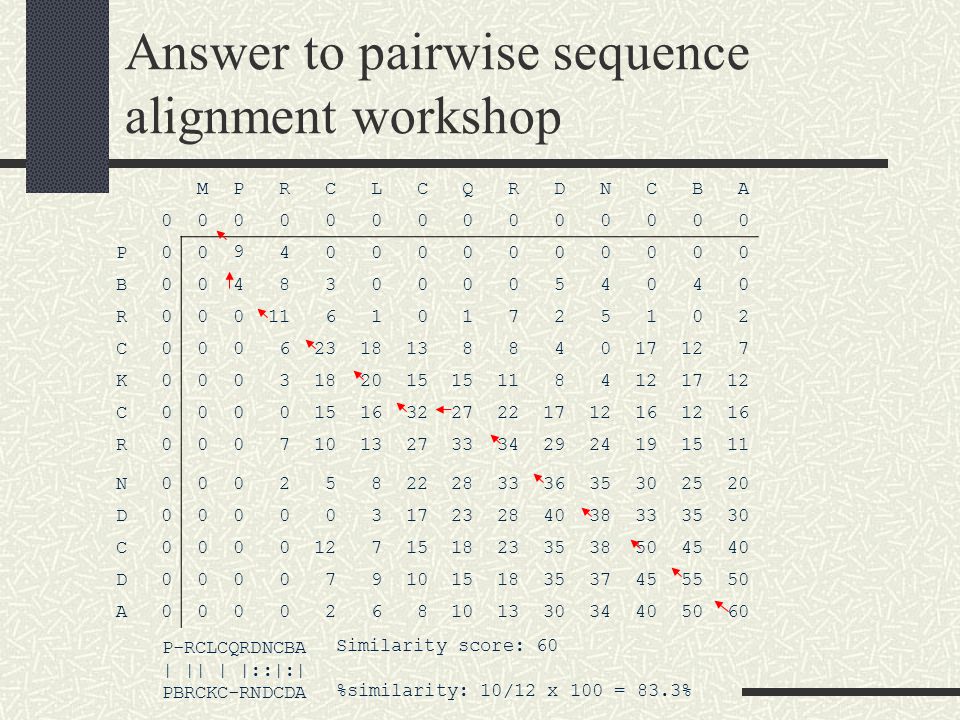

2. MPRCLCQRDNCBA 00000000000000 P00 9 40000000000 B00483000054040 R000116101725102 C0006231813884017127 K0003182015 1184121712 C000015163227221712161216 R000710132733342924191511 N00025 82228333635302520 D0000031723284038333530 C00001271518233538504540 D0000791015183537455550 A000026810133034405060 Answer to pairwise sequence alignment workshop P-RCLCQRDNCBA | || | |::|:| PBRCKC-RNDCDA Similarity score: 60 %similarity: 10/12 x 100 = 83.3%

3. P – R C L C Q R D N C B A | | | | | : : | : | P B R C K C – R N D C D A 9-5 7 12-3 12-5 7 2 2 12 5 5 SUM = 60

4. Multiple Sequence Alignment 1 Collection of three or more protein (or nucleic acid) sequences partially or completely aligned. Aligned residues tend to occupy corresponding positions in the 3-D structure of each aligned protein.

5. Practical use of MSA Places proteins into a group of related proteins (paralogs and orthologs). Identifies conserved domains and motifs Identifies sequencing errors in nucleotide sequences Identifies important regulatory regions in the promoters of genes.

6. Practical uses Create Alignment If possible, edit the alignment to ensure that regions of functional or structural similarity are preserved Phylogenetic Analysis Structural Analysis Find conserved motifs to deduce function Design of PCR primers

7. Clustal W (Thompson et al., 1994) CLUSTAL=Cluster alignment The underlying concept is that groups of sequences are phylogenetically related. If they can be aligned, then one can construct a tree. Step1-pairwise alignments Step2-create a guide tree Step3-progressive alignment

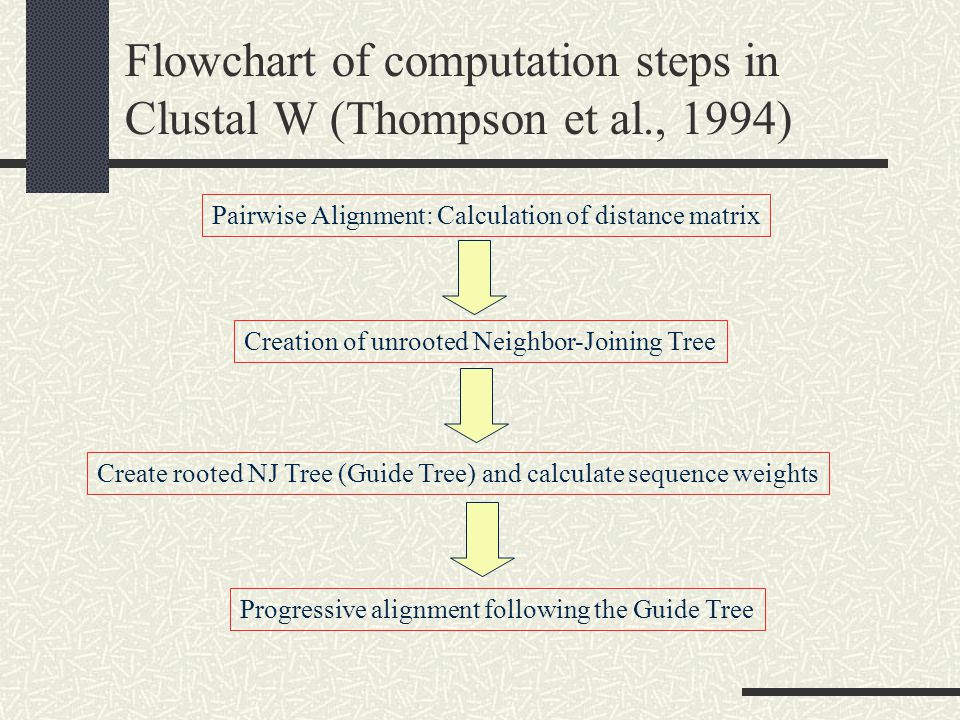

8. Flowchart of computation steps in Clustal W (Thompson et al., 1994) Pairwise Alignment: Calculation of distance matrix Creation of unrooted Neighbor-Joining Tree Create rooted NJ Tree (Guide Tree) and calculate sequence weights Progressive alignment following the Guide Tree

9. Step 1-Pairwise alignments Compare each sequence with each other and pairwise alignment scores SeqA Name Len(aa) SeqB Name Len(aa) Score 1 human 60 2 dog 60 76 1 human 60 3 mouse 59 57 2 dog 60 3 mouse 59 49 Human EYSGSSEKIDLLASDPHEALICKSERVHSKSVESNIEDKIFGKTYRKKASLPNLSHVTEN 480 Dog EYSGSSEKIDLMASDPQDAFICESERVHTKPVGGNIEDKIFGKTYRRKASLPKVSHTTEV 477 Mouse GGFSSSRKTDLVTPDPHHTLMCKSGRDFSKPVEDNISDKIFGKSYQRKGSRPHLNHVTE 476

10. Step 1-Pairwise alignments Compare each sequence with each other and calculate similarity scores. H - D 76 - M 57 49 - H D M The highest similarity score is between sequence H and sequence D Different sequences

11. Step 2-Create Guide Tree Use the similarity scores to create a guide tree to determine the “order” of the sequences to be aligned. H - D 76 - M 57 49 - H D M Different sequences D = -ln(S eff ) S eff = S real(ij) – S rand(ij) S ident(ij) – S rand(ij) x 100 ( human:0.07429, dog:0.15904, mouse:0.34944); S real(ij) describes the similarity score for two aligned sequences i and j. S ident(ij) is the average of the two scores for the two sequences compared to themselves S rand(ij) is the mean alignment score derived from many random shufflings D ranges from 0 to 1

12. Step 2-Create Guide Tree This branch length is proportional to the estimated divergence between the Dog sequence and an “average” sequence common to all three sequences (human:0.07429, dog:0.15904, mouse:0.34944); Guide Tree human:0.07429 dog:0.15904 mouse:0.3494

13. Step 3-Progressive Alignment Align human and dog first. Then add mouse to the previous alignment. In closely aligned sequences, gaps are given lower penalty than penalty for gaps in more diver- gent sequences. General rule: “once a gap always a gap” Why is there a lower penalty for the closely aligned sequences? In closely aligned sequences, those gaps suggest that they are located in areas between functional or structural domains. In more divergent sequences gaps may be located in areas where the sequences that are dissimilar regardless of whether they break up functional or structural domains. Guide Tree human:0.07429 dog:0.15904 mouse:0.3494

14. Other Gap treatment Short stretches of 5 hydrophilic residues often indicate loop or random coil regions (not essential for structure) and therefore gap penalties are lowered if they separate such areas. Alignments of proteins of known structure show that proteins gaps do not occur more frequently than every eight residues. Therefore penalties for gaps increase when required at 8 residues or less for alignment. This gives a lower alignment score in that region. A gap penalty is assigned after each aa according to the frequency that such a gap naturally occurs after that aa to align known homologs.

15. Amino acid weight matrices As we know, there are many scoring matrices that one can use depending on the relatedness of the aligned proteins. In CLUSTAL W, as the alignment proceeds to longer branches the aa scoring matrices are automatically changed to more divergent scoring matrices (lower BLOSUM Scoring Matrices). The length of the branch is used to determine which matrix to use.

16. Example of Sequence Alignment using Clustal W

17. Multiple Alignment Considerations Quality of guide tree. It would be good to have a set of closely related sequences in the alignment to set the pattern for more divergent sequences. If the initial alignments have a problem, the problem is magnified in subsequent steps. CLUSTAL W is best when aligning sequences that are related to each other over their entire lengths. Do not use when there are variable N- and C- terminal regions.
