1. Strongly Correlated Electron Systems: a DMFT Perspective Gabriel Kotliar Physics Department and Center for Materials Theory Rutgers University Northwestern University January 2005

2. Outline Introduction to strongly correlated electrons. Introduction to Dynamical Mean Field Theory (DMFT) The Mott transition problem. Theory and experiments. Current Developments and future directions.

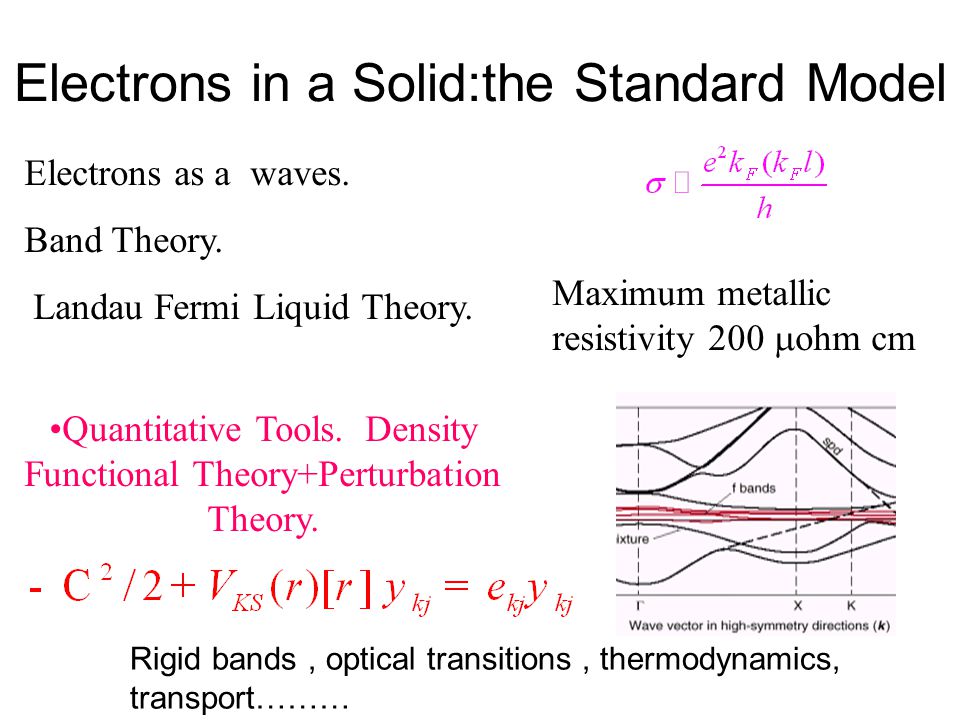

3. Electrons as a waves. Band Theory. Landau Fermi Liquid Theory. Electrons in a Solid:the Standard Model Maximum metallic resistivity 200  ohm cm Quantitative Tools. Density Functional Theory+Perturbation Theory. Rigid bands, optical transitions, thermodynamics, transport………

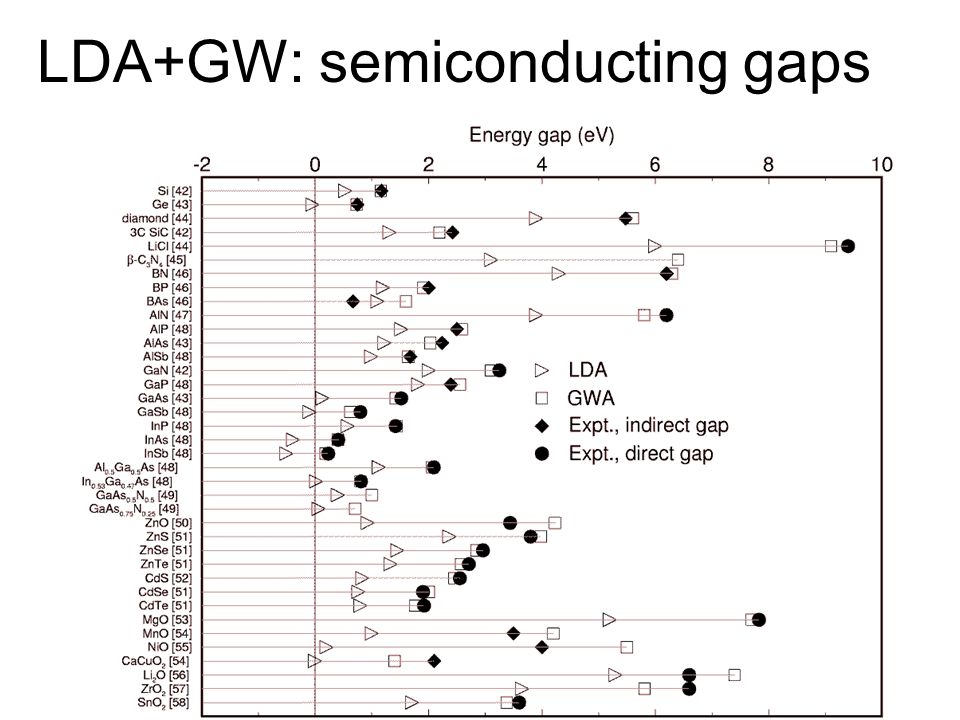

4. LDA+GW: semiconducting gaps

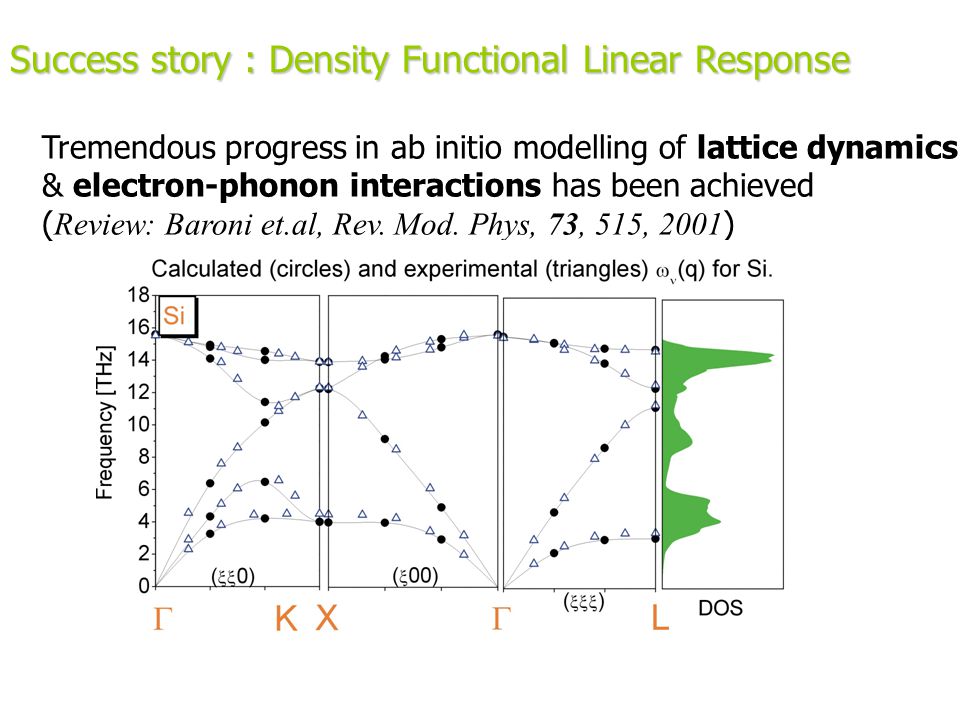

5. Success story : Density Functional Linear Response Tremendous progress in ab initio modelling of lattice dynamics & electron-phonon interactions has been achieved ( Review: Baroni et.al, Rev. Mod. Phys, 73, 515, 2001 )

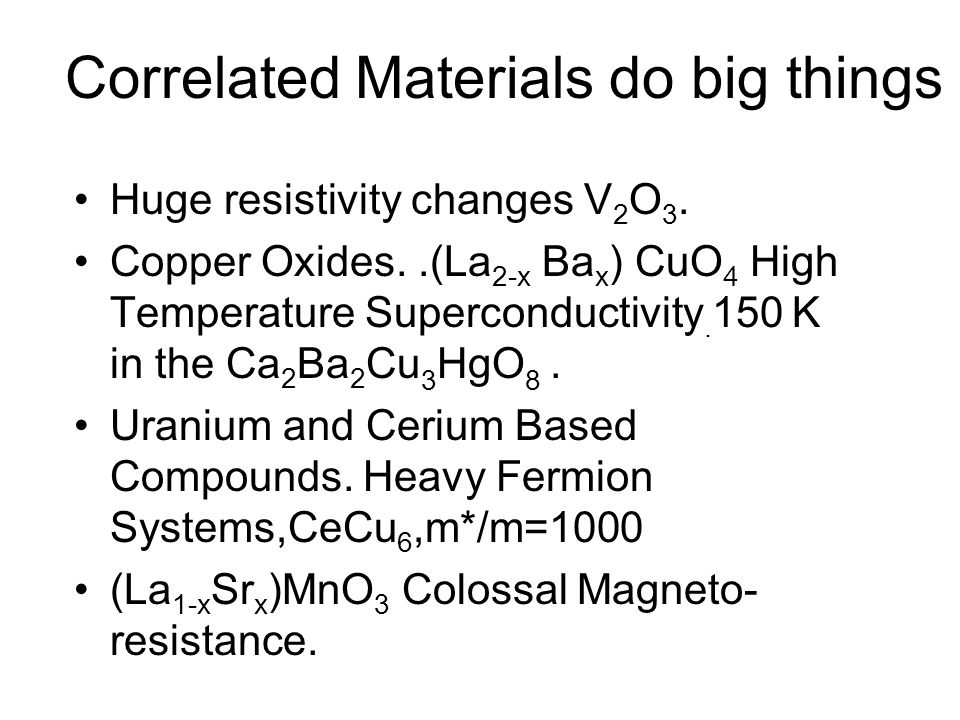

6. Correlated Materials do big things Huge resistivity changes V 2 O 3. Copper Oxides..(La 2-x Ba x ) CuO 4 High Temperature Superconductivity. 150 K in the Ca 2 Ba 2 Cu 3 HgO 8. Uranium and Cerium Based Compounds. Heavy Fermion Systems,CeCu 6,m*/m=1000 (La 1-x Sr x )MnO 3 Colossal Magneto- resistance.

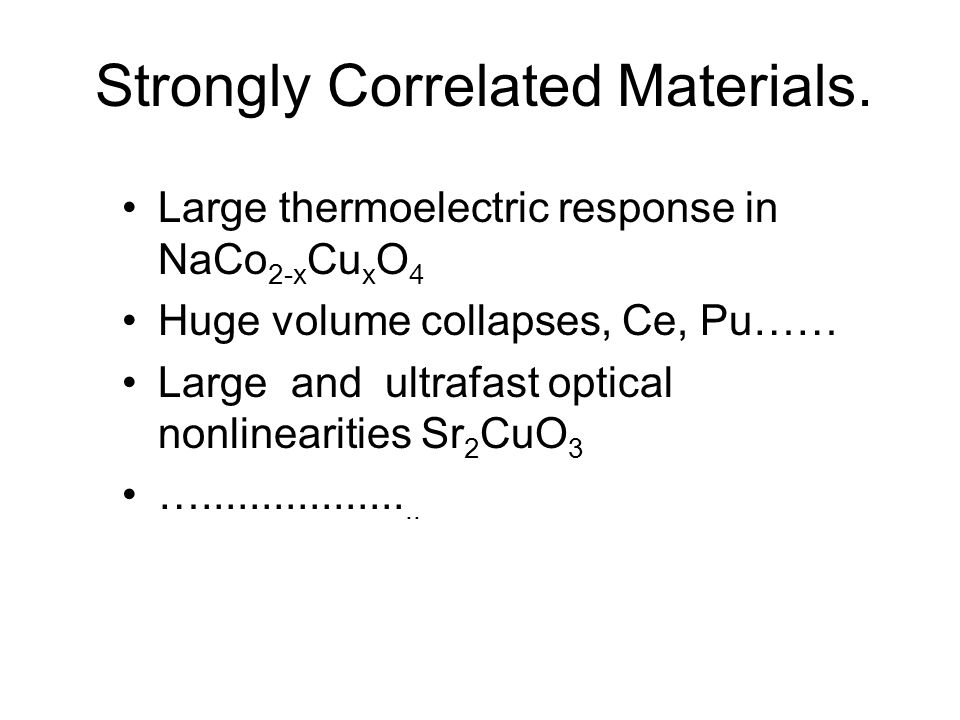

7. Strongly Correlated Materials. Large thermoelectric response in NaCo 2-x Cu x O 4 Huge volume collapses, Ce, Pu…… Large and ultrafast optical nonlinearities Sr 2 CuO 3 …...................

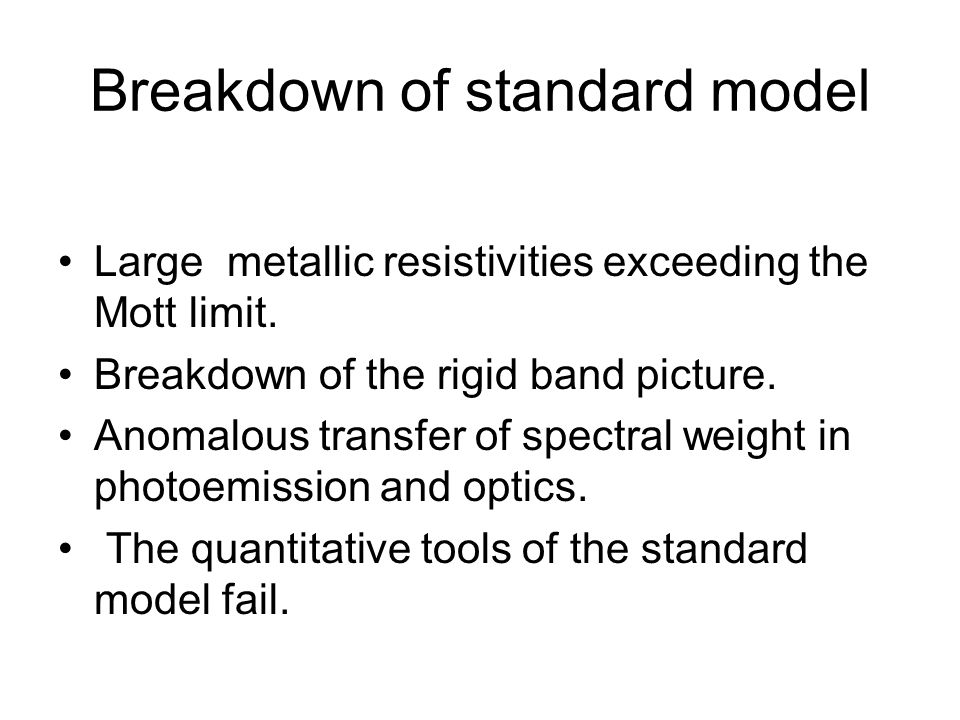

8. Breakdown of standard model Large metallic resistivities exceeding the Mott limit. Breakdown of the rigid band picture. Anomalous transfer of spectral weight in photoemission and optics. The quantitative tools of the standard model fail.

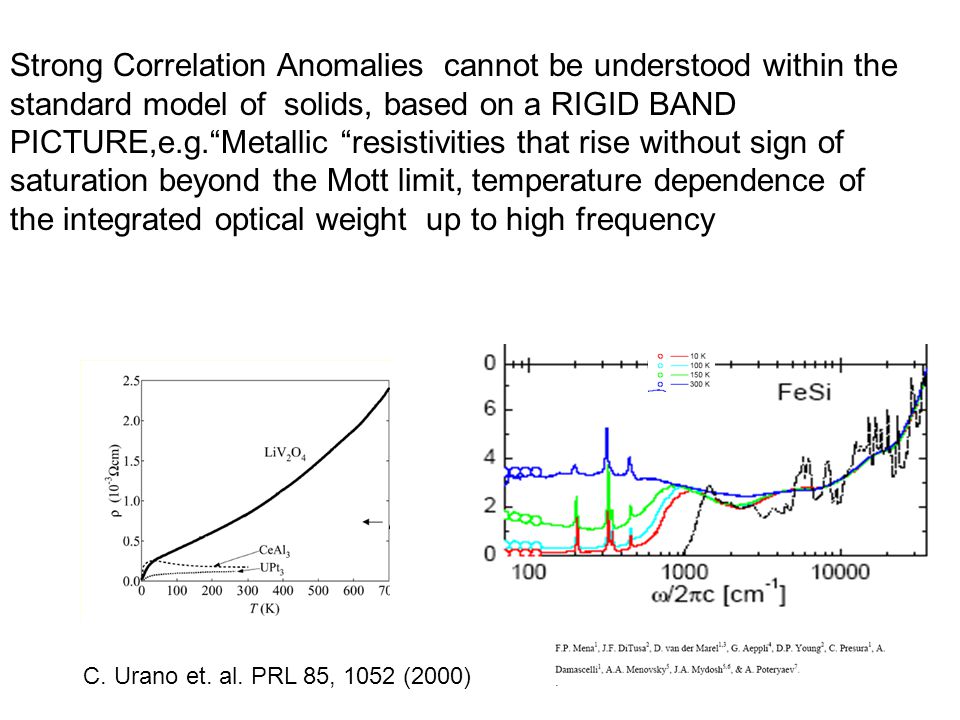

9. C. Urano et. al. PRL 85, 1052 (2000) Strong Correlation Anomalies cannot be understood within the standard model of solids, based on a RIGID BAND PICTURE,e.g.“Metallic “resistivities that rise without sign of saturation beyond the Mott limit, temperature dependence of the integrated optical weight up to high frequency

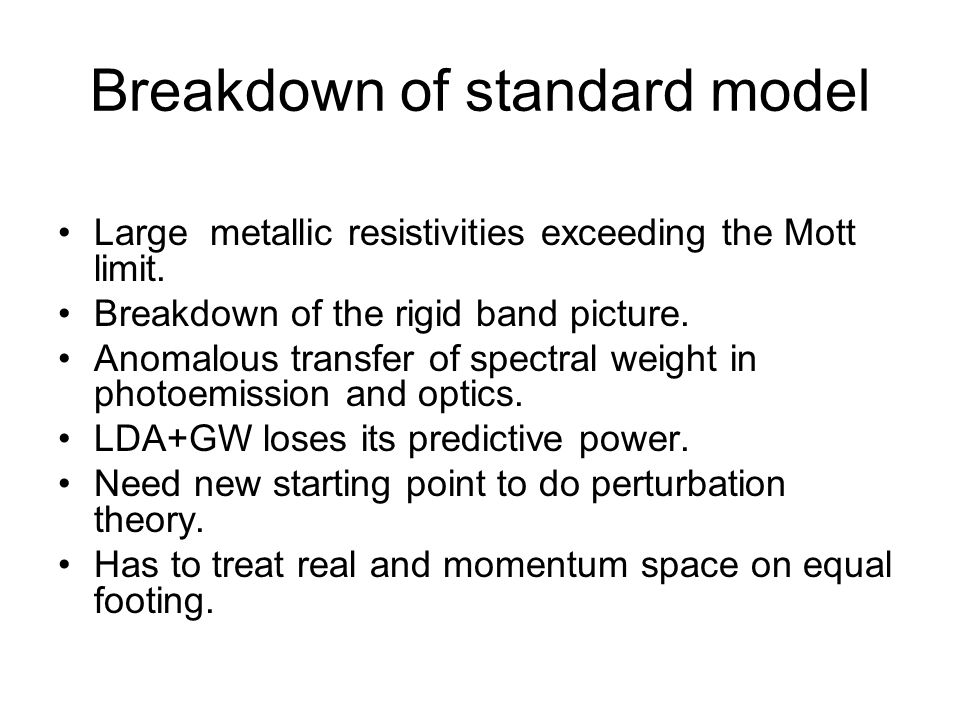

10. Breakdown of standard model Large metallic resistivities exceeding the Mott limit. Breakdown of the rigid band picture. Anomalous transfer of spectral weight in photoemission and optics. LDA+GW loses its predictive power. Need new starting point to do perturbation theory. Has to treat real and momentum space on equal footing.

11. Localization vs Delocalization Strong Correlation Problem Many interesting compounds do not fit within the “Sandard Model”. Tend to have elements with partially filled d and f shells. Need to incorporate a real space perspective, atomic physics (Mott). Interesting compounds are not close to either the localized or itinerant limit. Excitations are different in both limits. Non perturbative problem. DMFT, Simplest approach to electronic structure, which interpolates correctly between atoms and bands.

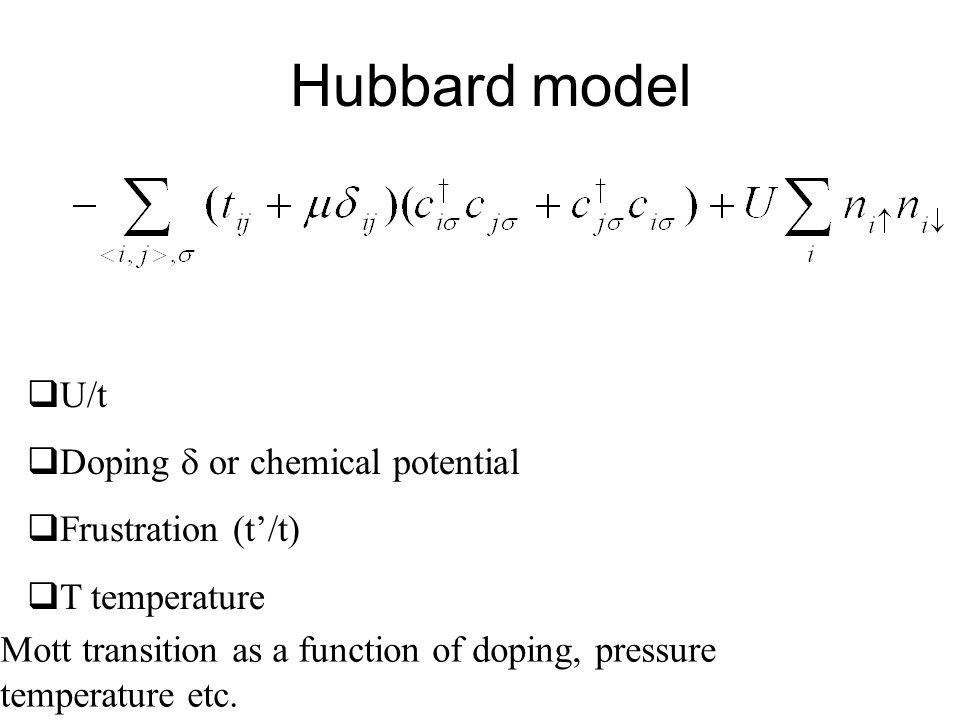

12. Hubbard model  U/t  Doping  or chemical potential  Frustration (t’/t)  T temperature Mott transition as a function of doping, pressure temperature etc.

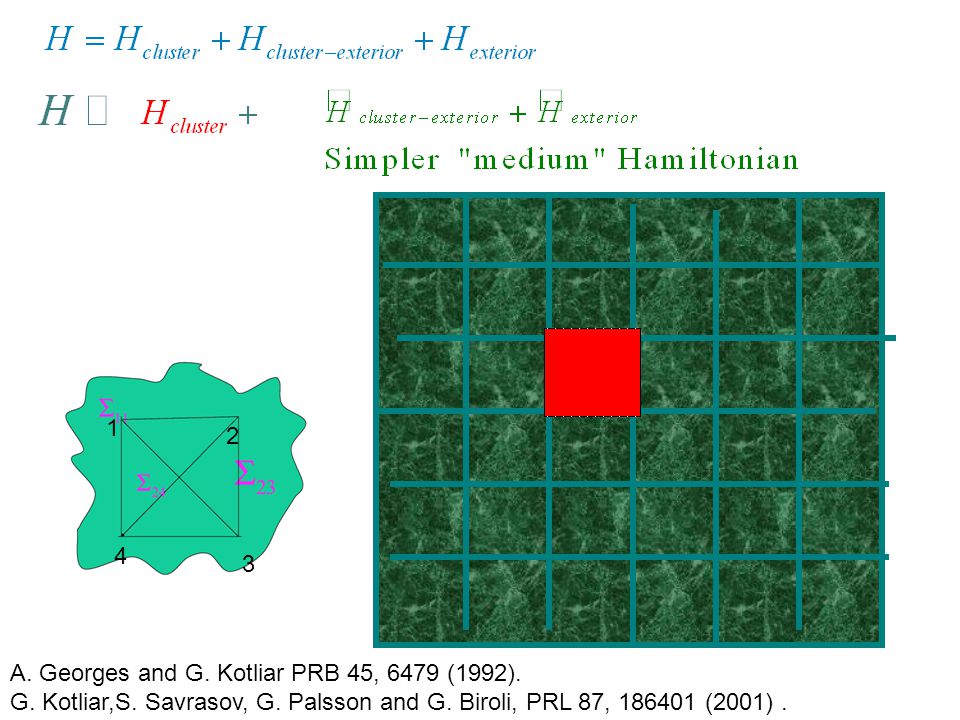

13. 2 4 3 1 A. Georges and G. Kotliar PRB 45, 6479 (1992). G. Kotliar,S. Savrasov, G. Palsson and G. Biroli, PRL 87, 186401 (2001).

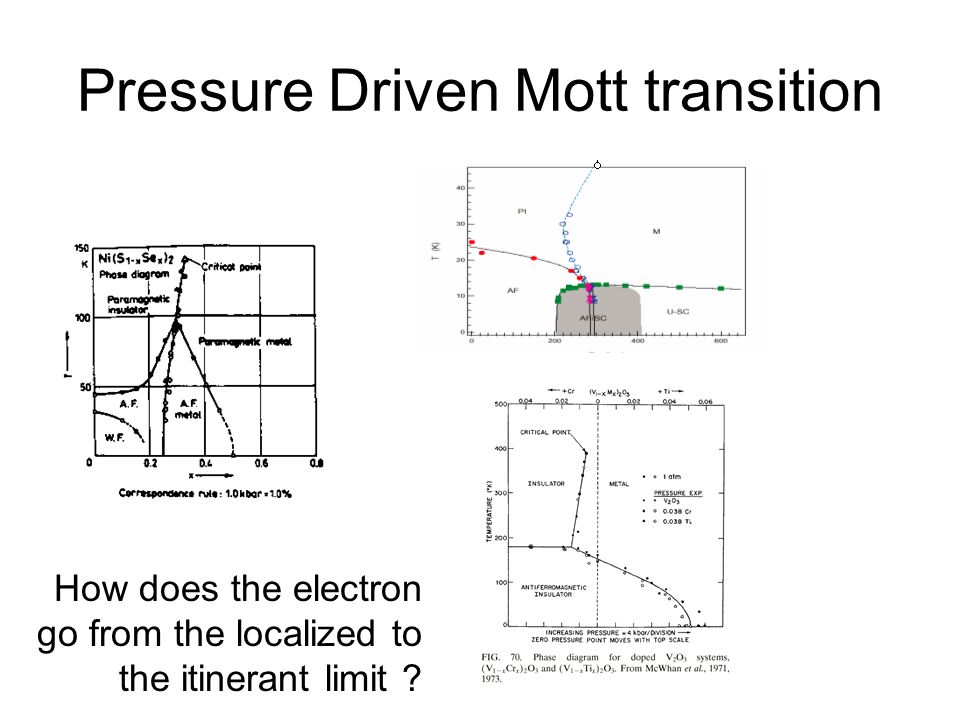

14. Pressure Driven Mott transition How does the electron go from the localized to the itinerant limit ?

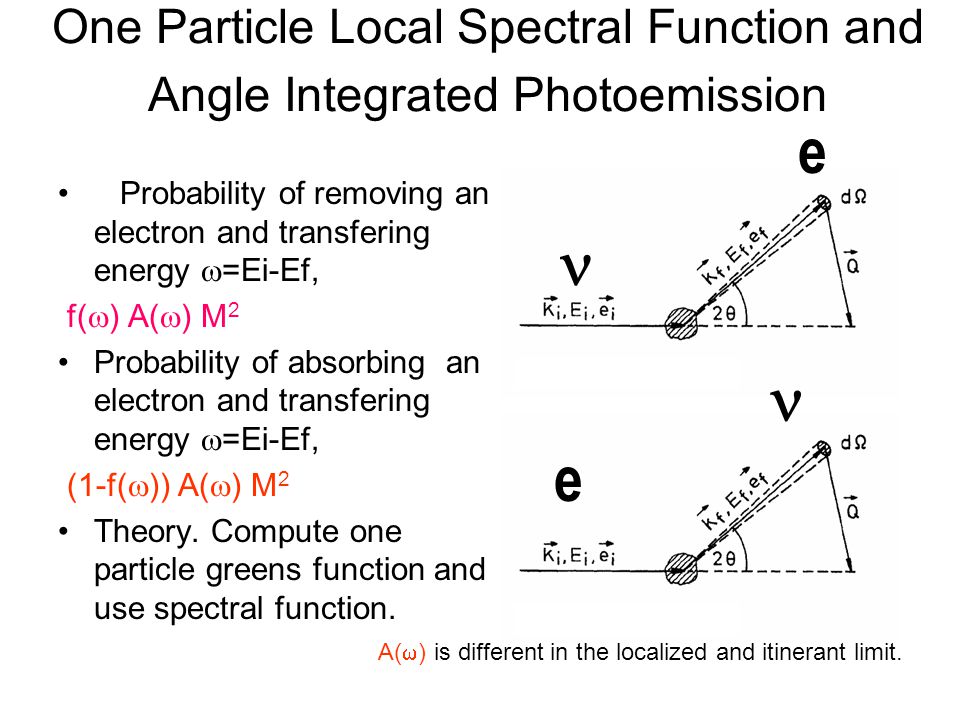

15. One Particle Local Spectral Function and Angle Integrated Photoemission Probability of removing an electron and transfering energy  =Ei-Ef, f(  ) A(  ) M 2 Probability of absorbing an electron and transfering energy  =Ei-Ef, (1-f(  )) A(  ) M 2 Theory. Compute one particle greens function and use spectral function. e e A(  ) is different in the localized and itinerant limit.

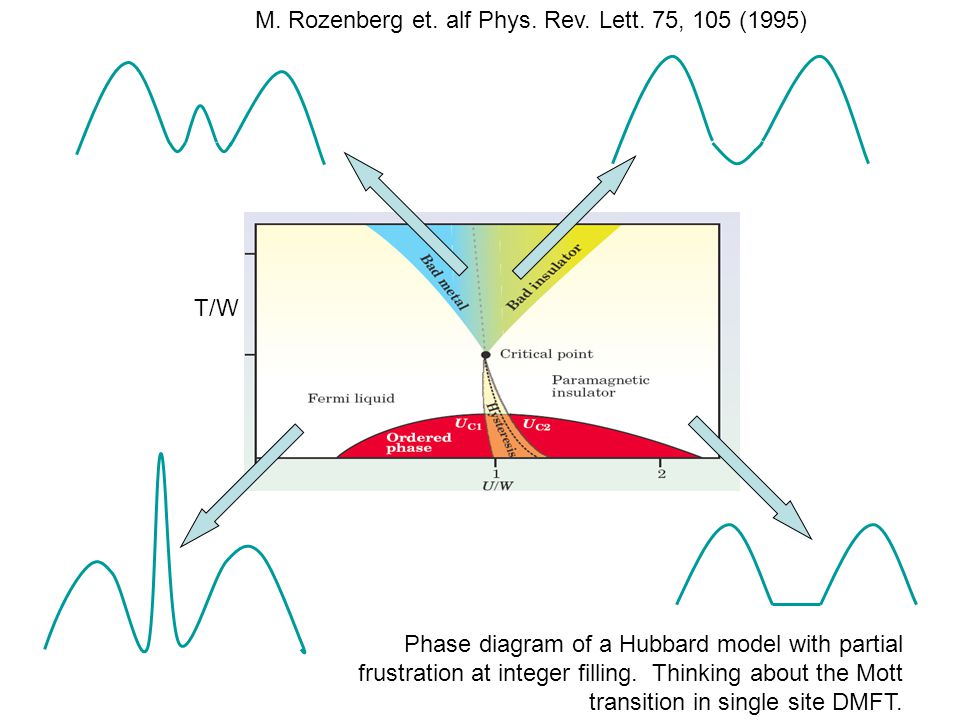

16. T/W Phase diagram of a Hubbard model with partial frustration at integer filling. Thinking about the Mott transition in single site DMFT. M. Rozenberg et. alf Phys. Rev. Lett. 75, 105 (1995)

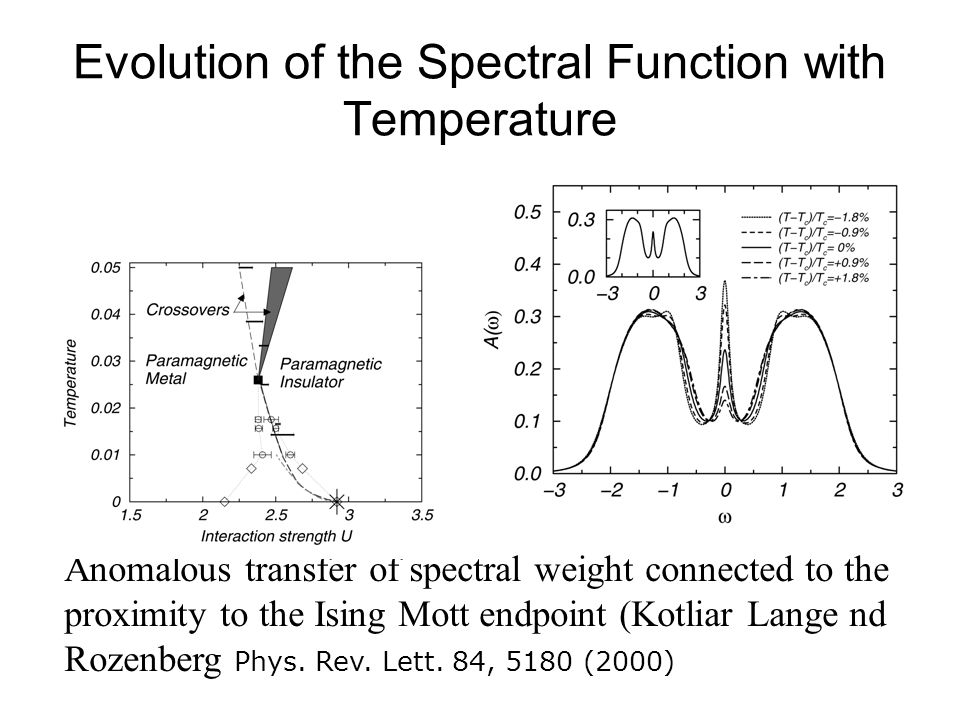

17. Evolution of the Spectral Function with Temperature Anomalous transfer of spectral weight connected to the proximity to the Ising Mott endpoint (Kotliar Lange nd Rozenberg Phys. Rev. Lett. 84, 5180 (2000)

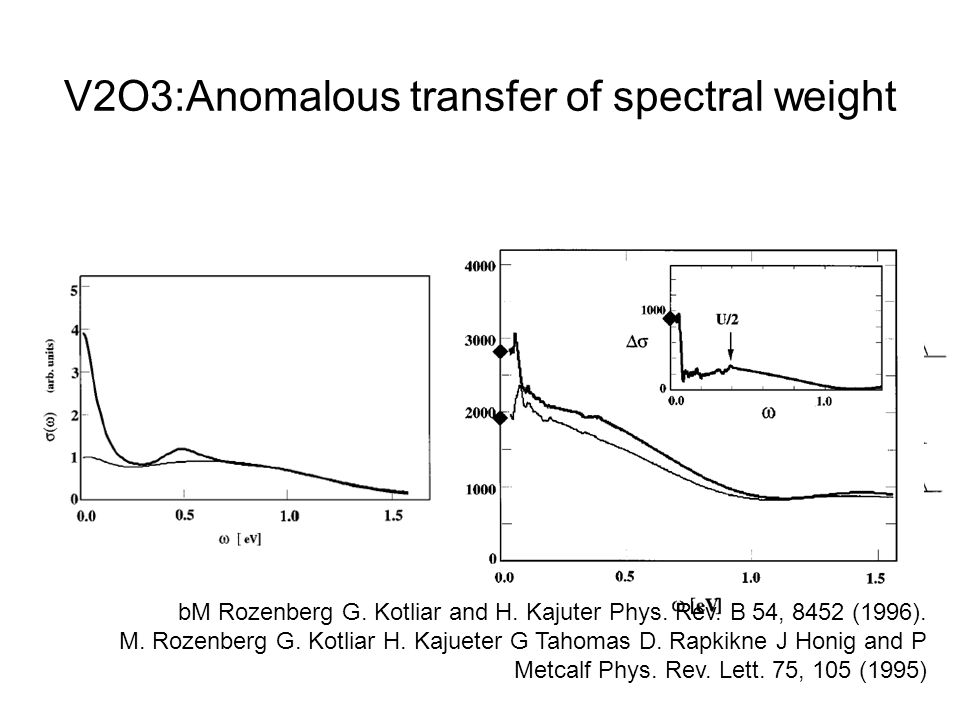

18. V2O3:Anomalous transfer of spectral weight bM Rozenberg G. Kotliar and H. Kajuter Phys. Rev. B 54, 8452 (1996). M. Rozenberg G. Kotliar H. Kajueter G Tahomas D. Rapkikne J Honig and P Metcalf Phys. Rev. Lett. 75, 105 (1995)

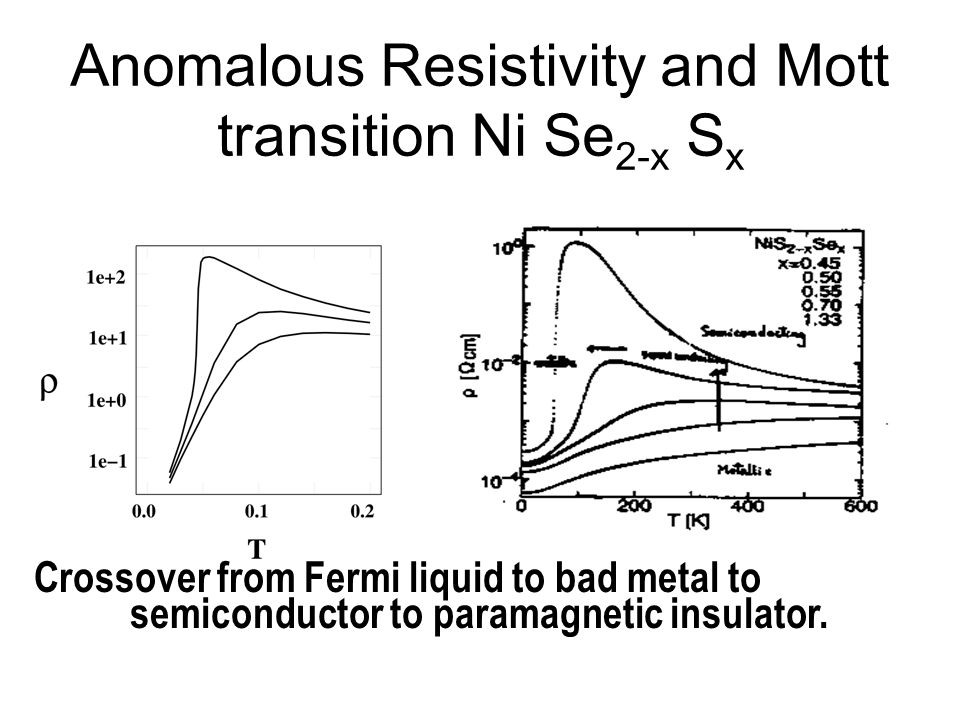

19. Anomalous Resistivity and Mott transition Ni Se 2-x S x Crossover from Fermi liquid to bad metal to semiconductor to paramagnetic insulator.

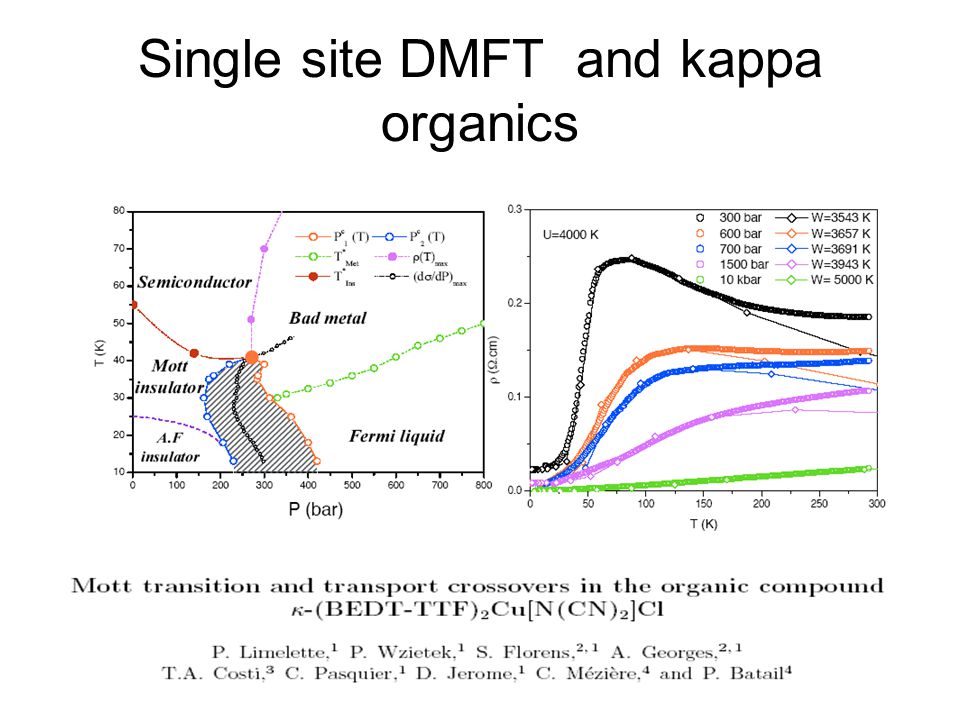

20. Single site DMFT and kappa organics

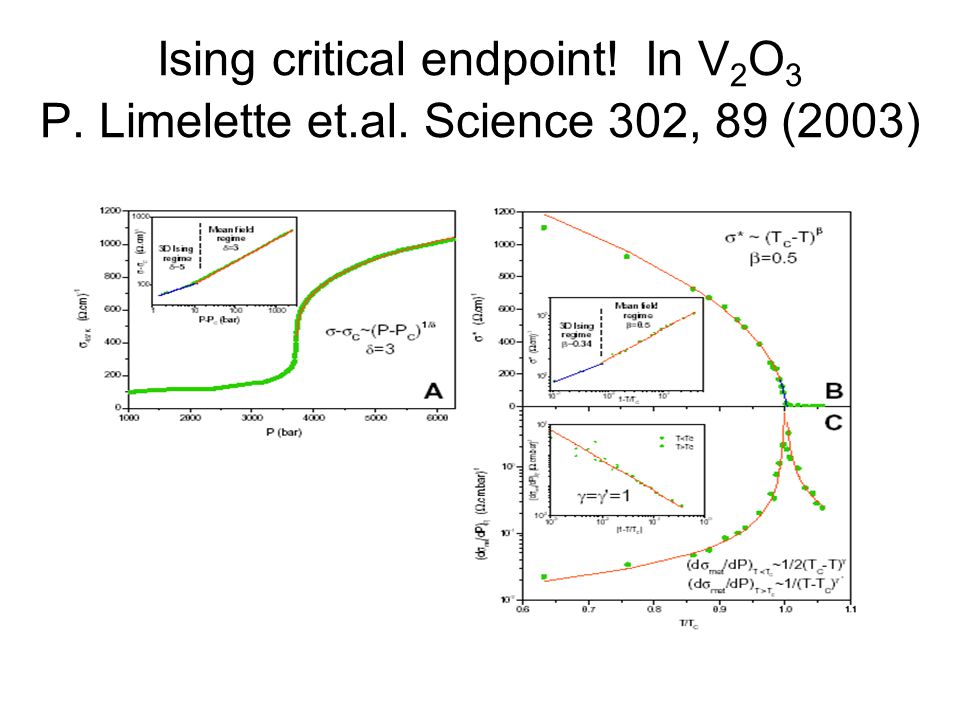

21. Ising critical endpoint! In V 2 O 3 P. Limelette et.al. Science 302, 89 (2003)

22. . ARPES measurements on NiS 2-x Se x Matsuura et. Al Phys. Rev B 58 (1998) 3690. Doniaach and Watanabe Phys. Rev. B 57, 3829 (1998) Mo et al., Phys. Rev.Lett. 90, 186403 (2003).

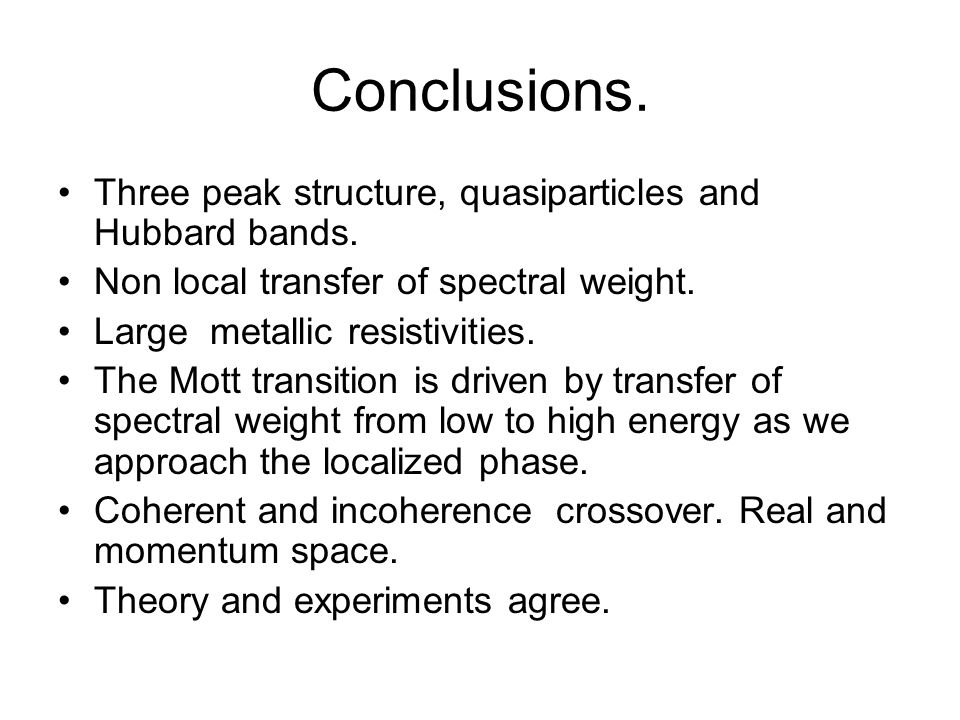

23. Conclusions. Three peak structure, quasiparticles and Hubbard bands. Non local transfer of spectral weight. Large metallic resistivities. The Mott transition is driven by transfer of spectral weight from low to high energy as we approach the localized phase. Coherent and incoherence crossover. Real and momentum space. Theory and experiments agree.

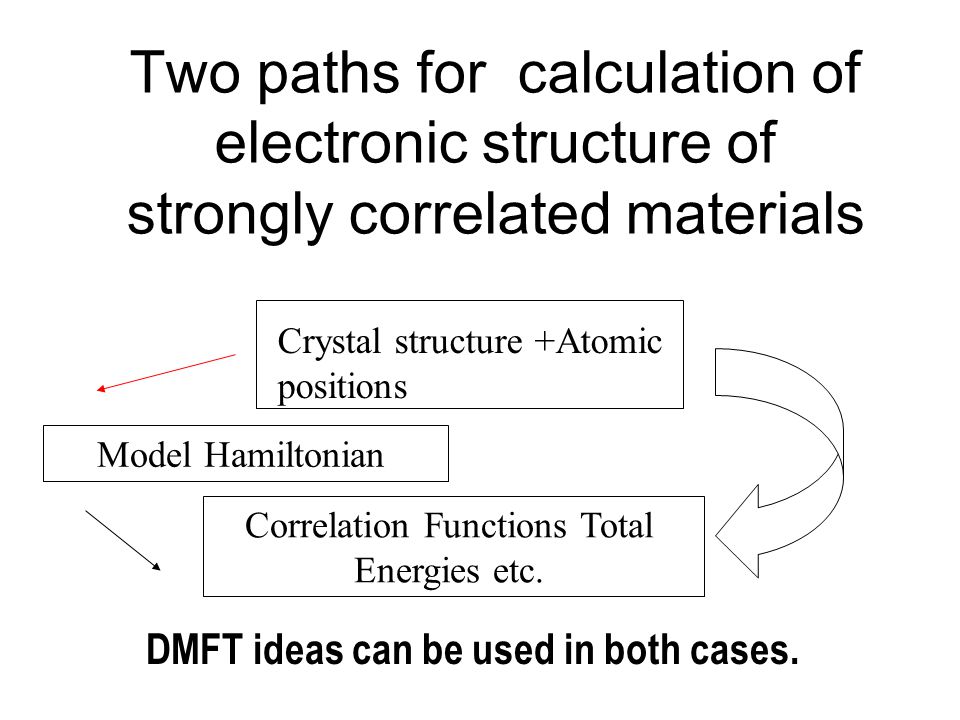

24. Two paths for calculation of electronic structure of strongly correlated materials Correlation Functions Total Energies etc. Model Hamiltonian Crystal structure +Atomic positions DMFT ideas can be used in both cases.

25. DMFT:Realistic Implementations Focus on the “local “ spectral function A(  ) (and of the local screened Coulomb interaction W(  ) ) of the solid. Write a functional of the local spectral function such that its stationary point, give the energy of the solid. No explicit expression for the exact functional exists, but good approximations are available. LDA+DMFT. The spectral function is computed by solving a local impurity model in a medium.Which is a new reference system to think about correlated electrons.

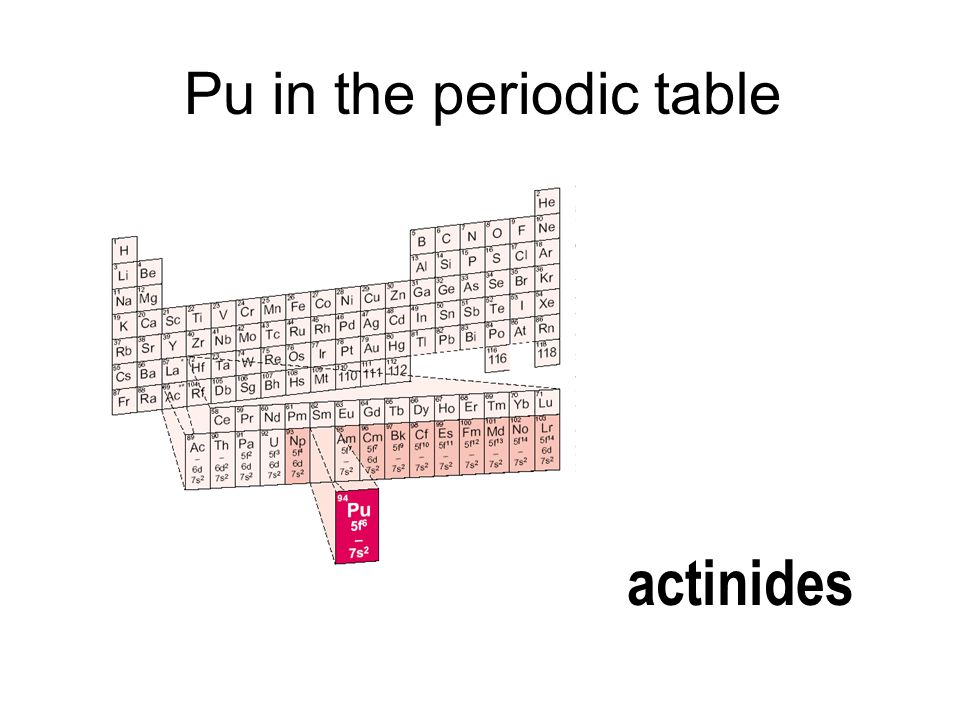

26. Pu in the periodic table actinides

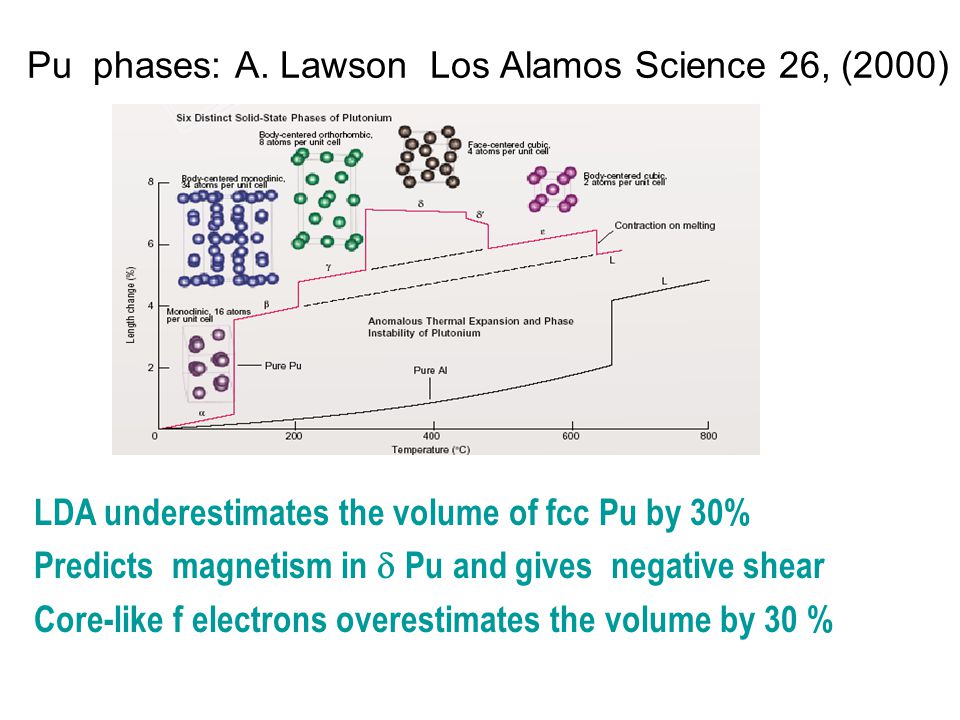

27. Pu phases: A. Lawson Los Alamos Science 26, (2000) LDA underestimates the volume of fcc Pu by 30% Predicts magnetism in  Pu and gives negative shear Core-like f electrons overestimates the volume by 30 %

28. Small amounts of Ga stabilize the  phase (A. Lawson LANL)

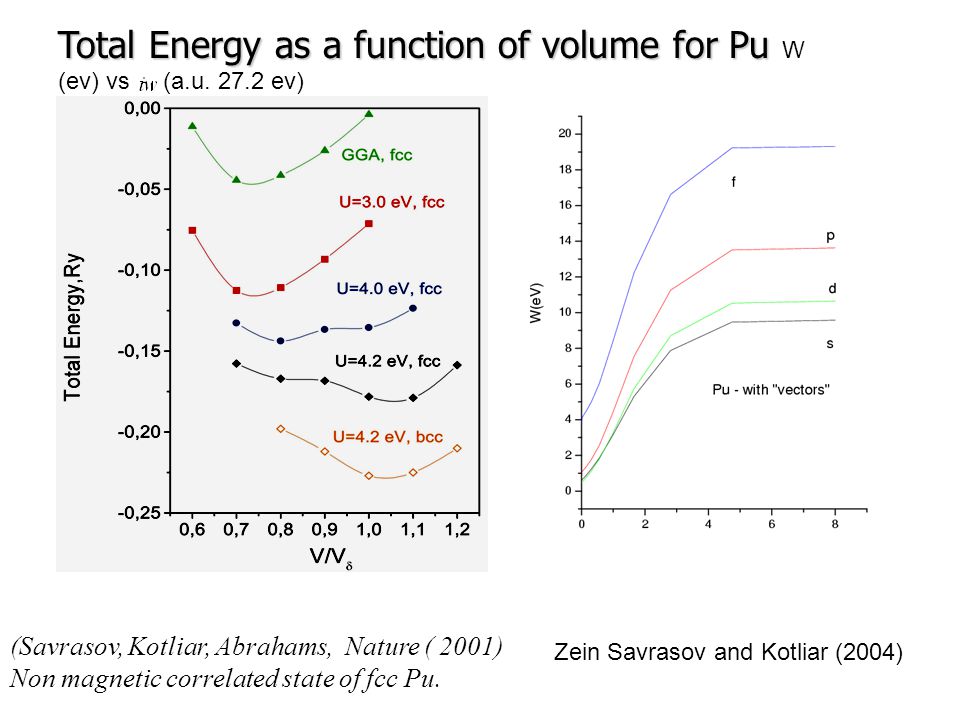

29. Total Energy as a function of volume for Pu Total Energy as a function of volume for Pu W (ev) vs (a.u. 27.2 ev) (Savrasov, Kotliar, Abrahams, Nature ( 2001) Non magnetic correlated state of fcc Pu. Zein Savrasov and Kotliar (2004)

30. Alpha and delta Pu

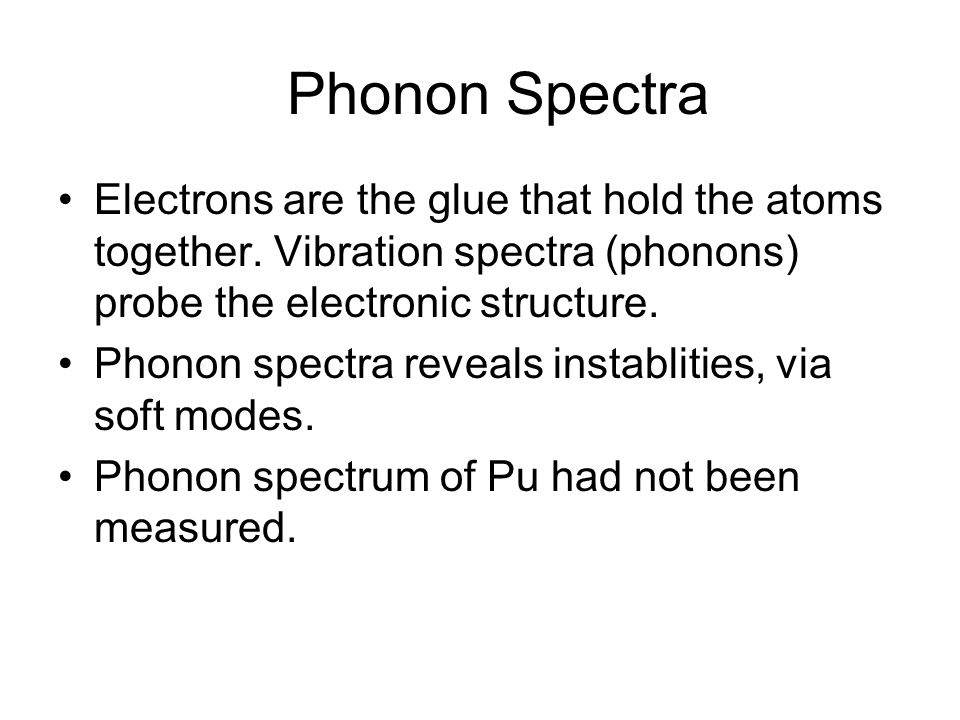

31. Phonon Spectra Electrons are the glue that hold the atoms together. Vibration spectra (phonons) probe the electronic structure. Phonon spectra reveals instablities, via soft modes. Phonon spectrum of Pu had not been measured.

32. Phonon freq (THz) vs q in delta Pu X. Dai et. al. Science vol 300, 953, 2003

33. Inelastic X Ray. Phonon energy 10 mev, photon energy 10 Kev. E = E i - E f Q = k i - k f

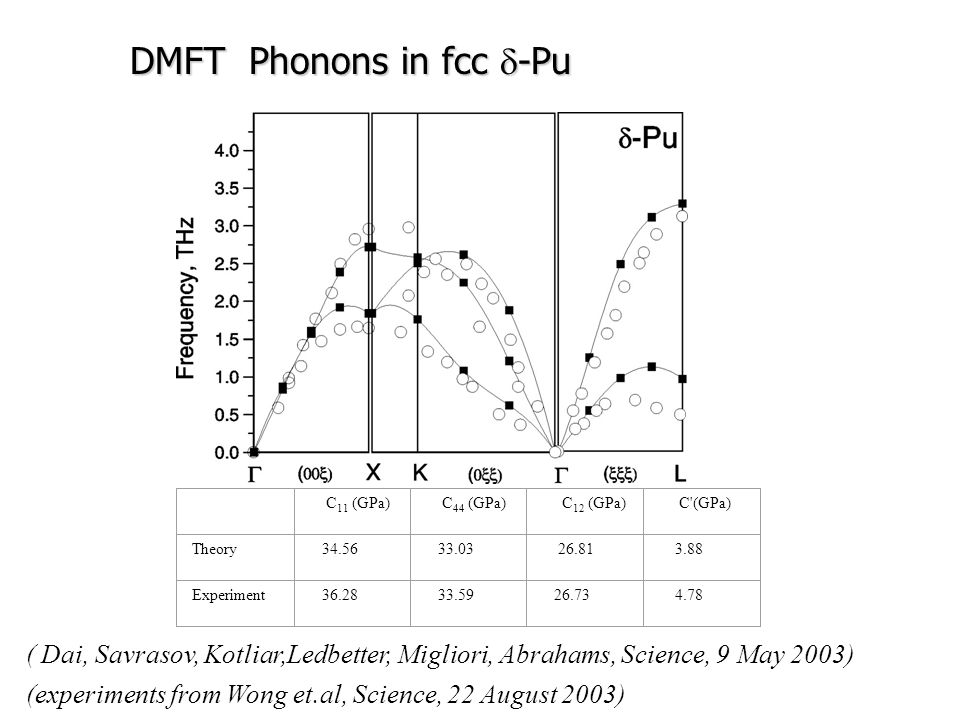

34. DMFT Phonons in fcc  -Pu C 11 (GPa) C 44 (GPa) C 12 (GPa) C'(GPa) Theory 34.56 33.03 26.81 3.88 Experiment 36.28 33.59 26.73 4.78 ( Dai, Savrasov, Kotliar,Ledbetter, Migliori, Abrahams, Science, 9 May 2003) (experiments from Wong et.al, Science, 22 August 2003)

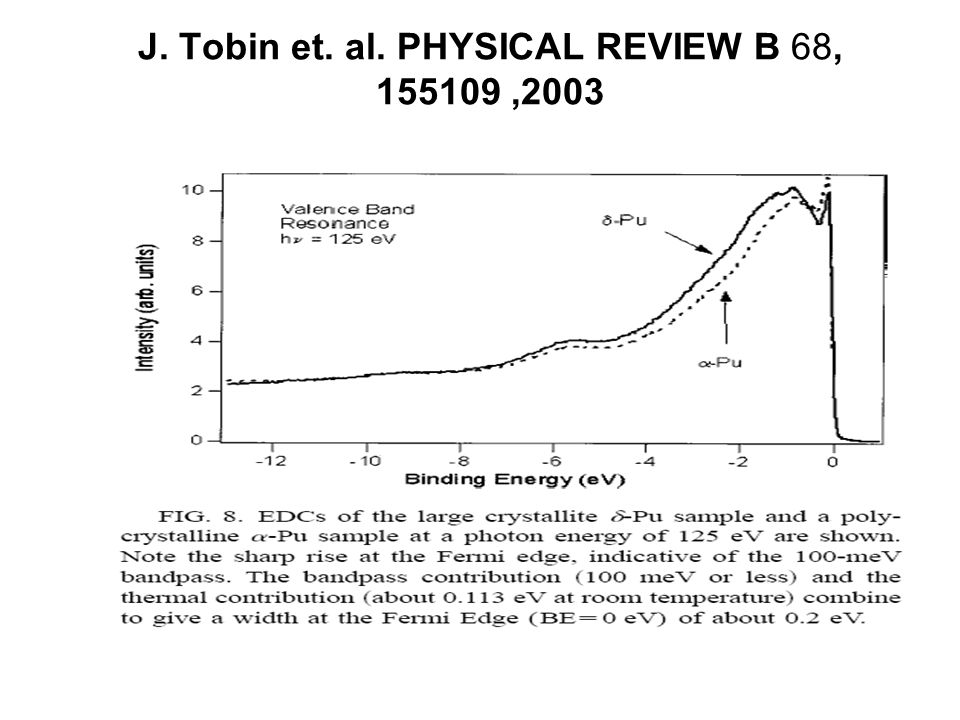

35. J. Tobin et. al. PHYSICAL REVIEW B 68, 155109,2003

36. Pu strongly correlated element, at the brink of a Mott instability. Realistic implementations of DMFT : total energy, photoemission spectra and phonon dispersions of delta Pu. Clues to understanding other Pu anomalies.

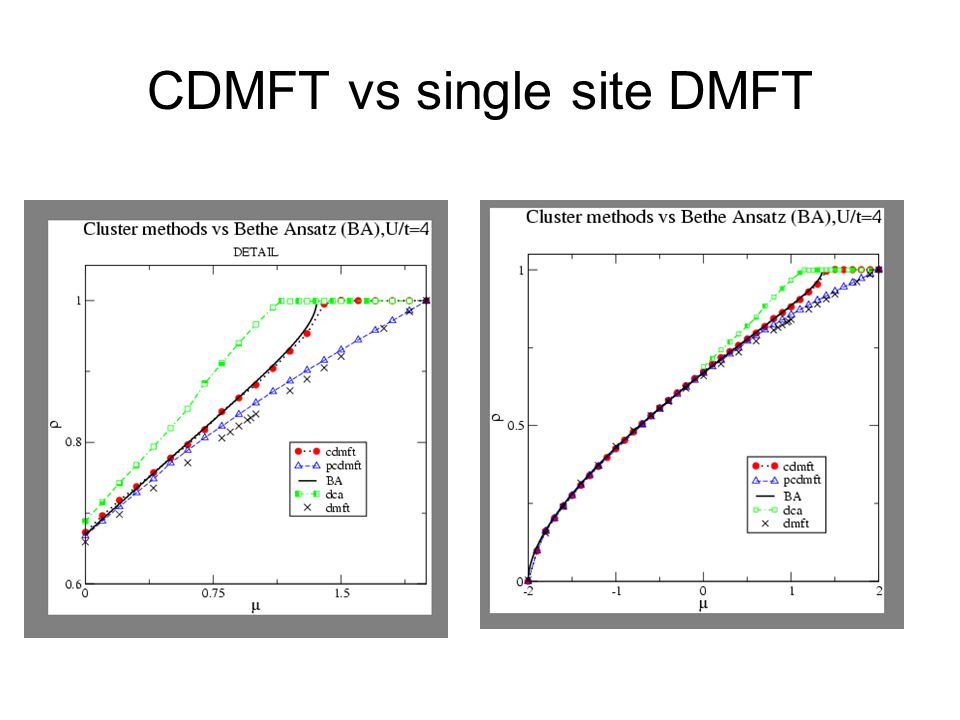

38. CDMFT vs single site DMFT

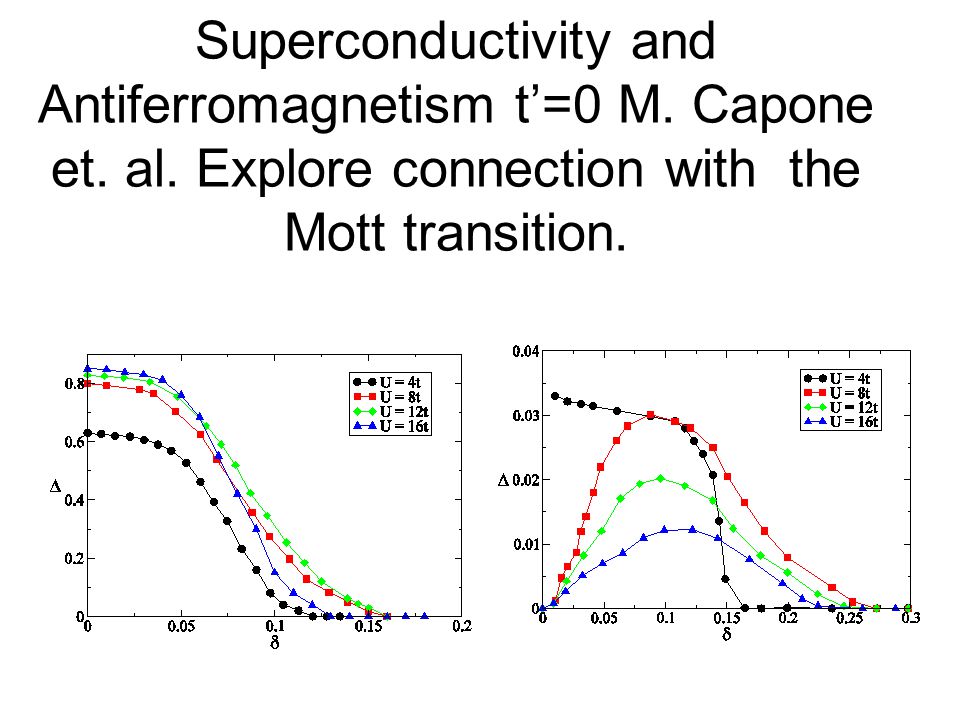

39. Superconductivity and Antiferromagnetism t’=0 M. Capone et. al. Explore connection with the Mott transition.

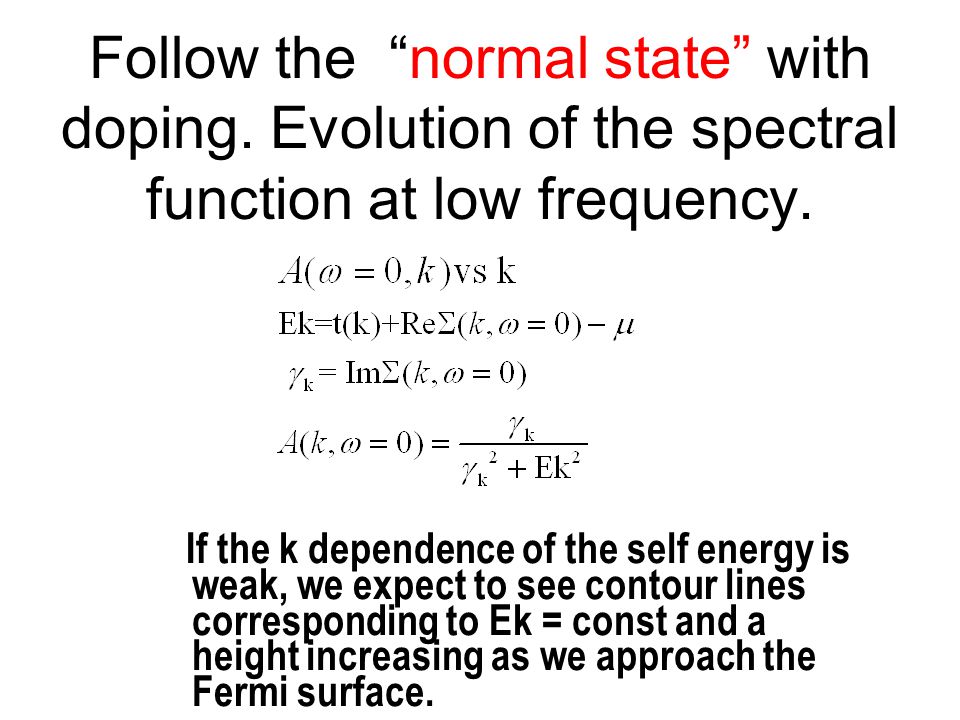

40. Follow the “normal state” with doping. Evolution of the spectral function at low frequency. If the k dependence of the self energy is weak, we expect to see contour lines corresponding to Ek = const and a height increasing as we approach the Fermi surface.

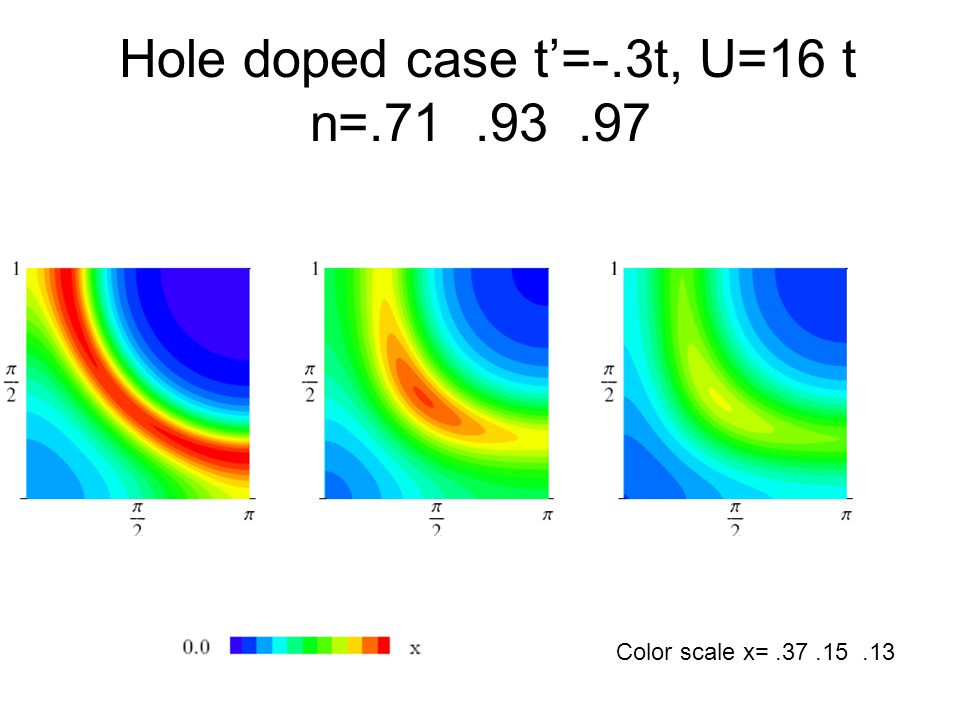

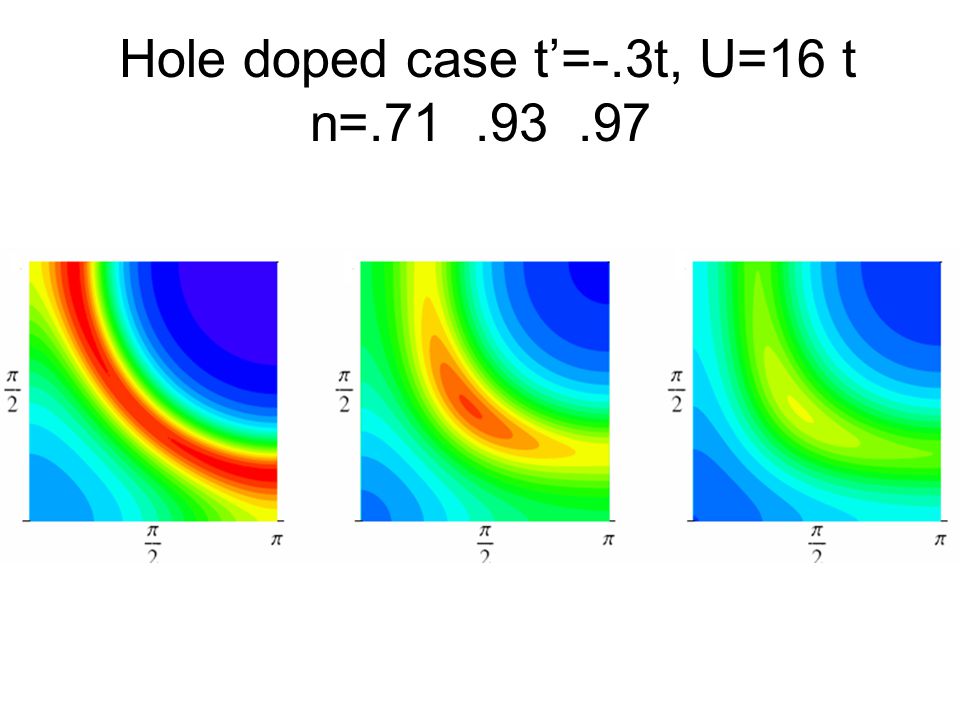

41. Hole doped case t’=-.3t, U=16 t n=.71.93.97

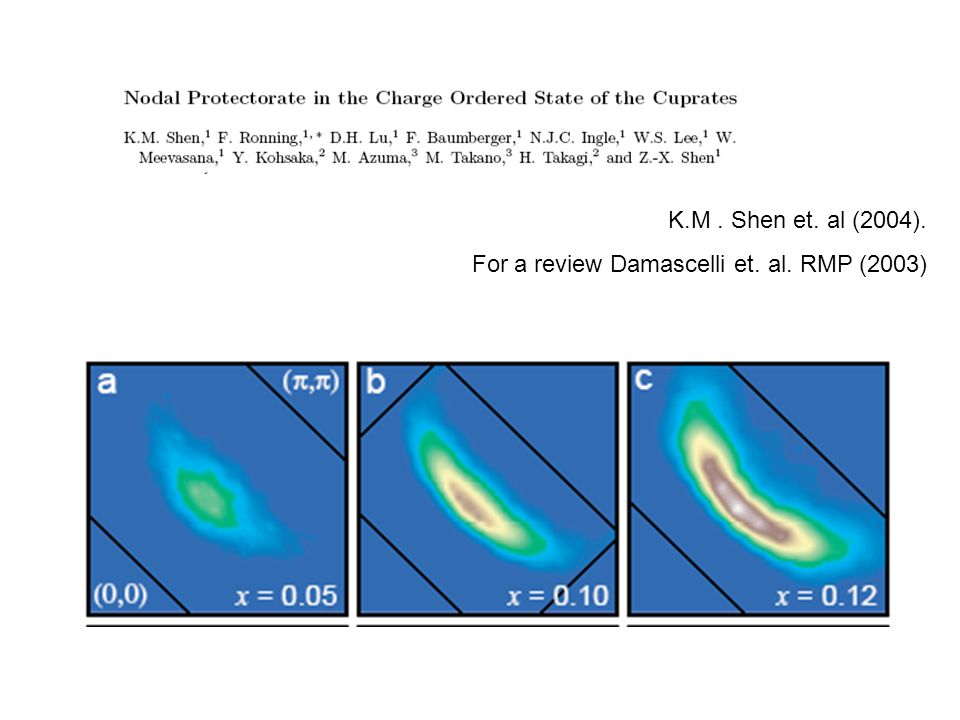

42. K.M. Shen et. al (2004). For a review Damascelli et. al. RMP (2003)

43. Approaching the Mott transition: CDMFT Picture Qualitative effect, momentum space differentiation. Formation of hot –cold regions is an unavoidable consequence of the approach to the Mott insulating state! D wave gapping of the single particle spectra as the Mott transition is approached. Similar scenario was encountered in previous study of the kappa organics. O Parcollet Biroli and Kotliar PRL, 92, 226402. (2004).

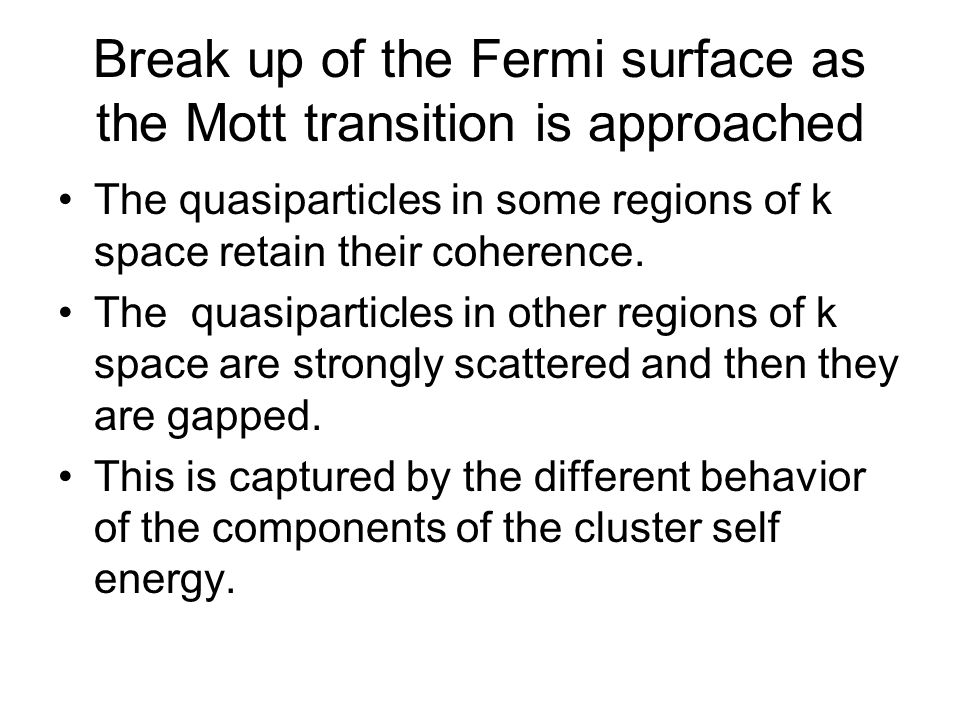

44. Break up of the Fermi surface as the Mott transition is approached The quasiparticles in some regions of k space retain their coherence. The quasiparticles in other regions of k space are strongly scattered and then they are gapped. This is captured by the different behavior of the components of the cluster self energy.

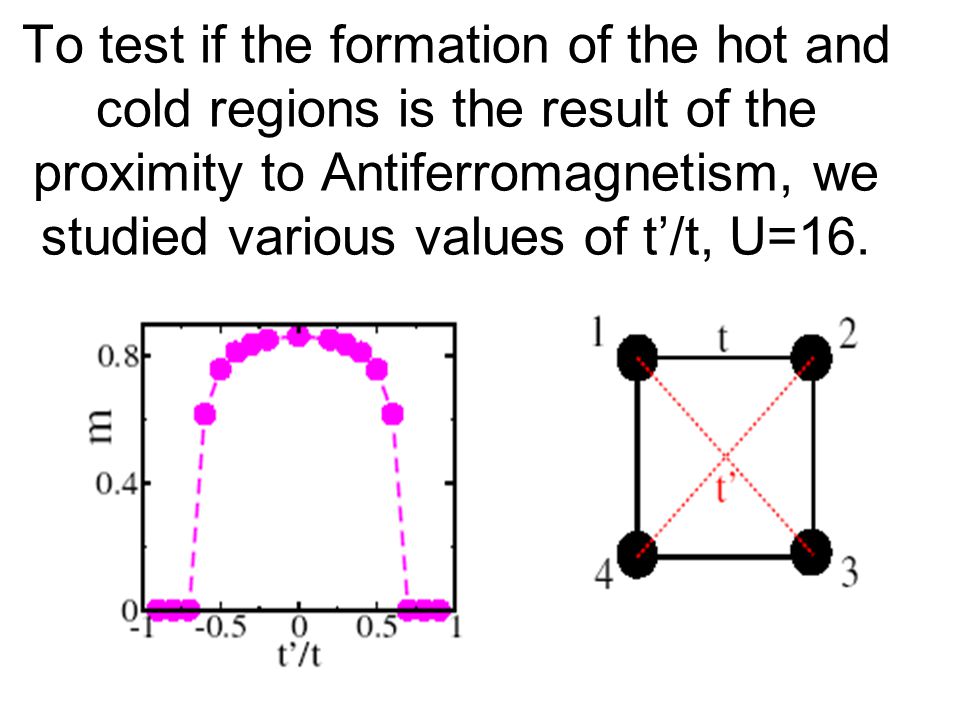

45. To test if the formation of the hot and cold regions is the result of the proximity to Antiferromagnetism, we studied various values of t’/t, U=16.

46. Electron doped case t’=.9t U=16t n=.69.92.96 Breakup of the Fermi surface is a consequence of the approach to the Mott transition point, and not a result of a specifid form of long range order.

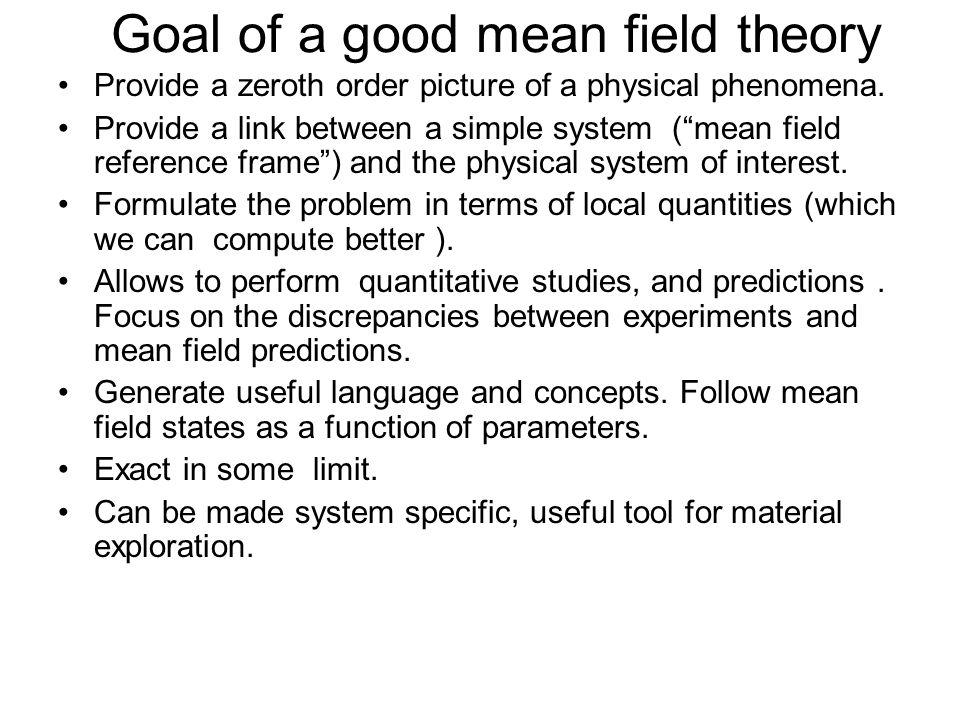

47. Goal of a good mean field theory Provide a zeroth order picture of a physical phenomena. Provide a link between a simple system (“mean field reference frame”) and the physical system of interest. Formulate the problem in terms of local quantities (which we can compute better ). Allows to perform quantitative studies, and predictions. Focus on the discrepancies between experiments and mean field predictions. Generate useful language and concepts. Follow mean field states as a function of parameters. Exact in some limit. Can be made system specific, useful tool for material exploration.

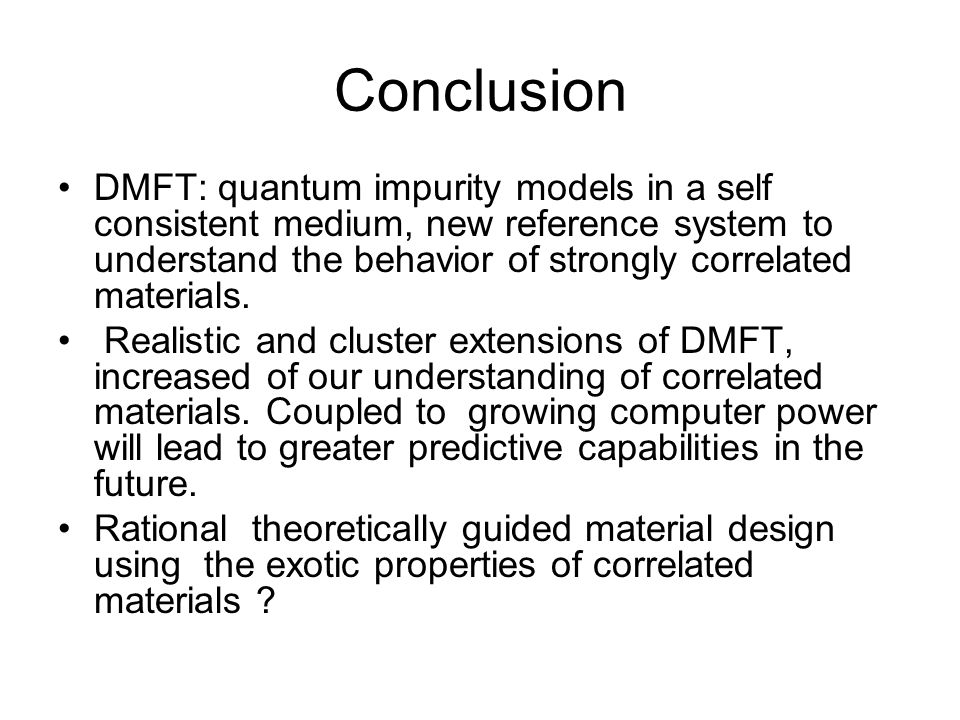

48. Conclusion DMFT: quantum impurity models in a self consistent medium, new reference system to understand the behavior of strongly correlated materials. Realistic and cluster extensions of DMFT, increased of our understanding of correlated materials. Coupled to growing computer power will lead to greater predictive capabilities in the future. Rational theoretically guided material design using the exotic properties of correlated materials ?

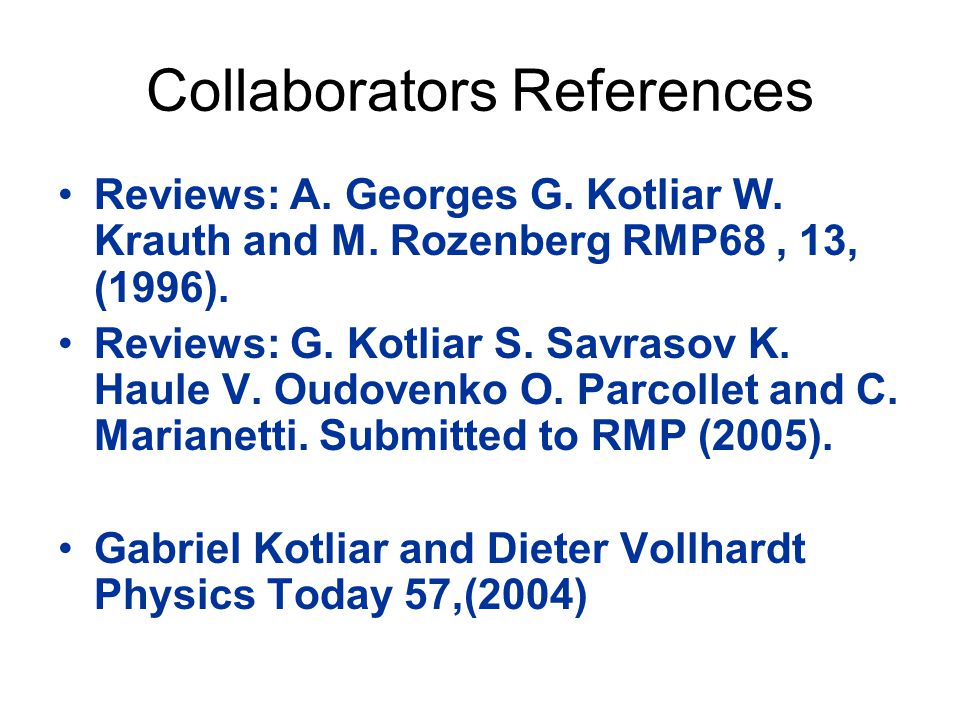

49. Collaborators References Reviews: A. Georges G. Kotliar W. Krauth and M. Rozenberg RMP68, 13, (1996). Reviews: G. Kotliar S. Savrasov K. Haule V. Oudovenko O. Parcollet and C. Marianetti. Submitted to RMP (2005). Gabriel Kotliar and Dieter Vollhardt Physics Today 57,(2004)

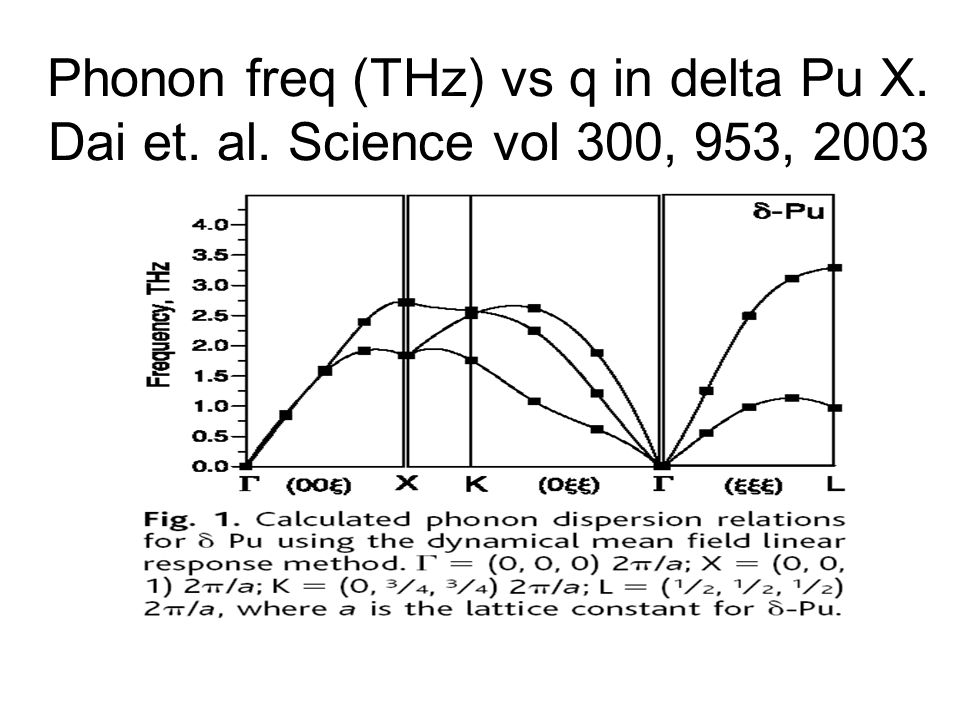

51. Phonon freq (THz) vs q in delta Pu X. Dai et. al. Science vol 300, 953, 2003

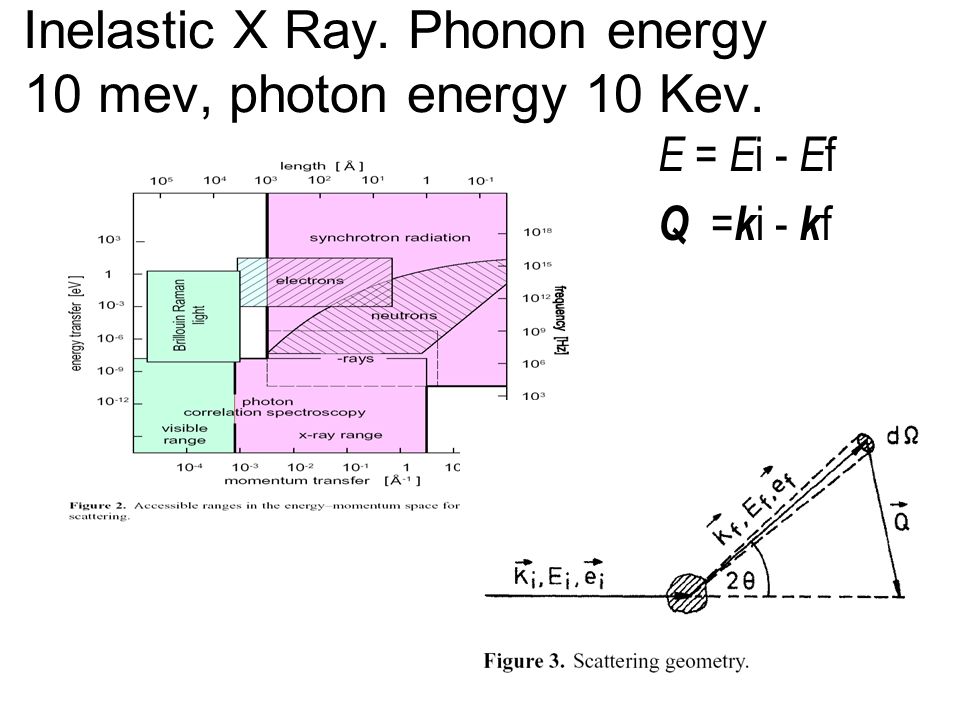

52. Inelastic X Ray. Phonon energy 10 mev, photon energy 10 Kev. E = E i - E f Q = k i - k f

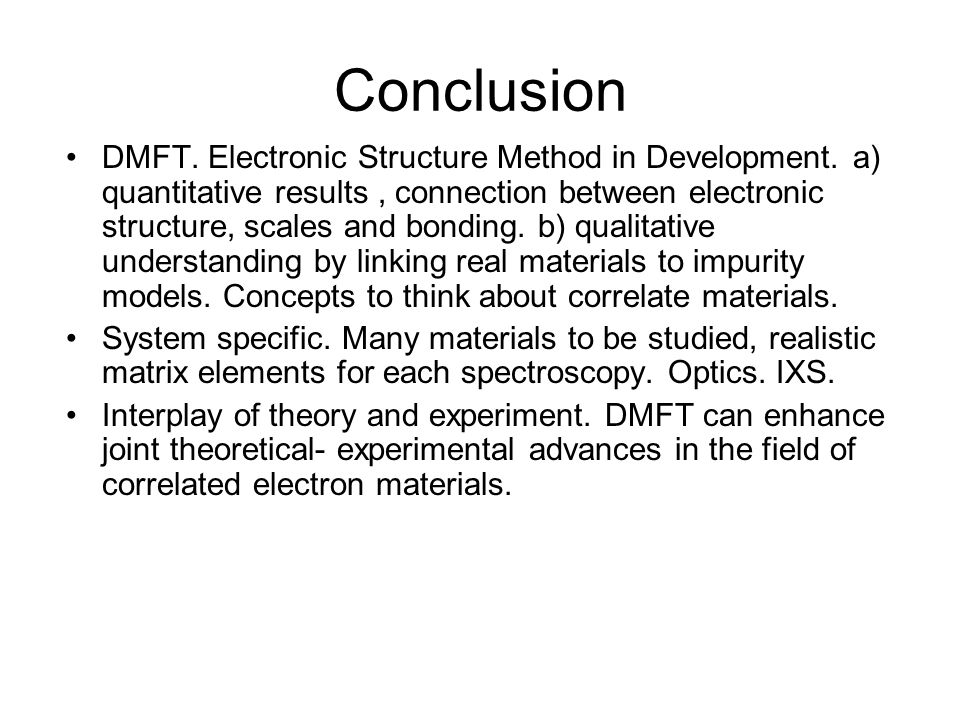

53. Conclusion DMFT. Electronic Structure Method in Development. a) quantitative results, connection between electronic structure, scales and bonding. b) qualitative understanding by linking real materials to impurity models. Concepts to think about correlate materials. System specific. Many materials to be studied, realistic matrix elements for each spectroscopy. Optics. IXS. Interplay of theory and experiment. DMFT can enhance joint theoretical- experimental advances in the field of correlated electron materials.

55. Pu in the periodic table actinides

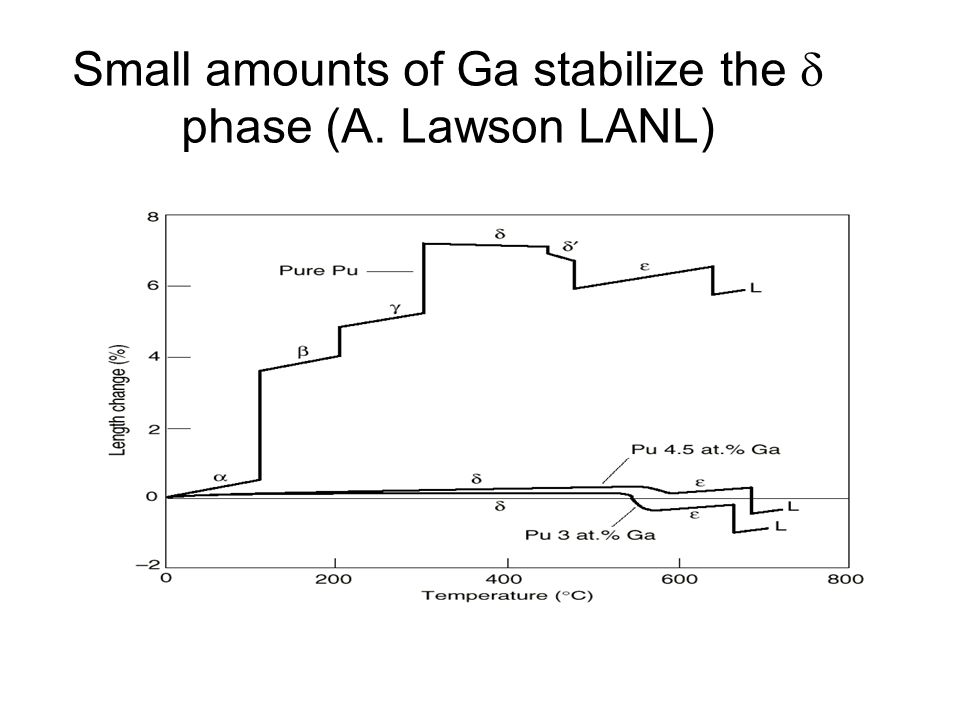

56. Small amounts of Ga stabilize the  phase (A. Lawson LANL)

57. Total Energy as a function of volume for Pu Total Energy as a function of volume for Pu W (ev) vs (a.u. 27.2 ev) (Savrasov, Kotliar, Abrahams, Nature ( 2001) Non magnetic correlated state of fcc Pu. Zein Savrasov and Kotliar (2004)

58. DMFT Phonons in fcc  -Pu C 11 (GPa) C 44 (GPa) C 12 (GPa) C'(GPa) Theory 34.56 33.03 26.81 3.88 Experiment 36.28 33.59 26.73 4.78 ( Dai, Savrasov, Kotliar,Ledbetter, Migliori, Abrahams, Science, 9 May 2003) (experiments from Wong et.al, Science, 22 August 2003)

60. Fermi Surface Shape renormalization Photoemission determines the renormalized hopping parameters. The bare parameters, t and t’ should be independent of doping. We find that the renormalized hopping parameters are strongly doping dependent! t’eff=t’+  teff=t+   Furthermore in the electron doped case t’/t renormalizes towards perfect nesting, while in the hole doped case it renormalizes away from perfect nesting.

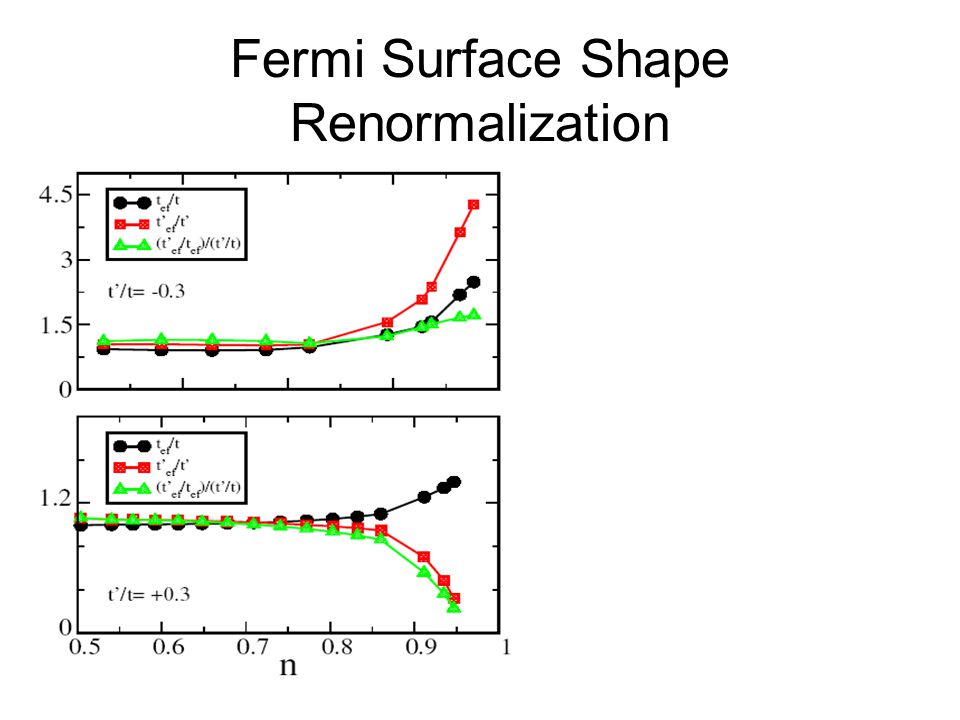

61. Fermi Surface Shape Renormalization

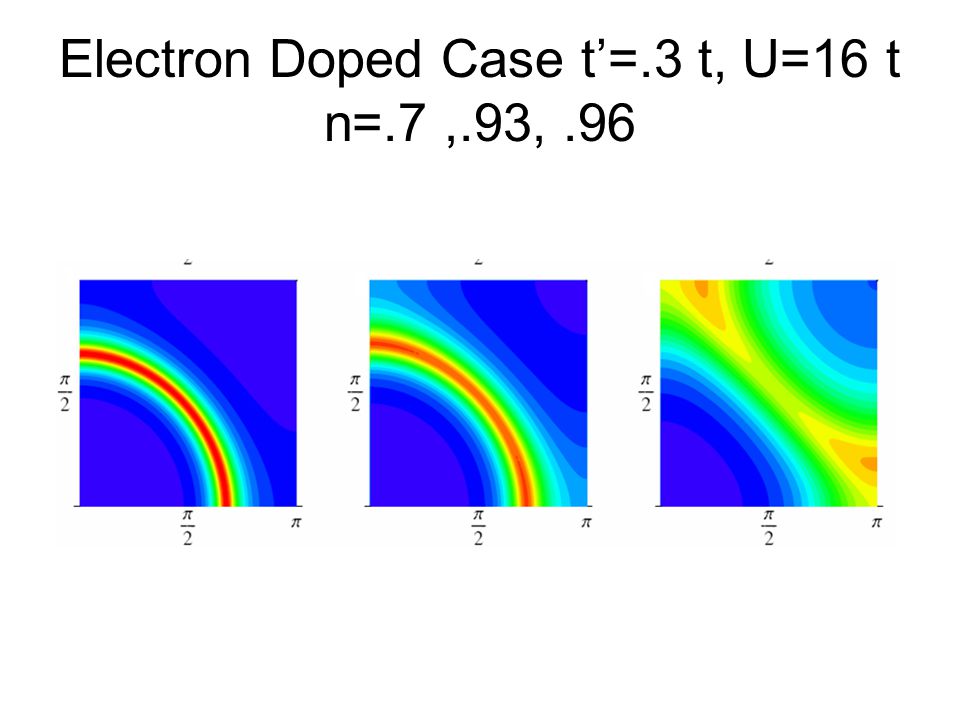

62. Electron Doped Case t’=.3 t, U=16 t n=.7,.93,.96

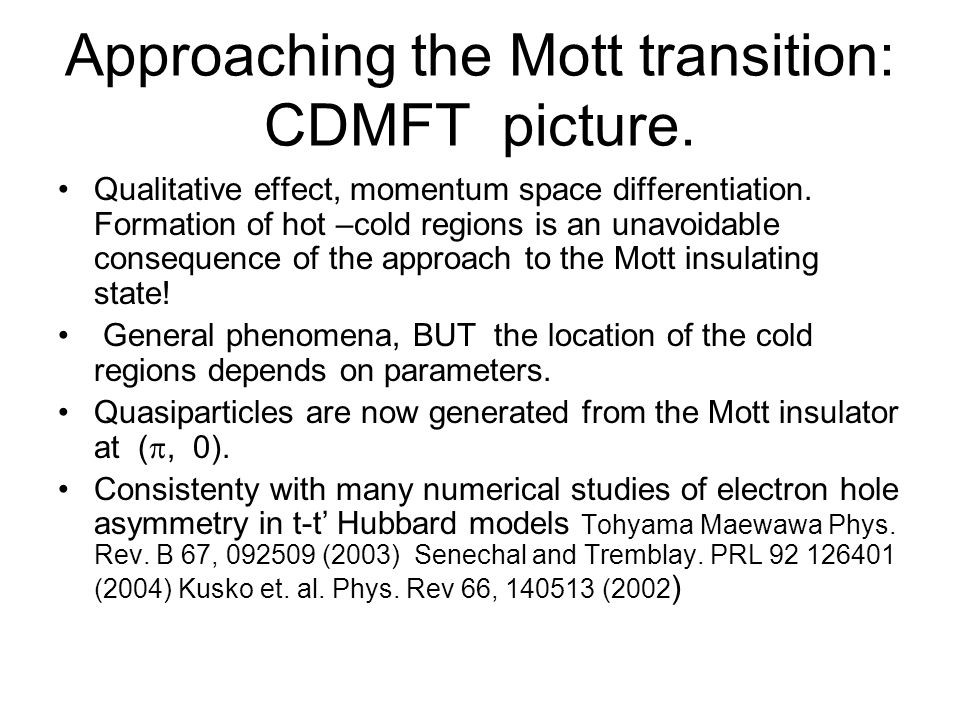

63. Approaching the Mott transition: CDMFT picture. Qualitative effect, momentum space differentiation. Formation of hot –cold regions is an unavoidable consequence of the approach to the Mott insulating state! General phenomena, BUT the location of the cold regions depends on parameters. Quasiparticles are now generated from the Mott insulator at ( , 0). Consistenty with many numerical studies of electron hole asymmetry in t-t’ Hubbard models Tohyama Maewawa Phys. Rev. B 67, 092509 (2003) Senechal and Tremblay. PRL 92 126401 (2004) Kusko et. al. Phys. Rev 66, 140513 (2002 )

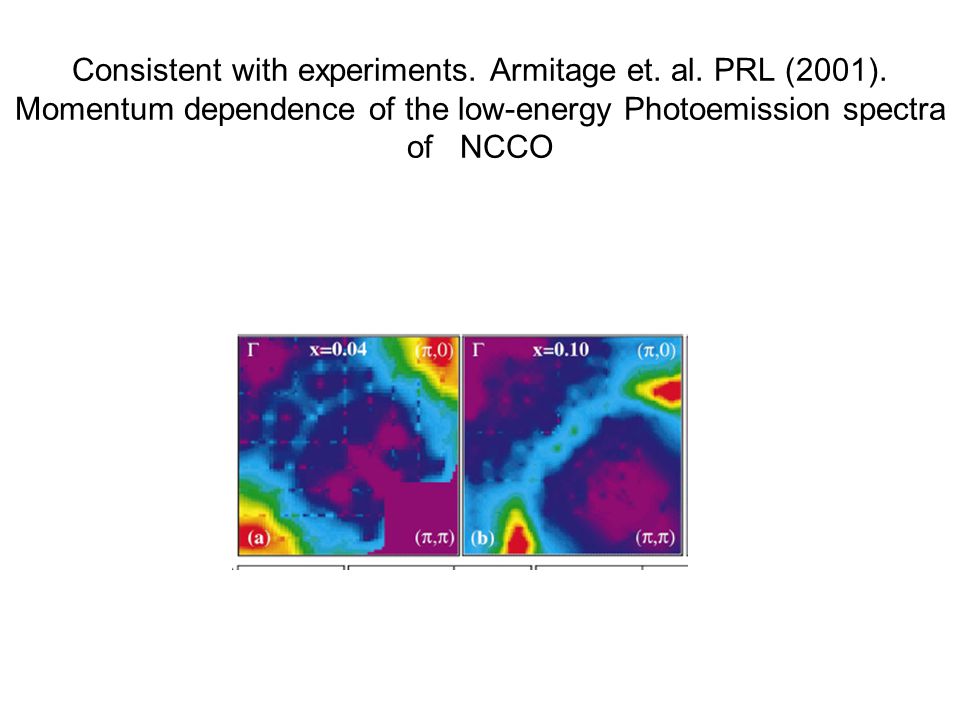

64. Consistent with experiments. Armitage et. al. PRL (2001). Momentum dependence of the low-energy Photoemission spectra of NCCO

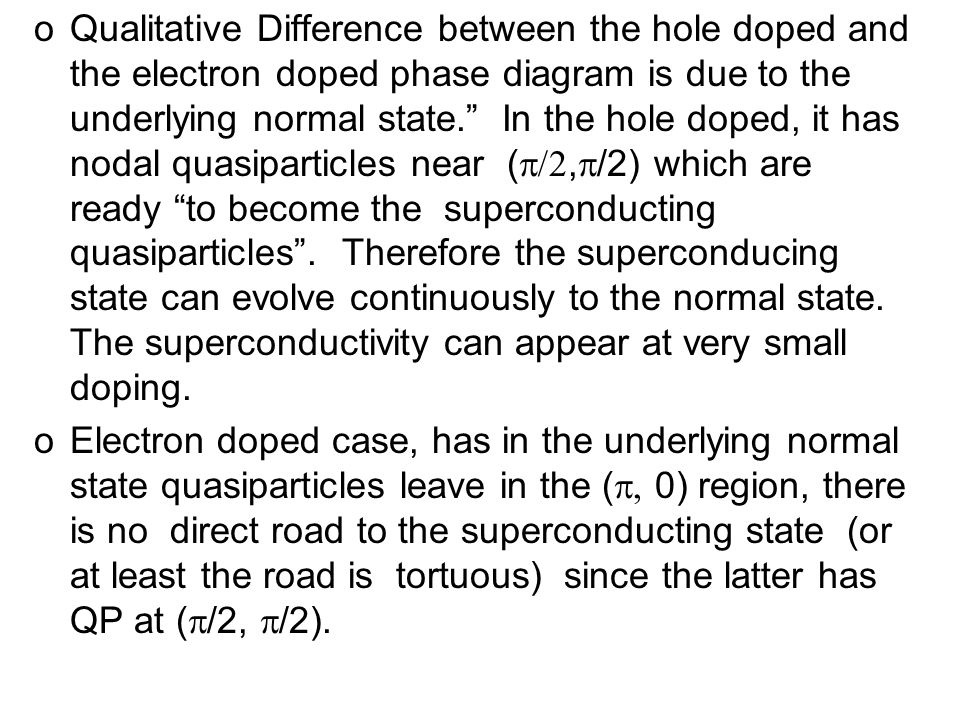

66. oQualitative Difference between the hole doped and the electron doped phase diagram is due to the underlying normal state.” In the hole doped, it has nodal quasiparticles near ( ,  /2) which are ready “to become the superconducting quasiparticles”. Therefore the superconducing state can evolve continuously to the normal state. The superconductivity can appear at very small doping. oElectron doped case, has in the underlying normal state quasiparticles leave in the (  0) region, there is no direct road to the superconducting state (or at least the road is tortuous) since the latter has QP at (  /2,  /2).

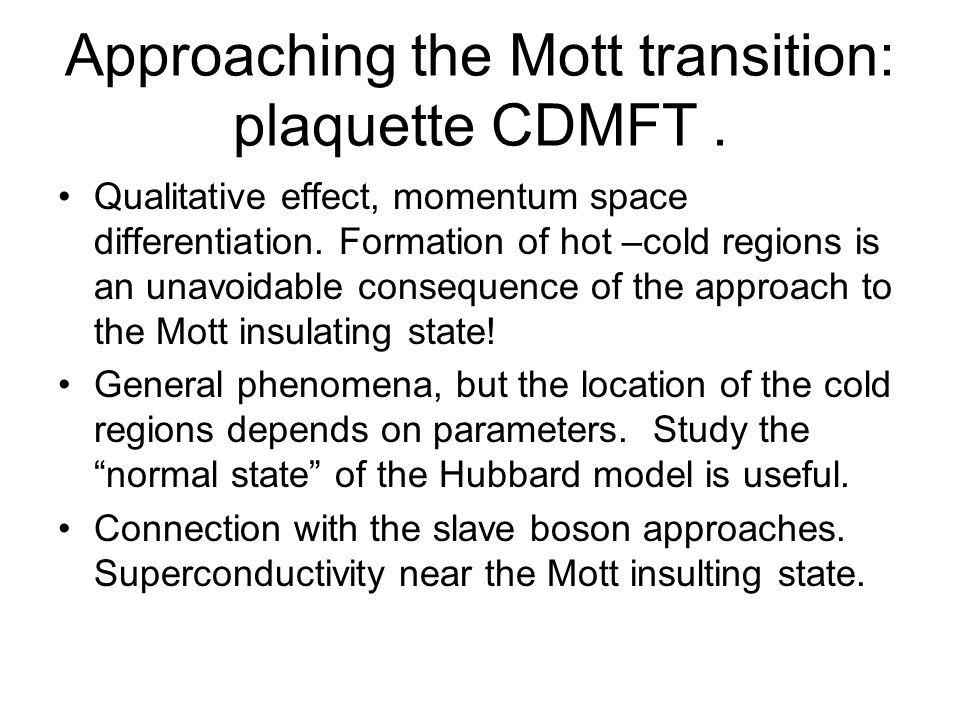

67. Approaching the Mott transition: plaquette CDMFT. Qualitative effect, momentum space differentiation. Formation of hot –cold regions is an unavoidable consequence of the approach to the Mott insulating state! General phenomena, but the location of the cold regions depends on parameters. Study the “normal state” of the Hubbard model is useful. Connection with the slave boson approaches. Superconductivity near the Mott insulting state.

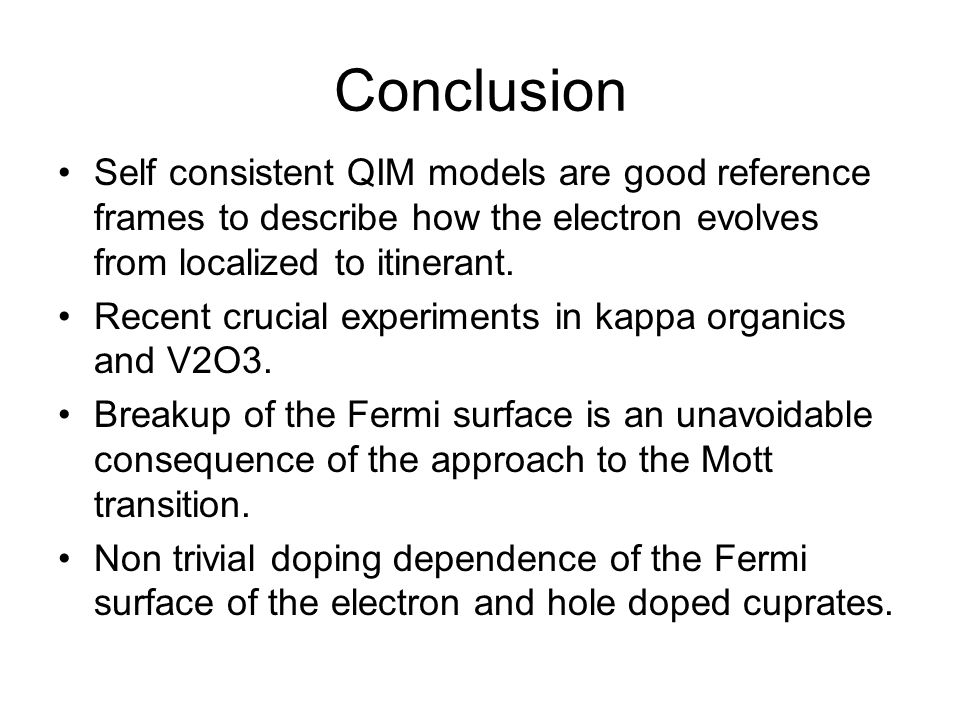

68. Conclusion Self consistent QIM models are good reference frames to describe how the electron evolves from localized to itinerant. Recent crucial experiments in kappa organics and V2O3. Breakup of the Fermi surface is an unavoidable consequence of the approach to the Mott transition. Non trivial doping dependence of the Fermi surface of the electron and hole doped cuprates.

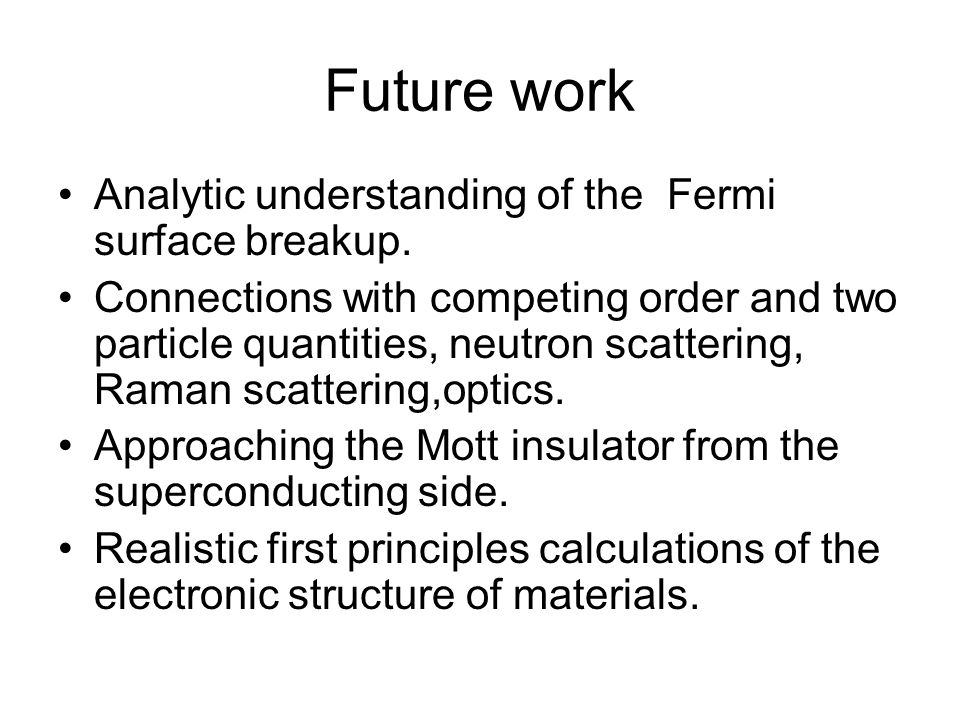

69. Future work Analytic understanding of the Fermi surface breakup. Connections with competing order and two particle quantities, neutron scattering, Raman scattering,optics. Approaching the Mott insulator from the superconducting side. Realistic first principles calculations of the electronic structure of materials.

70. Dynamical Mean Field Theory Focus on the local spectral function A(  ) of the solid. Write a functional of the local spectral function such that its stationary point, give the energy of the solid. No explicit expression for the exact functional exists, but good approximations are available. The spectral function is computed by solving a local impurity model. Which is a new reference system to think about correlated electrons. Ref: A. Georges G. Kotliar W. Krauth M. Rozenberg. Rev Mod Phys 68,1 (1996). Generalizations to realistic electronic structure. (G. Kotliar and S. Savrasov in )

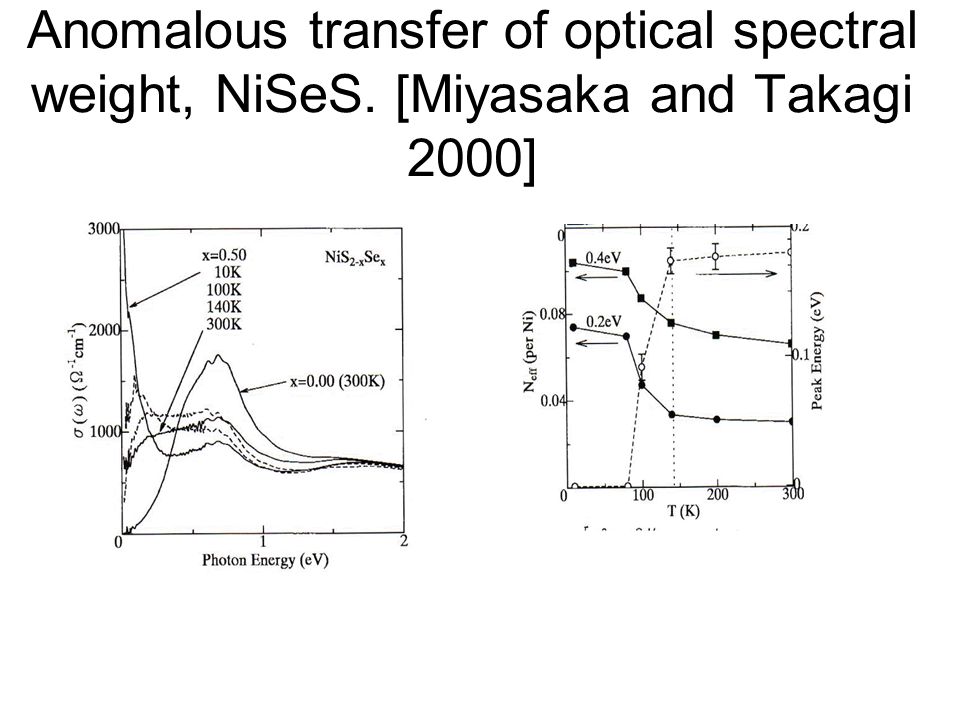

71. Anomalous transfer of optical spectral weight, NiSeS. [Miyasaka and Takagi 2000]

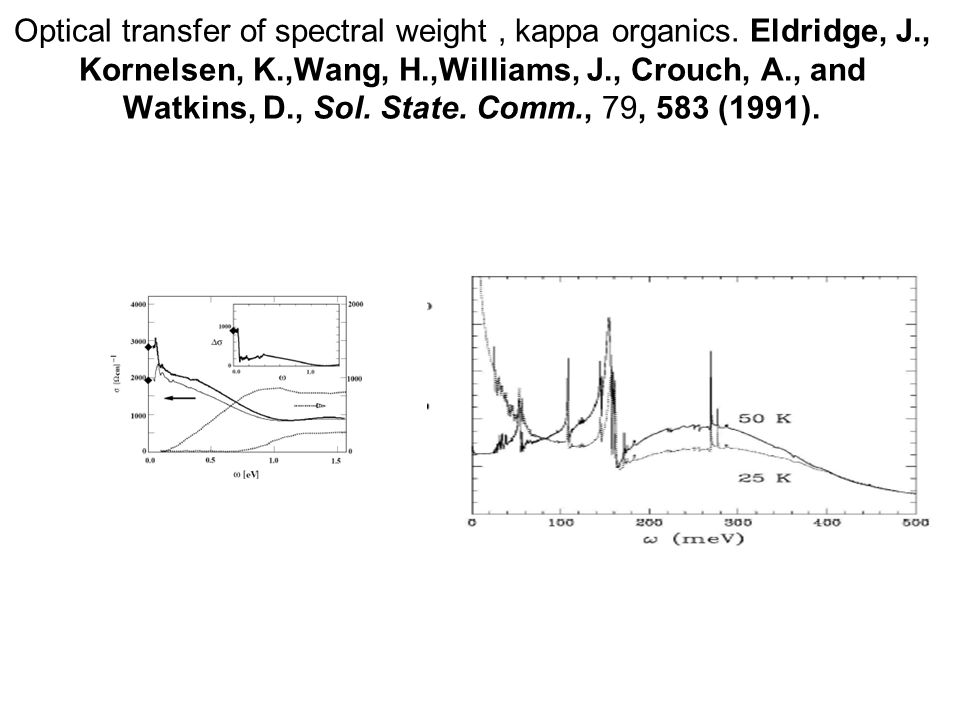

72. Optical transfer of spectral weight, kappa organics. Eldridge, J., Kornelsen, K.,Wang, H.,Williams, J., Crouch, A., and Watkins, D., Sol. State. Comm., 79, 583 (1991).

73. Evolution of the Spectral Function with Temperature Anomalous transfer of spectral weight connected to the proximity to the Ising Mott endpoint (Kotliar Lange nd Rozenberg Phys. Rev. Lett. 84, 5180 (2000)

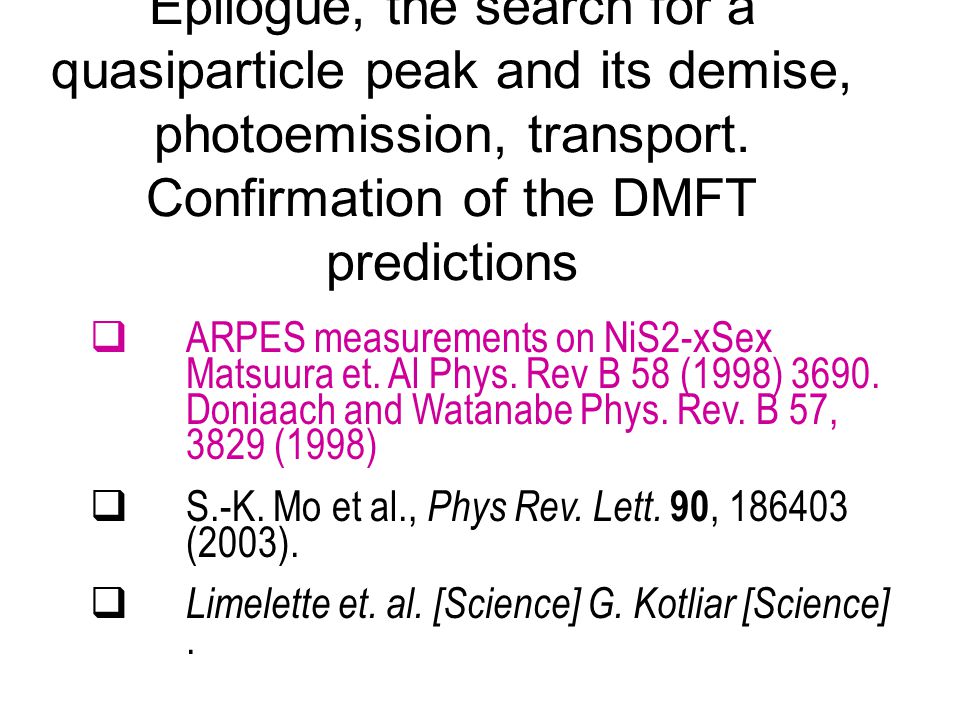

74. Epilogue, the search for a quasiparticle peak and its demise, photoemission, transport. Confirmation of the DMFT predictions  ARPES measurements on NiS2-xSex Matsuura et. Al Phys. Rev B 58 (1998) 3690. Doniaach and Watanabe Phys. Rev. B 57, 3829 (1998)  S.-K. Mo et al., Phys Rev. Lett. 90, 186403 (2003).  Limelette et. al. [Science] G. Kotliar [Science].

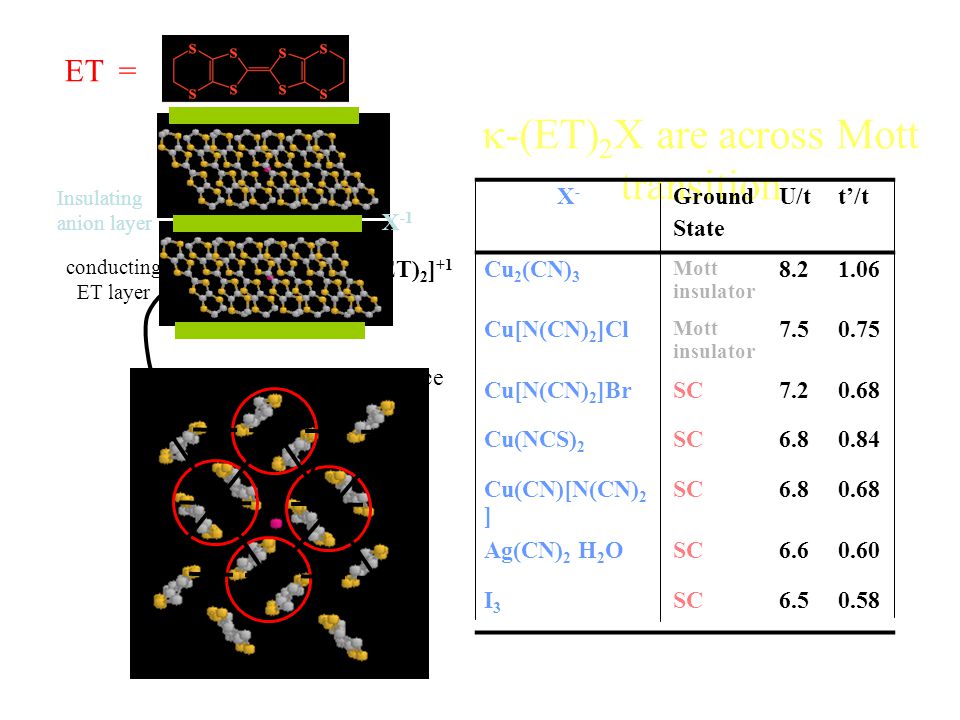

75. Insulating anion layer  -(ET) 2 X are across Mott transition ET = X -1 [(ET) 2 ] +1 conducting ET layer t’ t modeled to triangular lattice X-X- Ground State U/tt’/t Cu 2 (CN) 3 Mott insulator 8.21.06 Cu[N(CN) 2 ]Cl Mott insulator 7.50.75 Cu[N(CN) 2 ]BrSC7.20.68 Cu(NCS) 2 SC6.80.84 Cu(CN)[N(CN) 2 ] SC6.80.68 Ag(CN) 2 H 2 OSC6.60.60 I3I3 SC6.50.58

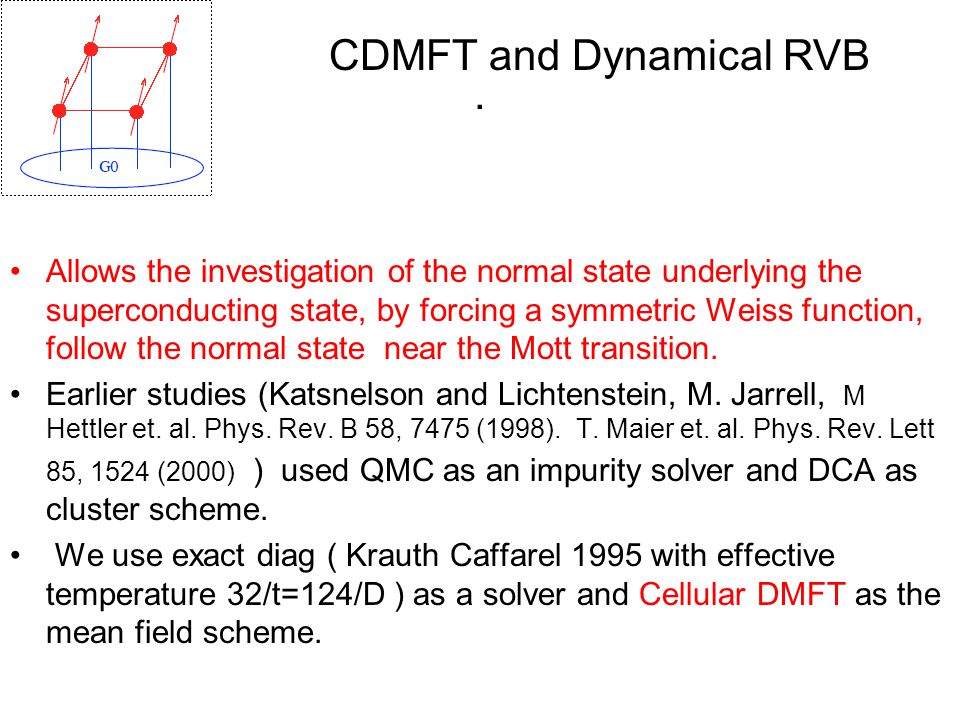

76. . Allows the investigation of the normal state underlying the superconducting state, by forcing a symmetric Weiss function, follow the normal state near the Mott transition. Earlier studies (Katsnelson and Lichtenstein, M. Jarrell, M Hettler et. al. Phys. Rev. B 58, 7475 (1998). T. Maier et. al. Phys. Rev. Lett 85, 1524 (2000) ) used QMC as an impurity solver and DCA as cluster scheme. We use exact diag ( Krauth Caffarel 1995 with effective temperature 32/t=124/D ) as a solver and Cellular DMFT as the mean field scheme. CDMFT and Dynamical RVB

78. . ARPES measurements on NiS 2-x Se x Matsuura et. Al Phys. Rev B 58 (1998) 3690. Doniaach and Watanabe Phys. Rev. B 57, 3829 (1998)

79. One Particle Local Spectral Function and Angle Integrated Photoemission Probability of removing an electron and transfering energy  =Ei-Ef, f(  ) A(  ) M 2 Probability of absorbing an electron and transfering energy  =Ei-Ef, (1-f(  )) A(  ) M 2 Theory. Compute one particle greens function and use spectral function. e e

80. Dynamical Mean Field Theory Focus on the local spectral function A(  ) of the solid. Write a functional of the local spectral function such that its stationary point, give the energy of the solid. No explicit expression for the exact functional exists, but good approximations are available. The spectral function is computed by solving a local impurity model. Which is a new reference system to think about correlated electrons. Ref: A. Georges G. Kotliar W. Krauth M. Rozenberg. Rev Mod Phys 68,1 (1996). Generalizations to realistic electronic structure. (G. Kotliar and S. Savrasov in )

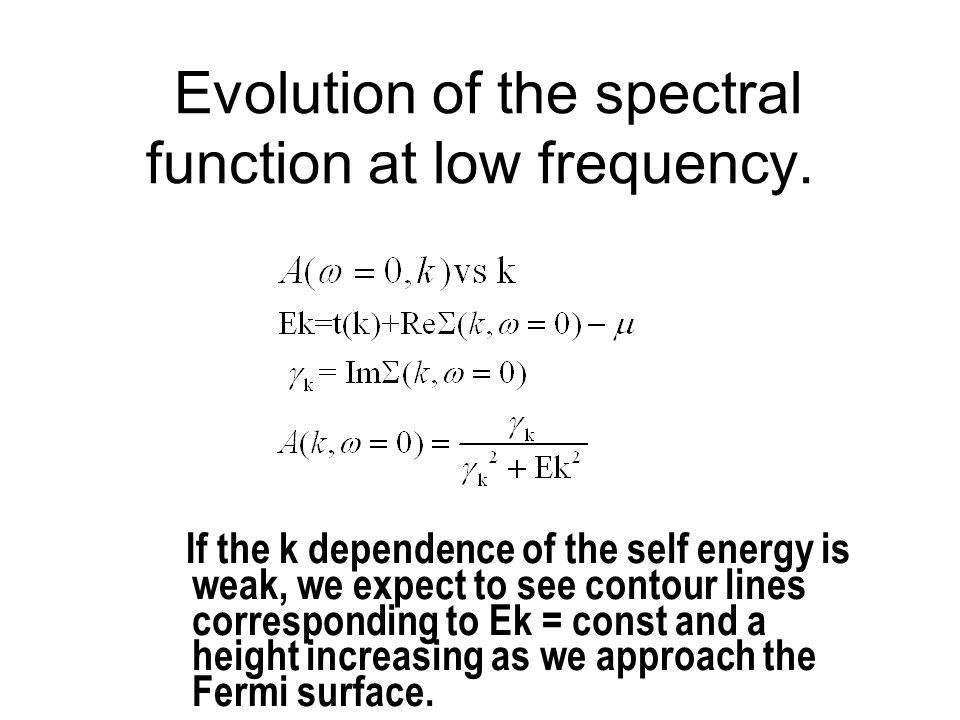

81. Evolution of the spectral function at low frequency. If the k dependence of the self energy is weak, we expect to see contour lines corresponding to Ek = const and a height increasing as we approach the Fermi surface.

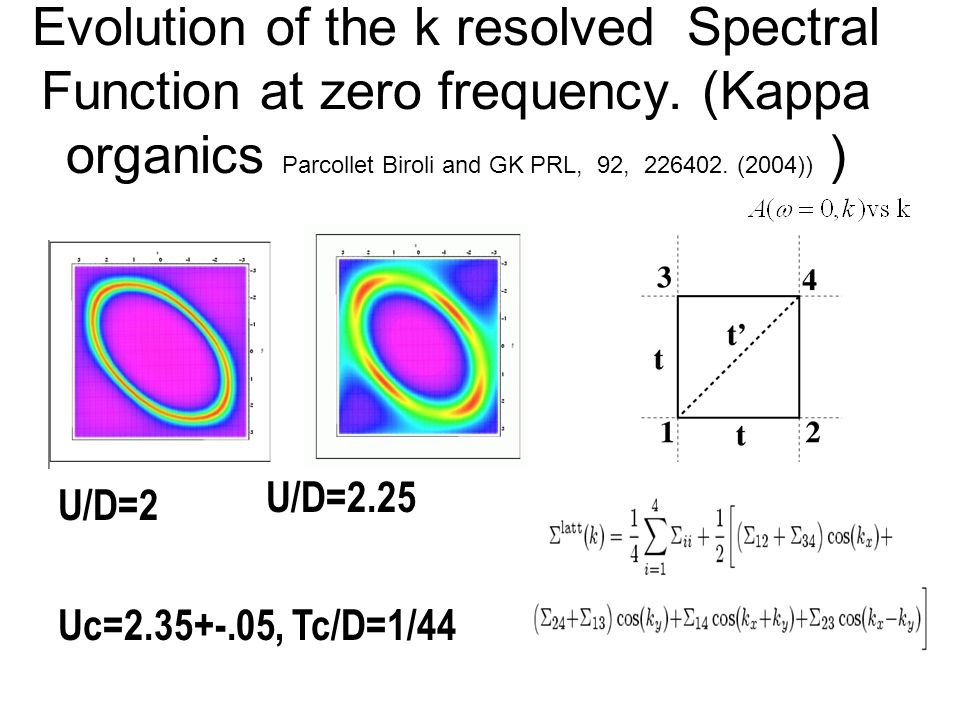

82. Evolution of the k resolved Spectral Function at zero frequency. (Kappa organics Parcollet Biroli and GK PRL, 92, 226402. (2004)) ) Uc=2.35+-.05, Tc/D=1/44 U/D=2 U/D=2.25

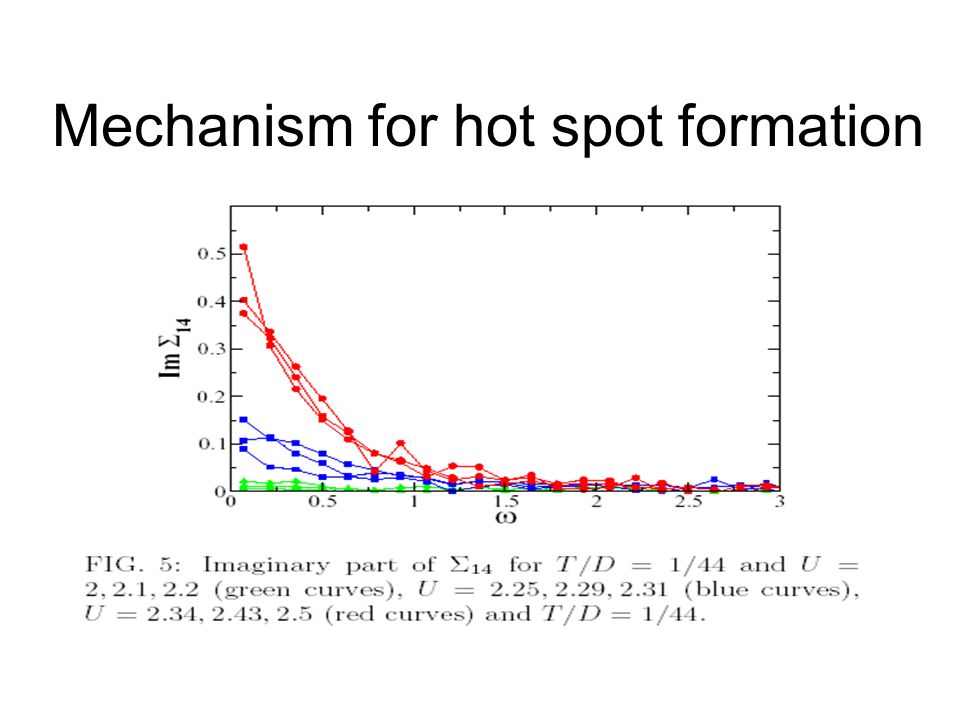

83. Mechanism for hot spot formation

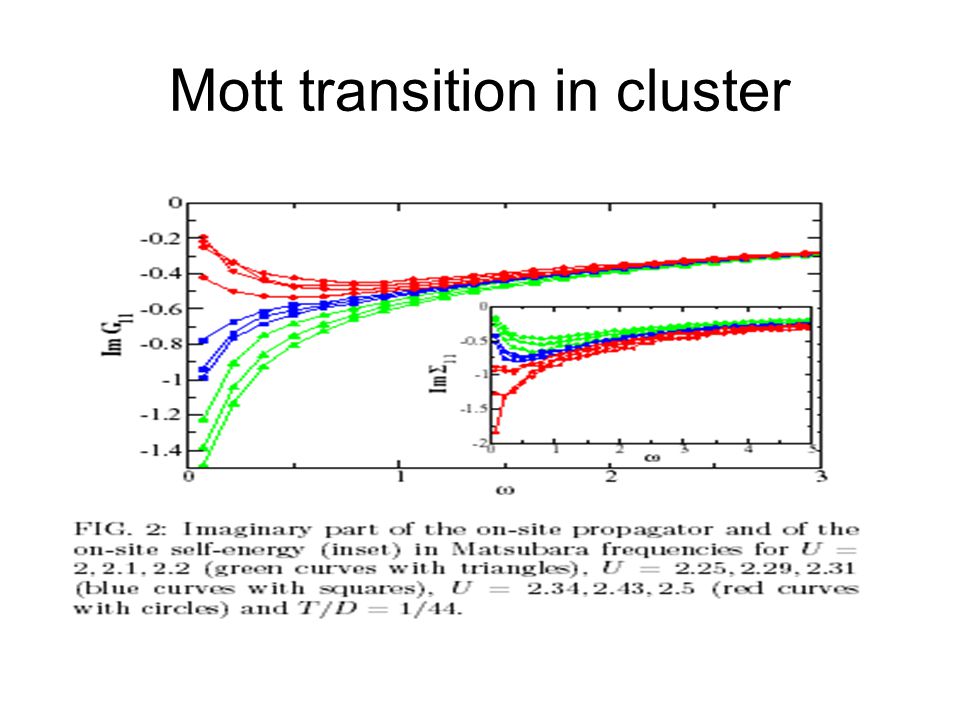

84. Mott transition in cluster

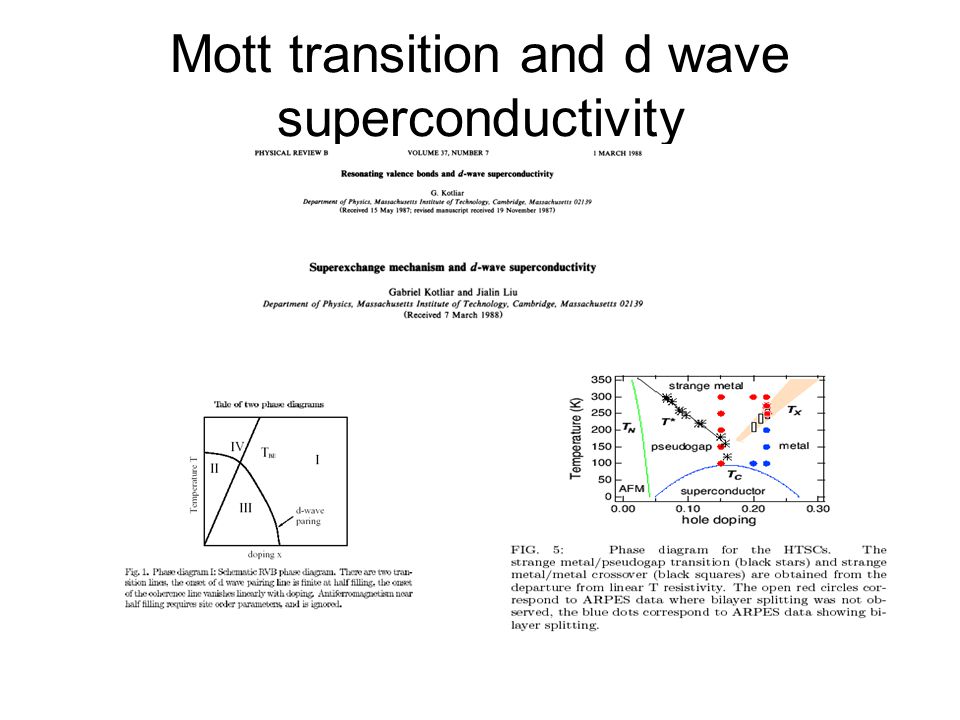

85. Mott transition and d wave superconductivity

86. Evolution of the low energy tunneling density of state with doping

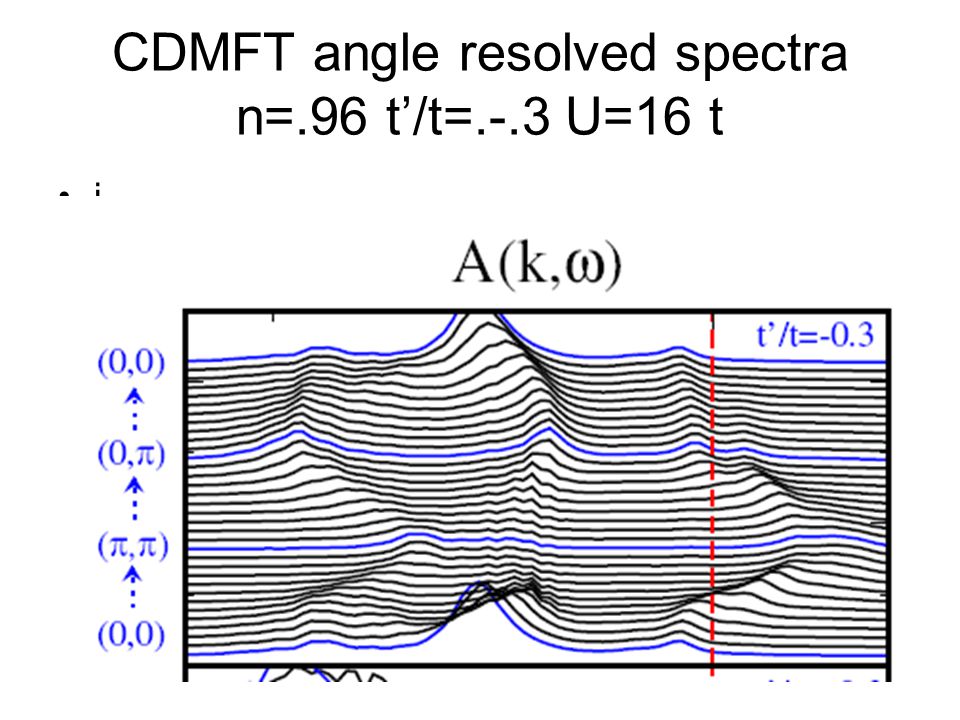

87. CDMFT angle resolved spectra n=.96 t’/t=.-.3 U=16 t i

88. Conjecture, Mott transition with Zcold finite ? Continuity with the insulator at one point in the zone.

89. Momentum space differentiation and divergence of Im  c at the Mott transition

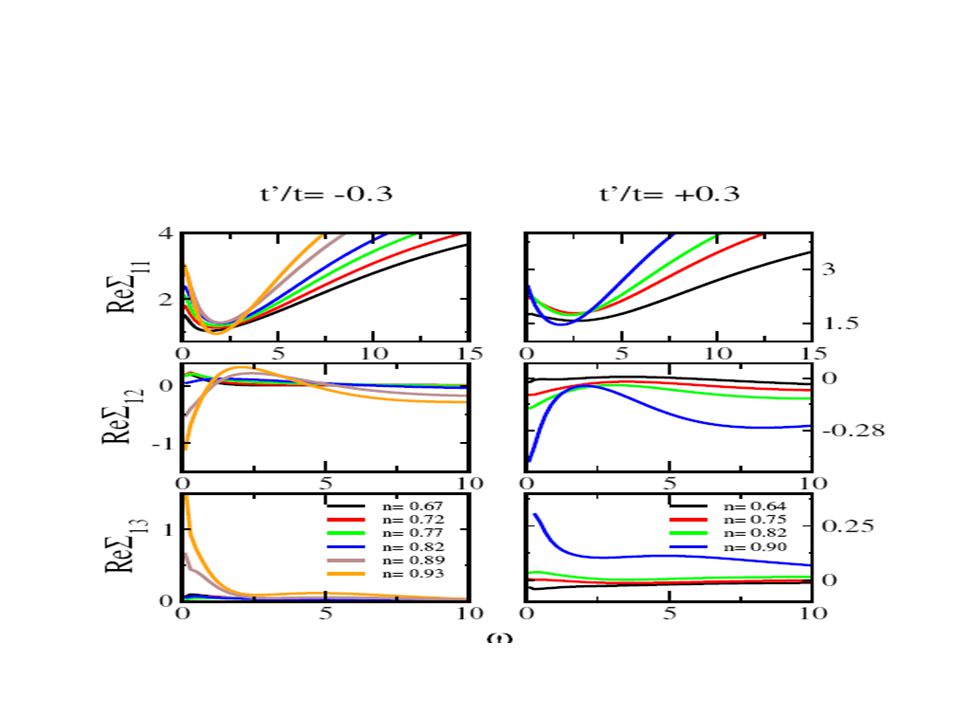

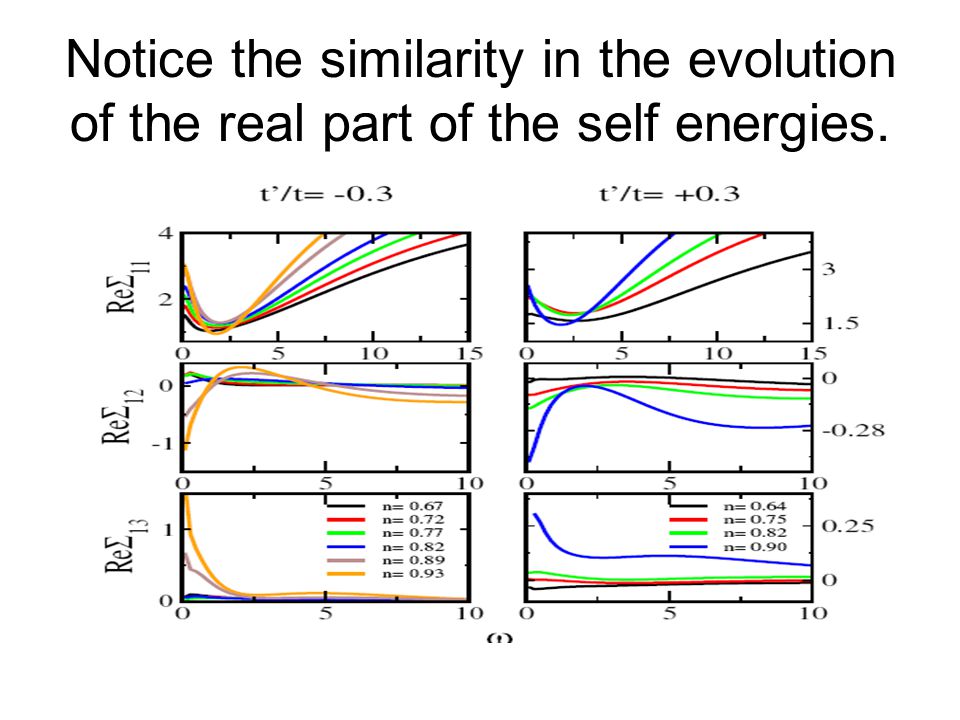

90. Notice the similarity in the evolution of the real part of the self energies.

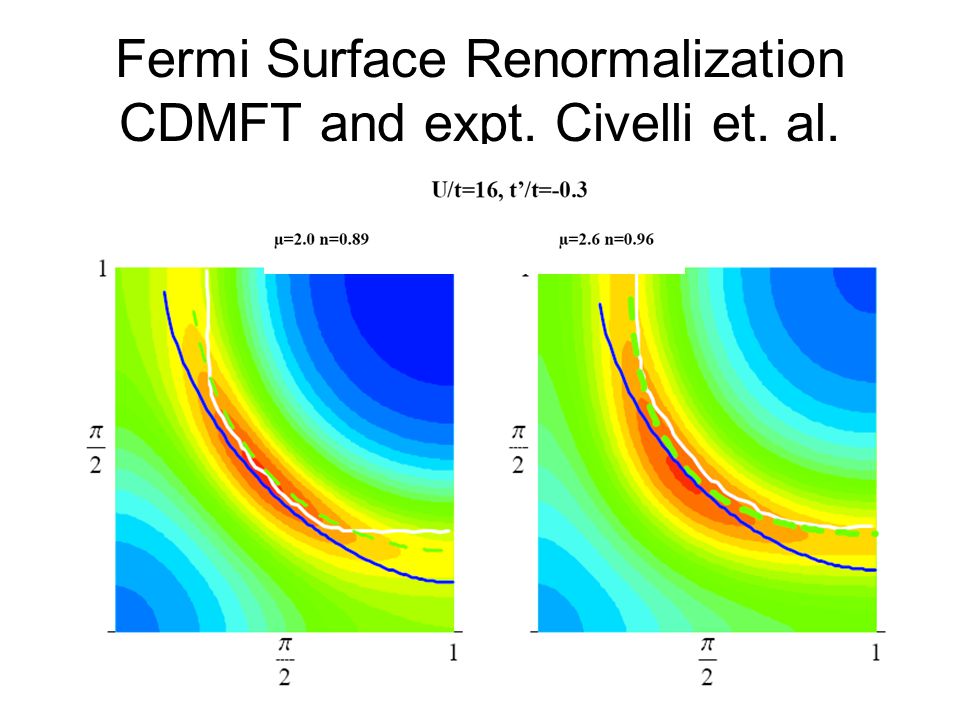

92. Fermi Surface Renormalization CDMFT and expt. Civelli et. al.

93. CDMFT and Dynamical RVB n=.96 t’/t=.-.3 U=16 t i

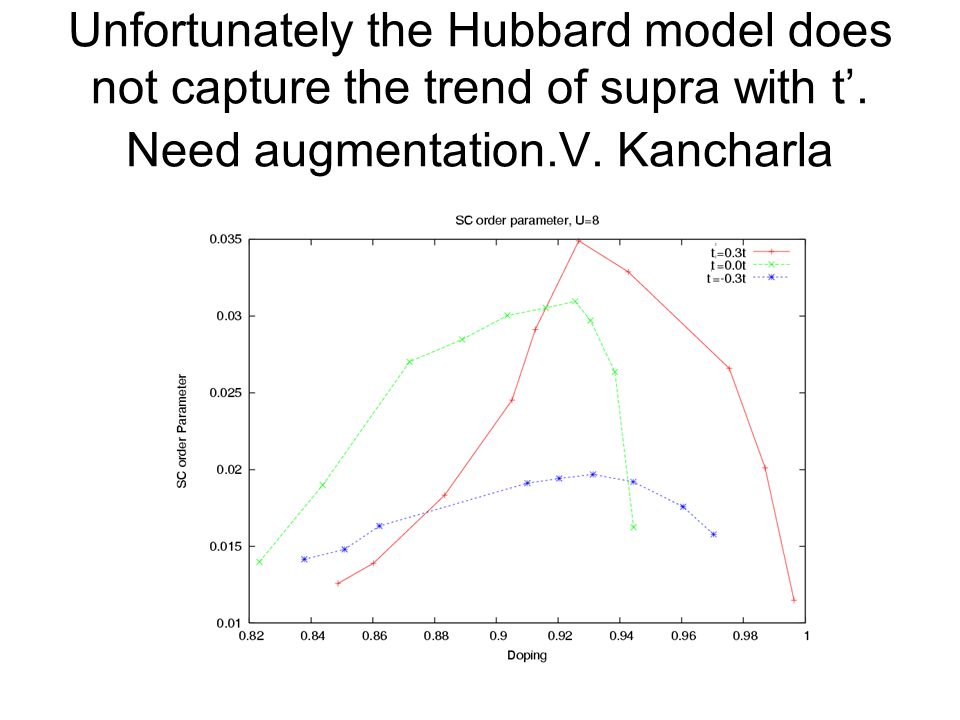

94. Unfortunately the Hubbard model does not capture the trend of supra with t’. Need augmentation.V. Kancharla

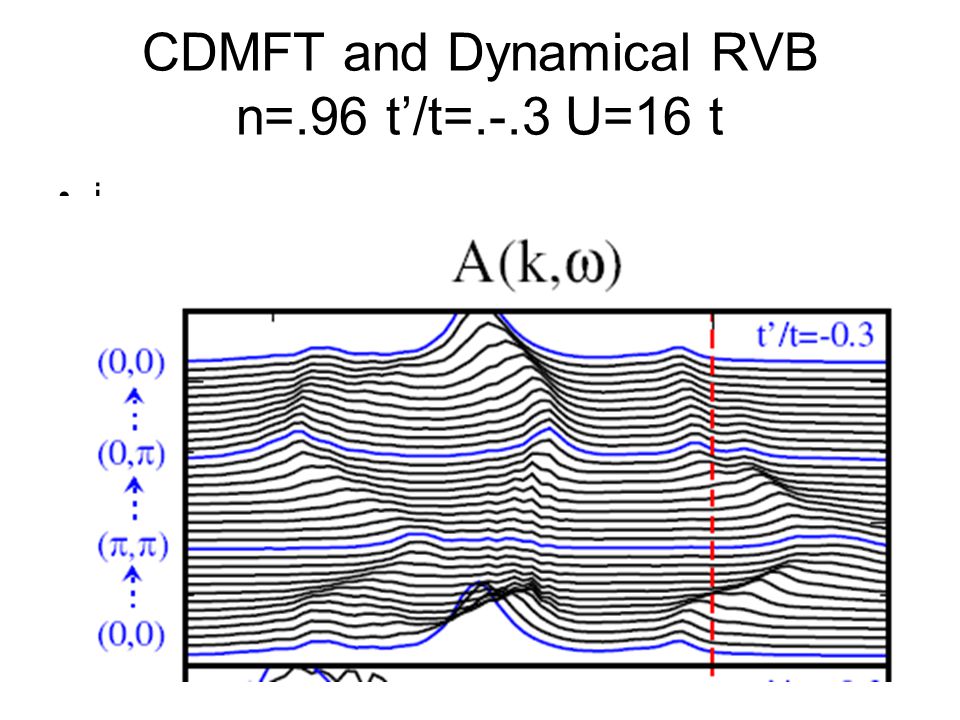

95. CDMFT and Dynamical RVB n=.96 t’/t=.-.3 U=16 t i

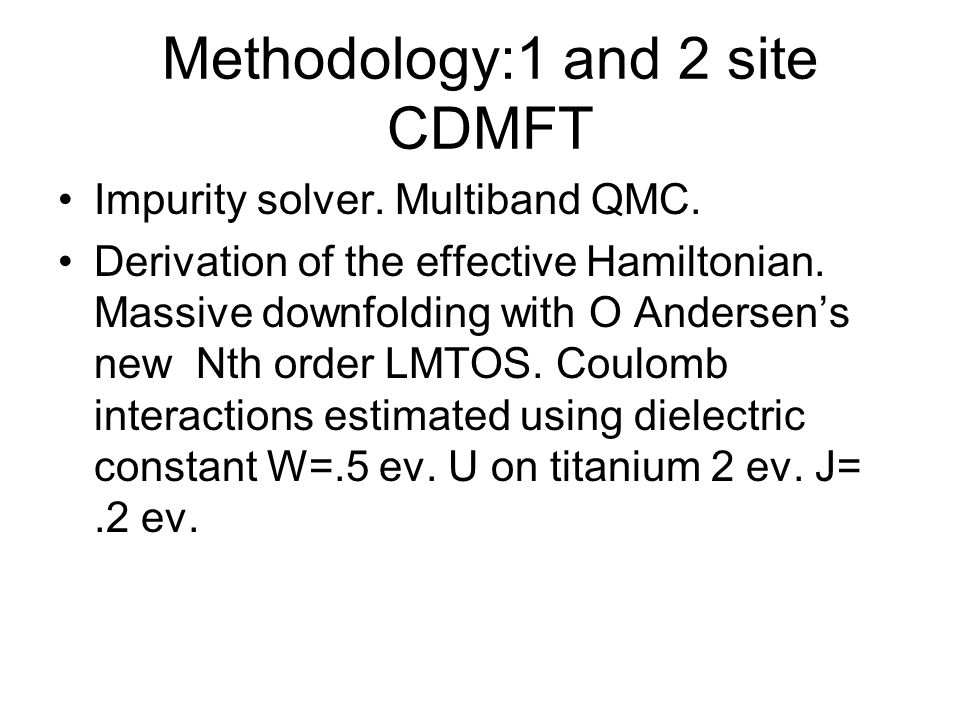

96. Methodology:1 and 2 site CDMFT Impurity solver. Multiband QMC. Derivation of the effective Hamiltonian. Massive downfolding with O Andersen’s new Nth order LMTOS. Coulomb interactions estimated using dielectric constant W=.5 ev. U on titanium 2 ev. J=.2 ev.

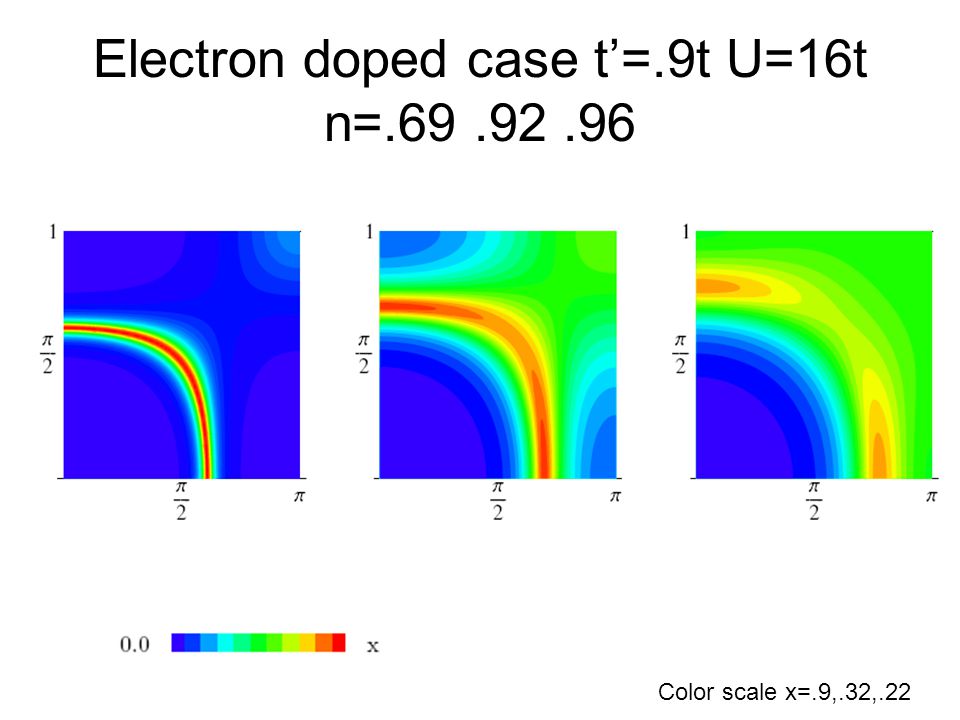

99. Electron doped case t’=.9t U=16t n=.69.92.96 Color scale x=.9,.32,.22

100. Hole doped case t’=-.3t, U=16 t n=.71.93.97 Color scale x=.37.15.13

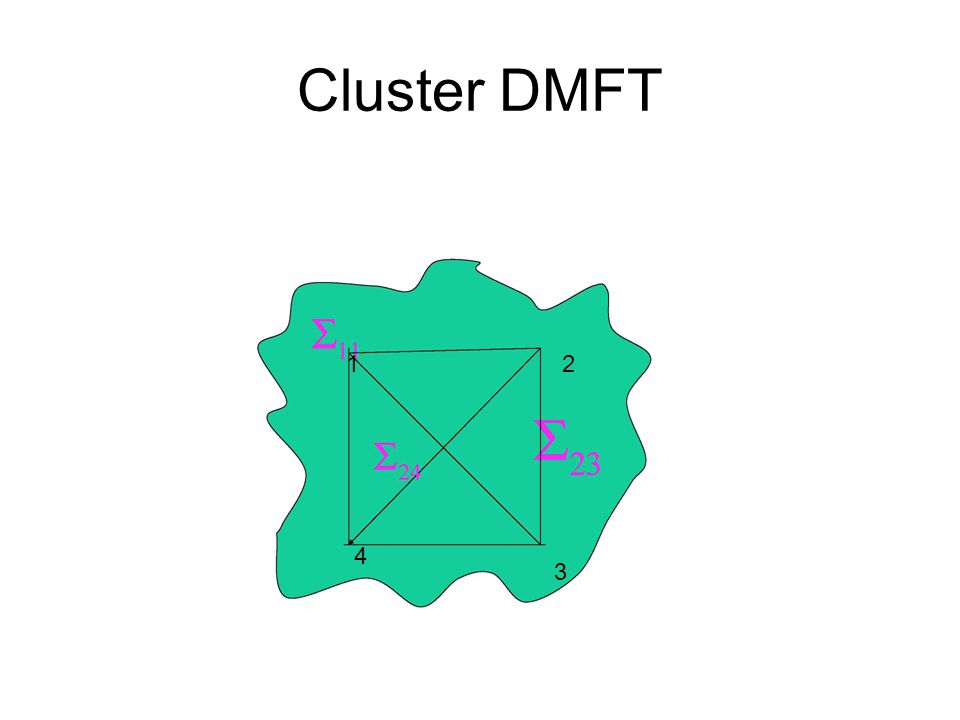

102. Cluster DMFT 4 3 21

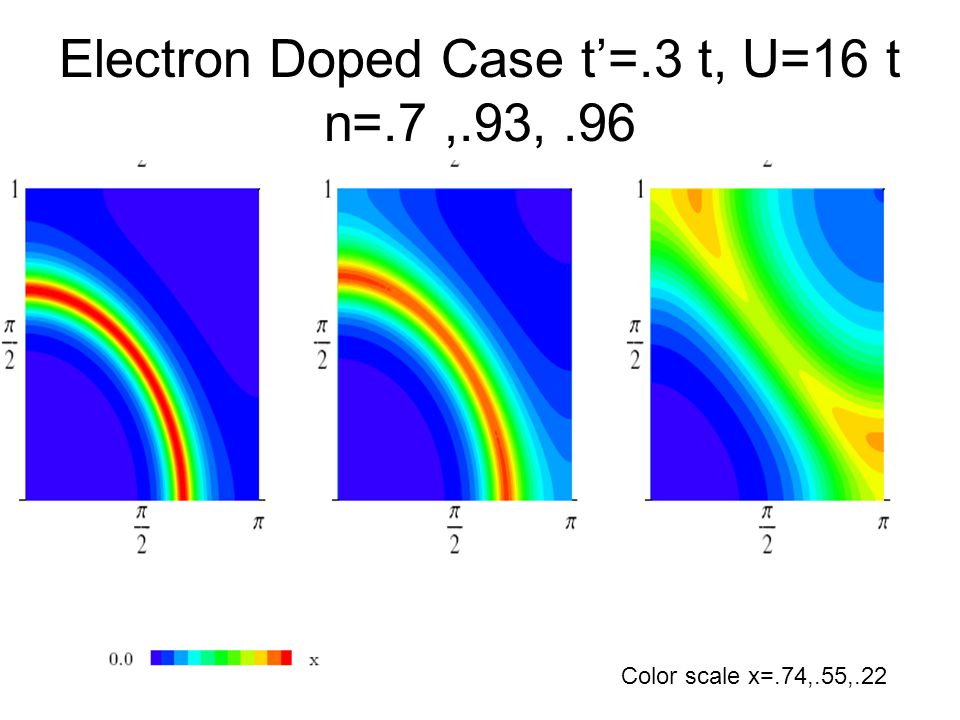

103. Electron Doped Case t’=.3 t, U=16 t n=.7,.93,.96 Color scale x=.74,.55,.22

105. [V. Kancharla C. Bolech and GK PRB 67, 075110 (2003)][[M.CaponeM.Civelli V Kancharla C.Castellani and GK P. R B 69,195105 (2004) ] U/t=4. Testing CDMFT (G.. Kotliar,S. Savrasov, G. Palsson and G. Biroli, Phys. Rev. Lett. 87, 186401 (2001) ) with two sites in the Hubbard model in one dimension.

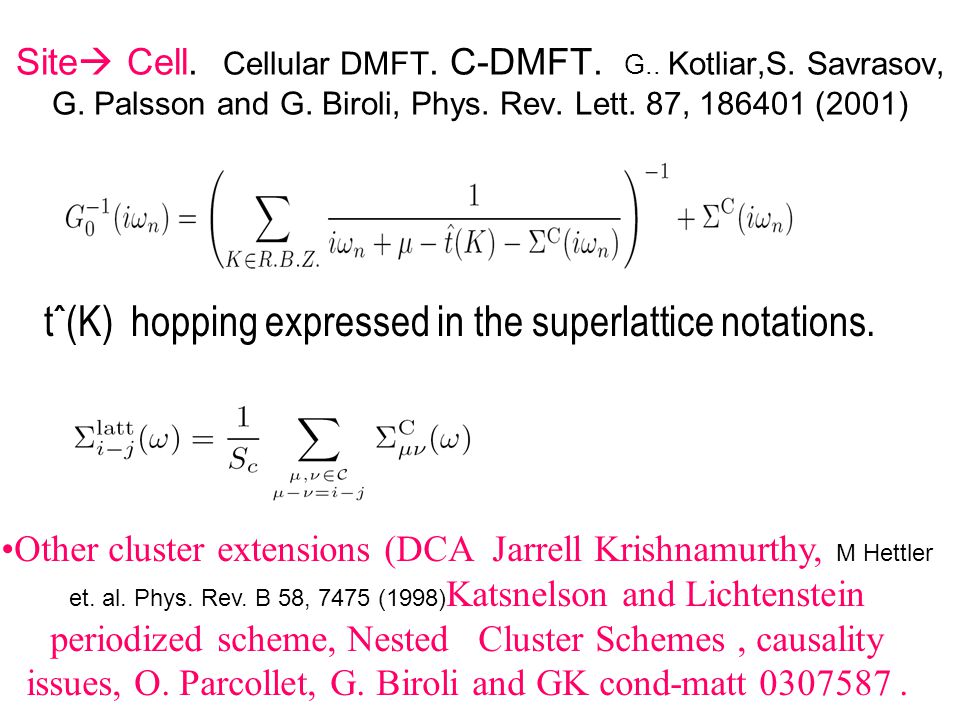

106. Site  Cell. Cellular DMFT. C-DMFT. G.. Kotliar,S. Savrasov, G. Palsson and G. Biroli, Phys. Rev. Lett. 87, 186401 (2001) tˆ(K) hopping expressed in the superlattice notations. Other cluster extensions (DCA Jarrell Krishnamurthy, M Hettler et. al. Phys. Rev. B 58, 7475 (1998) Katsnelson and Lichtenstein periodized scheme, Nested Cluster Schemes, causality issues, O. Parcollet, G. Biroli and GK cond-matt 0307587.

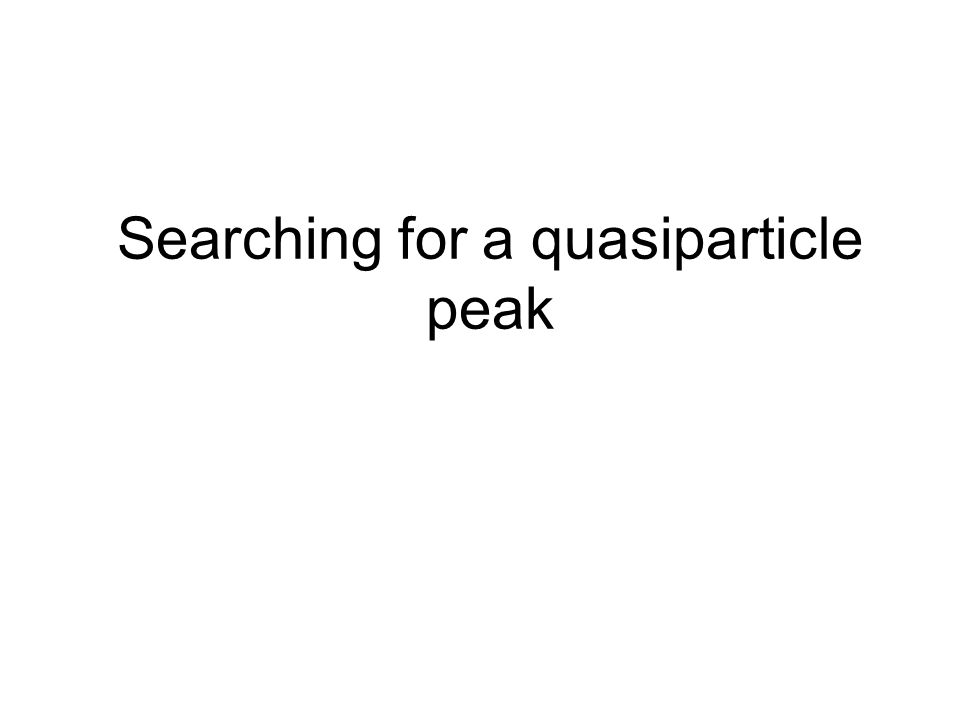

107. Searching for a quasiparticle peak

108. Schematic DMFT phase diagram Hubbard model (partial frustration). Evidence for QP peak in V2O3 from optics. M. Rozenberg G. Kotliar H. Kajueter G Thomas D. Rapkine J Honig and P Metcalf Phys. Rev. Lett. 75, 105 (1995)

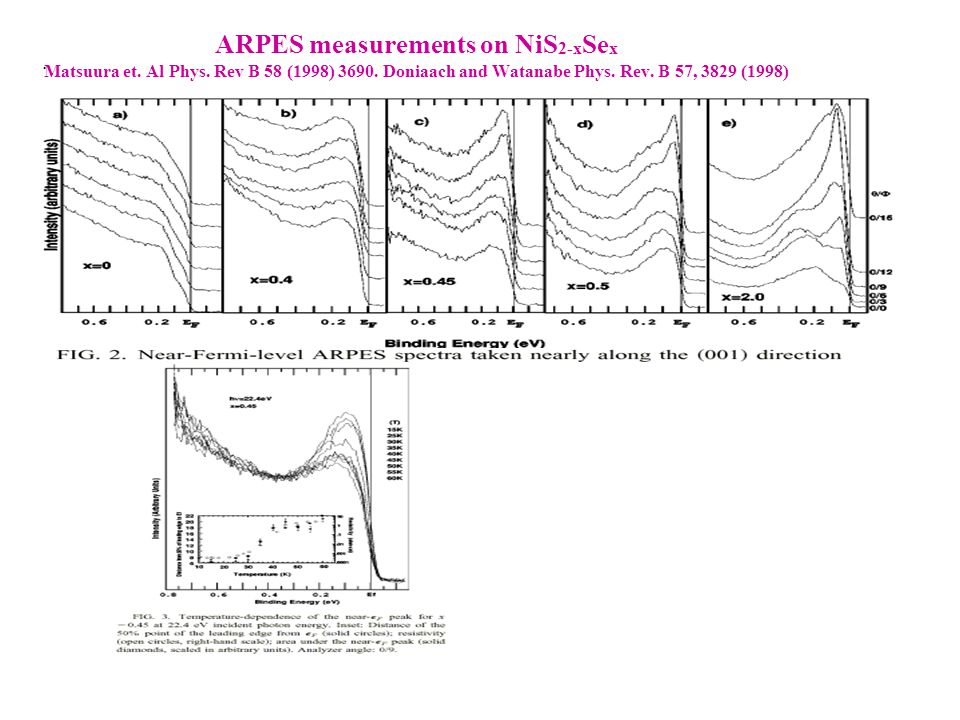

109. . ARPES measurements on NiS 2-x Se x Matsuura et. Al Phys. Rev B 58 (1998) 3690. Doniaach and Watanabe Phys. Rev. B 57, 3829 (1998)

110. QP in V2O3 was recently found Mo et.al

112.  organics ET = BEDT-TTF=Bisethylene dithio tetrathiafulvalene  (ET)2 X Increasing pressure -----  increasing t’  ------- ----- X0 X1 X2 X3 (Cu)2CN)3 Cu(NCN)2 Cl Cu(NCN2)2Br Cu(NCS)2 Spin liquid Mott transition

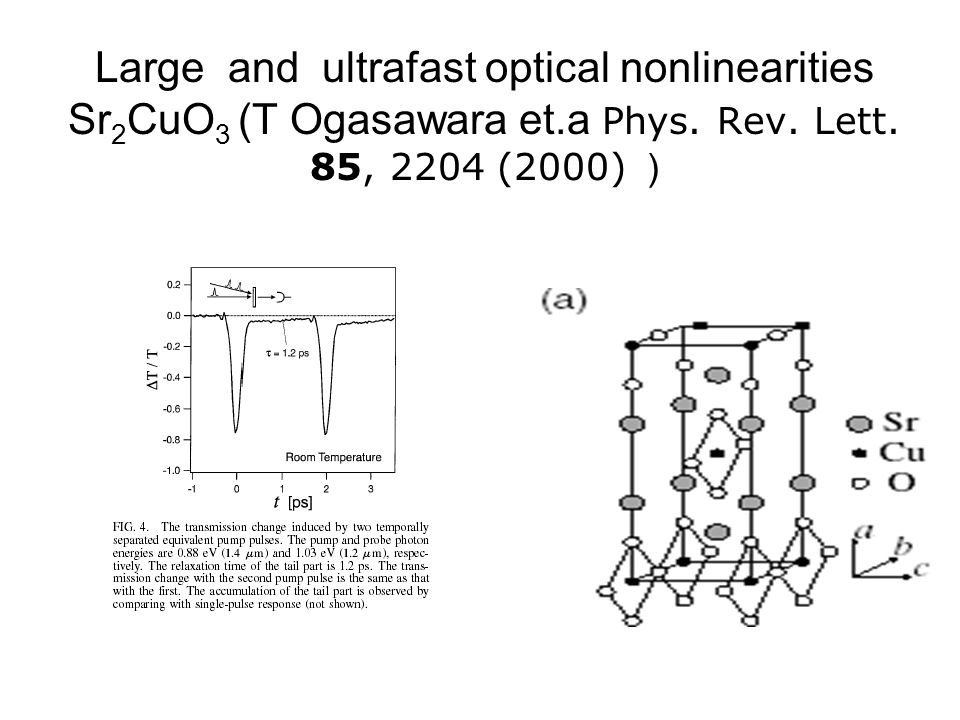

114. Large and ultrafast optical nonlinearities Sr 2 CuO 3 (T Ogasawara et.a Phys. Rev. Lett. 85, 2204 (2000) )

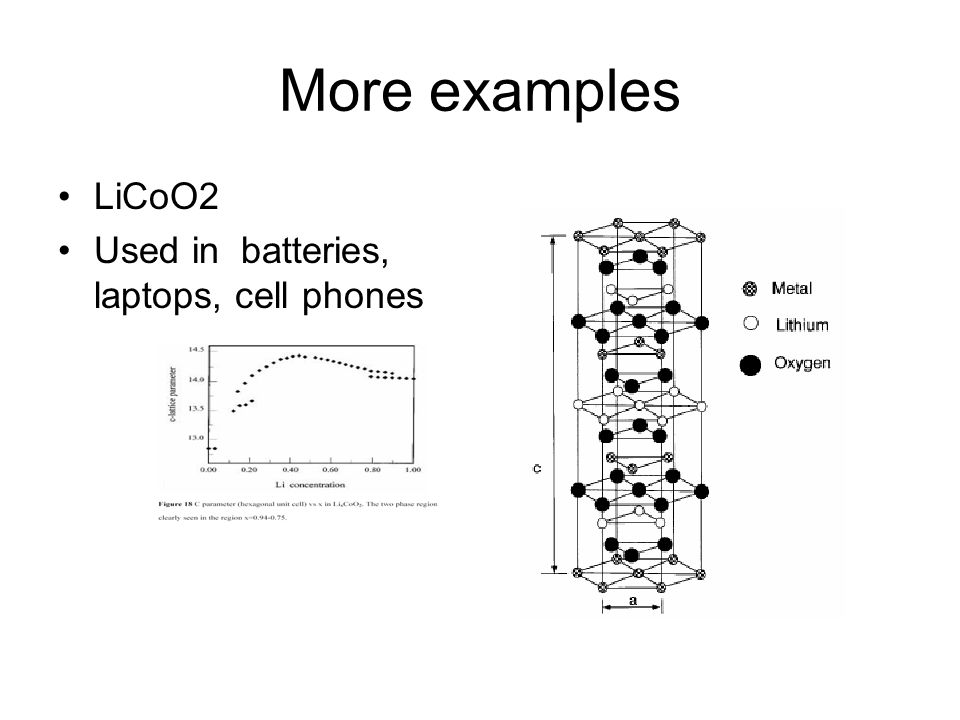

115. More examples LiCoO2 Used in batteries, laptops, cell phones

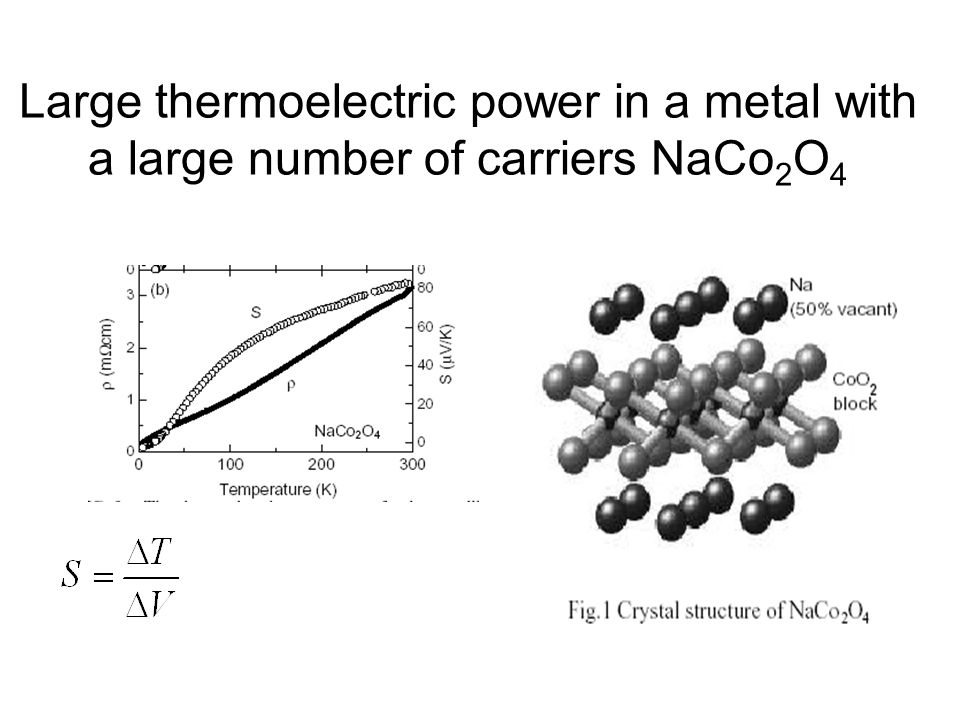

116. Large thermoelectric power in a metal with a large number of carriers NaCo 2 O 4

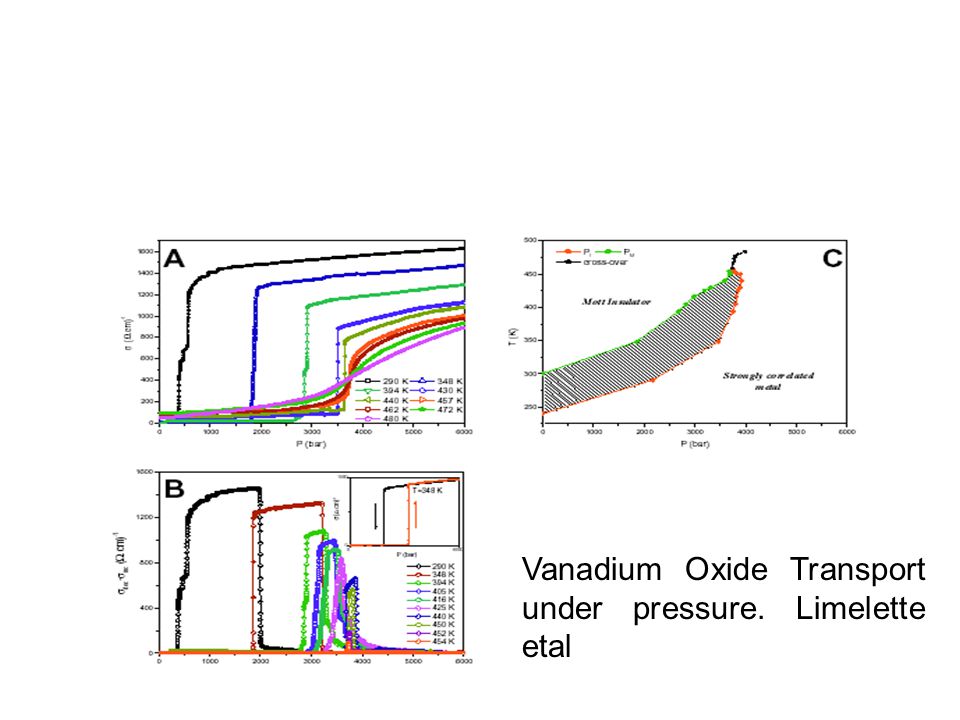

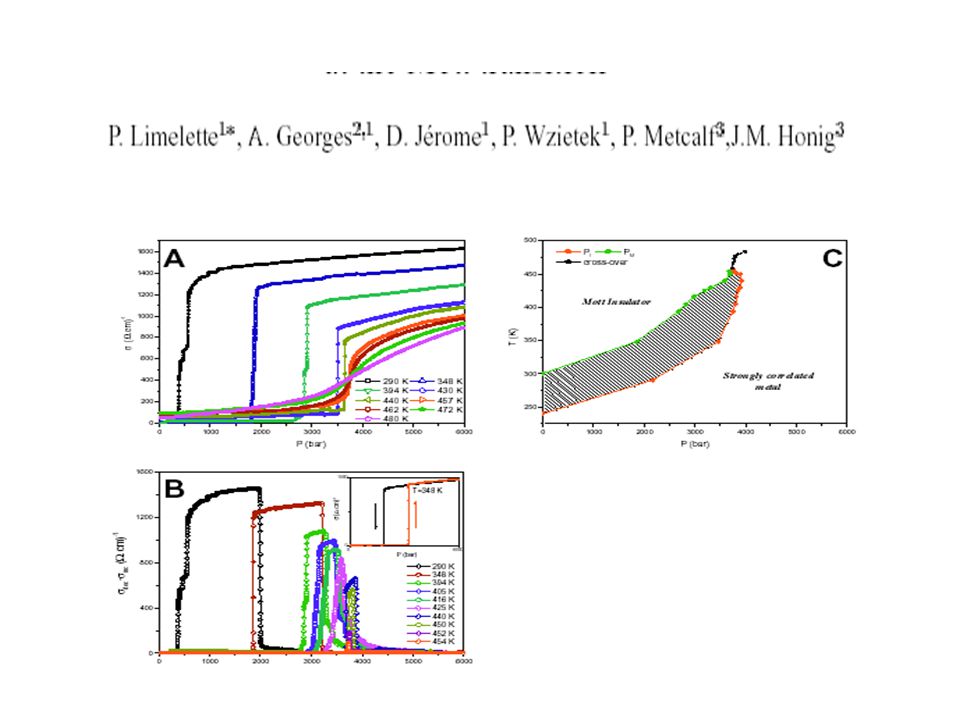

117. Vanadium Oxide Transport under pressure. Limelette etal

118. Mean-Field : Classical vs Quantum Classical case Quantum case Phys. Rev. B 45, 6497 A. Georges, G. Kotliar (1992)

119. Expt. Wong et. al.

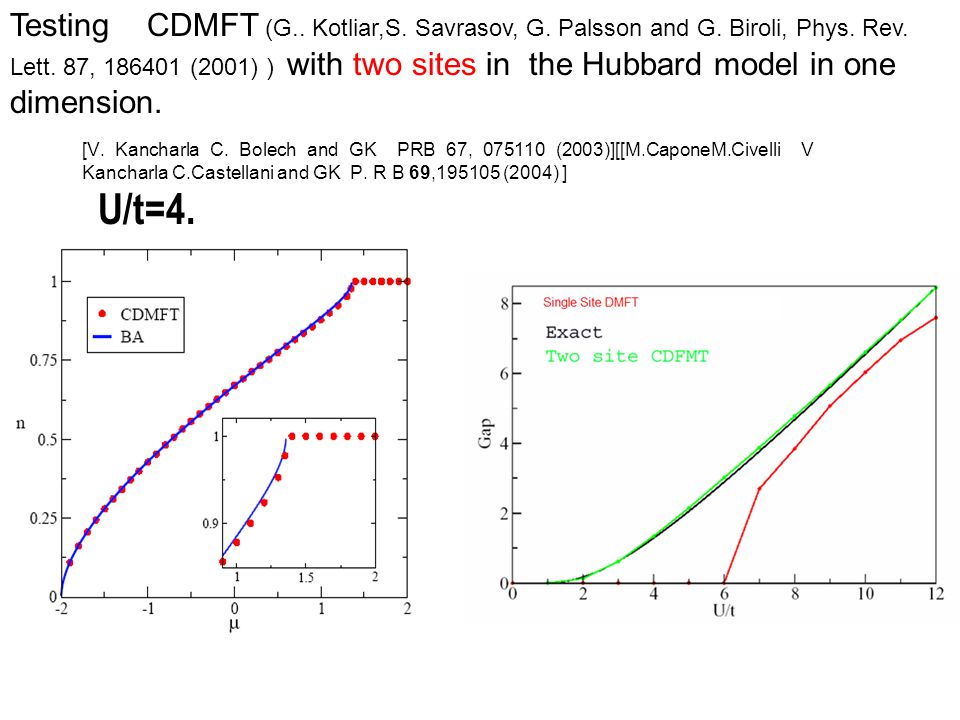

120. [V. Kancharla C. Bolech and GK PRB 67, 075110 (2003)][[M.CaponeM.Civelli V Kancharla C.Castellani and GK P. R B 69,195105 (2004) ] U/t=4. Testing CDMFT (G.. Kotliar,S. Savrasov, G. Palsson and G. Biroli, Phys. Rev. Lett. 87, 186401 (2001) ) with two sites in the Hubbard model in one dimension.

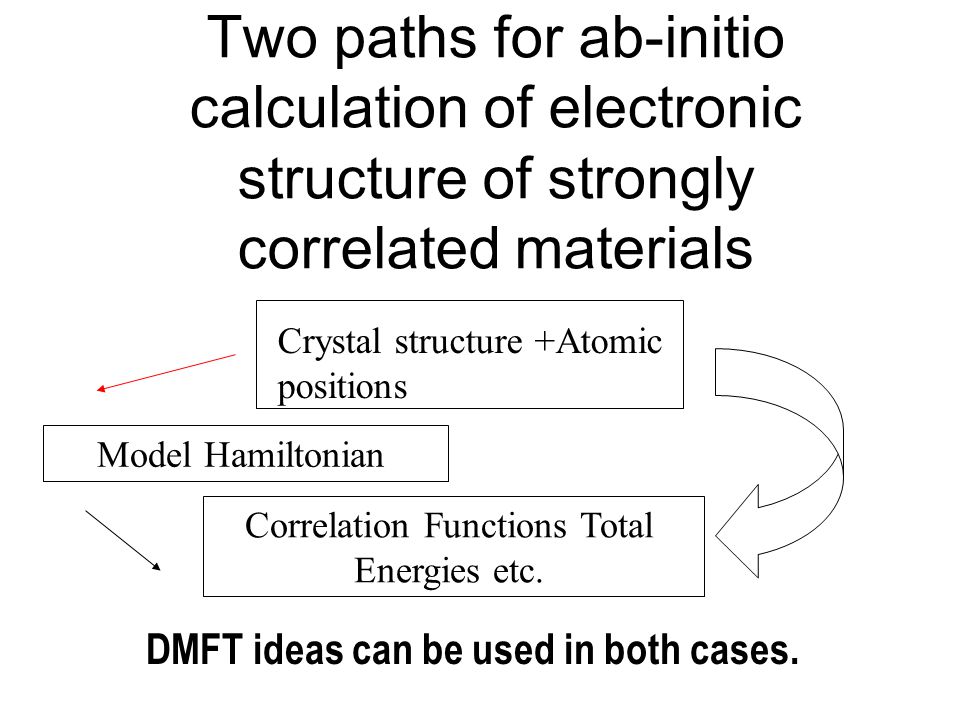

121. Two paths for ab-initio calculation of electronic structure of strongly correlated materials Correlation Functions Total Energies etc. Model Hamiltonian Crystal structure +Atomic positions DMFT ideas can be used in both cases.

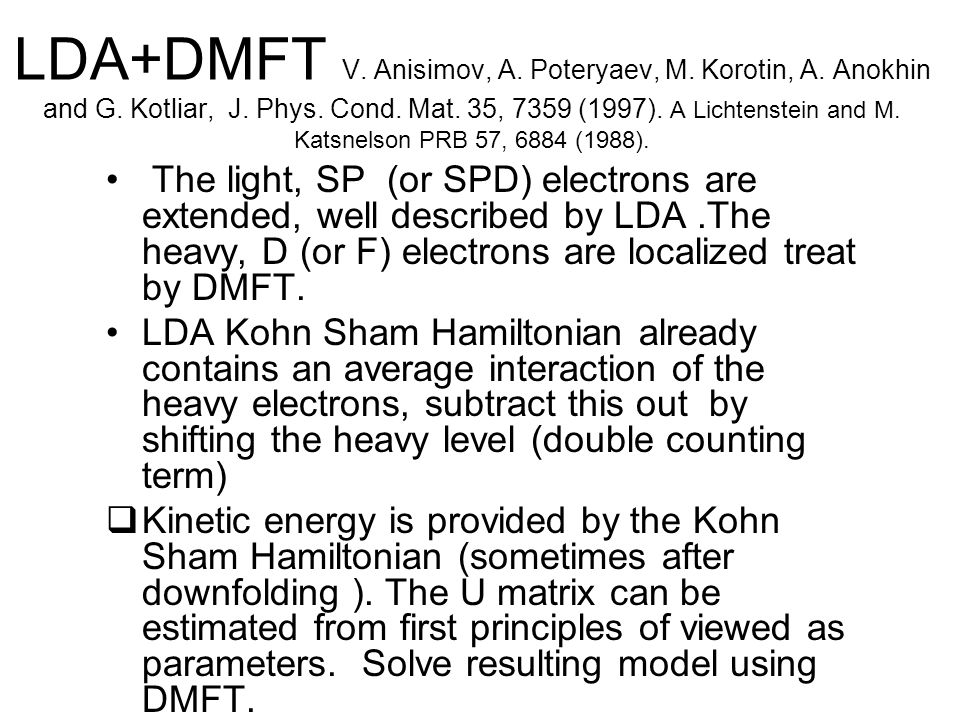

122. LDA+DMFT V. Anisimov, A. Poteryaev, M. Korotin, A. Anokhin and G. Kotliar, J. Phys. Cond. Mat. 35, 7359 (1997). A Lichtenstein and M. Katsnelson PRB 57, 6884 (1988). The light, SP (or SPD) electrons are extended, well described by LDA.The heavy, D (or F) electrons are localized treat by DMFT. LDA Kohn Sham Hamiltonian already contains an average interaction of the heavy electrons, subtract this out by shifting the heavy level (double counting term)  Kinetic energy is provided by the Kohn Sham Hamiltonian (sometimes after downfolding ). The U matrix can be estimated from first principles of viewed as parameters. Solve resulting model using DMFT.  Impurity Solvers: QMC-IPT-NCA……..

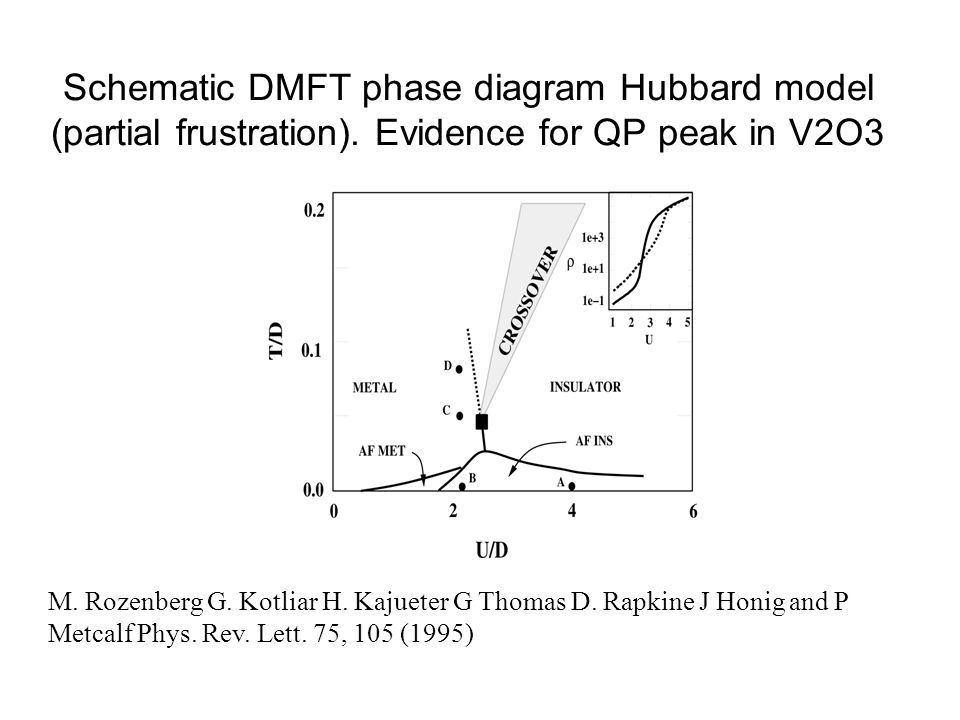

123. Schematic DMFT phase diagram Hubbard model (partial frustration). Evidence for QP peak in V2O3 from optics. M. Rozenberg G. Kotliar H. Kajueter G Thomas D. Rapkine J Honig and P Metcalf Phys. Rev. Lett. 75, 105 (1995)

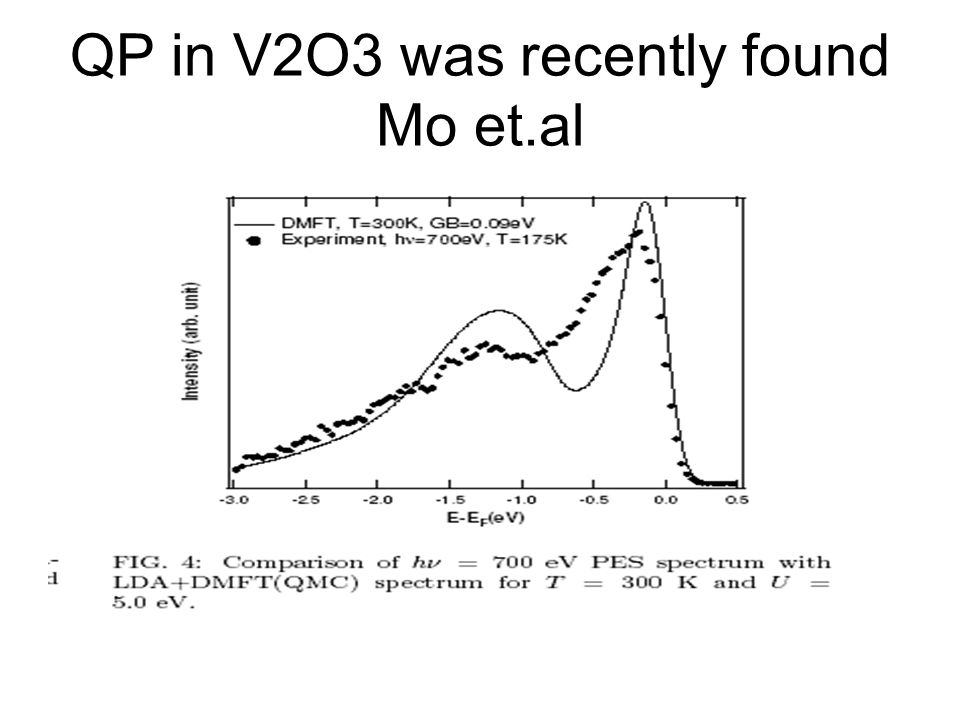

124. QP in V2O3 was recently found Mo et.al

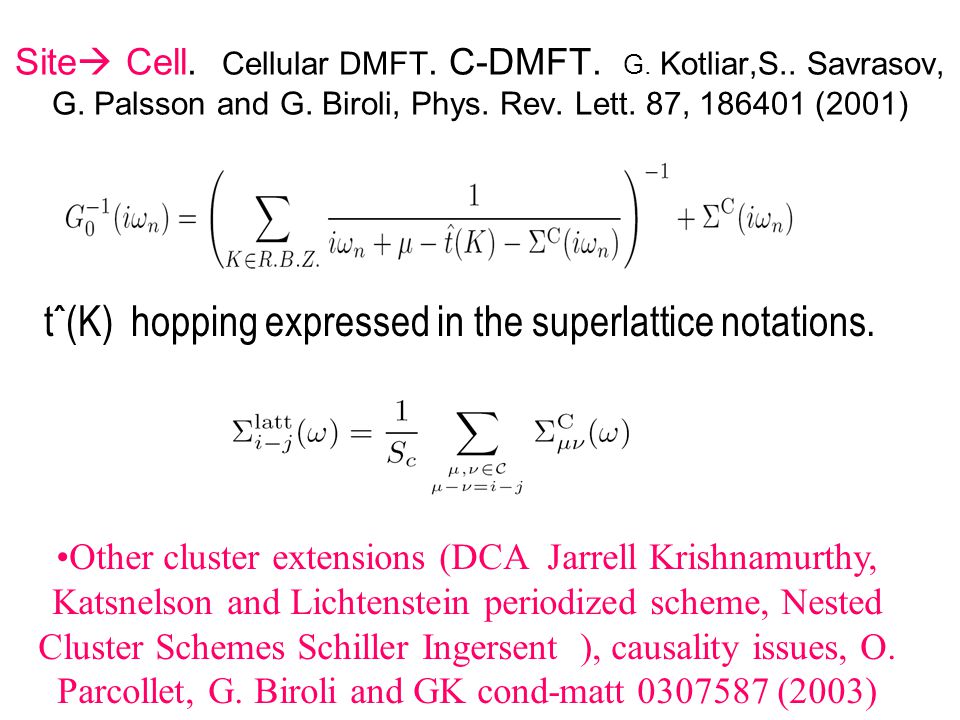

125. Site  Cell. Cellular DMFT. C-DMFT. G. Kotliar,S.. Savrasov, G. Palsson and G. Biroli, Phys. Rev. Lett. 87, 186401 (2001) tˆ(K) hopping expressed in the superlattice notations. Other cluster extensions (DCA Jarrell Krishnamurthy, Katsnelson and Lichtenstein periodized scheme, Nested Cluster Schemes Schiller Ingersent ), causality issues, O. Parcollet, G. Biroli and GK cond-matt 0307587 (2003)

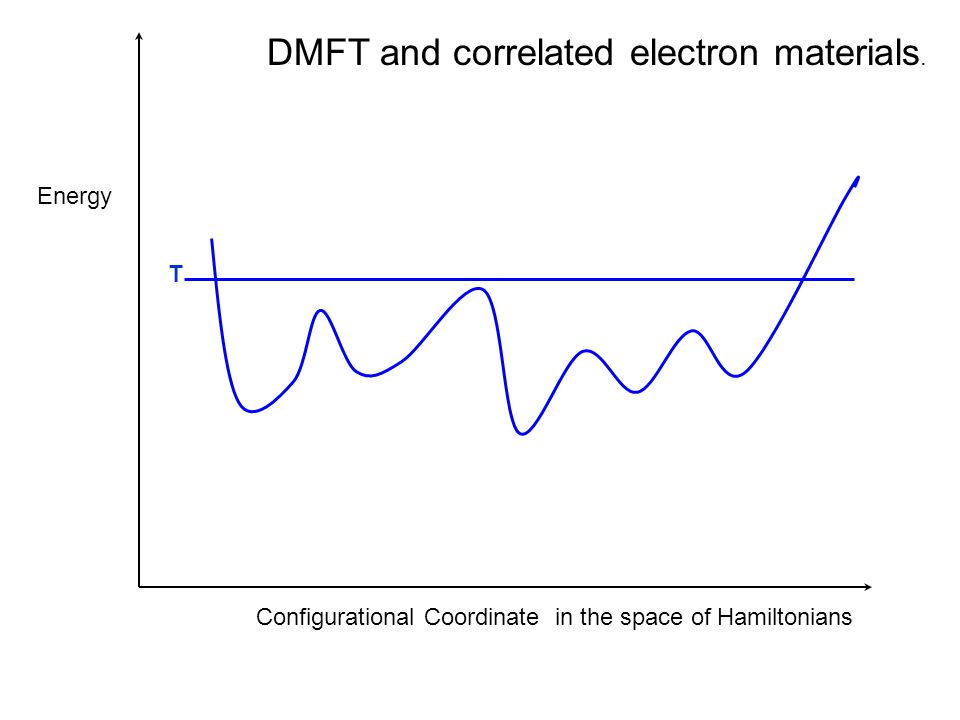

126. Energy Configurational Coordinate in the space of Hamiltonians T DMFT and correlated electron materials.

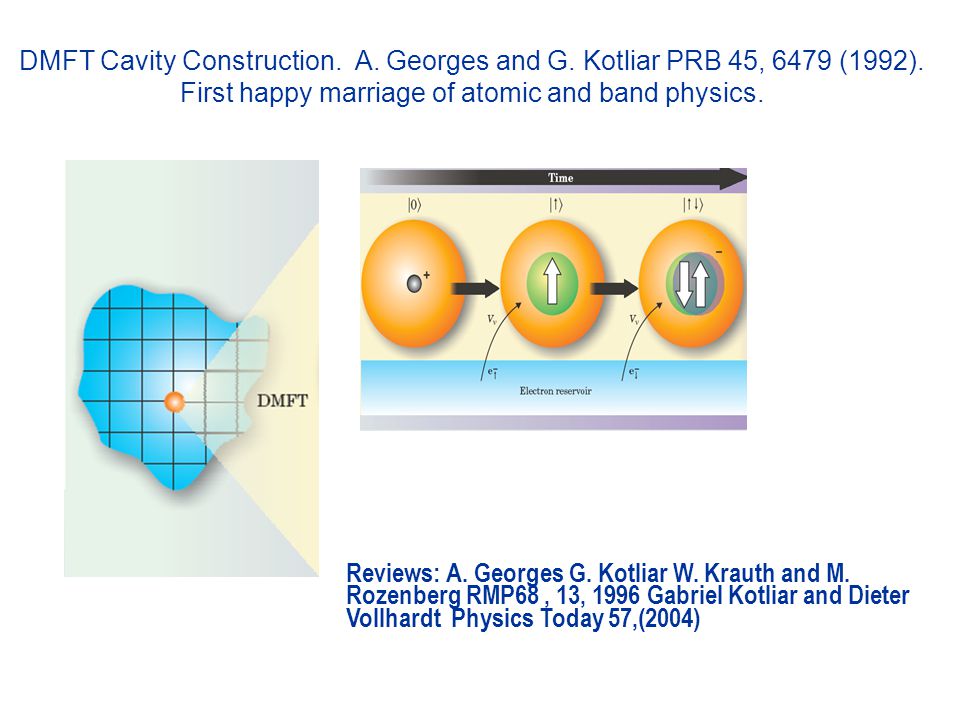

127. DMFT Cavity Construction. A. Georges and G. Kotliar PRB 45, 6479 (1992). First happy marriage of atomic and band physics. Reviews: A. Georges G. Kotliar W. Krauth and M. Rozenberg RMP68, 13, 1996 Gabriel Kotliar and Dieter Vollhardt Physics Today 57,(2004)

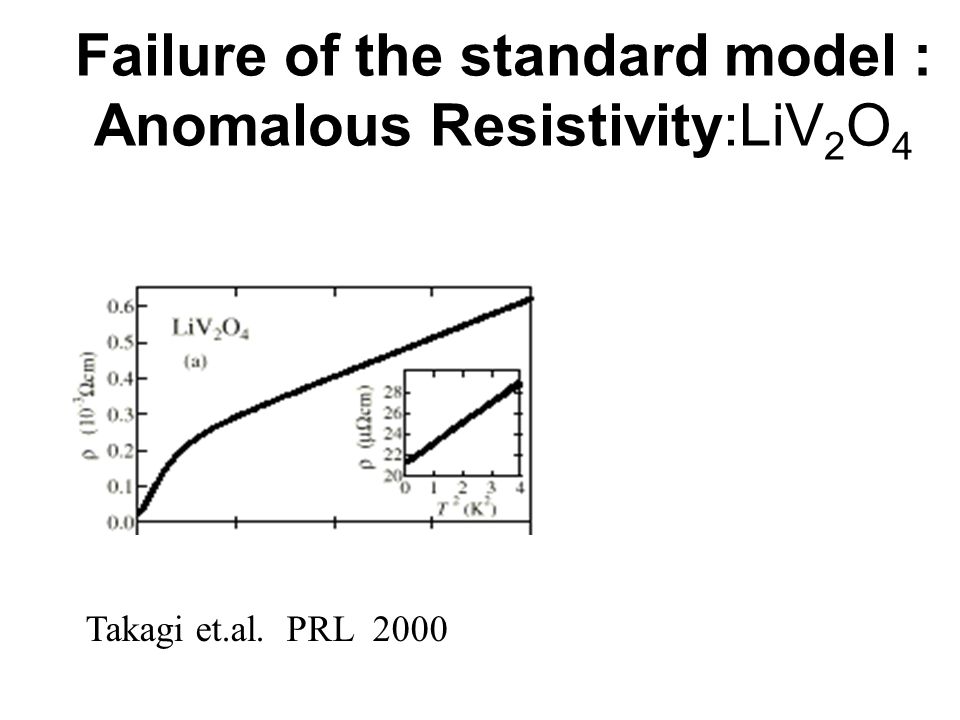

128. Failure of the standard model : Anomalous Resistivity:LiV 2 O 4 Takagi et.al. PRL 2000

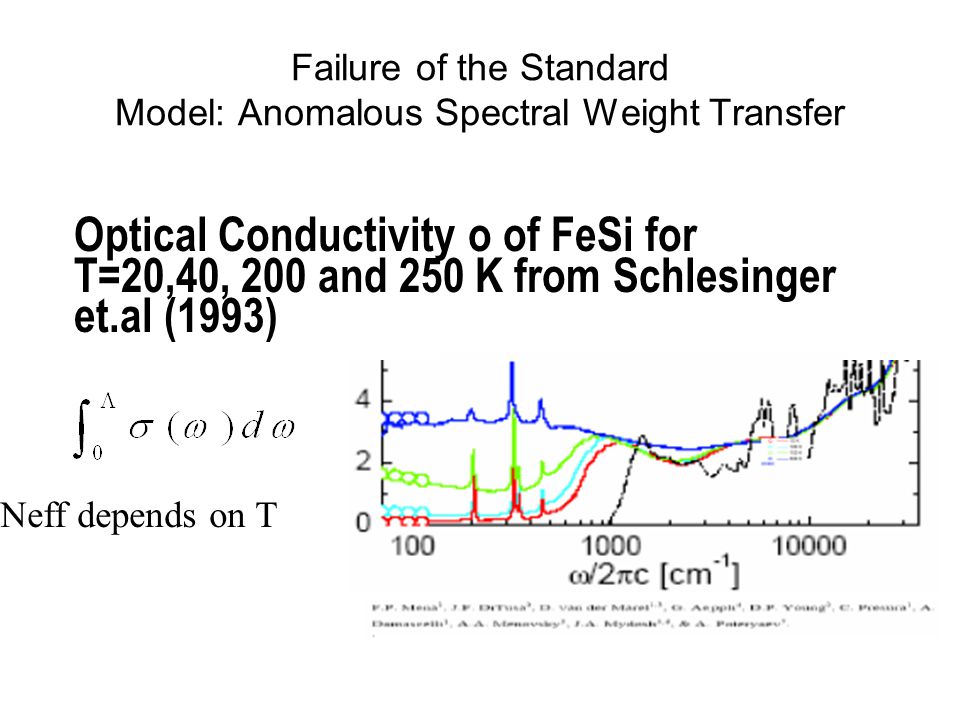

129. Failure of the Standard Model: Anomalous Spectral Weight Transfer Optical Conductivity o of FeSi for T=20,40, 200 and 250 K from Schlesinger et.al (1993) Neff depends on T
