1. Model Selection and Validation “All models are wrong; some are useful.”  George E. P. Box Some slides were taken from: J. C. Sapll: M ODELING C ONSIDERATIONS AND S TATISTICAL I NFORMATION J. C. Sapll: M ODELING C ONSIDERATIONS AND S TATISTICAL I NFORMATION J. Hinton: Preventing overfitting Bei Yu: Model Assessment

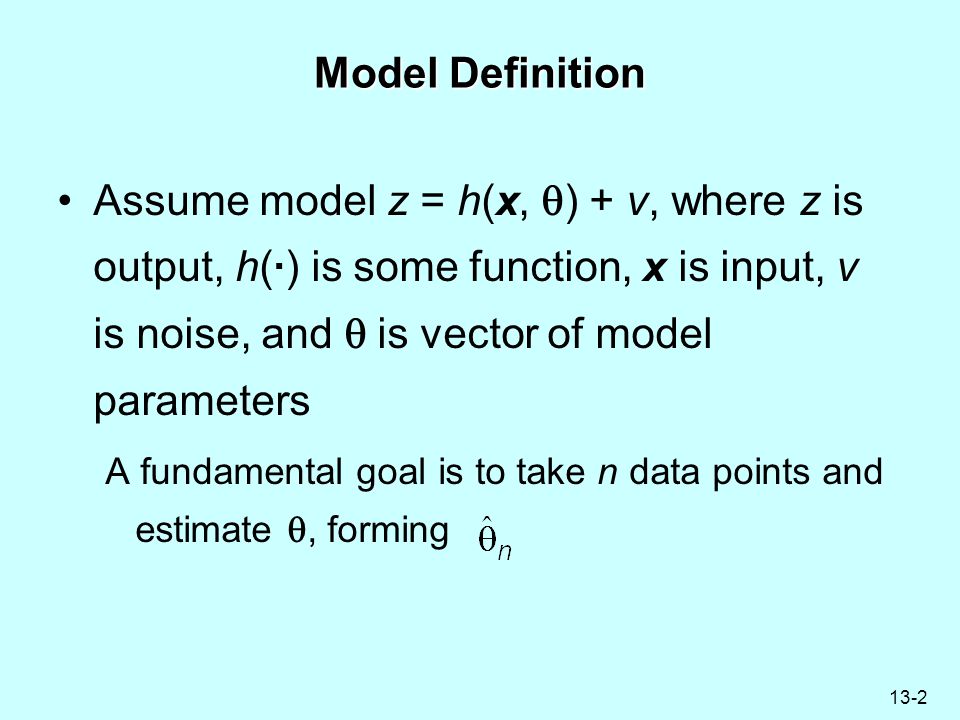

2. 13-2 Model Definition Assume model z = h(x,  ) + v, where z is output, h(·) is some function, x is input, v is noise, and  is vector of model parameters A fundamental goal is to take n data points and estimate , forming

3. 13-3 Model Error Definition Given a data set [x i,y i ], i = 1,..,n Given a model output h(x,  n ), where  n is taken from some family of parameters, the sum squared errors (SSE, MSE) is Σ i [y i - h(x i,  n )] 2, The likelihood is Π i P(h(x i,  n )|x i )

4. 13-4 Error surface as a function of Model parameters can look like this

5. 13-5 Error surface can also look like this Which one is better?

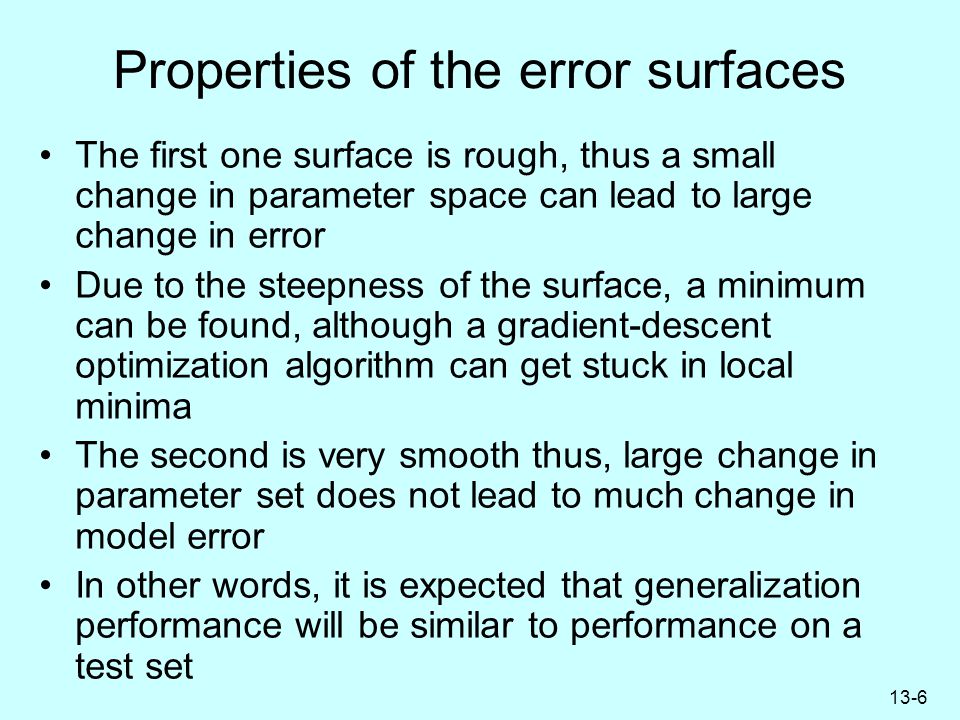

6. 13-6 Properties of the error surfaces The first one surface is rough, thus a small change in parameter space can lead to large change in error Due to the steepness of the surface, a minimum can be found, although a gradient-descent optimization algorithm can get stuck in local minima The second is very smooth thus, large change in parameter set does not lead to much change in model error In other words, it is expected that generalization performance will be similar to performance on a test set

7. 13-7 Parameter stability Finer detail: while the surface is very smooth, it is impossible to get to the true minima. Suggests that models that penalize on smoothness may be misleading. Breiman (1992) has shown that even in simple problems and simple nonlinear models, the degree of generalization is strongly dependent on the stability of the parameters.

8. The goal: Gain Info about the expected Error Suggested reading: S. Geman, E. Bienenstock, and R. Doursat. Neural networks and the bias/variance dilemmaNeural networks and the bias/variance dilemma Neural Computation, 4, 1991, 1-58.

9. 13-9 Bias-Variance Decomposition The MSE of the model at a fixed x can be decomposed as: E { [h(x,  )  E(z|x)] 2 | x } = E { [h(x,  )  E(h(x,  ))] 2 | x } + [E(h(x,  ))  E(z|x)] 2 = variance at x + (bias at x) 2 where expectations are computed w.r.t. Above implies: Model too simple  High bias / low variance Model too complex  Low bias / high variance

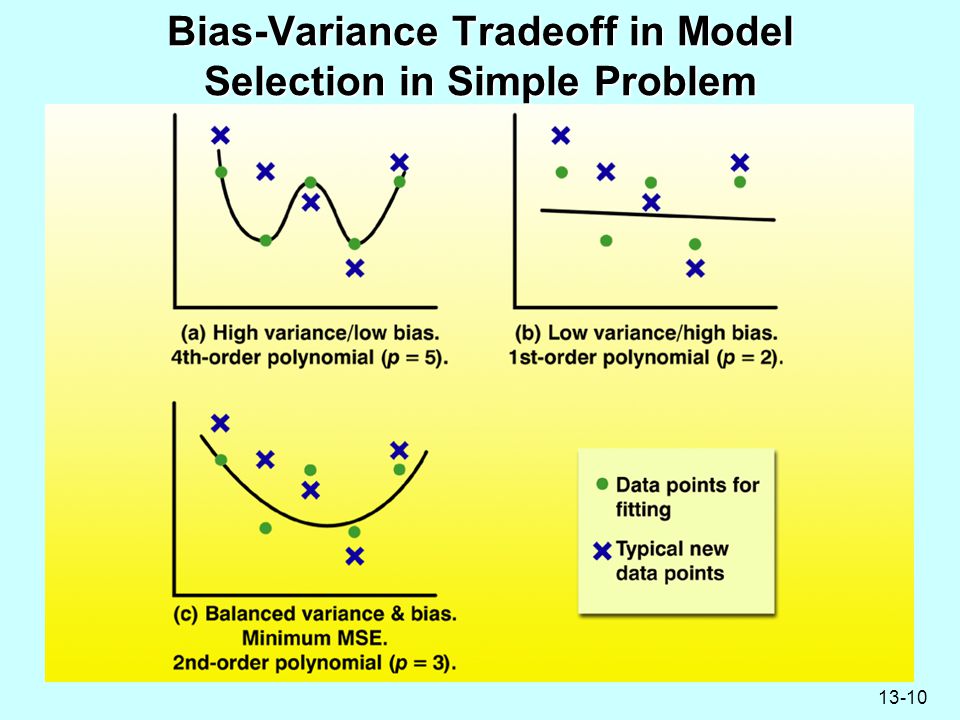

10. 13-10 Bias-Variance Tradeoff in Model Selection in Simple Problem

11. 13-11 Model Selection The bias-variance tradeoff provides conceptual framework for determining a good model –bias-variance tradeoff not directly useful Many methods for practical determination of a good model –AIC, Bayesian selection, cross-validation, minimum description length, V-C dimension, etc. All methods based on a tradeoff between fitting error (high variance) and model complexity (low bias) Cross-validation is one of the most popular model fitting methods

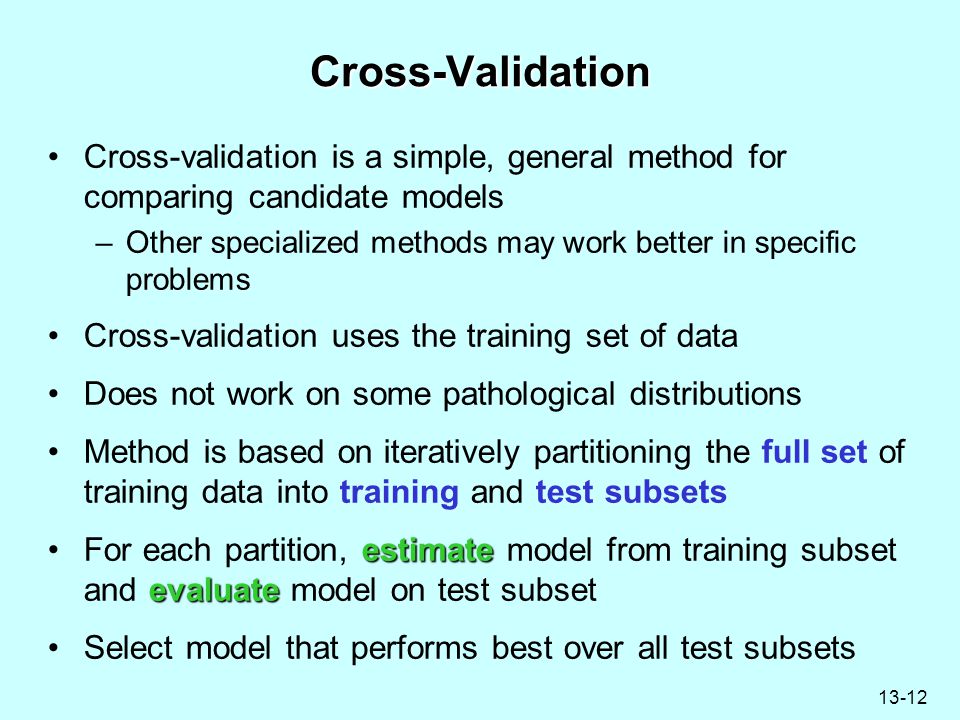

12. 13-12 Cross-Validation Cross-validation is a simple, general method for comparing candidate models –Other specialized methods may work better in specific problems Cross-validation uses the training set of data Does not work on some pathological distributions Method is based on iteratively partitioning the full set of training data into training and test subsets estimate evaluateFor each partition, estimate model from training subset and evaluate model on test subset Select model that performs best over all test subsets

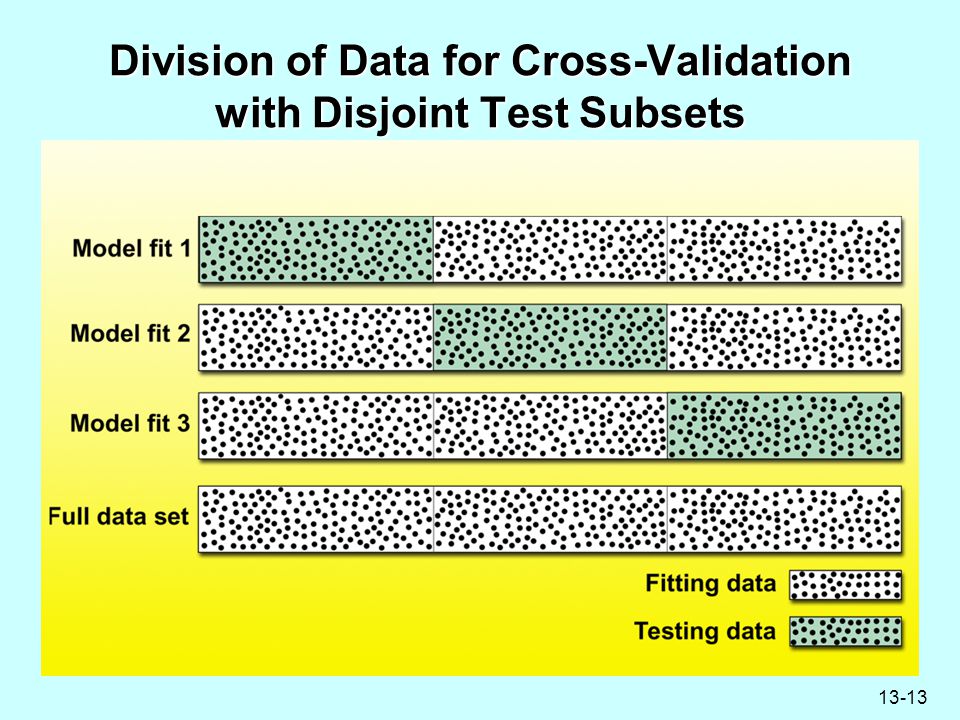

13. 13-13 Division of Data for Cross-Validation with Disjoint Test Subsets

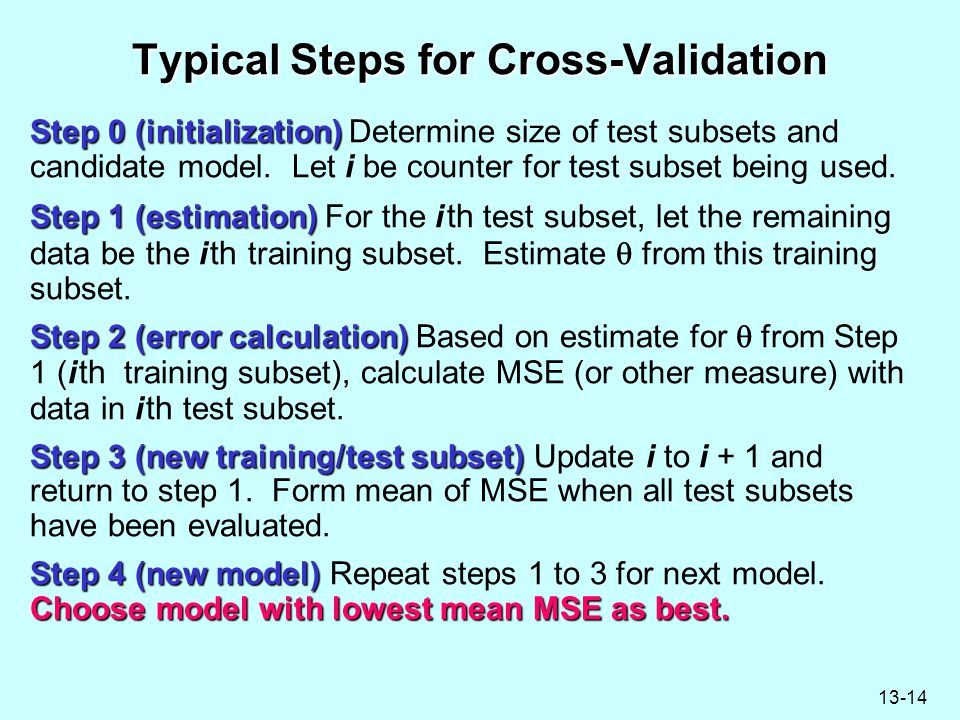

14. 13-14 Typical Steps for Cross-Validation Step 0 (initialization) Step 0 (initialization) Determine size of test subsets and candidate model. Let i be counter for test subset being used. Step 1 (estimation) Step 1 (estimation) For the i th test subset, let the remaining data be the i th training subset. Estimate  from this training subset. Step 2 (error calculation) Step 2 (error calculation) Based on estimate for  from Step 1 (i th training subset), calculate MSE (or other measure) with data in i th test subset. Step 3 (new training / test subset) Step 3 (new training / test subset) Update i to i + 1 and return to step 1. Form mean of MSE when all test subsets have been evaluated. Step 4 (new model) Choose model with lowest mean MSE as best. Step 4 (new model) Repeat steps 1 to 3 for next model. Choose model with lowest mean MSE as best.

15. 13-15 Numerical Illustration of Cross-Validation (Example 13.4 in ISSO) Consider true system corresponding to a sine function of the input with additive normally distributed noise Consider three candidate models –Linear (affine) model –3rd-order polynomial –10th-order polynomial Suppose 30 data points are available, divided into 5 disjoint test subsets Based on RMS error (equiv. to MSE) over test subsets, 3rd-order polynomial is preferred See following plot

16. 13-16 Numerical Illustration (cont’d): Relative Fits for 3 Models with Low-Noise Observations

17. 13-17 Standard approach to Model Selection Optimize concurrently the likelihood or mean squared error together with a complexity penalty. Some penalties: norm of the weight vector, smoothness, number of terminating leaves (in CART), variance weights, cross validation... etc. Spend most computational time on optimizing the parameter solution via sophisticated Gradient descent methods or even global-minimum seeking methods.

18. 13-18 Alternative approach MDL based model selection Later

19. 13-19 Model Complexity

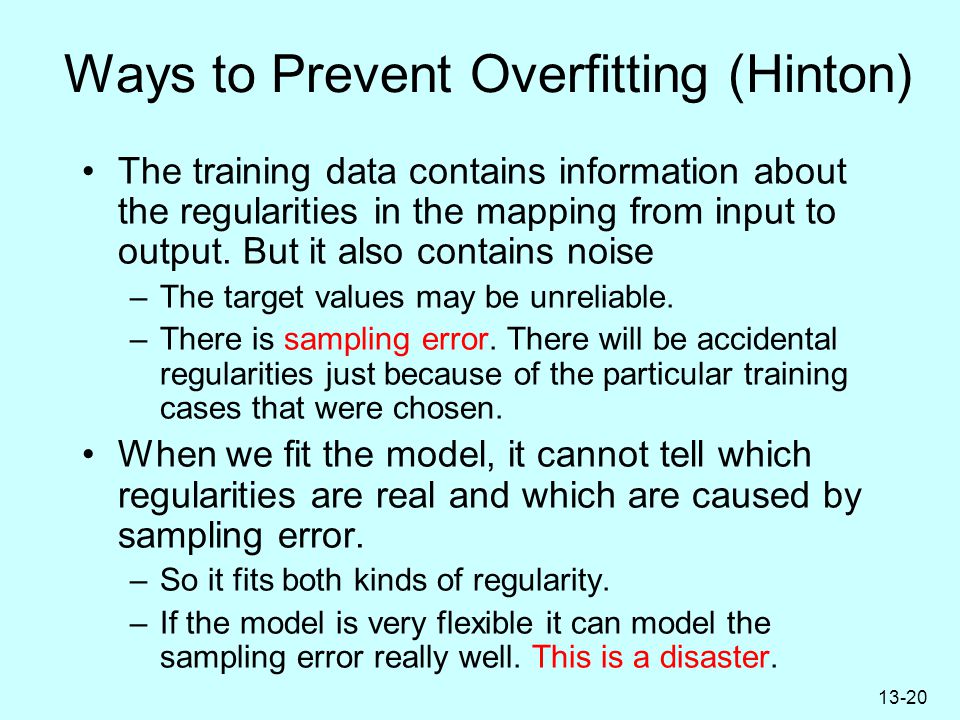

20. 13-20 Ways to Prevent Overfitting (Hinton) The training data contains information about the regularities in the mapping from input to output. But it also contains noise –The target values may be unreliable. –There is sampling error. There will be accidental regularities just because of the particular training cases that were chosen. When we fit the model, it cannot tell which regularities are real and which are caused by sampling error. –So it fits both kinds of regularity. –If the model is very flexible it can model the sampling error really well. This is a disaster.

21. 13-21 Preventing overfitting Use a model that has the right capacity: –enough to model the true regularities –not enough to also model the spurious regularities (assuming they are weaker). Standard ways to limit the capacity of a neural net: –Limit the number of hidden units. –Limit the size of the weights. –Stop the learning before it has time to overfit.

22. 13-22 Limiting the size of the weights Weight-decay involves adding an extra term to the cost function that penalizes the squared weights. –Keeps weights small unless they have big error derivatives. w C

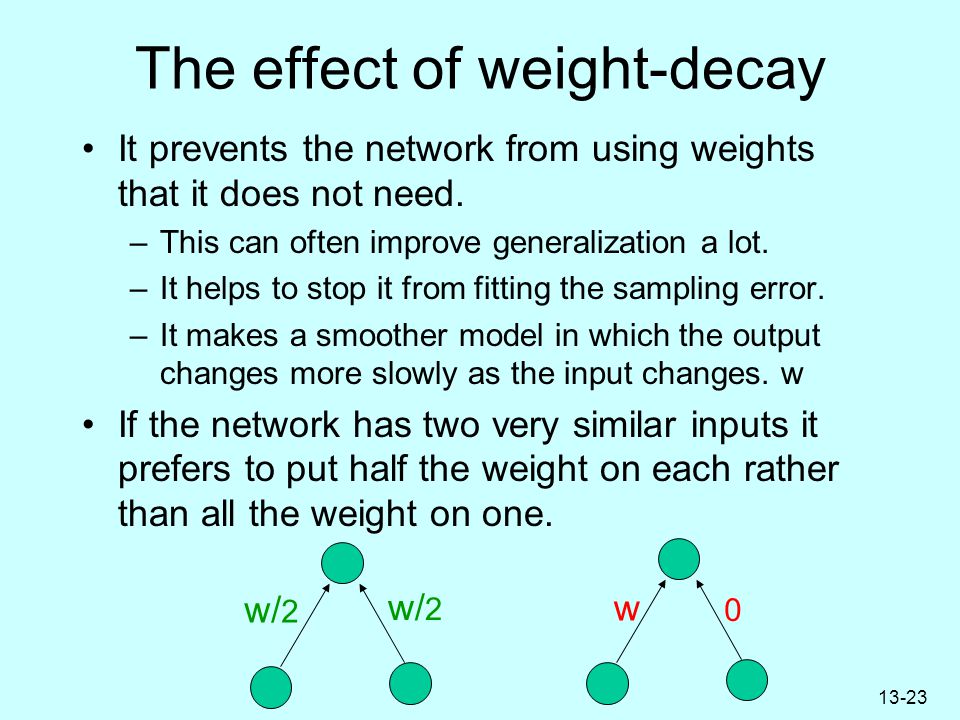

23. 13-23 The effect of weight-decay It prevents the network from using weights that it does not need. –This can often improve generalization a lot. –It helps to stop it from fitting the sampling error. –It makes a smoother model in which the output changes more slowly as the input changes. w If the network has two very similar inputs it prefers to put half the weight on each rather than all the weight on one. w/ 2 w 0

24. 13-24 Model selection How do we decide which limit to use and how strong to make the limit? –If we use the test data we get an unfair prediction of the error rate we would get on new test data. –Suppose we compared a set of models that gave random results, the best one on a particular dataset would do better than chance. But it wont do better than chance on another test set. So use a separate validation set to do model selection.

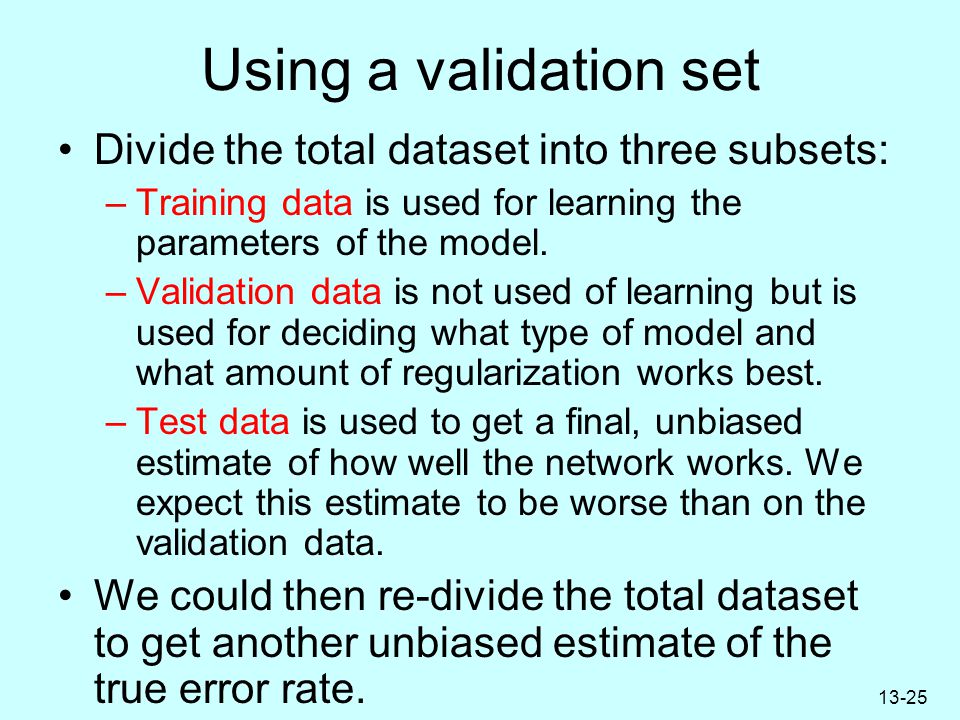

25. 13-25 Using a validation set Divide the total dataset into three subsets: –Training data is used for learning the parameters of the model. –Validation data is not used of learning but is used for deciding what type of model and what amount of regularization works best. –Test data is used to get a final, unbiased estimate of how well the network works. We expect this estimate to be worse than on the validation data. We could then re-divide the total dataset to get another unbiased estimate of the true error rate.

26. 13-26 Early stopping If we have lots of data and a big model, its very expensive to keep re-training it with different amounts of weight decay. It is much cheaper to start with very small weights and let them grow until the performance on the validation set starts getting worse (but don’t get fooled by noise!) The capacity of the model is limited because the weights have not had time to grow big.

27. 13-27 Why early stopping works When the weights are very small, every hidden unit is in its linear range. –So a net with a large layer of hidden units is linear. –It has no more capacity than a linear net in which the inputs are directly connected to the outputs! As the weights grow, the hidden units start using their non-linear ranges so the capacity grows. outputs inputs

28. 13-28 Minimum Description Length Approach

29. 13-29 Model Assessment and Selection (Bei Yu) Loss Function and Error Rate Bias, Variance and Model Complexity Optimization AIC (Akaike Information Criterion) BIC (Bayesian Information Criterion) MDL (Minimum Description Length)

30. 13-30 Model Assessment and Selection Model Selection: –estimating the performance of different models in order to choose the best one. Model Assessment: –having chosen the model, estimating the prediction error on new data.

31. 13-31 Approaches data-rich: –data split: Train-Validation-Test –typical split: 50%-25%-25% (how?) data-insufficient: –Analytical approaches: AIC, BIC, MDL, SRM –efficent sample re-use approaches: cross validation, bootstrapping

32. 13-32 Model Complexity

33. 13-33 Loss Functions Continuous Response Categorical Response squared error absolute error 0-1 loss log-likelihood

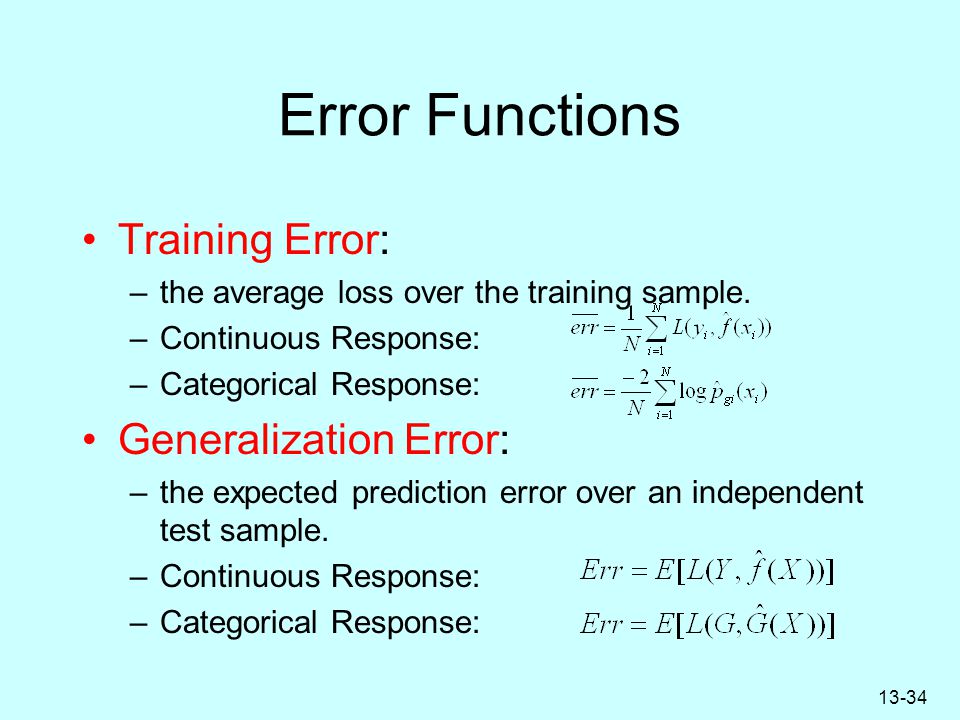

34. 13-34 Error Functions Training Error: –the average loss over the training sample. –Continuous Response: –Categorical Response: Generalization Error: –the expected prediction error over an independent test sample. –Continuous Response: –Categorical Response:

35. 13-35 Bias-Variance Decomposition Assume: Bias-Variance Decomposition: K-NN: Linear fit: –Ridge Regression:

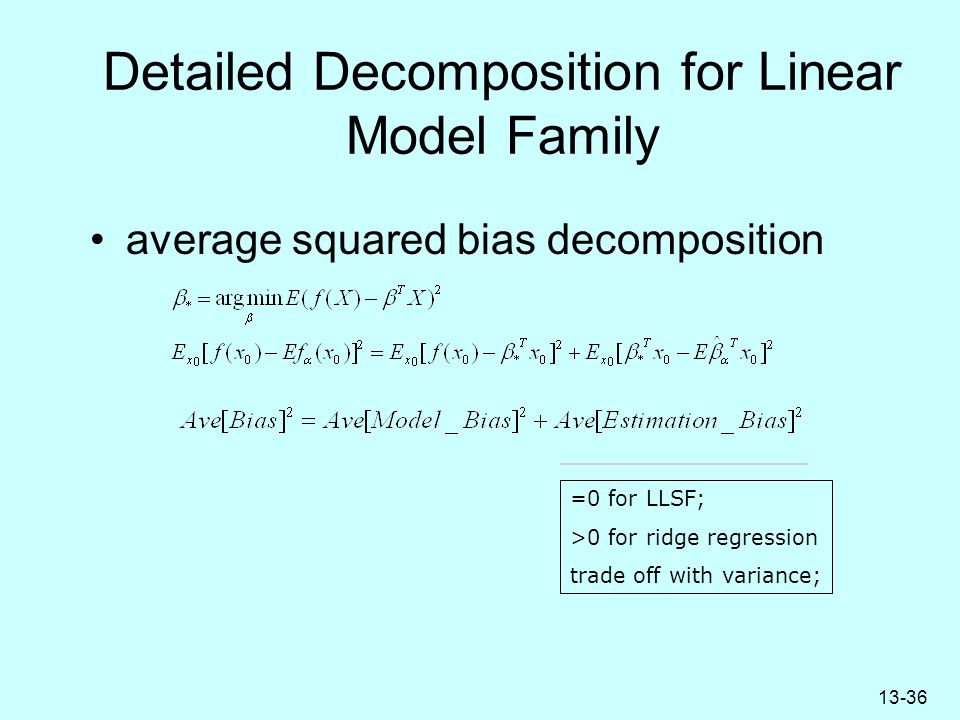

36. 13-36 Detailed Decomposition for Linear Model Family average squared bias decomposition =0 for LLSF; >0 for ridge regression trade off with variance;

37. 13-37 Bias-Variance Tradeoff

38. 13-38 Key Methods to Estimate Prediction Error Estimate Optimism, then add it to the training error rate. AIC: choose the model with smallest AIC BIC: choose the model with smallest BIC

39. 13-39 Summary Cross validation: A practical way to estimate model error. Model Estimation should be done with a penalty When best model estimation is chosen, estimate on whole data or average models on cross validated data
