1
virtual techdays INDIA │ 9-11 February 2011 Cross Hypervisor Management Using SCVMM 2008 R2 Vikas Madan │ Partner Consultant II, Microsoft Corporation
2
Virtualization and Business Today Microsoft Virtualization Strategy System Center Virtual Machine Manager 2008 R2 Overview Heterogeneous Virtualization Management Demo: VMM 2008 R2 Walkthrough virtual techdays INDIA │ 9-11 February 2011 S E S S I O N A G E N D A
3
virtual techdays INDIA │ 9-11 February 2011 Microsoft Virtualization Lower TCO Lower TCO Increase Availability Increase Availability Increase Availability Increase Availability Reduce power consumption and data center space Increase hardware utilization Lower upfront cost – including licensing Simplify application and desktop lifecycle management Lower operational costs for maintenance and training Reduce power consumption and data center space Increase hardware utilization Lower upfront cost – including licensing Simplify application and desktop lifecycle management Lower operational costs for maintenance and training Integrate physical, virtual and application management Accelerate responses to changing business needs Flexible desktop deployments Migration to a new Windows version Provide capacity on demand
4

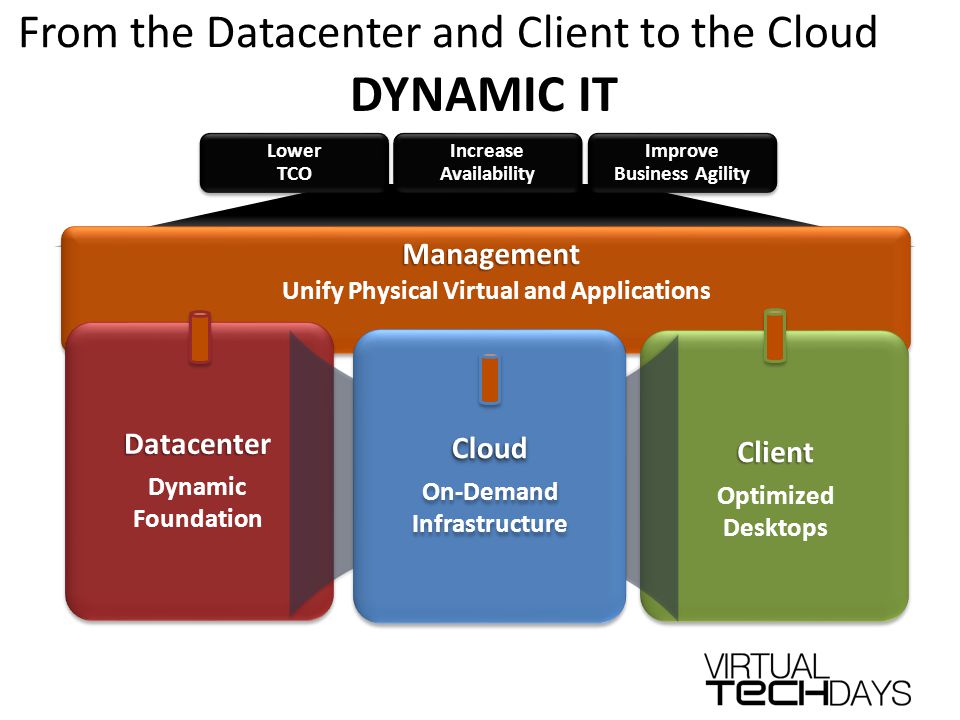

Management Unify Physical Virtual and Applications DYNAMIC IT LowerTCOLowerTCOIncreaseAvailabilityIncreaseAvailabilityImprove Business Agility Improve Datacenter Dynamic FoundationDatacenter Client Optimized Desktops Cloud On-Demand InfrastructureCloud From the Datacenter and Client to the Cloud
5
The Benefits of Virtualization Server Consolidation and Utilization of IT Resources Clustered Pooled Resources Reduce Management Complexity Capacity on Demand Anytime, Anywhere, Any Device Access Faster Application Deployment and Updates Lower Costs through AutomationDatacenter Dynamic FoundationDatacenter Cloud On-Demand InfrastructureCloud Client Optimized Desktops Management Unify Physical Virtual and Applications Centralize Physical, Virtual, and Application Management and Monitoring Lower TCO, Increase Availability and Improve Business Agility
6
virtual techdays INDIA │ 9-11 February 2011 Virtualization and System Center Portfolio
7
virtual techdays INDIA │ 9-11 February 2011 System Center Virtual Machine Manager 2008 R2
8
virtual techdays INDIA │ 9-11 February 2011 VMM 2008 R2: Architecture VM Template ISO Script VHD VM
9
Customer demand Provide an integrated view Standardize management processes and procedures across your virtual environments Leverage System Center family for complete management solution Driven by customer environments Co-existence of virtualization platforms is a reality today As Hyper-V is adopted, customers will migrate workloads for cost-effective virtualization. virtual techdays INDIA │ 9-11 February 2011 Why Manage VMware?
10

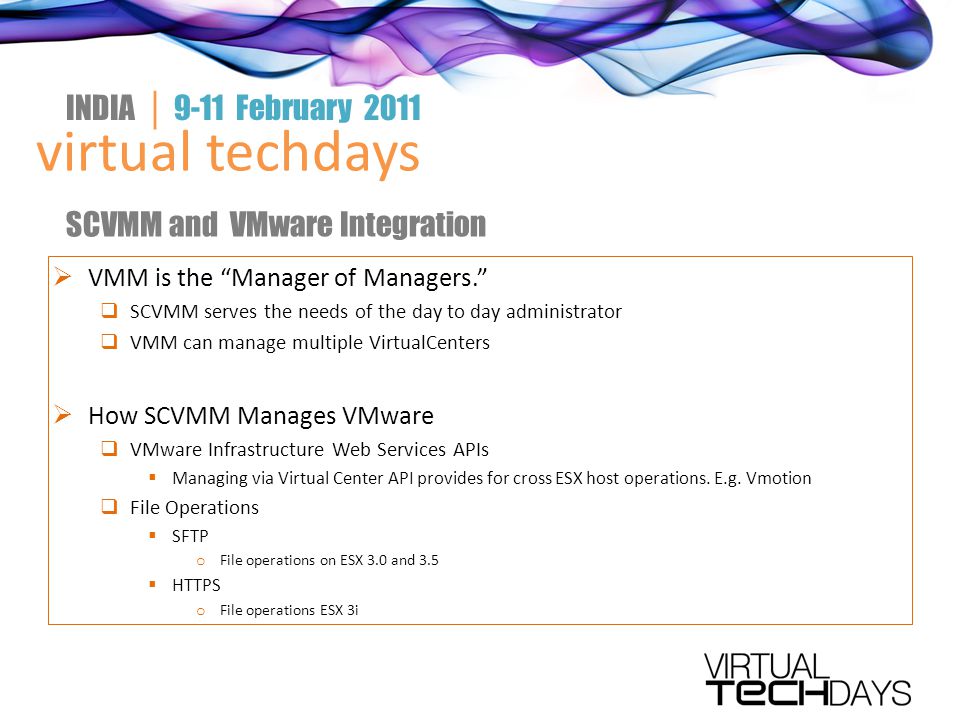

VMM is the “Manager of Managers.” SCVMM serves the needs of the day to day administrator VMM can manage multiple VirtualCenters How SCVMM Manages VMware VMware Infrastructure Web Services APIs Managing via Virtual Center API provides for cross ESX host operations. E.g. Vmotion File Operations SFTP o File operations on ESX 3.0 and 3.5 HTTPS o File operations ESX 3i virtual techdays INDIA │ 9-11 February 2011 SCVMM and VMware Integration
11
Create a dedicated account for SCVMM management Must have VirtualCenter admin privilege at Host &Clusters level Account does not need to be a local admin on VirtualCenter virtual techdays INDIA │ 9-11 February 2011 Add VMware VirtualCenter
12
OK (Limited) OK virtual techdays INDIA │ 9-11 February 2011 ESX Host States in SCVMM OperationsOK (Limited) OK Power State (Start, Stop, Pause)Yes VM Configuration (Properties, Remove)Yes VMotionYes Checkpoint (New, Manage)Yes Migrate (intra VC, to Library)Yes Clone (intra VC, intra host)Yes Saved State (Save, Discard)Yes Convert (V2V)Yes New VM (from VMM template, new virtual disk)Yes
13
Before you configure security in VMM you must take some action on VC or ESX host. VMware ESX Host Credentials SFTP Operations Determine ESX Host Credentials Root Requires SSH Root Login Enablement on each ESX Host Virtual Machine Delegate Requires Host Reboot virtual techdays INDIA │ 9-11 February 2011 Enabling Full VMware Management
14
virtual techdays INDIA │ 9-11 February 2011 Enable Full Vmware Management Cont… Move From OK (Limited) to OK
15
Unified management experience Hyper-V and VMware Full virtual machine management VMotion, Resource Pools, VMware Templates Network Diagram view and VMware HA VM Support Enhancing capabilities on VMware VI3 PRO Intelligent placement Library Integrated conversion tools PowerShell automation virtual techdays INDIA │ 9-11 February 2011 ManageVMware and Add Value
16
Workload centric VM creation Intelligent Placement identifies the ideal host based on workload requirements Leverages VMM's capacity planning models VMotion guided by intelligent placement virtual techdays INDIA │ 9-11 February 2011 Intelligent Placement for VMware
17
Store VMware Templates in VMM library SCVMM imports templates using a “move.” virtual techdays INDIA │ 9-11 February 2011 VMware Template Support
18
Physical to Virtual (P2V) and Virtual to Virtual (V2V) integrated in VMM Use the P2V wizard to convert the running guest operating system inside the VMware VM to a Hyper-V VM Use the V2V wizard to convert a VM that is on an ESX host to a Hyper-V VM Put the VMware VM in the library and use the V2V wizard to convert it to a Hyper-V VM VMware VMs can be placed in the library by copying the VMDK and VMX files into the library share and refreshing it from the Administrator Console virtual techdays INDIA │ 9-11 February 2011 Integrated Conversion Tools
19
Single pane of glass network view virtual techdays INDIA │ 9-11 February 2011 Network Diagram View
20

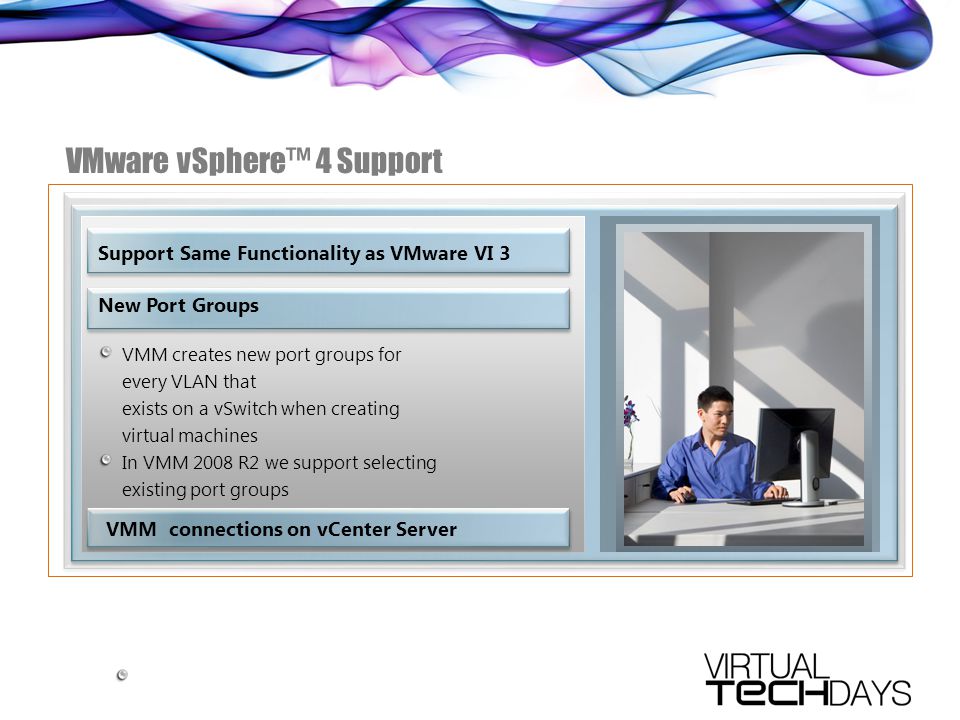

VMware vSphere™ 4 Support Support Same Functionality as VMware VI 3 New Port Groups VMM creates new port groups for every VLAN that exists on a vSwitch when creating virtual machines In VMM 2008 R2 we support selecting existing port groups VMM connections on vCenter Server
21
virtual techdays INDIA │ 9-11 February 2011 DEMO: SCVMM 2008 R2 Walkthrough Vikas Madan │ Partner Consultant II, Microsoft Corporation
22
virtual techdays THANKS │ 9-11 February 2011
