1. Introduction to XLink Transparency No. 1 Introduction to XML Linking Language (XLink) Cheng-Chia Chen

2. Introduction to XLink Transparency No. 2 XLink, XPointer, XPath, Xinclude and XML Base XLink: 27 June 2001, Recommendation a generalization of the HTML link concept higher abstraction level (intended for general XML - not just hypertext) more expressive power (multiple destinations, special behaviours, out- of-line links,...) uses XPointer to locate resources XPointer : 11 September 2001, Candidate recommendation an extension of XPath suited for linking specifies connection between XPath expressions and URIs XPath: November 16, 1999 1.0 Specification a declarative language for locating nodes and fragments in XML trees used in both XPointer (for addressing) and XSL (for pattern matching) XInclude :: 17 September 2002, Candidate recommendation embeds a document identified by a URI inside an XML document. XMLBase:27, June 2001, Recommendation defines the URI against which relative URIs are resolved

3. Introduction to XLink Transparency No. 3 XML Base A URI identifies a resource: http://somewhere/somefile.xml is an absolute URI somefile.xml is a relative URI XML Base provides a uniform way of resolving relative URIs. Inspired by the mechanism in HTML, In the following example: the value of href attribute can be interpreted as the absolute URI http://www.cs.nccu.edu.tw/~chencc/index.html. the xml namespace prefix is hardwired by the Namespace specification with uri: http://www.w3.org/XML/1998/namespace xml:base has lexical scope (as namespace declarations) the URI used to access the document is used as default URI base Future XML parsers will support XML Base.

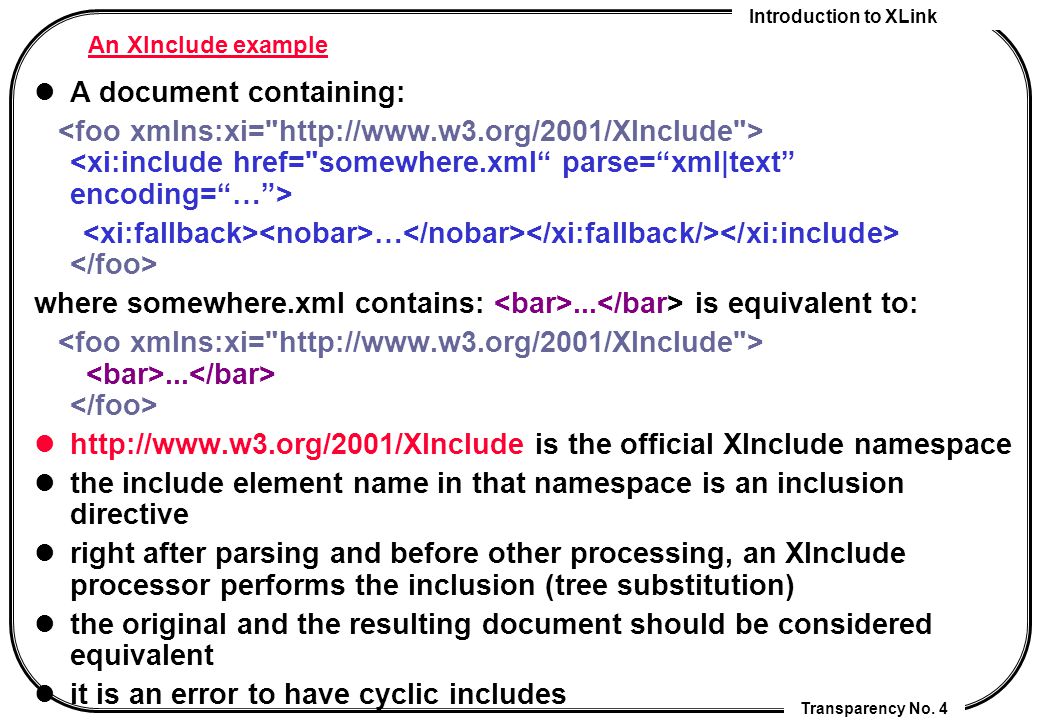

4. Introduction to XLink Transparency No. 4 An XInclude example A document containing: … where somewhere.xml contains:... is equivalent to:... http://www.w3.org/2001/XInclude is the official XInclude namespace the include element name in that namespace is an inclusion directive right after parsing and before other processing, an XInclude processor performs the inclusion (tree substitution) the original and the resulting document should be considered equivalent it is an error to have cyclic includes

5. Introduction to XLink Transparency No. 5 The HTML link model The HTML link model: a hyperlink to the aia2001 anchor of the course URI characteristic: binary, unidirectional link definition = link source. sourcedestination link

6. Introduction to XLink Transparency No. 6 Problems of HTML link model 1.Link syntax and semantics is not defined separately from rest of HTML: In HTML, links are recognized by element names (A, IMG,..) - we want a generic XML solution. - we want link to be defined at places other than A,IMG. The "semantics" of a link is completely defined in the higher-level specification - we want control of general semantic features, e.g. of link actuation. 2.HTML links are too simple: All Links are binary (one source and one destination) - we want links with multiple sources and destinations. The traversal rule is unidirectional. (dead link problem) - we want multi-directional links possible.

7. Introduction to XLink Transparency No. 7 Problems with HTML links (cont’d) 2. support outbound link(link definition is also the link source) only - We need inbound and third-party links("link databases"). Links are anonymous -we want human-readable labels. An anchor must be placed at every link destination (problem with read-only documents) : - we want to express relative locations (XPointer!). Only individual nodes can be linked to - we want links to whole tree fragments.

8. Introduction to XLink Transparency No. 8 The XLink linking model The world wide web is composed of a lot of resources. Each is identified (URN) or addressed (URL) by a string called its URI (reference). There are a lot of relationships existing among these resources, which we need to make explicit in order for applications to make use of them. Ex: family, course : Teacher, TAs, students, newsgroup, course web pages, … resource

9. Introduction to XLink Transparency No. 9 XML linking model resource Link U (the universe) = def the collection of all resources. a relation R (not restricted to binary or fixed arity relation) is any subset of U k>0 U k. A link asserts(or declares) the existence of a member tuple (r1,r2,…, rk) of a relation.

10. Introduction to XLink Transparency No. 10 XML linking model Resource which is a link or a child of a link is called the local resource of the link. other resources are remote resources. remote resource local resource remote resource remote resource Link arc

11. Introduction to XLink Transparency No. 11 XML linking model traversal: Using or following a link for any purpose. always binary, from one starting source to one ending resource of an arc. An arc identify a possible (or allowable) set of traversals. remote resource local resource remote resource remote resource Link arc

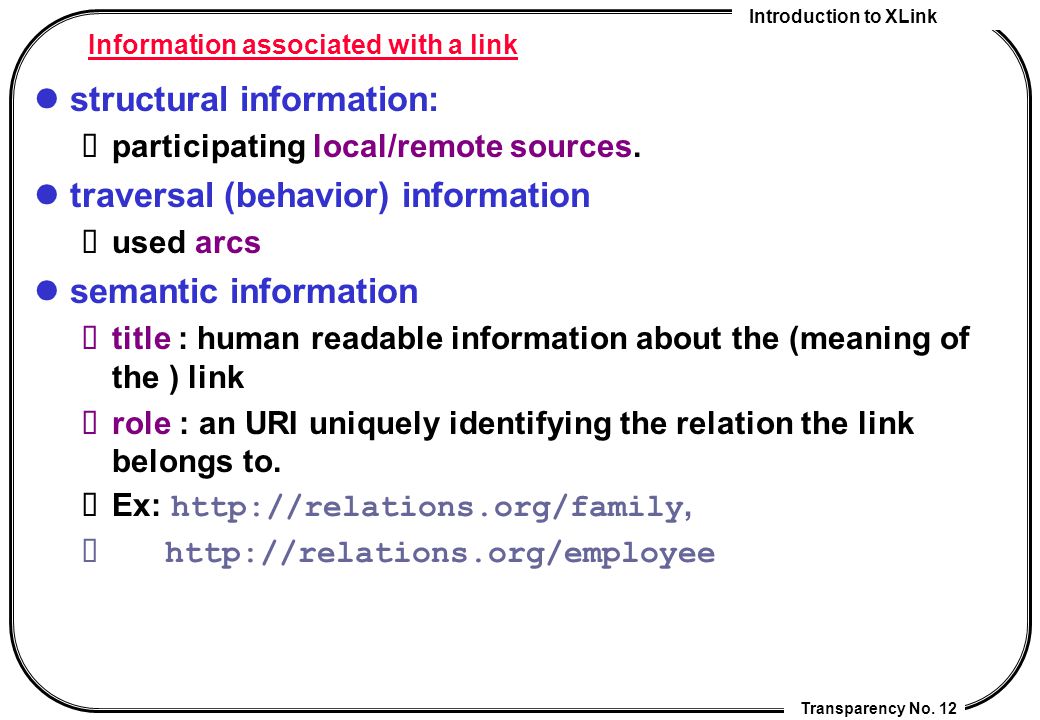

12. Introduction to XLink Transparency No. 12 Information associated with a link structural information: participating local/remote sources. traversal (behavior) information used arcs semantic information title : human readable information about the (meaning of the ) link role : an URI uniquely identifying the relation the link belongs to. Ex: http://relations.org/family, http://relations.org/employee

13. Introduction to XLink Transparency No. 13 information associated with a resource structural information: location (URI) of the resource (needed for remote source only) semantic information: title : human readable description about the meaning ? of the resource. Note: it is unclear from the spec that the title information should describe either the set the resource is a member of or the property the resource plays in the link. role: a RUI reference uniquely identifying the property the resource play in the link. ex: http://relation.org/family/father v.s. http://relation.org/person Auxiliary information: label: identifying a group the resource belong to.

14. Introduction to XLink Transparency No. 14 information associated with an arc structural information from : a label identifying all staring resources to: a label identifying all ending resources semantic information: title: human readable information about the meaning of the arc. arcrole: a URI reference identifying a resource which describe the intended property (meaning or relation) of the arc. ex: an arc from TA  students’ homeworks may have a arcrole value of http://relation.org/courses/grading. behavior information: show : what the system should behave when the arc is traversed ? possibe values: new | replace | embed | none | other actuate: when should the arc be traversed ? possible values: onLoad | onRequest | none | other

15. Introduction to XLink Transparency No. 15 How Xlink describe links in an XML document Entities that need to be represented: link ( simple # / extended # ) : title #!, role !, resource ( local # / resource # )  title #!, role !, location !, label ! arc !  title #!, arcrole !, from!, to !, show !, actuate ! Notes: 1. # means represented by element 2. ! means represented by global attributes 3. Any element asserting existence of a link in XLink is called an [XLink] linking element. there are 2 linking elements 4. Any elements related to XLink is called a Xlink element. 5. There are 6 Xlink elements, two linking elements, two for resource, one for title and one for arc.

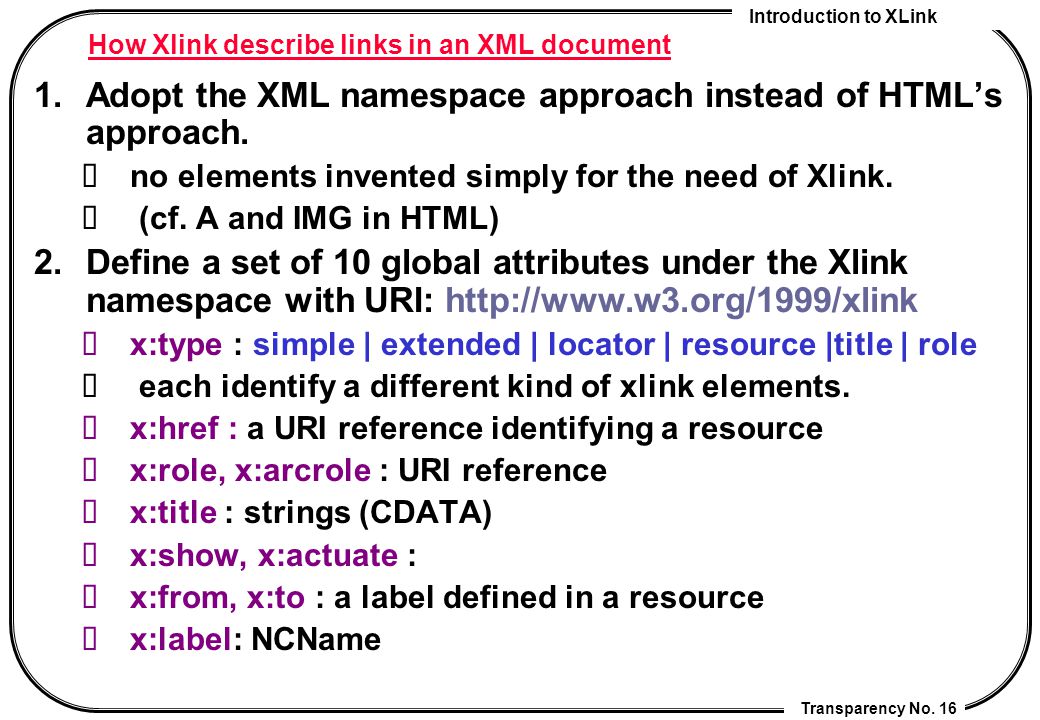

16. Introduction to XLink Transparency No. 16 How Xlink describe links in an XML document 1.Adopt the XML namespace approach instead of HTML’s approach. no elements invented simply for the need of Xlink. (cf. A and IMG in HTML) 2.Define a set of 10 global attributes under the Xlink namespace with URI: http://www.w3.org/1999/xlink x:type : simple | extended | locator | resource |title | role each identify a different kind of xlink elements. x:href : a URI reference identifying a resource x:role, x:arcrole : URI reference x:title : strings (CDATA) x:show, x:actuate : x:from, x:to : a label defined in a resource x:label: NCName

17. Introduction to XLink Transparency No. 17 How Xlink describe links in an XML document 3. use the value of the global attribute x:type to identifying an xlink (related) element and its kind. ex: … Then : e1 is an extended-type link, and in general we call e2 an xxx -type element, where xxx is any possible value of x:type : simple | extended | locator | resource | title | role Note: 1. e1 and e2 can has its own attributes and contents. 2. Xlink behaves more like interface than class in java in the sense that it can be embeded on all existing elements.

18. Introduction to XLink Transparency No. 18 How Xlink related information is represented 4. entity type representation link simple link simple -type element extended link extended -type element resource local resource resource -type element remote resource locator -type element arc arc -type element title [link, resource, arc] x:title, title -type element role [link and resource]x:role arcrole x:arcrole starting resources x:from ending resources x:to arc target x:label

19. Introduction to XLink Transparency No. 19 Notes: 1.Each information item associated with an entity (i.e., link or resource or arc) is represented either as one of its attributes or as one of its child elements. 2.Title information can be represented by the attribute x:title and/or by multiple child title-type elements. Ex: <remoteResource1 x:type=“locator” x:href=“…” x:title=“AboutRemoteResource1”/> … English description about link1 Link1 的中文說明 This is not a title of link1 since it is not a title-type element … … Note:Neither title3 nor x:title of title4 is a title of link1.

20. Introduction to XLink Transparency No. 20 Required and optional attributes in an xlink element simpleextendedlocatorresourcetitlearc typeRRRRRR hrefOR roleOOOO arcroleOO titleOOOOO showOO actuateOO labelOO fromO toO R: required O: optional

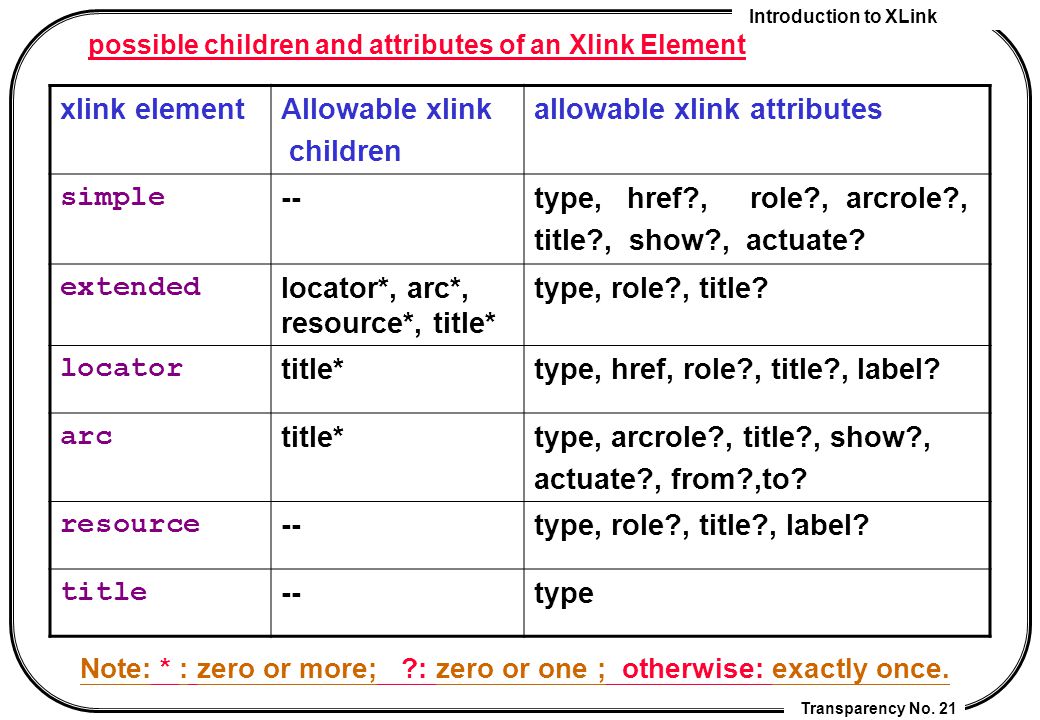

21. Introduction to XLink Transparency No. 21 possible children and attributes of an Xlink Element xlink elementAllowable xlink children allowable xlink attributes simple --type, href?, role?, arcrole?, title?, show?, actuate? extended locator*, arc*, resource*, title* type, role?, title? locator title*type, href, role?, title?, label? arc title*type, arcrole?, title?, show?, actuate?, from?,to? resource --type, role?, title?, label? title --type Note: * : zero or more; ?: zero or one ; otherwise: exactly once.

22. Introduction to XLink Transparency No. 22 Basic XLink terminology Resource: any addressable unit of information or service [RFC2396]. (i.e., have an URI)  Examples: files, images, documents, programs, and query results. Link: Explicit relationship between two or more resources. Linking element: An XML element that asserts the existence and describes the characteristics of a link. A local resource comes from the linking element's own content or is the linking element itself. Locator: An identification of a remote resource that is participating in the link. - one linking element defines a set of traversable arcs between some resources. Out-of-line link: link with no local resource. Inline link: link with local resource.

23. Introduction to XLink Transparency No. 23 Example The XLink namespace : http://www.w3.org/1999/xlink The use of XLink elements and attributes requires declaration of the XLink namesapce:...

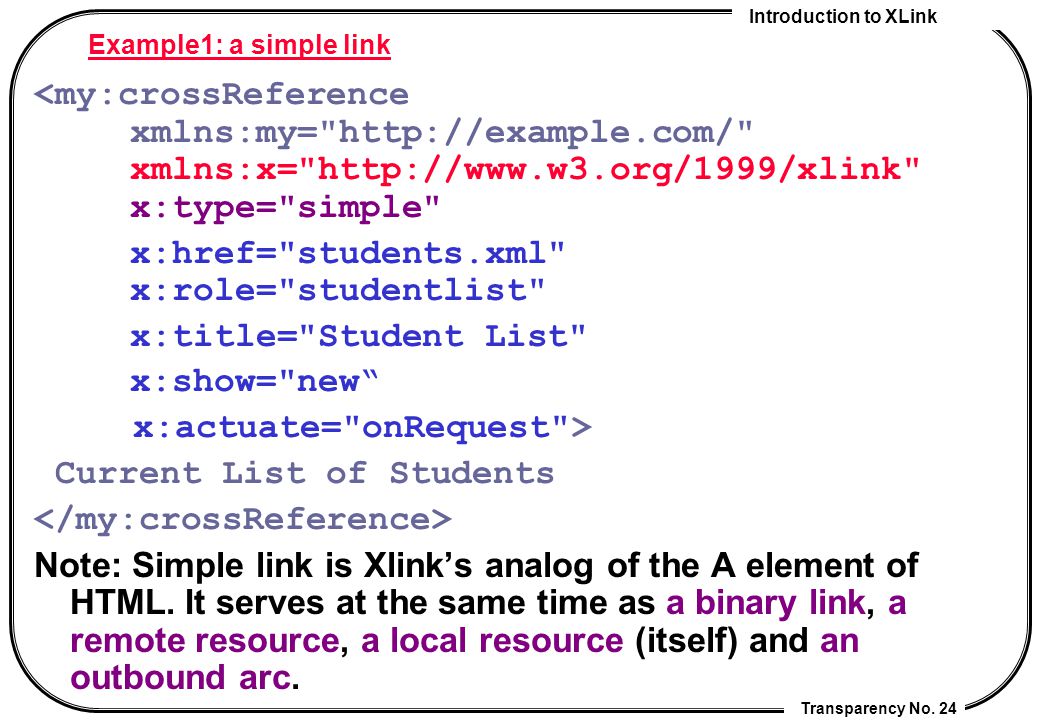

24. Introduction to XLink Transparency No. 24 Example1: a simple link <my:crossReference xmlns:my="http://example.com/" xmlns:x="http://www.w3.org/1999/xlink" x:type="simple" x:href="students.xml" x:role="studentlist" x:title="Student List" x:show="new“ x:actuate="onRequest"> Current List of Students Note: Simple link is Xlink’s analog of the A element of HTML. It serves at the same time as a binary link, a remote resource, a local resource (itself) and an outbound arc.

25. Introduction to XLink Transparency No. 25 Use Attribute value default to eliminate redundancy <!ATTLIST my:crossreference xmlns:my CDATA #FIXED “http://example.com/” xmlns:x CDATA #FIXED http://www.w3.org/1999/xlink x:type CDATA #FIXED "simple" x:show CDATA "new“ x:actuate CDATA "onRequest“ > Simplfied instance: <my:crossReference x:href="students.xml" x:role="studentlist" x:title="Student List"> Current List of Students

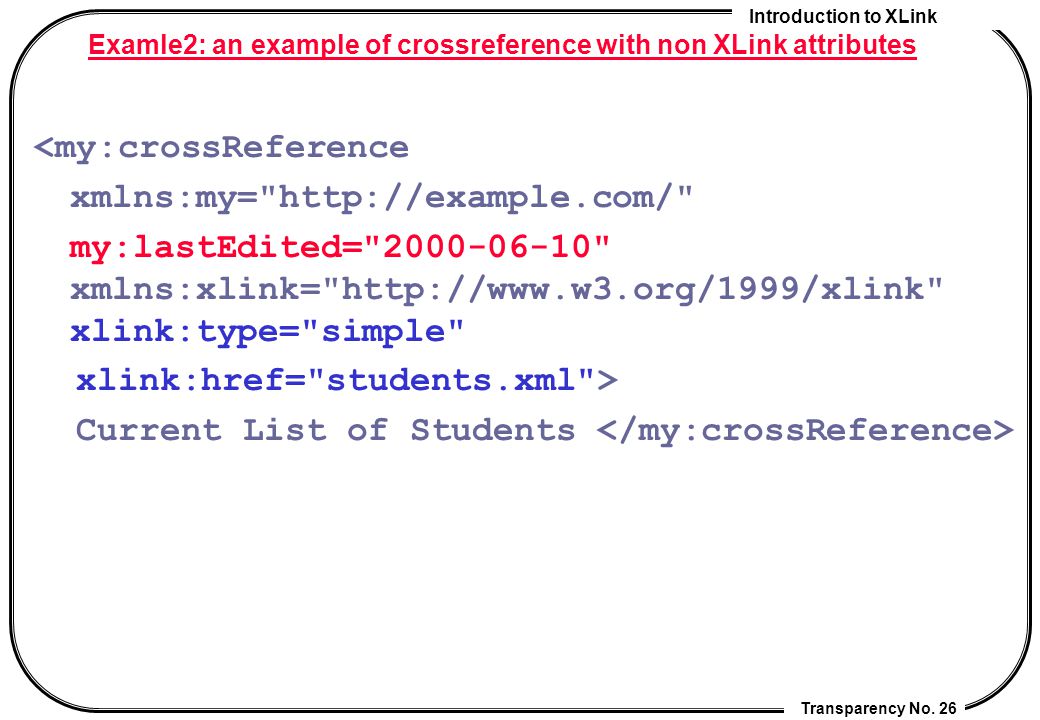

26. Introduction to XLink Transparency No. 26 Examle2: an example of crossreference with non XLink attributes <my:crossReference xmlns:my="http://example.com/" my:lastEdited="2000-06-10" xmlns:xlink="http://www.w3.org/1999/xlink" xlink:type="simple" xlink:href="students.xml"> Current List of Students

27. Introduction to XLink Transparency No. 27 Example3: an extended-type element and its subelements The DTDs 1. 2.<!ATTLIST courseload 3. xmlns:xlink CDATA #FIXED http://www.w3.org/1999/xlink 4. xlink:type (extended) #FIXED "extended" 5. xlink:role CDATA #IMPLIED 6. xlink:title CDATA #IMPLIED> 7. 8.<!ATTLIST tooltip 9. xlink:type (title) #FIXED "title" 10. xml:lang CDATA #IMPLIED> Notes: 1. 3 & 4 means courseload is an extended link by default and hence need not specify these attributes explicitly in document instances. 2. Similarly, tooltip is a title-type element.

28. Introduction to XLink Transparency No. 28 Example3: (the DTDs continued) 1. 2. 3. xlink:type (locator) #FIXED "locator" 4. xlink:href CDATA #REQUIRED 5. xlink:role CDATA #IMPLIED 6. xlink:title CDATA #IMPLIED 7. xlink:label NMTOKEN #IMPLIED> 8. 9. 10. xlink:type (locator) #FIXED "locator" 11. xlink:href CDATA #REQUIRED 12. xlink:role CDATA #FIXED "http://www.example.com/linkprops/course" 13. xlink:title CDATA #IMPLIED 14. xlink:label NMTOKEN #IMPLIED> Note: Both person and course are remote resources.

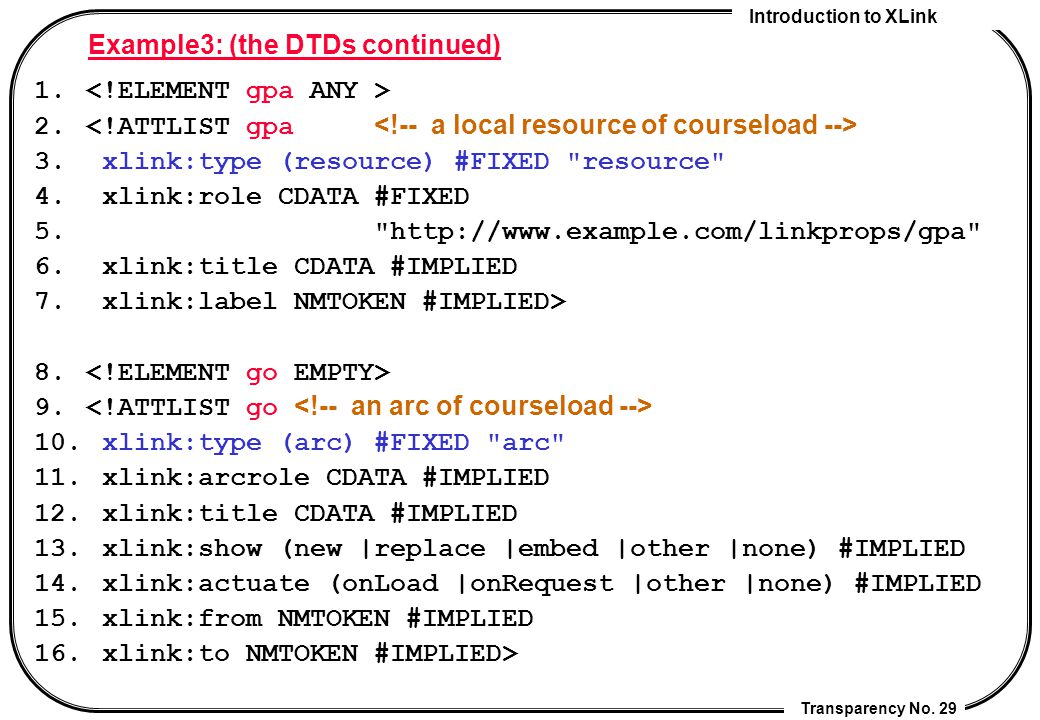

29. Introduction to XLink Transparency No. 29 Example3: (the DTDs continued) 1. 2. 3. xlink:type (resource) #FIXED "resource" 4. xlink:role CDATA #FIXED 5. "http://www.example.com/linkprops/gpa" 6. xlink:title CDATA #IMPLIED 7. xlink:label NMTOKEN #IMPLIED> 8. 9. 10. xlink:type (arc) #FIXED "arc" 11. xlink:arcrole CDATA #IMPLIED 12. xlink:title CDATA #IMPLIED 13. xlink:show (new |replace |embed |other |none) #IMPLIED 14. xlink:actuate (onLoad |onRequest |other |none) #IMPLIED 15. xlink:from NMTOKEN #IMPLIED 16. xlink:to NMTOKEN #IMPLIED>

30. Introduction to XLink Transparency No. 30 Examle3 : an instance courseload element 1. 2. Course Load for Pat Jones 3. <person xlink:href="students/patjones62.xml“ 4. xlink:label="student62“ 5. xlink:role=“http://www.example.com/linkprops/student” 6. xlink:title="Pat Jones" /> 7. <person xlink:href="profs/jaysmith7.xml“ 8. xlink:label="prof7“ 9. xlink:role=“http://www.example.com/linkprops/professor” 10. xlink:title="Dr. Jay Smith" /> 11. 12.<course xlink:href="courses/cs101.xml" 13. xlink:label="CS-101" 14. xlink:title="Computer Science 101" /> 15. 16. 3.5

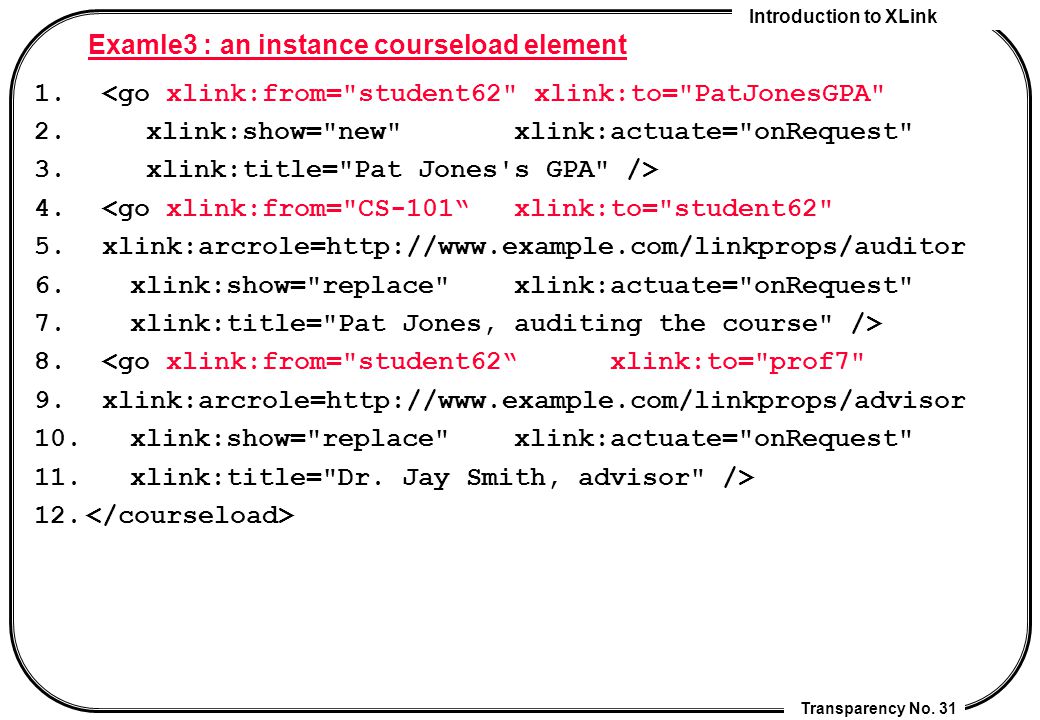

31. Introduction to XLink Transparency No. 31 Examle3 : an instance courseload element 1. <go xlink:from="student62" xlink:to="PatJonesGPA" 2. xlink:show="new" xlink:actuate="onRequest" 3. xlink:title="Pat Jones's GPA" /> 4. <go xlink:from="CS-101“xlink:to="student62" 5. xlink:arcrole=http://www.example.com/linkprops/auditor 6.xlink:show="replace" xlink:actuate="onRequest" 7. xlink:title="Pat Jones, auditing the course" /> 8. <go xlink:from="student62“xlink:to="prof7" 9. xlink:arcrole=http://www.example.com/linkprops/advisor 10. xlink:show="replace" xlink:actuate="onRequest" 11. xlink:title="Dr. Jay Smith, advisor" /> 12.

32. Introduction to XLink Transparency No. 32 Example4: Sample resource -Type Element Declarations and Instance DTD 1. 2.<!ATTLIST gpa 3. xlink:type (resource) #FIXED "resource“ 4. xlink:role CDATA #FIXED 5. http://www.example.com/linkprops/gpa 6. xlink:title CDATA #IMPLIED 7. xlink:label NMTOKEN #IMPLIED> Instance 1. 3.5

33. Introduction to XLink Transparency No. 33 Example5: Sample locator -Type Element Declarations and Instance DTDs 1. 2.<!ATTLIST person 3. xlink:type (locator) #FIXED "locator“ 4. xlink:href CDATA #REQUIRED 5. xlink:role CDATA #IMPLIED 6. xlink:title CDATA #IMPLIED 7. xlink:label NMTOKEN #IMPLIED> 8. 9.<!ATTLIST course 10. xlink:type (locator) #FIXED "locator“ 11. xlink:href CDATA #REQUIRED 12. xlink:role CDATA #FIXED 13. "http://www.example.com/linkprops/course" 14. xlink:title CDATA #IMPLIED 15. xlink:label NMTOKEN #IMPLIED>

34. Introduction to XLink Transparency No. 34 Example5: Sample locator -Type Element Declarations and Instance Instances 1.<person 2. xlink:href="students/patjones62.xml“ 3. xlink:label="student62“ 4. xlink:role = 5. "http://www.example.com/linkprops/student" 6. xlink:title="Pat Jones" /> 7.<person xlink:href="profs/jaysmith7.xml“ 8. xlink:label="prof7“ 9. xlink:role= 10. "http://www.example.com/linkprops/professor" xlink:title="Dr. Jay Smith" /> 11.<course xlink:href="courses/cs101.xml“ 12. xlink:label="CS-101" 13. xlink:title="Computer Science 101" />

35. Introduction to XLink Transparency No. 35 label, from and to attributes

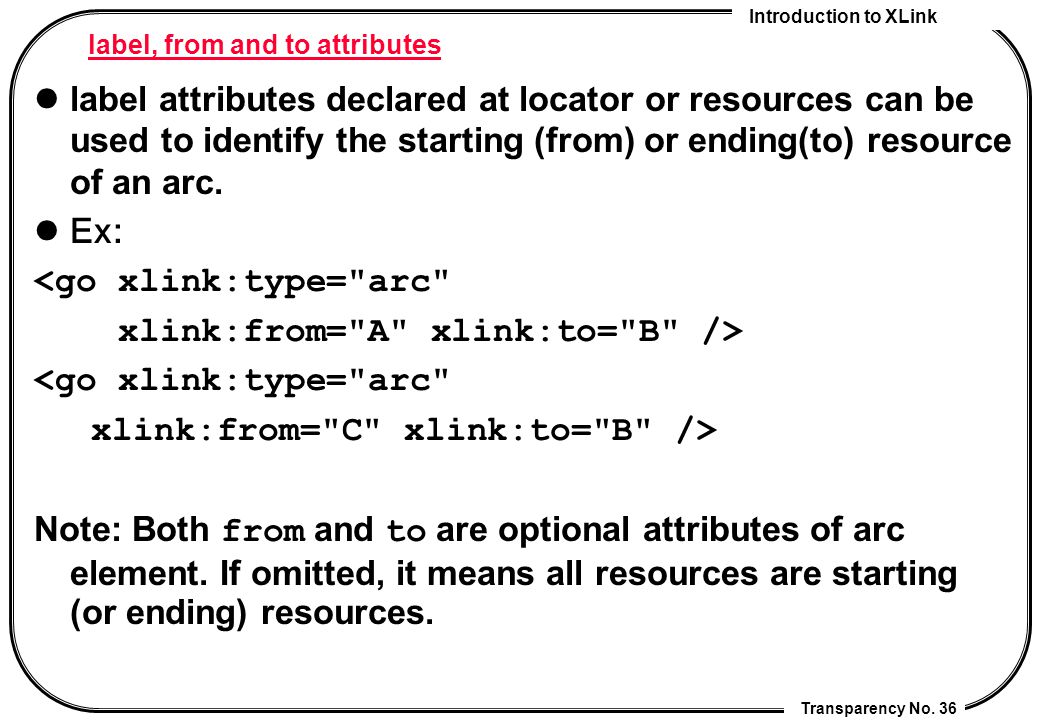

36. Introduction to XLink Transparency No. 36 label, from and to attributes label attributes declared at locator or resources can be used to identify the starting (from) or ending(to) resource of an arc. Ex: <go xlink:type="arc" xlink:from="A" xlink:to="B" /> <go xlink:type="arc" xlink:from="C" xlink:to="B" /> Note: Both from and to are optional attributes of arc element. If omitted, it means all resources are starting (or ending) resources.

37. Introduction to XLink Transparency No. 37 Example6:... <go xlink:type="arc" xlink:from="parent“ xlink:to="child" />  included traversals: {p1,p2}  {c1,c2,c3}, i.e.,  p1  c1, p1  c2, p1  c3, p2  c1, p2  c2, and p2  c3:

38. Introduction to XLink Transparency No. 38 Examle6 (continued) from omitted => {p1, p2, c1,c2, c3}  {c1, c2, c3} from and to omitted => {p1,p2,c1,c2,c3}  {p1,p2,c1,c2,c3}

39. Introduction to XLink Transparency No. 39 Example 7: Sample arc -Type Element Declarations and Instance DTDs 1. 2.<!ATTLIST go 3. xlink:type (arc) #FIXED "arc" 4. xlink:arcrole CDATA #IMPLIED 5. xlink:title CDATA #IMPLIED 6. xlink:show 7. (new |replace |embed |other |none) #IMPLIED 8. xlink:actuate 9. (onLoad |onRequest |other |none) #IMPLIED 10. xlink:from NMTOKEN #IMPLIED 11. xlink:to NMTOKEN #IMPLIED>

40. Introduction to XLink Transparency No. 40 Example 7: Sample arc -Type Element Declarations and Instance Instances 1.<go xlink:from="student62“xlink:to="PatJonesGPA" 2. xlink:show="new“xlink:actuate="onRequest“ 3. xlink:title="Pat Jones's GPA" /> 4.<go xlink:from="CS-101“ xlink:to="student62" 5. xlink:show="replace" xlink:actuate="onRequest" xlink:title="Pat Jones, auditing the course" /> 6.xlink:arcrole="http://www.example.com/linkprops/audi tor" 7.<go xlink:from="student62“ xlink:to="prof7" 8. xlink:show="replace" xlink:actuate="onRequest" 9.xlink:arcrole="http://www.example.com/linkprops/advi sor" 10.xlink:title="Dr. Jay Smith, advisor" />

41. Introduction to XLink Transparency No. 41 Example 8: Sample title -Type Element Declarations and Instance the DTDs <!ATTLIST advisorname xlink:type (title) #FIXED "title" xml:lang CDATA #IMPLIED> A instance Dr. Jay Smith

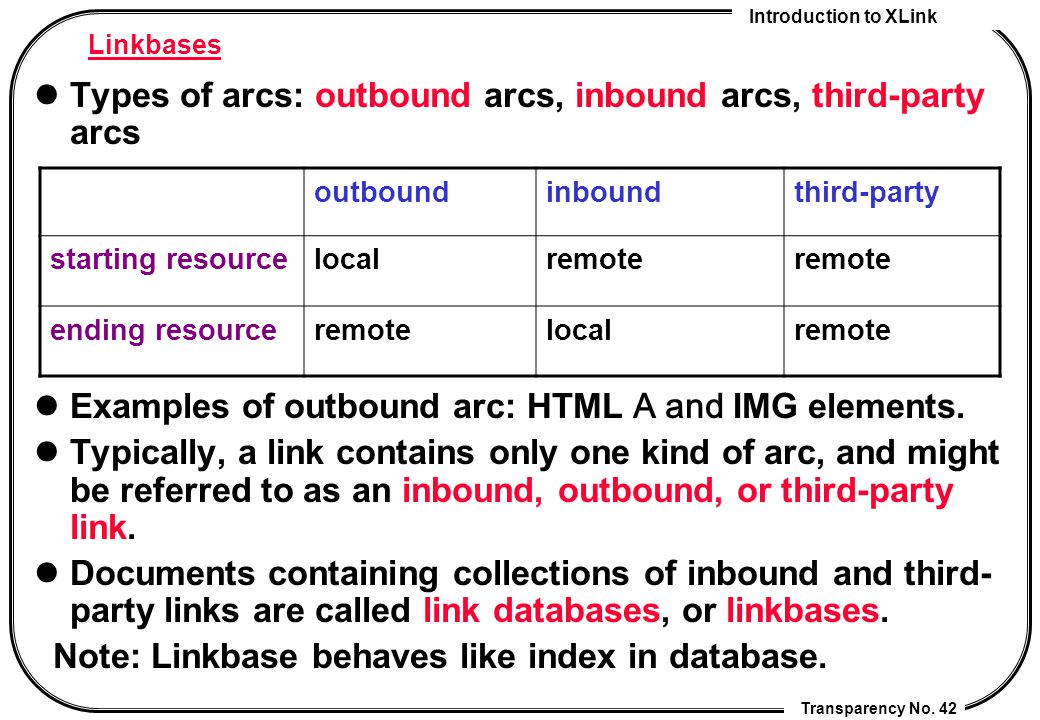

42. Introduction to XLink Transparency No. 42 Linkbases Types of arcs: outbound arcs, inbound arcs, third-party arcs Examples of outbound arc: HTML A and IMG elements. Typically, a link contains only one kind of arc, and might be referred to as an inbound, outbound, or third-party link. Documents containing collections of inbound and third- party links are called link databases, or linkbases. Note: Linkbase behaves like index in database. outboundinboundthird-party starting resourcelocalremote ending resourceremotelocalremote

43. Introduction to XLink Transparency No. 43 Locating Linkbases (Special Arc Role) The problem: to traverse an arc, we need to locate the staring resource and the link. Not a problem for outbound arcs since the starting resource is either the linking element itself or a child of the linking element. But how could the XLink application find both pieces for inbound and third-party arcs ? Solution: Collect related inbound and third-party linking elements into many related linkbases. A document that need traverse may declare special linkbase arcs (whose arcrole is predefined by Xlink to be http://http://www.w3.org/1999/xlink/properties/linkbase ) linking to potential linkbases of which the document or contents of it is a starting resource of an arc. When the document is loaded (or on request) the xlink application can traverse linkbase arcs and retrieve all potential links in advance.

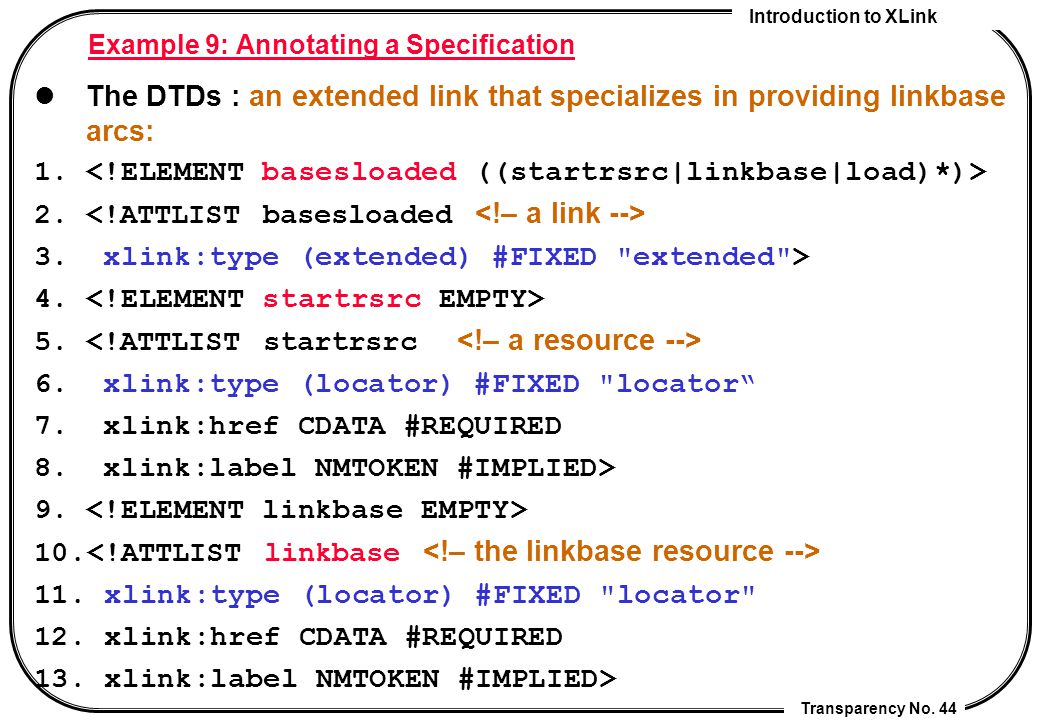

44. Introduction to XLink Transparency No. 44 Example 9: Annotating a Specification The DTDs : an extended link that specializes in providing linkbase arcs: 1. 2. 3. xlink:type (extended) #FIXED "extended"> 4. 5. 6. xlink:type (locator) #FIXED "locator“ 7. xlink:href CDATA #REQUIRED 8. xlink:label NMTOKEN #IMPLIED> 9. 10. 11. xlink:type (locator) #FIXED "locator" 12. xlink:href CDATA #REQUIRED 13. xlink:label NMTOKEN #IMPLIED>

45. Introduction to XLink Transparency No. 45 The DTDs (continued) 1. 2. 3. xlink:type (arc) #FIXED "arc" 4. xlink:arcrole CDATA #FIXED 5. "http://www.w3.org/1999/xlink/properties/linkbase" 6. xlink:actuate (onLoad |onRequest |other |none) #IMPLIED 7. xlink:from NMTOKEN #IMPLIED 8. xlink:to NMTOKEN #IMPLIED> Note: for linkbase arc, the show attribute has no effect since its default behavior is, according to the spec, that the XLink application should extract links from the linkbase.

46. Introduction to XLink Transparency No. 46 Example 9: Annotating a Specification Usage 1: 1. 2. <startrsrc xlink:label="spec“ 3. xlink:href="spec.xml" /> 4. <linkbase xlink:label="linkbase“ 5. xlink:href="linkbase.xml" /> 6. <load xlink:from="spec" 7. xlink:to="linkbase" 8. actuate="onLoad" /> 9. Note:This link indicate that when spec.xml is loaded, linkbase.xml should automatically be loaded as well, possibly necessitating re- rendering of the entire specification document to reveal any regions within it that serve as starting resources in the links found in the linkbase.

47. Introduction to XLink Transparency No. 47 Usage 2: 1. 2. <startrsrc xlink:label="spec“ 3. xlink:href="spec.xml#string-range(//*, 4. 'Click here to reveal annotations.')" /> 5. 6.<load xlink:from="spec" xlink:to="linkbase" 7. actuate="onRequest" /> 8. Notes: 1.The remote resource is not spec.xml but a portion of it. 2.linkbase.xml would be loaded only on request (possibly a click on the remote resource: 'Click here to reveal annotations.'.

48. Introduction to XLink Transparency No. 48 spec.xml: this is a … word1.. normal text … word2 … linkbase.xml: <source x:href=http:///spec.xml#xpointer(//word[1]” x:label=“word”/> word1 means … <arc x:from=“word” x:to=“meaning” x:show=“…” x:actuate=“…” /> … basesloaded Relation among basesloaded, spec.xml and linkebase.xml load

49. Introduction to XLink Transparency No. 49 Simple Links ( simple -Type Element) A simple link is a link that associates exactly two resources, one local and one remote, with an arc going from the local to the remote. simple link is always an outbound link.

50. Introduction to XLink Transparency No. 50 Simple Links ( simple -Type Element) A simple link combines all the features above (except for the types and labels) into a single element. The features missing from simple links: Supplying arbitrary numbers of local and remote resources Specifying an arc from its remote resource to its local resource title of the earc role or title of the local resource role or title of the link Meaning of attributes in a simple link: x:href : URI ref of remote resource x:role, x:title : role and title of remote resource x:arctitle, x:show, x:actuate: … of the arc

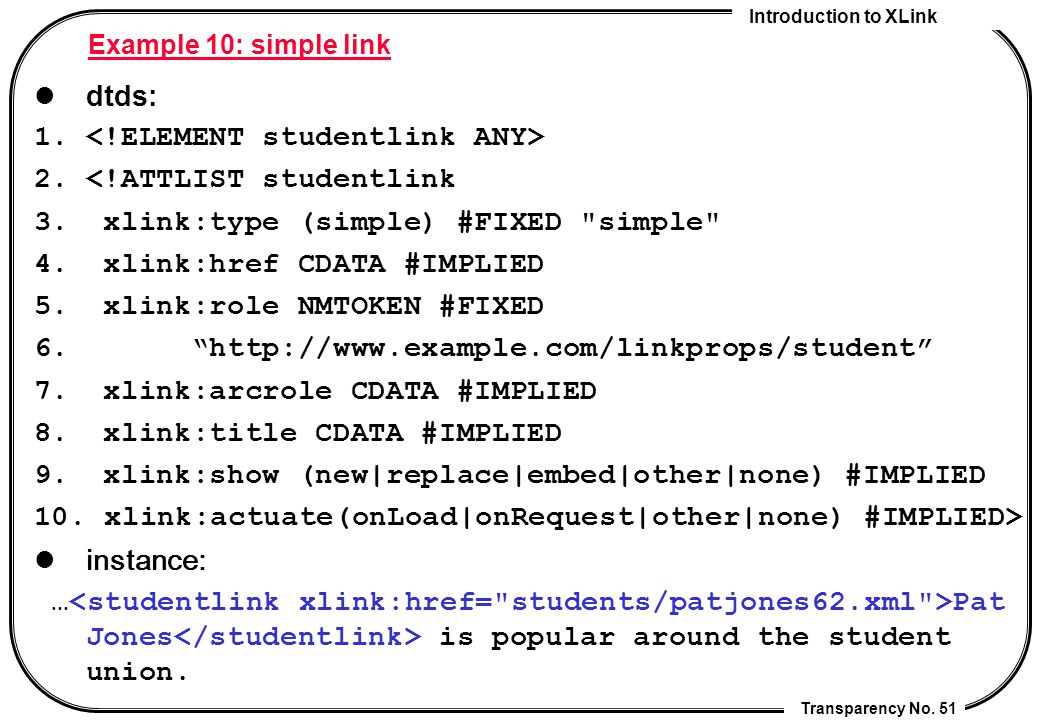

51. Introduction to XLink Transparency No. 51 Example 10: simple link dtds: 1. 2.<!ATTLIST studentlink 3. xlink:type (simple) #FIXED "simple" 4. xlink:href CDATA #IMPLIED 5. xlink:role NMTOKEN #FIXED 6. “http://www.example.com/linkprops/student” 7. xlink:arcrole CDATA #IMPLIED 8. xlink:title CDATA #IMPLIED 9. xlink:show (new|replace|embed|other|none) #IMPLIED 10. xlink:actuate(onLoad|onRequest|other|none) #IMPLIED> instance: … Pat Jones is popular around the student union.

52. Introduction to XLink Transparency No. 52 Allowable value of the locator attribute (href) must be a URI reference as defined in [IETF RFC 2396], or must result in a URI reference after the escaping procedure described below is applied. The procedure is applied when passing the URI reference to a URI resolver. characters disallowed in URI references, even if they are allowed in XML; (section 2.4 IETF RFC 2396) all non-ASCII characters ( > 7F), control : 00-1F, 7F, space(20), delims = " " | "#" | "%" | unwise = "{" | "}" | "|" | "\" | "^" | "[" | "]" | "`" except for (#) and (%) and the square bracket characters re-allowed in [IETF RFC 2732].

53. Introduction to XLink Transparency No. 53 escape procedure Disallowed characters must be escaped as follows:must 1.Each disallowed character is converted to UTF-8 [IETF RFC 2279] as one or more bytes.[IETF RFC 2279] 2.Any bytes corresponding to a disallowed character are escaped with the URI escaping mechanism (that is, converted to % HH, where HH is the hexadecimal notation of the byte value). 3.The original character is replaced by the resulting character sequence.

54. Introduction to XLink Transparency No. 54 UTF-8 Definition UCS-4 range (hex.) UTF-8 octet sequence (binary) 0000 0000-0000 007F 0xxxxxxx 0000 0080-0000 07FF 110xxxxx 10xxxxxx 0000 0800-0000 FFFF 1110xxxx 10xxxxxx 10xxxxxx 0001 0000-001F FFFF 11110xxx 10xxxxxx 10xxxxxx 10xxxxxx 0020 0000-03FF FFFF 111110xx 10xxxxxx 10xxxxx 10xxxxxx 10xxxxxx 0400 0000-7FFF FFFF 1111110x 10xxxxxx... 10xxxxxx
