1. Review

2. Discrete Distributions
Binomial distribution,
Negative binomial distribution,
Hypergeometric distribution,
Poisson distribution.

3. Expected Value
If X is a discrete rv and p(x) is the value of its probability distribution at x, the expected value of X is defined as

4. Example Toss a coin 4 times. X = number of heads. What’s E(X) ?
The pmf of X is x:
p(x): 1/ / / / /16
So,

5. Example Let X be a Bernoulli rv with pmf
Then E(X) = 0p(0) + 1p(1) = p. So the expected value of X is just the probability that X takes on the value 1.

6. Example
X = number of children born up to and including the first boy. The pmf of X is
Then

7. Expected Value of a Function of a RV
If a rv X has a pmf p(x), then the expected value of any function h(X) is computed by
Special case: h(x) = a·x + b.
E(a X + b) = a·E(X) + b.
Why?

8. Variance
The expected value measures the center of a probability distribution.
Variance measures the variability of a pmf.

9. Variance
Let X have pmf p(x) and expected value . Then the variance of X, denoted by
The standard deviation (SD) of X is

10. Example If X has pmf : x 1 2 6 8 p(x) .4 .1 .3 .2 Then
 = 1×.4 + 2×.1 + 6×.3 + 8×.2 = 4 .
2 = (1 - 4)2×.4 + (2 - 4)2 × .1 + (6 - 4)2 ×.3
+ (8 - 4)2 ×.2 = 8.4.
and  = 2.90.

11. A Shortcut Formula
Proof:

12. Rules of Variance
In particular,

13. Moments
The kth moment about the origin of a rv X, denoted by µk’ , is the expected value of Xk, , symbolically,
µk’ = E(Xk) = x xk · p(x).
The kth moment about the mean of a rv X, denoted by µk, is the expected value of (X - µ)k, , symbolically,
µk = E[(X - µ)k] = x (x - µ)k · p(x).

14. Special Cases
The expectation, or the mean, is the 1st moment about the origin.
µ = µ1’ = E(X) = x x · p(x).
The variance is the 2nd moment about the mean
2 = µ2 = E[(X - µ)2] = x (x - µ)2 · p(x).

15. The Binomial Distribution

16. Binomial Distribution
For X ~ Bin(n,p), the cdf will be denoted by

17. Mean & Variance If X ~ Bin(n, p), then E(X) = np,
V(X) = npq (where q = 1-p.)

18. Example(Cont) n = 5, p = 11/32 . Then E(X) = n · p = 5 · 11/32 = 1.72.
V(X) = n · p · q = 5 · 11/32 · 21/32 = 1.13.
 = (1.13)1/2 = 1.06.

19. Hypergeometric and Negative Binomial Distribution

20. Introduction
The hypergeometric and negative binomial distribution are both closely related to the binomial distribution.

21. Introduction
The negative binomial distribution arises from fixing the number of S’s and letting the number of trials to be random.
The hypergeometric distribution is the exact probability model for sampling without replacement from a finite dichotomous (S,F) population.

22. Negative Binomial Dist’n
The experiment consists of a sequence of independent trials.
Each trial results in either S or F.
The probability of success, p, is constant from trial to trial.
Trials are performed until a total of s successes have been observed, where s is a prespecified positive integer.

23. Negative Binomial RV
X = the number of F’s that precede the rth success, is called a negative binomial rv.
Possible values of X are 0, 1, 2, …

24. pmf Denote by nb(x; r, p) the pmf of X. Then Why?
Total # of trials = x; The last trial must be a success. Among the first (x-1) trials, there are (s - 1) successes & x-s failures.

25. Review of Chapter 3
Hypergeometric distribution,
Poisson distribution.

26. Example
What’s the probability that < 3 requests are received during a particular hour?
P( X < 3) = P(0) + P(1) + P(2)
= e-5 + 5· e · e-5/2 =

27. Example
What’s the probability that exactly 10 requests are received during a particular 2-hour period?
Rate = 2 × 5 = 10.
P(X = 10) = e /10! =

28. Example How many calls do they expect to get during a 45-min period?

29. Continuous RVs & Probability Distributions

30. Continuous RV
An rv X is continuous if its set of possible values is an entire interval of numbers.
Example:
X = the pH of a random soil sample
X = the weight of a randomly selected
person.

31. pdf
Let X be a continuous rv. Then a probability density function (pdf) of X is a function f(x) such that for any two numbers a and b with a  b,
For f(x) to be a pdf, f(x) must satisfy:
f(x)  0 for all x, and

32. Example
Waiting time at a bus station. A bus arrives every 10 minutes. So the waiting time is from 0 to 10. One possible pdf for waiting time X is
The probability of waiting between 3 to 5 minutes is:

33. Uniform Distribution
A continuous rv X is said to have a uniform distribution on the interval [A, B] if the pdf of X is
Graphs of uniform distributions.

34. Probability at a Point
When X is a discrete rv, each possible value is assigned positive probability. This is no longer true for continuous rv.
If X is a continuous rv, then for any number c, P(X = c) = 0. Consequently, P(a  X  b) = P(a < X  b) = P(a  X < b)
= P(a < X < b).

35. Example
Let X = the “time headway” for two randomly chosen consecutive cars on a freeway during a period of heavy flow. Suppose the pdf of X is given by:
f(x) = 0.15 e-0.15( x - 0.5), x  0.5.
f(x) = 0 for x < .5 and f(x) decreases exponentially fast as x increase from .5.

36. Example First, it clear that f(x)  0. Now we verify
The probability that headway time is at most 5 seconds is

37. CDFs & Expected Values

38. cdf
The cumulative distribution function (cdf) F(x) for a continuous rv X is defined for every number x by
For each x, F(x) is the area under the density curve to the left of x. It is the probability of observing X a value smaller than or equal to x.

39. Example Let X have a uniform distribution on the interval [A, B]. Then
So, for x < A, F(x) = 0 and for x  B, F(x) = 1. For A  x  B,

40. Example
The entire cdf is:
The graph of the cdf looks like:

41. Propositions
Compute probabilities using F(x): P(a  x  b) = F(b) - F(a).
Obtaining pdf from cdf:
If X is a continuous rv with cdf F(x) differentiable at every point x, then the pdf f(x) =F ’(x).

42. Example For uniform distribution on [A, B], the cdf is
So, for example, if A < a < b < B, then P(a < X < b) = F(b)-F(a) = (b-a)/(B-A).
The pdf
f(x) = F ’(x) = 1/(B-A) for A < x < B.

43. Expected Values
The expected value (or, mean) of a continuous rv X with pdf f(x) is
If X is a continuous rv with pdf f(x) and h(X) is any function of X, then

44. Example
The pdf of the waiting time (in minutes) at a checkout is given by
f(x) = x/ for 0  x < 4.
What’s the probability of waiting less than 3 min?
What’s the expectation of the waiting time?

45. Example What’s the probability of waiting less than 3 min?
What’s the expectation of the waiting time?

46. Variance & S.D.
The variance of a continuous rv X with pdf f(x) and mean  is
The standard deviation (S.D.) of X is
V(X) = E(X2) - [E(X)]2.

47. Linear Transformation
If h(X) = a X + b and V(X) = 2, then
V(h(X))=V(a X + b) = a 2 2
and
aX+b = |a| .

48. Example(Cont) The pdf of the waiting time at a checkout:
f(x) = x/ for 0  x < 4.
Find the variance of the waiting time.
 = E(X) =

49. Normal Distribution

50. Introduction
The normal distribution is the most important distribution in all of probability and statistics.
Many numerical populations have distributions that can be approximated very well by a normal curve.

51. Example Scores of standardized tests,
Measurements of intelligence & aptitude,
Returns of a stock (or a portfolio),
Measurement errors …

52. Definition
A continuous rv X is said to have a normal distribution with parameters  and  2 if the pdf of X is

53. Remarks Notation: X ~ N(, 2).
It’s clear that f(x; , 2)  0 and it can be shown that
E(X) = , and V(X) = 2.

54. Standard Normal Dist’n
With  = 0 and  = 1, the normal distribution is called a standard normal distribution.
The pdf of a standard normal rv Z is
The cdf of Z is denoted by (z).

55. Normal Probability Table
Table A.3 on page 704 of the text tabulates the standard normal probabilities (cdf). This is one of the most useful statistical tables.
Example: Using the table to compute:
P(Z < 1.20),
P(Z > 1.68), (= 1 - P( Z  1.68))
P(-1.96 < Z < 1). (= P( Z < 1) - P( Z  -1.96))

56. Inverse Reading of Table A.3
Z denotes the (100)th percentile of the standard normal distribution.
The area under the standard normal curve to the right of Z (tail probability) is .
Find: Z.30, Z.90.

57. Standardization If Z ~ N(0, 1), then X =  +  Z ~ N(, 2).
Inversely, if X ~ N(, 2), then
Z = (X -  )/ ~ N(0, 1).
The transformation
Is called standardization.
P(X  x) =P[Z  (x - )/] =  [(x - )/].

58. Standardization (100p)th percentile for N(, 2)
So if X ~ N(, 2), then
X =  +  · Z .

59. Rule of Thumb If X is (approximately) normal, then
about 68% of the x's are within 1 SD of the mean;
about 95% of the x's are within 2 SDs of the mean;
about 99.7% of the x's are within 3 SDs of the mean;

60. Example(Fish)
The lengths of fish in a certain fish population follows a normal distribution with  = 54 mm and  = 4.5 mm.
What percentage of the fish are between 50 and 60 mm long?
Let Z = (X - )/. Then
z1=( )/4.5= -.89, z2=( )/4.5=1.33.
Use Table A.3: P(50  X  60)=P(-.89Z1.33)
= =

61. Example(Fish) What percentage of the fish are more than 48 mm long?
z1 = ( )/4.5 =
P( X > 48) = =
What percentage of the fish are between 58 and 60 mm long?
z1 = ( )/4.5 = 0.89, z2 = P(58 < X < 60) = =

62. Example(Fish)
What is the 70th percentile of the fish length ? What is the 90th percentile?
From Table A.3, Z.70 = So, X.70 = ·0.52 = 56.3
Similarly, Z.90 = and
X.90 = ·1.29 =

63. Example (Height)
Among American women aged , 10% are less than 61.2 inches tall; 80% are between 61.2 and 67.4 inches and 10% are more than 67.4 inches. Assume the height can be well approximated by a normal distribution.
Find the mean  and the SD .

64. Example(Height) Z.10 = -1.29 and Z.90 = 1.29 , so
Solving for  and , we have
 = ( )/( ) = 2.4, and  = 64.3.

65. Normal Approximation
The normal distribution is often used to approximate the distribution of discrete populations.
In particular, under certain conditions, the normal distribution can be used as an approximation to the binomial distribution.

66. Normal Approximation to Binomial Distribution
For a binomial rv X , we have
When both np and nq are relatively large, the normal distribution with the same mean and SD is a very good approximation to Bin(n, p).

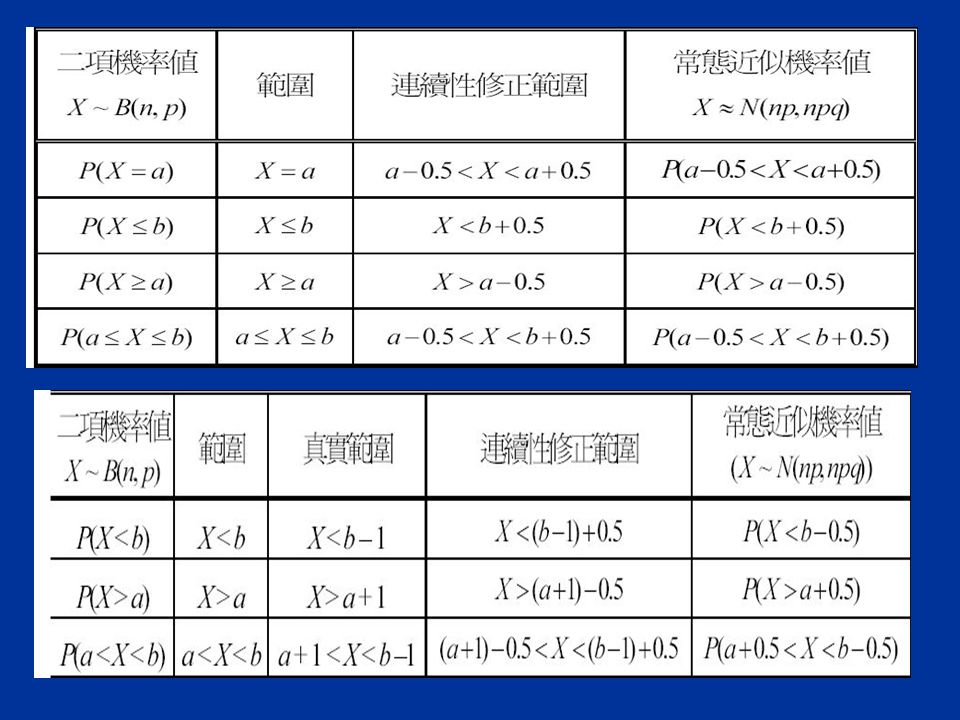

67. Normal Approximation to Binomial Distribution
Let X ~ Bin(n, p), Then if np  5 and nq  5, X has approximately a normal distribution with
This is the area under the normal curve to the left of x+.5. “+.5” is the correction for discreteness. This is called continuity correction.

69. Example X ~ Bin(30, 0.3). Want: P(6  X  10).
Mean=30 × .3 = 9, SD = (30× .3× .7)1/2=2.51.
P(6  X  10) = P(X  10) - P(X  5)
  (( )/2.51) -  (( )/2.51)
= (.598) -  (-1.394)= =
Direct calculation yields
P(6  X  10) = P(6) + … + P(10) =
The results are very close.
