1 Transistor-Transistor Logic (TTL) Lecture L4.1

2 Transistor-Transistor Logic (TTL) Developed in mid-1960s Large family (74xx) of chips from basic gates to arithmetic logic units Becoming obsolete with the development of programmable logic devices (PLDs)

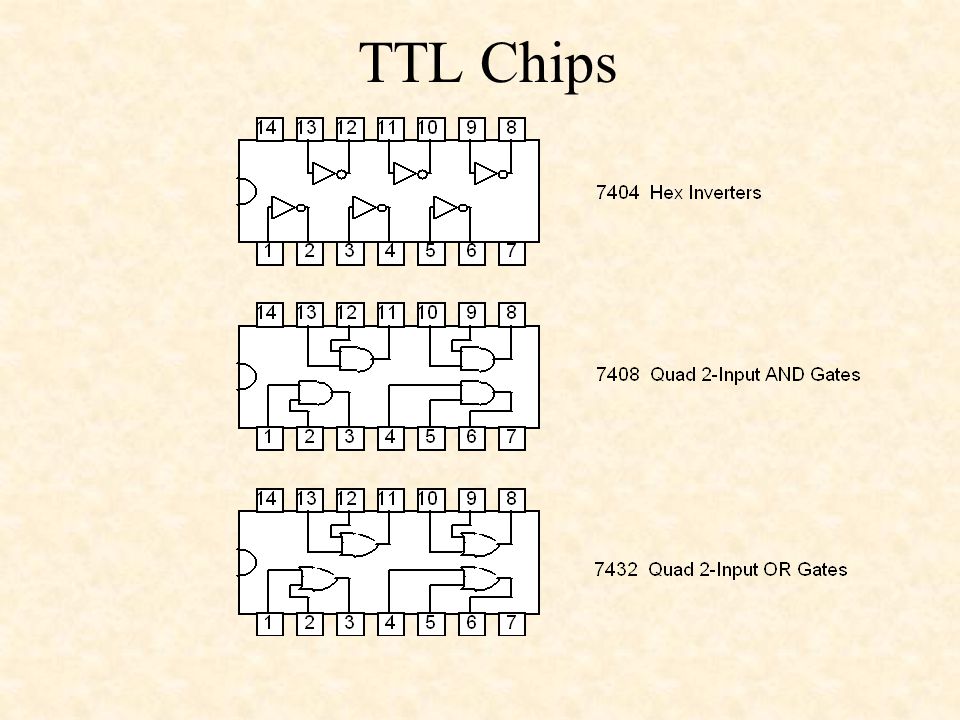

3 TTL Chips

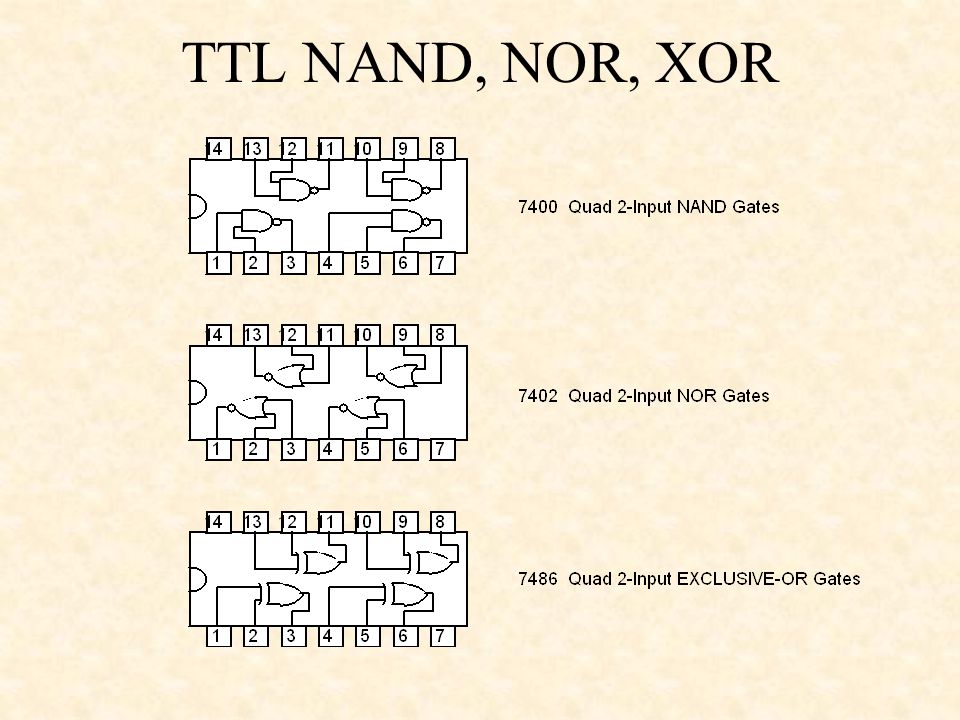

4 TTL NAND, NOR, XOR

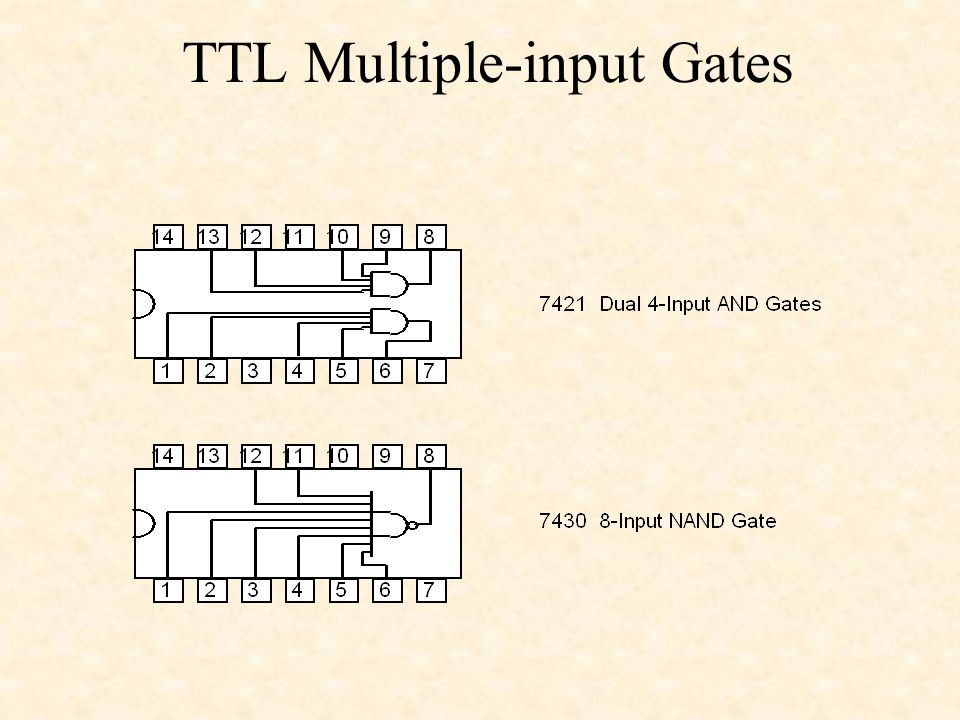

5 TTL Multiple-input Gates

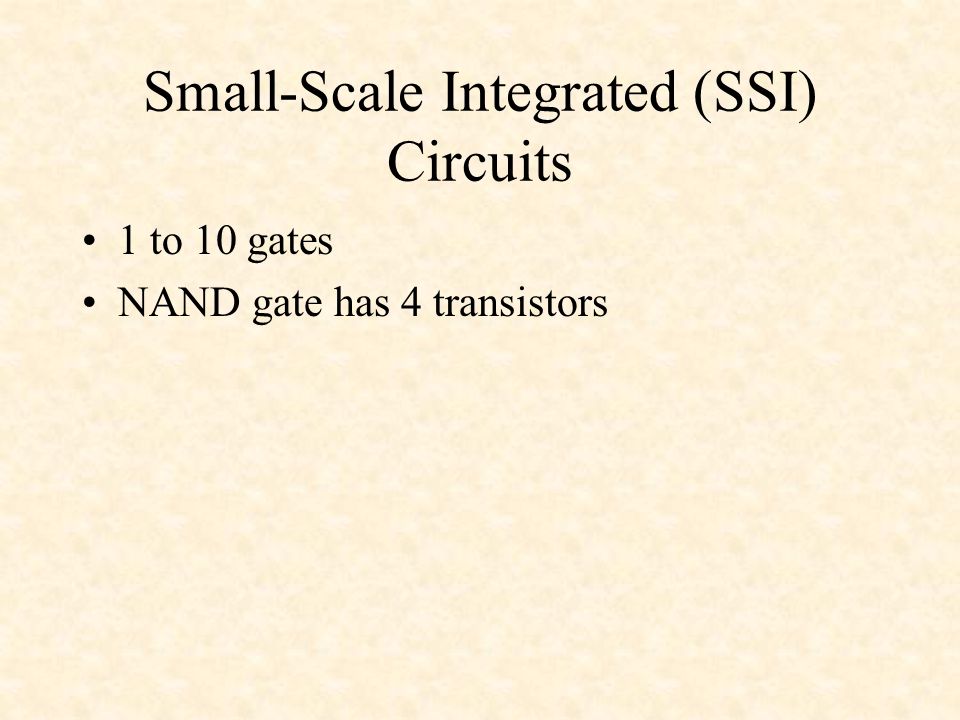

6 Small-Scale Integrated (SSI) Circuits 1 to 10 gates NAND gate has 4 transistors

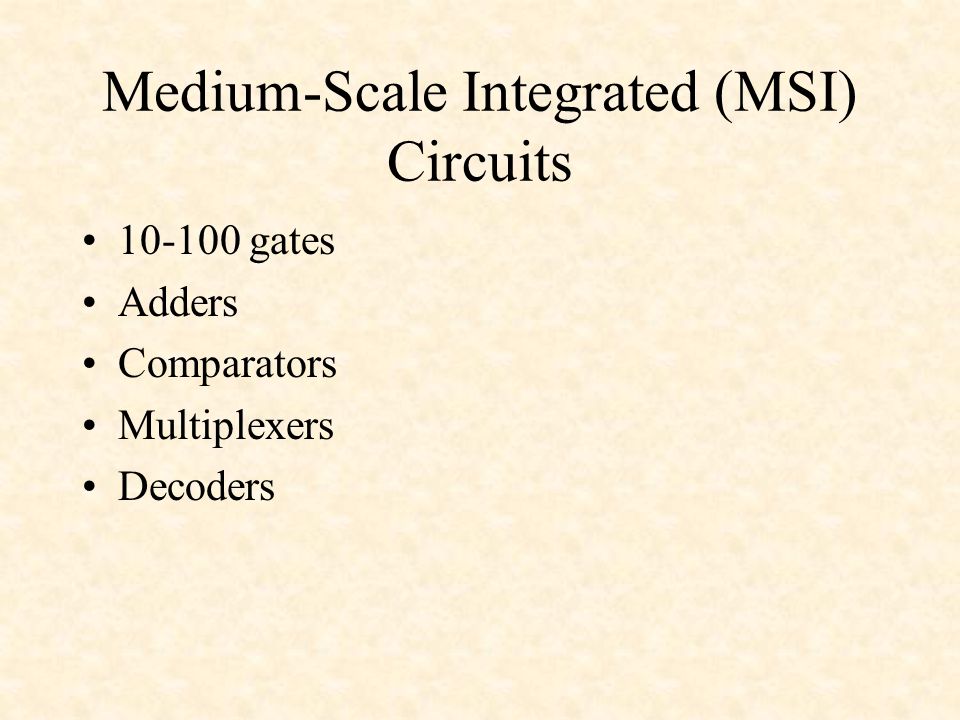

7 Medium-Scale Integrated (MSI) Circuits 10-100 gates Adders Comparators Multiplexers Decoders

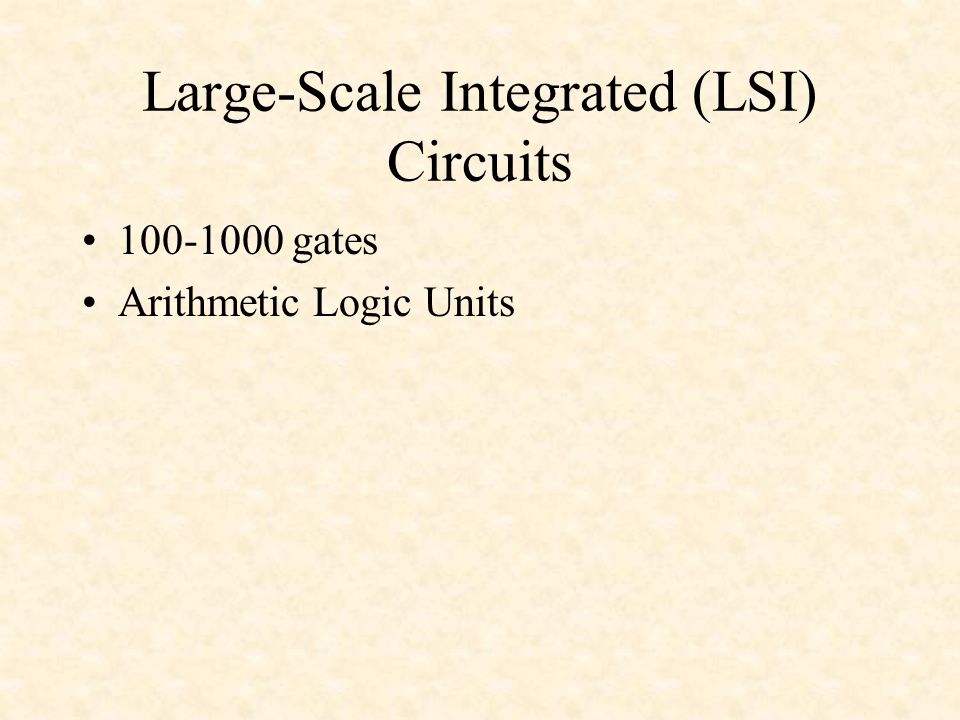

8 Large-Scale Integrated (LSI) Circuits 100-1000 gates Arithmetic Logic Units

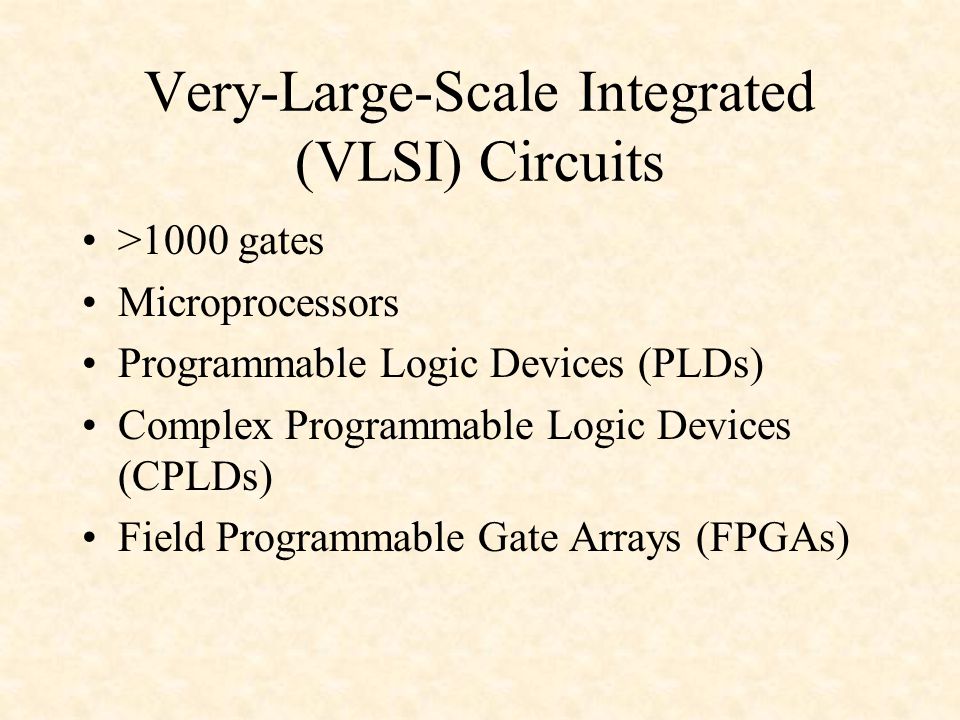

9 Very-Large-Scale Integrated (VLSI) Circuits >1000 gates Microprocessors Programmable Logic Devices (PLDs) Complex Programmable Logic Devices (CPLDs) Field Programmable Gate Arrays (FPGAs)
