1 Chapter 9: Graphs Summary Mark Allen Weiss: Data Structures and Algorithm Analysis in Java Lydia Sinapova, Simpson College

2 2 Summary of Graph Algorithms  Basic Concepts  Topological Sort  Shortest Paths  Spanning Trees  Scheduling Networks  Breadth-First and Depth First Search  Connectivity

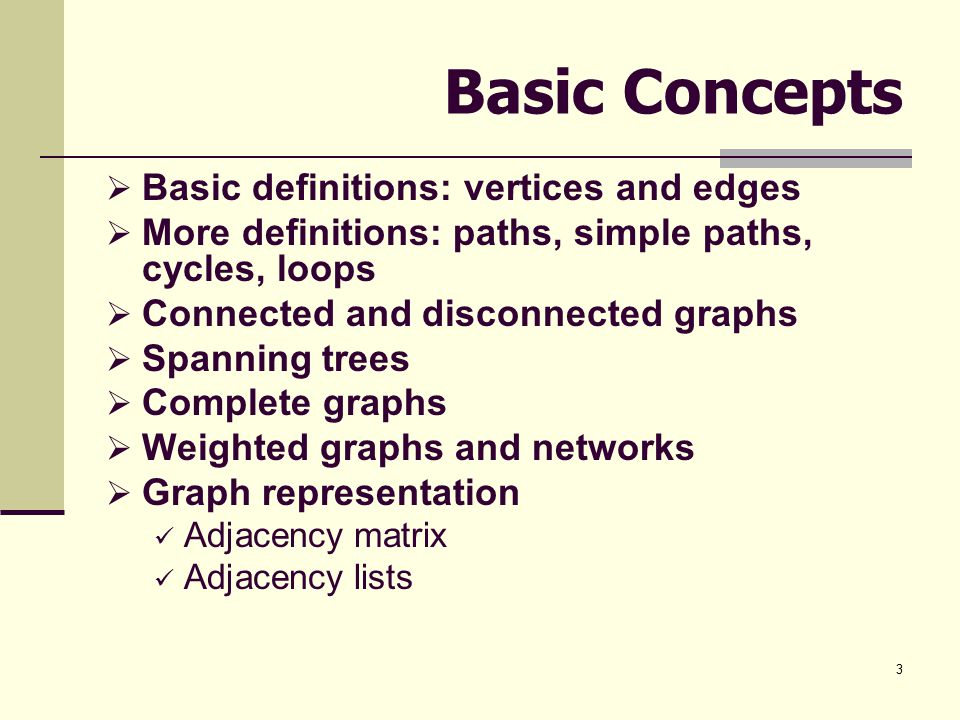

3 3 Basic Concepts  Basic definitions: vertices and edges  More definitions: paths, simple paths, cycles, loops  Connected and disconnected graphs  Spanning trees  Complete graphs  Weighted graphs and networks  Graph representation Adjacency matrix Adjacency lists

4 4 Topological Sort RULE: If there is a path from u to v, then v appears after u in the ordering. Graphs: directed, acyclic Degree of a vertex U: the number of outgoing edges Indegree of a vertex U: the number of incoming edges The algorithm for topological sort uses "indegrees" of vertices. Implementation: with a queue Complexity: Adjacency lists: O(|E| + |V|), Matrix representation: O(|V| 2 )

5 5 Shortest Path in Unweighted Graphs Data Structures needed: Distance Table Queue Implementation: Breadth-First search using a queue Complexity: Matrix representation: O(|V|2) Adjacency lists - O(|E| + |V|)

6 6 Algorithm 1.Store s in a queue, and initialize distance = 0 in the Distance Table 2. While there are vertices in the queue: Read a vertex v from the queue For all adjacent vertices w : If distance = -1 (not computed) Distance = (distance to v) + 1 Parent = v Append w to the queue

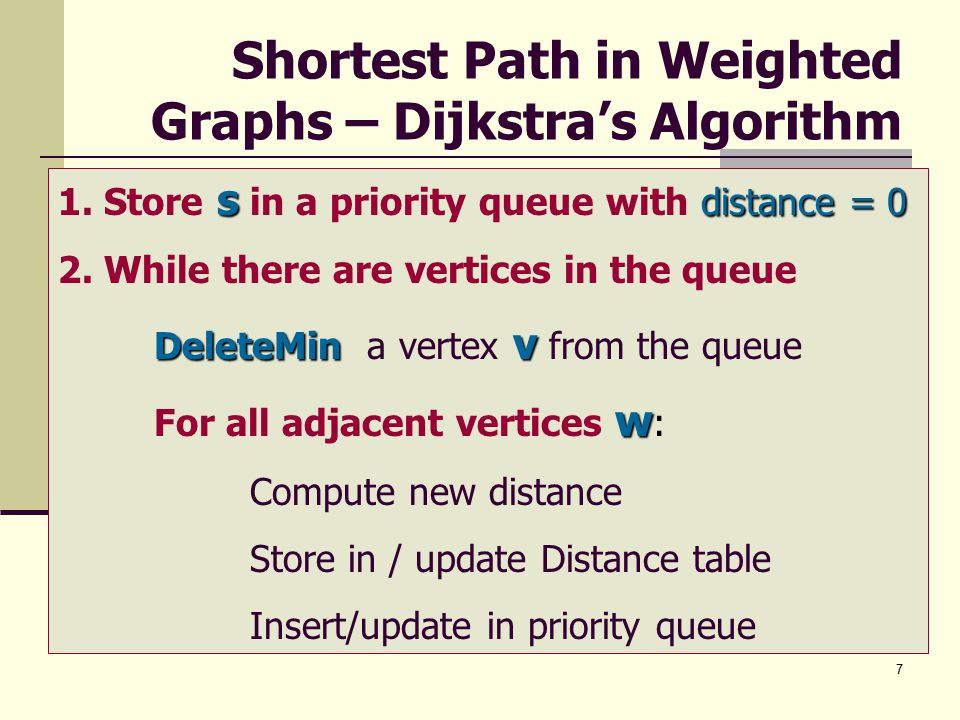

7 7 Shortest Path in Weighted Graphs – Dijkstra’s Algorithm s distance = 0 1. Store s in a priority queue with distance = 0 2. While there are vertices in the queue DeleteMin v DeleteMin a vertex v from the queue w For all adjacent vertices w : Compute new distance Store in / update Distance table Insert/update in priority queue

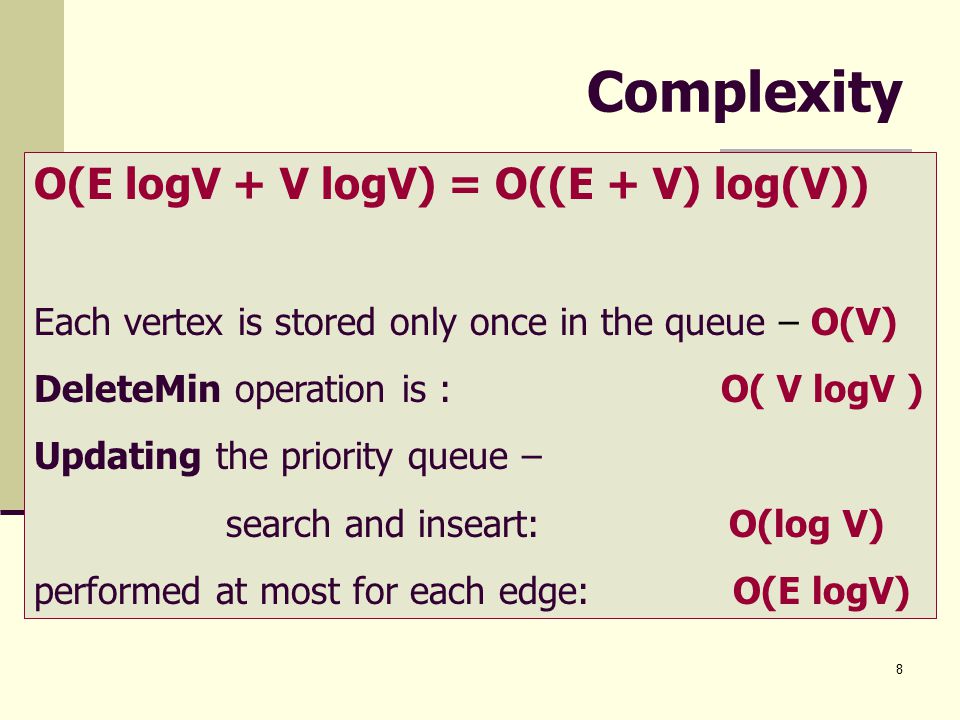

8 8 Complexity O(E logV + V logV) = O((E + V) log(V)) Each vertex is stored only once in the queue – O(V) DeleteMin operation is : O( V logV ) Updating the priority queue – search and inseart: O(log V) performed at most for each edge: O(E logV)

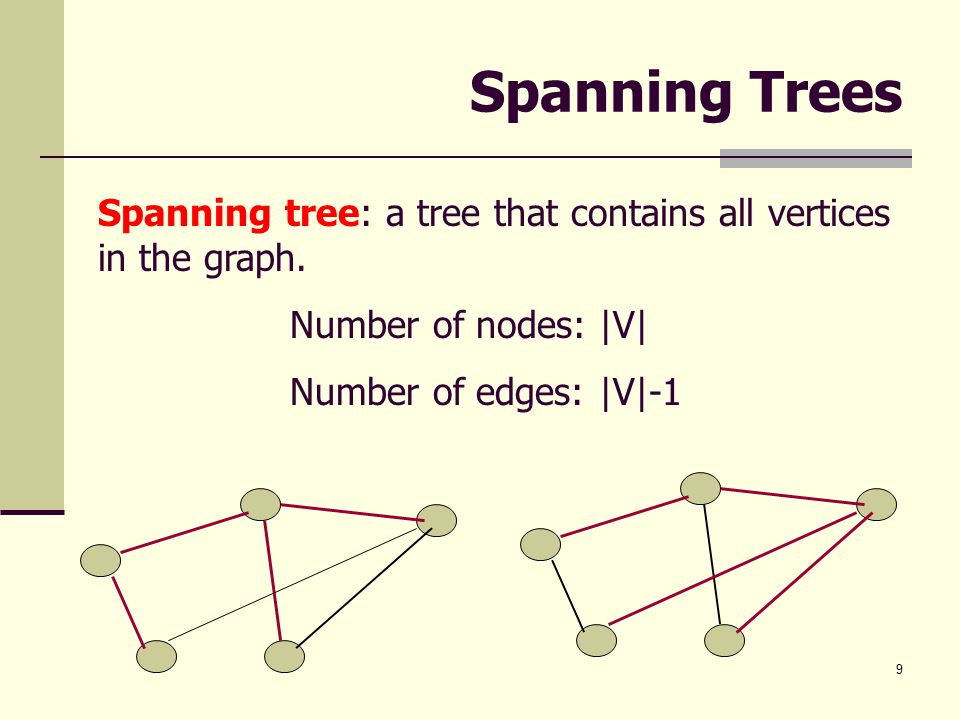

9 9 Spanning Trees Spanning tree: a tree that contains all vertices in the graph. Number of nodes: |V| Number of edges: |V|-1

10 10 Spanning Trees of Unweighted Graphs Breadth-First Search using a queue Complexity: O(|E| + |V|) - we process all edges and all nodes

11 11 Min Spanning Trees of Weighted Graphs – Prim’s Algorithm Find a spanning tree with the minimal sum of the weights. Similar to shortest paths in a weighted graphs. Difference: we record the weight of the current edge, not the length of the path. Implementation: with a Priority Queue Complexity: O(|E| log (|V|) )

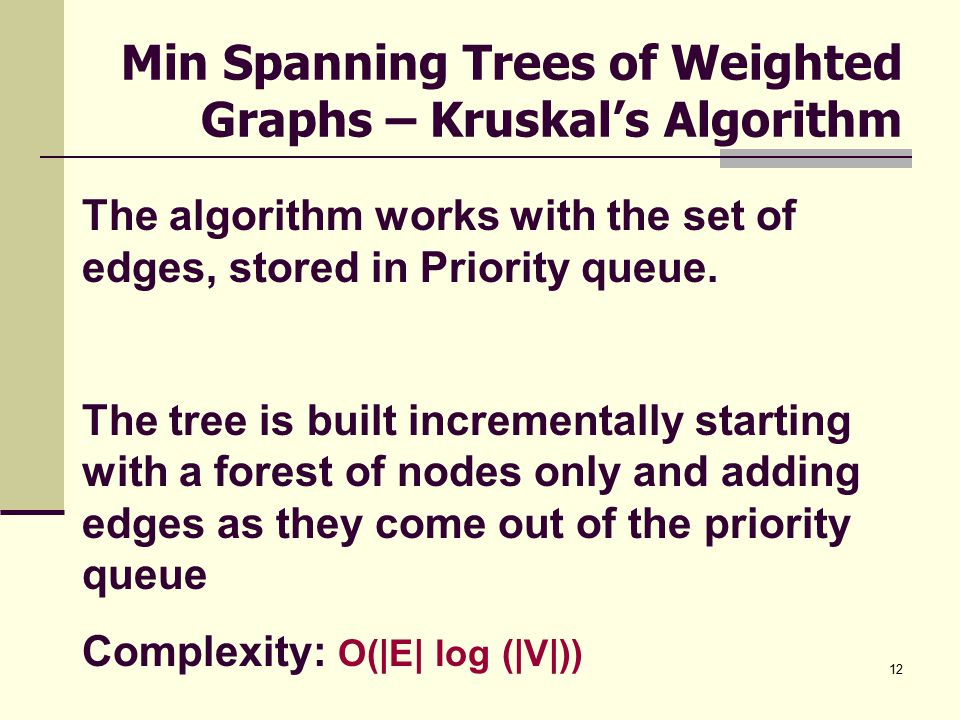

12 12 Min Spanning Trees of Weighted Graphs – Kruskal’s Algorithm The algorithm works with the set of edges, stored in Priority queue. The tree is built incrementally starting with a forest of nodes only and adding edges as they come out of the priority queue Complexity: O(|E| log (|V|))

13 13 Scheduling Networks Directed simple acyclic graph Nodes: events, Source, Sink Edges: activities (name of the task, duration) Find the earliest occurrence time (EOT) of an event Find the earliest completion time (ECT) of an activity Find the slack of an activity: how much the activity can be delayed without delaying the project Find the critical activities: must be completed on time in order not to delay the project

14 14 EOT and ECT Earliest occurrence time of an event EOT(source) = 0 EOT( j ) = max ( EOTs of all activities preceding the event) Earliest completion time of an activity ECT( j, k ) = EOT( j ) + duration( j, k) 1. Sort the nodes topologically 2. For each event j : initialize EOT(j) = 0 3. For each event i in topological order For each event j adjacent from i : ECT(i,j) = EOT(i) + duration (i,j) EOT(j) = max(EOT(j), ECT(i,j))

15 15 Slack of activities Compute latest occurrence time LOT(j), slack(i, j) 1. InitializeLOT(sink) = EOT(sink) 2. For each non-sink event i in the reverse topological order: LOT(i) = min(LOT( j ) – duration( i, j)) 3. For each activity (i,j) slack( i, j ) = LOT( j ) – ECT( i, j) Critical activities: slack(j) = 0 Critical path in the project: all edges are activities with slack = 0 The critical path is found using breadth-first (or depth-first) search on the edges Complexity: O(V + E) with adjacency lists, O(V 2 ) with adjacency matrix

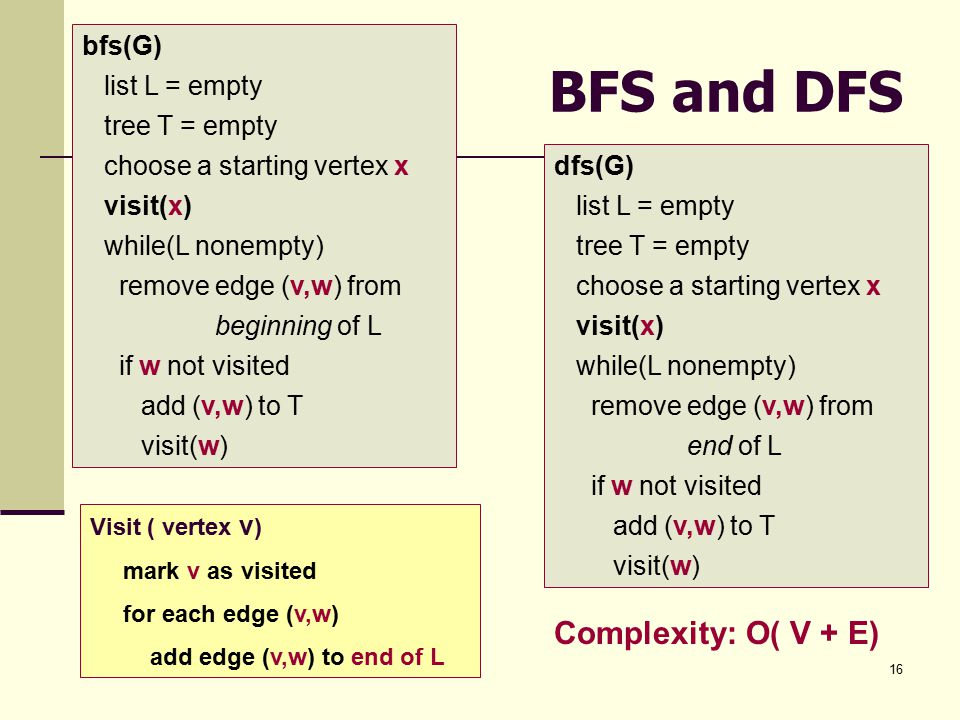

16 16 BFS and DFS bfs(G) list L = empty tree T = empty choose a starting vertex x visit(x) while(L nonempty) remove edge (v,w) from beginning of L if w not visited add (v,w) to T visit(w) dfs(G) list L = empty tree T = empty choose a starting vertex x visit(x) while(L nonempty) remove edge (v,w) from end of L if w not visited add (v,w) to T visit(w) Visit ( vertex v ) mark v as visited for each edge (v,w) add edge (v,w) to end of L Complexity: O( V + E)

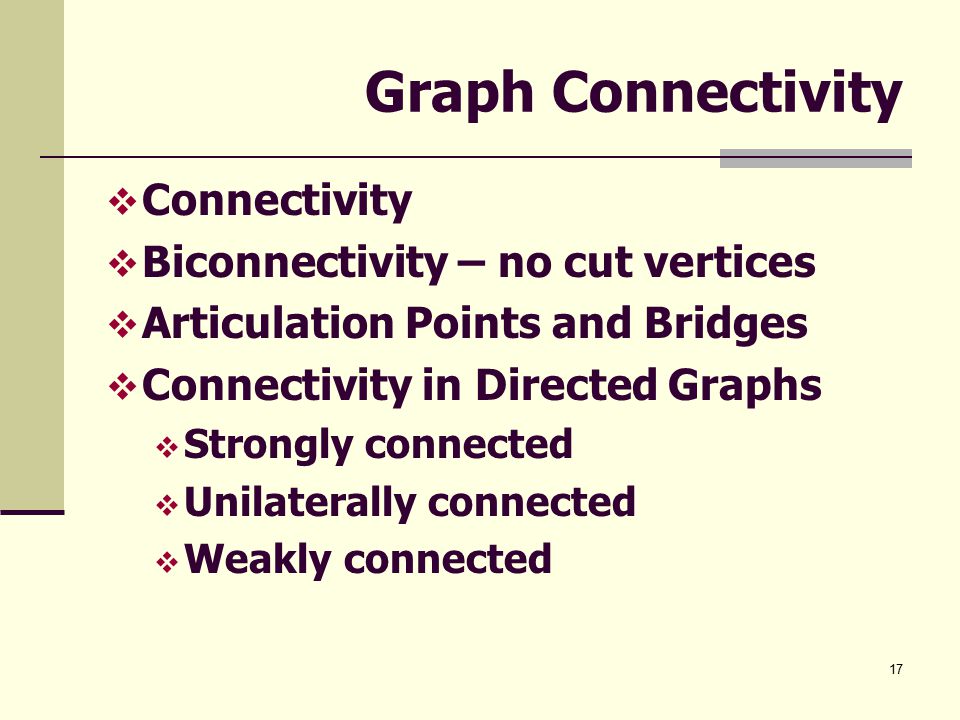

17 17 Graph Connectivity  Connectivity  Biconnectivity – no cut vertices  Articulation Points and Bridges  Connectivity in Directed Graphs  Strongly connected  Unilaterally connected  Weakly connected
