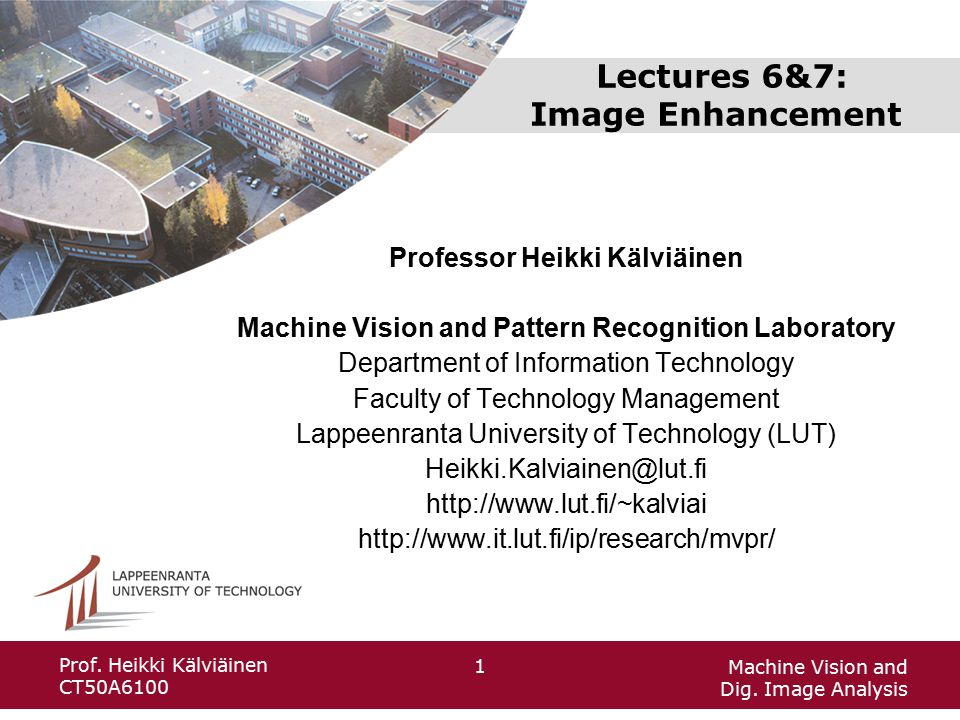

1. Machine Vision and Dig. Image Analysis 1 Prof. Heikki Kälviäinen CT50A6100 Lectures 6&7: Image Enhancement Professor Heikki Kälviäinen Machine Vision and Pattern Recognition Laboratory Department of Information Technology Faculty of Technology Management Lappeenranta University of Technology (LUT) Heikki.Kalviainen@lut.fi http://www.lut.fi/~kalviai http://www.it.lut.fi/ip/research/mvpr/

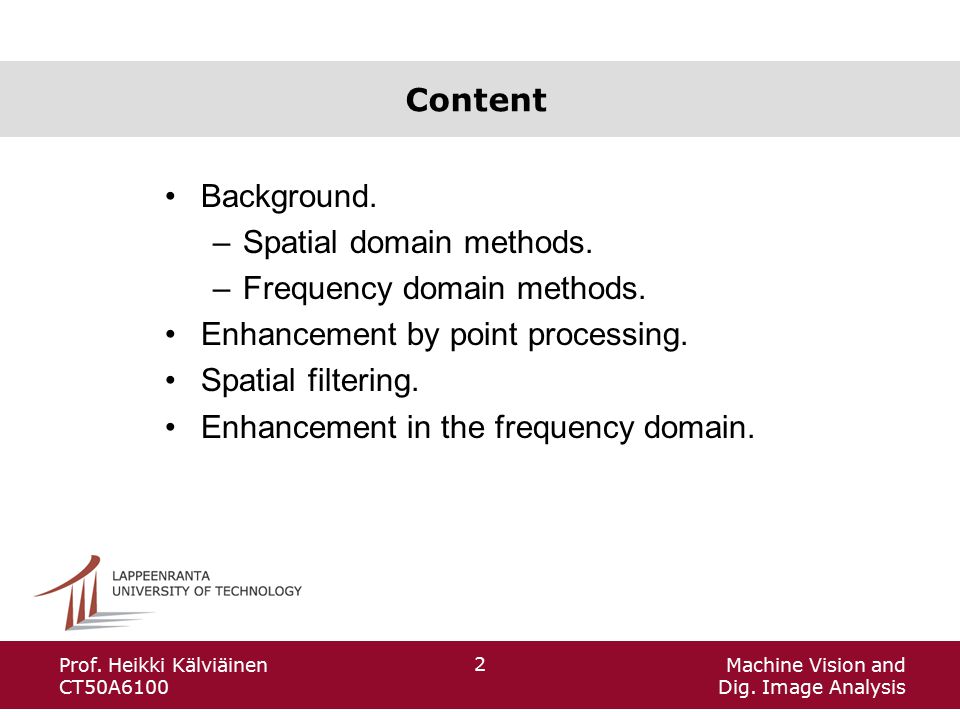

2. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 2 Content Background. –Spatial domain methods. –Frequency domain methods. Enhancement by point processing. Spatial filtering. Enhancement in the frequency domain.

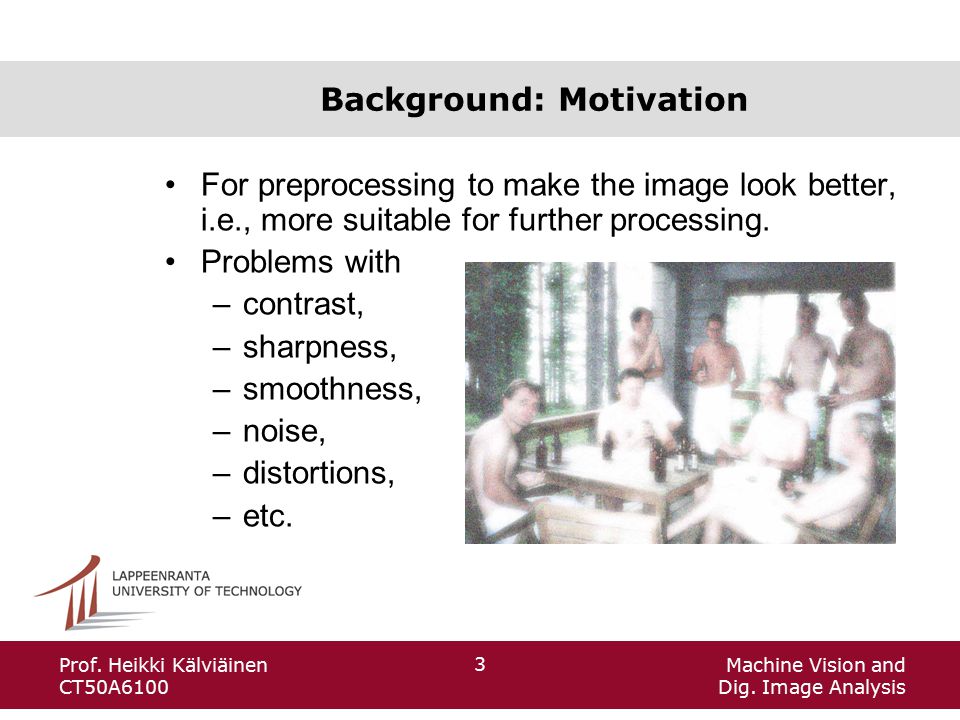

3. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 3 Background: Motivation For preprocessing to make the image look better, i.e., more suitable for further processing. Problems with –contrast, –sharpness, –smoothness, –noise, –distortions, –etc.

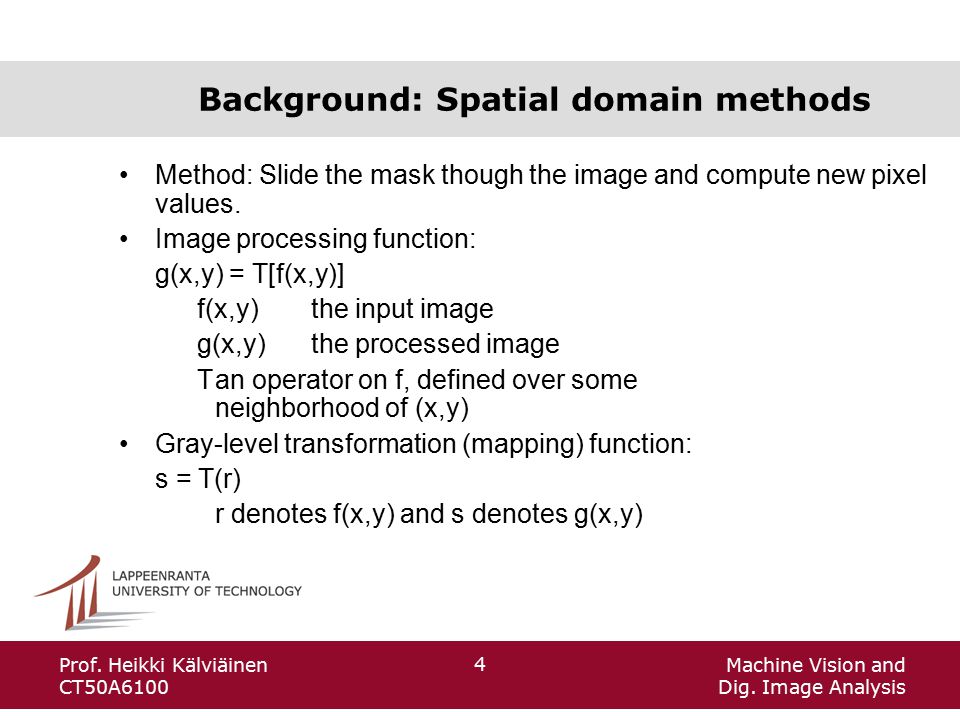

4. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 4 Background: Spatial domain methods Method: Slide the mask though the image and compute new pixel values. Image processing function: g(x,y) = T[f(x,y)] f(x,y) the input image g(x,y)the processed image Tan operator on f, defined over some neighborhood of (x,y) Gray-level transformation (mapping) function: s = T(r) r denotes f(x,y) and s denotes g(x,y)

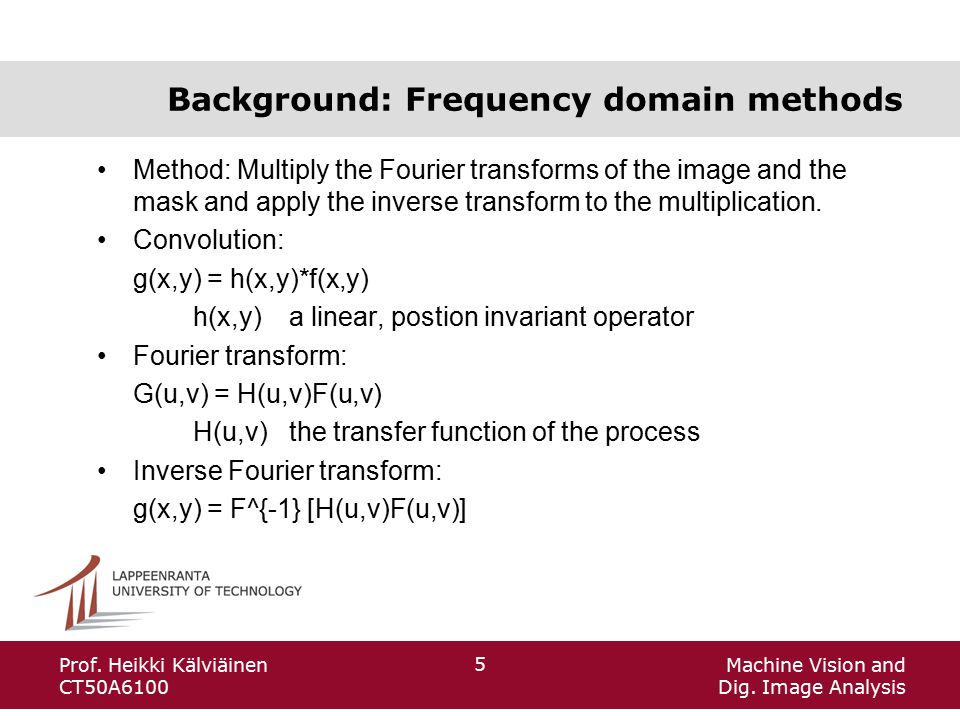

5. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 5 Background: Frequency domain methods Method: Multiply the Fourier transforms of the image and the mask and apply the inverse transform to the multiplication. Convolution: g(x,y) = h(x,y)*f(x,y) h(x,y) a linear, postion invariant operator Fourier transform: G(u,v) = H(u,v)F(u,v) H(u,v)the transfer function of the process Inverse Fourier transform: g(x,y) = F^{-1} [H(u,v)F(u,v)]

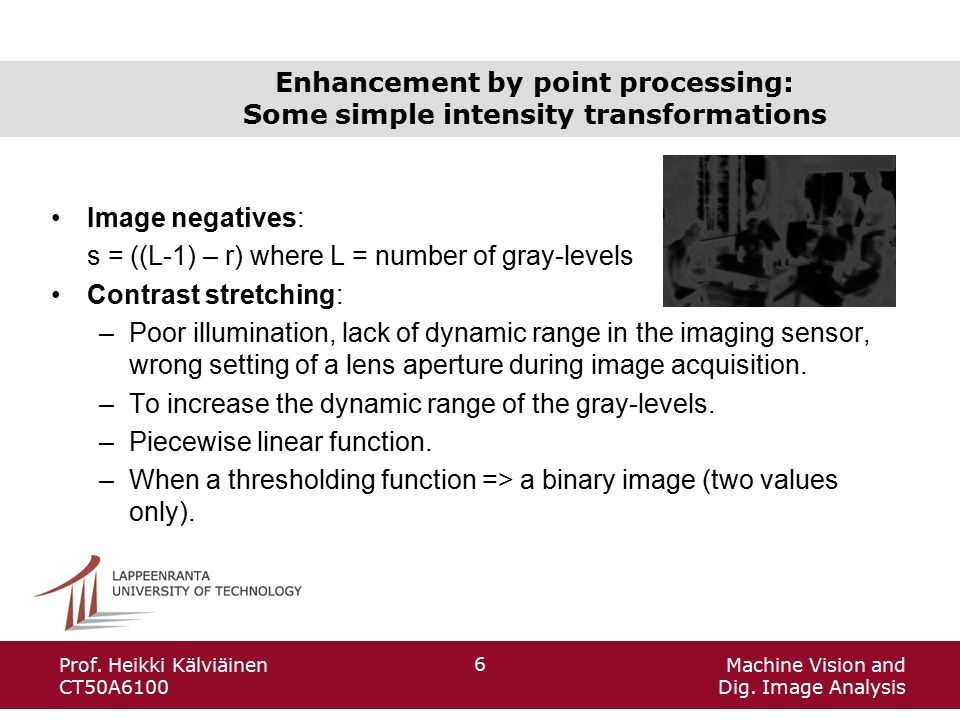

6. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 6 Enhancement by point processing: Some simple intensity transformations Image negatives: s = ((L-1) – r) where L = number of gray-levels Contrast stretching: –Poor illumination, lack of dynamic range in the imaging sensor, wrong setting of a lens aperture during image acquisition. –To increase the dynamic range of the gray-levels. –Piecewise linear function. –When a thresholding function => a binary image (two values only).

7. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 7 Contrast stretching

8. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 8 Enhancement by point processing: Some simple intensity transformations (cont.) Compression of dynamic range: –The dynamic range exceeds the capability of the display device. The need of brighter pixels. s = c log(1 + abs(r)) where c is a scaling constant Gray-level slicing: –Highlighting a specific range of gray-levels with “removing” or preserving other pixels.

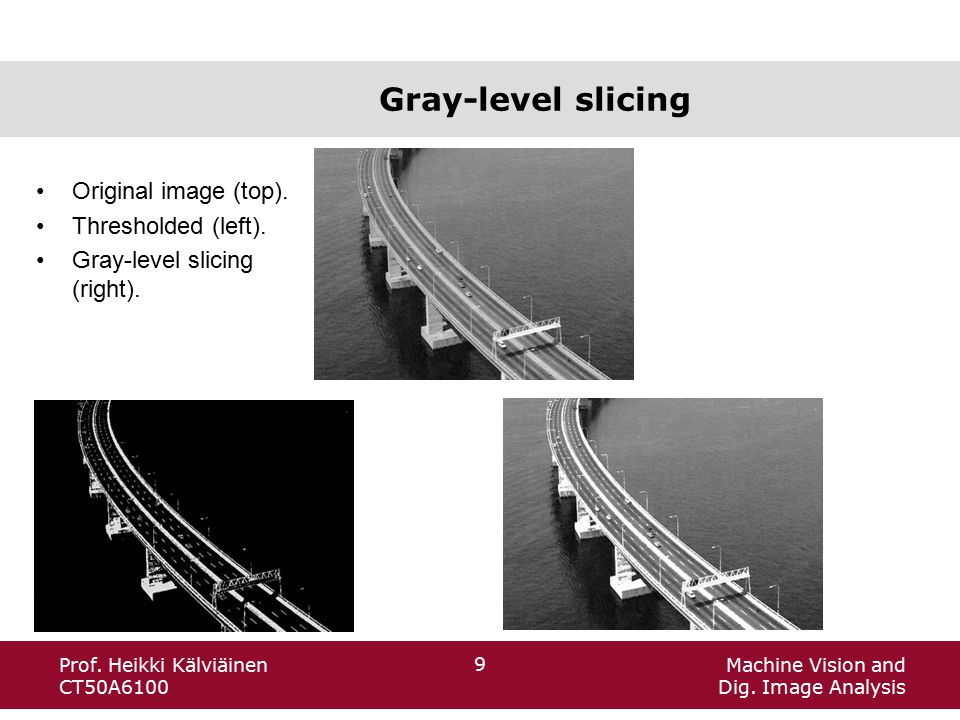

9. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 9 Gray-level slicing Original image (top). Thresholded (left). Gray-level slicing (right).

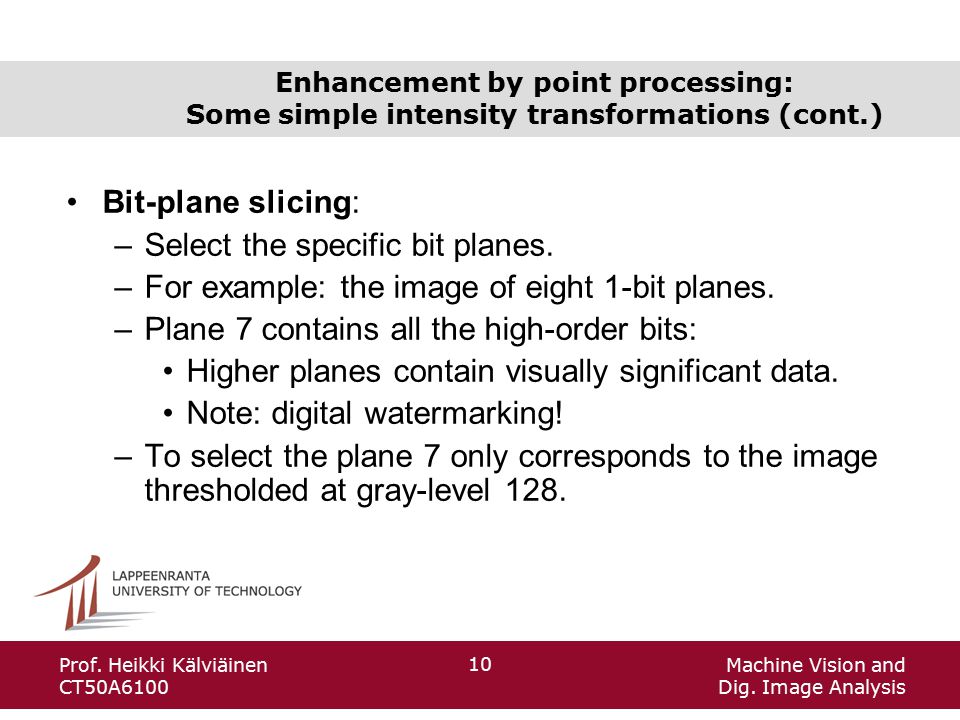

10. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 10 Enhancement by point processing: Some simple intensity transformations (cont.) Bit-plane slicing: –Select the specific bit planes. –For example: the image of eight 1-bit planes. –Plane 7 contains all the high-order bits: Higher planes contain visually significant data. Note: digital watermarking! –To select the plane 7 only corresponds to the image thresholded at gray-level 128.

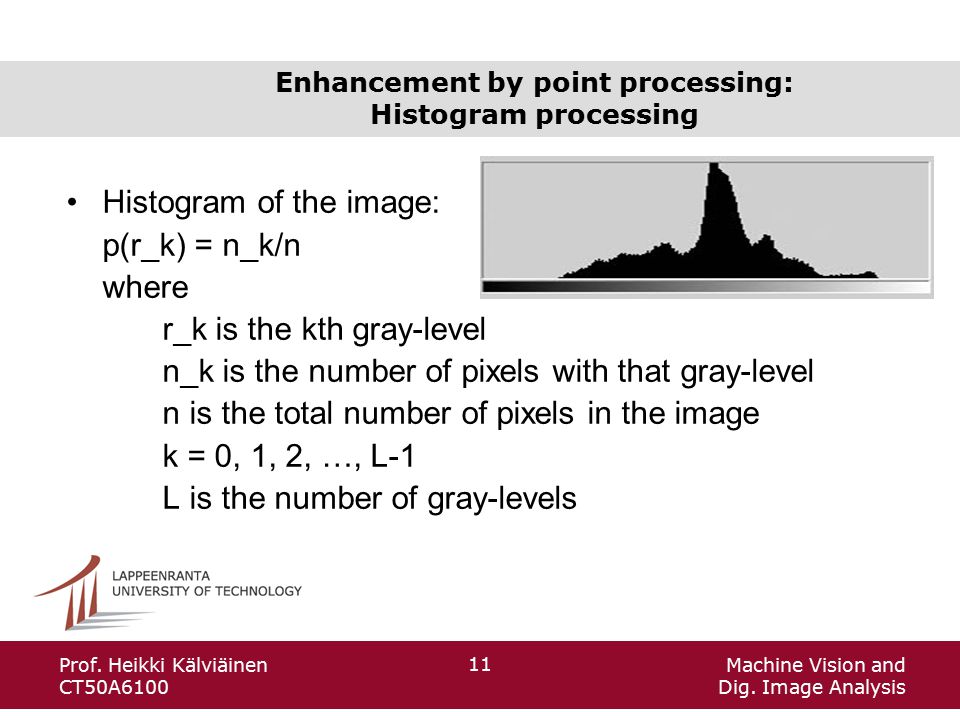

11. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 11 Enhancement by point processing: Histogram processing Histogram of the image: p(r_k) = n_k/n where r_k is the kth gray-level n_k is the number of pixels with that gray-level n is the total number of pixels in the image k = 0, 1, 2, …, L-1 L is the number of gray-levels

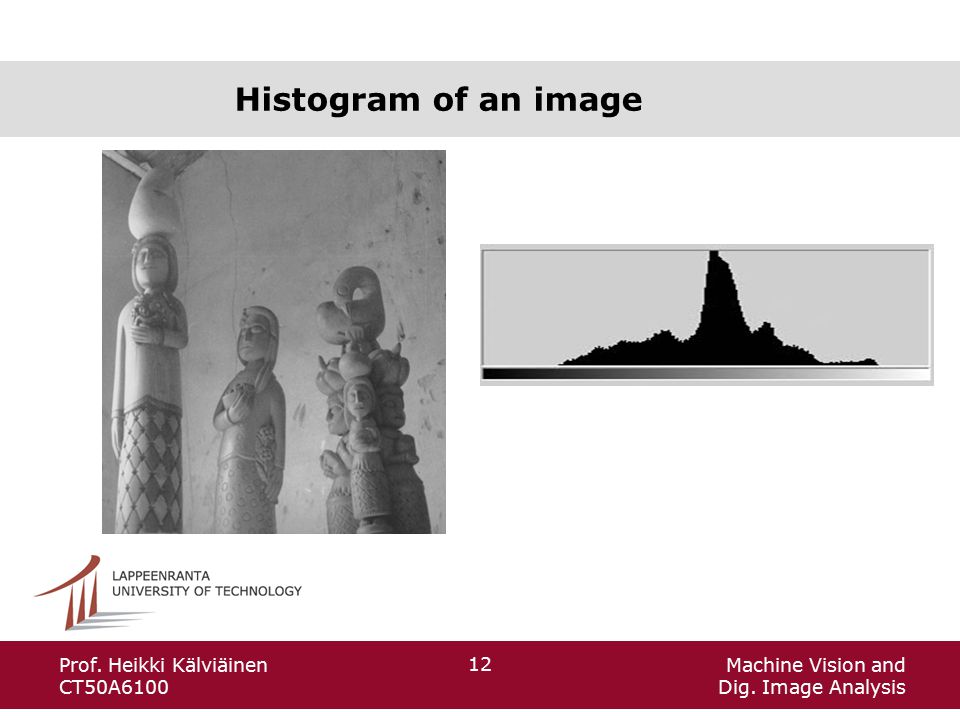

12. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 12 Histogram of an image

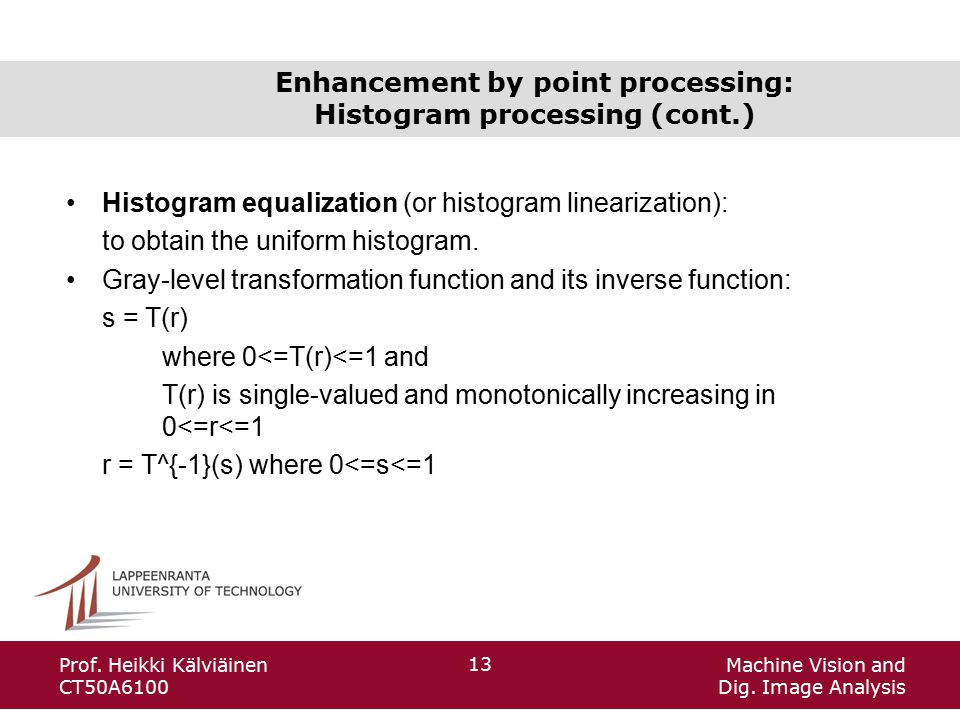

13. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 13 Enhancement by point processing: Histogram processing (cont.) Histogram equalization (or histogram linearization): to obtain the uniform histogram. Gray-level transformation function and its inverse function: s = T(r) where 0<=T(r)<=1 and T(r) is single-valued and monotonically increasing in 0<=r<=1 r = T^{-1}(s) where 0<=s<=1

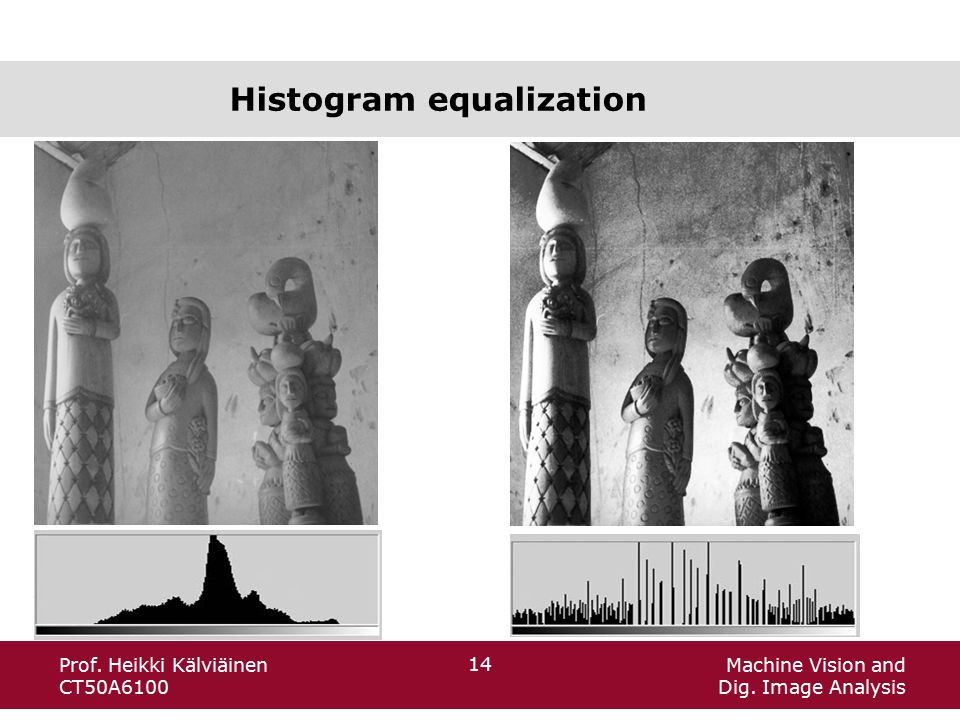

14. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 14 Histogram equalization

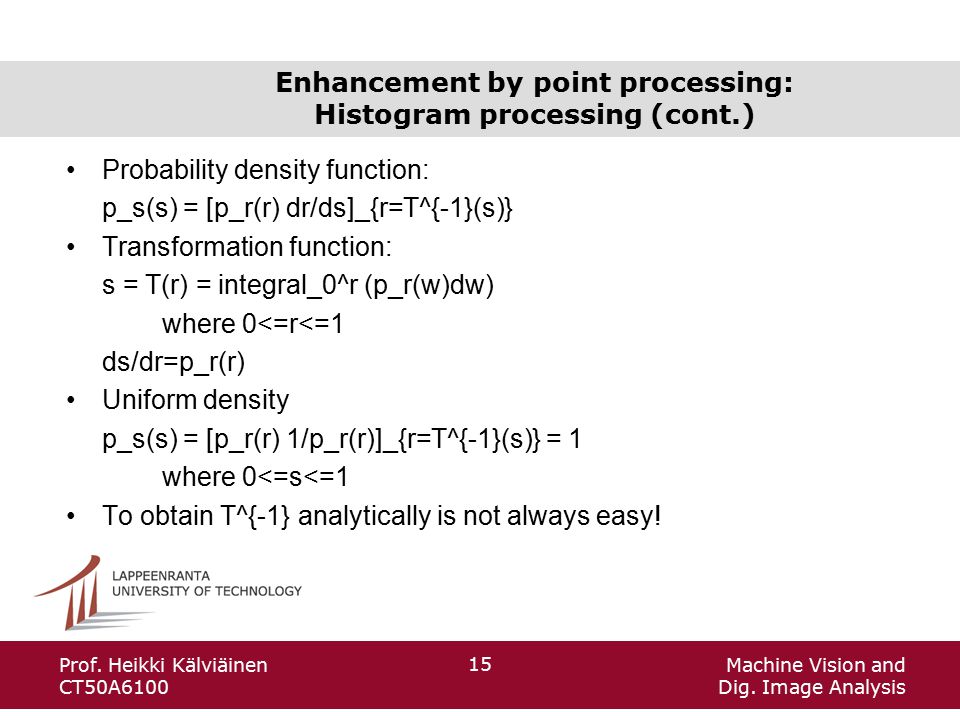

15. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 15 Enhancement by point processing: Histogram processing (cont.) Probability density function: p_s(s) = [p_r(r) dr/ds]_{r=T^{-1}(s)} Transformation function: s = T(r) = integral_0^r (p_r(w)dw) where 0<=r<=1 ds/dr=p_r(r) Uniform density p_s(s) = [p_r(r) 1/p_r(r)]_{r=T^{-1}(s)} = 1 where 0<=s<=1 To obtain T^{-1} analytically is not always easy!

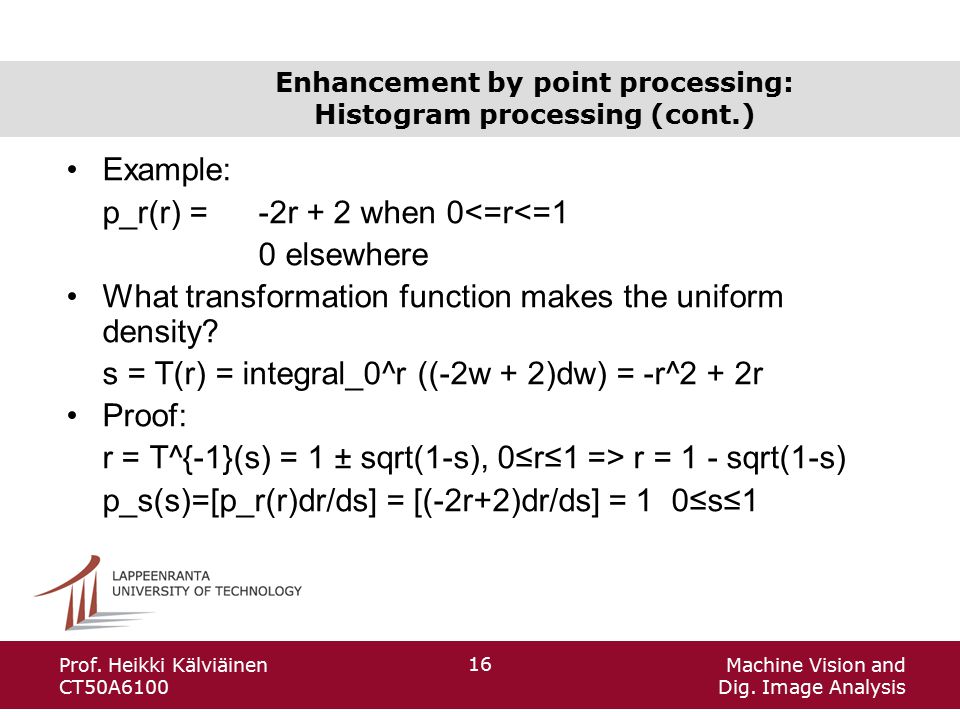

16. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 16 Enhancement by point processing: Histogram processing (cont.) Example: p_r(r) = -2r + 2 when 0<=r<=1 0 elsewhere What transformation function makes the uniform density? s = T(r) = integral_0^r ((-2w + 2)dw) = -r^2 + 2r Proof: r = T^{-1}(s) = 1 ± sqrt(1-s), 0≤r≤1 => r = 1 - sqrt(1-s) p_s(s)=[p_r(r)dr/ds] = [(-2r+2)dr/ds] = 1 0≤s≤1

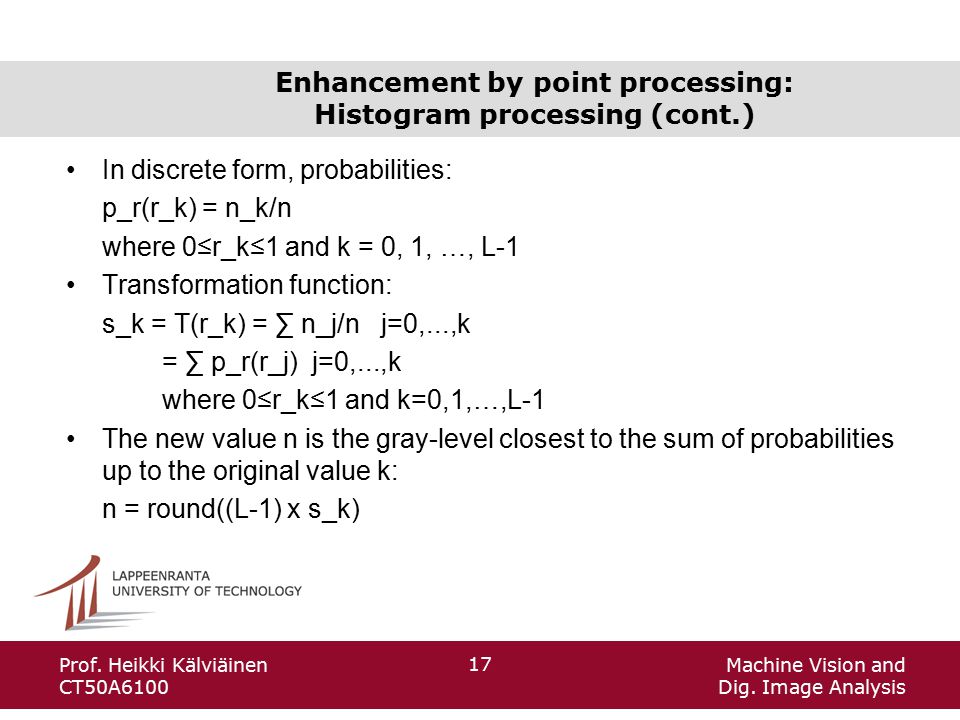

17. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 17 Enhancement by point processing: Histogram processing (cont.) In discrete form, probabilities: p_r(r_k) = n_k/n where 0≤r_k≤1 and k = 0, 1, …, L-1 Transformation function: s_k = T(r_k) = ∑ n_j/n j=0,...,k = ∑ p_r(r_j) j=0,...,k where 0≤r_k≤1 and k=0,1,…,L-1 The new value n is the gray-level closest to the sum of probabilities up to the original value k: n = round((L-1) x s_k)

18. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 18 Enhancement by point processing: Histogram processing (cont.) Histogram specification: –To apply another transformation function than an approximation to a uniform histogram. Local enhancement: –Local processing instead of the whole image. –For example, histogram equalization of a 7x7 neighborhood about each pixel.

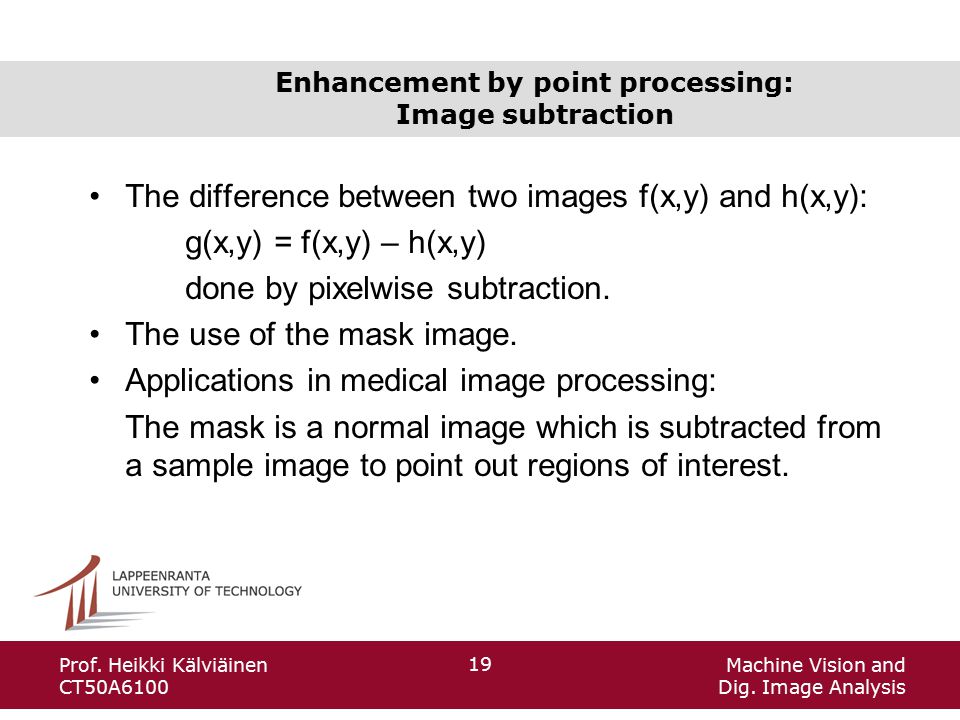

19. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 19 Enhancement by point processing: Image subtraction The difference between two images f(x,y) and h(x,y): g(x,y) = f(x,y) – h(x,y) done by pixelwise subtraction. The use of the mask image. Applications in medical image processing: The mask is a normal image which is subtracted from a sample image to point out regions of interest.

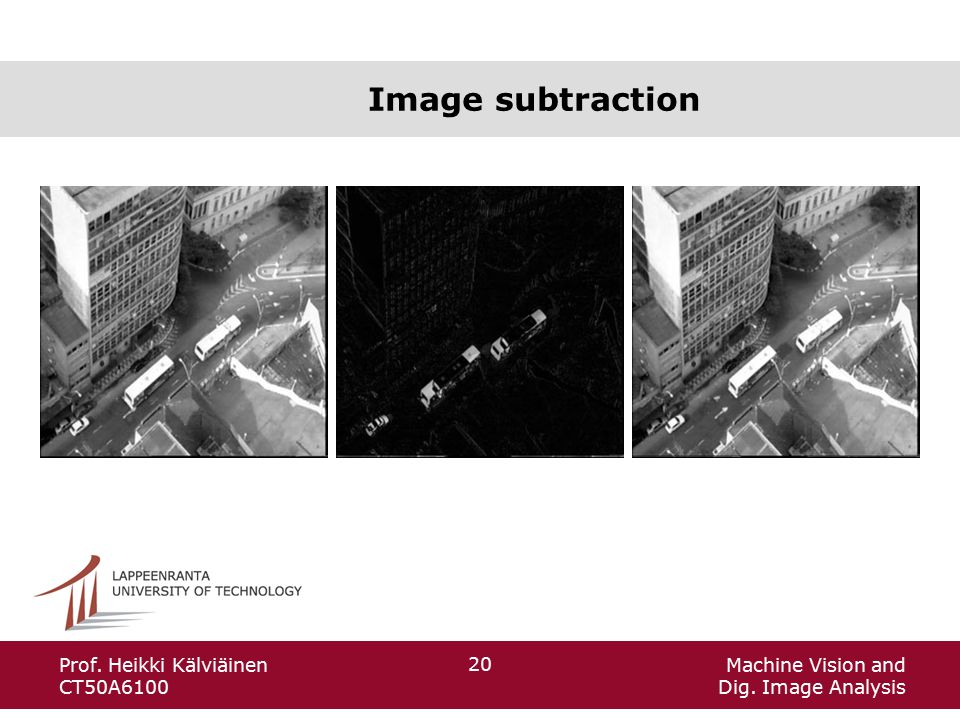

20. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 20 Image subtraction

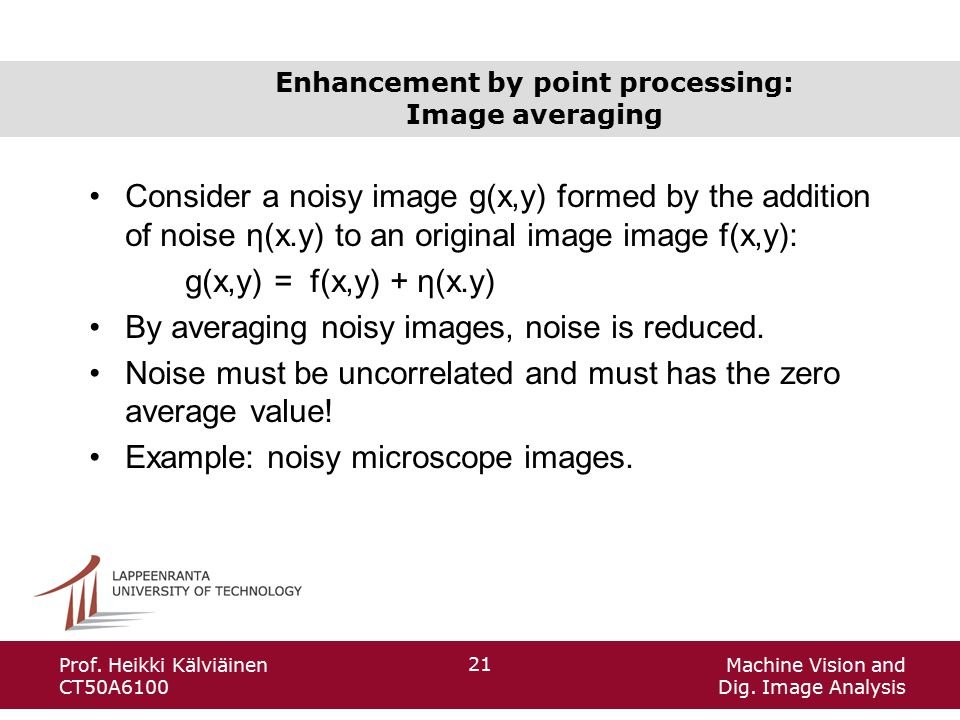

21. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 21 Enhancement by point processing: Image averaging Consider a noisy image g(x,y) formed by the addition of noise η(x.y) to an original image image f(x,y): g(x,y) = f(x,y) + η(x.y) By averaging noisy images, noise is reduced. Noise must be uncorrelated and must has the zero average value! Example: noisy microscope images.

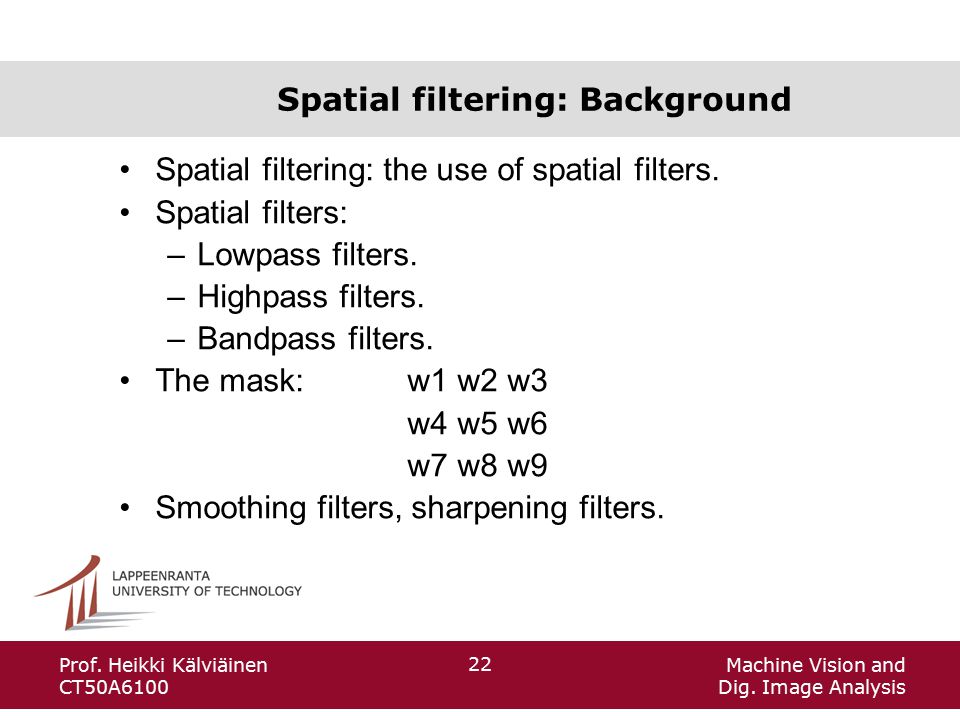

22. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 22 Spatial filtering: Background Spatial filtering: the use of spatial filters. Spatial filters: –Lowpass filters. –Highpass filters. –Bandpass filters. The mask: w1 w2 w3 w4 w5 w6 w7 w8 w9 Smoothing filters, sharpening filters.

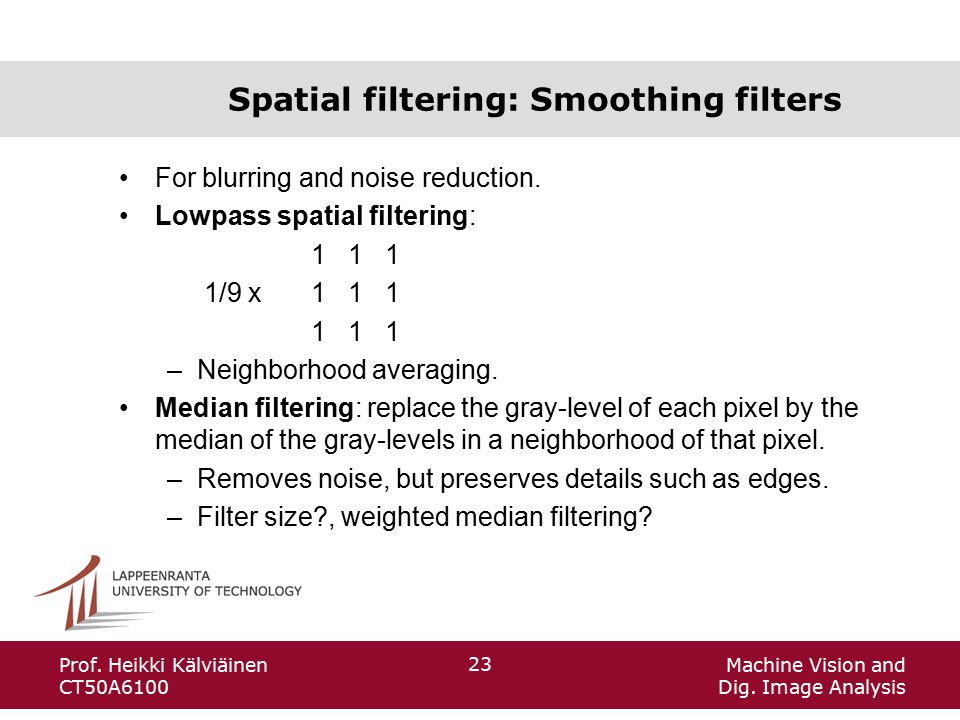

23. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 23 Spatial filtering: Smoothing filters For blurring and noise reduction. Lowpass spatial filtering: 1 1 1 1/9 x 1 1 1 1 1 1 –Neighborhood averaging. Median filtering: replace the gray-level of each pixel by the median of the gray-levels in a neighborhood of that pixel. –Removes noise, but preserves details such as edges. –Filter size?, weighted median filtering?

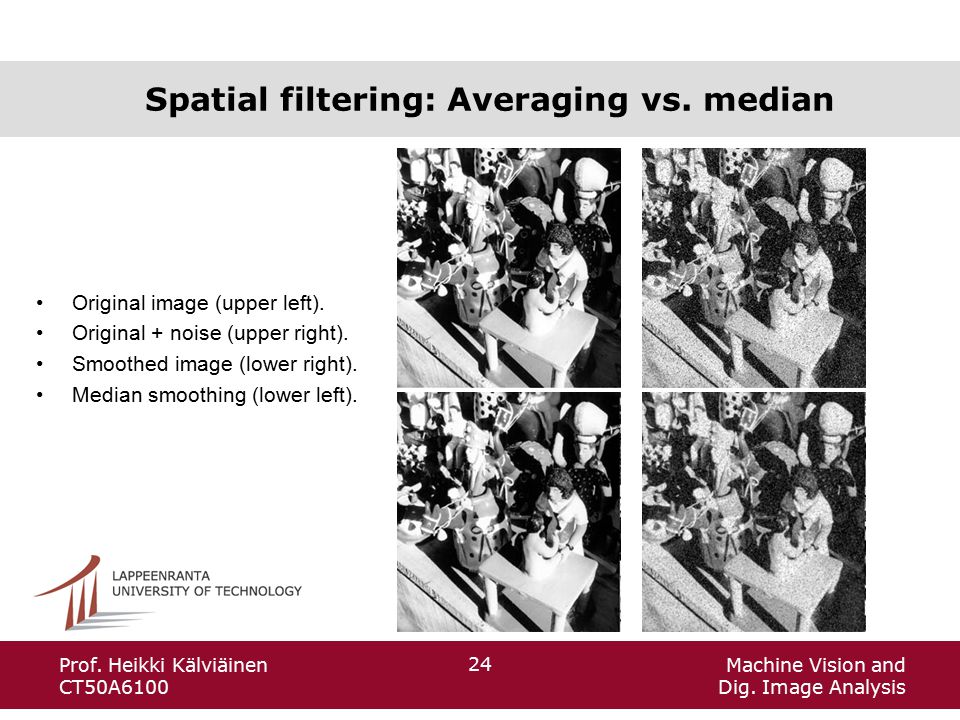

24. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 24 Spatial filtering: Averaging vs. median Original image (upper left). Original + noise (upper right). Smoothed image (lower right). Median smoothing (lower left).

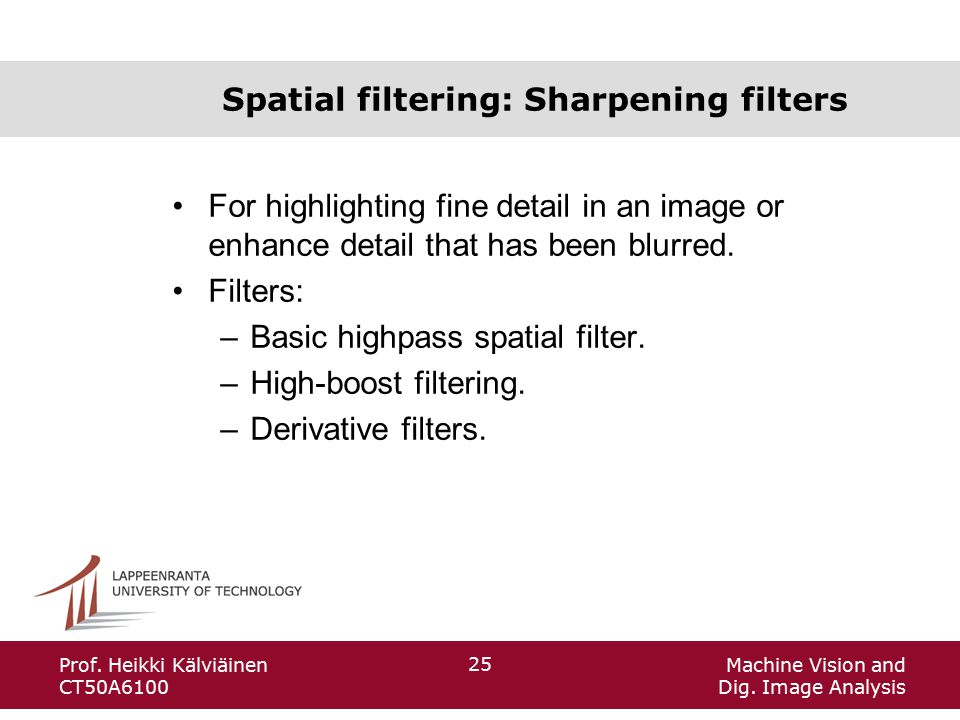

25. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 25 Spatial filtering: Sharpening filters For highlighting fine detail in an image or enhance detail that has been blurred. Filters: –Basic highpass spatial filter. –High-boost filtering. –Derivative filters.

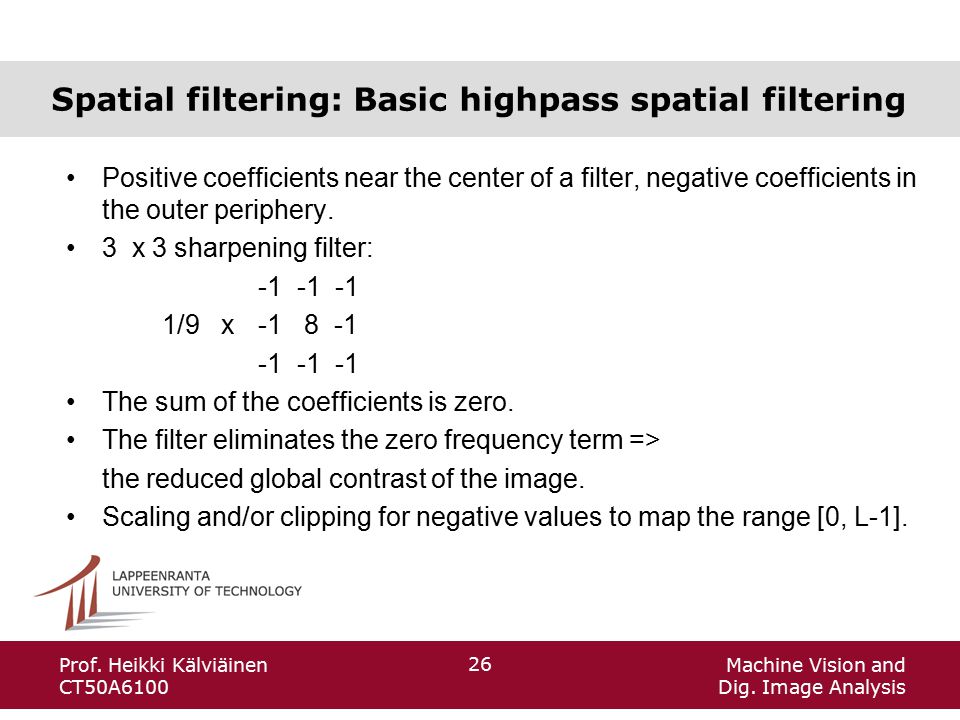

26. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 26 Spatial filtering: Basic highpass spatial filtering Positive coefficients near the center of a filter, negative coefficients in the outer periphery. 3 x 3 sharpening filter: -1 -1 -1 1/9 x -1 8 -1 -1 -1 -1 The sum of the coefficients is zero. The filter eliminates the zero frequency term => the reduced global contrast of the image. Scaling and/or clipping for negative values to map the range [0, L-1].

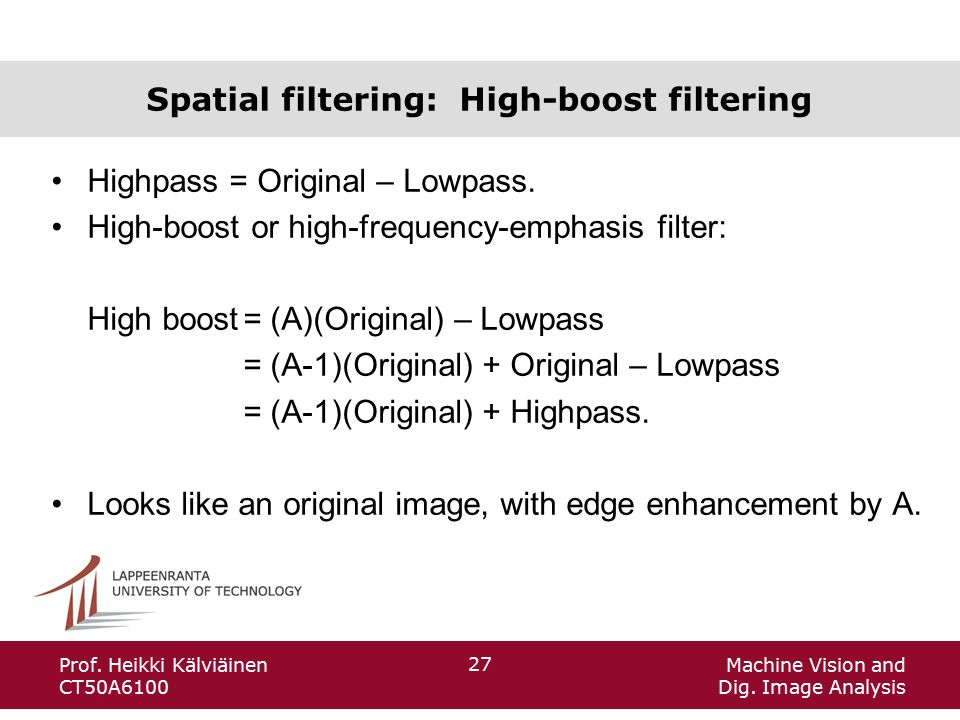

27. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 27 Spatial filtering: High-boost filtering Highpass = Original – Lowpass. High-boost or high-frequency-emphasis filter: High boost= (A)(Original) – Lowpass = (A-1)(Original) + Original – Lowpass = (A-1)(Original) + Highpass. Looks like an original image, with edge enhancement by A.

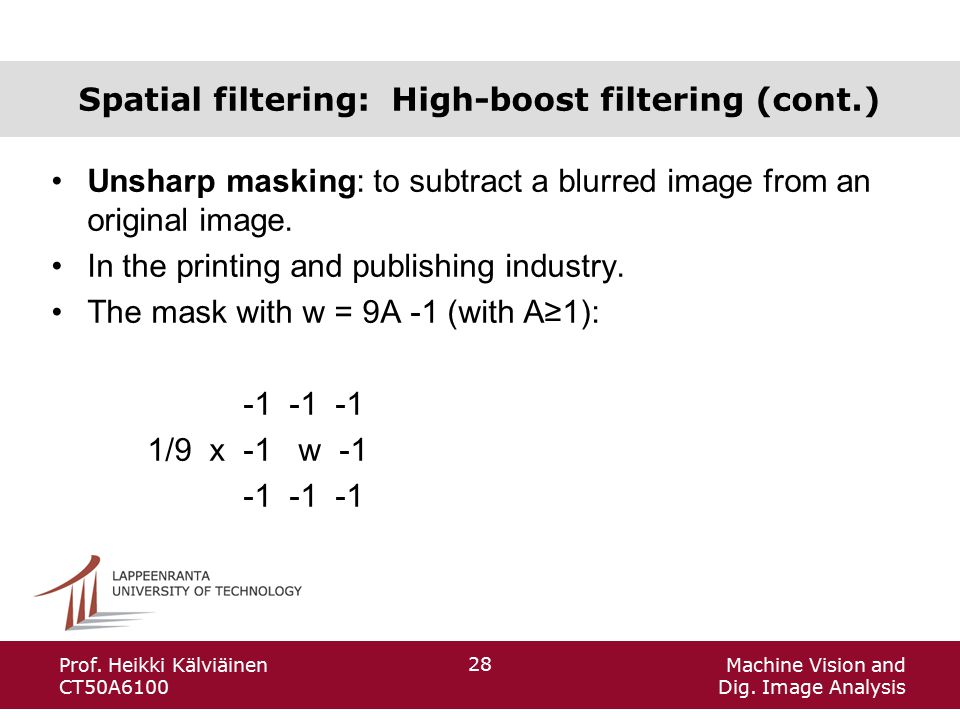

28. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 28 Spatial filtering: High-boost filtering (cont.) Unsharp masking: to subtract a blurred image from an original image. In the printing and publishing industry. The mask with w = 9A -1 (with A≥1): -1 -1 -1 1/9 x -1 w -1 -1 -1 -1

29. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 29 Spatial filtering: Derivative filters For sharpening an image (averaging vs. differentiation). The gradient of f(x,y): ∂f/∂x df = ∂f/∂y The magnitude is the basis for image differentiation methods: mag(df)= ((∂f/∂x)^2 + (∂f/∂y)^2)^(-1/2)

30. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 30 Spatial filtering: Derivate filters (cont.) Roberts:1 00 1 0 -11 0 Prewitt: -1 -1 -1-1 0 1 0 0 0-1 0 1 1 1 1-1 0 1 Sobel: -1 -2 -1-1 0 1 0 0 0-2 0 2 1 2 1-1 0 1

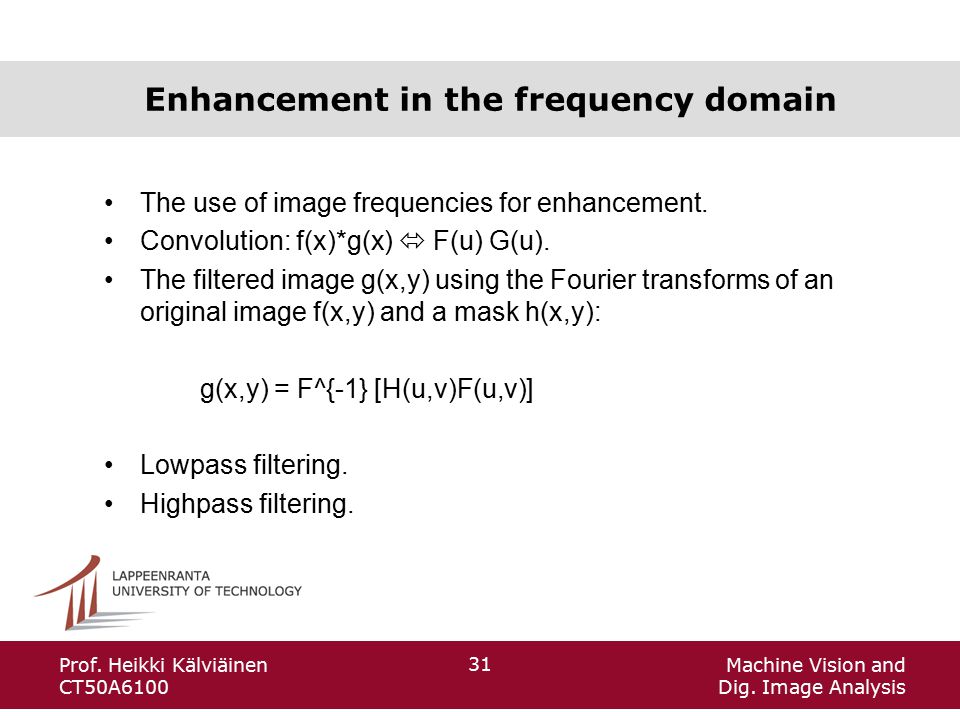

31. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 31 Enhancement in the frequency domain The use of image frequencies for enhancement. Convolution: f(x)*g(x)  F(u) G(u). The filtered image g(x,y) using the Fourier transforms of an original image f(x,y) and a mask h(x,y): g(x,y) = F^{-1} [H(u,v)F(u,v)] Lowpass filtering. Highpass filtering.

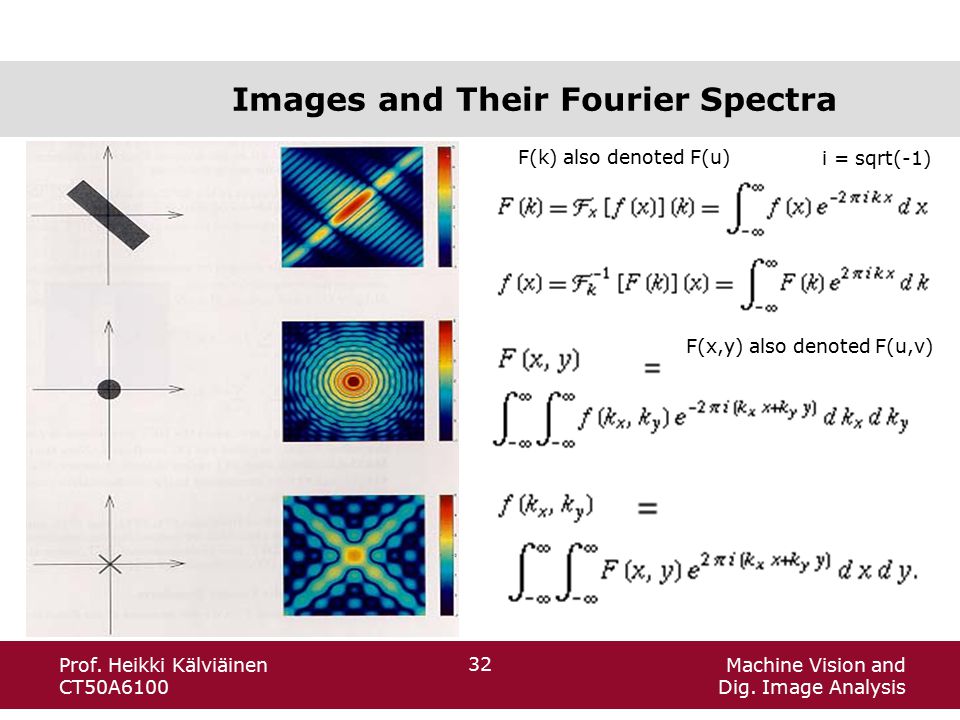

32. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 32 Images and Their Fourier Spectra i = sqrt(-1) F(k) also denoted F(u) F(x,y) also denoted F(u,v)

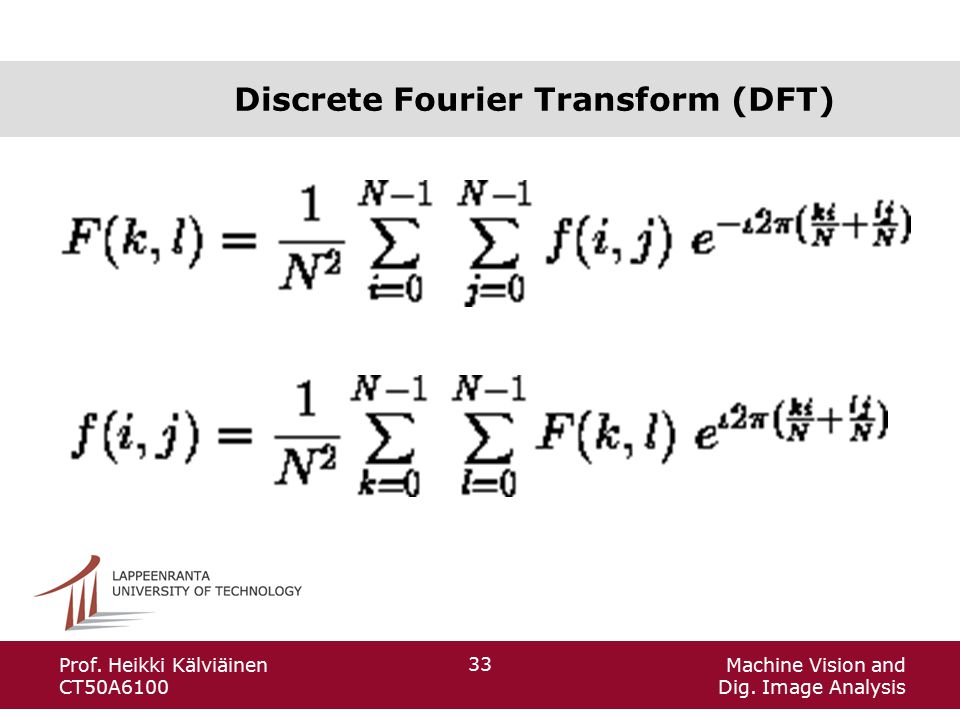

33. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 33 Discrete Fourier Transform (DFT)

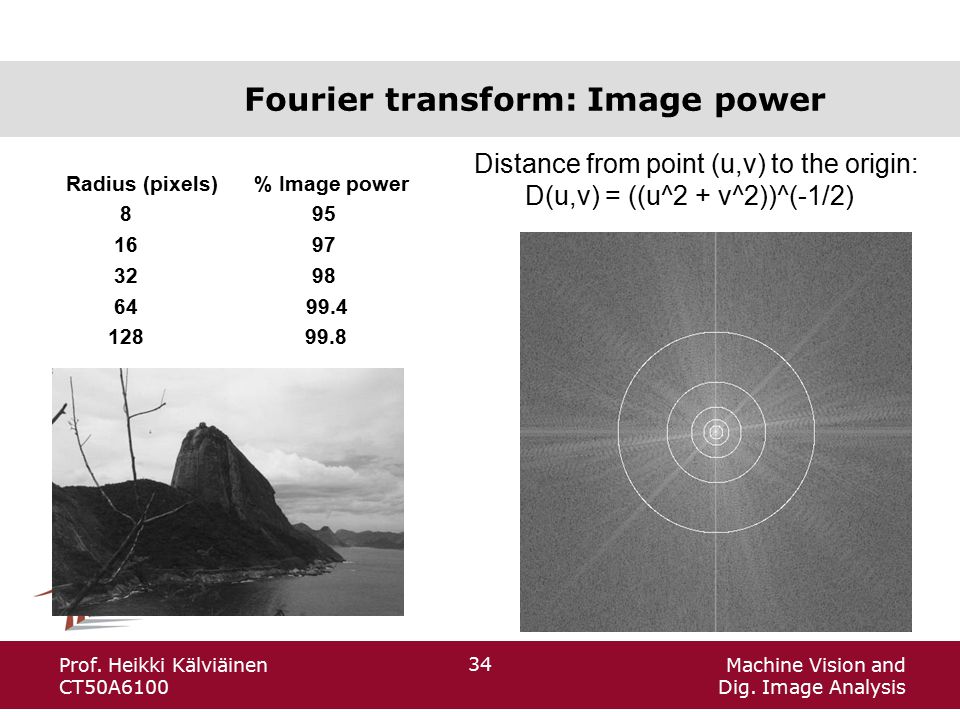

34. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 34 Fourier transform: Image power Radius (pixels) % Image power 8 95 16 97 32 98 64 99.4 128 99.8 Distance from point (u,v) to the origin: D(u,v) = ((u^2 + v^2))^(-1/2)

35. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 35 Enhancement in the Frequency Domain: Lowpass filter G(u,v) = H(u,v) F(u,v). Ideal lowpass filter: –H(u,v) = 1 if D(u,v) ≤ D_0, or 0 if D(u,v) > D_0. –Original (left) and filtered image (right).

36. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 36 Enhancement in the Frequency Domain: Butterworth lowpass filter The transfer function: H(u,v) = 1/(1 + (D(u,v)/D_0)^(2n)) where nis the order of the filter D_0 is the cutoff frequency locus (select!) H(u,v) from 1 to 0. When D(u,v) = D_0, H(u,v) = 0.5. H(u,v) = 1/√2 commonly used.

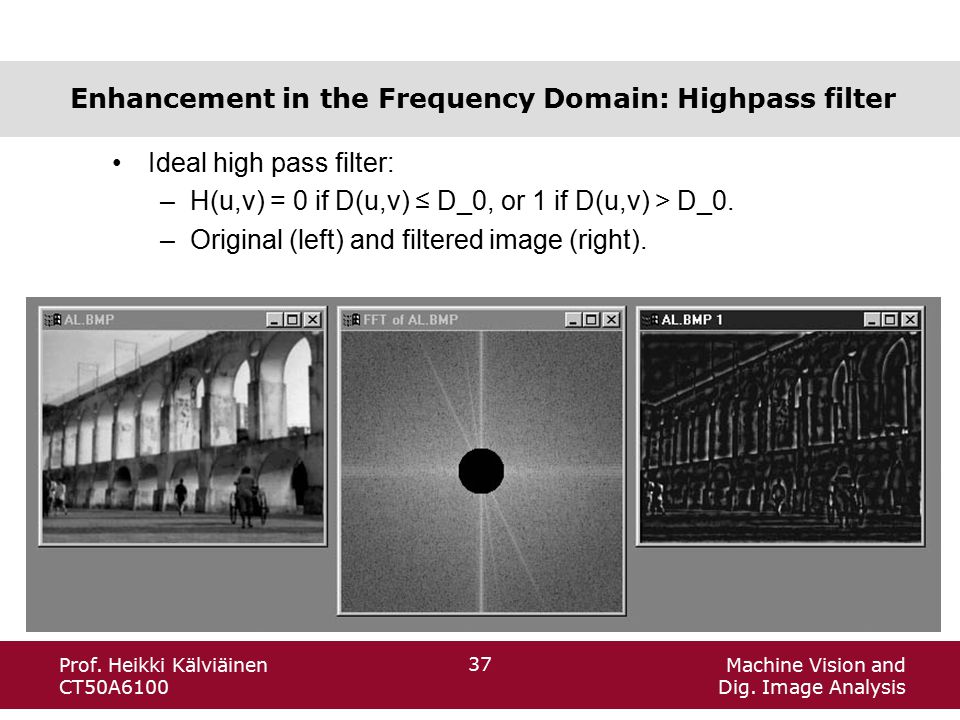

37. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 37 Enhancement in the Frequency Domain: Highpass filter Ideal high pass filter: –H(u,v) = 0 if D(u,v) ≤ D_0, or 1 if D(u,v) > D_0. –Original (left) and filtered image (right).

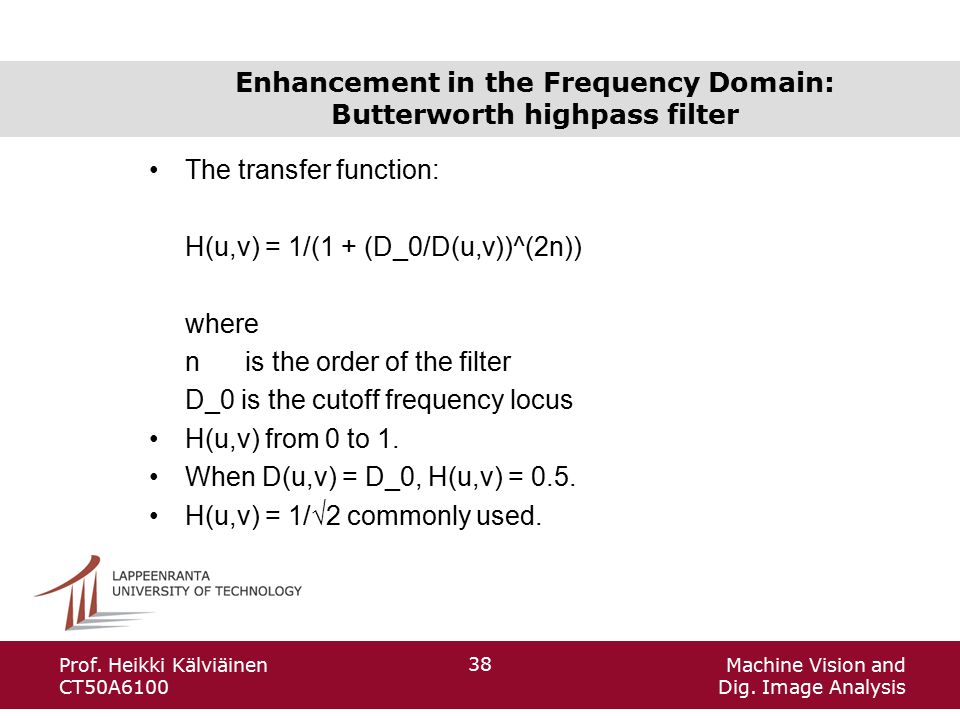

38. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 38 Enhancement in the Frequency Domain: Butterworth highpass filter The transfer function: H(u,v) = 1/(1 + (D_0/D(u,v))^(2n)) where nis the order of the filter D_0 is the cutoff frequency locus H(u,v) from 0 to 1. When D(u,v) = D_0, H(u,v) = 0.5. H(u,v) = 1/√2 commonly used.

39. Machine Vision and Dig. Image Analysis Prof. Heikki Kälviäinen CT50A6100 39 Summary For preprocessing to make the image look better, i.e., more suitable for further processing. Approaches: –Spatial domain methods. –Frequency domain methods. Enhancement by point processing. Spatial filtering. Enhancement in the frequency domain.
