Topic 8: Basics of GUI Programming
COMP201 Java Programming Topic 8: Basics of GUI Programming Reading: Chapter 7
2
Objectives and Outline
Understanding general structure of GUI Creating frames and displaying information Outline: Introduction: Ingredients of Swing GUI Creating a frame (window) Displaying information in a panel Displaying texts 2D shapes Colors and fonts Images
3
Introduction: Ingredients of Swing GUI
Build GUI with javax.Swing, available since JDK1.2 Better than java.awt, JDK1.1. Part of awt still in use.
4
Introduction: Ingredients of Swing GUI
Containment hierarchy of Swing components in GUI Top-level container: JFrame (Window) in this case Menu bar (optional) contentPane: contains all visible components Intermediate containers to organize various GUI components: JPanels in this case Atomic components. JPanel3 JPanel1 JPanel2
5
Introduction: Ingredients of Swing GUI
Top-level containers: Provide a place for other Swing components to paint themselves. Other top-level containers: Jdialog, JApplet Every top-level container contains an intermediate container known as a content pane. The content pane contains all of the visible components in the window's GUI. Exception to rule: menu bar JPanel is an intermediate container. Can be used to simplify the positioning of the button and label. Other intermediate containers: JScrollPane, JTabbedPane Play a more visible, interactive role in a program's GUI.
6
Introduction: Ingredients of Swing GUI
JComponent: The base class for all Swing components (everything except JFrame). Knows how to paint itself protected void paintComponent(Graphics g) Atomic components such as JLabel, JButton are JComponents JPanels can contain atomic components such as JButtons and Jlabels. Or JPanels themselves (Topic 10) Are JComponents themselves. Can override the paintComponent method to display text, shapes, and image.
7
Introduction: Ingredients of Swing GUI
To create a swing GUI Create a top-level container: JFrame Get contentPane of the top-level container Create JPanels Layout the JPanels onto the contentPane. Add components to JPanels or draw on them. Create menu bar (Topic 10). Handle events (Topic 9).
8
Outline Introduction: Ingredients of Swing GUI
Creating a frame (window) Displaying information in a panel Displaying texts 2D shapes Colors and fonts Images
9
Creating a Frame Frame: top-level window, not contained inside another window. Use JFrame class in javax.swing package. What can you do with JFrame: - Create a new one - toFront/ toBack - get/ setSize - is/ setResizable - get/ setLocation - dispose - get/ setTitle - setIconImage - show/hide
10
Creating a Frame Most methods for working with JFrame inherited from superclasses: Object Ancestor of all GUI objects Component Container Window JComponent Frame JPanel JFrame
11

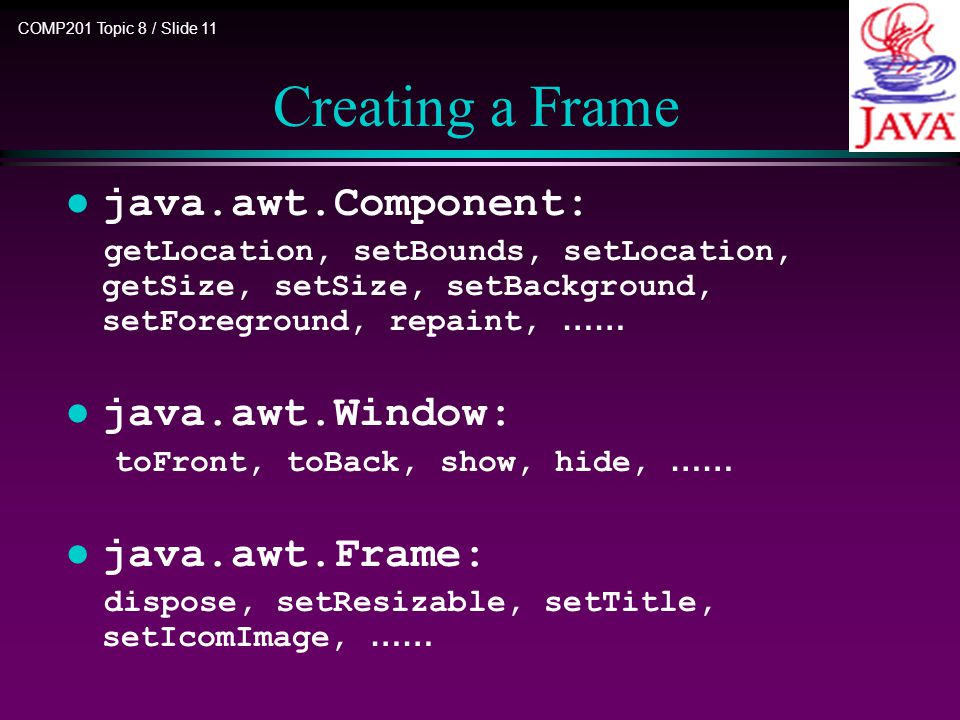

Creating a Frame java.awt.Component: java.awt.Window: java.awt.Frame:
getLocation, setBounds, setLocation, getSize, setSize, setBackground, setForeground, repaint, …… java.awt.Window: toFront, toBack, show, hide, …… java.awt.Frame: dispose, setResizable, setTitle, setIcomImage, ……
12
Creating a Frame Example: class SimpleFrame extends JFrame {
public SimpleFrame() setSize(WIDTH, HEIGHT); } public static final int WIDTH = 300; public static final int HEIGHT = 200; Default constructor of JFrame is called. Default size of a JFrame: 0x0
13
Creating a Frame Things to know about coordinates
Units are expressed pixels (depends on resolution) Coordinate system is vertically-flipped from Cartesian (0,0) is upper left corner of screen Frame defaults to location (0,0) and size (0,0)
14
Creating a Frame import javax.swing.*; public class SimpleFrameTest {
public static void main(String[] args) SimpleFrame frame = new SimpleFrame(); frame.setDefaultCloseOperation (JFrame.EXIT_ON_CLOSE); frame.show(); } } // SimpleFrameTest.java Create a SimpleFrame. Show it. JDK1.3 feature
15
Creating a Frame Frame Positioning: Want a frame that
Is centered in the middle of the screen Covers ¼ of the screen (Run CenteredFrameTest.java). Shows java cup (image) when minimized
16
Creating a Frame Need dimension of screen, which is platform dependent
Get system-dependent info using java.awt.Toolkit class: getDefaultToolkit --- static method for creating a Toolkit object Dimension getScreenSize --- get size of screen Image getImage --- load image
17
class CenteredFrame extends JFrame
{ public CenteredFrame() // get screen dimensions Toolkit kit = Toolkit.getDefaultToolkit(); Dimension screenSize = kit.getScreenSize(); int screenHeight = screenSize.height; int screenWidth = screenSize.width; // center frame in screen setSize(screenWidth / 2, screenHeight / 2); setLocation(screenWidth / 4, screenHeight / 4); // set frame icon and title Image img = kit.getImage("icon.gif"); setIconImage(img); setTitle("CenteredFrame"); }} //CenteredFrameTest.java
18
Outline Introduction: Ingredients of Swing GUI
Creating a frame (window) Displaying information in a panel Displaying texts 2D shapes Colors and fonts Images
19
Displaying Information in a Frame
An Example: To create a GUI Create a top-level container: JFrame Get contentPane of the top-level container Create JPanels and Add the JPanels onto the contentPane. Add GUI components to the JPanels or draw on them
20
Displaying Information in a Frame
How to do 2, 3, 4? JFrame frame; 2. Container cPane = frame.getContentPane(); 3. JPanel p = new JPanel(); 4. cPane.add(p);
21
Displaying Information in a Frame
5. How to draw custom graphics, in this case a text string, to JPanel? A JPanel is a JComponent Has method paintComponent to draw itself. We can: Define a new class that extends JPanel Override the paintComponent method to draw what we want. Class MyPanel extends JPanel { public paintComponent(Graphics g) { super.paintComponent(g); // draw background // code for drawing }
22
Displaying Information in a Frame
Method paintComponent(Graphics g) is called automatically when opening, resizing, and moving window. Graphics object automatically created. Never call it explicitly. Use the repaint method of Component to force repainting.
23
Note about paintComponent()
Main Thread Event Dispatch Thread Single thread rule: Modify GUI components only in the event dispatch thread to avoid corruption. repaint() creates an paintEvent and sends it to the event dispatch thread for handling. calling paintComponent() directly violates the single thread rule.
24
Displaying Information in a Frame
How to tell paintComponent(Graphics g) what and how to draw? The method takes a java.awt.Graphics object as input. Graphics: class for graphics context We encapsulate information about what/how to draw in the Graphics object. Next: Displaying texts Colors and fonts 2D shapes Images
25
Outline Introduction: Ingredients of Swing GUI
Creating a frame (window) Displaying information in a panel Displaying texts 2D shapes Colors and fonts Images
26
Example: NotHelloWorld
Step1. Derive a new class NotHelloWorldPanel by extending JPanel and specify what we want to draw on the panel and how. class NotHelloWorldPanel extends JPanel { public void paintComponent(Graphics g) { // Draw background super.paintComponent(g); g.drawString("Not a Hello, World program", MESSAGE_X, MESSAGE_Y); } public static final int MESSAGE_X = 75; public static final int MESSAGE_Y = 100; } //NotHelloWorld.java
27
Step2 : Derive a new class NotHelloWorldFrame by extending JFrame, create a NotHelloWorldPanel and add it to the contentPane of the frame. class NotHelloWorldFrame extends JFrame { public NotHelloWorldFrame() setTitle("NotHelloWorld"); setSize(WIDTH, HEIGHT); // add panel to frame NotHelloWorldPanel panel = new NotHelloWorldPanel(); Container contentPane = getContentPane(); contentPane.add(panel); } public static final int WIDTH = 300; public static final int HEIGHT = 200; } //NotHelloWorld.java
28
Step3 : Create a NotHelloWorldFrame and show it.
import javax.swing.*; import java.awt.*; public class NotHelloWorld { public static void main(String[] args) NotHelloWorldFrame frame = new NotHelloWorldFrame(); frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); frame.show(); }
29
Outline Introduction: Ingredients of Swing GUI
Creating a frame (window) Displaying information in a panel Displaying texts 2D shapes Colors and fonts Images
30
Using Text Fonts Class java.awt.Font Create Font objects: Using fonts:
Font f1 = new Font(“Serif”, Font.PLAIN, 20); Font f2 = new Font(“Serif”, Font.PLAIN + Font.ITALIC, 16); Using fonts: Graphics g; g.setFont(f1); g.drawString("Not a Hello, World program", 75, 100);
31
Using Text Fonts Only 5 font families guaranteed to exist
SansSerif, Serif, Monospaced, Dialog, DialogInput Can ask for others by name(“Arial”) but may not get what you want Find out all available fonts on a machine using the getAvailableFontFamilyNames method of the GraphicsEnvironment class. Style limited to PLAIN, BOLD, ITALIC Default using plain 12pt SansSerif
32
Using Colors Class java.awt.Color Create new color objects:
Color c = new Color(100, 25, 200); Red-green-blue (RGB) color model Each component can have in range 0 to 255 13 predefined color constants Color.black, Color.red, Color.green, etc. Using Colors: Graphics2D g; g.setColor(Color.pink); g.drawString(“Hi”, 55, 55); g.setColor(c); g.drawString(“there”, 80, 55);
33
Using Text Fonts Class java.awt.FontMetrics
Methods for getting information about fonts: Graphics g; Font f = new Font("SansSerif", Font.BOLD, 14); FontMetrics fm = g.getFontMetrics(f); int w = fm.stringWidth(“Not Hello”);
34
NotHelloWorld2.java public void paintComponent(Graphics g)
{ super.paintComponent(g); setFonts(g); String s1 = "Not a "; String s2 = "Hello, World"; String s3 = " Program"; int w1 = fm.stringWidth(s1); int w2 = fim.stringWidth(s2); int w3 = fm.stringWidth(s3); Dimension d = getSize(); int cx = (d.width - w1 - w2 - w3) / 2; int cy = (d.height - fm.getHeight()) / 2 +fm.getAscent(); g.setFont(f); g.drawString(s1, cx, cy); cx += w1; g.setFont(fi); g.setColor(Color.red); g.drawString(s2, cx, cy); cx += w2; g.drawString(s3, cx, cy); } NotHelloWorld2.java
35
Outline Introduction: Ingredients of Swing GUI
Creating a frame (window) Displaying information in a panel Displaying texts 2D shapes Colors and fonts Images
36
2D Shapes You can draw lines, rectangles, ellipses, etc, using class
java.awt.Graphics drawLine, drawArc, drawPolygon drawPolyline, drawRect, drawRoundRect, draw3DRect, fillRect, The subclass java.awt.Graphics2D is better Need cast: public void paintComponent(Graphics g) { Graphics2D g2 = (Graphics2D) g; … } The cast is legal because paintComponent automatically receives a Graphics2D object if SDK is Java 2D enabled
37
2D Shapes You can draw by using the methods shown on the previous slides. It’s better to use the geometric shape classes: java.awt.geom.* Line2D, Rectangle2D, Ellipse2D, Point2D, … All those classes implement the Shape interface and Graphics2D has method draw(Shape s) All are abstract classes with two concrete static inner classes. E.g. Rectangle2D.Double, Rectangle2D.Float Usually use the Double version. The Float version saves space but is troublesome float f = 1.2; //illegal. Need cast: float f = (float) 1.2; See DrawTest.java
38
2D Shapes: draw rectangles
public void paintComponent(Graphics g) { super.paintComponent(g); Graphics2D g2 = (Graphics2D)g; // draw a rectangle double leftX = 100; double topY = 100; double width = 200; double height = 150; Rectangle2D rect = new Rectangle2D.Double(leftX, topY,width, height); g2.draw(rect);
39
2D Shapes:draw line and circle
// draw the enclosed ellipse Ellipse2D ellipse = new Ellipse2D.Double(); ellipse.setFrame(rect); g2.draw(ellipse); // draw a diagonal line g2.draw(new Line2D.Double(leftX, topY, leftX + width, topY + height)); // draw a circle with the same center double centerX = rect.getCenterX(); double centerY = rect.getCenterY(); double radius = 150; Ellipse2D circle = new Ellipse2D.Double(); circle.setFrameFromCenter(centerX, centerY, centerX + radius, centerY + radius); g2.draw(circle);}}
40
Drawing Lines and Shapes
Paint Mode Default: last drawn shape covers earlier one. XOR mode: If you draw one shape twice in XOR mode, the second one erases the first one. Graphics: public abstract void setXORMode(Color c1)
41
Outline Introduction: Ingredients of Swing GUI
Creating a frame (window) Displaying information in a panel Displaying texts 2D shapes Colors and fonts Images
42
Displaying Images Java Toolkit object can read GIF and JPEG files.
Get image from file Image image = Toolkit.getDefaultToolkit().getImage(FileName); Get image from the Net: URL u = new URL( Image image = Toolkit.getDefaultToolkit().getImage(u); Display image: g.drawImage(image, x, y, null);
43
Displaying Images Java spawns a separate thread to load image, which run in parallel with the main thread. Use MediaTracker class to wait until image is completely loaded before drawing public ImagePanel() { image = Toolkit.getDefaultToolkit().getImage ("Cat.gif"); MediaTracker tracker = new MediaTracker(this); tracker.addImage(image, 0); try { tracker.waitForID(0); } catch (InterruptedException e) {} } Example: ImageTest.java
44
Summary To create a Swing GUI
Create JPanels and add GUI components to the JPanels Custom graphics: Override the paintComponent(Graphics g) method Encapsulate what and how to draw in the graphics object Predefined GUI components: simply add to the panel (Topic 10) Hierarchical: Panels can contain other panels Create a top-level container: JFrame and layout the JPanels onto the contentPane of the container
