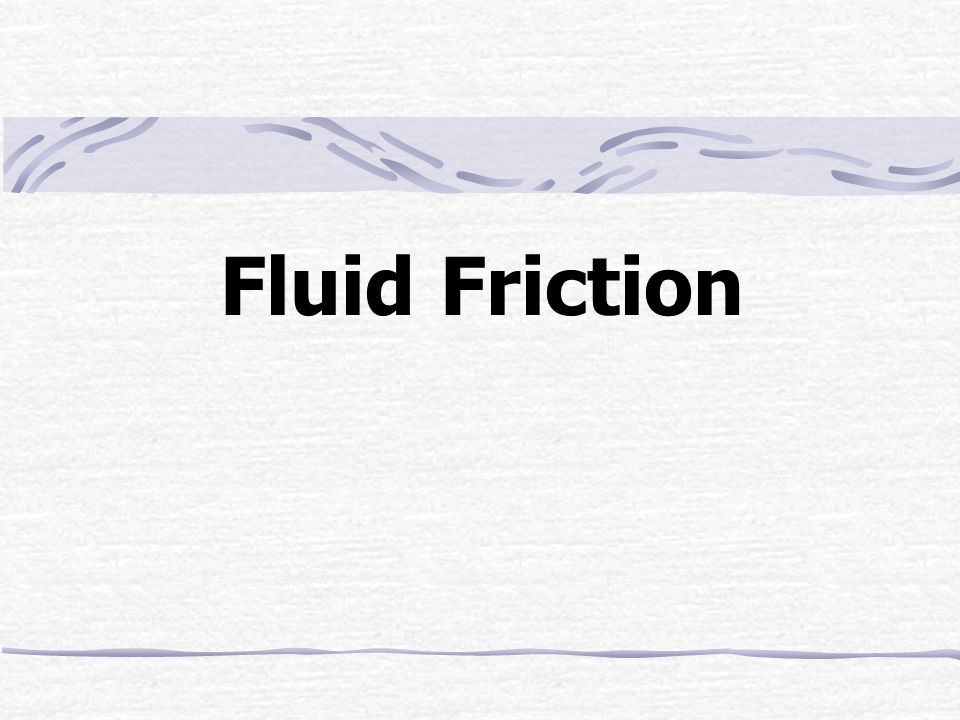

1 Fluid Friction

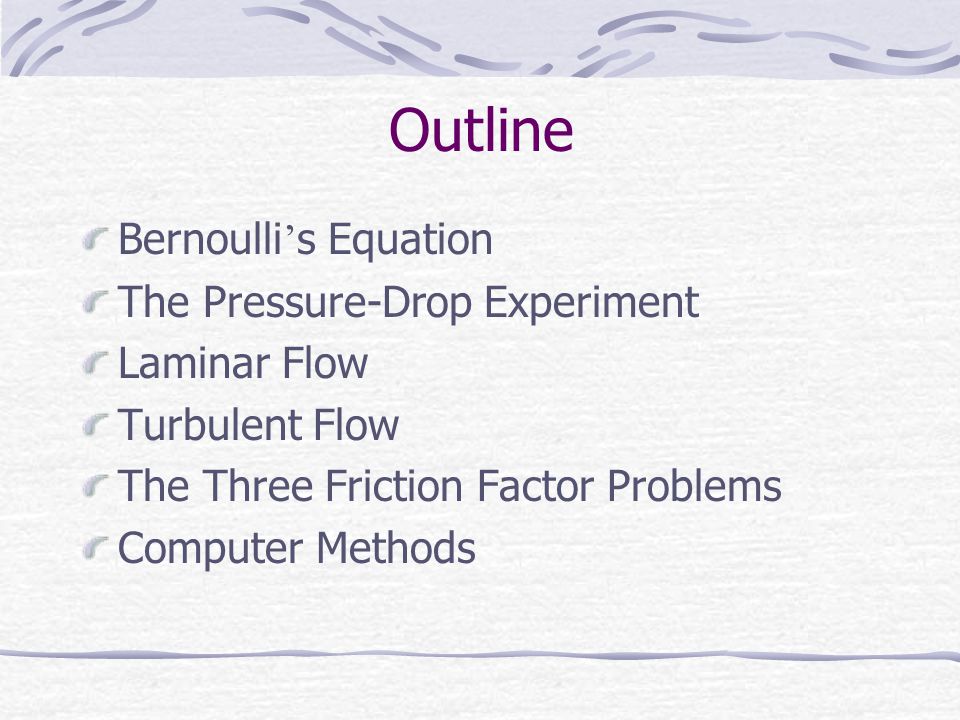

2 Outline Bernoulli ’ s Equation The Pressure-Drop Experiment Laminar Flow Turbulent Flow The Three Friction Factor Problems Computer Methods

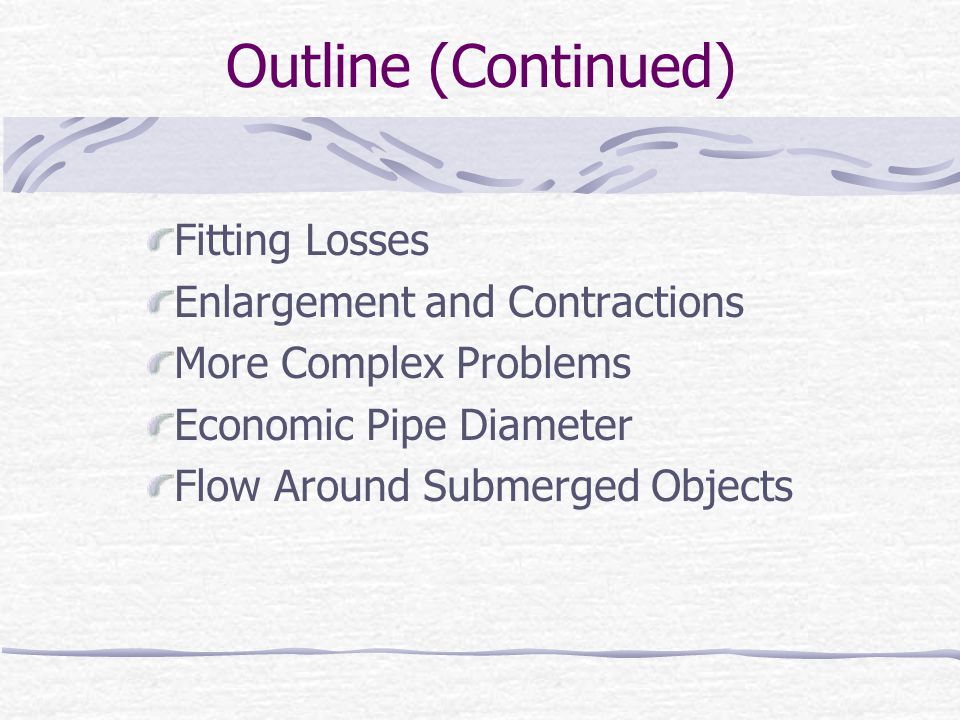

3 Outline (Continued) Fitting Losses Enlargement and Contractions More Complex Problems Economic Pipe Diameter Flow Around Submerged Objects

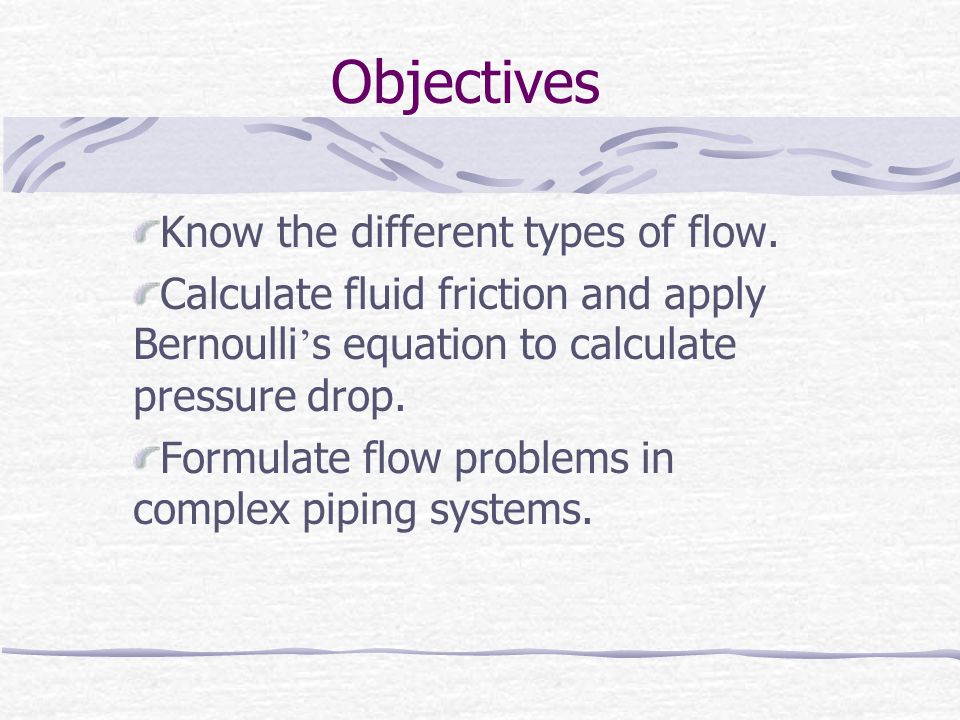

4 Objectives Know the different types of flow. Calculate fluid friction and apply Bernoulli ’ s equation to calculate pressure drop. Formulate flow problems in complex piping systems.

5 Objectives (Continued) Estimate the Economic Pipe Diameter. Solve flow problems around submerged objects.

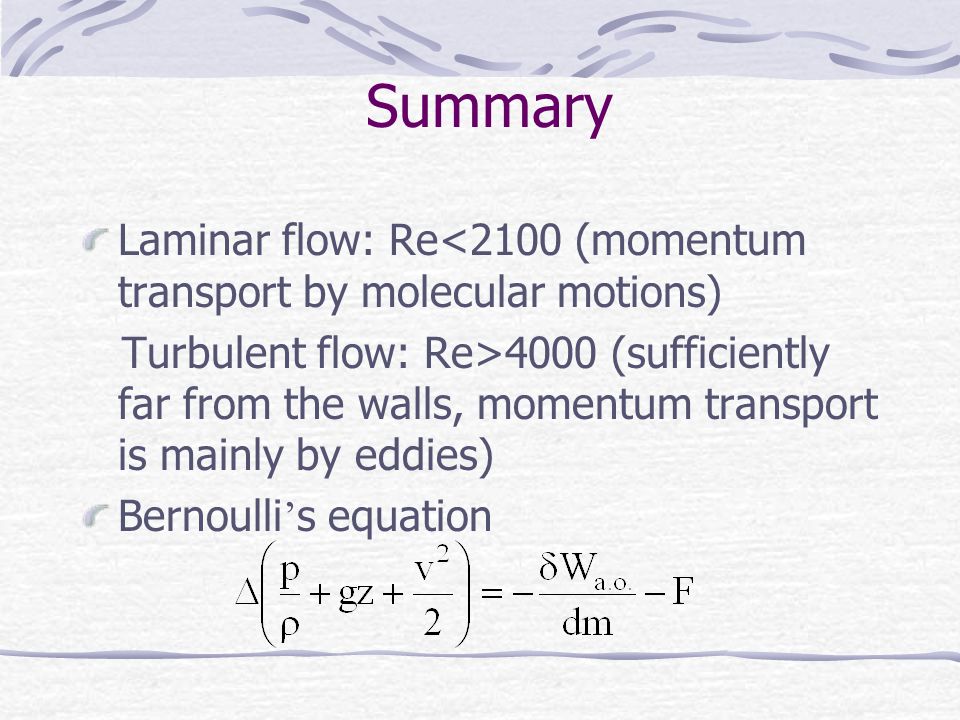

6 Summary Laminar flow: Re<2100 (momentum transport by molecular motions) Turbulent flow: Re>4000 (sufficiently far from the walls, momentum transport is mainly by eddies) Bernoulli ’ s equation

7 Summary (Continued) Total friction loss The economic pipe diameter is determined by minimizing the total cost. For complex systems, Bernoulli ’ s equation is applied for each section, along with the continuity equation for each node.

8 Summary (Continued) Calculations are in general by trial-and- error, requiring the use of computers. Drag force The velocity of the particle is calculated by making a force balance.
