1. Introduction to C (Reek, Chs. 1-2) 1CS 3090: Safety Critical Programming in C

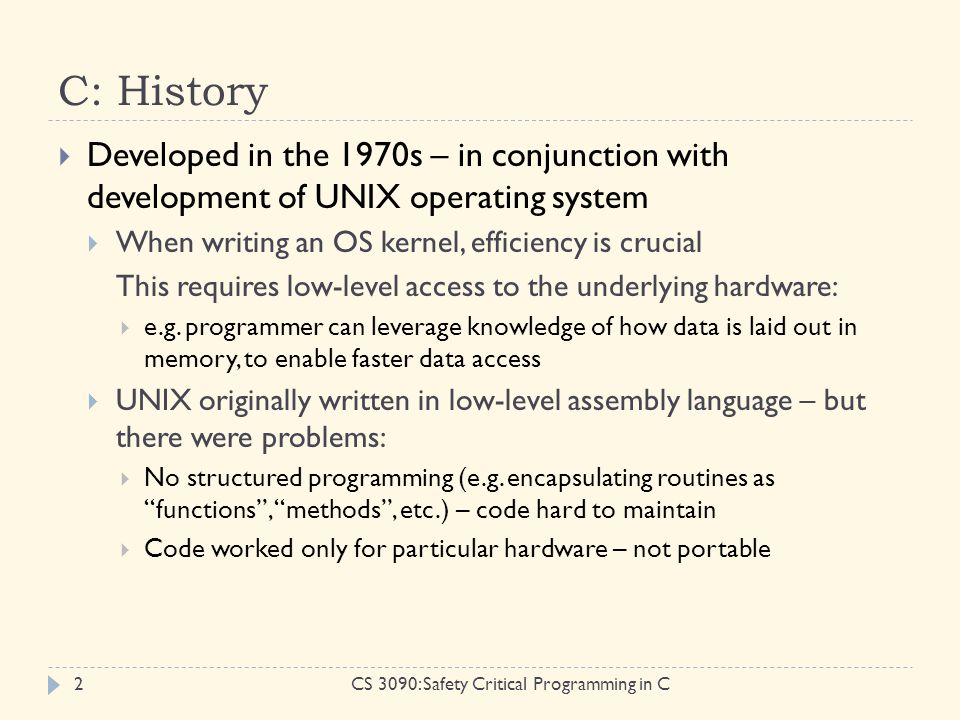

2. C: History CS 3090: Safety Critical Programming in C2  Developed in the 1970s – in conjunction with development of UNIX operating system  When writing an OS kernel, efficiency is crucial This requires low-level access to the underlying hardware:  e.g. programmer can leverage knowledge of how data is laid out in memory, to enable faster data access  UNIX originally written in low-level assembly language – but there were problems:  No structured programming (e.g. encapsulating routines as “functions”, “methods”, etc.) – code hard to maintain  Code worked only for particular hardware – not portable

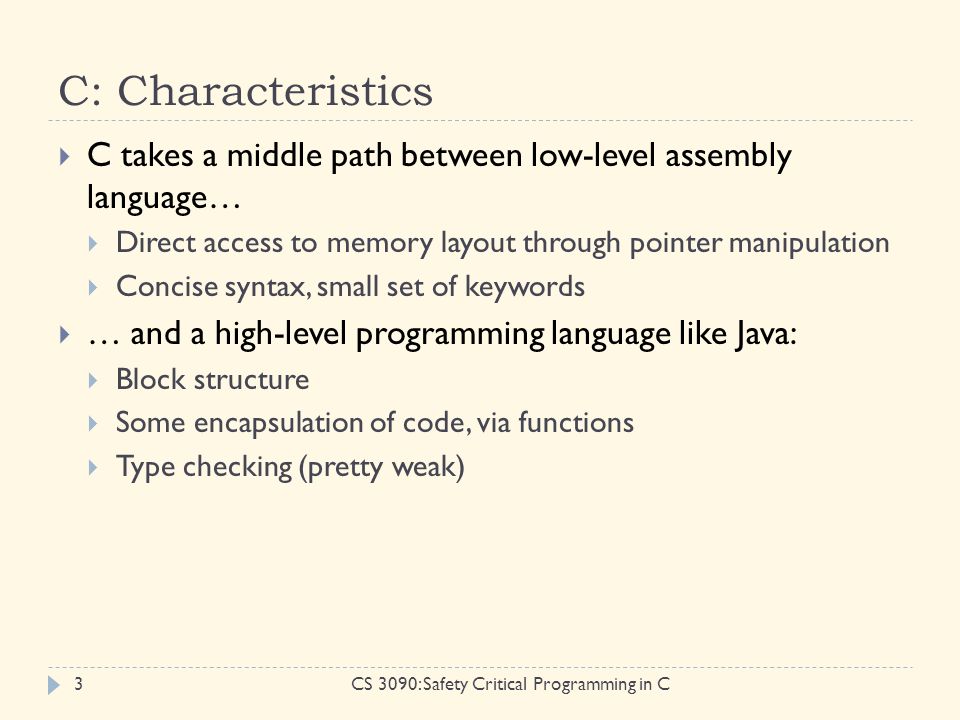

3. C: Characteristics CS 3090: Safety Critical Programming in C3  C takes a middle path between low-level assembly language…  Direct access to memory layout through pointer manipulation  Concise syntax, small set of keywords  … and a high-level programming language like Java:  Block structure  Some encapsulation of code, via functions  Type checking (pretty weak)

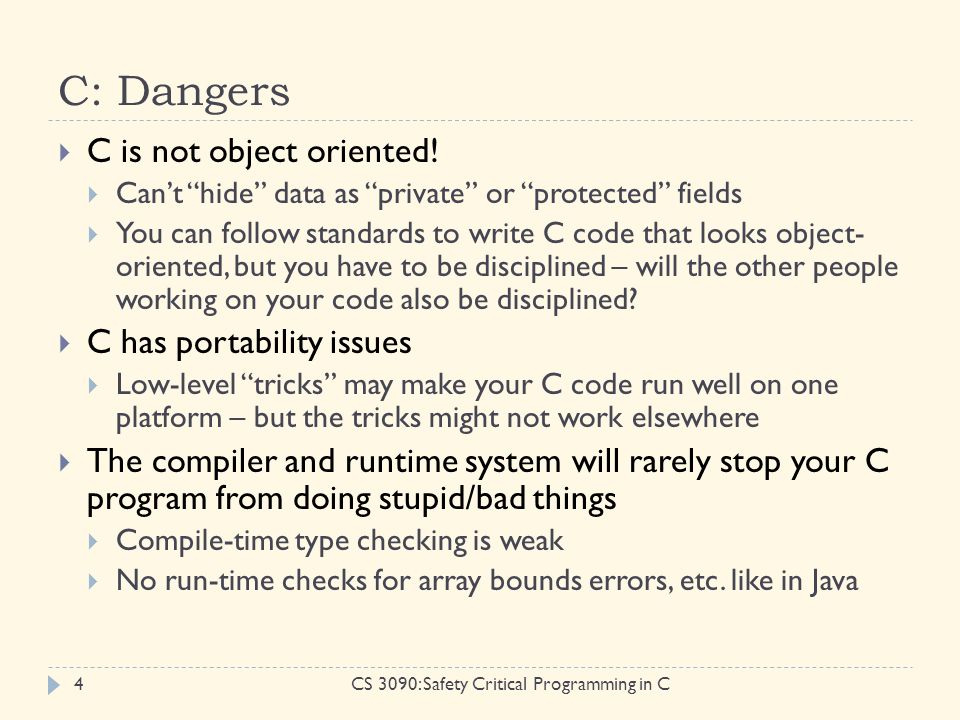

4. C: Dangers CS 3090: Safety Critical Programming in C4  C is not object oriented!  Can’t “hide” data as “private” or “protected” fields  You can follow standards to write C code that looks object- oriented, but you have to be disciplined – will the other people working on your code also be disciplined?  C has portability issues  Low-level “tricks” may make your C code run well on one platform – but the tricks might not work elsewhere  The compiler and runtime system will rarely stop your C program from doing stupid/bad things  Compile-time type checking is weak  No run-time checks for array bounds errors, etc. like in Java

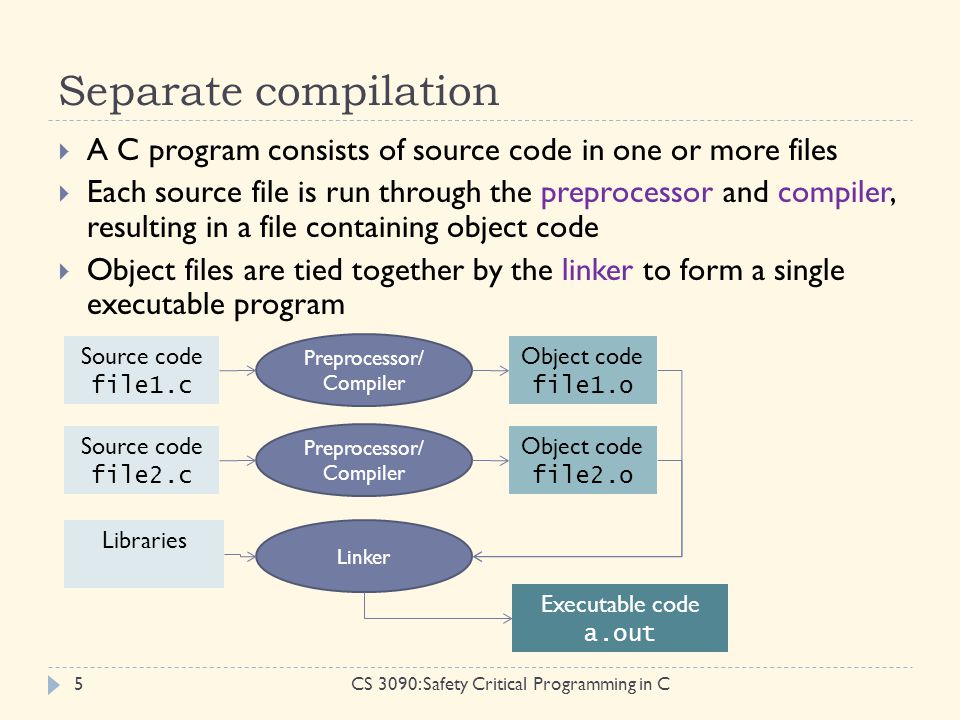

5. Separate compilation CS 3090: Safety Critical Programming in C5  A C program consists of source code in one or more files  Each source file is run through the preprocessor and compiler, resulting in a file containing object code  Object files are tied together by the linker to form a single executable program Source code file1.c Preprocessor/ Compiler Object code file1.o Source code file2.c Preprocessor/ Compiler Object code file2.o Linker Libraries Executable code a.out

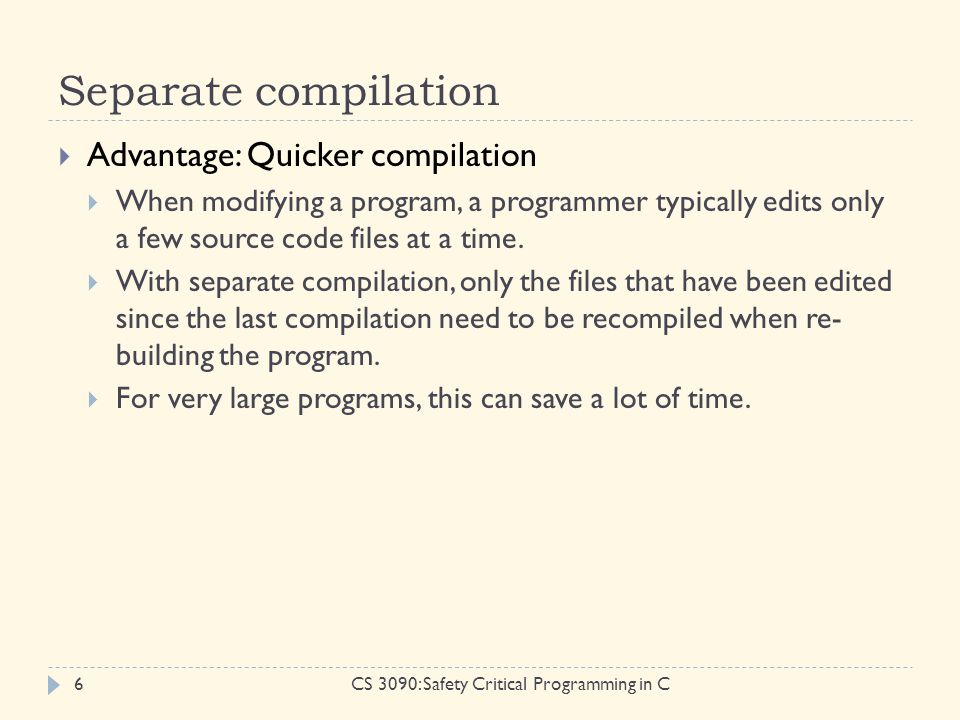

6. Separate compilation CS 3090: Safety Critical Programming in C6  Advantage: Quicker compilation  When modifying a program, a programmer typically edits only a few source code files at a time.  With separate compilation, only the files that have been edited since the last compilation need to be recompiled when re- building the program.  For very large programs, this can save a lot of time.

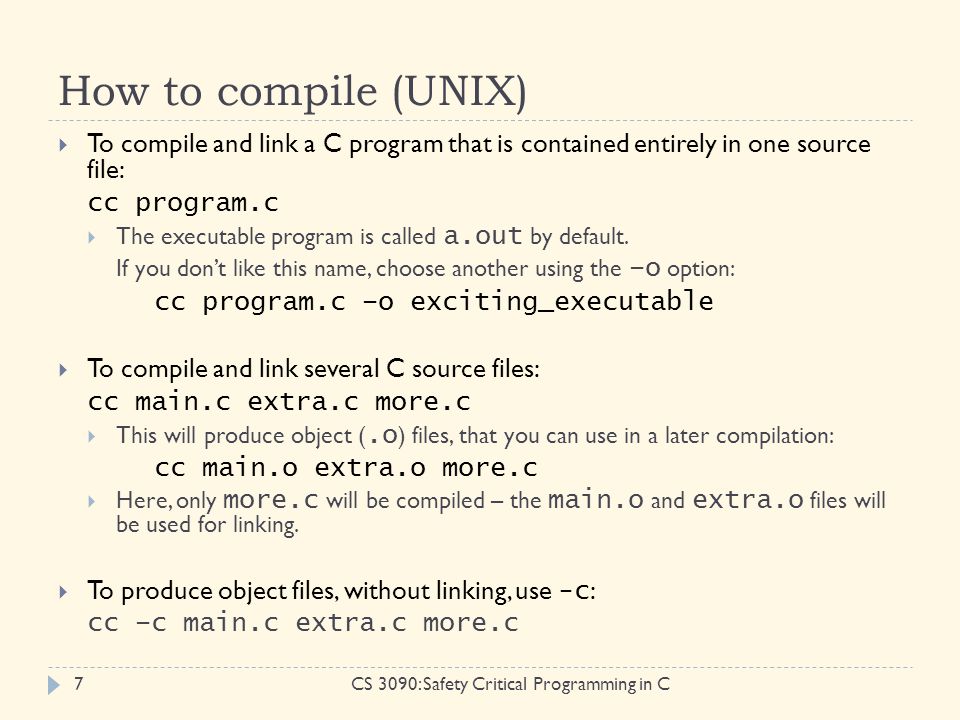

7. How to compile (UNIX) CS 3090: Safety Critical Programming in C7  To compile and link a C program that is contained entirely in one source file: cc program.c  The executable program is called a.out by default. If you don’t like this name, choose another using the –o option: cc program.c –o exciting_executable  To compile and link several C source files: cc main.c extra.c more.c  This will produce object (.o ) files, that you can use in a later compilation: cc main.o extra.o more.c  Here, only more.c will be compiled – the main.o and extra.o files will be used for linking.  To produce object files, without linking, use -c : cc –c main.c extra.c more.c

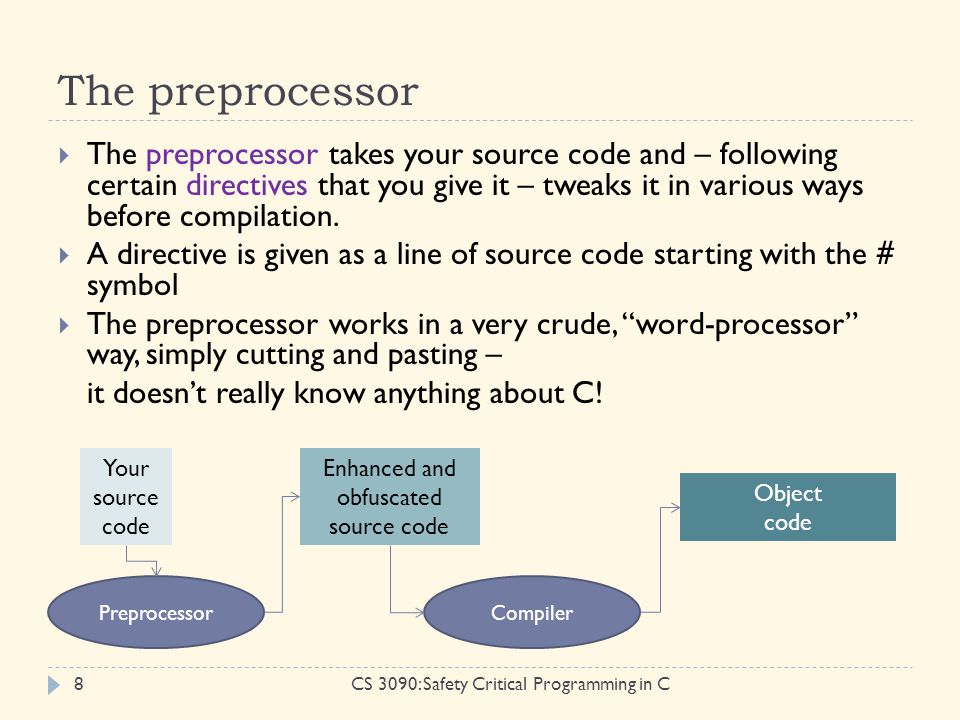

8. The preprocessor CS 3090: Safety Critical Programming in C8  The preprocessor takes your source code and – following certain directives that you give it – tweaks it in various ways before compilation.  A directive is given as a line of source code starting with the # symbol  The preprocessor works in a very crude, “word-processor” way, simply cutting and pasting – it doesn’t really know anything about C! Your source code Preprocessor Enhanced and obfuscated source code Compiler Object code

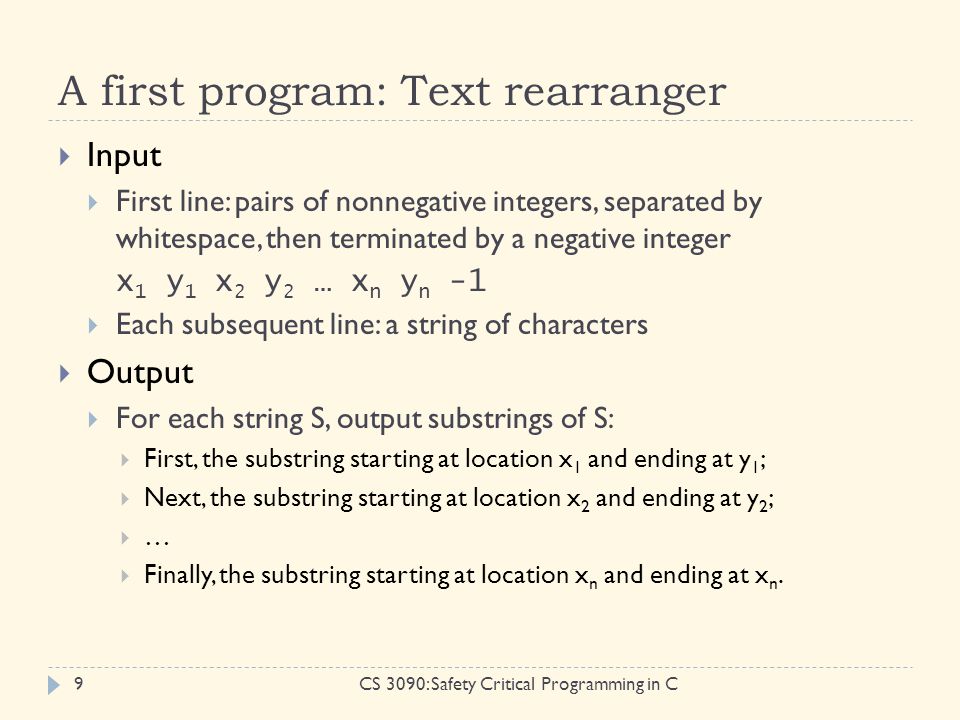

9. A first program: Text rearranger  Input  First line: pairs of nonnegative integers, separated by whitespace, then terminated by a negative integer x 1 y 1 x 2 y 2 … x n y n -1  Each subsequent line: a string of characters  Output  For each string S, output substrings of S:  First, the substring starting at location x 1 and ending at y 1 ;  Next, the substring starting at location x 2 and ending at y 2 ;  …  Finally, the substring starting at location x n and ending at x n. 9CS 3090: Safety Critical Programming in C

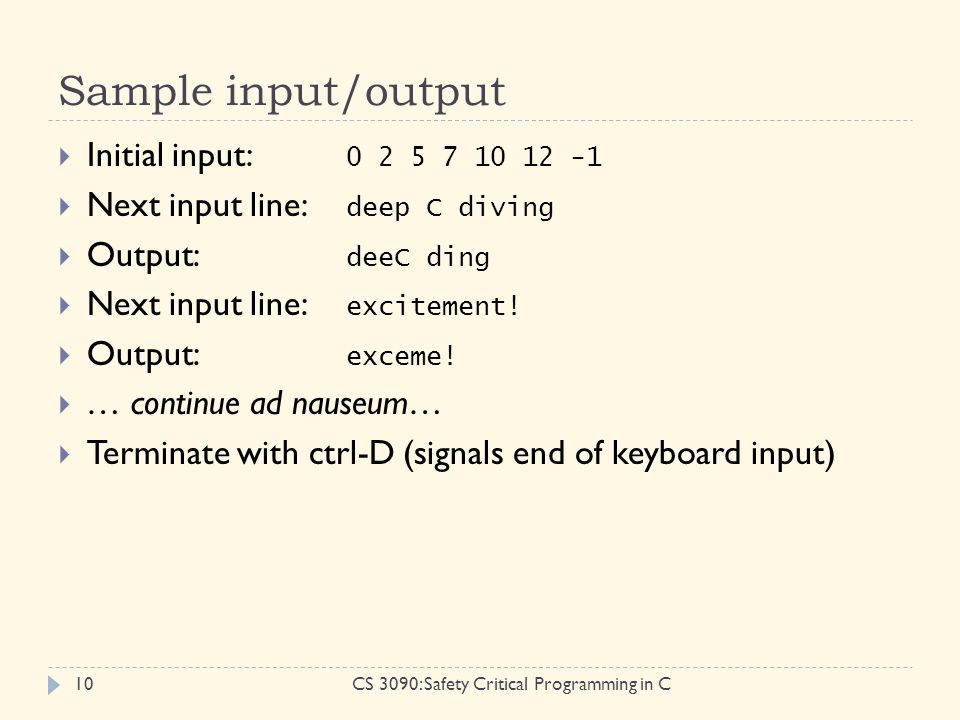

10. Sample input/output CS 3090: Safety Critical Programming in C10  Initial input: 0 2 5 7 10 12 -1  Next input line: deep C diving  Output: deeC ding  Next input line: excitement!  Output: exceme!  … continue ad nauseum…  Terminate with ctrl-D (signals end of keyboard input)

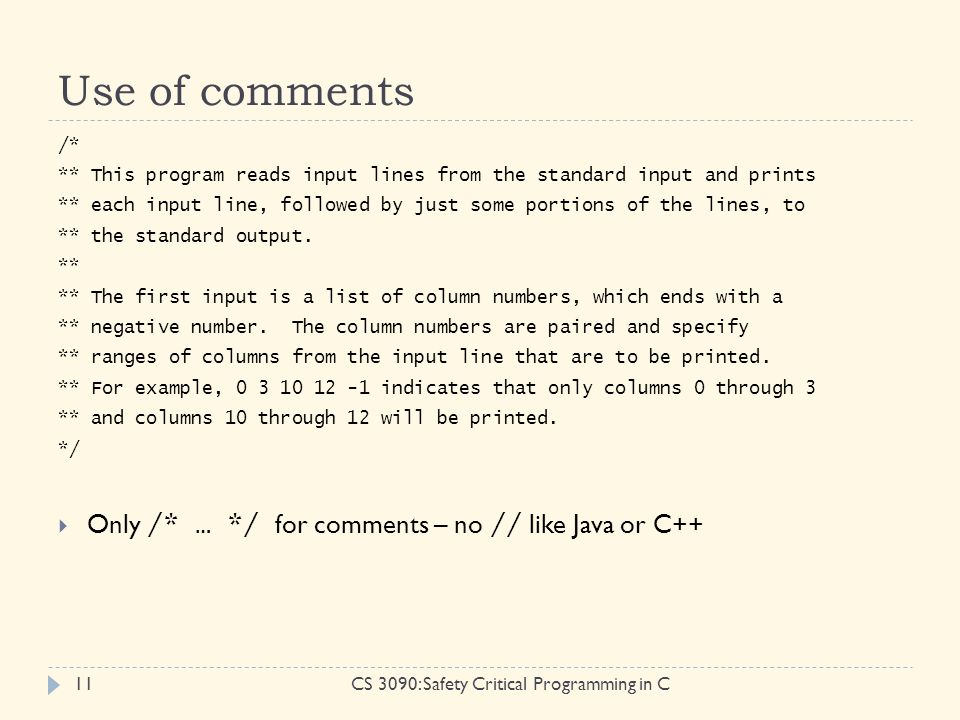

11. Use of comments CS 3090: Safety Critical Programming in C11 /* ** This program reads input lines from the standard input and prints ** each input line, followed by just some portions of the lines, to ** the standard output. ** ** The first input is a list of column numbers, which ends with a ** negative number. The column numbers are paired and specify ** ranges of columns from the input line that are to be printed. ** For example, 0 3 10 12 -1 indicates that only columns 0 through 3 ** and columns 10 through 12 will be printed. */  Only /* … */ for comments – no // like Java or C++

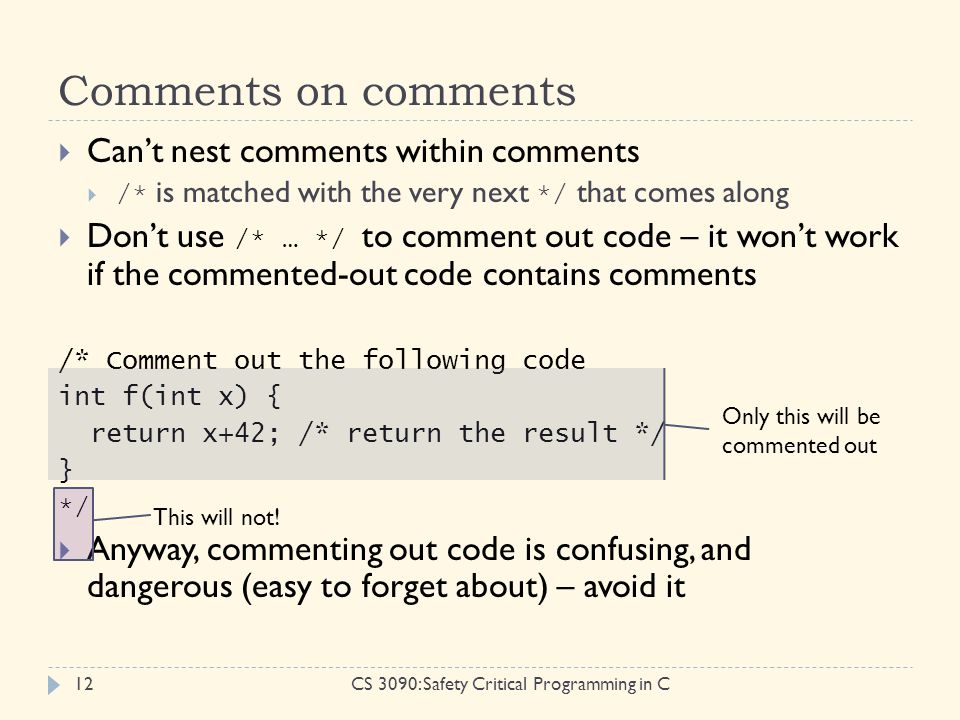

12. Comments on comments CS 3090: Safety Critical Programming in C12  Can’t nest comments within comments  /* is matched with the very next */ that comes along  Don’t use /* … */ to comment out code – it won’t work if the commented-out code contains comments /* Comment out the following code int f(int x) { return x+42; /* return the result */ } */  Anyway, commenting out code is confusing, and dangerous (easy to forget about) – avoid it Only this will be commented out This will not!

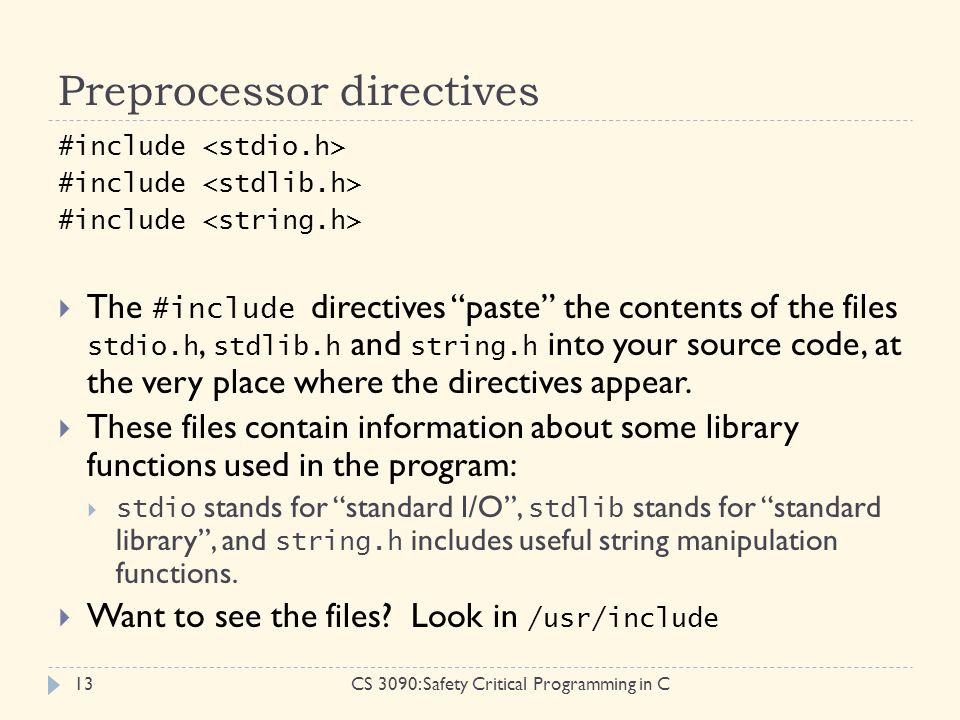

13. Preprocessor directives CS 3090: Safety Critical Programming in C13 #include  The #include directives “paste” the contents of the files stdio.h, stdlib.h and string.h into your source code, at the very place where the directives appear.  These files contain information about some library functions used in the program:  stdio stands for “standard I/O”, stdlib stands for “standard library”, and string.h includes useful string manipulation functions.  Want to see the files? Look in /usr/include

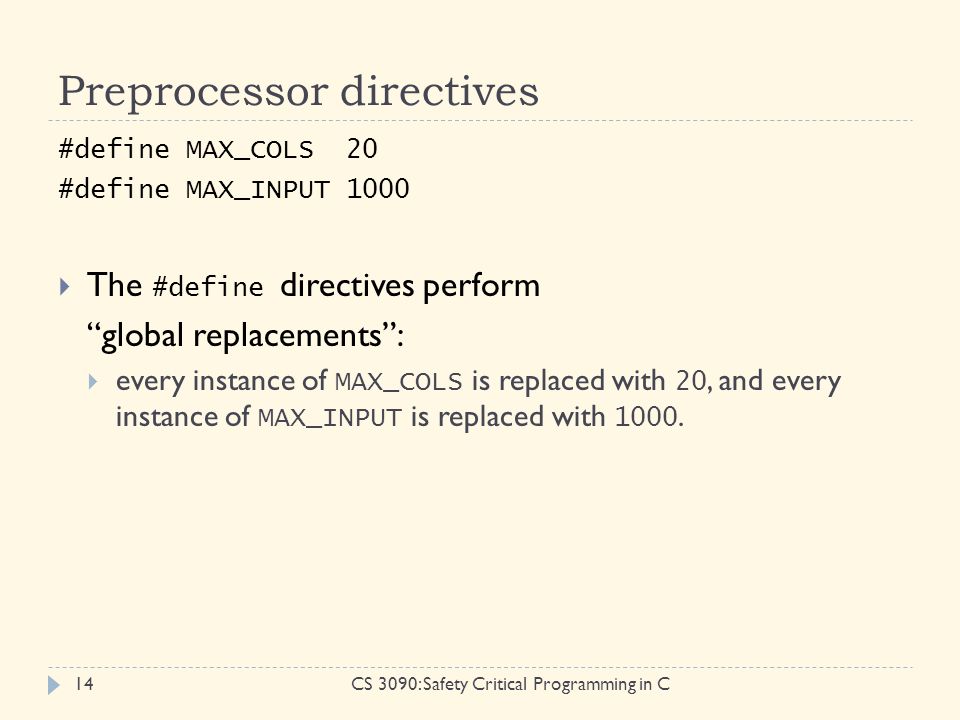

14. Preprocessor directives CS 3090: Safety Critical Programming in C14 #define MAX_COLS20 #define MAX_INPUT1000  The #define directives perform “global replacements”:  every instance of MAX_COLS is replaced with 20, and every instance of MAX_INPUT is replaced with 1000.

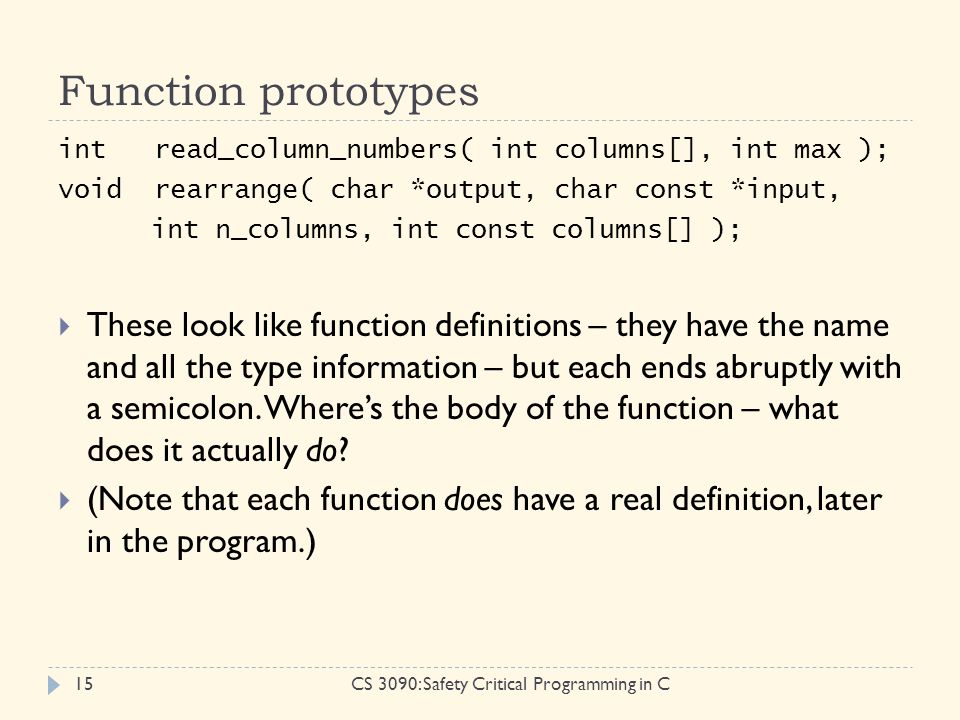

15. Function prototypes CS 3090: Safety Critical Programming in C15 intread_column_numbers( int columns[], int max ); voidrearrange( char *output, char const *input, int n_columns, int const columns[] );  These look like function definitions – they have the name and all the type information – but each ends abruptly with a semicolon. Where’s the body of the function – what does it actually do?  (Note that each function does have a real definition, later in the program.)

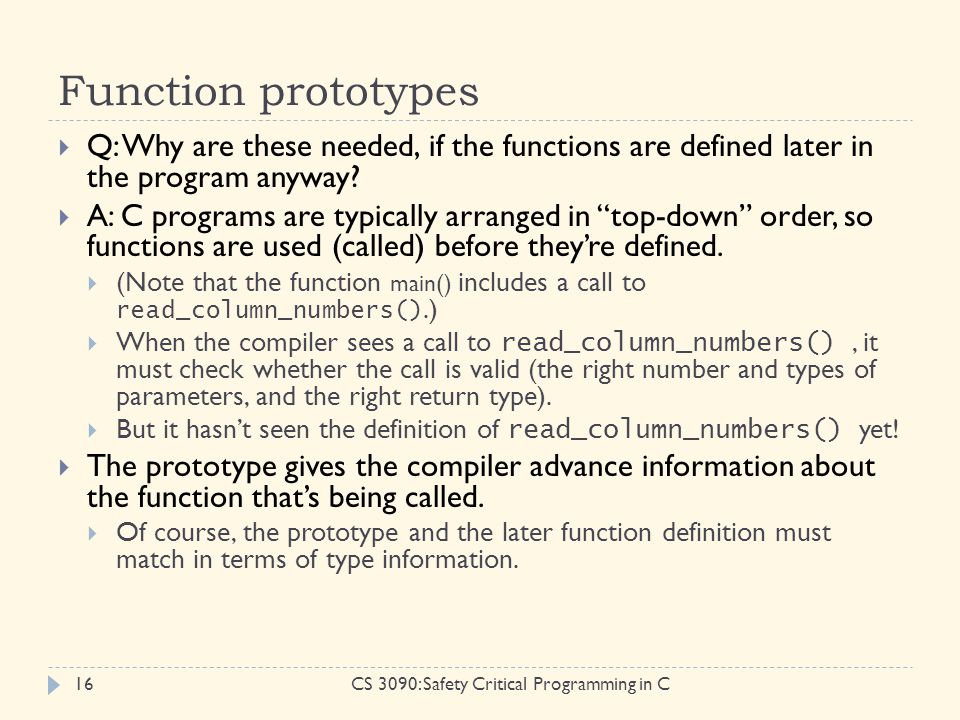

16. Function prototypes CS 3090: Safety Critical Programming in C16  Q: Why are these needed, if the functions are defined later in the program anyway?  A: C programs are typically arranged in “top-down” order, so functions are used (called) before they’re defined.  (Note that the function main() includes a call to read_column_numbers().)  When the compiler sees a call to read_column_numbers(), it must check whether the call is valid (the right number and types of parameters, and the right return type).  But it hasn’t seen the definition of read_column_numbers() yet!  The prototype gives the compiler advance information about the function that’s being called.  Of course, the prototype and the later function definition must match in terms of type information.

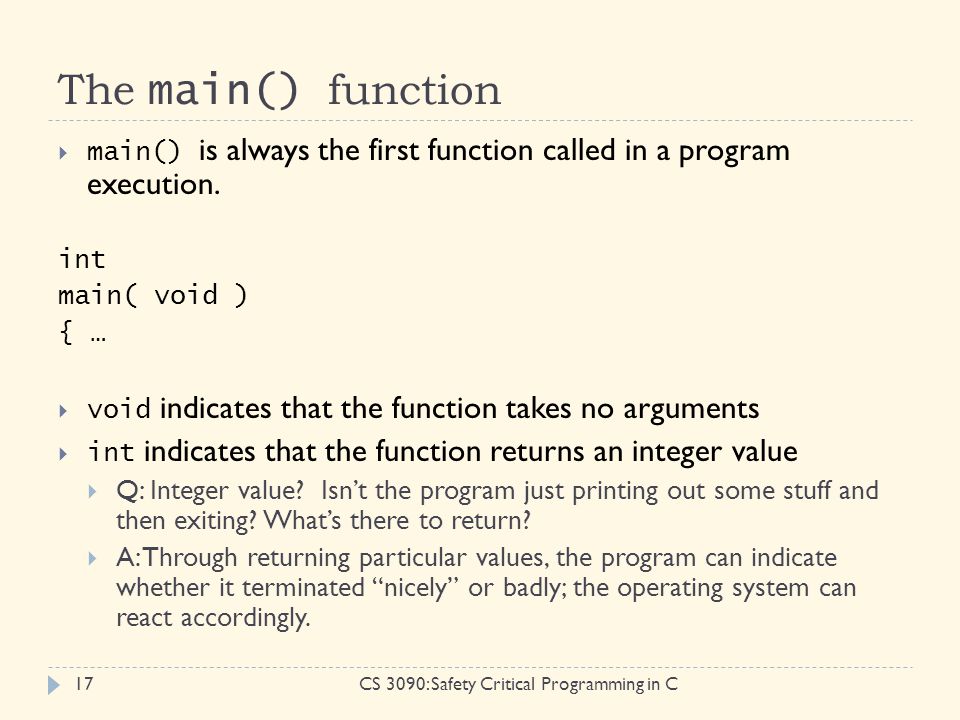

17. The main() function CS 3090: Safety Critical Programming in C17  main() is always the first function called in a program execution. int main( void ) { …  void indicates that the function takes no arguments  int indicates that the function returns an integer value  Q: Integer value? Isn’t the program just printing out some stuff and then exiting? What’s there to return?  A: Through returning particular values, the program can indicate whether it terminated “nicely” or badly; the operating system can react accordingly.

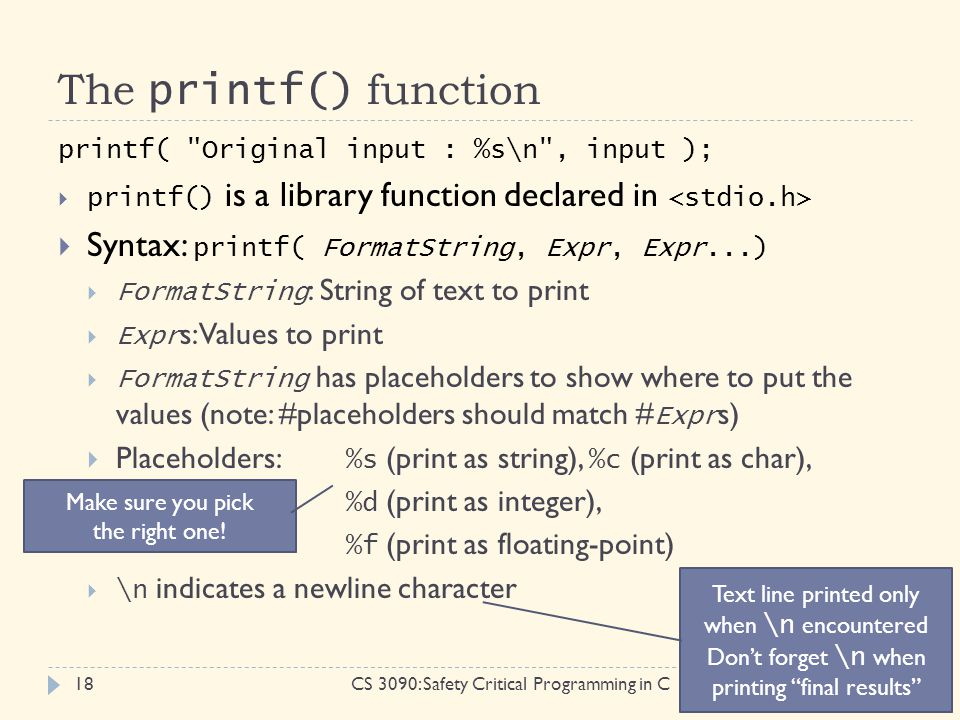

18. The printf() function CS 3090: Safety Critical Programming in C18 printf( "Original input : %s\n", input );  printf() is a library function declared in  Syntax: printf( FormatString, Expr, Expr...)  FormatString : String of text to print  Expr s: Values to print  FormatString has placeholders to show where to put the values (note: #placeholders should match # Expr s)  Placeholders: %s (print as string), %c (print as char), %d (print as integer), %f (print as floating-point)  \n indicates a newline character Make sure you pick the right one! Text line printed only when \n encountered Don’t forget \n when printing “final results”

19. return vs. exit CS 3090: Safety Critical Programming in C19  Let’s look at the return statement in main() : return EXIT_SUCCESS;  EXIT_SUCCESS is a constant defined in stdlib ; returning this value signifies successful termination.  Contrast this with the exit statement in the function read_column_numbers() : puts( “Last column number is not paired.” ); exit( EXIT_FAILURE );  EXIT_FAILURE is another constant, signifying that something bad happened requiring termination.  exit differs from return in that execution terminates immediately – control is not passed back to the calling function main().

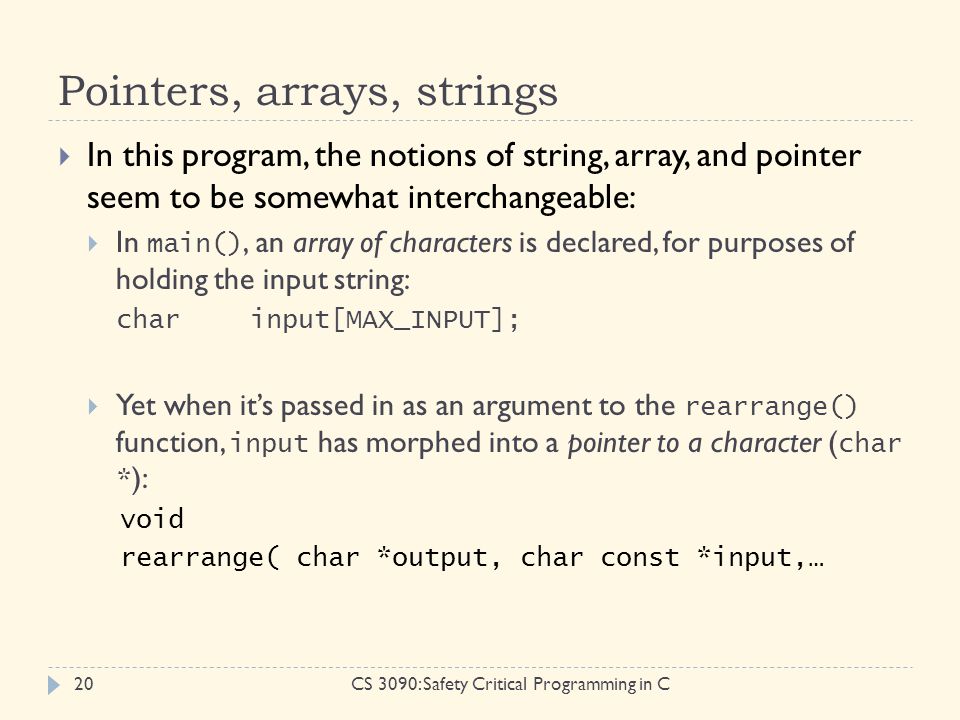

20. Pointers, arrays, strings CS 3090: Safety Critical Programming in C20  In this program, the notions of string, array, and pointer seem to be somewhat interchangeable:  In main(), an array of characters is declared, for purposes of holding the input string: charinput[MAX_INPUT];  Yet when it’s passed in as an argument to the rearrange() function, input has morphed into a pointer to a character ( char * ): void rearrange( char *output, char const *input,…

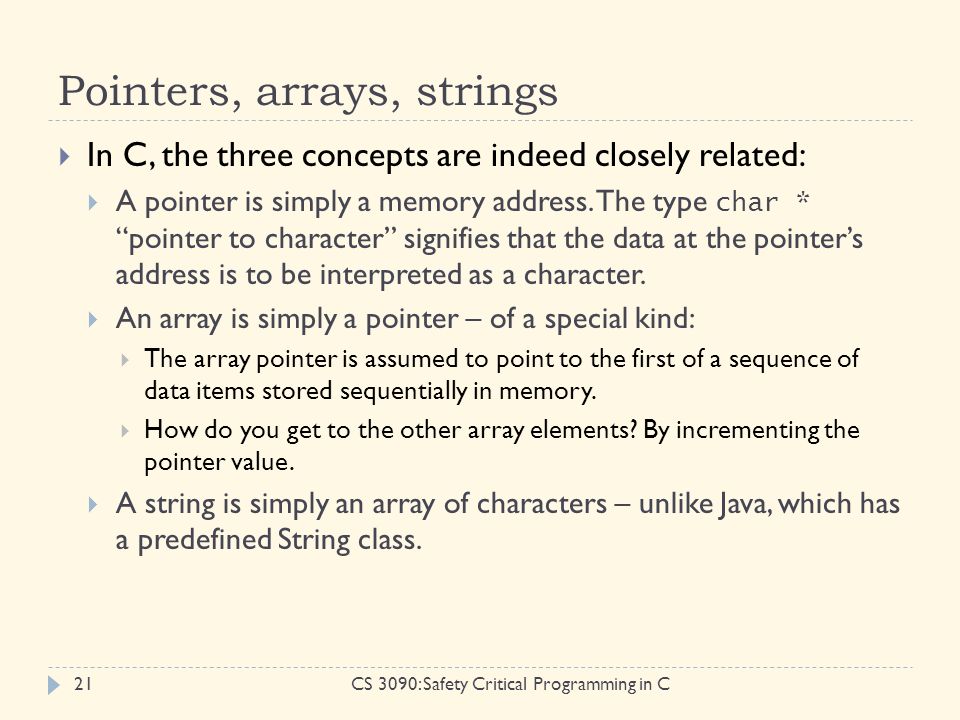

21. Pointers, arrays, strings CS 3090: Safety Critical Programming in C21  In C, the three concepts are indeed closely related:  A pointer is simply a memory address. The type char * “pointer to character” signifies that the data at the pointer’s address is to be interpreted as a character.  An array is simply a pointer – of a special kind:  The array pointer is assumed to point to the first of a sequence of data items stored sequentially in memory.  How do you get to the other array elements? By incrementing the pointer value.  A string is simply an array of characters – unlike Java, which has a predefined String class.

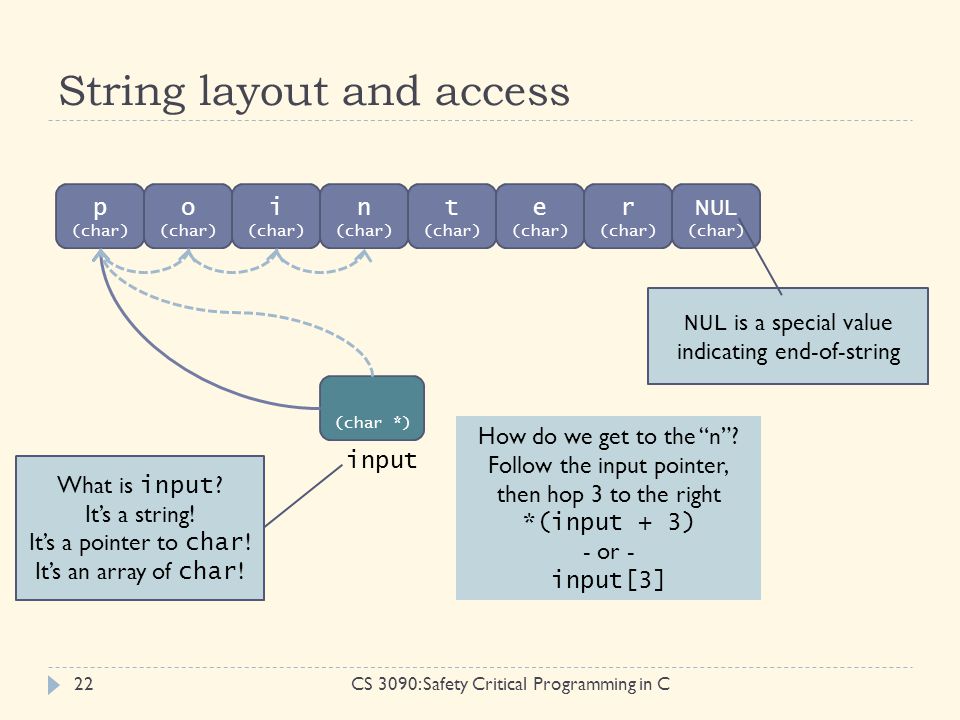

22. String layout and access CS 3090: Safety Critical Programming in C22 p (char) o (char) i (char) n (char) t (char) e (char) r (char) NUL (char) (char *) input What is input ? It’s a string! It’s a pointer to char ! It’s an array of char ! How do we get to the “n”? Follow the input pointer, then hop 3 to the right *(input + 3) - or - input[3] NUL is a special value indicating end-of-string
