1. Building Reliable Distributed Information Spaces Carl Lagoze CS 430 10/22/2002

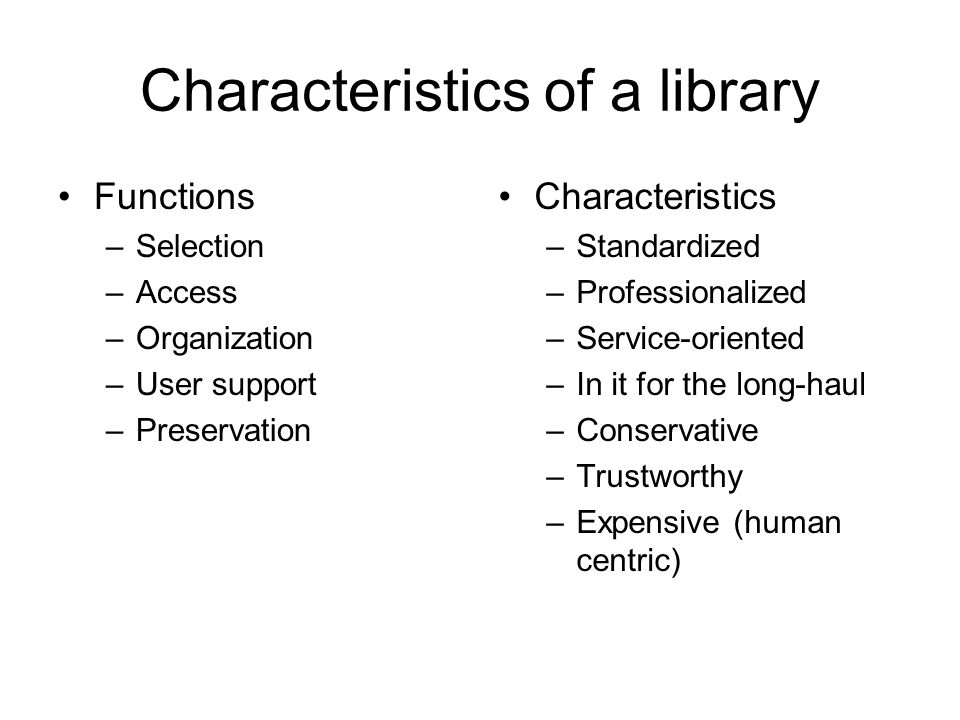

2. Characteristics of a library Functions –Selection –Access –Organization –User support –Preservation Characteristics –Standardized –Professionalized –Service-oriented –In it for the long-haul –Conservative –Trustworthy –Expensive (human centric)

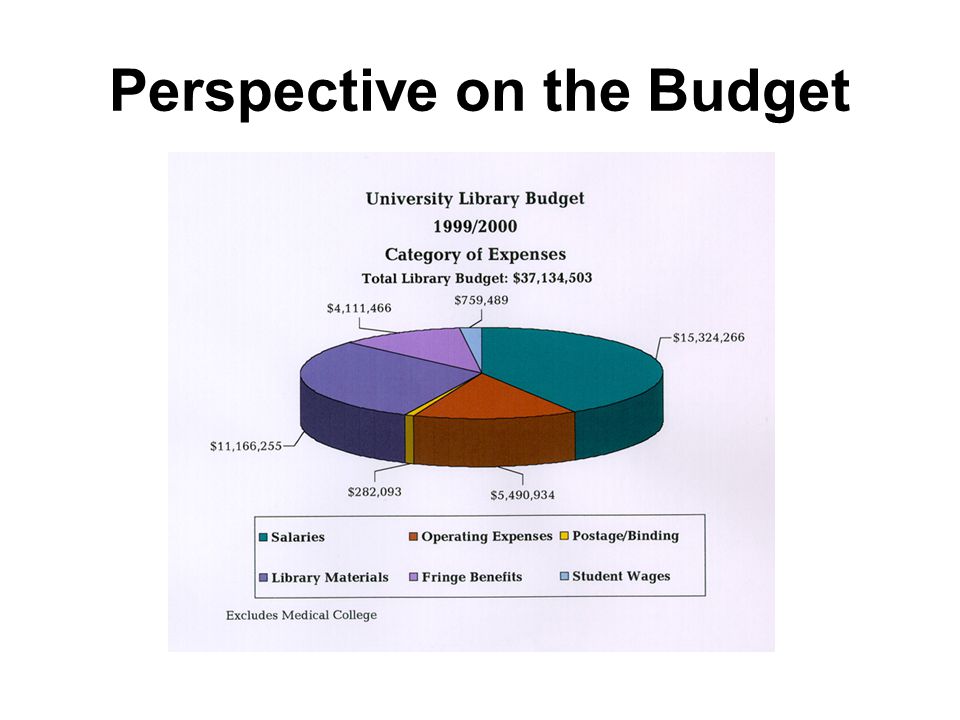

3. Perspective on the Budget

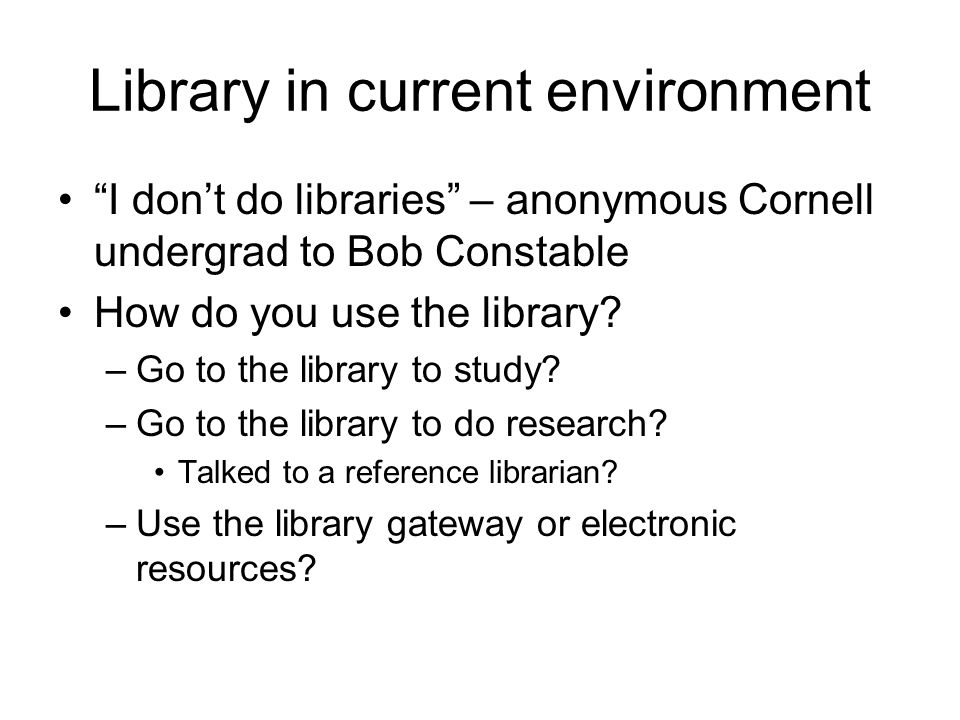

4. Library in current environment “I don’t do libraries” – anonymous Cornell undergrad to Bob Constable How do you use the library? –Go to the library to study? –Go to the library to do research? Talked to a reference librarian? –Use the library gateway or electronic resources?

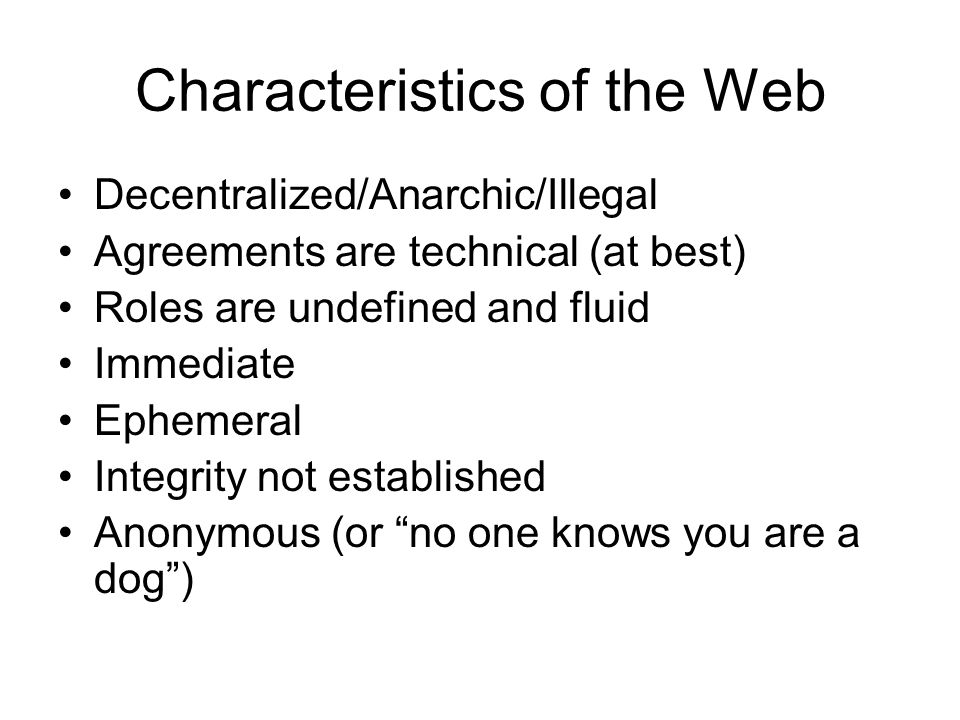

5. Characteristics of the Web Decentralized/Anarchic/Illegal Agreements are technical (at best) Roles are undefined and fluid Immediate Ephemeral Integrity not established Anonymous (or “no one knows you are a dog”)

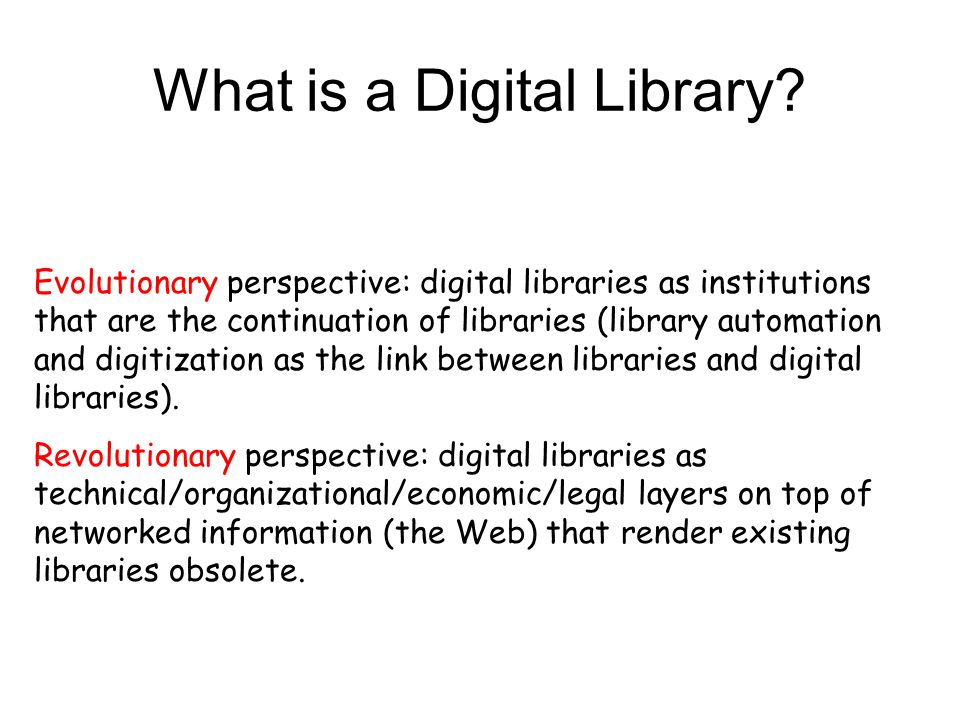

7. What is a Digital Library? Evolutionary perspective: digital libraries as institutions that are the continuation of libraries (library automation and digitization as the link between libraries and digital libraries). Revolutionary perspective: digital libraries as technical/organizational/economic/legal layers on top of networked information (the Web) that render existing libraries obsolete.

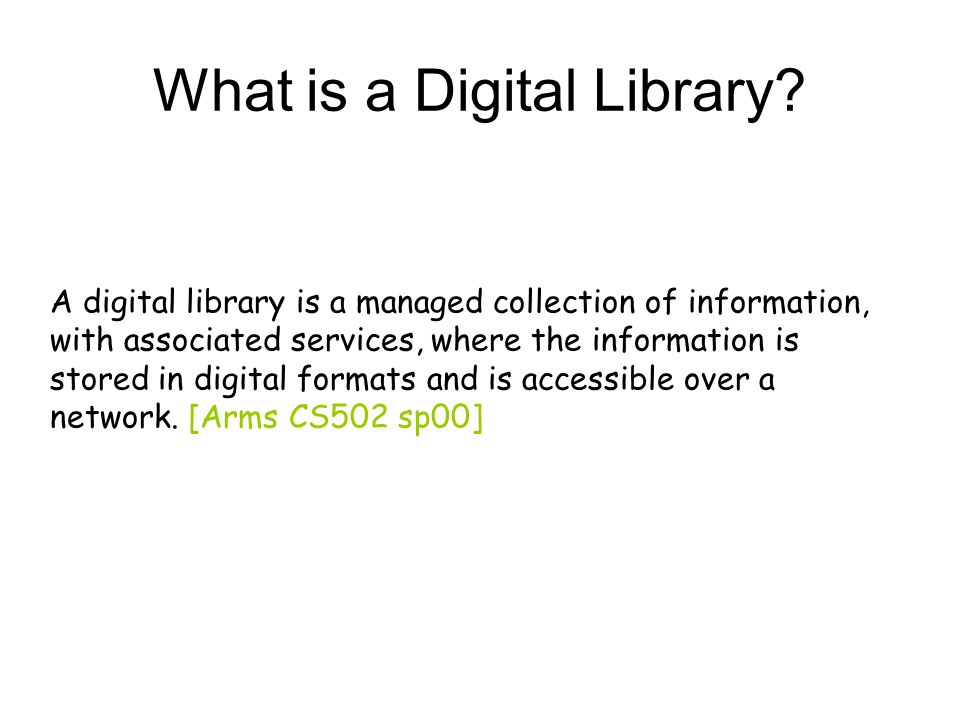

8. What is a Digital Library? A digital library is a managed collection of information, with associated services, where the information is stored in digital formats and is accessible over a network. [Arms CS502 sp00]

9. Many facets of the problem/solution technology law economy sociology

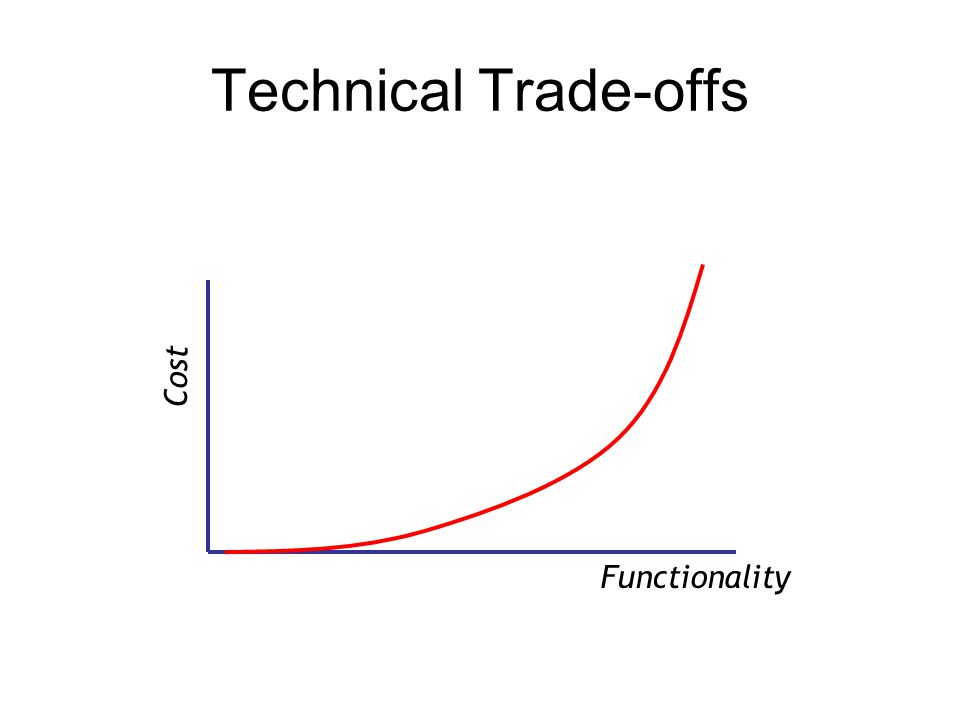

10. Technical Trade-offs Cost Functionality

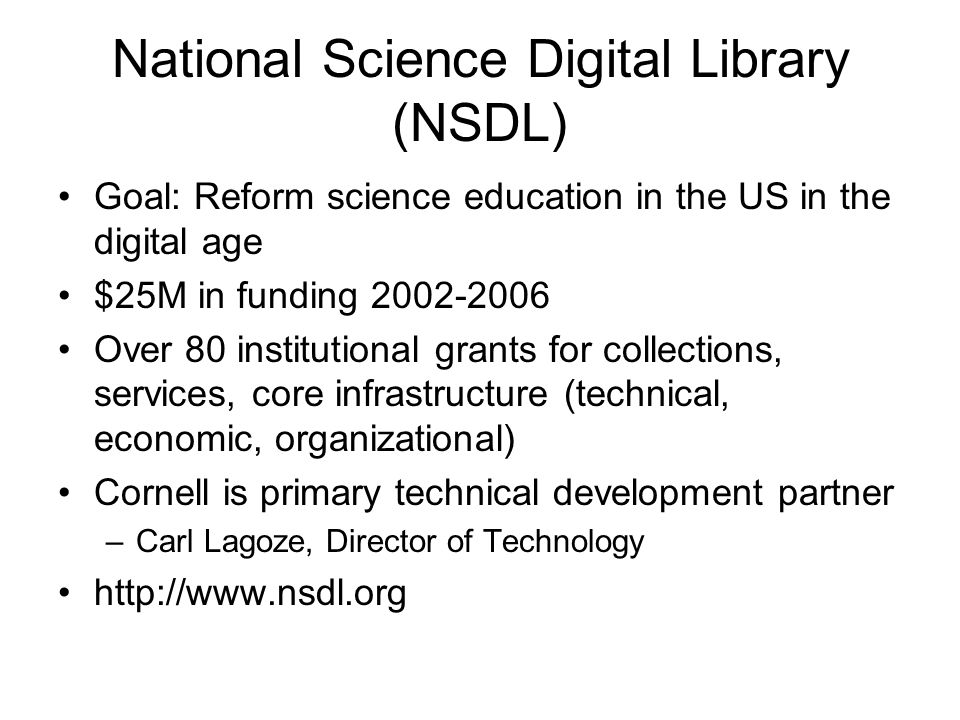

11. National Science Digital Library (NSDL) Goal: Reform science education in the US in the digital age $25M in funding 2002-2006 Over 80 institutional grants for collections, services, core infrastructure (technical, economic, organizational) Cornell is primary technical development partner –Carl Lagoze, Director of Technology http://www.nsdl.org

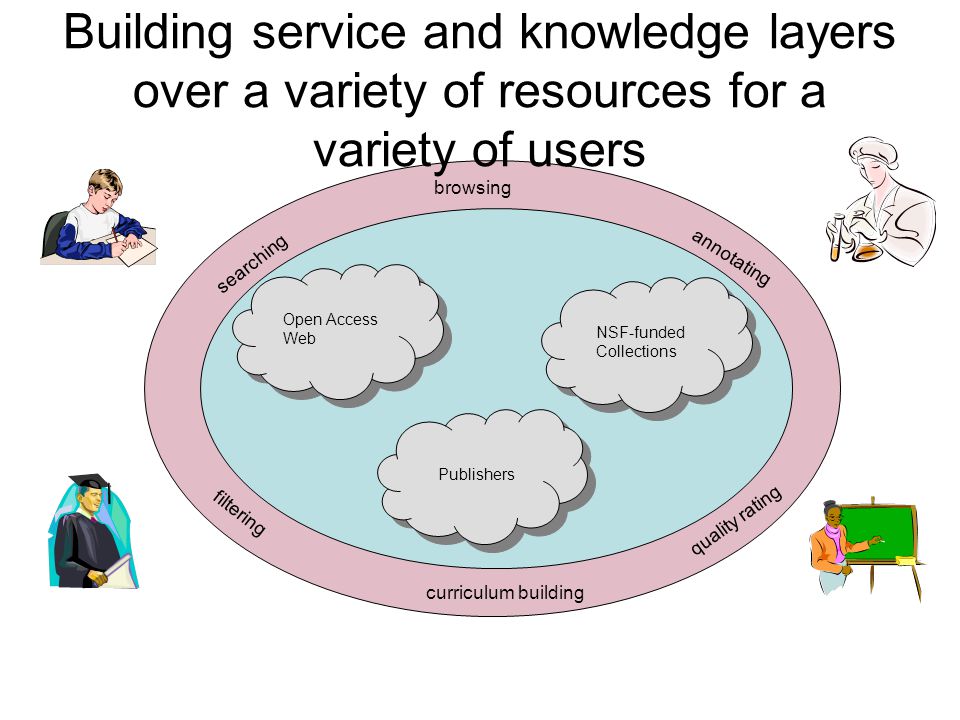

12. browsing searching annotating curriculum building filtering quality rating Building service and knowledge layers over a variety of resources for a variety of users Open Access Web Publishers NSF-funded Collections

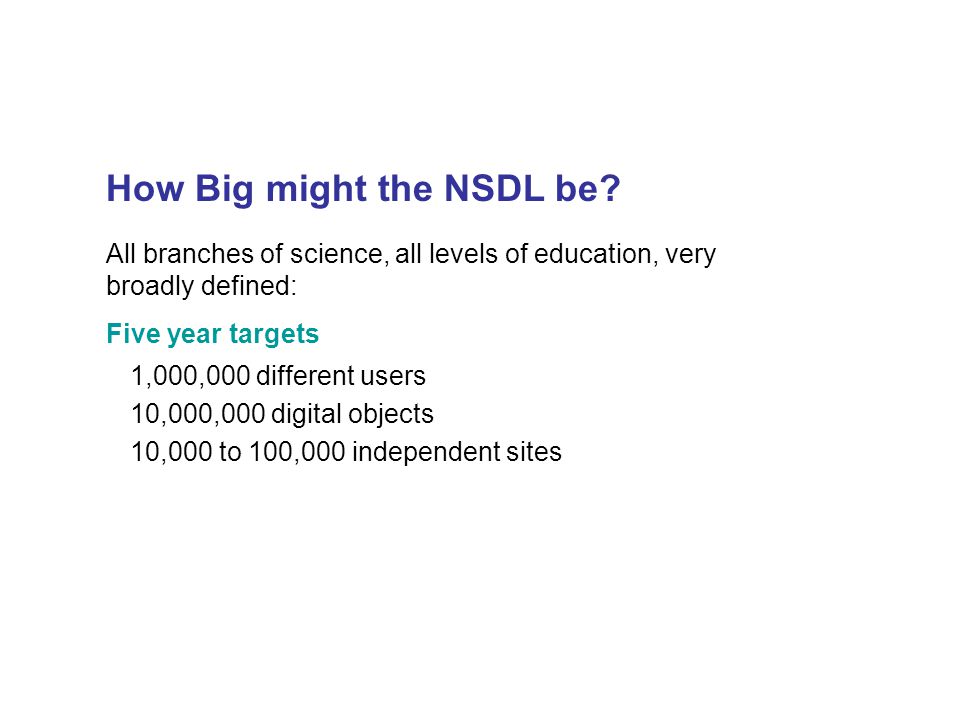

13. All branches of science, all levels of education, very broadly defined: Five year targets 1,000,000 different users 10,000,000 digital objects 10,000 to 100,000 independent sites How Big might the NSDL be?

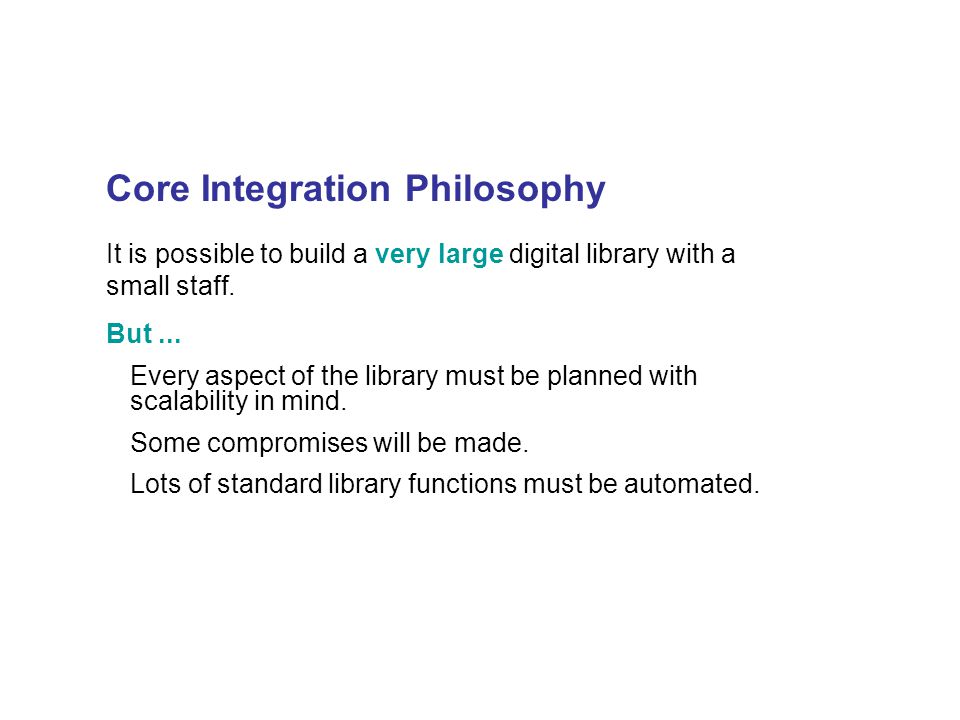

14. It is possible to build a very large digital library with a small staff. But... Every aspect of the library must be planned with scalability in mind. Some compromises will be made. Lots of standard library functions must be automated. Core Integration Philosophy

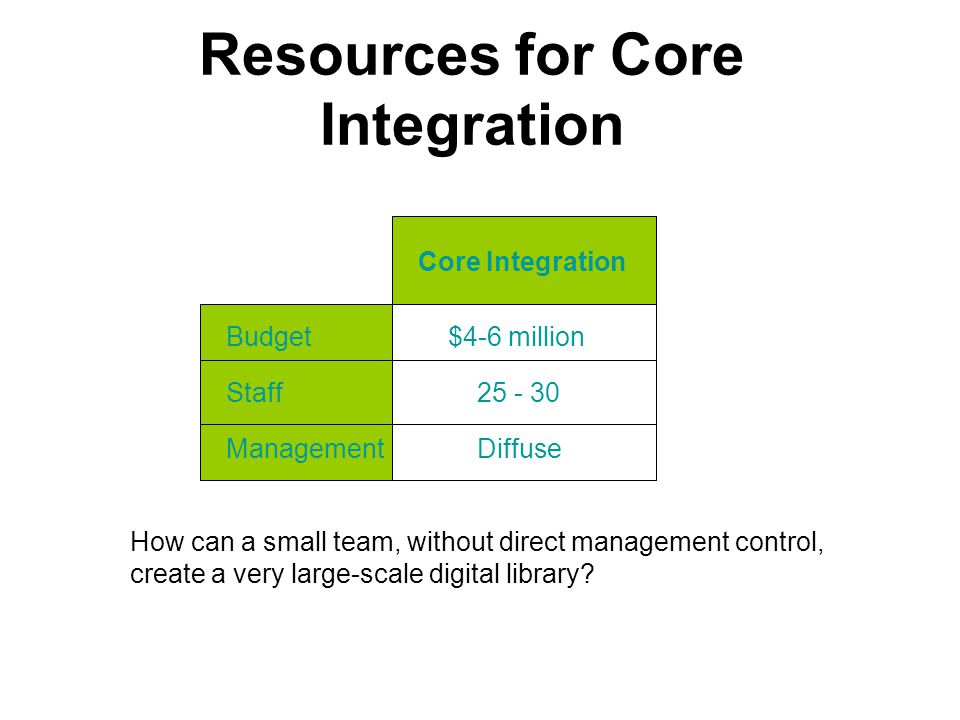

15. Resources for Core Integration Core Integration Budget $4-6 million Staff 25 - 30 Management Diffuse How can a small team, without direct management control, create a very large-scale digital library?

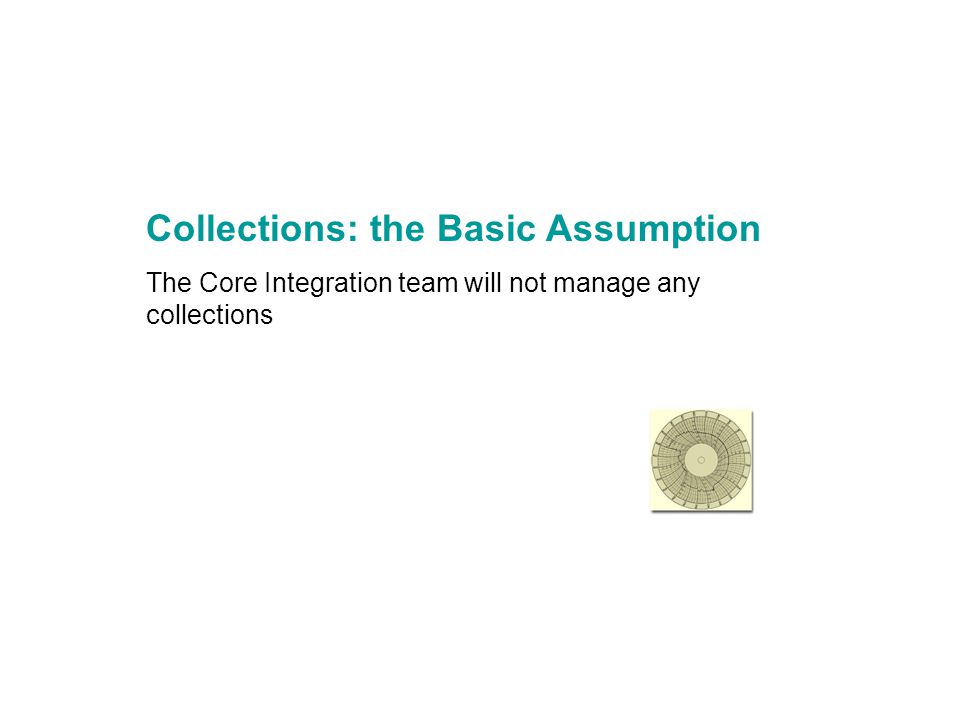

16. Collections: the Basic Assumption The Core Integration team will not manage any collections

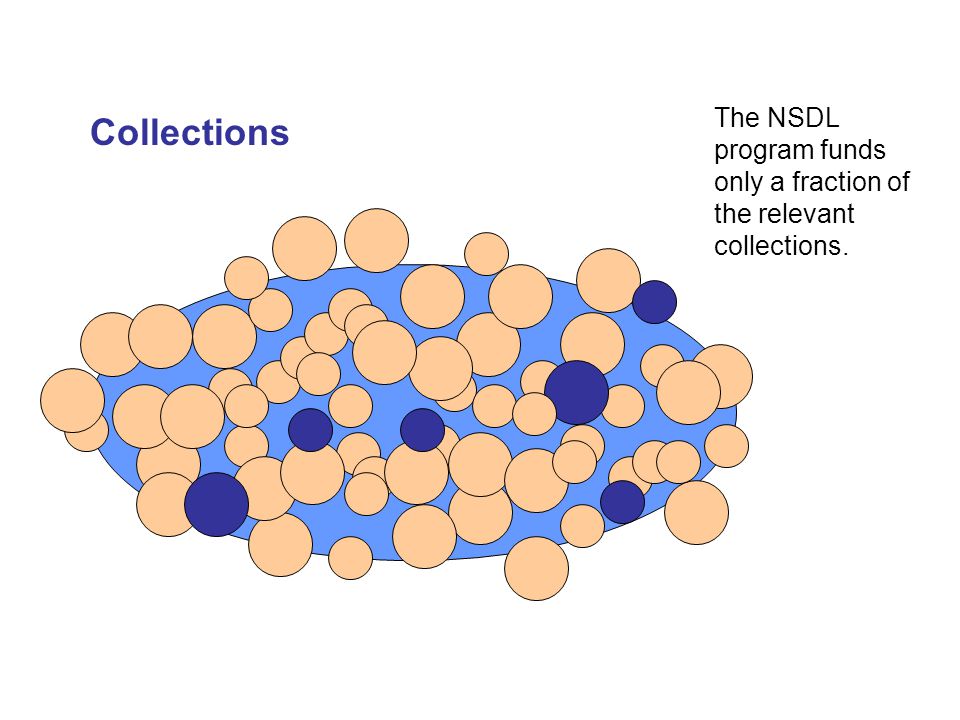

17. Collections The NSDL program funds only a fraction of the relevant collections.

18. Every Collection is Different

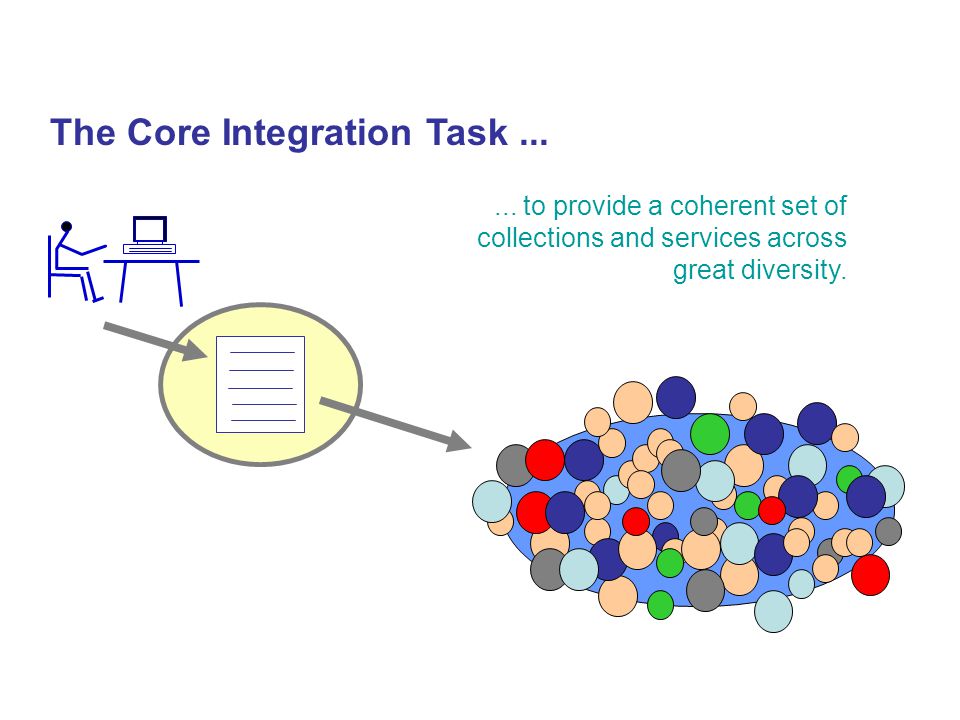

19. ... to provide a coherent set of collections and services across great diversity. The Core Integration Task...

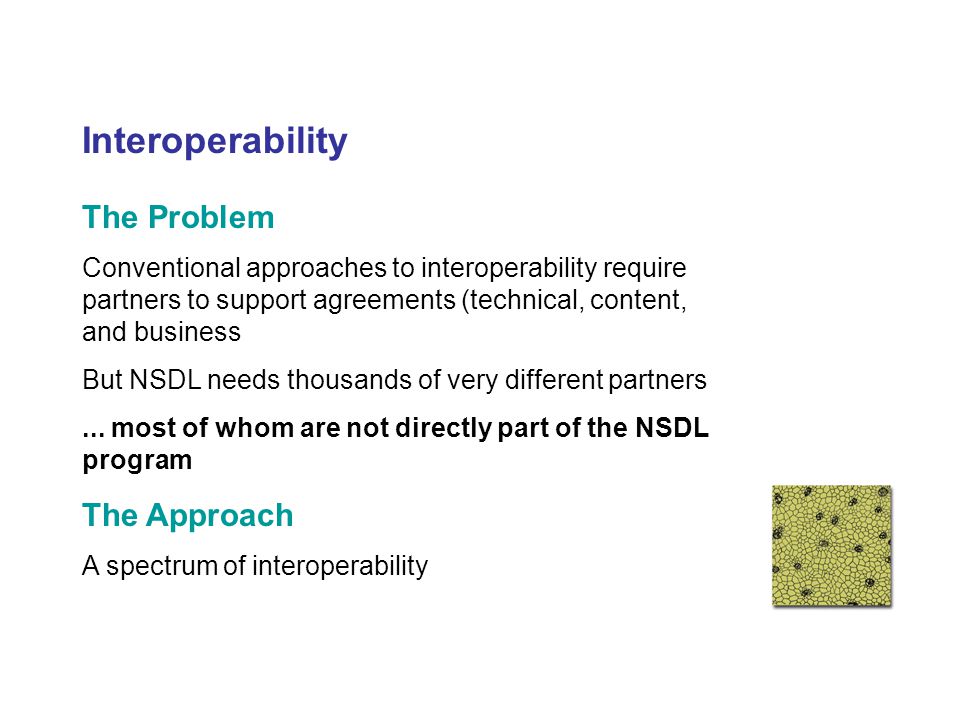

20. Interoperability The Problem Conventional approaches to interoperability require partners to support agreements (technical, content, and business But NSDL needs thousands of very different partners... most of whom are not directly part of the NSDL program The Approach A spectrum of interoperability

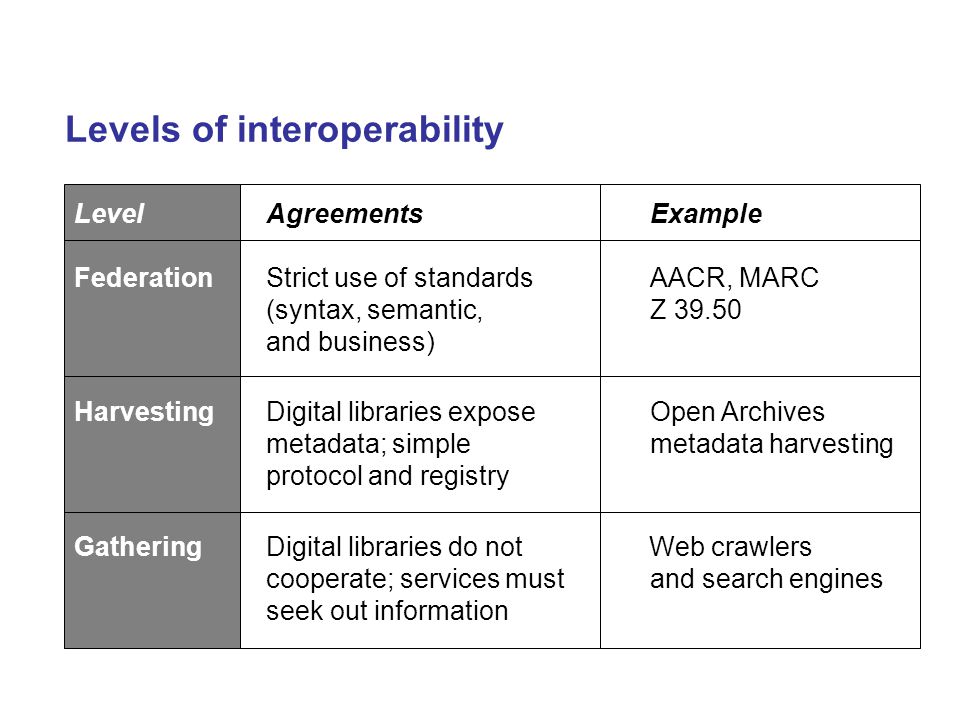

21. Levels of interoperability LevelAgreementsExample FederationStrict use of standardsAACR, MARC (syntax, semantic, Z 39.50 and business) HarvestingDigital libraries exposeOpen Archives metadata; simplemetadata harvesting protocol and registry GatheringDigital libraries do not Web crawlers cooperate; services mustand search engines seek out information

22. What to Index? When possible, full text indexing is excellent, but full text indexing is not possible for all materials (non-textual, no access for indexing). Comprehensive metadata is an alternative, but available for very few of the materials. What Architecture to Use? Few collections support an established search protocol (e.g., Z39.50) Searching

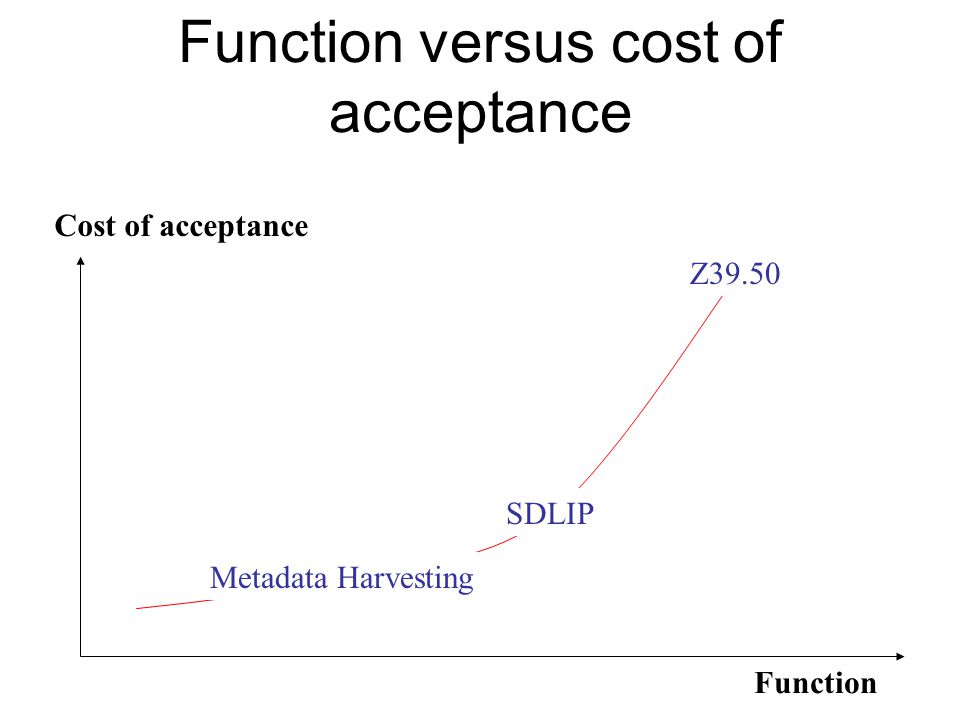

23. Function versus cost of acceptance Function Cost of acceptance Metadata Harvesting SDLIP Z39.50

24. Z39.50 principles Servers store a set of databases with searchable indexes Interactions are based on a session The client opens a connection with the server(s), carries out a sequence of interactions and then closes the connection. During the course of the session, both the server and the client remember the state of their interaction.

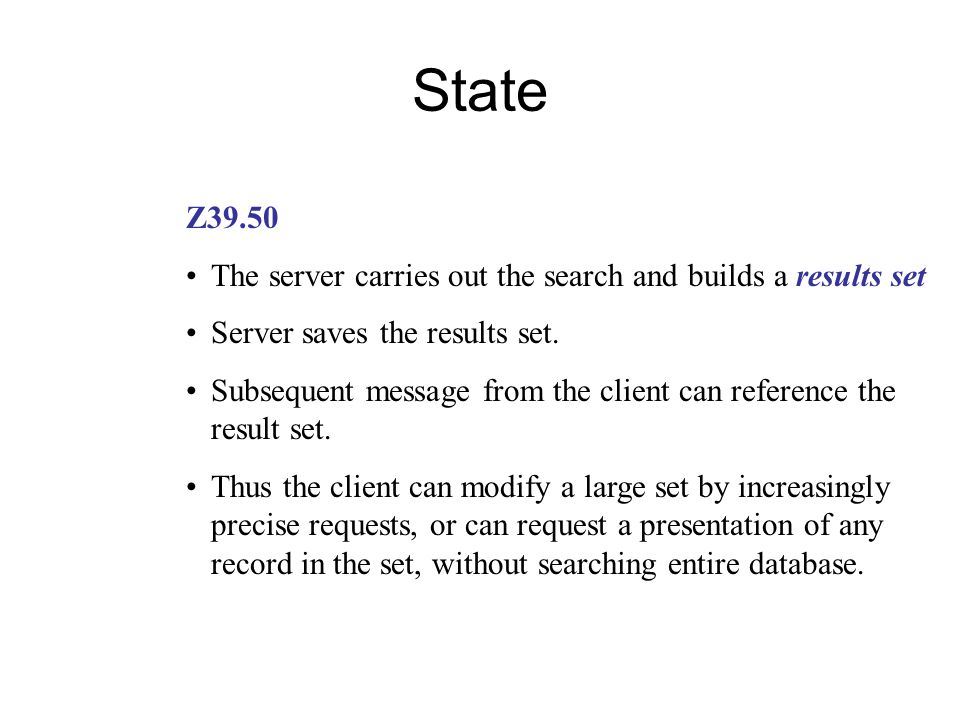

25. State Z39.50 The server carries out the search and builds a results set Server saves the results set. Subsequent message from the client can reference the result set. Thus the client can modify a large set by increasingly precise requests, or can request a presentation of any record in the set, without searching entire database.

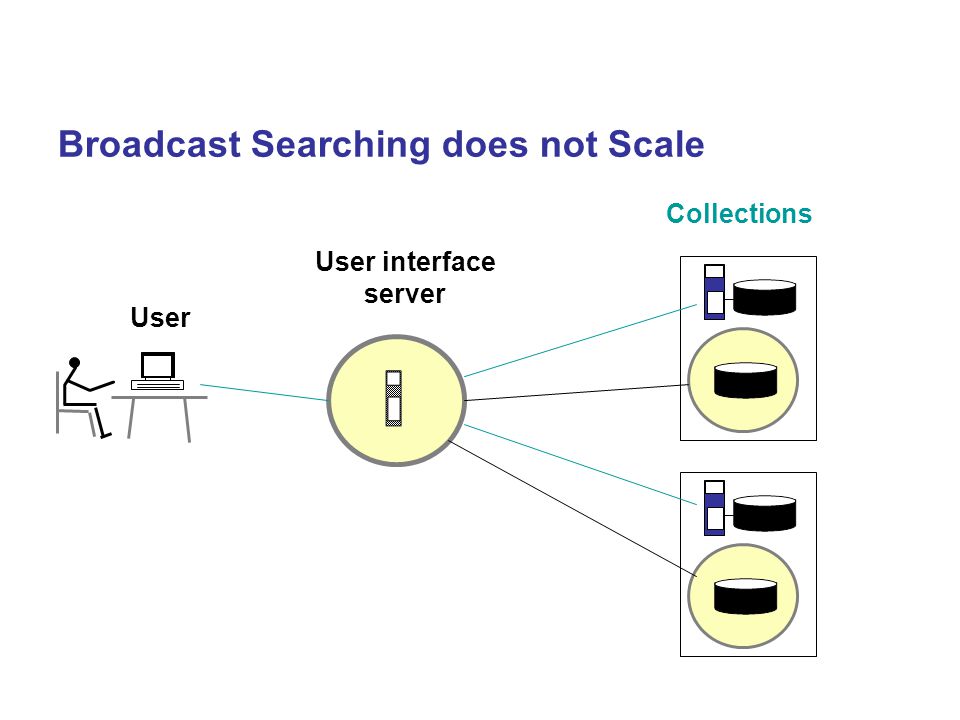

26. Broadcast Searching does not Scale User interface server User Collections

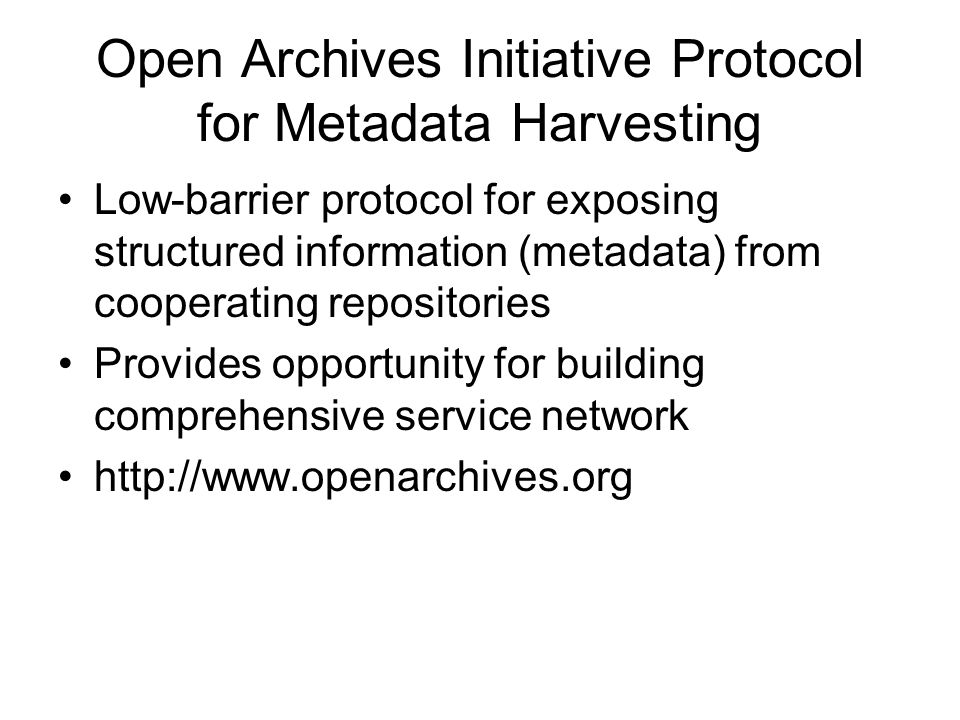

27. Open Archives Initiative Protocol for Metadata Harvesting Low-barrier protocol for exposing structured information (metadata) from cooperating repositories Provides opportunity for building comprehensive service network http://www.openarchives.org

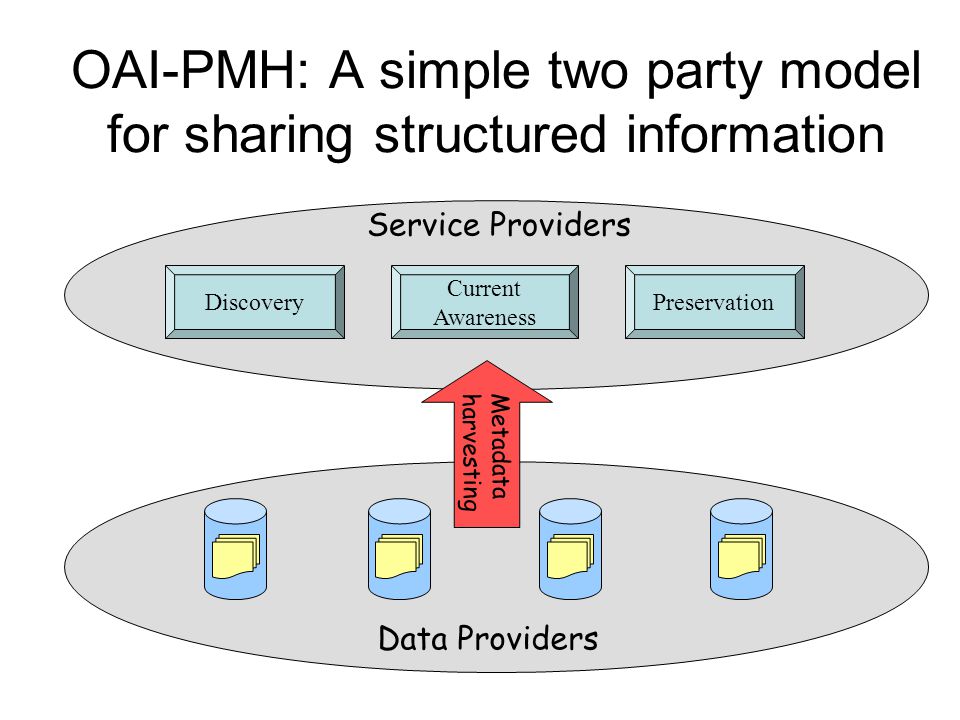

28. Discovery Current Awareness Preservation Service Providers Data Providers Metadata harvesting OAI-PMH: A simple two party model for sharing structured information

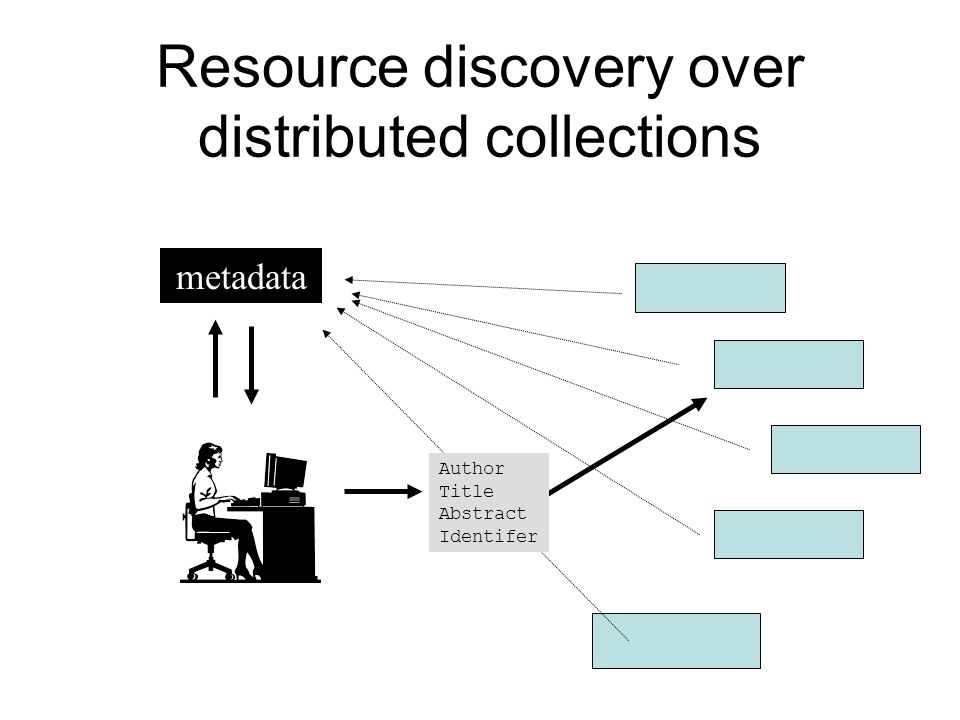

29. Resource discovery over distributed collections metadata Author Title Abstract Identifer

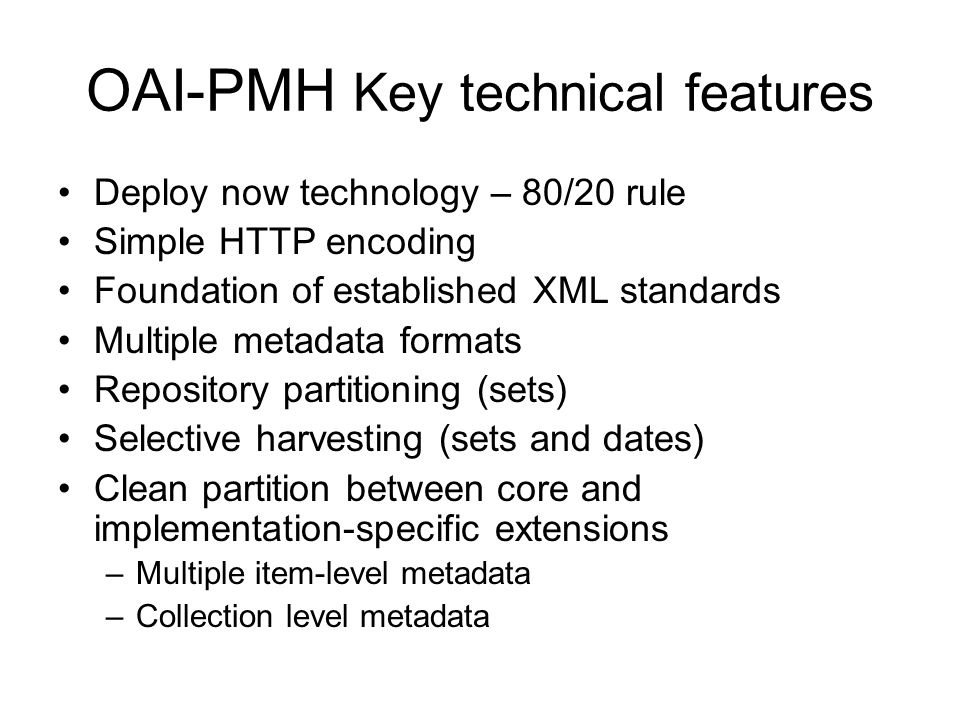

30. OAI-PMH Key technical features Deploy now technology – 80/20 rule Simple HTTP encoding Foundation of established XML standards Multiple metadata formats Repository partitioning (sets) Selective harvesting (sets and dates) Clean partition between core and implementation-specific extensions –Multiple item-level metadata –Collection level metadata

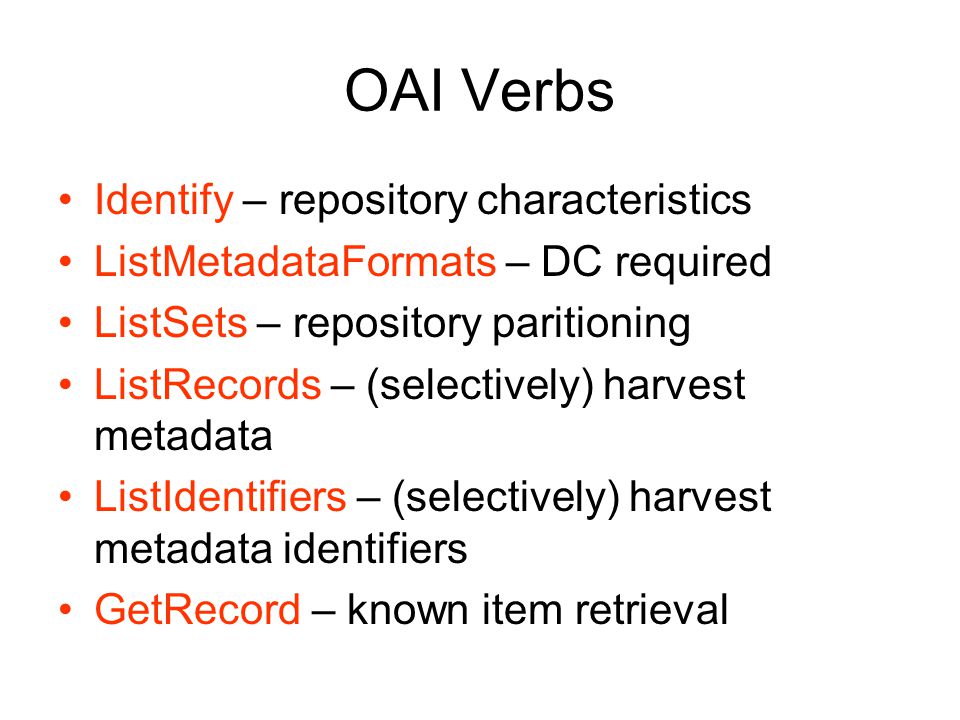

31. OAI Verbs Identify – repository characteristics ListMetadataFormats – DC required ListSets – repository paritioning ListRecords – (selectively) harvest metadata ListIdentifiers – (selectively) harvest metadata identifiers GetRecord – known item retrieval

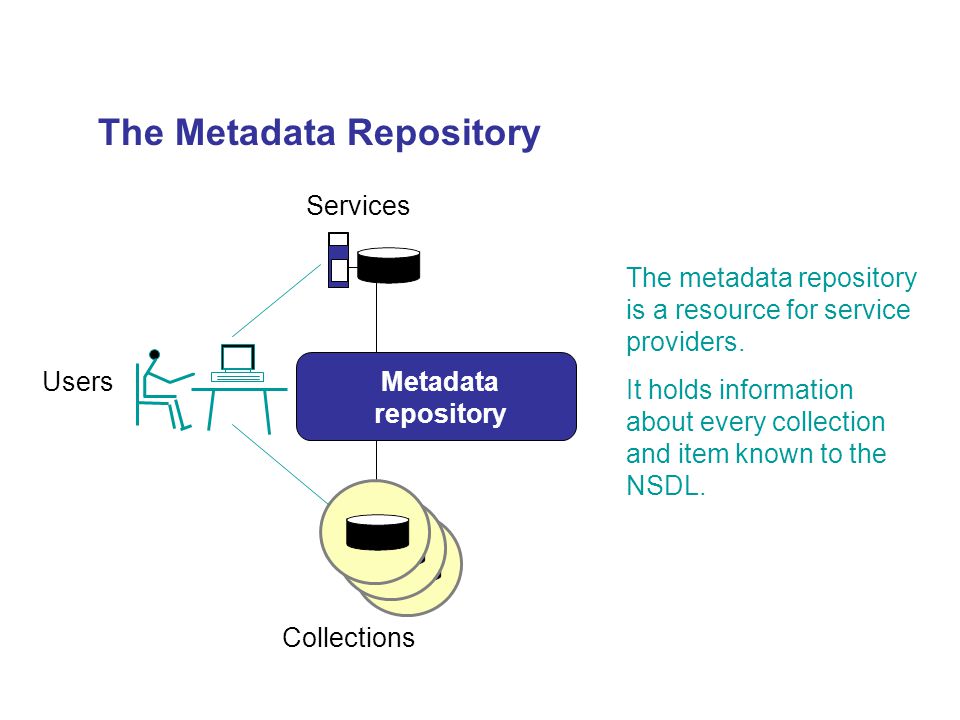

32. Users Collections Metadata repository The Metadata Repository Services The metadata repository is a resource for service providers. It holds information about every collection and item known to the NSDL.

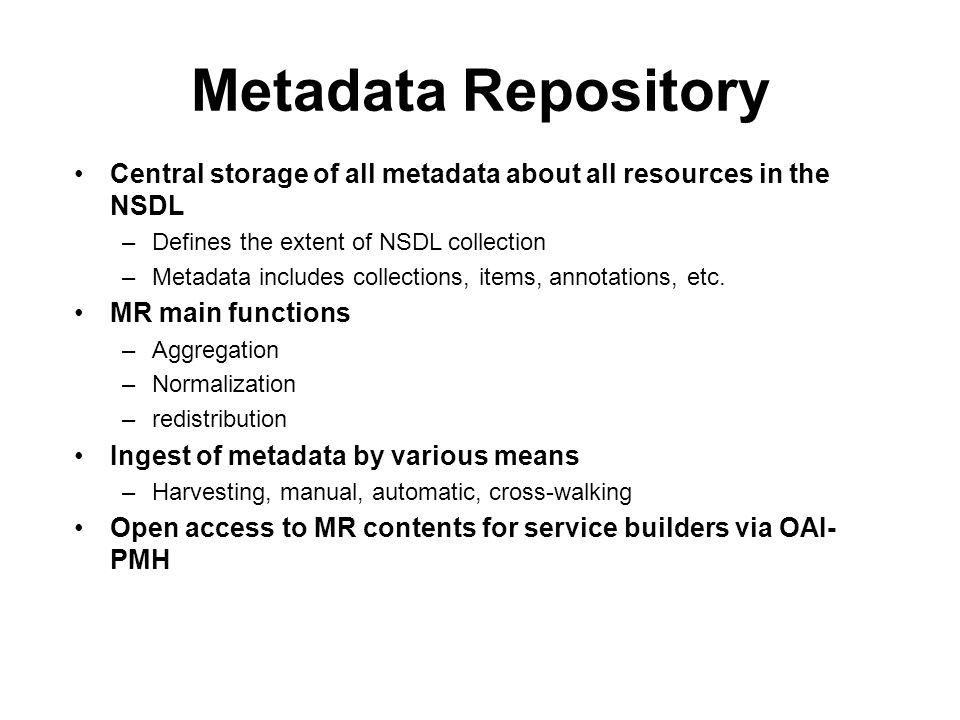

33. Central storage of all metadata about all resources in the NSDL –Defines the extent of NSDL collection –Metadata includes collections, items, annotations, etc. MR main functions –Aggregation –Normalization –redistribution Ingest of metadata by various means –Harvesting, manual, automatic, cross-walking Open access to MR contents for service builders via OAI- PMH Metadata Repository

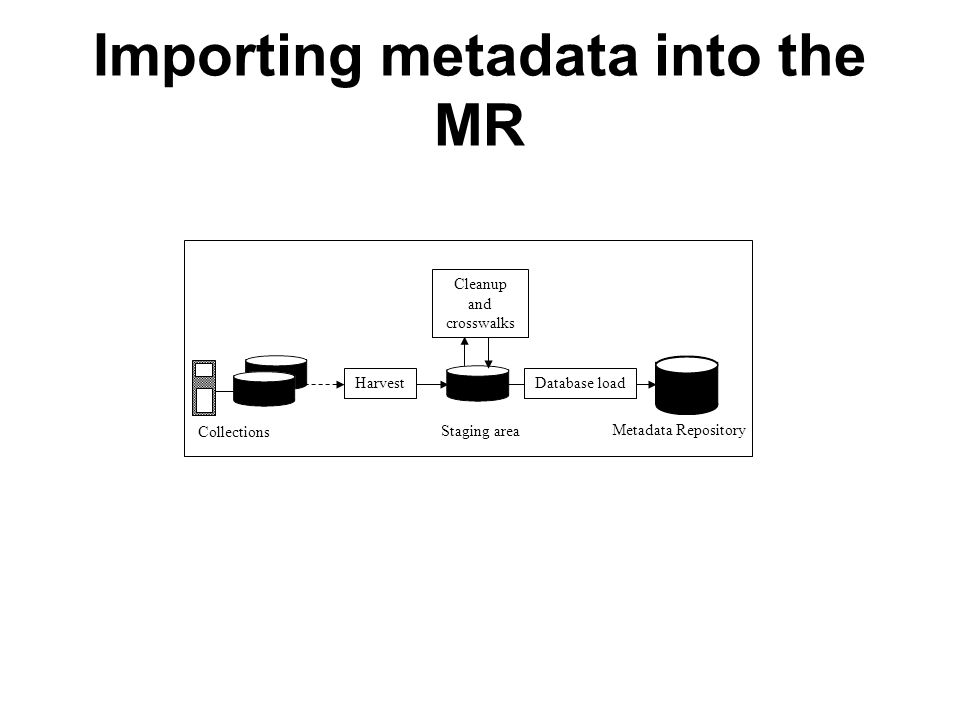

34. Importing metadata into the MR Collections Harvest Staging area Cleanup and crosswalks Database load Metadata Repository

35. Exporting metadata from the MR

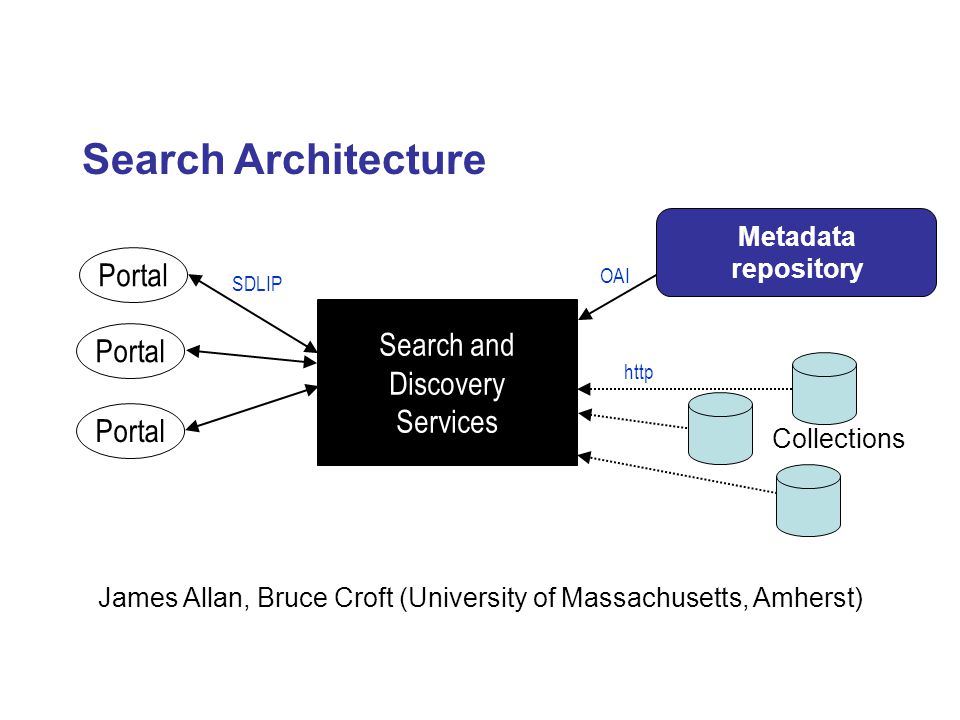

36. Search Architecture Portal Search and Discovery Services Collections SDLIP OAI http Metadata repository James Allan, Bruce Croft (University of Massachusetts, Amherst)

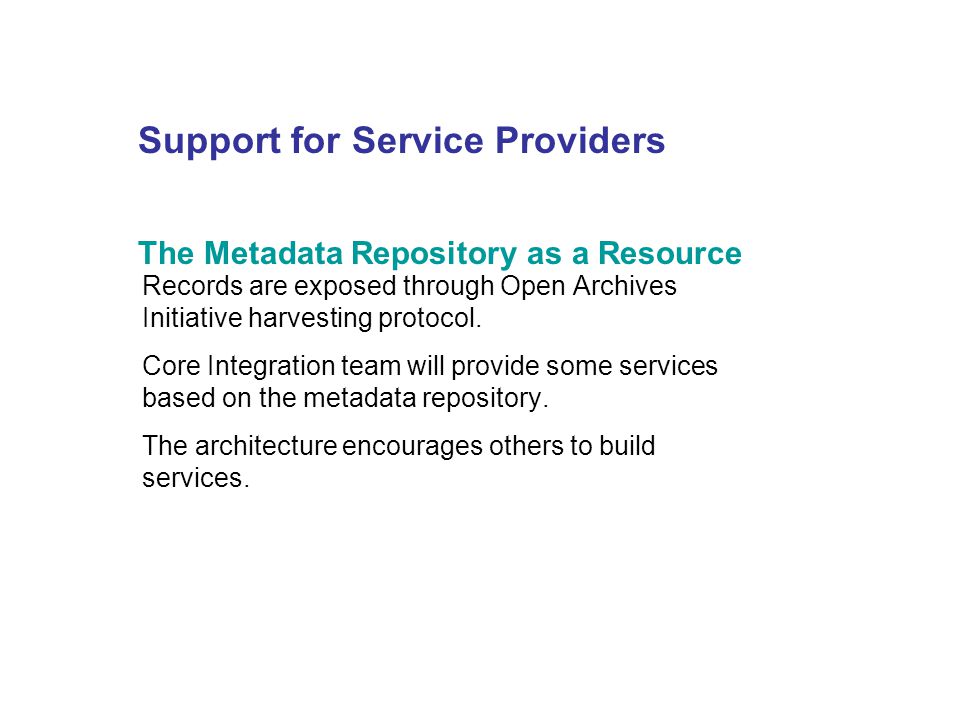

37. The Metadata Repository as a Resource Records are exposed through Open Archives Initiative harvesting protocol. Core Integration team will provide some services based on the metadata repository. The architecture encourages others to build services. Support for Service Providers

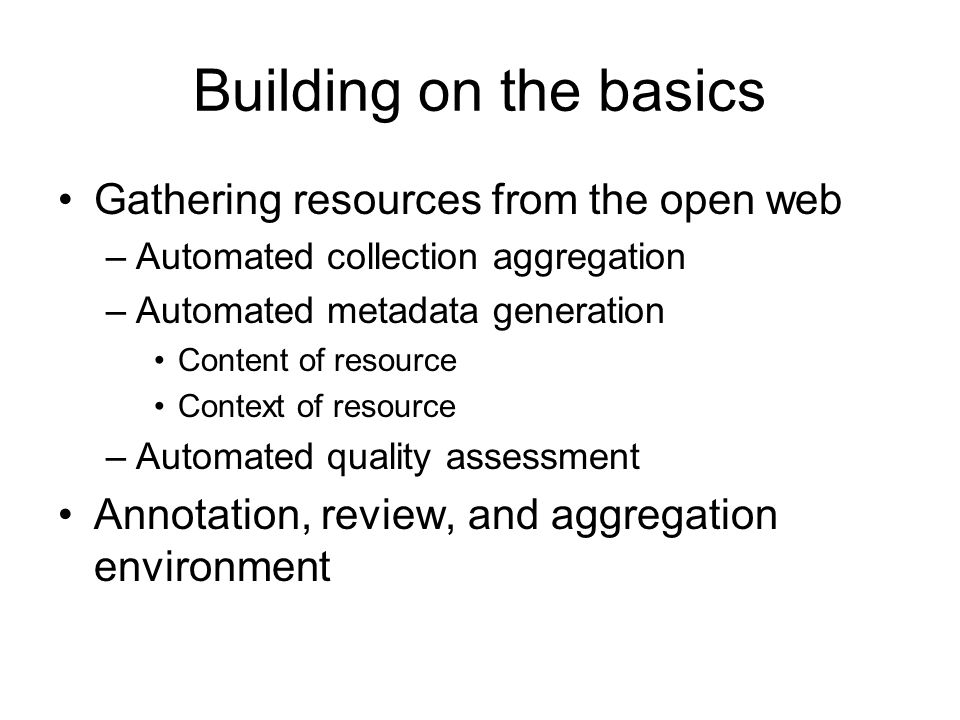

38. Building on the basics Gathering resources from the open web –Automated collection aggregation –Automated metadata generation Content of resource Context of resource –Automated quality assessment Annotation, review, and aggregation environment

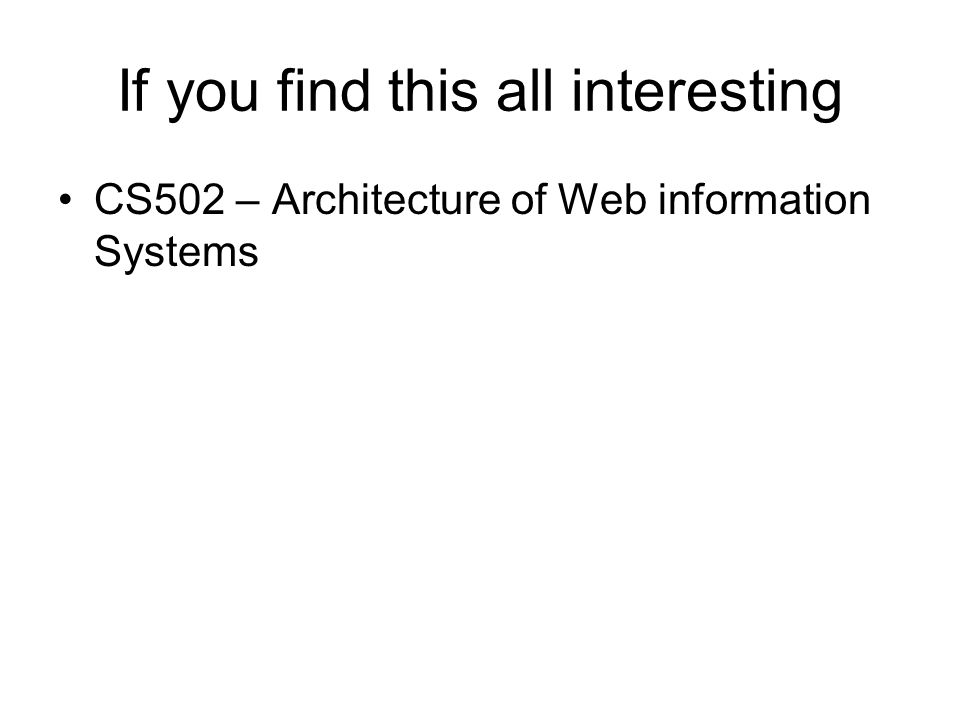

39. If you find this all interesting CS502 – Architecture of Web information Systems
