1
Transformation Methods MOM (Method of Multipliers) Study of Engineering Optimization Guanyao Huang RUbiNet - Robust and Ubiquitous Networking Research Group 2010 July 9th
2

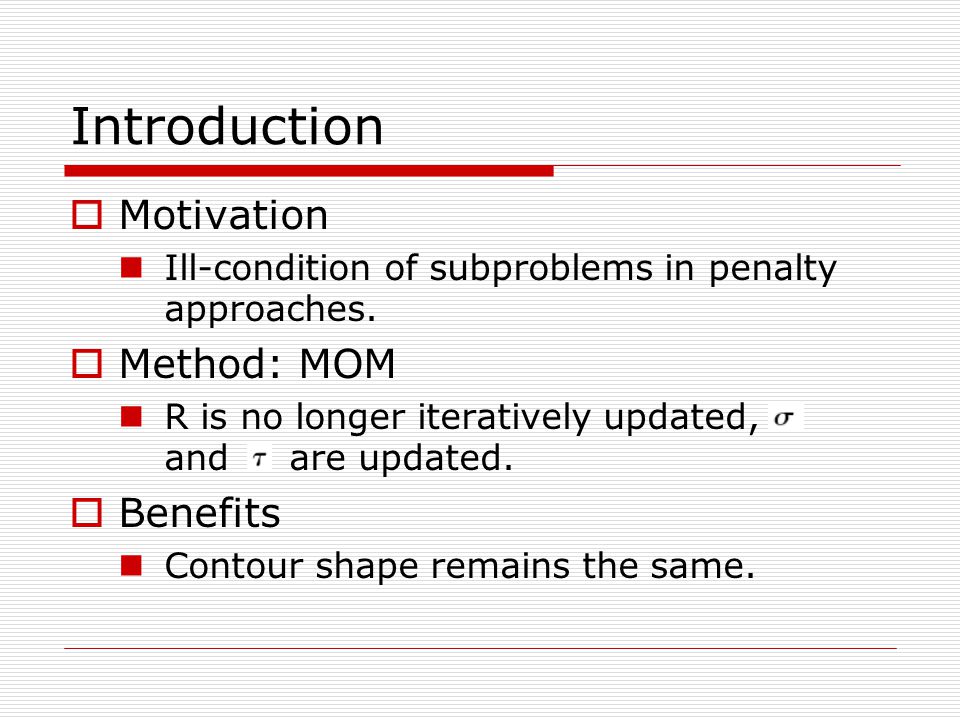

Introduction Motivation Ill-condition of subproblems in penalty approaches. Method: MOM R is no longer iteratively updated, and are updated. Benefits Contour shape remains the same.
3

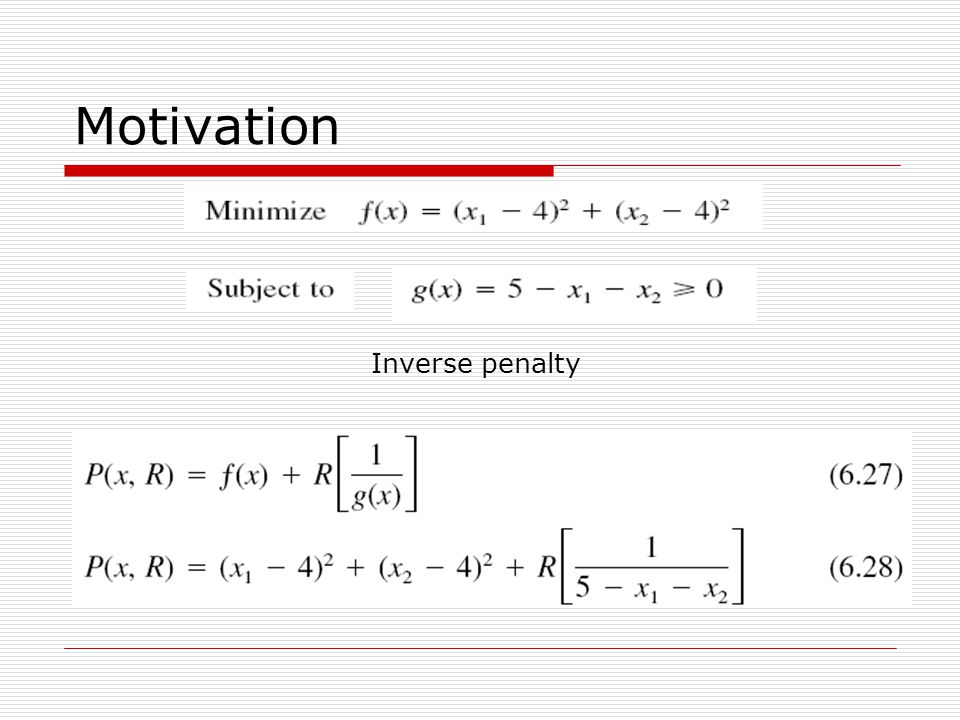

Motivation Inverse penalty
4

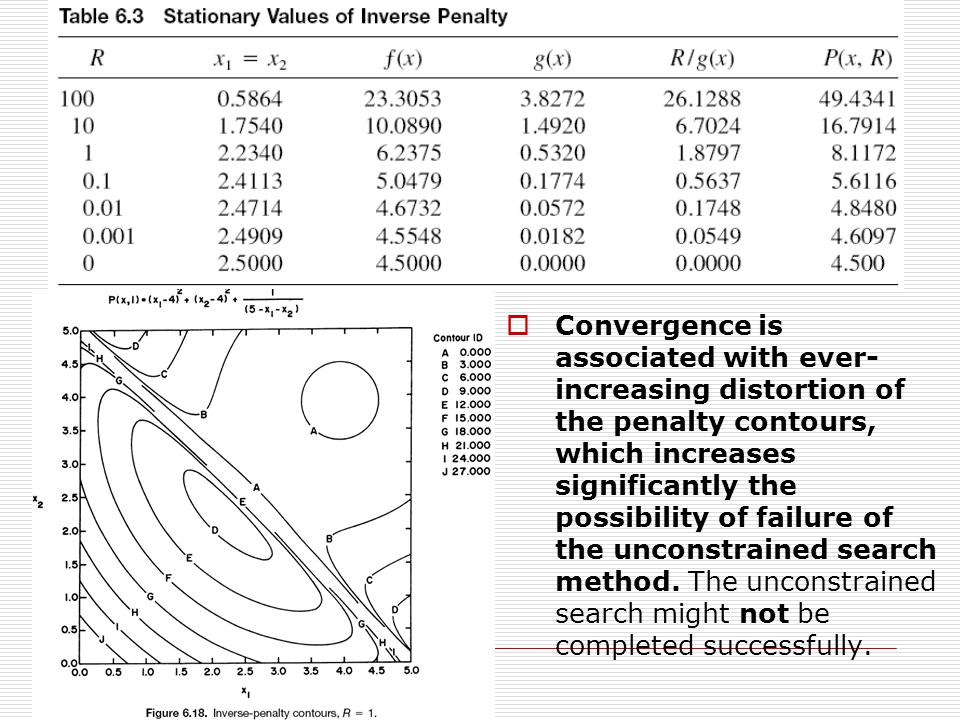

Convergence is associated with ever- increasing distortion of the penalty contours, which increases significantly the possibility of failure of the unconstrained search method. The unconstrained search might not be completed successfully.
5

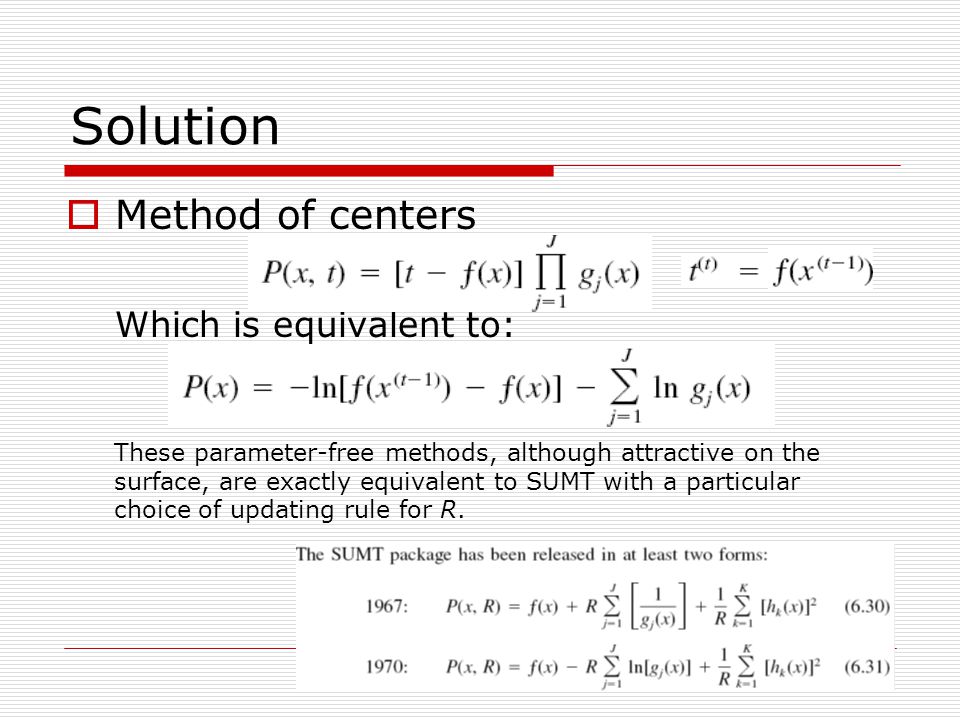

Solution Method of centers Which is equivalent to: These parameter-free methods, although attractive on the surface, are exactly equivalent to SUMT with a particular choice of updating rule for R.
6

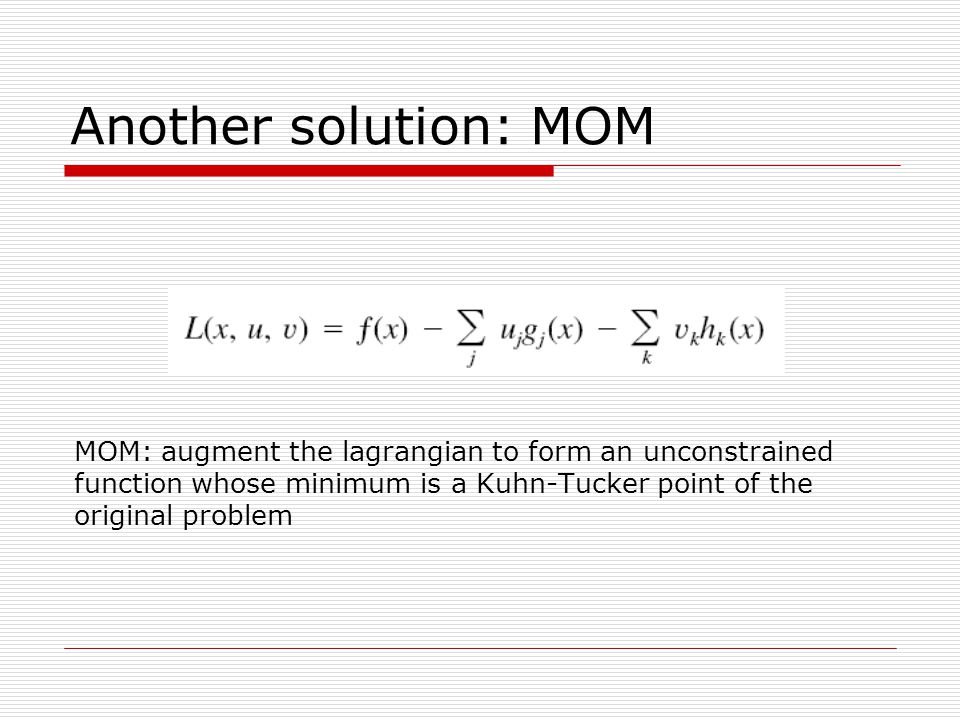

MOM: augment the lagrangian to form an unconstrained function whose minimum is a Kuhn-Tucker point of the original problem Another solution: MOM
7

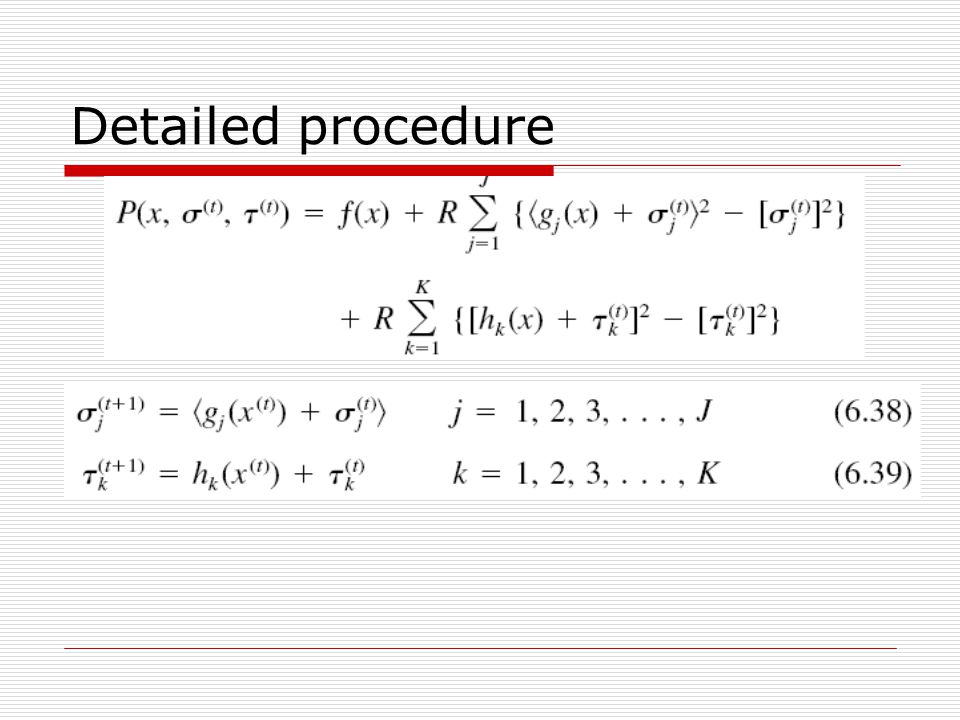

Detailed procedure
8

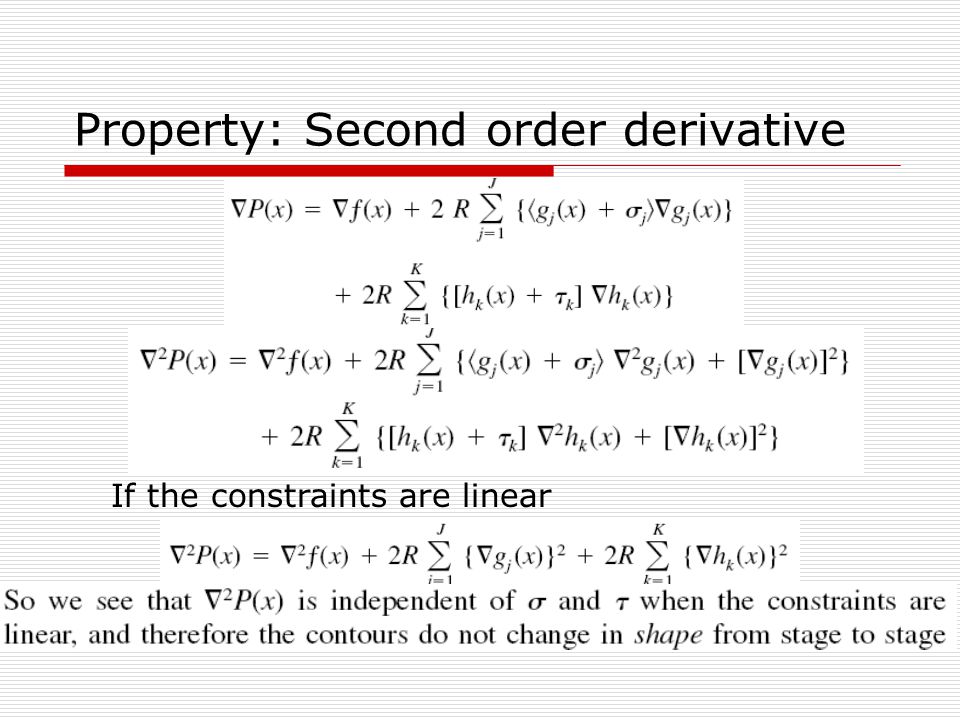

Property: Second order derivative If the constraints are linear
9

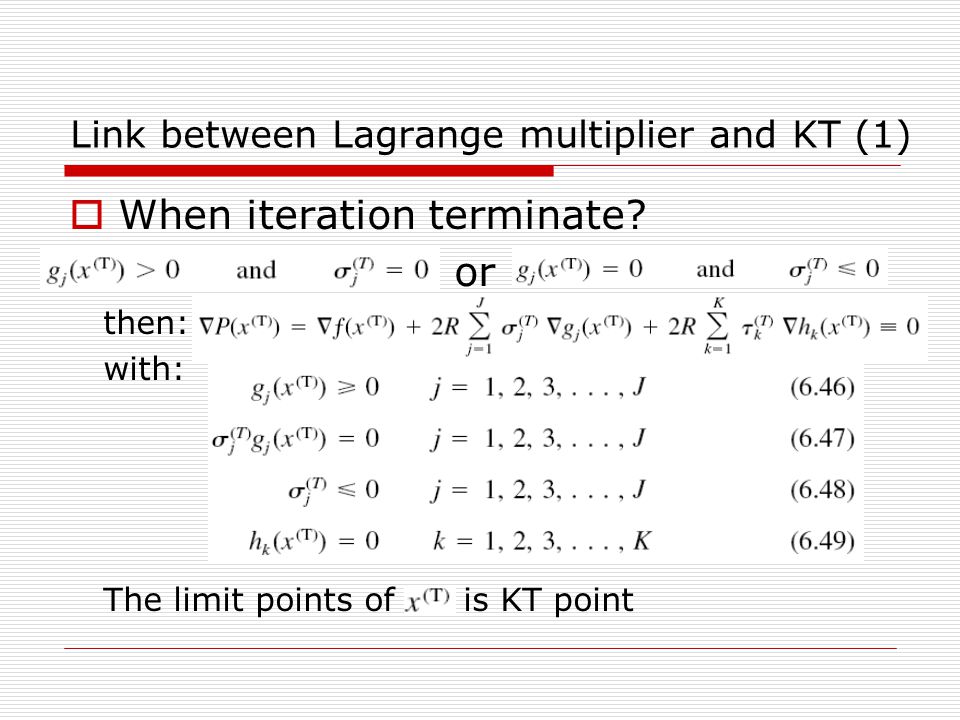

Link between Lagrange multiplier and KT (1) When iteration terminate? or then: with: The limit points of is KT point
10

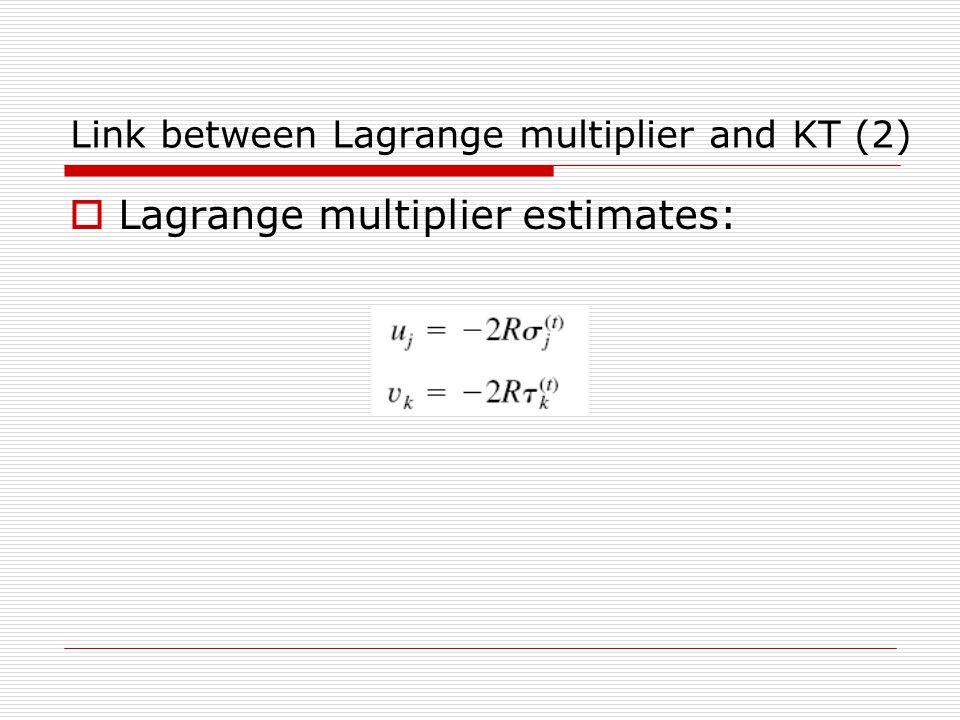

Link between Lagrange multiplier and KT (2) Lagrange multiplier estimates:
11

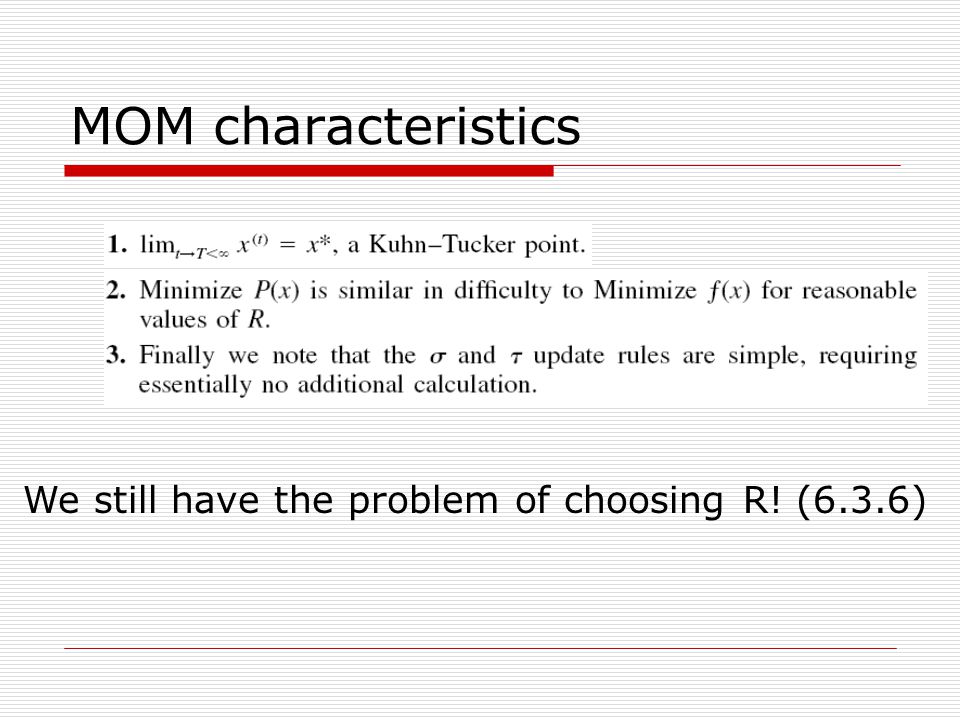

MOM characteristics We still have the problem of choosing R! (6.3.6)
12

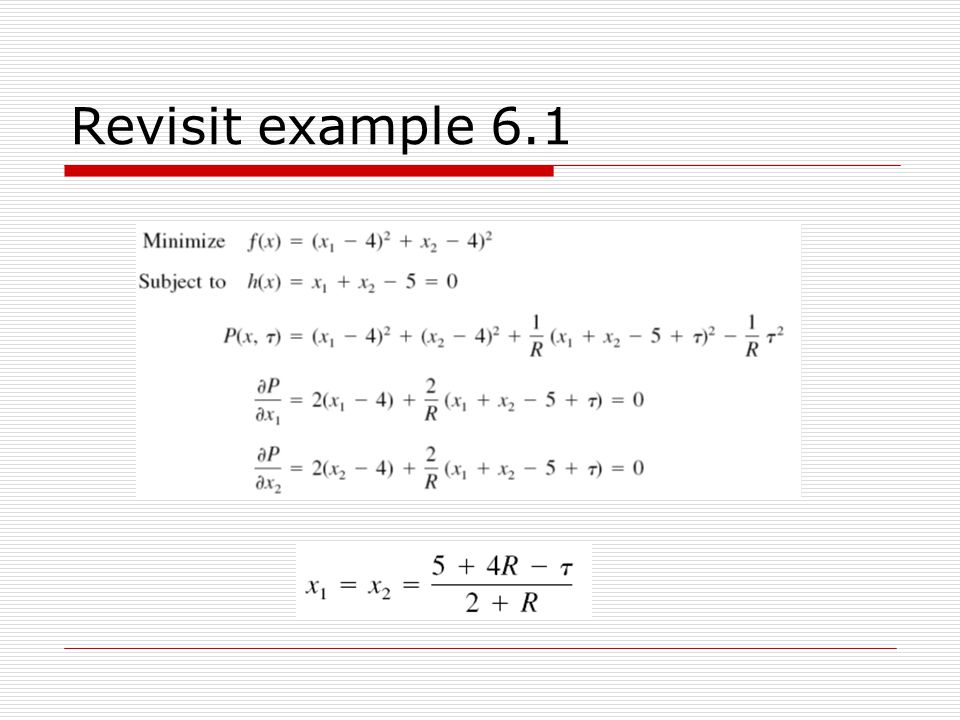

Revisit example 6.1
15

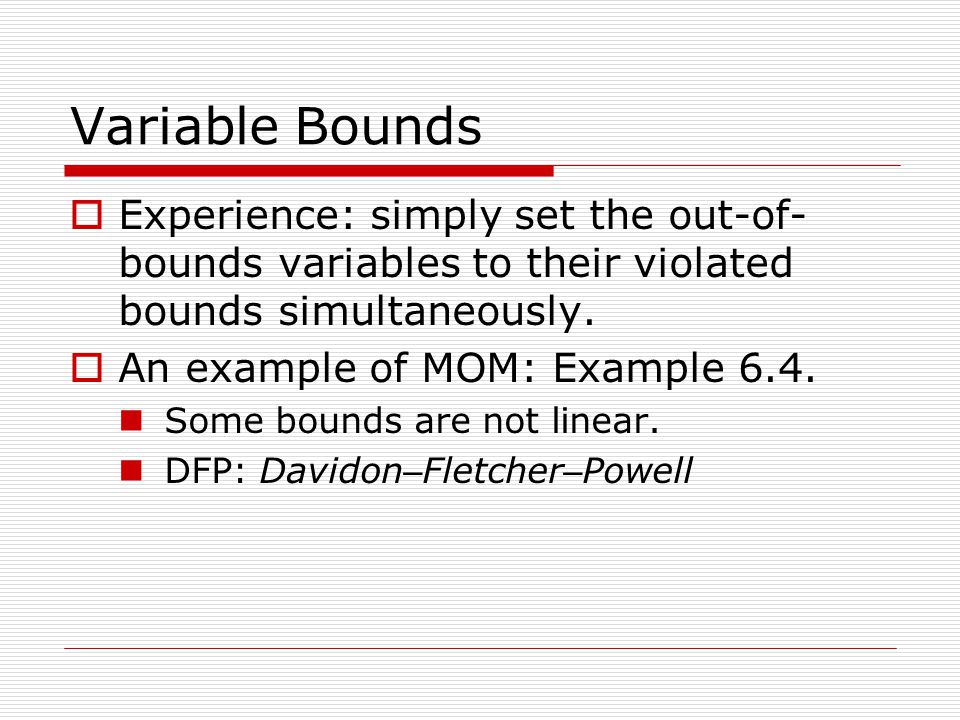

Variable Bounds Experience: simply set the out-of- bounds variables to their violated bounds simultaneously. An example of MOM: Example 6.4. Some bounds are not linear. DFP: Davidon – Fletcher – Powell
