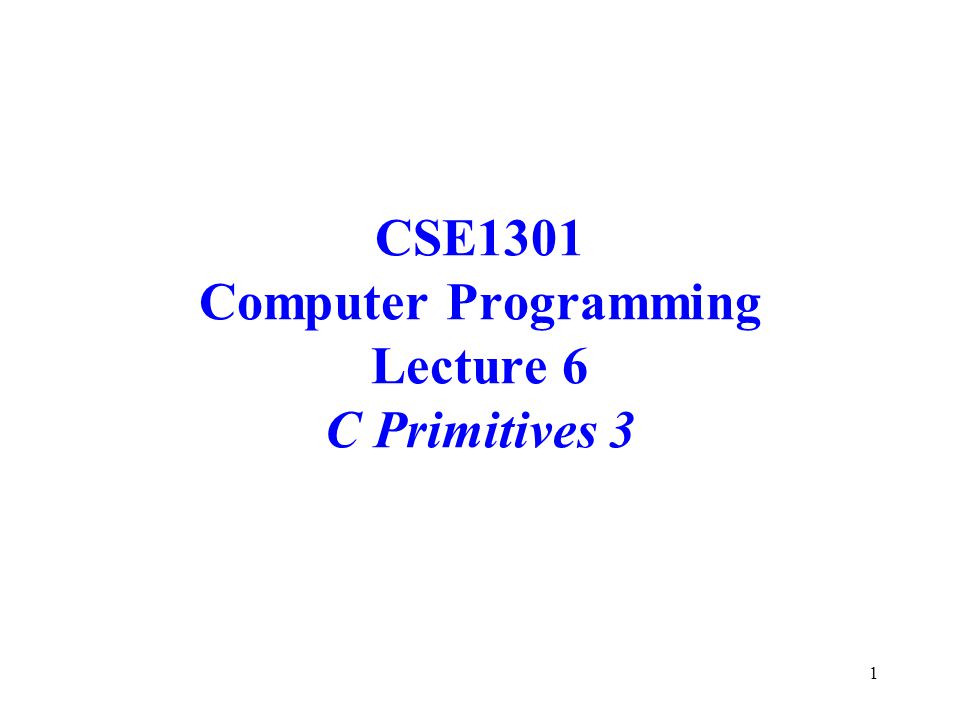

1. 1 CSE1301 Computer Programming Lecture 6 C Primitives 3

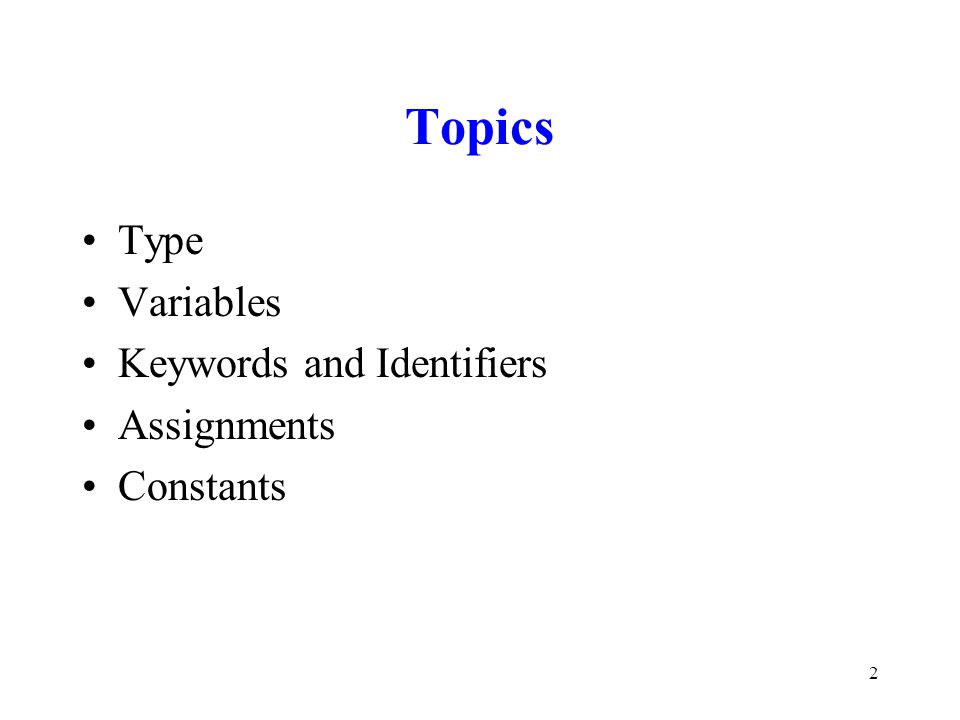

2. 2 Topics Type Variables Keywords and Identifiers Assignments Constants

3. 3 Type The kind of a value is its “type” Not all values are of the same kind –For example: 7 + “cat” makes no sense Value Variable

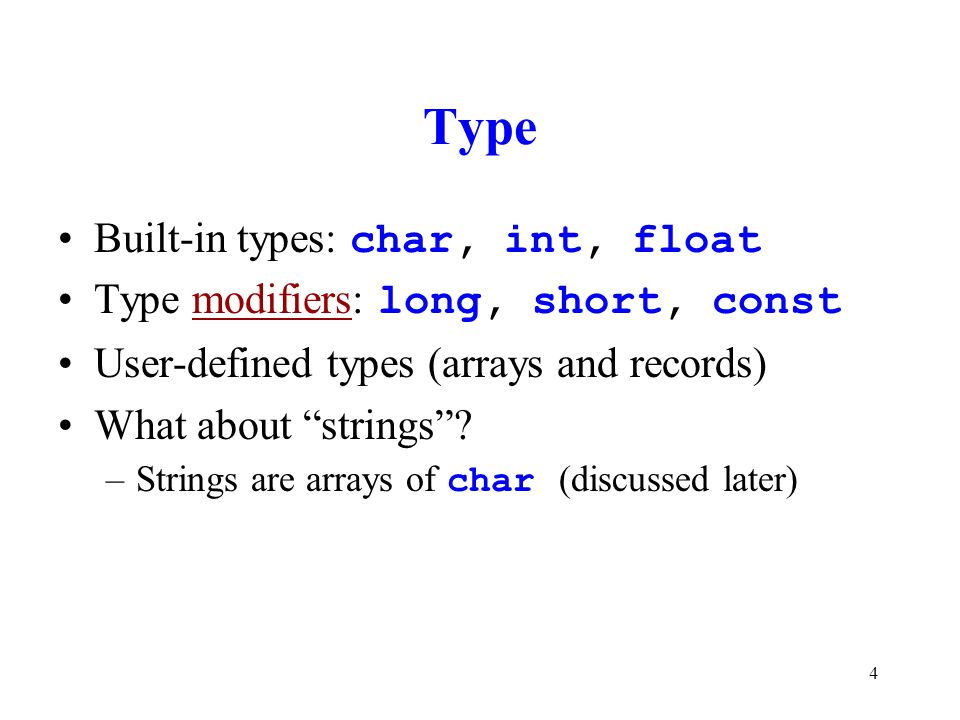

4. 4 Type Built-in types: char, int, float Type modifiers: long, short, const User-defined types (arrays and records) What about “strings”? –Strings are arrays of char (discussed later)

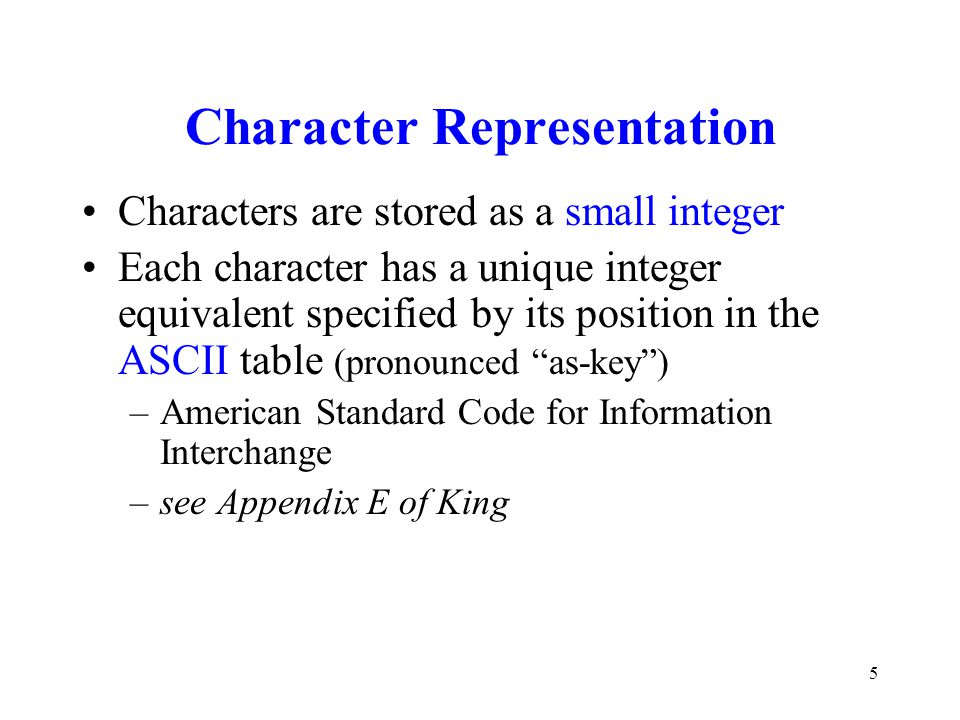

5. 5 Character Representation Characters are stored as a small integer Each character has a unique integer equivalent specified by its position in the ASCII table (pronounced “as-key”) –American Standard Code for Information Interchange –see Appendix E of King

6. 6

7. 7 Character Representation The ASCII values range from 0 to 127 –value 0: special character ’\0’ (a.k.a. NUL character) –value 127: special character –other special characters: ’\n’ ’\t’ ’\’’ ’\\’ etc. –various “extended” sets from 128 to 255

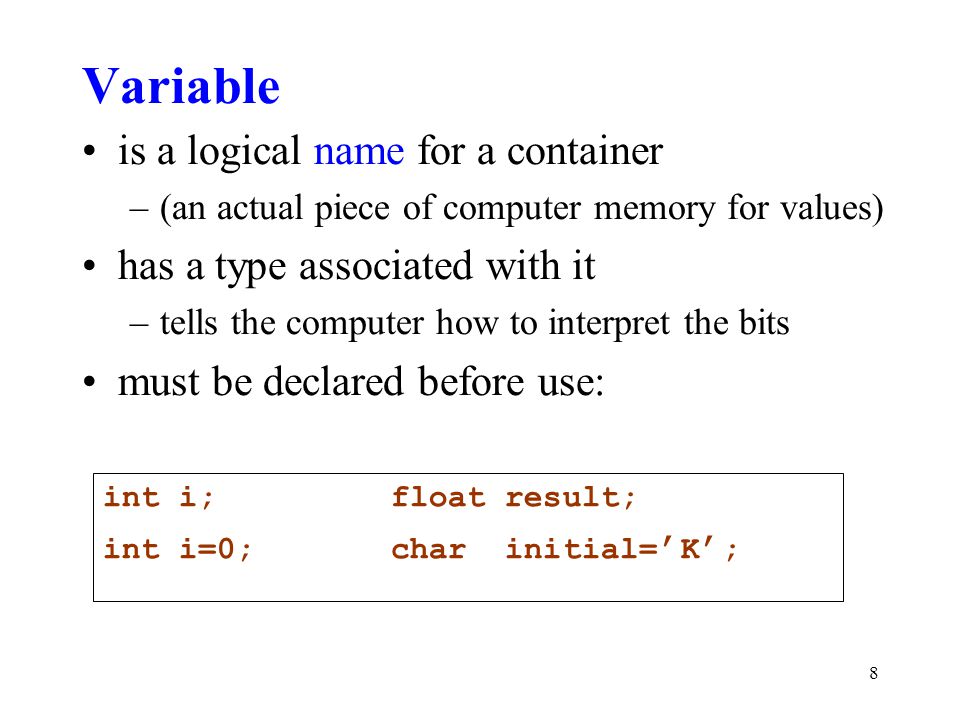

8. 8 Variable is a logical name for a container –(an actual piece of computer memory for values) has a type associated with it –tells the computer how to interpret the bits must be declared before use: int i;float result; int i=0;char initial= ’ K ’ ;

9. 9 Variable Declaration: Examples int myID; myID

10. 10 Variable Declaration: Examples int myID; char myInitial = ’J’; Single “forward quotes” or apostrophe ( ’ ) rather than “back quotes” ( ‘ )

11. 11 Variable Declaration: Examples int myID; char myInitial = ’J’; 01001010 myInitial

12. 12 Variable Declaration: Examples int myID; char myInitial = ’J’; char myInitial = 74 ; 01001010 myInitial

13. 13 Variable Declaration: Examples short int myHeight = 152; /* cm */ int mySalary = 1000000000; long int mySalary = 1000000000; float commission = 0.05; double chanceOfADate = 3e-500;

14. 14 short int myHeight = 152; /* cm */ int mySalary = 1000000000; long int mySalary = 1000000000; float commission = 0.05; double chance_of_a_date = 3e-500; Variable Declaration: Examples “Keywords”

15. 15 Keyword has a special meaning in C is “case-sensitive” cannot be used as variable names Examples: int, char, long, main, float, double, const, while, for, if, else, return, break, case, switch, default, typedef, struct, etc. (see D&D 2/e Appendix A or King page 24)

16. 16 Variable Declaration: Examples short int myHeight = 152; /* cm */ int mySalary = 1000000000; long int mySalary = 1000000000; float commission = 0.05; double chanceOfADate = 3e-500; “Identifiers”

17. 17 Identifier is a series of characters consisting of letters, digits and underscores ( _ ) cannot begin with a digit must not be a keyword is “case-sensitive” Examples: sUmoFA, x1, y2, _my_ID_, Main (careful!)

18. 18 Assignment Puts a specified value into a specified variable Assignment operator: = = ; not to be confused with ==

19. 19 Assignment: Examples float x = 2.5 ; char ch ; int number ; ch = ’\n’ ; number = 4 + 5 ; /* current value of number is 9. */ number = number * 2; /* current value of number is now 18. */

20. 20 Assignment Value must have a type assignable to the variable Value may be automatically converted to fit the new container Example: –various.c

21. 21 #include /* Do various assignment statements */ int main() { int integer; char character; float floatingPoint; integer = 33; character = 33; floatingPoint = 33; integer = 'A'; character = 'A'; floatingPoint = 'A'; integer = 33.33; character = 33.33; floatingPoint = 33.33; integer = floatingPoint; floatingPoint = integer; return 0; } various.c

22. 22 Constants don’t vary may not be assigned to must be initialized const float Pi = 3.14159; const int classSize = 100;

23. 23 Constants: Examples const int myID = 192; myID = 666; /* Error! */ const int passMark = 80; const char pAsSgRaDe = ’P’; const float pi = 3.1415926; const double golden_ratio = 1.61803398874989;

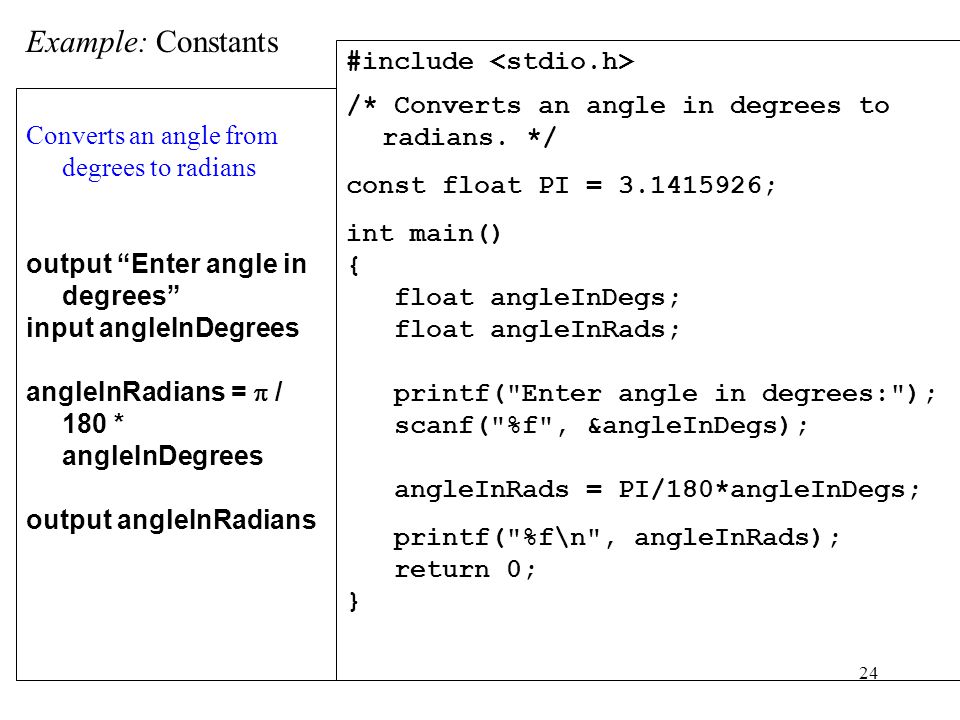

24. 24 Converts an angle from degrees to radians output “Enter angle in degrees” input angleInDegrees angleInRadians =  / 180 * angleInDegrees output angleInRadians #include /* Converts an angle in degrees to radians. */ const float PI = 3.1415926; int main() { float angleInDegs; float angleInRads; printf("Enter angle in degrees:"); scanf("%f", &angleInDegs); angleInRads = PI/180*angleInDegs; printf("%f\n", angleInRads); return 0; } Example: Constants

25. 25 Example: Constants “Global” constant variable “Local” variables more on this later... #include /* Converts an angle in degrees to radians. */ const float PI = 3.1415926; int main() { float angleInDegs; float angleInRads; printf("Enter angle in degrees: "); scanf("%f", &angleInDegs); angleInRads = PI/180*angleInDegs; printf("%f\n", angleInRads); return 0; }

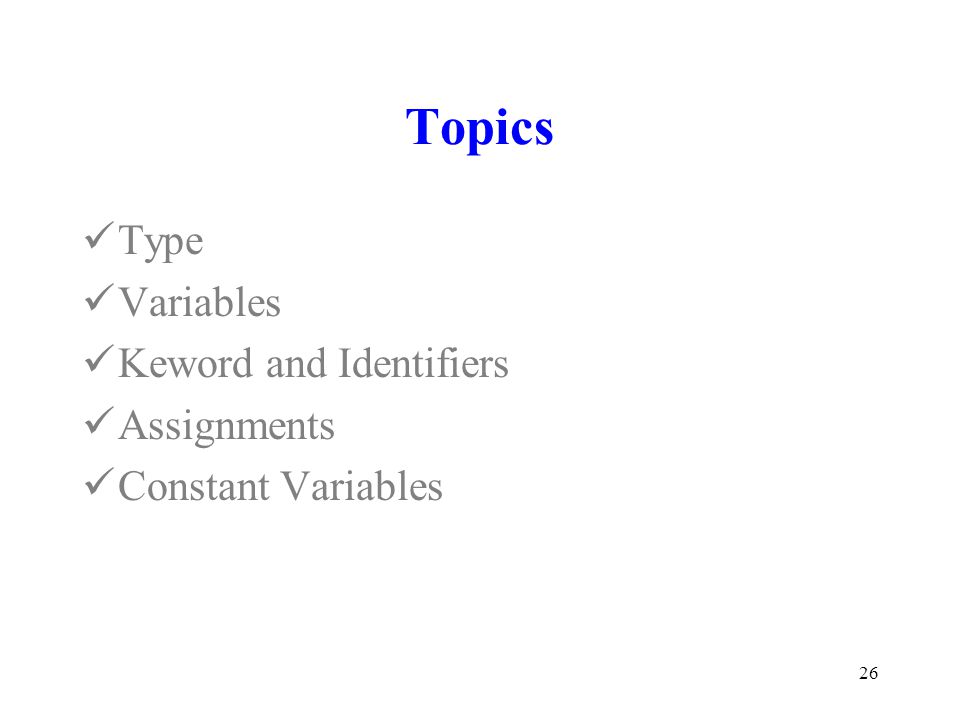

26. 26 Topics Type Variables Keword and Identifiers Assignments Constant Variables

27. 27 Reading King –Chapter 2, 2.4 – 2.8 –Chapter 4, 4.2 – 4.5 –Chpater 7, 7.1 – 7.3 D&D: –Chapter 9, 9.1 – 9.5, 9.11 Kernighan & Ritchie –2.4 – 2.8, 2.10, 2.12
