1. Software Engineering Testing Lecture 4 ASPI8-4 Anders P. Ravn, Feb 2004

2. A Development Process (V-model) Requirements Spec --------------------------- Accpt. Test Report Acceptance Test Spec Architectural Spec ------------------------ Integr. Test Report Integration Test Spec Module Interface Spec Module Spec ------------------- Module Test Report Module Test Spec Program Source text

3. Documentation 1.Requirements Specification 1.4 Acceptance Test Specification 2.Architecture 2.X Module Interfaces 2.T Integration Test Specification 3.Modules 3.X Module Test Specification 4.Implementation 5.Test 5.Y YYY Test Report

4. Testing - objective 1.Execute a program to find errors 2.A good test case has a high probability of finding errors 3.A successful test finds a new error Glen Myers Check Software specs. Test specs. Testing Results Test Reports

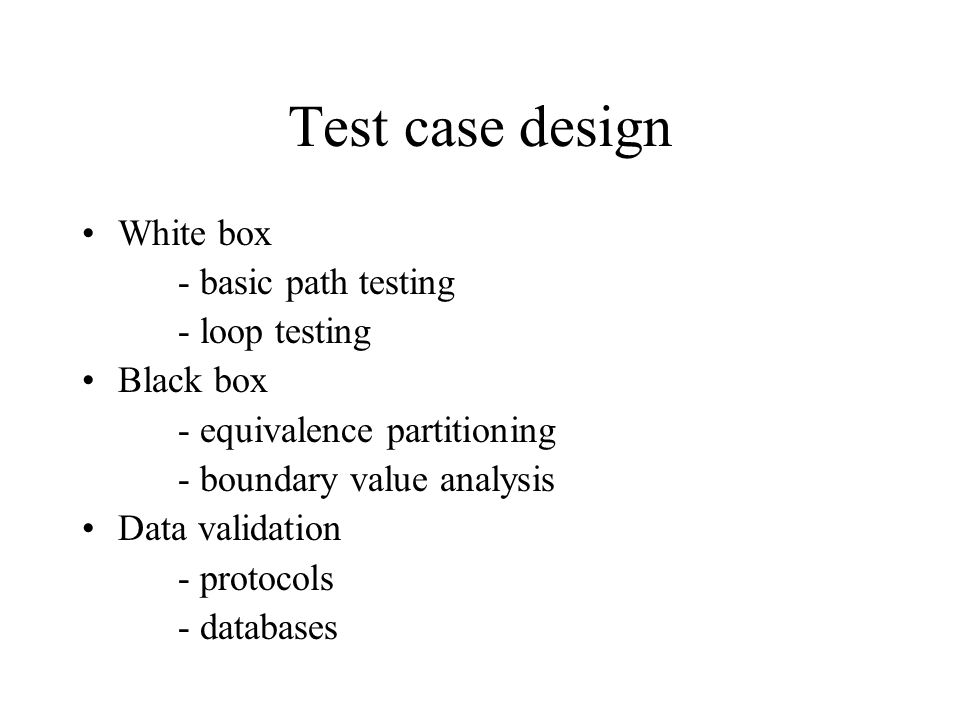

5. Test case design White box - basic path testing - loop testing Black box - equivalence partitioning - boundary value analysis Data validation - protocols - databases

6. Flow graphs – basic paths...... Sequence Decision Iteration

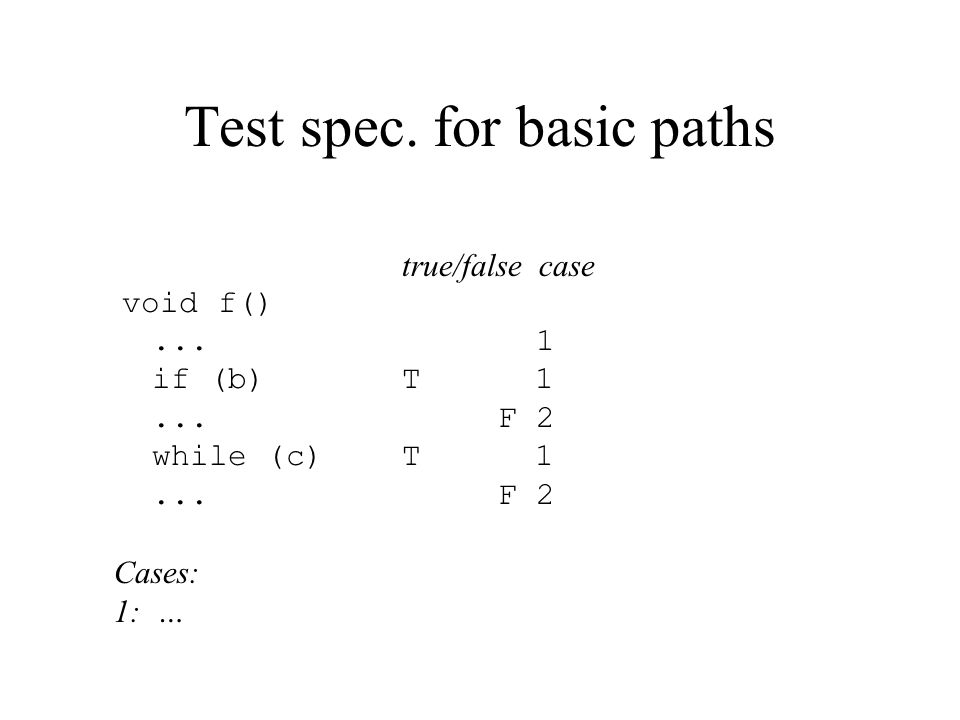

7. Test spec. for basic paths true/false case void f()... 1 if (b)T 1...F 2 while (c) T 1...F 2 Cases: 1: …

8. Composite conditions true false case... if (b && c)TT 1...TF 2...FT 3 if(d || e) TF 1...FT 2 FF 3 Cases: 1: …

9. Loop Testing 1.Skip the loop entirely (basic path) 2.One pass through loop (basic path) 3.max > n>1 passes through the loop 4.max-1 passes through the loop 5.max passes through the loop 6.(max+1 passes through the loop)

10. Nested loops Test inside out – inner loop first

11. Test instrumentation Primitive – debugging: printff(“x: %f\n”,x); or System.out.println(“x: ”+x.toString()); Planned: - instrumentation and logging: class Log { public static boolean test; … public static out(Object o, int line, int val); … if(test) … } … Log.out(this,23,count);

12. Permanent Instrumentation Planned: - instrumentation and logging: class Log { public static boolean test; … public static out(Object o, int line, int val); if (test) … else … // cyclic log } … Log.out(this,23,count);

13. Black box testing Test functional requirements: In-out relation (function) Interface conventions Performance Initialization and termination

14. Domain – a range: 3 classes (test values) Domain – a value: 3 classes Domain – a full interval: 2 classes Equivalence partitioning

15. Domain – a range: Domain – a value: Domain – a half interval: 2 classes Boundary value test

16. Data validation Use formal syntax (BNF) to check - all tokens are recognized - all syntax rules are recognized a ::= b c a ::= b | c - at least one syntax error

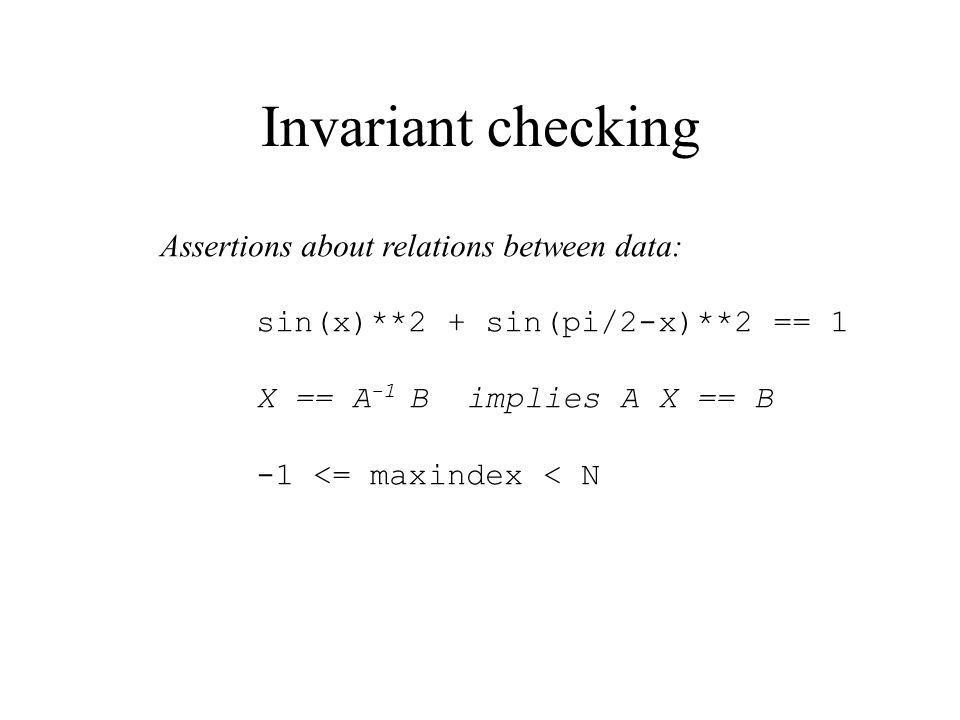

17. Invariant checking Assertions about relations between data: sin(x)**2 + sin(pi/2-x)**2 == 1 X == A -1 B implies A X == B -1 <= maxindex < N

18. Verification Model checking of finite state machines - State invariants always P - Reaching desirable states sometime P - Unreachability of bad states: always not P Verification of general properties

19. Literature R. S. Pressman: Software Engineering – a Practitioner’s Approach. B. Beizer: Software Testing Techniques.
