1. From Memex to Google in 120 minutes Rivka Taub Amit Levin

2. “As We May think” By Vannevar Bush A Paper that talks about the Future

3. Vannevar- Bush: Biography Vannevar-Bush (1890-1974)

4. * Was Born in Massachusetts * Studied engineering in Tuft college * Earned his bachelor and master degree in 1913 * Earned his doctorate of engineering at 1917 Vannevar- Bush: Biography

5. Vannevar-Bush (1890-1974) * In 1919, Bush joined MIT’s electrical engineering department, and had stayed there for 25 years. * Completed the differential analyzer in 1931 * During the 1930s, worked on technology for document retrieval and information organization (used microfilm) * In 1938, designed and built the microfilm rapid selector, rumored to have been used for cryptanalysis during WWII Vannevar- Bush: Biography

6. Vannevar-Bush (1890-1974) Vannevar- Bush: Biography * Was the planner and chairman of a committee that brought together government, military, business and scientists (NDRC) * Supervised the Manhattan project which developed the first atomic bomb * In reply to President Roosevelt’s request for post-war direction, published the articles “As We May Think” (1945) and ”Science the Endless Frontier” (1945) * Served as the chairman of the MIT Corporation * Continued pushing for analog computers, as digital computers rose to prominence

7. Bush’s Vision: By Science For Science Bush’s Vision Organizing the information: by science, for science

8. The Record-Technological Predictions Improved microfilm Storage Acquisition Dry Photography Dictation Technology Head-mounted camera By Science For Science Tech Predictions

9. Technological Predictions- The Record Retrieval Calculation And Automation Machines will manipulate and analyze data Calculuation of “advanced math” and logical thought Microfilm rapid selector By Science For Science Tech Predictions

10. Microfilm Rapid Selector * Microfilm storage was popular during the 1920s and 1930s * The problem: Selecting documents * Option: Punched-cards. BUT they are too slow, and retrieve only the address of the document, not the document itself * Goal: A system that will combine documents and index By Science For Science Tech predictions Microfilm Rapid Selector

11. Microfilm Rapid Selector By Science For Science Tech predictions Microfilm Rapid Selector

12. The Memex “A memex is a device in which an individual stores all his books, records, and communications, and which is mechanized so that it may be consulted with exceeding speed and flexibility. It is an enlarged supplement to his memory” (As We May Think,1945) By Science For science Tech predictions Microfilm Rapid Selector The Memex

13. By Science For science Tech predictions Microfilm Rapid Selector The Memex

14. The Memex - Features * Storage on microfilm * Workstation for stored documents and for projection * An option of adding new images * An option of adding personal comments to a document * Retrieval by document and code By Science For science Tech predictions Microfilm Rapid Selector The Memex

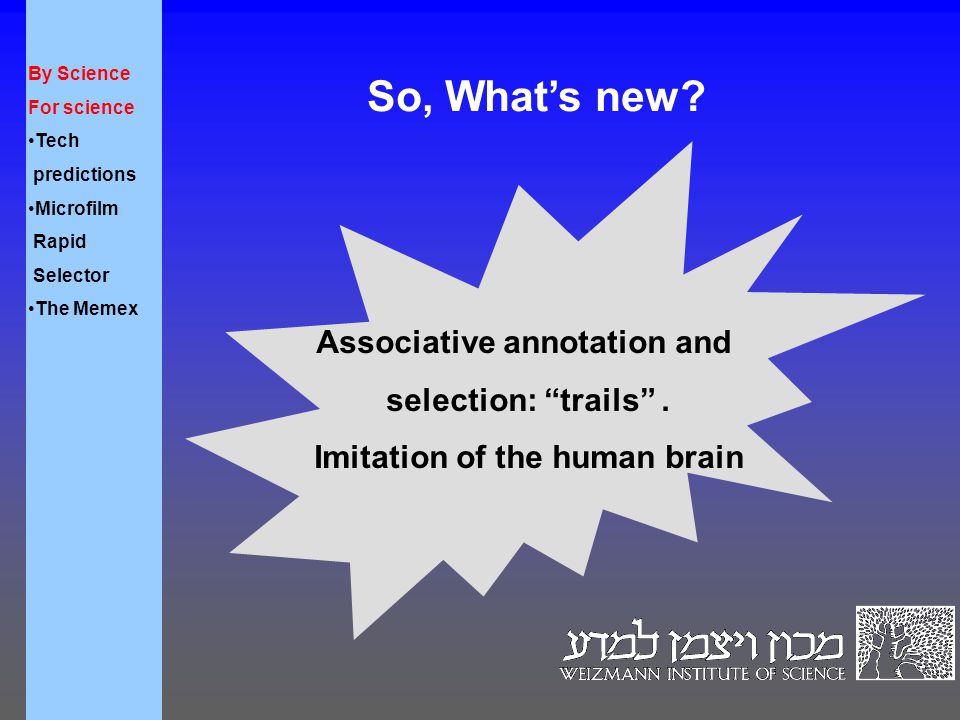

15. So, What’s new? By Science For science Tech predictions Microfilm Rapid Selector The Memex Associative annotation and selection: “trails”. Imitation of the human brain

16. From Memex to Hypertext From Memex to Hypertext “The 1987 Hypertext conference: The influence of Bush’s essay “As We May Think” on the emerging field of hypertext was widely acknowledged” (“From Memex to Hypertext”,Nyce & Kahn, 1991) “To a large part we have MEMEXes on our desks today…a web browser with an editor gives quite a good substitute for a MEMEX.” (Berners-Lee, talk at Bush symposium MIT, 1995)

17. BUT… * Emanuel Goldberg’s statistical machine- a microfilm selector. A US patent was issued in 1931. * Paul Otlet, 1934: “The Trait de Documentation”. Described a workstation for scholars, enables to read, write, and select documents. Scholars can connect documents. Coined the term ‘link’. From Memex to Hypertext Previous Ideas

18. The Memex - Critic * Trails are artificial. Not an objective measure * Every user has his own Memex, no networking * Bush predicted the affect of the record in laboratory research, law, and business accounting and not on the “ordinary person” The Memex Critic

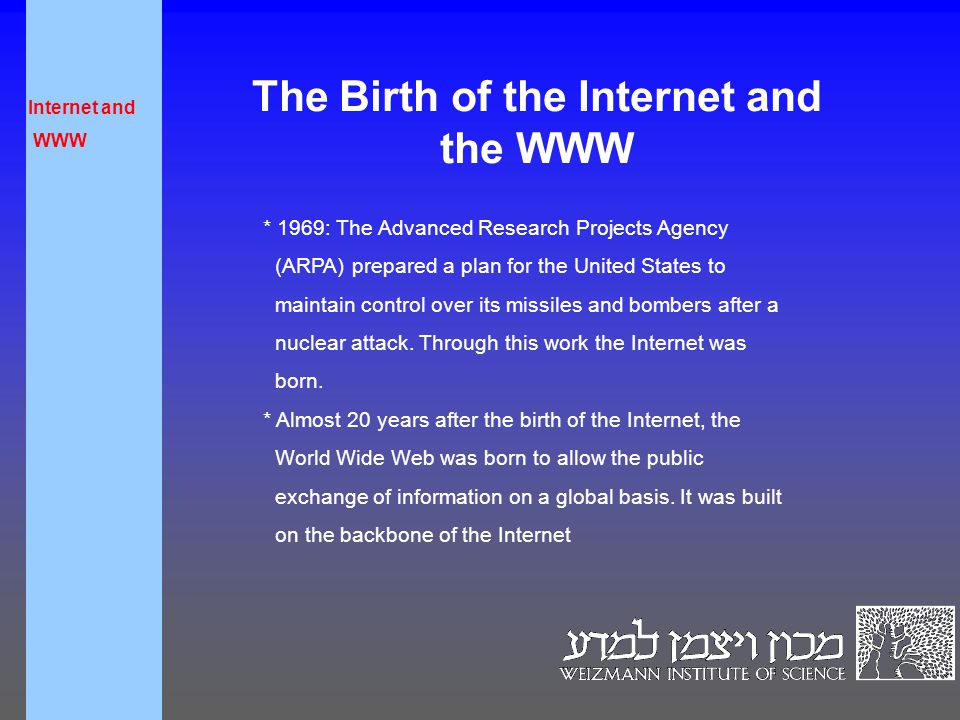

19. Internet and WWW The Birth of the Internet and the WWW * 1969: The Advanced Research Projects Agency (ARPA) prepared a plan for the United States to maintain control over its missiles and bombers after a nuclear attack. Through this work the Internet was born. * Almost 20 years after the birth of the Internet, the World Wide Web was born to allow the public exchange of information on a global basis. It was built on the backbone of the Internet

20. A Brief History of Search Engines WWWW(1993):Indexed titles and URLs. Listed results in the order it found them Excite (1993) :Used statistical analysis of word relationships to make searching more efficient. Yahoo (1994) :A collection of favorite websites, that became a searchable directory. It provided a description with each URL Internet and WWW Search Engines

21. A Brief History of Search Engines WebCrawler (1994): Indexed entire web pages. Was bought in 1997 by Excite Lycos (1994): Provided ranked relevance retrieval and prefix matching Alta Vista (1995): Had nearly unlimited bandwidth (for that time), allowed natural language queries, advanced searching techniques, and allowed users to add or delete their own URL within 24 hours. Internet and WWW Search Engines

22. “The Anatomy of a Large- Scale Hypertextual Web Search Engine” By S. Brin and L. Page

23. * Google was born in Stanford university * Was launched in 1998 * Main goal: High Quality Search Quality = Relevance Google Internet and WWW Search Engines Google

24. Obstacles Web: * Scalability of the web and a growing number of queries * There is no control on what comes in the web- heterogeneous collection Search Engines: * Textual search provides many ‘junk results’ (A search engine that does not return itself to the top of 10 results) * Commercial SE, loss of relevance * Spam Internet and WWW Search Engines Google Obstacles

25. How Google Achieves Quality search It Makes use of the hypertextual information. In particular it utilizes: 1. The link structure of the web to calculate a quality ranking for each web page (PageRank) 2. Anchor text. Associated to the page in points to: Improves search results and causes for results that are not text-based 3. Other features such as proximity and visual presentation details (e.g. font size) Internet and WWW Search Engines Google Obstacles Quality search

26. Google’s Architecture Major functions: 1. Crawling 2. Indexing 3. Ranking 4. Searching Internet and WWW Search Engines Google Obstacles Quality search Architecture

27. Internet and WWW Search Engines Google Obstacles Quality search Architecture

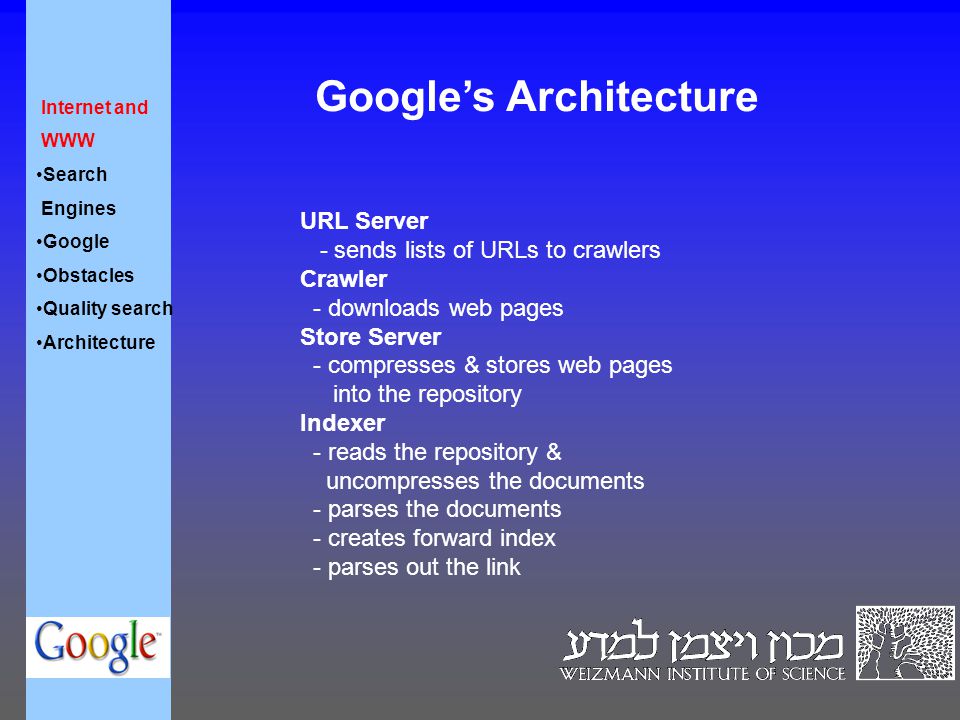

28. Google’s Architecture URL Server - sends lists of URLs to crawlers Crawler - downloads web pages Store Server - compresses & stores web pages into the repository Indexer - reads the repository & uncompresses the documents - parses the documents - creates forward index - parses out the link Internet and WWW Search Engines Google Obstacles Quality search Architecture

29. Google’s Architecture URL Revolver - converts relative URLs from the anchors file, to absolute URLs and then to docIDs - generates a database of links - puts the anchor text into the f. index Sorter - generates the inverted index Searcher - answers queries Internet and WWW Search Engines Google Obstacles Quality search Architecture

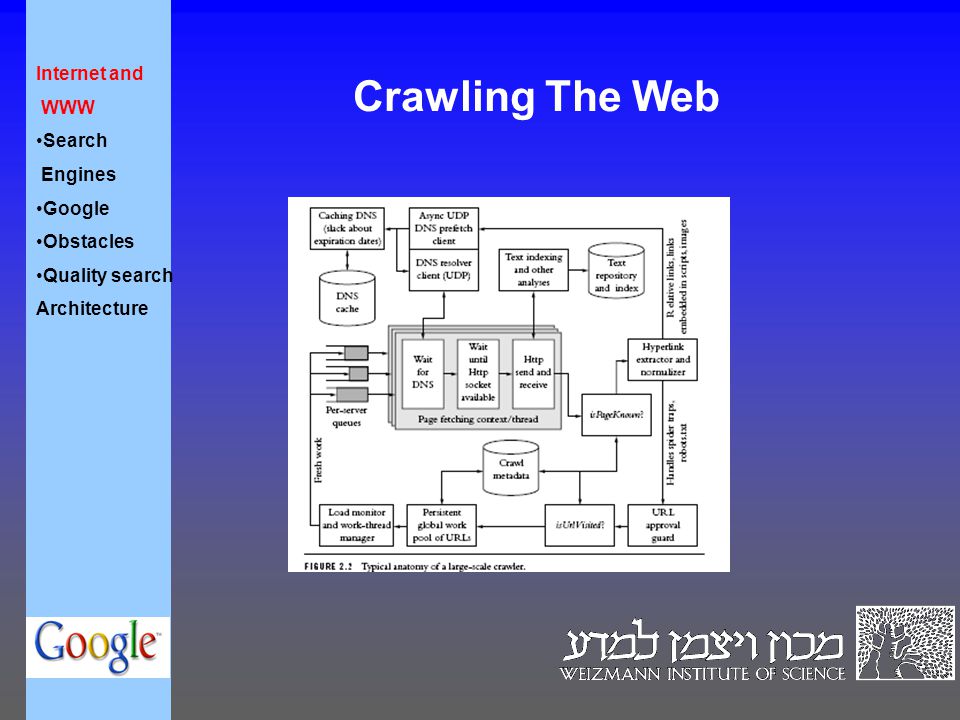

30. Crawling The Web Crawling The Web Internet and WWW Search Engines Google Obstacles Quality search Architecture

31. Searching the Web 1. Parse the query. 2. Convert words into wordIDs. 3. Seek to the start of the doclist in the short barrel for every word. 4. Scan through the doclists until there is a document that matches all the search terms. Internet and WWW Search Engines Google Obstacles Quality search Architecture

32. Searching the Web 5. Compute the rank of that document for the query. 6. If we are in the short barrels and at the end of any doclist, seek to the start of the doclist in the full barrel for every word and go to step 4. 7. If we are not at the end of any doclist go to step 4. 8. Sort the documents that have matched by rank and return the top k. Internet and WWW Search Engines Google Obstacles Quality search Architecture

33. The Ranker * Uses hit lists, anchor text hits and PageRank * Types of hits: title, anchor, URL, plain text small font… Internet and WWW Search Engines Google Obstacles Quality search Architecture

34. The Ranker Vectors: * Type- weight vector, sorted by types for one word query * type-prox weight vector, for multiple words query * Count-weight vector * IR Score is a the dot product of the count weight and the types-weight vectors Internet and WWW Search Engines Google Obstacles Quality search Architecture

35. What we saw so far: Bush : Memex, Hypertext, Goldberg, Otlet Google: Goal, Obstacles, How to achieve quality, architecture
