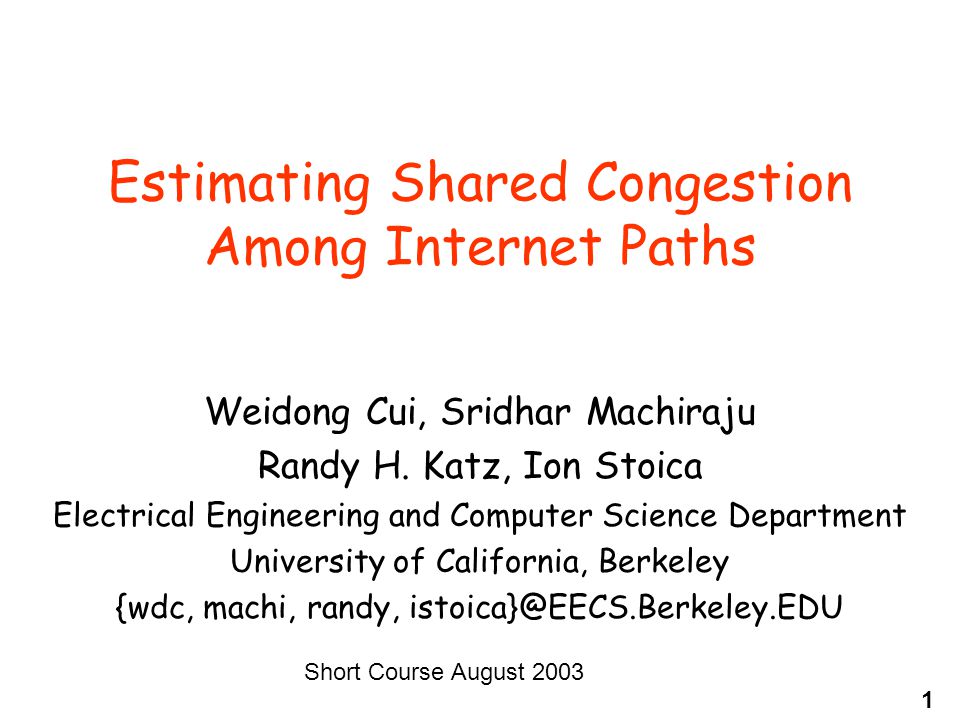

1. 1 Estimating Shared Congestion Among Internet Paths Weidong Cui, Sridhar Machiraju Randy H. Katz, Ion Stoica Electrical Engineering and Computer Science Department University of California, Berkeley {wdc, machi, randy, istoica}@EECS.Berkeley.EDU Short Course August 2003

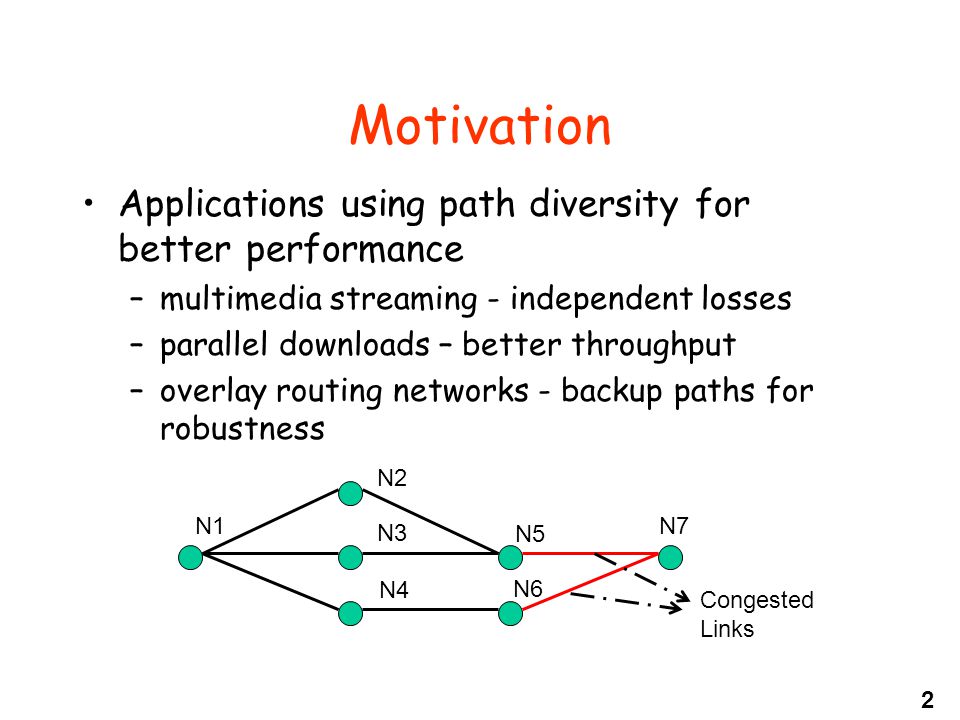

2. 2 Motivation Applications using path diversity for better performance –multimedia streaming - independent losses –parallel downloads – better throughput –overlay routing networks - backup paths for robustness N1 N2 N3 N4 N5 N6 N7 Congested Links

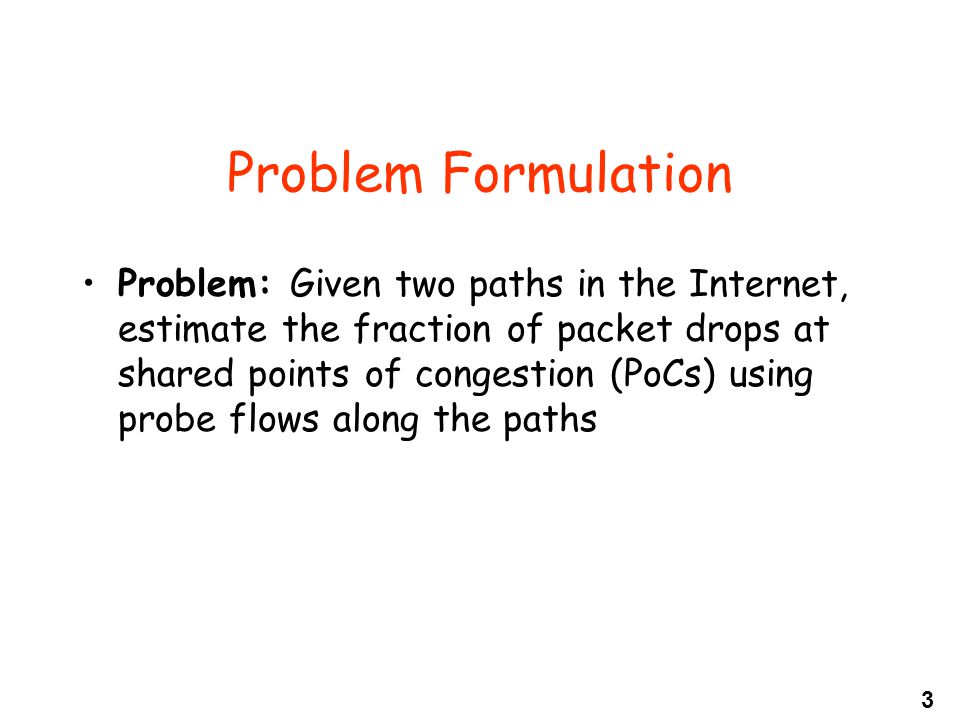

3. 3 Problem Formulation Problem: Given two paths in the Internet, estimate the fraction of packet drops at shared points of congestion (PoCs) using probe flows along the paths

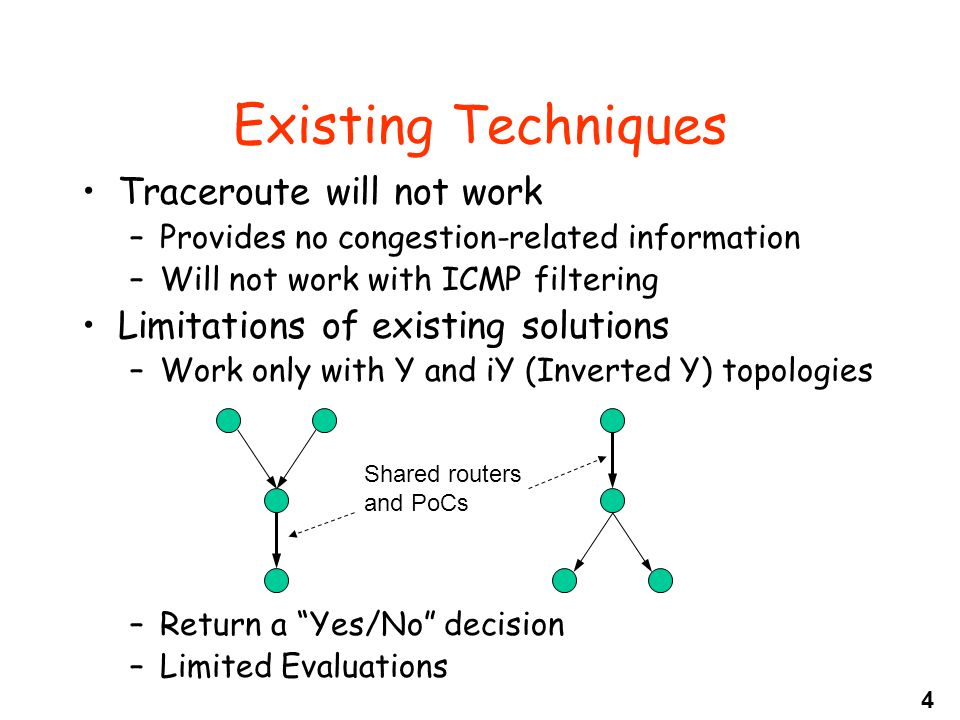

4. 4 Existing Techniques Traceroute will not work –Provides no congestion-related information –Will not work with ICMP filtering Limitations of existing solutions –Work only with Y and iY (Inverted Y) topologies –Return a “Yes/No” decision –Limited Evaluations Shared routers and PoCs

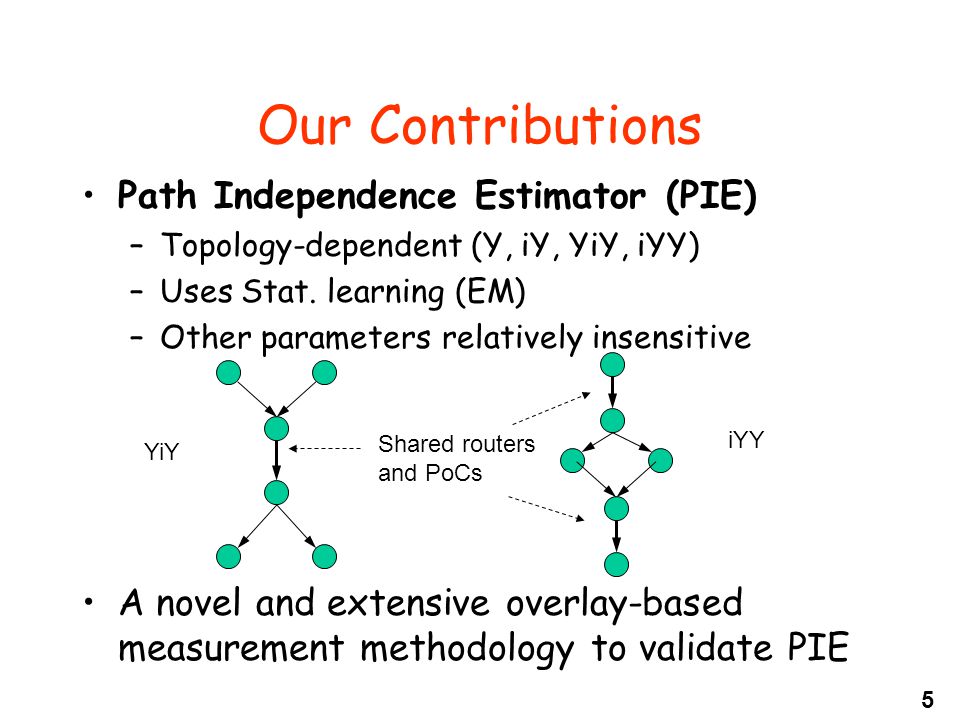

5. 5 Our Contributions Path Independence Estimator (PIE) –Topology-dependent (Y, iY, YiY, iYY) –Uses Stat. learning (EM) –Other parameters relatively insensitive A novel and extensive overlay-based measurement methodology to validate PIE Shared routers and PoCs YiY iYY

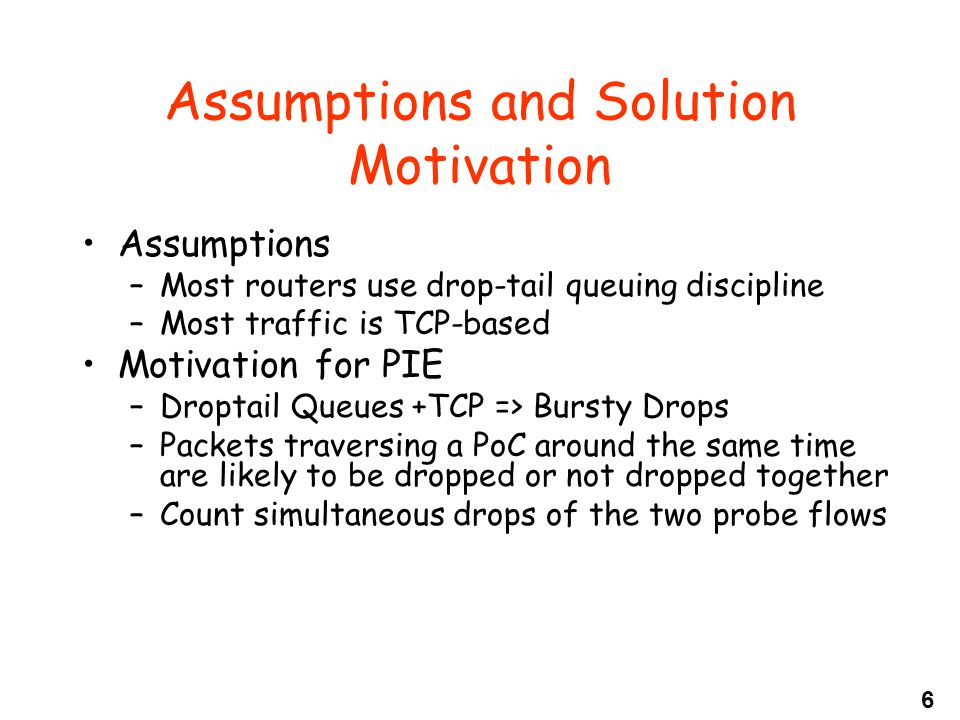

6. 6 Assumptions and Solution Motivation Assumptions –Most routers use drop-tail queuing discipline –Most traffic is TCP-based Motivation for PIE –Droptail Queues +TCP => Bursty Drops –Packets traversing a PoC around the same time are likely to be dropped or not dropped together –Count simultaneous drops of the two probe flows

7. 7 Challenges Determine times of traversal at shared PoCs based on sending/receiving times All packets during a bursty drop period may not be dropped; this could lead to false negatives Long bursts could lead to false positives

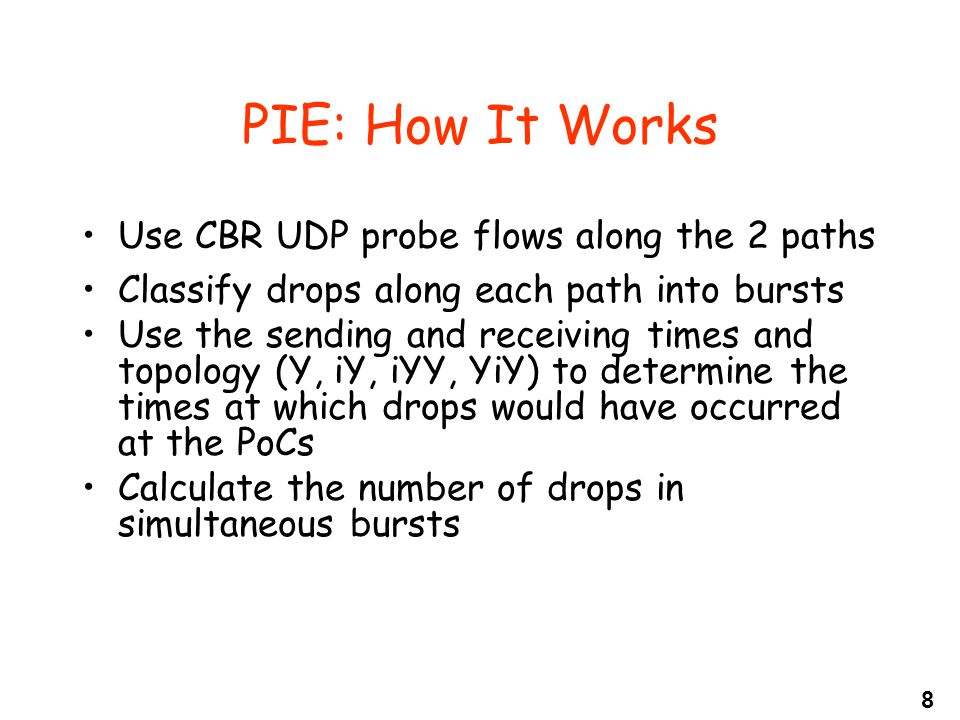

8. 8 PIE: How It Works Use CBR UDP probe flows along the 2 paths Classify drops along each path into bursts Use the sending and receiving times and topology (Y, iY, iYY, YiY) to determine the times at which drops would have occurred at the PoCs Calculate the number of drops in simultaneous bursts

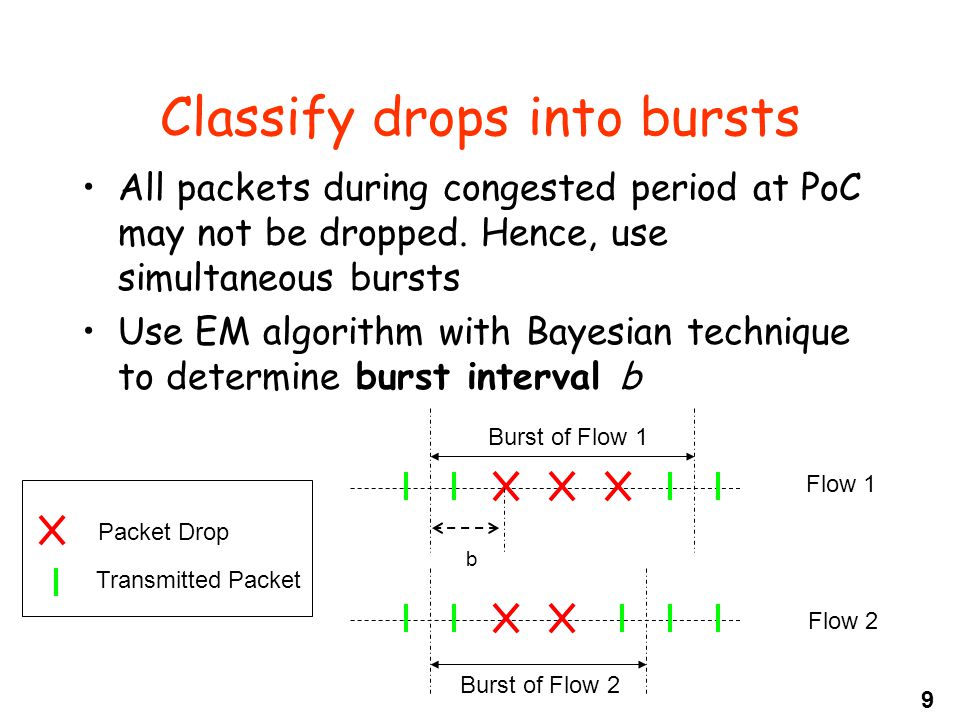

9. 9 Classify drops into bursts All packets during congested period at PoC may not be dropped. Hence, use simultaneous bursts Use EM algorithm with Bayesian technique to determine burst interval b Flow 1 Flow 2 Burst of Flow 1 Burst of Flow 2 Packet Drop Transmitted Packet b

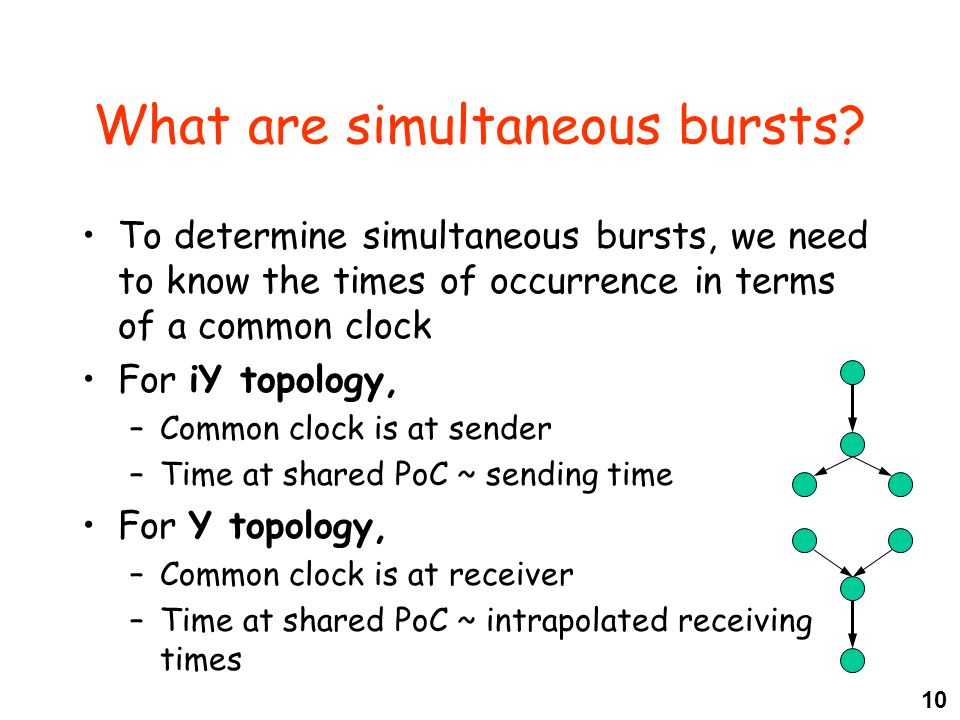

10. 10 What are simultaneous bursts? To determine simultaneous bursts, we need to know the times of occurrence in terms of a common clock For iY topology, –Common clock is at sender –Time at shared PoC ~ sending time For Y topology, –Common clock is at receiver –Time at shared PoC ~ intrapolated receiving times

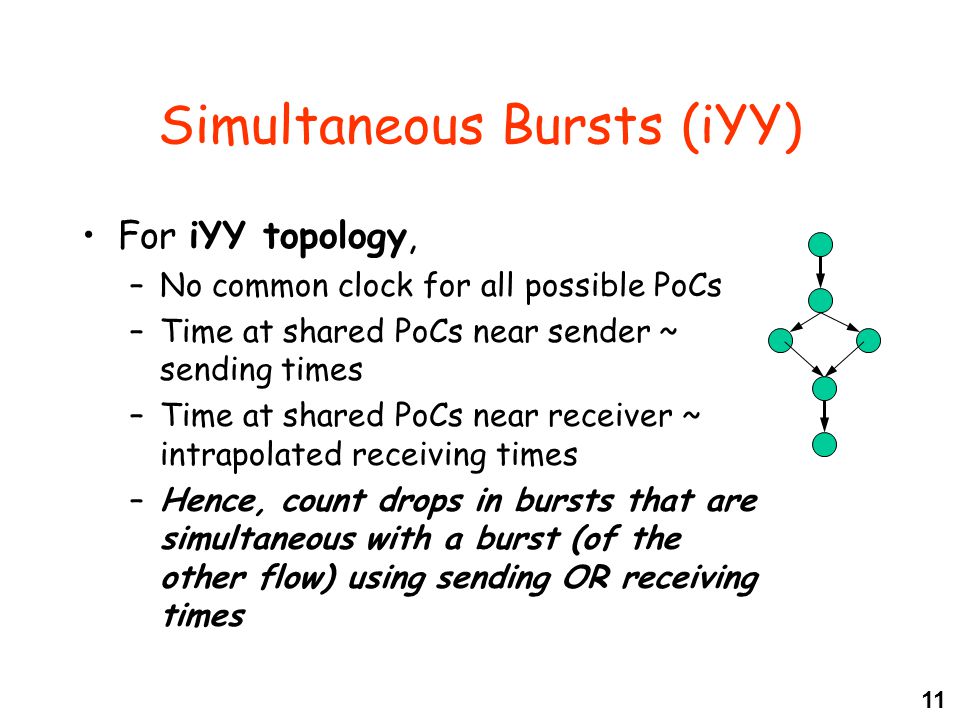

11. 11 Simultaneous Bursts (iYY) For iYY topology, –No common clock for all possible PoCs –Time at shared PoCs near sender ~ sending times –Time at shared PoCs near receiver ~ intrapolated receiving times –Hence, count drops in bursts that are simultaneous with a burst (of the other flow) using sending OR receiving times

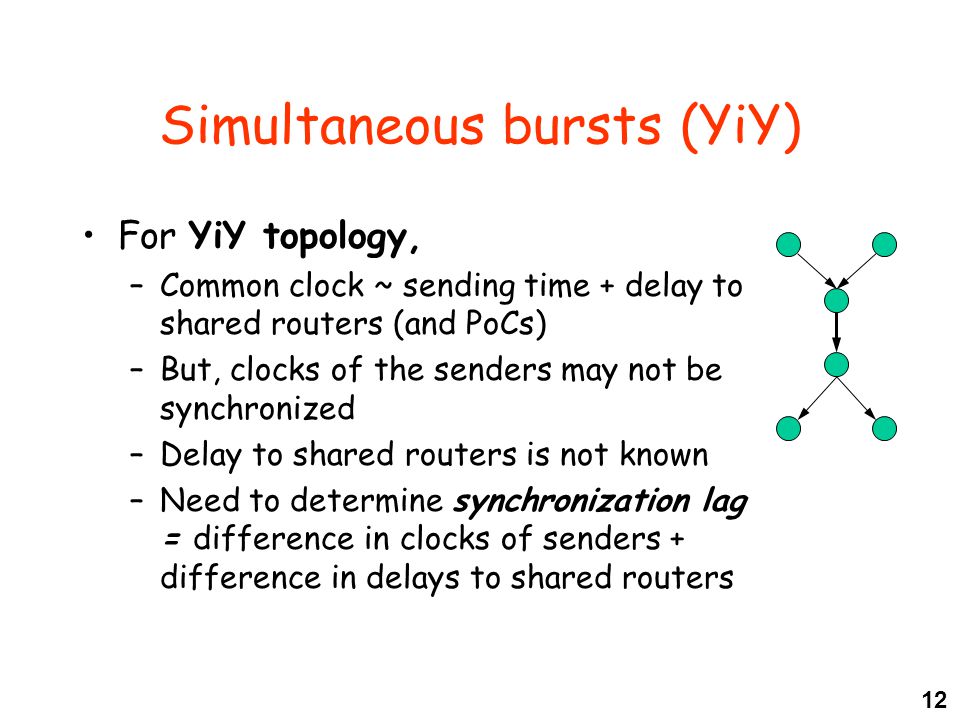

12. 12 Simultaneous bursts (YiY) For YiY topology, –Common clock ~ sending time + delay to shared routers (and PoCs) –But, clocks of the senders may not be synchronized –Delay to shared routers is not known –Need to determine synchronization lag = difference in clocks of senders + difference in delays to shared routers

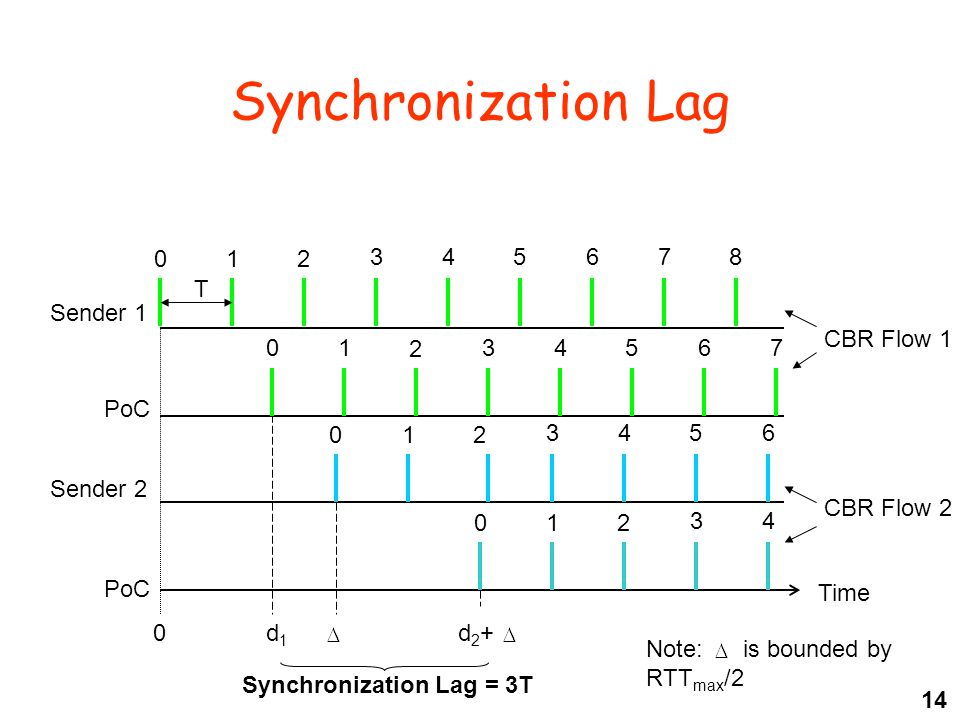

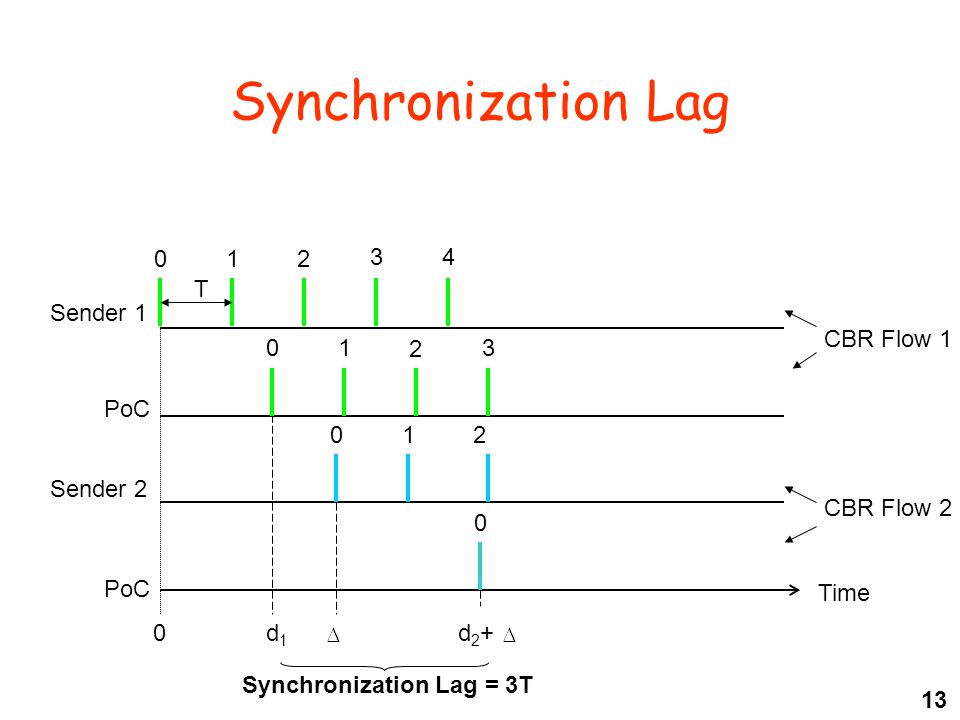

13. 13 Synchronization Lag 0 CBR Flow 1 CBR Flow 2 Time Sender 1 Sender 2 PoC 0 T 1 0 d1d1 2 0 1 2 34 1 d2+d2+ 0 Synchronization Lag = 3T 3 2

14. 14 Synchronization Lag 01 2 34567 0 T d1d1 d2+d2+ CBR Flow 1 CBR Flow 2 Time Sender 1 012 345678 012 3456 Sender 2 012 34 Synchronization Lag = 3T Note: is bounded by RTT max /2 PoC

15. 15 Determine Synclag Using the sending times, construct 2 sequences of 1s(drops) and 0s Synclag is loosely bounded by 2*RTT max For a given synclag, cross-correlation coefficient (CCC) of the 2 (synclag- shifted) sequences can be calculated Try various values of synclag and calculate CCCs Use the synclag that maximizes the CCC of (synclag-shifted) packet drop sequences

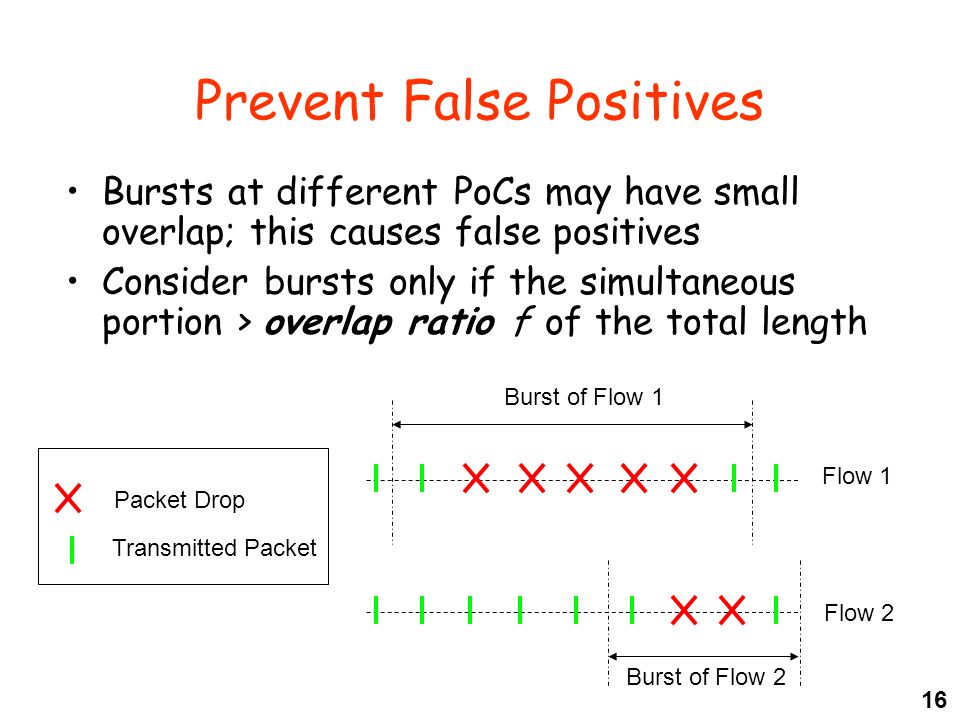

16. 16 Prevent False Positives Bursts at different PoCs may have small overlap; this causes false positives Consider bursts only if the simultaneous portion > overlap ratio f of the total length Flow 1 Flow 2 Burst of Flow 1 Burst of Flow 2 Packet Drop Transmitted Packet

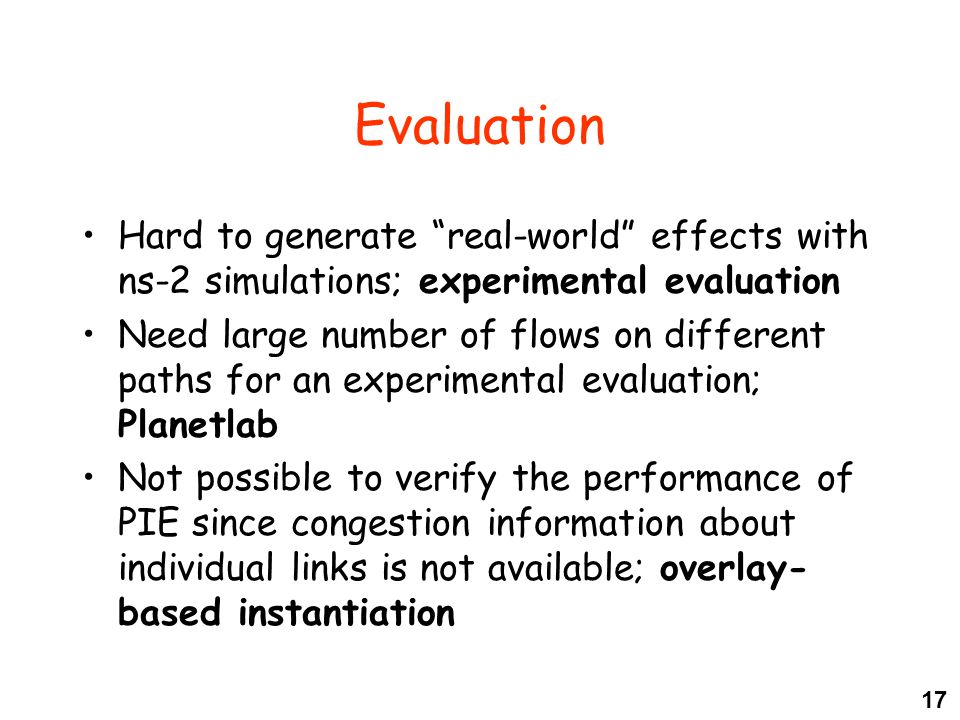

17. 17 Evaluation Hard to generate “real-world” effects with ns-2 simulations; experimental evaluation Need large number of flows on different paths for an experimental evaluation; Planetlab Not possible to verify the performance of PIE since congestion information about individual links is not available; overlay- based instantiation

18. 18 Overlay-based Instantiations Goal: Need 2 paths with shared and non-shared sub-paths Each path consists of a sequence of shared and non-shared sub-paths Instantiate the first and last node of each sub-path with an overlay router S1 S2 R1 R2 M1 M2 Overlay Node

19. 19 Overlay Instantiations (contd.) All PoCs on shared overlay hop are shared But, converse may not be true! 2 overlay hops from/to the same node could share a few IP routers Drops on ambiguous (overlay) hops may be shared Overlay Node Ambiguous Hops

20. 20 Overlay Instantiations (contd.) Bounds on fraction of drops at shared PoCs –Lower bound: d3/(d1+d2+d3+d4) –Upper bound: (d2+d3+d4)/(d1+d2+d3+d4) Also, use experiments in which there are few drops on the ambiguous overlay hops S1 S2 R1 R2 M1M2 d2 d3 d4 d1 N1 N2

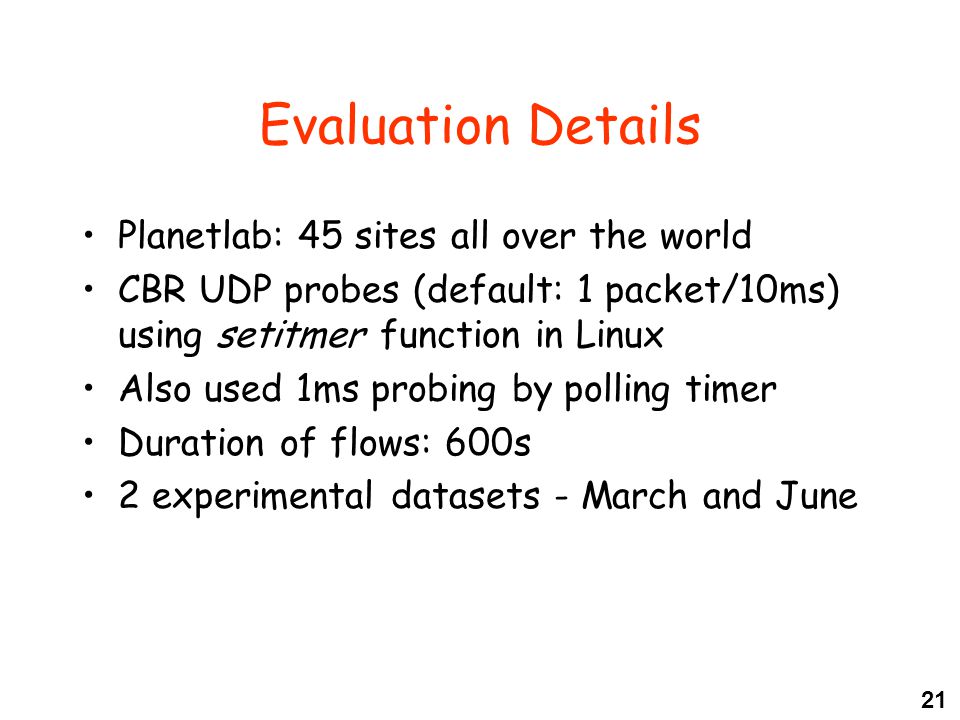

21. 21 Evaluation Details Planetlab: 45 sites all over the world CBR UDP probes (default: 1 packet/10ms) using setitmer function in Linux Also used 1ms probing by polling timer Duration of flows: 600s 2 experimental datasets - March and June

22. 22 Instantiations used 4 Overlay topologies 2 IP level topologies YiYYiY Internet I topology II topology

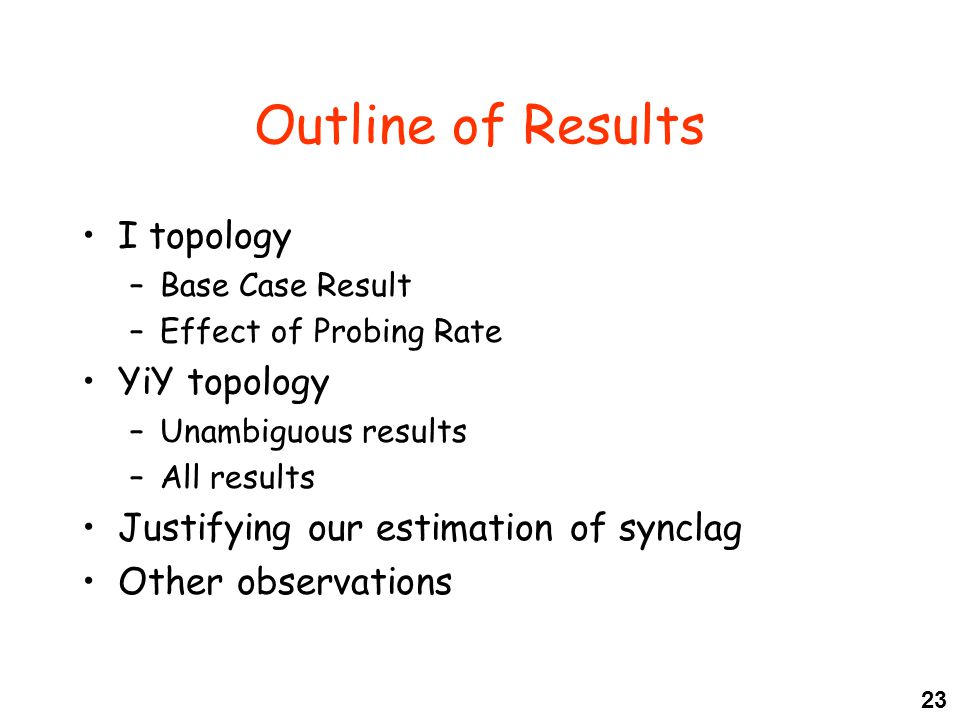

23. 23 Outline of Results I topology –Base Case Result –Effect of Probing Rate YiY topology –Unambiguous results –All results Justifying our estimation of synclag Other observations

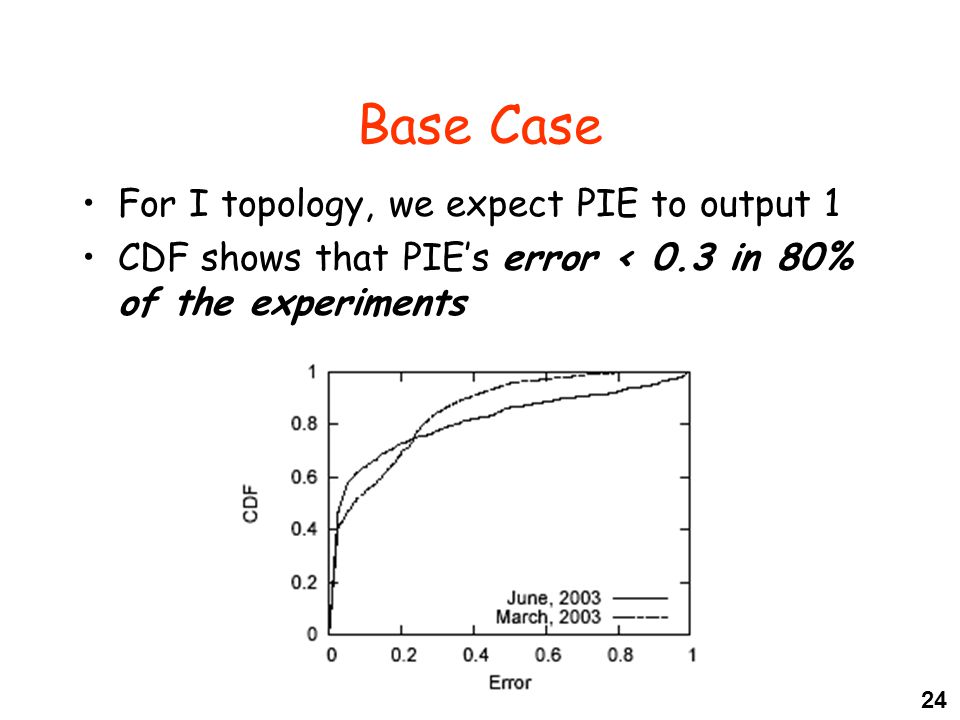

24. 24 Base Case For I topology, we expect PIE to output 1 CDF shows that PIE’s error < 0.3 in 80% of the experiments

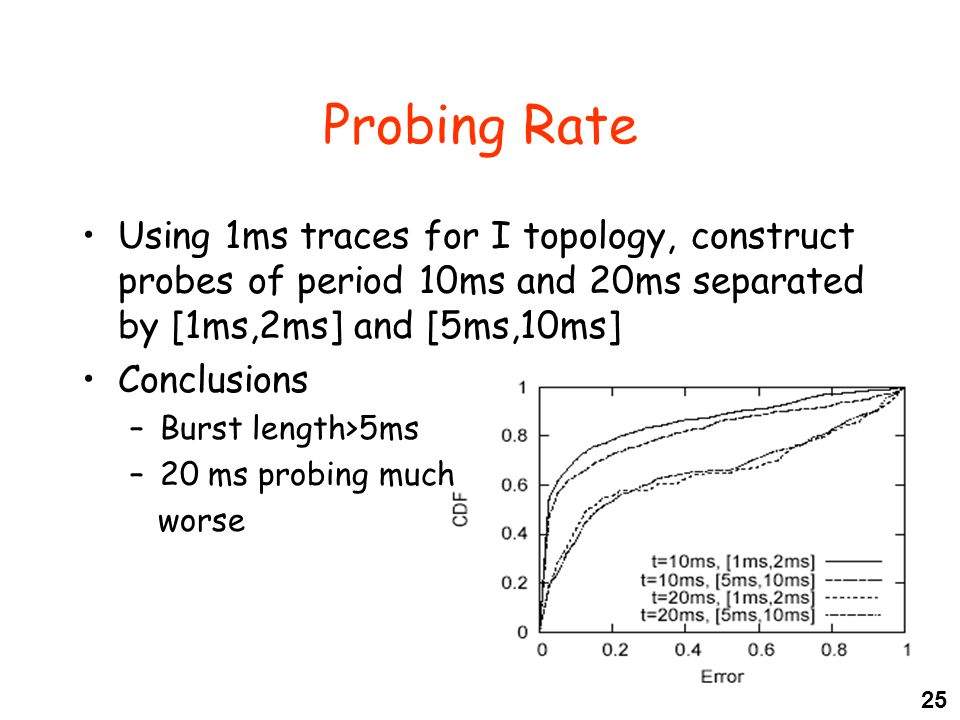

25. 25 Probing Rate Using 1ms traces for I topology, construct probes of period 10ms and 20ms separated by [1ms,2ms] and [5ms,10ms] Conclusions –Burst length>5ms –20 ms probing much worse

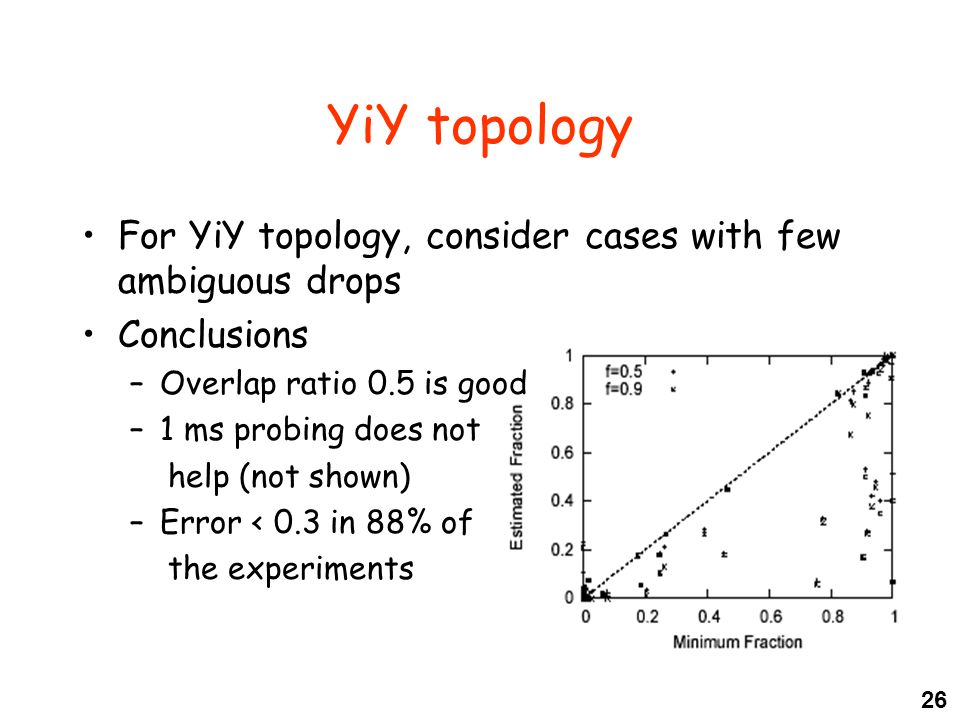

26. 26 YiY topology For YiY topology, consider cases with few ambiguous drops Conclusions –Overlap ratio 0.5 is good –1 ms probing does not help (not shown) –Error < 0.3 in 88% of the experiments

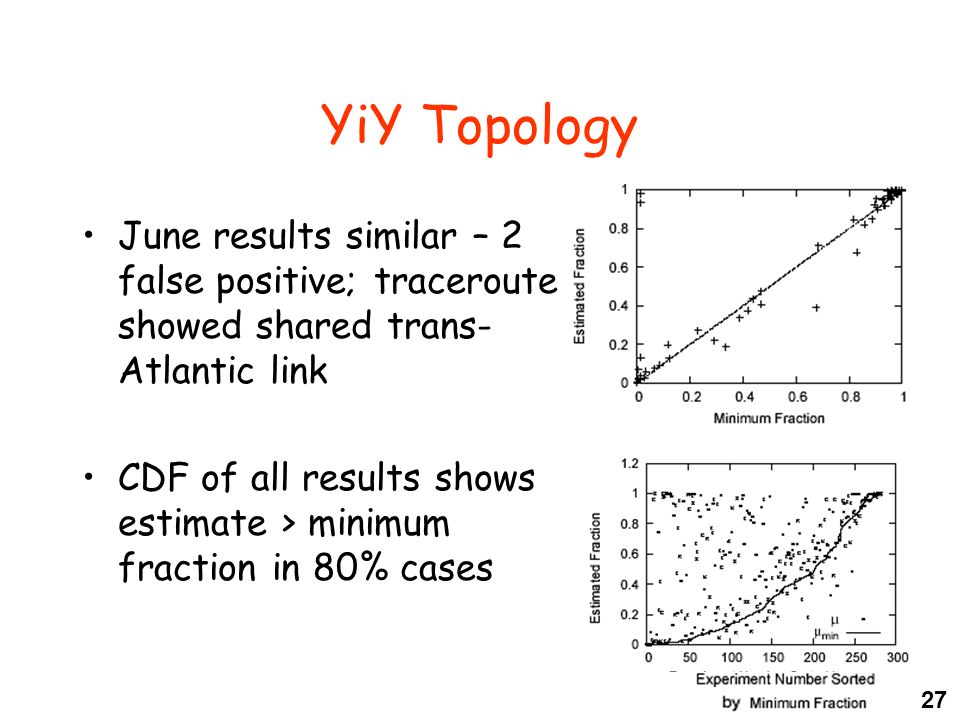

27. 27 YiY Topology June results similar – 2 false positive; traceroute showed shared trans- Atlantic link CDF of all results shows estimate > minimum fraction in 80% cases

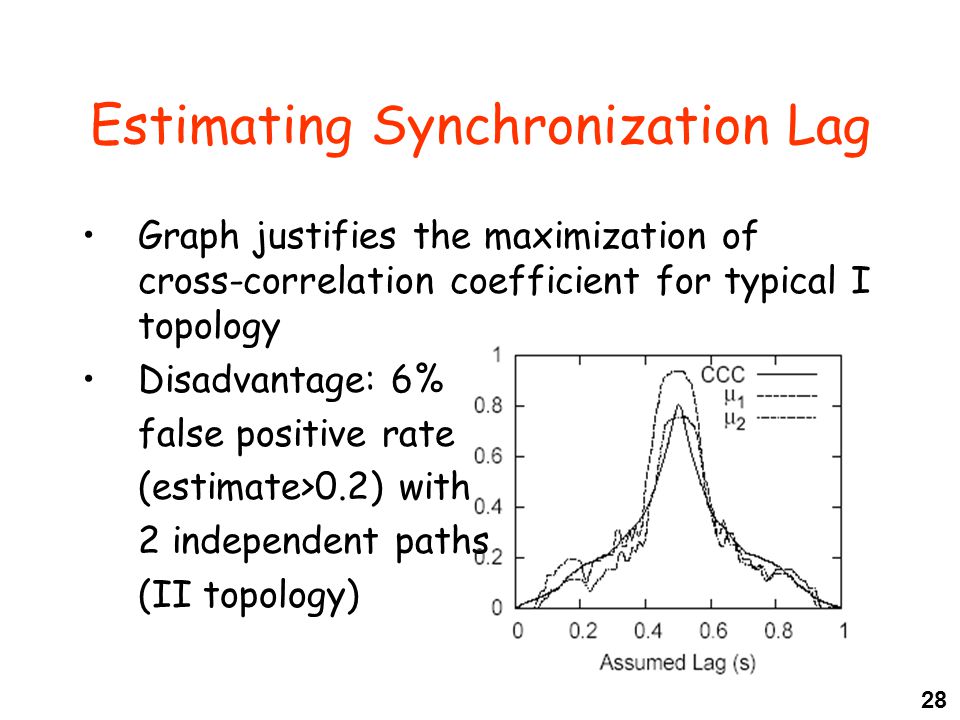

28. 28 Estimating Synchronization Lag Graph justifies the maximization of cross-correlation coefficient for typical I topology Disadvantage: 6% false positive rate (estimate>0.2) with 2 independent paths (II topology)

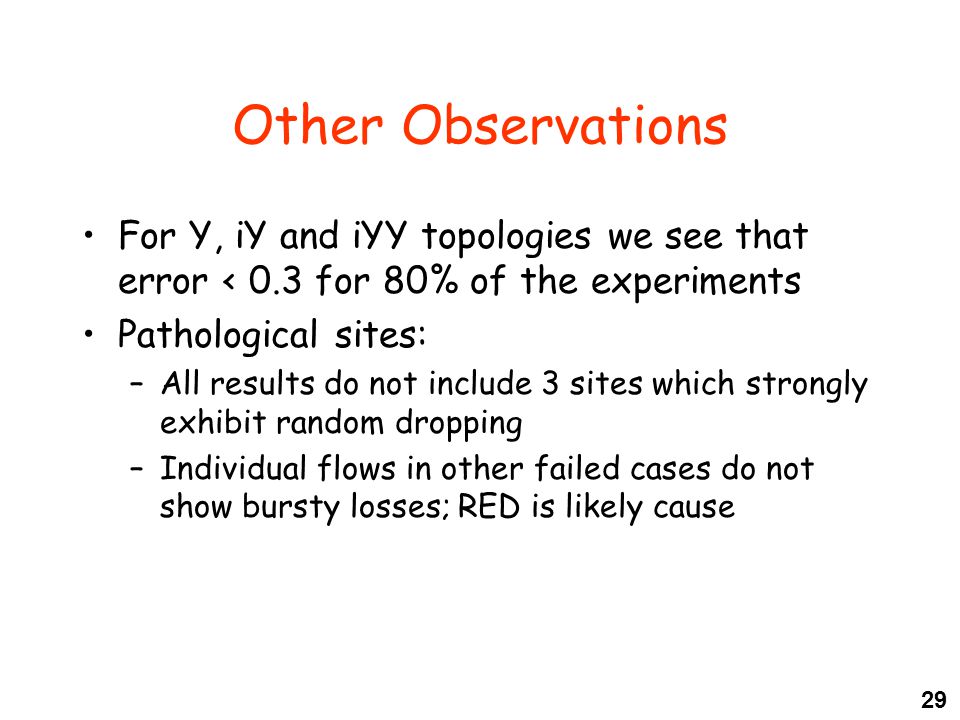

29. 29 Other Observations For Y, iY and iYY topologies we see that error < 0.3 for 80% of the experiments Pathological sites: –All results do not include 3 sites which strongly exhibit random dropping –Individual flows in other failed cases do not show bursty losses; RED is likely cause

30. 30 Conclusions PIE provides an estimate within 0.3 for 80% of the cases for each of Y, iY, YiY, iYY topologies Failed cases likely due to RED Bursts are normally longer than 10ms; 10ms probing seems optimal (4 KBps overhead) Synclag estimation by maximizing CCC is mostly justified

31. 31 Future Work Can we reduce the probing rate? How can we adapt PIE to work with passive (maybe TCP-based) probes Issues with RED: –How can we infer a RED-based PoC –How can we estimate shared RED-based PoCs
