1. WEB SECURITY

2. WEB ATTACK TYPES

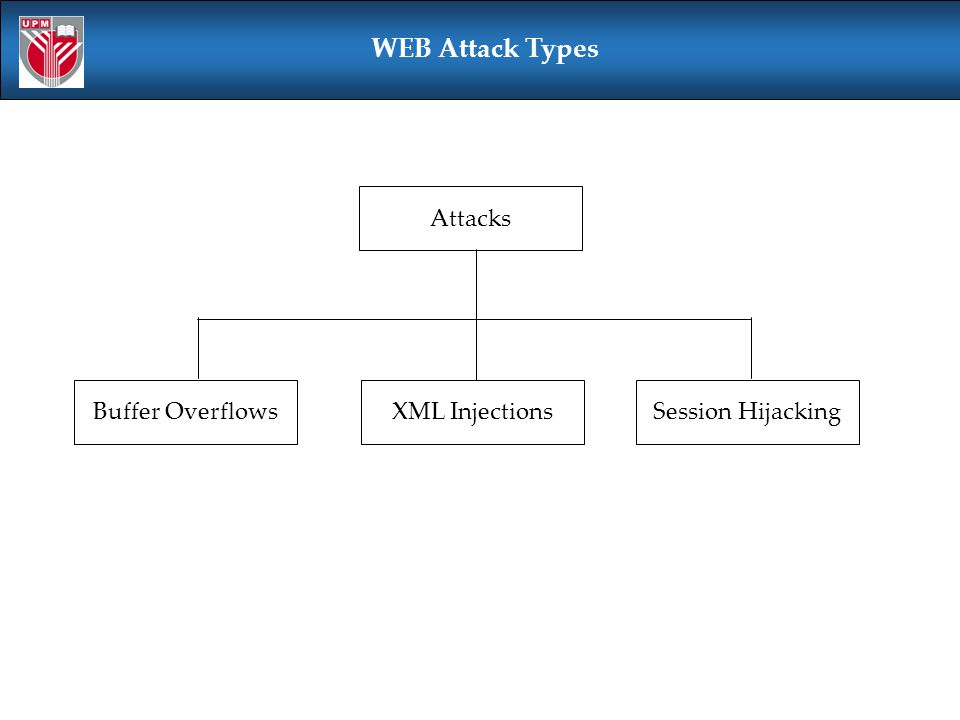

3. Buffer OverflowsXML InjectionsSession Hijacking Attacks WEB Attack Types

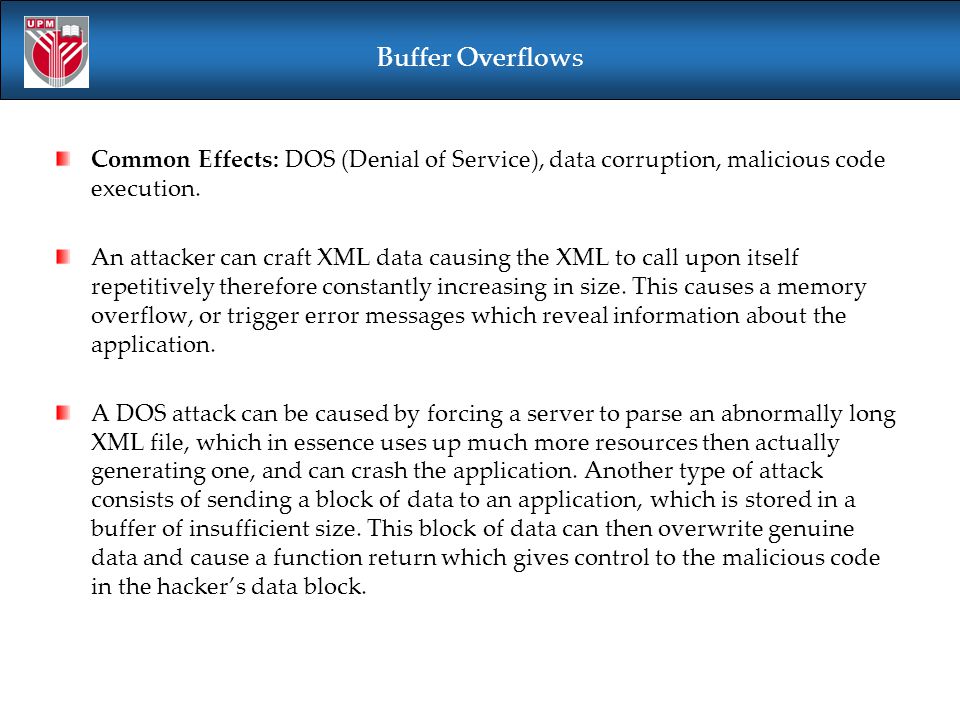

4. Common Effects: DOS (Denial of Service), data corruption, malicious code execution. An attacker can craft XML data causing the XML to call upon itself repetitively therefore constantly increasing in size. This causes a memory overflow, or trigger error messages which reveal information about the application. A DOS attack can be caused by forcing a server to parse an abnormally long XML file, which in essence uses up much more resources then actually generating one, and can crash the application. Another type of attack consists of sending a block of data to an application, which is stored in a buffer of insufficient size. This block of data can then overwrite genuine data and cause a function return which gives control to the malicious code in the hacker’s data block. Buffer Overflows

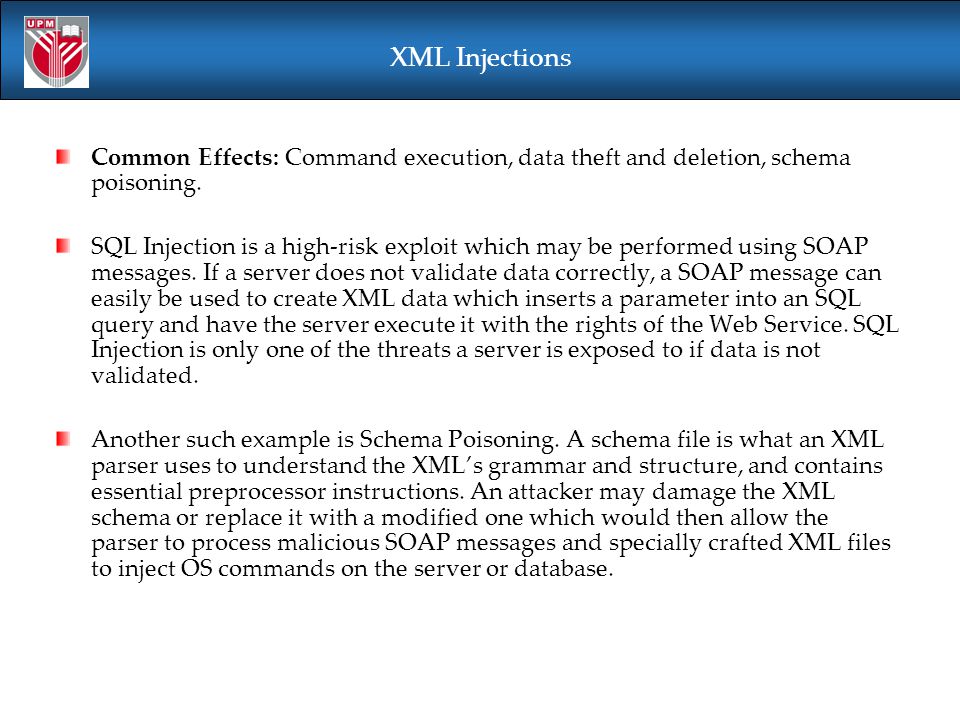

5. Common Effects: Command execution, data theft and deletion, schema poisoning. SQL Injection is a high-risk exploit which may be performed using SOAP messages. If a server does not validate data correctly, a SOAP message can easily be used to create XML data which inserts a parameter into an SQL query and have the server execute it with the rights of the Web Service. SQL Injection is only one of the threats a server is exposed to if data is not validated. Another such example is Schema Poisoning. A schema file is what an XML parser uses to understand the XML’s grammar and structure, and contains essential preprocessor instructions. An attacker may damage the XML schema or replace it with a modified one which would then allow the parser to process malicious SOAP messages and specially crafted XML files to inject OS commands on the server or database. XML Injections

6. Common Effects: Obtaining of user privileges within application or network. Session hijacking involves gaining illegal control of a legal user’s session state. It occurs when an attacker steals a valid session ID (valid session cookie), and uses it to gain that particular user’s privileges in the application. By intercepting or sniffing SOAP messages, an attacker can hijack a user’s session in the same ways as with normal web application attacks, however once a hacker is authenticated as a valid user he may perform more dangerous activities. Session Hijacking

7. WEB SECURITY

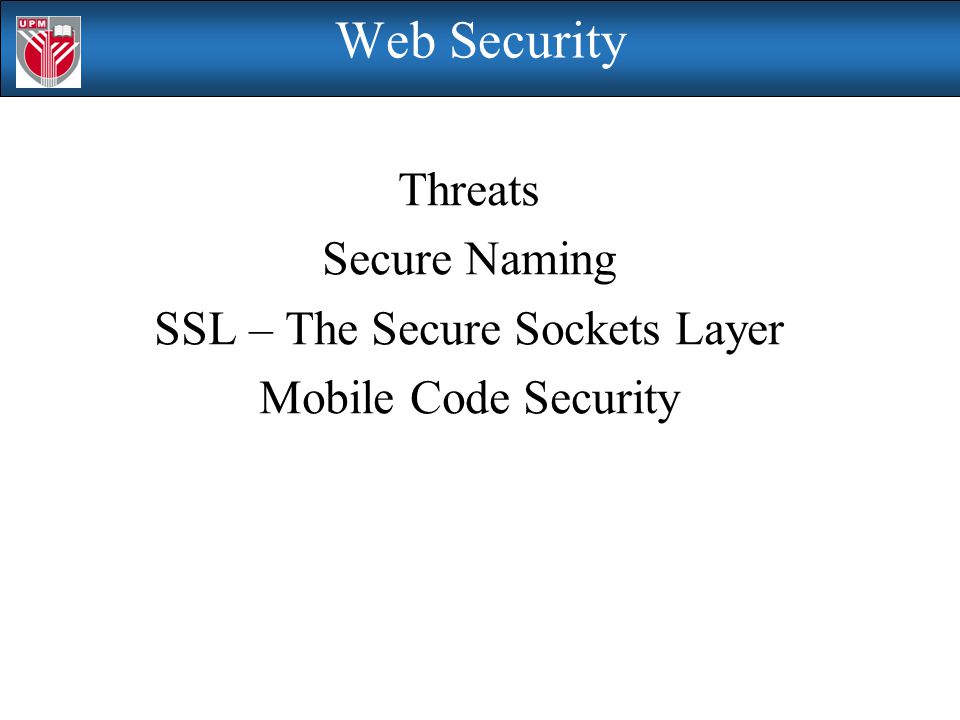

8. Web Security Threats Secure Naming SSL – The Secure Sockets Layer Mobile Code Security

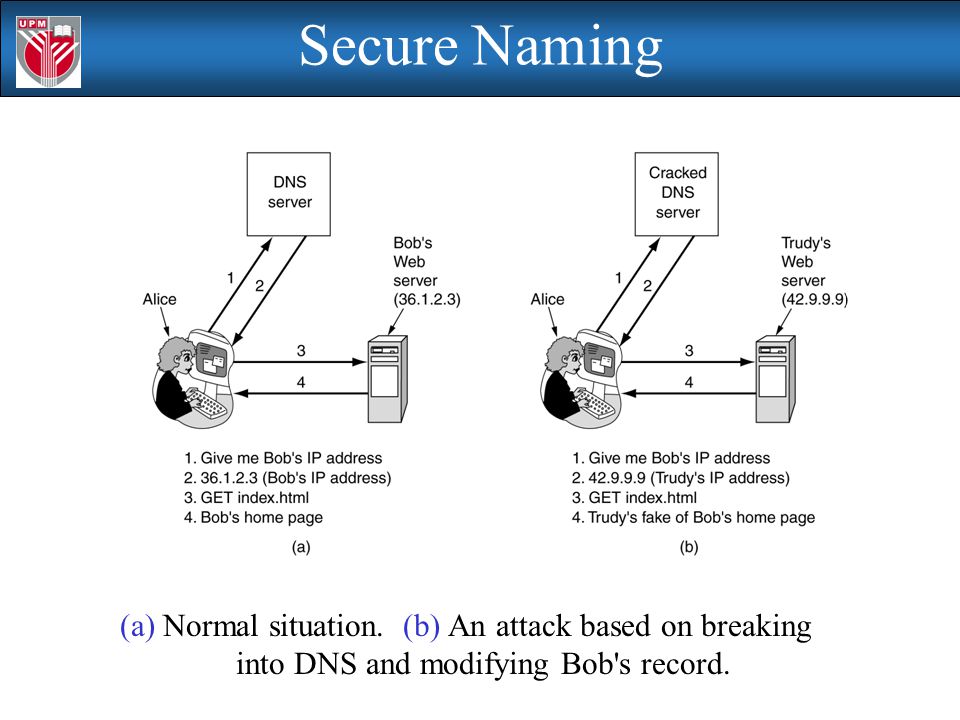

9. Secure Naming (a) Normal situation. (b) An attack based on breaking into DNS and modifying Bob's record.

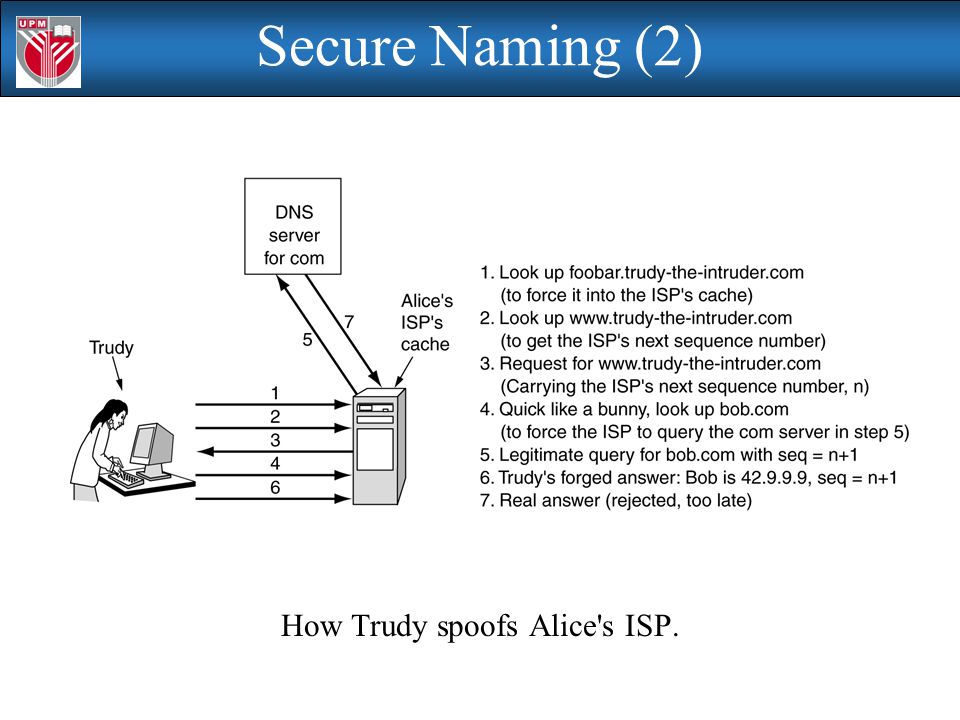

10. Secure Naming (2) How Trudy spoofs Alice's ISP.

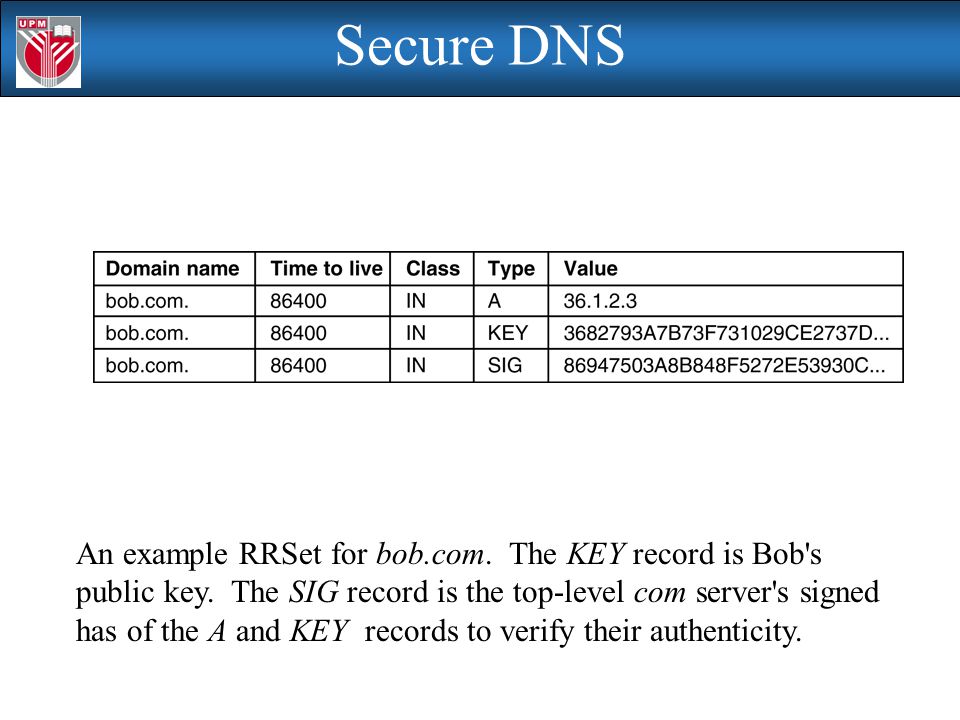

11. Secure DNS An example RRSet for bob.com. The KEY record is Bob's public key. The SIG record is the top-level com server's signed has of the A and KEY records to verify their authenticity.

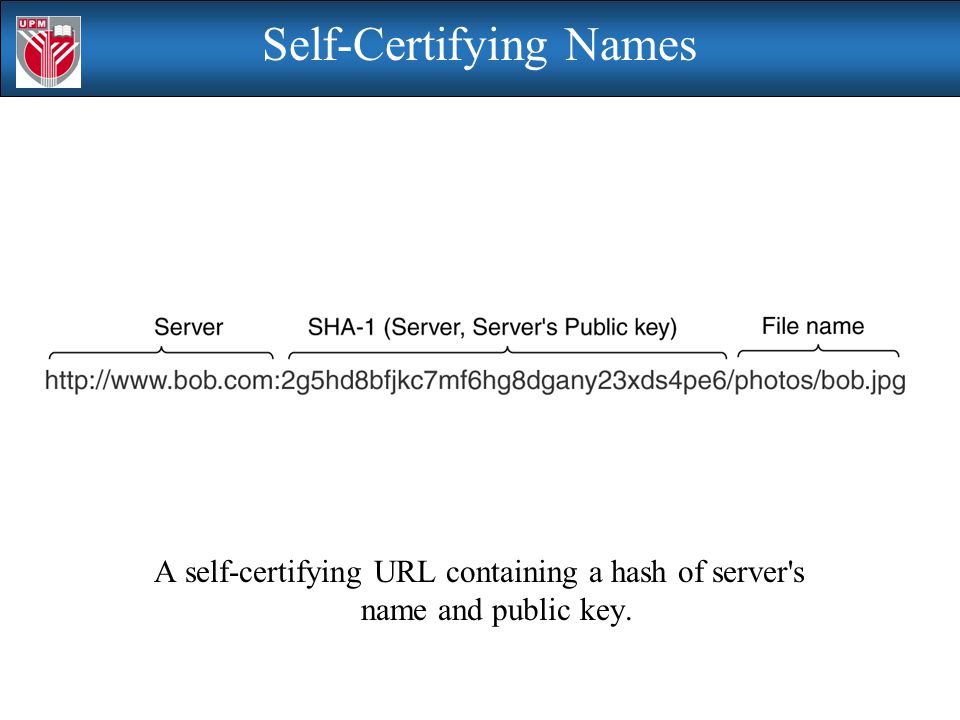

12. Self-Certifying Names A self-certifying URL containing a hash of server's name and public key.

13. SSL Two protocol is dominant today for providing security at the transport layer SSL Services Security Parameters Sessions and Connections Four Protocols Transport Layer Security Topics discussed in this section:

14. Location of SSL and TLS in the Internet model

15. SSL—The Secure Sockets Layer Layers (and protocols) for a home user browsing with SSL.

16. SSL (2) A simplified version of the SSL connection establishment subprotocol.

17. SSL (3) Data transmission using SSL.

18. SSL cipher suite list

19. SSL cipher suite list (continued)

20. Cryptographic Secrets  Client needs one key for message authentication  Client needs one key for encryption  Client needs one Initiation Vector (IV) for block encryption  Server needs one key for message authentication  Server needs one key for encryption  Server needs one Initiation Vector (IV) for block encryption

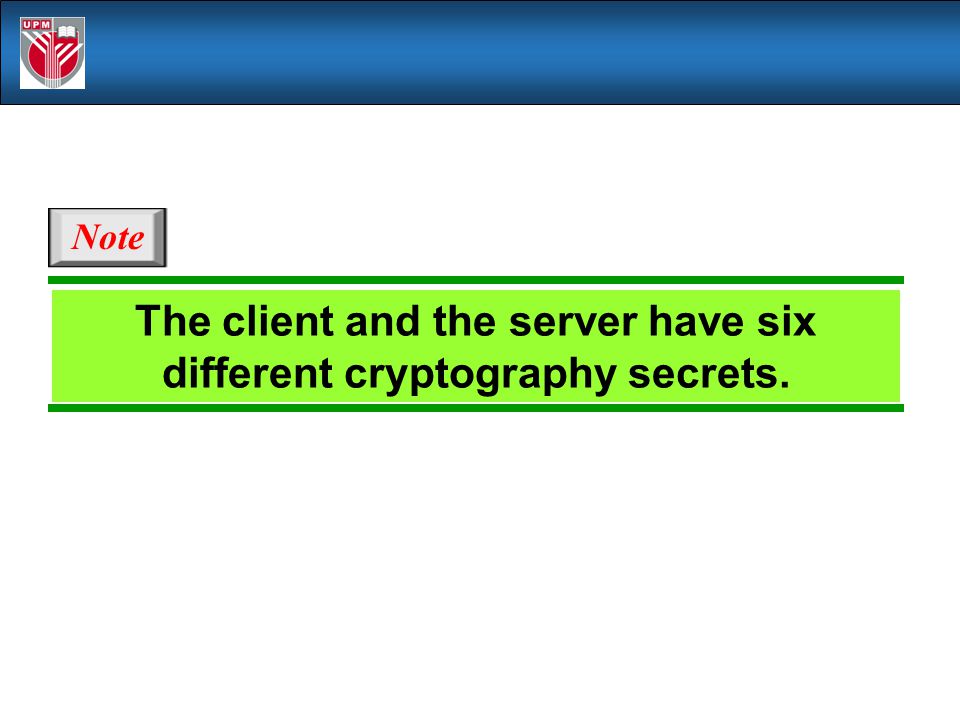

21. The client and the server have six different cryptography secrets. Note

22. Creation of cryptographic secrets in SSL

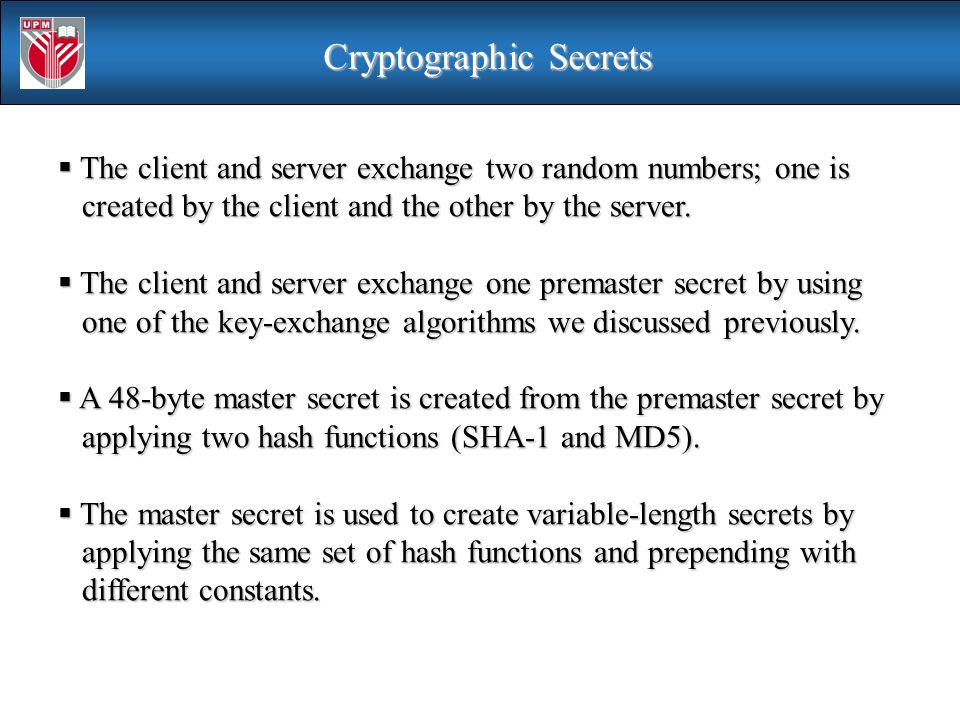

23. Cryptographic Secrets  The client and server exchange two random numbers; one is created by the client and the other by the server. created by the client and the other by the server.  The client and server exchange one premaster secret by using one of the key-exchange algorithms we discussed previously. one of the key-exchange algorithms we discussed previously.  A 48-byte master secret is created from the premaster secret by applying two hash functions (SHA-1 and MD5). applying two hash functions (SHA-1 and MD5).  The master secret is used to create variable-length secrets by applying the same set of hash functions and prepending with applying the same set of hash functions and prepending with different constants. different constants.

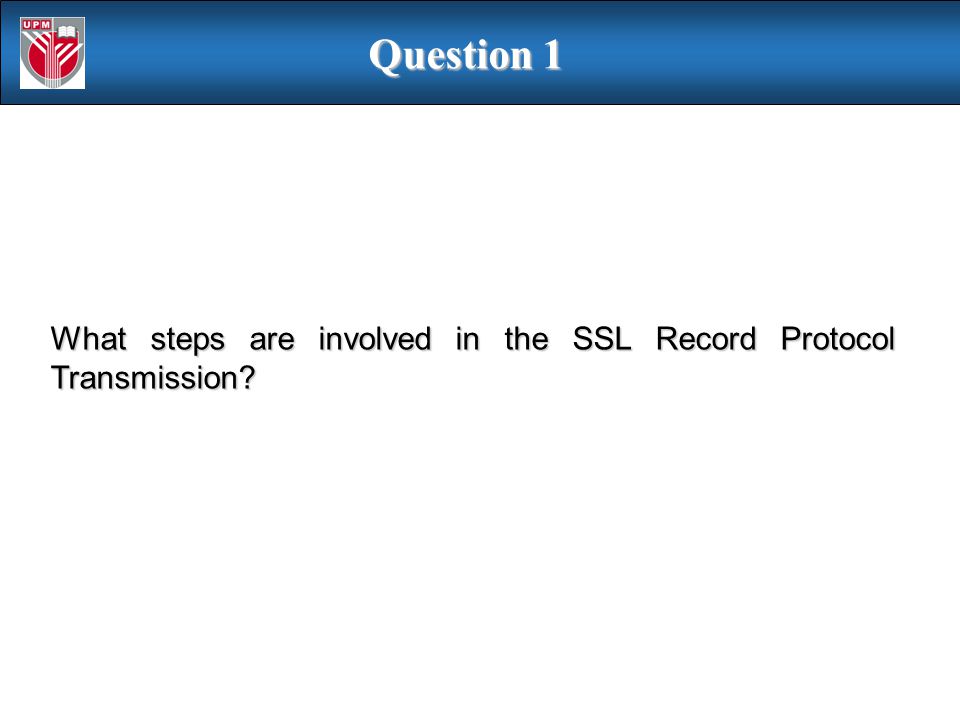

24. Question 1 What steps are involved in the SSL Record Protocol Transmission?

25. Answer 1 What steps are involved in the SSL Record Protocol Transmission? Answer:  Fragmentation.  Compression.  Add MAC.  Encrypt.  Append SSL record header.

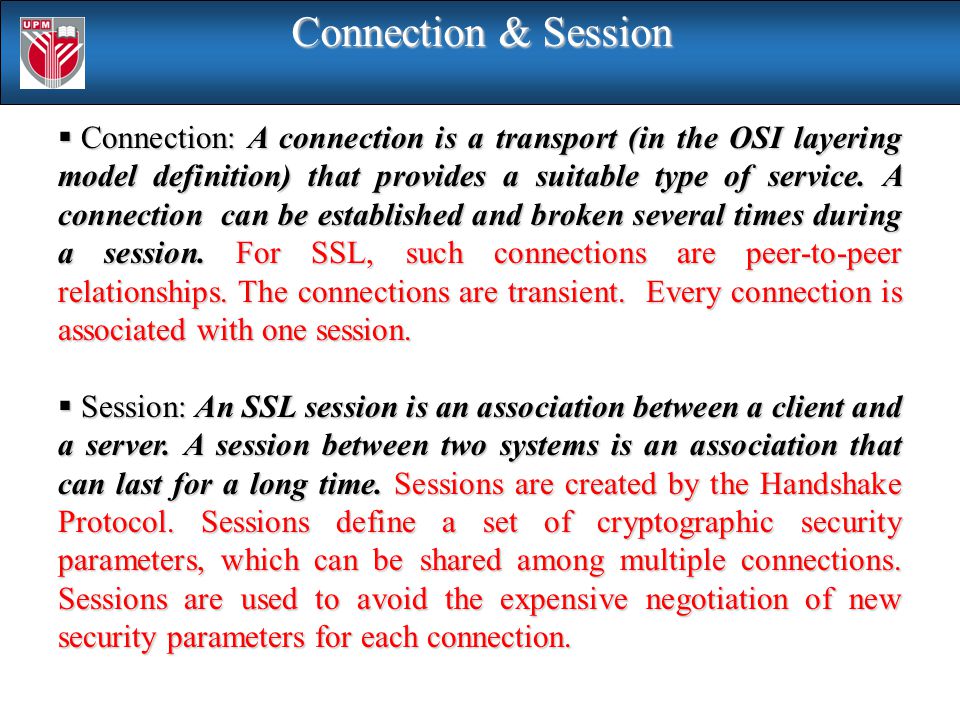

26. Connection & Session  Connection: A connection is a transport (in the OSI layering model definition) that provides a suitable type of service. A connection can be established and broken several times during a session. For SSL, such connections are peer-to-peer relationships. The connections are transient. Every connection is associated with one session.  Session: An SSL session is an association between a client and a server. A session between two systems is an association that can last for a long time. Sessions are created by the Handshake Protocol. Sessions define a set of cryptographic security parameters, which can be shared among multiple connections. Sessions are used to avoid the expensive negotiation of new security parameters for each connection.

27. Question 2 What is the difference between a session and a connection in SSL?

28. Answer 2 What is the difference between a session and a connection in SSL? Answer:  Connection: A connection is a transport (in the OSI layering model definition) that provides a suitable type of service. For SSL, such connections are peer-to-peer relationships. The connections are transient. Every connection is associated with one session.  Session: An SSL session is an association between a client and a server. Sessions are created by the Handshake Protocol. Sessions define a set of cryptographic security parameters, which can be shared among multiple connections. Sessions are used to avoid the expensive negotiation of new security parameters for each connection.

29. Four SSL protocols

30. Question 3 What protocols compromise SSL?

31. Answer 3 What protocols compromise SSL? Answer:  SSL handshake protocol.  SSL change cipher spec protocol.  SSL alert protocol.  SSL record protocol.

32. Four Protocols  Handshake Protocol: provides security parameters for the Record Protocol. It establishes a cipher set and provides keys and security parameters. It also authenticates the server to the client and the client to the server (if needed), and to exchange information for building the cryptographic secrets. The handshaking is done in four phases, as shown in Figure.

33. Handshake Protocol

34. Four Protocols  ChangedCipherSpec Protocol: is used for signaling the readiness of cryptographic secrets.  Alert Protocol: is used to report abnormal conditions.  Record Protocol: caries message from the upper layer (Handshake Protocol, ChangeCipherSpec Protocol, Alert Protocol, or application). The message is fragmented and optionally compressed; a MAC is added to the compressed message by using the negotiated hash algorithm. The compressed fragmented and the MAC are encrypted by using the negotiated encryption algorithm. Finally, the SSL header is added to the encrypted message. Figure shows this process at the sender. The process at the receiver is reversed.

35. Processing done by the Record Protocol

36. Question 4 What services are provided by the SSL Record Protocol?

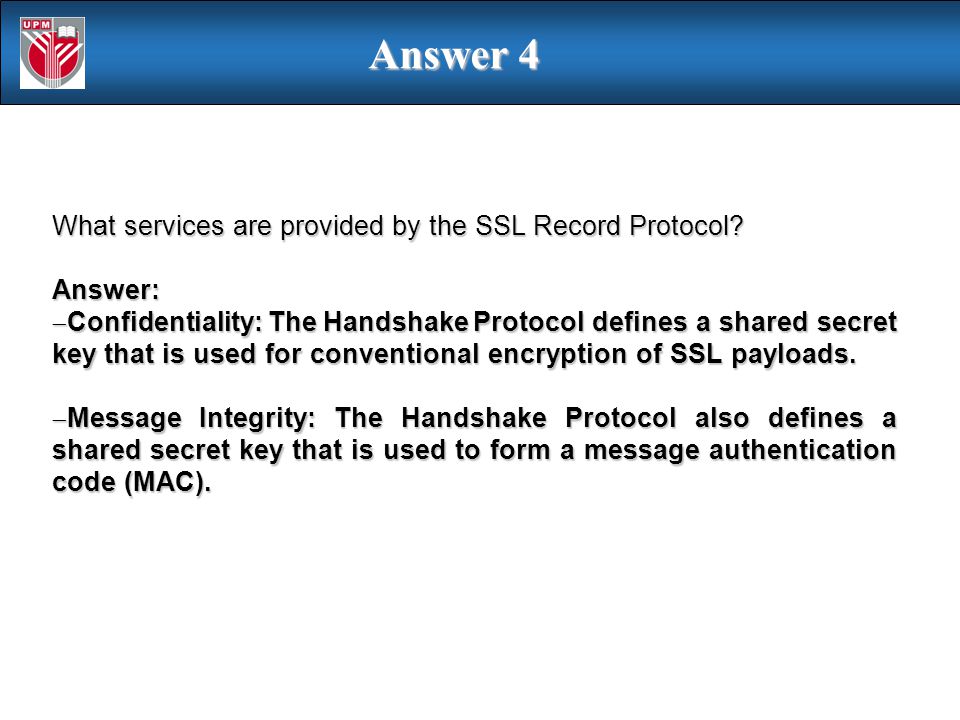

37. Answer 4 What services are provided by the SSL Record Protocol? Answer:  Confidentiality: The Handshake Protocol defines a shared secret key that is used for conventional encryption of SSL payloads.  Message Integrity: The Handshake Protocol also defines a shared secret key that is used to form a message authentication code (MAC).

38. How Do You Want Protect Your Network System Thank You
