1. Selection Sorting Lecture 21

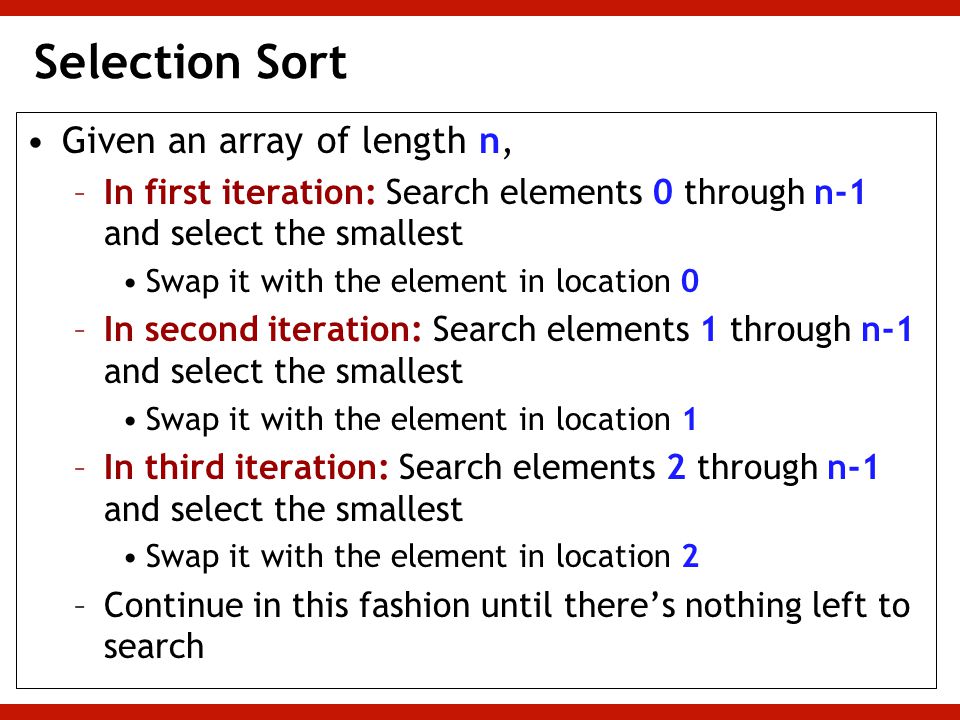

2. Selection Sort Given an array of length n, –In first iteration: Search elements 0 through n-1 and select the smallest Swap it with the element in location 0 –In second iteration: Search elements 1 through n-1 and select the smallest Swap it with the element in location 1 –In third iteration: Search elements 2 through n-1 and select the smallest Swap it with the element in location 2 –Continue in this fashion until there’s nothing left to search

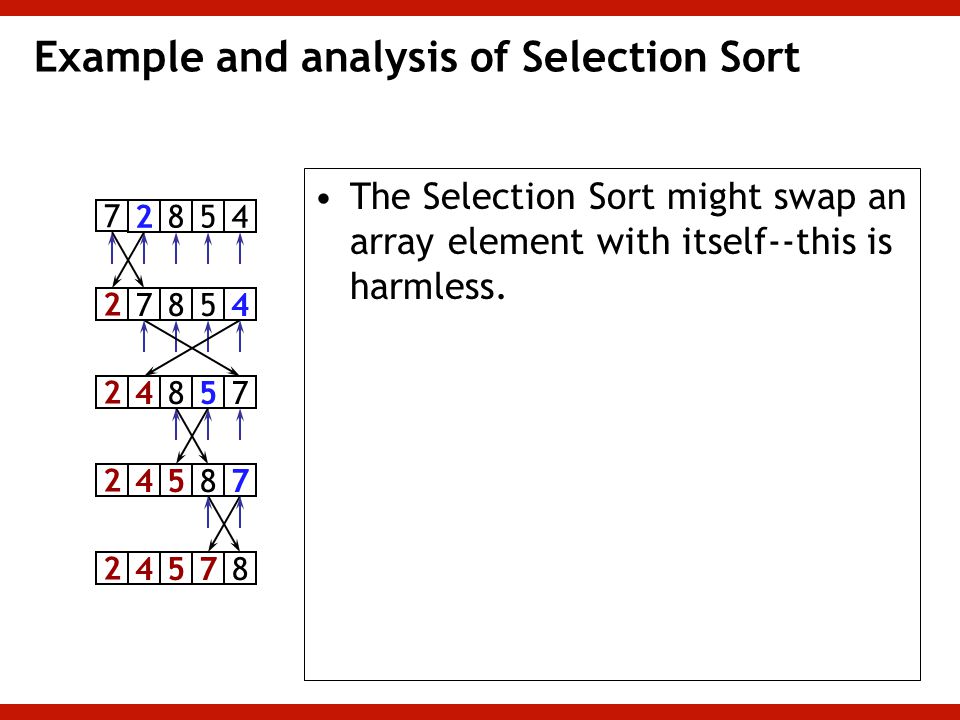

3. Example and analysis of Selection Sort The Selection Sort might swap an array element with itself--this is harmless. 7 2854 2 7854 2 4857 2 4587 2 4578

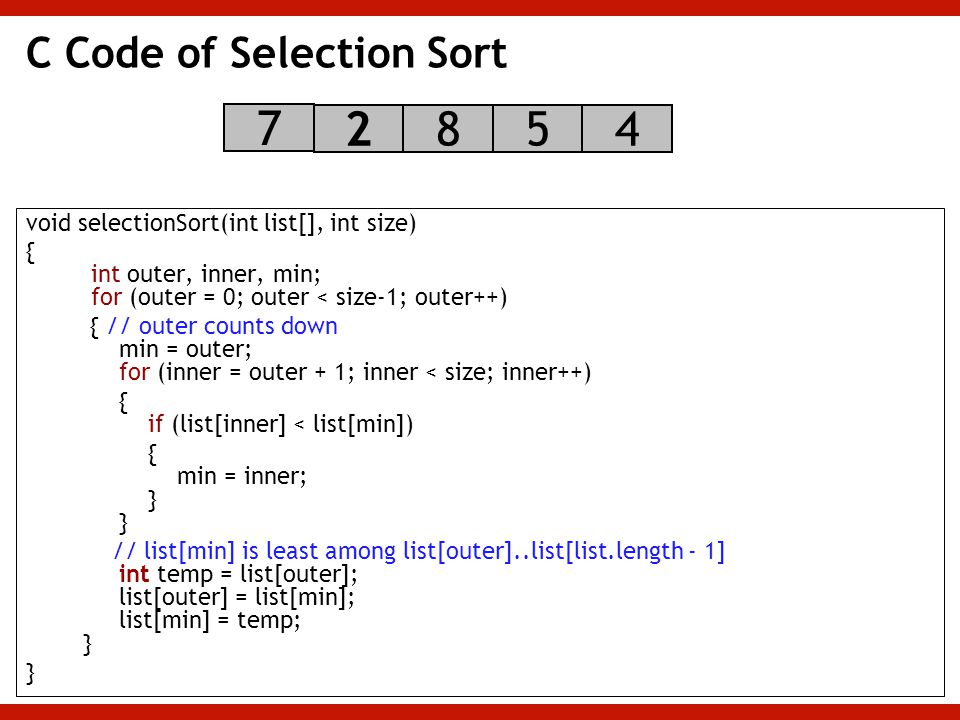

4. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 7 2854

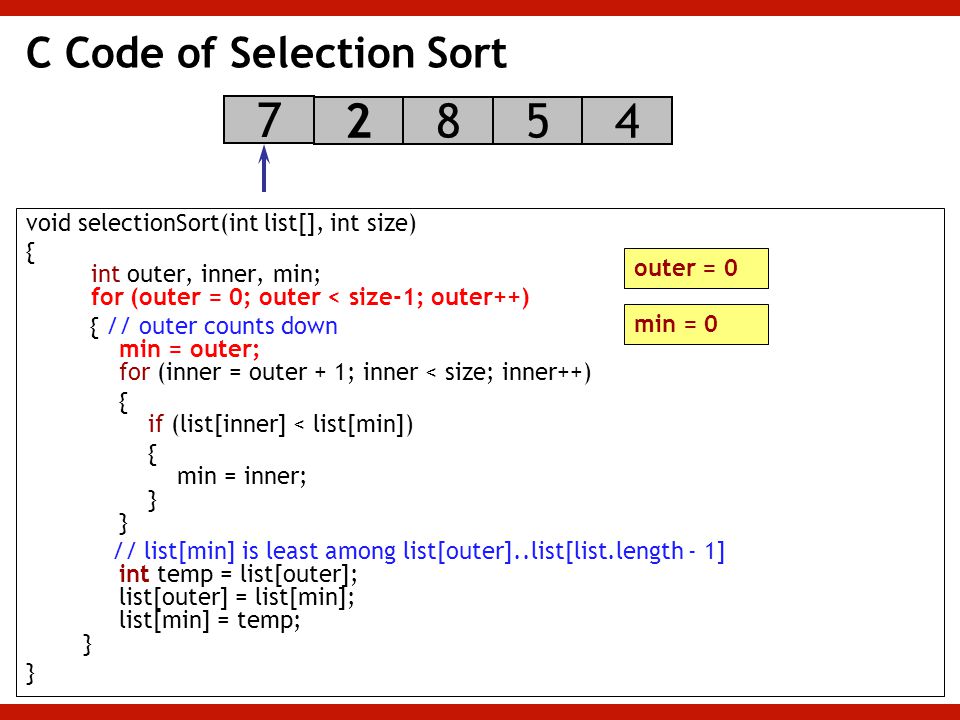

5. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 7 2854 outer = 0 min = 0

6. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 7 2854 outer = 0 min = 0 inner = 1

7. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 7 2854 outer = 0 min = 0 inner = 1 list [inner] = 2 list [min] = 7

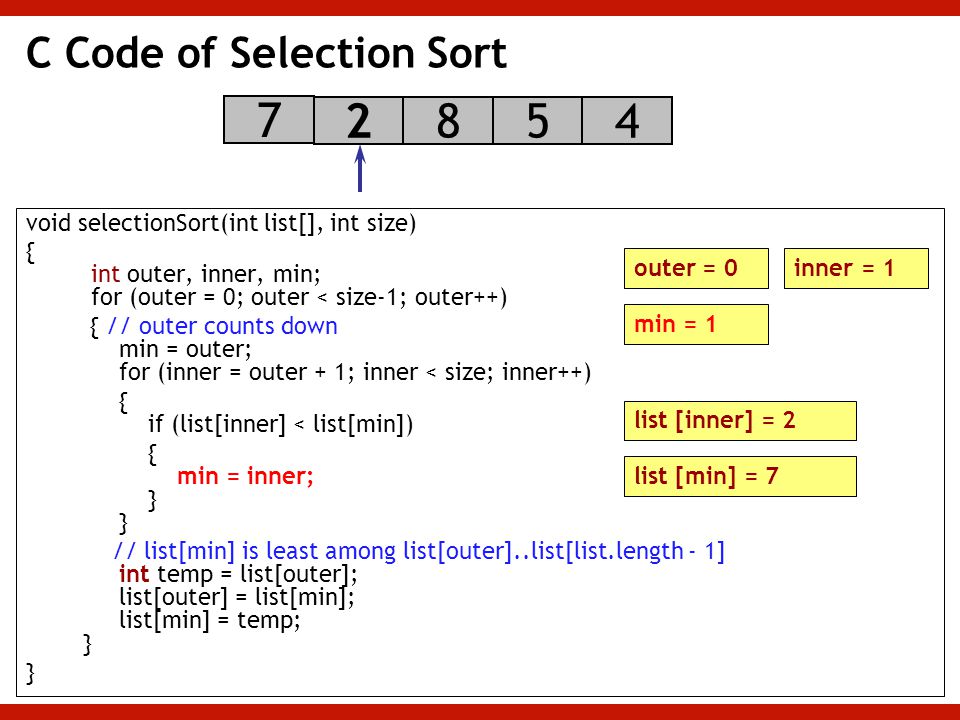

8. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 7 2854 outer = 0 min = 1 inner = 1 list [inner] = 2 list [min] = 7

9. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 7 2854 outer = 0 min = 1 inner = 2 list [inner] = 2 list [min] = 7

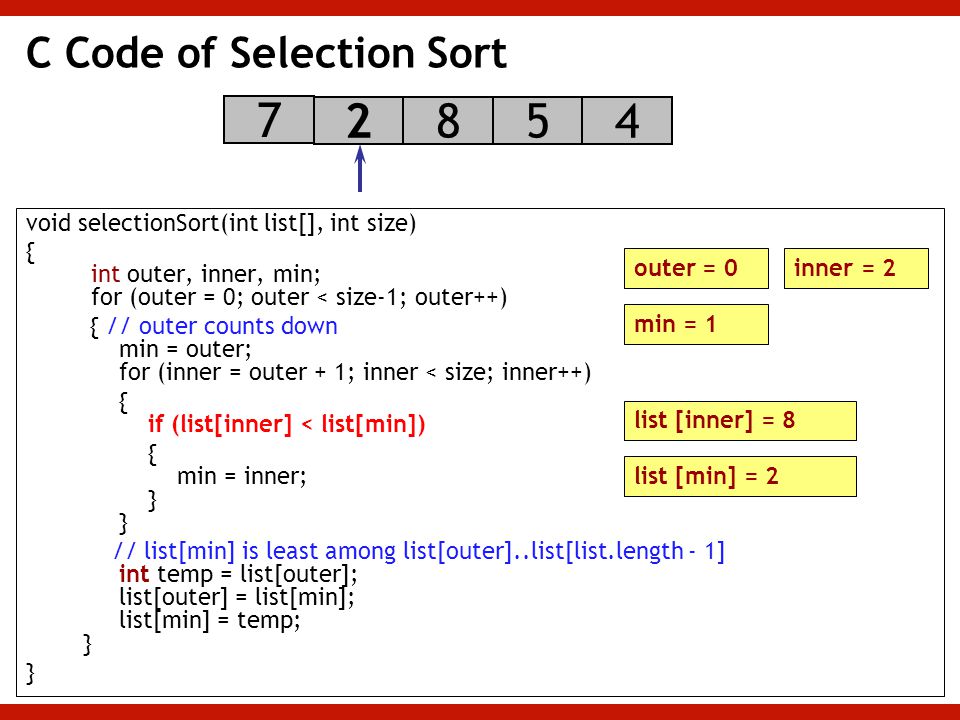

10. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 7 2854 outer = 0 min = 1 inner = 2 list [inner] = 8 list [min] = 2

11. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 7 2854 outer = 0 min = 1 inner = 3 list [inner] = 8 list [min] = 2

12. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 7 2854 outer = 0 min = 1 inner = 3 list [inner] = 5 list [min] = 2

13. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 7 2854 outer = 0 min = 1 inner = 4 list [inner] = 5 list [min] = 2

14. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 7 2854 outer = 0 min = 1 inner = 4 list [inner] = 4 list [min] = 2

15. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 7854 outer = 0 min = 1 inner = 4 list [inner] = 4 list [min] = 2

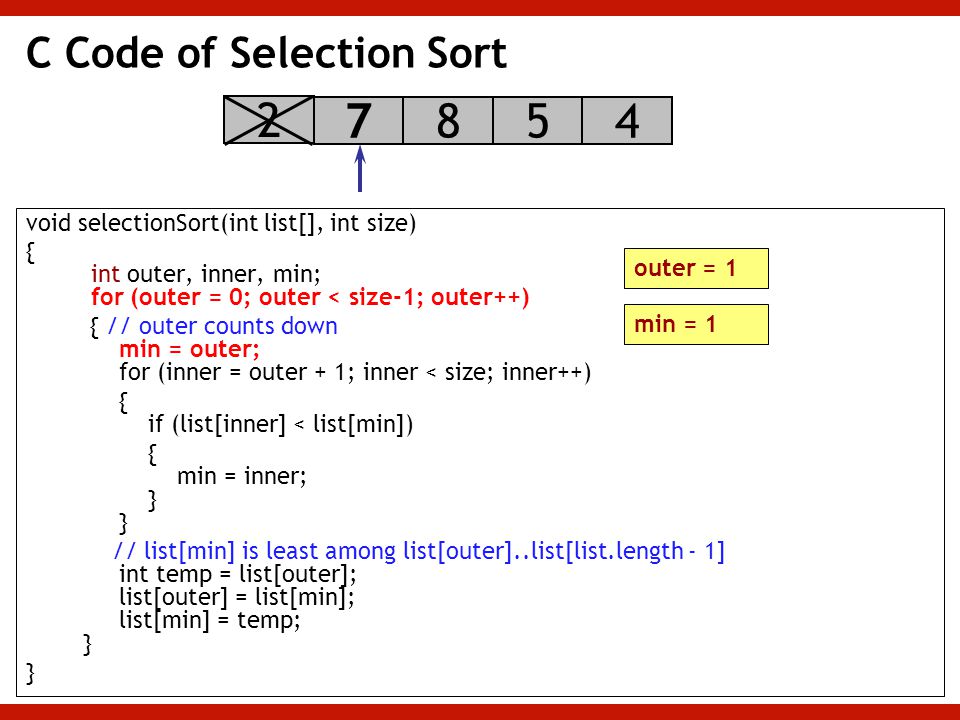

16. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 7854 outer = 1 min = 1

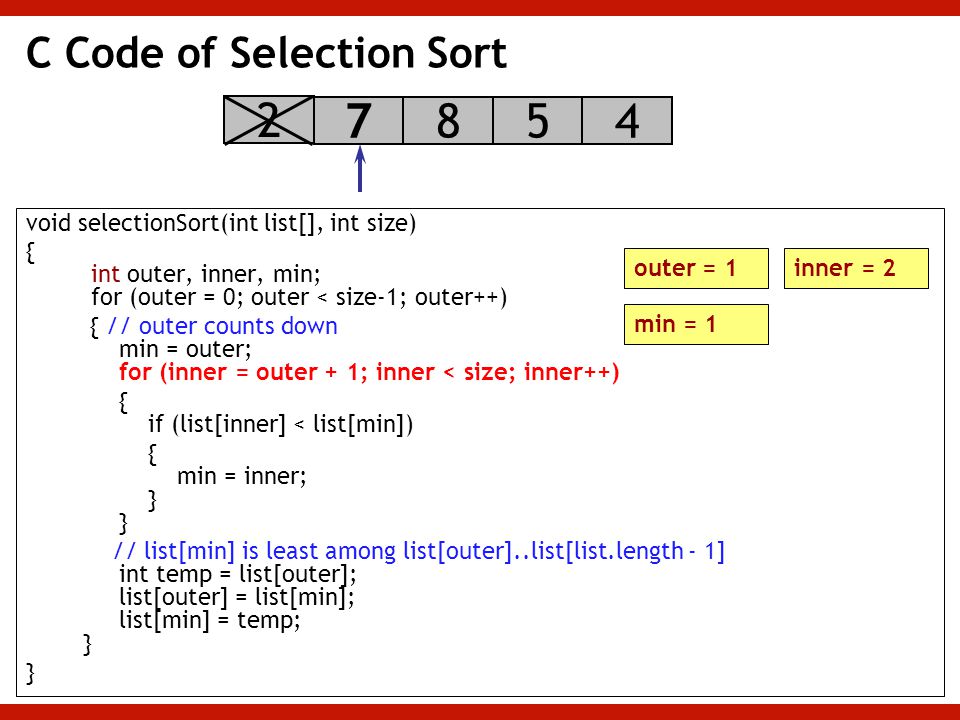

17. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 7854 outer = 1 min = 1 inner = 2

18. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 7854 outer = 1 min = 1 inner = 2 list [inner] = 8 list [min] = 7

19. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 7854 outer = 1 min = 1 inner = 3 list [inner] = 8 list [min] = 7

20. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 7854 outer = 1 min = 1 inner = 3 list [inner] = 5 list [min] = 7

21. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 7854 outer = 1 min = 3 inner = 3 list [inner] = 5 list [min] = 5

22. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 7854 outer = 1 min = 3 inner = 4 list [inner] = 5 list [min] = 5

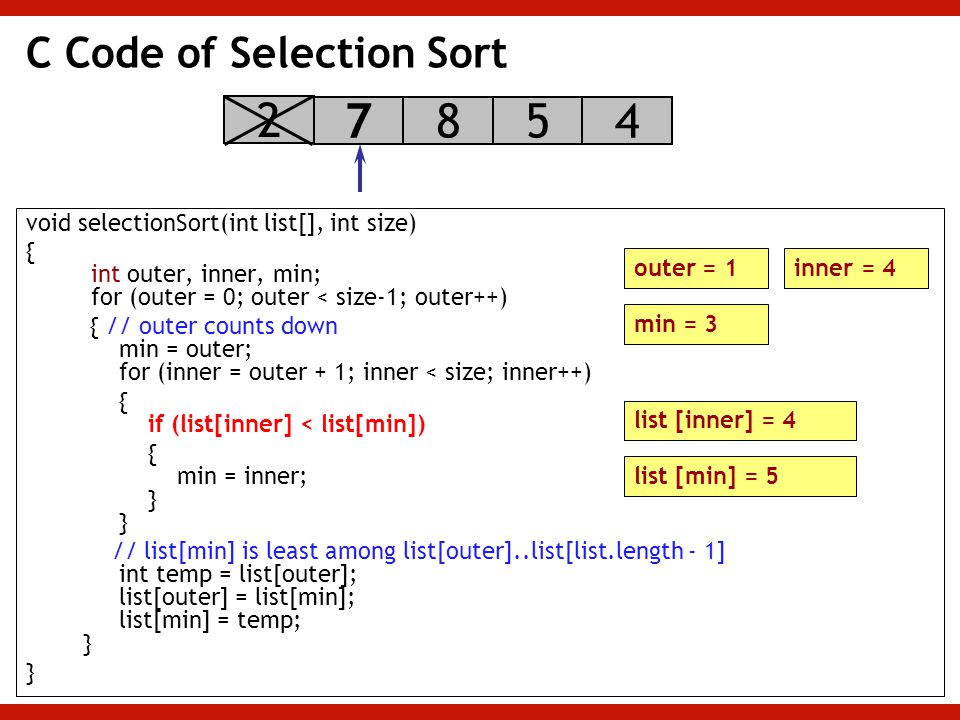

23. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 7854 outer = 1 min = 3 inner = 4 list [inner] = 4 list [min] = 5

24. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 7854 outer = 1 min = 4 inner = 4 list [inner] = 4 list [min] = 4

25. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 4857 outer = 1 min = 4 inner = 4 list [inner] = 4 list [min] = 4

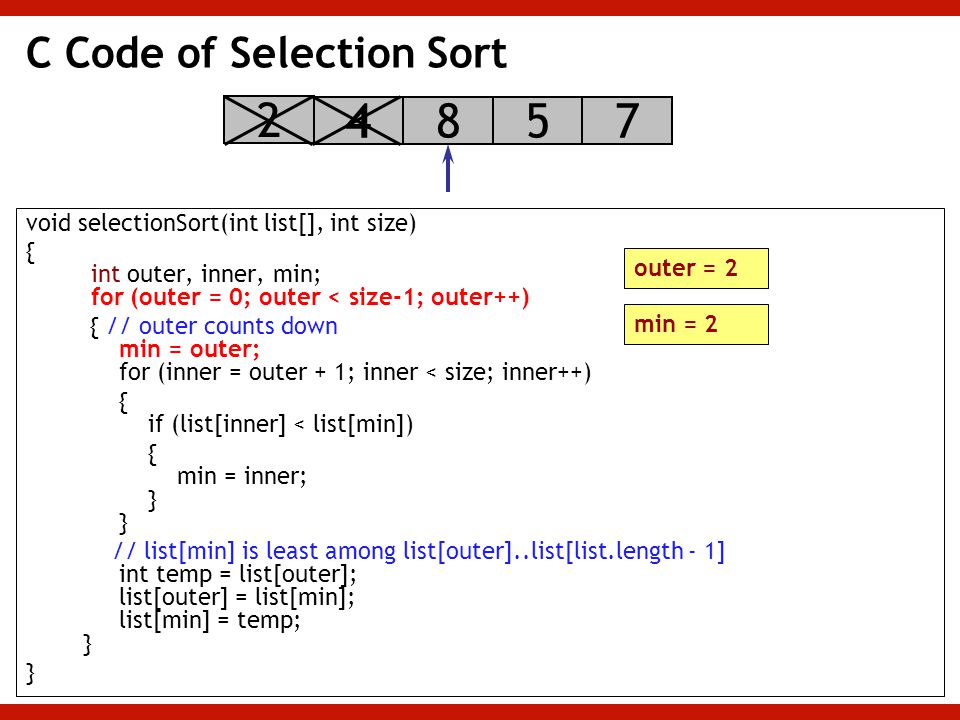

26. C Code of Selection Sort void selectionSort(int list[], int size) { int outer, inner, min; for (outer = 0; outer < size-1; outer++) { // outer counts down min = outer; for (inner = outer + 1; inner < size; inner++) { if (list[inner] < list[min]) { min = inner; } } // list[min] is least among list[outer]..list[list.length - 1] int temp = list[outer]; list[outer] = list[min]; list[min] = temp; } } 2 4857 outer = 2 min = 2
