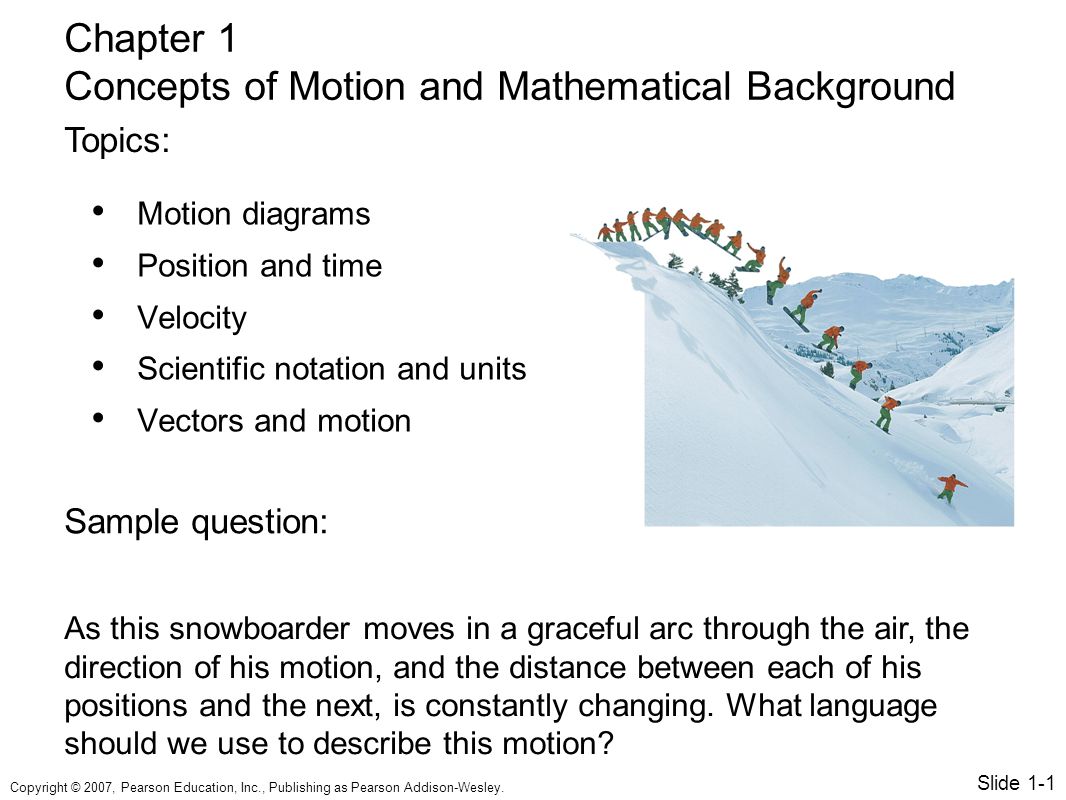

1. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Motion diagrams Position and time Velocity Scientific notation and units Vectors and motion Chapter 1 Concepts of Motion and Mathematical Background Topics: Sample question: As this snowboarder moves in a graceful arc through the air, the direction of his motion, and the distance between each of his positions and the next, is constantly changing. What language should we use to describe this motion? Slide 1-1

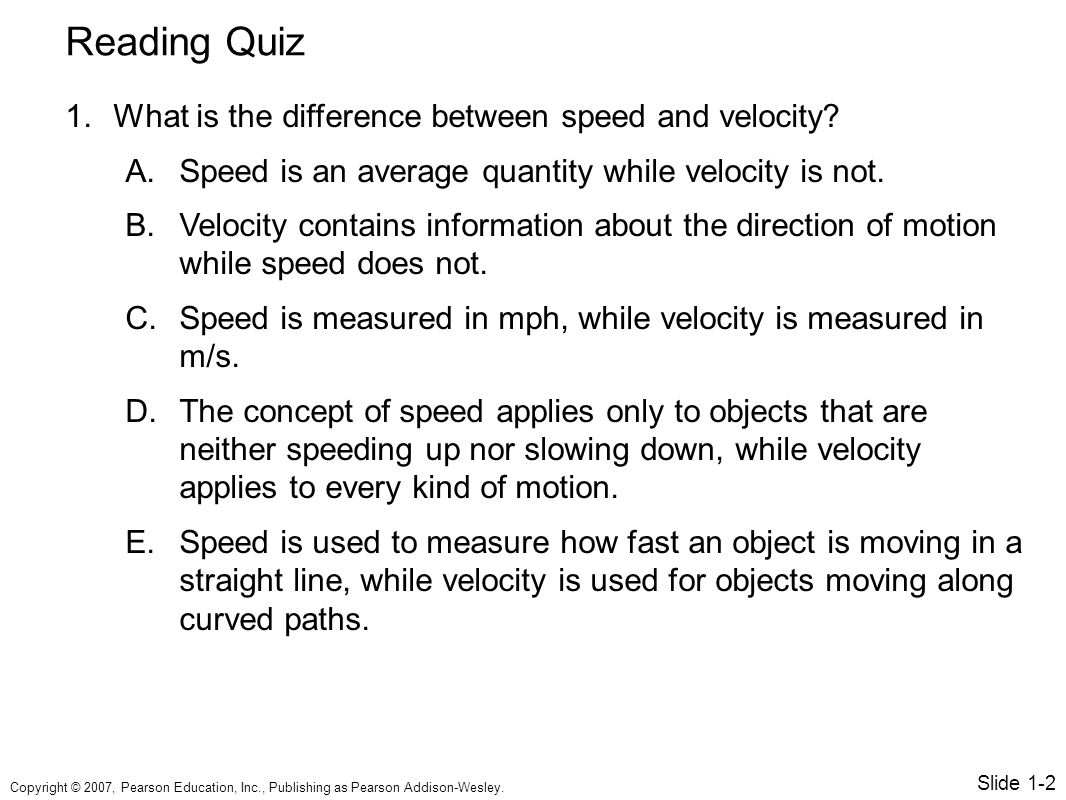

2. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. 1.What is the difference between speed and velocity? A. Speed is an average quantity while velocity is not. B. Velocity contains information about the direction of motion while speed does not. C. Speed is measured in mph, while velocity is measured in m/s. D. The concept of speed applies only to objects that are neither speeding up nor slowing down, while velocity applies to every kind of motion. E. Speed is used to measure how fast an object is moving in a straight line, while velocity is used for objects moving along curved paths. Reading Quiz Slide 1-2

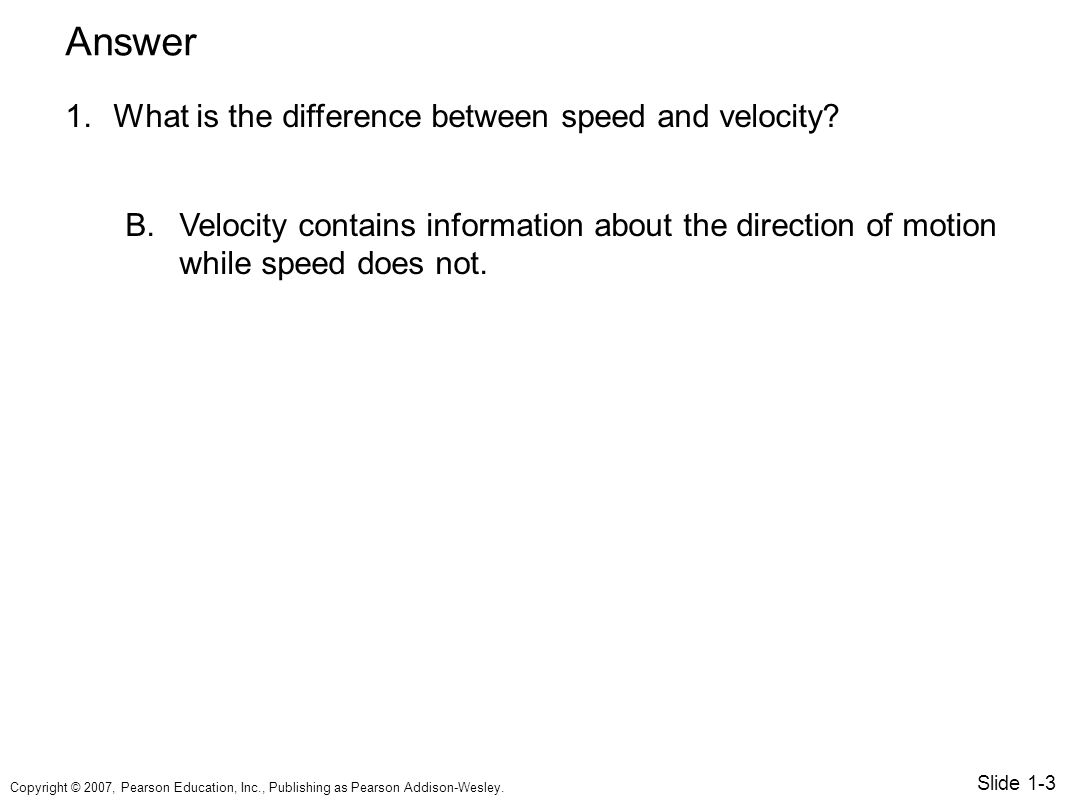

3. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. 1.What is the difference between speed and velocity? B. Velocity contains information about the direction of motion while speed does not. Answer Slide 1-3

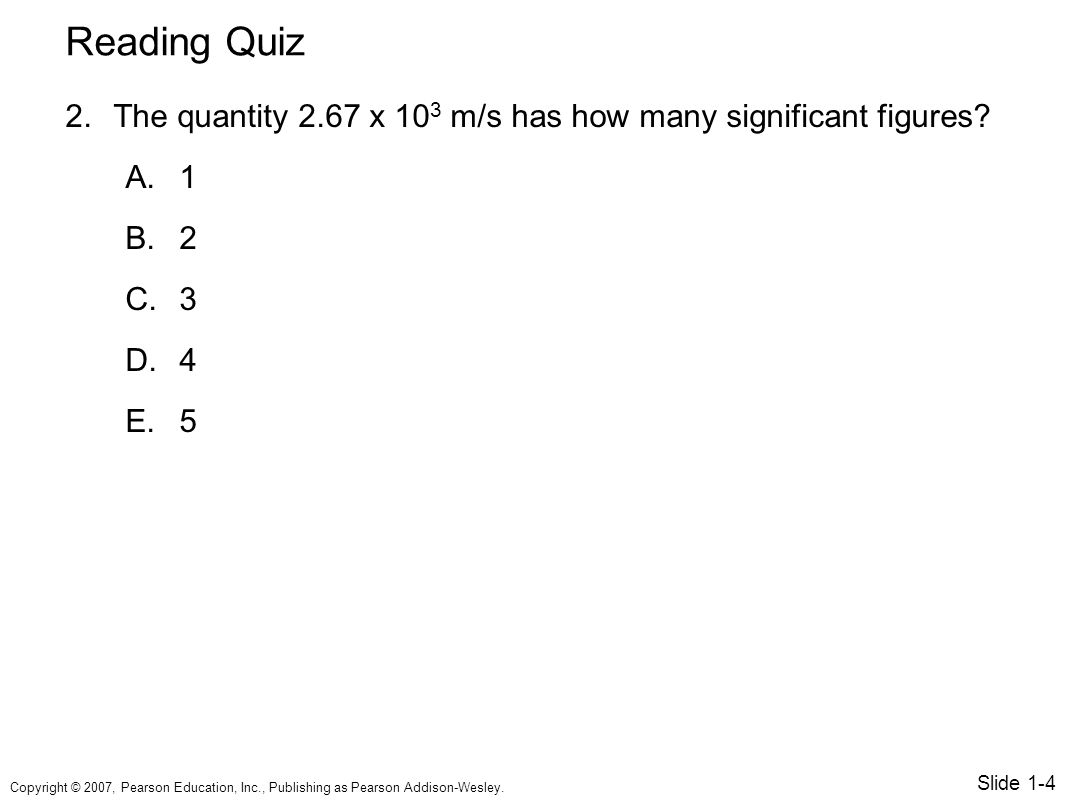

4. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Reading Quiz 2.The quantity 2.67 x 10 3 m/s has how many significant figures? A. 1 B. 2 C. 3 D. 4 E. 5 Slide 1-4

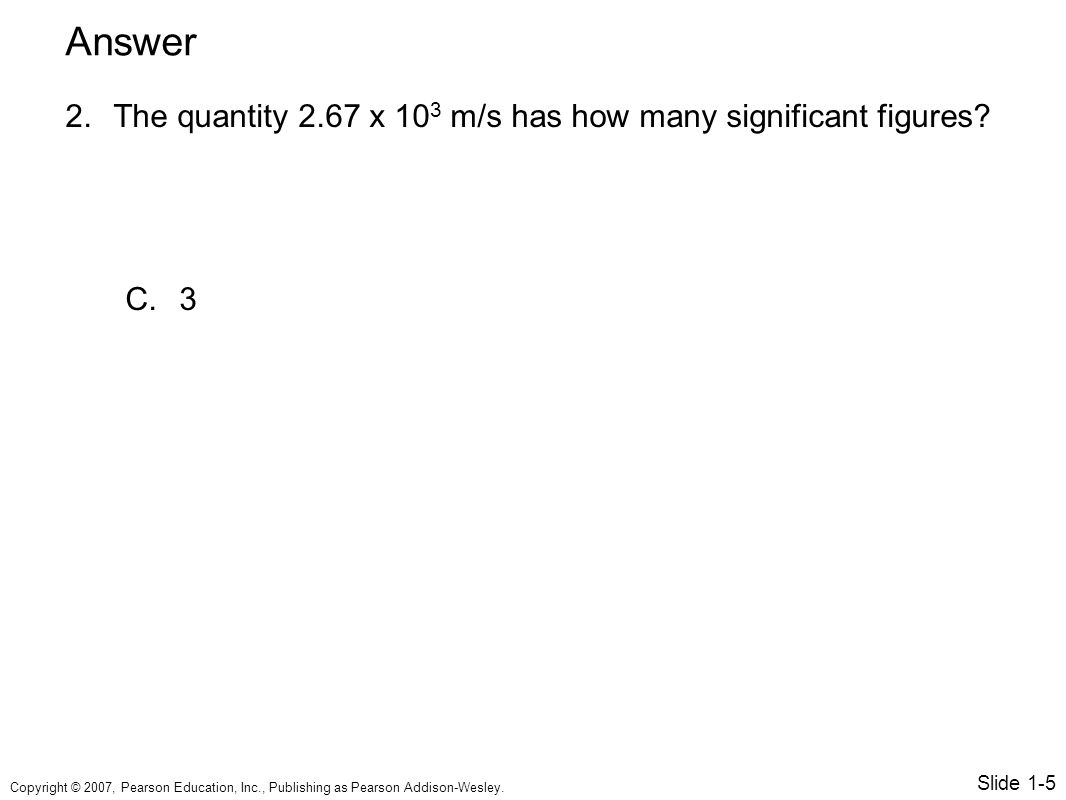

5. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. 2.The quantity 2.67 x 10 3 m/s has how many significant figures? C. 3 Slide 1-5 Answer

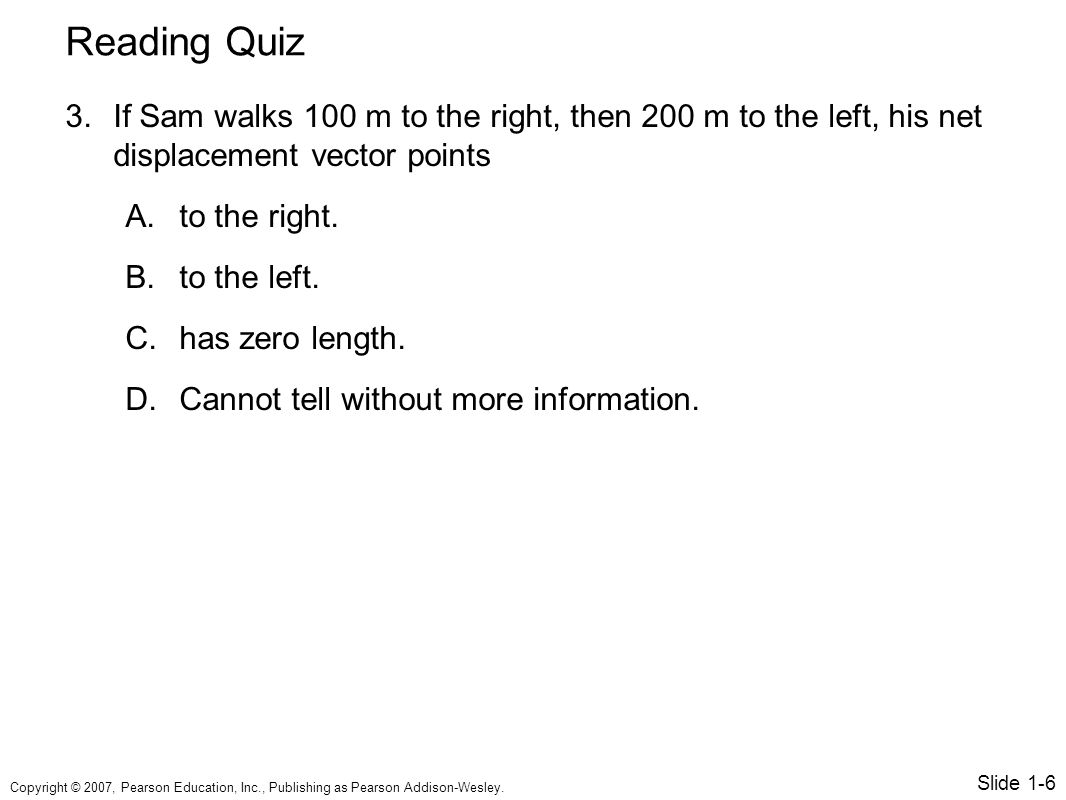

6. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Reading Quiz Slide 1-6 3.If Sam walks 100 m to the right, then 200 m to the left, his net displacement vector points A. to the right. B. to the left. C. has zero length. D. Cannot tell without more information.

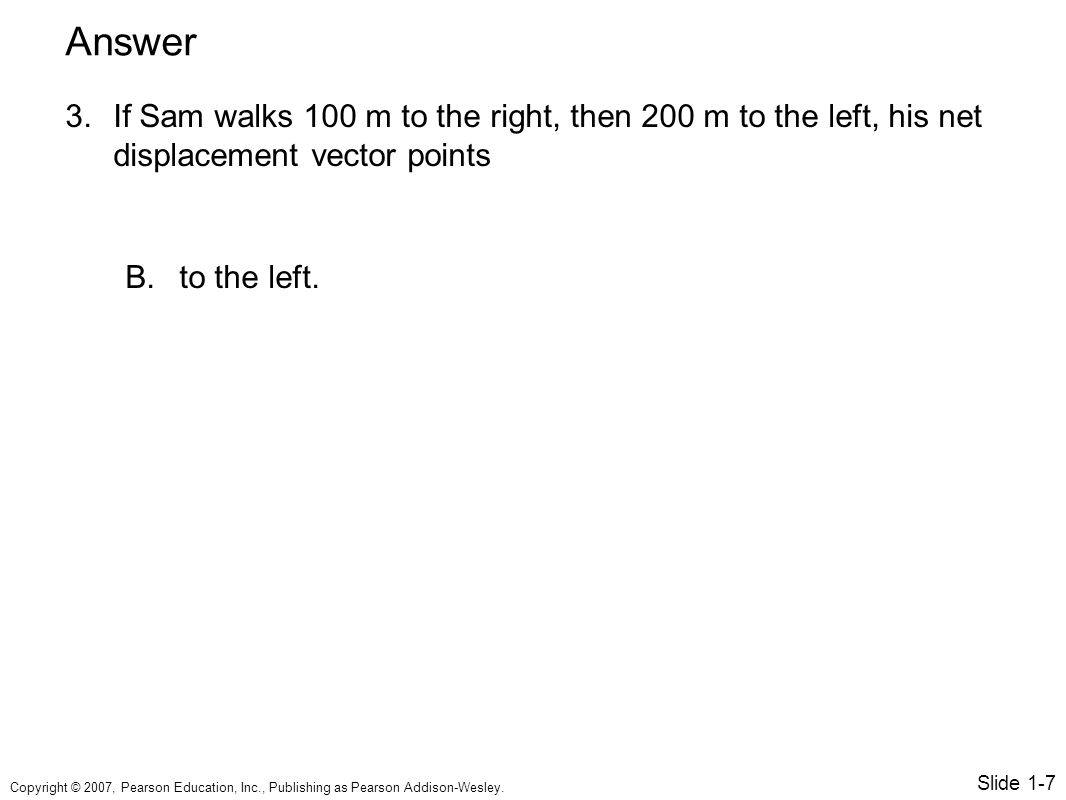

7. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Slide 1-7 3.If Sam walks 100 m to the right, then 200 m to the left, his net displacement vector points B. to the left. Answer

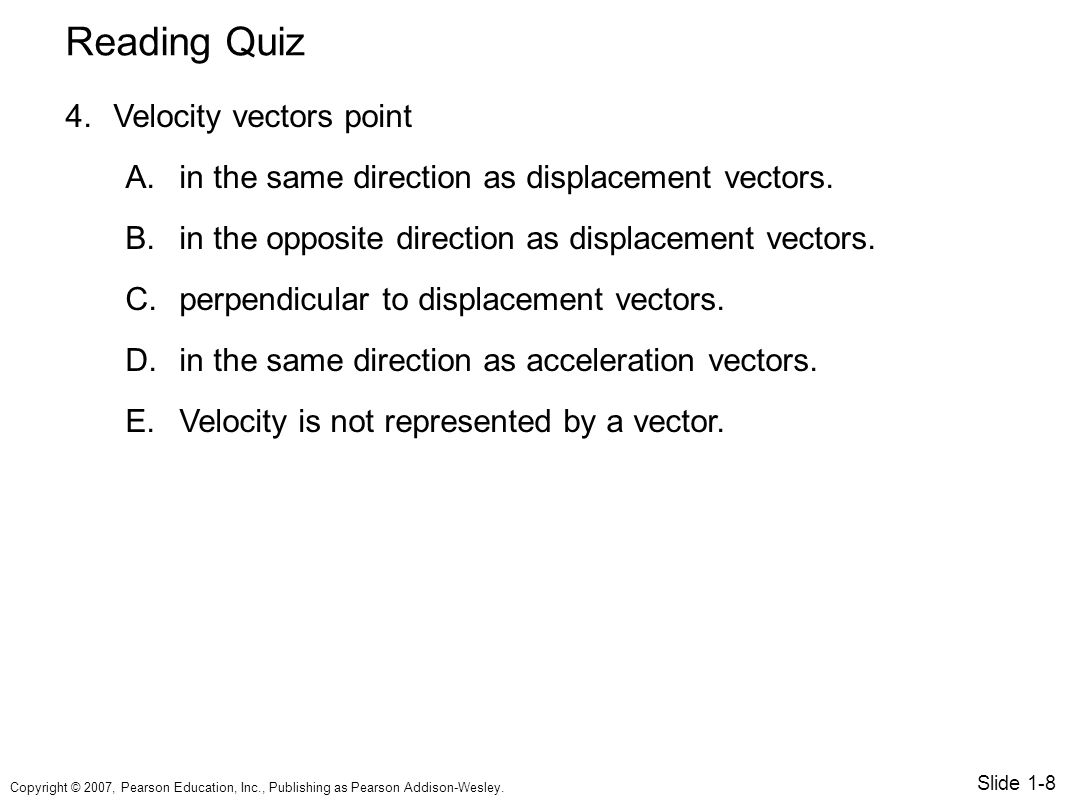

8. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Reading Quiz 4.Velocity vectors point A. in the same direction as displacement vectors. B. in the opposite direction as displacement vectors. C. perpendicular to displacement vectors. D. in the same direction as acceleration vectors. E. Velocity is not represented by a vector. Slide 1-8

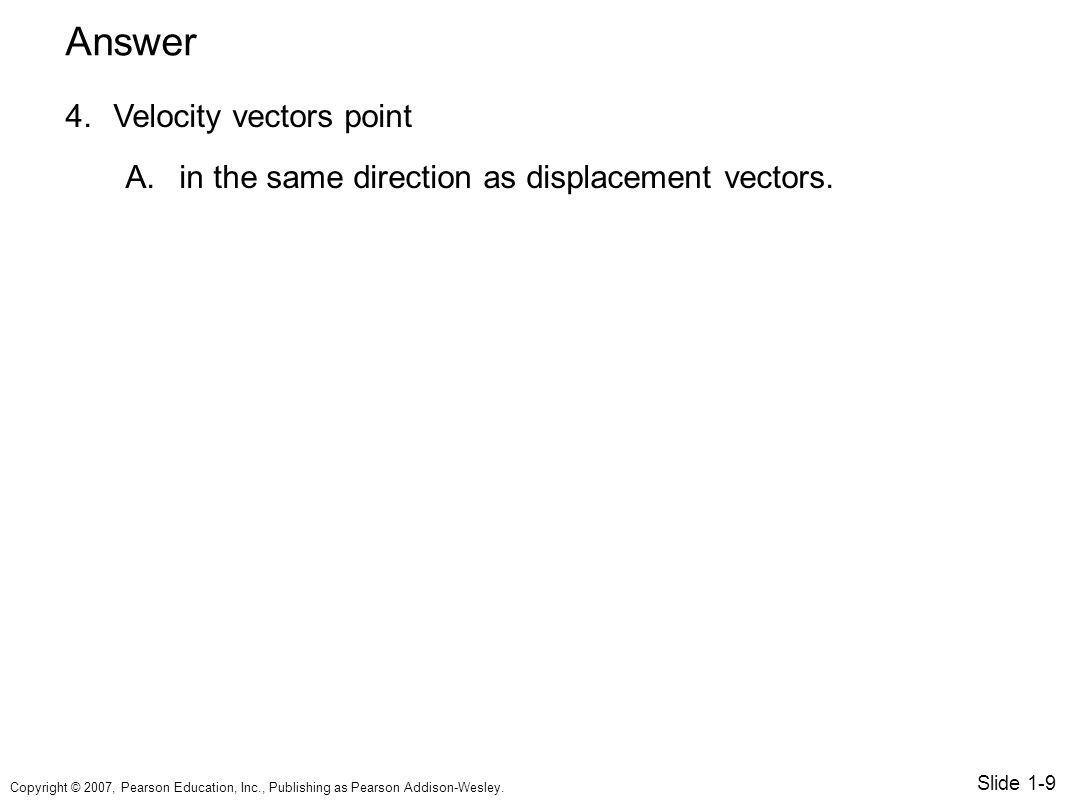

9. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. 4.Velocity vectors point A. in the same direction as displacement vectors. Slide 1-9 Answer

10. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Four Types of Motion We’ll Study Slide 1-10

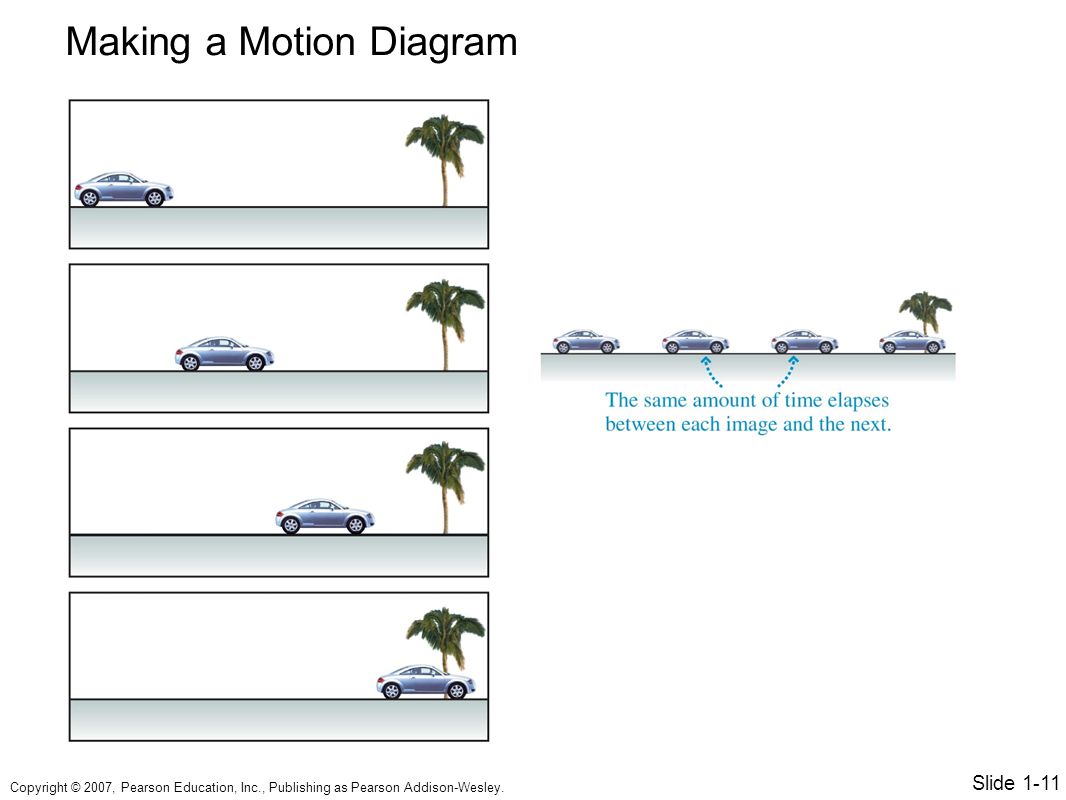

11. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Making a Motion Diagram Slide 1-11

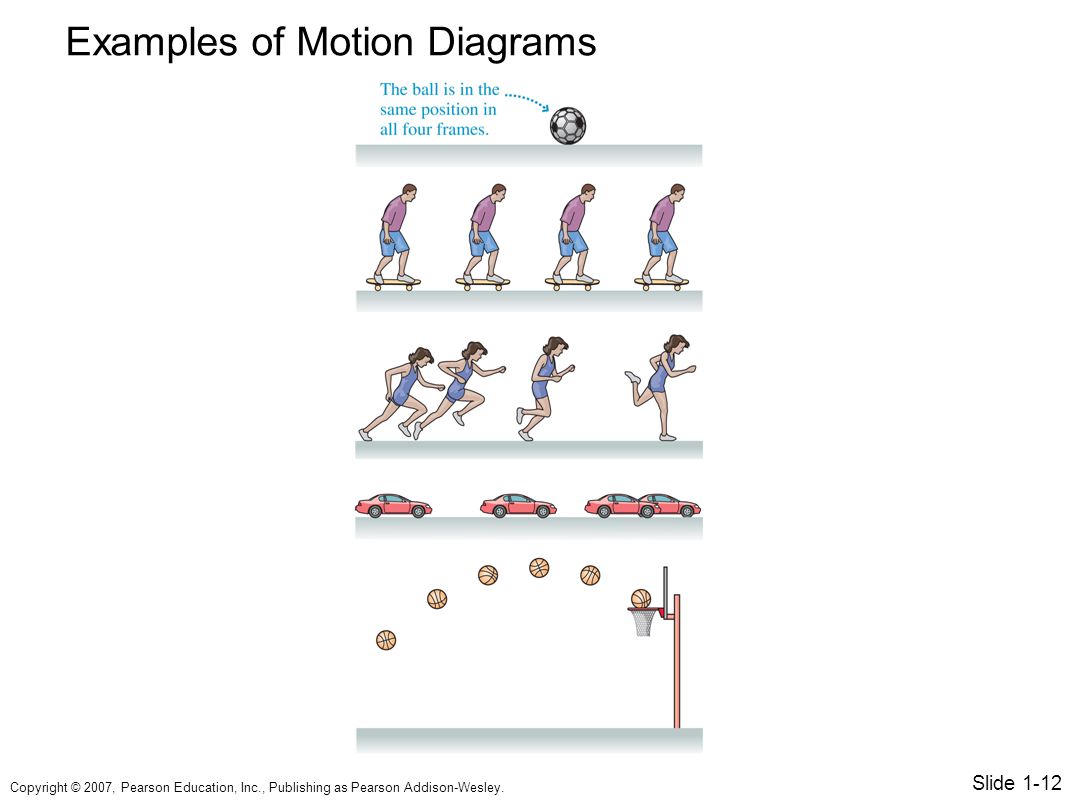

12. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Examples of Motion Diagrams Slide 1-12

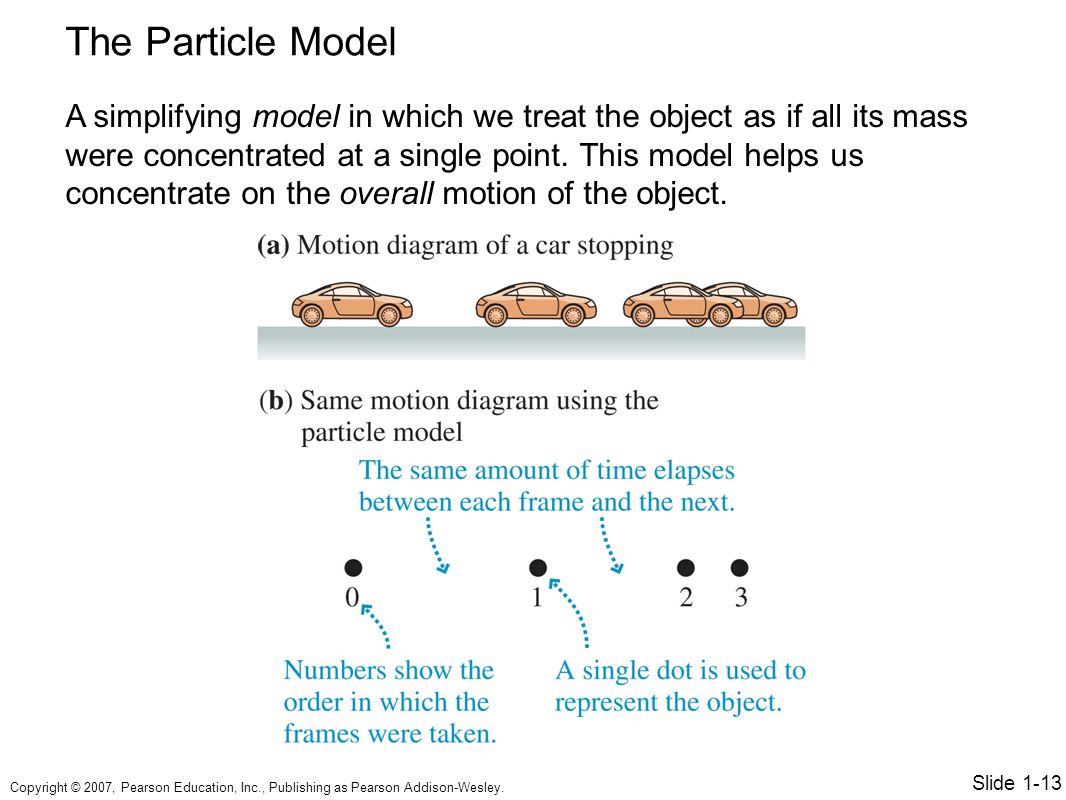

13. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. A simplifying model in which we treat the object as if all its mass were concentrated at a single point. This model helps us concentrate on the overall motion of the object. The Particle Model Slide 1-13

14. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. The position of an object is located along a coordinate system. Position and Time At each time t, the object is at some particular position. We are free to choose the origin of time (i.e., when t = 0). Slide 1-14

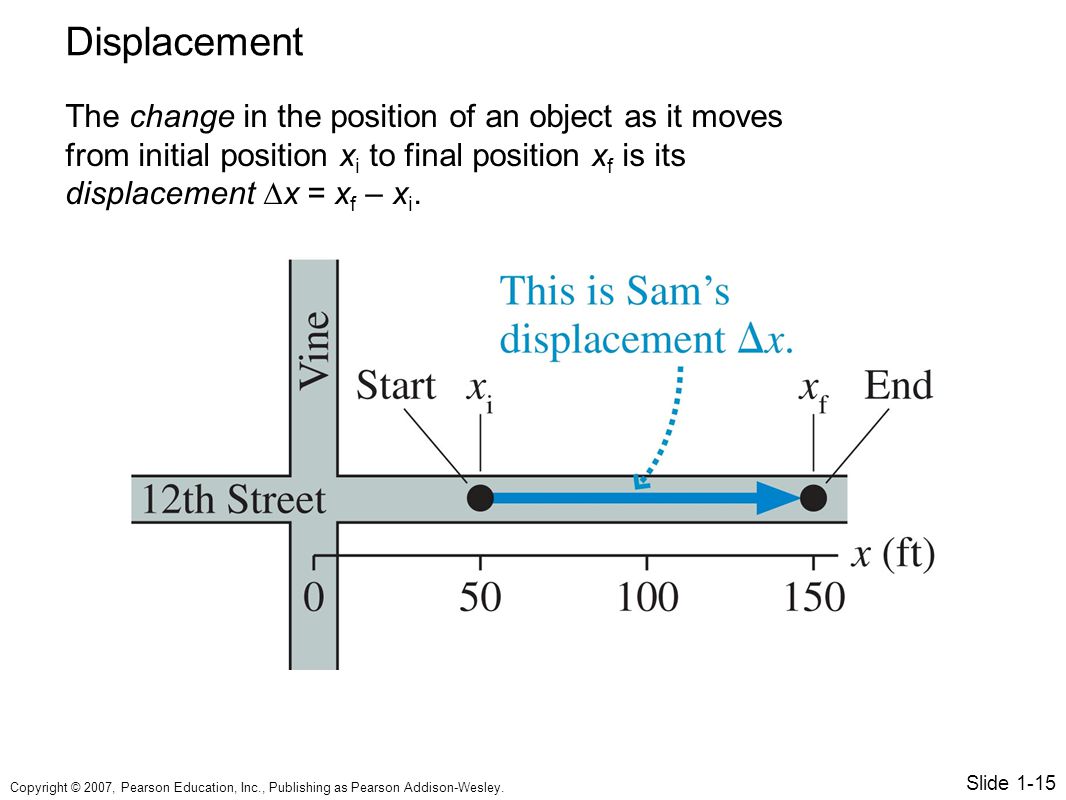

15. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Displacement The change in the position of an object as it moves from initial position x i to final position x f is its displacement ∆x = x f – x i. Slide 1-15

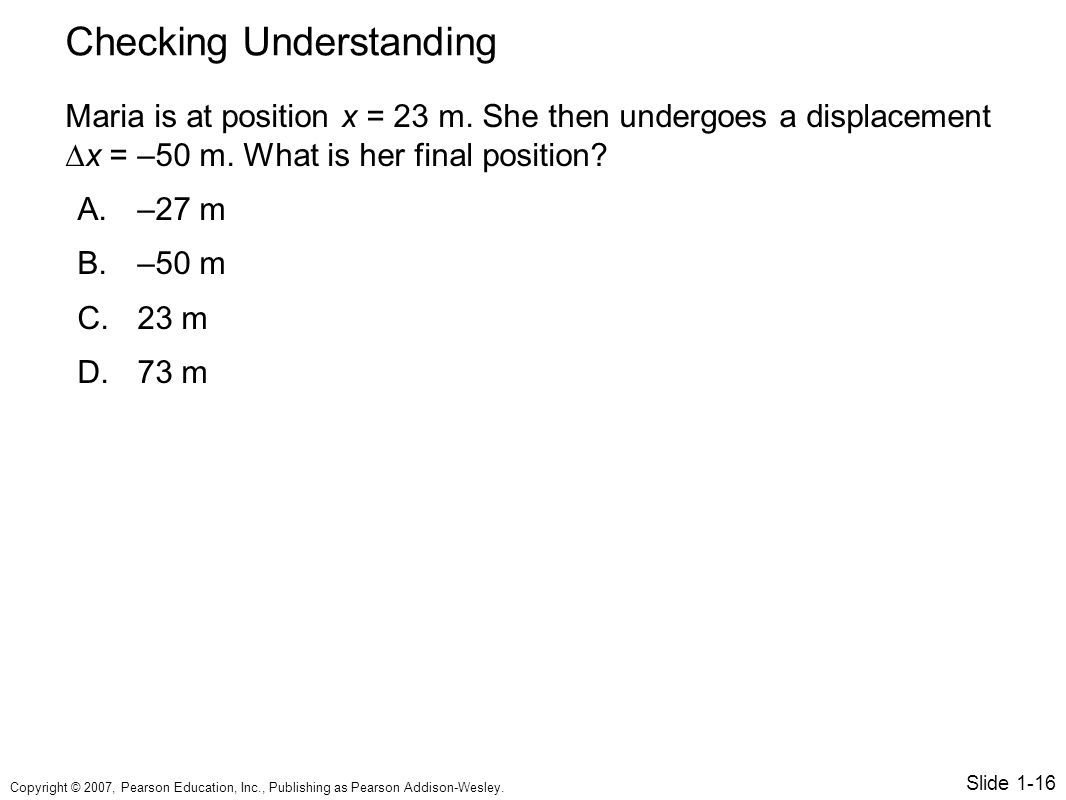

16. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Checking Understanding Maria is at position x = 23 m. She then undergoes a displacement ∆x = –50 m. What is her final position? A.–27 m B.–50 m C.23 m D.73 m Slide 1-16

17. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Maria is at position x = 23 m. She then undergoes a displacement ∆x = –50 m. What is her final position? A.–27 m Slide 1-17 Answer

18. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Slide 1-18 Checking Understanding Two runners jog along a track. The positions are shown at 1 s time intervals. Which runner is moving faster?

19. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Slide 1-19 Two runners jog along a track. The positions are shown at 1 s time intervals. Which runner is moving faster? Answer

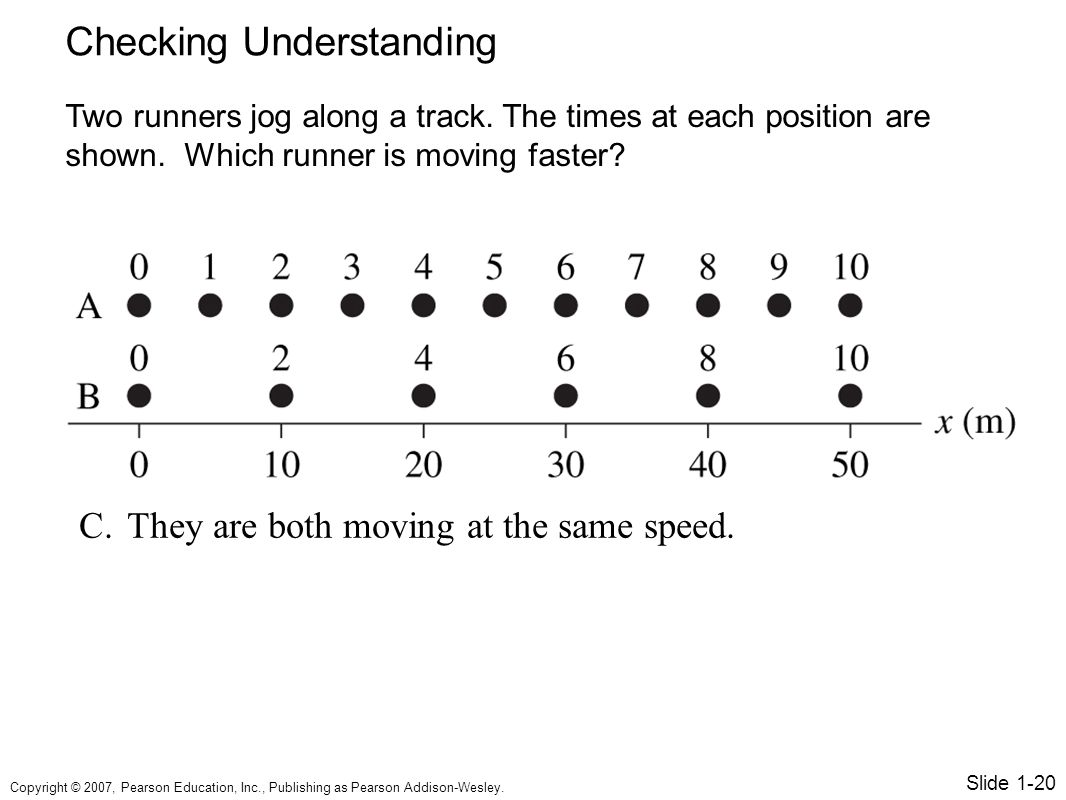

20. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Slide 1-20 Checking Understanding Two runners jog along a track. The times at each position are shown. Which runner is moving faster? C.They are both moving at the same speed.

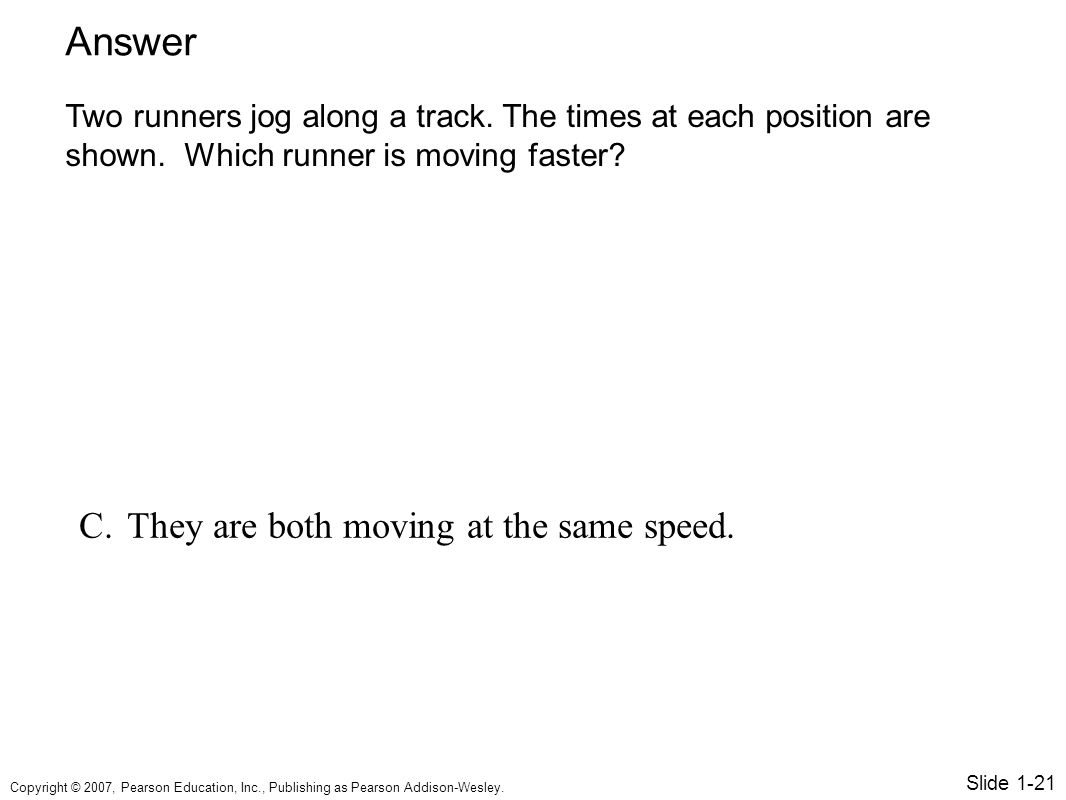

21. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Slide 1-21 Two runners jog along a track. The times at each position are shown. Which runner is moving faster? C.They are both moving at the same speed. Answer

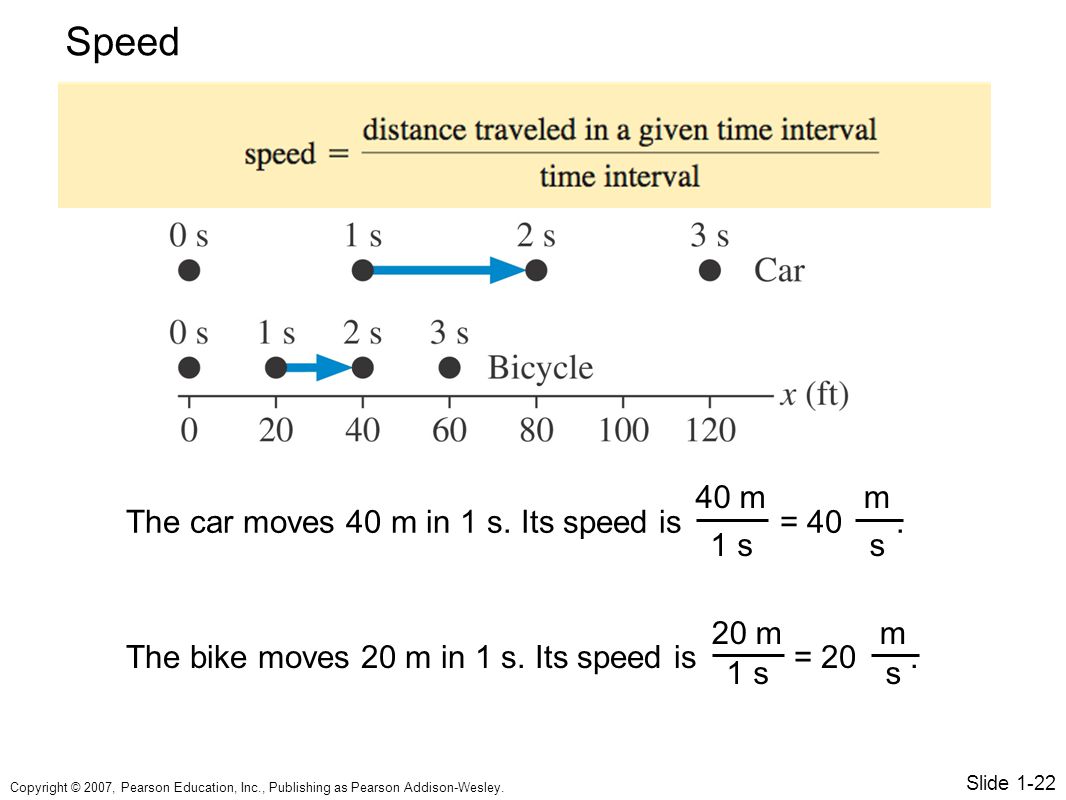

22. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Speed Slide 1-22 The car moves 40 m in 1 s. Its speed is = 40. 40 m 1 s m s The bike moves 20 m in 1 s. Its speed is = 20. 20 m 1 s m s

23. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Velocity Slide 1-23

24. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Significant figures Multiplying two numbers: Adding two numbers: Slide 1-24

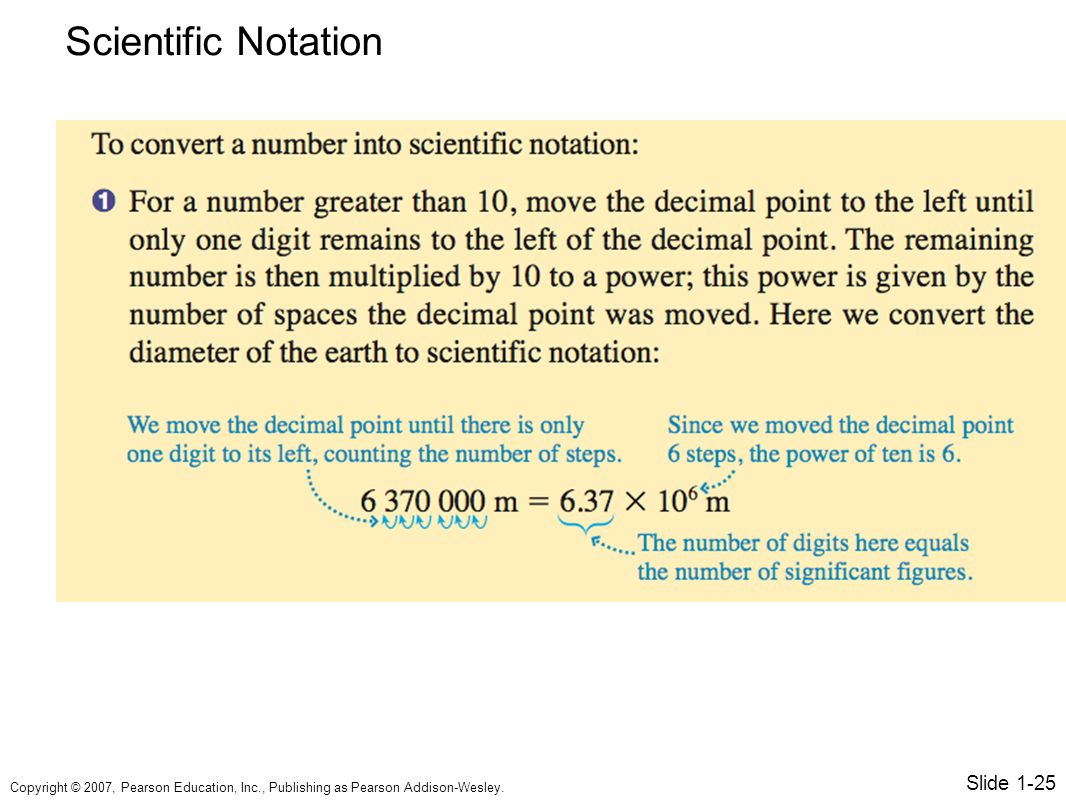

25. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Scientific Notation Slide 1-25

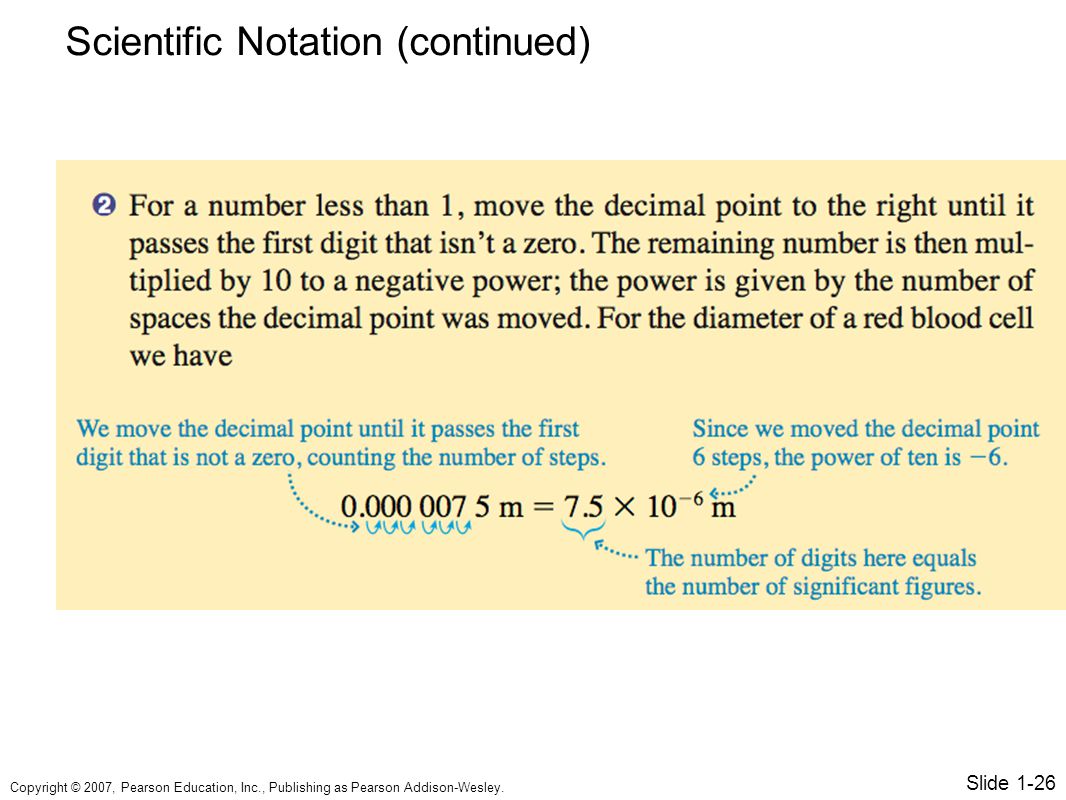

26. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Scientific Notation (continued) Slide 1-26

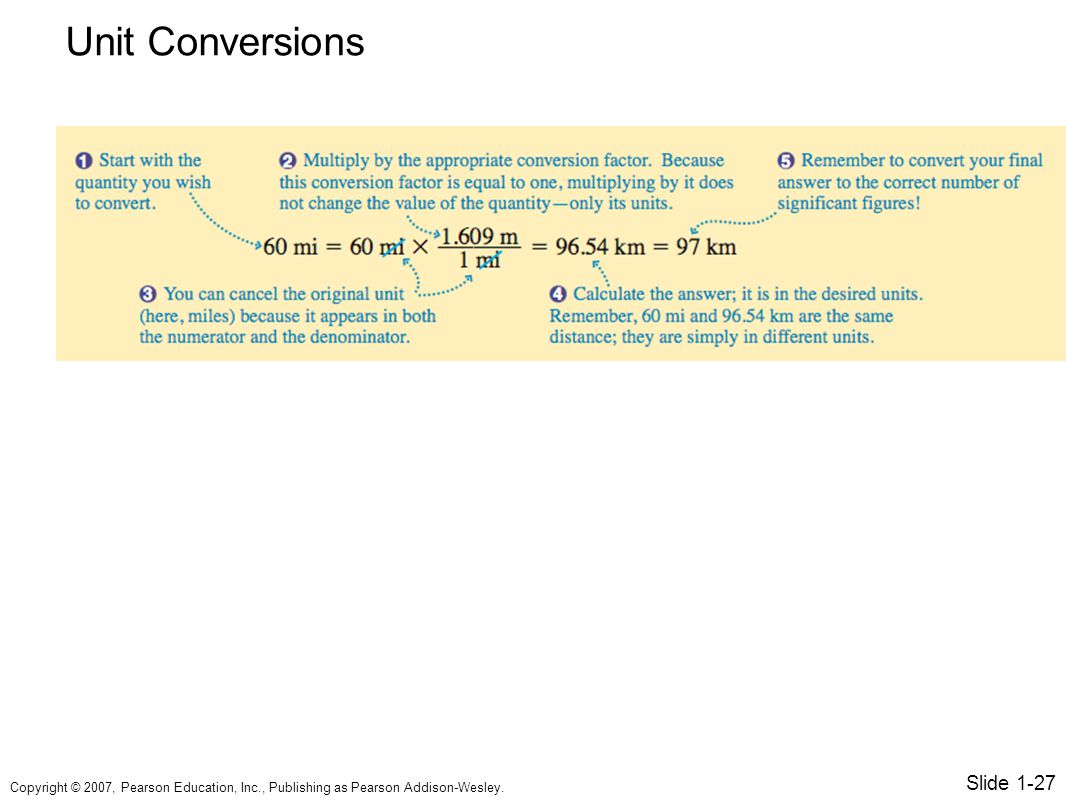

27. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Unit Conversions Slide 1-27

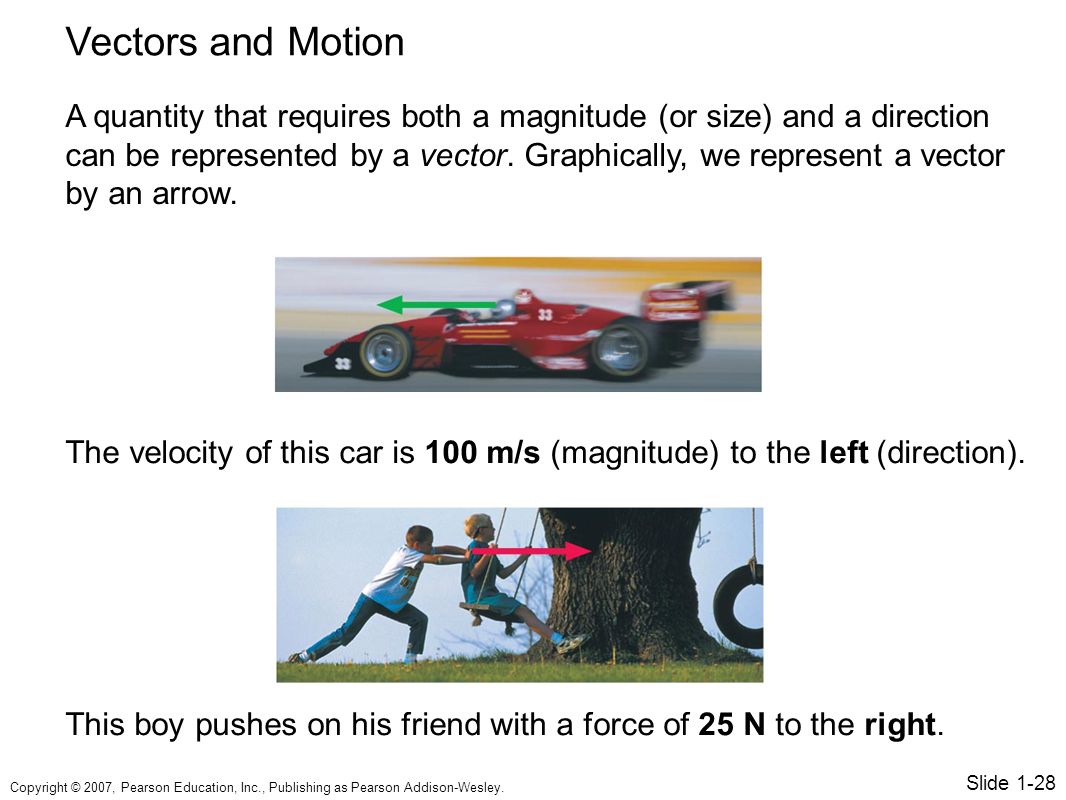

28. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Vectors and Motion A quantity that requires both a magnitude (or size) and a direction can be represented by a vector. Graphically, we represent a vector by an arrow. The velocity of this car is 100 m/s (magnitude) to the left (direction). This boy pushes on his friend with a force of 25 N to the right. Slide 1-28

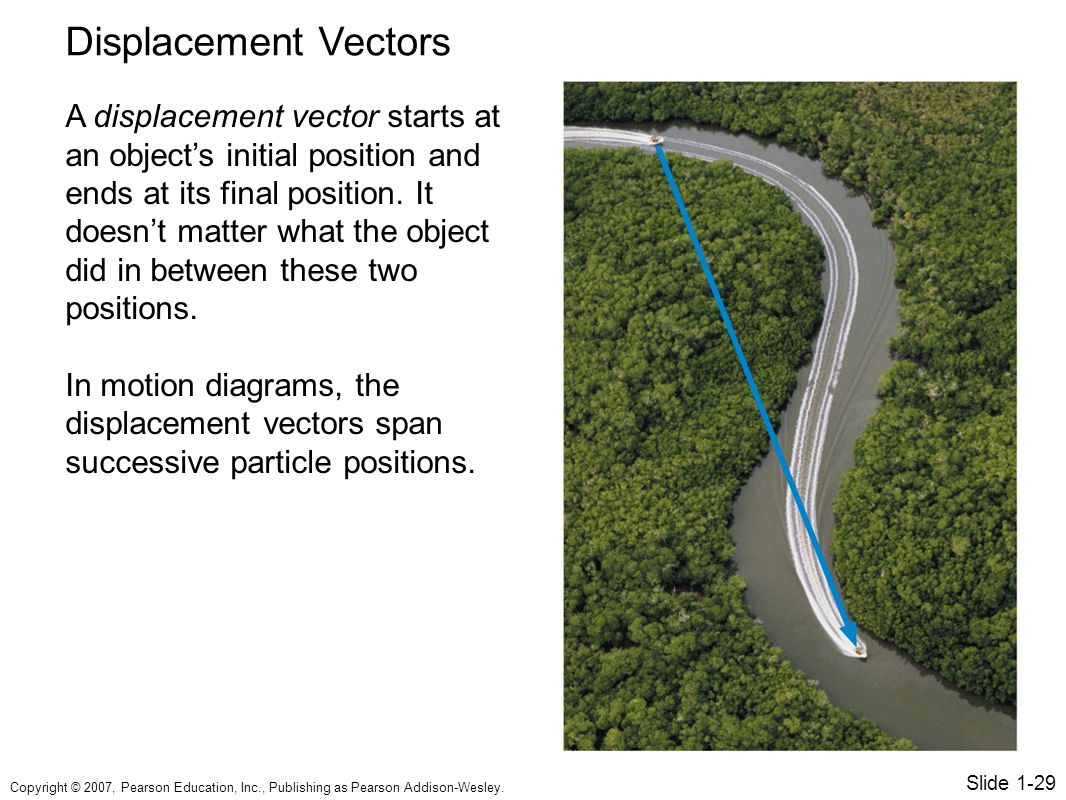

29. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Displacement Vectors A displacement vector starts at an object’s initial position and ends at its final position. It doesn’t matter what the object did in between these two positions. In motion diagrams, the displacement vectors span successive particle positions. Slide 1-29

30. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Exercise Alice is sliding along a smooth, icy road on her sled when she suddenly runs headfirst into a large, very soft snowbank that gradually brings her to a halt. Draw a motion diagram for Alice. Show and label all displacement vectors. Slide 1-30

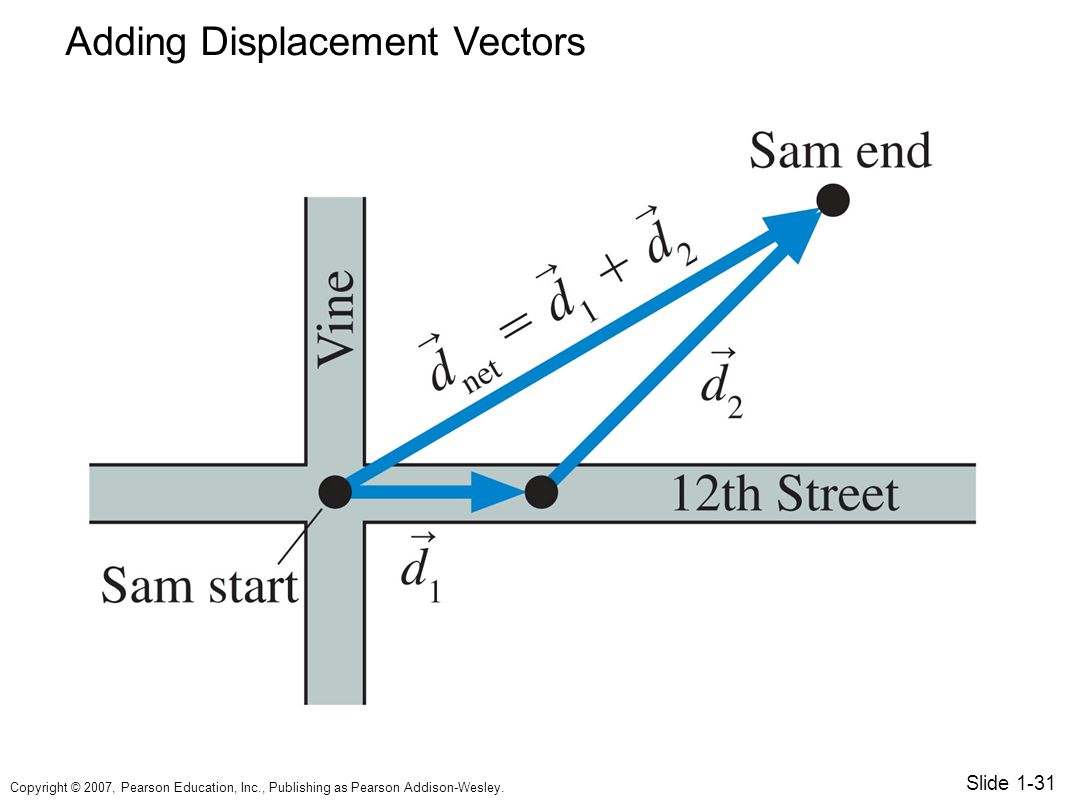

31. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Adding Displacement Vectors Slide 1-31

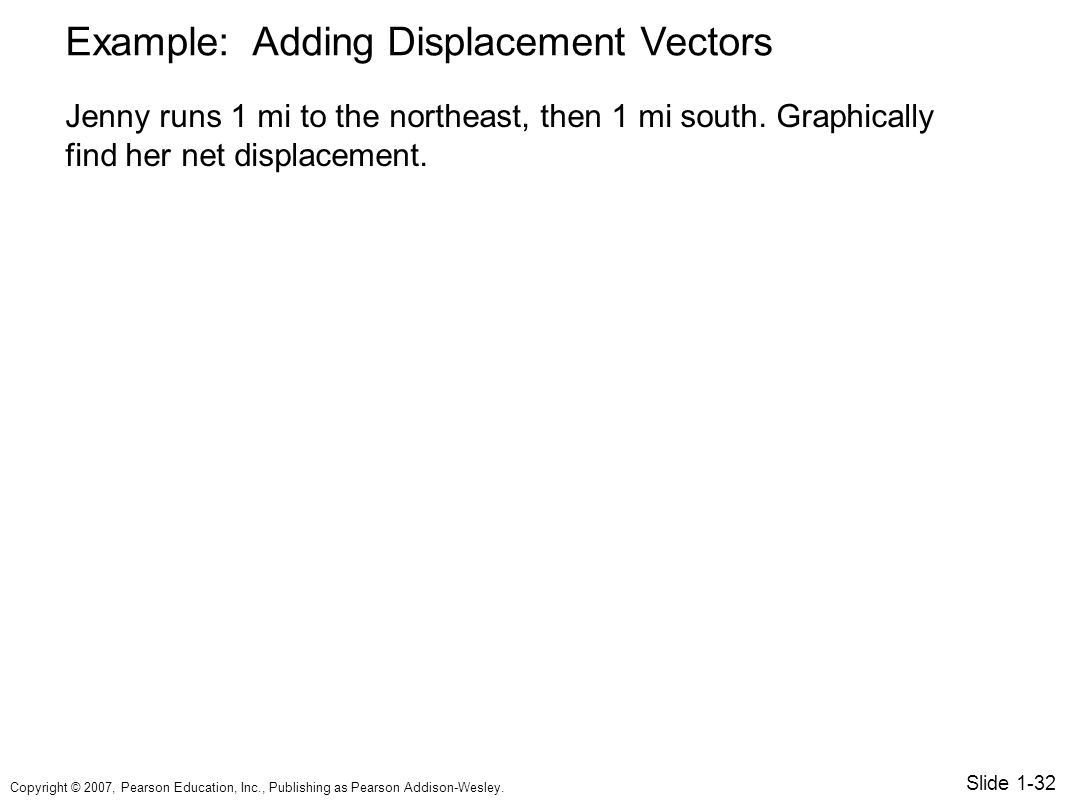

32. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Example: Adding Displacement Vectors Jenny runs 1 mi to the northeast, then 1 mi south. Graphically find her net displacement. Slide 1-32

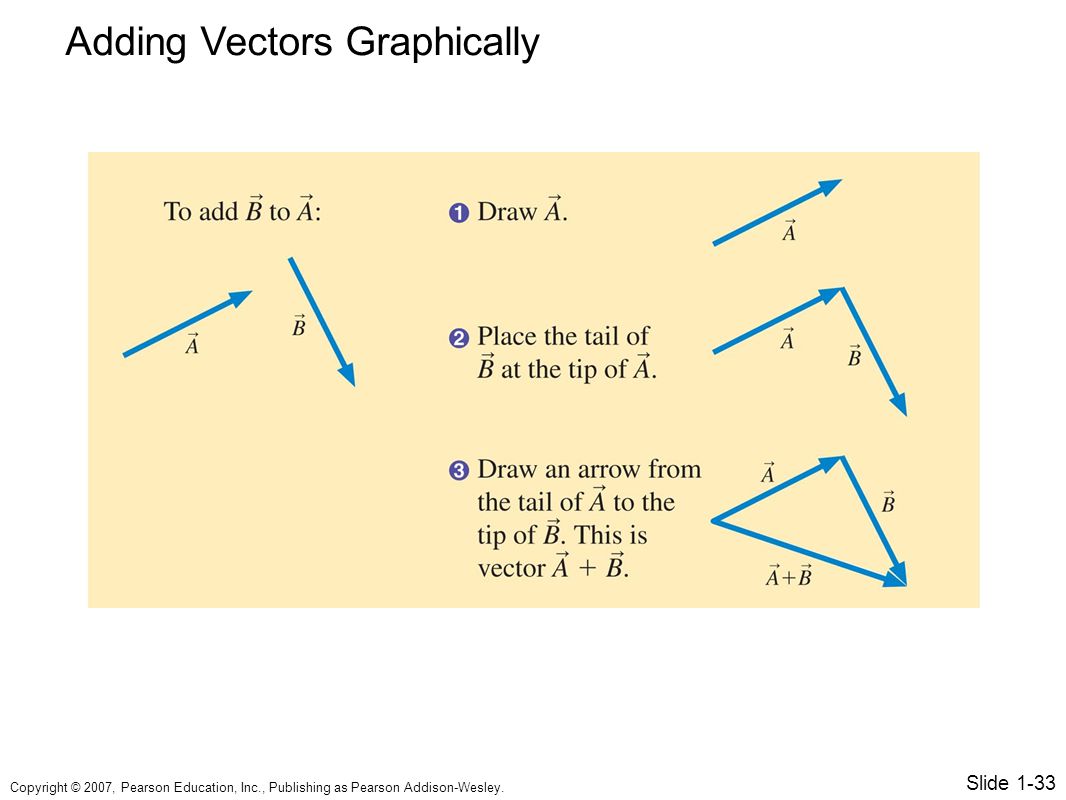

33. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Adding Vectors Graphically Slide 1-33

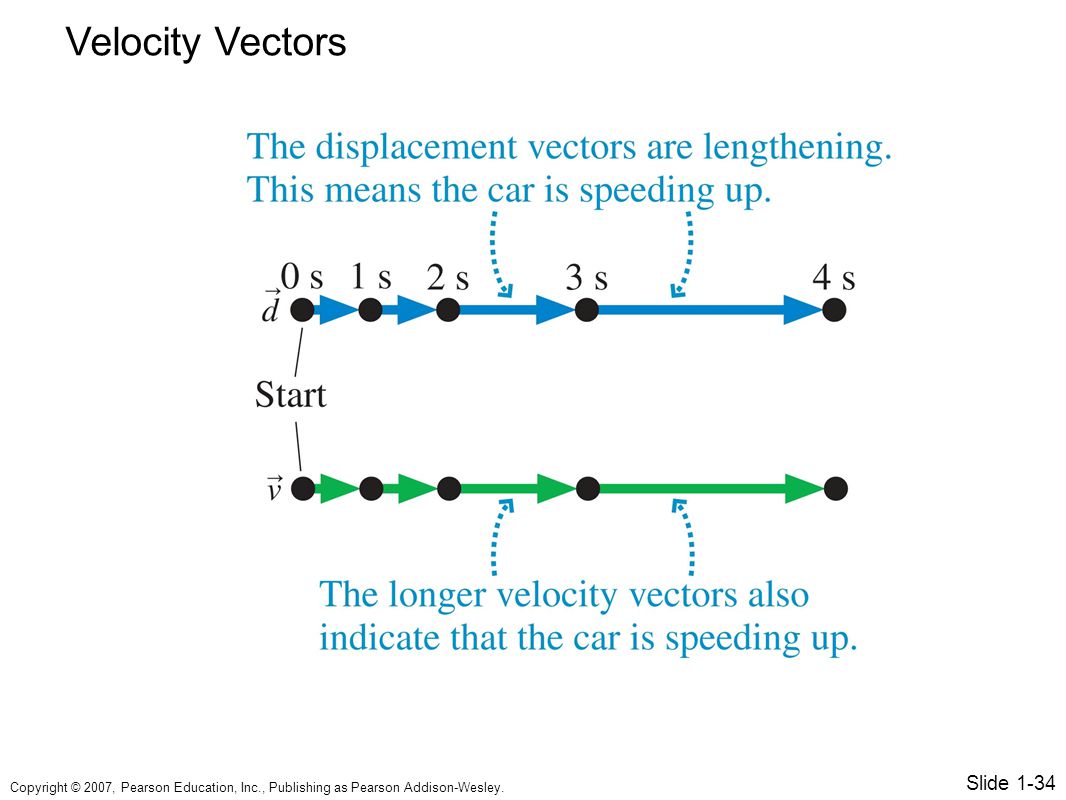

34. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Velocity Vectors Slide 1-34

35. Copyright © 2007, Pearson Education, Inc., Publishing as Pearson Addison-Wesley. Example: Velocity Vectors Jake throws a ball at a 60° angle, measured from the horizontal. The ball is caught by Jim. Draw a motion diagram of the ball with velocity vectors. Slide 1-35
