1. 1 Econ 240 C Lecture 3

2. 2 Part I Modeling Economic Time Series

3. 3 Total Returns to Standard and Poors 500, Monthly, 1970-2003 Source: FRED http://research.stlouisfed.org/fred/

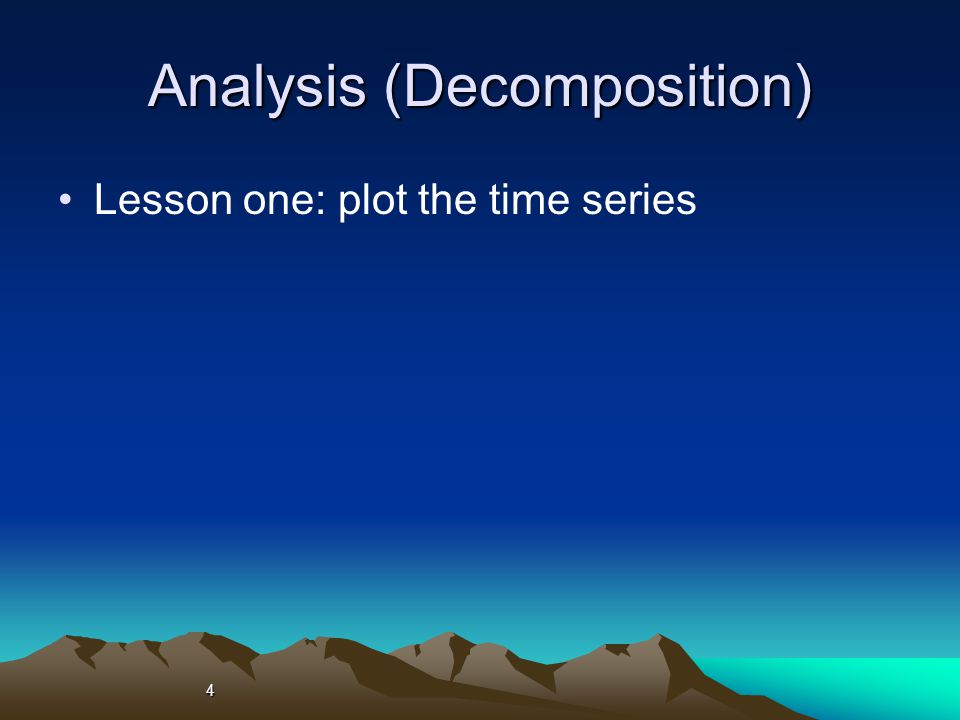

4. 4 Analysis (Decomposition) Lesson one: plot the time series

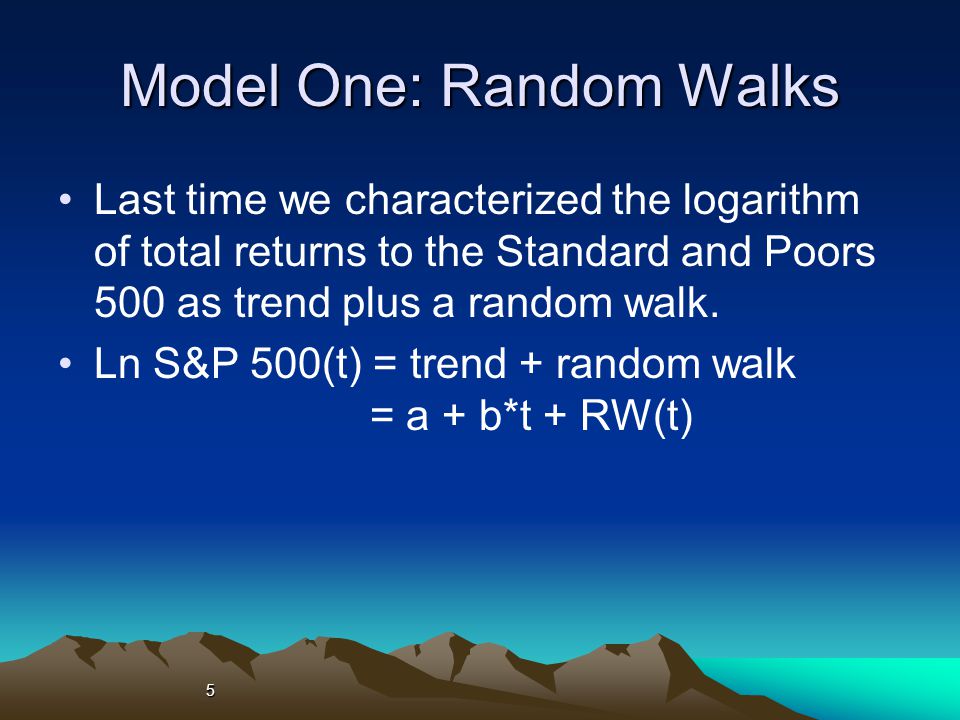

5. 5 Model One: Random Walks Last time we characterized the logarithm of total returns to the Standard and Poors 500 as trend plus a random walk. Ln S&P 500(t) = trend + random walk = a + b*t + RW(t)

6. 6 Trace of ln S&P 500(t) TIME LNSP500 Logarithm of Total Returns to Standard & Poors 500

7. 7 Analysis(Decomposition) Lesson one: Plot the time series Lesson two: Use logarithmic transformation to linearize

8. 8 Ln S&P 500(t) = trend + RW(t) Trend is an evolutionary process, i.e. depends on time explicitly, a + b*t, rather than being a stationary process, i. e. independent of time A random walk is also an evolutionary process, as we will see, and hence is not stationary

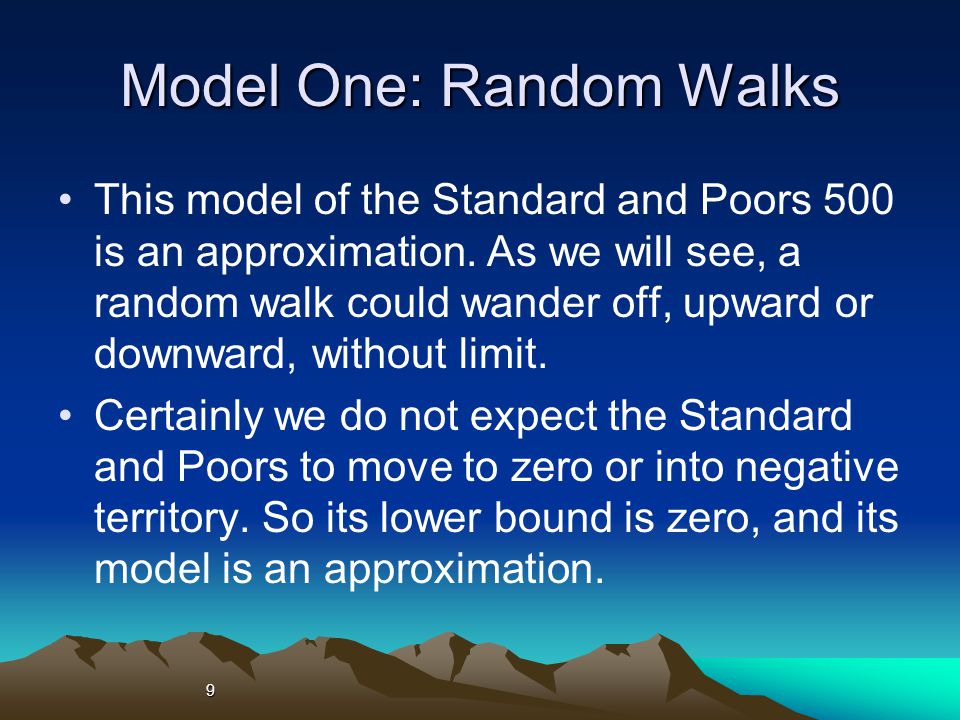

9. 9 Model One: Random Walks This model of the Standard and Poors 500 is an approximation. As we will see, a random walk could wander off, upward or downward, without limit. Certainly we do not expect the Standard and Poors to move to zero or into negative territory. So its lower bound is zero, and its model is an approximation.

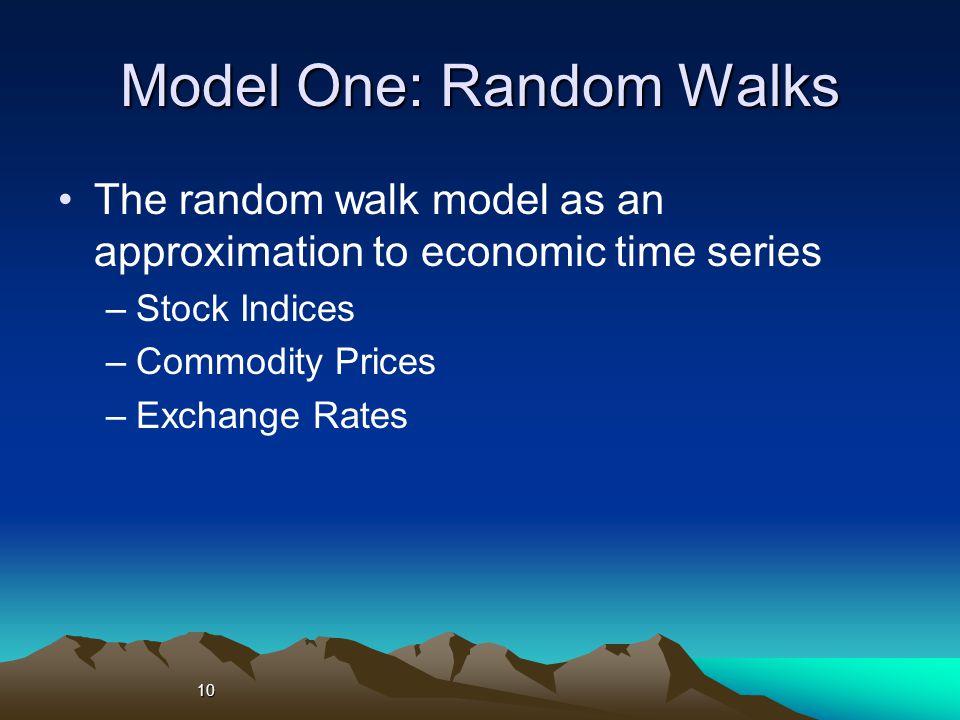

10. 10 Model One: Random Walks The random walk model as an approximation to economic time series –Stock Indices –Commodity Prices –Exchange Rates

11. 11 Model Two: White Noise Last time we saw that the difference in a random walk was white noise.

12. 12 Model Two: White Noise How good an approximation is the white noise model? Take first difference of ln S&P 500(t) and plot it and look at its histogram.

13. 13 Trace of ln S&P 500(t) – ln S&P(t-1)

14. 14 Histogram of ln S&P 500(t) – ln S&P(t-1)

15. 15 The First Difference of ln S&P 500(t)  ln S&P 500(t)=ln S&P 500(t) - ln S&P 500(t-1)  ln S&P 500(t) = a + b*t + RW(t) - {a + b*(t-1) + RW(t-1)}  ln S&P 500(t) = b +  RW(t) = b + WN(t) Note that differencing ln S&P 500(t) where both components, trend and the random walk were evolutionary, results in two components, a constant and white noise, that are stationary.

16. 16 Analysis(Decomposition) Lesson one: Plot the time series Lesson two: Use logarithmic transformation to linearize Lesson three: Use difference transformation to reduce an evolutionary process to a stationary process

17. 17 Model Two: White Noise Kurtosis or fat tails tend to characterize financial time series

18. 18 The Lag Operator, Z Z x(t) = x(t-1) Z n x(t) = x(t-n) RW(t) – RW(t-1) = (1 – Z) RW(t) =  RW(t) = WN(t) So the difference operator,  can be written in terms of the lag operator,  = (1 – Z)

19. 19 Model Three: Autoregressive Time Series of Order One An analogy to our model of trend plus shock for the logarithm of the Standard Poors is inertia plus shock for an economic time series such as the ratio of inventory to sales for total business Source: FRED http://research.stlouisfed.org/fred/

20. 20 Trace of Inventory to Sales, Total Business

21. 21 Analogy Trend plus random walk: Ln S&P 500(t) = a + b*t + RW(t) where RW(t) = RW(t-1) + WN(t) inertia plus shock Ratioinvsale(t) = b*Ratioinvsale(t-1) + WN(t)

22. 22 Model Three: Autoregressive of First Order Note: RW(t) = 1*RW(t-1) + WN(t) where the coefficient b = 1 Contrast ARONE(t) = b*ARONE(t-1) + WN(t) What would happen if b were greater than one?

23. 23 Using Simulation to Explore Time Series Behavior Simulating White Noise: EVIEWS: new workfile, irregular, 1000 observations, GENR WN = NRND

24. 24 Trace of Simulated White Noise: 100 Observations

25. 25 Histogram of Simulated White Noise

26. 26 Simulated ARONE Process SMPL 1 1, GENR ARONE = WN SMPL 2 1000 GENR ARONE =1.1* ARONE(-1) + WN Smpl 1 1000

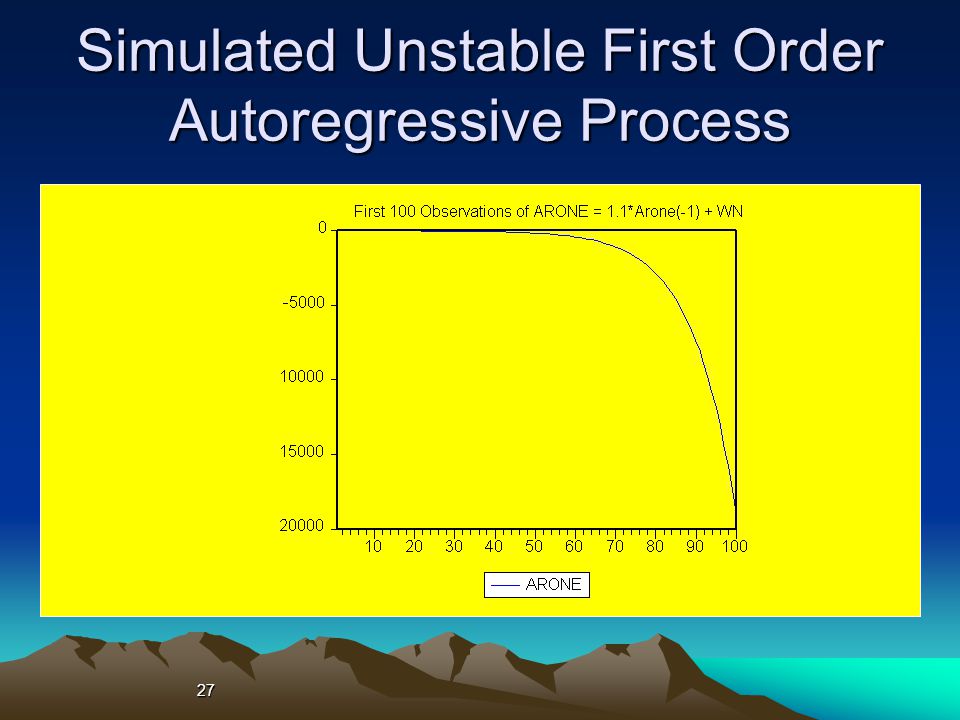

27. 27 Simulated Unstable First Order Autoregressive Process

28. 28 First 10 Observations of ARONE obsWNARONE 1-1.204627-1.204627 2-1.728779-3.053869 3 1.478125-1.881131 4-0.325830-2.395073 5-0.593882-3.228463 6 0.787438-2.763872 7 0.157040-2.883219 8-0.211357-3.382898 9-0.722152-4.443340 10 0.775963-4.111711

29. 29 Model Three: Autoregressive What if b= -1.1? ARONE*(t) = -1.1*ARONE*(t-1) + WN(t) SMPL 1 1, GENR ARONE* = WN SMPL 2 1000 GENR ARONE* = -1.1*ARONE*(-1) + WN SMPL 1 1000

30. 30 Simulated Autoregressive, b=-1.1

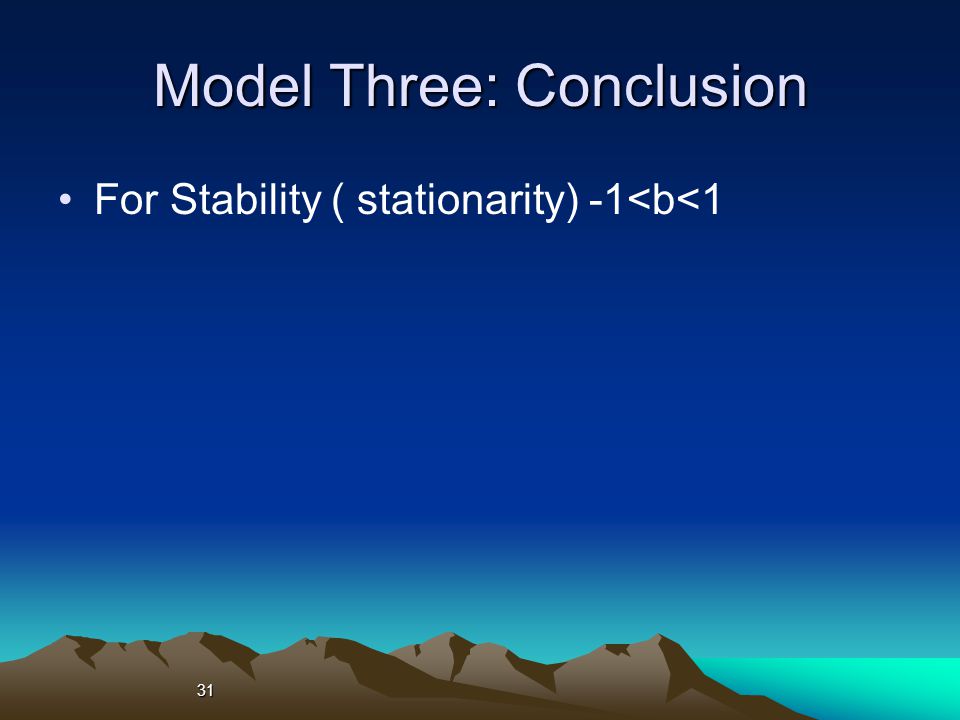

31. 31 Model Three: Conclusion For Stability ( stationarity) -1<b<1

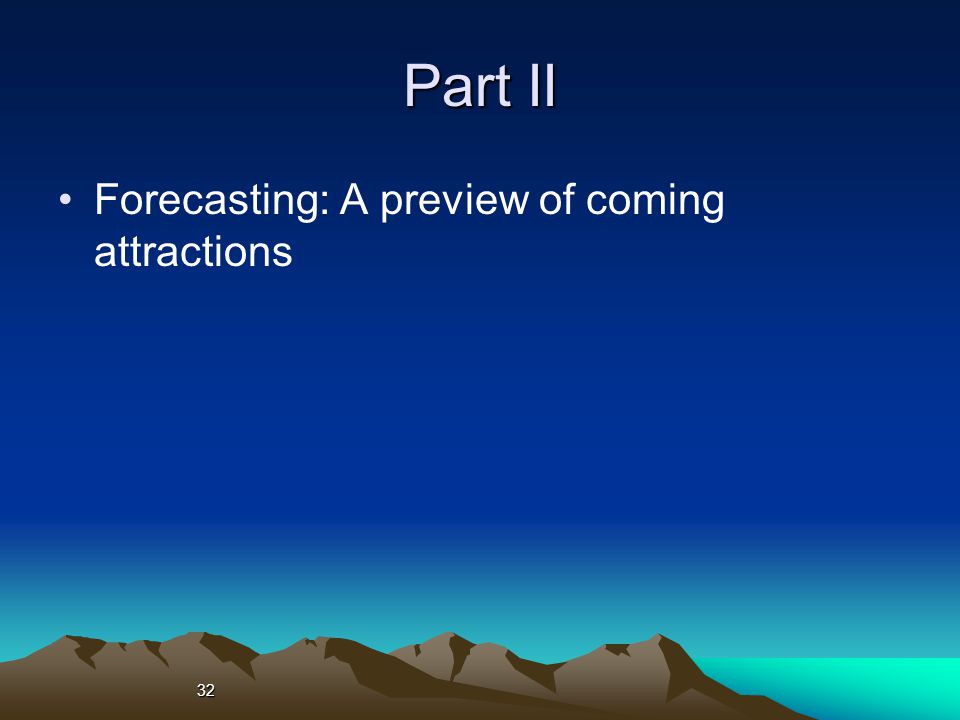

32. 32 Part II Forecasting: A preview of coming attractions

33. 33 Ratio of Inventory to Sales EVIEWS Model: Ratioinvsale(t) = c + AR(1) Ratioinvsale is a constant plus an autoregressive process of the first order AR(t) = b*AR(t-1) + WN(t) Note: Ratioinvsale(t) - c = AR(t), so Ratioinvsale(t) - c = b*{ Ratioinvsale(t-1) - c} + WN (t)

34. 34 Ratio of Inventory to Sales Use EVIEWS to estimate coefficients c and b. Forecast of Ratioinvsale at time t is based on knowledge at time t-1 and earlier (information base) Forecast at time t-1 of Ratioinsale at time t is our expected value of Ratioinvsale at time t

35. 35 One Period Ahead Forecast E t-1 [Ratioinvsale(t)] is: E t-1 [Ratioinvsale(t) - c] = E t-1 [Ratioinvsale(t)] - c = Forecast - c = b*E t-1 [Ratioinvsale(t-1) - c] + E t-1 [WN(t)] Forecast = c + b*Ratioinvsale(t-1) -b*c + 0

36. 36 Dependent Variable: RATIOINVSALE Method: Least Squares Date: 04/08/03 Time: 13:56 Sample(adjusted): 1992:02 2003:01 Included observations: 132 after adjusting endpoints Convergence achieved after 3 iterations VariableCoefficientStd. Errort-StatisticProb. C1.4172930.03043146.574050.0000 AR(1)0.9545170.02401739.742760.0000 R-squared0.923954 Mean dependent var1.449091 Adjusted R-squared0.923369 S.D. dependent var0.046879 S.E. of regression0.012977 Akaike info criterion-5.836210 Sum squared resid0.021893 Schwarz criterion-5.792531 Log likelihood387.1898 F-statistic1579.487 Durbin-Watson stat2.674982 Prob(F-statistic)0.000000 Inverted AR Roots.95

37. 37 How Good is This Estimated Model?

38. 38 Plot of the Estimated Residuals

39. 39 Forecast for Ratio of Inventory to Sales for February 2003 E 2003:01 [Ratioinvsale(2003:02)= c - b*c + b*Ratioinvsale(2003:02) Forecast = 1.417 - 0.954*1.417 + 0.954*1.360 Forecast = 0.06514 + 1.29744 Forecast = 1.36528

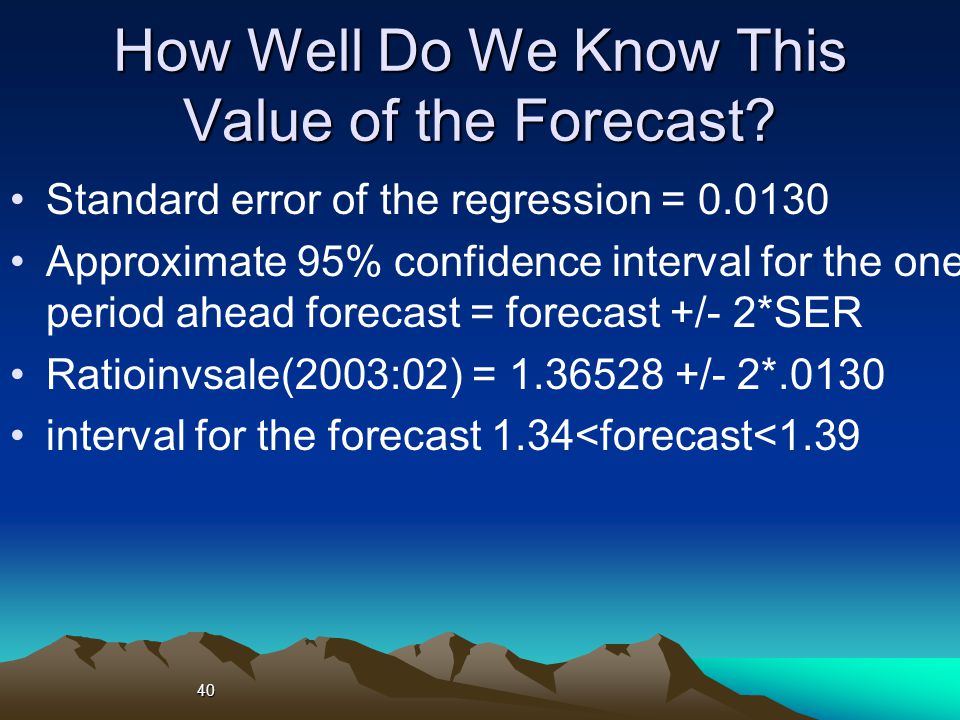

40. 40 How Well Do We Know This Value of the Forecast? Standard error of the regression = 0.0130 Approximate 95% confidence interval for the one period ahead forecast = forecast +/- 2*SER Ratioinvsale(2003:02) = 1.36528 +/- 2*.0130 interval for the forecast 1.34<forecast<1.39

41. 41 Trace of Inventory to Sales, Total Business

42. 42 Lessons About ARIMA Forecasting Models Use the past to forecast the future “sophisticated” extrapolation models competitive extrapolation models –use the mean as a forecast for a stationary time series, E t-1 [y(t)] = mean of y(t) –next period is the same as this period for a stationary time series and for random walks, E t-1 [y(t)] = y(t-1) –extrapolate trend for an evolutionary trended time series, E t-1 [y(t)] = a + b*t = y(t-1) + b
