2 Chapter Goals Describe client/server and multi-tier application architecture and discuss their advantages compared to centralized applications Explain how operating systems and network protocol stacks cooperate so users and programs can access remote resources Describe low-level protocols for interprocess communication across networks, including sockets, names pipes, RPC, and DCE Systems Architecture, Fifth Edition

3 Chapter Goals (continued)
List and describe standard Internet protocols used to access distributed resources Discuss component-based application development and describe the protocols and standards that support component-based applications Explain the role and function of directory services and the LSAP standard Systems Architecture, Fifth Edition

4 Systems Architecture, Fifth Edition

5 Distributed Computing
Distributing parts of an information system across many computer systems and locations Architectural models Client/server Three-layer N-layer Systems Architecture, Fifth Edition

6 Client/Server Architecture
Manages system resources; provides access to them through a well-defined communication interface Client Uses communication interface to request resources; server responds to those requests Current dominant model for distributed computing Systems Architecture, Fifth Edition

7 One of the many different ways that client/server architecture can be implemented.
Systems Architecture, Fifth Edition

8 N-Layer Client/Server Architecture
Three-layer architecture Divides application software into three tiers Data layer Business logic layer View layer Simplifies distributing or replicating application software across a network N-layer architectures Employ more than three layers Systems Architecture, Fifth Edition

9 The view layer acts as a client of the business logic layer, which in turn acts as a client of the data layer. Systems Architecture, Fifth Edition

10 Multi-Layer Architectures
Require standard models and services to communicate with one another Middleware System software that implements communication standards and gives clients and servers the ability to interact Systems Architecture, Fifth Edition

11 Network Resource Access
OS components enable distributed access by: Distinguishing between local and remote resources Interacting with distant operating systems How does an OS do these things? Systems Architecture, Fifth Edition

12 Protocol Stacks Software that implements the lowest five levels of the OSI model Provide several advantages for implementing network I/O and services (shown two slides from now) Systems Architecture, Fifth Edition

13 Systems Architecture, Fifth Edition

14 Advantages of Protocol Stacks
Divide network interaction into well-defined pieces that can be separately implemented, installed, and updated Provide flexibility to keep up with rapid protocol standard evolution Insulate application programs and portions of OS from details of low-level network communication protocols and physical network implementation (ensures software portability) Systems Architecture, Fifth Edition

15 Accessing Remote Resources
Static connection Initialized by user or system administrator prior to accessing a remote resource Difficult to initialize and maintain (somebody has to do it; what if it changes?) Example: Using Windows to map a network drive to a remote folder (in My Computer / Tools / Map Network Drive) Systems Architecture, Fifth Edition

16 Accessing Remote Resources
Dynamic connection Established through interaction between a resource layer and a primary resource registration repository More flexible but requires a distributed registry of resource name and locations Systems Architecture, Fifth Edition

17 Premises of Remote Resource Access
Location transparency Operating systems, application programs, and user interfaces are simpler if there is no distinction between local and remote resource access Also called network transparency Example: a word processor shouldn’t care if the file it is operating on is local or on a remote server Systems Architecture, Fifth Edition

18 Premises of Remote Resource Access
All resources are potentially shared across a network; any computer system is potentially both a server and a client To provide remote access, all operating systems need to incorporate server-like functions OSs that implement this design feature are said to implement service-oriented resource access Systems Architecture, Fifth Edition

19 Service-Oriented Resource Access
Need 2 layers between service layer and device drivers: Service provider Server interface to specific resource Resource locator Locates resources referred to in service requests from local or remote users and programs Forwards service requests to appropriate service provider Maintains a resource registry Systems Architecture, Fifth Edition

20 Software components that support service-oriented resource access
Systems Architecture, Fifth Edition

21 Blurring Between Server OS and Client OS
Because client machines are called upon to perform server operations, the distinction between server OS and client OS is getting fuzzy Windows Server 2003 and Windows XP have many similar features But Windows Server supports up to 32 CPUs and a sophisticated directory-based security system; Windows XP Pro supports 1 or 2 CPUs more modest security Systems Architecture, Fifth Edition

22 Interprocess Communication
Distributed processes must communicate with one another to exchange data and synchronize activities Peer-to-peer interprocess communication protocols Sockets Named pipes Remote procedure calls Distributed Computing Environment (DCE) Systems Architecture, Fifth Edition

23 Systems Architecture, Fifth Edition

24 Sockets Unique combinations of an IP number and a port number, separated by a colon (e.g., :53) Implement direct process-to-process communication via protocol stacks Supported by all modern OSs, which enable programs to initialize sockets, receive messages sent to a socket, and send messages to sockets anywhere on the Internet Systems Architecture, Fifth Edition

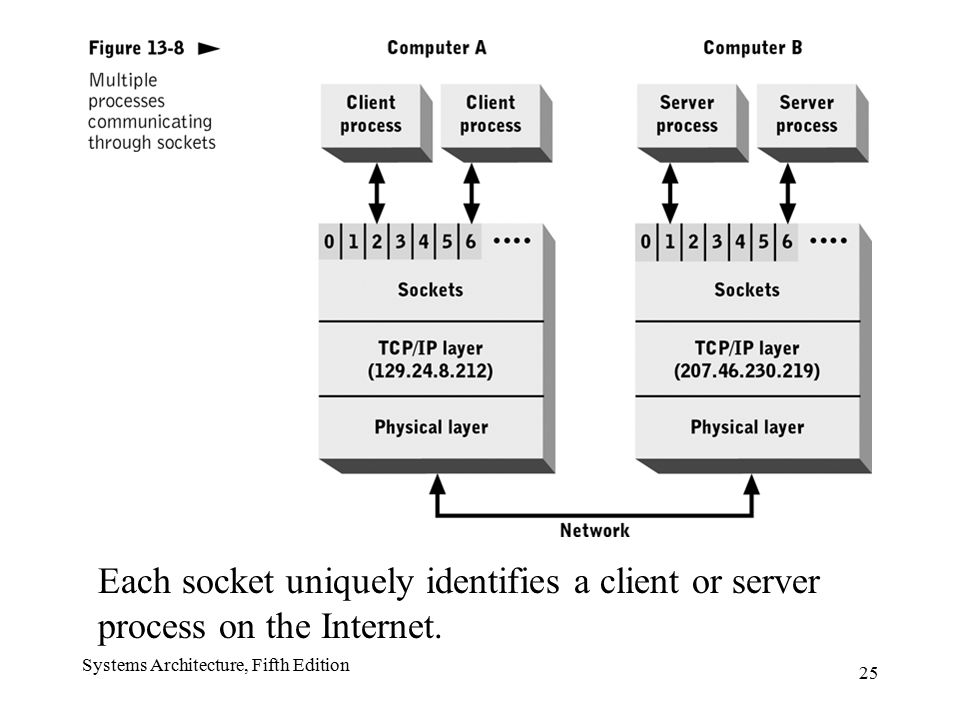

25 Each socket uniquely identifies a client or server process on the Internet.
Systems Architecture, Fifth Edition

26 Named Pipes Region of shared memory that enables multiple processes executing on the same machine to exchange data Commonly used for communication among OS components, for queuing requests to an OS service such as a Web server, and for exchanging messages among components within a large application A named pipe is permanently placed within file system directory (is treated like a file) And is able to communicate among processes on different computers Systems Architecture, Fifth Edition

27 OS assigns a free socket to named pipe when it is created, allocates I/O buffers and routes data flowing in/out of the pipe through low-level network protocol stack. Systems Architecture, Fifth Edition

28 Remote Procedure Calls
Allow one process to execute another as a subroutine with parameter passing and format translation The calling process: Passes parameters to the called process Waits for the called process to complete its task Accepts parameters back from the called process Resumes execution with the instruction following the call Systems Architecture, Fifth Edition

29 Problems with RPC You are calling a routine, so you are passing parameters Are the parameters the same type? Same number? Big endian or little endian? Floating point consistency? ASCII or EBCDIC or Unicode? Systems Architecture, Fifth Edition

30 Distributed Computing Environment
A standard for distributed OS services defined by the Open Group Partially supported by most major OSs Combines all peer-to-peer approaches and adds security (Kerberos) and minimal directory services Promotes interoperability of distributed software across operating systems and middleware products Systems Architecture, Fifth Edition

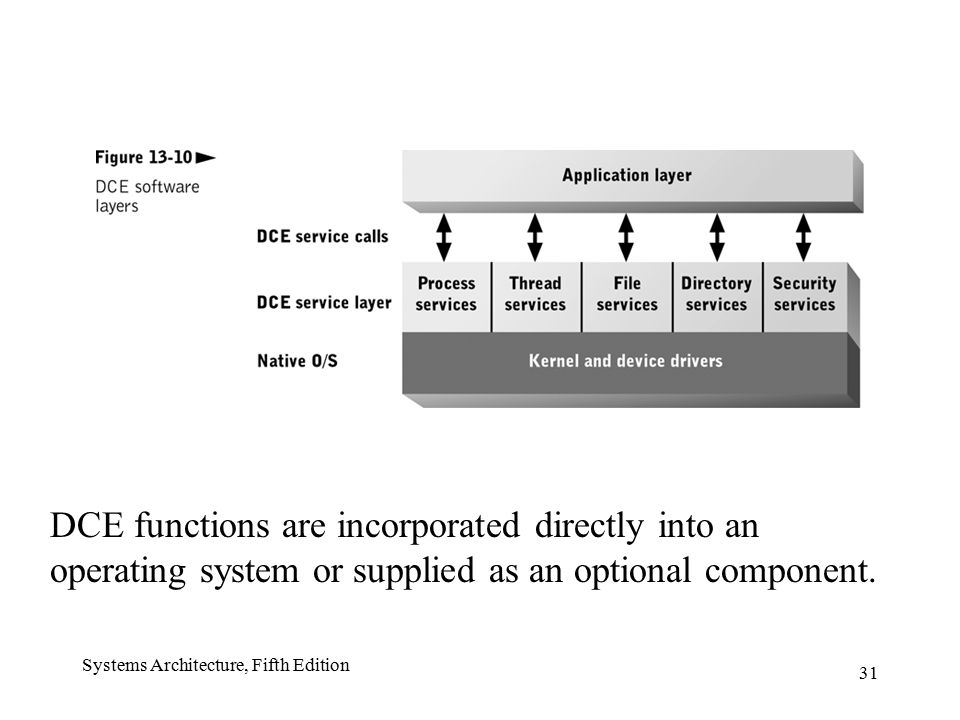

31 DCE functions are incorporated directly into an operating system or supplied as an optional component. Systems Architecture, Fifth Edition

32 The Internet Internet Global collection of networks interconnected using TCP/IP Infrastructure upon which the Web is based WWW Collection of resources (programs, files, services), accessible over the Internet by standard protocols (FTP, HTTP) Organized using client/server architecture Intranet Private network that uses Internet protocols; accessible only to a limited set of internal users Set of privately accessible resources, organized and delivered via Web protocols over a TCP/IP network Systems Architecture, Fifth Edition

33 Standard Web Protocols and Services
Define valid resource formats and a standard means of requesting resources Identified by a unique Uniform Resource Locator (URL) Systems Architecture, Fifth Edition

34 Resource Host Protocol Port Systems Architecture, Fifth Edition

35 Systems Architecture, Fifth Edition

36 Systems Architecture, Fifth Edition

37 The Internet as an Application Platform
Application program executes on a Web server that can be accessed from any computer with an Internet connection Systems Architecture, Fifth Edition

38 Database is back-end server and is accessed via
pipes/sockets/RPC; https or Kerberos used Systems Architecture, Fifth Edition

39 The Internet as an Application Platform
Advantages Disadvantages Expands accessibility Eliminates need to install custom client software Cheaper to develop and deploy; built around existing Web standards and browser software already installed on clients Security Performance Reliability Systems Architecture, Fifth Edition

40 Components and Distributed Objects
Standardized, interchangeable software module that is executable, has a unique identifier, and has a well-known interface Distributed object Cooperating process that implements a public interface to the services it provides Systems Architecture, Fifth Edition

41 Component-Based Software
Enables construction of complex programs and applications from smaller previously developed parts Requires protocols and infrastructure for component registration, discovery, and communication Systems Architecture, Fifth Edition

42 Components and Objects
Send and respond to messages Encapsulate internal data Interact with other components through a well-defined interface Systems Architecture, Fifth Edition

43 Connection Standards and Infrastructure
Interoperability requires well-defined and widely adopted standards Standard network protocols do not address: Format and content of valid messages and responses Way to uniquely identify each component on the Internet and route messages to/from that computer Additional standards provided by CORBA, COM+, SOAP, J2EE Systems Architecture, Fifth Edition

44 Common Object Request Broker Architecture (CORBA)
Specifies middleware used by objects to interact across networks Key components Object Request Broker (ORB) Internet Inter-ORB Protocol (IIOP) Robust, scalable, independent of programming language, OS, and CPU architecture Disadvantage: Complexity Systems Architecture, Fifth Edition

45 Component Object Model Plus (COM+)
Like CORBA, defines component registration, message routing services, and component communication protocol Unlike CORBA, components are not assigned permanent identifier, and are registered in Windows Registry of client machine where installed Disadvantage: Dependence on propriety technology and limited support outside of Microsoft products Systems Architecture, Fifth Edition

46 Simple Object Access Protocol (SOAP)
Attempts to address shortcomings of CORBA and COM+ Has few infrastructure requirements and relatively simple programming interface Relies on existing Internet protocols Disadvantage: Security and message delivery guarantees Systems Architecture, Fifth Edition

47 SOAP: Messages are encoded in XML and transmitted using HTTP; enables objects to be located anywhere on the Internet. Systems Architecture, Fifth Edition

48 Java 2 Enterprise Edition (J2EE)
Standards for developing/deploying component-based distributed applications written in Java Key elements follow three-layer architecture Component interactions based on many standards Remote Method Invocation (RMI) Java Naming and Directory Interface (JNDI) Java Authentication and Authorization Service (JAAS) Java Database Connectivity (JDBC) Systems Architecture, Fifth Edition

49 Systems Architecture, Fifth Edition

50 Directory Services Middleware that:
Stores name and network address of distributed resources Responds to directory queries Accepts directory updates Synchronizes replicated or distributed directory copies Integral components of network operating systems Systems Architecture, Fifth Edition

51 Information Stored in Network OS Directories
Registered users and their permissions to access directory objects Shared hardware resources Shared files, databases, and programs Computer systems and specialized hardware devices Systems Architecture, Fifth Edition

52 Lightweight Directory Access Protocol (LDAP)
Widely deployed directory service standard that can track users, distributed resources, and objects Limited interoperability among different LDAP directories; does not define standard content templates Defines several standard container types and an attribute called distinguished name (DN) which uniquely identifies the object within an objectclass Systems Architecture, Fifth Edition

53 Container object types: Country (C) Organization (O)
Organizational Unit (OU) Systems Architecture, Fifth Edition

54 Microsoft Active Directory
Directory service and security system built into Windows server Stores information about network resources Every resource or container object has an access control list that describes access rights Based on LDAP and the Internet Domain Naming Service (DNS) Does not support distributed or component-based software directly Systems Architecture, Fifth Edition

55 Systems Architecture, Fifth Edition

56 Systems Architecture, Fifth Edition

57 Summary Distributed computing Network resource access
Interprocess communication The Internet Components and distributed objects Systems Architecture, Fifth Edition
