1. Building Your HMI Using Visual Basic Technologies - A Tutorial John Weber The Software Toolbox ® jweber@softwaretoolbox.com October 21, 1998 Houston, TX Copyright 1998 Qualitrol International & Software Toolbox.All rights reserved worldwide.The Software Toolbox is a registered trademark of Qualitrol International. Poster Presentation

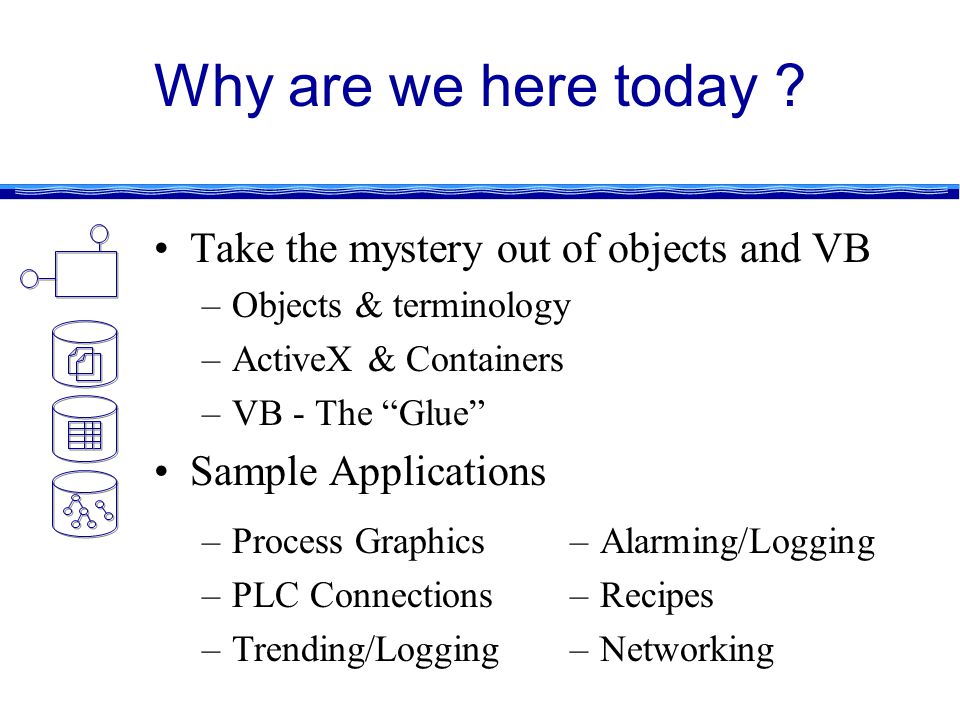

2. Why are we here today ? Take the mystery out of objects and VB –Objects & terminology –ActiveX & Containers –VB - The “Glue” Sample Applications –Alarming/Logging –Recipes –Networking –Process Graphics –PLC Connections –Trending/Logging

3. Defining the Technologies

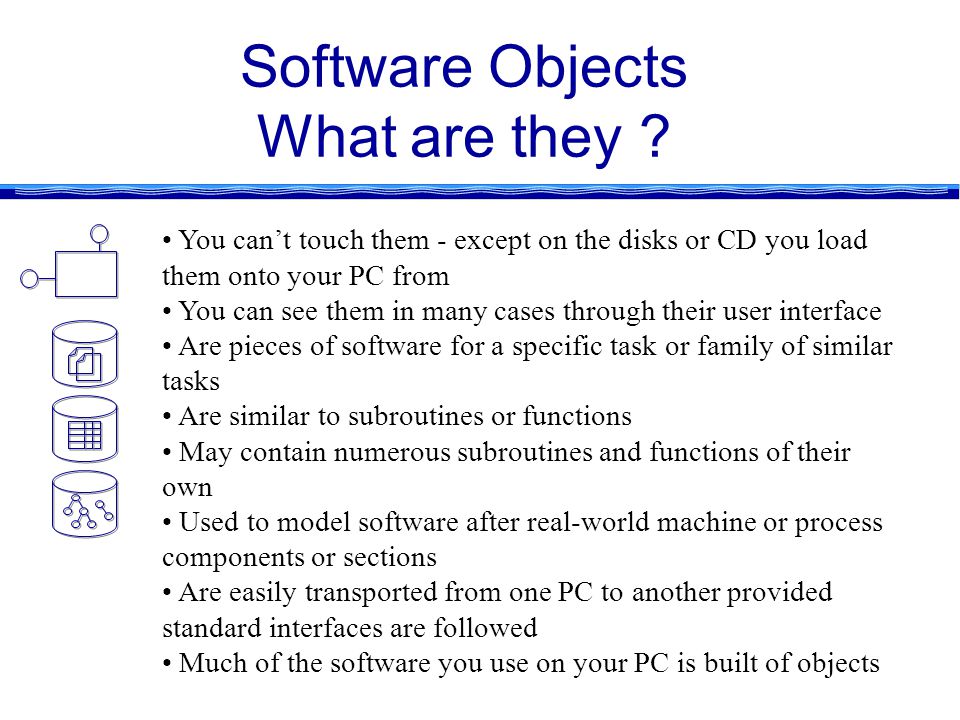

4. Software Objects What are they ? You can’t touch them - except on the disks or CD you load them onto your PC from You can see them in many cases through their user interface Are pieces of software for a specific task or family of similar tasks Are similar to subroutines or functions May contain numerous subroutines and functions of their own Used to model software after real-world machine or process components or sections Are easily transported from one PC to another provided standard interfaces are followed Much of the software you use on your PC is built of objects

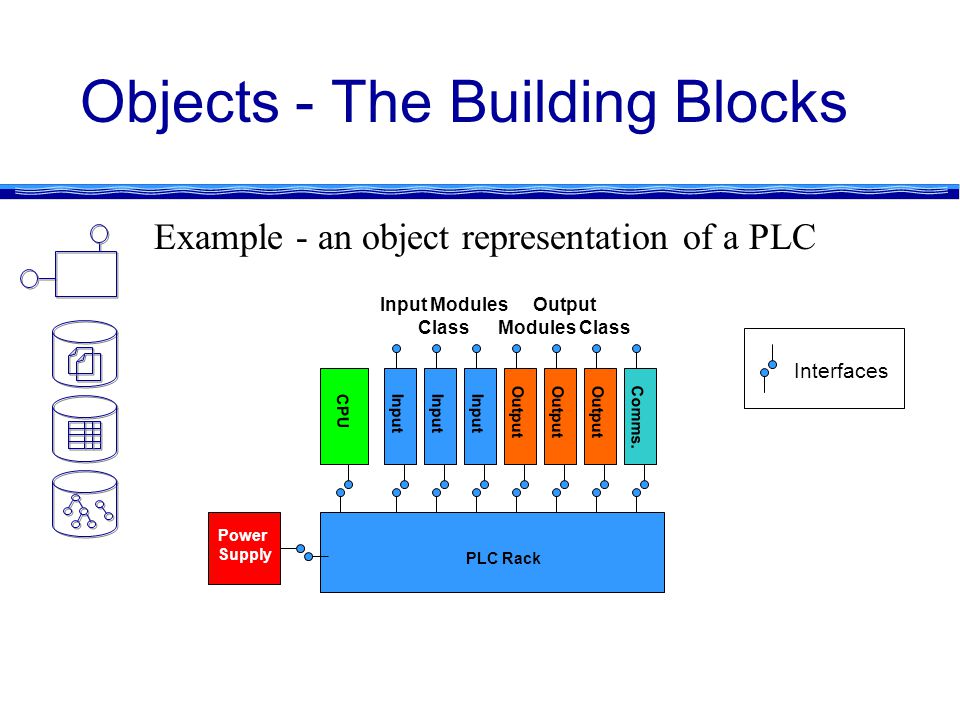

5. Objects - The Building Blocks Example - an object representation of a PLC PLC Rack CPU Input Output Comms. Interfaces Power Supply Input Modules Class Output Modules Class

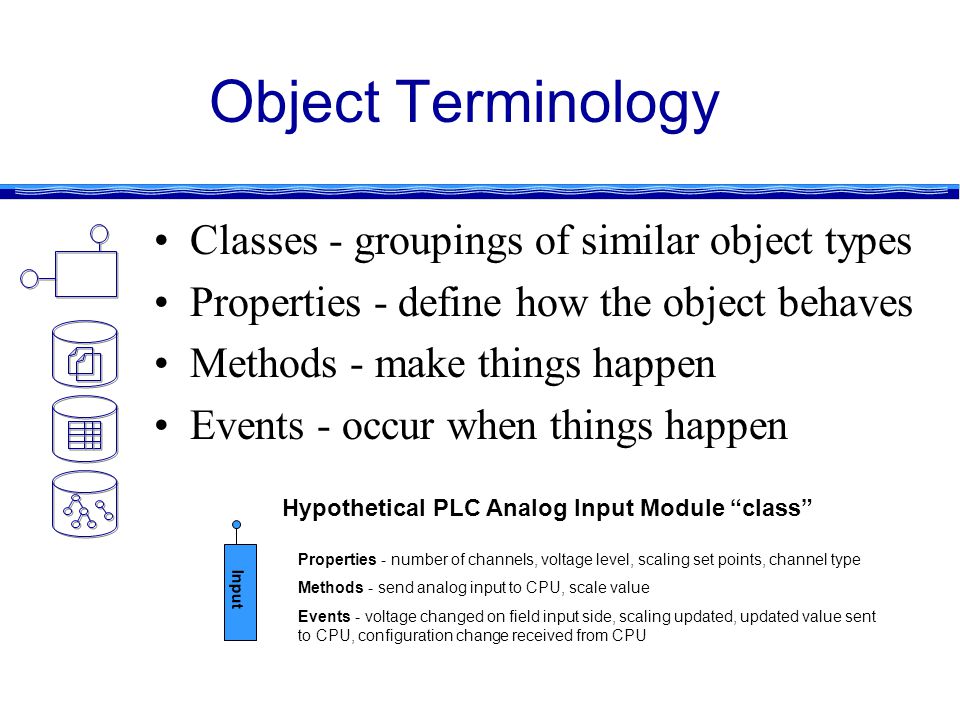

6. Object Terminology Classes - groupings of similar object types Properties - define how the object behaves Methods - make things happen Events - occur when things happen Input Hypothetical PLC Analog Input Module “class” Properties - number of channels, voltage level, scaling set points, channel type Methods - send analog input to CPU, scale value Events - voltage changed on field input side, scaling updated, updated value sent to CPU, configuration change received from CPU

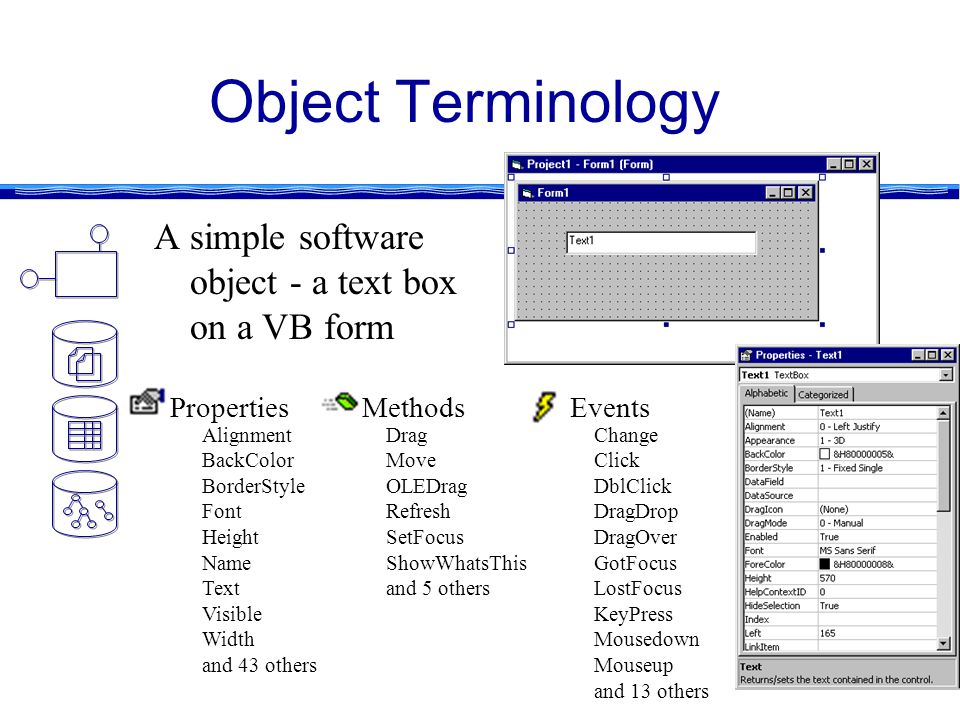

7. Object Terminology A simple software object - a text box on a VB form PropertiesMethodsEvents Alignment BackColor BorderStyle Font Height Name Text Visible Width and 43 others Drag Move OLEDrag Refresh SetFocus ShowWhatsThis and 5 others Change Click DblClick DragDrop DragOver GotFocus LostFocus KeyPress Mousedown Mouseup and 13 others

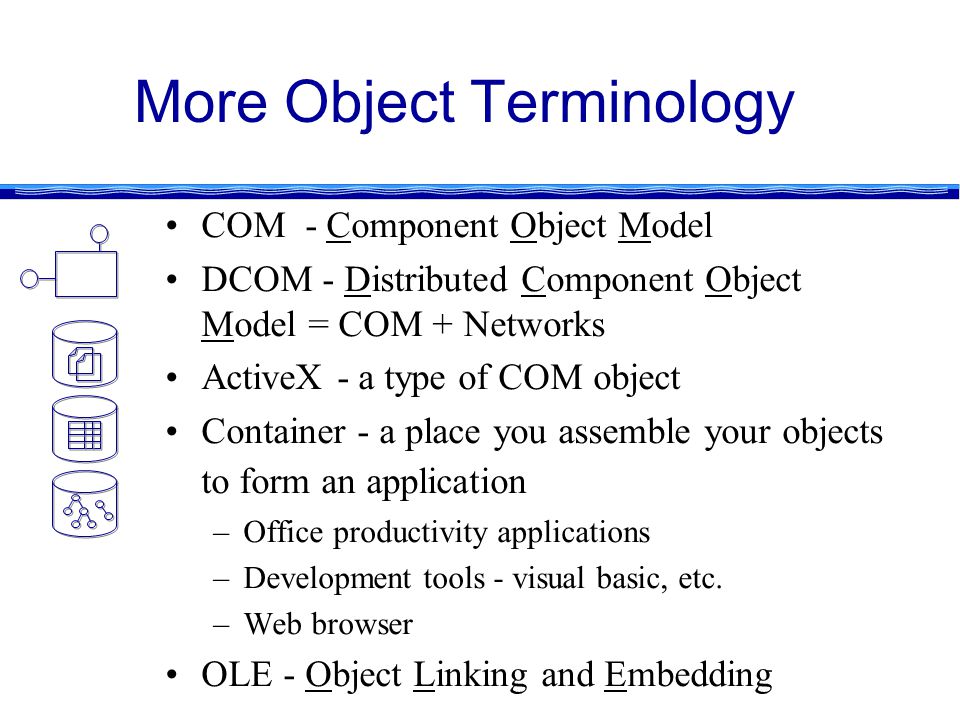

8. More Object Terminology COM - Component Object Model DCOM - Distributed Component Object Model = COM + Networks ActiveX - a type of COM object Container - a place you assemble your objects to form an application –Office productivity applications –Development tools - visual basic, etc. –Web browser OLE - Object Linking and Embedding

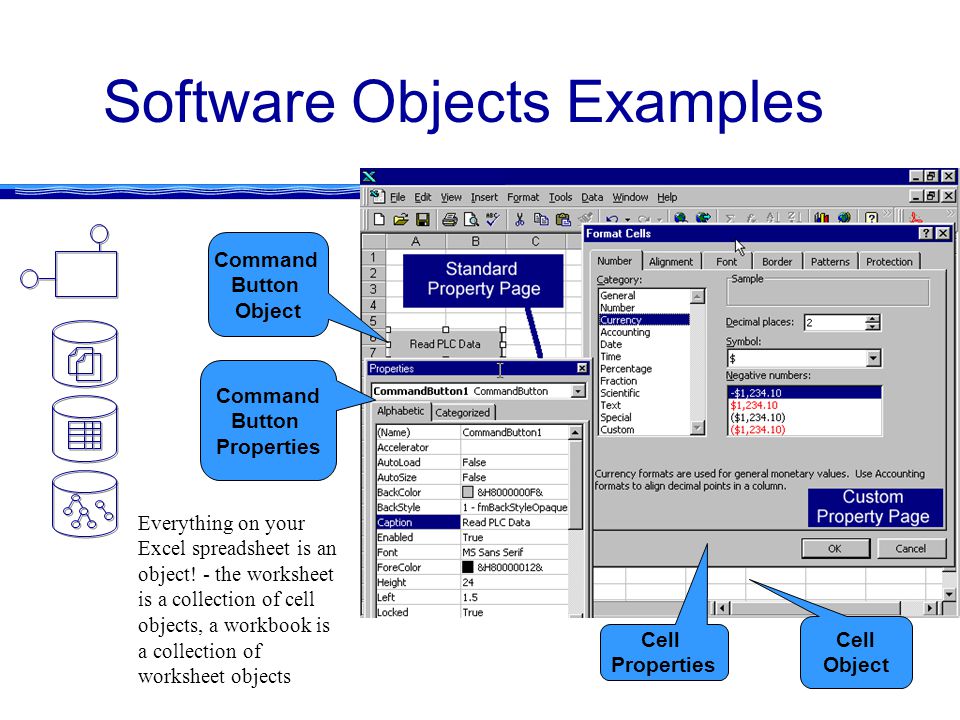

9. Software Objects Examples Command Button Object Command Button Properties Cell Object Cell Properties Everything on your Excel spreadsheet is an object! - the worksheet is a collection of cell objects, a workbook is a collection of worksheet objects

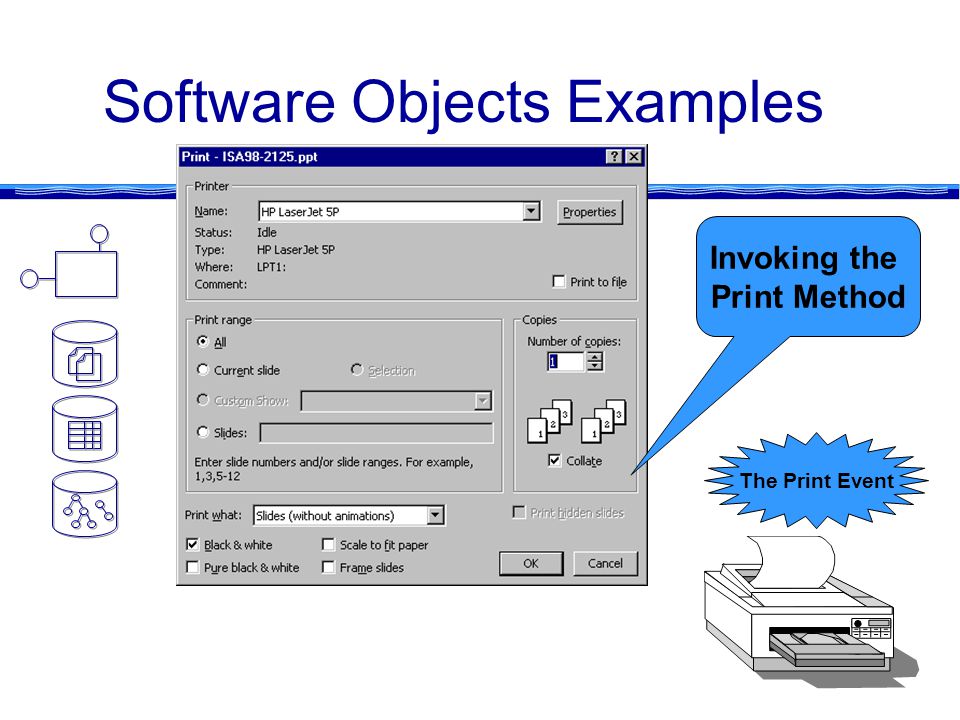

10. Software Objects Examples Invoking the Print Method The Print Event

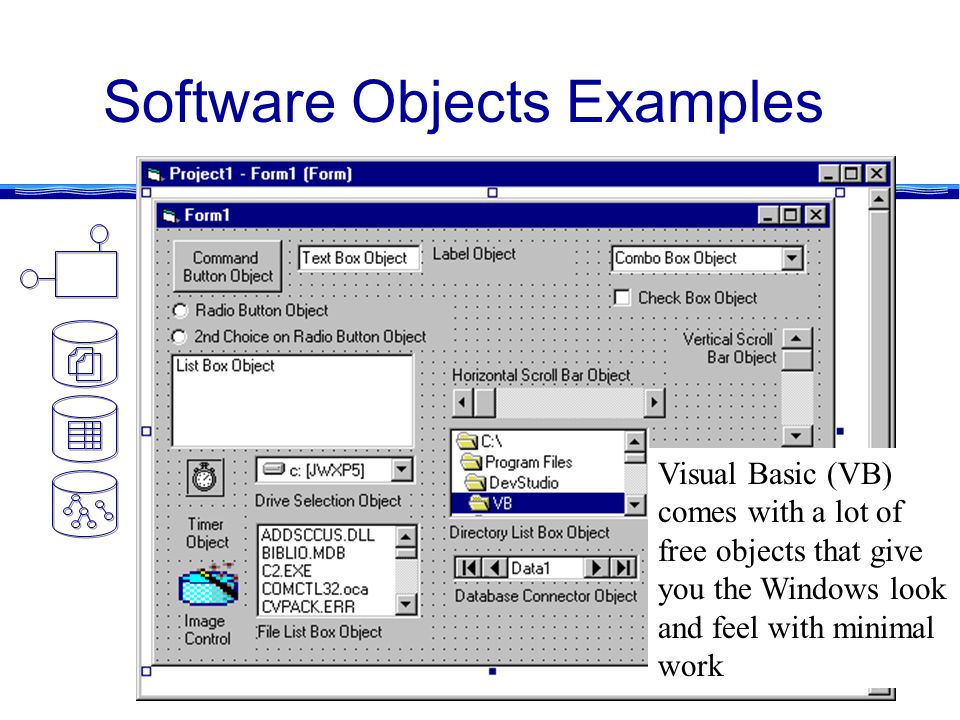

11. Software Objects Examples Visual Basic (VB) comes with a lot of free objects that give you the Windows look and feel with minimal work

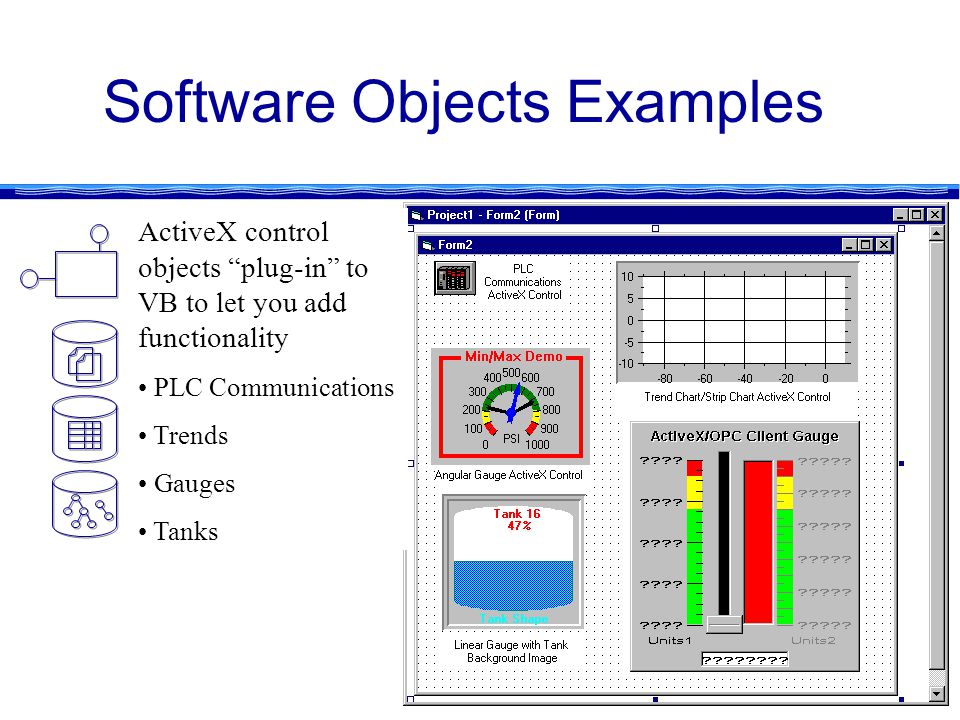

12. Software Objects Examples ActiveX control objects “plug-in” to VB to let you add functionality PLC Communications Trends Gauges Tanks

13. Adding an ActiveX Component to the VB Toolbar & To A Form The Default VB Toolbar Right Mouse Click with pointer over the toolbar and select “components” Check the component you want to add “ABCTL OLE Control module” in this case, click the Apply button, click the OK button, and the control is added to the toolbar Double click the new component on the toolbar and it is added to your form!

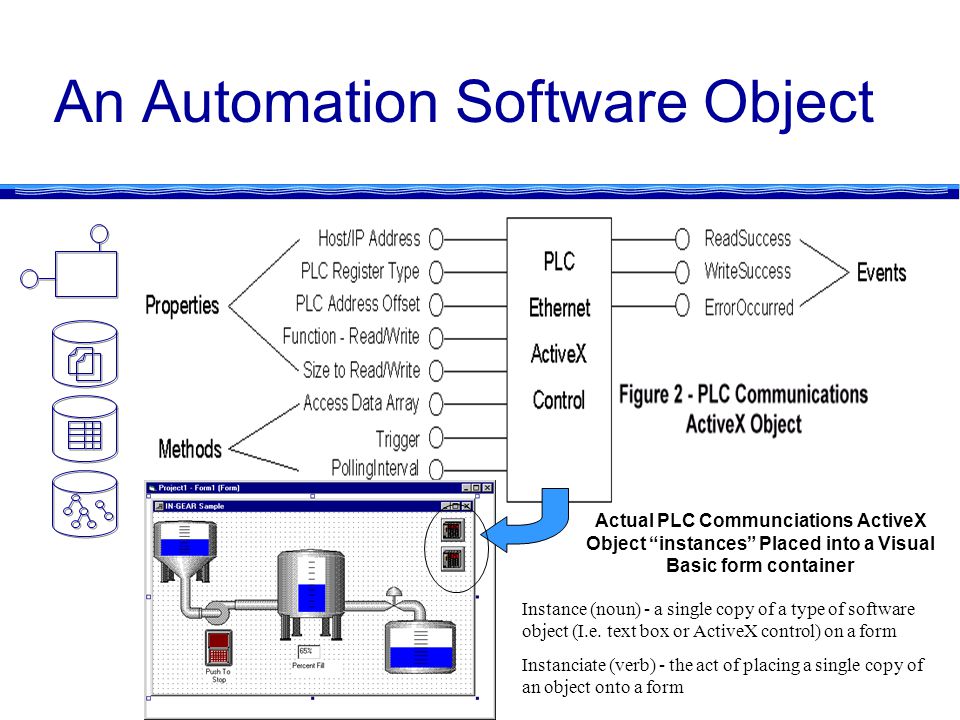

14. An Automation Software Object Actual PLC Communciations ActiveX Object “instances” Placed into a Visual Basic form container Instance (noun) - a single copy of a type of software object (I.e. text box or ActiveX control) on a form Instanciate (verb) - the act of placing a single copy of an object onto a form

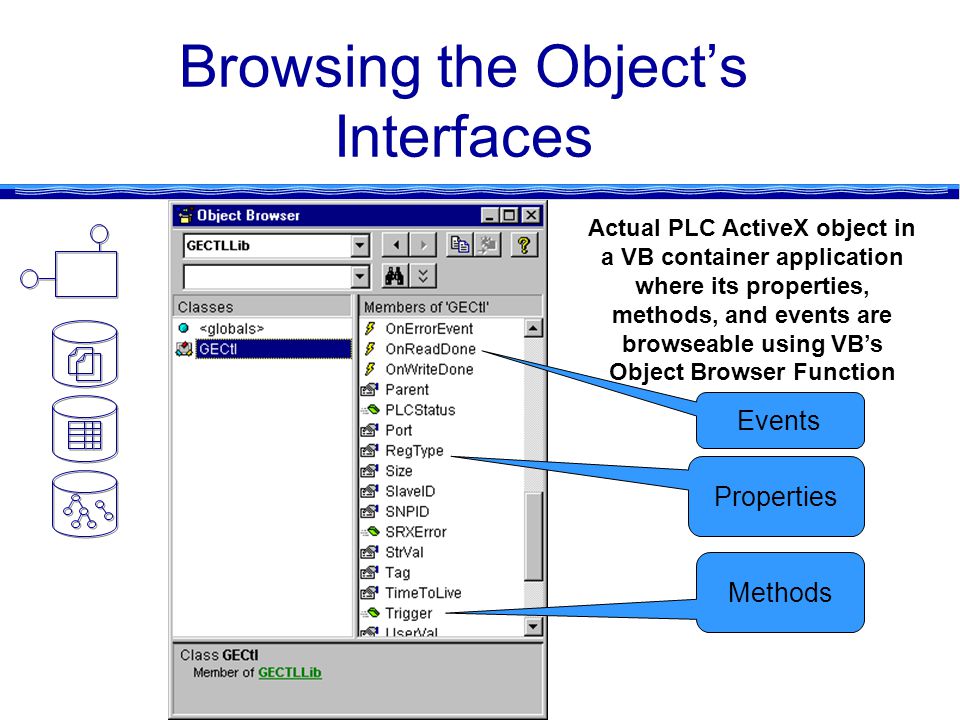

15. Browsing the Object’s Interfaces Actual PLC ActiveX object in a VB container application where its properties, methods, and events are browseable using VB’s Object Browser Function Methods Properties Events

16. VB - The Glue to connect objects in your container VB - Visual Basic - a full fledged development environment VBA - Visual Basic for Applications –It is macro language in the Office applications –Is licensed by over 100 companies for use as their scripting language for customization Both Use simple object.property, object.method, object_event syntaxes VB known by 3,000,000 people worldwide

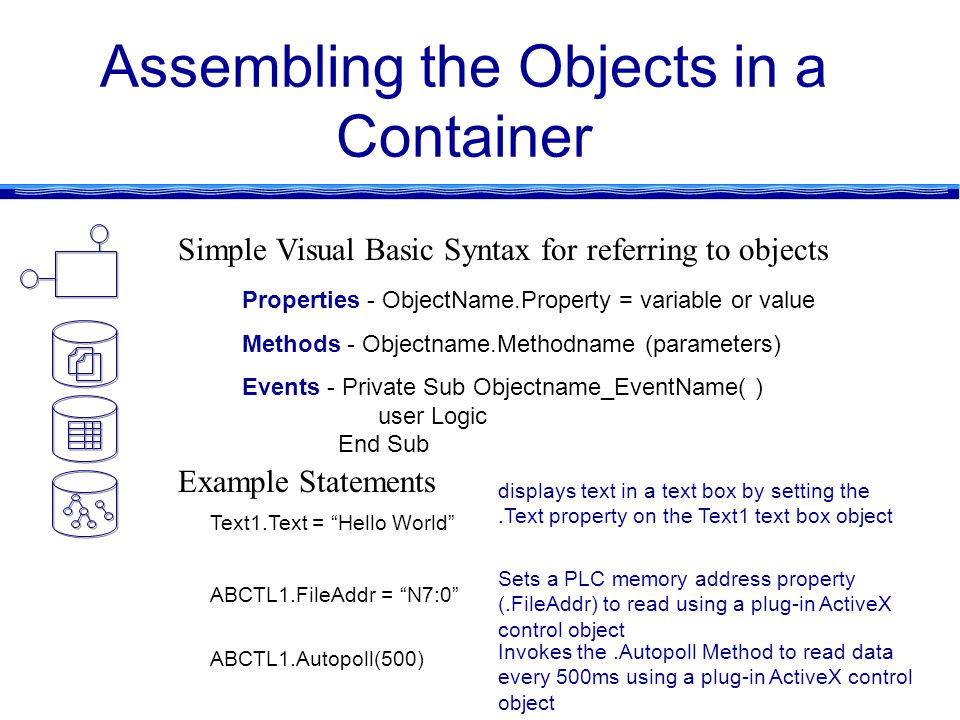

17. Properties - ObjectName.Property = variable or value Methods - Objectname.Methodname (parameters) Events - Private Sub Objectname_EventName( ) user Logic End Sub Assembling the Objects in a Container Simple Visual Basic Syntax for referring to objects Example Statements Text1.Text = “Hello World” ABCTL1.FileAddr = “N7:0” displays text in a text box by setting the.Text property on the Text1 text box object Sets a PLC memory address property (.FileAddr) to read using a plug-in ActiveX control object ABCTL1.Autopoll(500) Invokes the.Autopoll Method to read data every 500ms using a plug-in ActiveX control object

18. Human Machine Interface Apps HMI = Human Machine Interface Process Graphics PLC Connectivity for Data Trending and Logging Alarming and Logging Recipe Loading Networking

19. Process Graphics - Static Step 1- Select the VB image control from the VB toolbar and add to the form Step 2 - Paste an image from a Symbol Library to the image control, set the stretch property on the image control to true and size to fit your needs

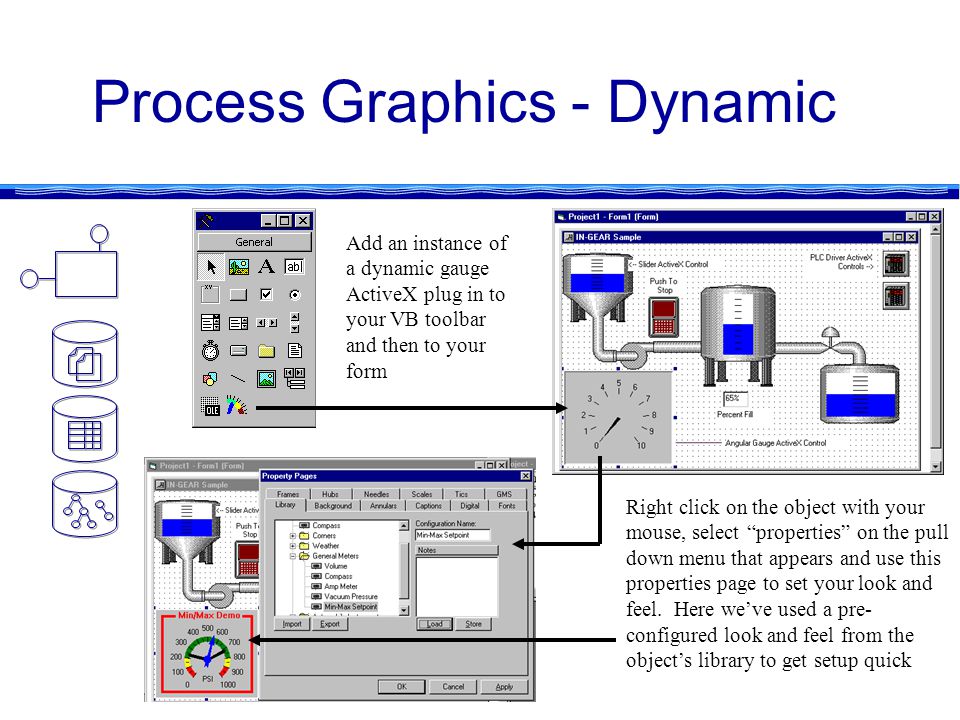

20. Process Graphics - Dynamic Add an instance of a dynamic gauge ActiveX plug in to your VB toolbar and then to your form Right click on the object with your mouse, select “properties” on the pull down menu that appears and use this properties page to set your look and feel. Here we’ve used a pre- configured look and feel from the object’s library to get setup quick

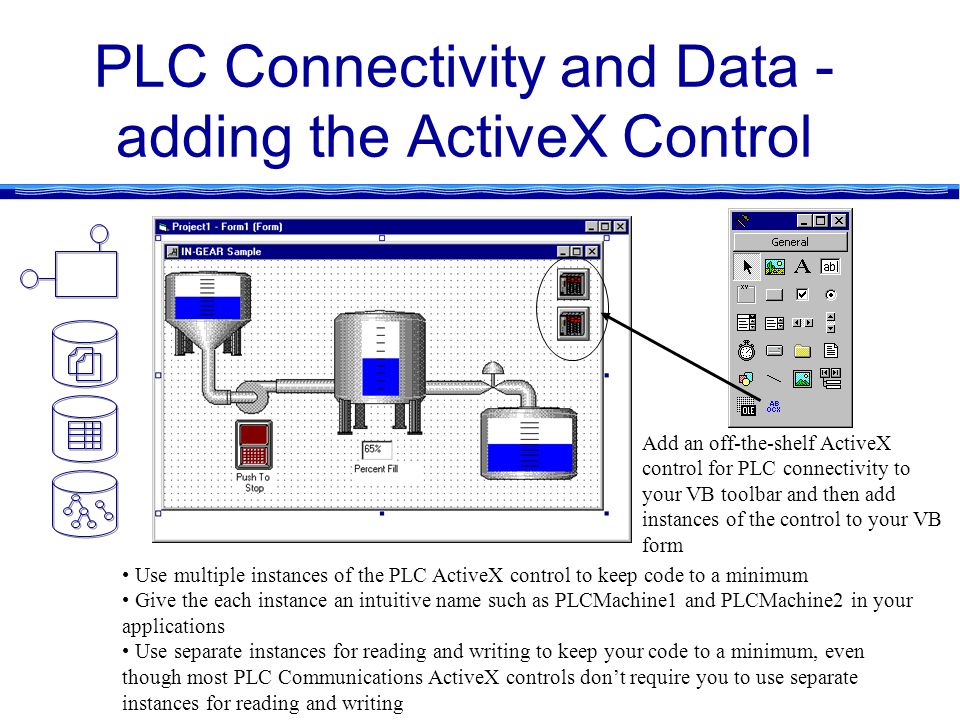

21. PLC Connectivity and Data - adding the ActiveX Control Add an off-the-shelf ActiveX control for PLC connectivity to your VB toolbar and then add instances of the control to your VB form Use multiple instances of the PLC ActiveX control to keep code to a minimum Give the each instance an intuitive name such as PLCMachine1 and PLCMachine2 in your applications Use separate instances for reading and writing to keep your code to a minimum, even though most PLC Communications ActiveX controls don’t require you to use separate instances for reading and writing

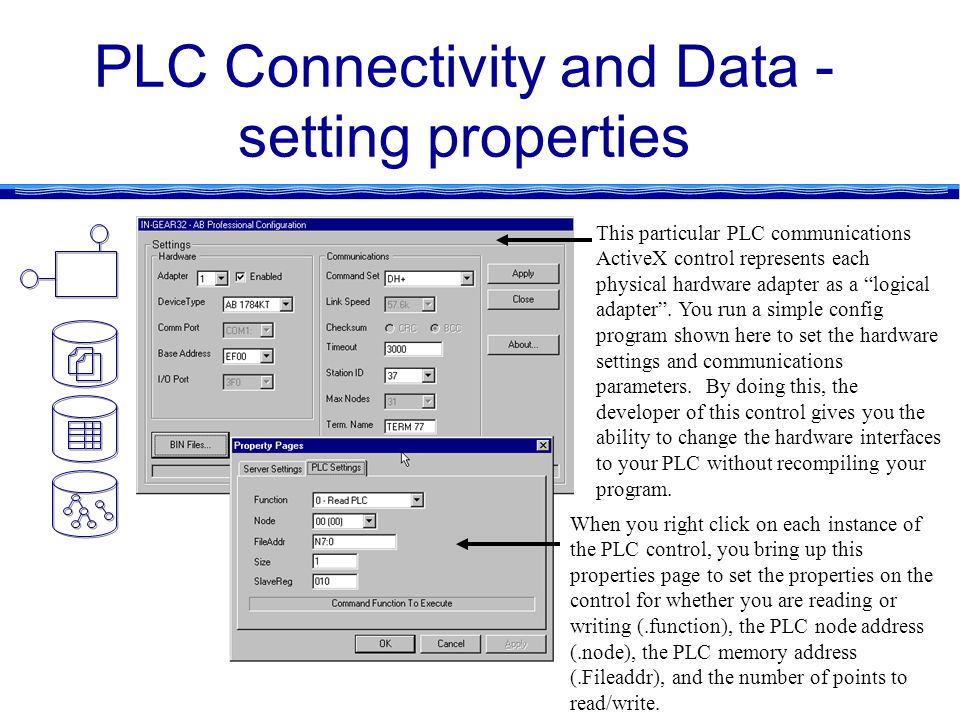

22. PLC Connectivity and Data - setting properties This particular PLC communications ActiveX control represents each physical hardware adapter as a “logical adapter”. You run a simple config program shown here to set the hardware settings and communications parameters. By doing this, the developer of this control gives you the ability to change the hardware interfaces to your PLC without recompiling your program. When you right click on each instance of the PLC control, you bring up this properties page to set the properties on the control for whether you are reading or writing (.function), the PLC node address (.node), the PLC memory address (.Fileaddr), and the number of points to read/write.

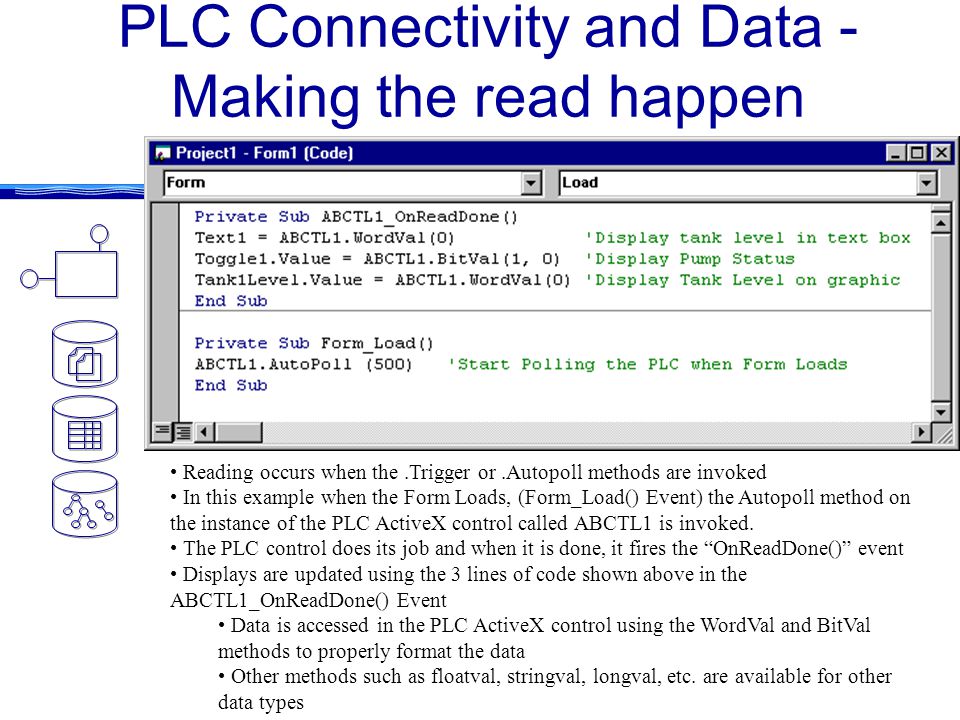

23. PLC Connectivity and Data - Making the read happen Reading occurs when the.Trigger or.Autopoll methods are invoked In this example when the Form Loads, (Form_Load() Event) the Autopoll method on the instance of the PLC ActiveX control called ABCTL1 is invoked. The PLC control does its job and when it is done, it fires the “OnReadDone()” event Displays are updated using the 3 lines of code shown above in the ABCTL1_OnReadDone() Event Data is accessed in the PLC ActiveX control using the WordVal and BitVal methods to properly format the data Other methods such as floatval, stringval, longval, etc. are available for other data types

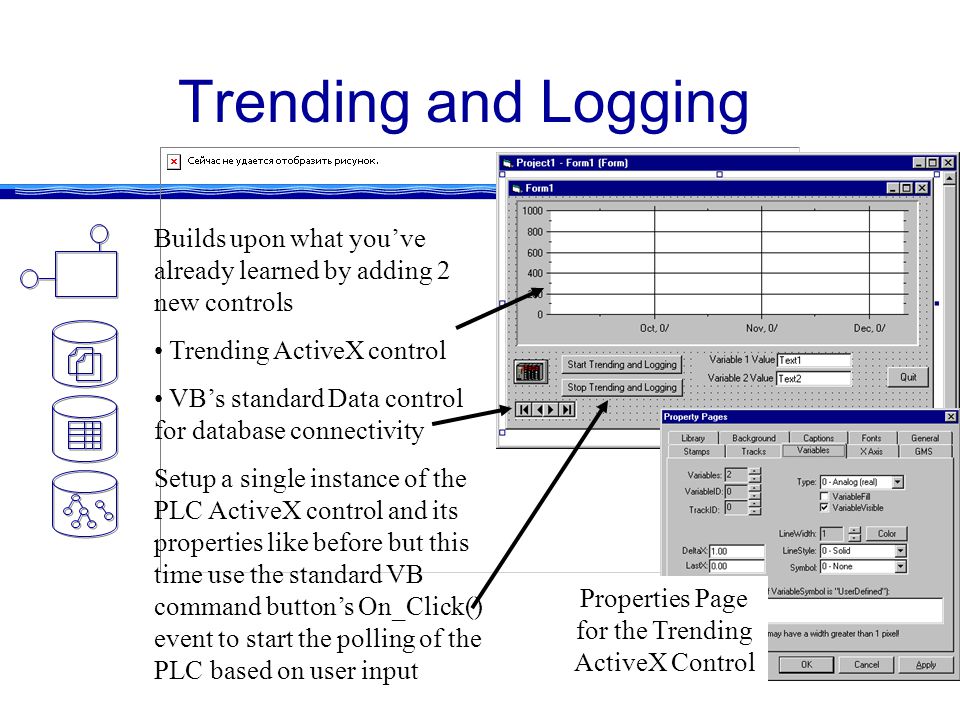

24. Trending and Logging Builds upon what you’ve already learned by adding 2 new controls Trending ActiveX control VB’s standard Data control for database connectivity Setup a single instance of the PLC ActiveX control and its properties like before but this time use the standard VB command button’s On_Click() event to start the polling of the PLC based on user input Properties Page for the Trending ActiveX Control

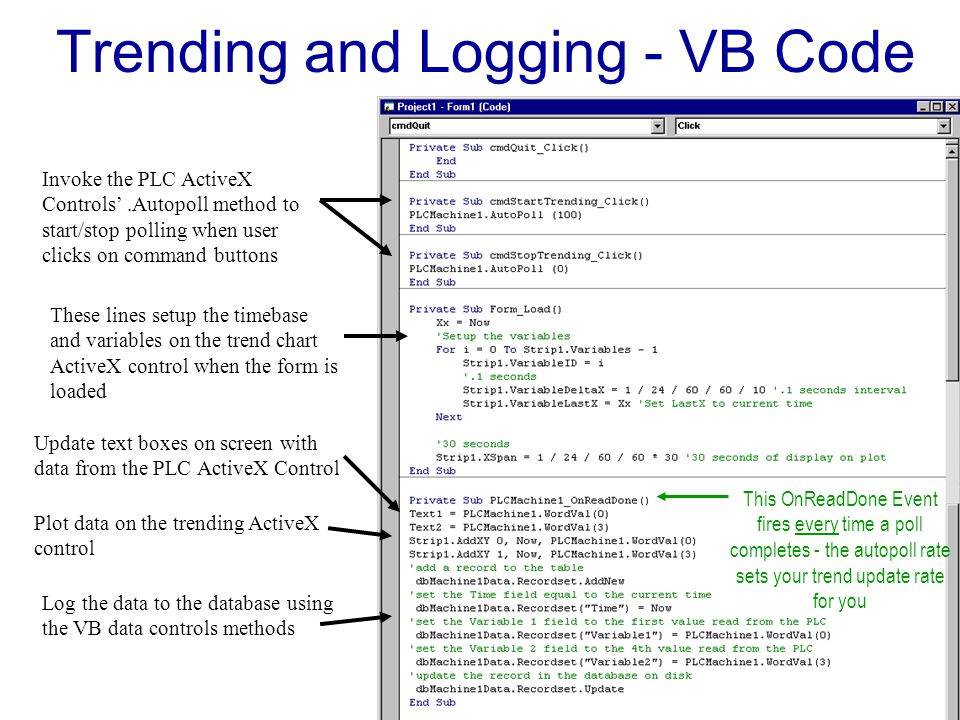

25. Trending and Logging - VB Code Invoke the PLC ActiveX Controls’.Autopoll method to start/stop polling when user clicks on command buttons Update text boxes on screen with data from the PLC ActiveX Control Plot data on the trending ActiveX control Log the data to the database using the VB data controls methods This OnReadDone Event fires every time a poll completes - the autopoll rate sets your trend update rate for you These lines setup the timebase and variables on the trend chart ActiveX control when the form is loaded

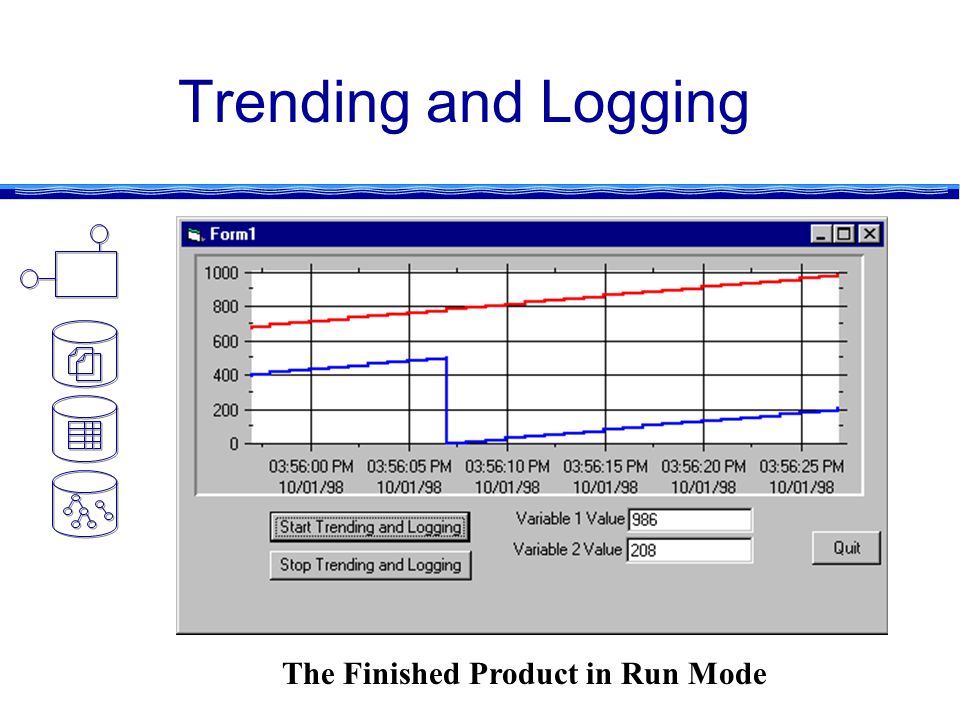

26. Trending and Logging The Finished Product in Run Mode

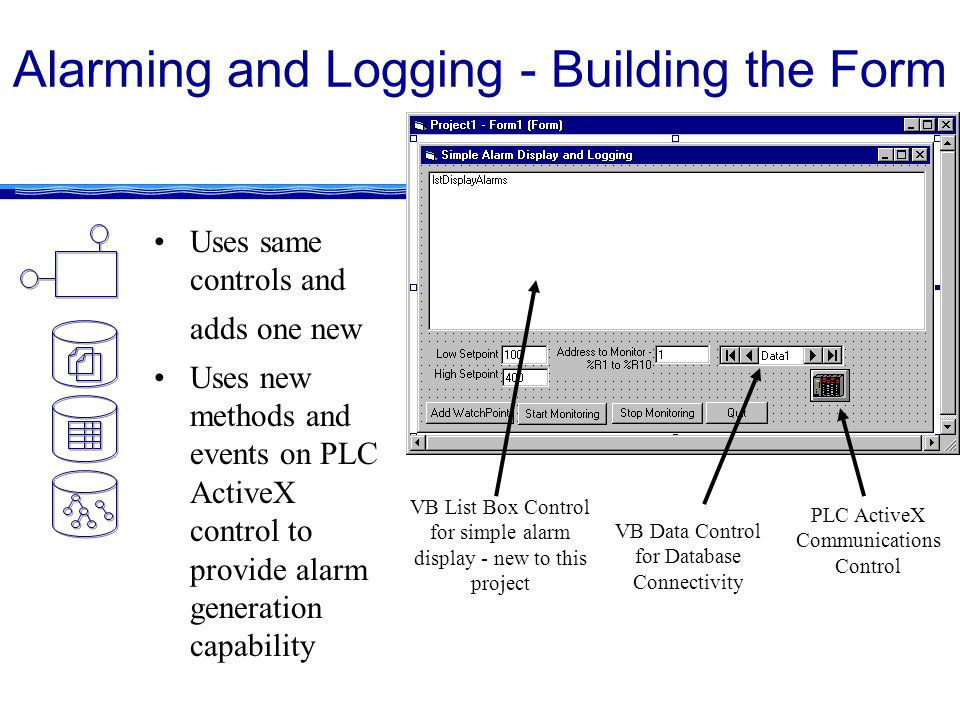

27. Alarming and Logging - Building the Form Uses same controls and adds one new Uses new methods and events on PLC ActiveX control to provide alarm generation capability PLC ActiveX Communications Control VB Data Control for Database Connectivity VB List Box Control for simple alarm display - new to this project

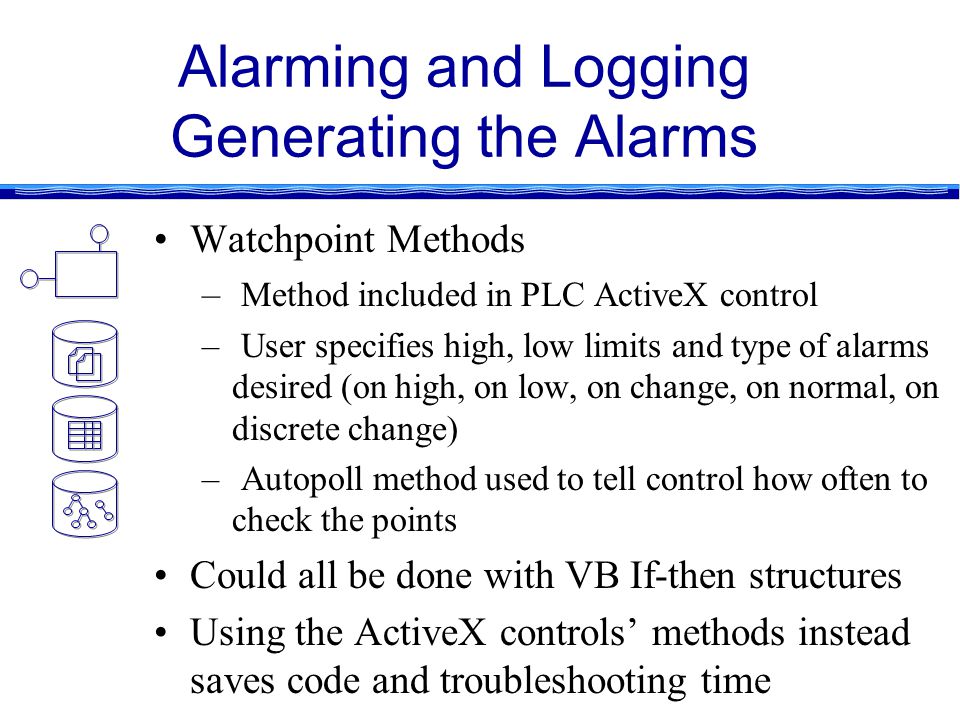

28. Alarming and Logging Generating the Alarms Watchpoint Methods – Method included in PLC ActiveX control – User specifies high, low limits and type of alarms desired (on high, on low, on change, on normal, on discrete change) – Autopoll method used to tell control how often to check the points Could all be done with VB If-then structures Using the ActiveX controls’ methods instead saves code and troubleshooting time

29. Alarming and Logging You setup the watchpoints and go on doing other things in your applications Handle the events when they happen OnAnalogHigh OnAnalogLow OnAnalogChange OnAnalogNormal OnDiscreteChange

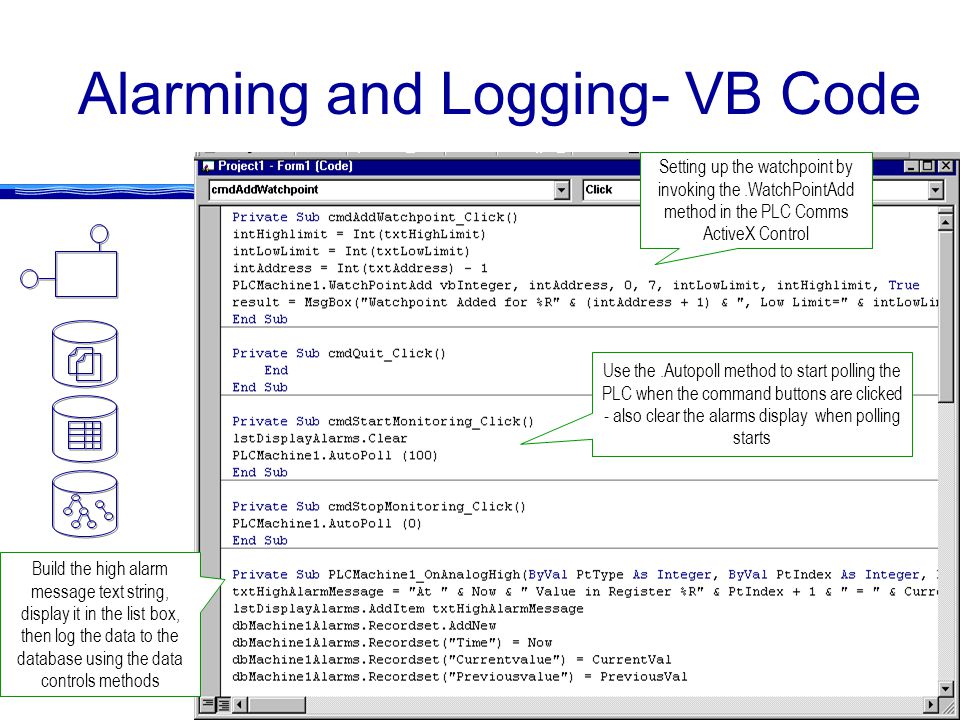

30. Alarming and Logging- VB Code Setting up the watchpoint by invoking the.WatchPointAdd method in the PLC Comms ActiveX Control Use the.Autopoll method to start polling the PLC when the command buttons are clicked - also clear the alarms display when polling starts Build the high alarm message text string, display it in the list box, then log the data to the database using the data controls methods

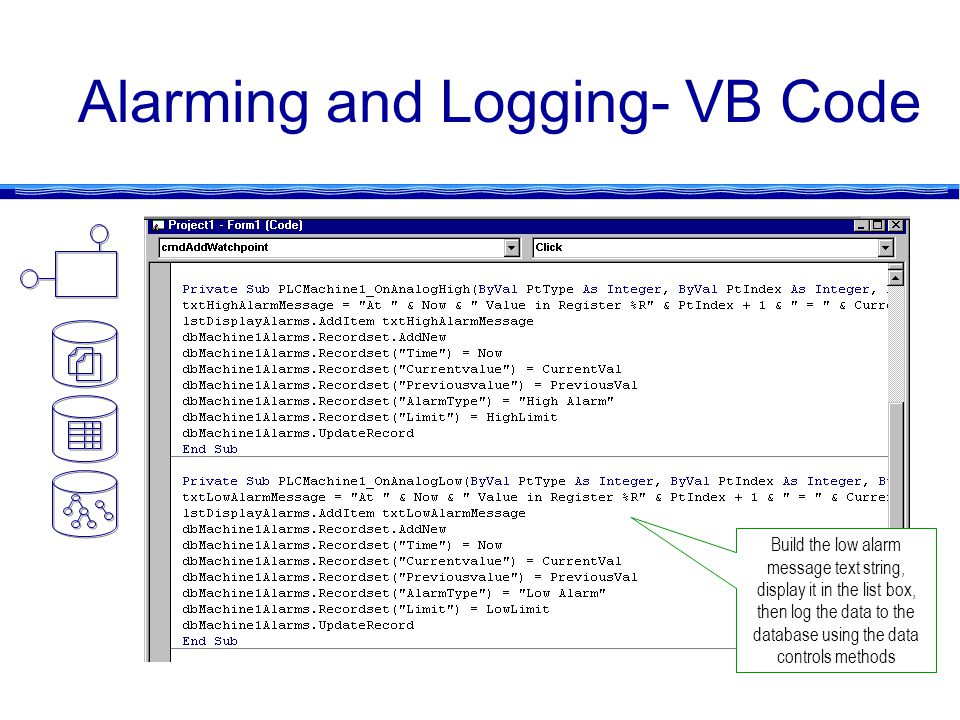

31. Alarming and Logging- VB Code Build the low alarm message text string, display it in the list box, then log the data to the database using the data controls methods

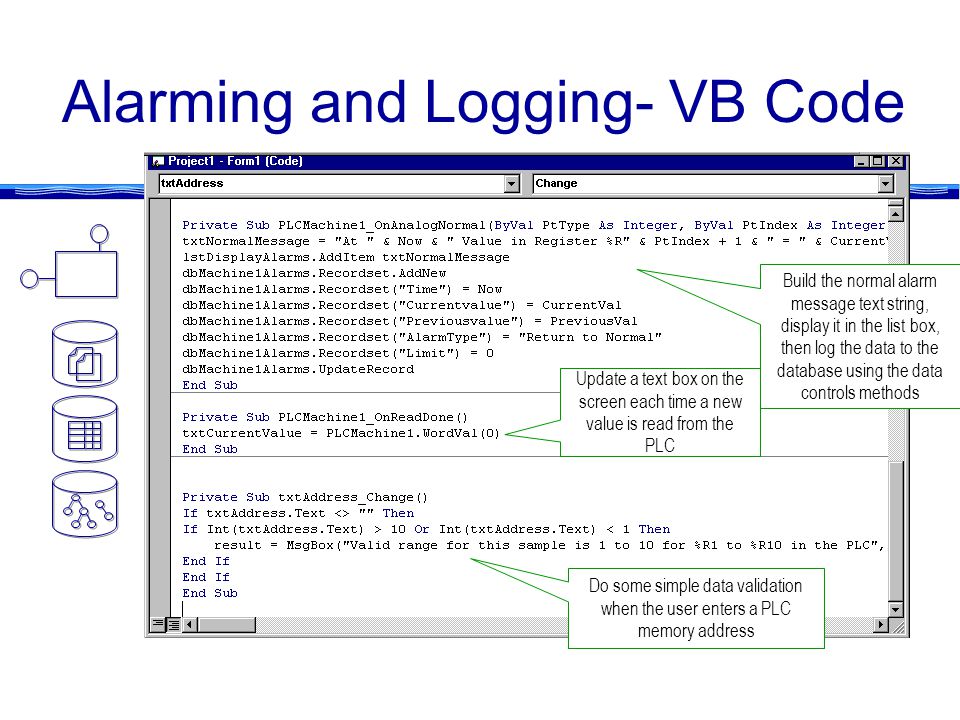

32. Alarming and Logging- VB Code Build the normal alarm message text string, display it in the list box, then log the data to the database using the data controls methods Update a text box on the screen each time a new value is read from the PLC Do some simple data validation when the user enters a PLC memory address

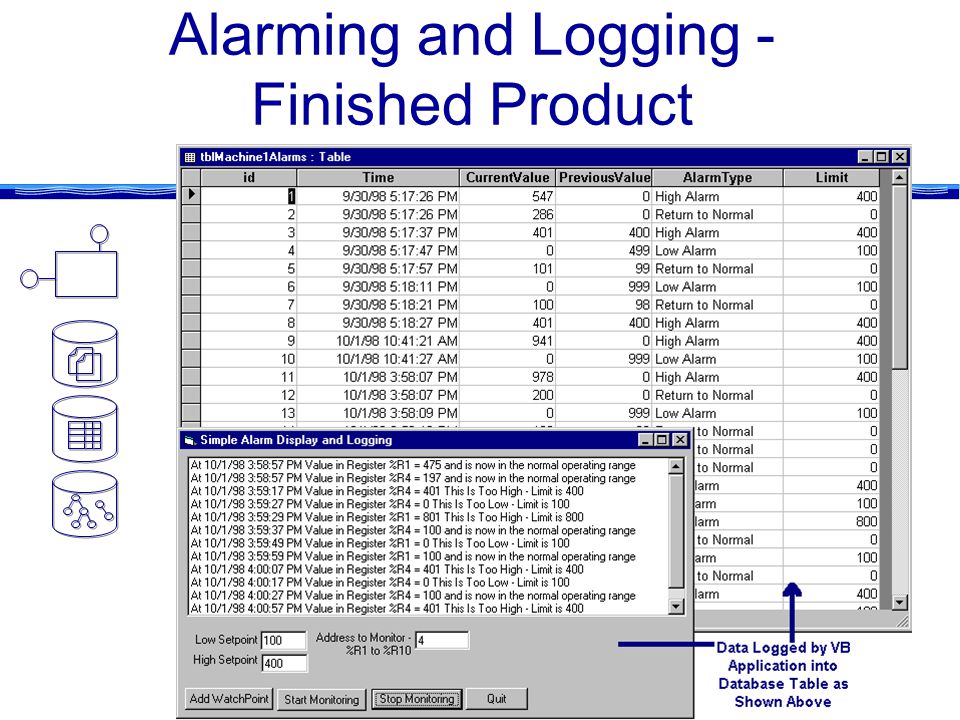

33. Alarming and Logging - Finished Product

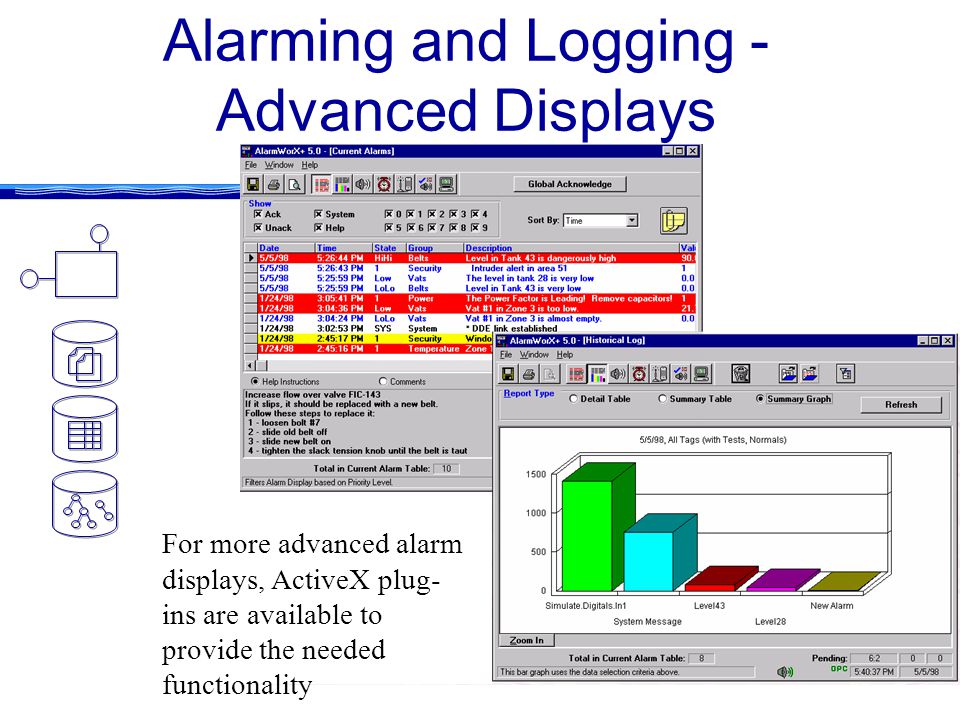

34. Alarming and Logging - Advanced Displays For more advanced alarm displays, ActiveX plug- ins are available to provide the needed functionality

35. Recipe Loading - Setting up the Data Control Use VB’s standard Data Control to connect to a database Don’t let all the properties confuse or worry you Key properties to set on data control: DatabaseName = pathname and filename of the database RecordSource = table name or query name to get records from in the database - data control gives you a pull-down list

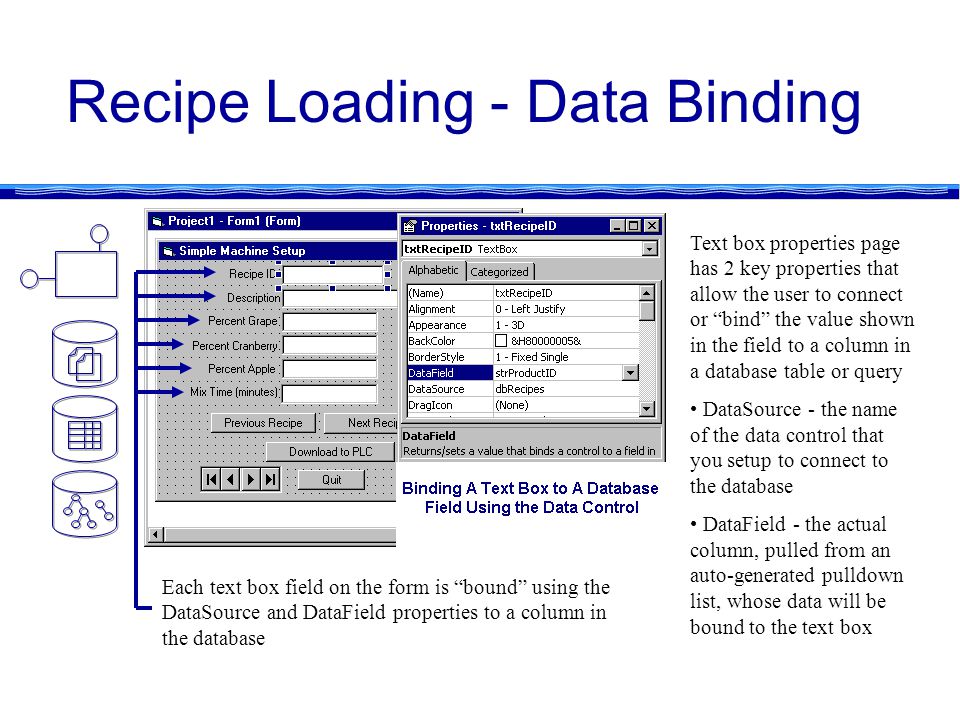

36. Recipe Loading - Data Binding Text box properties page has 2 key properties that allow the user to connect or “bind” the value shown in the field to a column in a database table or query DataSource - the name of the data control that you setup to connect to the database DataField - the actual column, pulled from an auto-generated pulldown list, whose data will be bound to the text box Each text box field on the form is “bound” using the DataSource and DataField properties to a column in the database

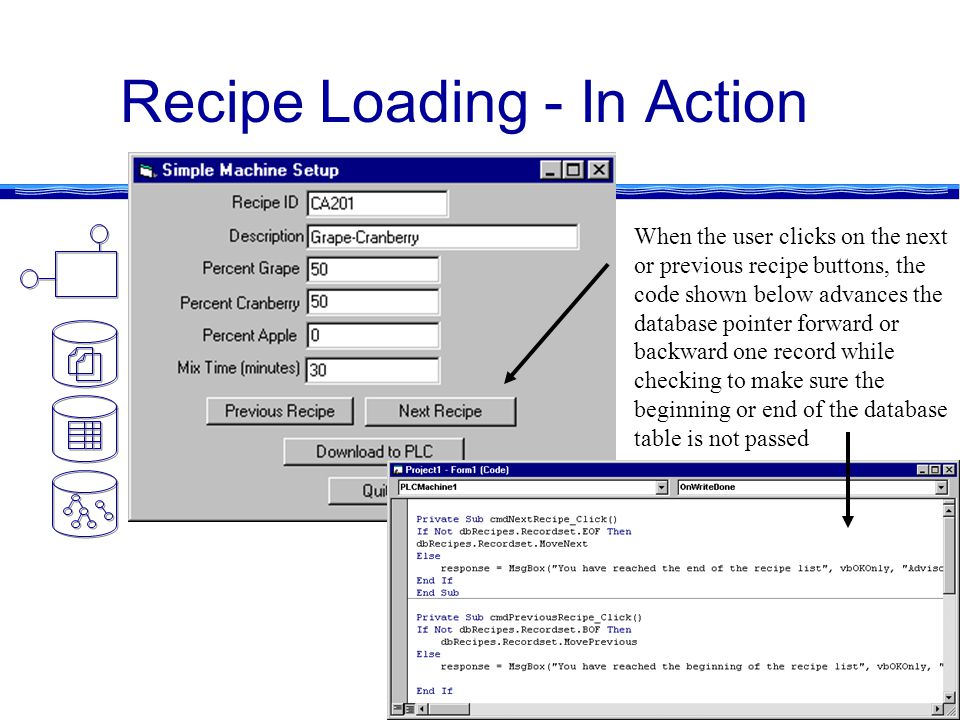

37. Recipe Loading - In Action When the user clicks on the next or previous recipe buttons, the code shown below advances the database pointer forward or backward one record while checking to make sure the beginning or end of the database table is not passed

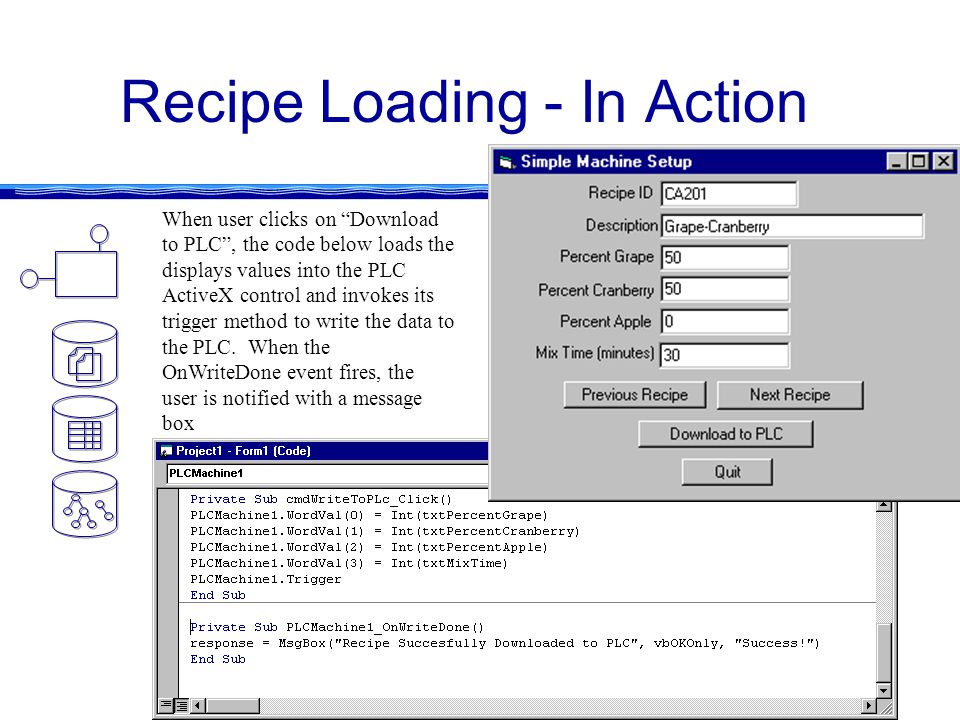

38. Recipe Loading - In Action When user clicks on “Download to PLC”, the code below loads the displays values into the PLC ActiveX control and invokes its trigger method to write the data to the PLC. When the OnWriteDone event fires, the user is notified with a message box

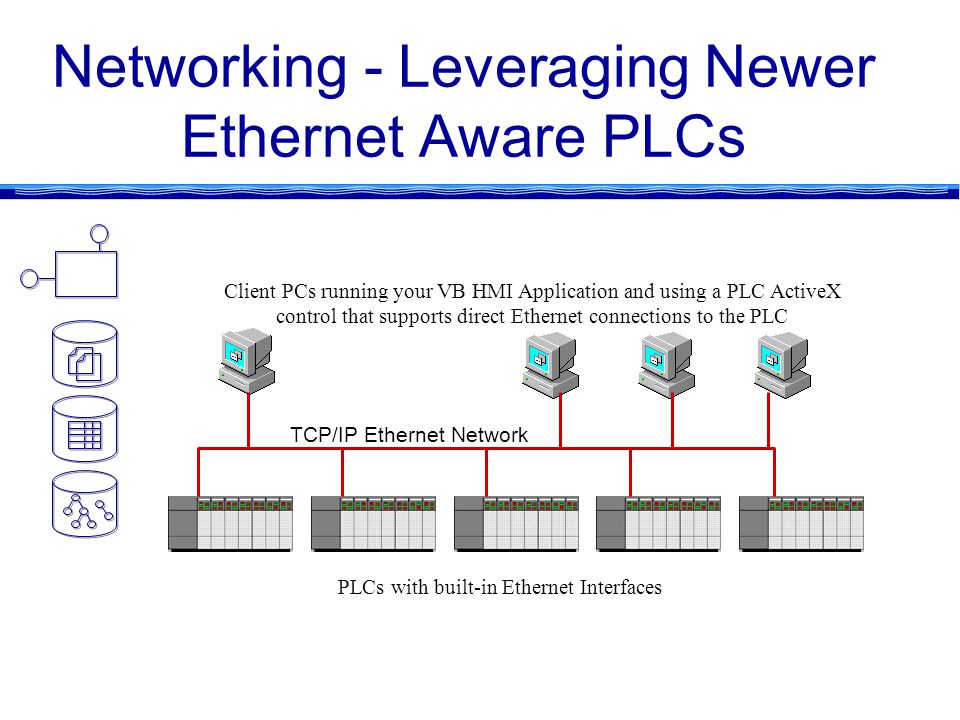

39. Networking - Leveraging Newer Ethernet Aware PLCs TCP/IP Ethernet Network PLCs with built-in Ethernet Interfaces Client PCs running your VB HMI Application and using a PLC ActiveX control that supports direct Ethernet connections to the PLC

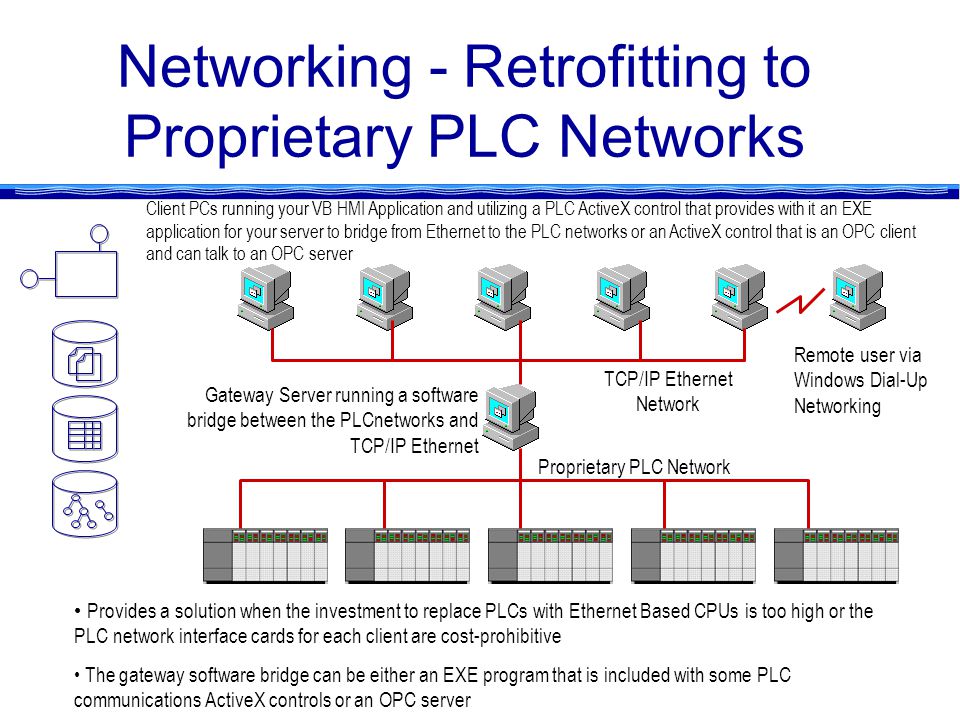

40. Networking - Retrofitting to Proprietary PLC Networks Client PCs running your VB HMI Application and utilizing a PLC ActiveX control that provides with it an EXE application for your server to bridge from Ethernet to the PLC networks or an ActiveX control that is an OPC client and can talk to an OPC server Remote user via Windows Dial-Up Networking TCP/IP Ethernet Network Proprietary PLC Network Gateway Server running a software bridge between the PLCnetworks and TCP/IP Ethernet Provides a solution when the investment to replace PLCs with Ethernet Based CPUs is too high or the PLC network interface cards for each client are cost-prohibitive The gateway software bridge can be either an EXE program that is included with some PLC communications ActiveX controls or an OPC server

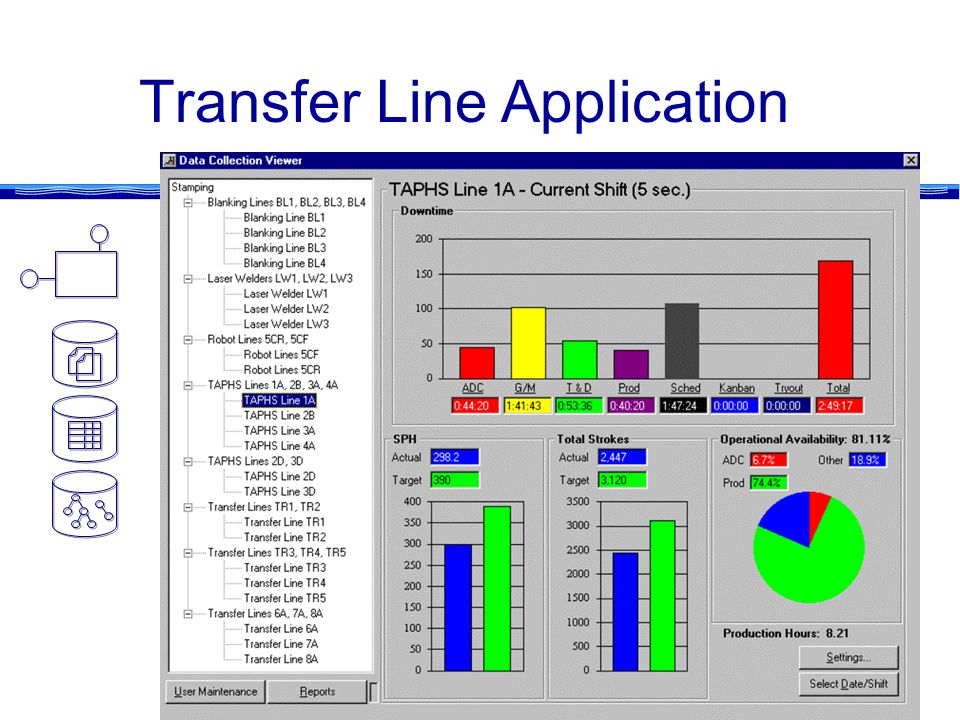

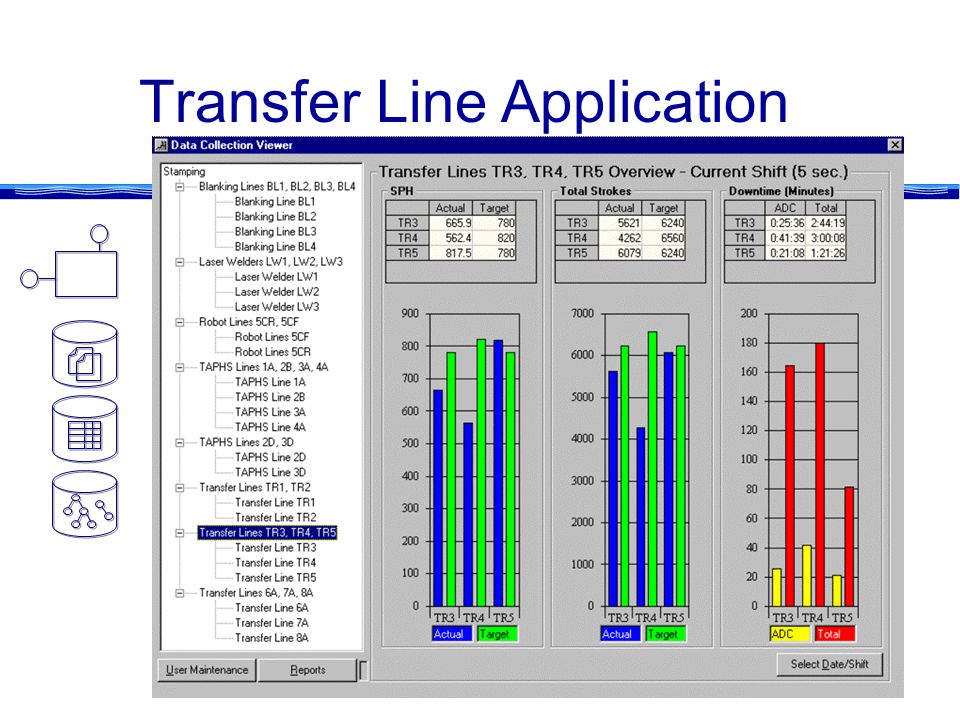

41. Transfer Line Application

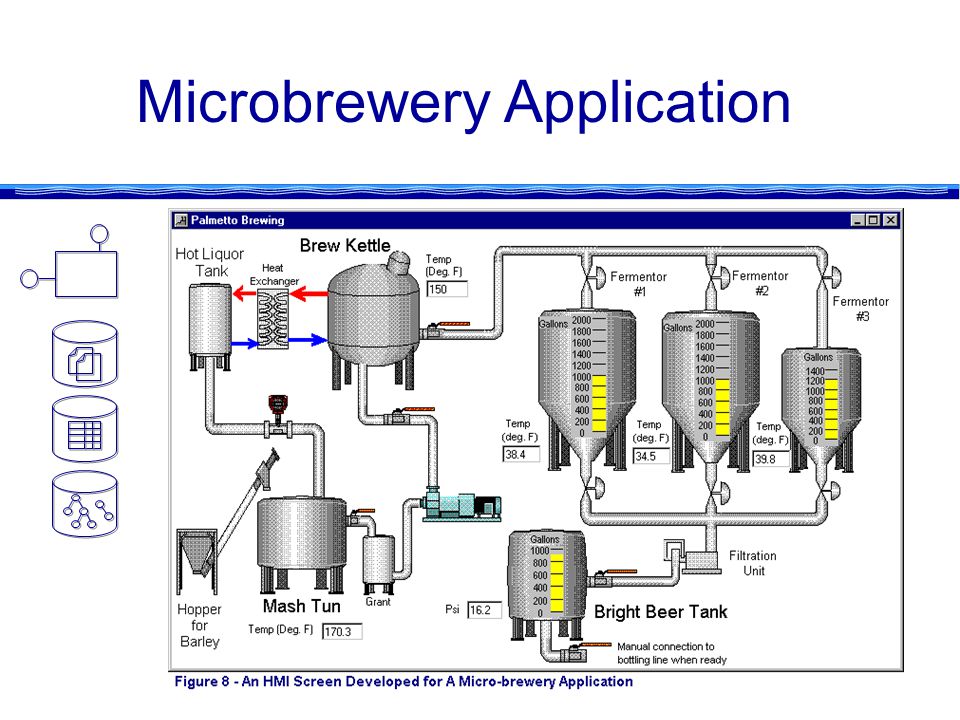

43. Microbrewery Application

44. Benefits of Using Visual Basic for HMI Applications Use the right tool for the right job –Simple to moderately complex apps –Don’t reinvent a pre-configured HMI in VB if that’s really what you need Support for wide range of ActiveX plug-ins Widely known scripting language Flexibility - you control the application Cost –you can distribute your VB code royalty free –ActiveX components have low or no royalty fees for runtime distribution

45. Resources for further learning Understanding ActiveX & OLE - David Chappel, Microsoft Press Office97 Visual Programmers Guide - Microsoft Press Microsoft Websites - msdn.microsoft.com/vba Download copy of this presentation and other presentations and technical papers at www.softwaretoolbox.com/isaexpo98

46. Where do I find ActiveX controls and tools for Industrial HMI Applications ? Although this presentation is a non-commercial, sharing of knowledge presentation, we added this slide after show because so many of you at the show were asking this question! The Software Toolbox is a company that provides you with a single place to look to find all the software tools you need for automation applications, including Visual Basic based HMI applications. Visit our website today for more product information. www.softwaretoolbox.com
