1. 1 Decision Support Algorithms for Port of Entry Inspection Fred S. Roberts DIMACS Center, Rutgers University In collaboration with Los Alamos National Laboratory Preliminary Support: Office of Naval Research

2. 2 Port of Entry Inspection Algorithms Goal: Find ways to intercept illicit nuclear materials and weapons destined for the U.S. via the maritime transportation system Currently inspecting only small % of containers arriving at ports Even inspecting 8% of containers in Port of NY/NJ might bring international trade to a halt (Larrabbee 2002)

3. 3 Port of Entry Inspection Algorithms Aim: Develop decision support algorithms that will help us to “optimally” intercept illicit materials and weapons subject to limits on delays, manpower, and equipment Find inspection schemes that minimize total “cost” including “cost” of false positives and false negatives Mobile Vacis: truck- mounted gamma ray imaging system

4. 4 Sequential Decision Making Problem Stream of containers arrives at a port The Decision Maker’s Problem: Which to inspect? Which inspections next based on previous results? Approach: –“decision logics” –combinatorial optimization methods –Builds on ideas of Stroud –and Saeger at LANL –Need for new models – and methods

5. 5 Sequential Decision Making Problem Containers arriving to be classified into categories. Simple case: 0 = “ok”, 1 = “suspicious” Inspection scheme: specifies which inspections are to be made based on previous observations

6. 6 Sequential Decision Making Problem Containers have attributes, each in a number of states Sample attributes: –Does ship’s manifest set off an “alarm”? –What is the neutron or Gamma emission count? Is it above threshold? –Does a radiograph image come up positive? –Does an induced fission test come up positive? Gamma ray detector

7. 7 Sequential Decision Making Problem Simplest Case: Attributes are in state 0 or 1 Then: Container is a binary string like 011001 So: Classification is a decision function F that assigns each binary string to a category. 011001F(011001) If attributes 2, 3, and 6 are present, assign container to category F(011001).

8. 8 Sequential Decision Making Problem If there are two categories, 0 and 1, decision function F is a boolean function. Example: F(000) = F(111) = 1, F(abc) = 0 otherwise This classifies a container as positive iff it has none of the attributes or all of them. 1 =

9. 9 Sequential Decision Making Problem Given a container, test its attributes until know enough to calculate the value of F. An inspection scheme tells us in which order to test the attributes to minimize cost. Even this simplified problem is hard computationally. Hard Questions

10. 10 Binary Decision Tree Approach Sensors measure presence/absence of attributes. Binary Decision Tree: –Nodes are sensors or categories (0 or 1) –Two arcs exit from each sensor node, labeled left and right. –Take the right arc when sensor says the attribute is present, left arc otherwise

11. 11 Binary Decision Tree Approach Reach category 1 from the root only through the path a 0 to a 1 to 1. Container is classified in category 1 iff it has both attributes a 0 and a 1. Corresponding boolean function F(11) = 1, F(10) = F(01) = F(00) = 0. Figure 1

12. 12 Binary Decision Tree Approach Reach category 1 from the root by: a 0 L to a 1 R a 2 R 1 or a 0 R a 2 R1 Container classified in category 1 iff it has a 1 and a 2 and not a 0 or a 0 and a 2 and possibly a 1. Corresponding boolean function F(111) = F(101) = F(011) = 1, F(abc) = 0 otherwise. Figure 2

13. 13 Binary Decision Tree Approach This binary decision tree corresponds to the same boolean function F(111) = F(101) = F(011) = 1, F(abc) = 0 otherwise. However, it has one less observation node a i. So, it is more efficient if all observations are equally costly and equally likely. Figure 3

14. 14 Binary Decision Tree Approach Even if the boolean function F is fixed, the problem of finding the “optimal” binary decision tree for it is very hard (NP-complete). For small n = number of attributes, can try to solve it by brute force enumeration. Even for n = 4, not practical. (n = 4 at Port of Long Beach-Los Angeles) Port of Long Beach

15. 15 Binary Decision Tree Approach Promising Approaches: Heuristic algorithms, approximations to optimal. Special assumptions about the boolean function F. Example: For “monotone” boolean functions, integer programming formulations give promising heuristics.

16. 16 Cost Functions Above analysis: Only uses number of sensors Using a sensor has a cost: –Unit cost of inspecting one item with it –Fixed cost of purchasing and deploying it –Delay cost from queuing up at the sensor station Unit Cost Complication: How many nodes of the decision tree are actually visited during average container’s inspection? Depends on “distribution” of containers.

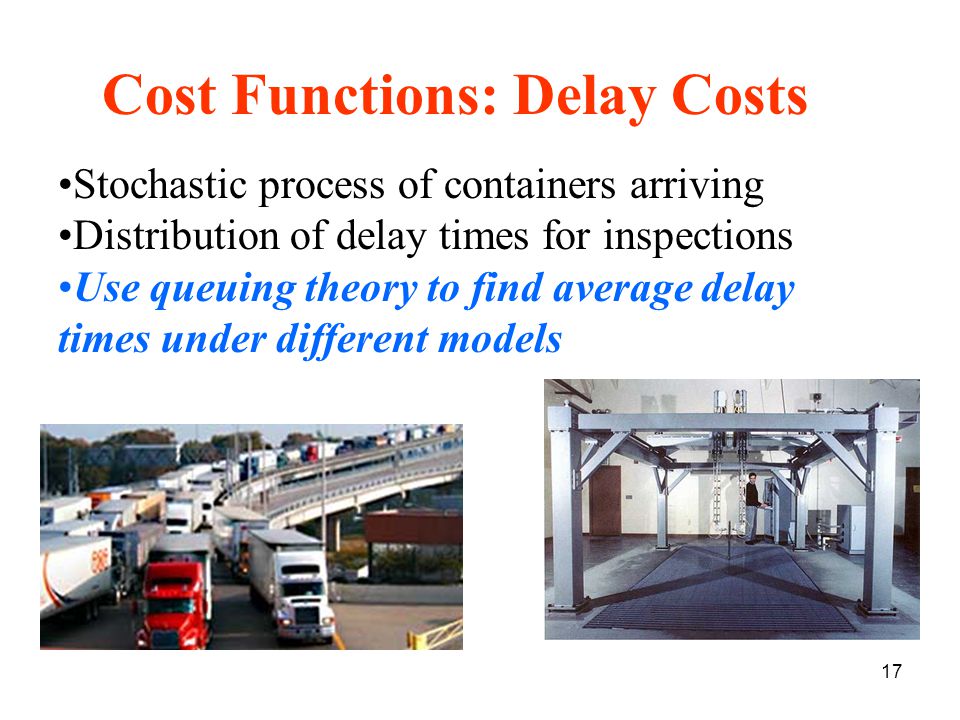

17. 17 Cost Functions: Delay Costs Stochastic process of containers arriving Distribution of delay times for inspections Use queuing theory to find average delay times under different models

18. 18 Cost Functions Cost of false positive: Cost of additional tests. –If it means opening the container, it’s very expensive. Cost of false negative: Complex issue.

19. 19 Cost Functions One Approach to False Positives/Negatives and Sensor Errors: Modeling Sensor Operation Threshold Model: Sensors have different discriminating power Many use counts See if count exceeds threshold

20. 20 Cost Functions Threshold Model: Sensor discriminating power K, threshold T Attribute present if counts exceed T Calculate fraction of objects in each category whose readings exceed T Seek threshold values that minimize all costs: inspection, false positive/negative Simulation approach Mathematical modeling

21. 21 Complications Sensor errors – probabilistic approach More than two values of an attribute (present, absent, present with probability > 75%, etc.) Inferring the boolean function from observations (partially defined boolean functions)

22. 22 Complications Machine learning approaches are promising: –Bayesian binary regression –Splitting strategies –Pruning learned decision trees
