1. Barak Agiv Itamar Ben-Zaken Barak Nahum Vladislav Smolensky Academic Advisor: Yuval Elovici Professional Advisor: Mira Balaban

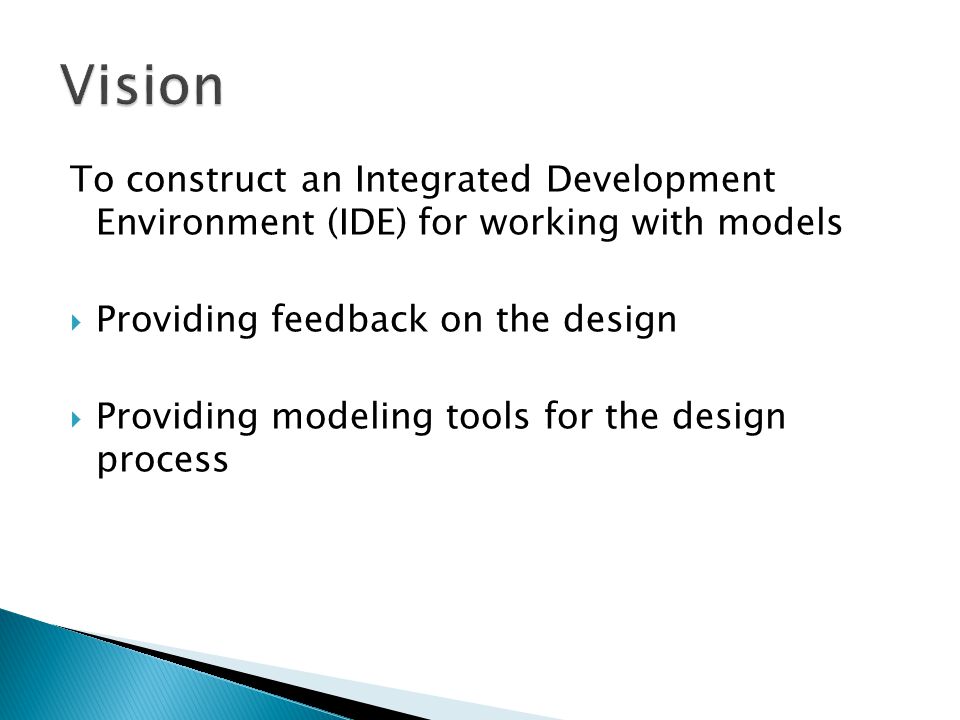

2. To construct an Integrated Development Environment (IDE) for working with models  Providing feedback on the design  Providing modeling tools for the design process

3.  Modeling is an essential step in the design process of many systems  A common model is a structural model – depicts the structure of a system, rather than the behavior  A common notation is the Class Diagram in the Unified Modeling Language (UML)

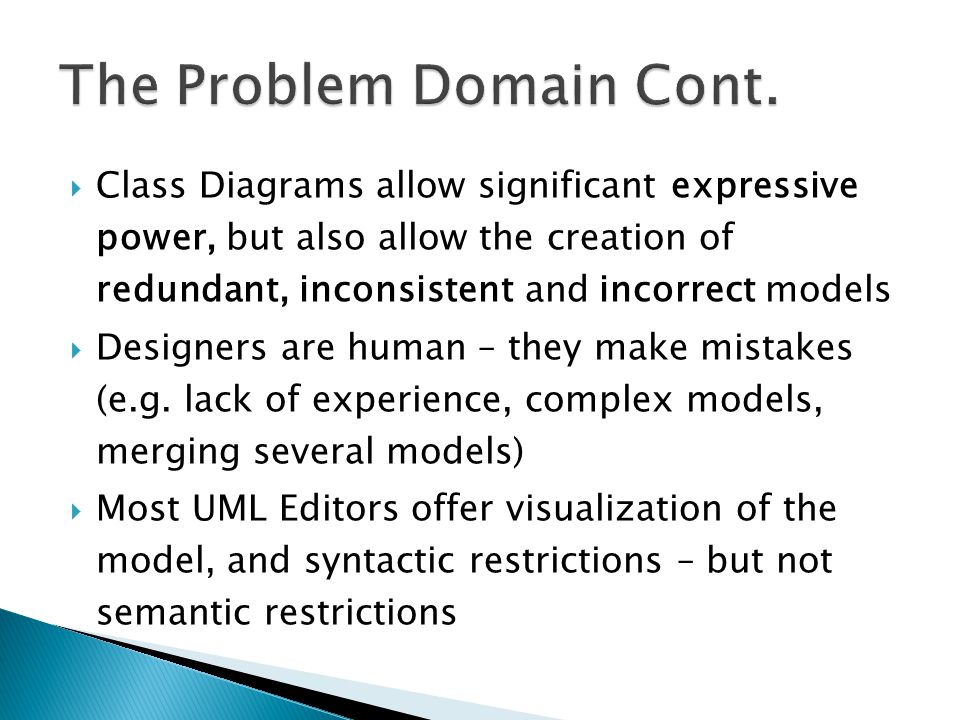

4.  Class Diagrams allow significant expressive power, but also allow the creation of redundant, inconsistent and incorrect models  Designers are human – they make mistakes (e.g. lack of experience, complex models, merging several models)  Most UML Editors offer visualization of the model, and syntactic restrictions – but not semantic restrictions

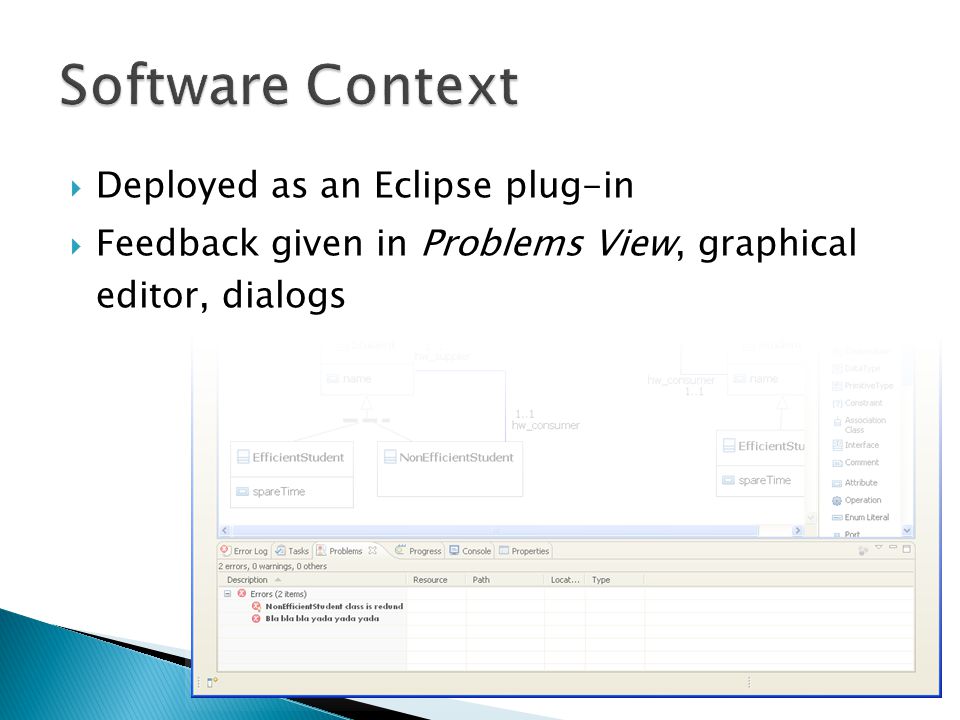

5.  Deployed as an Eclipse plug-in  Feedback given in Problems View, graphical editor, dialogs

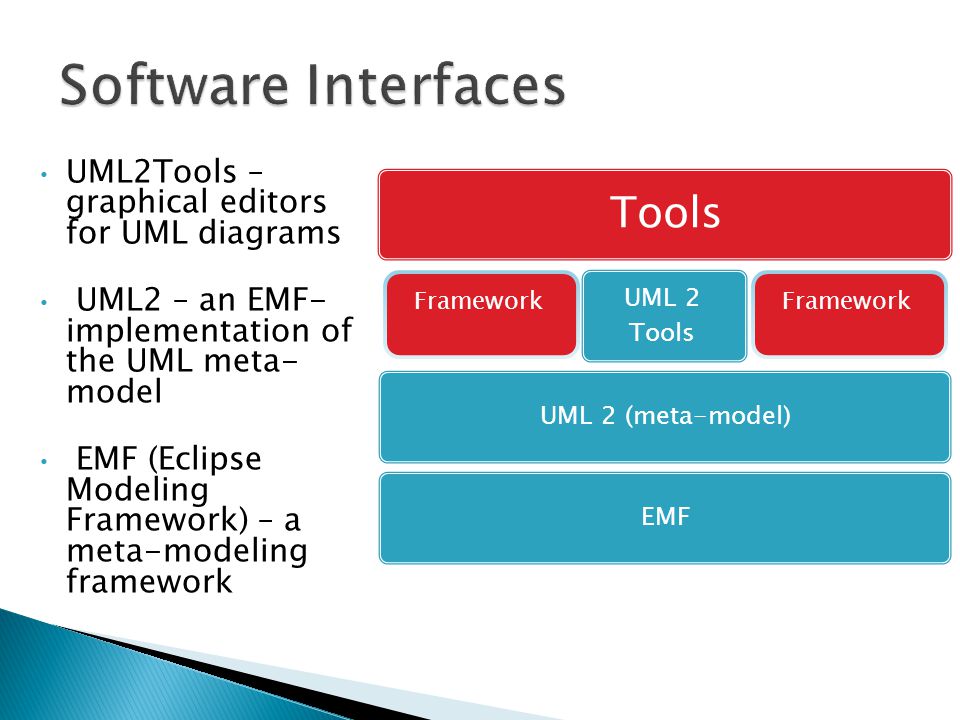

6. UML2Tools – graphical editors for UML diagrams UML2 – an EMF- implementation of the UML meta- model EMF (Eclipse Modeling Framework) – a meta-modeling framework Tools UML 2 Tools UML 2 (meta-model)EMF Framework

7. Rename Class After picking a new class in a wizard, a suggestion for renaming related: associations, fields and parameters is given Extract Interface Extract features from a class into a new interface, and update references to use the new interface In-line ClassMerge one class into the other Pull Up Field/Method Move a common field/method from several subclasses to their super-class.

8.  A class diagram before refactoring:

9.  In order to perform the Extract Interface refactoring we will need to:  Create the interface  Create the generalization between the class and the interface  Move the operations of the class to the interface  Update association ends that pointed to the class to now point to the interface

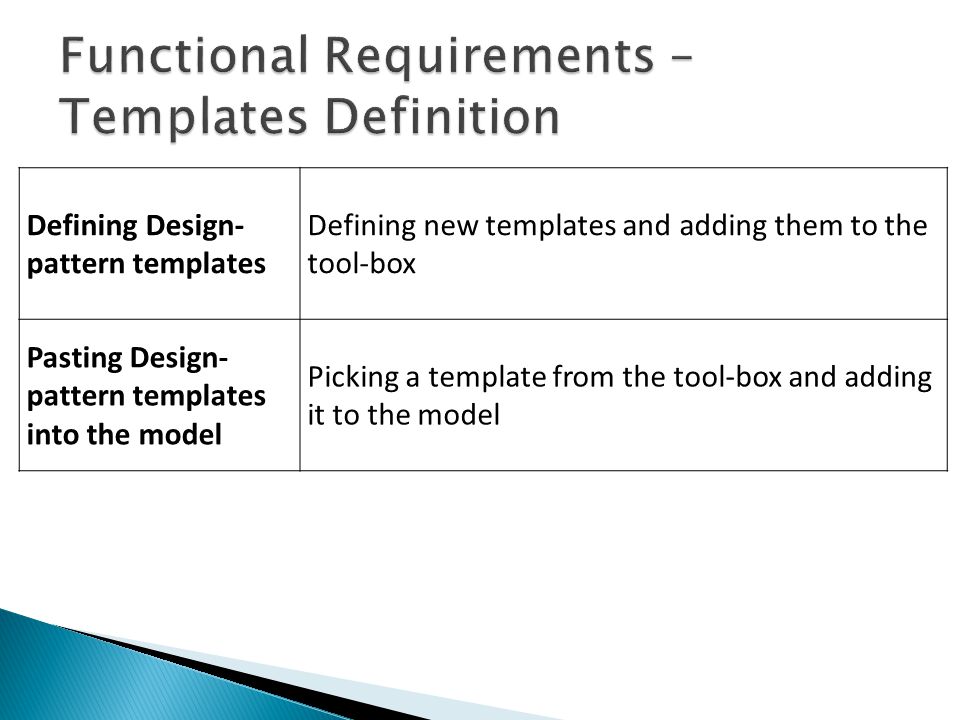

10. Defining Design- pattern templates Defining new templates and adding them to the tool-box Pasting Design- pattern templates into the model Picking a template from the tool-box and adding it to the model

12. Define Patterns Ability to add new pattern and registering it in the system Verifying a Model Against Registered Patterns Matching registered patterns against a model and warning when a match is found. For example: Contradictory generalization-set constraints Finite Satisfiability Pattern Patterns of Redundant and Incomplete Design Generalization – Sets Implementation Proposals We suggest to find the best alternative implementation for a generalization-set by the compiler constraints according to a heuristic search

14.  Hierarchy Cycle  Diamond Pattern

15.  Redundancy

16.  Verifying a model against an inconsistency pattern should take TBD seconds  The system will be able to handle a model with up to 2500 elements  Defining and registering a new template will be done visually  The system should be responsive at any time  Background processes can be aborted at any time

18.  Primary actors: Simple Modeler  Description: The modeler validates the model and looks for an inconsistency pattern. He can also choose to look for many/all the existing inconsistency patterns.  Trigger: The modeler wants to check the consistency of the model  Pre-conditions: none  Post-conditions: All the found patterns are shown to the modeler  Flow of events: 1. The modeler chooses the patterns he want to look for 2. The modeler starts the search 3. The system directs the modeler to the matched patterns  Alternative flows: None  Covered Requirements: Verifying a model against registered inconsistency-patterns
