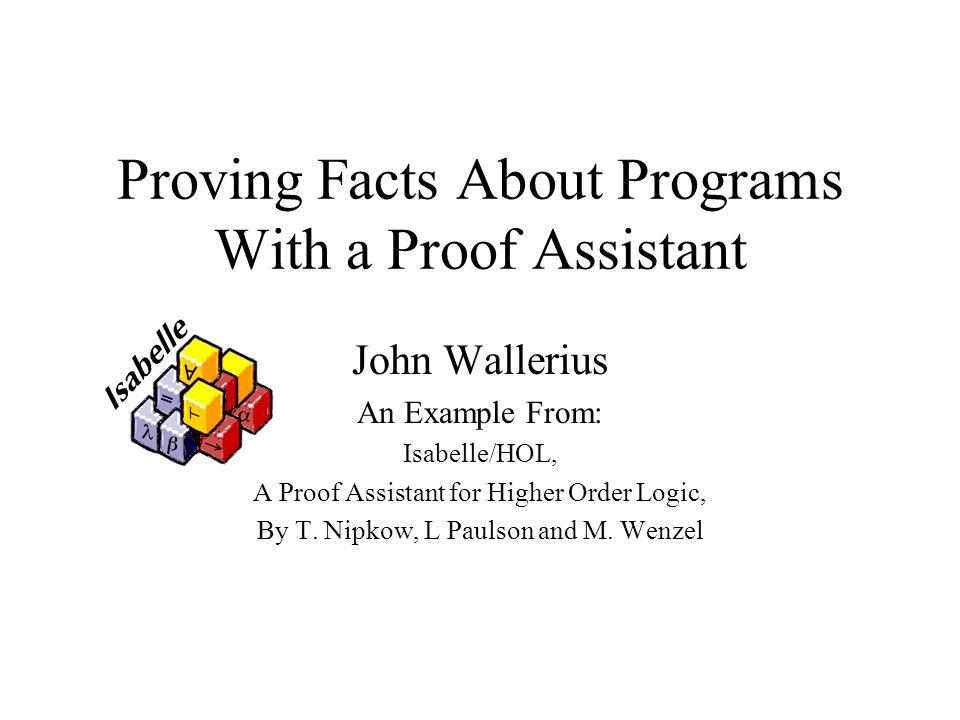

1. Proving Facts About Programs With a Proof Assistant John Wallerius An Example From: Isabelle/HOL, A Proof Assistant for Higher Order Logic, By T. Nipkow, L Paulson and M. Wenzel

2. A Simple Example Using Lists Specify data types (e.g. polymorphic lists, trees) using ML-like syntax: datatype 'a list = Nil ("[]") | Cons 'a “ 'a list " (infixr "#" 65)

3. Specify functions: Append and Reverse consts app :: “ 'a list => 'a list => 'a list" (infixr "@" 65) rev :: “ 'a list => 'a list" primrec "[] @ ys = ys" "(x # xs) @ ys = x # (xs @ ys)" primrec "rev [] = []" "rev (x # xs) = (rev xs) @ (x # [])"

4. State a Theorem to Prove Simple Example: Reversing the reverse of a list gives back the original list: theorem rev_rev [simp]: "rev(rev xs) = xs“ This command names and states a theorem. When proved, future proofs will use it for simplifications

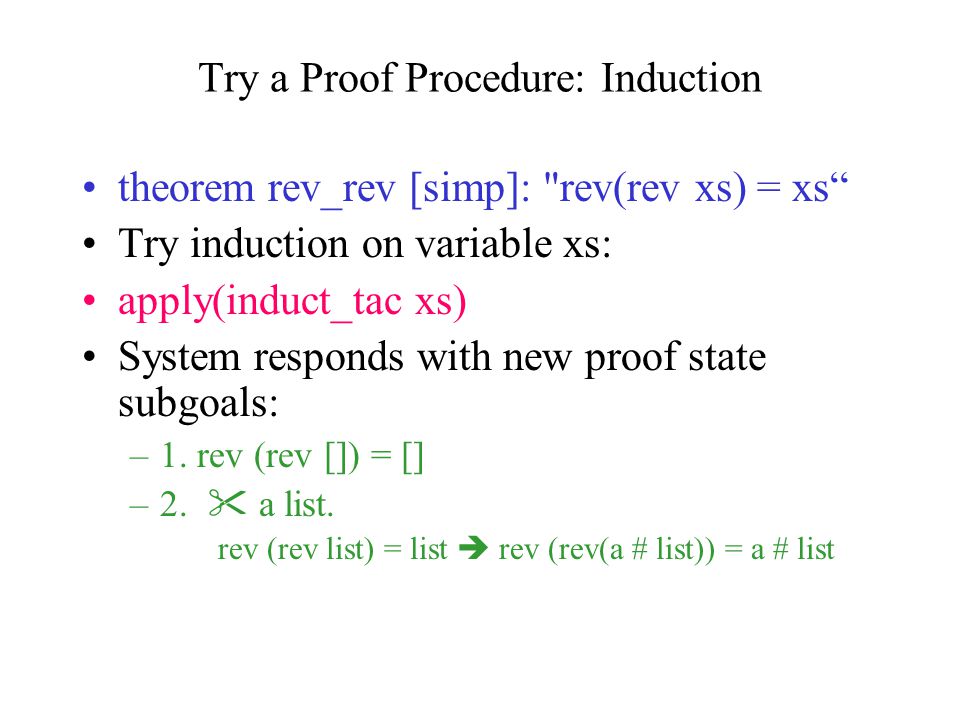

5. Try a Proof Procedure: Induction theorem rev_rev [simp]: "rev(rev xs) = xs“ Try induction on variable xs: apply(induct_tac xs) System responds with new proof state subgoals: –1. rev (rev []) = [] –2.  a list. rev (rev list) = list  rev (rev(a # list)) = a # list

6. Simplify Current state –1. rev (rev []) = [] –2.  a list. rev (rev list) = list  rev (rev(a # list)) = a # list Invoke Simplifier: apply(auto) New state after first subgoal is completely solved –1.  a list. rev (rev list) = list  rev (rev(a # list)) = a # list

7. A Simpler Lemma is Needed lemma rev_app [simp]: "rev(xs @ ys) = (rev ys) @ (rev xs)“ Actually, this can’t be proved immediately either. We first need to prove a yet simpler lemma: lemma app_Nil2 [simp]: "xs @ [] = xs“ This one is proved by: apply(induct_tac xs); apply(auto)

8. The Final Proof lemma app_Nil2 [simp]: "xs @ [] = xs" lemma app_assoc [simp]: "(xs @ ys) @ zs = xs @ (ys @ zs)" lemma rev_app [simp]: "rev(xs @ ys) = (rev ys) @ (rev xs)" theorem rev_rev [simp]: "rev(rev xs) = xs"

9. Review Standard proof procedure: –State a goal –Proceed until lemma is needed –Prove lemma –Return to original Good strategy for functional programs: 1.Induction, then 2.All out simplification
