1. Computer Graphics Recitation 7

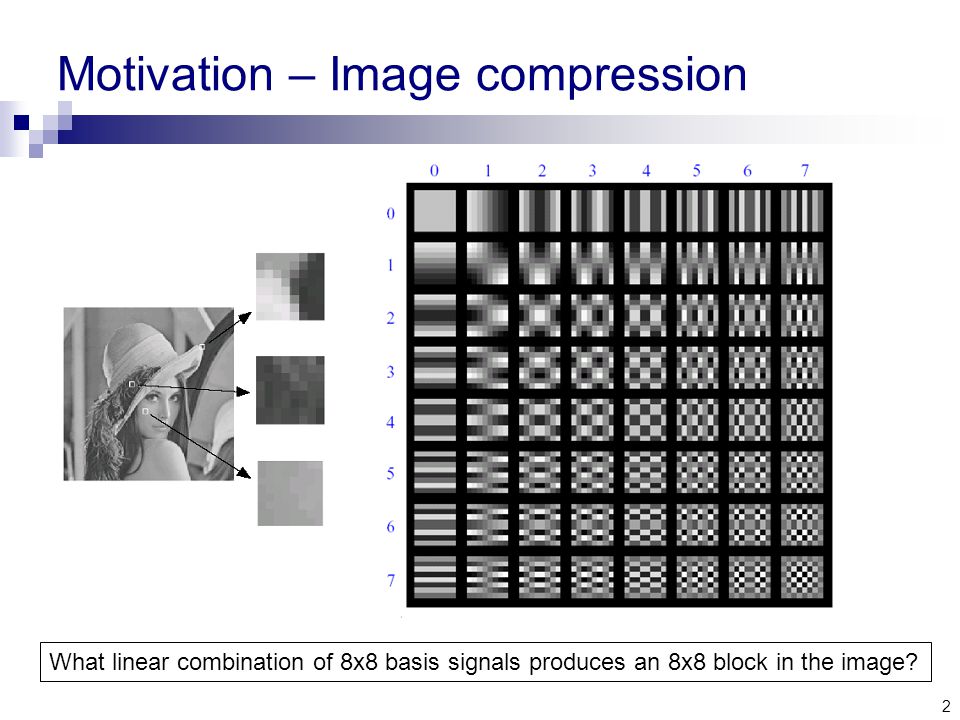

2. 2 Motivation – Image compression What linear combination of 8x8 basis signals produces an 8x8 block in the image?

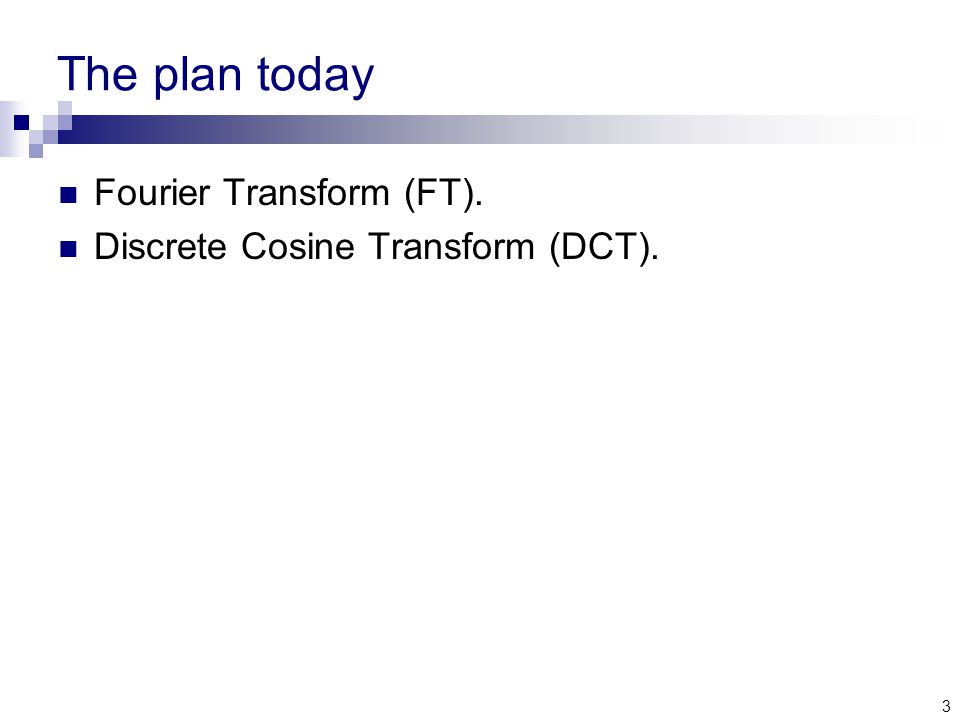

3. 3 The plan today Fourier Transform (FT). Discrete Cosine Transform (DCT).

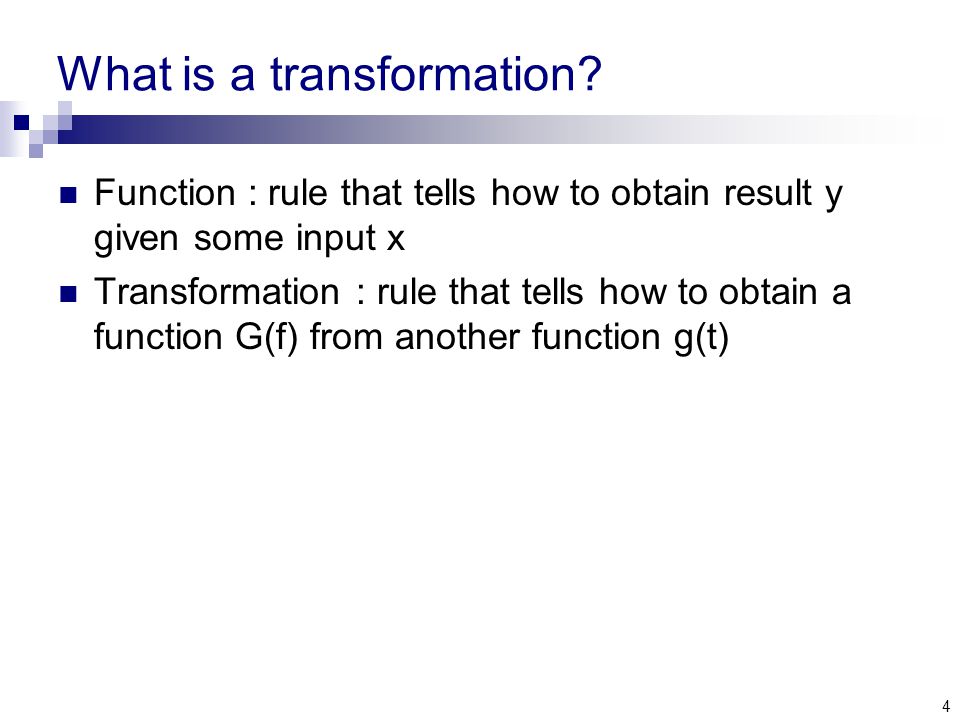

4. 4 What is a transformation? Function : rule that tells how to obtain result y given some input x Transformation : rule that tells how to obtain a function G(f) from another function g(t)

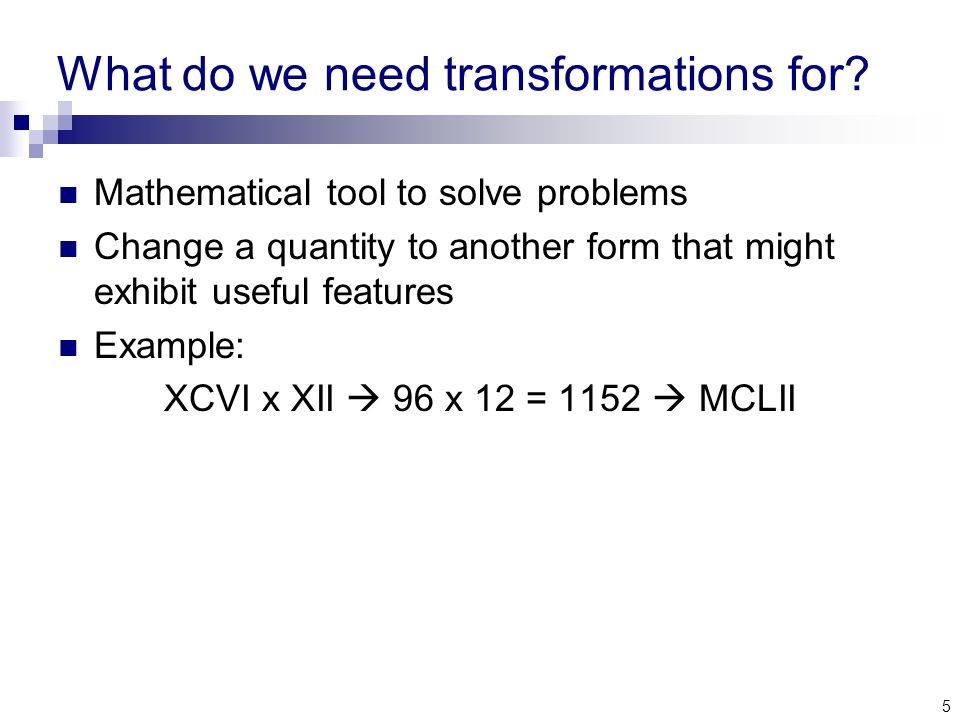

5. 5 What do we need transformations for? Mathematical tool to solve problems Change a quantity to another form that might exhibit useful features Example: XCVI x XII  96 x 12 = 1152  MCLII

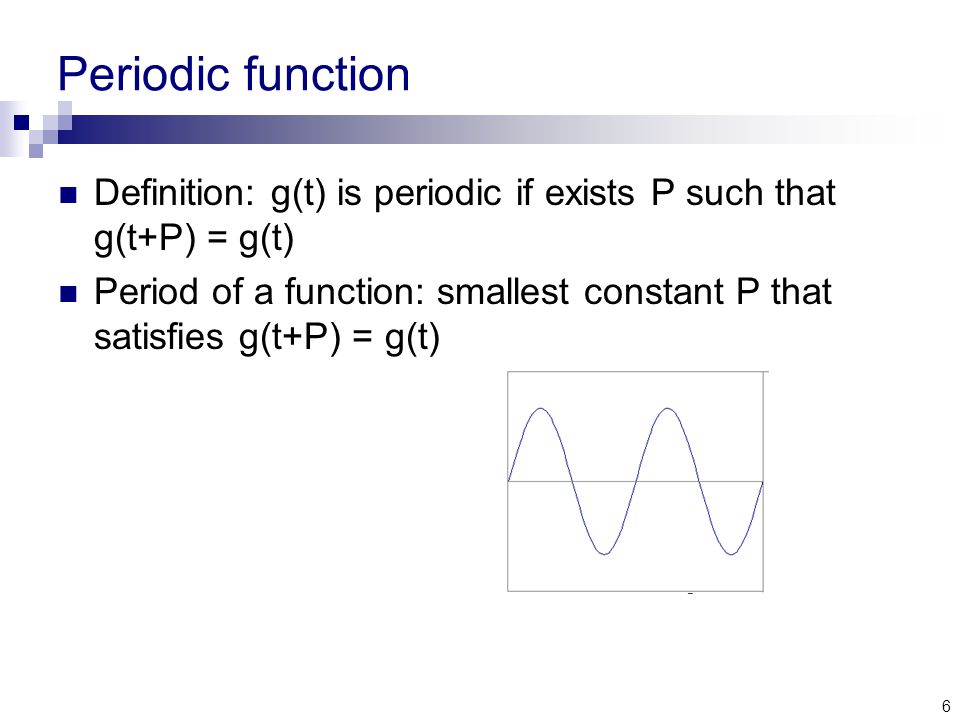

6. 6 Periodic function Definition: g(t) is periodic if exists P such that g(t+P) = g(t) Period of a function: smallest constant P that satisfies g(t+P) = g(t)

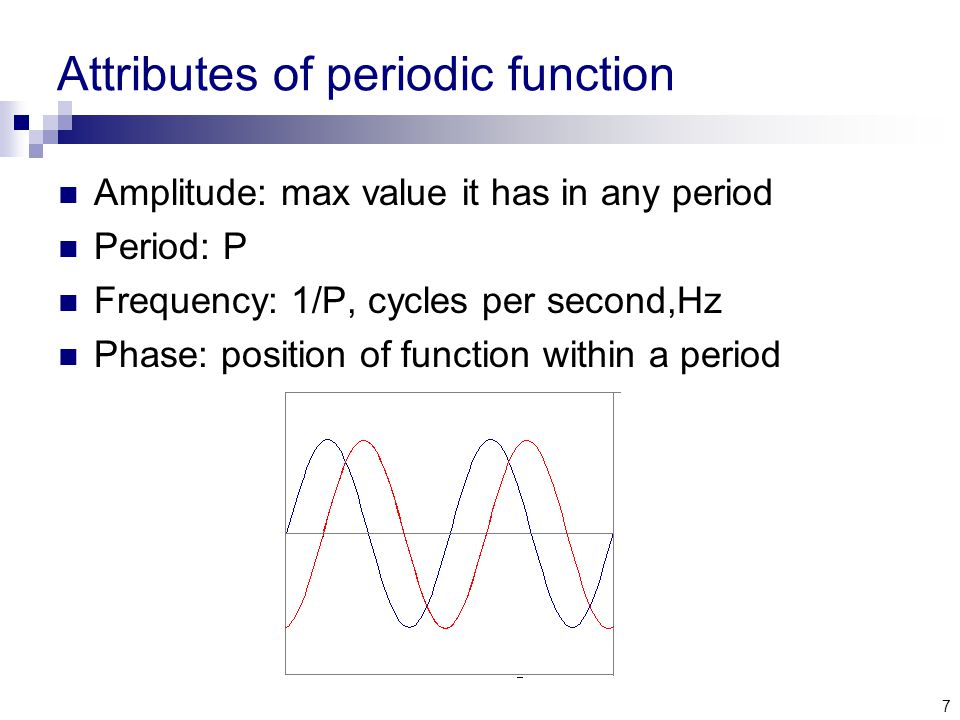

7. 7 Attributes of periodic function Amplitude: max value it has in any period Period: P Frequency: 1/P, cycles per second,Hz Phase: position of function within a period

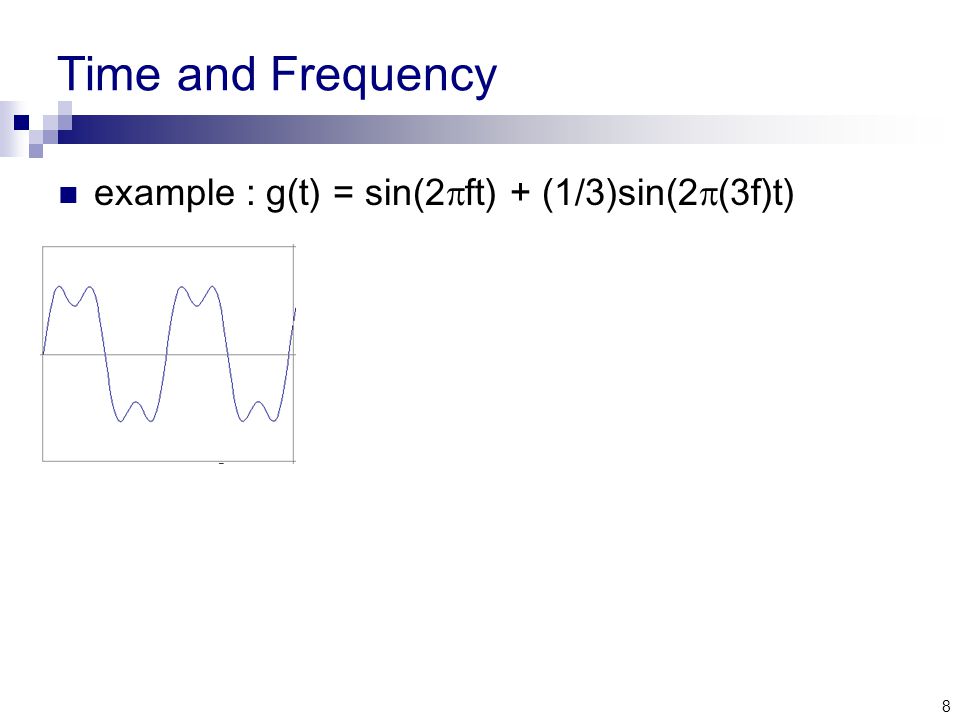

8. 8 Time and Frequency example : g(t) = sin(2  ft) + (1/3)sin(2  (3f)t)

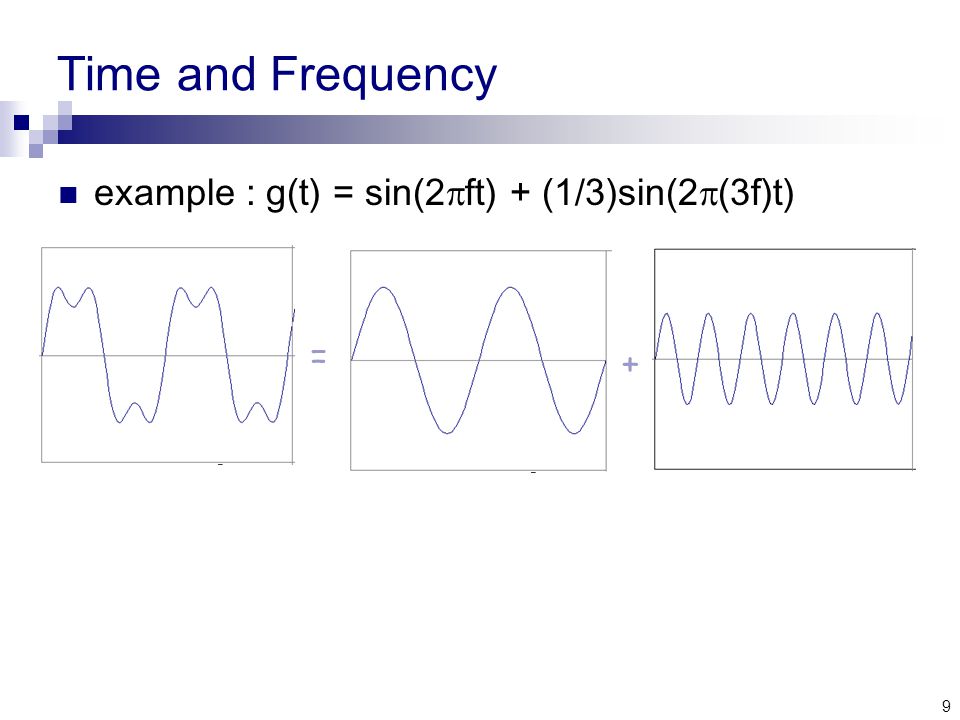

9. 9 Time and Frequency example : g(t) = sin(2  ft) + (1/3)sin(2  (3f)t) = +

10. 10 Time and Frequency example : g(t) = sin(2  ft) + (1/3)sin(2  (3f)t) = +

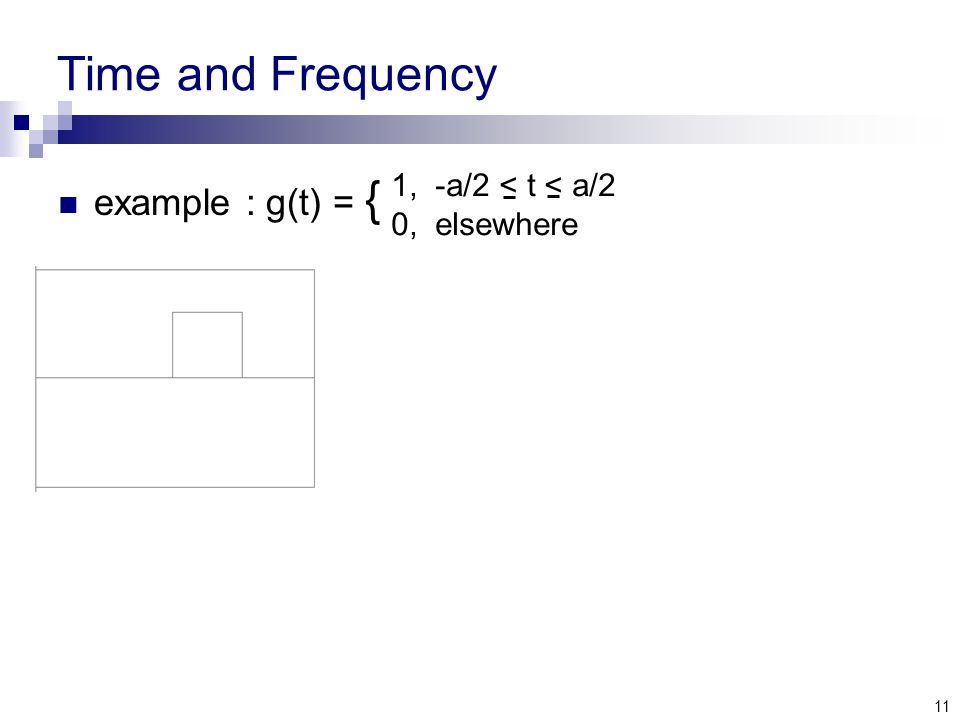

11. 11 Time and Frequency example : g(t) = { 1, -a/2 < t < a/2 0, elsewhere

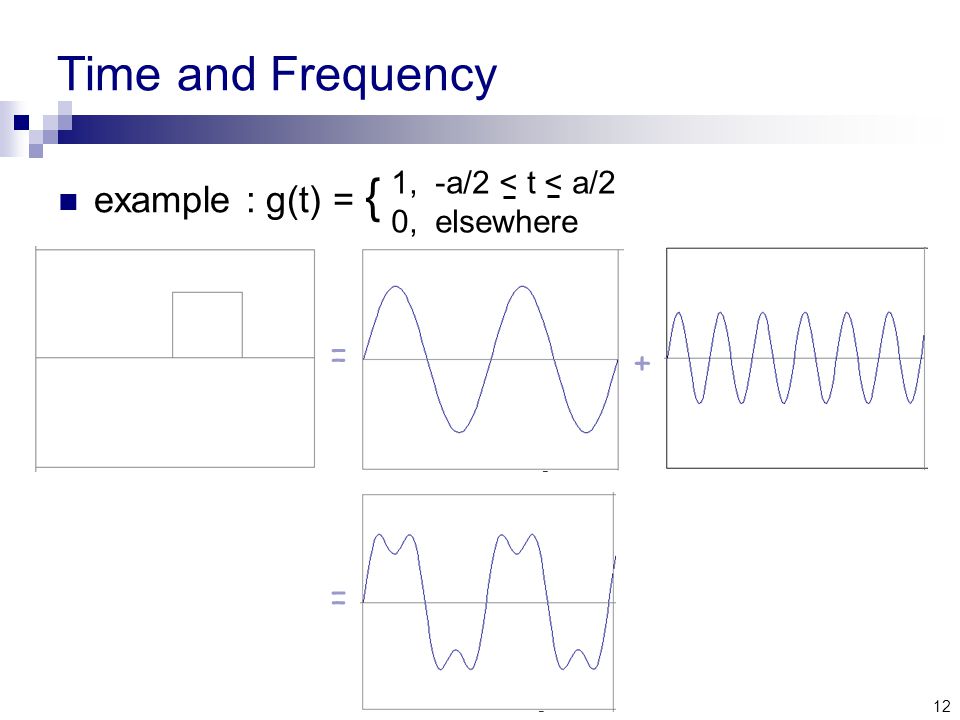

12. 12 Time and Frequency example : g(t) = { 1, -a/2 < t < a/2 0, elsewhere = + =

13. 13 Time and Frequency example : g(t) = { 1, -a/2 < t < a/2 0, elsewhere = + =

14. 14 Time and Frequency example : g(t) = { 1, -a/2 < t < a/2 0, elsewhere = + =

15. 15 Time and Frequency example : g(t) = { 1, -a/2 < t < a/2 0, elsewhere = + =

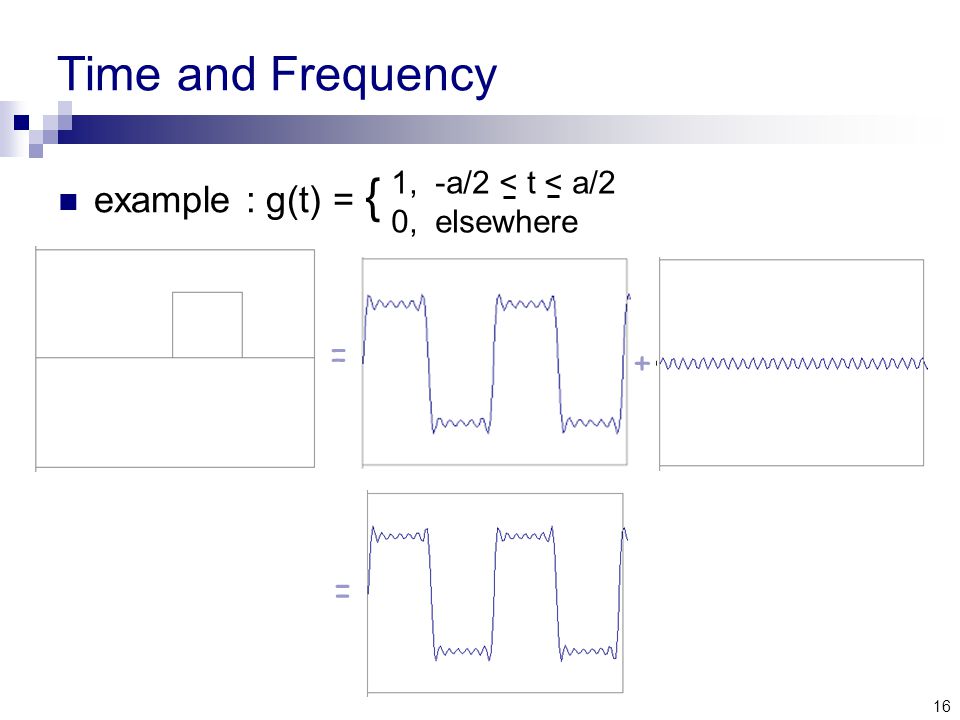

16. 16 Time and Frequency example : g(t) = { 1, -a/2 < t < a/2 0, elsewhere = + =

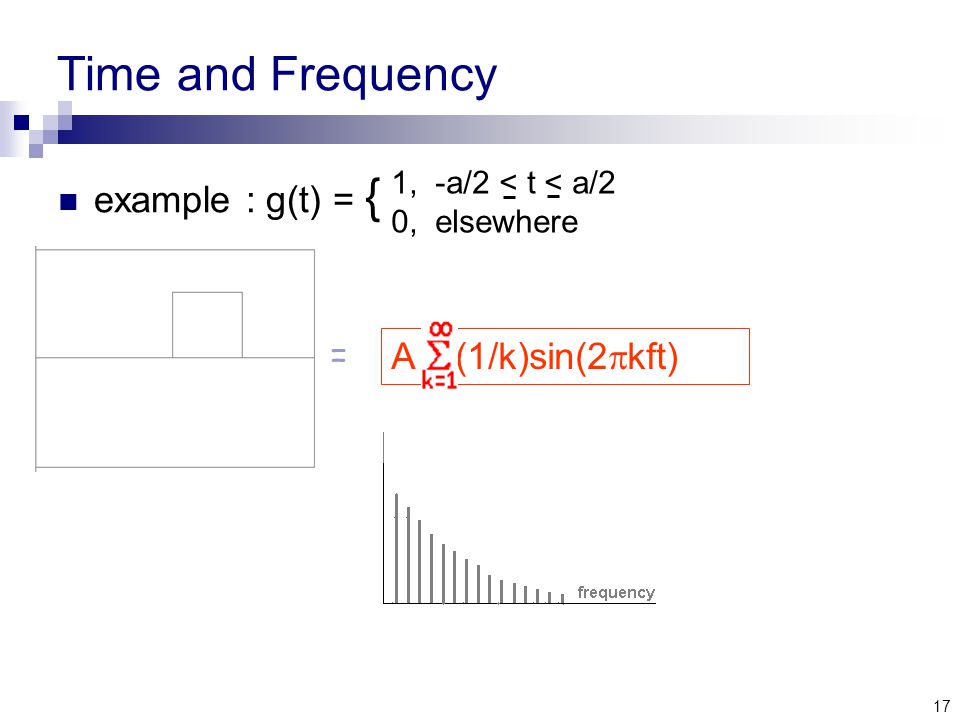

17. 17 Time and Frequency example : g(t) = { 1, -a/2 < t < a/2 0, elsewhere = A (1/k)sin(2  kft)

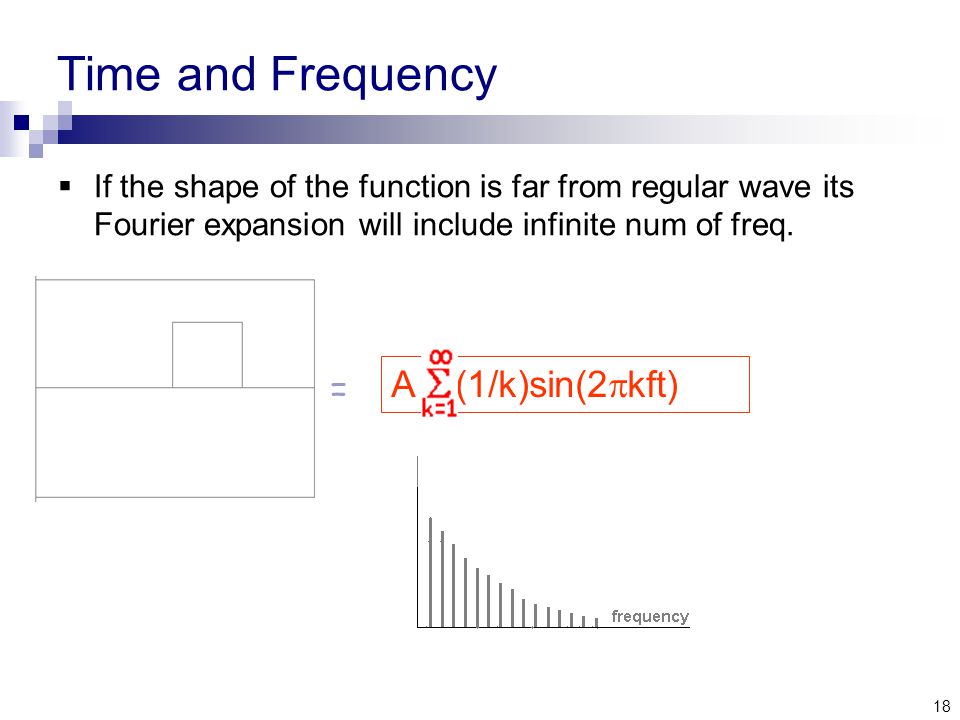

18. 18 Time and Frequency  If the shape of the function is far from regular wave its Fourier expansion will include infinite num of freq. A (1/k)sin(2  kft) =

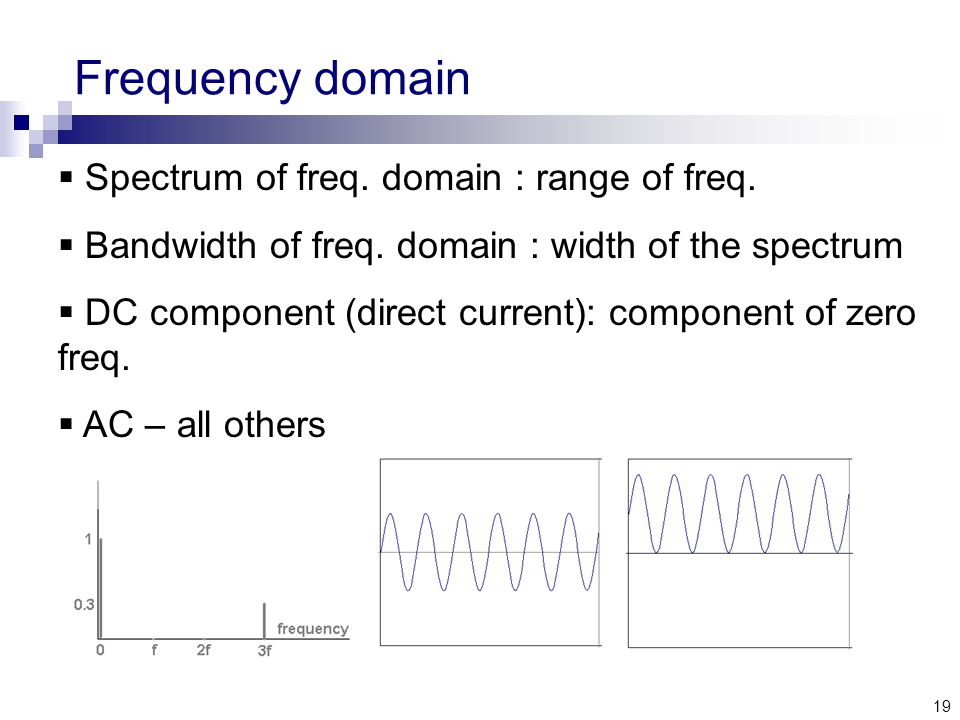

19. 19 Frequency domain  Spectrum of freq. domain : range of freq.  Bandwidth of freq. domain : width of the spectrum  DC component (direct current): component of zero freq.  AC – all others

20. 20 Fourier transform G(f) = g(t)[cos(2  ft) - i sin(2  ft)]dt g(t) = G(f)[cos(2  ft) + i sin(2  ft)]df  Every periodic function can be represented as the sum of sine and cosine functions  Transform a function between a time and freq. domain

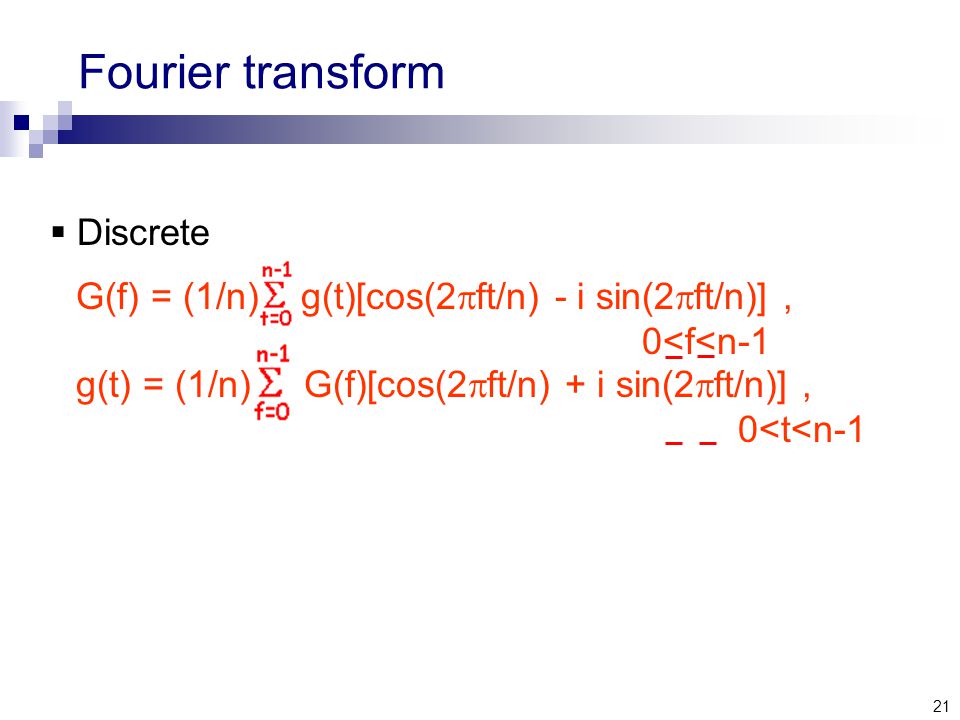

21. 21 Fourier transform  Discrete g(t) = (1/n) G(f)[cos(2  ft/n) + i sin(2  ft/n)], 0<t<n-1 G(f) = (1/n) g(t)[cos(2  ft/n) - i sin(2  ft/n)], 0<f<n-1

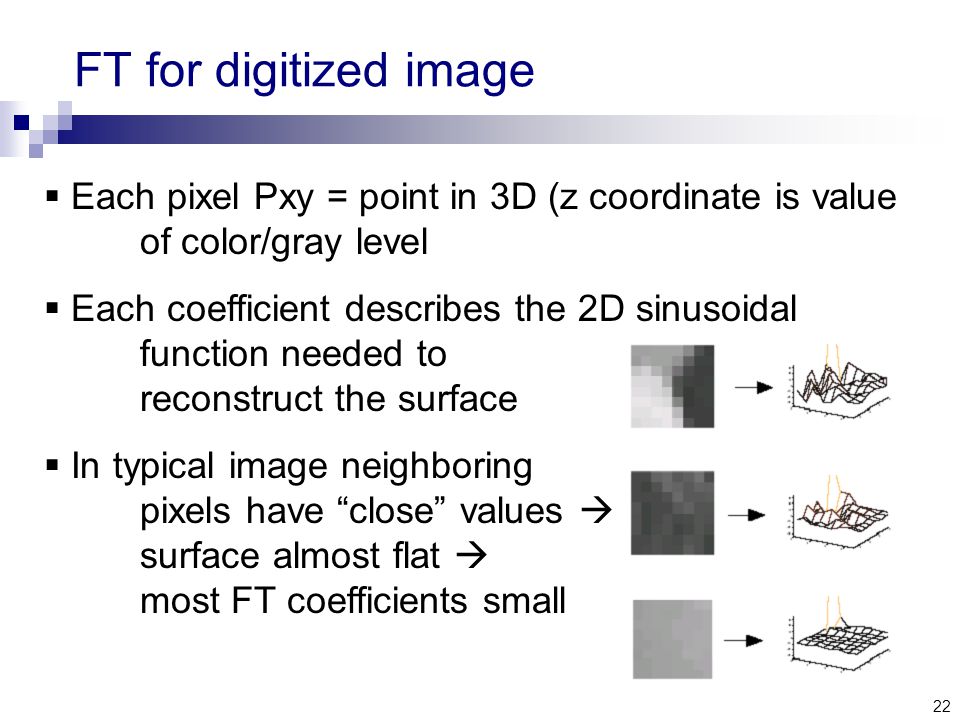

22. 22 FT for digitized image  Each pixel Pxy = point in 3D (z coordinate is value of color/gray level  Each coefficient describes the 2D sinusoidal function needed to reconstruct the surface  In typical image neighboring pixels have “close” values  surface almost flat  most FT coefficients small

23. 23 Sampling theory  Image = continuous signal of intensity function i(t)  Sampling: store a finite sequence in memory i(1)…i(n)  The bigger the sample, the better the quality? – not necessarily

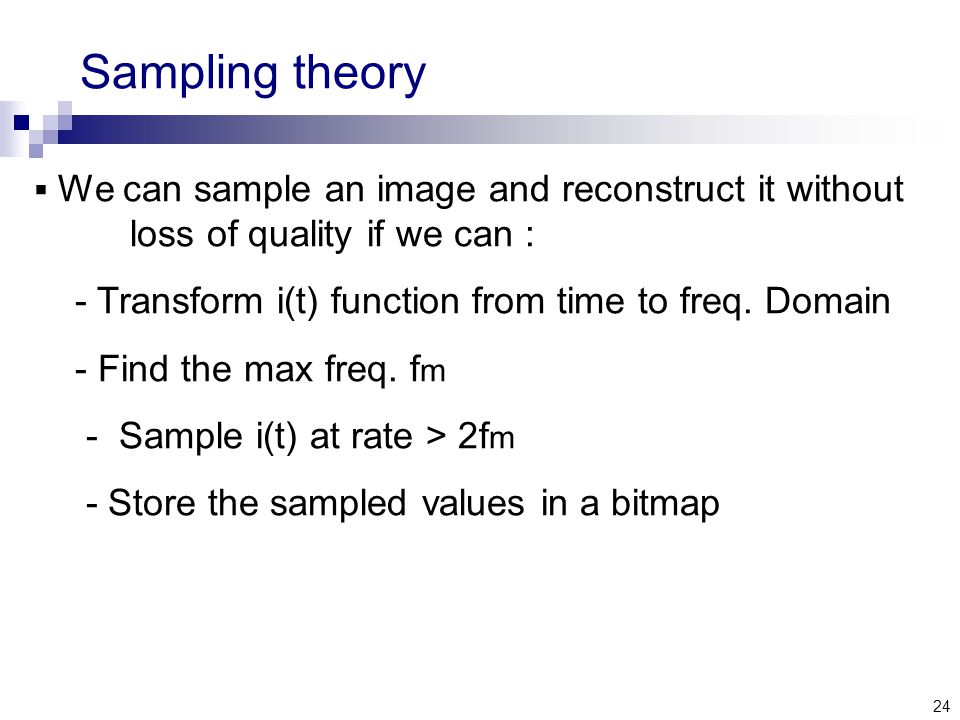

24. 24 Sampling theory  We can sample an image and reconstruct it without loss of quality if we can : - Transform i(t) function from time to freq. Domain - Find the max freq. f m - Sample i(t) at rate > 2f m - Store the sampled values in a bitmap

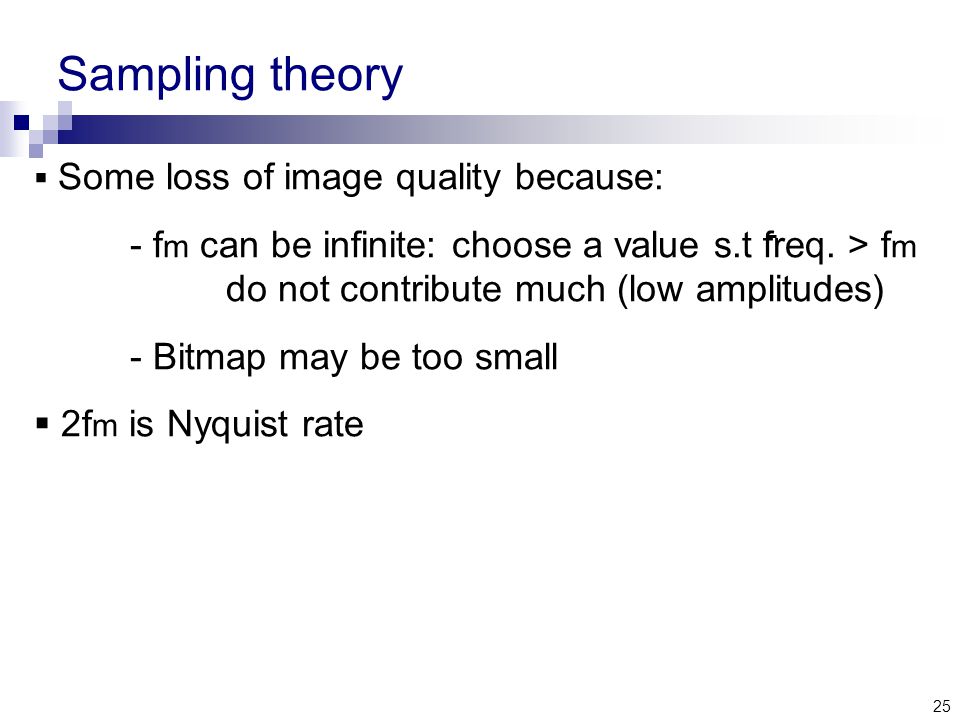

25. 25  Some loss of image quality because: - f m can be infinite: choose a value s.t freq. > f m do not contribute much (low amplitudes) - Bitmap may be too small  2f m is Nyquist rate Sampling theory

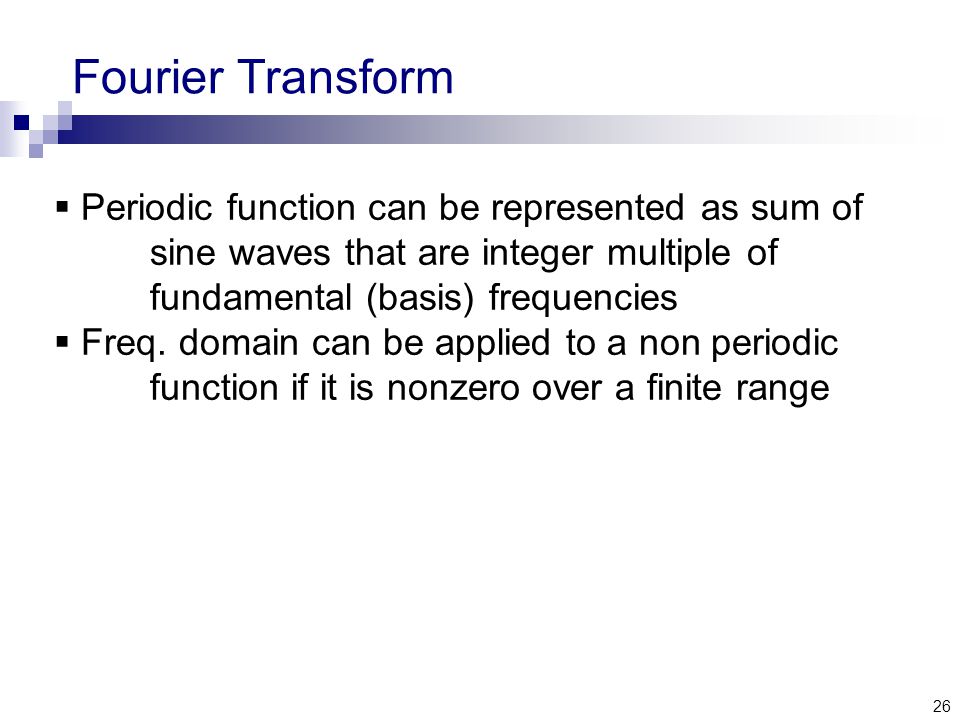

26. 26 Fourier Transform  Periodic function can be represented as sum of sine waves that are integer multiple of fundamental (basis) frequencies  Freq. domain can be applied to a non periodic function if it is nonzero over a finite range

27. 27 Discrete Cosine Transform  A variant of discrete Fourier transform - Real numbers - Fast implementation -Separable (row/column)

28. 28 Discrete Cosine Transform  Example: DCT on 8 points G = (½) C P cos((2t+1)f  /16), C = { f ft f=0 1 f=1…7 f  Fourier transform on 8 points G = P cos(2  ft/8) – i P sin(2  ft/8), f=0,1,…,7 f t t

29. 29 Discrete Cosine Transform  Example 8 points: Same meaning: the 8 numbers G f tell what sinusoidal func. should be combined to approximate the function described by the 8 original numbers P t

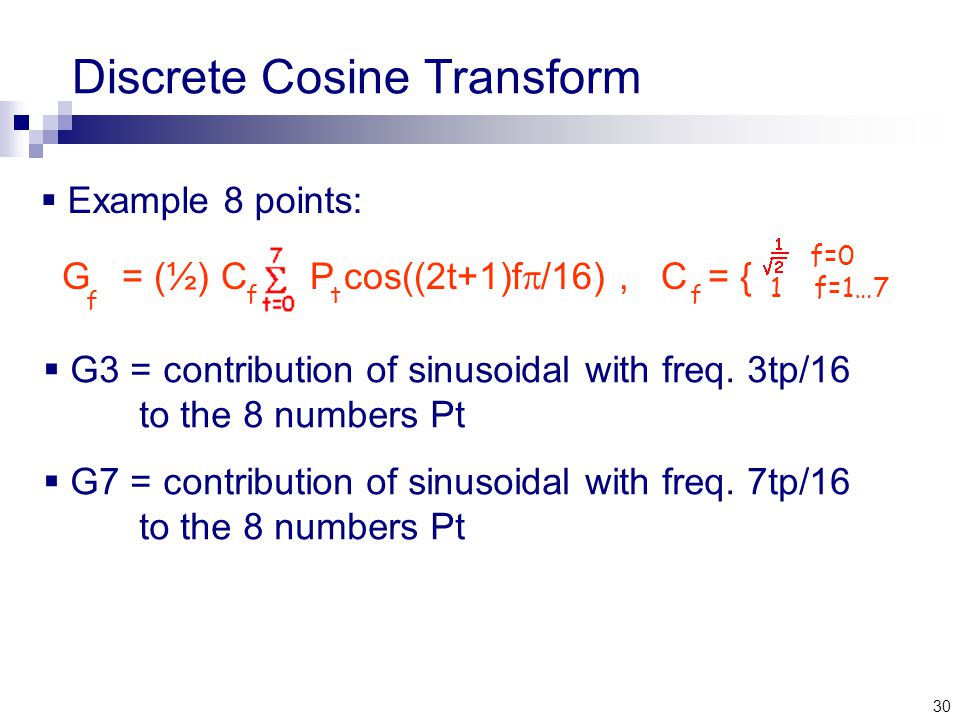

30. 30 Discrete Cosine Transform G = (½) C P cos((2t+1)f  /16), C = { f ft f=0 1 f=1…7 f  G3 = contribution of sinusoidal with freq. 3tp/16 to the 8 numbers Pt  G7 = contribution of sinusoidal with freq. 7tp/16 to the 8 numbers Pt  Example 8 points:

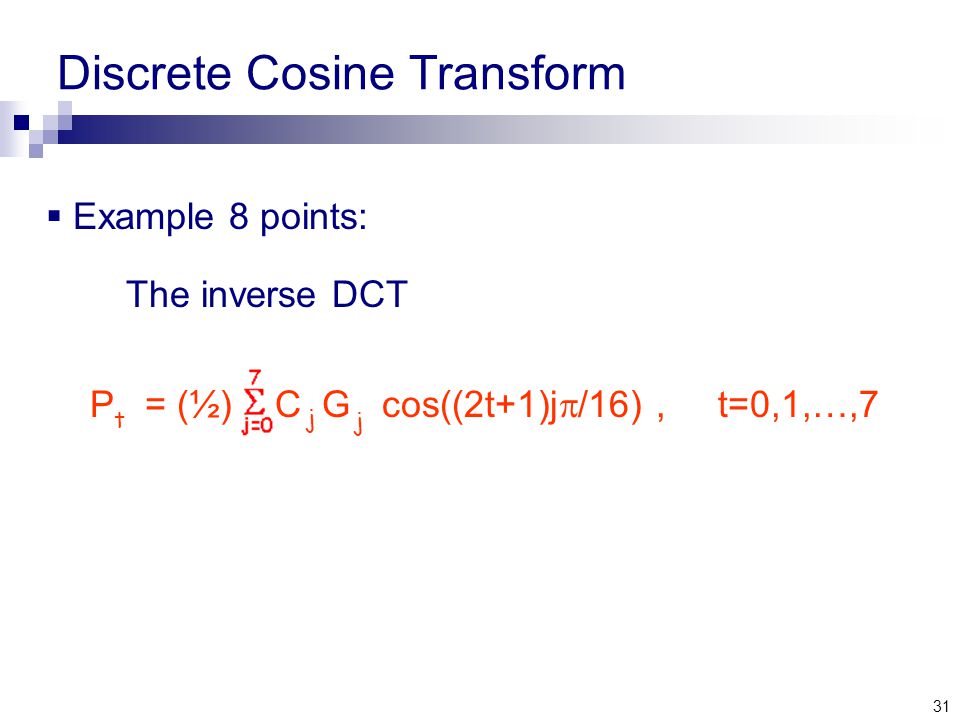

31. 31 The inverse DCT P = (½) C G cos((2t+1)j  /16), t=0,1,…,7 j j t Discrete Cosine Transform  Example 8 points:

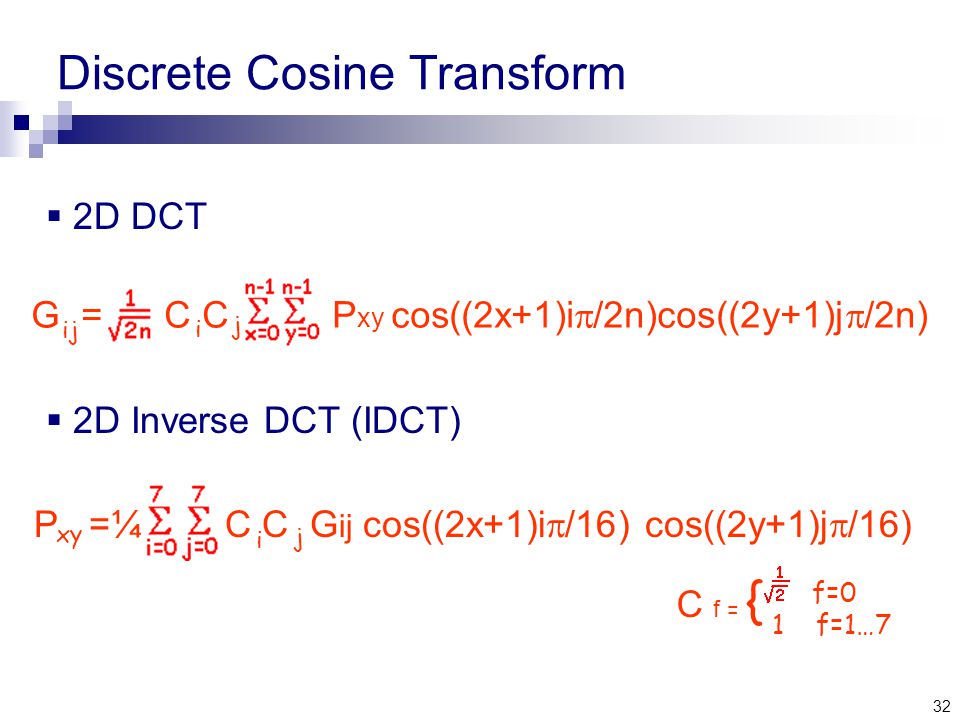

32. 32 Discrete Cosine Transform  2D DCT G = C C P xy cos((2x+1)i  /2n)cos((2y+1)j  /2n) i j ij  2D Inverse DCT (IDCT) P =¼ C C G ij cos((2x+1)i  /16) cos((2y+1)j  /16) i xy j f=0 1 f=1…7 C f = {

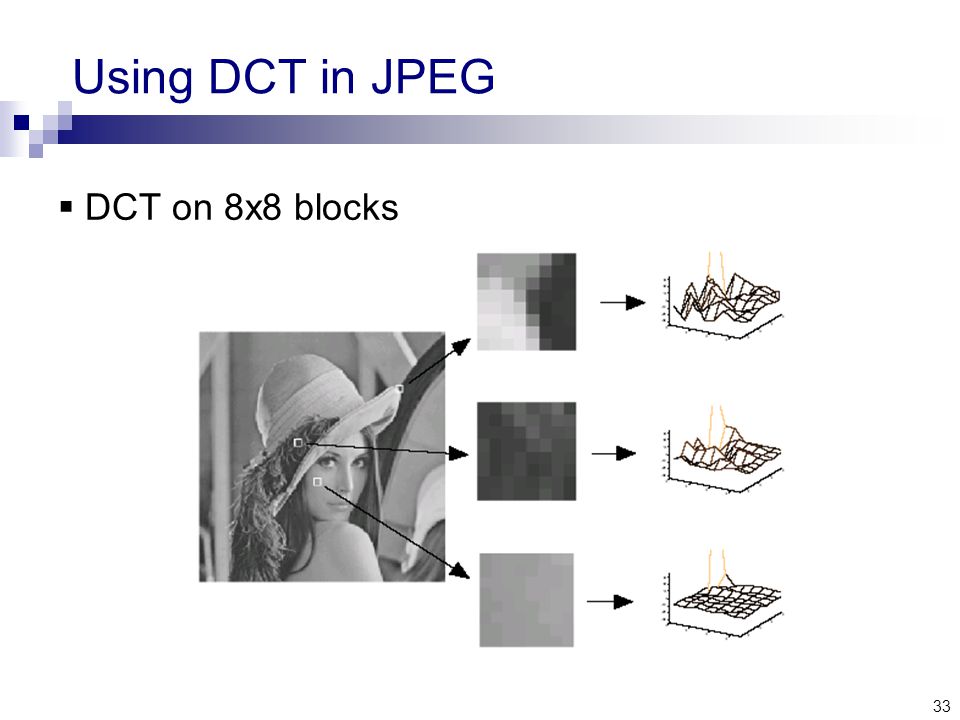

33. 33 Using DCT in JPEG  DCT on 8x8 blocks

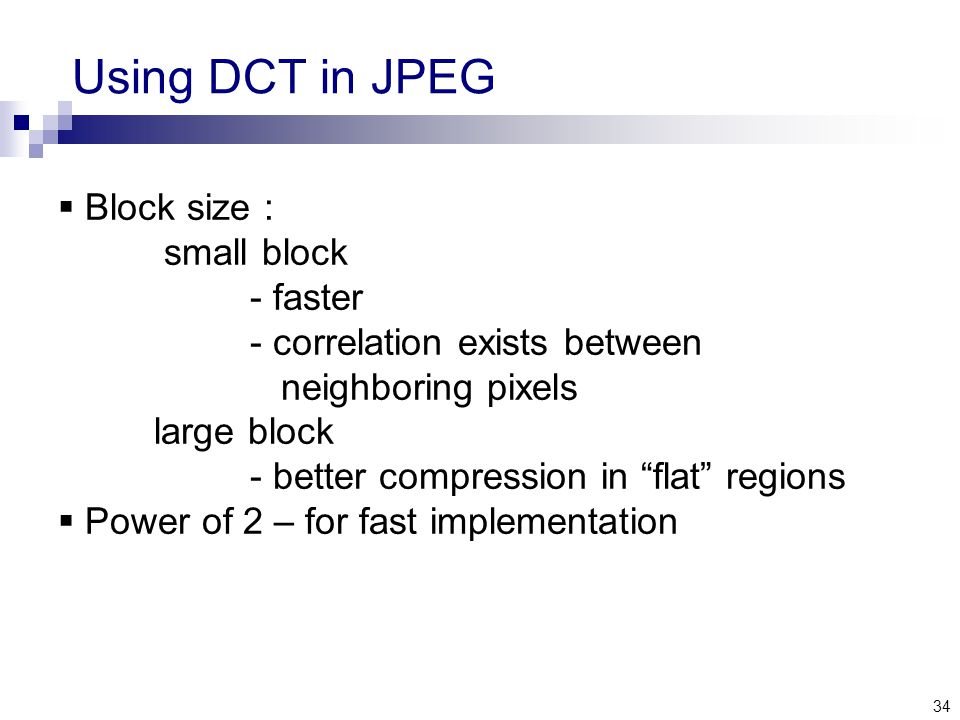

34. 34 Using DCT in JPEG  Block size : small block - faster - correlation exists between neighboring pixels large block - better compression in “flat” regions  Power of 2 – for fast implementation

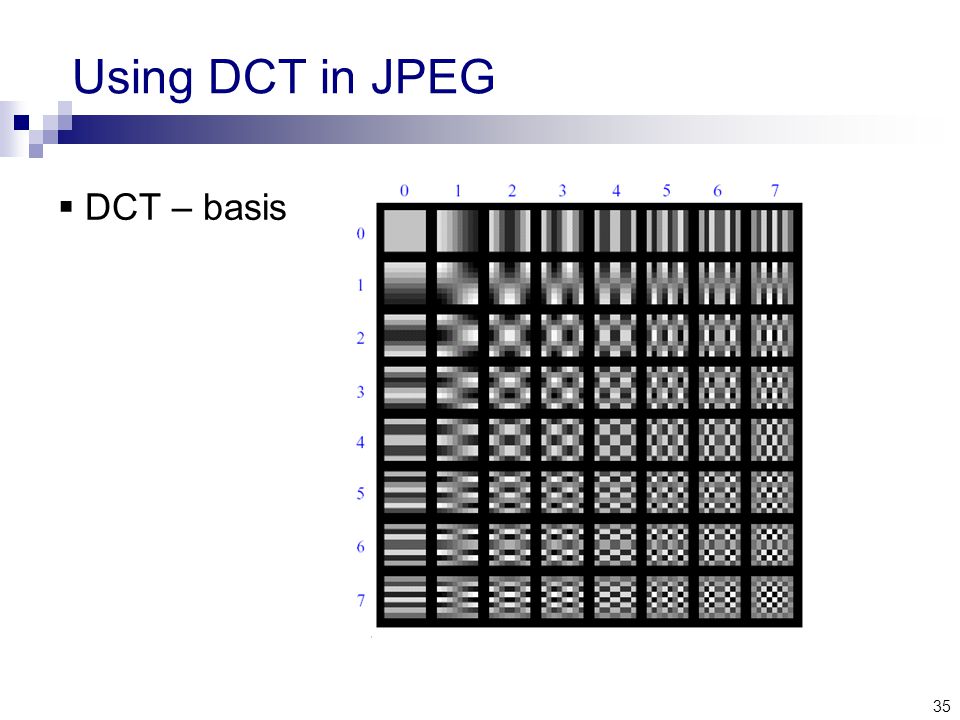

35. 35 Using DCT in JPEG  DCT – basis

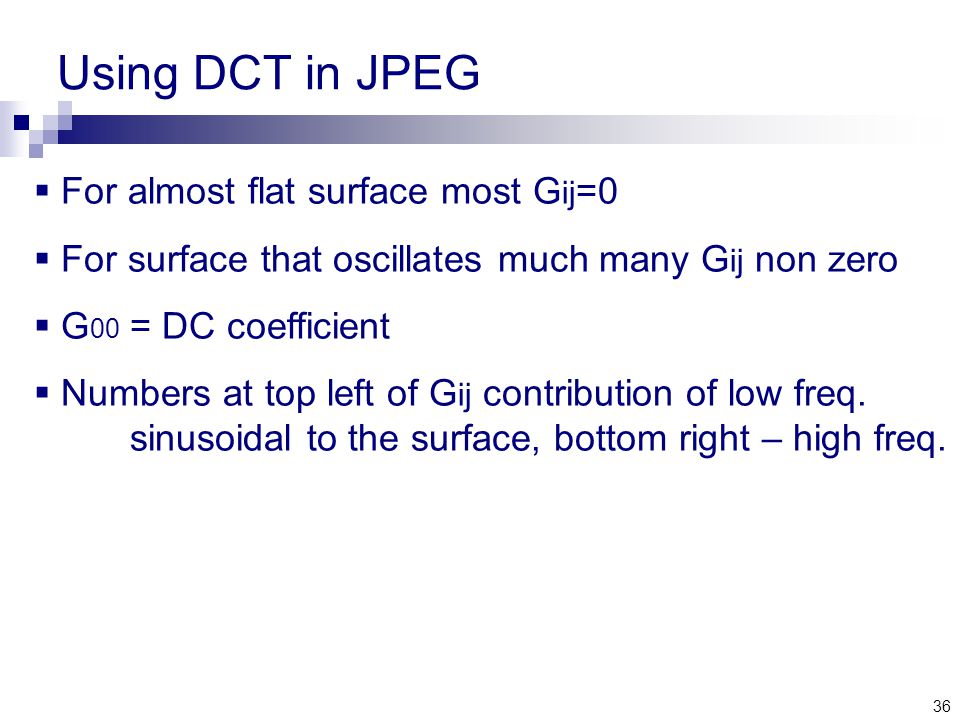

36. 36  For almost flat surface most G ij =0  For surface that oscillates much many G ij non zero  G 00 = DC coefficient  Numbers at top left of G ij contribution of low freq. sinusoidal to the surface, bottom right – high freq. Using DCT in JPEG

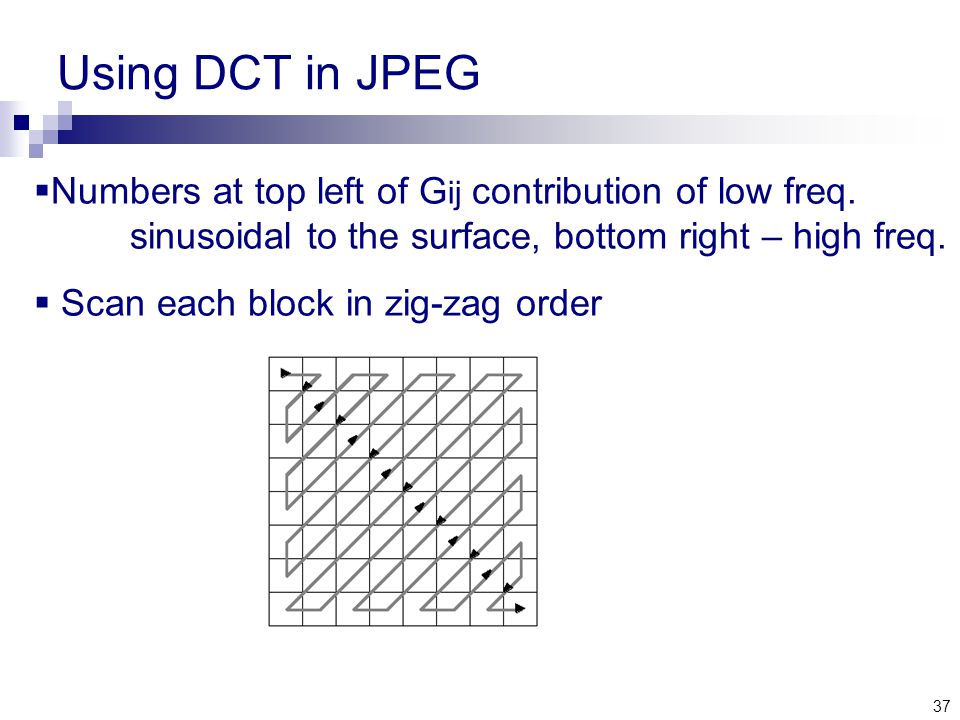

37. 37  Numbers at top left of G ij contribution of low freq. sinusoidal to the surface, bottom right – high freq.  Scan each block in zig-zag order Using DCT in JPEG

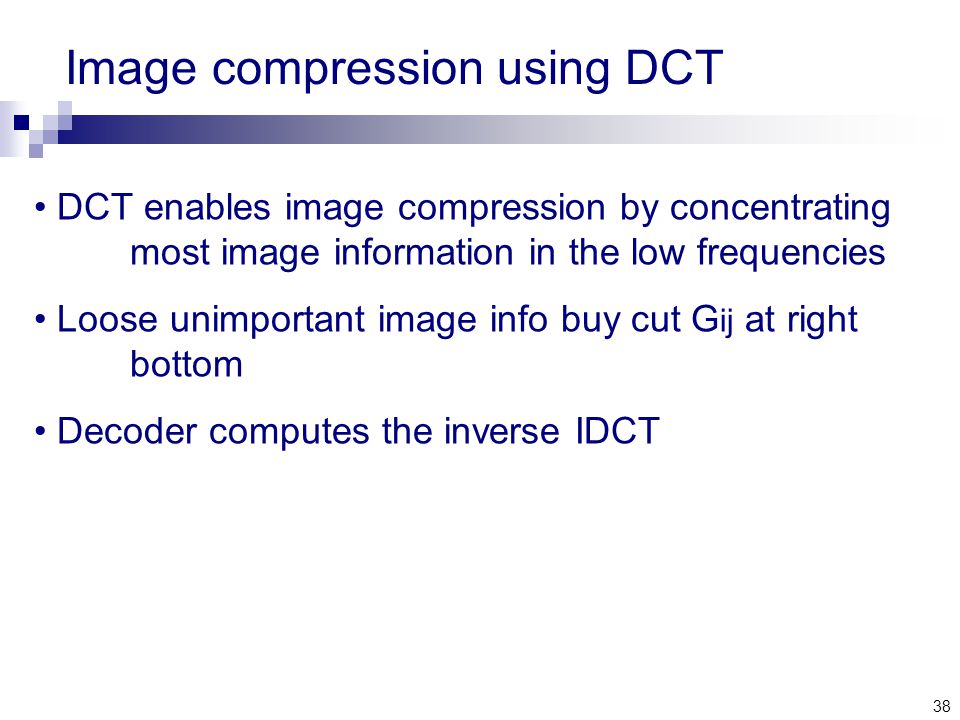

38. 38 DCT enables image compression by concentrating most image information in the low frequencies Loose unimportant image info buy cut G ij at right bottom Decoder computes the inverse IDCT Image compression using DCT
