1. Yaping Zhu yapingz@cs.princeton.edu Advisor: Prof. Jennifer Rexford Princeton University Minimizing Wide-Area Performance Disruptions in Inter-Domain Routing

2. Minimize Performance Disruptions Network changes affect user experience –Equipment failures –Routing changes –Network congestion Network operators have to react and fix problems –Fix equipment failure –Change route selection –Change server selection 2

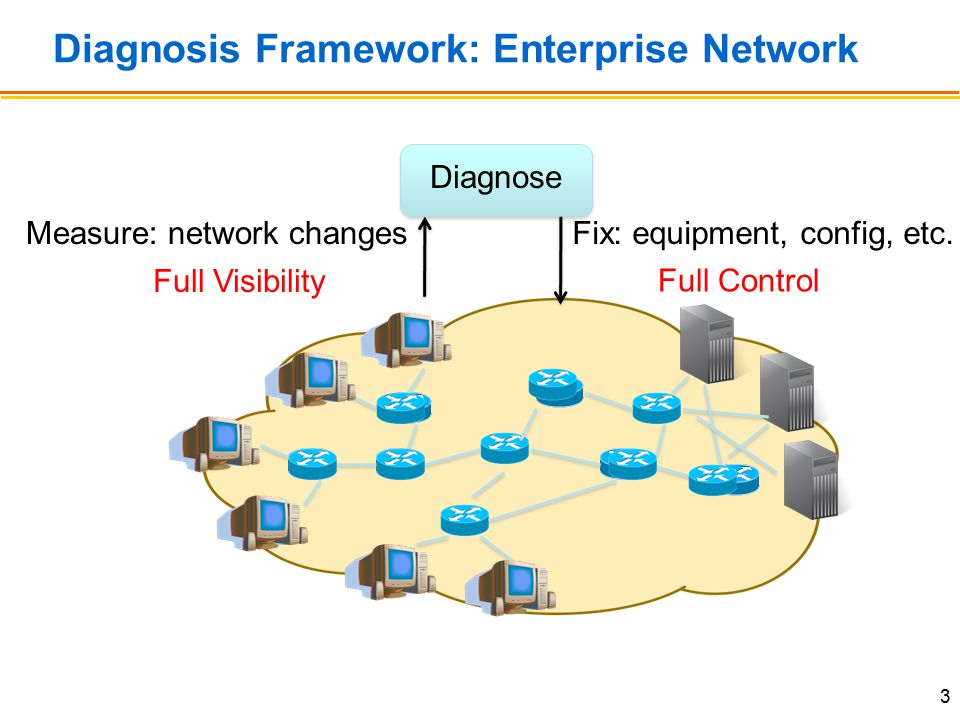

3. Diagnosis Framework: Enterprise Network 3 Measure: network changes Diagnose Fix: equipment, config, etc. Full Visibility Full Control

4. Challenges to Minimize Wide-Area Disruptions The Internet is composed of many networks –ISP (Internet Service Provider): provides connectivity –CDN (Content Distribution Network): provides services Each network has limited visibility and control 4 Client Small ISPs Large ISP CDN

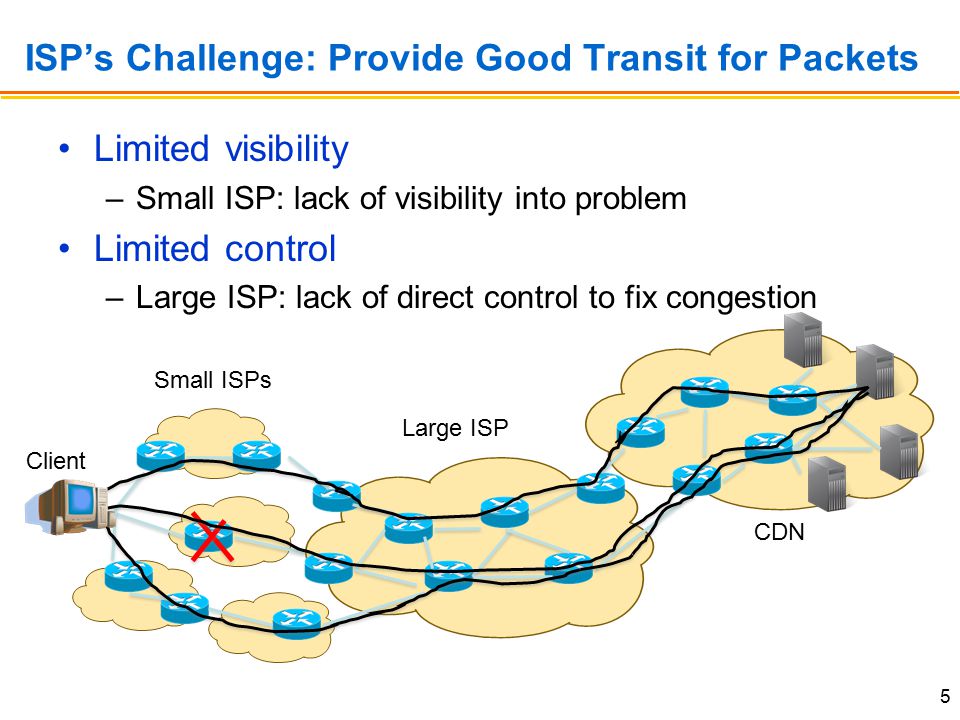

5. ISP’s Challenge: Provide Good Transit for Packets Limited visibility –Small ISP: lack of visibility into problem Limited control –Large ISP: lack of direct control to fix congestion 5 Client Small ISPs Large ISP CDN

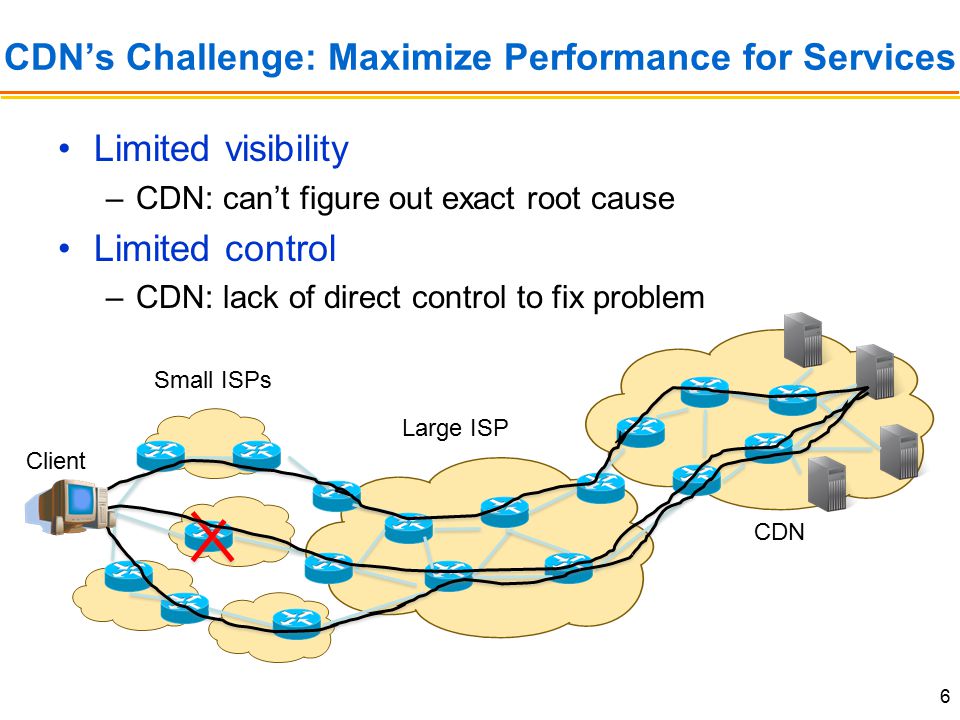

6. CDN’s Challenge: Maximize Performance for Services Limited visibility –CDN: can’t figure out exact root cause Limited control –CDN: lack of direct control to fix problem 6 Client Small ISPs Large ISP CDN

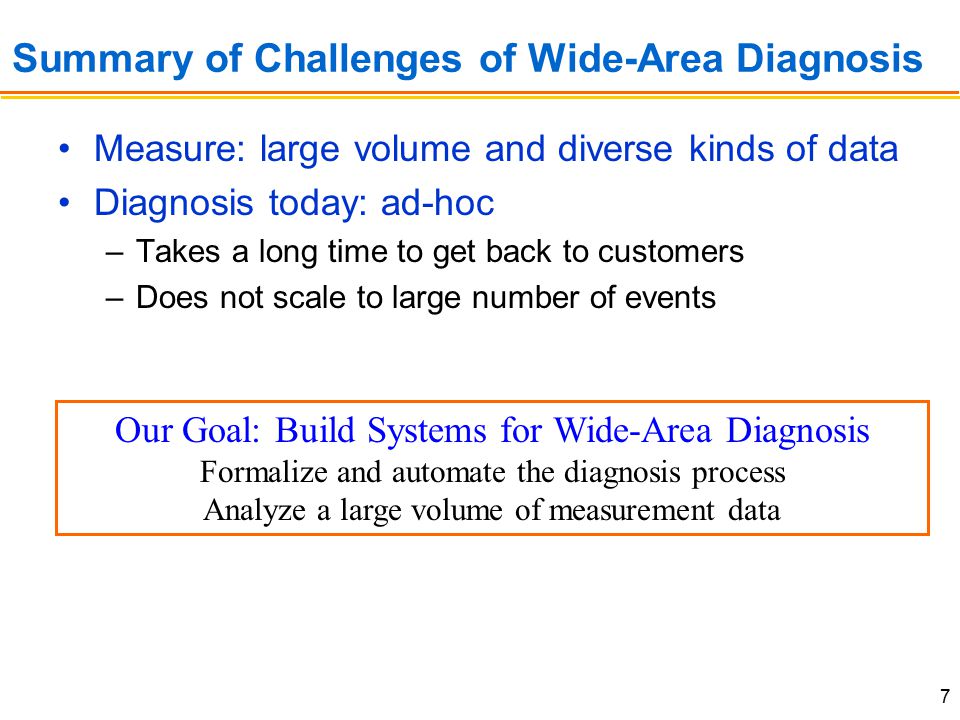

7. Summary of Challenges of Wide-Area Diagnosis Measure: large volume and diverse kinds of data Diagnosis today: ad-hoc –Takes a long time to get back to customers –Does not scale to large number of events 7 Our Goal: Build Systems for Wide-Area Diagnosis Formalize and automate the diagnosis process Analyze a large volume of measurement data

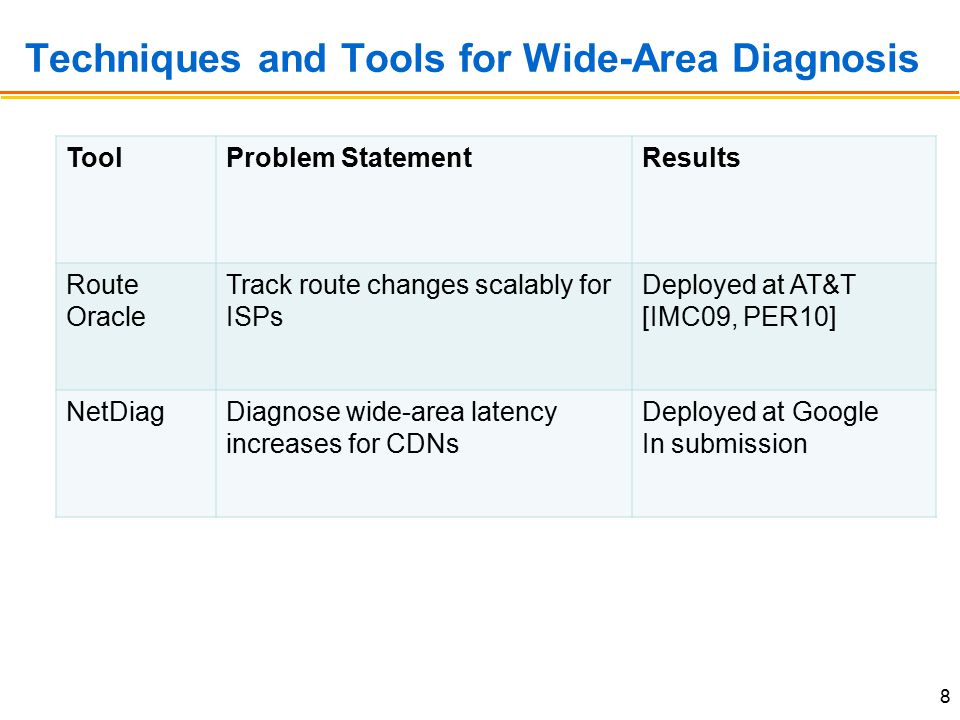

8. Techniques and Tools for Wide-Area Diagnosis 8 ToolProblem StatementResults Route Oracle Track route changes scalably for ISPs Deployed at AT&T [IMC09, PER10] NetDiagDiagnose wide-area latency increases for CDNs Deployed at Google In submission

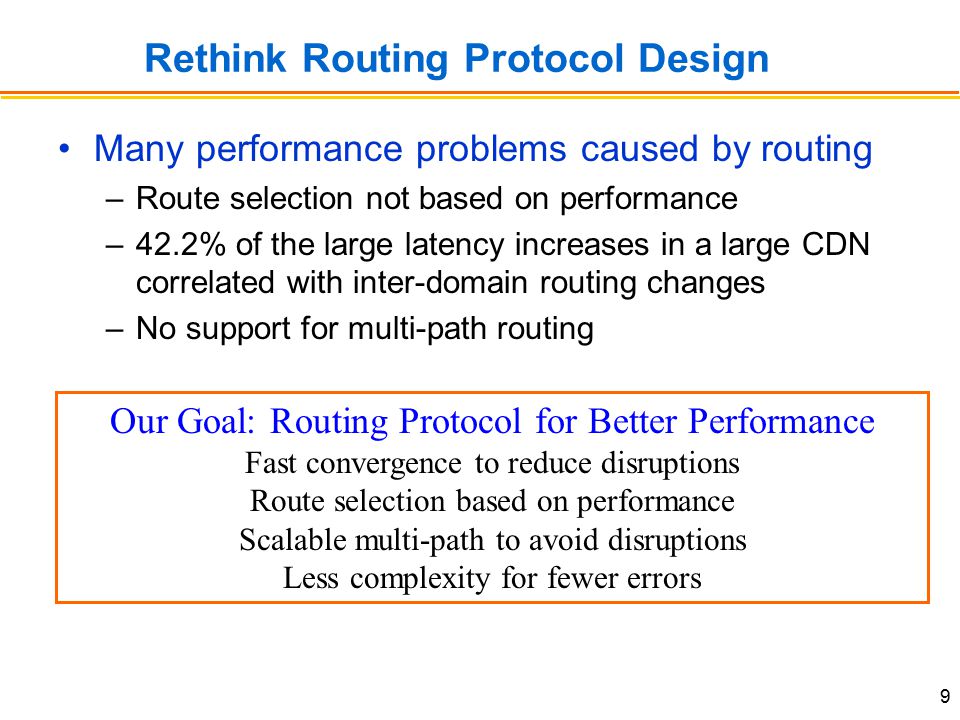

9. Rethink Routing Protocol Design Many performance problems caused by routing –Route selection not based on performance –42.2% of the large latency increases in a large CDN correlated with inter-domain routing changes –No support for multi-path routing 9 Our Goal: Routing Protocol for Better Performance Fast convergence to reduce disruptions Route selection based on performance Scalable multi-path to avoid disruptions Less complexity for fewer errors

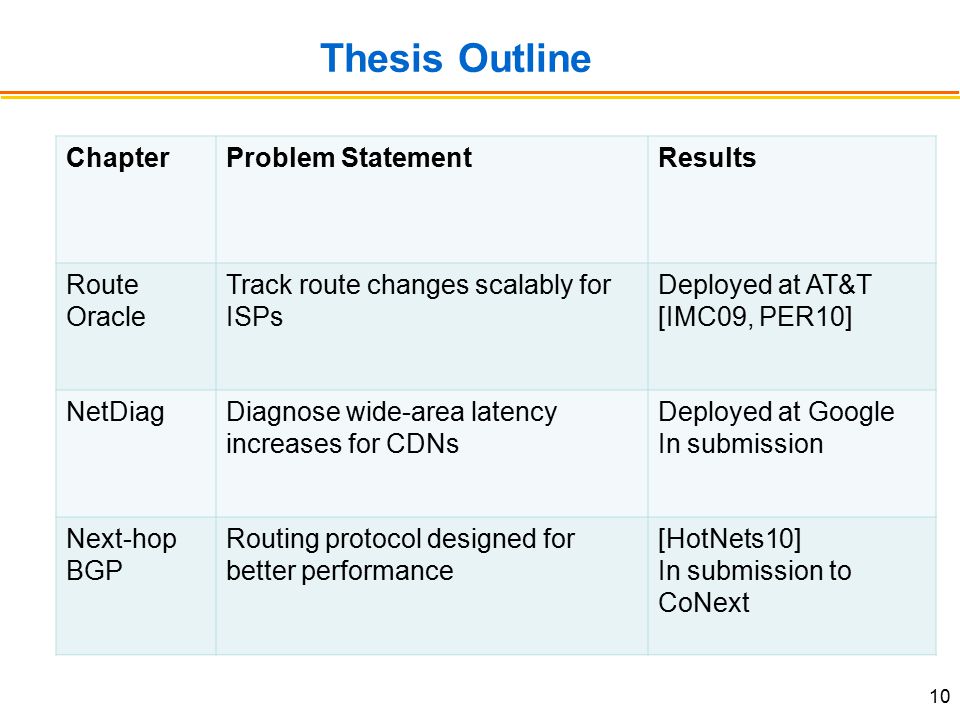

10. Thesis Outline ChapterProblem StatementResults Route Oracle Track route changes scalably for ISPs Deployed at AT&T [IMC09, PER10] NetDiagDiagnose wide-area latency increases for CDNs Deployed at Google In submission Next-hop BGP Routing protocol designed for better performance [HotNets10] In submission to CoNext 10

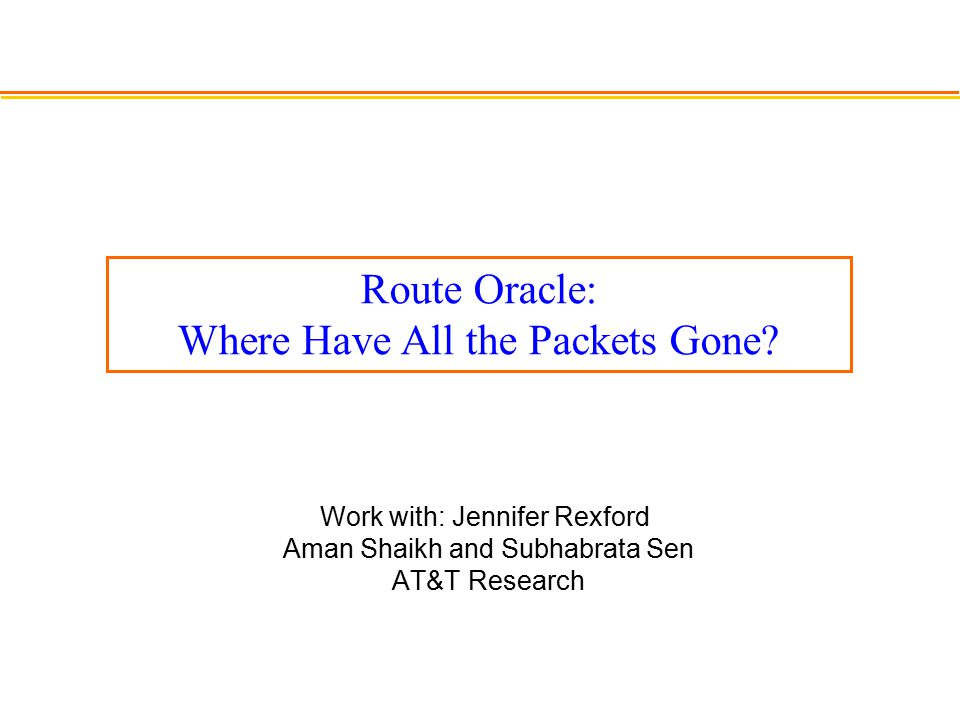

11. Work with: Jennifer Rexford Aman Shaikh and Subhabrata Sen AT&T Research Route Oracle: Where Have All the Packets Gone?

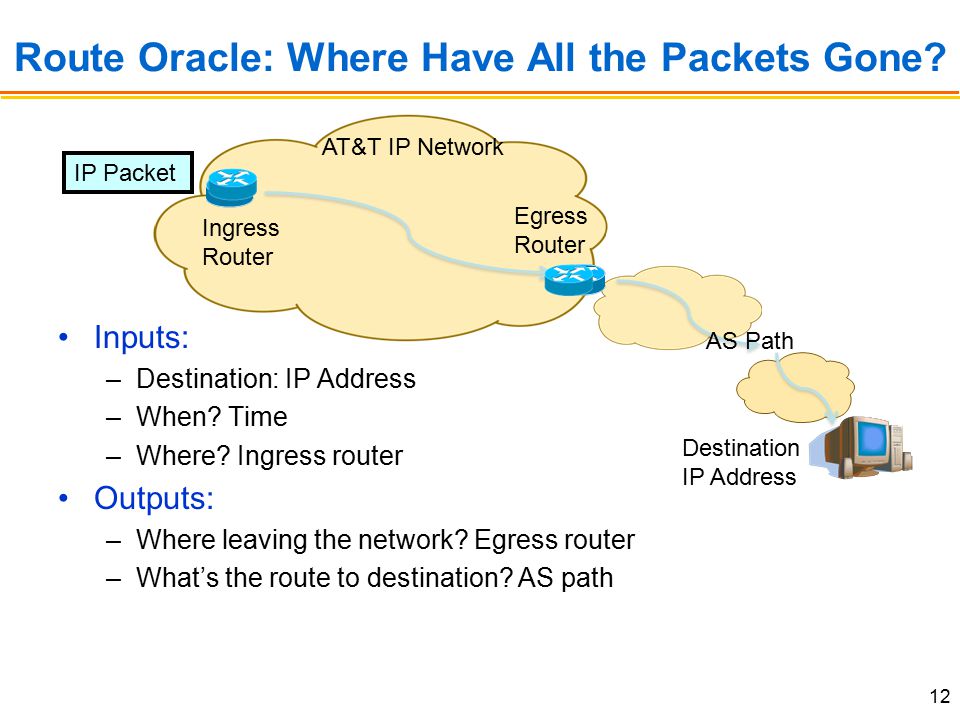

12. 12 Route Oracle: Where Have All the Packets Gone? IP Packet Ingress Router Egress Router AS Path AT&T IP Network Destination IP Address Inputs: –Destination: IP Address –When? Time –Where? Ingress router Outputs: –Where leaving the network? Egress router –What’s the route to destination? AS path

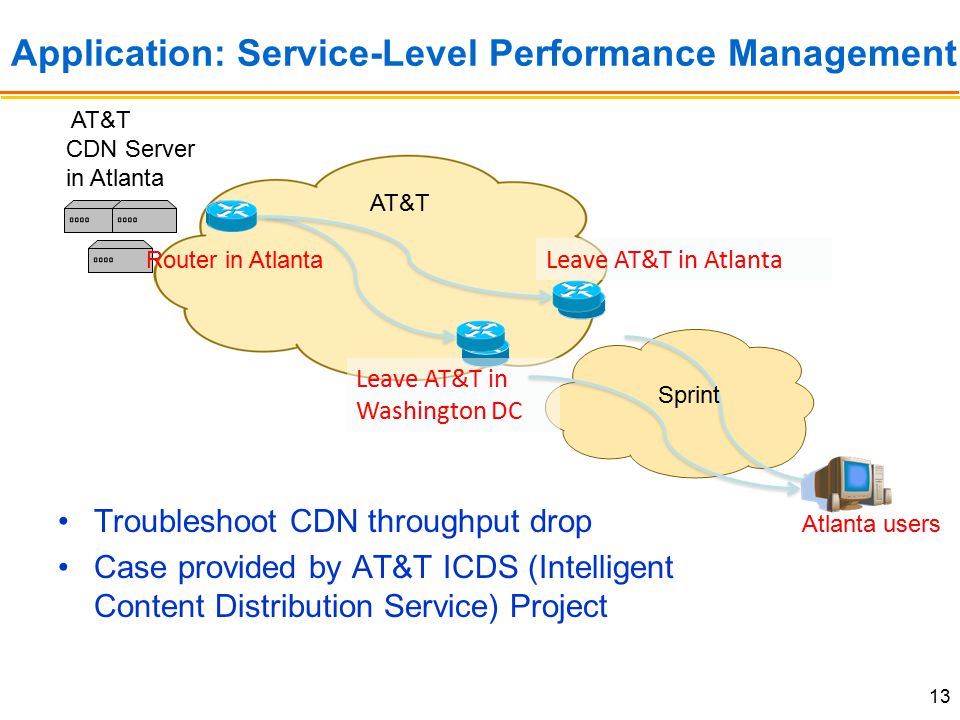

13. 13 Application: Service-Level Performance Management AT&T AT&T CDN Server in Atlanta Router in Atlanta Leave AT&T in Atlanta Leave AT&T in Washington DC Atlanta users Sprint Troubleshoot CDN throughput drop Case provided by AT&T ICDS (Intelligent Content Distribution Service) Project

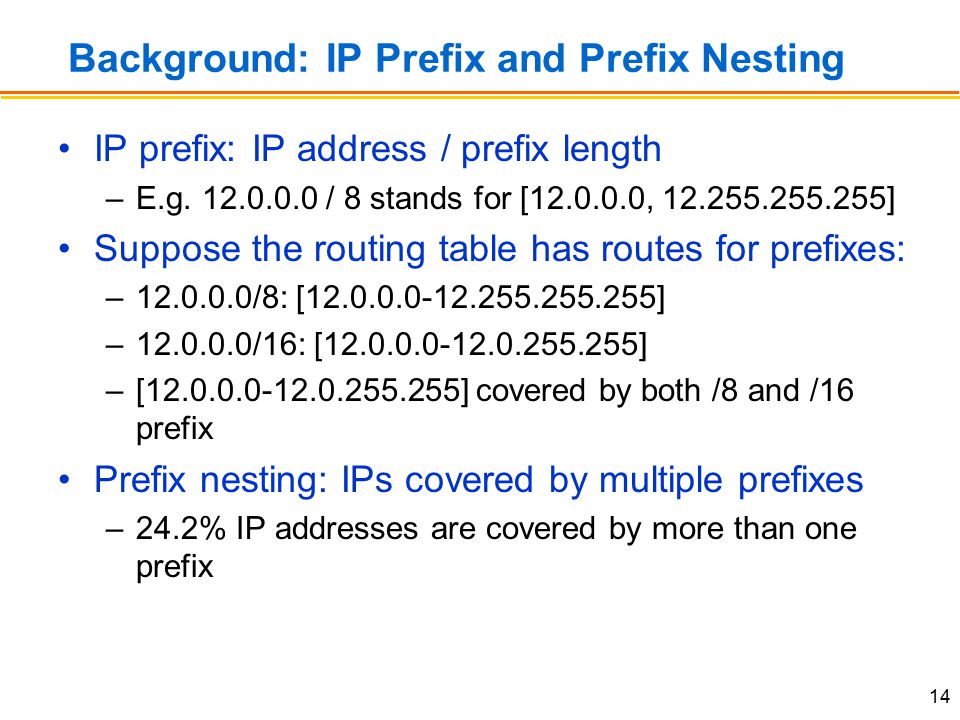

14. 14 IP prefix: IP address / prefix length –E.g. 12.0.0.0 / 8 stands for [12.0.0.0, 12.255.255.255] Suppose the routing table has routes for prefixes: –12.0.0.0/8: [12.0.0.0-12.255.255.255] –12.0.0.0/16: [12.0.0.0-12.0.255.255] –[12.0.0.0-12.0.255.255] covered by both /8 and /16 prefix Prefix nesting: IPs covered by multiple prefixes –24.2% IP addresses are covered by more than one prefix Background: IP Prefix and Prefix Nesting

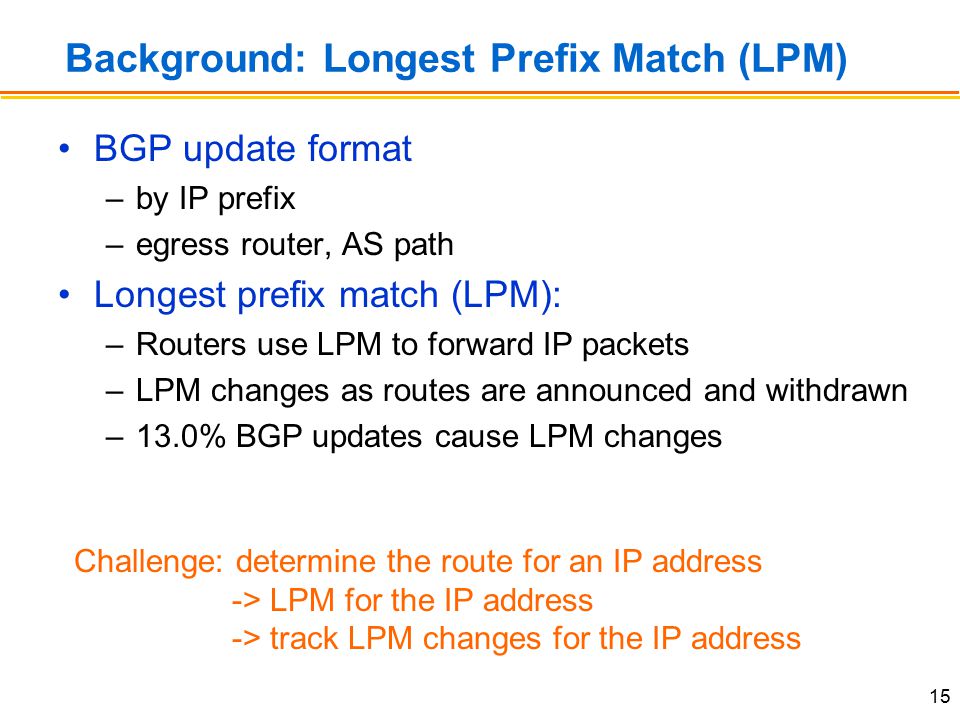

15. Background: Longest Prefix Match (LPM) BGP update format –by IP prefix –egress router, AS path Longest prefix match (LPM): –Routers use LPM to forward IP packets –LPM changes as routes are announced and withdrawn –13.0% BGP updates cause LPM changes 15 Challenge: determine the route for an IP address -> LPM for the IP address -> track LPM changes for the IP address

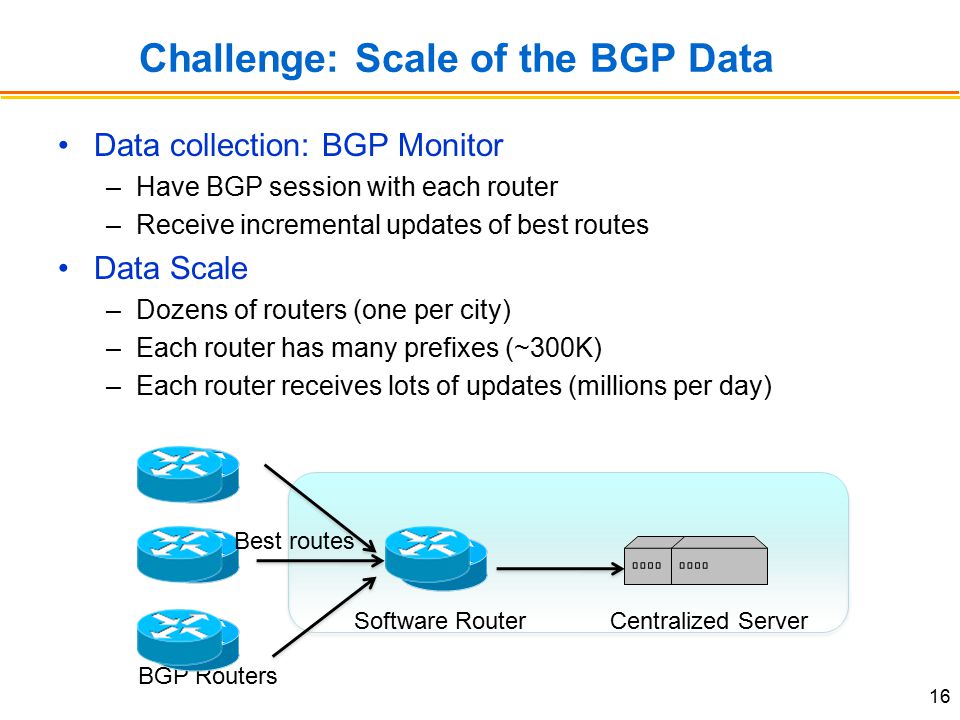

16. Challenge: Scale of the BGP Data Data collection: BGP Monitor –Have BGP session with each router –Receive incremental updates of best routes Data Scale –Dozens of routers (one per city) –Each router has many prefixes (~300K) –Each router receives lots of updates (millions per day) 16 BGP Routers Software RouterCentralized Server Best routes

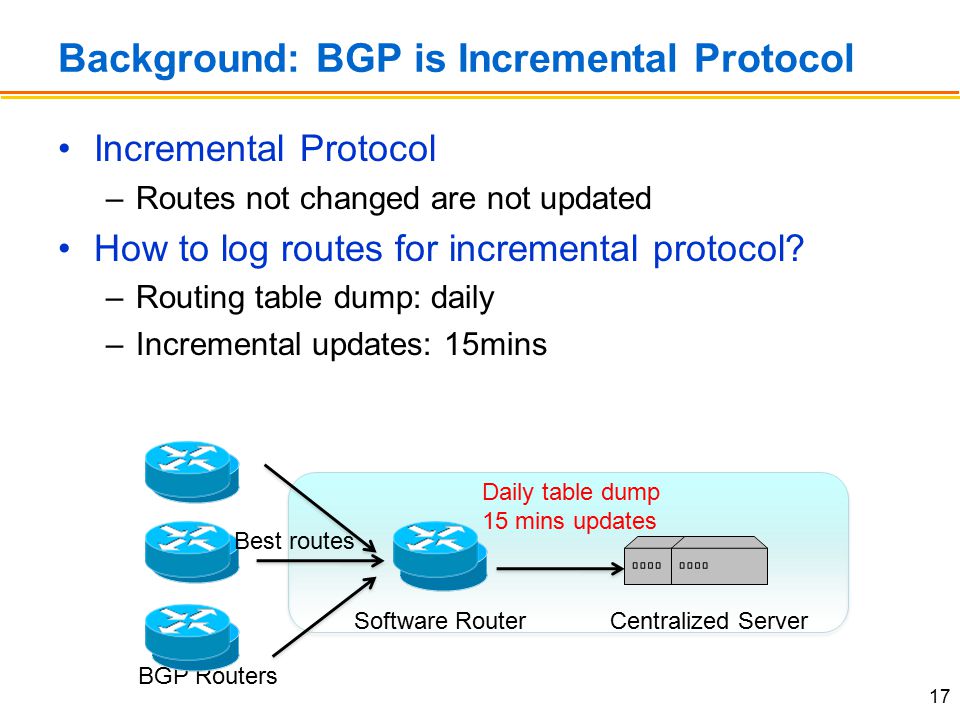

17. Background: BGP is Incremental Protocol Incremental Protocol –Routes not changed are not updated How to log routes for incremental protocol? –Routing table dump: daily –Incremental updates: 15mins 17 BGP Routers Software RouterCentralized Server Best routes Daily table dump 15 mins updates

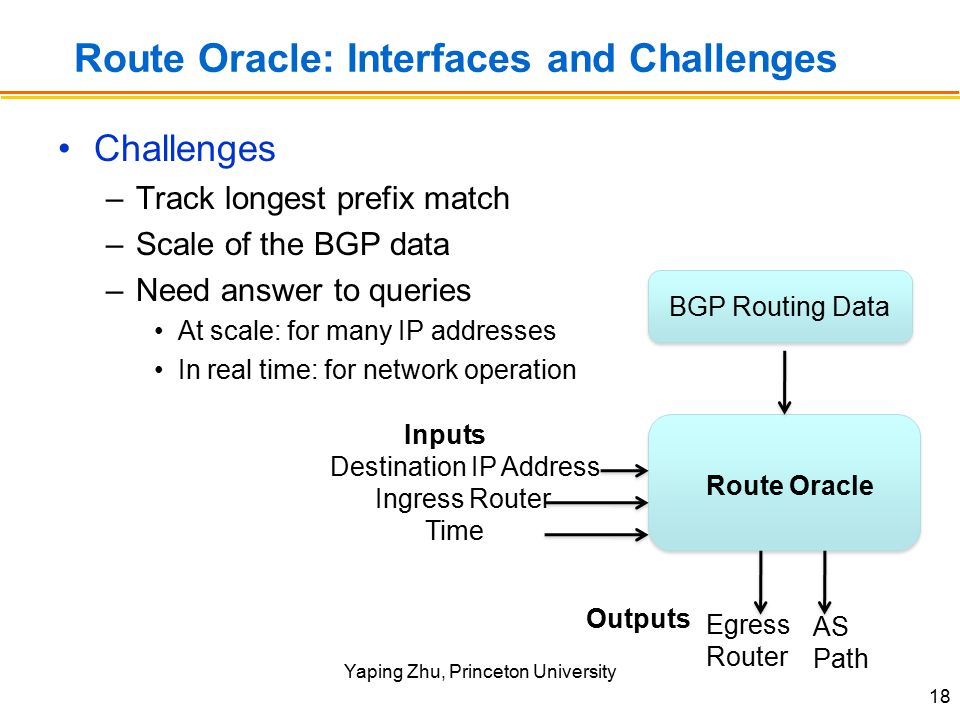

18. Route Oracle: Interfaces and Challenges Challenges –Track longest prefix match –Scale of the BGP data –Need answer to queries At scale: for many IP addresses In real time: for network operation Yaping Zhu, Princeton University 18 Route Oracle Inputs Destination IP Address Ingress Router Time Egress Router BGP Routing Data AS Path Outputs

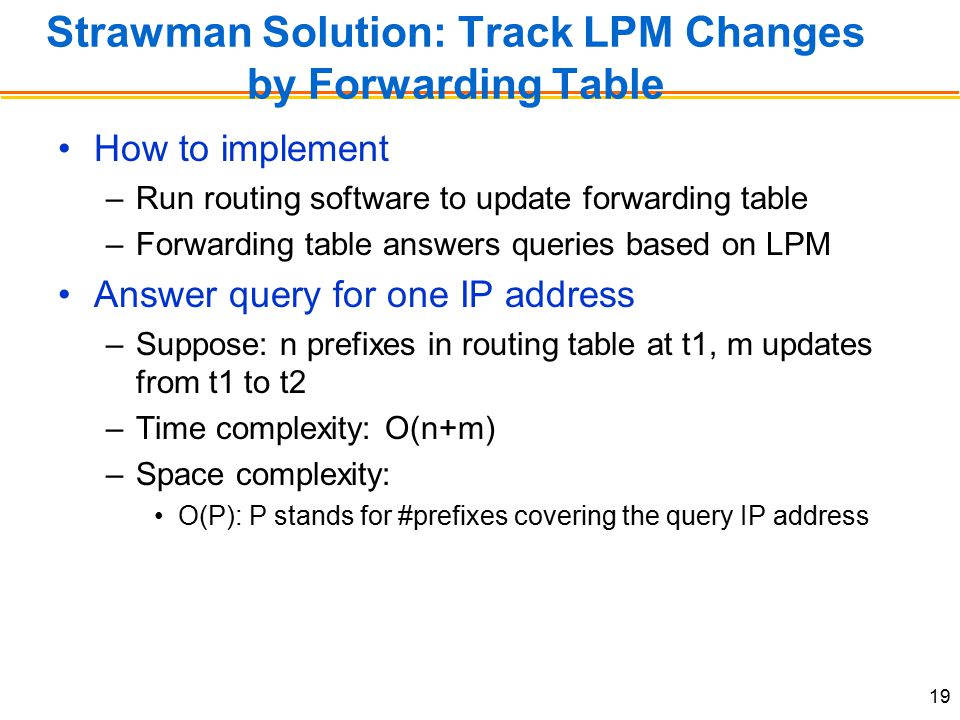

19. Strawman Solution: Track LPM Changes by Forwarding Table How to implement –Run routing software to update forwarding table –Forwarding table answers queries based on LPM Answer query for one IP address –Suppose: n prefixes in routing table at t1, m updates from t1 to t2 –Time complexity: O(n+m) –Space complexity: O(P): P stands for #prefixes covering the query IP address 19

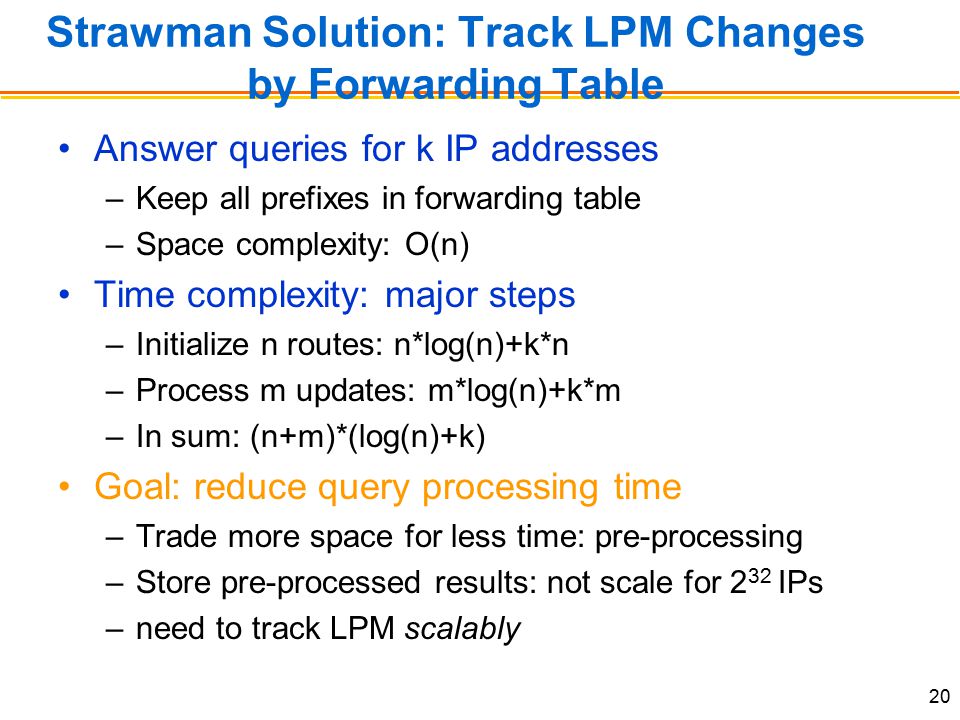

20. Strawman Solution: Track LPM Changes by Forwarding Table Answer queries for k IP addresses –Keep all prefixes in forwarding table –Space complexity: O(n) Time complexity: major steps –Initialize n routes: n*log(n)+k*n –Process m updates: m*log(n)+k*m –In sum: (n+m)*(log(n)+k) Goal: reduce query processing time –Trade more space for less time: pre-processing –Store pre-processed results: not scale for 2 32 IPs –need to track LPM scalably 20

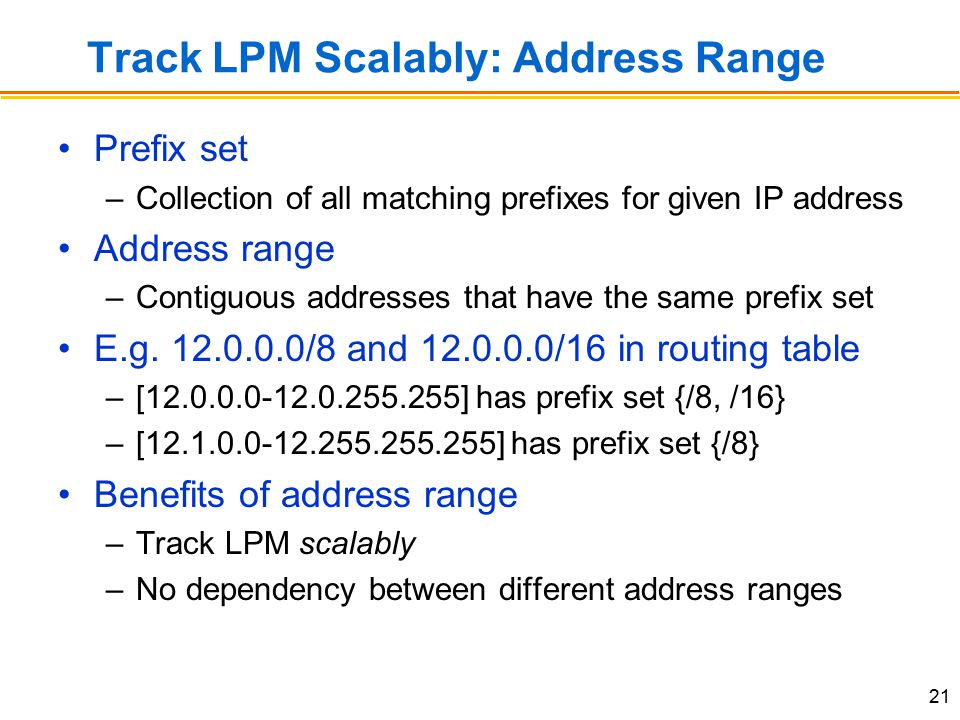

21. Track LPM Scalably: Address Range Prefix set –Collection of all matching prefixes for given IP address Address range –Contiguous addresses that have the same prefix set E.g. 12.0.0.0/8 and 12.0.0.0/16 in routing table –[12.0.0.0-12.0.255.255] has prefix set {/8, /16} –[12.1.0.0-12.255.255.255] has prefix set {/8} Benefits of address range –Track LPM scalably –No dependency between different address ranges 21

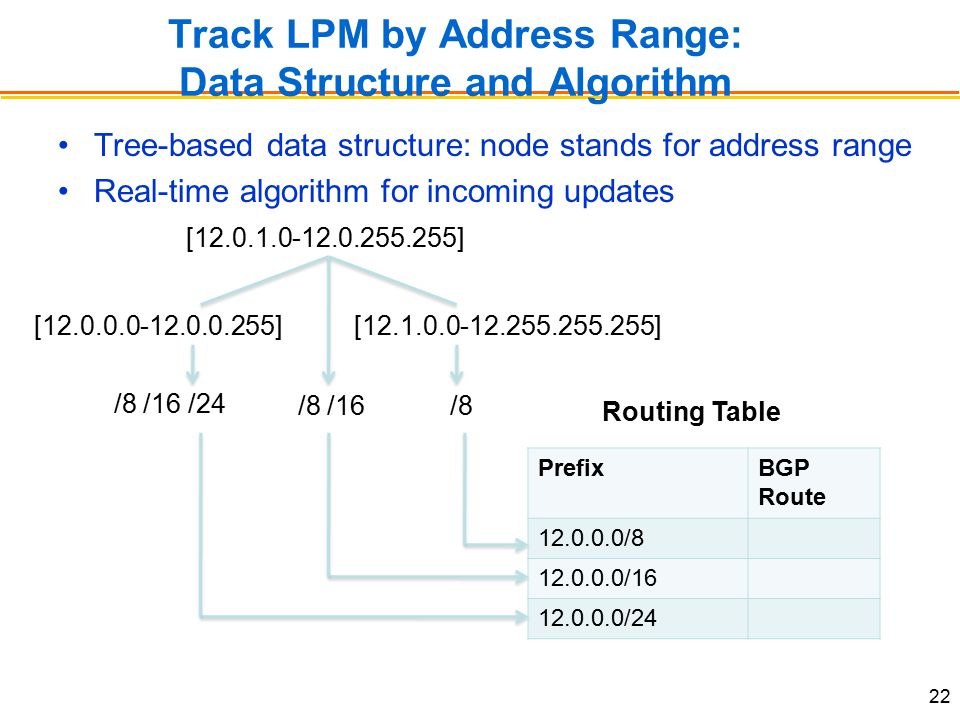

22. Track LPM by Address Range: Data Structure and Algorithm Tree-based data structure: node stands for address range Real-time algorithm for incoming updates 22 [12.0.0.0-12.0.0.255] [12.0.1.0-12.0.255.255] [12.1.0.0-12.255.255.255] /8 /16 /24 /8 /16/8 PrefixBGP Route 12.0.0.0/8 12.0.0.0/16 12.0.0.0/24 Routing Table

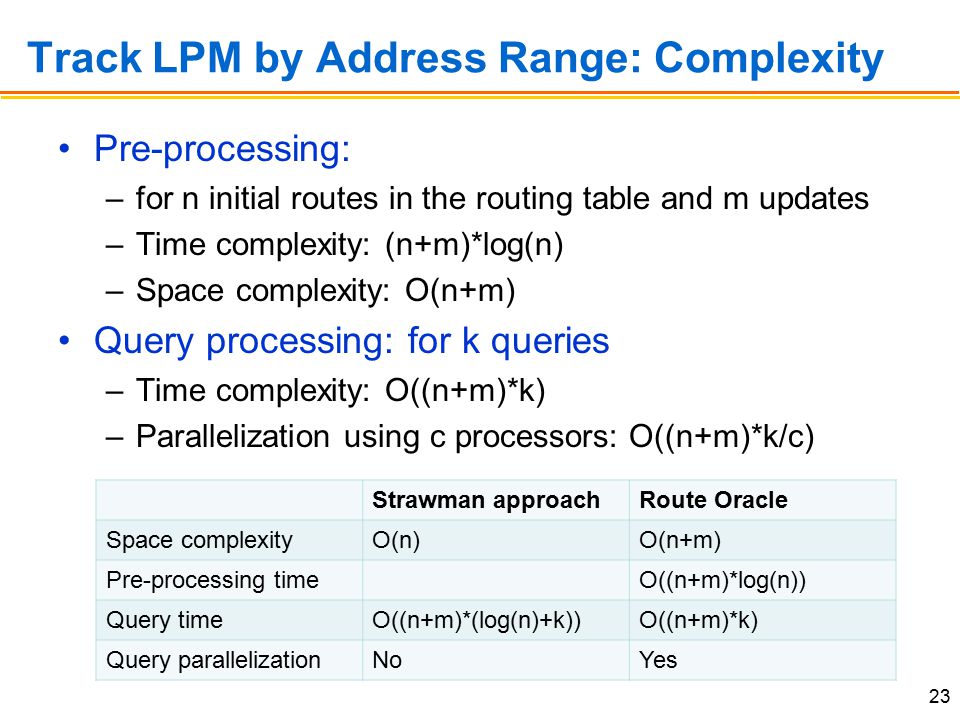

23. Track LPM by Address Range: Complexity Pre-processing: –for n initial routes in the routing table and m updates –Time complexity: (n+m)*log(n) –Space complexity: O(n+m) Query processing: for k queries –Time complexity: O((n+m)*k) –Parallelization using c processors: O((n+m)*k/c) 23 Strawman approachRoute Oracle Space complexityO(n)O(n+m) Pre-processing timeO((n+m)*log(n)) Query timeO((n+m)*(log(n)+k))O((n+m)*k) Query parallelizationNoYes

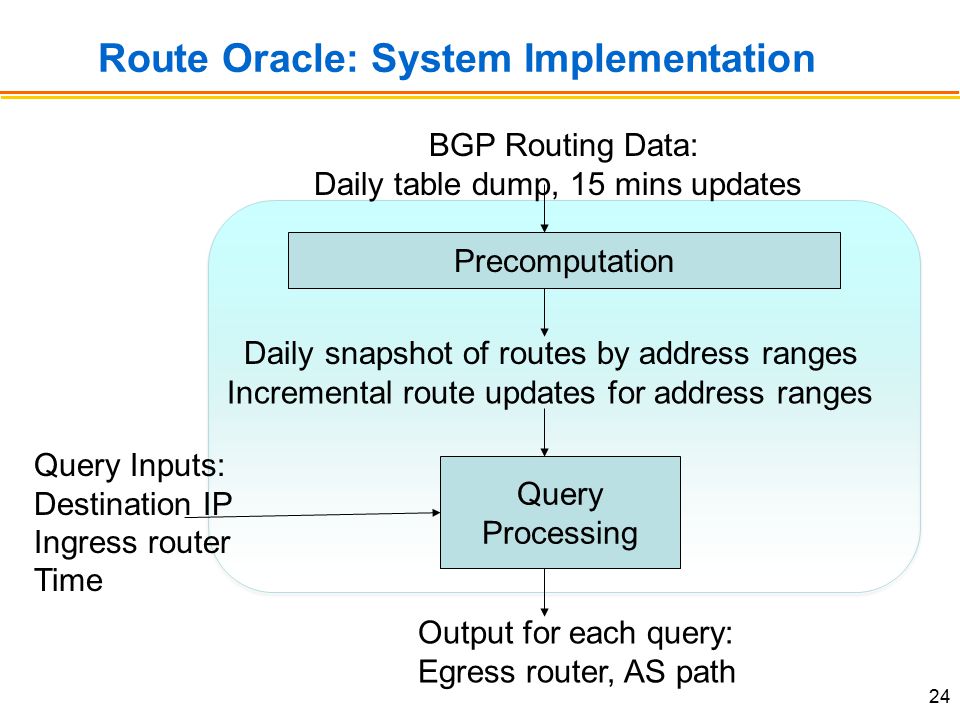

24. 24 Route Oracle: System Implementation Precomputation Query Inputs: Destination IP Ingress router Time BGP Routing Data: Daily table dump, 15 mins updates Query Processing Daily snapshot of routes by address ranges Output for each query: Egress router, AS path Incremental route updates for address ranges

25. Optimize for multiple queries –Amortize the cost of reading address range records: across multiple queried IP addresses Parallelization –Observation: address range records could be processed independently –Parallelization on multi-core machine 25 Query Processing: Optimizations

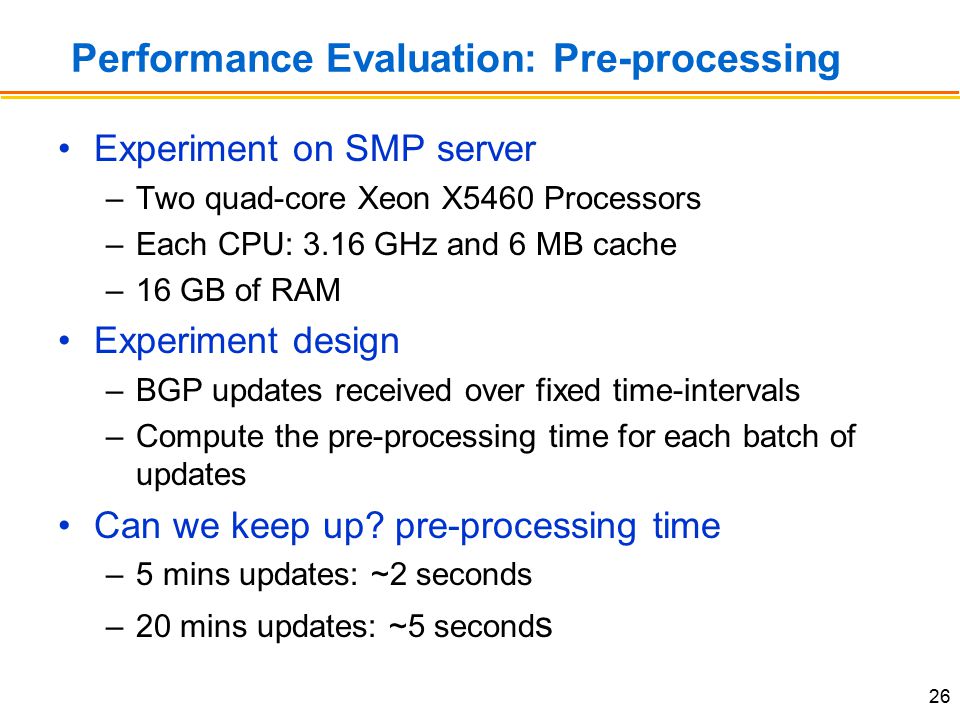

26. Performance Evaluation: Pre-processing Experiment on SMP server –Two quad-core Xeon X5460 Processors –Each CPU: 3.16 GHz and 6 MB cache –16 GB of RAM Experiment design –BGP updates received over fixed time-intervals –Compute the pre-processing time for each batch of updates Can we keep up? pre-processing time –5 mins updates: ~2 seconds –20 mins updates: ~5 second s 26

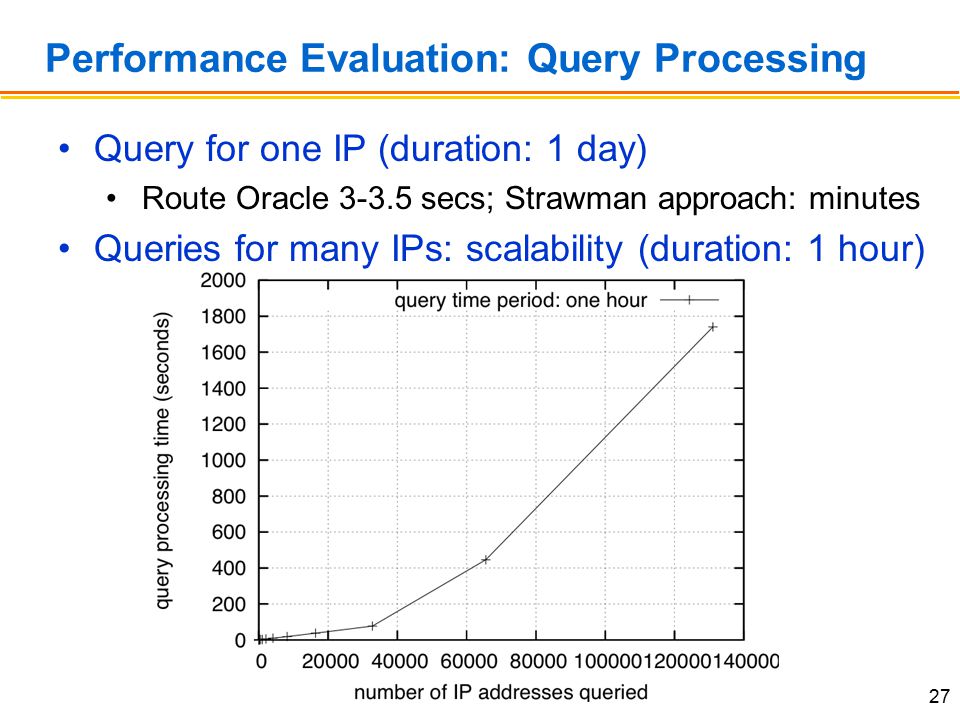

27. Performance Evaluation: Query Processing 27 Query for one IP (duration: 1 day) Route Oracle 3-3.5 secs; Strawman approach: minutes Queries for many IPs: scalability (duration: 1 hour)

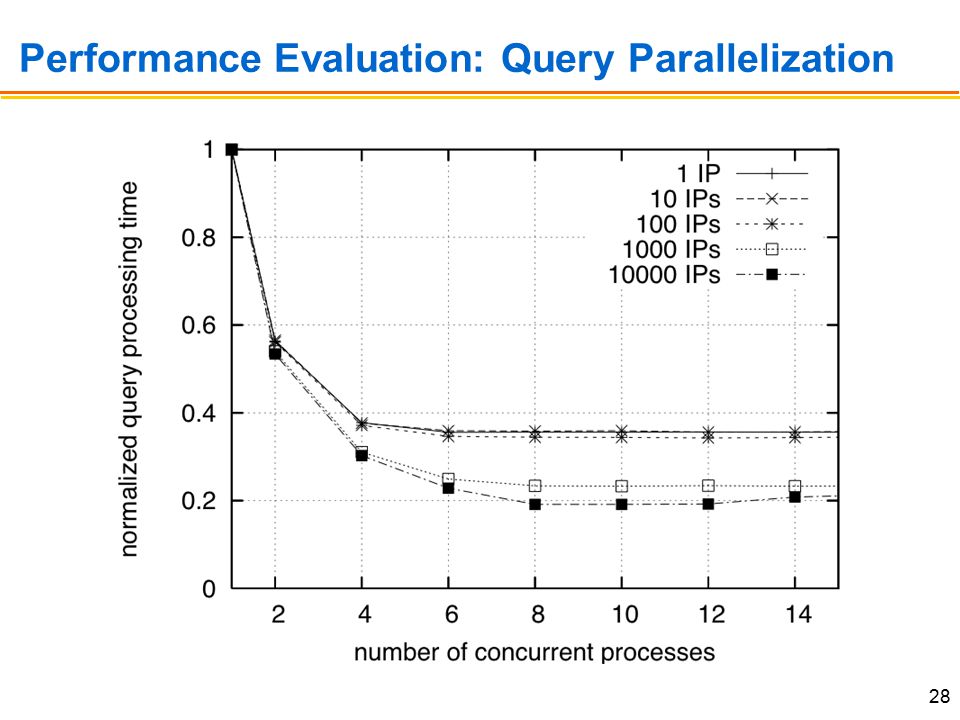

28. Performance Evaluation: Query Parallelization 28

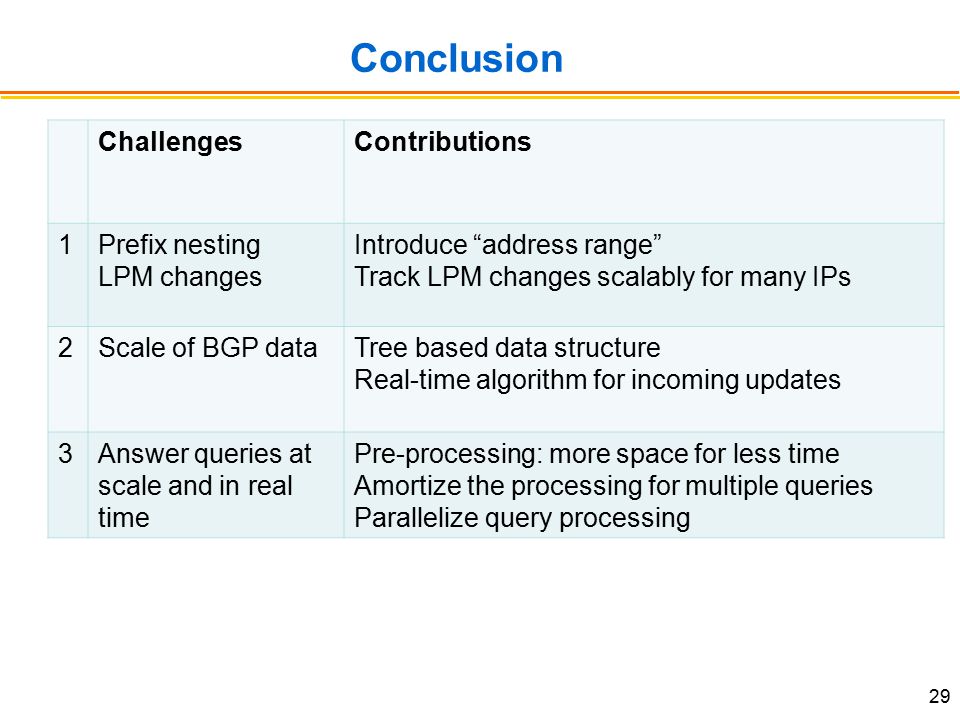

29. Conclusion ChallengesContributions 1Prefix nesting LPM changes Introduce “address range” Track LPM changes scalably for many IPs 2Scale of BGP dataTree based data structure Real-time algorithm for incoming updates 3Answer queries at scale and in real time Pre-processing: more space for less time Amortize the processing for multiple queries Parallelize query processing 29

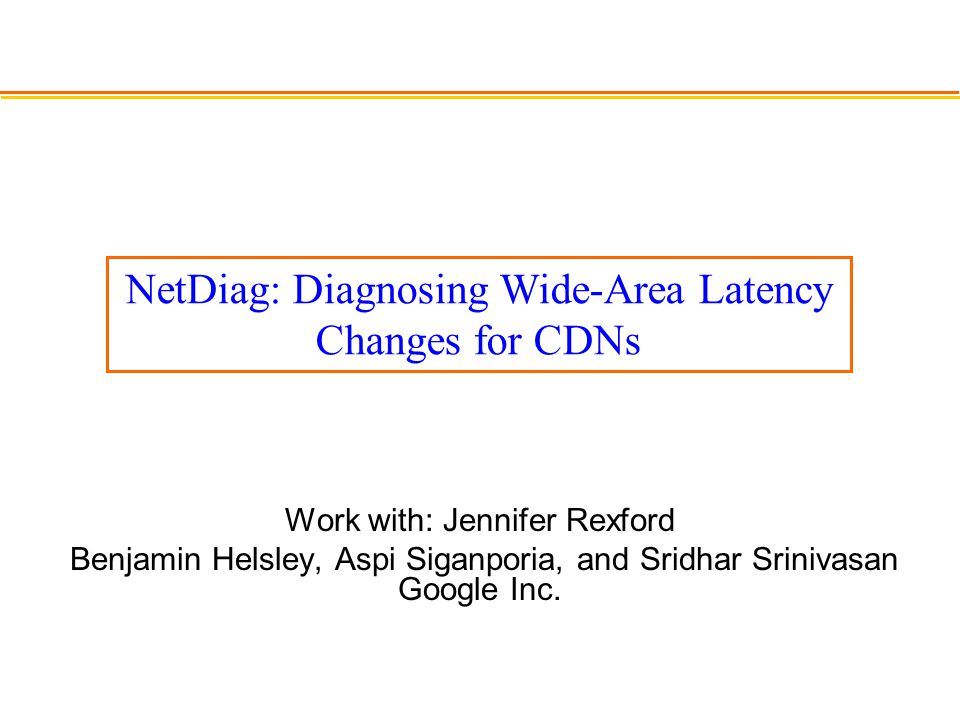

30. Work with: Jennifer Rexford Benjamin Helsley, Aspi Siganporia, and Sridhar Srinivasan Google Inc. NetDiag: Diagnosing Wide-Area Latency Changes for CDNs

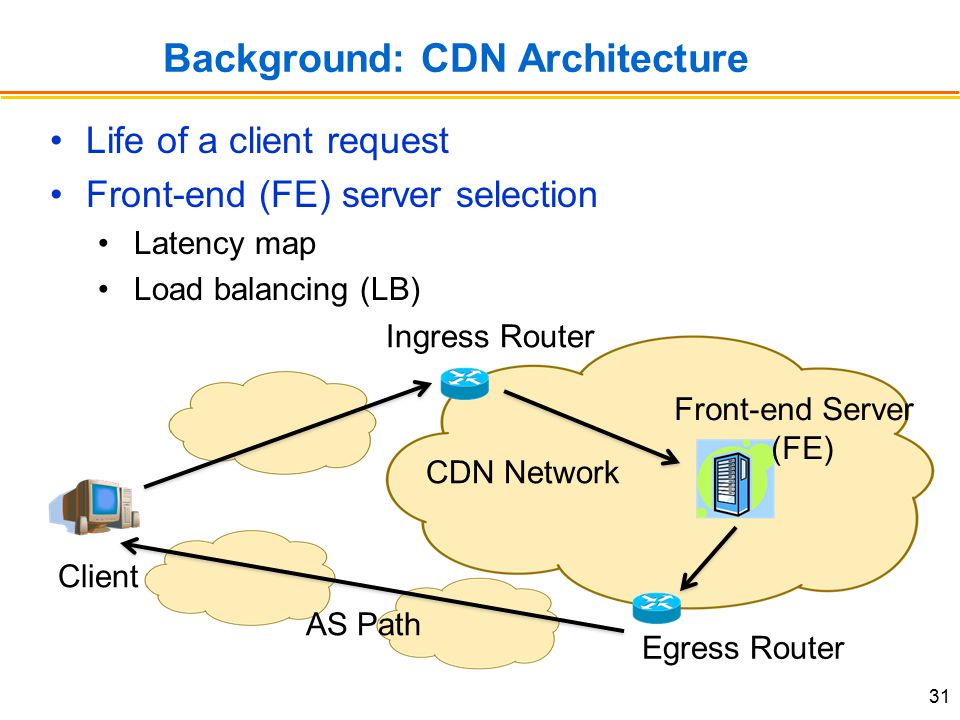

31. Background: CDN Architecture 31 Ingress Router Client CDN Network Egress Router AS Path Front-end Server (FE) Life of a client request Front-end (FE) server selection Latency map Load balancing (LB)

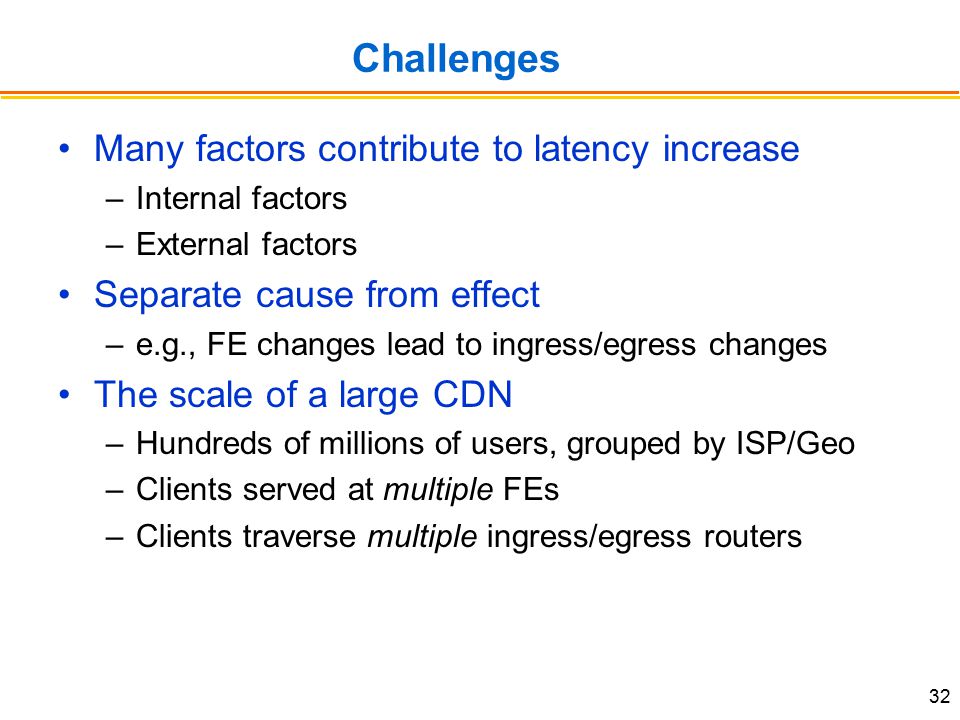

32. Challenges Many factors contribute to latency increase –Internal factors –External factors Separate cause from effect –e.g., FE changes lead to ingress/egress changes The scale of a large CDN –Hundreds of millions of users, grouped by ISP/Geo –Clients served at multiple FEs –Clients traverse multiple ingress/egress routers 32

33. Contributions Classification: –Separating cause from effect –Identify threshold for classification Metrics: analyze over sets of servers and routers –Metrics for each potential cause –Metrics by an individual router or server Characterization: –Events of latency increases in Google’s CDN (06/2010) 33

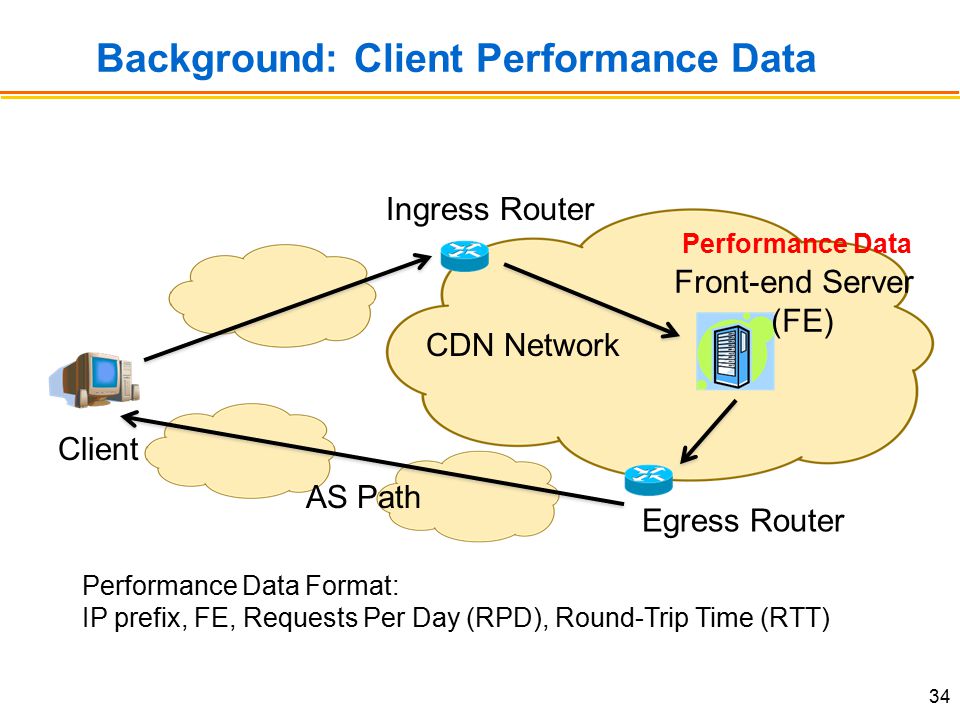

34. Background: Client Performance Data 34 Ingress Router Client CDN Network Egress Router AS Path Front-end Server (FE) Performance Data Performance Data Format: IP prefix, FE, Requests Per Day (RPD), Round-Trip Time (RTT)

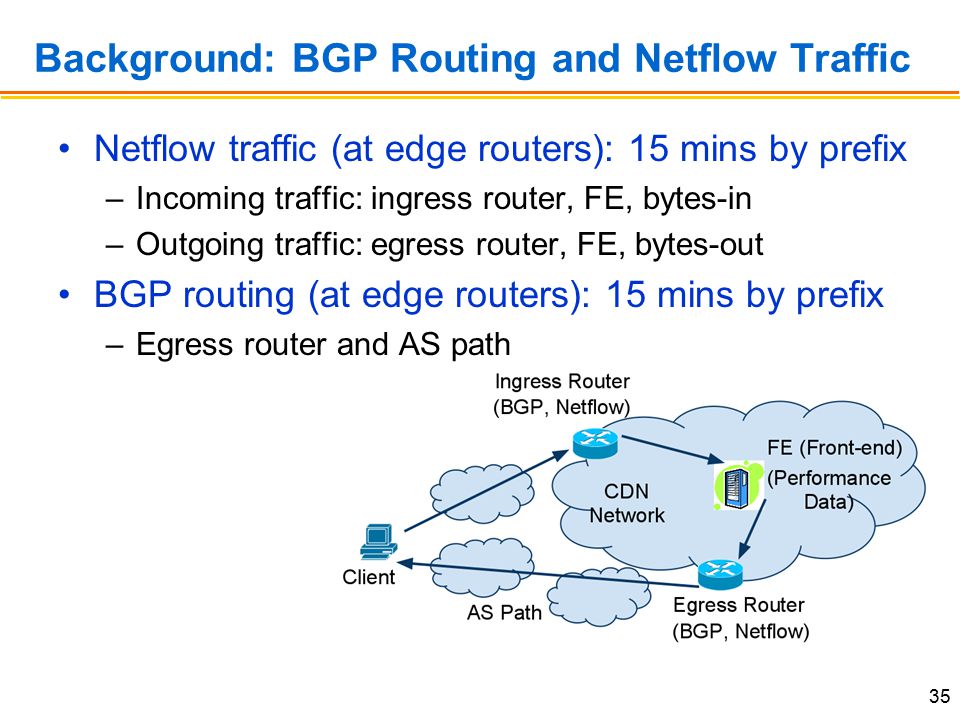

35. Background: BGP Routing and Netflow Traffic Netflow traffic (at edge routers): 15 mins by prefix –Incoming traffic: ingress router, FE, bytes-in –Outgoing traffic: egress router, FE, bytes-out BGP routing (at edge routers): 15 mins by prefix –Egress router and AS path 35

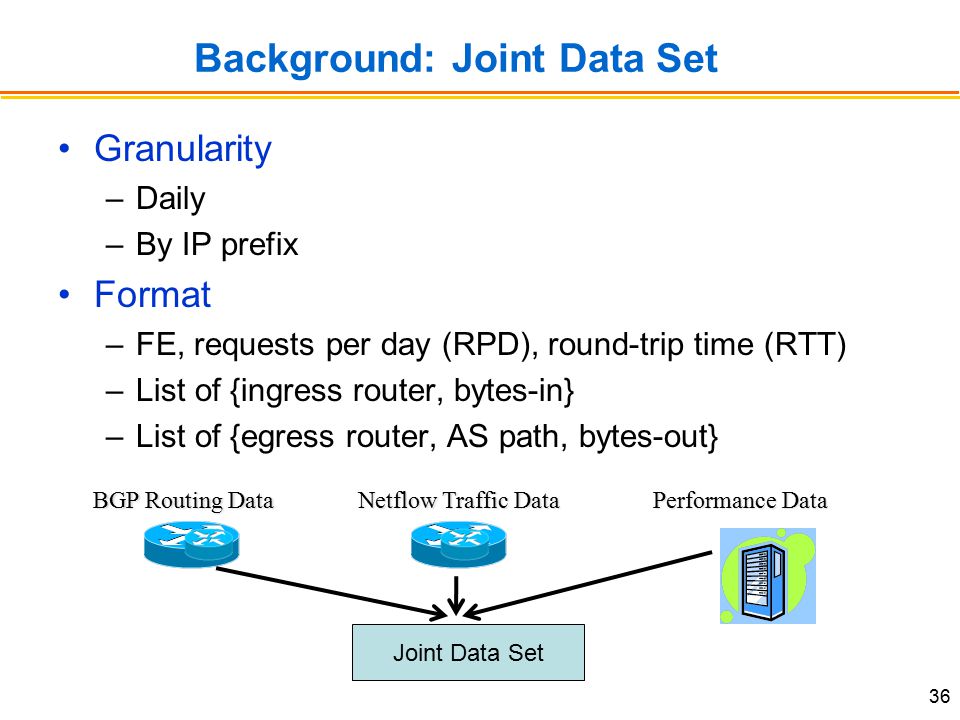

36. Background: Joint Data Set Granularity –Daily –By IP prefix Format –FE, requests per day (RPD), round-trip time (RTT) –List of {ingress router, bytes-in} –List of {egress router, AS path, bytes-out} 36 BGP Routing Data Netflow Traffic Data Performance Data Joint Data Set

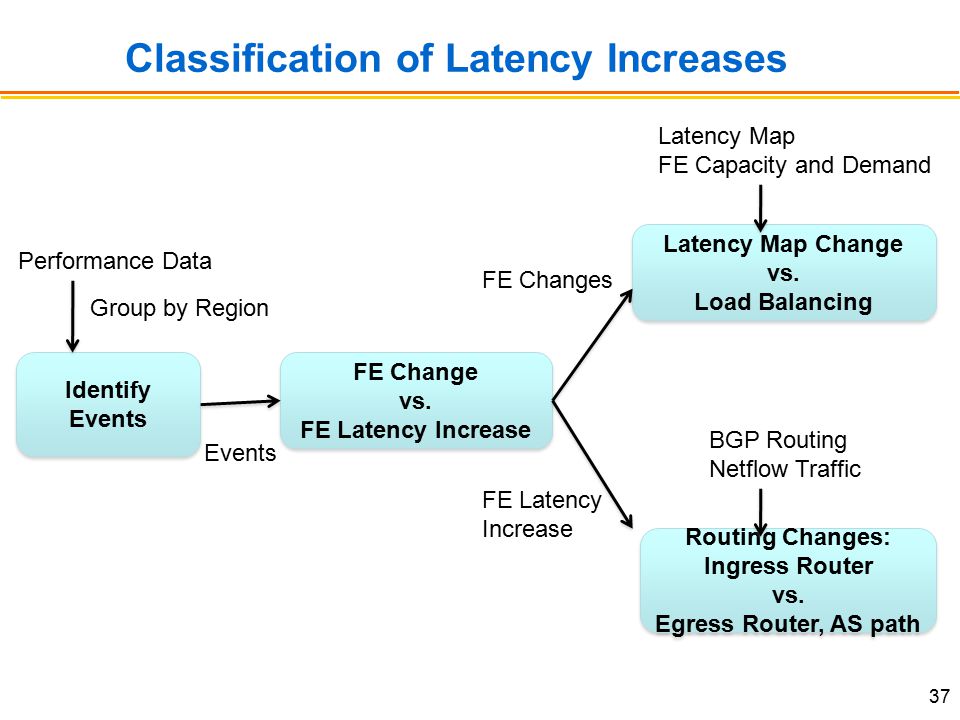

37. Classification of Latency Increases 37 Identify Events FE Change vs. FE Latency Increase FE Change vs. FE Latency Increase Latency Map Change vs. Load Balancing Latency Map Change vs. Load Balancing Routing Changes: Ingress Router vs. Egress Router, AS path Routing Changes: Ingress Router vs. Egress Router, AS path Performance Data Group by Region Events FE Changes FE Latency Increase Latency Map FE Capacity and Demand BGP Routing Netflow Traffic

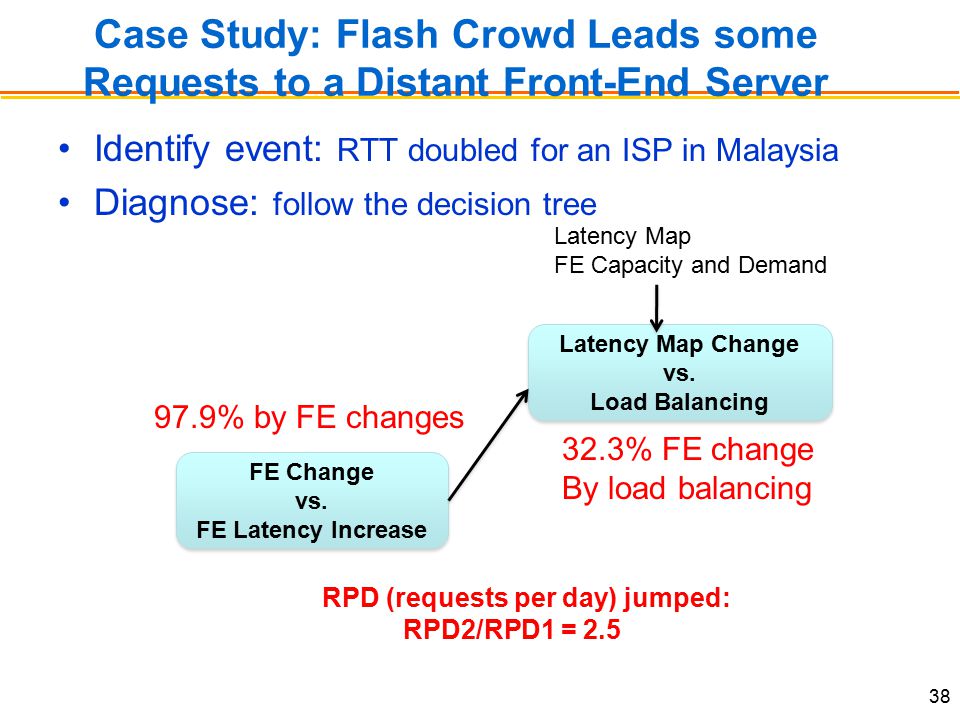

38. Case Study: Flash Crowd Leads some Requests to a Distant Front-End Server Identify event: RTT doubled for an ISP in Malaysia Diagnose: follow the decision tree 38 FE Change vs. FE Latency Increase FE Change vs. FE Latency Increase Latency Map Change vs. Load Balancing Latency Map Change vs. Load Balancing Latency Map FE Capacity and Demand RPD (requests per day) jumped: RPD2/RPD1 = 2.5 97.9% by FE changes 32.3% FE change By load balancing

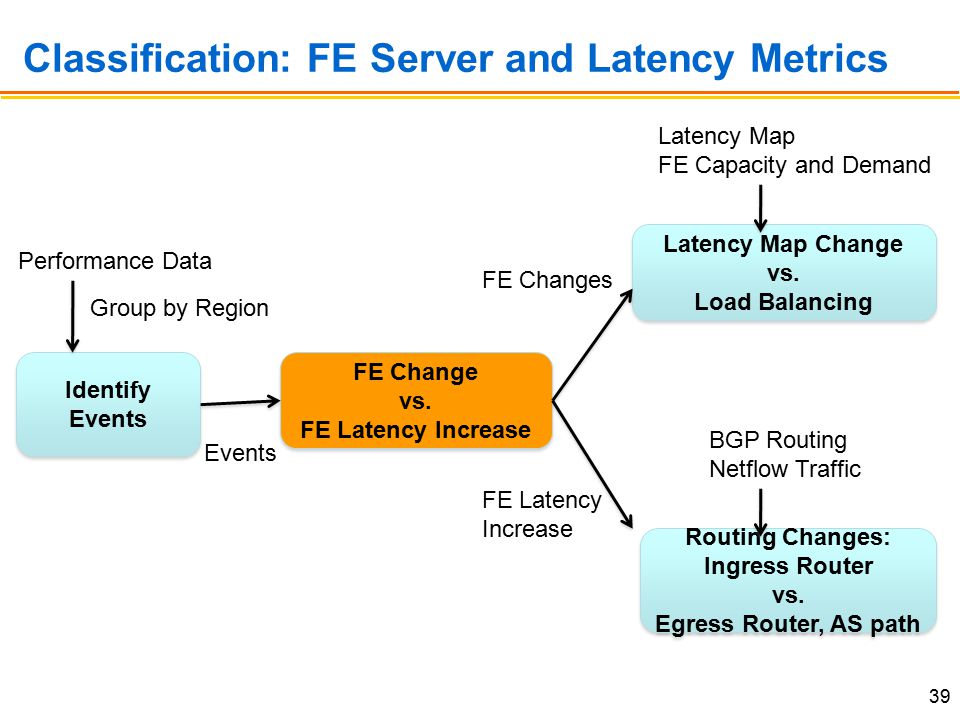

39. Classification: FE Server and Latency Metrics 39 Identify Events FE Change vs. FE Latency Increase FE Change vs. FE Latency Increase Latency Map Change vs. Load Balancing Latency Map Change vs. Load Balancing Routing Changes: Ingress Router vs. Egress Router, AS path Routing Changes: Ingress Router vs. Egress Router, AS path Performance Data Group by Region Events FE Changes FE Latency Increase Latency Map FE Capacity and Demand BGP Routing Netflow Traffic

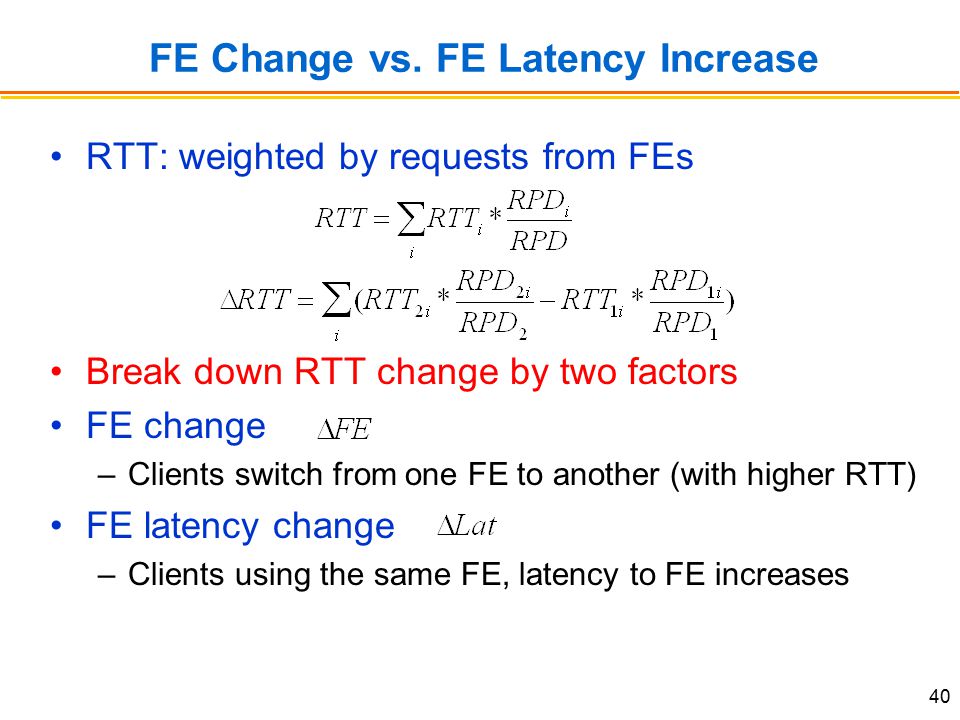

40. FE Change vs. FE Latency Increase 40 RTT: weighted by requests from FEs Break down RTT change by two factors FE change –Clients switch from one FE to another (with higher RTT) FE latency change –Clients using the same FE, latency to FE increases

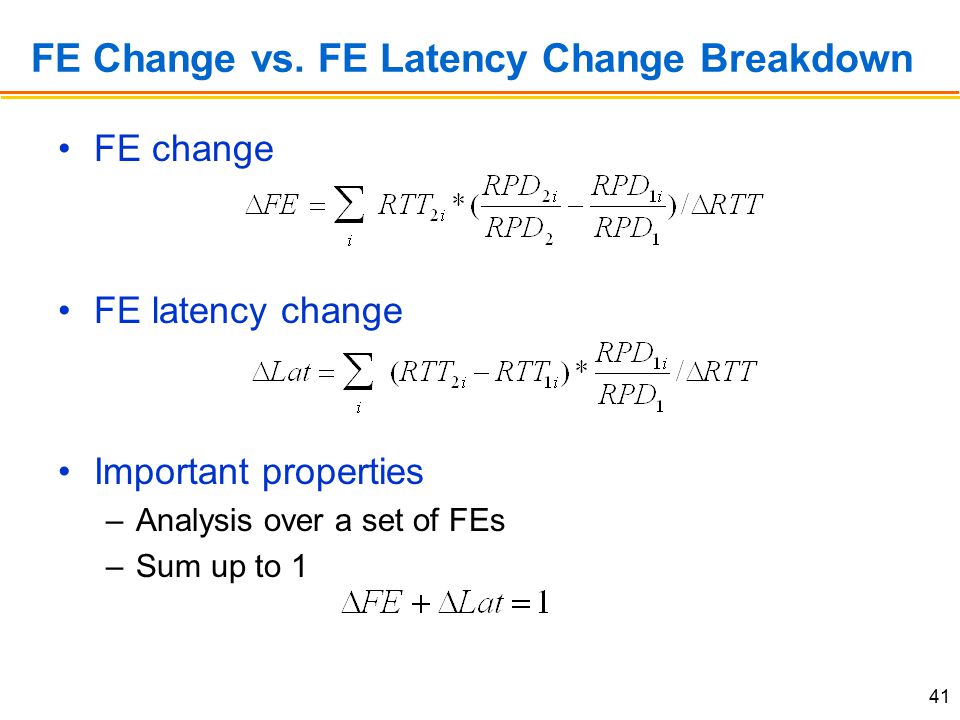

41. FE Change vs. FE Latency Change Breakdown FE change FE latency change Important properties –Analysis over a set of FEs –Sum up to 1 41

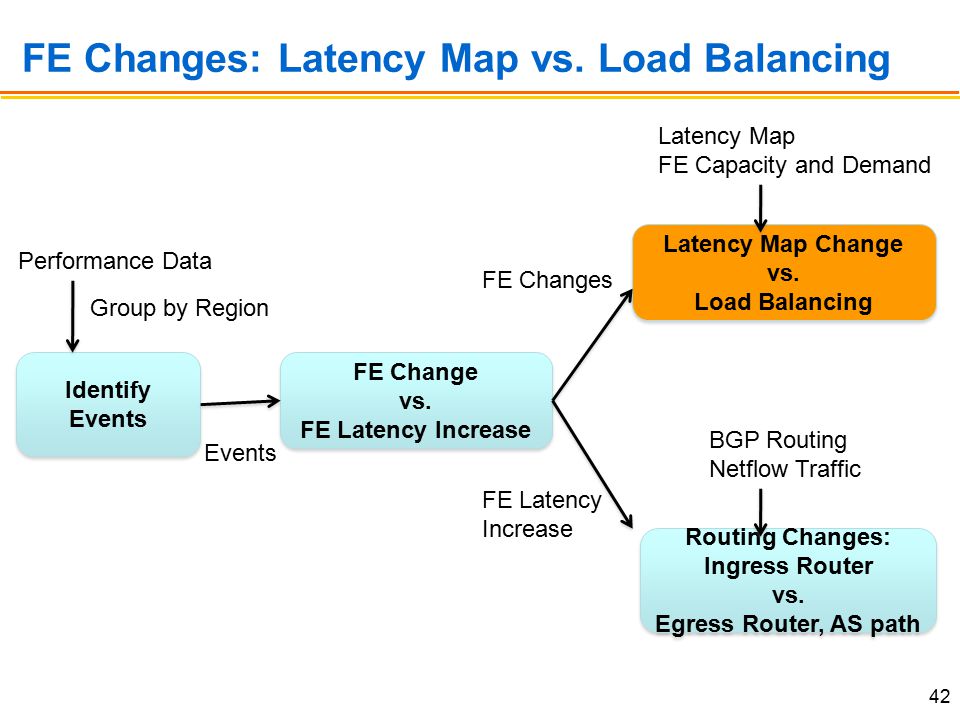

42. FE Changes: Latency Map vs. Load Balancing 42 Identify Events FE Change vs. FE Latency Increase FE Change vs. FE Latency Increase Latency Map Change vs. Load Balancing Latency Map Change vs. Load Balancing Routing Changes: Ingress Router vs. Egress Router, AS path Routing Changes: Ingress Router vs. Egress Router, AS path Performance Data Group by Region Events FE Changes FE Latency Increase Latency Map FE Capacity and Demand BGP Routing Netflow Traffic

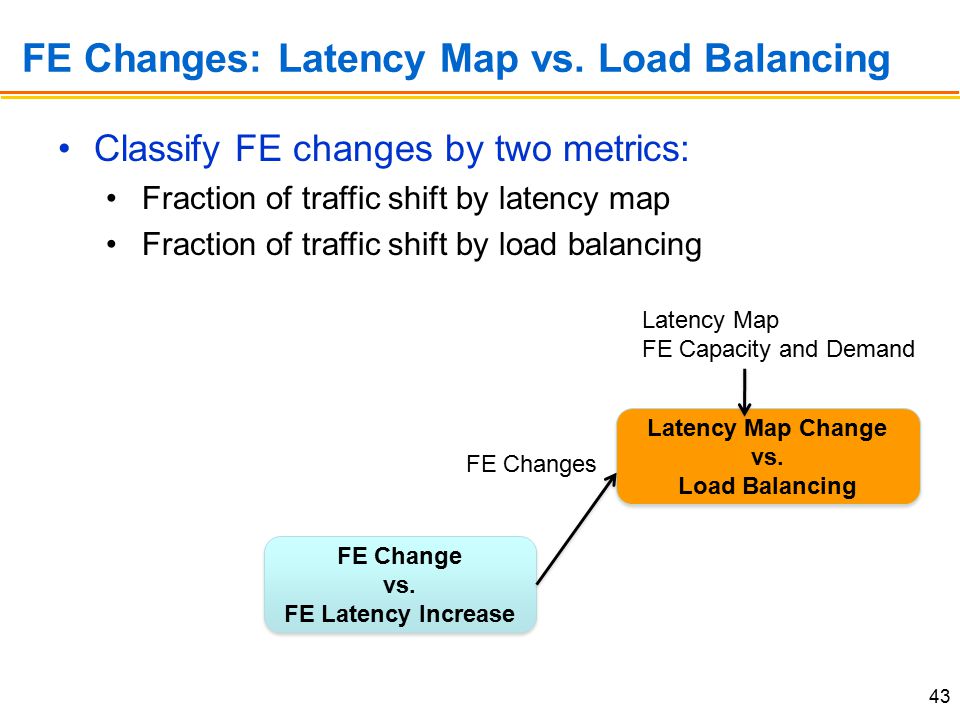

43. FE Changes: Latency Map vs. Load Balancing 43 FE Change vs. FE Latency Increase FE Change vs. FE Latency Increase Latency Map Change vs. Load Balancing Latency Map Change vs. Load Balancing FE Changes Latency Map FE Capacity and Demand Classify FE changes by two metrics: Fraction of traffic shift by latency map Fraction of traffic shift by load balancing

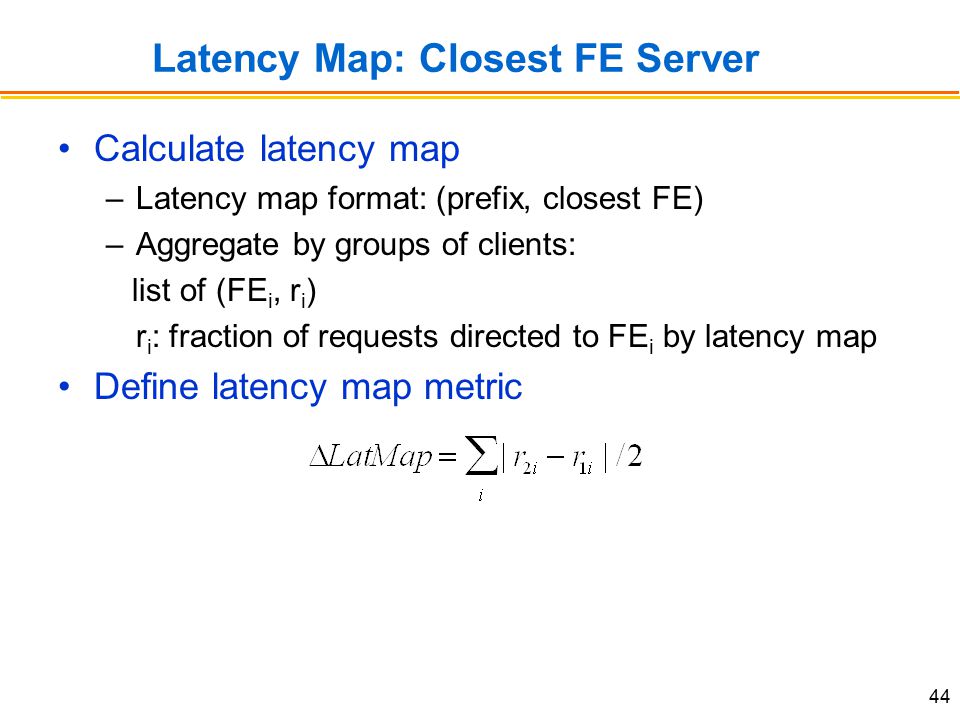

44. Latency Map: Closest FE Server Calculate latency map –Latency map format: (prefix, closest FE) –Aggregate by groups of clients: list of (FE i, r i ) r i : fraction of requests directed to FE i by latency map Define latency map metric 44

45. Load Balancing: Avoiding Busy Servers FE request distribution change Fraction of requests shifted by the load balancer –Sum only if positive: target request load > actual load Metric: more traffic load balanced on day 2 45

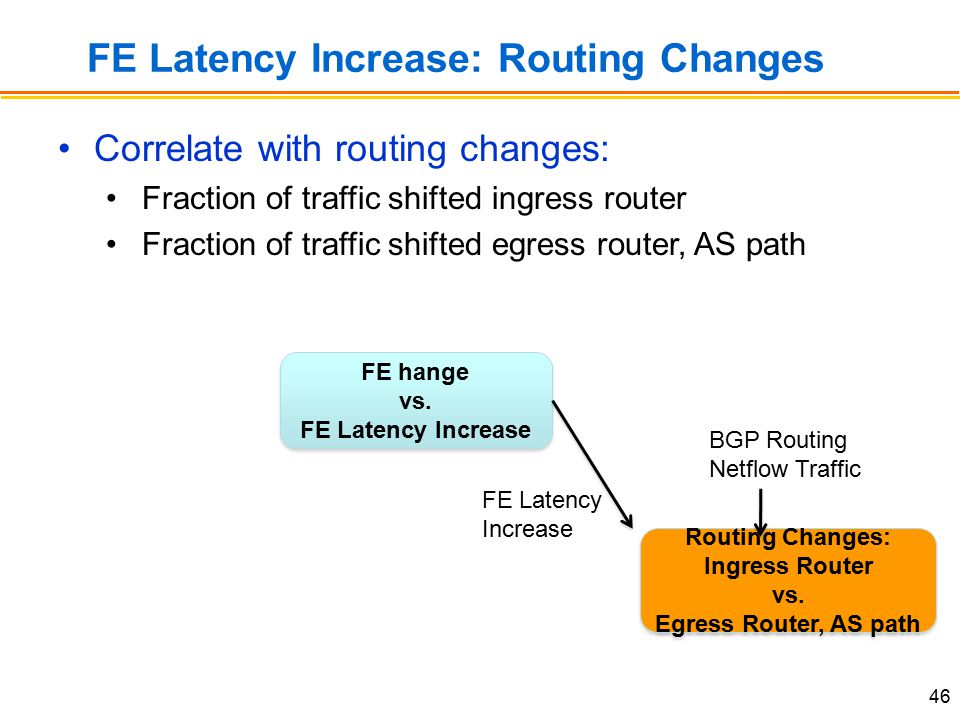

46. FE Latency Increase: Routing Changes 46 FE hange vs. FE Latency Increase FE hange vs. FE Latency Increase Routing Changes: Ingress Router vs. Egress Router, AS path Routing Changes: Ingress Router vs. Egress Router, AS path FE Latency Increase BGP Routing Netflow Traffic Correlate with routing changes: Fraction of traffic shifted ingress router Fraction of traffic shifted egress router, AS path

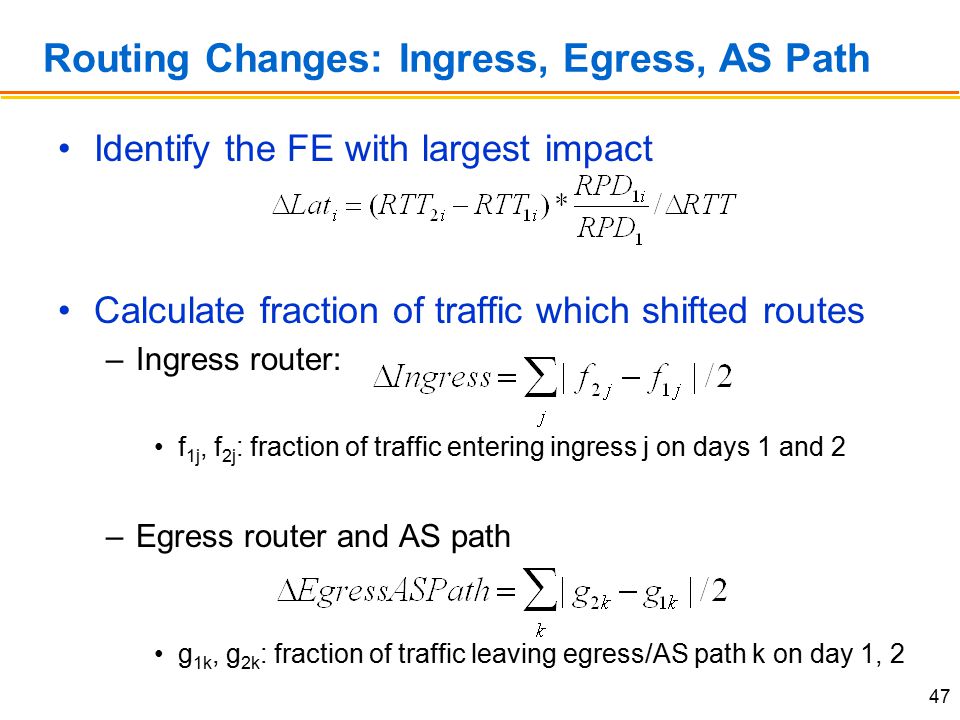

47. Routing Changes: Ingress, Egress, AS Path 47 Identify the FE with largest impact Calculate fraction of traffic which shifted routes –Ingress router: f 1j, f 2j : fraction of traffic entering ingress j on days 1 and 2 –Egress router and AS path g 1k, g 2k : fraction of traffic leaving egress/AS path k on day 1, 2

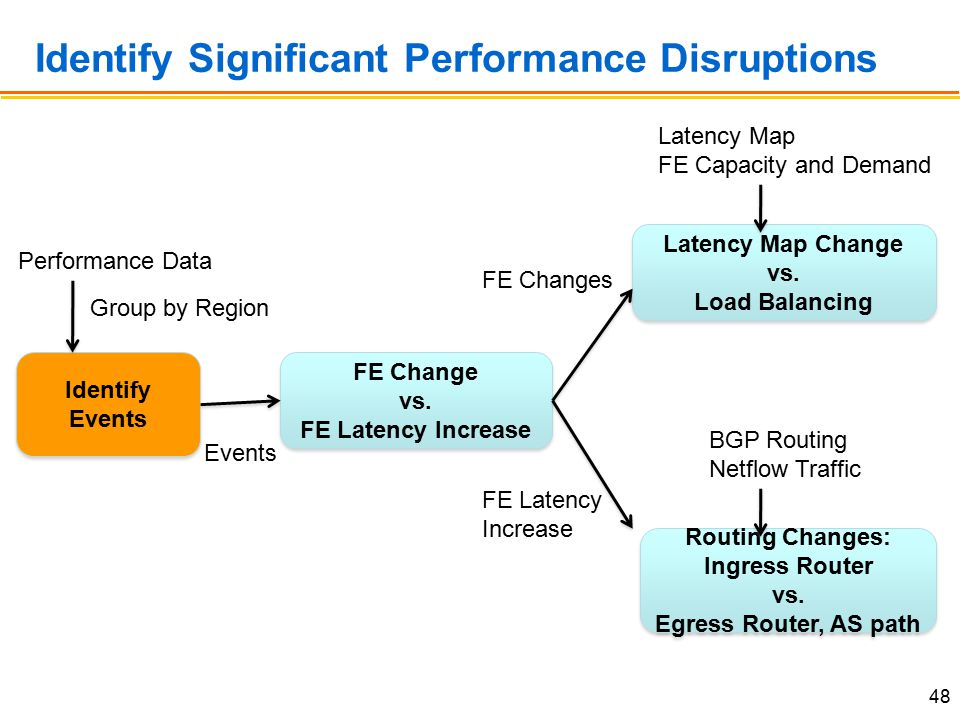

48. Identify Significant Performance Disruptions 48 Identify Events FE Change vs. FE Latency Increase FE Change vs. FE Latency Increase Latency Map Change vs. Load Balancing Latency Map Change vs. Load Balancing Routing Changes: Ingress Router vs. Egress Router, AS path Routing Changes: Ingress Router vs. Egress Router, AS path Performance Data Group by Region Events FE Changes FE Latency Increase Latency Map FE Capacity and Demand BGP Routing Netflow Traffic

49. Identify Significant Performance Disruptions Focus on large events –Large increases: >= 100 msec, or doubles –Many clients: for an entire region (country/ISP) –Sustained period: for an entire day Characterize latency changes –Calculate daily latency changes by region 49 Event CategoryPercentage Latency Increase by more than 100 msec1% Latency more than doubles0.45%

50. Latency Characterization for Google’s CDN 50 Category% Events FE latency increase73.9% Ingress router10.3% (Egress router, AS path)14.5% Both17.4% Unknown31.5% FE server change34.7% Latency map14.2% Load balancing2.9% Both9.3% Unknown8.4% Total100.0% Apply the classification to one month of data (06/2010)

51. Conclusion and Future Work Conclusion –Method for automatic classification of latency increases –Tool deployed at Google since 08/2010 Future work –More accurate diagnosis on smaller timescale –Incorporate active measurement data 51

52. Work with: Michael Schapira, Jennifer Rexford Princeton University Putting BGP on the Right Path: Better Performance via Next-Hop Routing

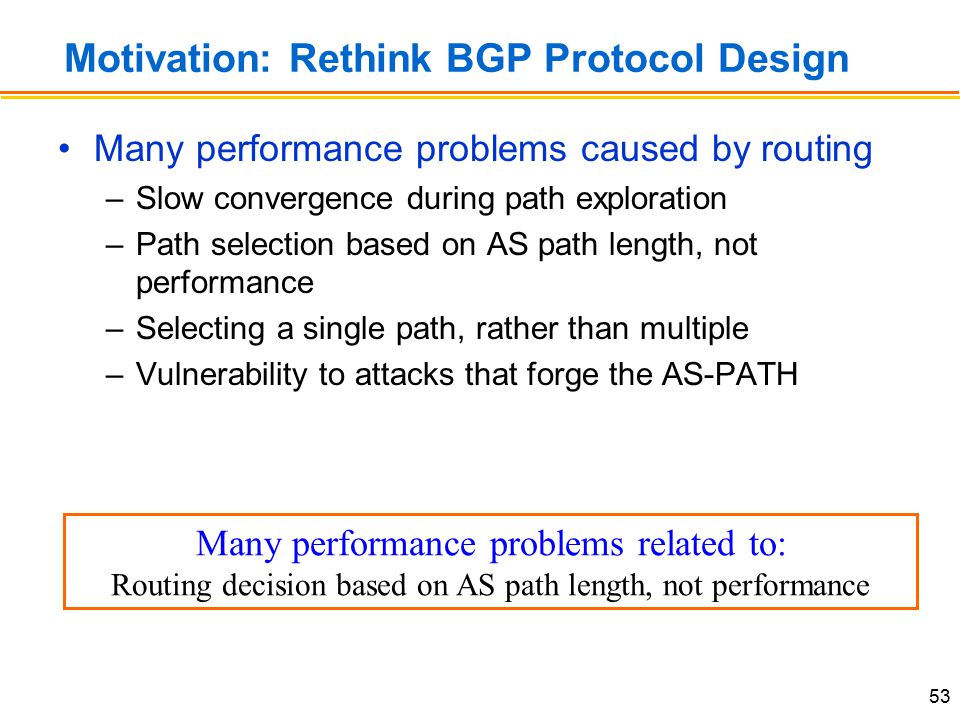

53. Motivation: Rethink BGP Protocol Design Many performance problems caused by routing –Slow convergence during path exploration –Path selection based on AS path length, not performance –Selecting a single path, rather than multiple –Vulnerability to attacks that forge the AS-PATH 53 Many performance problems related to: Routing decision based on AS path length, not performance

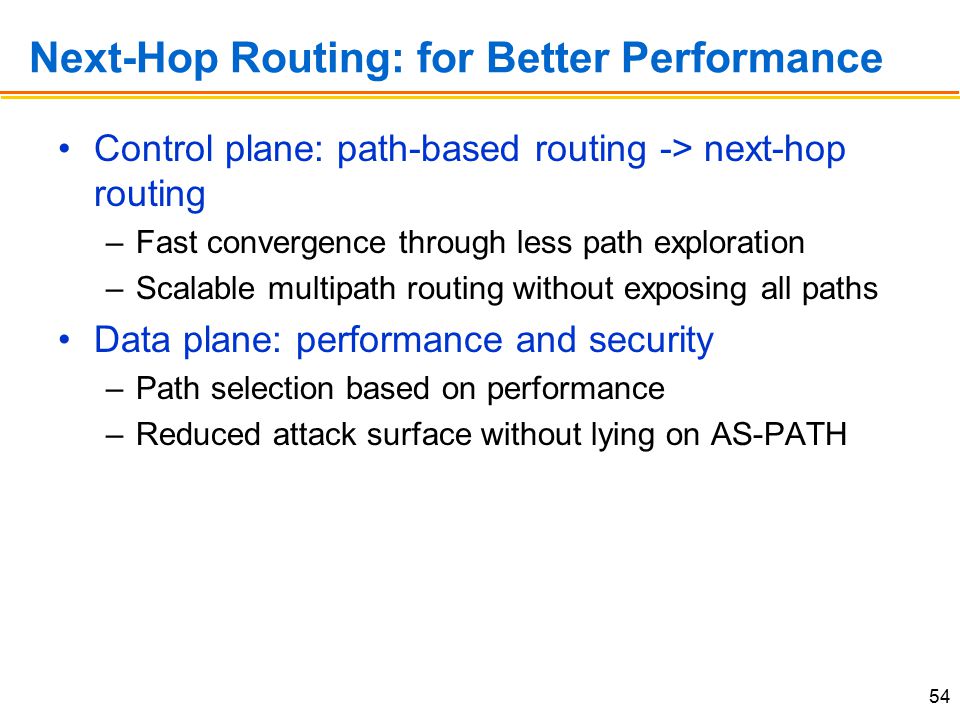

54. Next-Hop Routing: for Better Performance Control plane: path-based routing -> next-hop routing –Fast convergence through less path exploration –Scalable multipath routing without exposing all paths Data plane: performance and security –Path selection based on performance –Reduced attack surface without lying on AS-PATH 54

55. Today’s BGP: Path-Based Routing 55 3 d 1 2 32d > 31d Don’t export 2d to 3 1, 2, I’m available 3, I’m using 1d

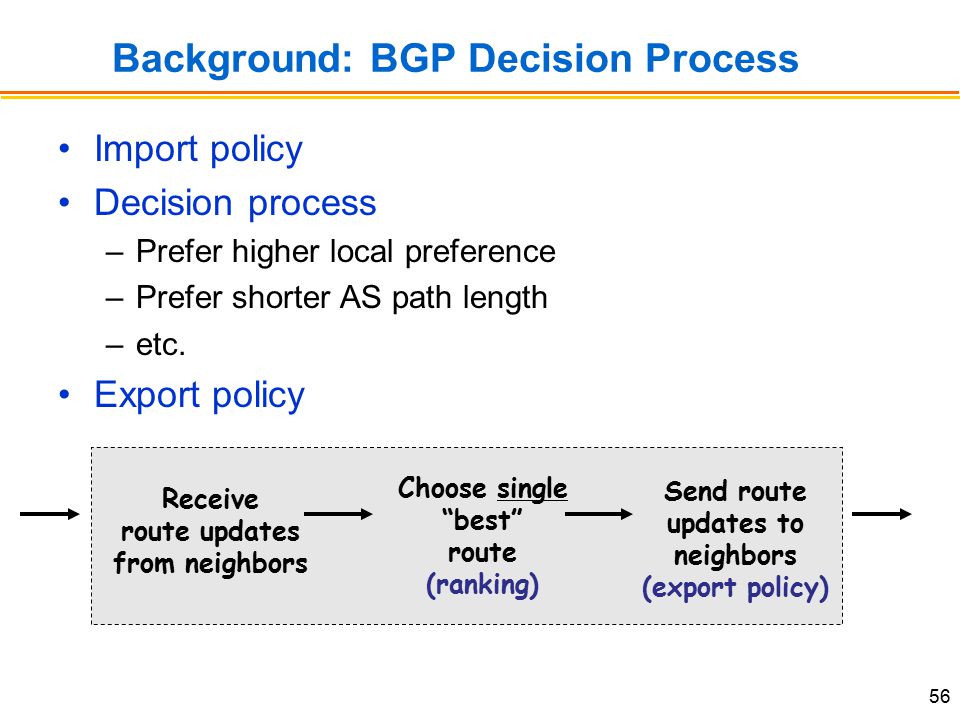

56. Background: BGP Decision Process Import policy Decision process –Prefer higher local preference –Prefer shorter AS path length –etc. Export policy 56 Receive route updates from neighbors Choose single “best” route (ranking) Send route updates to neighbors (export policy)

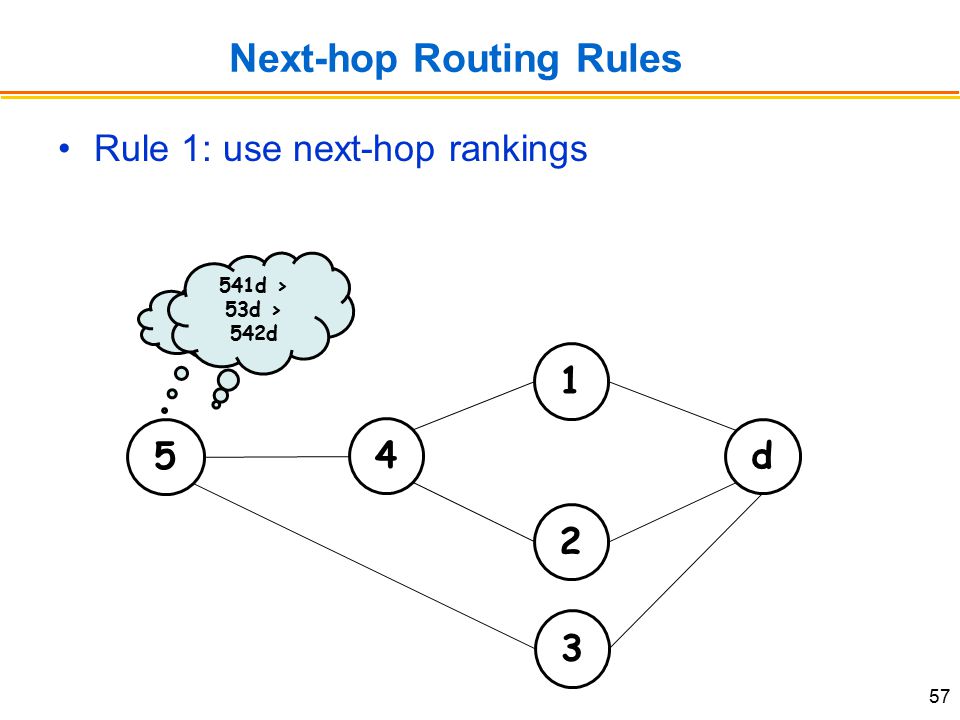

57. Next-hop Routing Rules Rule 1: use next-hop rankings 57 4 d 3 5 1 2 4 > 3 541d > 53d > 542d

58. Next-hop Routing Rules Rule 1: use next-hop rankings Rule 2: prioritize current route –To minimize path exploration 58 2 d 3 1 2=3 Break ties in favor of lower AS number 2=3 Prioritize current route

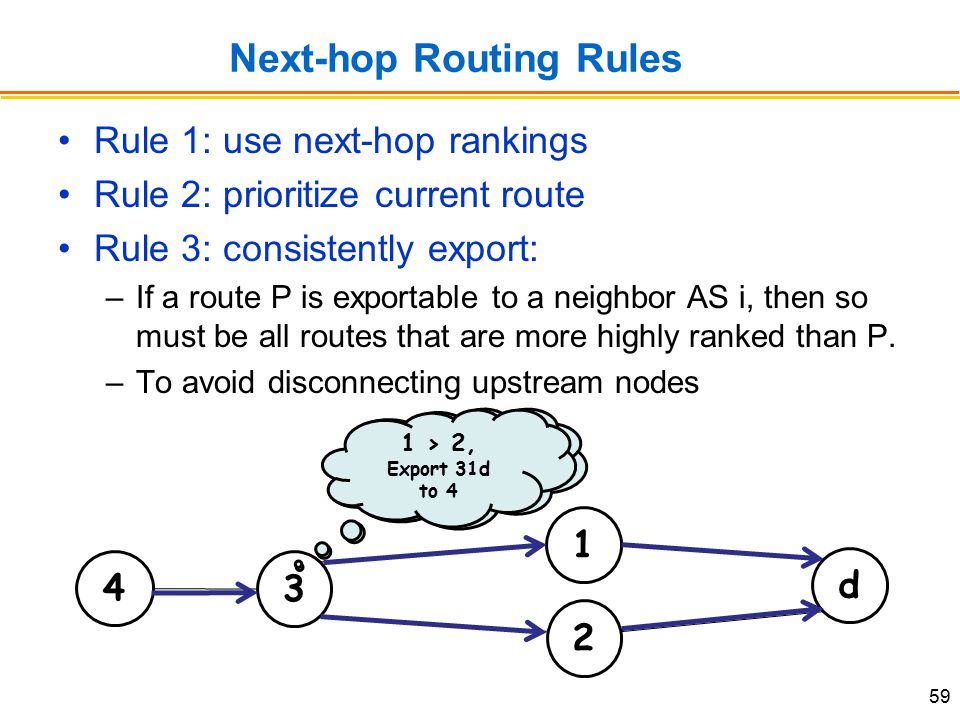

59. Next-hop Routing Rules Rule 1: use next-hop rankings Rule 2: prioritize current route Rule 3: consistently export: –If a route P is exportable to a neighbor AS i, then so must be all routes that are more highly ranked than P. –To avoid disconnecting upstream nodes 59 3 d 4 1 1 > 2, Export 32d, but not 31d, to 4 1 > 2, Export 31d to 4 2

60. Next-Hop Routing: for Better Performance Control plane –Fast convergence –Scalable multipath routing Data plane –Performance-driven routing –Reduced attack surface 60

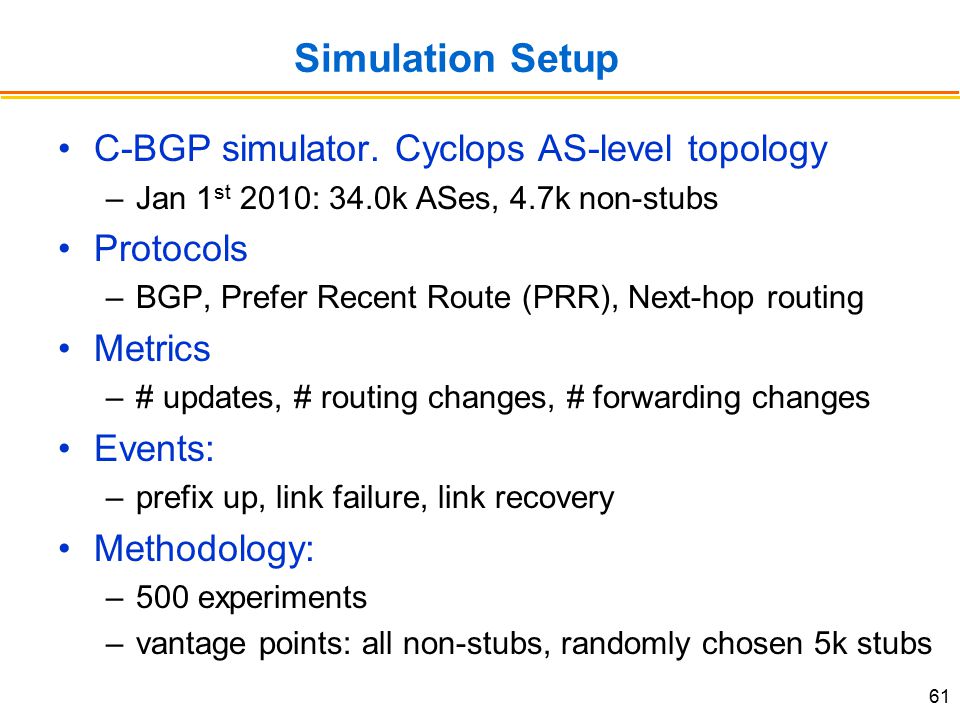

61. Simulation Setup C-BGP simulator. Cyclops AS-level topology –Jan 1 st 2010: 34.0k ASes, 4.7k non-stubs Protocols –BGP, Prefer Recent Route (PRR), Next-hop routing Metrics –# updates, # routing changes, # forwarding changes Events: –prefix up, link failure, link recovery Methodology: –500 experiments –vantage points: all non-stubs, randomly chosen 5k stubs 61

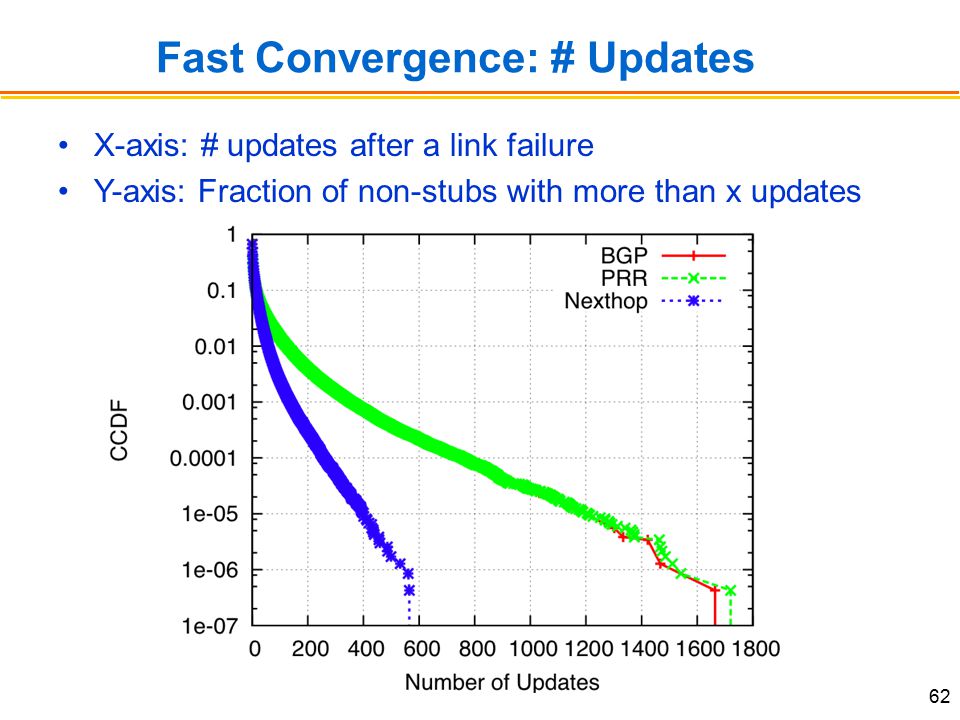

62. Fast Convergence: # Updates 62 X-axis: # updates after a link failure Y-axis: Fraction of non-stubs with more than x updates

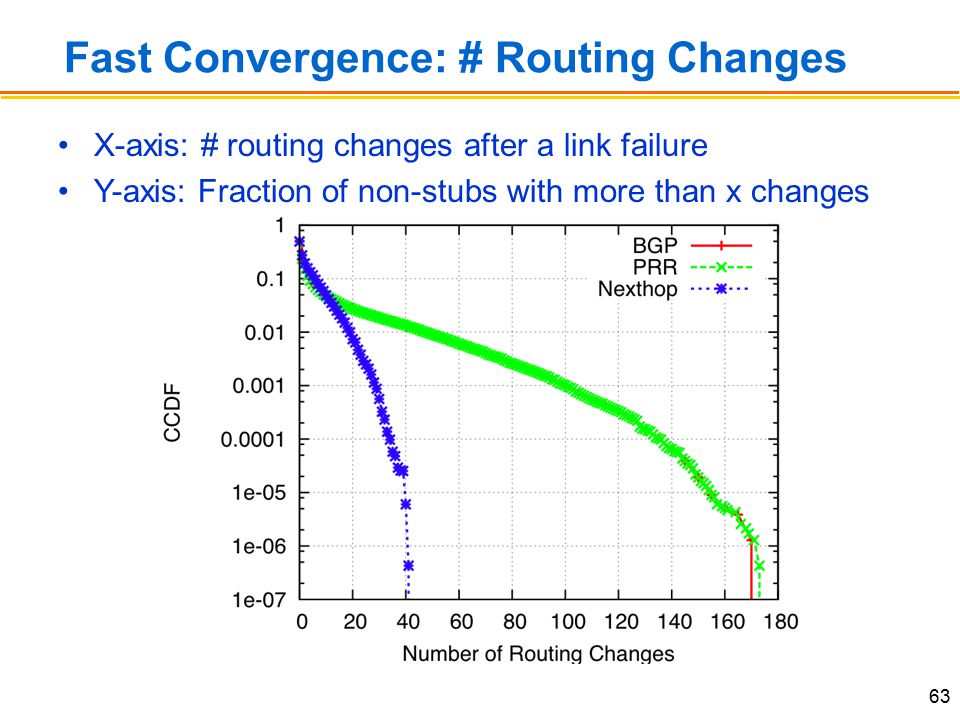

63. Fast Convergence: # Routing Changes 63 X-axis: # routing changes after a link failure Y-axis: Fraction of non-stubs with more than x changes

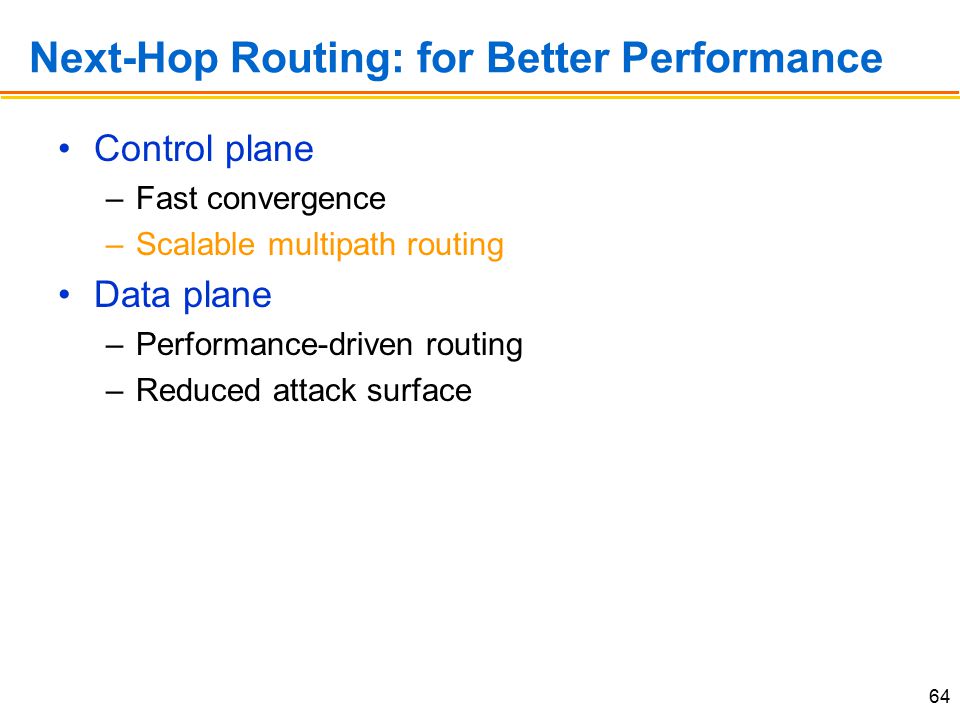

64. Next-Hop Routing: for Better Performance Control plane –Fast convergence –Scalable multipath routing Data plane –Performance-driven routing –Reduced attack surface 64

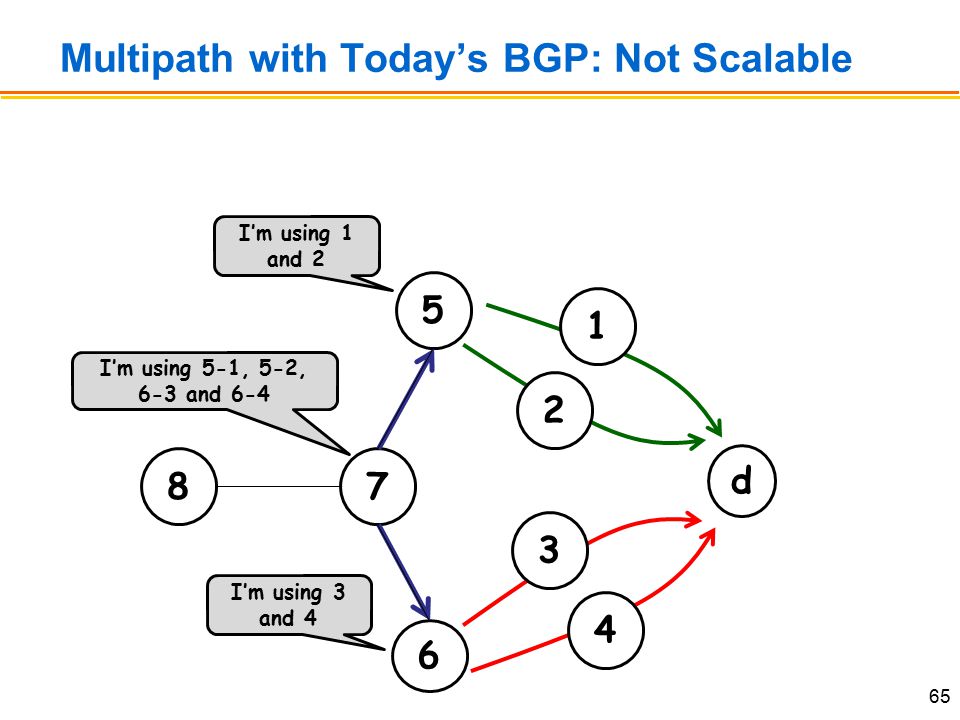

65. Multipath with Today’s BGP: Not Scalable 65 d 5 6 78 I’m using 1 and 2 I’m using 3 and 4 I’m using 5-1, 5-2, 6-3 and 6-4 1 2 3 4

66. Making Multipath Routing Scalable 66 d 5 6 78 I’m using {1,2} I’m using {3,4} I’m using {1,2,3,4,5,6} 1 2 3 4 Benefits: availability, failure recovery, load balancing

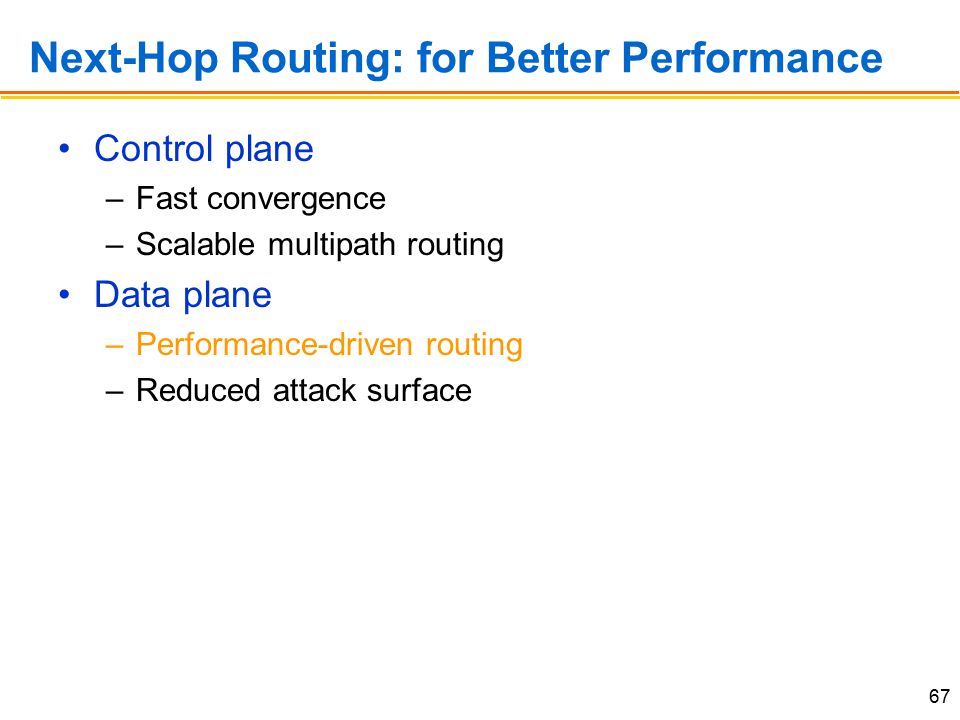

67. Next-Hop Routing: for Better Performance Control plane –Fast convergence –Scalable multipath routing Data plane –Performance-driven routing –Reduced attack surface 67

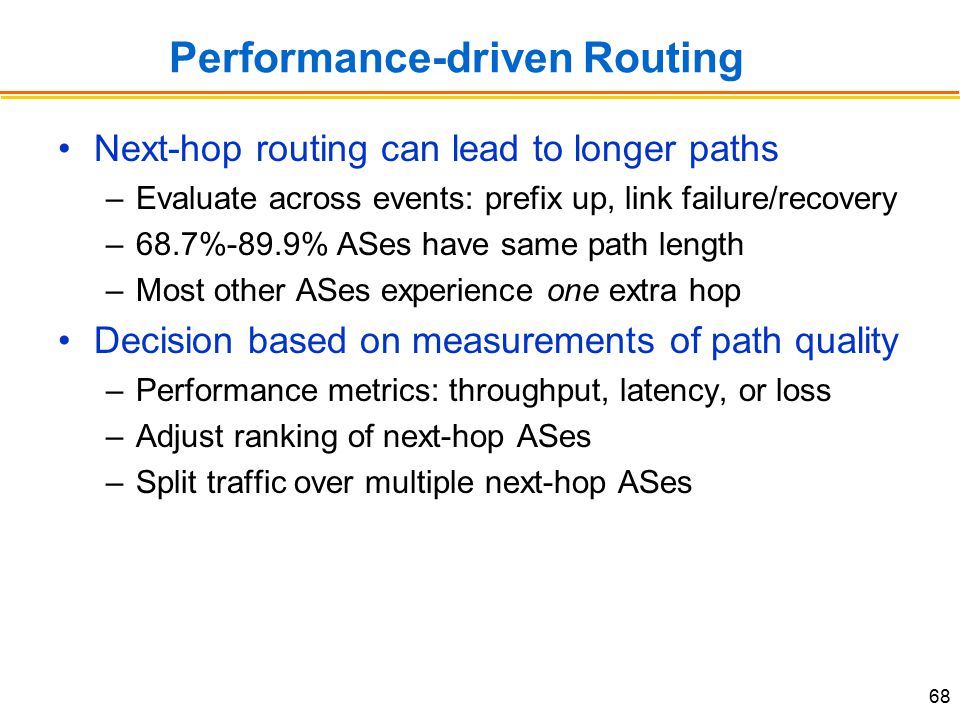

68. Performance-driven Routing Next-hop routing can lead to longer paths –Evaluate across events: prefix up, link failure/recovery –68.7%-89.9% ASes have same path length –Most other ASes experience one extra hop Decision based on measurements of path quality –Performance metrics: throughput, latency, or loss –Adjust ranking of next-hop ASes –Split traffic over multiple next-hop ASes 68

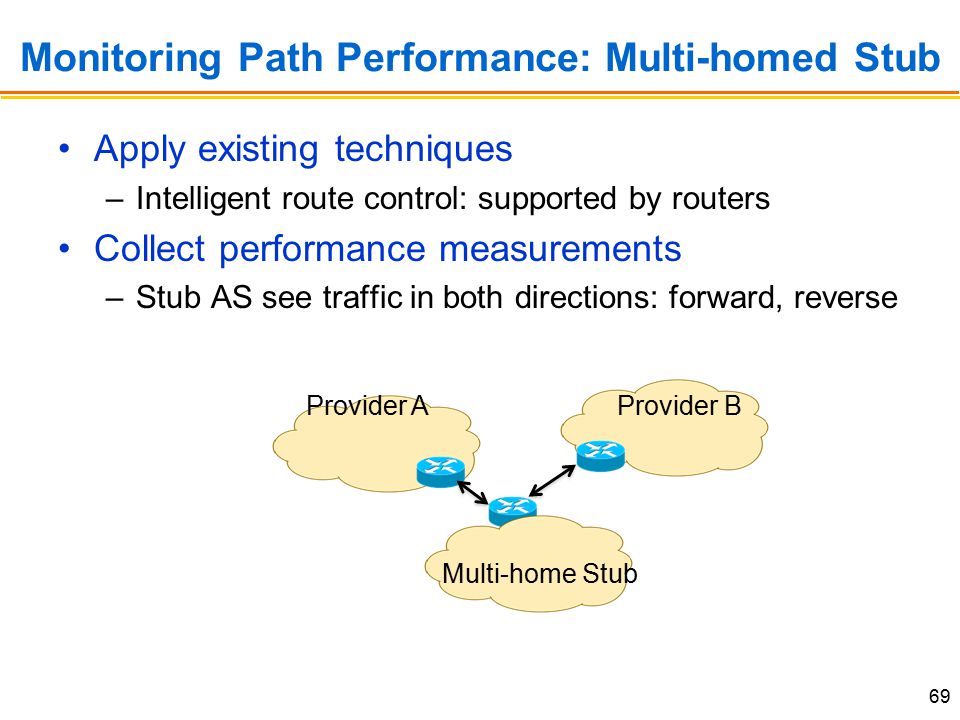

69. Monitoring Path Performance: Multi-homed Stub Apply existing techniques –Intelligent route control: supported by routers Collect performance measurements –Stub AS see traffic in both directions: forward, reverse 69 Multi-home Stub Provider AProvider B

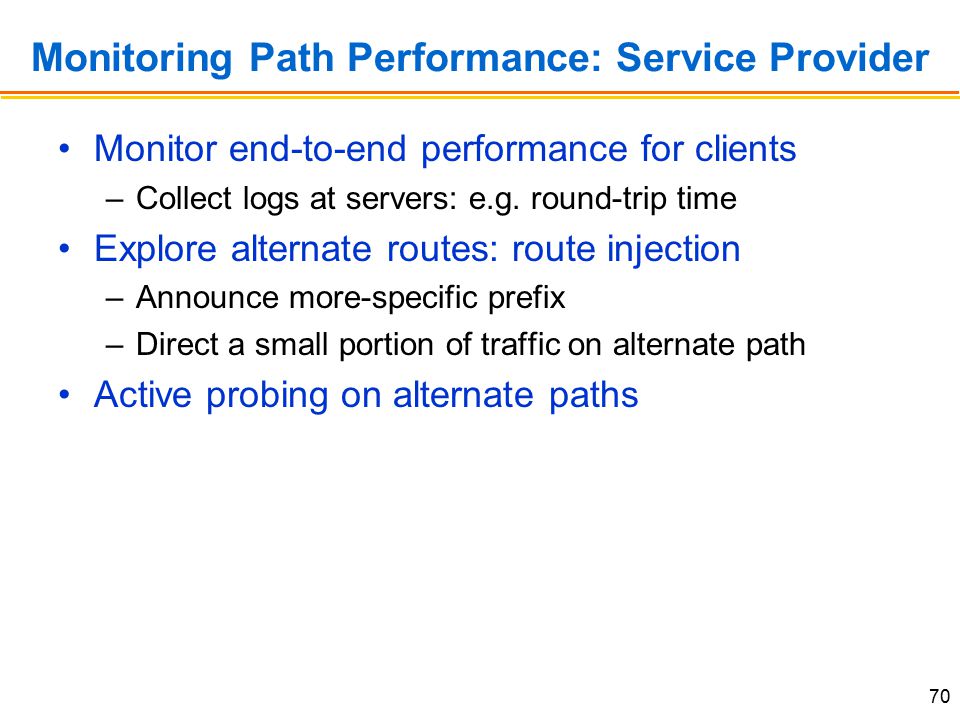

70. Monitoring Path Performance: Service Provider Monitor end-to-end performance for clients –Collect logs at servers: e.g. round-trip time Explore alternate routes: route injection –Announce more-specific prefix –Direct a small portion of traffic on alternate path Active probing on alternate paths 70

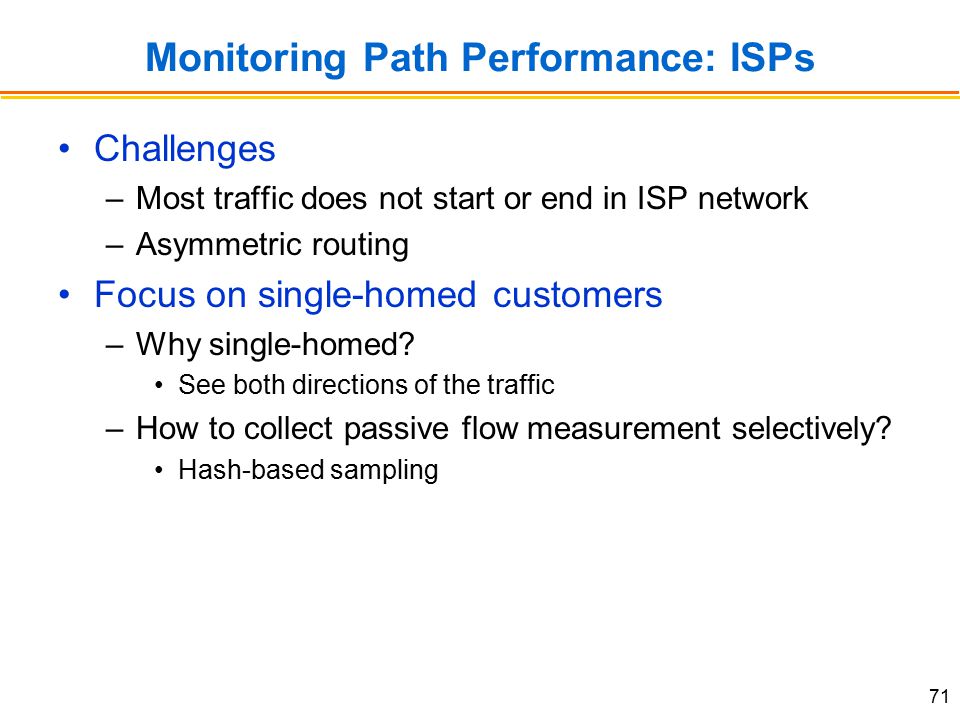

71. Monitoring Path Performance: ISPs Challenges –Most traffic does not start or end in ISP network –Asymmetric routing Focus on single-homed customers –Why single-homed? See both directions of the traffic –How to collect passive flow measurement selectively? Hash-based sampling 71

72. Next-Hop Routing: for Better Performance Control plane –Fast convergence –Scalable multipath routing Data plane –Performance-driven routing –Reduced attack surface 72

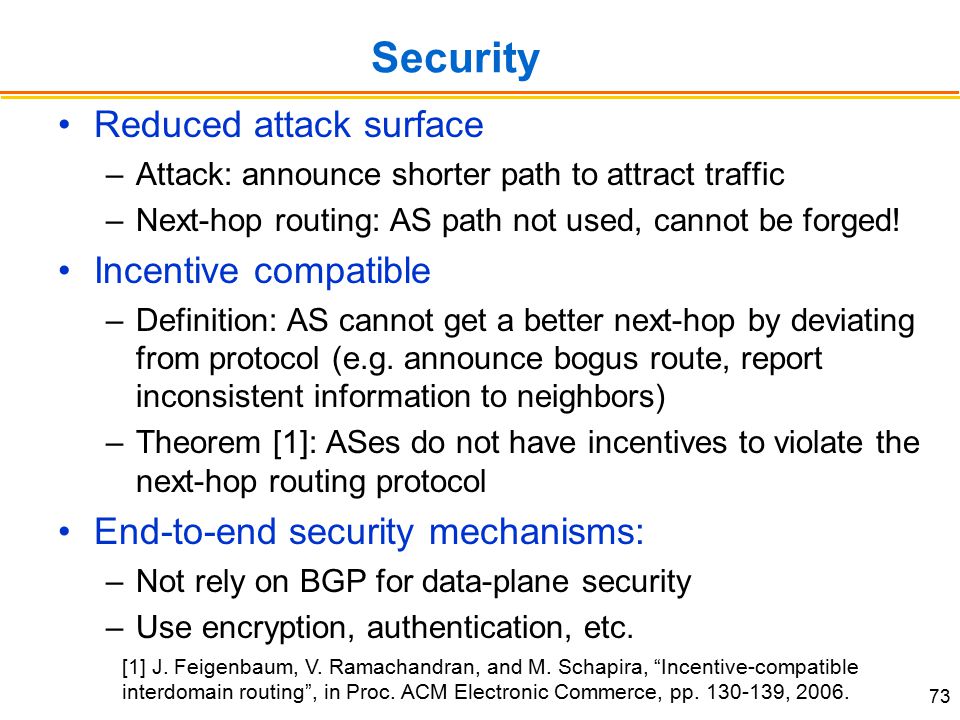

73. Security Reduced attack surface –Attack: announce shorter path to attract traffic –Next-hop routing: AS path not used, cannot be forged! Incentive compatible –Definition: AS cannot get a better next-hop by deviating from protocol (e.g. announce bogus route, report inconsistent information to neighbors) –Theorem [1]: ASes do not have incentives to violate the next-hop routing protocol End-to-end security mechanisms: –Not rely on BGP for data-plane security –Use encryption, authentication, etc. 73 [1] J. Feigenbaum, V. Ramachandran, and M. Schapira, “Incentive-compatible interdomain routing”, in Proc. ACM Electronic Commerce, pp. 130-139, 2006.

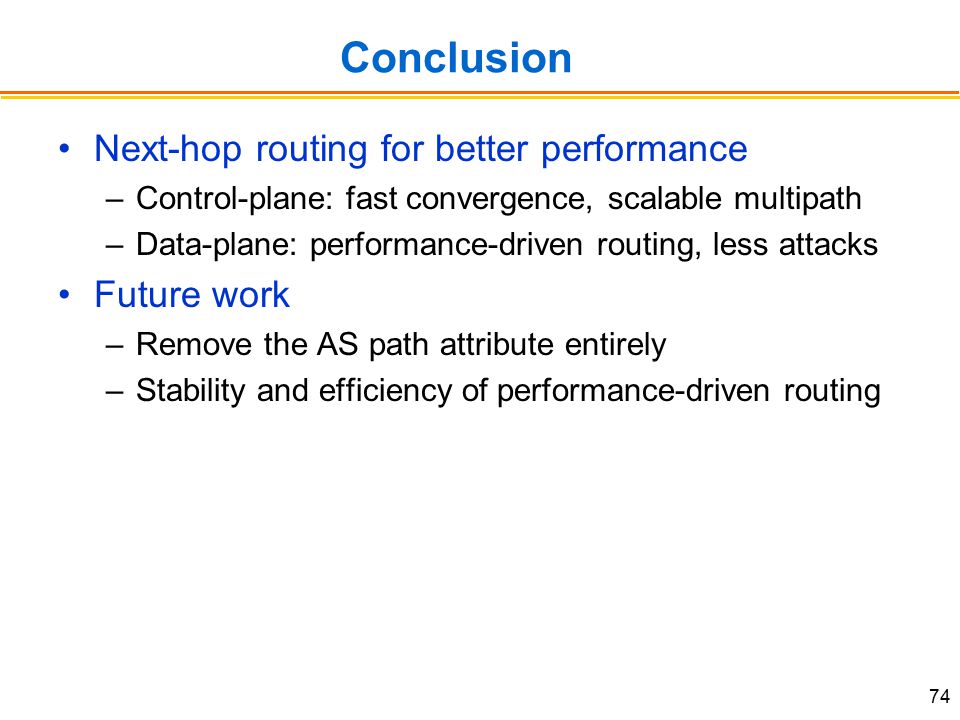

74. Conclusion Next-hop routing for better performance –Control-plane: fast convergence, scalable multipath –Data-plane: performance-driven routing, less attacks Future work –Remove the AS path attribute entirely –Stability and efficiency of performance-driven routing 74

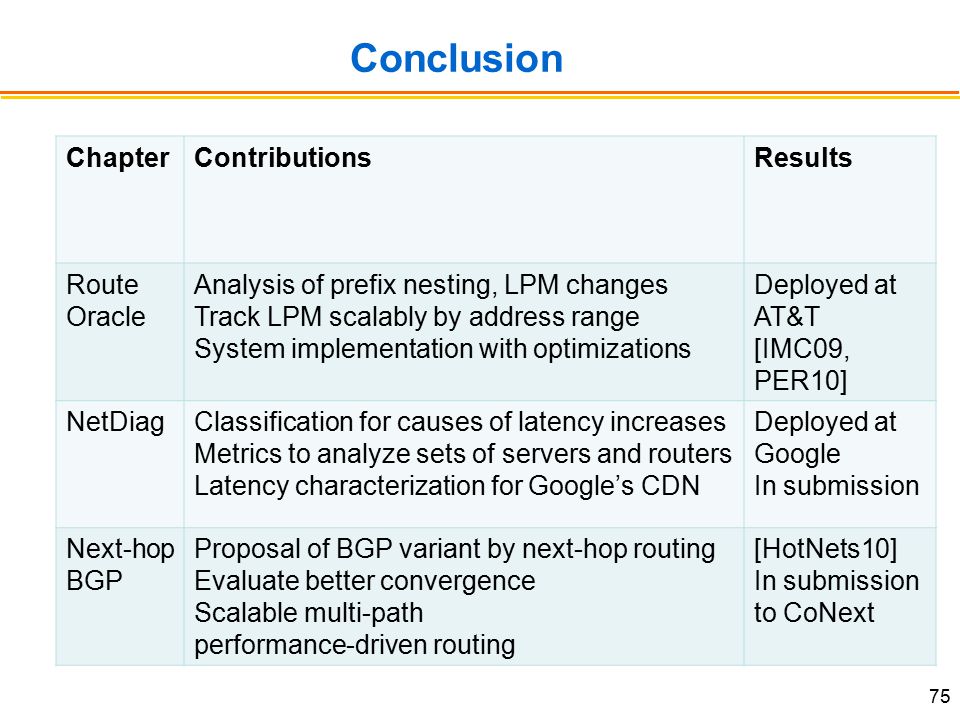

75. Conclusion ChapterContributionsResults Route Oracle Analysis of prefix nesting, LPM changes Track LPM scalably by address range System implementation with optimizations Deployed at AT&T [IMC09, PER10] NetDiagClassification for causes of latency increases Metrics to analyze sets of servers and routers Latency characterization for Google’s CDN Deployed at Google In submission Next-hop BGP Proposal of BGP variant by next-hop routing Evaluate better convergence Scalable multi-path performance-driven routing [HotNets10] In submission to CoNext 75
