Ranjit Jhala Rupak Majumdar Bit-level Types for High-level Reasoning.

Published by Modified over 9 years ago

Similar presentations

Presentation on theme: "Ranjit Jhala Rupak Majumdar Bit-level Types for High-level Reasoning."— Presentation transcript:

1 Ranjit Jhala Rupak Majumdar Bit-level Types for High-level Reasoning

2 The Problem Bit-level operators in low-level systems code Why ? –Interact with hardware –Reduce memory footprint mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte = (p & 0xFFFFF000)>> 12; b = tab[pte] & 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte = (p & 0xFFFFF000)>> 12; b = tab[pte] & 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; }

3 The Problem Bit-level operators in low-level systems code Inscrutable to humans, optimizers, verifiers mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte = (p & 0xFFFFF000)>> 12; b = tab[pte] & 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte = (p & 0xFFFFF000)>> 12; b = tab[pte] & 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; }

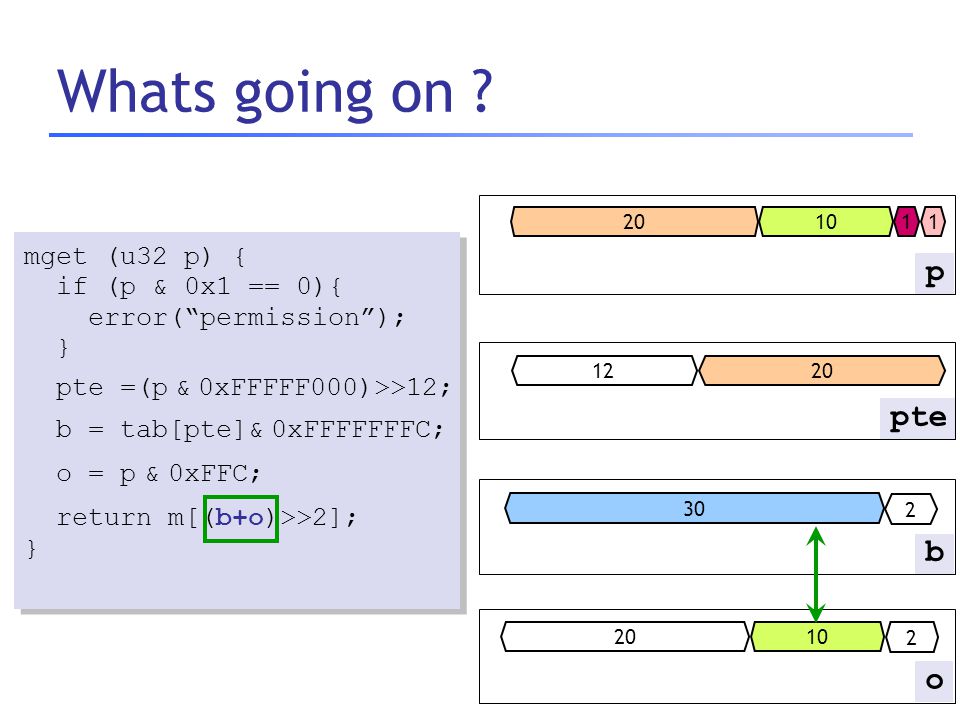

4 Whats going on ? mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } 32 p 31 1

5 Whats going on ? mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } 31 1 ppte 1220 11 1 20

6 Whats going on ? mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } ppte 2011 1 1220 32 tab[pte]

7 Whats going on ? mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } ppte 2011 1 1220 b 30 2 201011 o 12 2

8 Whats going on ? mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } ppte 1220 b 30 2 201011 o 20 2

9 Q: How to infer complex information flow to understand, optimize, verify code ? mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (u32 p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } ppte 1220 b 30 2 201011 o 20 2

10 Plan Motivation Approach

11 Our approach: (1) Bit-level Types p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,12}{idx,20} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} Bit-level Types Sequences of {name,size} pairs

12 Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } Expressions ! Records Bit-ops ! Field accesses if (p.rd == 0){

13 Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } if (p.rd == 0){ Expressions ! Records Bit-ops ! Field accesses

14 mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } if (p.rd == 0){ Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} pte.idx = p.idx; Expressions ! Records Bit-ops ! Field accesses

15 Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } if (p.rd == 0){ pte.idx = p.idx; Expressions ! Records Bit-ops ! Field accesses

16 mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } if (p.rd == 0){ pte.idx = p.idx; Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} b.addr = tab[pte.idx].addr; Expressions ! Records Bit-ops ! Field accesses

17 Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } b.addr = tab[pte.idx].addr; if (p.rd == 0){ pte.idx = p.idx; Expressions ! Records Bit-ops ! Field accesses

18 mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } b.addr = tab[pte.idx].addr; if (p.rd == 0){ pte.idx = p.idx; Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} o.addr = p.addr; Expressions ! Records Bit-ops ! Field accesses

19 Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } o.addr = p.addr; b.addr = tab[pte.idx].addr; if (p.rd == 0){ pte.idx = p.idx; Expressions ! Records Bit-ops ! Field accesses

20 mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } o.addr = p.addr; b.addr = tab[pte.idx].addr; if (p.rd == 0){ pte.idx = p.idx; Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} return m[b.addr + o.addr]; Expressions ! Records Bit-ops ! Field accesses

21 Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } o.addr = p.addr; return m[b.addr + o.addr]; b.addr = tab[pte.idx].addr; if (p.rd == 0){ pte.idx = p.idx; Expressions ! Records Bit-ops ! Field accesses

22 Our approach mget(p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget(p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } Low-level operations eliminated bit-level types + translation o.addr = p.addr; return m[b.addr + o.addr]; b.addr = tab[pte.idx].addr; if (p.rd == 0){ pte.idx = p.idx; Program can be understood, optimized, verified

23 Plan Motivation Approach –Bit-level types + Translation Key: Bit-level type Inference Experiences Related work

24 Constraint-based Type Inference Algorithm: 0. Variables for unknowns 1. Generate constraints on vars 2. Solve constraints 2a = b – 10 b = 2006 - 1952 Alice’s age: a Bob’s age: b = 22 = 54 Remember these: If Alice doubles her age, she would still be 10 years younger than Bob, who was born in 1952. How old are Alice and Bob ?

25 Constraint-based Type Inference Algorithm: 0. Variables for unknown bit-level types of all program expressions 1.Generate constraints on vars 2.Solve constraints

26 Plan Motivation Approach –Bit-level types + Translation Key: Bit-level type Inference –Constraint Generation –Constraint Solving Experiences Related work

27 Constraint Generation Type variables for each expression: p  p p&0x1  p&0x1 pte  pte  mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; }

28 Generating Zero Constraints Mask:  p&0xFFC [31:12] = ;  p&0xFFC [1:0] = ; mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } 0 20 0202 123110

29 Generating Zero Constraints 0 12 mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } Shift:  e>>12 [31:20]= ; e is p&0xFFFFF000 2031

30 Why are zeros special ? Consider assignment (value flows e to x ) Should x and e have same bit-level type? x = e  K K +  Common idiom: k-bit values special case of k+  -bit values Equality results in unnecessary breaks Zeros enable precise subtyping subtypes( · ) · x e Inequality constraint  x ¸  e

31 Generating Inequality Constraints Mask:  p&0xFFC [11:2] ¸  p [11:2] mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } 0 20 0202 112

32 Shift:  e>>12 [19:0] ¸  e [31:12] 0 12 Generating Inequality Constraints mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } 19 31 12 0 e e>>12

33 Generating Inequality Constraints Assignment:  o ¸  p&0xFFC that is…  o [31:0] ¸  p&0xFFC [31:0] mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; }

34 Plan Motivation Approach –Bit-level types + Translation Key: Bit-level type Inference –Constraint Generation –Constraint Solving Experiences Related work

35 Constraint Solutions Solution is an assignment A: type variables ! bit-level types A(  )[i:j] = subsequence of A(  ) from bit i through j 201011  p ) = {idx,20}{addr,10}{wr,1}{rd,1} A(  p )[12:1] = {addr,10} {wr,1} A(  p )[31:2] = {idx,20} {addr,10} A(  p )[31:5] = undefined 12131 2 5

36 Constraint Solving Overview Solution is an assignment A: type variables ! bit-level types A(  [i:j]) = subsequence from bit i through j A satisfies: zero Constraint :  [i:j] = ; –If A(  )[i:j] = ; i-j+1 inequality Constraint:  [i:j] ·  ’[i’:j’] –If A(  )[i:j] · A(  ’)[i’:j’] In both cases, A(  )[i:j] must be defined

37 Constraint Solving Algorithm Input:Zero constraints {z_1,…,z_m} Inequality constraints{c 1,…,c n } Output:Assignment satisfying all constraints A = A 0 for i in [1…n]: A = refine(A,c i ) return A A 0 = Initial asgn satisfying zero constraints (details in paper) refine(A,c i ) adjusts A such that: c i becomes satisfied earlier constraints stay satisfied built using Split, Unify

38 Refine: Split(A, ,k) f,12 A(  ) p,32 12 A’(  ) A’ = Split(A, , 12 ) Throughout A, substitute: p,12 +  12 f,12 e,  where e, f are fresh e,20 p,12-  f,12-  and substitute:

39 Refine: Split(A, ,k) Used to ensure A(  )[i:j] is defined 2 f,12 g,10 A(  ) p,32 11+1 A’(  ) A’’(  ) e,20 h,2 e,20 A’ = Split(A, , 12 ) Ensure A(  [ 11:2 ] is defined A’’ = Split(A’, , 2 ) 11 2 A’’(  [ 11:2 ] defined

40 Refine: Unify(A,p,q) p,  q,  Throughout A, substitute:

41 Refine(A,  [31:12] ·  ’[19:0]) r :12 A(  ’) p : 32 A(  ) ; :10q :10 A(  ’)[19:0] undefined A’ = Split(A,  ’,19+1) A’’ = Unify(A’,q,t) 1231 0 19 r : 12 A’(  ’) t : 20 A’(  ) ; :10q :10 s : 12 1231 0 19 r : 12 A’’(  ’) t : 32 A’’(  ) ; :10t :10 A’’ satisfies constraint t : 32 1231 0 19 A’(  ’)[19:0] A’(  )[31:12] ·

42 Constraint Solving Input:Constraints Output:Assignment satisfying all constraints A = A 0 for i in [1…n]: A = refine(A,c i ) return A Substitution (in Split, Unify) ensures earlier constraints stay satisfied most general solution found Efficiently implemented using graphs

43 Plan Motivation Approach –Bit-level types + Translation Key: Bit-level type Inference –Constraint Generation –Constraint Solving Experiences Related work

44 Experiences Implemented bit-level type inference for C pmap: a kernel virtual memory system Implements the code for our running example mondrian: a memory protection system scull: a linux device driver (1-3 Kloc) Inference/Translation takes less than 1s

45 Mondrian [Witchel et. al.] Bit packing for memory and permission bits –2600 lines of code, generated 775 constraints –Translated to program without bit-operations –18 different bit-packed structures 10 assertions provided by programmer –After translation, assertions verified using BLAST –6 safe: all require bit-level reasoning Previously, verification was not possible –4 false positives: imprecise modeling of arrays

46 Cop outs (i.e. Future Work) 1.Truly binary bit-vector operations –x << y, x && y –Currently: Value-flow analysis to infer constants flowing to y Break into a switch statement 2.Flow-sensitivity Currently: SSA renaming 3.Arithmetic overflow does a k-bit value “spill over” Currently: Assume no overflow 4.Path-sensitivity (value dependent types) Type of suffix depends on value of first field e.g. Instruction decoder for architecture simulator Number/type of operands depends on opcode

47 Plan Motivation Approach –Bit-level types + Translation Key: Bit-level type Inference –Constraint Generation –Constraint Solving Experiences Related work

48 Related Work O Callahan – Jackson [ICSE 97] –Type Inference Gupta et. al. [POPL 03, CC02] –Dataflow analyses for packing bit-sections Ramalingam et. al. [POPL 99] –Aggregate structure inference for COBOL

49 Conclusions (Automatic) reasoning about Bit-operations hard Structure: bit-operations pack data into one word Structure Inferred via Bit-level Type Inference Structure Exploited via Translation to fields Precise, efficient reasoning about Bit-operations

50 Thank you

51 Previous approaches model bitwise ops by: 1.Uninterpreted functions Imprecise 2.Logical axioms Inefficient 3.Bit-blasting terms into 32/64-bits Lose high-level relationships Q: How to infer complex information flow to understand, optimize, verify code ?

52 Refine Two basic operations: split, unify Split(A, ,[i:j]): ensures A(  )[i:j] is defined 2 f : 12 g : 10 A(  ) p : 32 11+1 A’(  ) A’’(  ) e : 20h:2 Split(A, , [11:2] ) A’ = in A, substitute: p :  +(11+1) 11+1 f : 11+1 e :  where e, f are fresh e : 20 A’’ = in A’, substitute: f :  +2 h : 2 g :  where g,h are fresh 2

53 Generating Zero Constraints Mask: All but 1 st bit are zero  p&0x1 [31:1] = ; mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } 0 31

54 Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } Expressions ! Records Bit-ops ! Field accesses if (p.rd == 0){ pte.idx = p.idx; b.addr = tab[pte.idx].addr; o.addr = p.addr; return m[o.addr + p.addr];

55 Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } Expressions ! Records Bit-ops ! Field accesses if (p.rd == 0){

56 Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } Expressions ! Records Bit-ops ! Field accesses if (p.rd == 0){ pte.idx = p.idx; b.addr = tab[pte.idx].addr; o.addr = p.addr; return m[o.addr + p.addr];

57 Our approach: (2) Translation p pte 1220 b 30 2 201011 o 20 2 p : {idx,20}{addr,10}{wr,1}{rd,1} pte : { ;,20}{idx,10} b : {addr,30}{ ;,2} o : { ;,20}{addr,10}{ ;,2} mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } mget (p) { if (p & 0x1 == 0){ error(“permission”); } pte =(p & 0xFFFFF000)>>12; b = tab[pte]& 0xFFFFFFFC; o = p & 0xFFC; return m[(b+o)>>2]; } Expressions ! Records Bit-ops ! Field accesses if (p.rd == 0){ pte.idx = p.idx; b.addr = tab[pte.idx].addr; o.addr = p.addr; return m[o.addr + p.addr];

58 Constraint Solutions Solution is an assignment A: variables ! bit-level types A(  )[i:j] = subsequence of A(  ) from bit i through j 201011  p ) = {idx,20}{addr,10}{wr,1}{rd,1} A(  p )[12:1] = {addr,10} {wr,1} A(  p )[31:2] = {idx,20} {addr,10} A(  p )[31:5] = undefined 12131 2 5
