1
GIS DATABASES an overview
2

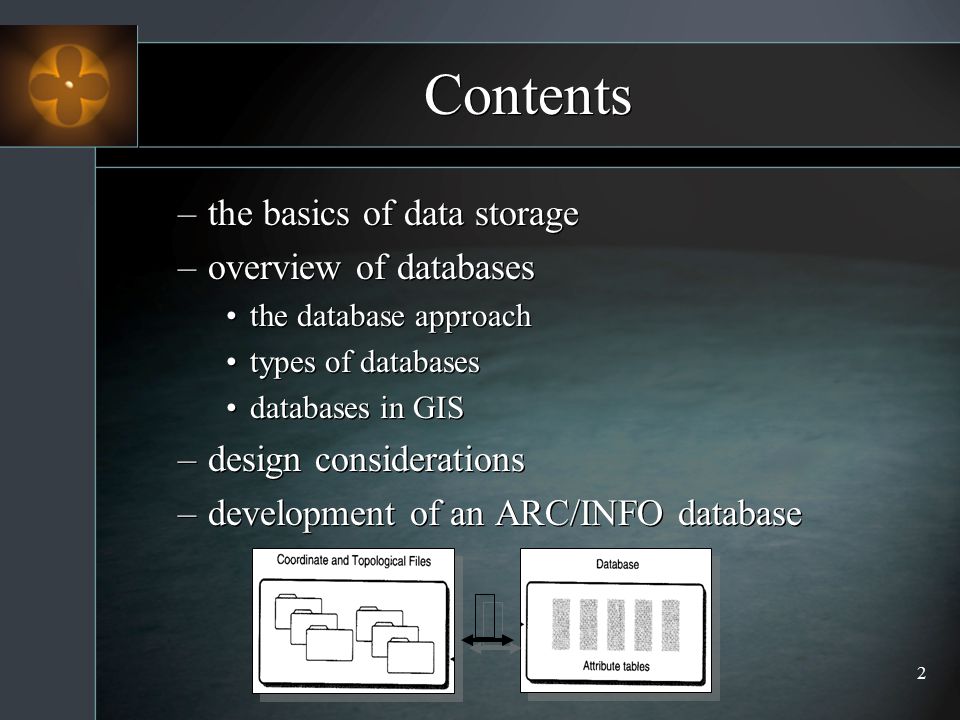

2 Contents –the basics of data storage –overview of databases the database approach types of databases databases in GIS –design considerations –development of an ARC/INFO database –the basics of data storage –overview of databases the database approach types of databases databases in GIS –design considerations –development of an ARC/INFO database
3

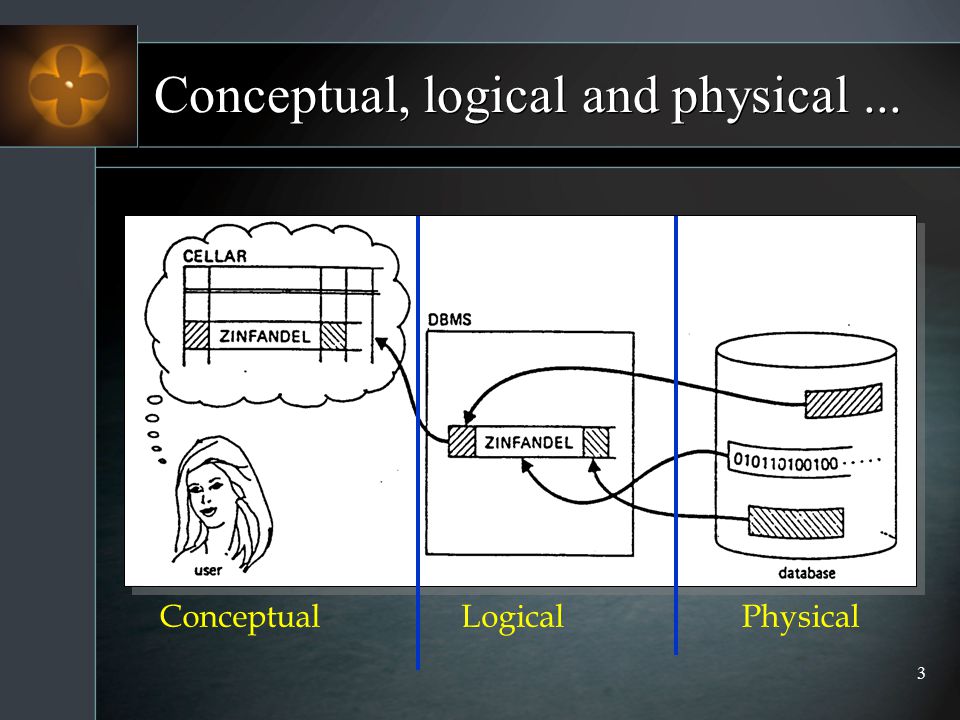

3 Conceptual, logical and physical... ConceptualLogicalPhysical
4

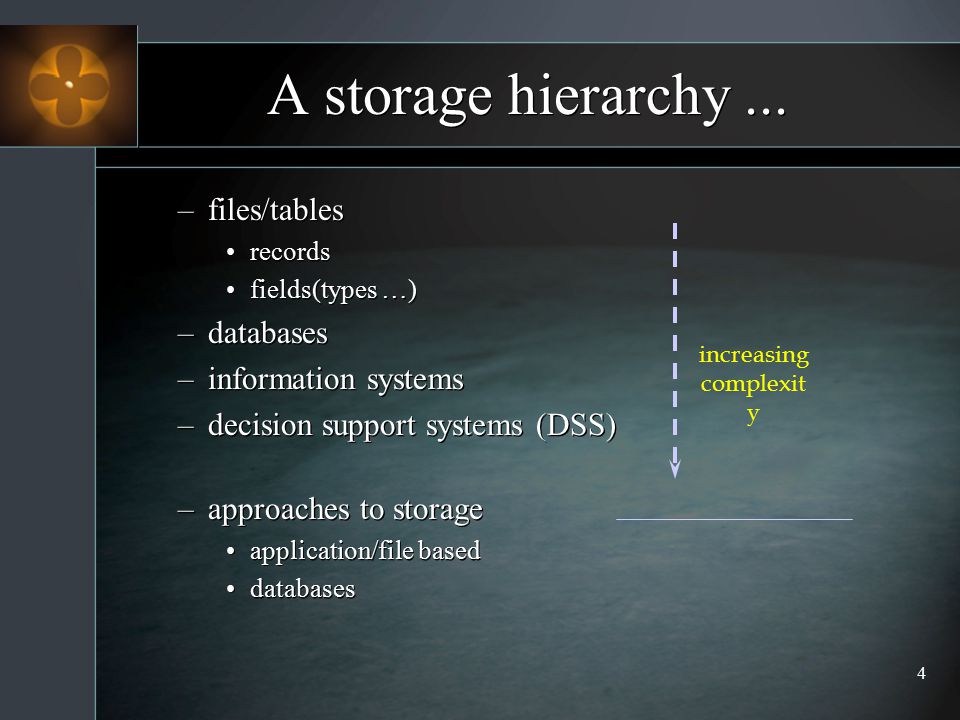

4 A storage hierarchy... –files/tables records fields(types …) –databases –information systems –decision support systems (DSS) –approaches to storage application/file based databases –files/tables records fields(types …) –databases –information systems –decision support systems (DSS) –approaches to storage application/file based databases increasing complexit y
5

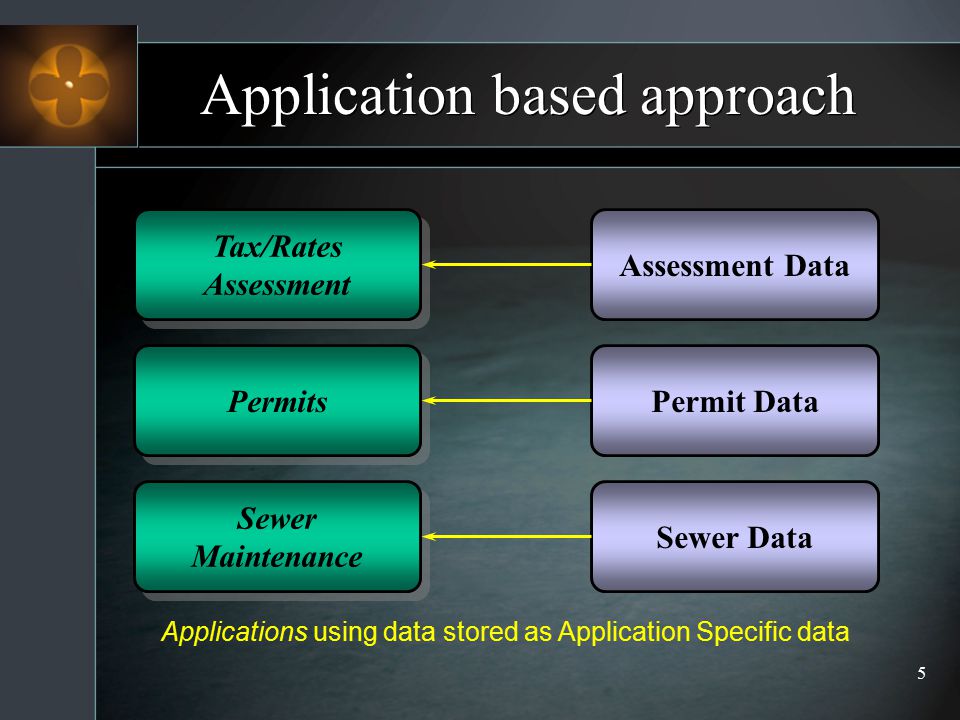

5 Application based approach Permits Tax/Rates Assessment Tax/Rates Assessment Assessment Data Permit Data Sewer Data Sewer Maintenance Sewer Maintenance Applications using data stored as Application Specific data
6

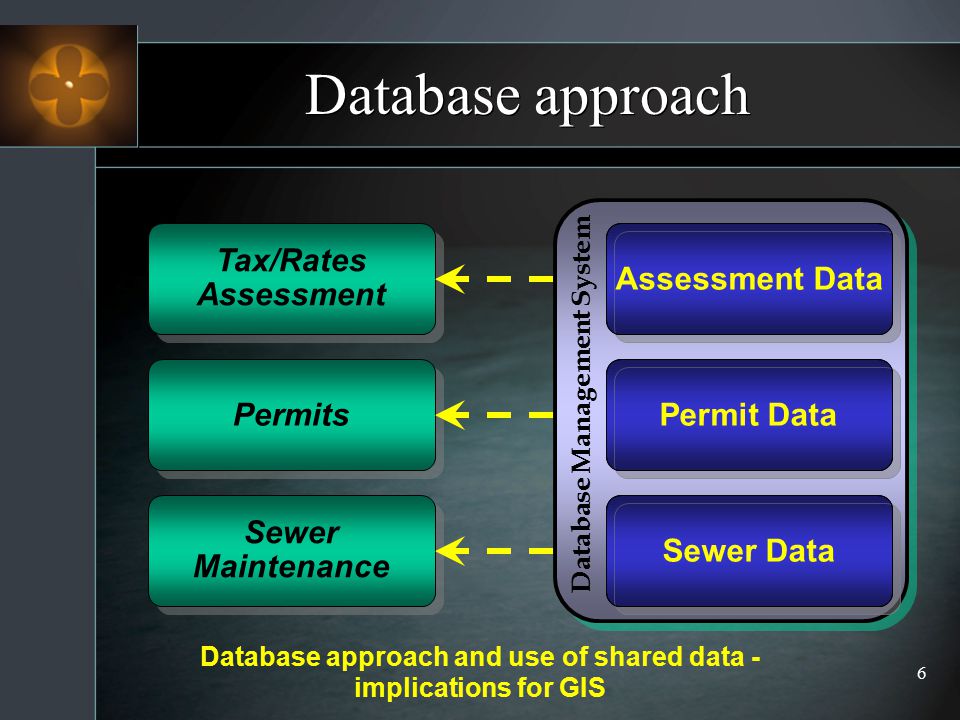

6 Database approach Permits Tax/Rates Assessment Tax/Rates Assessment Assessment Data Permit Data Sewer Data Sewer Maintenance Sewer Maintenance Database Management System Database approach and use of shared data - implications for GIS
7

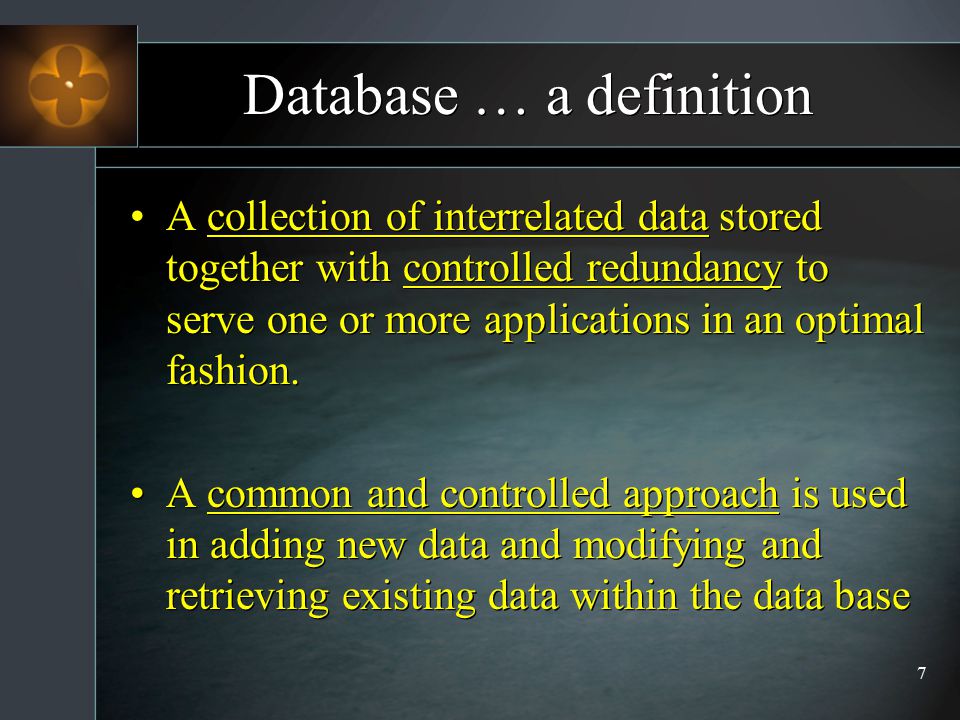

7 Database … a definition A collection of interrelated data stored together with controlled redundancy to serve one or more applications in an optimal fashion. A common and controlled approach is used in adding new data and modifying and retrieving existing data within the data base A collection of interrelated data stored together with controlled redundancy to serve one or more applications in an optimal fashion. A common and controlled approach is used in adding new data and modifying and retrieving existing data within the data base
8

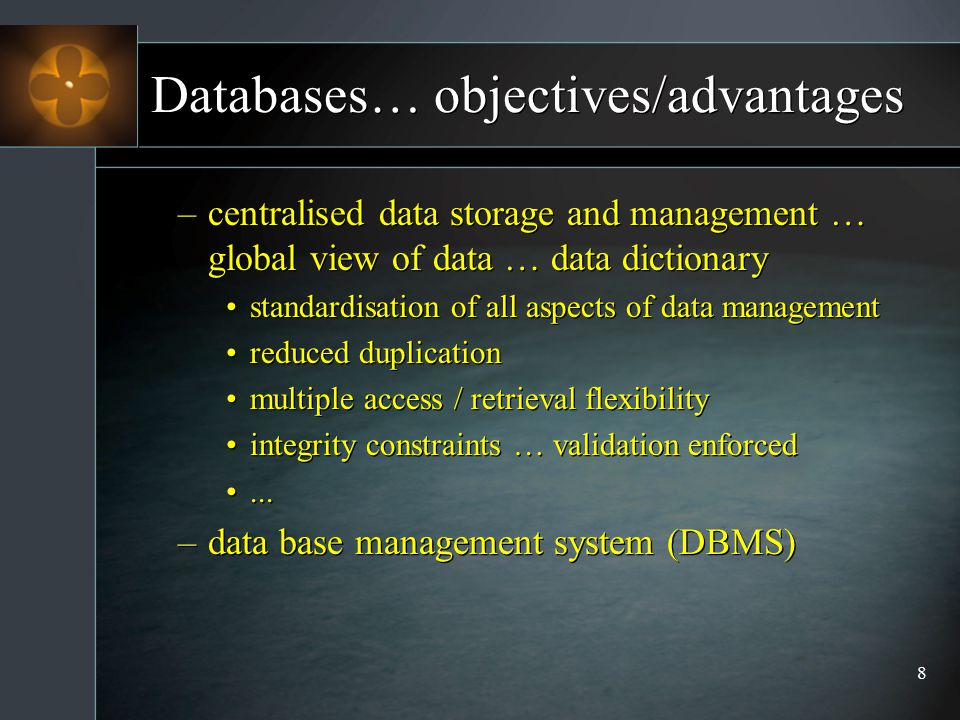

8 Databases… objectives/advantages –centralised data storage and management … global view of data … data dictionary standardisation of all aspects of data management reduced duplication multiple access / retrieval flexibility integrity constraints … validation enforced... –data base management system (DBMS) –centralised data storage and management … global view of data … data dictionary standardisation of all aspects of data management reduced duplication multiple access / retrieval flexibility integrity constraints … validation enforced... –data base management system (DBMS)
9

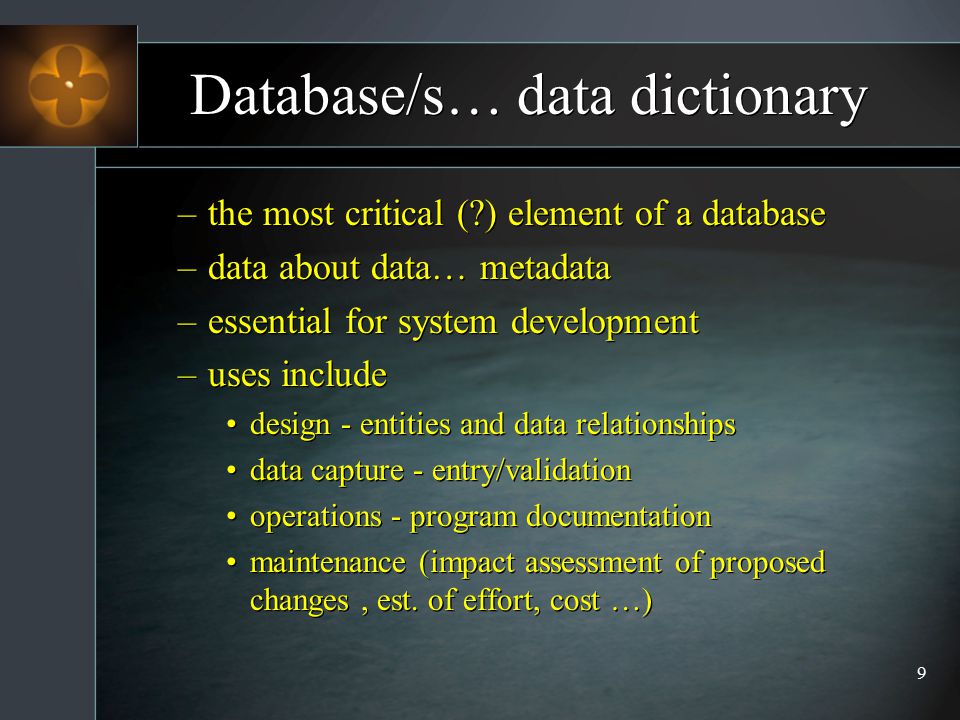

9 Database/s… data dictionary –the most critical (?) element of a database –data about data… metadata –essential for system development –uses include design - entities and data relationships data capture - entry/validation operations - program documentation maintenance (impact assessment of proposed changes, est. of effort, cost …) –the most critical (?) element of a database –data about data… metadata –essential for system development –uses include design - entities and data relationships data capture - entry/validation operations - program documentation maintenance (impact assessment of proposed changes, est. of effort, cost …)
10

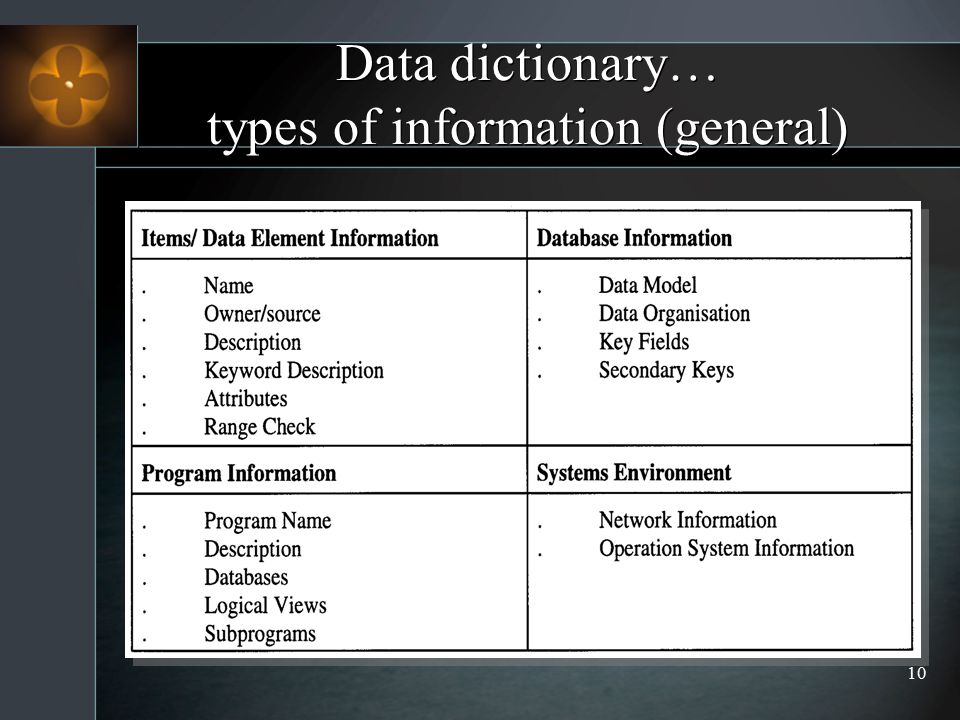

10 Data dictionary… types of information (general)
11

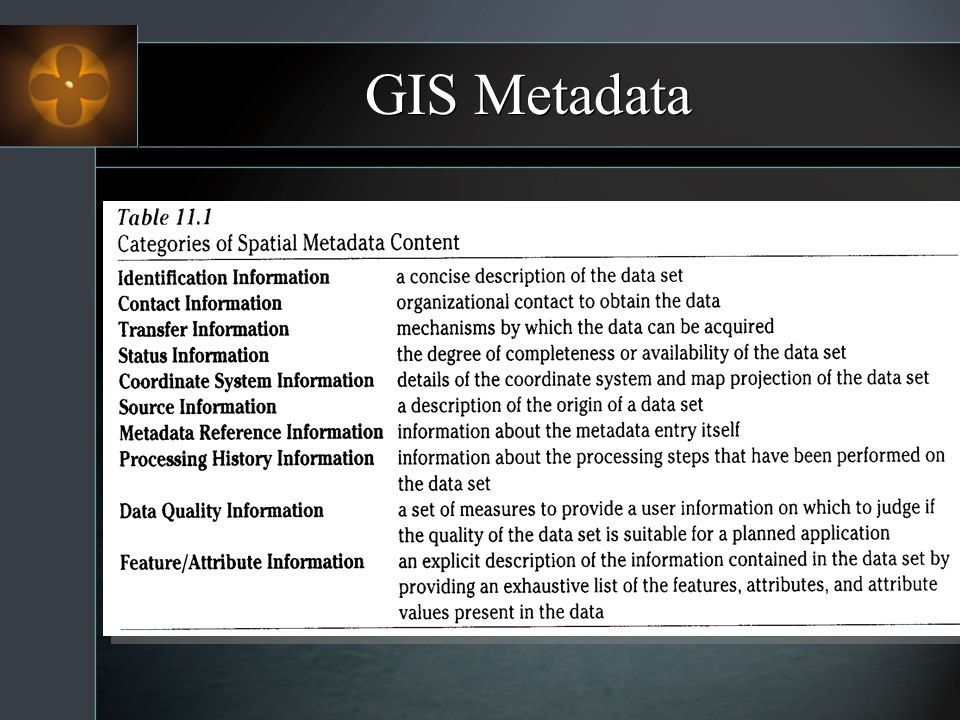

GIS Metadata
12

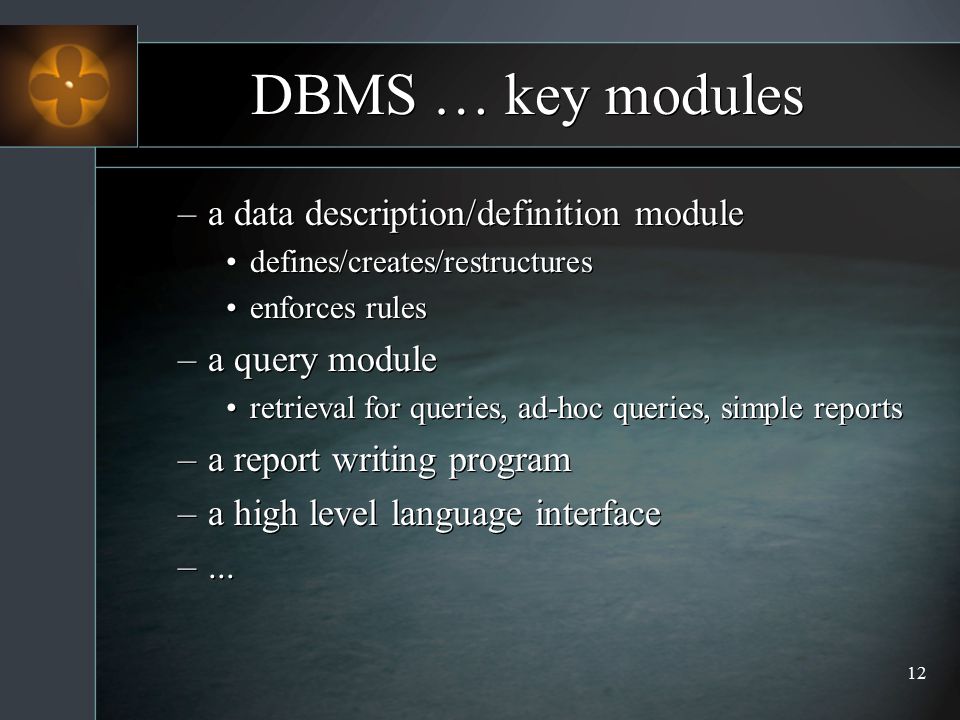

12 DBMS … key modules –a data description/definition module defines/creates/restructures enforces rules –a query module retrieval for queries, ad-hoc queries, simple reports –a report writing program –a high level language interface –... –a data description/definition module defines/creates/restructures enforces rules –a query module retrieval for queries, ad-hoc queries, simple reports –a report writing program –a high level language interface –...
13

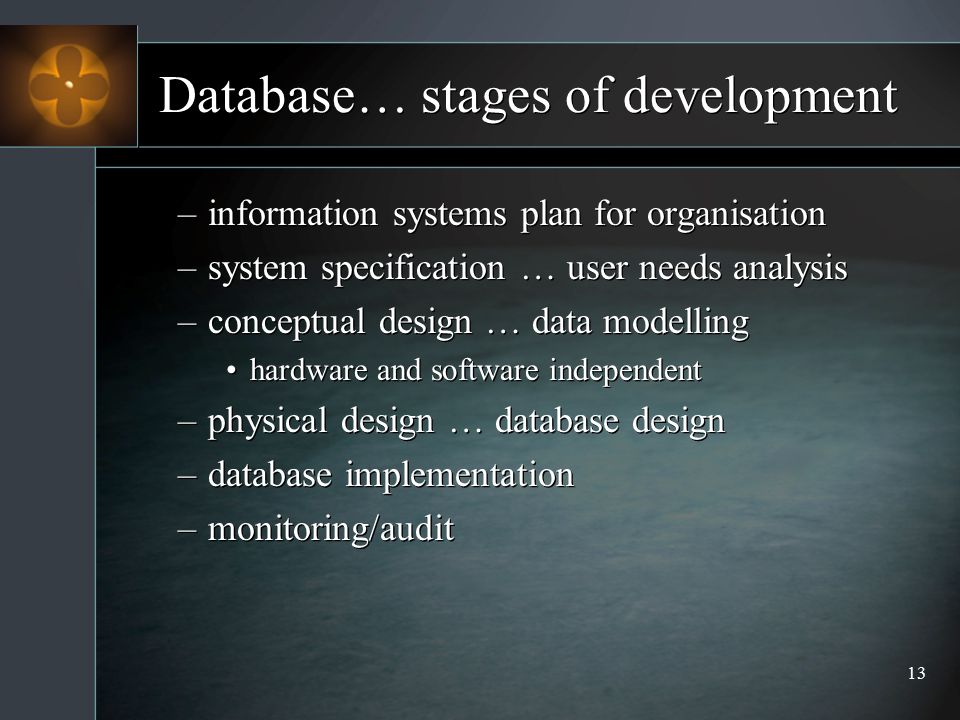

13 Database… stages of development –information systems plan for organisation –system specification … user needs analysis –conceptual design … data modelling hardware and software independent –physical design … database design –database implementation –monitoring/audit –information systems plan for organisation –system specification … user needs analysis –conceptual design … data modelling hardware and software independent –physical design … database design –database implementation –monitoring/audit
14

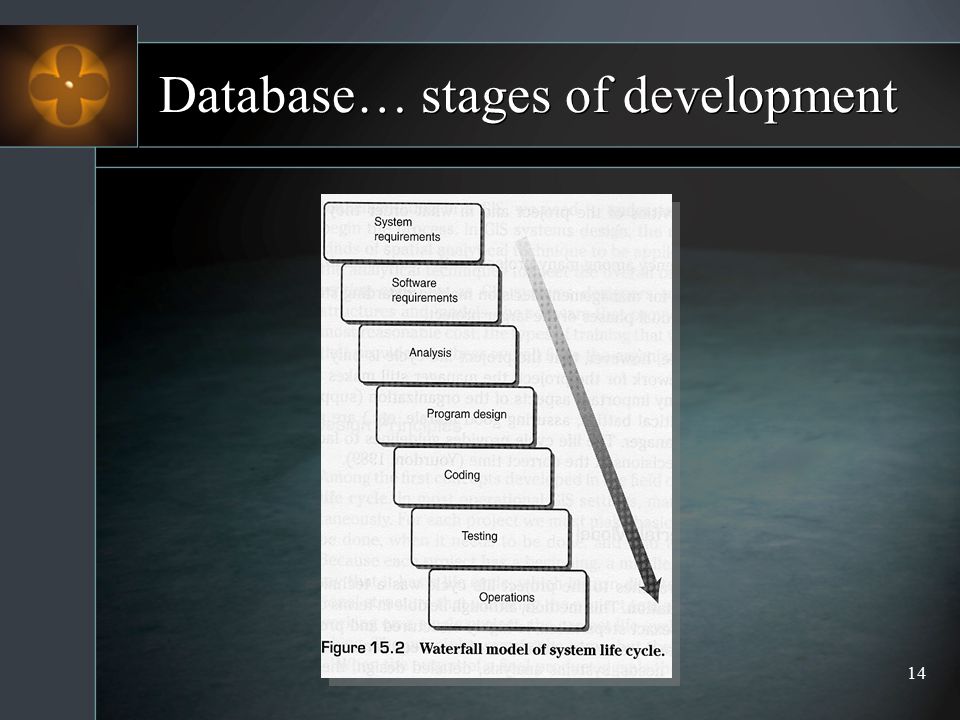

14 Database… stages of development
15

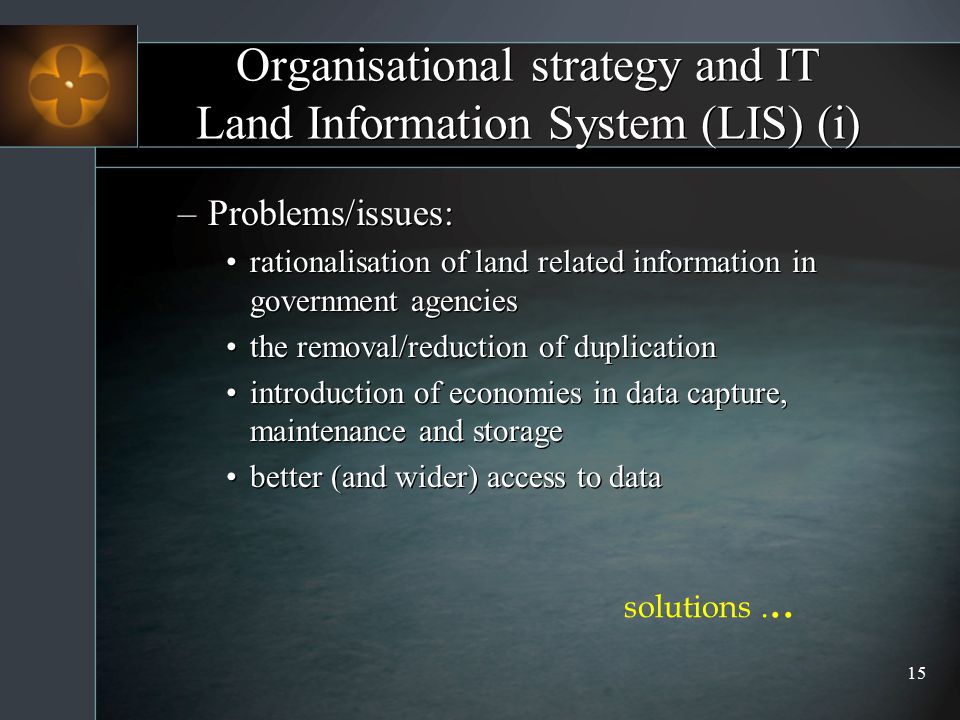

15 Organisational strategy and IT Land Information System (LIS) (i) –Problems/issues: rationalisation of land related information in government agencies the removal/reduction of duplication introduction of economies in data capture, maintenance and storage better (and wider) access to data –Problems/issues: rationalisation of land related information in government agencies the removal/reduction of duplication introduction of economies in data capture, maintenance and storage better (and wider) access to data solutions...
16

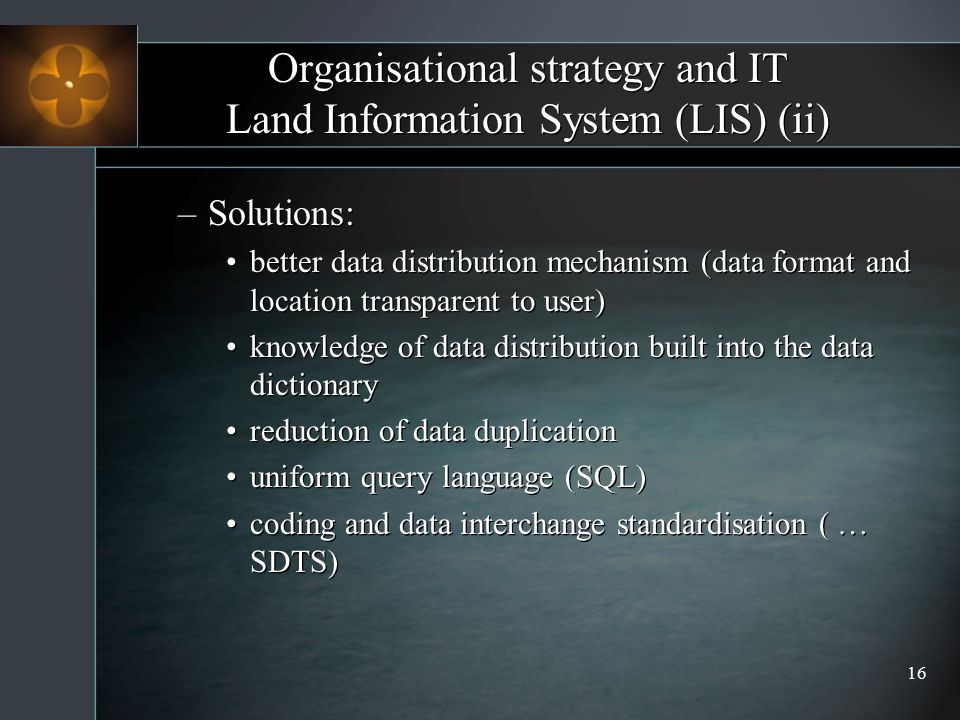

16 Organisational strategy and IT Land Information System (LIS) (ii) –Solutions: better data distribution mechanism (data format and location transparent to user) knowledge of data distribution built into the data dictionary reduction of data duplication uniform query language (SQL) coding and data interchange standardisation ( … SDTS) –Solutions: better data distribution mechanism (data format and location transparent to user) knowledge of data distribution built into the data dictionary reduction of data duplication uniform query language (SQL) coding and data interchange standardisation ( … SDTS)

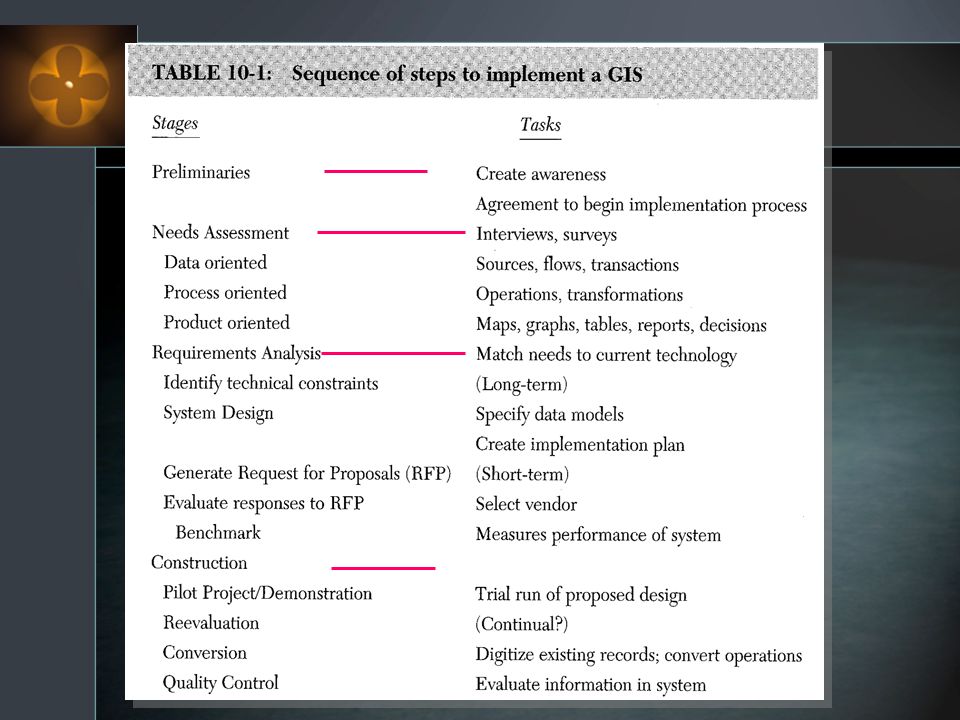

18
18 Database types - a history Evolution of Database technology
19

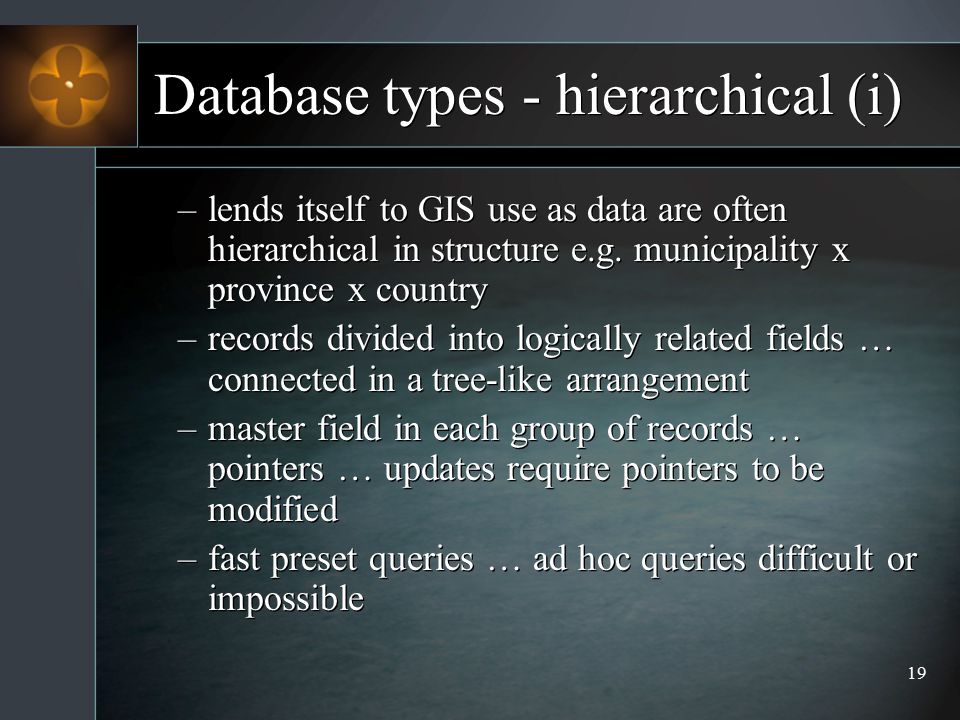

19 Database types - hierarchical (i) –lends itself to GIS use as data are often hierarchical in structure e.g. municipality x province x country –records divided into logically related fields … connected in a tree-like arrangement –master field in each group of records … pointers … updates require pointers to be modified –fast preset queries … ad hoc queries difficult or impossible –lends itself to GIS use as data are often hierarchical in structure e.g. municipality x province x country –records divided into logically related fields … connected in a tree-like arrangement –master field in each group of records … pointers … updates require pointers to be modified –fast preset queries … ad hoc queries difficult or impossible
20

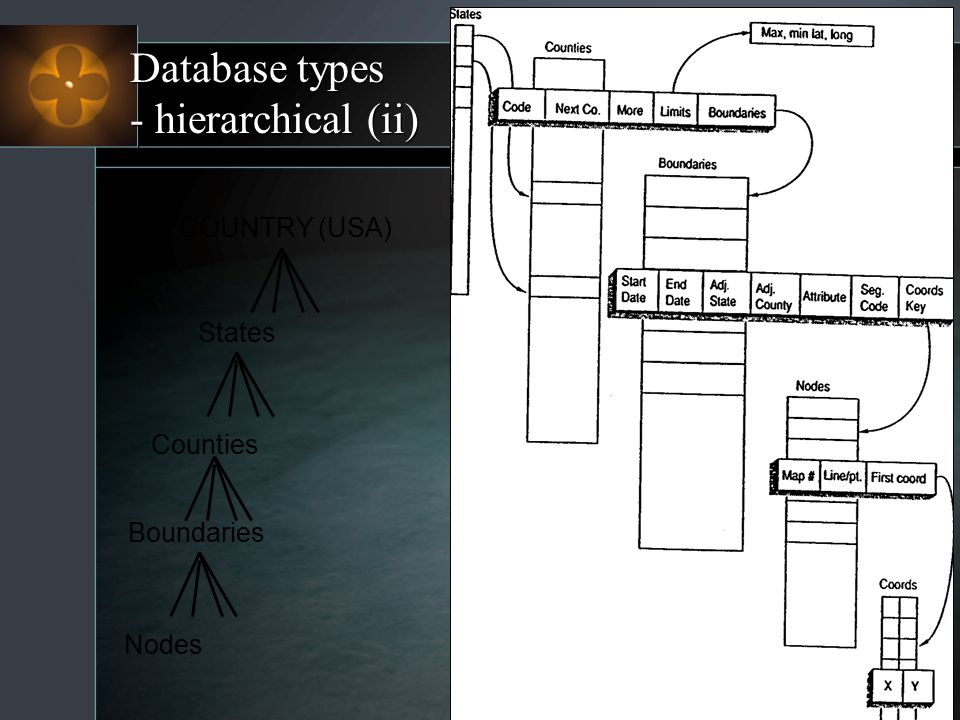

20 Database types - hierarchical (ii) COUNTRY (USA) States Counties Boundaries Nodes
21

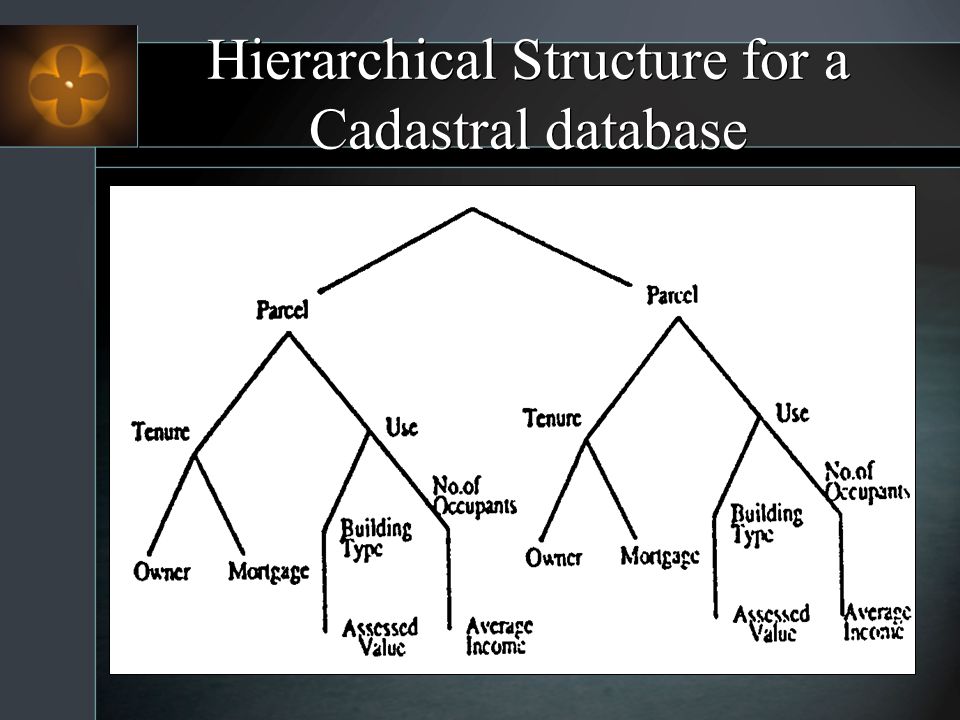

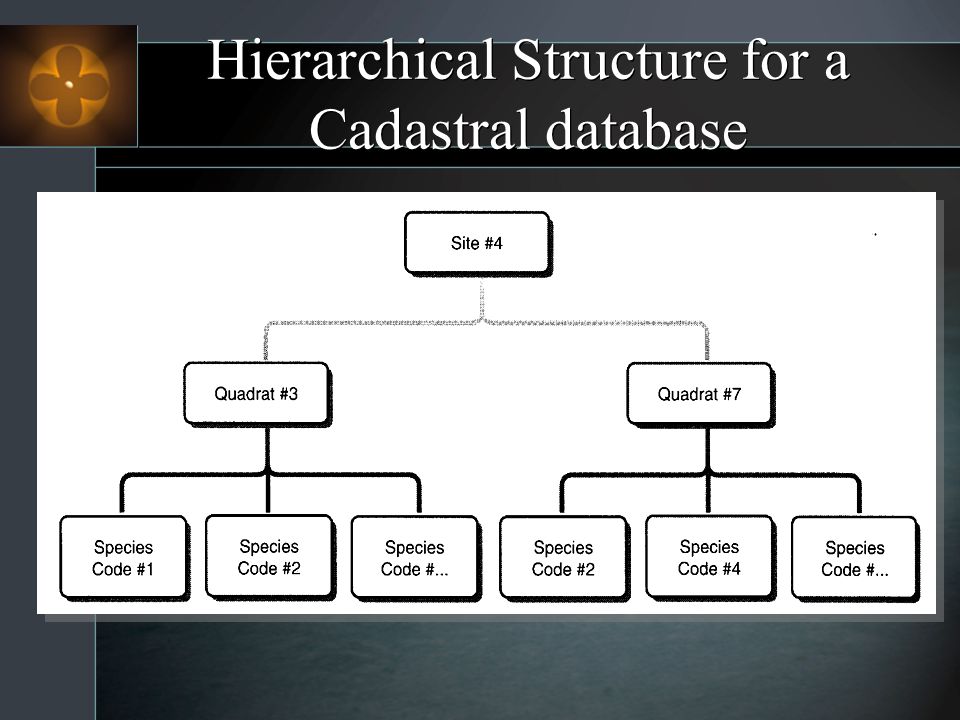

Hierarchical Structure for a Cadastral database
23

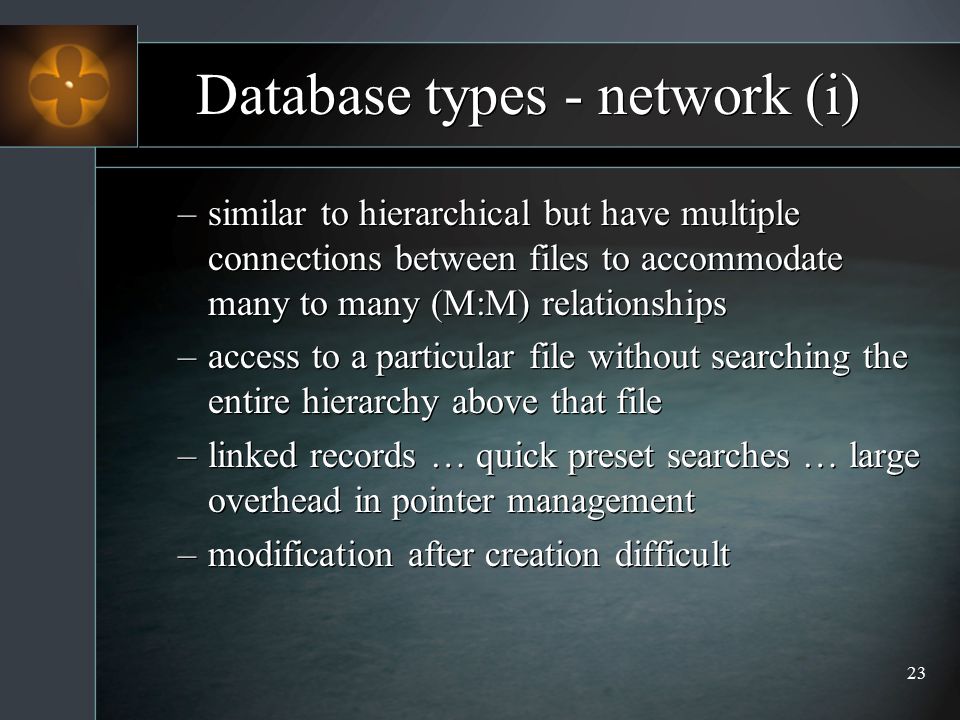

23 Database types - network (i) –similar to hierarchical but have multiple connections between files to accommodate many to many (M:M) relationships –access to a particular file without searching the entire hierarchy above that file –linked records … quick preset searches … large overhead in pointer management –modification after creation difficult –similar to hierarchical but have multiple connections between files to accommodate many to many (M:M) relationships –access to a particular file without searching the entire hierarchy above that file –linked records … quick preset searches … large overhead in pointer management –modification after creation difficult
24

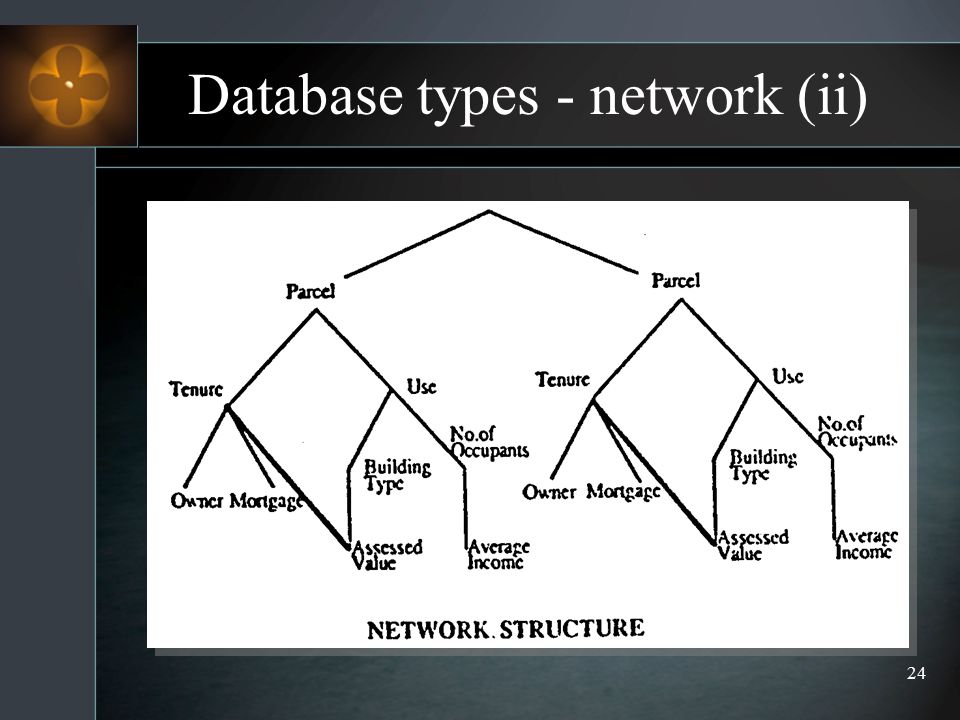

24 Database types - network (ii)
25

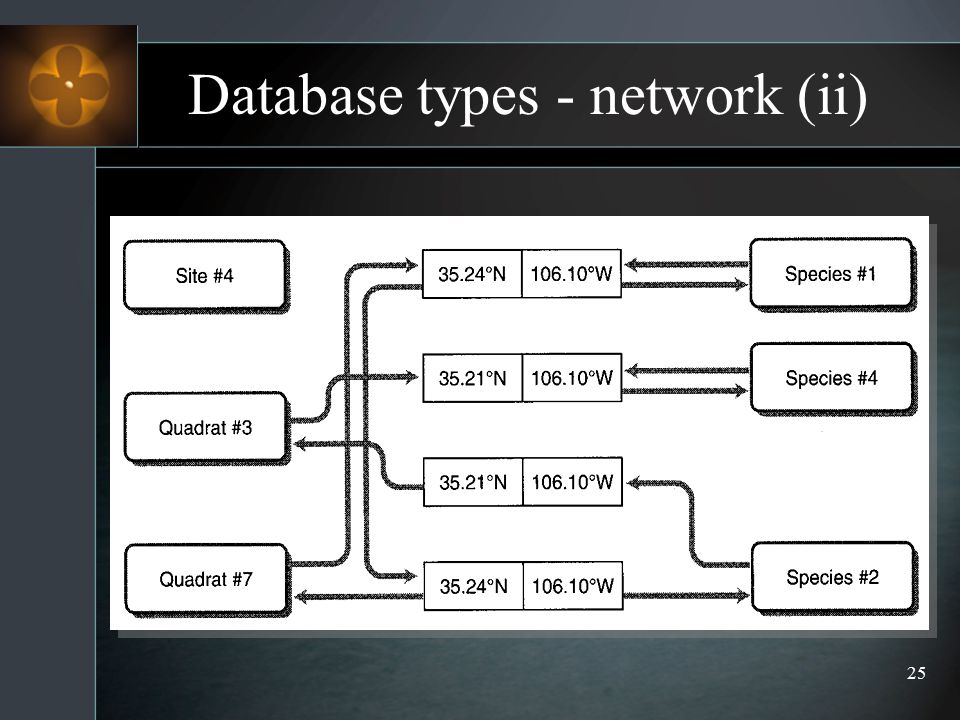

25 Database types - network (ii)
26

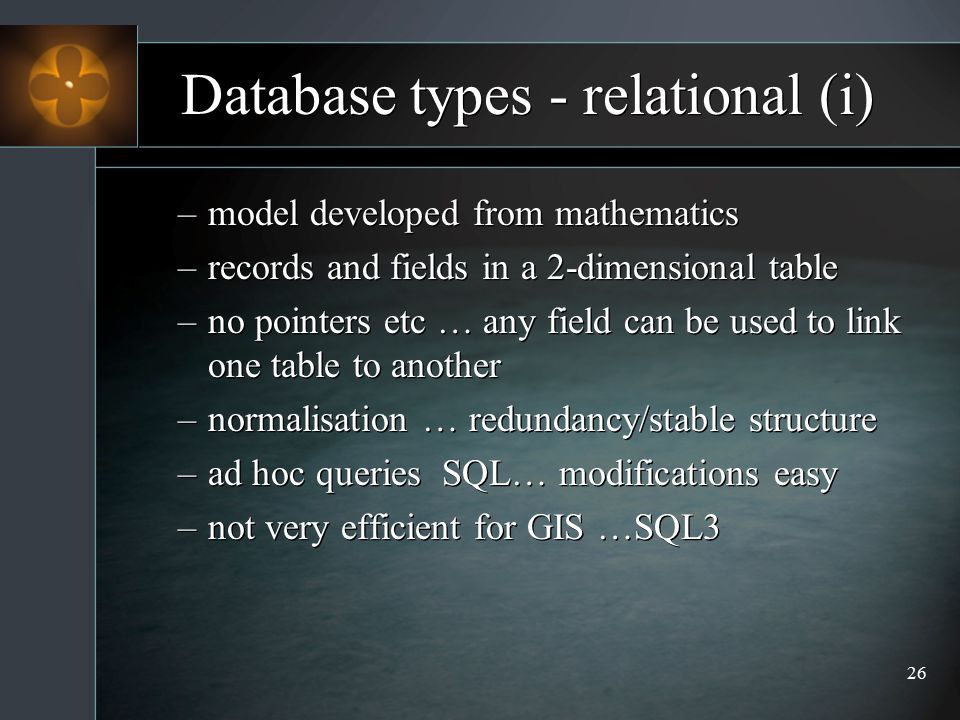

26 Database types - relational (i) –model developed from mathematics –records and fields in a 2-dimensional table –no pointers etc … any field can be used to link one table to another –normalisation … redundancy/stable structure –ad hoc queries SQL… modifications easy –not very efficient for GIS …SQL3 –model developed from mathematics –records and fields in a 2-dimensional table –no pointers etc … any field can be used to link one table to another –normalisation … redundancy/stable structure –ad hoc queries SQL… modifications easy –not very efficient for GIS …SQL3
27

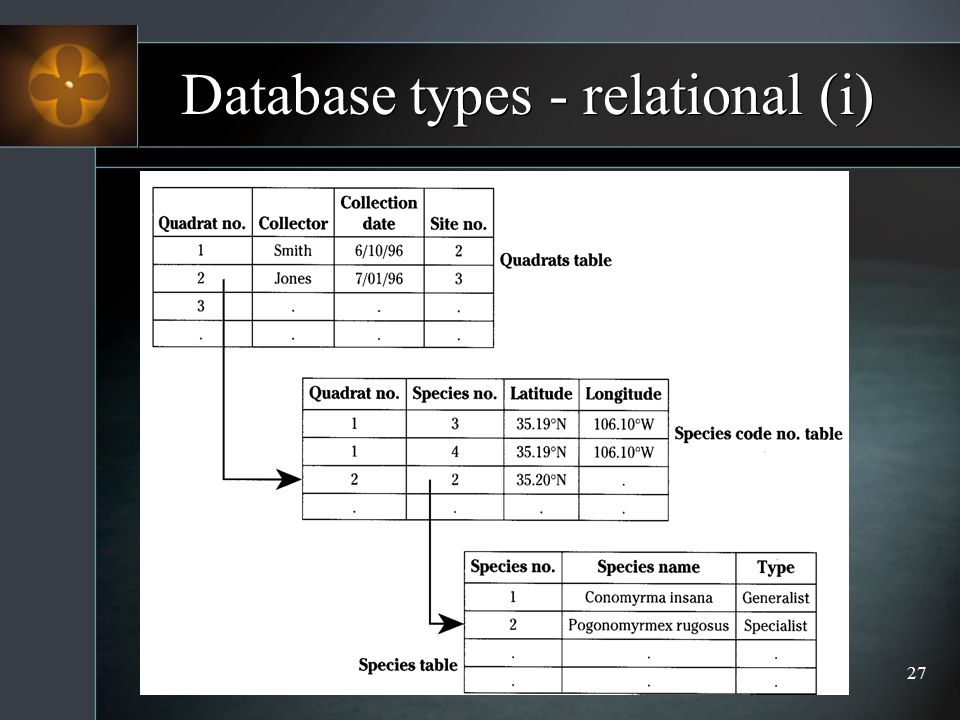

27 Database types - relational (i)
28

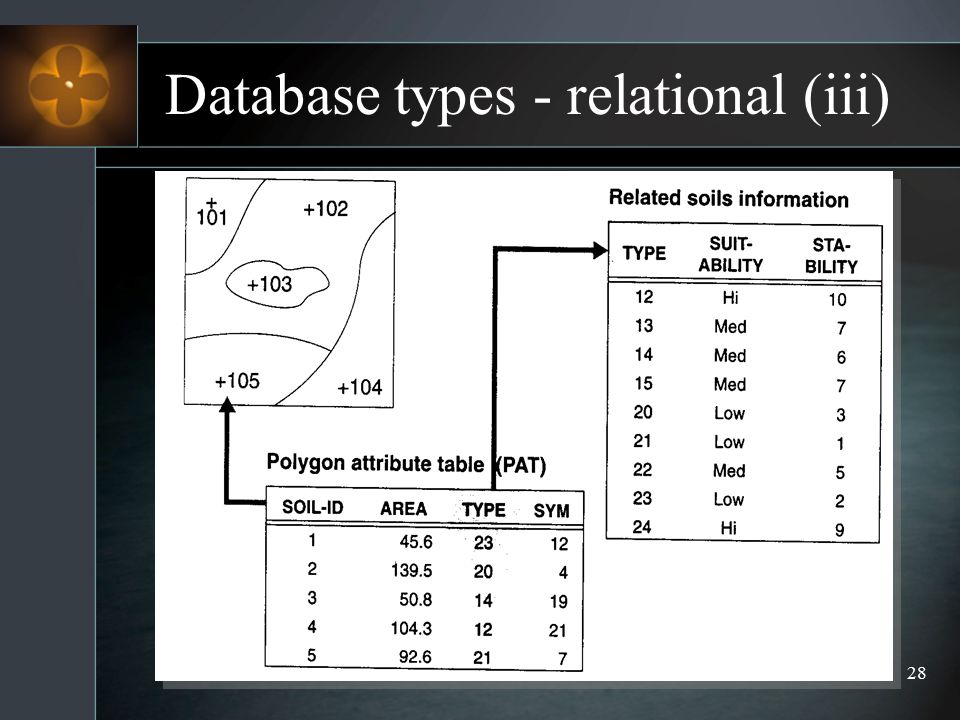

28 Database types - relational (iii)
29

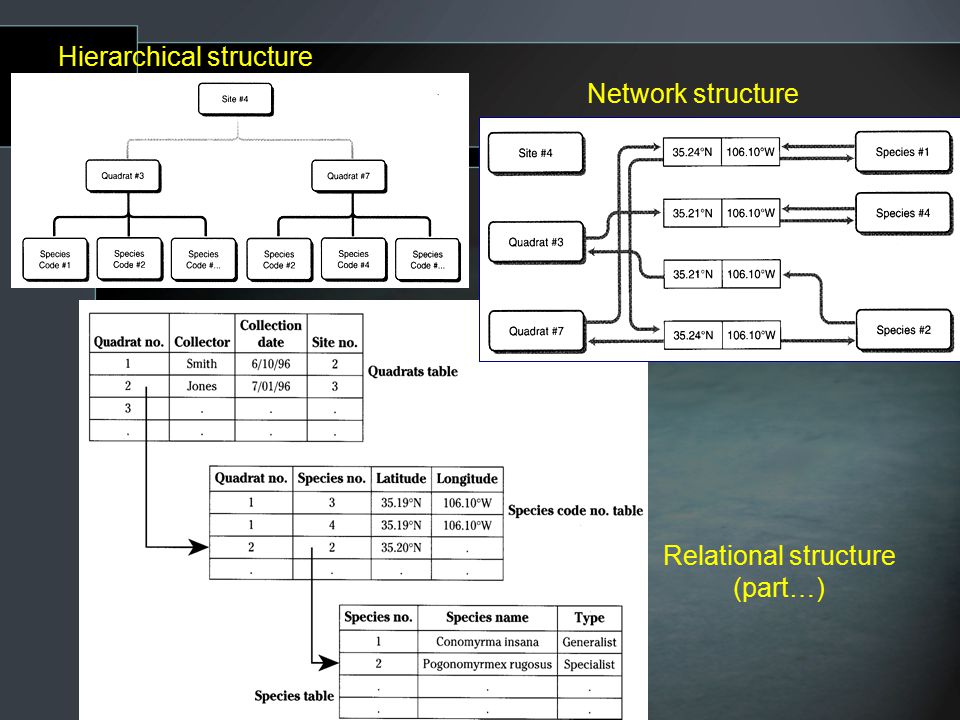

Hierarchical structure Network structure Relational structure (part…)
30

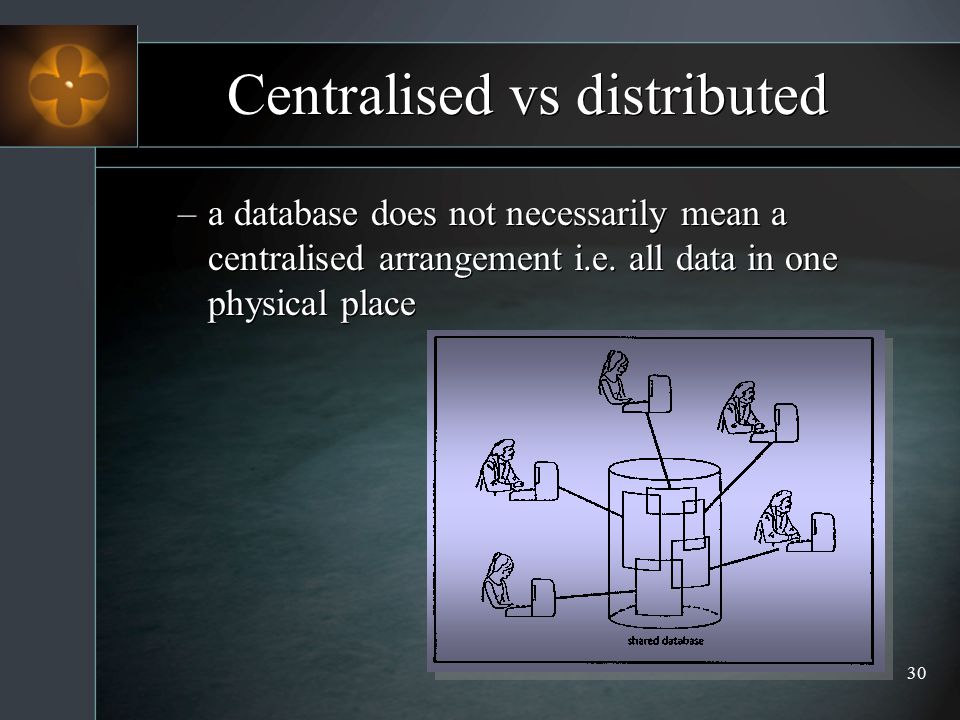

30 Centralised vs distributed –a database does not necessarily mean a centralised arrangement i.e. all data in one physical place
31

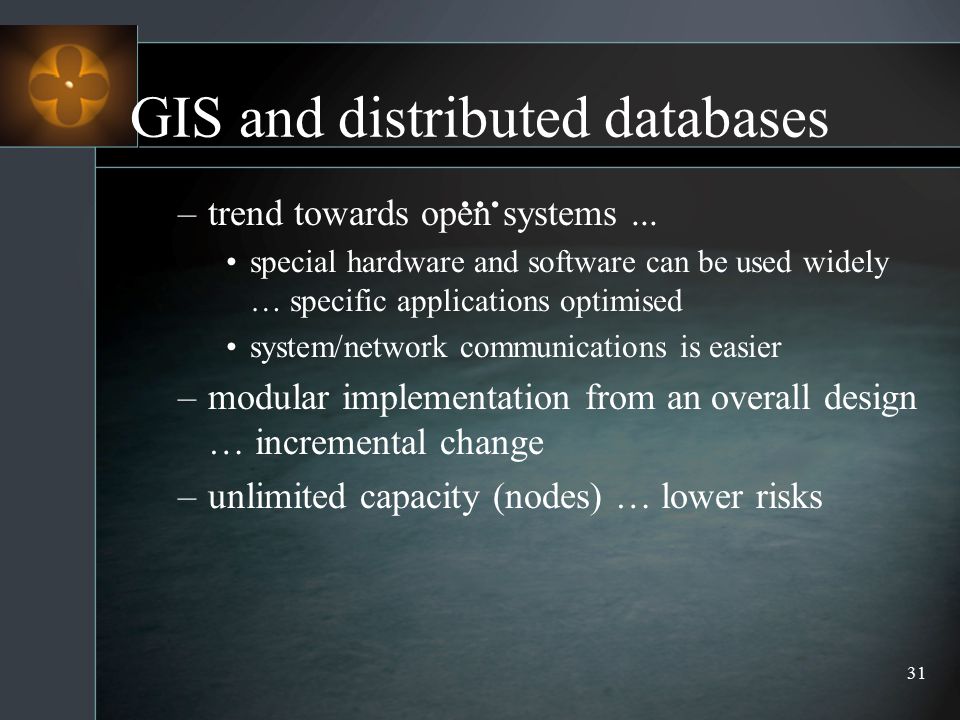

31 GIS and distributed databases... –trend towards open systems... special hardware and software can be used widely … specific applications optimised system/network communications is easier –modular implementation from an overall design … incremental change –unlimited capacity (nodes) … lower risks –trend towards open systems... special hardware and software can be used widely … specific applications optimised system/network communications is easier –modular implementation from an overall design … incremental change –unlimited capacity (nodes) … lower risks
32

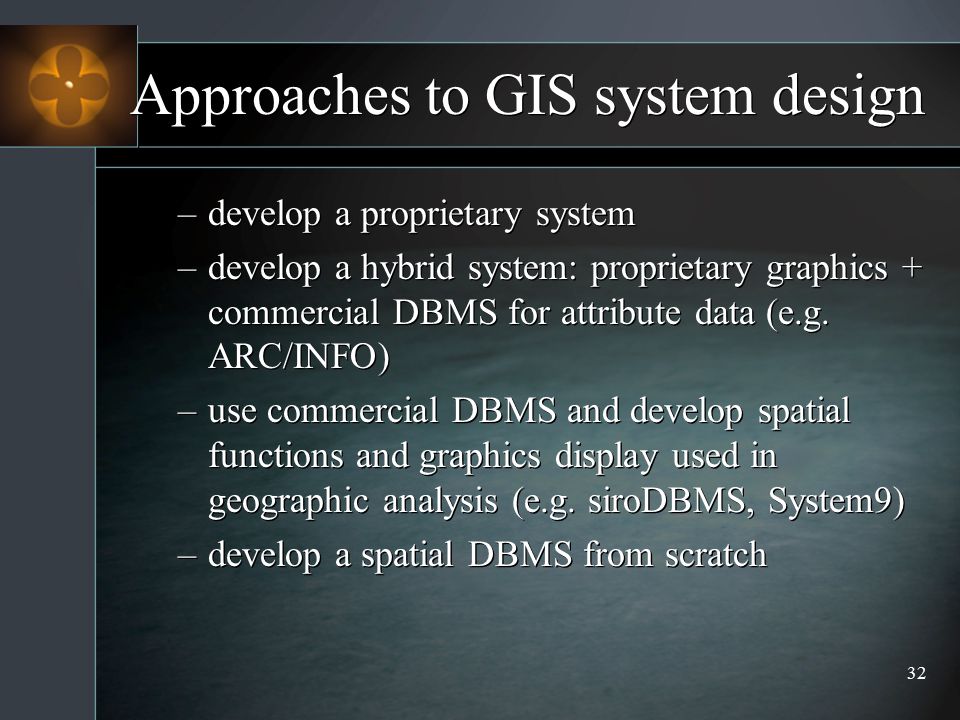

32 Approaches to GIS system design –develop a proprietary system –develop a hybrid system: proprietary graphics + commercial DBMS for attribute data (e.g. ARC/INFO) –use commercial DBMS and develop spatial functions and graphics display used in geographic analysis (e.g. siroDBMS, System9) –develop a spatial DBMS from scratch –develop a proprietary system –develop a hybrid system: proprietary graphics + commercial DBMS for attribute data (e.g. ARC/INFO) –use commercial DBMS and develop spatial functions and graphics display used in geographic analysis (e.g. siroDBMS, System9) –develop a spatial DBMS from scratch
33

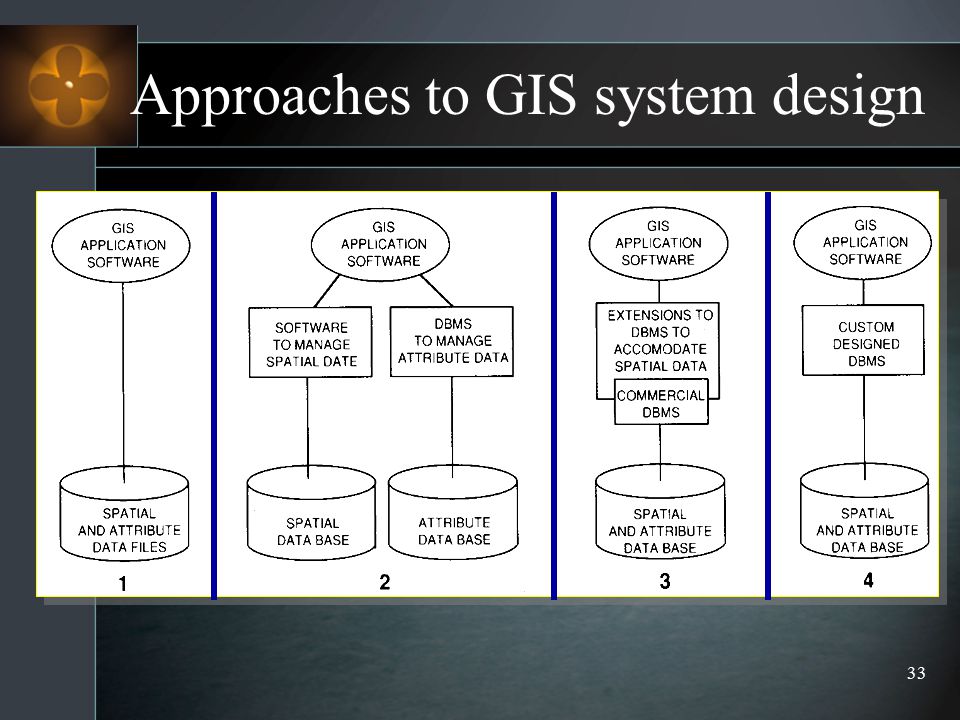

33 Approaches to GIS system design
34

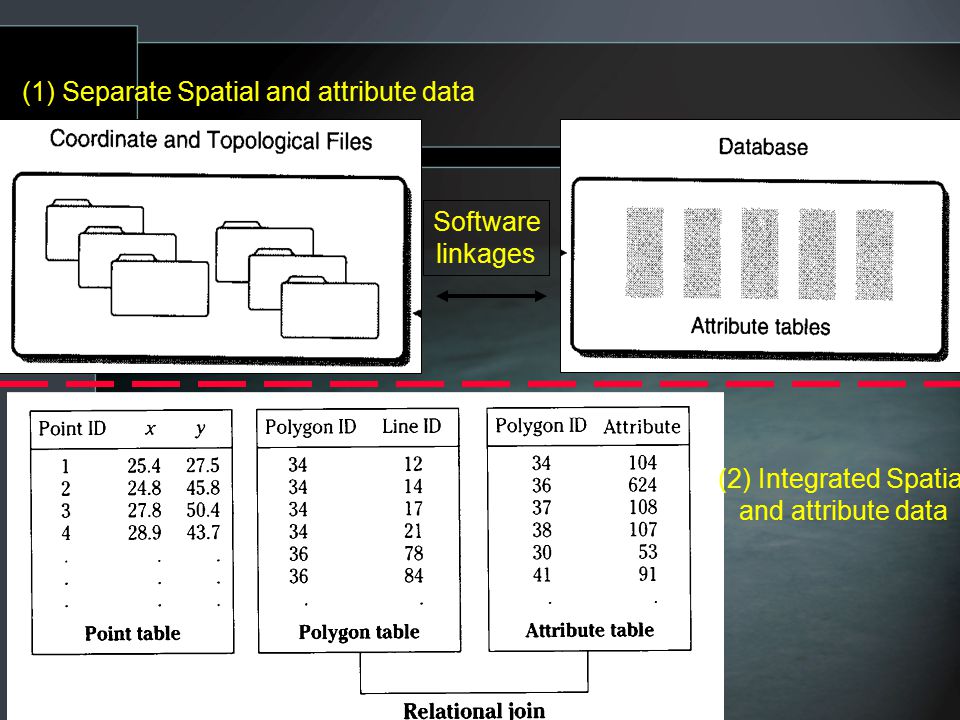

Software linkages (1) Separate Spatial and attribute data (2) Integrated Spatial and attribute data
35
35 GIS databases … some problems (i) –centralised risk centralisation demands better quality control other higher potential for disaster –cost large DBMSs are expensive to design, implement and operate piecemeal design is difficult –complexity need to keep track of complex hardware and software need to keep track of graphical as well as attribute data and the links –centralised risk centralisation demands better quality control other higher potential for disaster –cost large DBMSs are expensive to design, implement and operate piecemeal design is difficult –complexity need to keep track of complex hardware and software need to keep track of graphical as well as attribute data and the links
36

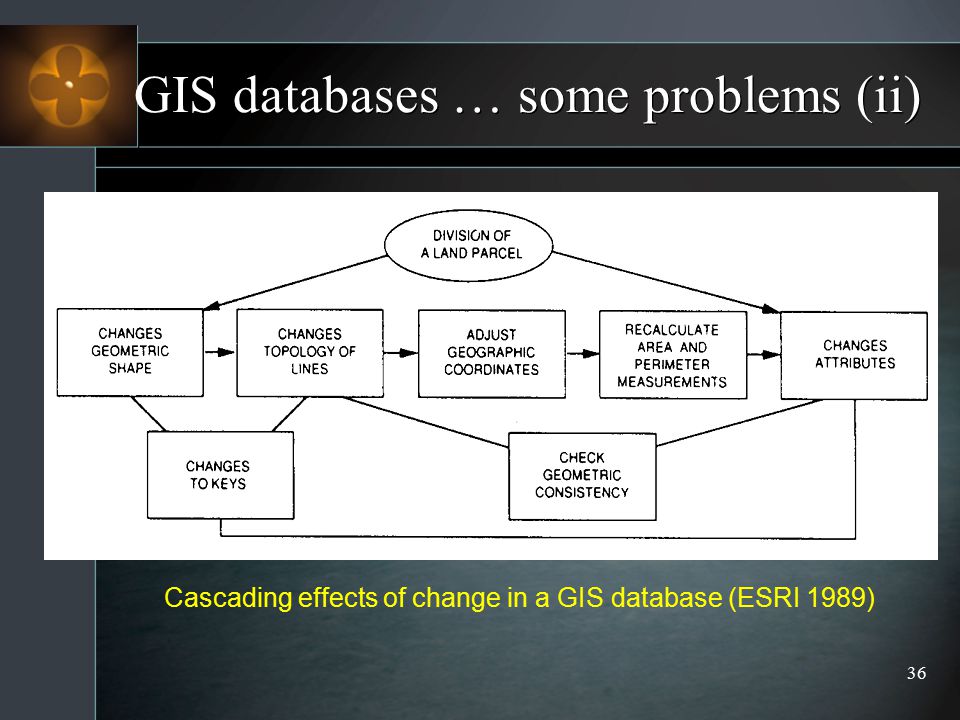

36 GIS databases … some problems (ii) Cascading effects of change in a GIS database (ESRI 1989)
37

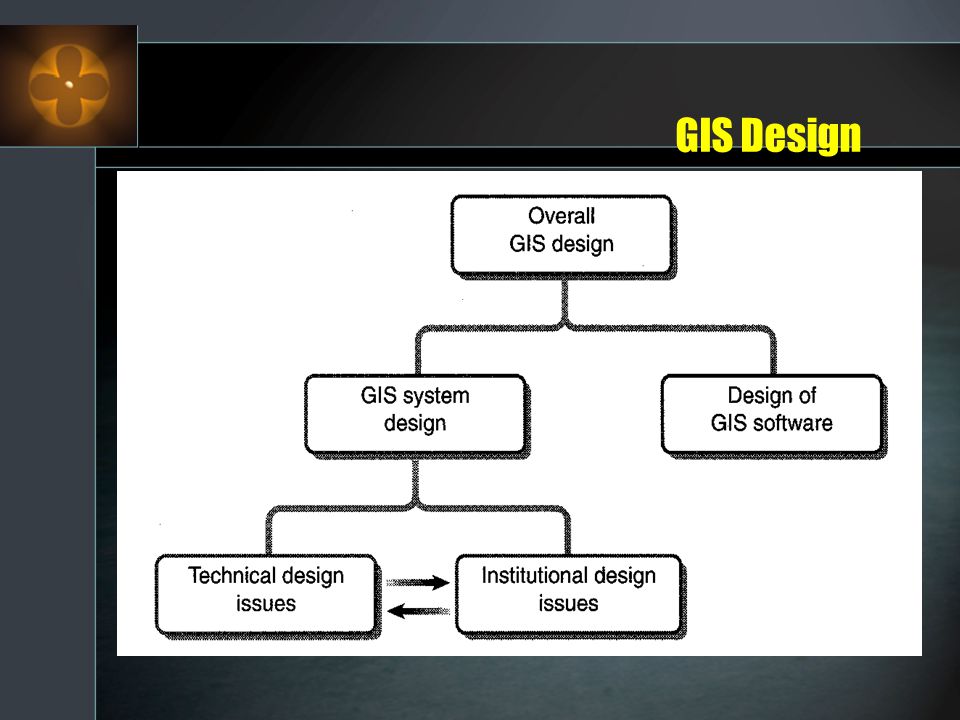

GIS Design
38
38 GIS database design guide
39

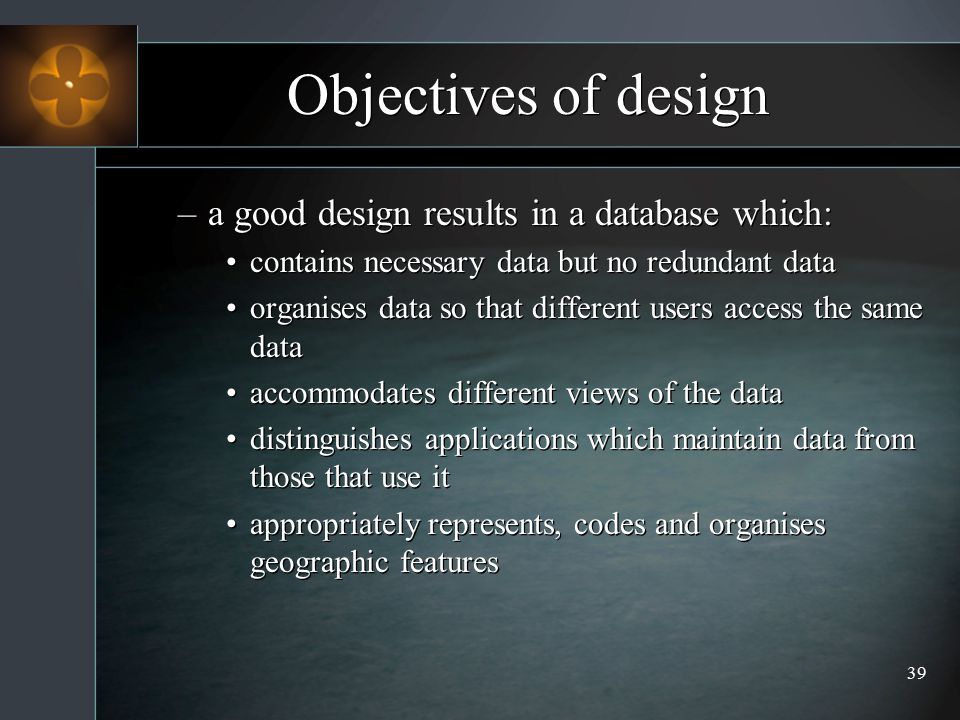

39 Objectives of design –a good design results in a database which: contains necessary data but no redundant data organises data so that different users access the same data accommodates different views of the data distinguishes applications which maintain data from those that use it appropriately represents, codes and organises geographic features –a good design results in a database which: contains necessary data but no redundant data organises data so that different users access the same data accommodates different views of the data distinguishes applications which maintain data from those that use it appropriately represents, codes and organises geographic features
40

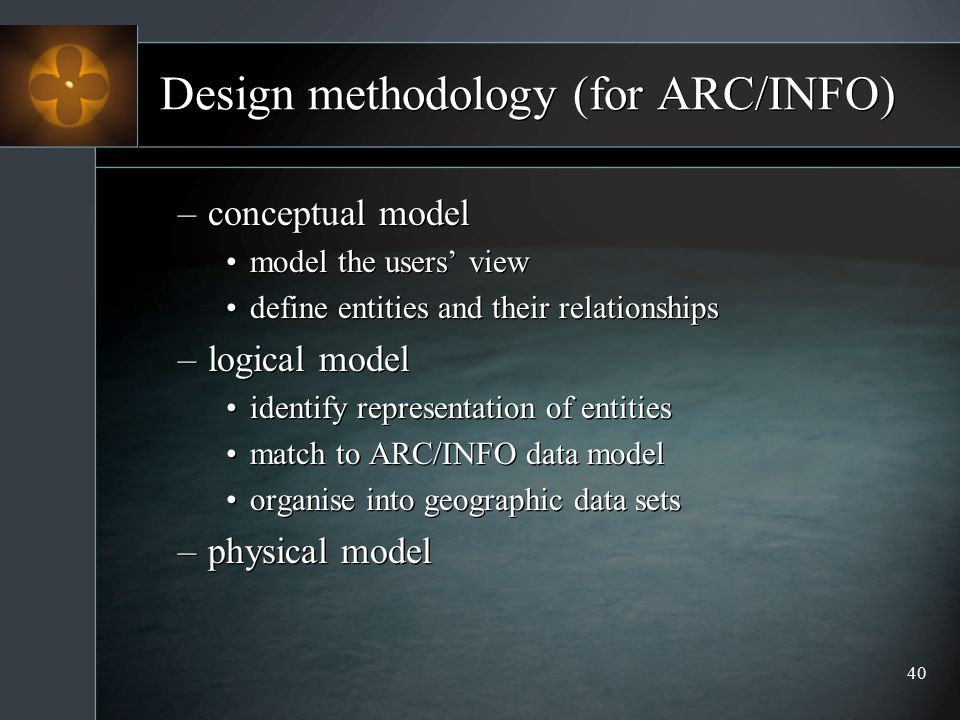

40 Design methodology (for ARC/INFO) –conceptual model model the users’ view define entities and their relationships –logical model identify representation of entities match to ARC/INFO data model organise into geographic data sets –physical model –conceptual model model the users’ view define entities and their relationships –logical model identify representation of entities match to ARC/INFO data model organise into geographic data sets –physical model
41

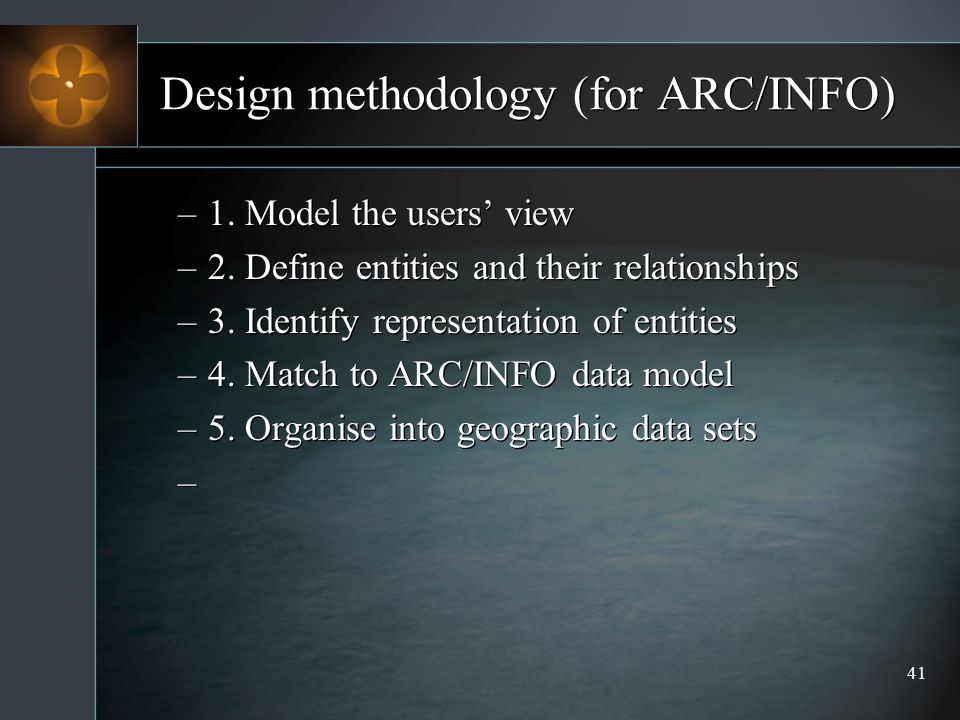

41 Design methodology (for ARC/INFO) –1. Model the users’ view –2. Define entities and their relationships –3. Identify representation of entities –4. Match to ARC/INFO data model –5. Organise into geographic data sets – –1. Model the users’ view –2. Define entities and their relationships –3. Identify representation of entities –4. Match to ARC/INFO data model –5. Organise into geographic data sets –
42

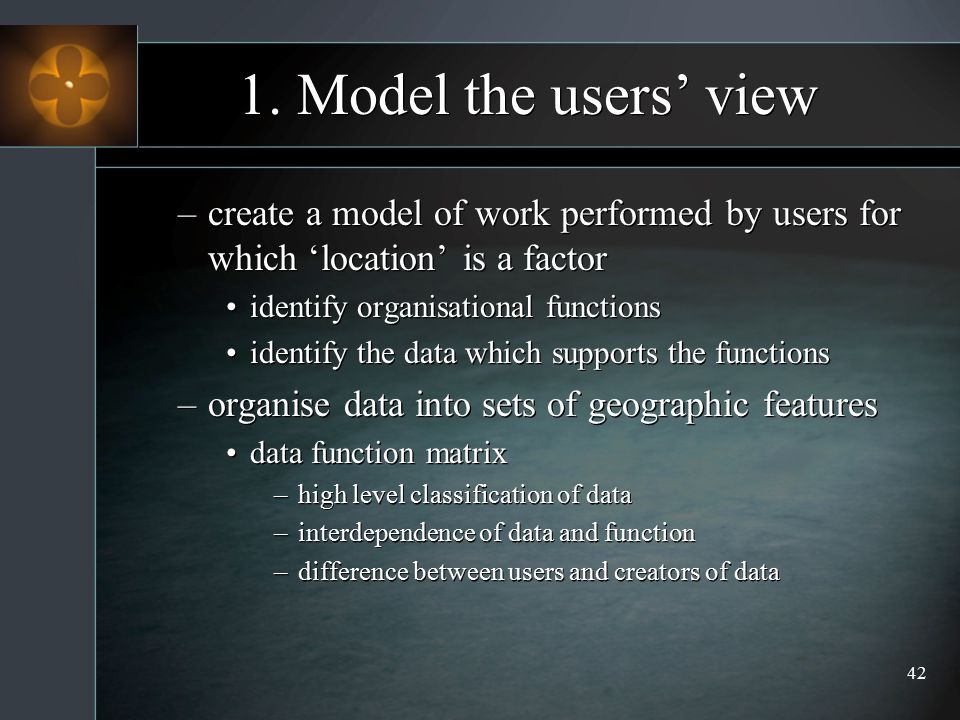

42 1. Model the users’ view –create a model of work performed by users for which ‘location’ is a factor identify organisational functions identify the data which supports the functions –organise data into sets of geographic features data function matrix –high level classification of data –interdependence of data and function –difference between users and creators of data –create a model of work performed by users for which ‘location’ is a factor identify organisational functions identify the data which supports the functions –organise data into sets of geographic features data function matrix –high level classification of data –interdependence of data and function –difference between users and creators of data
43

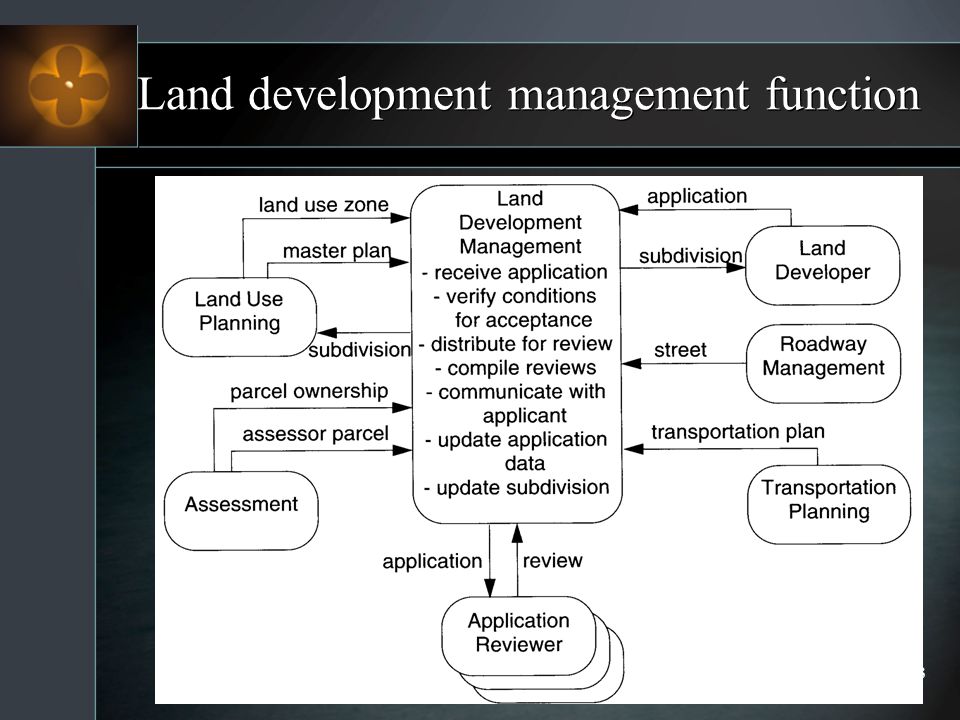

43 Land development management function
44

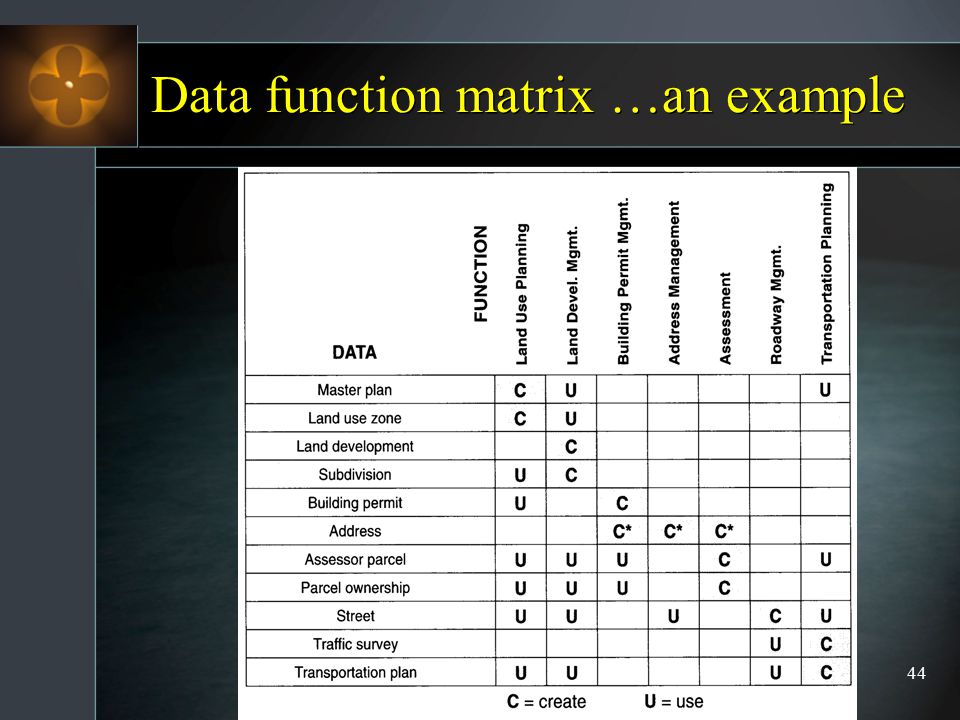

44 Data function matrix …an example
45
45 2. Define entities and their relationships –entities: distinguishable objects which have a common set of properties identify and describe entities identify and describe the relationship among these entities document the process –diagrams –data dictionary Normalise the data –entities: distinguishable objects which have a common set of properties identify and describe entities identify and describe the relationship among these entities document the process –diagrams –data dictionary Normalise the data
46

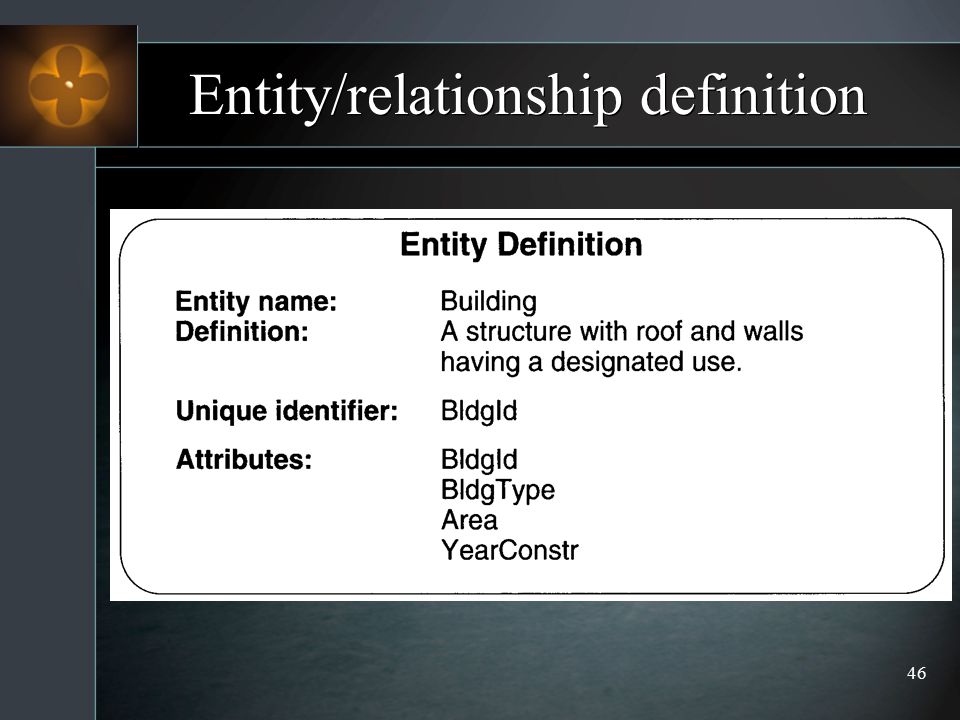

46 Entity/relationship definition
47

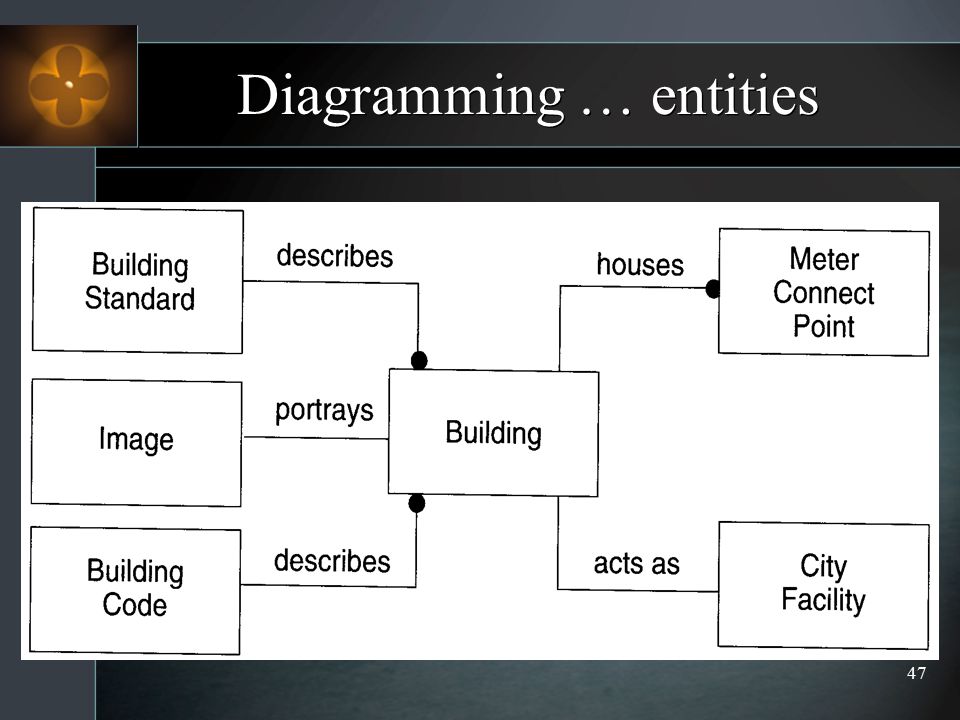

47 Diagramming … entities
48

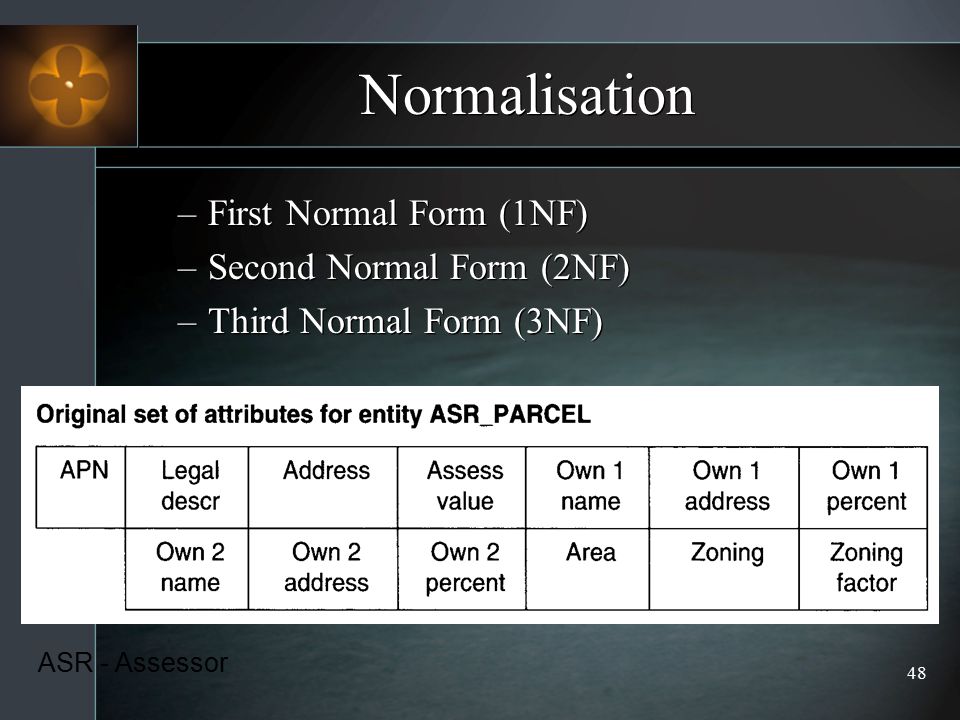

48 Normalisation –First Normal Form (1NF) –Second Normal Form (2NF) –Third Normal Form (3NF) –First Normal Form (1NF) –Second Normal Form (2NF) –Third Normal Form (3NF) ASR - Assessor
49
Underlying entities... Parcel Zoning Owner Ownership
50

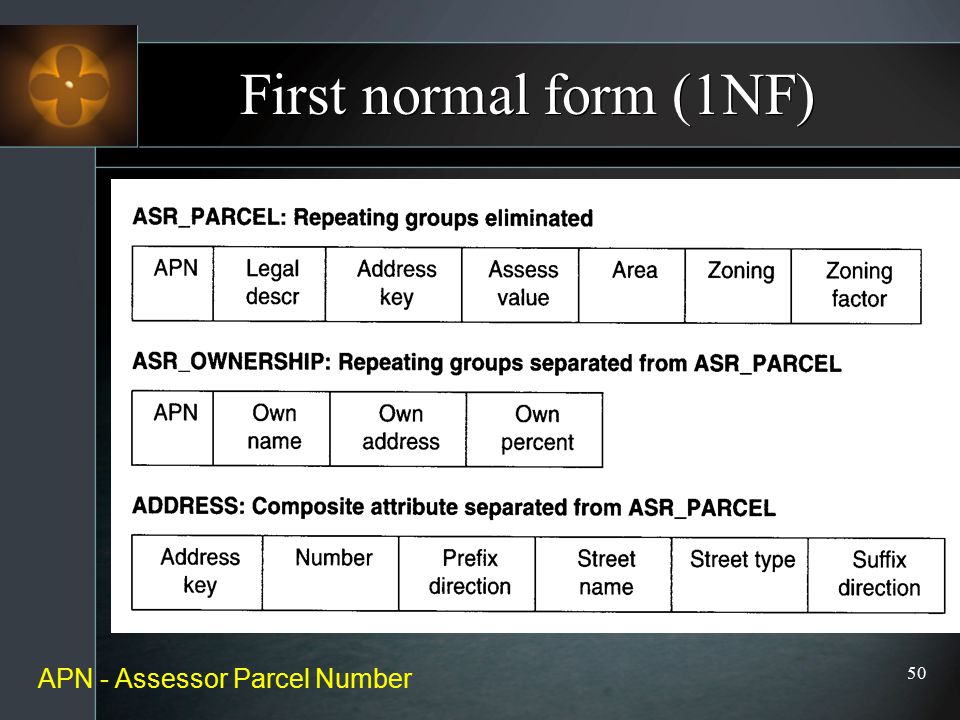

50 First normal form (1NF) APN - Assessor Parcel Number
51

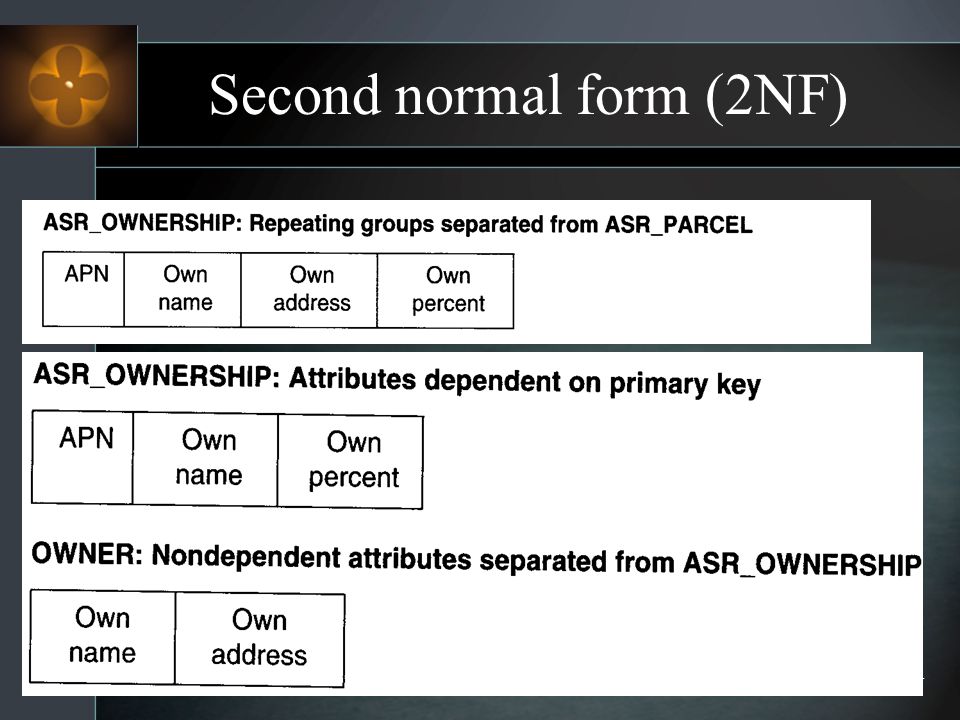

51 Second normal form (2NF)
52

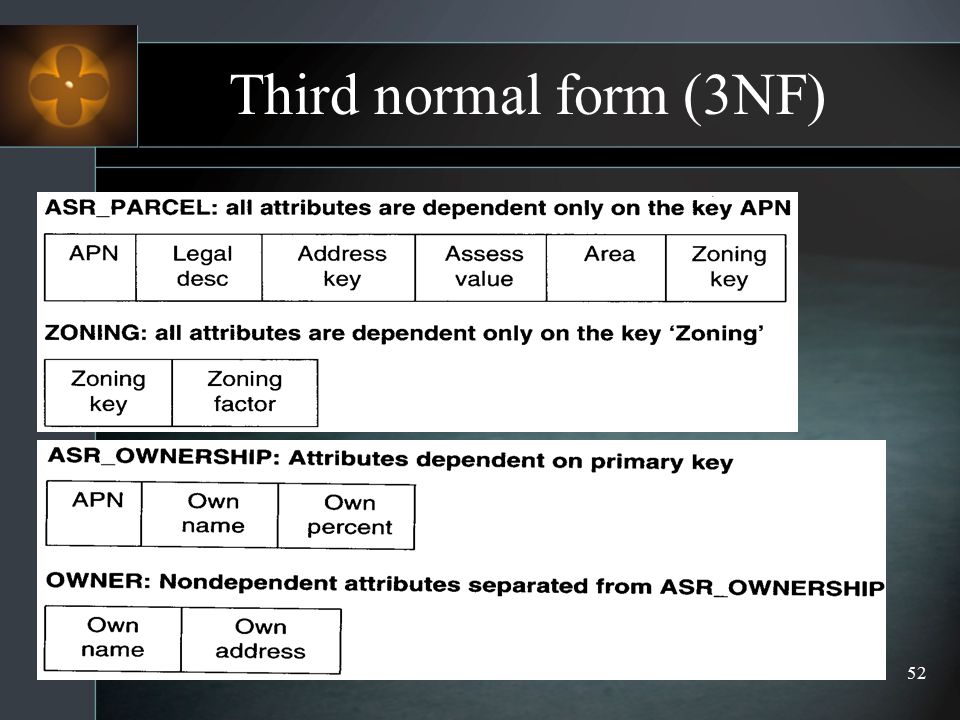

52 Third normal form (3NF)
53

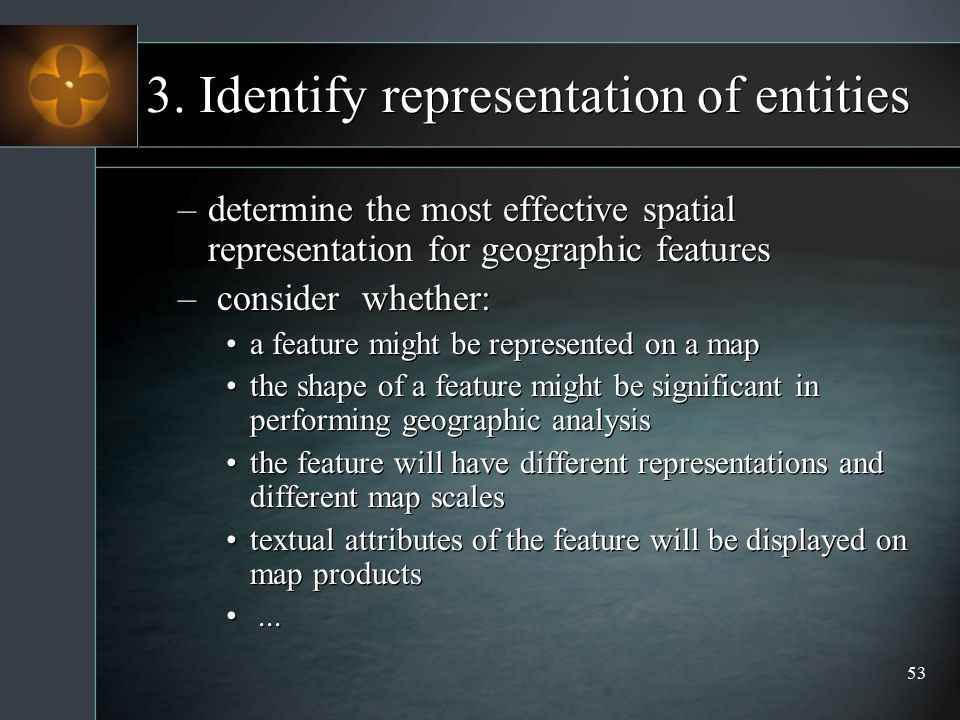

53 3. Identify representation of entities –determine the most effective spatial representation for geographic features – consider whether: a feature might be represented on a map the shape of a feature might be significant in performing geographic analysis the feature will have different representations and different map scales textual attributes of the feature will be displayed on map products... –determine the most effective spatial representation for geographic features – consider whether: a feature might be represented on a map the shape of a feature might be significant in performing geographic analysis the feature will have different representations and different map scales textual attributes of the feature will be displayed on map products...
54

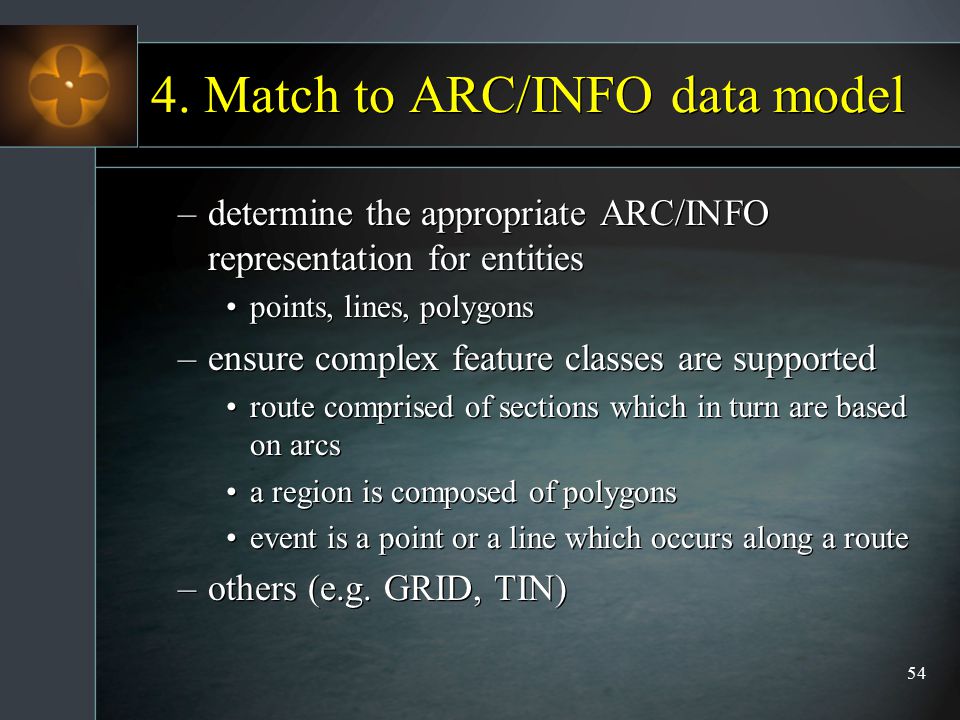

54 4. Match to ARC/INFO data model –determine the appropriate ARC/INFO representation for entities points, lines, polygons –ensure complex feature classes are supported route comprised of sections which in turn are based on arcs a region is composed of polygons event is a point or a line which occurs along a route –others (e.g. GRID, TIN) –determine the appropriate ARC/INFO representation for entities points, lines, polygons –ensure complex feature classes are supported route comprised of sections which in turn are based on arcs a region is composed of polygons event is a point or a line which occurs along a route –others (e.g. GRID, TIN)
55
55 Matching to ARC/INFO data model
56
56 5. Organise into geographic data sets –to identify and name the geographic data sets that will contain the various entities: define the contents of geographic data sets (coverages, grids etc) name workspaces, geographic data sets, entities and attributes complete entity definitions add cartographic text and lookup tables –to identify and name the geographic data sets that will contain the various entities: define the contents of geographic data sets (coverages, grids etc) name workspaces, geographic data sets, entities and attributes complete entity definitions add cartographic text and lookup tables
57

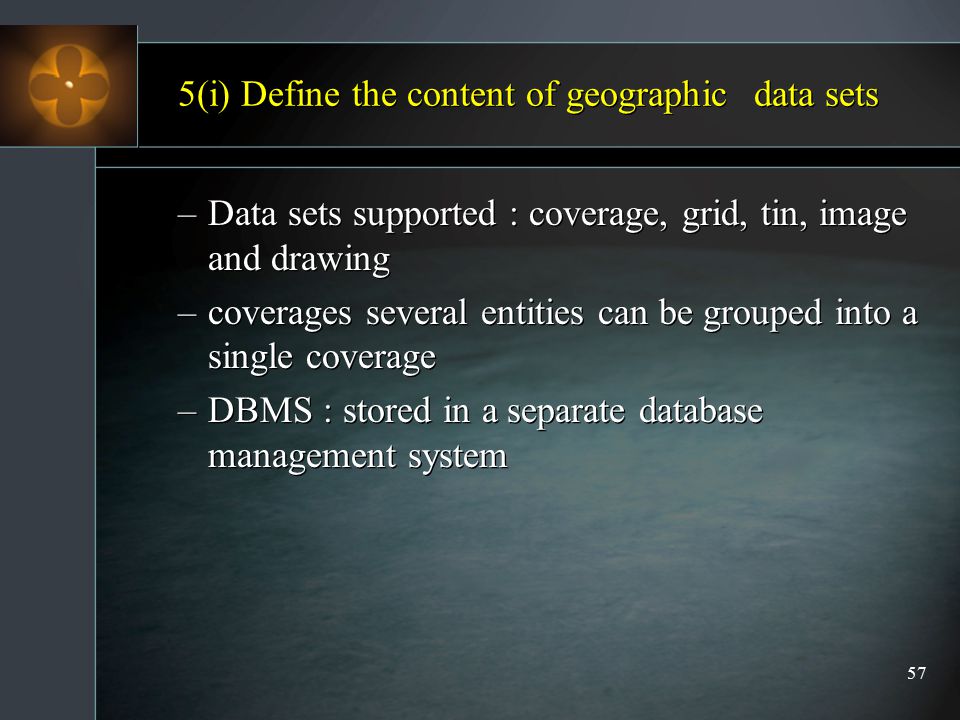

57 5(i) Define the content of geographic data sets –Data sets supported : coverage, grid, tin, image and drawing –coverages several entities can be grouped into a single coverage –DBMS : stored in a separate database management system –Data sets supported : coverage, grid, tin, image and drawing –coverages several entities can be grouped into a single coverage –DBMS : stored in a separate database management system
58

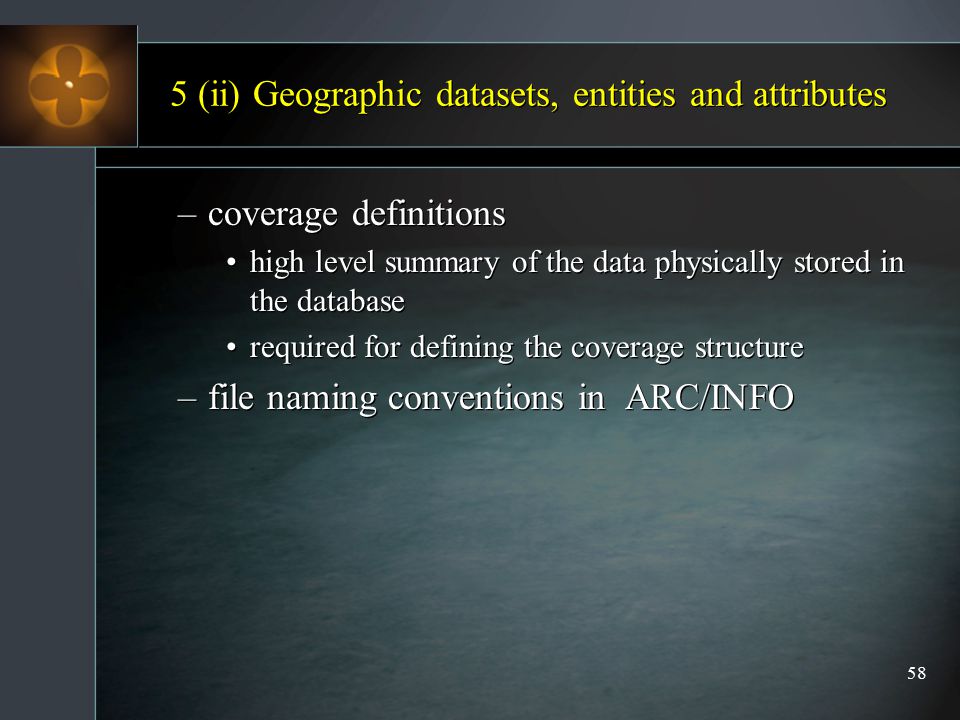

58 5 (ii) Geographic datasets, entities and attributes –coverage definitions high level summary of the data physically stored in the database required for defining the coverage structure –file naming conventions in ARC/INFO –coverage definitions high level summary of the data physically stored in the database required for defining the coverage structure –file naming conventions in ARC/INFO
59

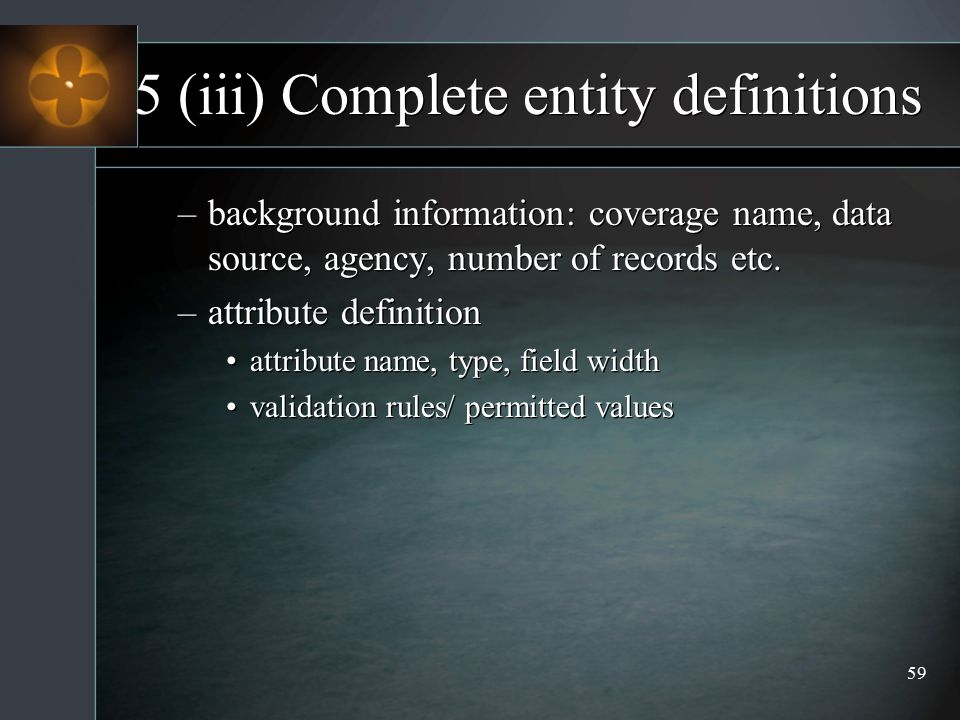

59 5 (iii) Complete entity definitions –background information: coverage name, data source, agency, number of records etc. –attribute definition attribute name, type, field width validation rules/ permitted values –background information: coverage name, data source, agency, number of records etc. –attribute definition attribute name, type, field width validation rules/ permitted values
60

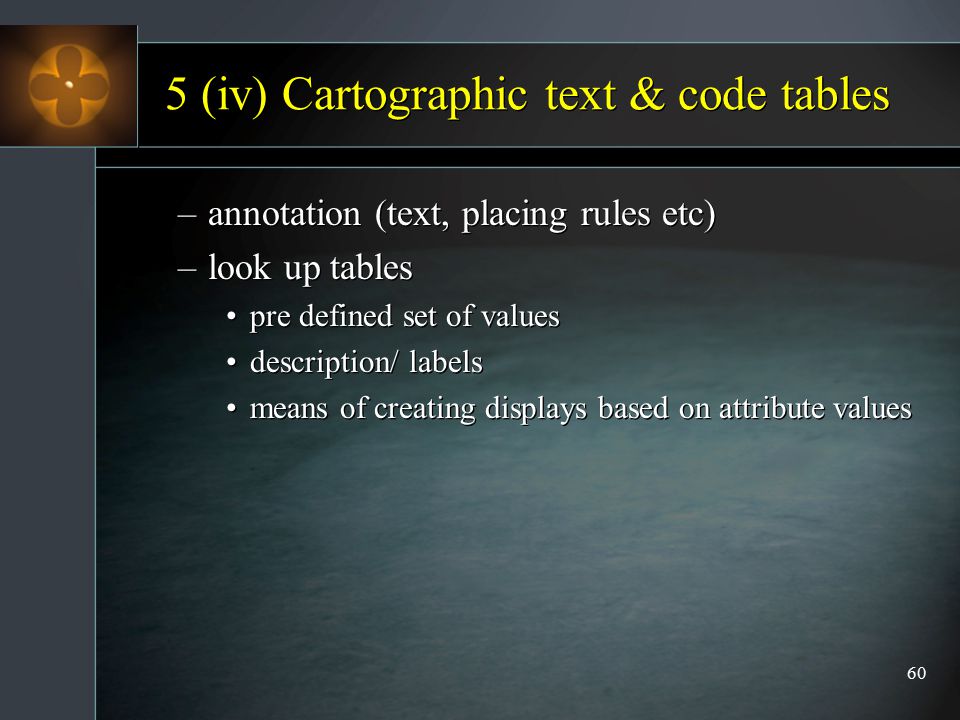

60 5 (iv) Cartographic text & code tables –annotation (text, placing rules etc) –look up tables pre defined set of values description/ labels means of creating displays based on attribute values –annotation (text, placing rules etc) –look up tables pre defined set of values description/ labels means of creating displays based on attribute values
61

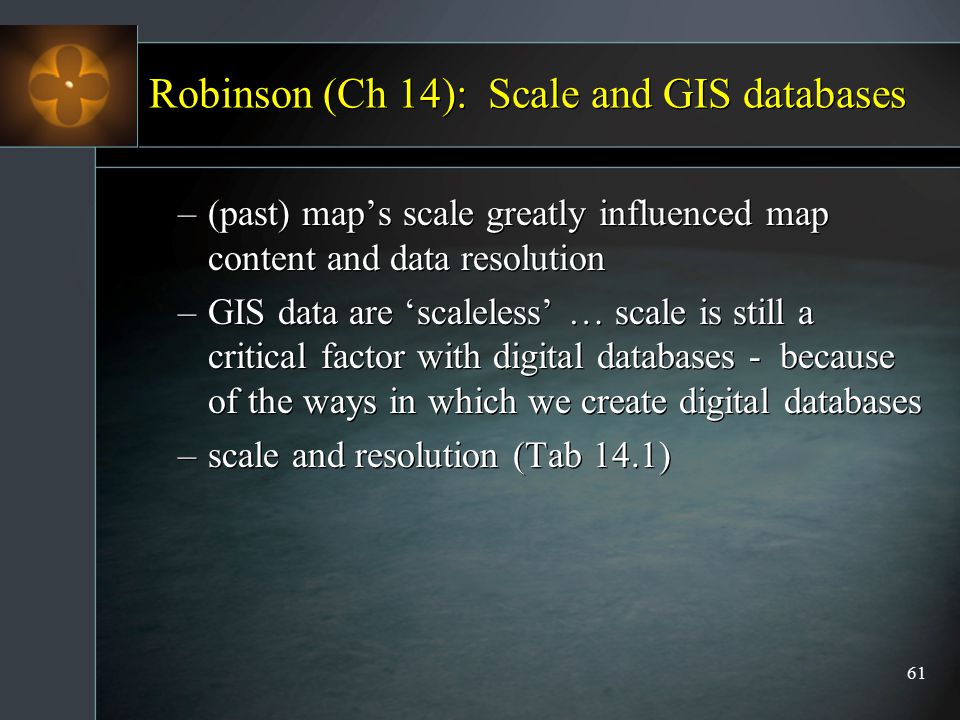

61 Robinson (Ch 14): Scale and GIS databases –(past) map’s scale greatly influenced map content and data resolution –GIS data are ‘scaleless’ … scale is still a critical factor with digital databases - because of the ways in which we create digital databases –scale and resolution (Tab 14.1) –(past) map’s scale greatly influenced map content and data resolution –GIS data are ‘scaleless’ … scale is still a critical factor with digital databases - because of the ways in which we create digital databases –scale and resolution (Tab 14.1)
62

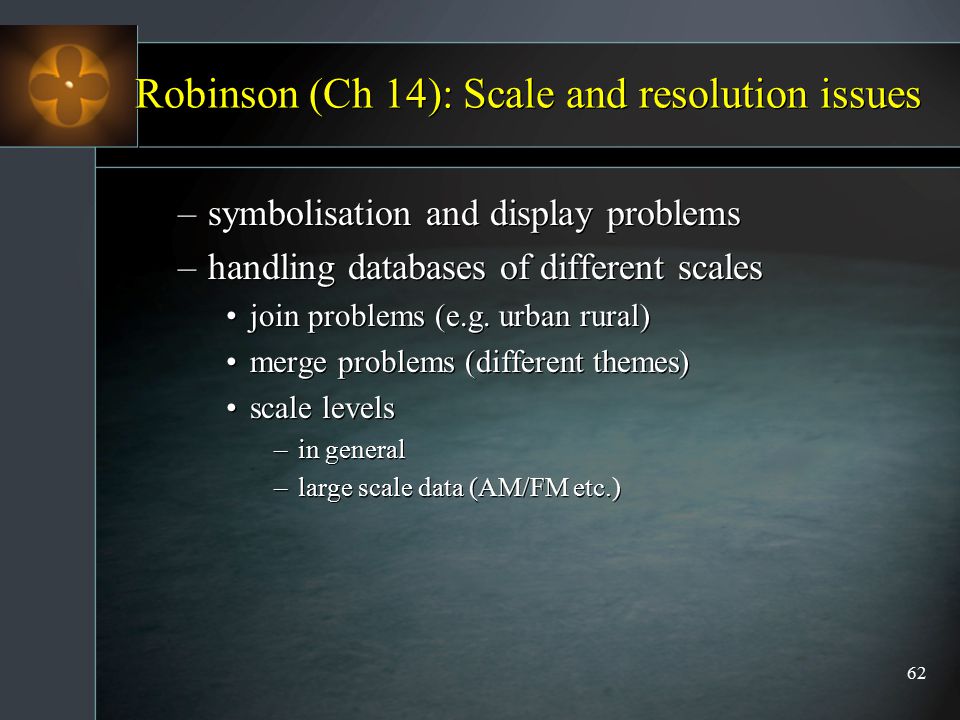

62 Robinson (Ch 14): Scale and resolution issues –symbolisation and display problems –handling databases of different scales join problems (e.g. urban rural) merge problems (different themes) scale levels –in general –large scale data (AM/FM etc.) –symbolisation and display problems –handling databases of different scales join problems (e.g. urban rural) merge problems (different themes) scale levels –in general –large scale data (AM/FM etc.)
63

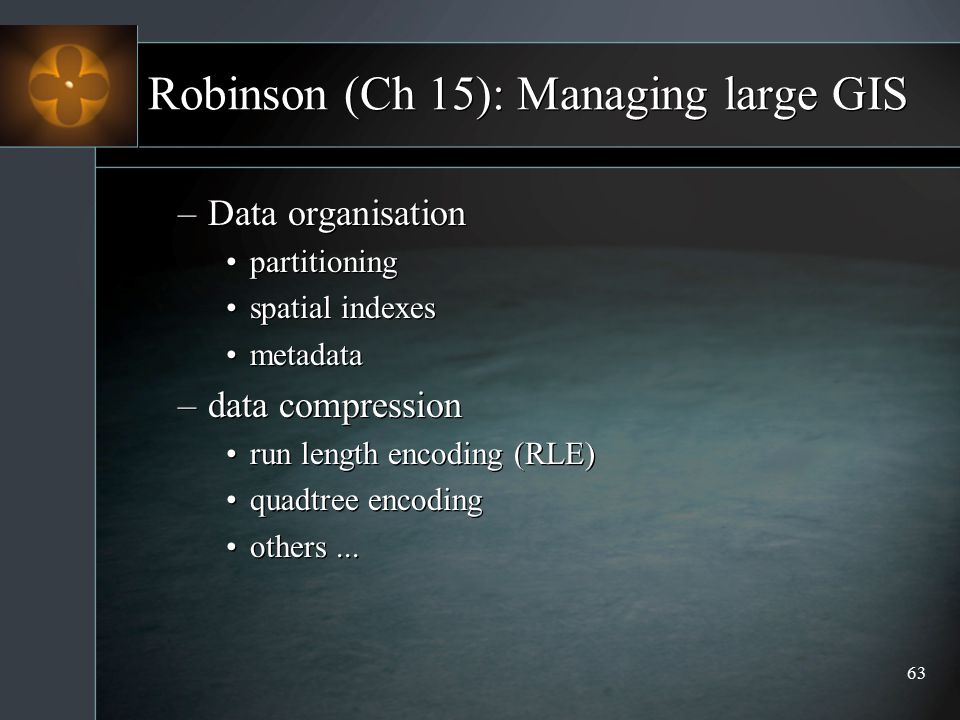

63 Robinson (Ch 15): Managing large GIS –Data organisation partitioning spatial indexes metadata –data compression run length encoding (RLE) quadtree encoding others... –Data organisation partitioning spatial indexes metadata –data compression run length encoding (RLE) quadtree encoding others...
