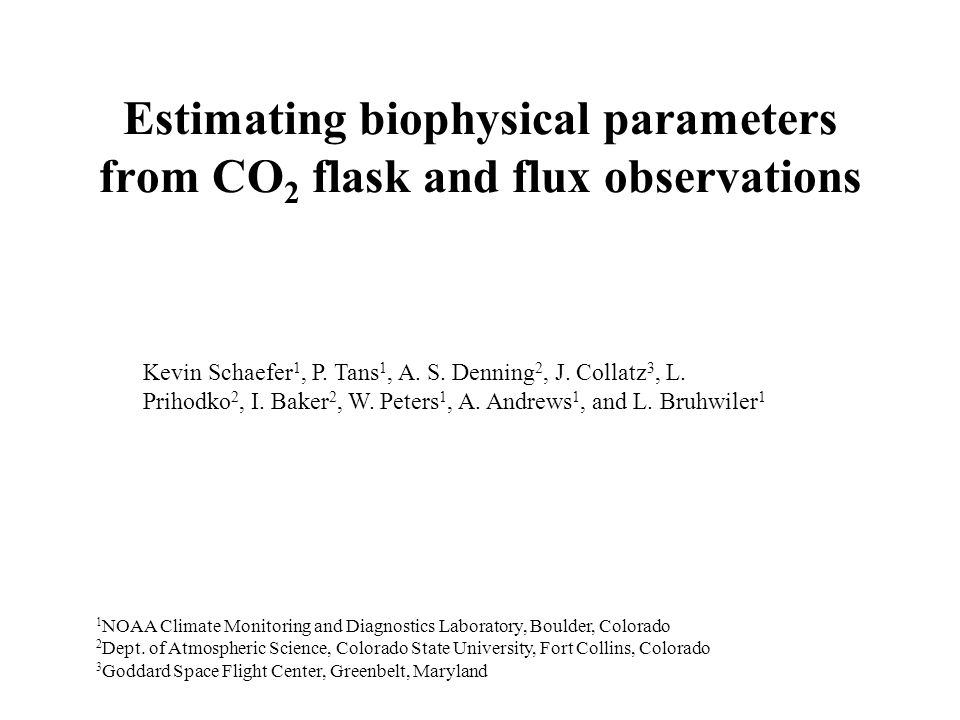

1 Estimating biophysical parameters from CO 2 flask and flux observations Kevin Schaefer 1, P. Tans 1, A. S. Denning 2, J. Collatz 3, L. Prihodko 2, I. Baker 2, W. Peters 1, A. Andrews 1, and L. Bruhwiler 1 1 NOAA Climate Monitoring and Diagnostics Laboratory, Boulder, Colorado 2 Dept. of Atmospheric Science, Colorado State University, Fort Collins, Colorado 3 Goddard Space Flight Center, Greenbelt, Maryland

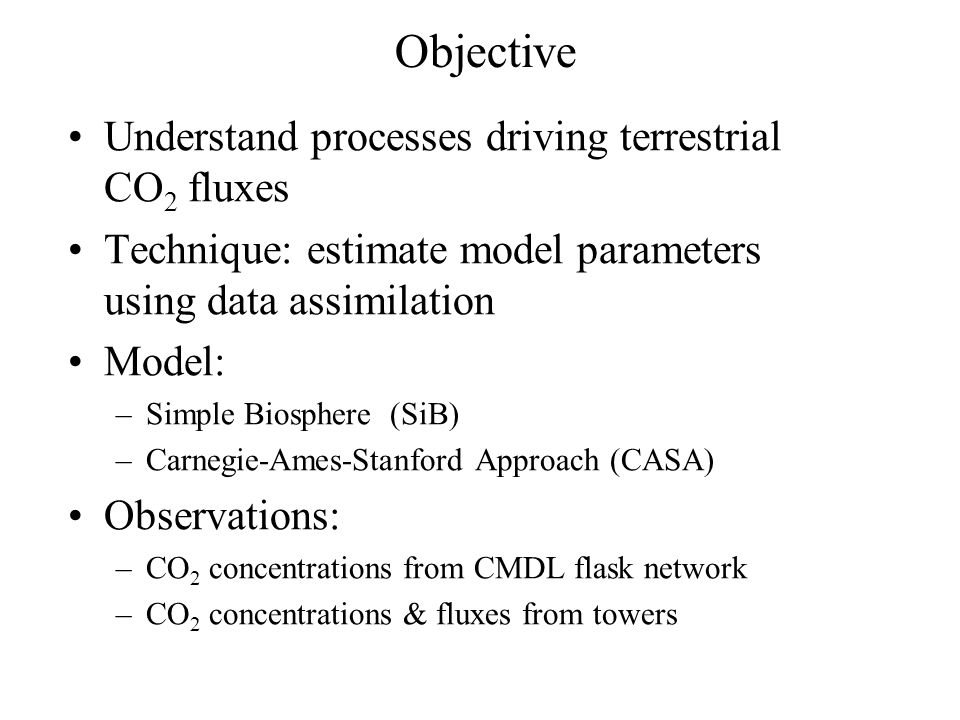

2 Objective Understand processes driving terrestrial CO 2 fluxes Technique: estimate model parameters using data assimilation Model: –Simple Biosphere (SiB) –Carnegie-Ames-Stanford Approach (CASA) Observations: –CO 2 concentrations from CMDL flask network –CO 2 concentrations & fluxes from towers

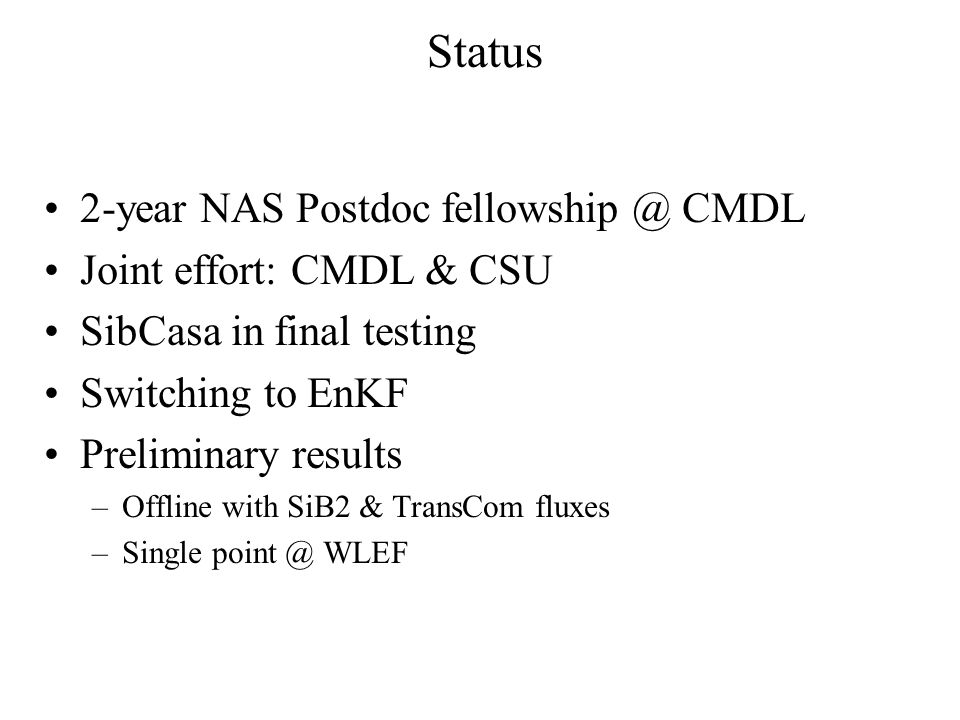

3 Status 2-year NAS Postdoc fellowship @ CMDL Joint effort: CMDL & CSU SibCasa in final testing Switching to EnKF Preliminary results –Offline with SiB2 & TransCom fluxes –Single point @ WLEF

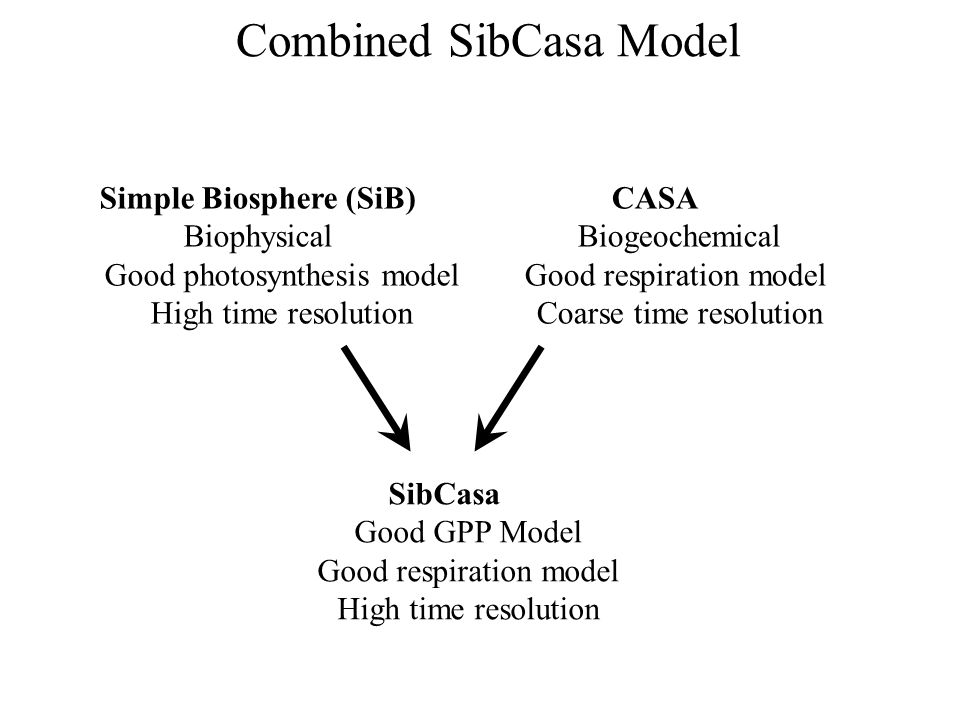

4 Combined SibCasa Model Simple Biosphere (SiB) Biophysical Good photosynthesis model High time resolution CASA Biogeochemical Good respiration model Coarse time resolution SibCasa Good GPP Model Good respiration model High time resolution

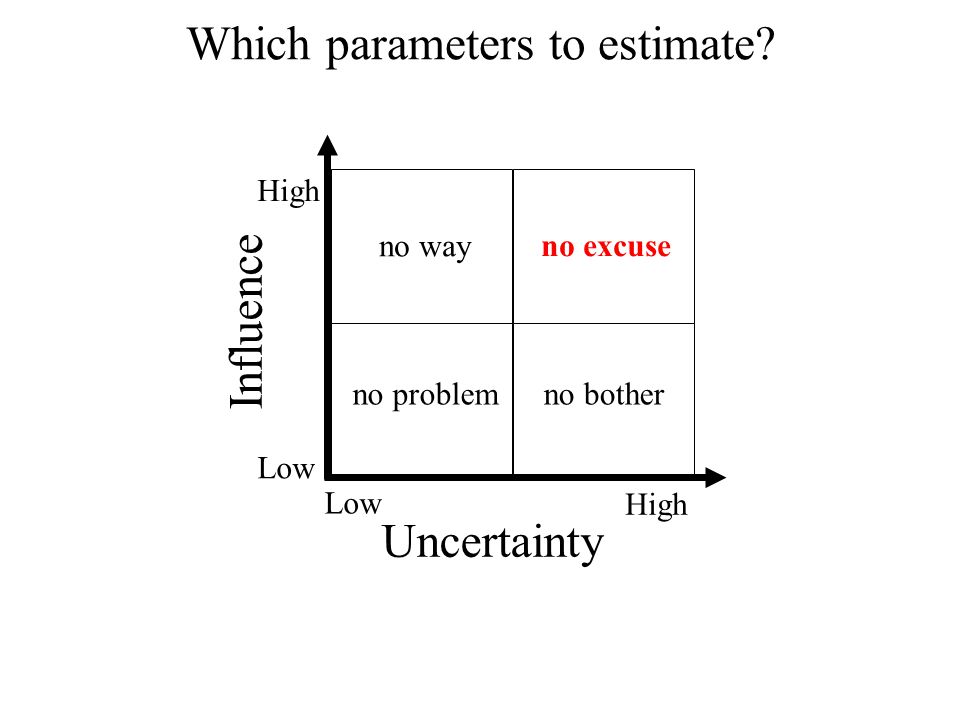

5 Which parameters to estimate? Low High Low High Uncertainty Influence no botherno problem no way no excuse

6 WLEF Tall Tower in Wisconsin Hourly and monthly average net CO 2 fluxes WLEF

7 Monthly Observed vs. SibCasa Fluxes at WLEF Net CO 2 Flux (  mole/m2/s) Date (year) SibCasa Observed

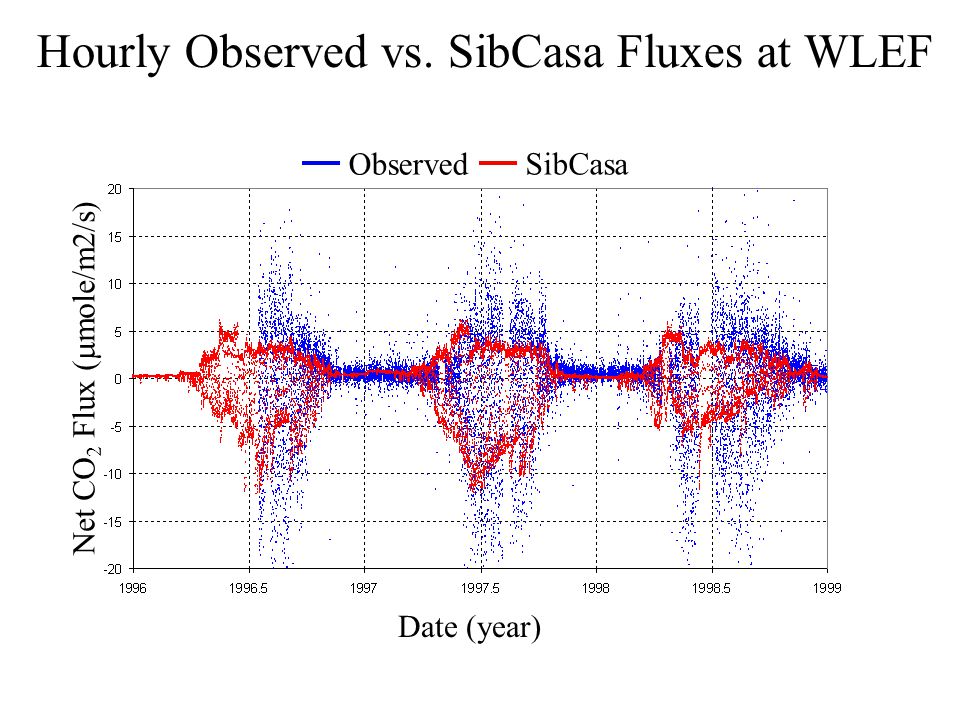

8 Hourly Observed vs. SibCasa Fluxes at WLEF Net CO 2 Flux (  mole/m2/s) Date (year) SibCasa Observed

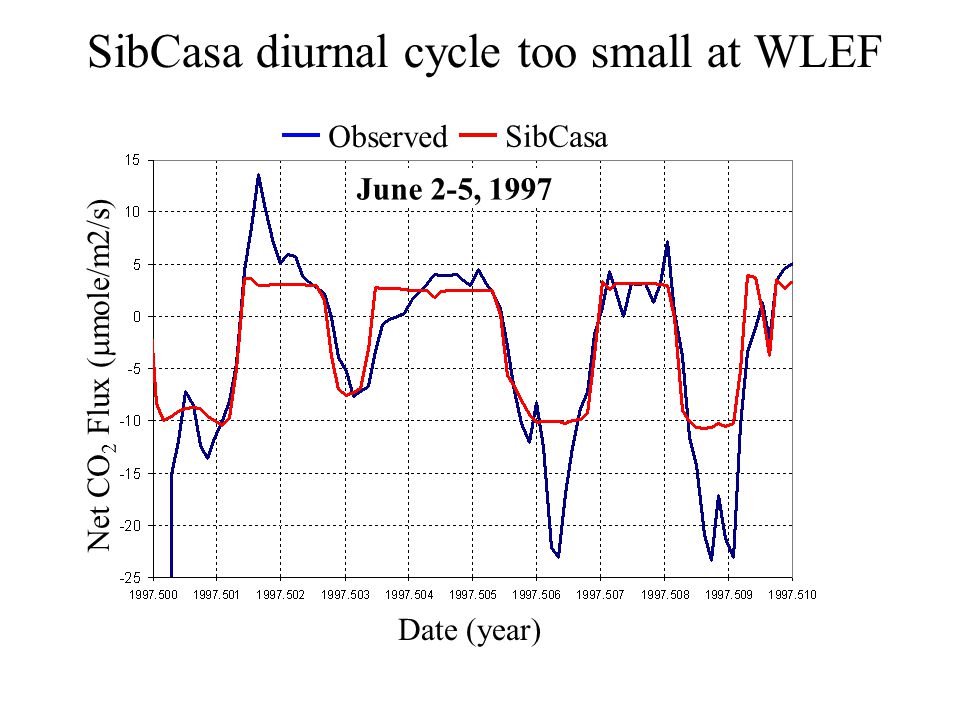

9 SibCasa diurnal cycle too small at WLEF June 2-5, 1997 SibCasa Observed Net CO 2 Flux (  mole/m2/s) Date (year)

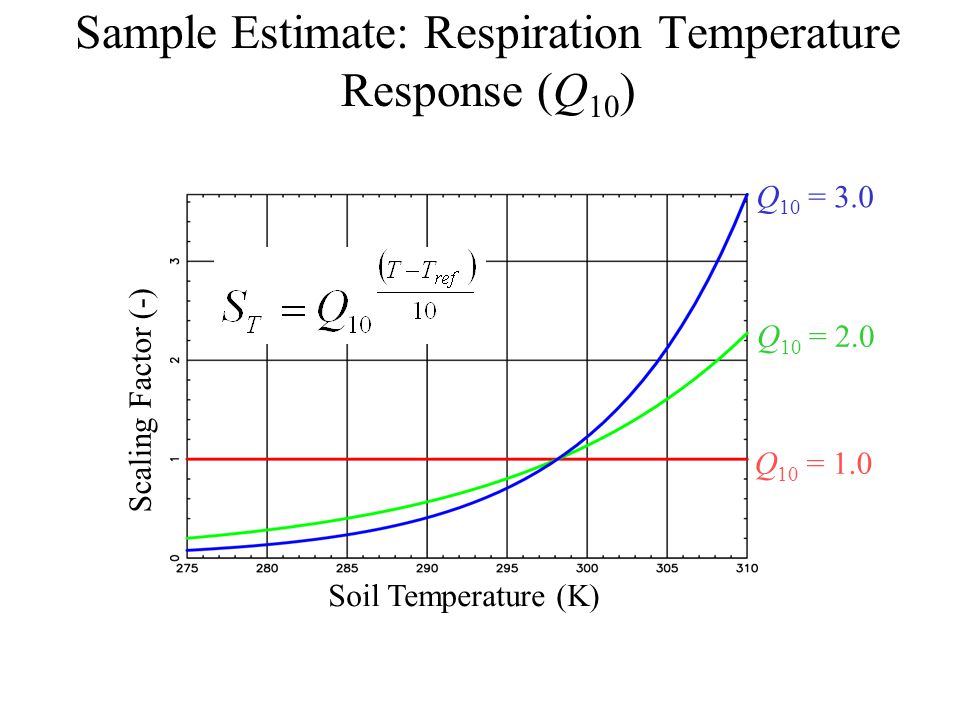

10 Sample Estimate: Respiration Temperature Response (Q 10 ) Q 10 = 3.0 Q 10 = 2.0 Q 10 = 1.0 Soil Temperature (K) Scaling Factor (-)

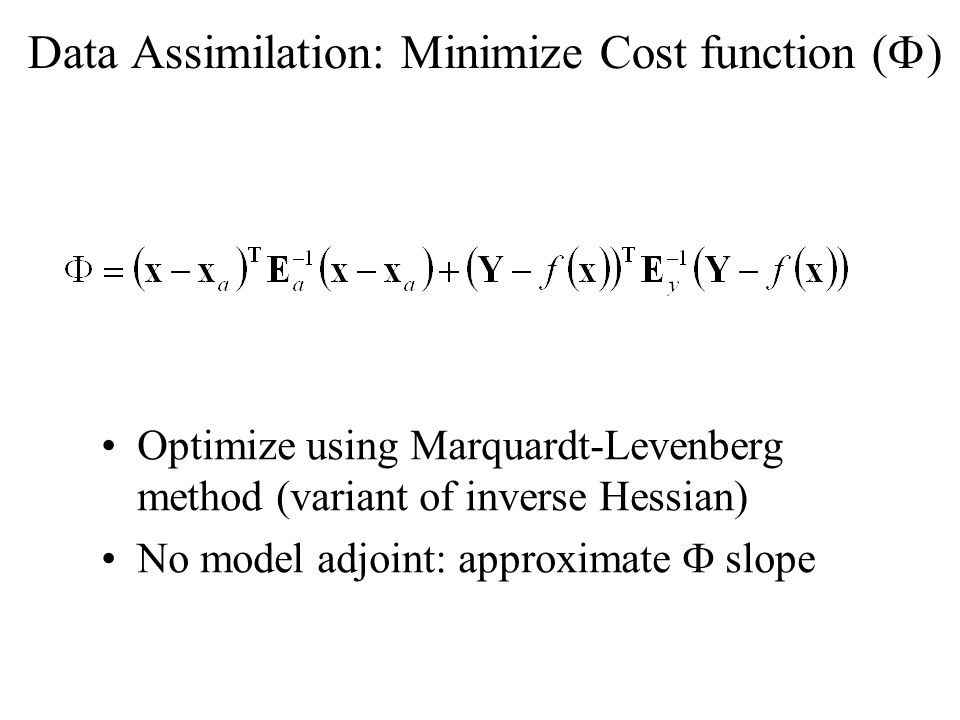

11 Data Assimilation: Minimize Cost function (  ) Optimize using Marquardt-Levenberg method (variant of inverse Hessian) No model adjoint: approximate  slope

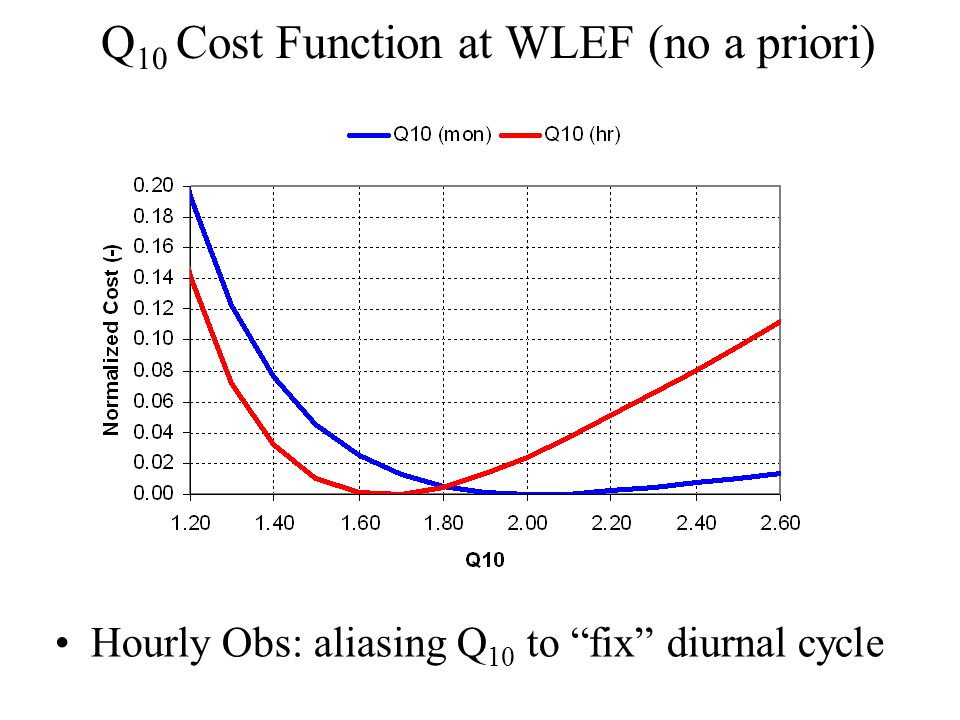

12 Q 10 Cost Function at WLEF (no a priori) Hourly Obs: aliasing Q 10 to “fix” diurnal cycle

13 Initial Slow Pool Cost Function at WLEF Monthly Obs: aliasing Slow to “fix” low GPP in 1998 Equilibrium Pool Size

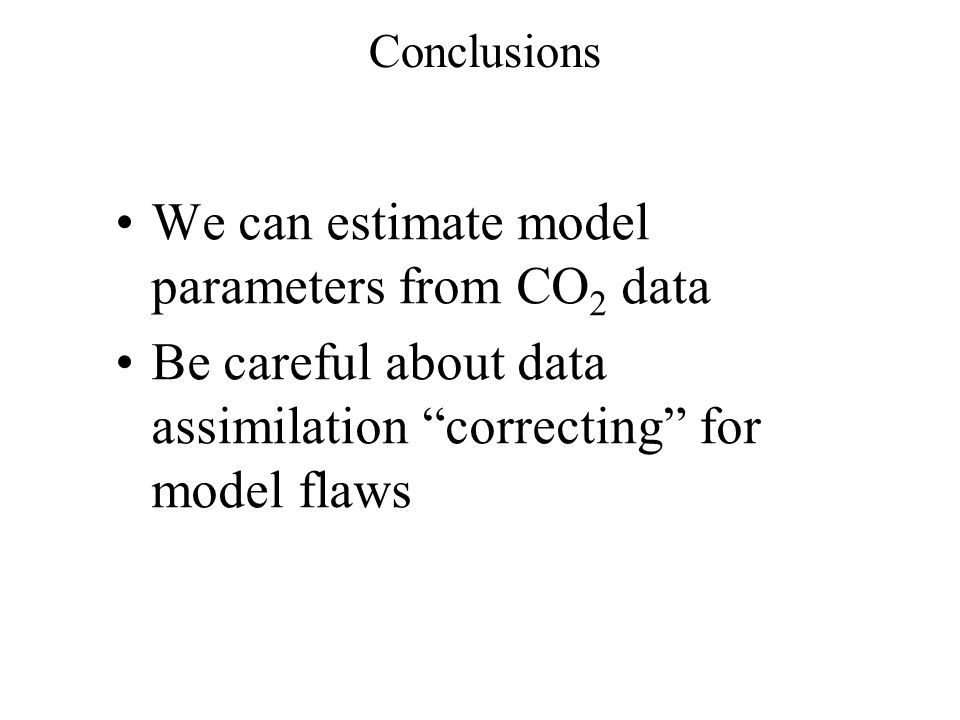

14 Conclusions We can estimate model parameters from CO 2 data Be careful about data assimilation “correcting” for model flaws

15 What process information can we extract from CO 2 flask and flux tower observations? Ocean Processes Net Flux Biosphere Processes Flux Tower Flask Atmospheric Transport Net Flux Fossil Fuel

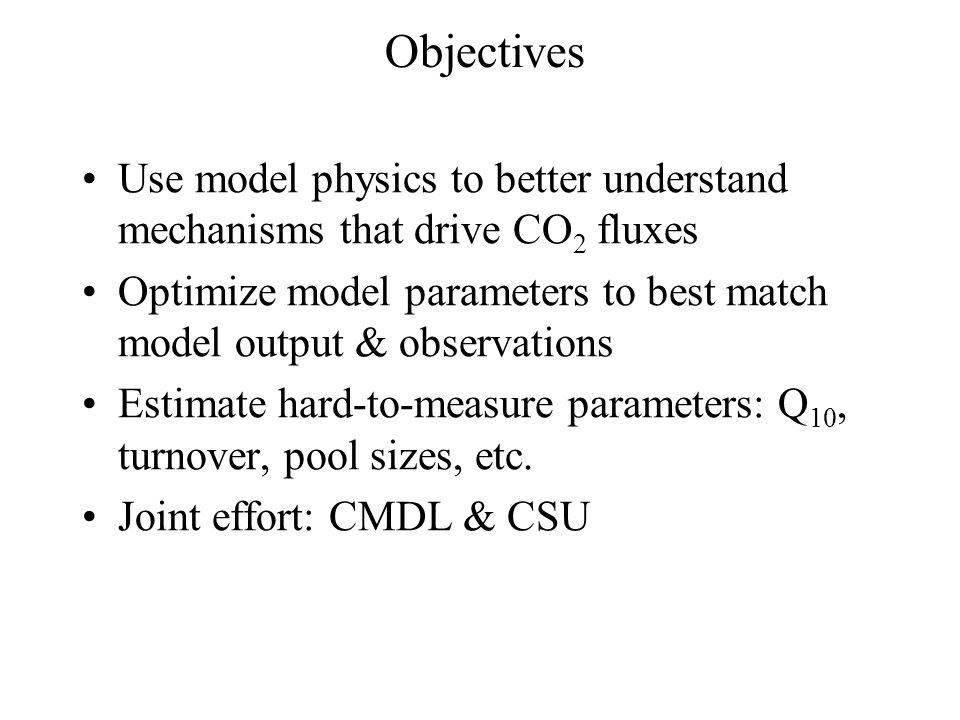

16 Objectives Use model physics to better understand mechanisms that drive CO 2 fluxes Optimize model parameters to best match model output & observations Estimate hard-to-measure parameters: Q 10, turnover, pool sizes, etc. Joint effort: CMDL & CSU

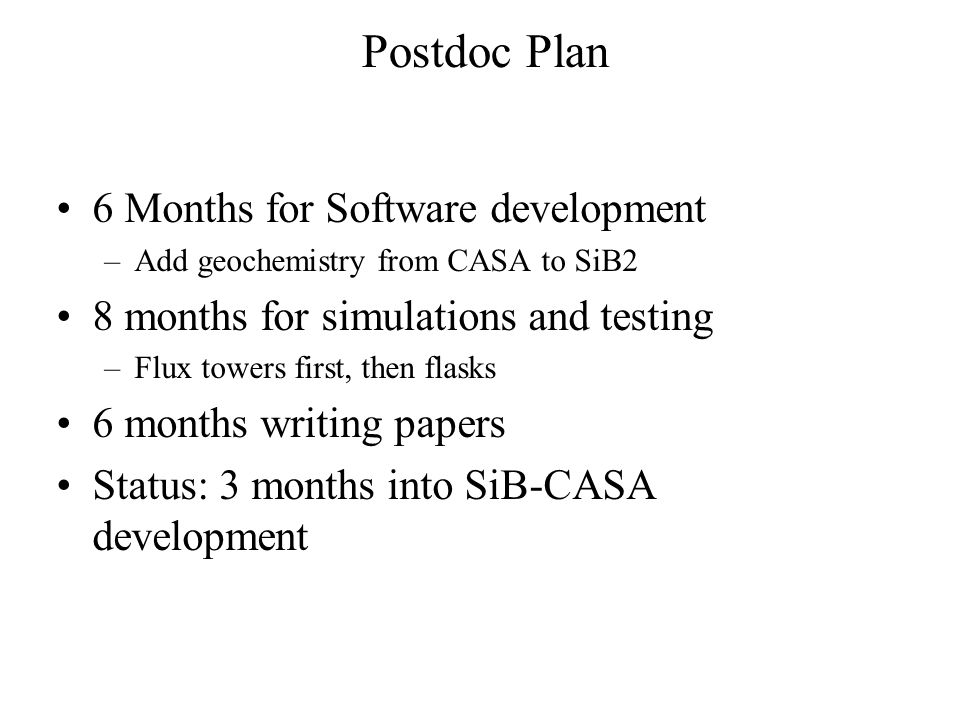

17 Postdoc Plan 6 Months for Software development –Add geochemistry from CASA to SiB2 8 months for simulations and testing –Flux towers first, then flasks 6 months writing papers Status: 3 months into SiB-CASA development

18 DAS Setup Combine SiB3 with CASA –SiB3: Photosynthesis & turbulent fluxes –CASA: biogeochemistry and respiration Integrate Sibcasa into TM5 Use Ensemble Kalman Filter (EnKF)

19 DAS Experiments Single point: Sibcasa & flux tower data Offline: Sibcasa & Transcom3 fluxes –Compare NCEP, ECMWF, GEOS4 reanalysis Integrated: Sibcasa in TM5 & flask data

20 Problems Parameter Estimation –Parameter compensation –Model/data biases EnKF –3-D [CO 2 ] field from sparse flask observations –How to incorporate CO 2 memory –How to go from parameter to flask –Number ensemble members

21 Data Assimilation: Minimize Cost Function (  ) y = observations f(x) = model output E = uncertainty x = parameter to estimate

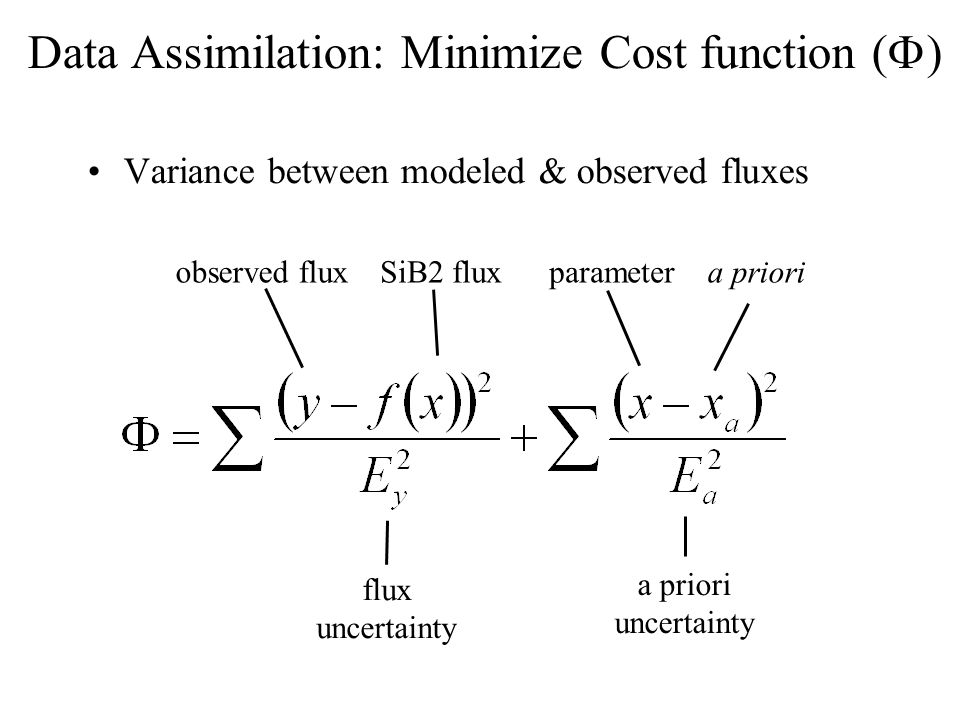

22 Data Assimilation: Minimize Cost function (  ) observed fluxSiB2 fluxparametera priori flux uncertainty a priori uncertainty Variance between modeled & observed fluxes

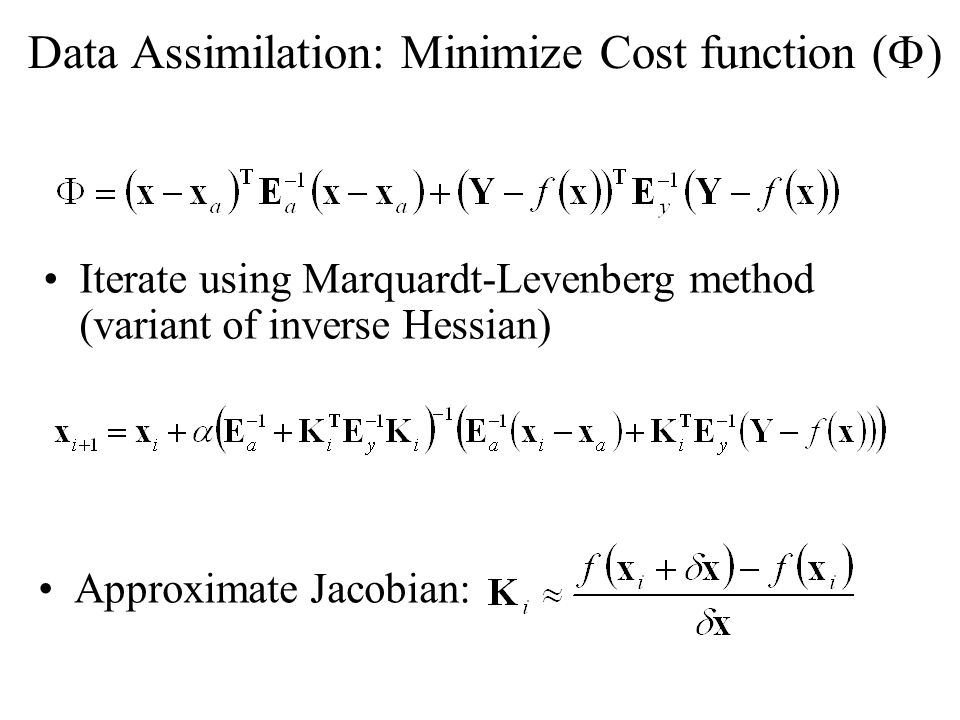

23 Data Assimilation: Minimize Cost function (  ) Iterate using Marquardt-Levenberg method (variant of inverse Hessian) Approximate Jacobian:

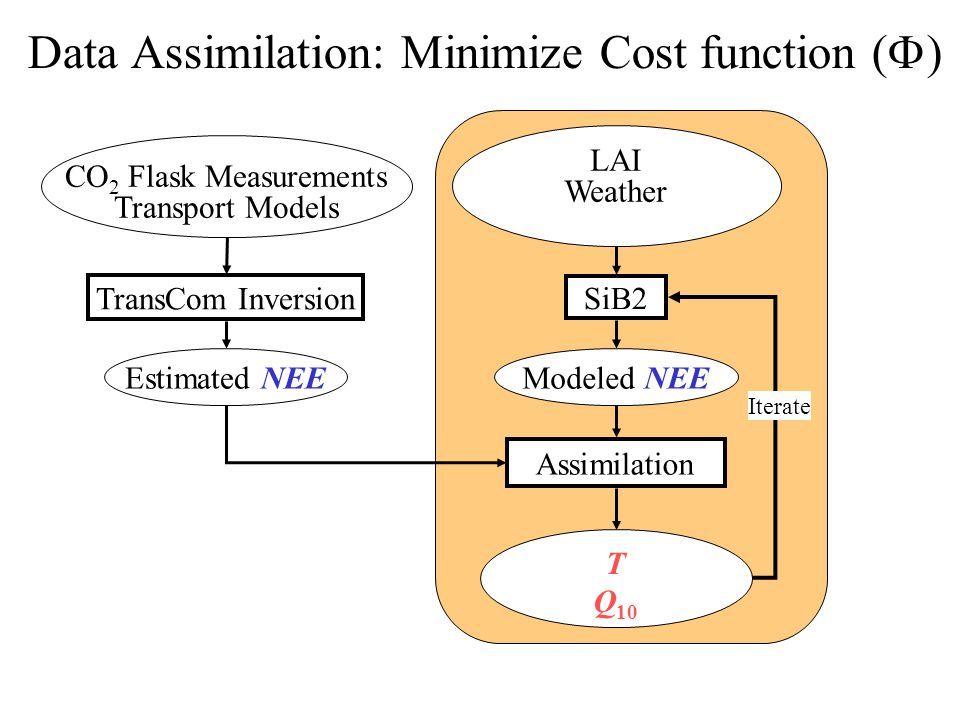

24 Data Assimilation: Minimize Cost function (  ) CO 2 Flask Measurements Transport Models TransCom Inversion Estimated NEE SiB2 Assimilation LAI Weather Modeled NEE T Q 10 Iterate

25 Ensemble Kalman Filter (EnKF) Use ensemble statistics to approximate terms in Kalman gain equation Run ensemble ~100 members No adjoint required Experimental: still under development

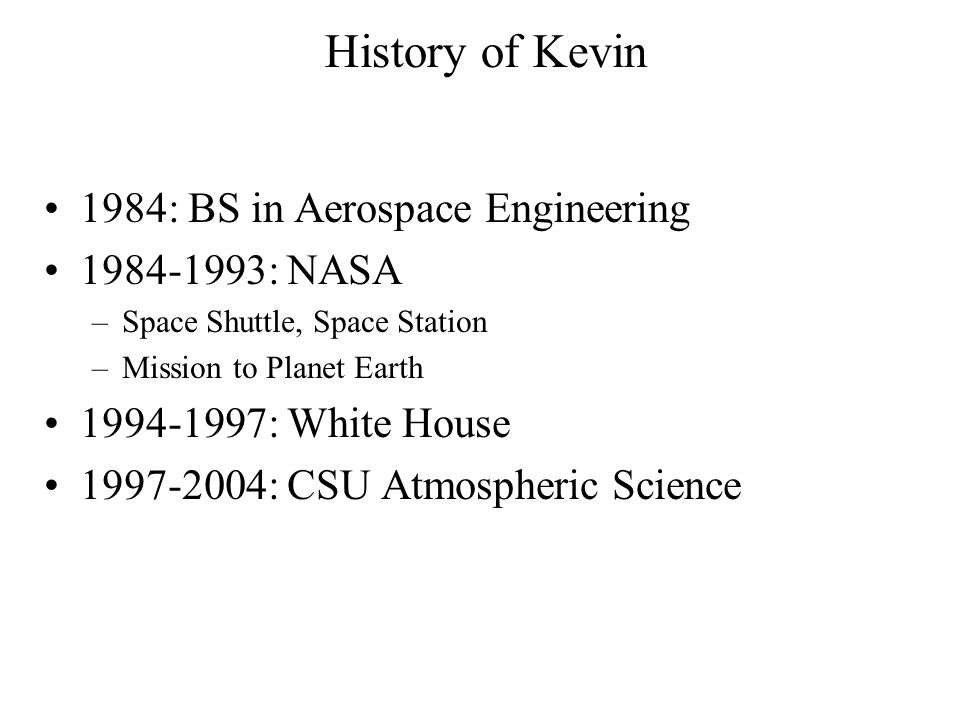

26 History of Kevin 1984: BS in Aerospace Engineering 1984-1993: NASA –Space Shuttle, Space Station –Mission to Planet Earth 1994-1997: White House 1997-2004: CSU Atmospheric Science

27 Kevin’s Family SusyJason

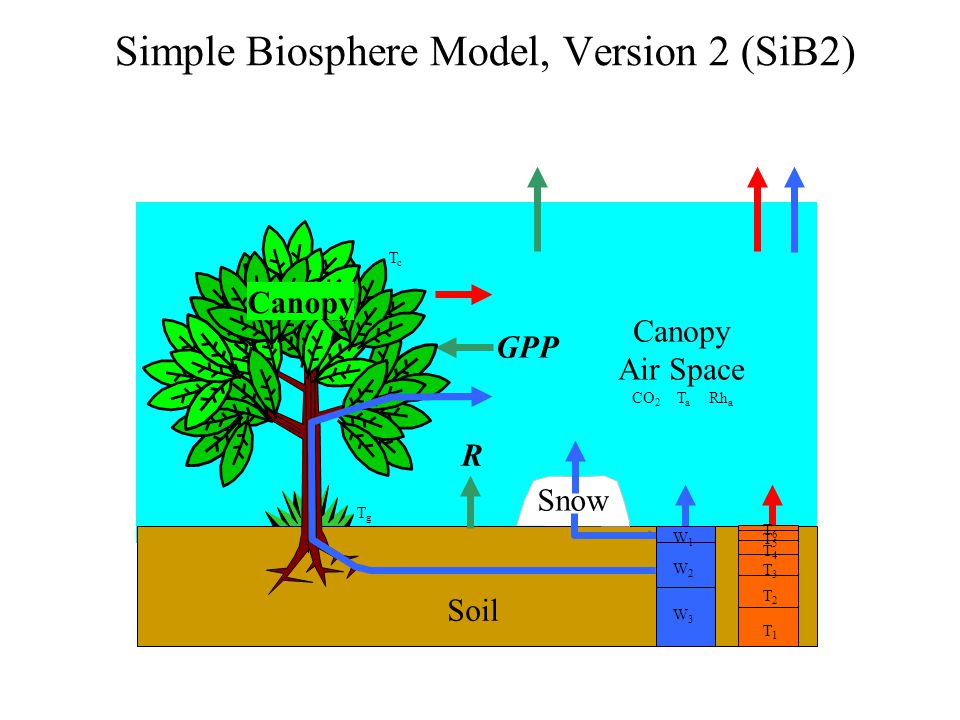

28 Simple Biosphere Model, Version 2 (SiB2) TcTc TgTg CO 2 TaTa Rh a NEE=R-GPP LHSH Snow Canopy Canopy Air Space Soil GPP R W1W1 W2W2 W3W3 T1T1 T2T2 T3T3 T4T4 T5T5 T6T6 10-min time step 11 to 45-year simulations

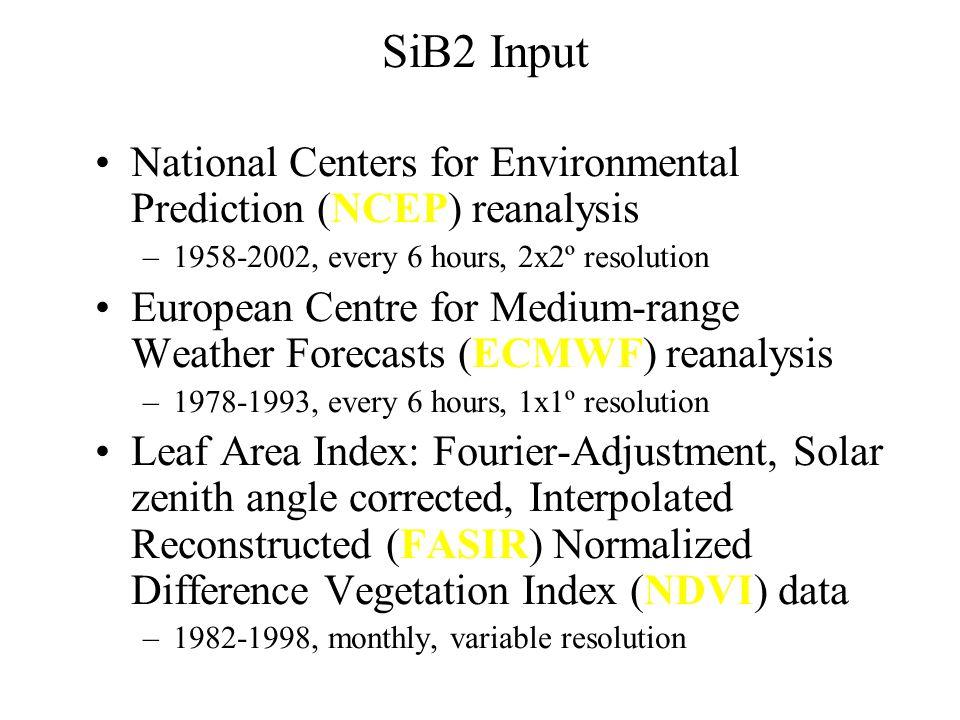

29 SiB2 Input National Centers for Environmental Prediction (NCEP) reanalysis –1958-2002, every 6 hours, 2x2º resolution European Centre for Medium-range Weather Forecasts (ECMWF) reanalysis –1978-1993, every 6 hours, 1x1º resolution Leaf Area Index: Fourier-Adjustment, Solar zenith angle corrected, Interpolated Reconstructed (FASIR) Normalized Difference Vegetation Index (NDVI) data –1982-1998, monthly, variable resolution

30 NOAA’s global flask network Run transport backwards to estimate CO 2 fluxes Compare estimated & SiB2 regional fluxes

31 Initial Coarse Woody Debris Pool at WLEF Monthly Obs: aliasing to fix low GPP in 1998 Hourly Obs: aliasing to “fix” diurnal cycle Equilibrium Pool Size

32 Q 10 Estimated from Transcom Fluxes Tropical broadleaf evergreen forest Broadleaf deciduous forest Broadleaf-needleleaf forest Needleleaf forest Needleleaf-deciduous forest Tropical Grasslands Semi-arid grasslands Broadleaf shrubs with bare soil Tundra Desert Agriculture and C3 grasslands 1.2 ± 0.1 2.2 ± 0.3 1.9 ± 0.1 2.6 ± 0.1 2.2 ± 0.1 1.4 ± 0.0 1.6 ± 0.1 1.7 ± 0.2 2.1 ± 0.2 2.6 ± 0.3 1.6 ± 0.0 BiomeQ 10 (-)

33 Flasks: Turnover (T) and Q 10 Tropical broadleaf evergreen forest Broadleaf deciduous forest Broadleaf-needleleaf forest Needleleaf forest Needleleaf-deciduous forest Tropical Grasslands Semi-arid grasslands Broadleaf shrubs with bare soil Tundra Desert Agriculture and C3 grasslands 12.8 ± 0.8 1.2 ± 0.1 13.3 ± 2.2 2.2 ± 0.3 13.6 ± 0.8 1.9 ± 0.1 12.9 ± 0.5 2.6 ± 0.1 12.8 ± 0.4 2.2 ± 0.1 12.8 ± 0.4 1.4 ± 0.0 12.4 ± 1.0 1.6 ± 0.1 16.3 ± 1.9 1.7 ± 0.2 12.4 ± 1.0 2.1 ± 0.2 12.9 ± 2.4 2.6 ± 0.3 12.8 ± 0.4 1.6 ± 0.0 BiomeT (mon) Q 10 (-)

34 Global Estimated T and Q 10 Global Q 10 = 1.67±0.04 –Agrees well with published values (1.6-2.4) –Q 10 increases with shorter time scales Global T = 12.7 ±0.8 months –Represents only fast turnover pools –Average between autotrophic & heterotrophic –Need more carbon pools in SiB2
