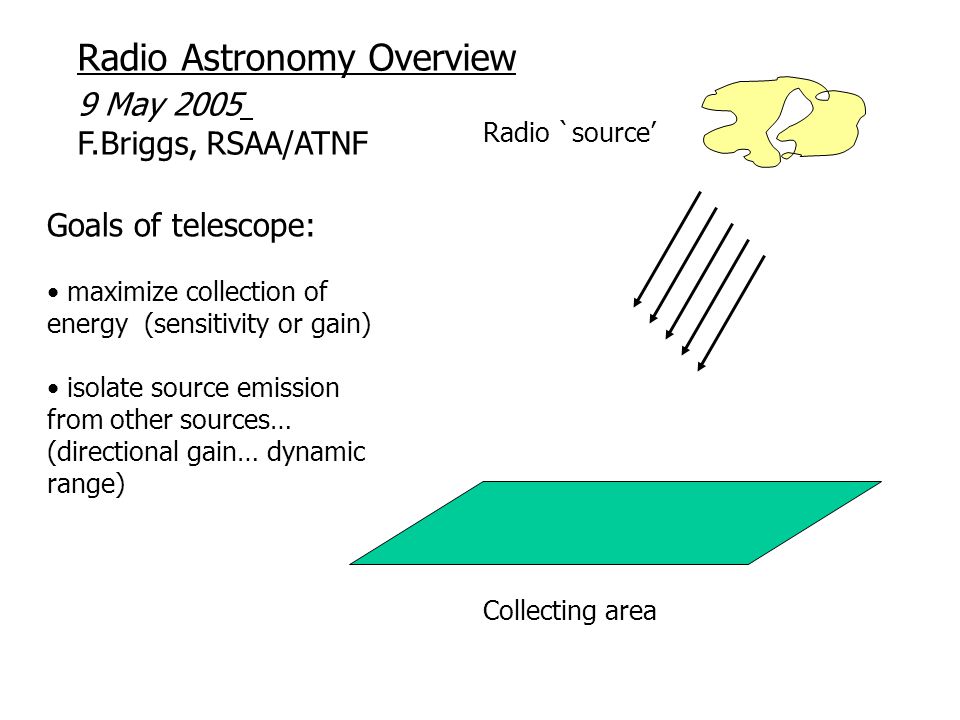

1 Radio Astronomy Overview 9 May 2005 F.Briggs, RSAA/ATNF Radio `source’ Goals of telescope: maximize collection of energy (sensitivity or gain) isolate source emission from other sources… (directional gain… dynamic range) Collecting area

2 Login: obstech passwd: [see me or Peter]

3 * *** (biblical status in field)

4 More references: Synthesis Imaging in Radio Astronomy, 1998, ASP Conf. Series, Vol 180, eds. Taylor, Carilli & Perley Single-Dish Radio Astronomy, 2002, ASP Conf. Series, Vol 278, eds. Stanimirovic, Altschuler, Goldsmith & Salter AIPS Cookbook, http://www.aoc.nrao.edu/aips/

5 ground based radio techniques 10 MHz 350  VLAALMA ATCA GMRT LOFAR + MWA-LFD

6 Parkes “The Dish”

7 VLA, Very Large Array New Mexico

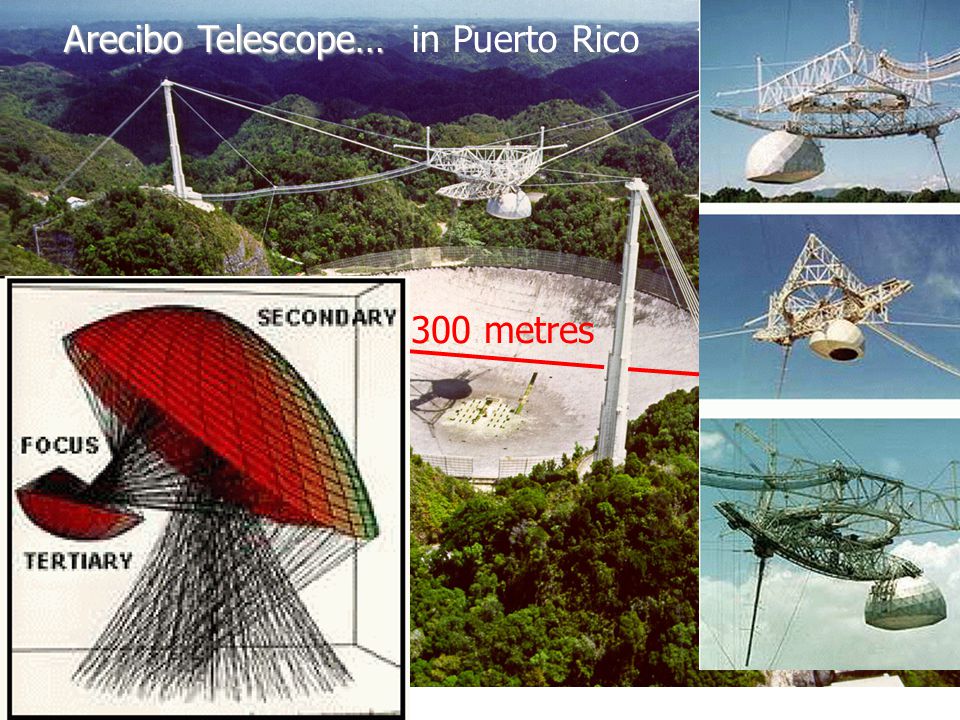

8 Arecibo Telescope… Arecibo Telescope… in Puerto Rico 300 metres

9

10 GBT Green Bank West Virginia … the newest… … and last (perhaps)… … big dish Unblocked Aperture 91 metres

11 LOFAR “elements”

12 Very Large Array USA Westerbork Telescope Netherlands A tacama L M illimeter A rray

13 VLBA Very Long Baseline Array for: Very Long Baseline Interferometry

14 EVN: European VLBI Network (more and bigger dishes than VLBA) LBA: Long Baseline Array in AU

15 ESO Paranal, Chile

16 Radio “Sources” Spectra: 1) Thermal 2) Non-Thermal 1)Thermal emission mechanism related to Planck BB… electrons have ~Maxwellian distribution 2) Non-Thermal emission typically from relativistic electrons in magnetic field… electrons have ~power law energy distribution Frequency MHz Flux Density Distinctive Radio Spectra !

17 Nonthermal

18 M81 Group of Galaxies Visible Light Radio map of cold hydrogen gas Thermal

19 (from P. McGregor notes)

20

21

22 I where I ~ S /  can assign “brightness temperature” to objects where “Temp” really has no meaning…

23 Frequency MHz Flux Density [Jansky] (from Kraus, Radio Astronomy) Brightest Sources in Sky

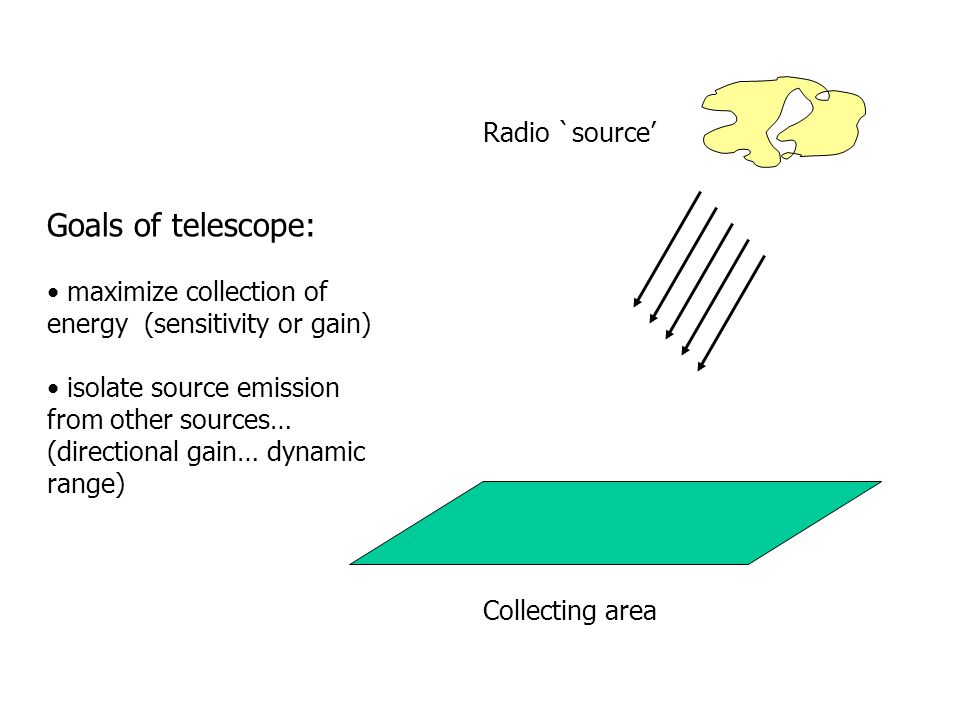

24 Radio `source’ Goals of telescope: maximize collection of energy (sensitivity or gain) isolate source emission from other sources… (directional gain… dynamic range) Collecting area

25 Radio telescopes are Diffraction Limited Incident waves

26 Radio telescopes are Diffraction Limited Incident waves Waves arriving from slightly different direction have Phase gradient across aperture… When /2, get cancellation: Resolution =  ~ /D 

27 Celestial Radio Waves?

28 Actually……. Noise …. time series Fourier transform Frequency Time

29 Narrow band filter B Hz Envelope of time series varies on scale t ~ 1/B sec F.T. of noise time series Frequency Time

30 thought experiment… 2 wires out (antennas are “reciprocal” devices… can receive or broadcast) Cartoon antenna

31 Black Body oven at temperature = T thought experiment …

32 Black Body oven at temperature = T thought experiment … R

33 Black Body oven at temperature = T thought experiment … R … wait a while… reach equilibrium… at T warm resistor delivers power P = kT B (B = frequency bandwidth; k = Boltzmann Const)

34 R real definition… warm resistor produces P = kT B = P a = kT a B temp = T Measure Antenna output Power as “T a ” = antenna temperature TaTa

35 Radio `source’ Collecting area  Reception Pattern or Power Pattern

36 Radio `source’ Collecting area If source with brightness temperature T b fills the beam (reception pattern), then T a = T b (!! No dependence on telescope if emission fills beam !!)

37 receiver “temperature” … quantify Receiver internal noise Power as “T r ” = “receiver temperature” TaTa Ampl, etc T r +T a Ampl, etc Real electronics adds noise …treat as ideal, noise-free amp with added power from warm R

38 “ system temperature” … quantify total receiver System noise power as “T sys ” T sys +T a Ampl, etc RMS fluctuations =  T  T = (fac) T sys /(B t int ) 1/2 Fac ~ 1 – 2 B = Bandwidth, Hz t int = integration time, seconds [include spillover, scattering, etc]

39 Radio `point source’ Collecting area Power collected = S A eff B/2 S = flux density (watts/sq-m/Hz) [ 1 Jansky = 1 Jy = 10 -26 w/sq-m/Hz ] A eff = effective area (sq-m) B = frequency bandwith (Hz) T a = S A eff /2k

40 If source fills the beam T a = T b S = flux density A eff = effective area (sq-m) T a = S A eff /2k “Resolved” “Unresolved” RMS =  T = (fac) T sys /(B t int ) 1/2 fac ~ 1 – 2 B = Bandwidth t int = integration time

41 Example 1 High Velocity HI Cloud: N HI = 1 x 10 19 cm -2 N HI = 1.8 x 10 18 T b  V km/s = 1.8 x 10 18 T b (10) T b = 0.6 K 5 rms = 5  T = T b = 0.6 K rms =  T = (fac) T sys /(B t int ) 1/2 = (1) ( 30)/(B t int ) 1/2 t int = ( 30/0.12) 2 /(50x10 3 ) = 1.2 seconds B = (10/3x10 5 )x1420x10 6 = 50 KHz (To reach N HI = 1 x 10 17 cm -2 need 10,000 times longer ~ 3 hours)

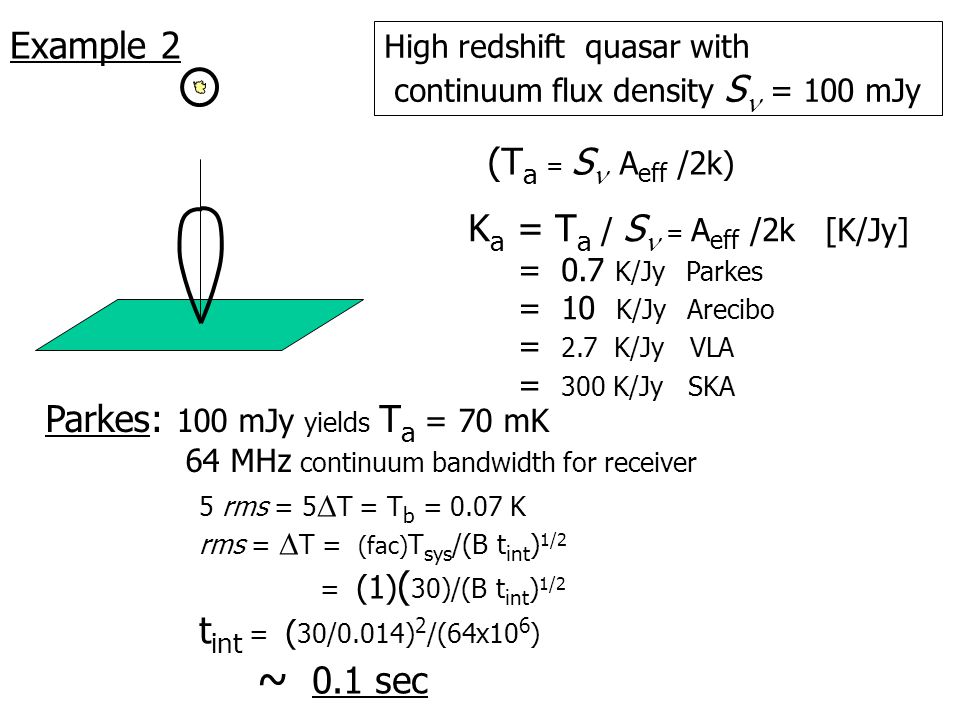

42 Example 2 High redshift quasar with continuum flux density S = 100 mJy 5 rms = 5  T = T b = 0.07 K rms =  T = (fac) T sys /(B t int ) 1/2 = (1) ( 30)/(B t int ) 1/2 t int = ( 30/0.014) 2 /(64x10 6 ) ~ 0.1 sec K a = T a / S = A eff /2k [K/Jy] = 0.7 K/Jy Parkes = 10 K/Jy Arecibo = 2.7 K/Jy VLA = 300 K/Jy SKA (T a = S A eff /2k) Parkes: 100 mJy yields T a = 70 mK 64 MHz continuum bandwidth for receiver

43 Example 3: Array High redshift quasar with continuum flux density S = 1 mJy rms =  S = (fac)( T sys /K a )/(B t int ) 1/2 = ( 1.4 ) ( 30/0.6)/(B t int ) 1/2 t int = ( 70/0.0002) 2 /(128x10 6 ) ~ 16 min K a = T a / S = A eff /2k [K/Jy] = 0.7 K/Jy Parkes = 6 x 0.1 = 0.6 K/Jy ACTA (T a = S A eff /2k) ATCA (B=128 MHz) : 1 mJy = 5 rms means  S = 0.2 mJy rms =  S = (fac)( T sys /K a )/(B t int ) 1/2
