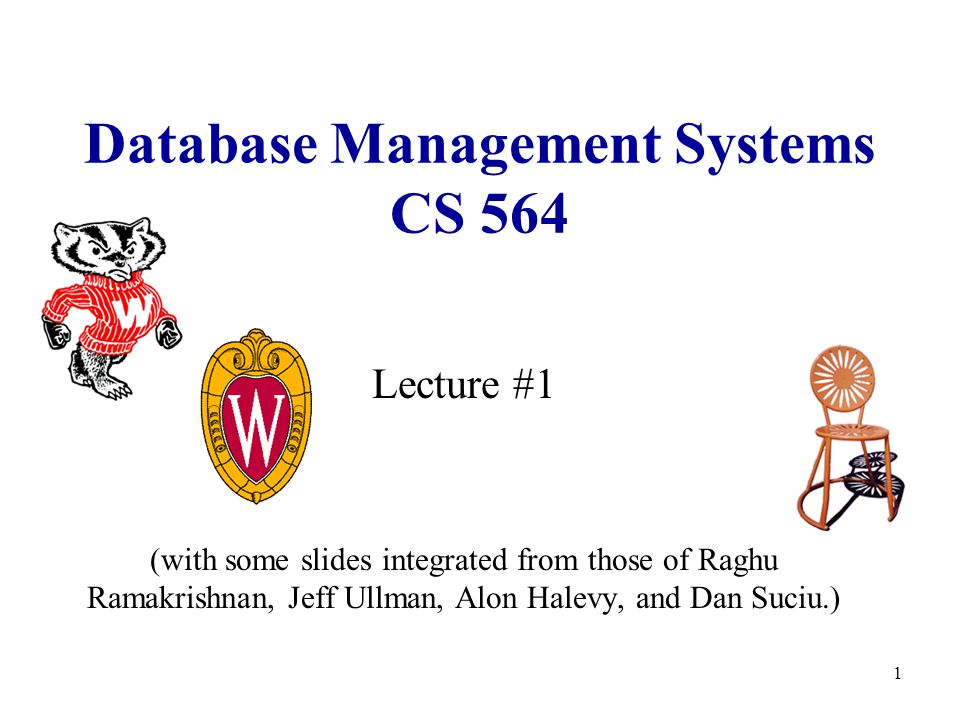

1. 1 Database Management Systems CS 564 Lecture #1 (with some slides integrated from those of Raghu Ramakrishnan, Jeff Ullman, Alon Halevy, and Dan Suciu.)

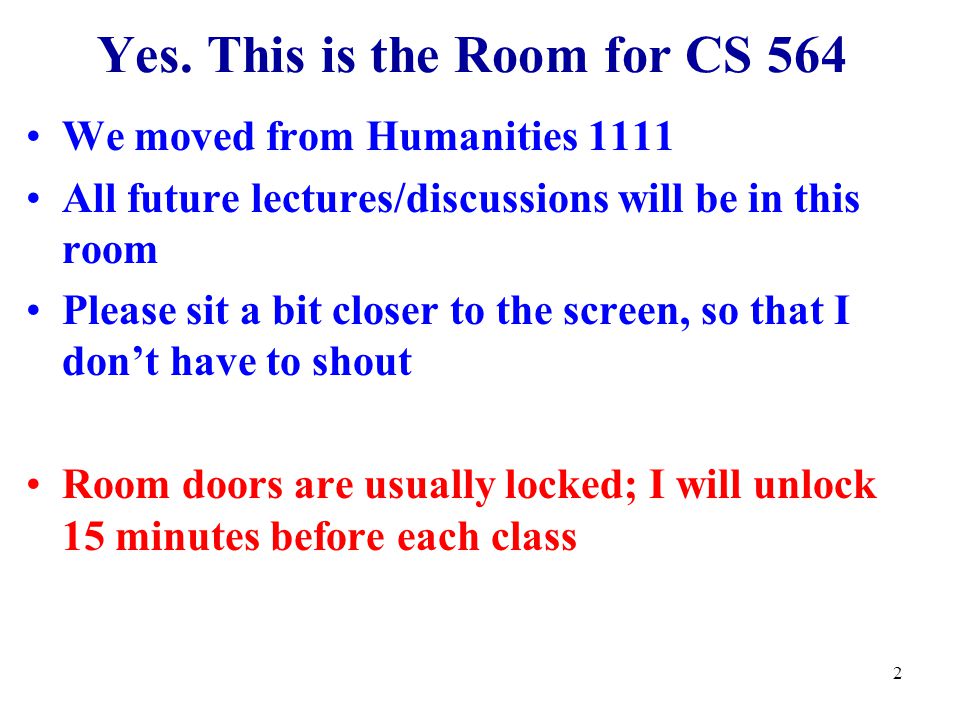

2. Yes. This is the Room for CS 564 We moved from Humanities 1111 All future lectures/discussions will be in this room Please sit a bit closer to the screen, so that I don’t have to shout Room doors are usually locked; I will unlock 15 minutes before each class 2

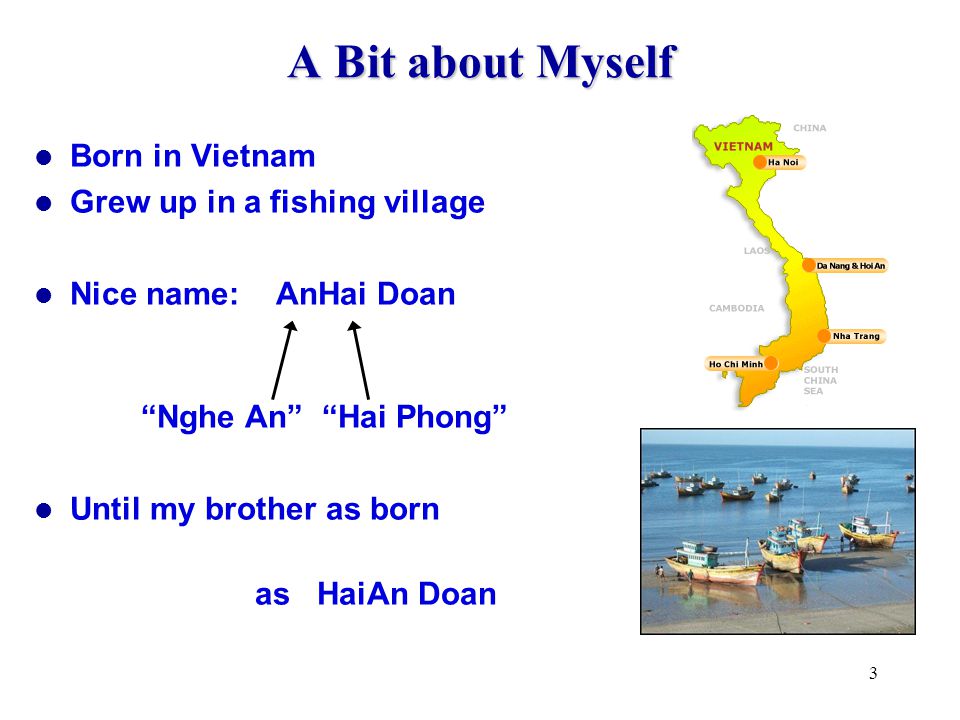

3. 3 A Bit about Myself Born in Vietnam Grew up in a fishing village Nice name: AnHai Doan “Nghe An” “Hai Phong” Until my brother as born as HaiAn Doan

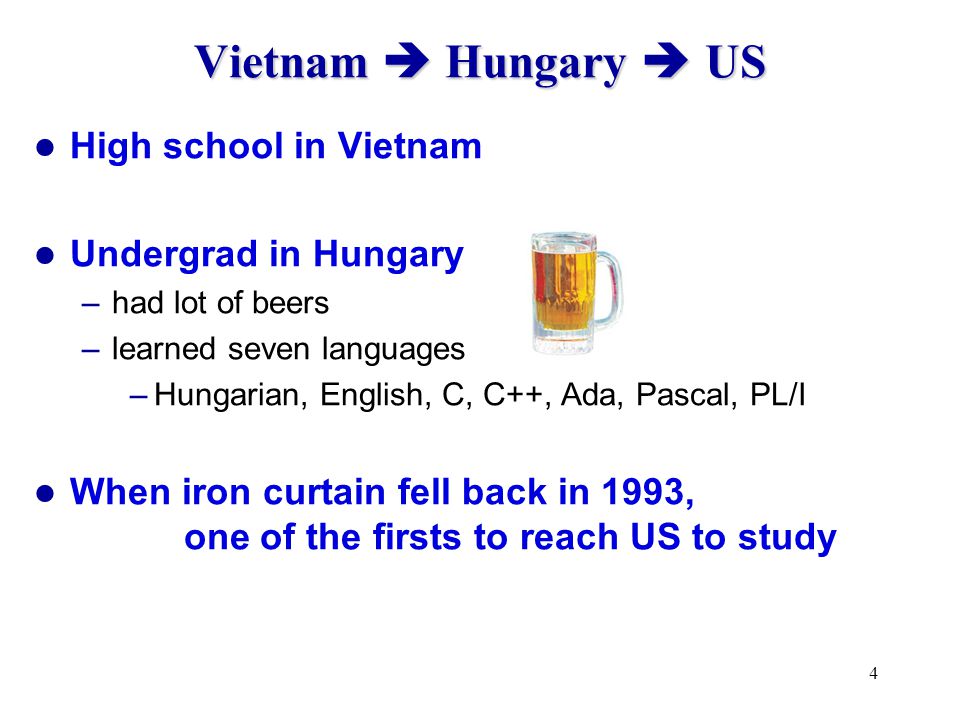

4. 4 Vietnam  Hungary  US High school in Vietnam Undergrad in Hungary –had lot of beers –learned seven languages –Hungarian, English, C, C++, Ada, Pascal, PL/I When iron curtain fell back in 1993, one of the firsts to reach US to study

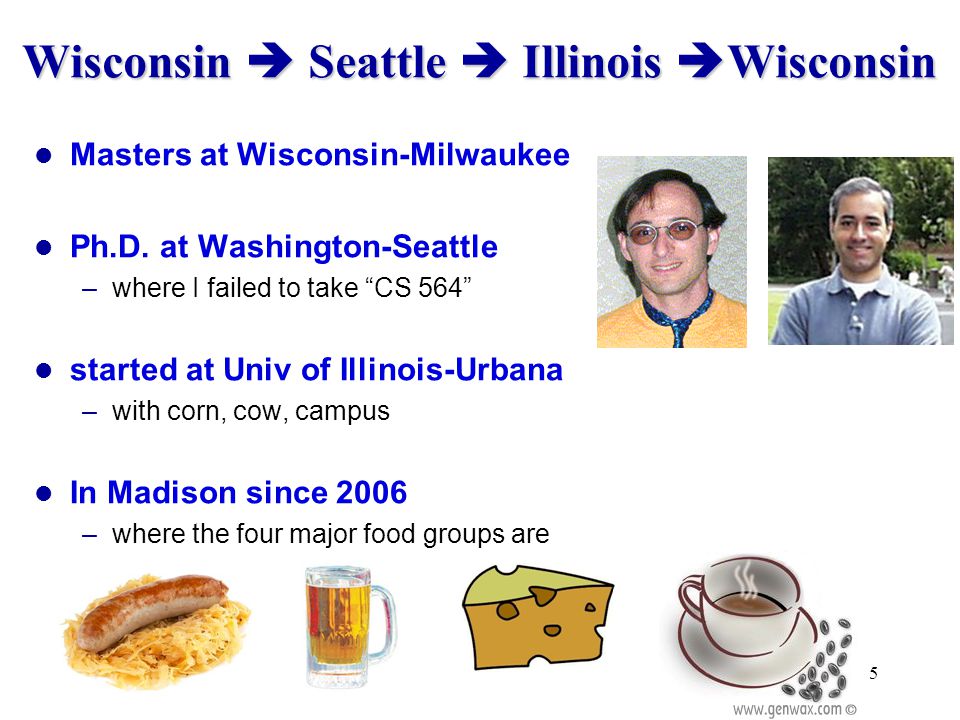

5. 5 Wisconsin  Seattle  Illinois  Wisconsin Masters at Wisconsin-Milwaukee Ph.D. at Washington-Seattle –where I failed to take “CS 564” started at Univ of Illinois-Urbana –with corn, cow, campus In Madison since 2006 –where the four major food groups are

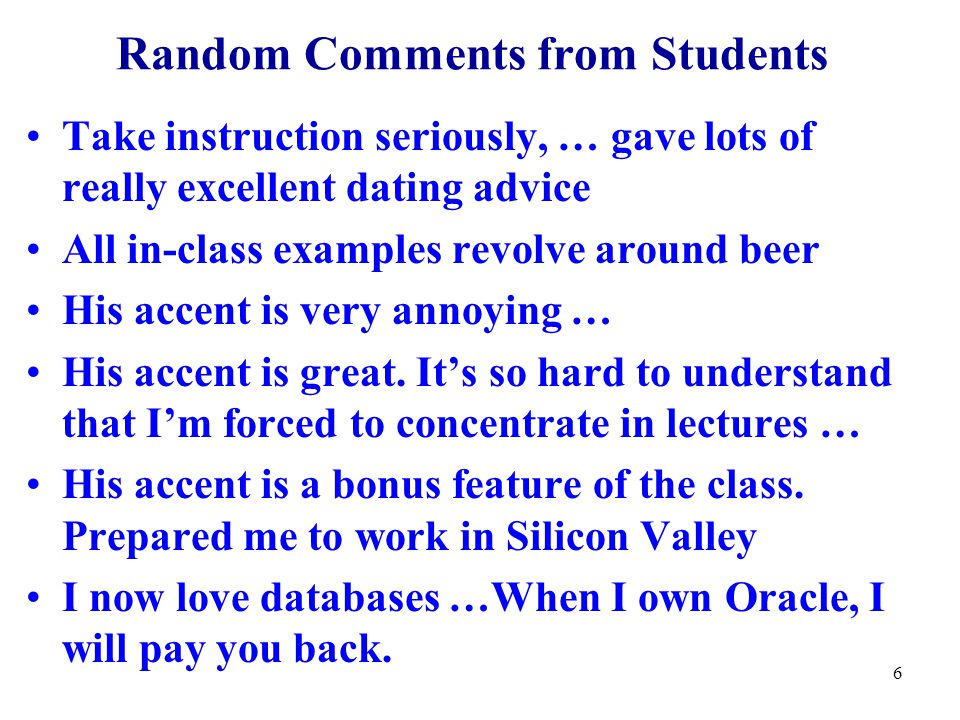

6. 6 Random Comments from Students Take instruction seriously, … gave lots of really excellent dating advice All in-class examples revolve around beer His accent is very annoying … His accent is great. It’s so hard to understand that I’m forced to concentrate in lectures … His accent is a bonus feature of the class. Prepared me to work in Silicon Valley I now love databases …When I own Oracle, I will pay you back.

7. What is this Course about? Numerous applications must deal with a lot of data They typically put data into a database The database will be managed by a system called database management system Applications then interact with this system to access and use the database 7

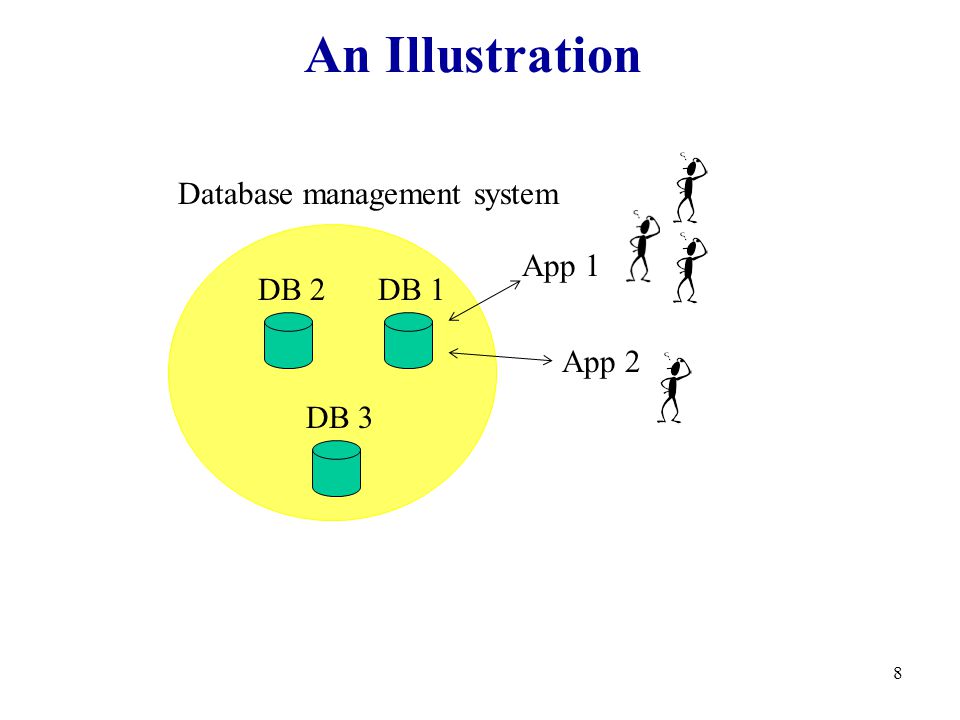

8. An Illustration 8 Database management system DB 2 DB 3 DB 1 App 1 App 2

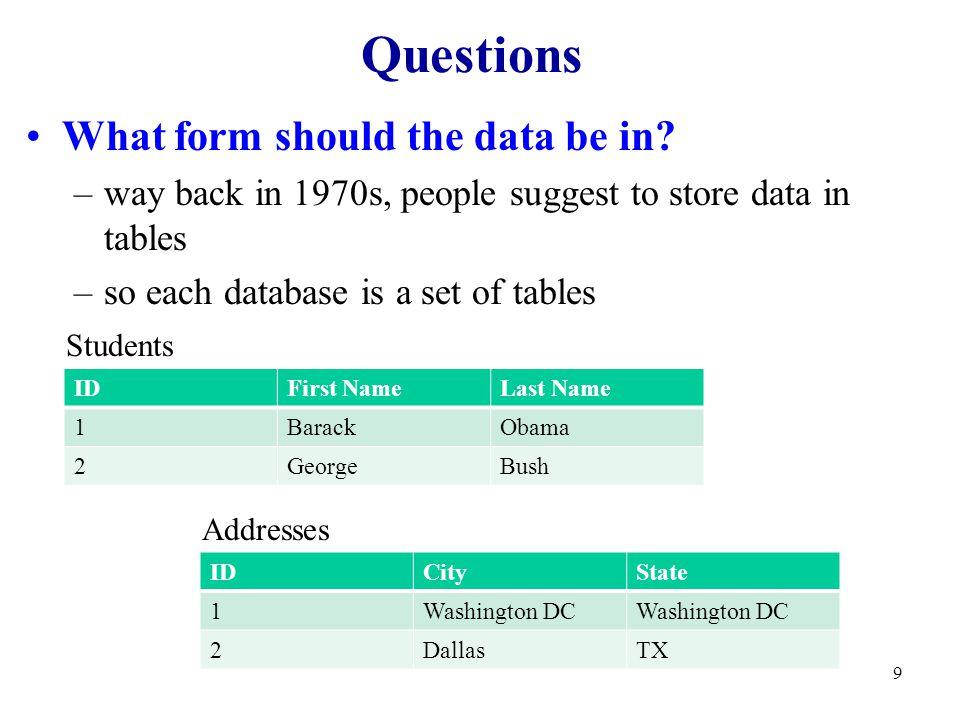

9. Questions What form should the data be in? –way back in 1970s, people suggest to store data in tables –so each database is a set of tables 9 IDFirst NameLast Name 1BarackObama 2GeorgeBush IDCityState 1Washington DC 2DallasTX Students Addresses

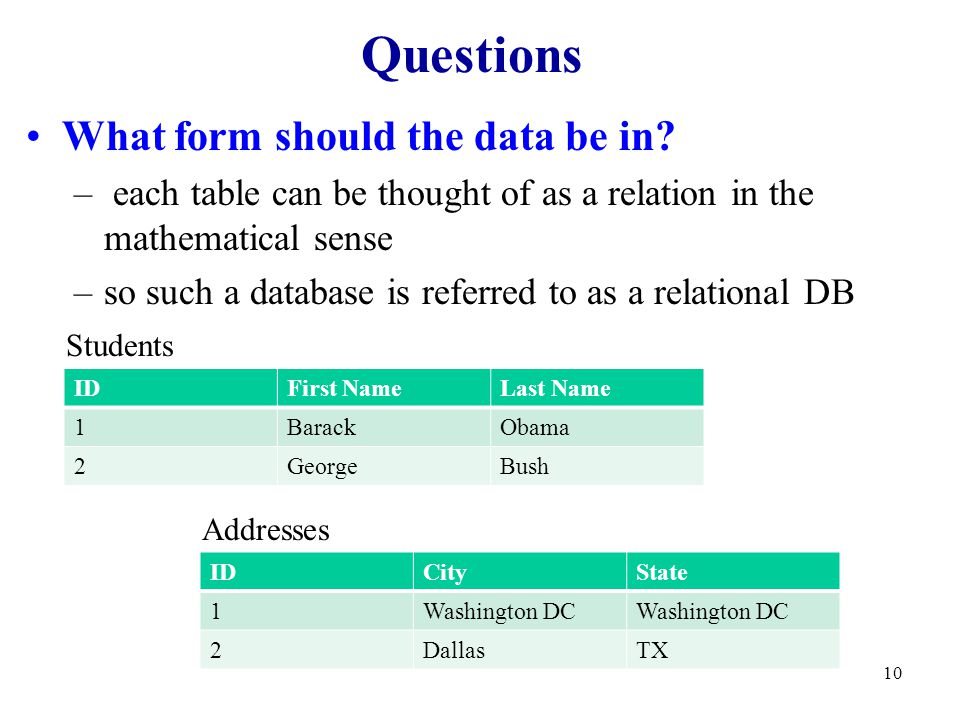

10. Questions What form should the data be in? – each table can be thought of as a relation in the mathematical sense –so such a database is referred to as a relational DB 10 IDFirst NameLast Name 1BarackObama 2GeorgeBush IDCityState 1Washington DC 2DallasTX Students Addresses

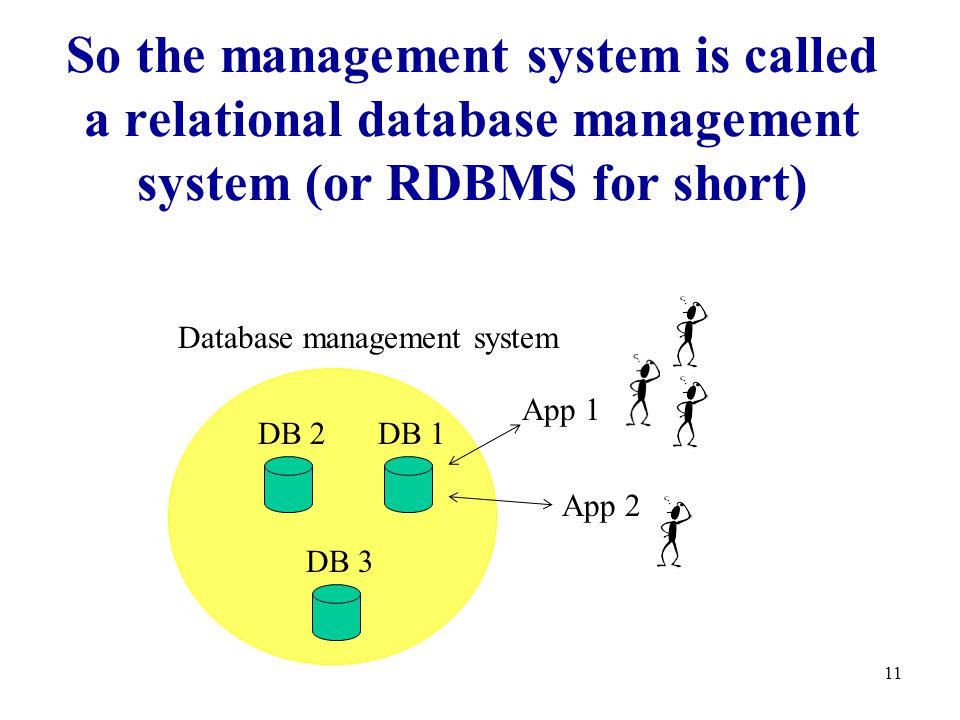

11. So the management system is called a relational database management system (or RDBMS for short) 11 Database management system DB 2 DB 3 DB 1 App 1 App 2

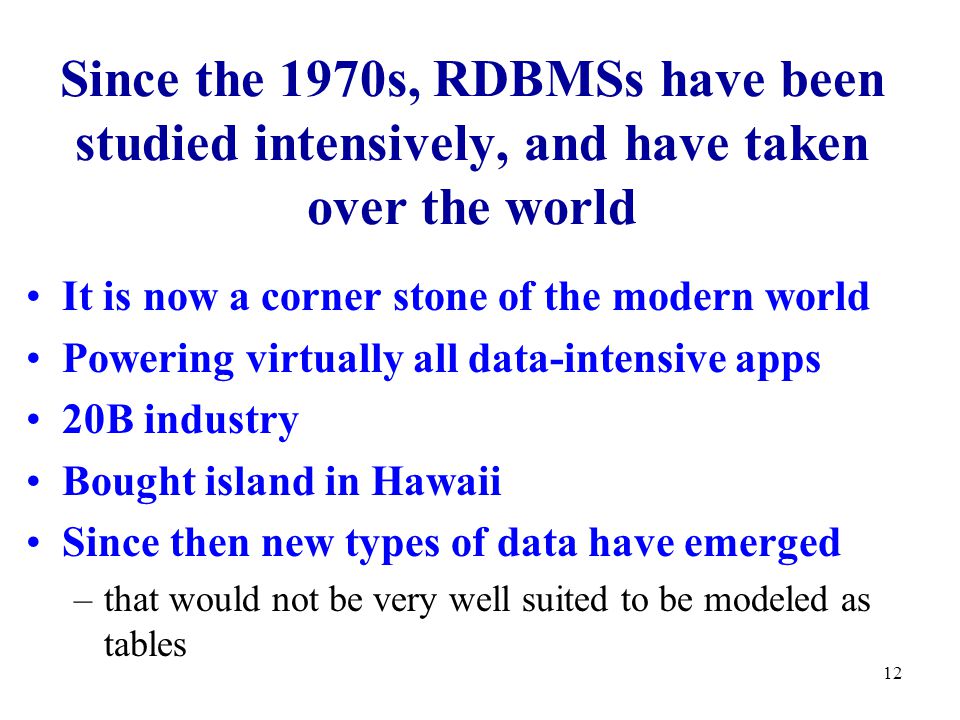

12. Since the 1970s, RDBMSs have been studied intensively, and have taken over the world It is now a corner stone of the modern world Powering virtually all data-intensive apps 20B industry Bought island in Hawaii Since then new types of data have emerged –that would not be very well suited to be modeled as tables 12

13. New types of database management systems have also emerged –eg NoSQL systems But RDBMSs remain foundational and pervasive, and will be so in the future This class focuses on RDBMSs –we will learn how to design a relational database –how to store it in an RDBMS –how to use an RDBMS –look into the internals of RDBMS 13

14. Lessons that you learn in this class will carry over to newer types of database management systems You will learn fundamentals of managing a large amount of data –critical as the world is becoming increasingly data centric Good for you when you go applying for a job –many jobs require knowing how to use RDBMSs It’s fun 14

15. If you are interested in more data managment stuff –CS 764: gory details about RDBMSs –CS 784: newer types of data and how to manage them (beyond RDBMSs) 15

16. 16 Course Logistics

17. 17 Prerequisite Must have data structure and algorithm background –CS 367 is a must; CS 537 might be useful For the project –lot of programming will be required –in a high-level language of your own choosing (or rather your team’s choosing) –could be Java, C, C++, Perl, Python, etc. –must know how to build a Web based application or be willing to learn

18. 18 Textbook –There is no ideal textbook, unfortunately –Database Management Systems, by R. Ramakrishnan and J. Gehrke, third edition –Database Systems: The Complete Book, by Garcia- Molina, Ullman and Widom, second edition –The best thing to do is to attend the lectures, make notes, and read the lecture notes –Consult the textbooks –If you do this, you will be fine

19. 19 Course Format For all students –two 75-min lectures / week –project: programming, 4-5 stages, may include some basic homework questions –a midterm and a final exam Attending lectures on Wed/Fri is important We also use the Mon slots occasionally for make-up lectures So if you can’t make Monday 2:25-3:15, do not take the class

20. In fact, for next week I’m traveling on W and F So we will have a make-up lecture on Monday, Jan 26 20

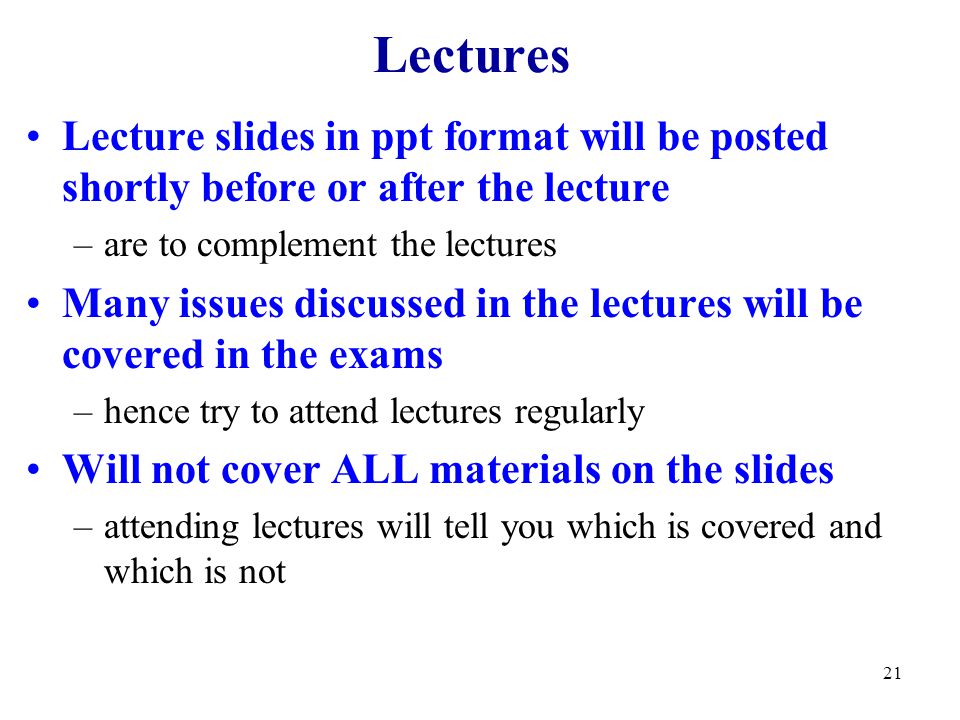

21. 21 Lectures Lecture slides in ppt format will be posted shortly before or after the lecture –are to complement the lectures Many issues discussed in the lectures will be covered in the exams –hence try to attend lectures regularly Will not cover ALL materials on the slides –attending lectures will tell you which is covered and which is not

22. 22 Project Select an application that needs a database Build a database application from start to finish Significant amount of programming Will be done in stages –you will submit some work at the end of each stage May have to show a demo at semester end

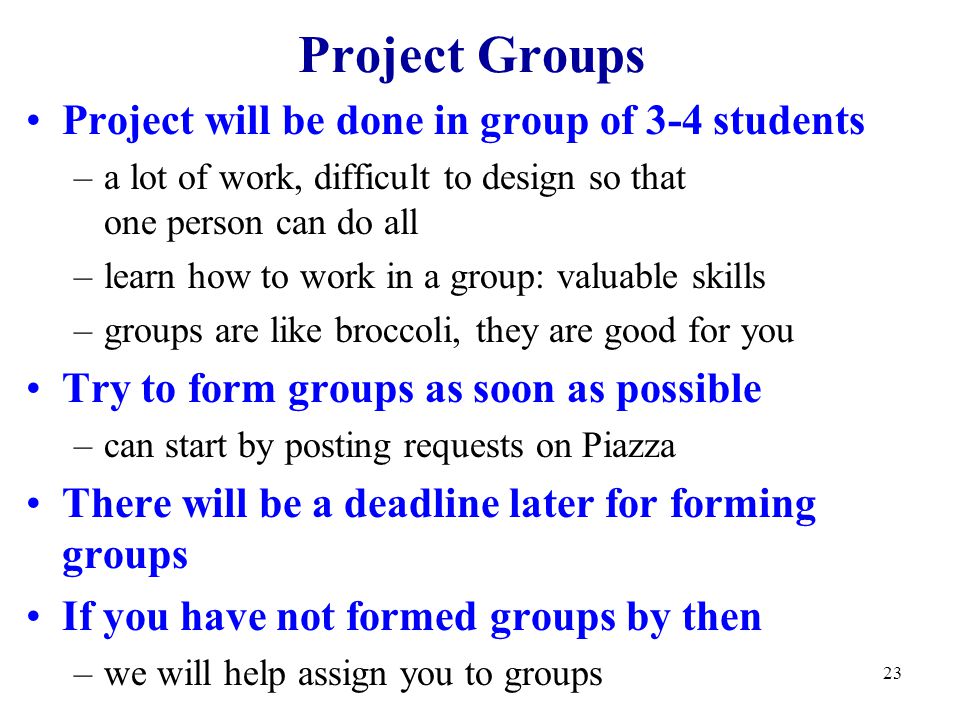

23. 23 Project Groups Project will be done in group of 3-4 students –a lot of work, difficult to design so that one person can do all –learn how to work in a group: valuable skills –groups are like broccoli, they are good for you Try to form groups as soon as possible –can start by posting requests on Piazza There will be a deadline later for forming groups If you have not formed groups by then –we will help assign you to groups

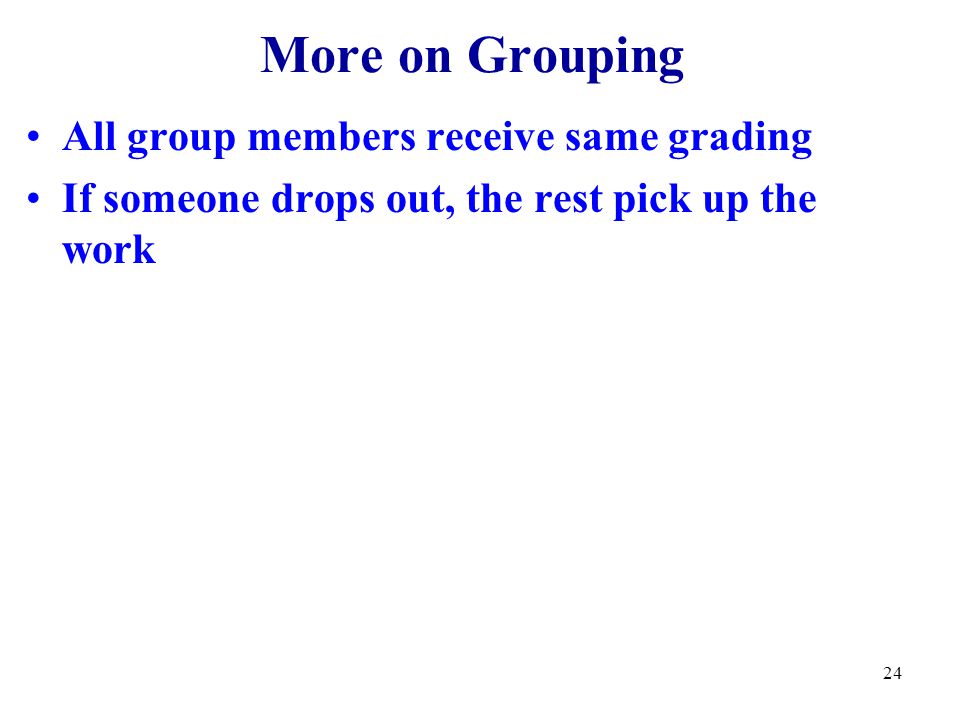

24. 24 More on Grouping All group members receive same grading If someone drops out, the rest pick up the work

25. 25 Exams Midterm & final –will be announced shortly –check dates and make sure no conflict! There may be some brief review before each exam If you have conflicts –do let us know in advance The Uncle problem

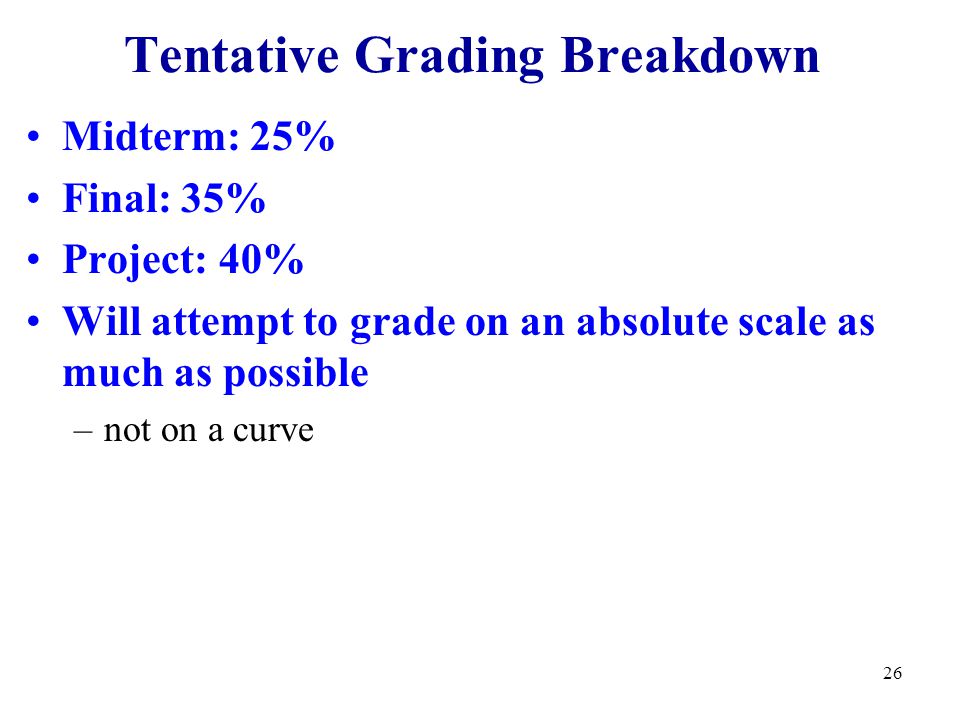

26. 26 Tentative Grading Breakdown Midterm: 25% Final: 35% Project: 40% Will attempt to grade on an absolute scale as much as possible –not on a curve

27. 27 Contacting the staff...

28. 28 Staff & Office Hours Instructor: AnHai Doan TAs: –Avinaash Gupta –Harneet Singh See class homepage for office hours, contact information

29. 29 Communications class homepage –www.cs.wisc.edu/~anhai/courses/564-sp15 mailing list: compsci564-1-s15@lists.wisc.edu –vitally important! –make sure to check it regularly for new announcements Piazza: will be set up shortly If you have a question/problem –talk to people in your group first –post your question on Piazza –email TA –go to office hours to talk to TA or instructor

30. 30 Now onto database studies...

31. At the Beginning A program typically consists of code + data Eg, need to sort 1000 numbers –2, 4, 6, 8, 1, 13, 9,... Store these numbers in an array Write some code to sort Both code + data are stored in memory, and mixed together –this was typical sort programs you learned in CS 367 31

32. Eventually people realized that –the data part could be huge; maybe not sorting 1000 numbers, but 1 trillion numbers –this posed serious problems: what happened if the data doesn’t fit into memory? –another issue is that many apps may want to access and do the same thing with data –should we write duplicate codes for each of these apps? –maybe we should factor out common code –thus the motivation for databases and DB management systems 32

33. An Illustration 33 Database management system DB 2 DB 3 DB 1 App 1 App 2

34. 34 Another Motivating Example Suppose we want to store, manipulate, and query information about: –students –courses –professors –who takes what, who teaches what

35. 35 Application Requirements store the data for a long period of time –large amounts (100s of GB) –protect against crashes –protect against unauthorized use allow users to query/update: –who teaches “CS 367” –enroll “Mary” in “CS 564”

36. 36 allow several (100s, 1000s) users to access the data simultaneously allow administrators to change the schema –add information about TAs

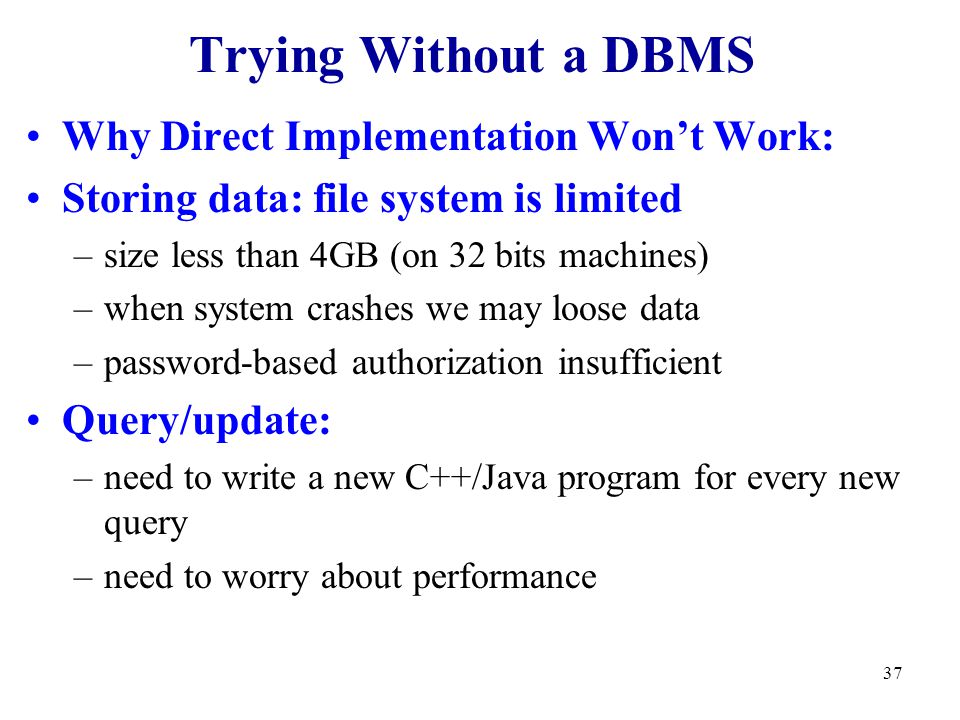

37. 37 Trying Without a DBMS Why Direct Implementation Won’t Work: Storing data: file system is limited –size less than 4GB (on 32 bits machines) –when system crashes we may loose data –password-based authorization insufficient Query/update: –need to write a new C++/Java program for every new query –need to worry about performance

38. 38 Concurrency: limited protection –need to worry about interfering with other users –need to offer different views to different users (e.g. registrar, students, professors) Schema change: –entails changing file formats –need to rewrite virtually all applications Better let a database system handle it

39. 39 What Can a DBMS Do for Us? Data Definition Language - DDL Data Manipulation Language - DML –query language Storage management Transaction Management –concurrency control –recovery Think buying a plane ticket! Can you do it without a DBMS?

40. 40 What Can a DBMS Do for Us? Automate a lot of boring/mundane operations on data –so that we don’t have to program over and over –so that we can write complex data manipulations in just a few lines, so that we can concentrate on app logics Make execution very fast –so that it scales up to very large data sets Make concurrent access/modification possible –so that many users can use the data at the same time

41. 41 Building an Application with a DBMS Requirements modeling (conceptual, pictures) –Decide what entities should be part of the application and how they should be linked. Schema design and implementation –Decide on a set of tables, attributes. –Define the tables in the database system. –Populate database (insert tuples). Write application programs using the DBMS –way easier now that the data management is taken care of.

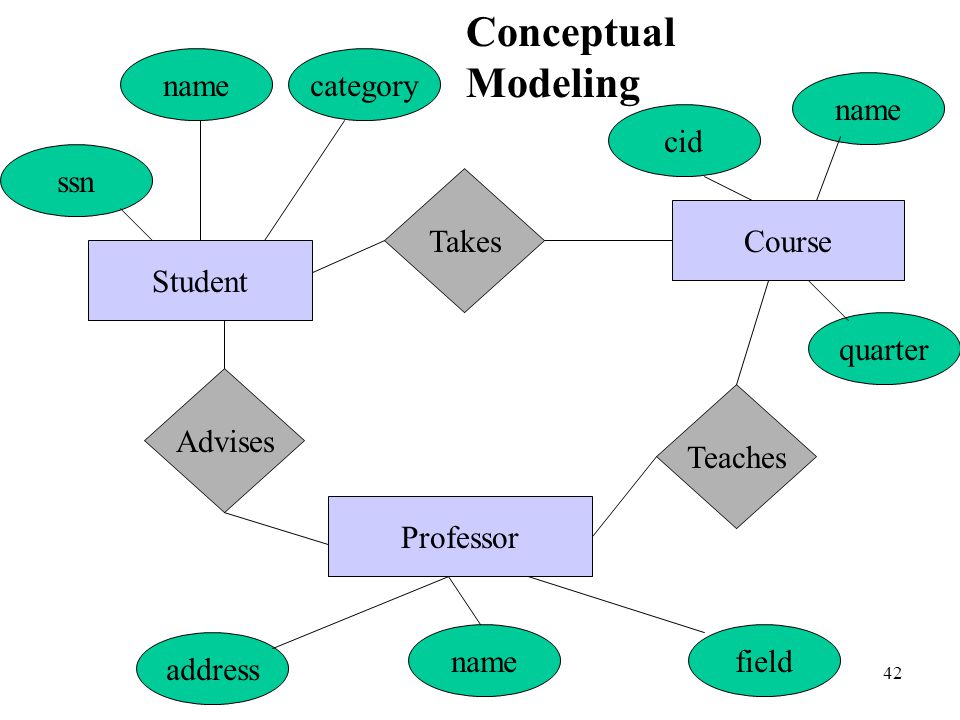

42. 42 address namefield Professor Advises Takes Teaches Course Student namecategory quarter name ssn Conceptual Modeling cid

43. 43 Schema Design and Implementation Tables: Separates the logical view from the physical view of the data. Students:Takes: Courses:

44. 44 Querying a Database Find all courses that “Mary” takes S(tructured) Q(uery) L(anguage) Query processor figures out how to answer the query efficiently. select C.name from Students S, Takes T, Courses C where S.name = “Mary” and S.ssn = T.ssn and T.cid = C.cid

45. 45 Query Optimization Imperative query execution plan: select C.name from Students S, Takes T, Courses C where S.name=“Mary” and S.ssn = T.ssn and T.cid = C.cid select C.name from Students S, Takes T, Courses C where S.name=“Mary” and S.ssn = T.ssn and T.cid = C.cid Declarative SQL query Plan: tree of Relational Algebra operators, choice of algorithms at each operator Goal: Students Takes sid=sid sname name=“Mary” cid=cid Courses

46. 46 Database Industry Relational databases are a great success of theoretical ideas. Big DBMS companies are among the largest software companies in the world. Oracle IBM (with DB2) Microsoft (SQL Server, Microsoft Access) Others $20B industry.

47. 47 The Study of DBMS Several aspects: –Modeling and design of databases –Database programming: querying and update operations –Database implementation DBMS study cuts across many fields of Computer Science: OS, languages, AI, Logic, multimedia, theory...
