1. UNIVERSITY OF MASSACHUSETTS Dept
UNIVERSITY OF MASSACHUSETTS Dept. of Electrical & Computer Engineering Computer Architecture ECE 668 Part 1 IntroductioN
Csaba Andras Moritz
Review today, not so fast in future

2. Coping with ECE 668
Students with varied backgrounds
Prerequisites – Basic Computer Architecture, VLSI
2 projects to choose from, some flexibility beyond that
You need software and/or Verilog/HSPICE skils to complete it
2 exams – midterm and final
Class participation, attend office hours
About the instructor
First lectures- review of Performance and Pipelining (Chapter 1 + Appendix A)
Many lectures will be using the whiteboard, and slides
Lectures related to textbook and beyond
Many lectures are outside the textbook
Web:

3. What you should know Basic machine structure
processor (data path, control, arithmetic), memory, I/O
Read and write in an assembly language, C, C++,..
MIPS/ARM ISA preferred
Understand the concepts of pipelining and virtual memory
Basic VLSI – HSPICE and/or Verilog

4. Textbook and references
Textbook: D.A. Patterson and J.L. Hennessy, Computer Architecture: A Quantitative Approach, 4th edition (or later), Morgan-Kaufmann.
Recommended reading:
J.P. Shen and M.H. Lipasti, Modern Processor Design: Fundamentals of Superscalar Processors, McGraw-Hill, 2005.
Chandrakasan et al, Design of High-Performance Microprocessor Circuits
NASIC research papers and Nanoelectronics textbook chapter; SKYBRIDGE, N3ASIC, CMOL, FPNI, SPWF papers if interested
Other research papers we bring up in class.

5. Course Outline I. Introduction (Ch 1) II. Pipeline Design (App A)
III. Instruction-level Parallelism, Pipelining (App.A,Ch.2)
IV. Memory Design: Memory Hierarchy, Cache Memory, Secondary Memory (Ch.4)
V. Multiprocessors (Ch. 3)
VI. Deep Submicron Implementation – Process Variation, Power-aware Architectures, Compiler’s role
VII. Nanoscale architectures

6. Administrative Details
Instructor: Prof. Csaba Andras Moritz
KEB 309H
Office Hours: 2:30-3:30 pm, Tues., & 2:30-3PM Thur.
TA – pending
Course web page: details available at:

7. Grading Midterm I - 35% Project – 30%: two projects to choose from
Class Participation – 5%
Final Exam. - 30%
Homework – exam questions

8. What is “Computer Architecture”
Instruction Set Architecture +
Machine Organization (e.g., Pipelining, Memory Hierarchy,
Storage systems, etc)
Or Unconventional Organization
IBM 360 (minicomputer, mainframe, supercomputer)
Intel X86 vs. ARM vs. Nanoprocessors

9. Computer Architecture Topics - Processors
Input/Output and Storage
RAID
performance,
reliability
Disks, Tape
Interleaving
Bus protocols
DRAM
Memory
Hierarchy
Bandwidth,
Latency
L2 Cache
L1 Cache
Addressing
VLSI
Instruction Set Architecture
Pipelining, Hazard Resolution,
Superscalar, Reordering,
Branch Prediction, VLIW, Vector
Instruction
Level Parallelism

10. Advanced CMOS multi-cores &Nano proc.?
2013

12. Scaling
Figure courtesy of Intel; Copyright – Baskaran Ganesan, Intel Higher Education Program

13. Shrinking geometry
Figure courtesy of Intel; Copyright – Baskaran Ganesan, Intel Higher Education Program

14. Die

15. Wafer

16. CPUs: Archaic (Nostalgic) v. Semi Modern v. Modern?
1982 Intel 80286
12.5 MHz
2 MIPS (peak)
Latency 320 ns
134,000 xtors, 47 mm2
16-bit data bus, 68 pins
Microcode interpreter, separate FPU chip
(no caches)
2001 Intel Pentium 4
1500 MHz (120X)
4500 MIPS (peak) (2250X)
Latency 15 ns (20X)
42,000,000 xtors, 217 mm2
64-bit data bus, 423 pins
3-way superscalar, Dynamic translate to RISC, Superpipelined (22 stage), Out-of-Order execution
On-chip 8KB Data caches, 96KB Instr. Trace cache, 256KB L2 cache
2015?
2015 homework?

17. Multi-core = Network on a chip
Everything you learn as CSE students applied/integrated in a chip!

18. Intel Polaris with 80 cores
Figure courtesy of Intel; Copyright – Baskaran Ganesan, Intel Higher Education Program

19. Tilera processor with 64 cores
MIT startup from Raw project (used to be involved in this)

20. What is next: Nanoprocessors?
Molecular memory, NASIC processors, 3D?
Cross
NW devices
Courtesy of Prof Chui’s
Group at UCLA
NASIC ALU, Copyright: NASIC group, UMASS

21. From Nanodevices to Nanocomputing
Crossed Nanowire Array
Physical Layer
Array-based Circuits with
Built-in Fault-tolerance (NASICs)
Evaluation/Cascading:
Streaming Control with
Surrounding Microwires
Circuits
We’re working on building up from nanowires, to transistors, to microprocessor architectures built on what we refer to as nanoscale fabrics, or computing structures. We know that we can build transistors from nanowires. We are building on that foundation to create processor architectures which can replace traditional scaled CMOS-based architectures as we move deeper into sub-micron territory towards true nanoscale territory.
Here you can see semiconductor nanowires laid out in 3D. At each point where the two wires cross, a field effect transistor can be created. In this case, the lower, the upper three semiconductor nanowires gate channels on the horizontal NW.
From these semiconductor nanowire arrays, by selectively constructing these FETs, we can build array-based circuits, and you can see here some FETs on an array, or a fabric. This 2-d array of FETs is the physical architecture that we’re working on. All of our work is based on these arrays. We are studying the implications of this structure on all levels up to microprocessors, from devices to circuits to architectures.
Nanoprocessor
Architectures

22. NASICs Fabric Based Architectures
Cellular Architecture
WIre Streaming Processor
Special purpose for image and signal processing
Massively parallel array of identical interacting simple functional cells
Fully programmable from external template signals
22X denser than in 16nm scaled CMOS
General purpose stream processor
5-stage pipeline with minimal feedback
Built-in fault tolerance: up to 10% device level defect rates
33X density adv vs. 16nm scaled CMOS
Simpler manufacturing
~9X improved power-per-performance efficiency (rough estimate)
Layout of ALU

23. N3ASIC- 3D Nanowire Technology

24. N3P – Hybrid Spin-Charge Platform

25. Skybridge 3D Circuits – Vertically Integrated
3D Circuit concept and
1 bit full adder
Designed in my group
FETs are gate-all-around
on vertical nanowires

26. Example ISAs in Processors (Instruction Set Architectures)
ARM (32, 64-bit, v8) 1985
Digital Alpha (v1, v3) 1992
HP PA-RISC (v1.1, v2.0) 1986
Sun Sparc (v8, v9) 1987
MIPS (MIPS I, II, III, IV, V) 1986
Intel (8086,80286,80386, ,Pentium, MMX, ...)
RISC vs. CISC

27. Basics
Let us review some basics

28. RISC ISA Encoding Example
Fmt replaced with S or D

29. Virtualized ISAs BlueRISC TrustGUARD
ISA is randomly created internally
Fluid - more than one ISA possible

30. Characteristics of RISC
Only Load/Store instructions access memory
A relatively large number of registers
Goals of new computer designs
Higher performance
More functionality (e.g., MMX)
Other design objectives? (examples)

31. How to measure performance?
Time to run the task
Execution time, response time, latency
Performance may be defined as 1 / Ex_Time
Throughput, bandwidth

32. Speedup performance(x) = 1 execution_time(x)
" Y is n times faster than X" means
Execution_time(old / brand x)
n = speedup =
Execution_time(new / brand y)
Speedup must be greater than 1;
Tx/Ty = 3/2 = but not Ty/Tx = 2/3 = 0.67

33. MIPS and MFLOPS MIPS (Million Instructions Per Second)
Can we compare two different CPUs using MIPS?
MFLOPS (Million Floating-point operations Per Sec.)
Application dependent (e.g., compiler)
Still useful for benchmarks
Benchmarks: e.g., SPEC CPU 2000: 26 applications (with inputs)
SPECint2000: Twelve integer, e.g., gcc, gzip, perl
SPECfp2000: Fourteen floating-point intensive, e.g., equake

34. SPEC CPU 2000 SPECint2000 SPECfp2000 www.specbench.org/cpu200
Benchmark Language Category
168.wupwise Fortran77 Quantum Chromodynamics
171.swim Fortran77 Shallow Water Modeling
172.mgrid Fortran77 Multi-grid Solver
173.applu Fortran77 Partial Differential Equations
177.mesa C D Graphics Library
178.galgel Fortran90 Fluid Dynamics
179.art C Image Recognition /Neural Nets
183.equake C Seismic Wave Propagation
187.facerec Fortran 90 Face Recognition
188.ammp C Computational Chemistry
189.lucas Fortran90 Primality Testing
191.fma3d Fortran90 Finite-element Crash - Nuclear Physics
200.sixtrack Fortran77 Accelerator Design
301.apsi Fortran77 Meteorology: Pollutant Distribution
Benchmark Language Category
164.gzip C Compression
175.vpr C FPGA Circuit Place& Route
176.gcc C C Compiler
181.mcf C Combinatorial Optimization
186.crafty C Game Playing: Chess
197.parser C Word Processing
252.eon C++ Computer Visualization
253.perlbmk C PERL Prog Language
254.gap C Group Theory, Interpreter
255.vortex C Object-oriented Database
256.bzip C Compression
300.twolf C Place and Route Simulator

35. Spec2006 (still current)

36. Handheld device committee SPEC
Other Benchmarks
Workload Category Example Benchmark Suite
CPU Benchmarks - Uniprocessor SPEC CPU 2006
Java Grande Forum Benchmarks
SciMark, ASCI
CPU - Parallel Processor SPLASH, NASPAR
Multimedia MediaBench
Embedded EEMBC benchmarks
Digital Signal Processing BDTI benchmarks
Java - Client side SPECjvm98, CaffeineMark
Java - Server side SPECjBB2000, VolanoMark
Java - Scientific Java Grande Forum Benchmarks
SciMark
Transaction Processing
On-Line Transaction Processing TPC-C, TPC-W
Decision Support Systems TPC-H, TP-R
Web Server SPEC web99, TPC-W, VolanoMark
Electronic commerce TPC-W, SPECjBB2000
Mail-server SPECmail2000
Network File System SPEC SFS 2.0
Personal Computer SYSMARK, WinBench, DMarkMAX99
Handheld device committee SPEC

37. Synthetic Benchmarks Whetstone Benchmark Dhrystone Benchmark
Rank Machine Mflop ratings (Vl=1024) Total CPU MWIPS N N N8 (seconds)
1 Pentium 4/3066 (ifc)
2 HP Superdome Itanium2/
3 HP RX5670 Itanium2/1500-H
4 Pentium 4/2666 (ifc)
5 IBM pSeries 690Turbo/
6 Compaq Alpha ES45/
7 HP RX4640 Itanium2/
8 IBM Regatta-HPC/
9 IBM pSeries 690Turbo/
10 AMD Opteron848/
Whetstone Benchmark
Core DMIPS Freq. DMIPS Inline Inline
/MHz. (MHz) DMIPS/MHz DMIPS
4Kc™
4KEc™
5Kc™
5Kf™
20Kc™
Dhrystone Benchmark

38. How do we design faster CPUs?
Faster technology – used to be the main approach
(a) getting more expensive
(b) reliability & yield
(c) speed of light (3.10^8 m/sec)
Larger dies (SOC - System On a Chip)
less wires between ICs but - low yield (next slide)
Parallel processing - use n independent processors
limited success
n-issue superscaler microprocessor (currently n=4)
Can we expect a Speedup = n ?
Pipelining
Multi-threading

39. Power consumption Dynamic Leakage Power-aware architectures
α * Vdd^2 * f* Cl
Leakage
Mainly from subthreshold (the FETs leak current)
Significant for small feature sizes (less Ion/Ioff)
Power-aware architectures
Objective is to minimize activity often
Role of compilers - control
Circuit level optimizations – make same more efficient
CAD tools – e.g., clock gating – make it easy to add

40. Define and quantify power
Leakage current increases in processors with smaller transistor sizes
Increasing the number of transistors increases power even if they are turned off
Leakage is dominant sub 90nms
Very low power systems even gate voltage to inactive modules to control loss due to leakage

41. Define and quantity dependability (2/3)
Module reliability = measure of continuous service accomplishment (or time to failure). 2 metrics
Mean Time To Failure (MTTF) measures Reliability
Failures In Time (FIT) = 1/MTTF, the rate of failures
Traditionally reported as failures per billion hours of operation
Mean Time To Repair (MTTR) measures Service Interruption
Mean Time Between Failures (MTBF) = MTTF+MTTR
Module availability (MA) measures service as alternate between the 2 states of accomplishment and interruption (number between 0 and 1, e.g. 0.9)
Module availability MA = MTTF / ( MTTF + MTTR)

42. Example calculating reliability
If modules have exponentially distributed lifetimes (age of module does not affect probability of failure), overall failure rate is the sum of failure rates of the modules
Calculate FIT and MTTF for 10 disks (1M hour MTTF per disk), 1 disk controller (0.5M hour MTTF), and 1 power supply (0.2M hour MTTF):

43. Example calculating reliability
If modules have exponentially distributed lifetimes (age of module does not affect probability of failure), overall failure rate is the sum of failure rates of the modules
Calculate FIT and MTTF for 10 disks (1M hour MTTF per disk), 1 disk controller (0.5M hour MTTF), and 1 power supply (0.2M hour MTTF):

44. Integrated Circuits Yield- ï þ ý ü î í ì ÷ ø ö ç è æ + =
Die_area
sity
Defect_Den 1 d
Wafer_yiel
Yield
Die

45. Integrated Circuits Costs
Die cost + Testing cost + Packaging cost
IC cost =
Final test yield
Wafer cost
Die cost =
Dies per Wafer x Die Yield
P (Wafer_diam/2)²
P x Wafer_diam
Dies per wafer = - -
Test_Die
Die_Area
2 x Die_Area ×
Die Cost goes up roughly with (Die_Area)2

46. Amdahl’s Law - Basics
Example: Executing a program on n independent processors
Fraction
= parallelizable part of program
enhanced
Speedup
= n
enhanced
old
new
ExTime =
(1-
Fraction
) +
Fraction n
ExTime
enhanced
enhanced
Lim Speedup = 1 / (1 - Fraction )
overall
enhanced n

47. Law of Diminishing Returns
Amdahl’s Law - Graph
Law of Diminishing Returns
1-f
enh

48. Amdahl’s Law - Extension
Example: Improving part of a processor (e.g., multiplier, floating-point unit)
enhanced
Fraction
= part of program to be enhanced 1
Speedup =
overall
Fraction ( )
enhanced 1 -
Fraction +
enhanced
Speedup
enhanced
< 1 / (1 - Fraction )
enhanced
A given signal processing application consists of 40% multiplications.
An enhanced multiplier will execute 5 times faster
Speedup = 1 / ( ) = 1.47 < 1/0.6 = 1.66
overall

49. Amdahl’s Law - Another Example
Floating point instructions improved to run 2X; but only 10% of actual run time is used by FP instructions
ExTimenew = ExTimeold x ( /2) = 0.95 x ExTimeold 1
0.95
Speedupoverall = =
1.053

50. Instruction execution
Components of average execution time (CPI Law)
Average CPU time per program
CPI /clock_rate
The “End to End Argument” is what RISC was ultimately about - it is the performance of the complete system that matters, not individual components!
CPU time = Seconds = Instructions x Cycles x Seconds
Program Program Instruction Cycle

51. Cycles Per Instruction – Another Performance Metric
“Average Cycles per Instruction”
CPI = Total_No_of_Cycles / Instruction Count
“CPI of Individual Instructions”
CPIj - CPI for instruction j (j=1,…,n)
Ij - # of times instruction j is executed
“Instruction Frequency”
Count n
Instructio I F
where
CPI j = å 1

52. Example: Calculating CPI
Base Machine (Reg / Reg)
Op Freq Cycles CPIj * Fj (% Time)
ALU 50% ( %)
Load 20% (27%)
Store 10% (13%)
Branch 20% (27%)
Typical Mix of
instruction types
in program

53. Pipelining - Basics 4 consecutive operations Z=F(X,Y)=SqRoot(X +Y )
( ) 2
Square Root
4 consecutive operations
Z=F(X,Y)=SqRoot(X +Y ) 2 2
If each step takes 1T then one calculation takes 3T, four take 12T
Stage 1 X
Stage 2 +Y
Stage 3
SqRoot 2 Y Z
Assuming ideally that each stage takes 1T
What will be the latency (time to produce the first result)?
What will be the throughput (pipeline rate in the steady state)?

54. Pipelining - Timing Total of 6T; Speedup = ?
For n operations: 3T + (n-1)T = latency +
n-1
throughput 3T n 3n
Speedup = =
3T + (n-1)T
n + 2
# of stages n

55. Pipelining - Non ideal Non-ideal situation:
1. Steps take T ,T ,T Rate = 1 / max T
Slowest unit determines the throughput
2. To allow independent operation must add latches
t = t max T 1 2 3 i
latch i

56. Rule of Thumb for Latency Lagging BW
In the time that bandwidth doubles, latency improves by no more than a factor of 1.2 to 1.4
(and capacity improves faster than bandwidth)
Stated alternatively: Bandwidth improves by more than the square of the improvement in Latency

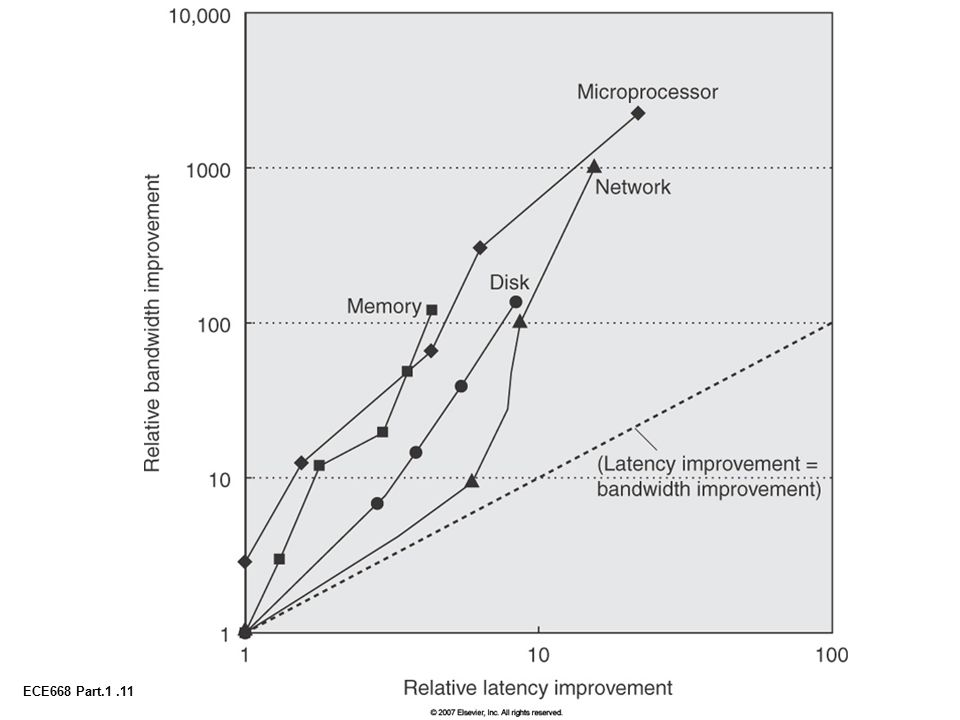

57. Latency Lags Bandwidth (last ~20 years)
Performance Milestones
Processor: ‘286, ‘386, ‘486, Pentium, Pentium Pro, Pentium 4 (21x,2250x)
Ethernet: 10Mb, 100Mb, 1000Mb, Mb/s (16x,1000x)
Memory Module: 16bit plain DRAM, Page Mode DRAM, 32b, 64b, SDRAM, DDR SDRAM (4x,120x)
Disk : 3600, 5400, 7200, 10000, RPM (8x, 143x)
CPU high,
Memory low (“Memory Wall”)
Processor: 2250X, 22X Latency

58. Summary of Technology Trends
For disk, LAN, memory, and microprocessor, bandwidth improves by square of latency improvement
In the time that bandwidth doubles, latency improves by no more than 1.2X to 1.4X
Lag probably even larger in real systems, as bandwidth gains multiplied by replicated components
Multiple processors in a cluster or even in a chip
Multiple disks in a disk array
Multiple memory modules in a large memory
Simultaneous communication in switched LAN
HW and SW developers should innovate assuming Latency Lags Bandwidth
If everything improves at the same rate, then nothing really changes
When rates vary, require real innovation

59. Summary of Architecture Trends
CMOS Microprocessors focus on computing bandwidth with multiple cores
Accelerators for specialized support
Software to take advantage – Von Neumann design
As nanoscale technologies emerge new architectural areas are created
Unconventional architectures
Not programmed – would operate more like the brain through learning and inference
As well as new opportunities for microprocessor design

60. Backup slides for students

61. 6 Reasons Latency Lags Bandwidth
1. Moore’s Law helps BW more than latency
Faster transistors, more transistors, more pins help Bandwidth
MPU Transistors: vs M xtors (300X)
DRAM Transistors: vs. 256 M xtors (4000X)
MPU Pins: 68 vs. 423 pins (6X)
DRAM Pins: 16 vs pins (4X)
Smaller, faster transistors but communicate over (relatively) longer lines: limits latency
Feature size: 1.5 to 3 vs micron (8X,17X)
MPU Die Size: 35 vs. 204 mm2 (ratio sqrt  2X)
DRAM Die Size: 47 vs. 217 mm2 (ratio sqrt  2X)

62. 6 Reasons Latency Lags Bandwidth (cont’d)
2. Distance limits latency
Size of DRAM block  long bit and word lines  most of DRAM access time
Speed of light and computers on network
3. Bandwidth easier to sell (“bigger=better”)
E.g., 10 Gbits/s Ethernet (“10 Gig”) vs msec latency Ethernet
4400 MB/s DIMM (“PC4400”) vs. 50 ns latency
Even if just marketing, customers now trained
Since bandwidth sells, more resources thrown at bandwidth, which further tips the balance

63. 6 Reasons Latency Lags Bandwidth (cont’d)
4. Latency helps BW, but not vice versa
Spinning disk faster improves both bandwidth and rotational latency
3600 RPM  RPM = 4.2X
Average rotational latency: 8.3 ms  2.0 ms
Things being equal, also helps BW by 4.2X
Lower DRAM latency  More access/second (higher bandwidth)
Higher linear density helps disk BW (and capacity), but not disk Latency
9,550 BPI  533,000 BPI  60X in BW

64. 6 Reasons Latency Lags Bandwidth (cont’d)
5. Bandwidth hurts latency
Queues help Bandwidth, hurt Latency (Queuing Theory)
Adding chips to widen a memory module increases Bandwidth but higher fan-out on address lines may increase Latency
6. Operating System overhead hurts Latency more than Bandwidth
Long messages amortize overhead; overhead bigger part of short messages
