1. Lower Bounds for NNS and Metric Expansion Rina Panigrahy Kunal Talwar Udi Wieder Microsoft Research SVC TexPoint fonts used in EMF. Read the TexPoint manual before you delete this box.: A A

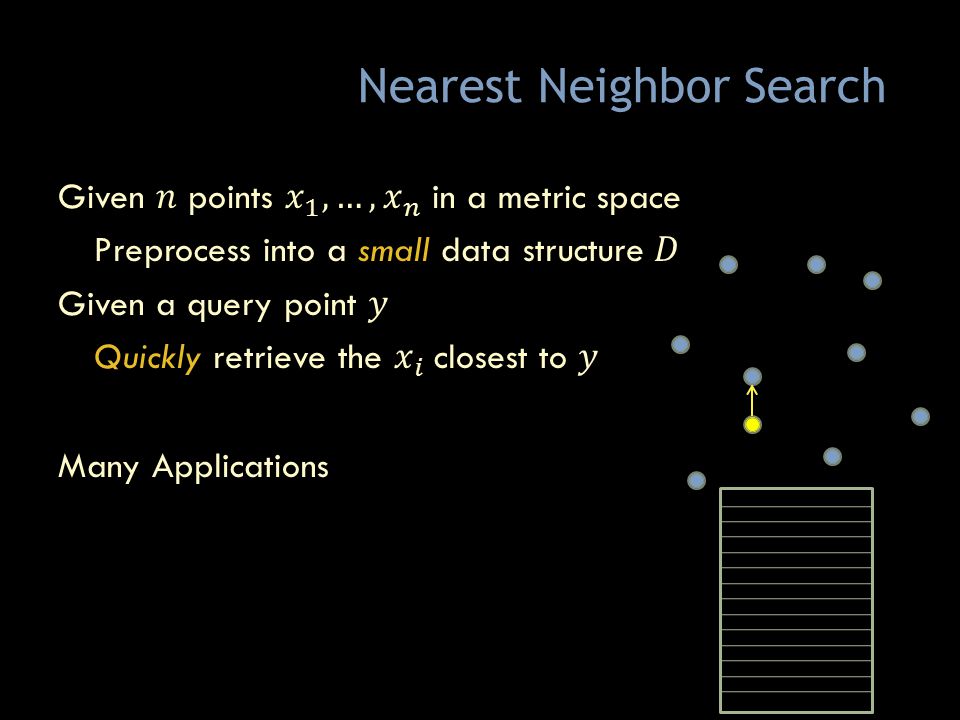

2. Nearest Neighbor Search

3. Decision Version. Given search radius r Find a point in distance r of query point Relation to Approximate NNS: – If second neighbor is at distance cr – Then this is also a c-approximate NN r cr

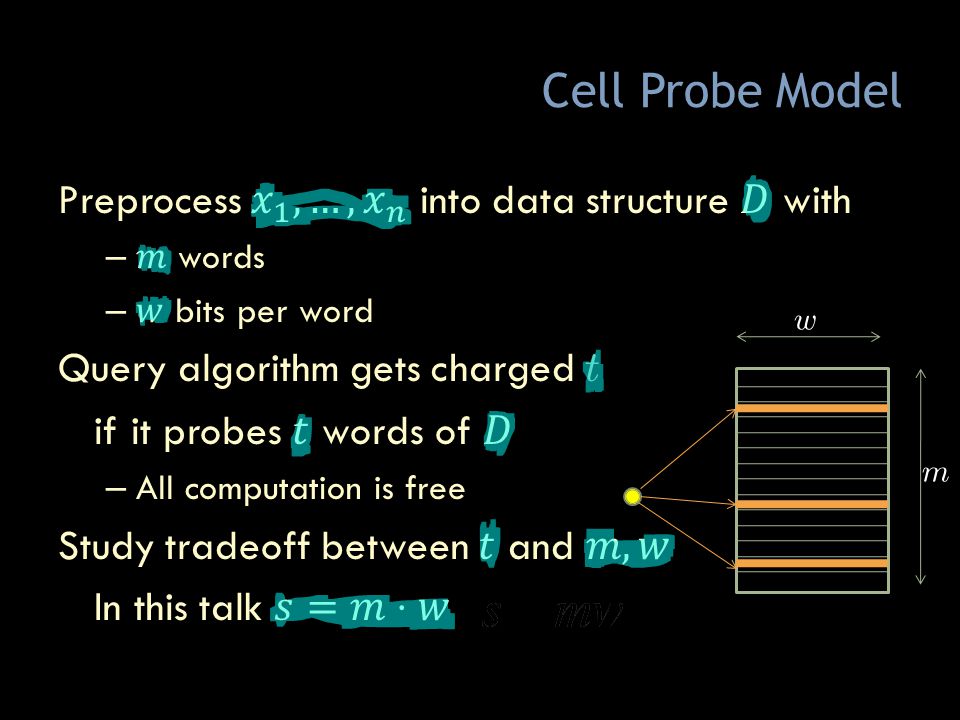

4. Cell Probe Model m w

5. Many different lower bounds Metric spaceApproximationRandomized?Ref ExactyesPT[06], BR[02] noPT[06], Liu[04] yesAIP[06] yesPTW[08] noACP[08] n.exp(ϵ 3 d)

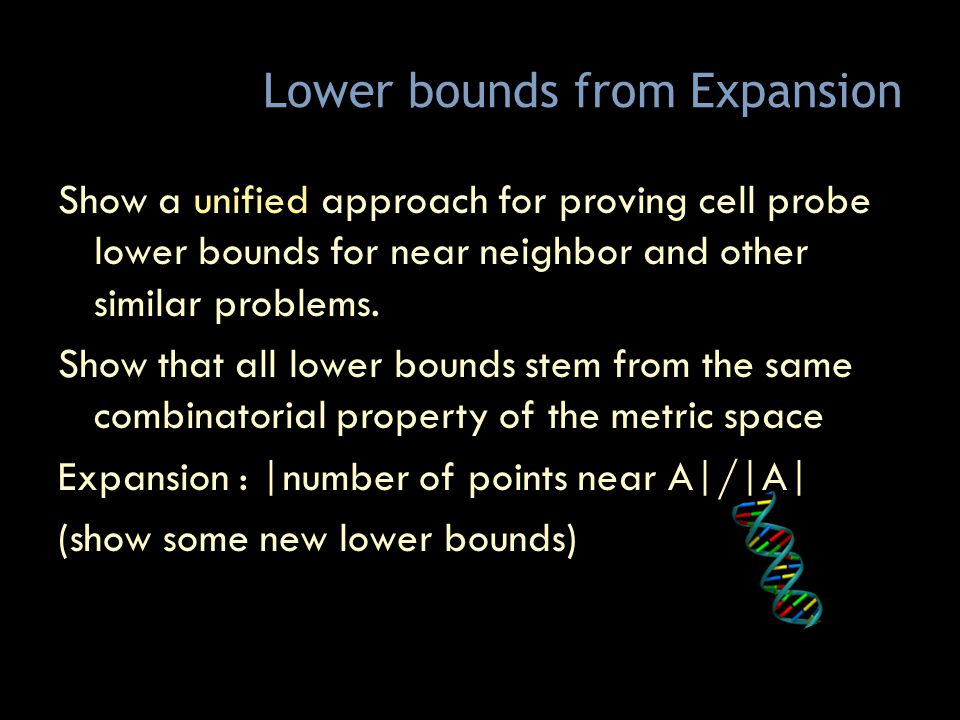

6. Lower bounds from Expansion Show a unified approach for proving cell probe lower bounds for near neighbor and other similar problems. Show that all lower bounds stem from the same combinatorial property of the metric space Expansion : |number of points near A|/|A| (show some new lower bounds)

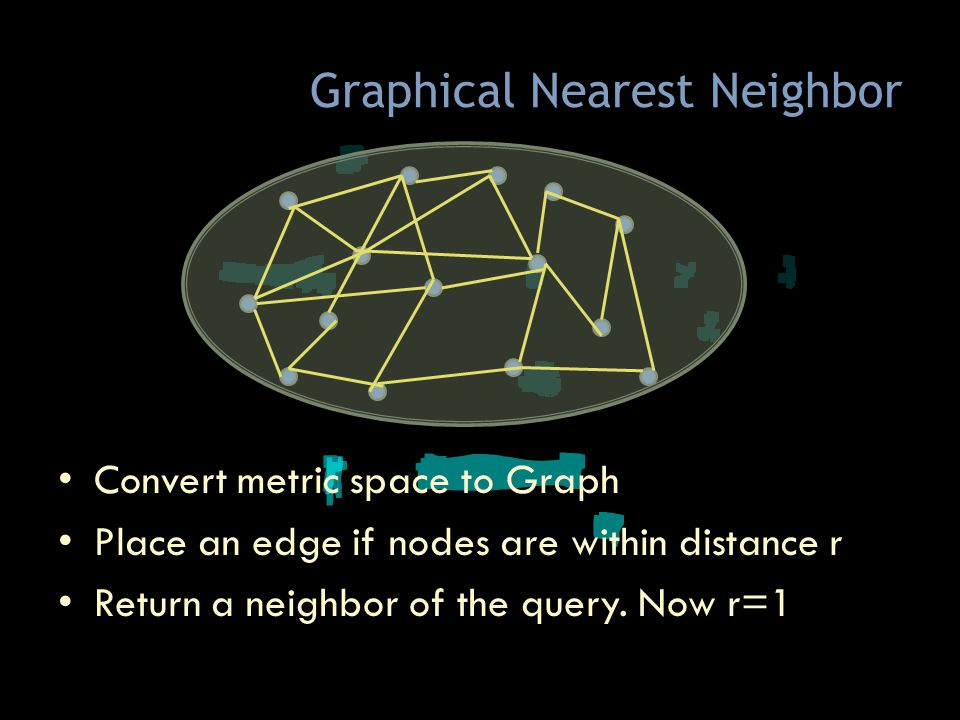

7. Graphical Nearest Neighbor Convert metric space to Graph Place an edge if nodes are within distance r Return a neighbor of the query. Now r=1

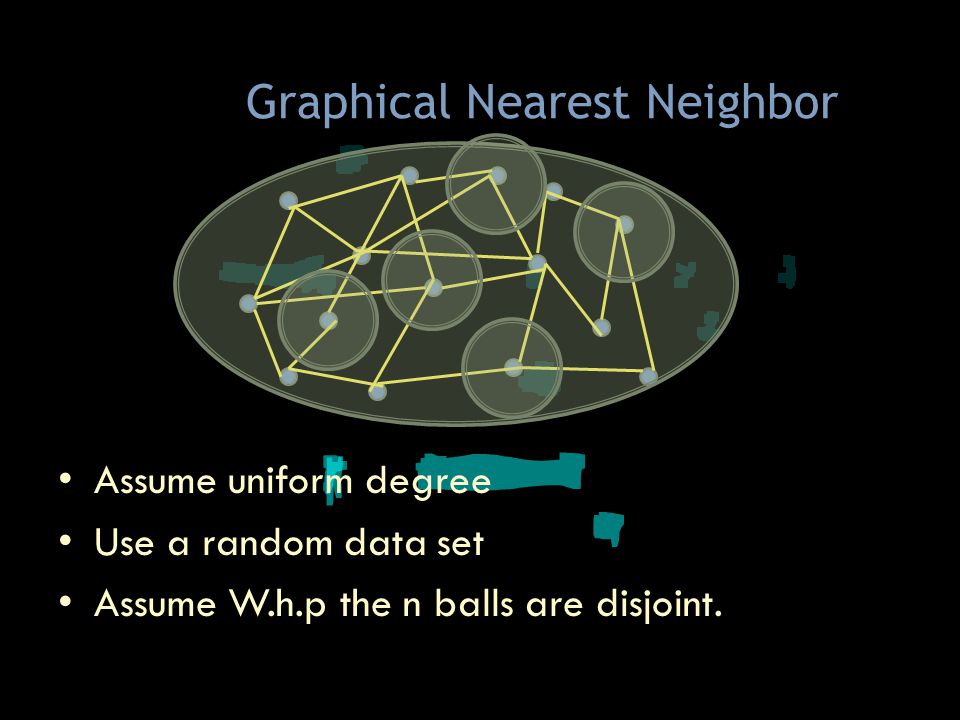

8. Graphical Nearest Neighbor Assume uniform degree Use a random data set Assume W.h.p the n balls are disjoint.

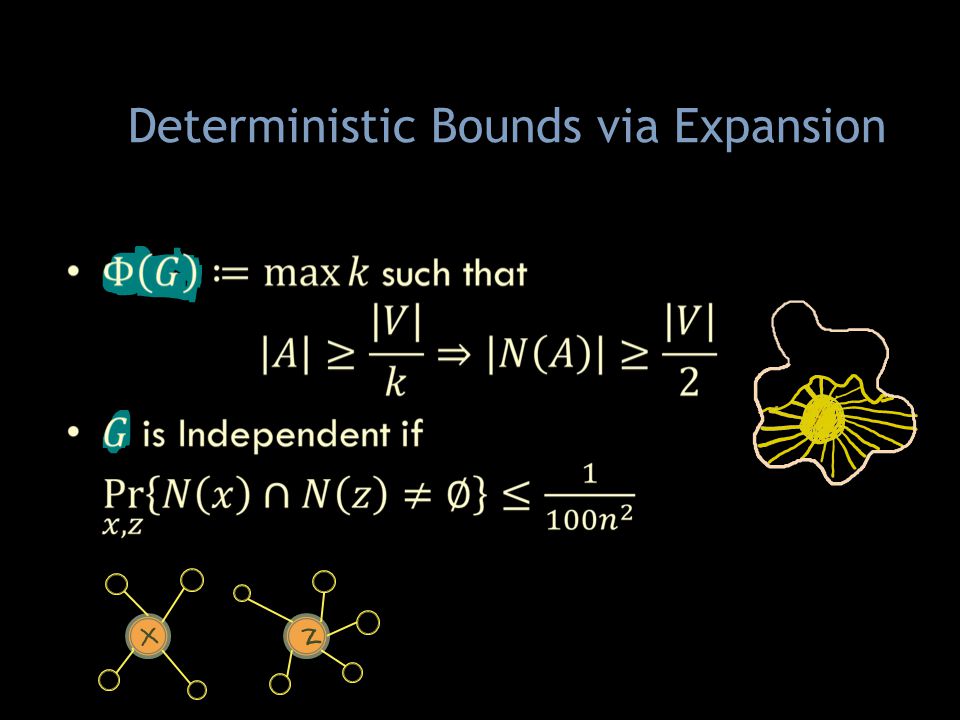

9. Deterministic Bounds via Expansion

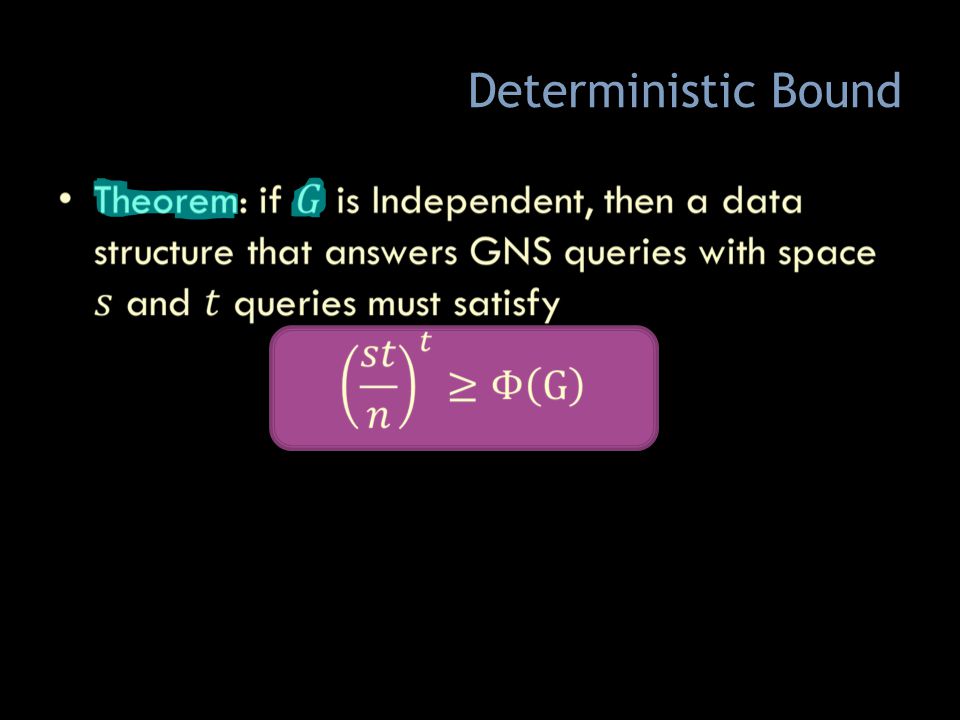

10. Deterministic Bound sdddddddddddddddlklkj

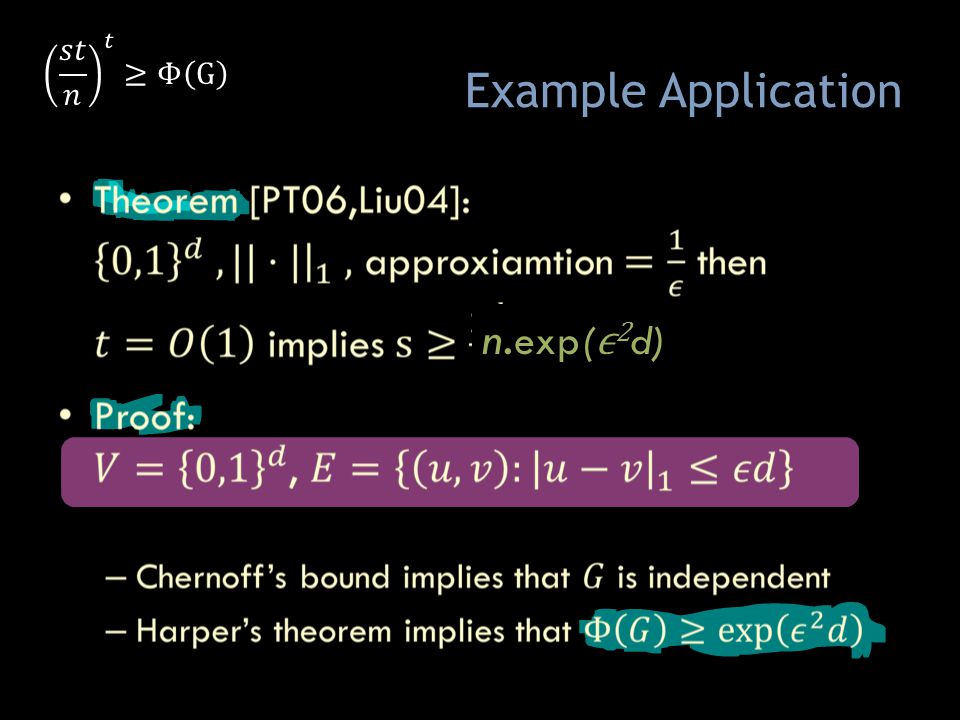

11. Example Application n. exp( ϵ 2 d)

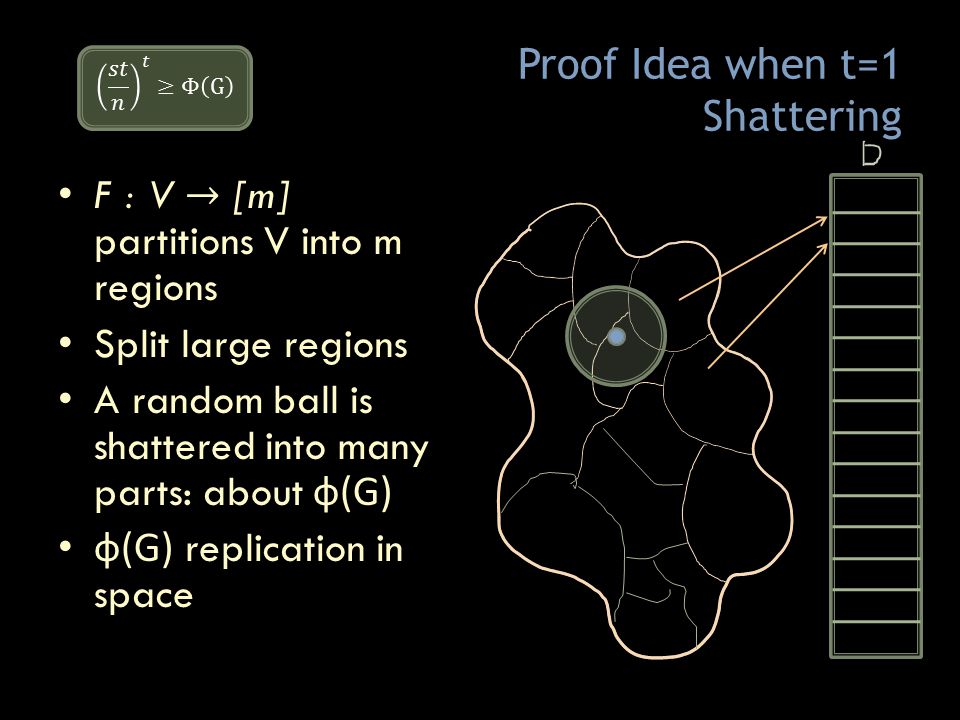

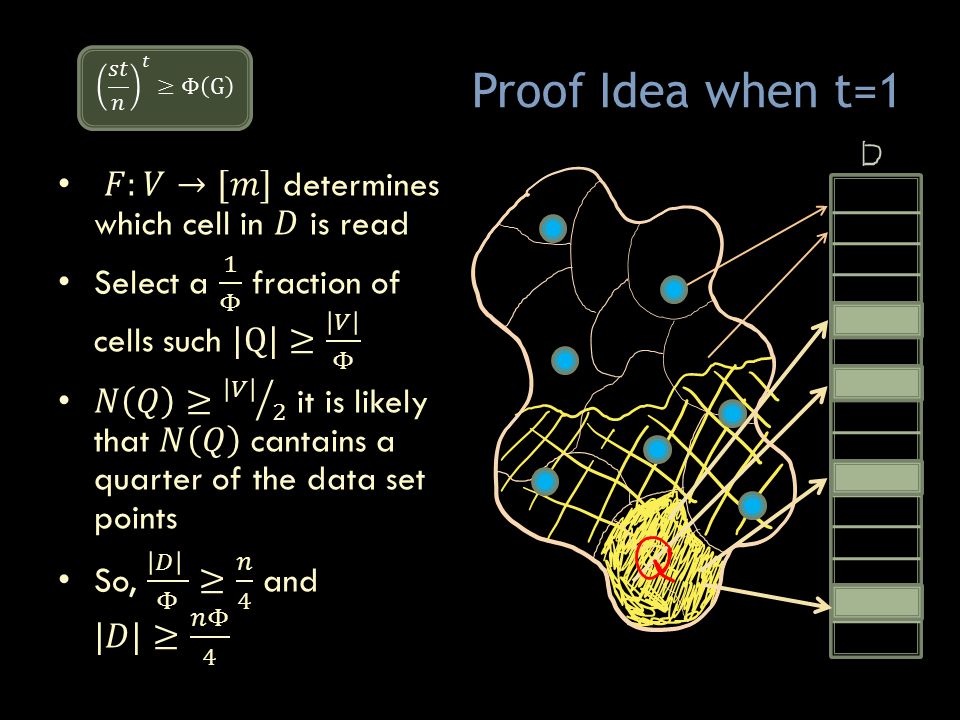

12. Proof Idea when t=1 Shattering F : V → [m] partitions V into m regions Split large regions A random ball is shattered into many parts: about ф(G) ф(G) replication in space

13. Proof Idea when t=1

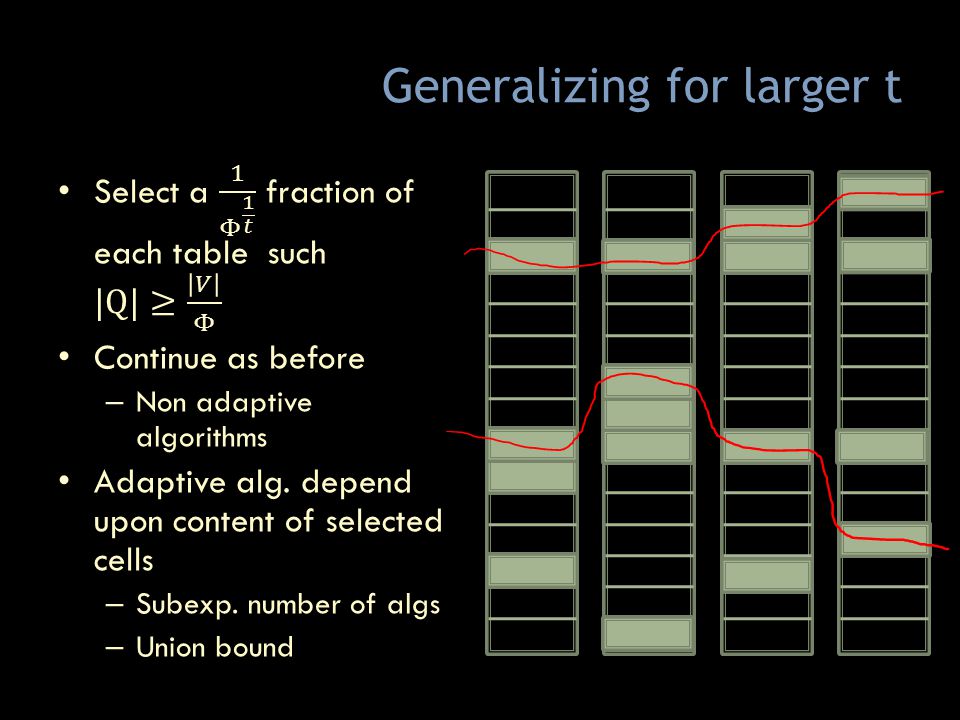

14. Generalizing for larger t

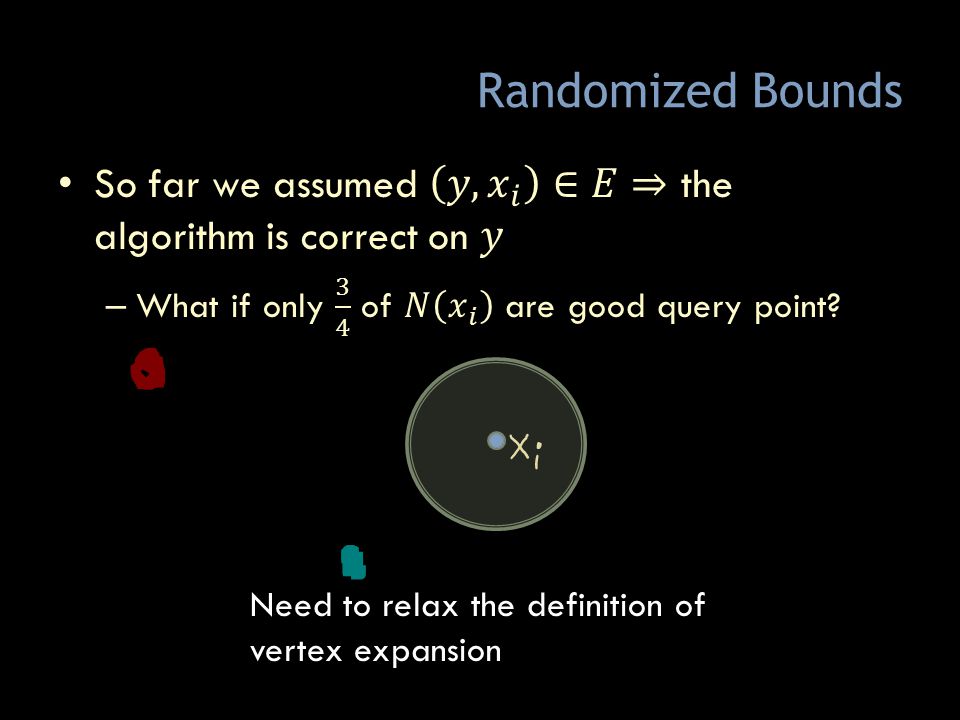

15. Randomized Bounds Need to relax the definition of vertex expansion

16. Randomized Bounds Robust Expansion A N(A) N(A) captures all edges from A Expansion =|N(A)|/|A| Capture only ¾ of the edges from A

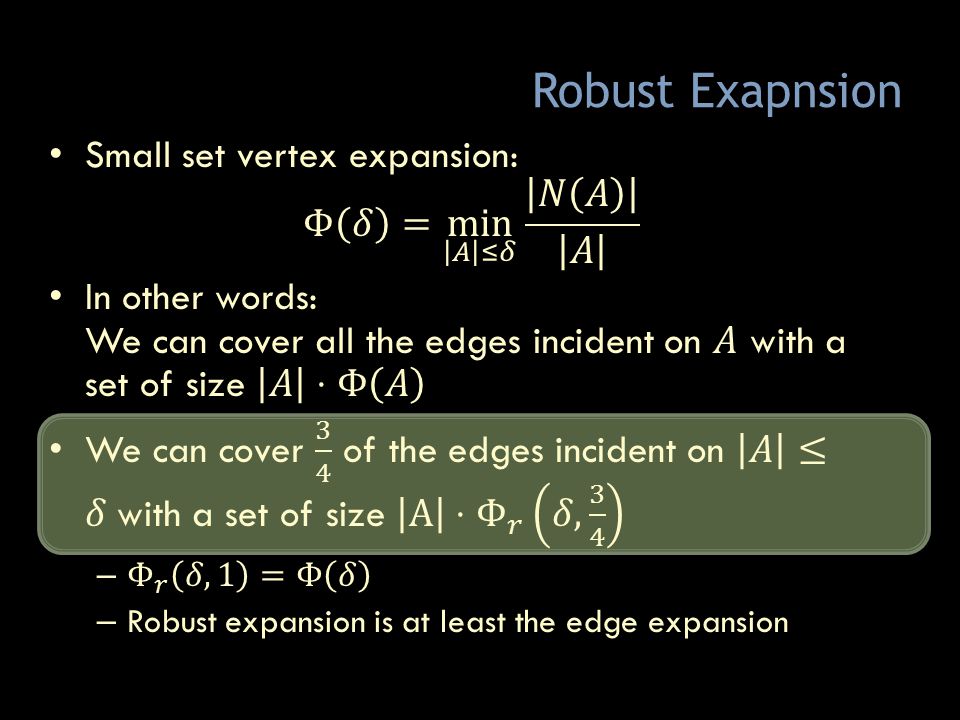

17. Robust Exapnsion

18. Bound for Randomized Data Structure

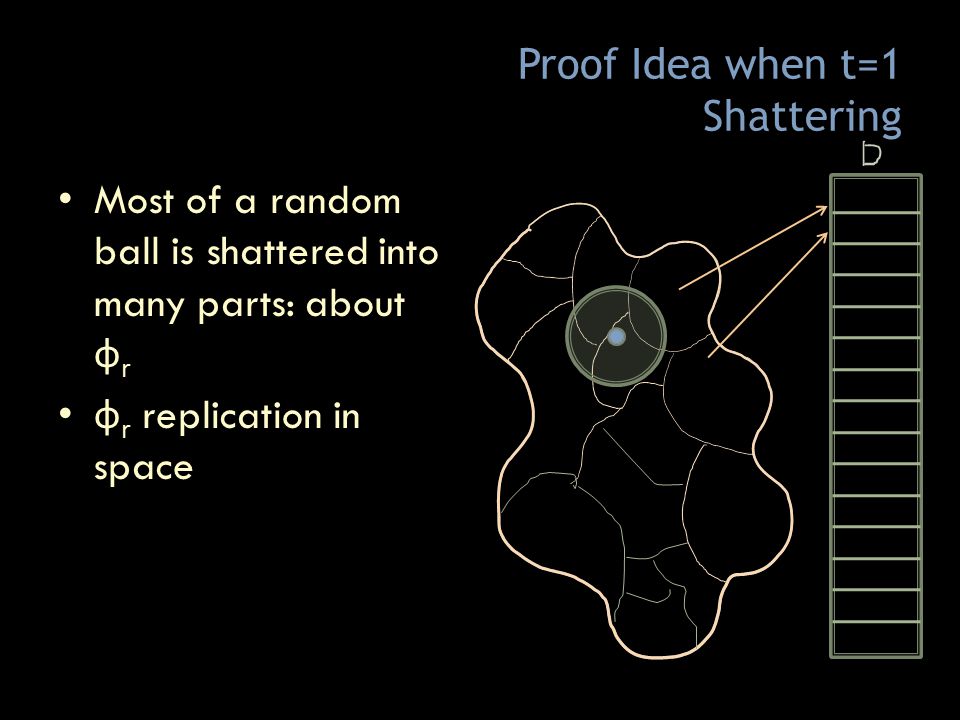

19. Proof Idea when t=1 Shattering Most of a random ball is shattered into many parts: about ф r ф r replication in space

20. Generalizing for larger t Sample 1/ ф r 1/t fraction from each table. A random ball, good part survives in all tables. Union bound for adaptive is trickier.

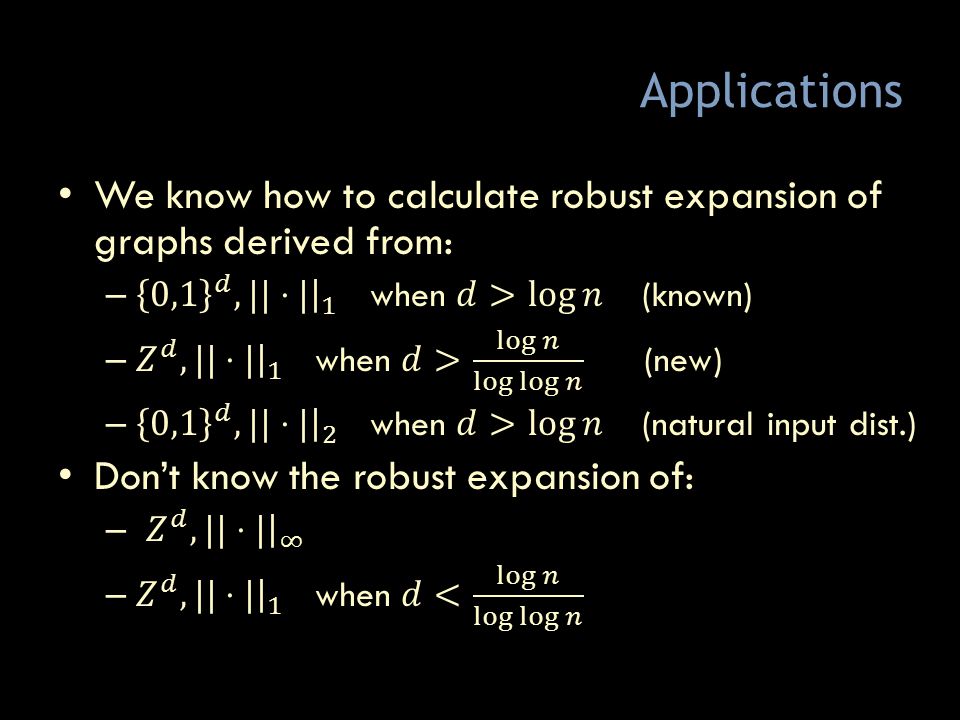

21. Applications

22. General Upper Bound

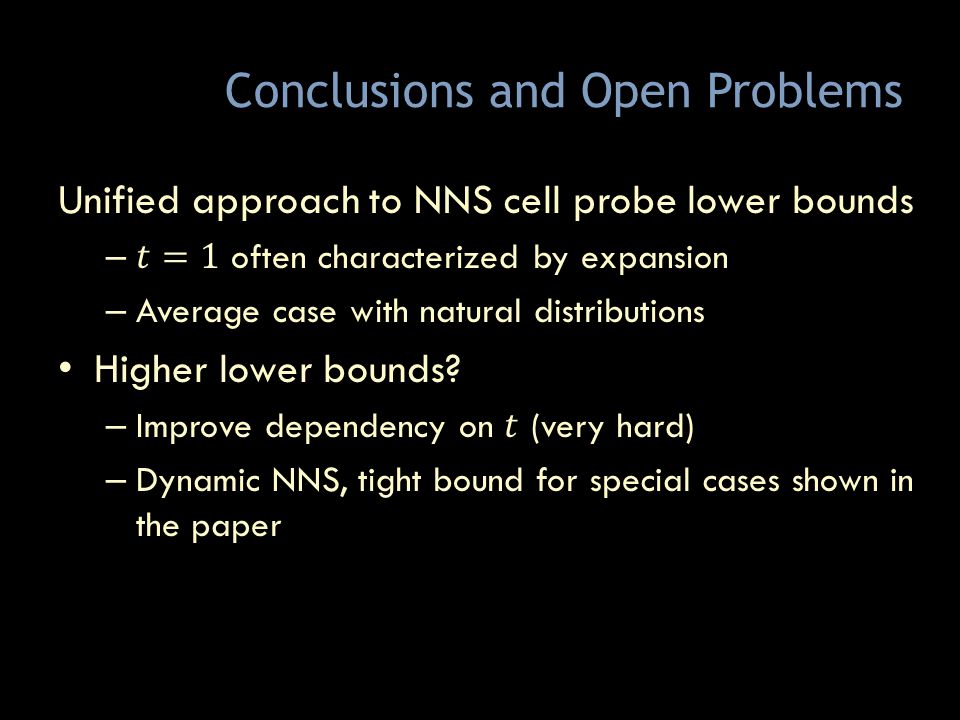

23. Conclusions and Open Problems

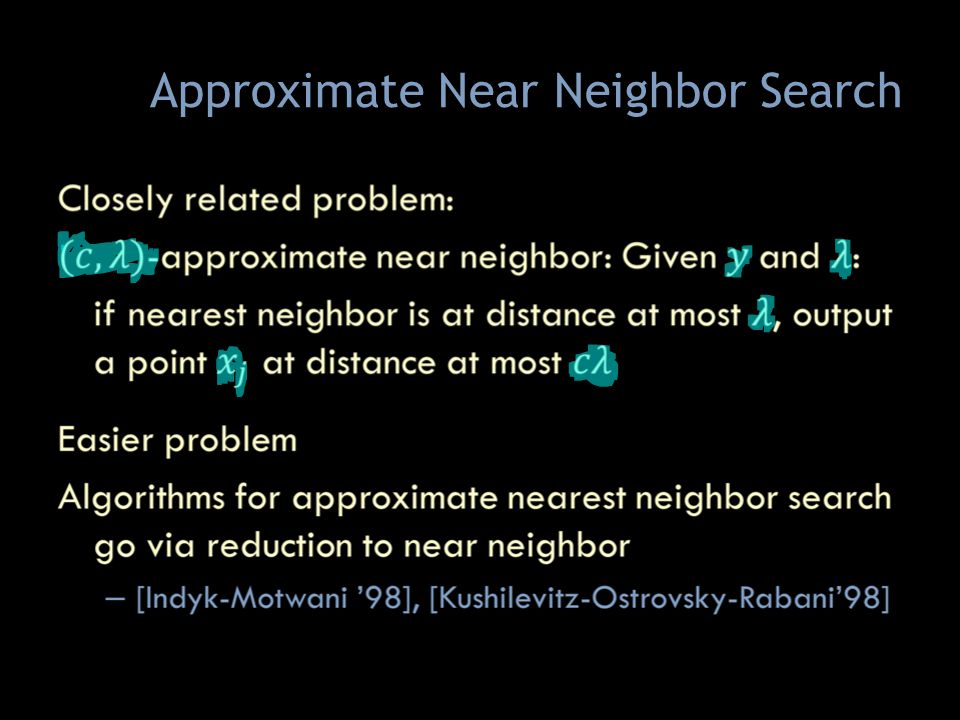

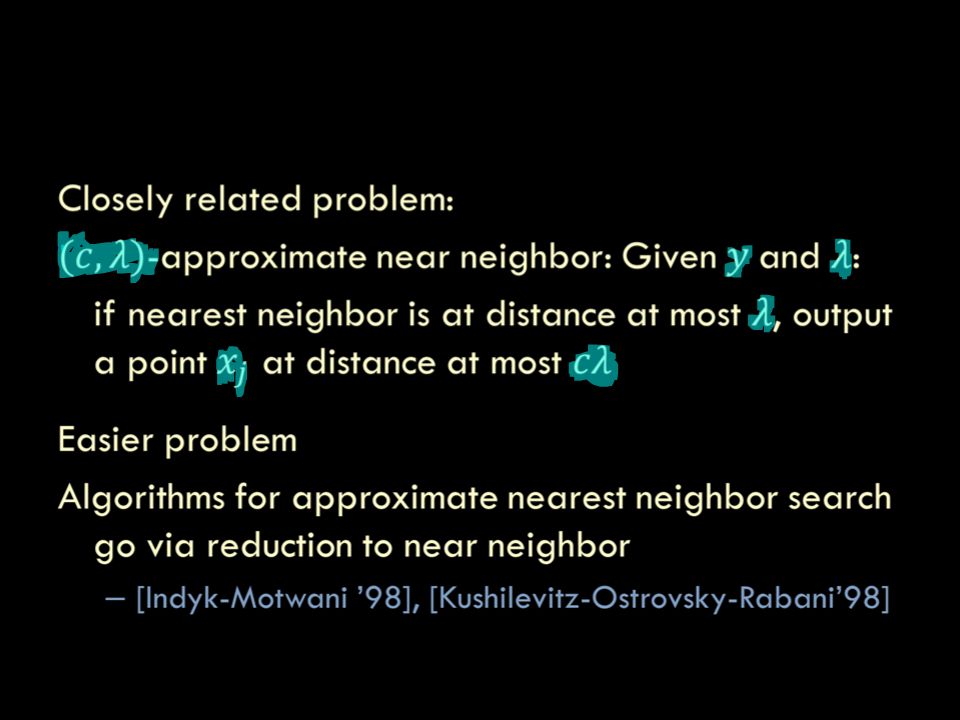

25. Approximate Near Neighbor Search sdfsdfsffjlaskdjffj

26. gdgsgsdfgdffffffffffffffffffffffffffffffffffffffffff fffffffffffffffffffffffffffffffffffffffffffkffffsdfgdd ddddjffjdfgdfg

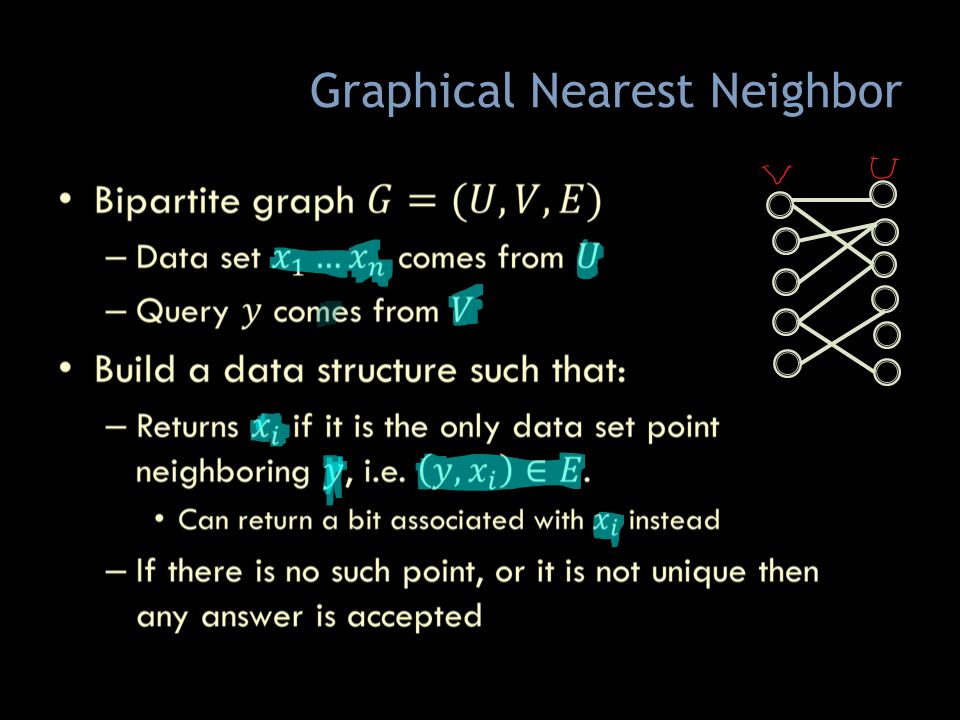

27. Graphical Nearest Neighbor

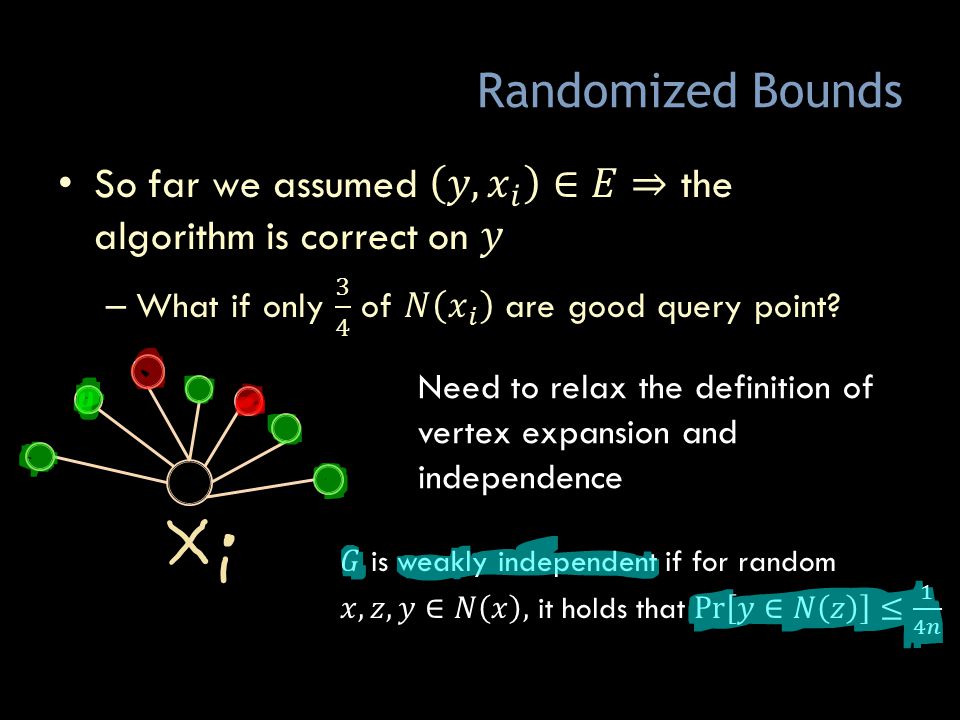

29. Randomized Bounds Need to relax the definition of vertex expansion and independence

30. Deterministic Bounds via Expansion

31. Proof Idea Can we plug the new definitions in the old proof? – Conceptually – yes! – Actually….well no Dependencies everywhere – the set of good neighbors of a data point depends upon the rest of the data set Solving this is the technical crux of the paper
