1 MICE Electronics & DAQ P J Smith University of Sheffield

2 MICE Overview The target controller upgrade is a 3 phase project to upgrade and integrate target control electronics: Phase 1 – Move the control algorithms into an FPGA and interface the FPGA board to the older style IO cards. To place the FPGA under computer control to give a much improved user interface. The Phase 1 controller is currently operational in R78. Phase 2 – To improve the design of the older IO cards, giving them more functionality and placing the entire target control system onto PCBs. Phase 3 – This is to integrate the target DAQ into the target controller. 13/05/20112P J Smith - University of Sheffield

3 MICE Phase 2 Progress 13/05/20113 FPGADC1DC2 Another 3U unit to sit on here

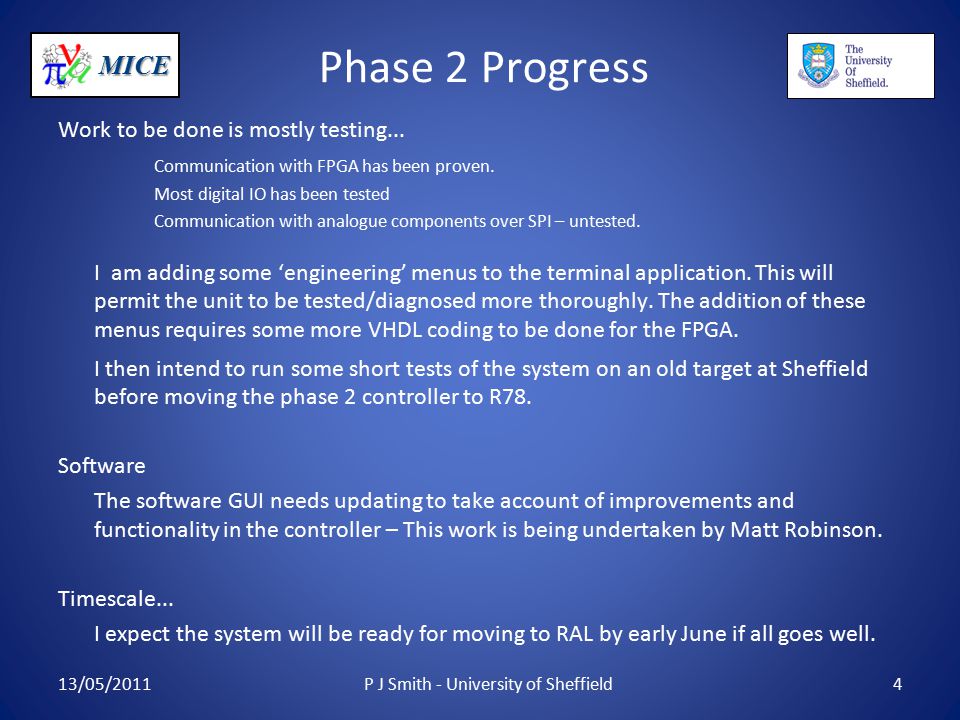

4 MICE Phase 2 Progress Work to be done is mostly testing... Communication with FPGA has been proven. Most digital IO has been tested Communication with analogue components over SPI – untested. I am adding some ‘engineering’ menus to the terminal application. This will permit the unit to be tested/diagnosed more thoroughly. The addition of these menus requires some more VHDL coding to be done for the FPGA. I then intend to run some short tests of the system on an old target at Sheffield before moving the phase 2 controller to R78. Software The software GUI needs updating to take account of improvements and functionality in the controller – This work is being undertaken by Matt Robinson. Timescale... I expect the system will be ready for moving to RAL by early June if all goes well. 13/05/2011P J Smith - University of Sheffield4

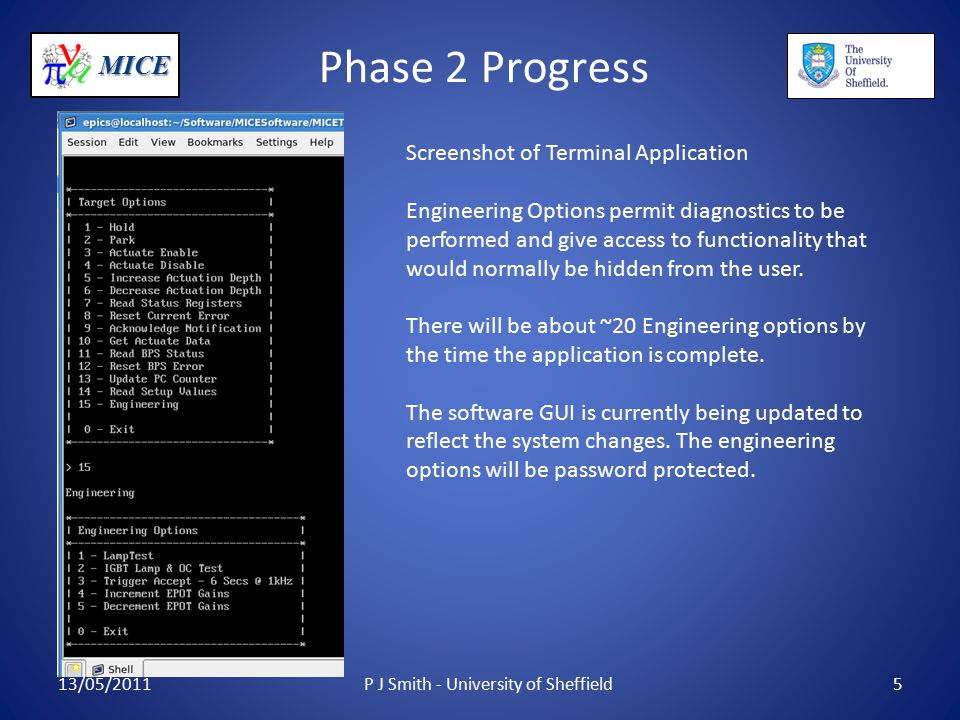

5 MICE Phase 2 Progress 13/05/2011P J Smith - University of Sheffield5 Screenshot of Terminal Application Engineering Options permit diagnostics to be performed and give access to functionality that would normally be hidden from the user. There will be about ~20 Engineering options by the time the application is complete. The software GUI is currently being updated to reflect the system changes. The engineering options will be password protected.

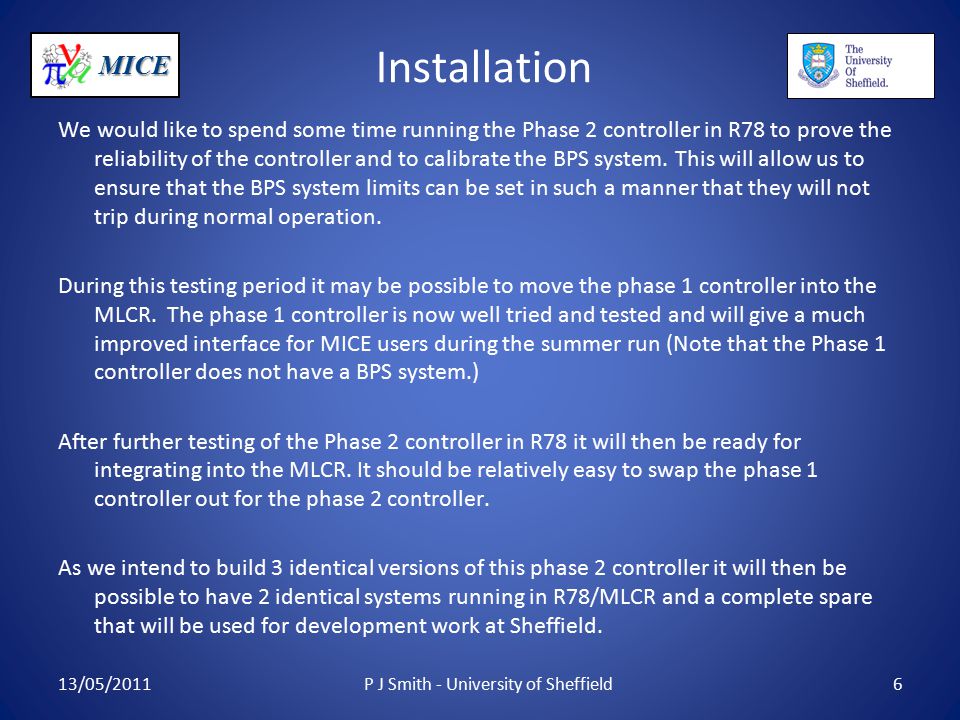

6 MICE Installation We would like to spend some time running the Phase 2 controller in R78 to prove the reliability of the controller and to calibrate the BPS system. This will allow us to ensure that the BPS system limits can be set in such a manner that they will not trip during normal operation. During this testing period it may be possible to move the phase 1 controller into the MLCR. The phase 1 controller is now well tried and tested and will give a much improved interface for MICE users during the summer run (Note that the Phase 1 controller does not have a BPS system.) After further testing of the Phase 2 controller in R78 it will then be ready for integrating into the MLCR. It should be relatively easy to swap the phase 1 controller out for the phase 2 controller. As we intend to build 3 identical versions of this phase 2 controller it will then be possible to have 2 identical systems running in R78/MLCR and a complete spare that will be used for development work at Sheffield. 13/05/2011P J Smith - University of Sheffield6

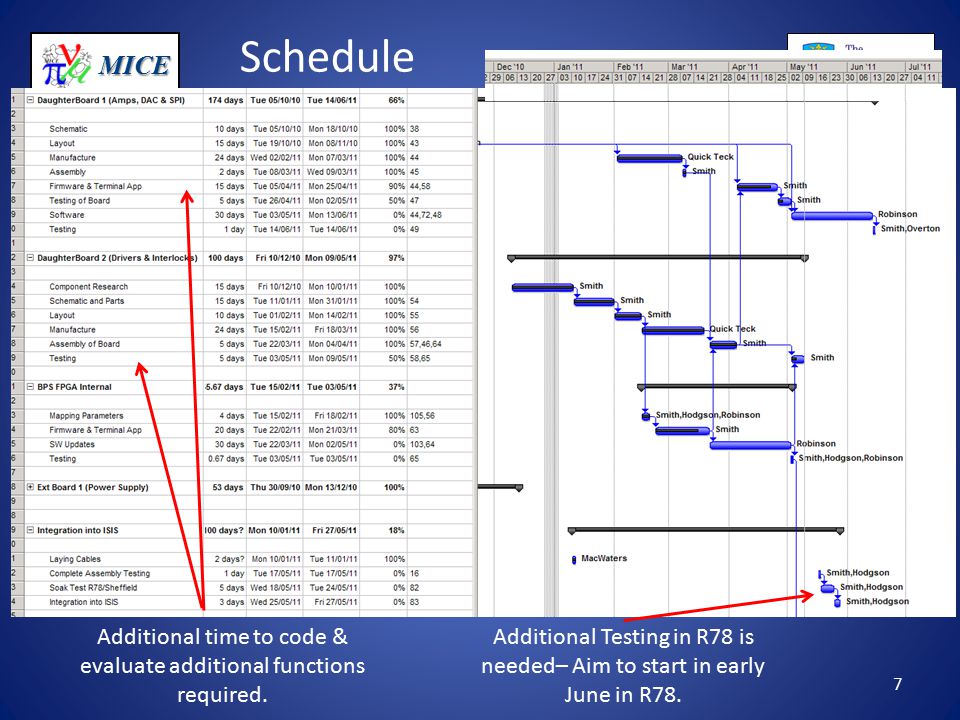

7 MICE Schedule 7 Additional time to code & evaluate additional functions required. Additional Testing in R78 is needed– Aim to start in early June in R78.

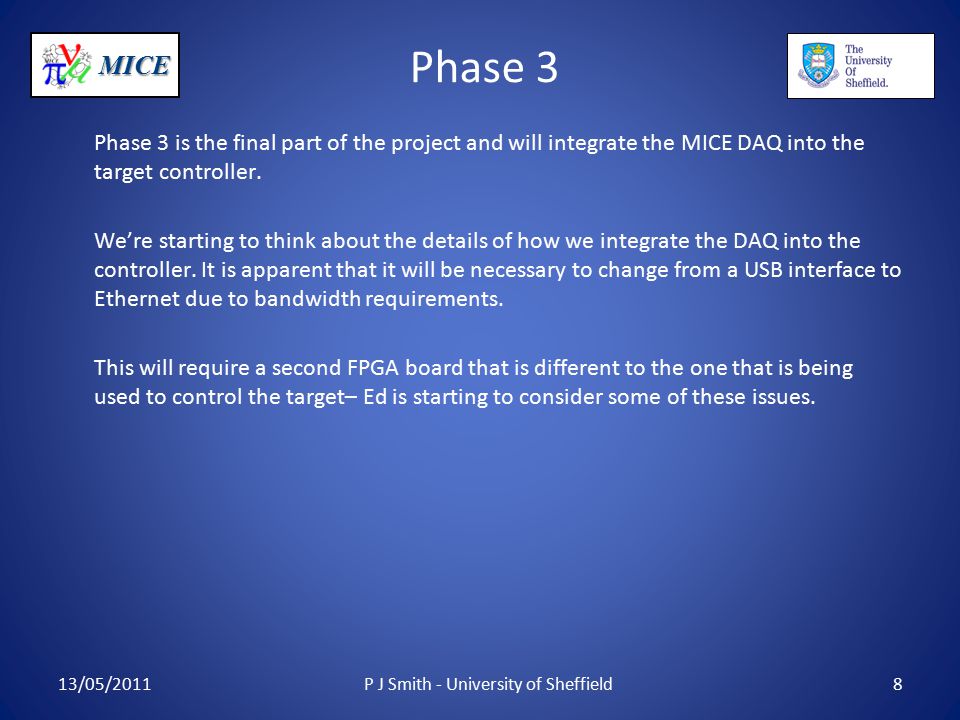

8 MICE Phase 3 Phase 3 is the final part of the project and will integrate the MICE DAQ into the target controller. We’re starting to think about the details of how we integrate the DAQ into the controller. It is apparent that it will be necessary to change from a USB interface to Ethernet due to bandwidth requirements. This will require a second FPGA board that is different to the one that is being used to control the target– Ed is starting to consider some of these issues. 13/05/2011P J Smith - University of Sheffield8

9 MICE END 13/05/2011P J Smith - University of Sheffield9
