1. Andrew Chorney- Project Manager Michael Goldberg- Lead Engineer Timothy Bukowski- Industrial Engineer Mahmudul Khan- Electrical Engineer Martin Martinez- Mechanical Engineer Jason Hess- Industrial Engineer

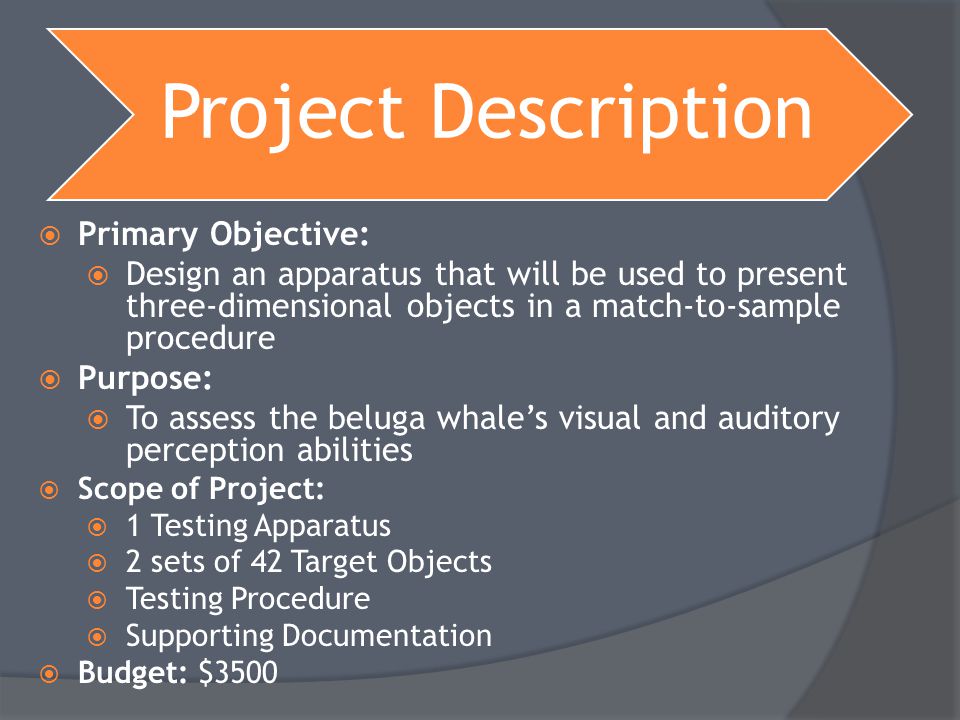

2. Project Description  Primary Objective:  Design an apparatus that will be used to present three-dimensional objects in a match-to-sample procedure  Purpose:  To assess the beluga whale’s visual and auditory perception abilities  Scope of Project:  1 Testing Apparatus  2 sets of 42 Target Objects  Testing Procedure  Supporting Documentation  Budget: $3500

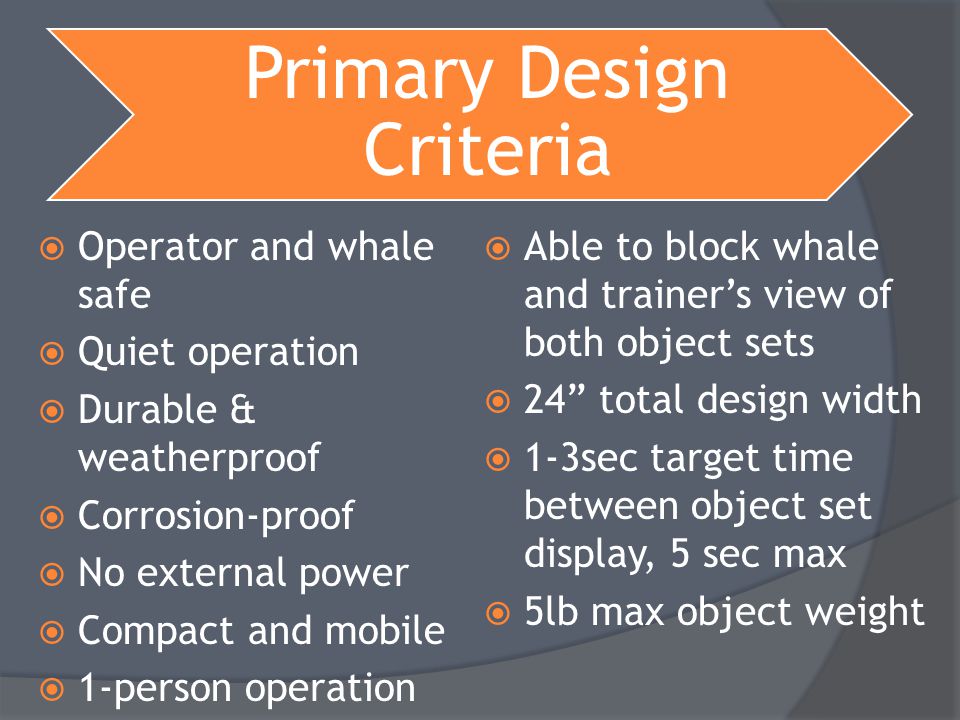

3. Primary Design Criteria  Operator and whale safe  Quiet operation  Durable & weatherproof  Corrosion-proof  No external power  Compact and mobile  1-person operation  Able to block whale and trainer’s view of both object sets  24” total design width  1-3sec target time between object set display, 5 sec max  5lb max object weight

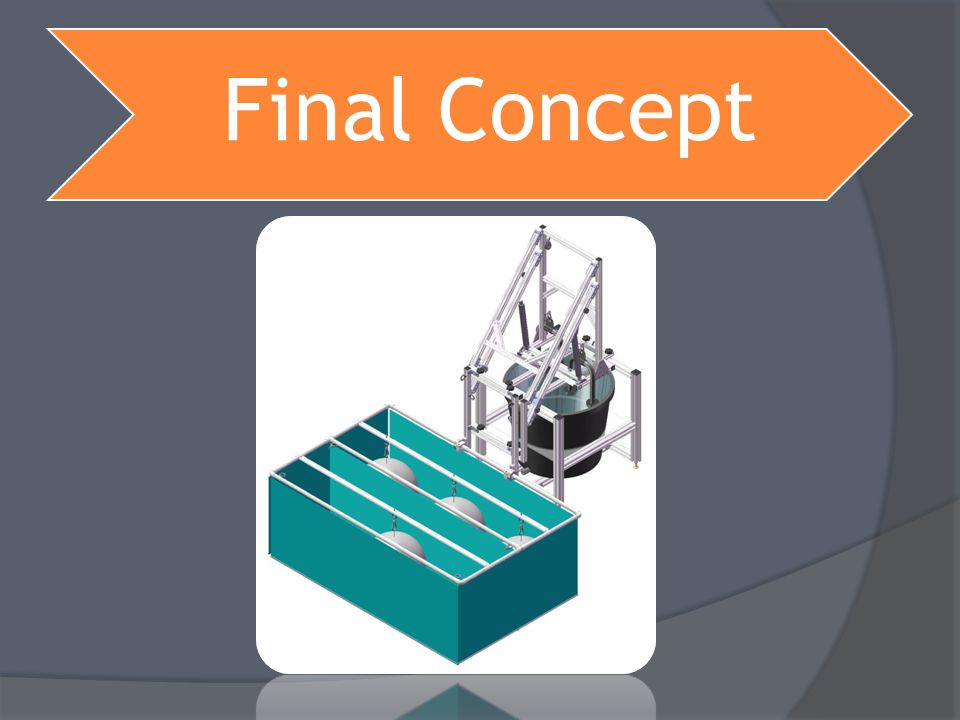

4. Final Concept

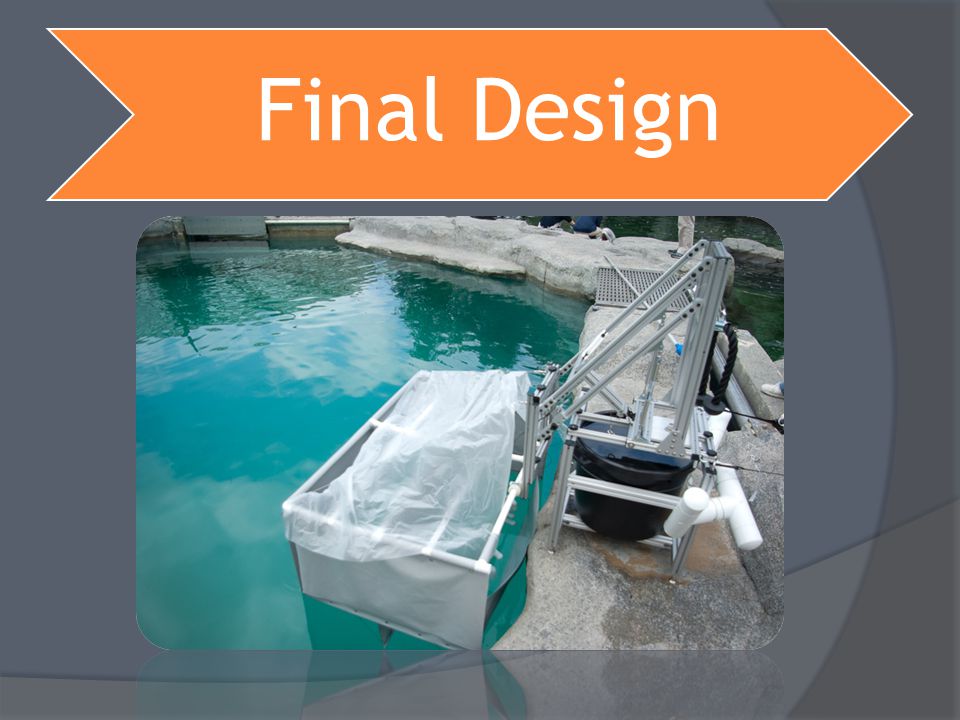

5. Final Design

6. 1.Apparatus is assembled 2.Objects are attached 3.Apparatus is rotated over the pool 4.Apparatus is lowered into underwater testing position 5.Sample object is lowered 6.Sample object is raised 7.Choice set is lowered 8.Choice set is raised 9.Apparatus is raised into attachment position 10.Apparatus is rotated over the beach 11.Objects are removed Apparatus Operation

7. Objects DifficultySetNumberSizeMaterialShape Easy 18Vary IntermediateA4Vary Same IntermediateB4VarySameVary IntermediateC4SameVary DifficultD4Same Vary DifficultE4VarySame DifficultF4SameVarySame

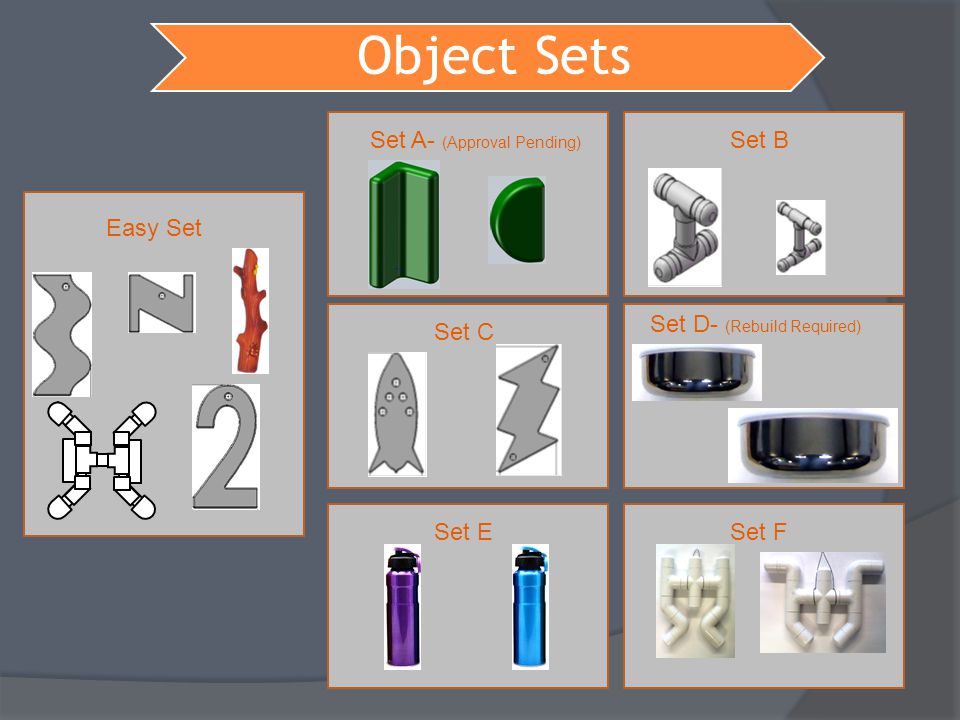

8. Easy Set Set BSet A- (Approval Pending) Set C Set D- (Rebuild Required) Set ESet F Object Sets

9. System Testing Results: Pool Trial 1Trial 2Trial 3Trial 4Trial 5Average Filling Tub53.636.845.247.541.644.94 Emptying Tub457462450487455462.2 Setup602581591624596598.8 Changing sets53.551.638.945.647.847.48 Raising/lowering Objects 6.26.74.85.54.95.62 Disassemble589596621605599602 Note: All times are in seconds.

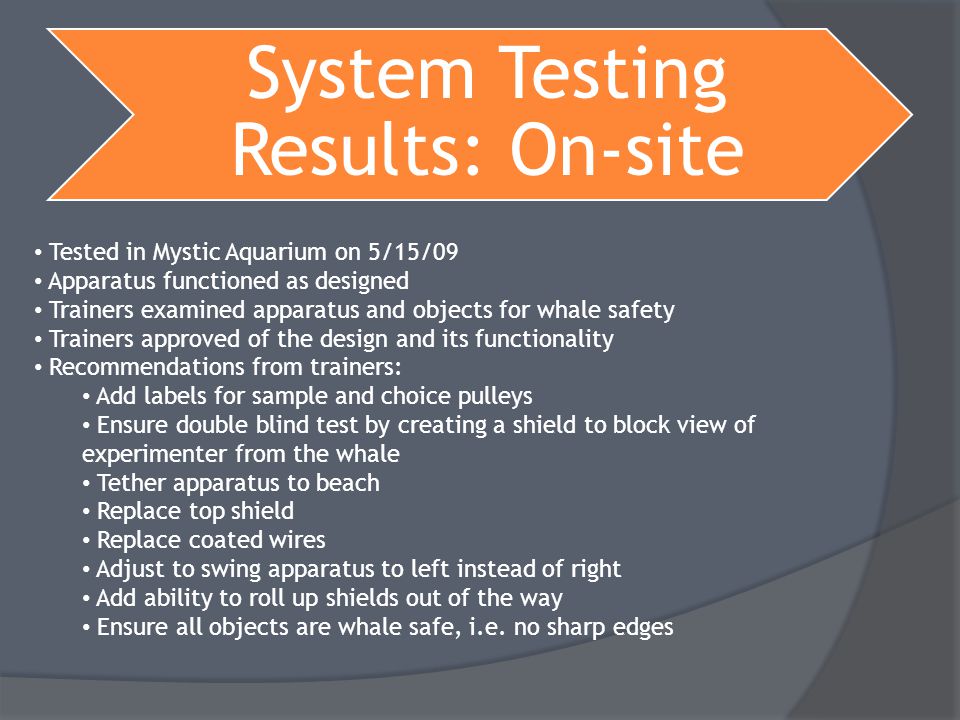

10. System Testing Results: On-site Tested in Mystic Aquarium on 5/15/09 Apparatus functioned as designed Trainers examined apparatus and objects for whale safety Trainers approved of the design and its functionality Recommendations from trainers: Add labels for sample and choice pulleys Ensure double blind test by creating a shield to block view of experimenter from the whale Tether apparatus to beach Replace top shield Replace coated wires Adjust to swing apparatus to left instead of right Add ability to roll up shields out of the way Ensure all objects are whale safe, i.e. no sharp edges

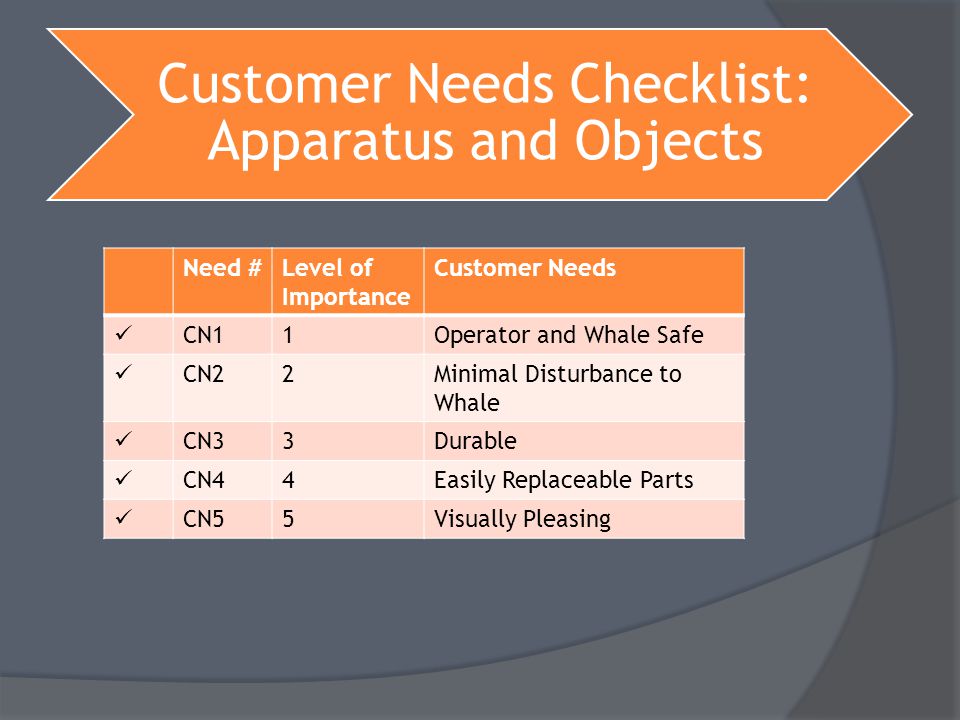

11. Customer Needs Checklist: Apparatus and Objects Need #Level of Importance Customer Needs CN11Operator and Whale Safe CN22Minimal Disturbance to Whale CN33Durable CN44Easily Replaceable Parts CN55Visually Pleasing

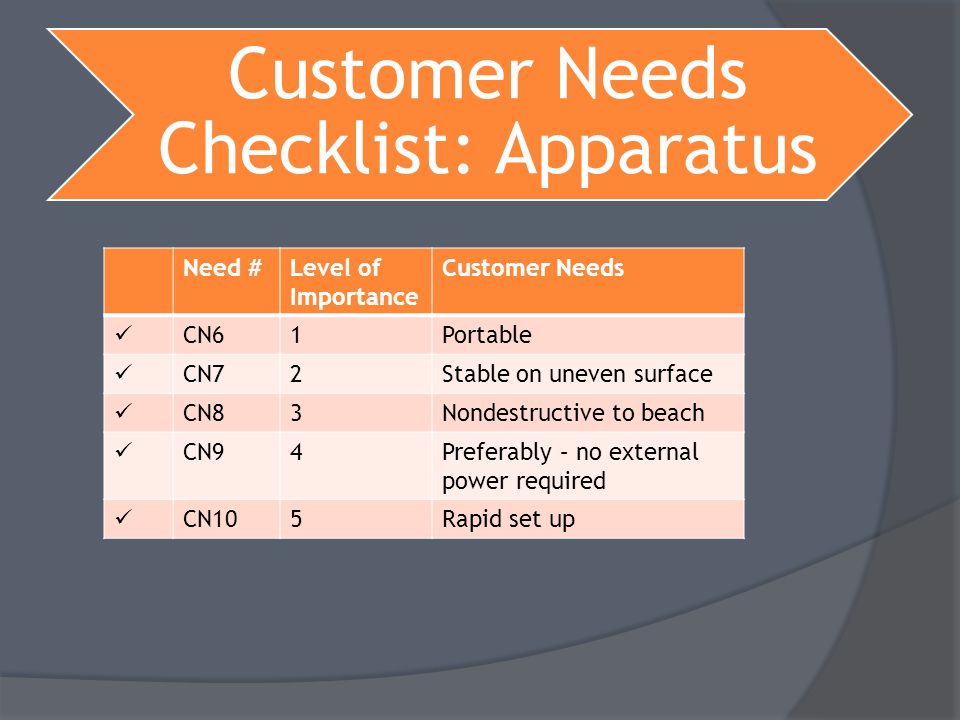

12. Customer Needs Checklist: Apparatus Need #Level of Importance Customer Needs CN61Portable CN72Stable on uneven surface CN83Nondestructive to beach CN94Preferably – no external power required CN105Rapid set up

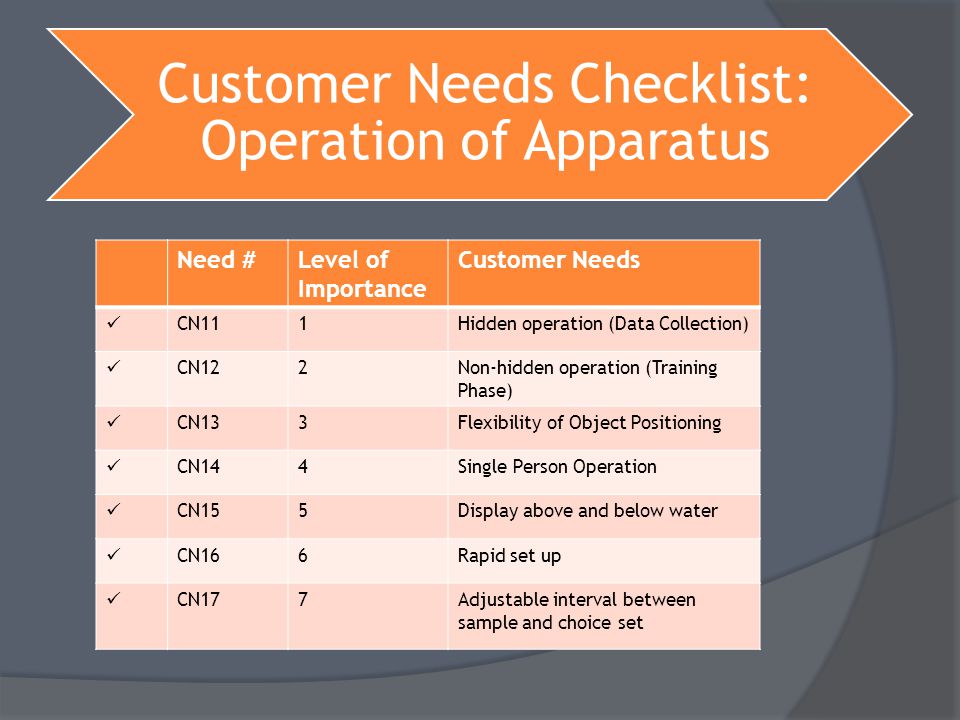

13. Customer Needs Checklist: Operation of Apparatus Need #Level of Importance Customer Needs CN111Hidden operation (Data Collection) CN122Non-hidden operation (Training Phase) CN133Flexibility of Object Positioning CN144Single Person Operation CN155Display above and below water CN166Rapid set up CN177Adjustable interval between sample and choice set

14. Customer Needs Checklist: Objects Need #Level of Importance Customer Needs CN181Variety of objects to meet specified criteria CN192Sink in Water CN203Work well with apparatus

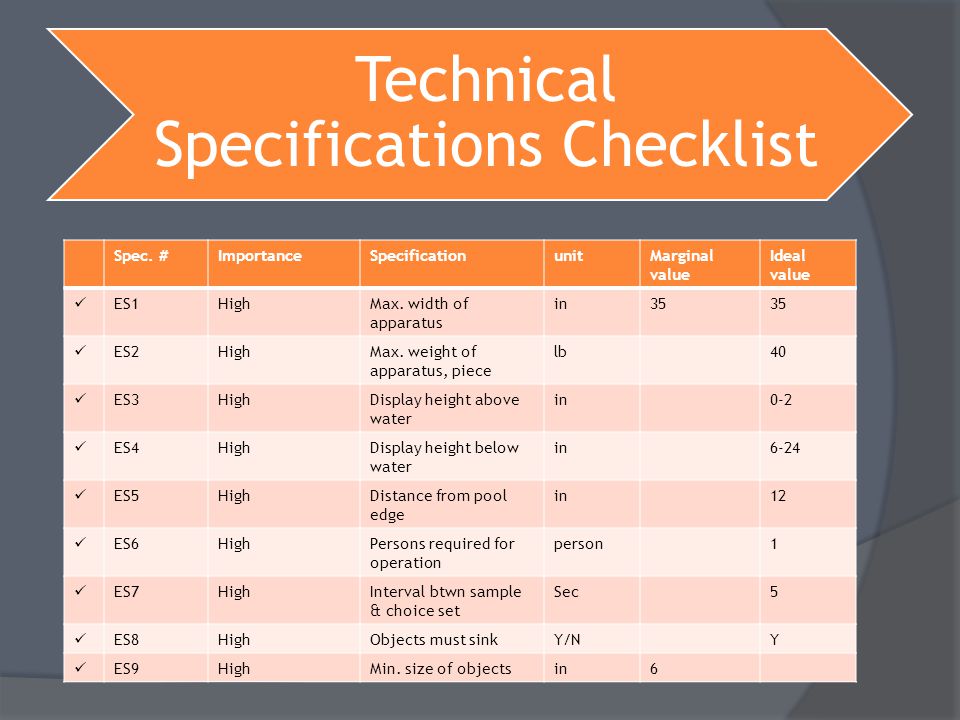

15. Technical Specifications Checklist Spec. #ImportanceSpecificationunitMarginal value Ideal value ES1HighMax. width of apparatus in35 ES2HighMax. weight of apparatus, piece lb40 ES3HighDisplay height above water in0-2 ES4HighDisplay height below water in6-24 ES5HighDistance from pool edge in12 ES6HighPersons required for operation person1 ES7HighInterval btwn sample & choice set Sec5 ES8HighObjects must sinkY/NY ES9HighMin. size of objectsin6

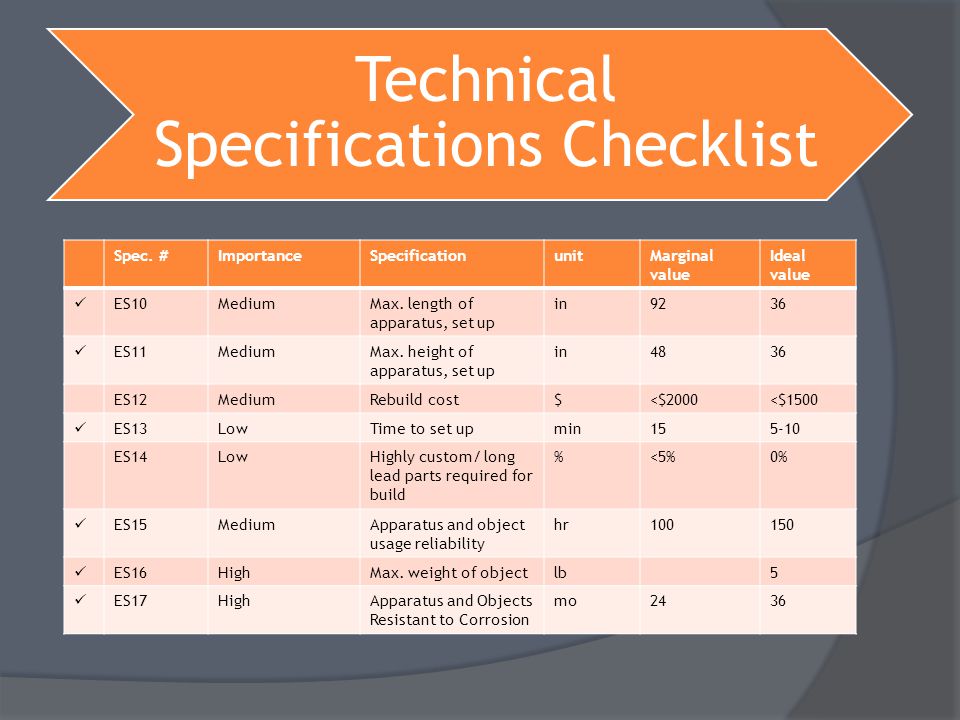

16. Technical Specifications Checklist Spec. #ImportanceSpecificationunitMarginal value Ideal value ES10MediumMax. length of apparatus, set up in9236 ES11MediumMax. height of apparatus, set up in4836 ES12MediumRebuild cost$<$2000<$1500 ES13LowTime to set upmin155-10 ES14LowHighly custom/ long lead parts required for build %<5%0% ES15MediumApparatus and object usage reliability hr100150 ES16HighMax. weight of objectlb5 ES17HighApparatus and Objects Resistant to Corrosion mo2436

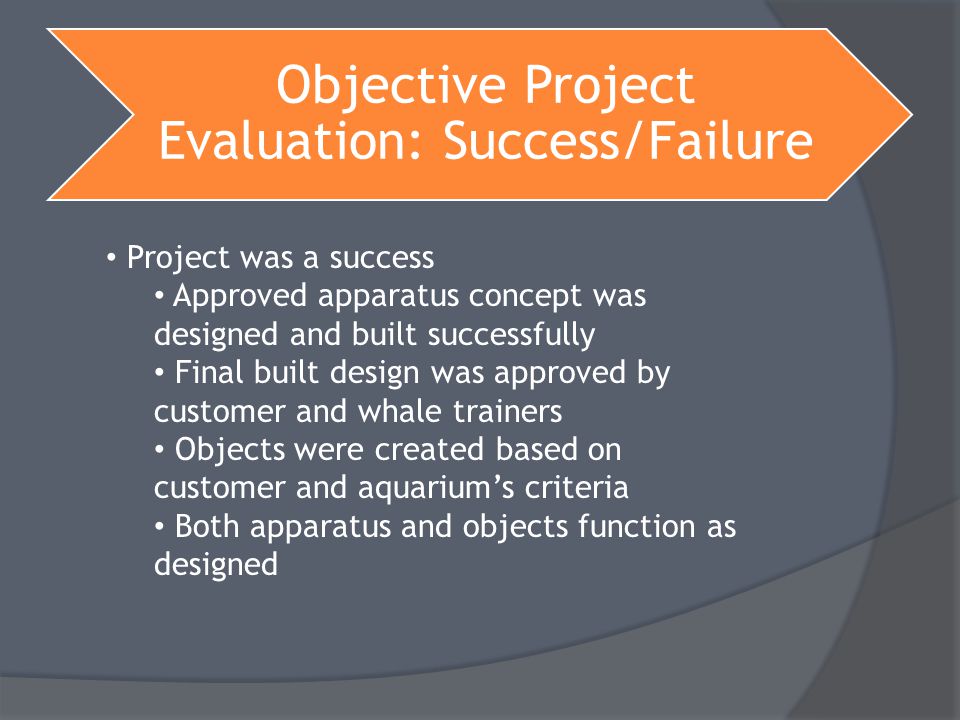

17. Objective Project Evaluation: Success/Failure Project was a success Approved apparatus concept was designed and built successfully Final built design was approved by customer and whale trainers Objects were created based on customer and aquarium’s criteria Both apparatus and objects function as designed
