1. Chapter 12 Interactive Graphics Chih-Kuo Yeh

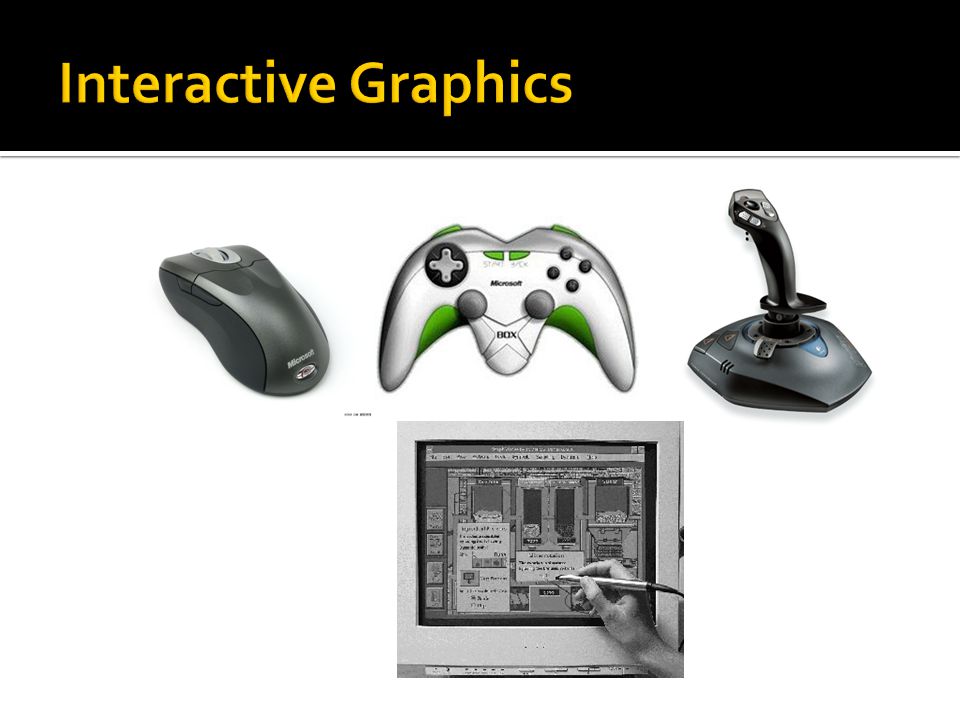

3. Direct Manipulation Demo

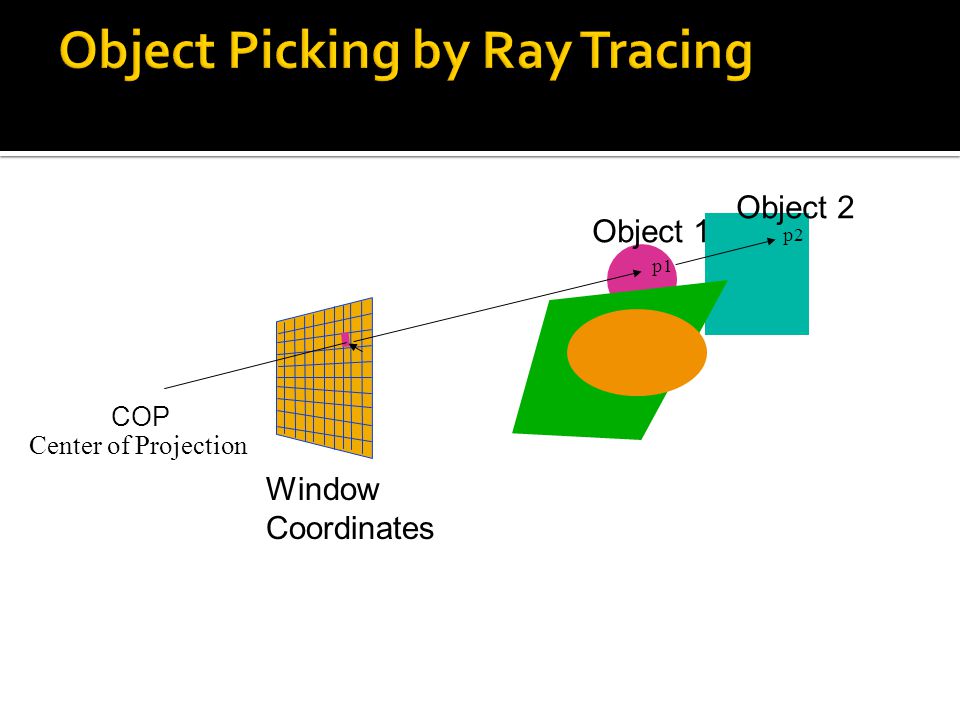

4. p1 COP Center of Projection p2 Window Coordinates Object 1 Object 2

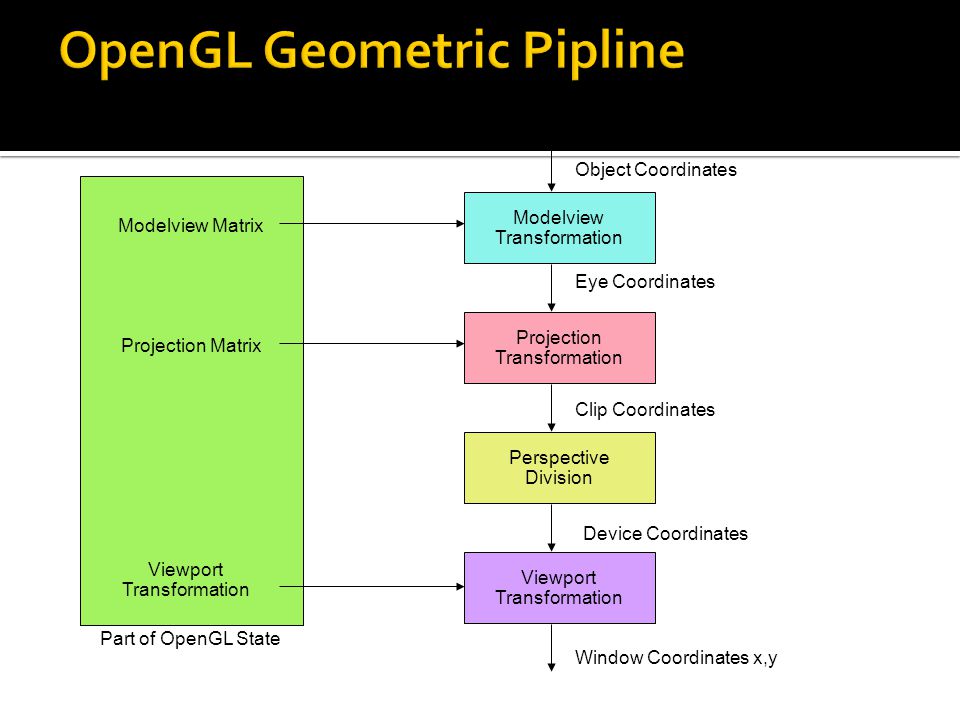

5. Modelview Transformation Vertex Coordinates x, y, z, w Object Coordinates Eye Coordinates Clip Coordinates Device Coordinates Window Coordinates x,y Projection Transformation Perspective Division Viewport Transformation Modelview Matrix Projection Matrix Part of OpenGL State Viewport Transformation

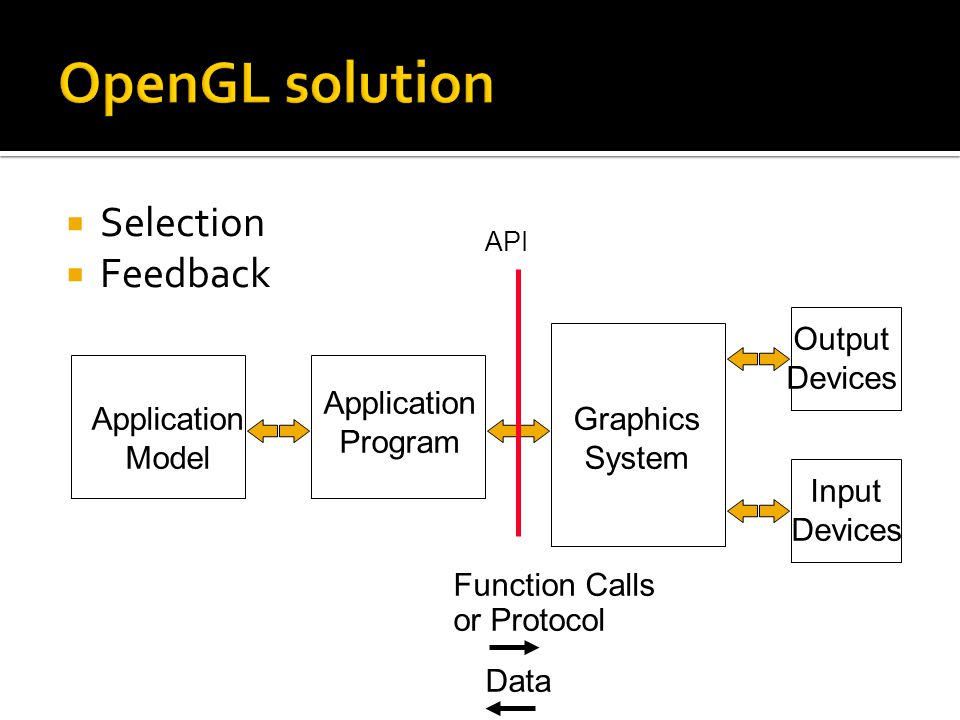

6.  Selection  Feedback Application Model Application Program Graphics System Output Devices Input Devices API Function Calls or Protocol Data

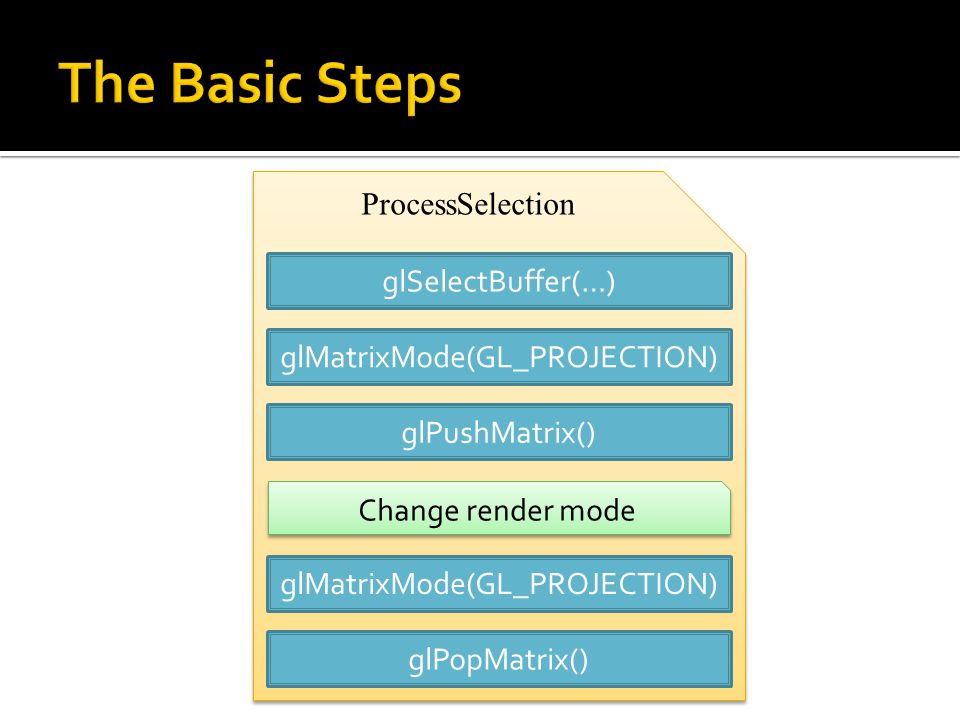

9. glSelectBuffer(…) ProcessSelection glMatrixMode(GL_PROJECTION) glPushMatrix() glMatrixMode(GL_PROJECTION) glPopMatrix() Change render mode

10. glRenderMode(GL_SELECT ) glRenderMode(GL_RENDER ) RenderScene() gluPickMatrix(…) Change render mode

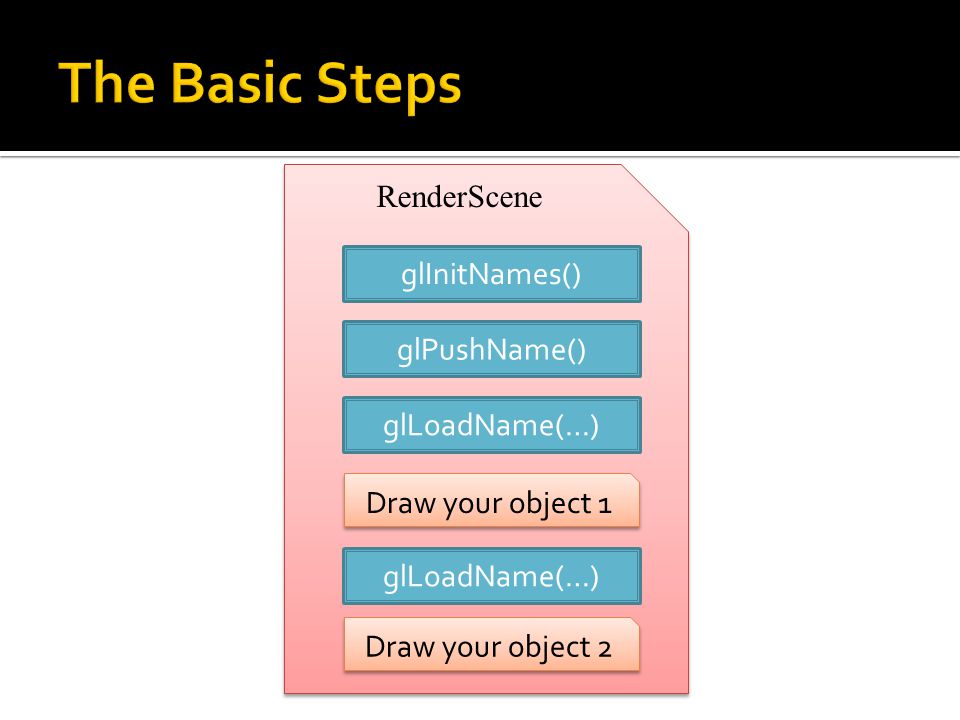

11. glInitNames() glPushName() glLoadName(…) RenderScene Draw your object 1 glLoadName(…) Draw your object 2

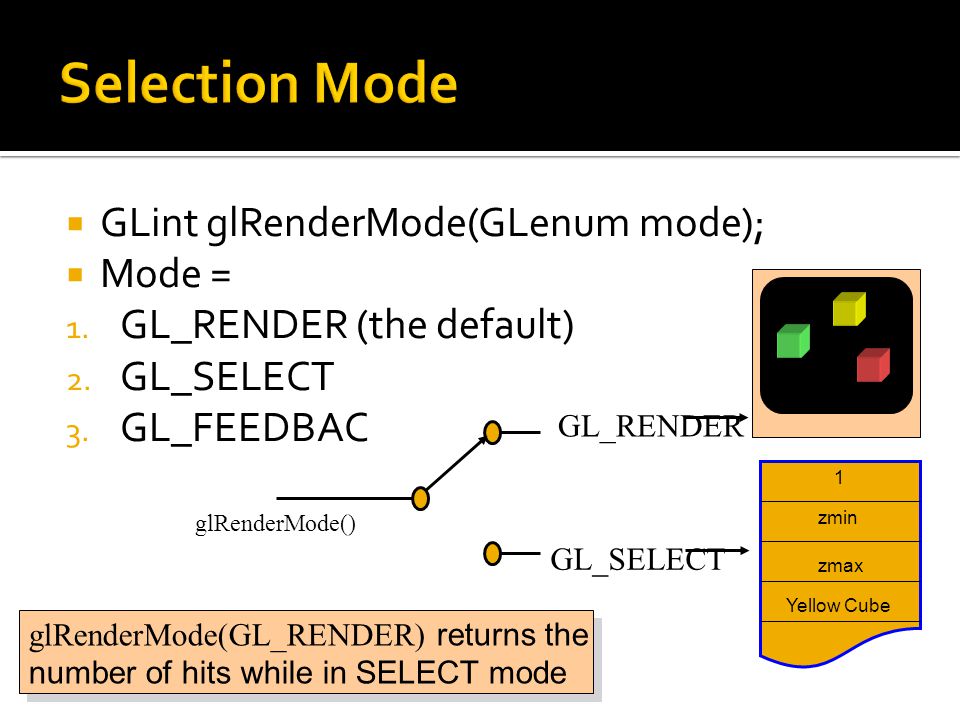

12.  GLint glRenderMode(GLenum mode);  Mode = 1. GL_RENDER (the default) 2. GL_SELECT 3. GL_FEEDBAC glRenderMode() GL_RENDER GL_SELECT 1 zmin zmax Yellow Cube glRenderMode(GL_RENDER) returns the number of hits while in SELECT mode

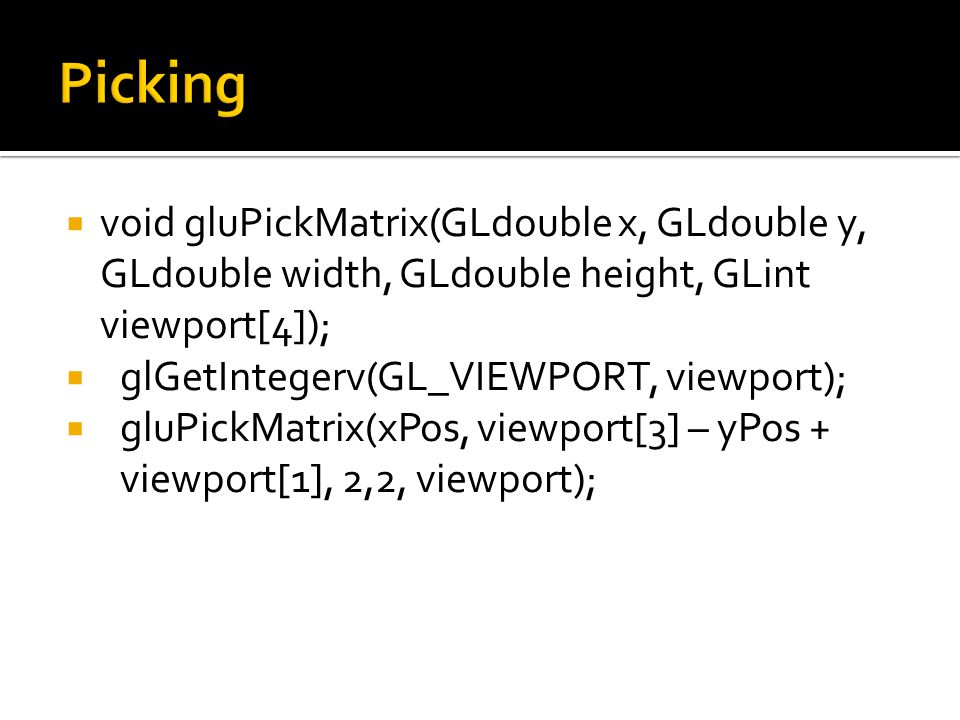

13.  void gluPickMatrix(GLdouble x, GLdouble y, GLdouble width, GLdouble height, GLint viewport[4]);  glGetIntegerv(GL_VIEWPORT, viewport);  gluPickMatrix(xPos, viewport[3] – yPos + viewport[1], 2,2, viewport);

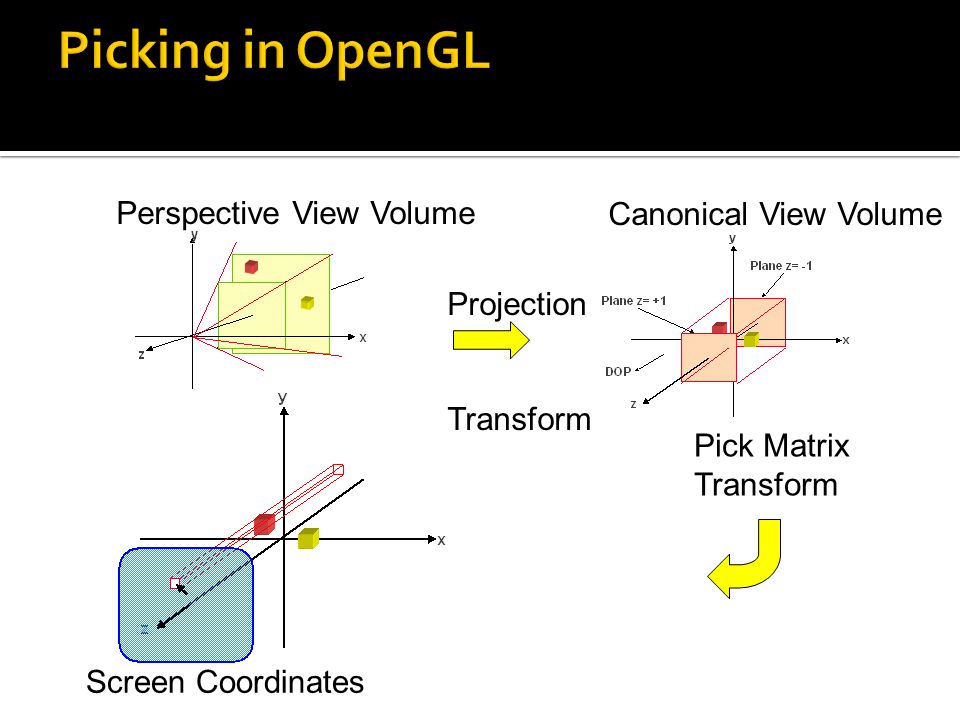

14. Perspective View Volume Canonical View Volume Projection Transform Pick Matrix Transform Screen Coordinates

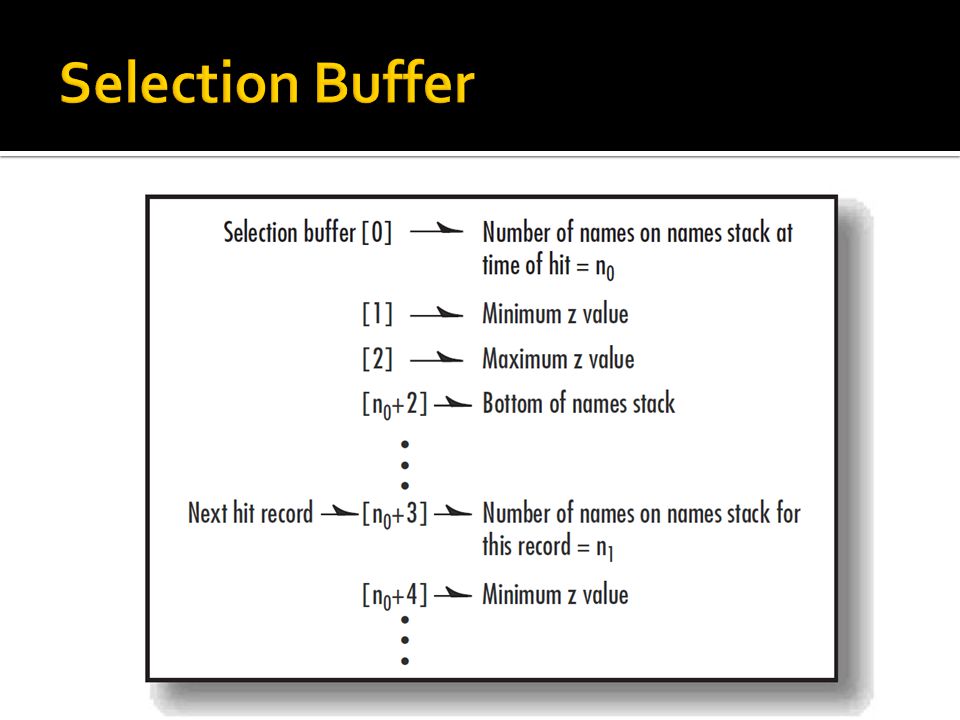

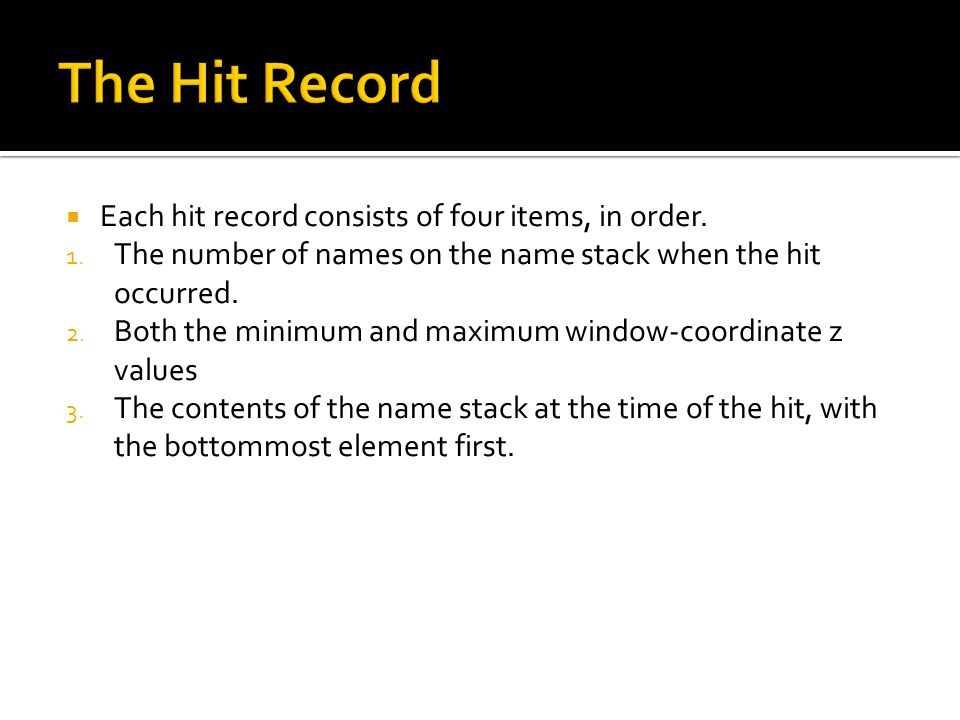

15.  Each hit record consists of four items, in order. 1. The number of names on the name stack when the hit occurred. 2. Both the minimum and maximum window-coordinate z values 3. The contents of the name stack at the time of the hit, with the bottommost element first.

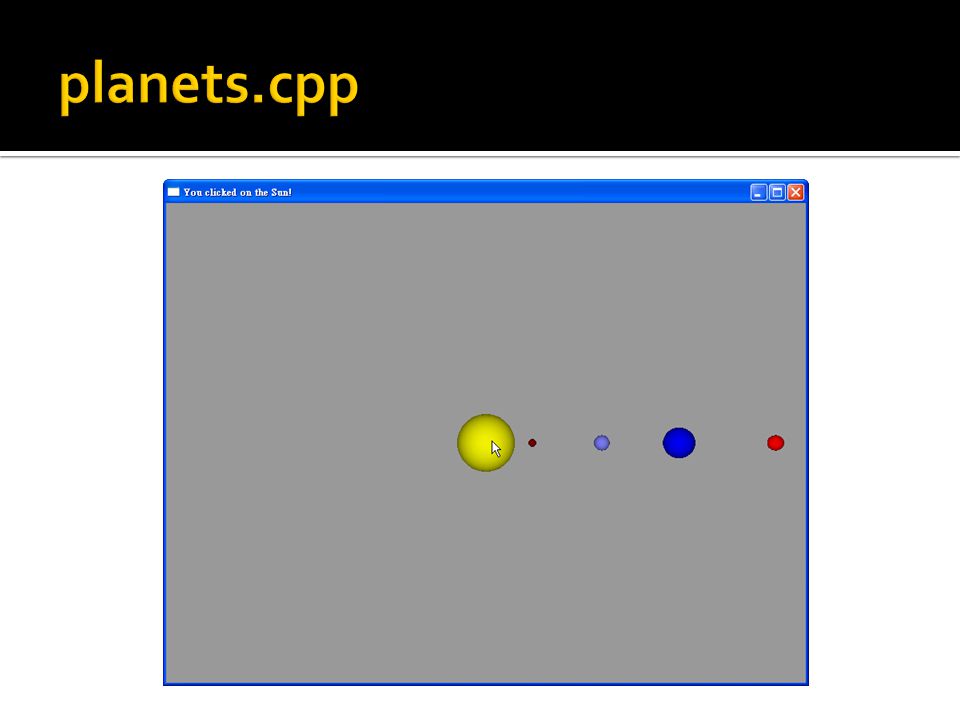

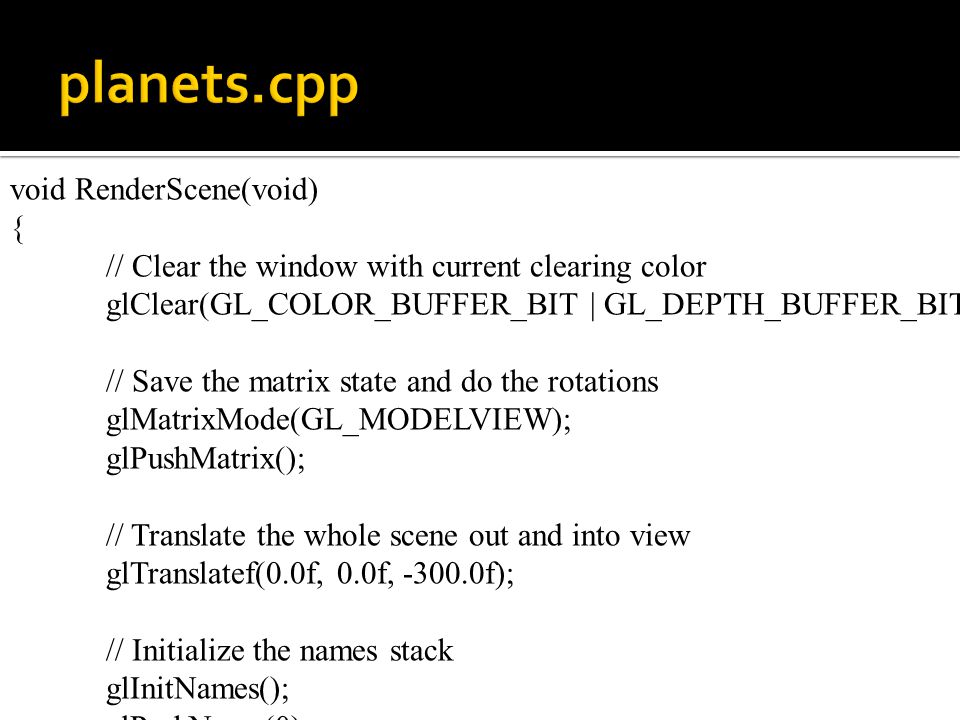

17. void RenderScene(void) { // Clear the window with current clearing color glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT); // Save the matrix state and do the rotations glMatrixMode(GL_MODELVIEW); glPushMatrix(); // Translate the whole scene out and into view glTranslatef(0.0f, 0.0f, -300.0f); // Initialize the names stack glInitNames(); glPushName(0); // Name and draw the Sun glColor3f(1.0f, 1.0f, 0.0f); glLoadName(SUN); DrawSphere(15.0f); // Draw Mercury glColor3f(0.5f, 0.0f, 0.0f); glPushMatrix(); glTranslatef(24.0f, 0.0f, 0.0f); glLoadName(MERCURY); DrawSphere(2.0f); glPopMatrix(); // Draw Venus glColor3f(0.5f, 0.5f, 1.0f); glPushMatrix(); glTranslatef(60.0f, 0.0f, 0.0f); glLoadName(VENUS); DrawSphere(4.0f); glPopMatrix(); // Draw the Earth glColor3f(0.0f, 0.0f, 1.0f); glPushMatrix(); glTranslatef(100.0f,0.0f,0.0f); glLoadName(EARTH); DrawSphere(8.0f); glPopMatrix(); // Draw Mars glColor3f(1.0f, 0.0f, 0.0f); glPushMatrix(); glTranslatef(150.0f, 0.0f, 0.0f); glLoadName(MARS); DrawSphere(4.0f); glPopMatrix(); // Restore the matrix state glPopMatrix();// Modelview matrix glutSwapBuffers(); }

18. void MouseCallback(int button, int state, int x, int y) { if(button == GLUT_LEFT_BUTTON && state == GLUT_DOWN) ProcessSelection(x, y); }

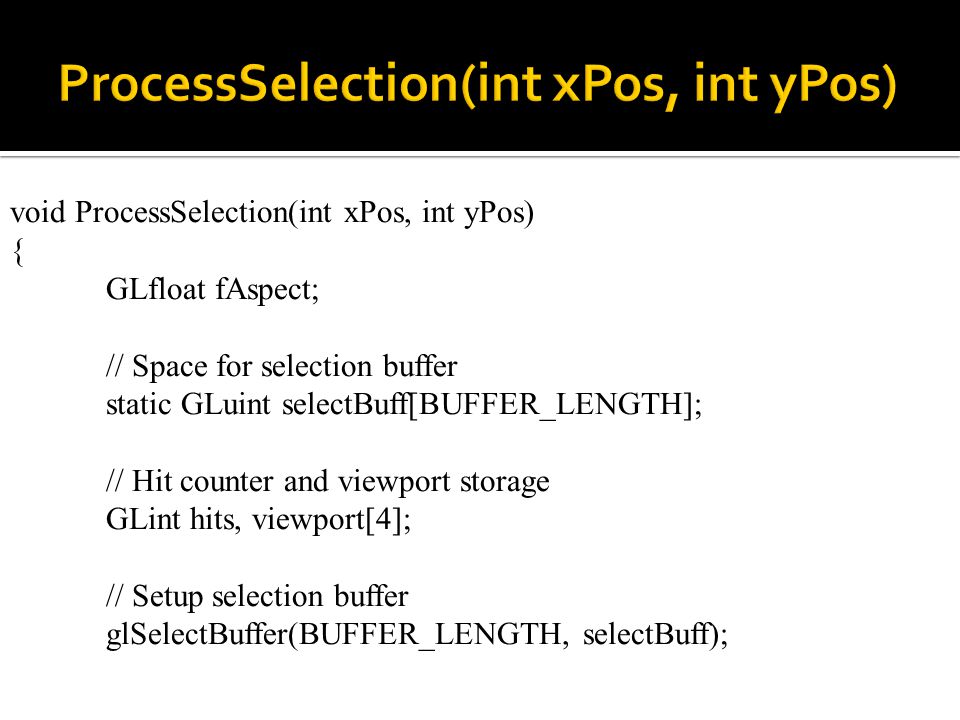

19. void ProcessSelection(int xPos, int yPos) { GLfloat fAspect; // Space for selection buffer static GLuint selectBuff[BUFFER_LENGTH]; // Hit counter and viewport storage GLint hits, viewport[4]; // Setup selection buffer glSelectBuffer(BUFFER_LENGTH, selectBuff);

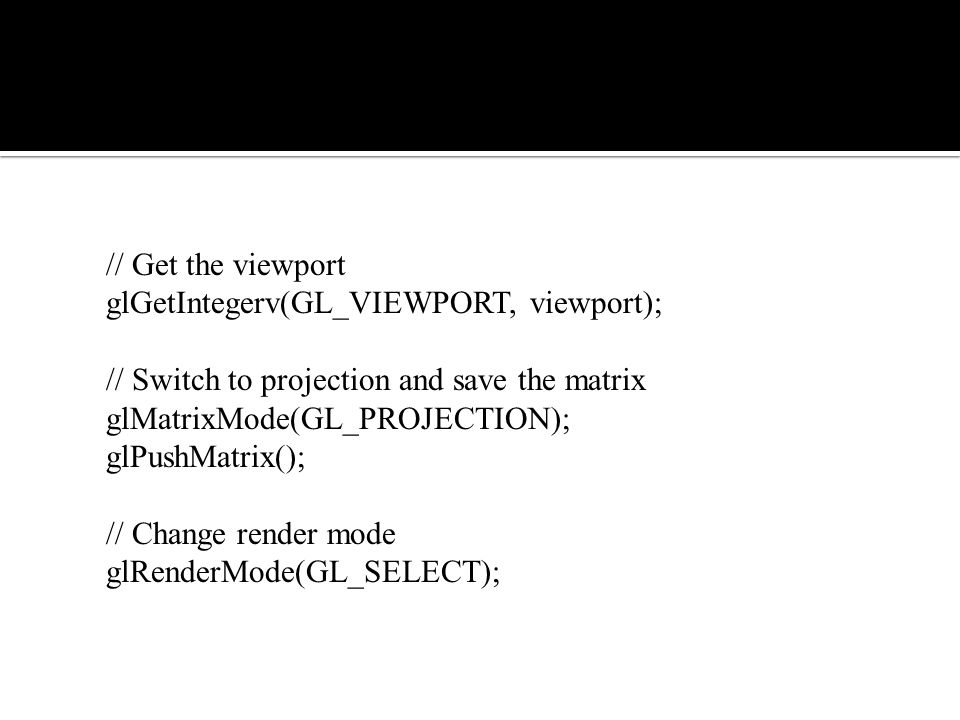

20. // Get the viewport glGetIntegerv(GL_VIEWPORT, viewport); // Switch to projection and save the matrix glMatrixMode(GL_PROJECTION); glPushMatrix(); // Change render mode glRenderMode(GL_SELECT);

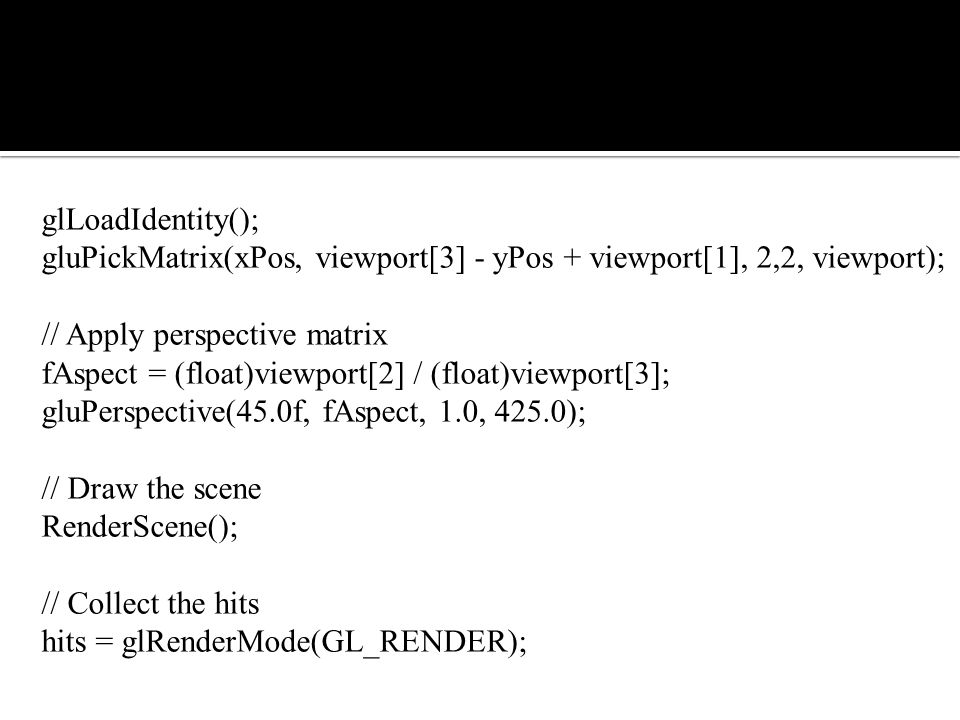

21. glLoadIdentity(); gluPickMatrix(xPos, viewport[3] - yPos + viewport[1], 2,2, viewport); // Apply perspective matrix fAspect = (float)viewport[2] / (float)viewport[3]; gluPerspective(45.0f, fAspect, 1.0, 425.0); // Draw the scene RenderScene(); // Collect the hits hits = glRenderMode(GL_RENDER);

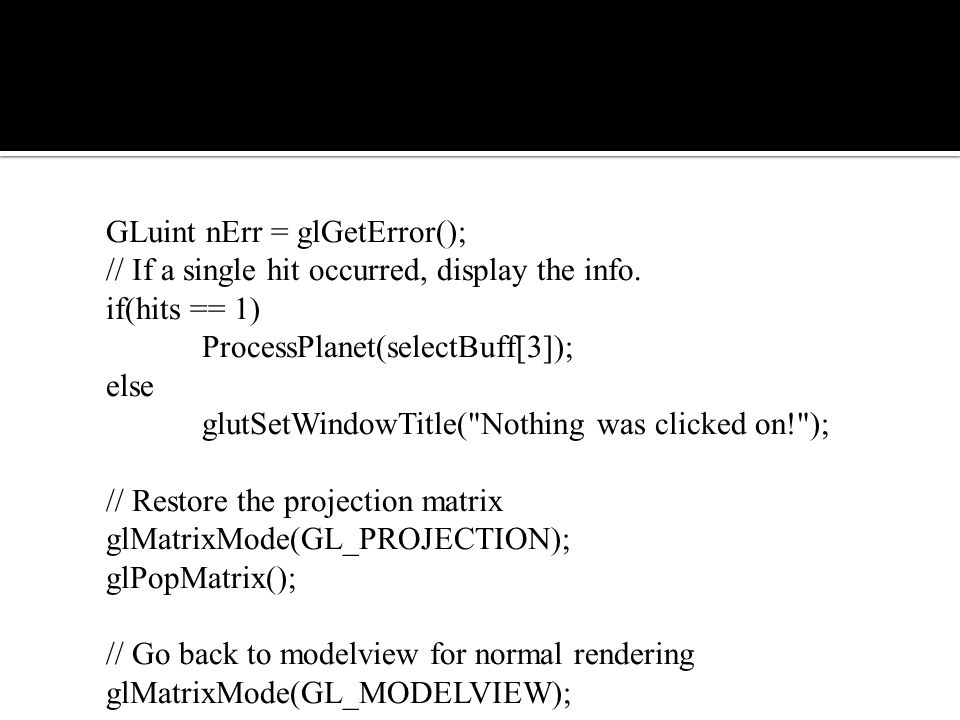

22. GLuint nErr = glGetError(); // If a single hit occurred, display the info. if(hits == 1) ProcessPlanet(selectBuff[3]); else glutSetWindowTitle("Nothing was clicked on!"); // Restore the projection matrix glMatrixMode(GL_PROJECTION); glPopMatrix(); // Go back to modelview for normal rendering glMatrixMode(GL_MODELVIEW);

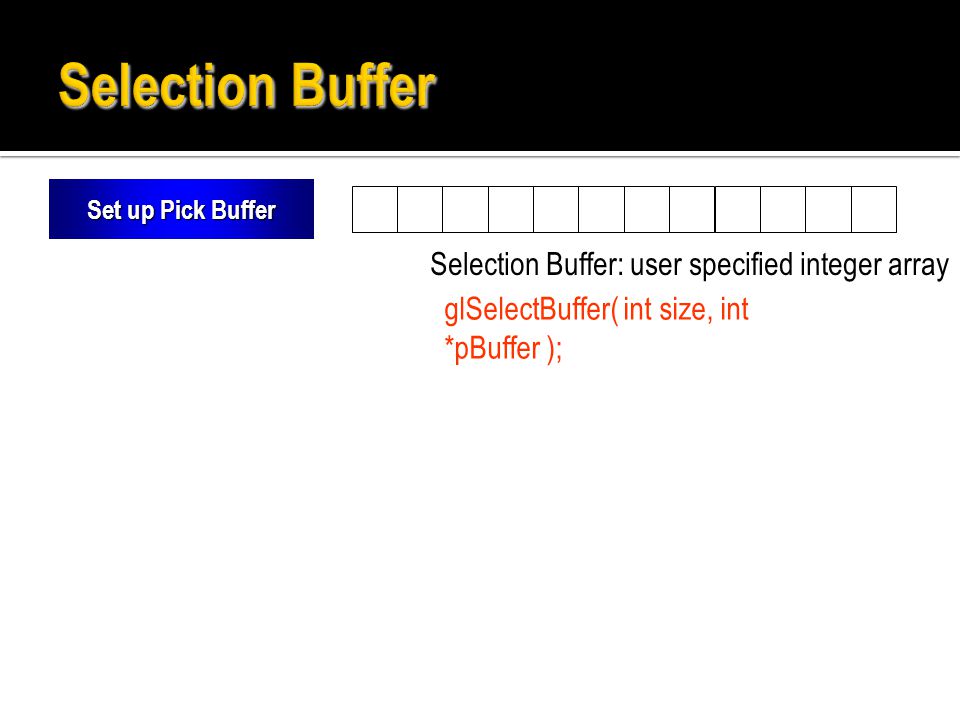

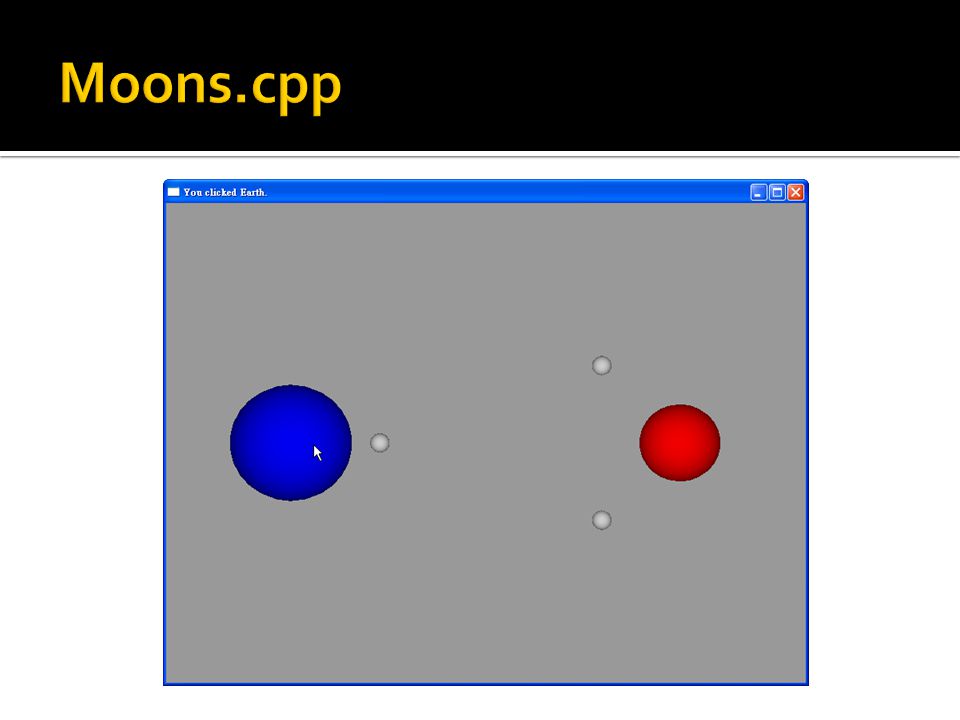

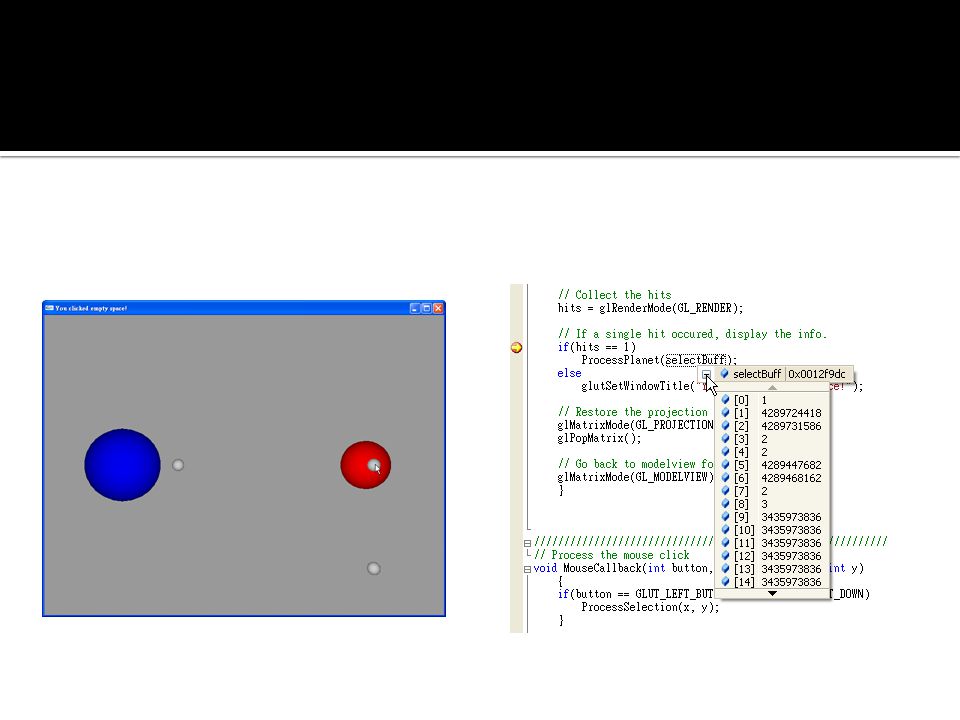

27. glSelectBuffer( int size, int *pBuffer ); Set up Pick Buffer Selection Buffer: user specified integer array

28. stack pointer Set up Pick Buffer Initialize Name Stack glRenderMode( GL_SELECT ); glInitNames();

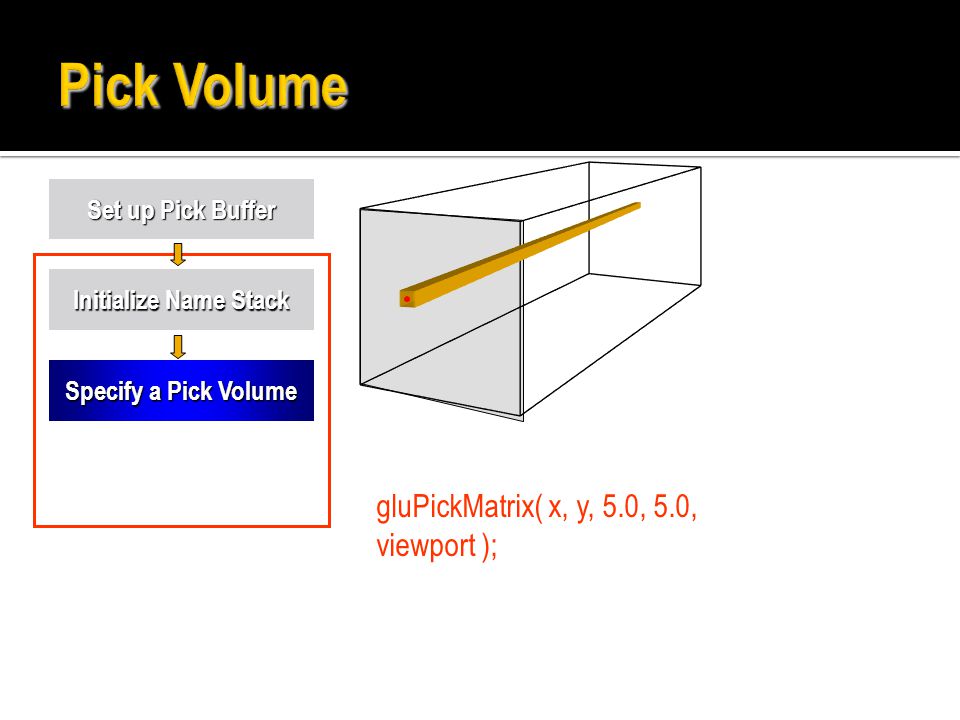

29. gluPickMatrix( x, y, 5.0, 5.0, viewport ); Initialize Name Stack Set up Pick Buffer Specify a Pick Volume

30. glPushName(100); 100100 Specify a Pick Volume Initialize Name Stack Set up Pick Buffer Draw Object with IDs glDrawRedRect();

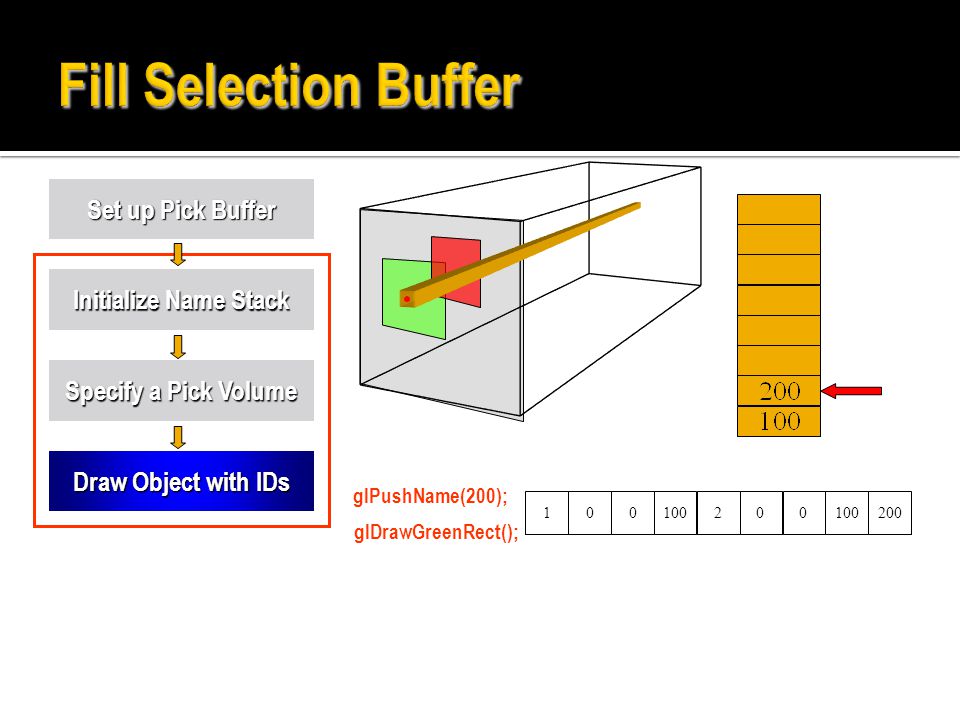

31. glPushName(200); 100100200 200 Specify a Pick Volume Draw Object with IDs Initialize Name Stack Set up Pick Buffer glDrawGreenRect();

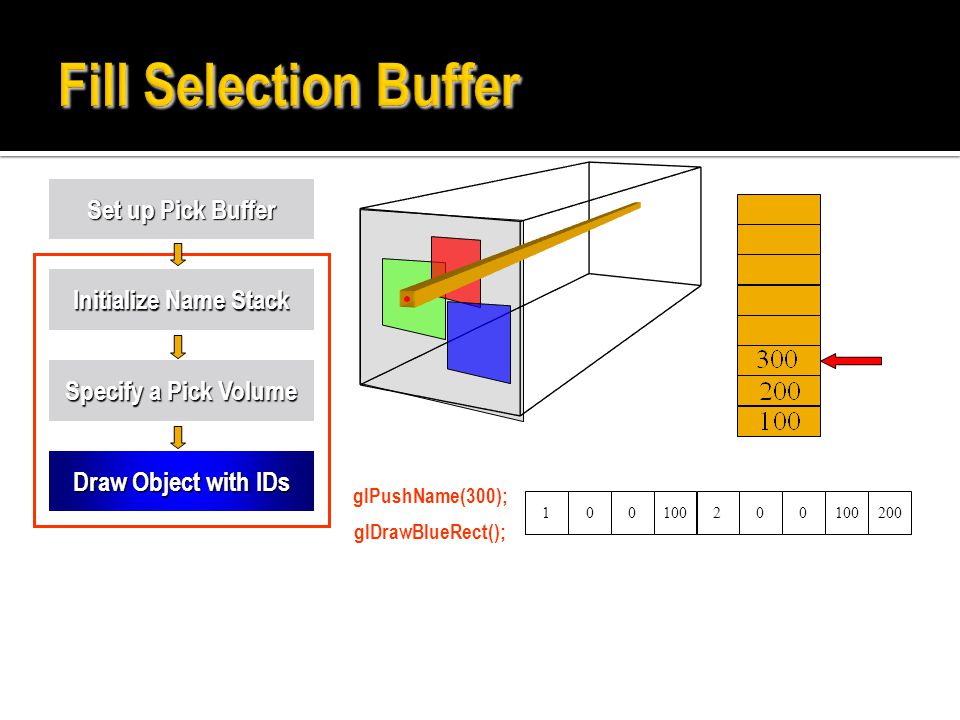

32. 100100200 200 Specify a Pick Volume Draw Object with IDs Initialize Name Stack Set up Pick Buffer glPushName(300); glDrawBlueRect();

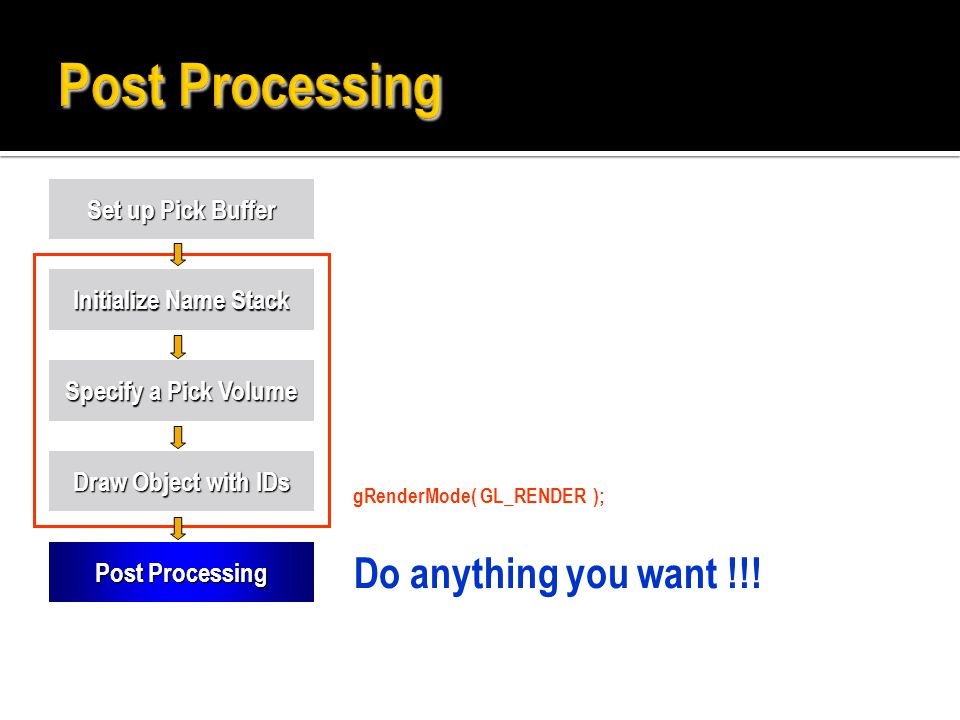

33. Do anything you want !!! Specify a Pick Volume Draw Object with IDs Initialize Name Stack Set up Pick Buffer Post Processing gRenderMode( GL_RENDER );

36. glSelectBuffer(…) ProcessSelection glMatrixMode(GL_PROJECTION) glPushMatrix() glMatrixMode(GL_PROJECTION) glPopMatrix() Change render mode MakeSelection

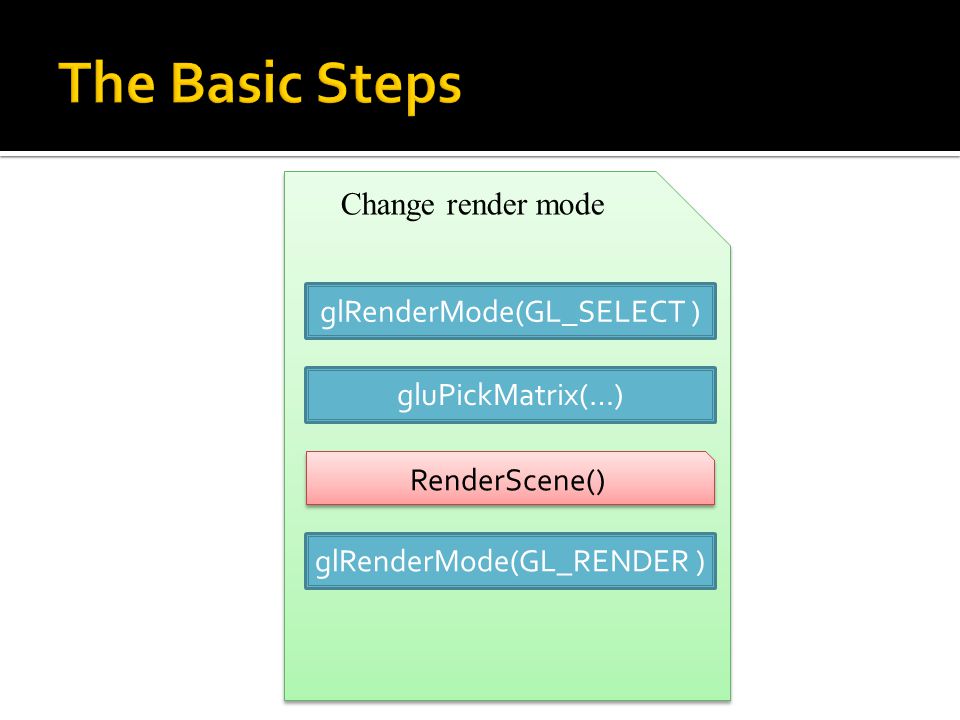

37. glRenderMode(GL_SELECT ) glRenderMode(GL_RENDER ) RenderScene() gluPickMatrix(…) Change render mode

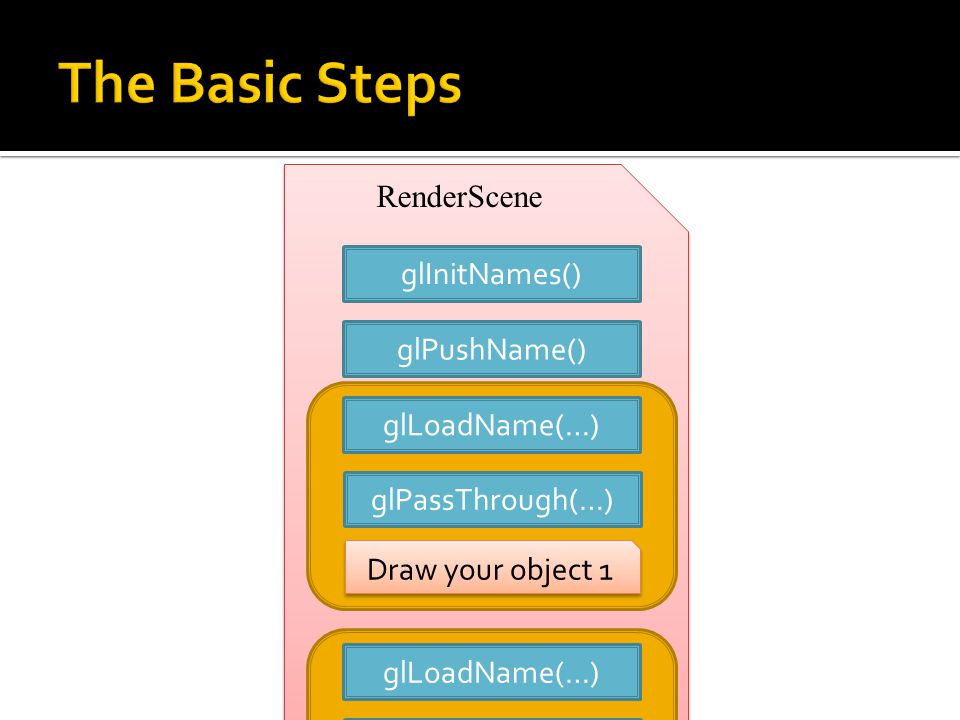

38. glInitNames() glPushName() RenderScene glLoadName(…) Draw your object 1 glPassThrough(…) glLoadName(…) Draw your object 2 glPassThrough(…)

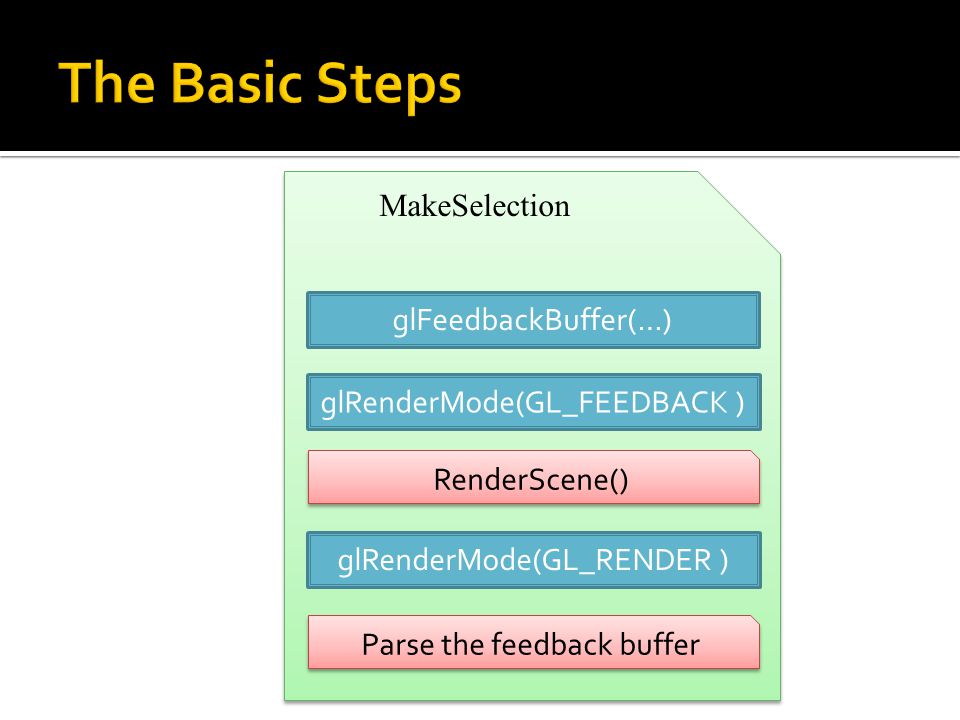

39. glRenderMode(GL_FEEDBACK ) glRenderMode(GL_RENDER ) RenderScene() glFeedbackBuffer(…) MakeSelection Parse the feedback buffer

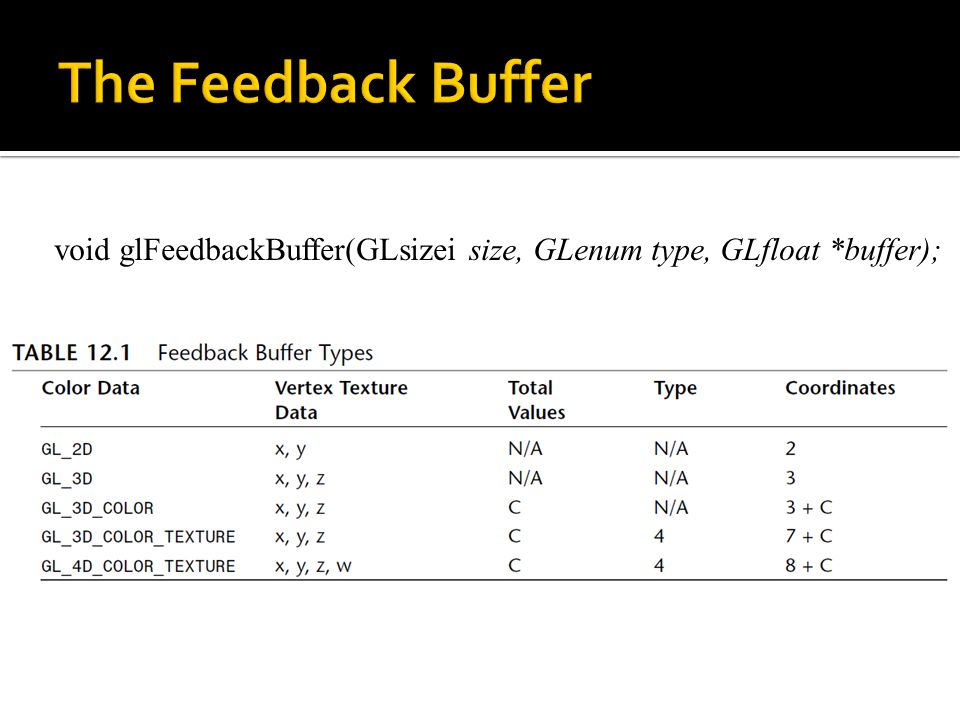

40. void glFeedbackBuffer(GLsizei size, GLenum type, GLfloat *buffer);

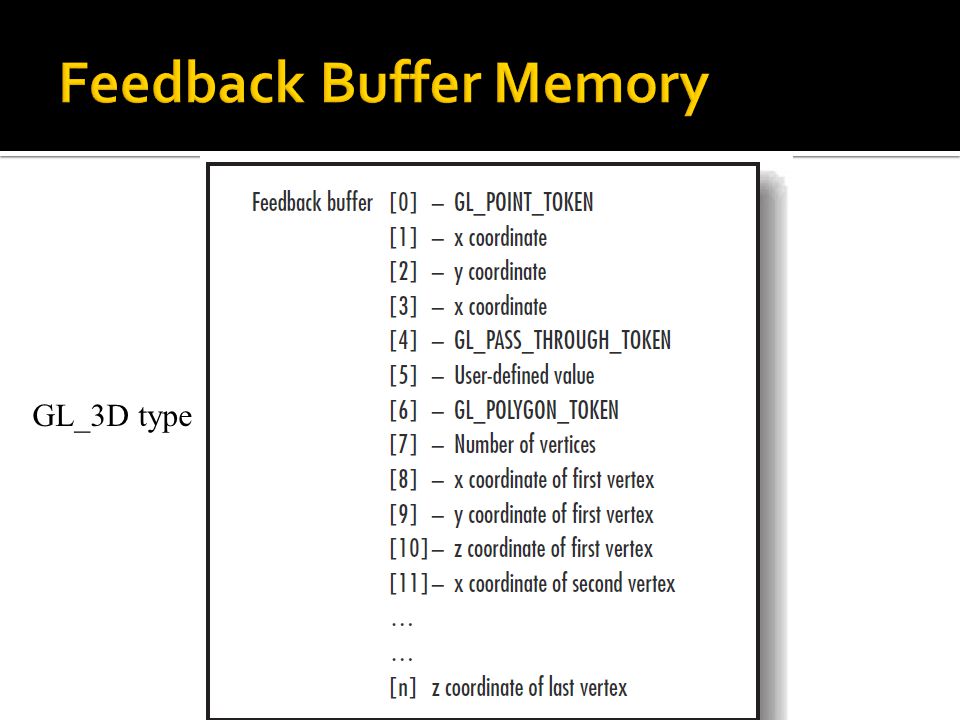

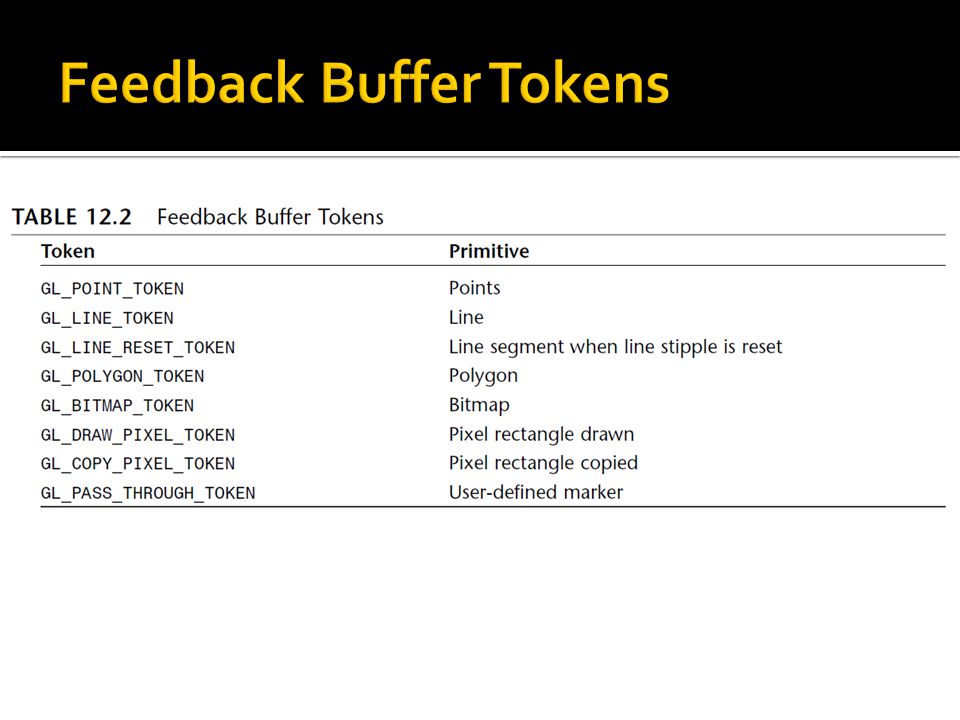

42. GL_3D type

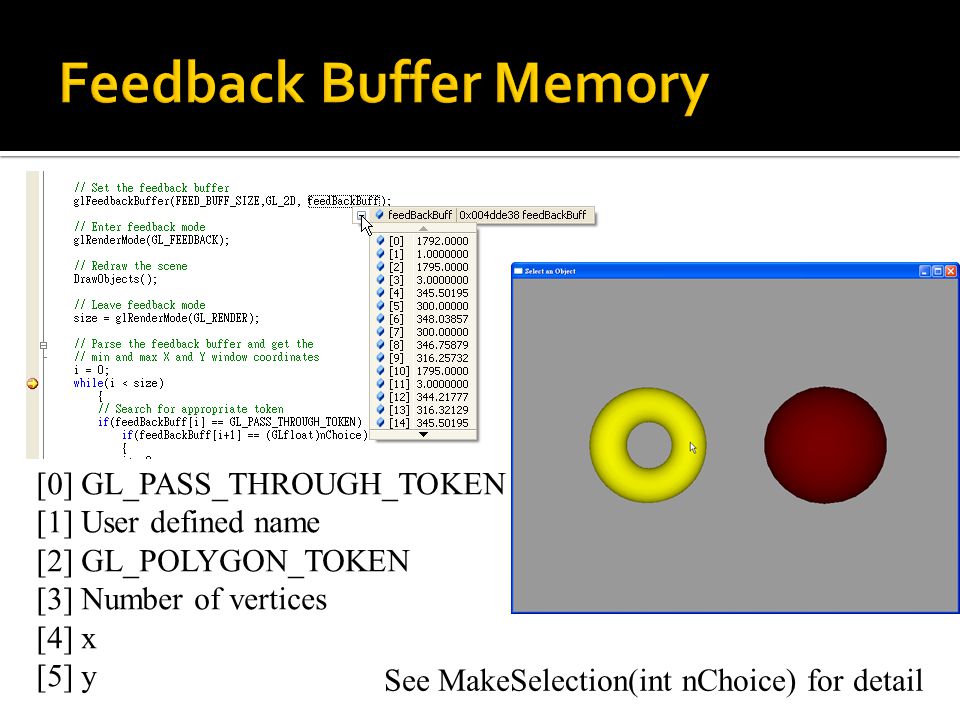

43. [0] GL_PASS_THROUGH_TOKEN [1] User defined name [2] GL_POLYGON_TOKEN [3] Number of vertices [4] x [5] y See MakeSelection(int nChoice) for detail
