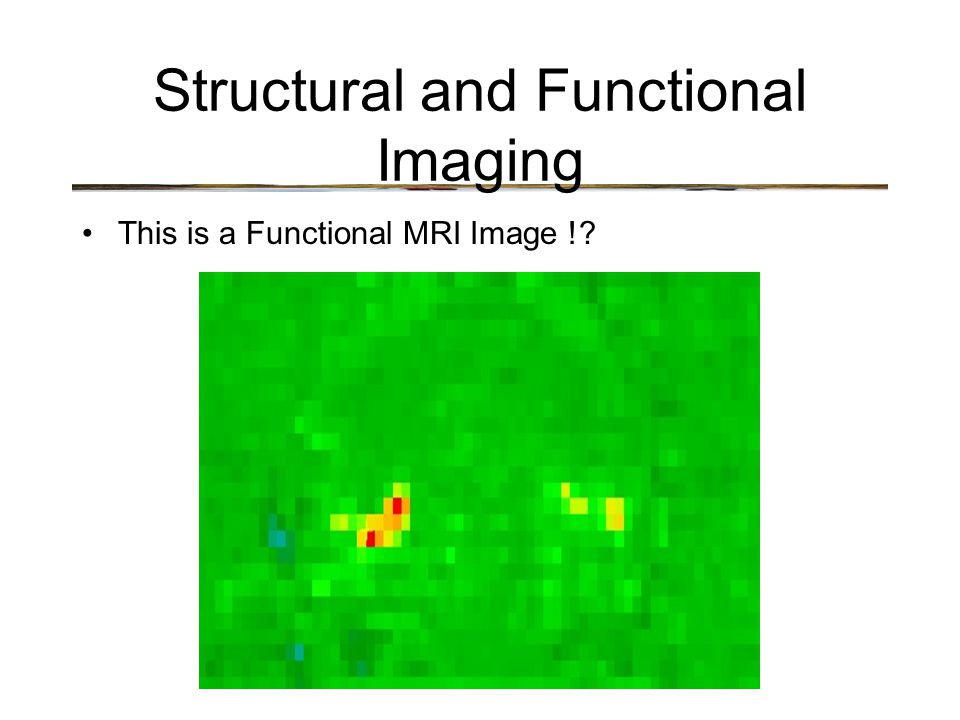

1. Structural and Functional Imaging This is a Functional MRI Image !?

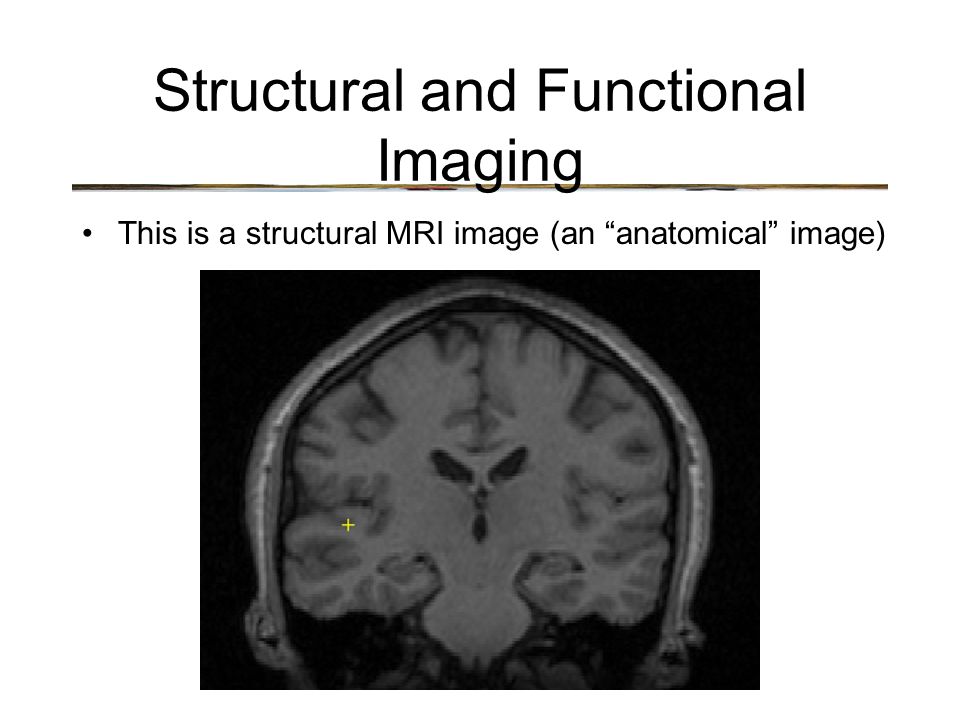

2. Structural and Functional Imaging This is a structural MRI image (an “anatomical” image)

3. Structural and Functional Imaging What you really want is both images co-registered

4. Structural and Functional Imaging What you really want is both images co- registered Why? What’s wrong with the functional image alone?

5. Structural and Functional Imaging Functional images tend to be lower resolution and fail to convey spatial information Pixels

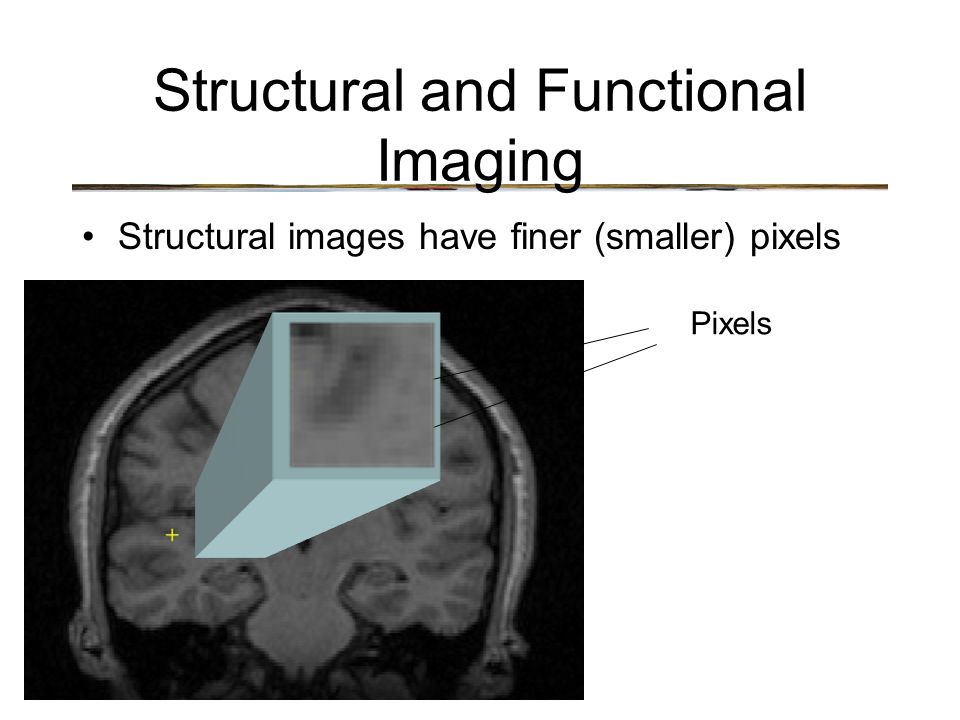

6. Structural and Functional Imaging Structural images have finer (smaller) pixels Pixels

7. Structural and Functional Imaging Brain scan images (CAT, PET, MRI, fMRI) are all made up of pixels (stands for picture elements) Pixels

8. Structural and Functional Imaging “Slices” are assembled into “volumes” Pixels

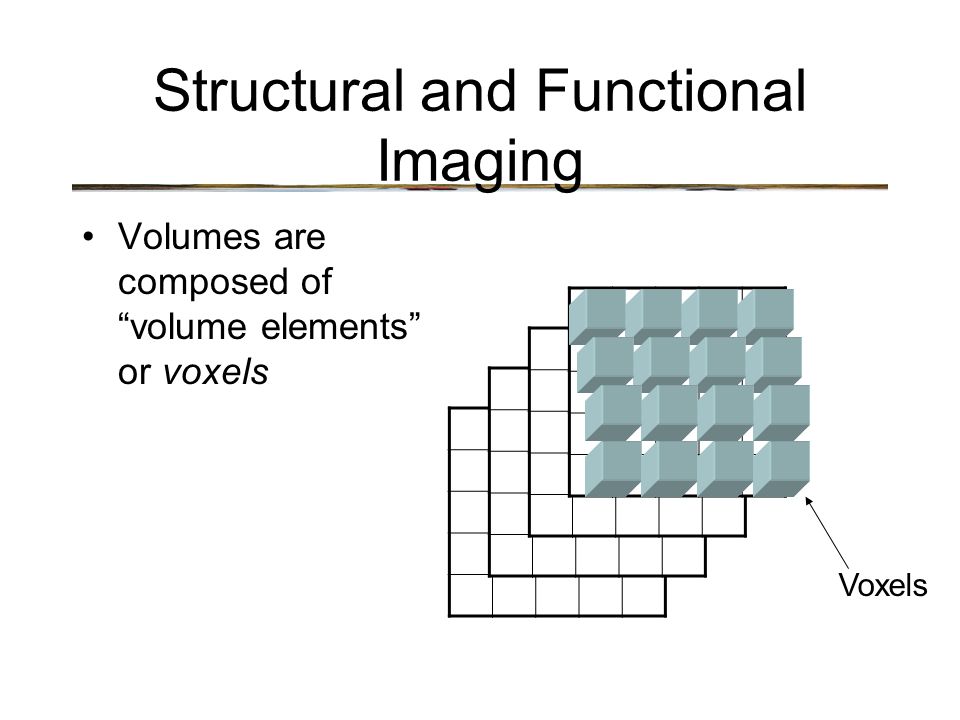

9. Structural and Functional Imaging Volumes are composed of “volume elements” or voxels Voxels

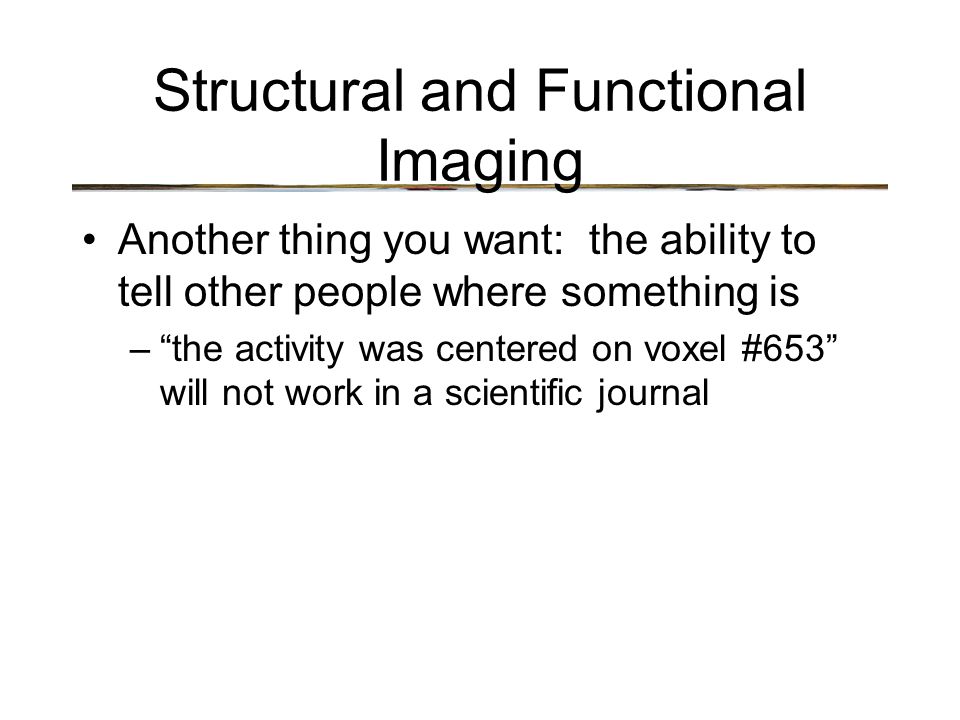

10. Structural and Functional Imaging Another thing you want: the ability to tell other people where something is –“the activity was centered on voxel #653” will not work in a scientific journal

11. Structural and Functional Imaging MRI anatomical spaces –Talairach Space: Based on detailed analysis of one elderly woman Talairach & Tournoux (1988) –Montreal Neurological Institute Template (MNI) based on average of 152 different brains, each normalized to Talairach space advantage: gyri and sulci are more representative disadvantage: it’s blurry –MNI “Representative Brain” the one brain from the 152 in the MNI Template set that is most like the average advantage: it’s not blurry disadvantage: it’s still just one person’s brain

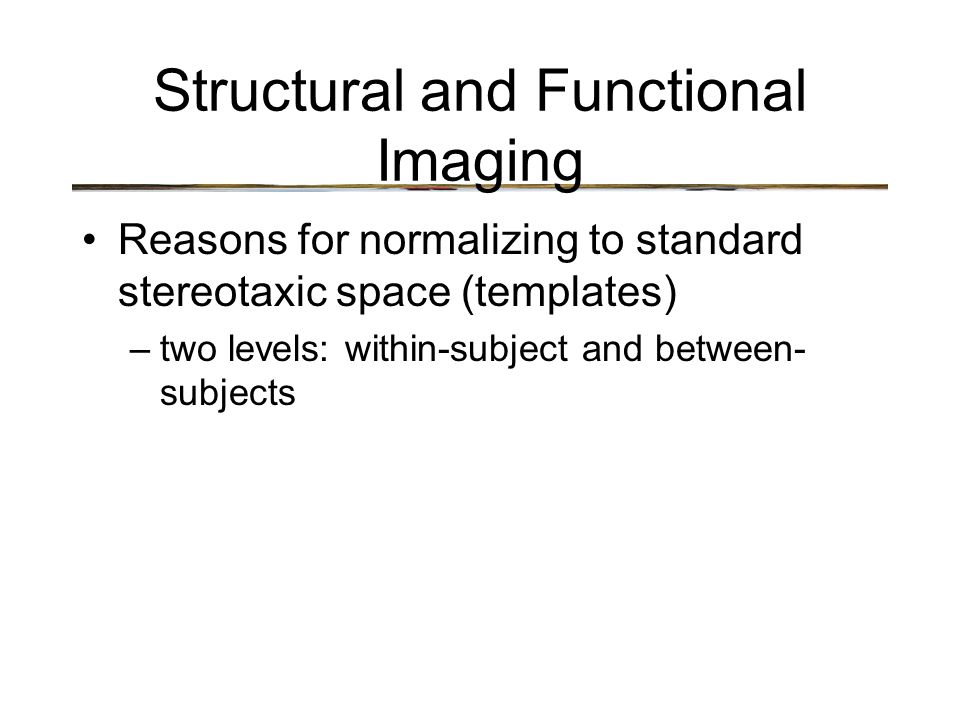

12. Structural and Functional Imaging Reasons for normalizing to standard stereotaxic space (templates) –two levels: within-subject and between- subjects

13. Structural and Functional Imaging Within-Subject Reasons: 1.structural and functional volumes may not be coregistered due to movement distortion 2.results can be described in standard coordinates 3.data across sessions can be averaged

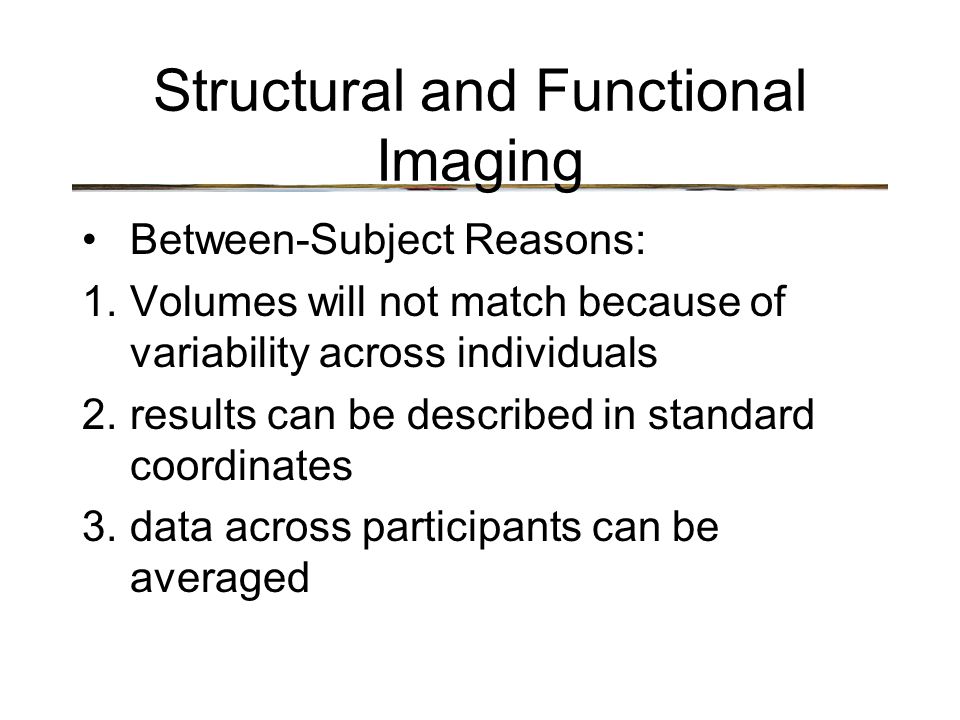

14. Structural and Functional Imaging Between-Subject Reasons: 1.Volumes will not match because of variability across individuals 2.results can be described in standard coordinates 3.data across participants can be averaged

15. Preprocessing of Structural and Functional Images Normalizing images to fit a standard template (e.g. Talairach) 1.Define Coordinate System using easily recognizable landmarks Origin in the Anterior Commissure y-axis connects AC and PC x-axis perpendicular interhemispheric plane and through AC z-axis perpendicular to x and y

16. The Talairach Coordinate System AC PC

17. The Talairach Coordinate System AC - PC line defines y-axis +y -y

18. The Talairach Coordinate System x-axis perpendicular to interhemispheric plane +y -y -x +x

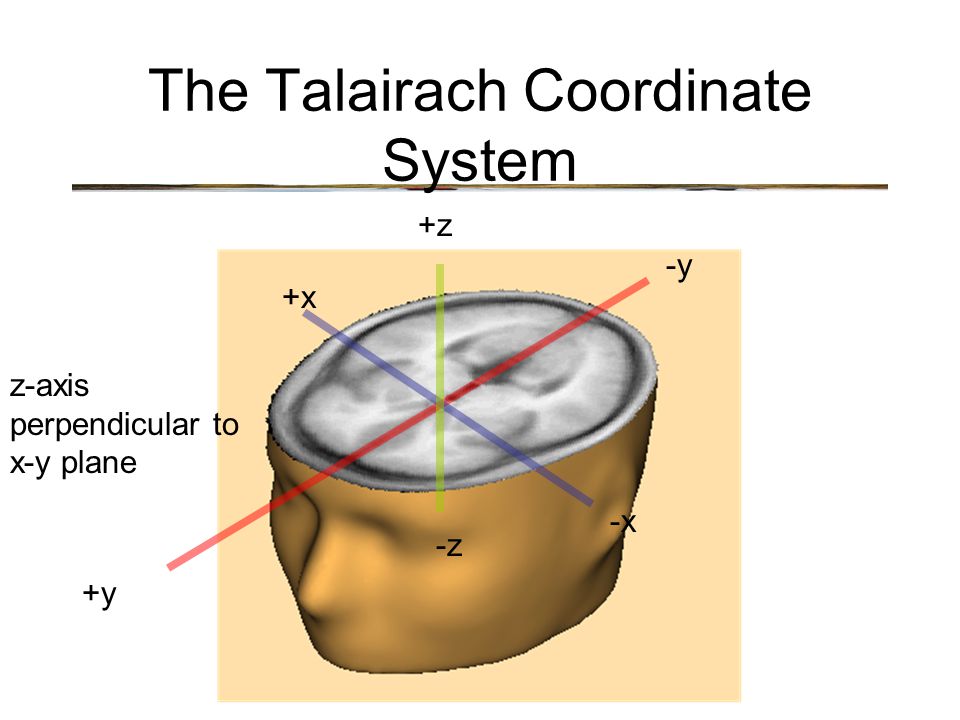

19. The Talairach Coordinate System z-axis perpendicular to x-y plane +y -y -x +x +z -z

20. Structural and Functional Imaging Cortical Flattening –Software such as BrainVoyager can “inflate” the cortex like a balloon so that sulci and gyri are “flattened” –functional data can be transformed with the same complex function –functional and structural data can be overlaid so that distribution on cortical sheet can be visualized
