1 Software Engineering and Design Principles Chapter 1

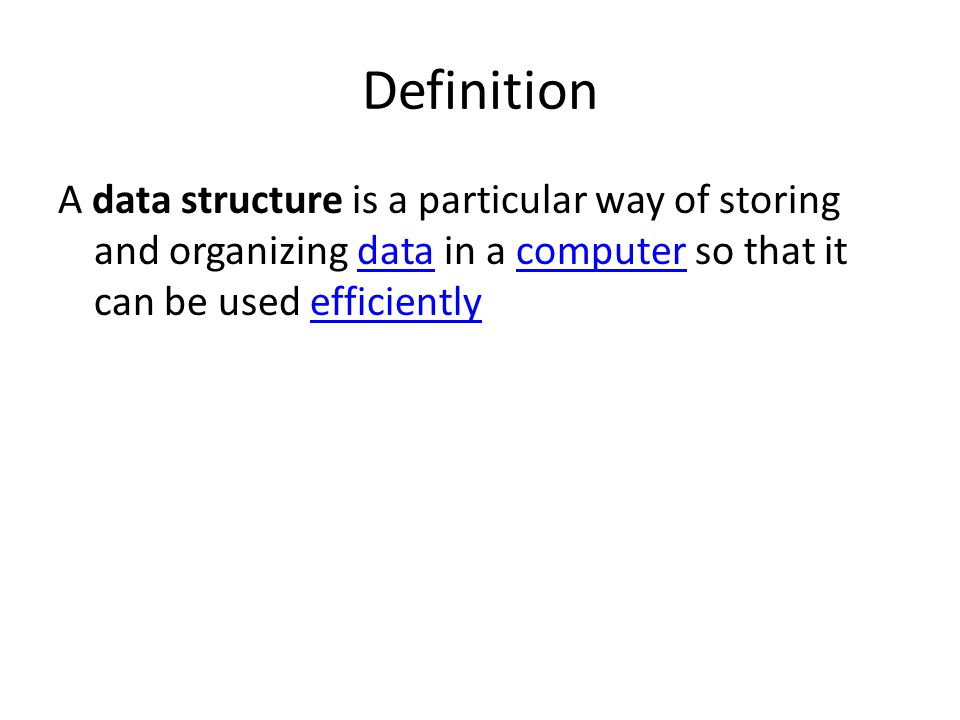

2 Definition A data structure is a particular way of storing and organizing data in a computer so that it can be used efficientlydatacomputerefficiently

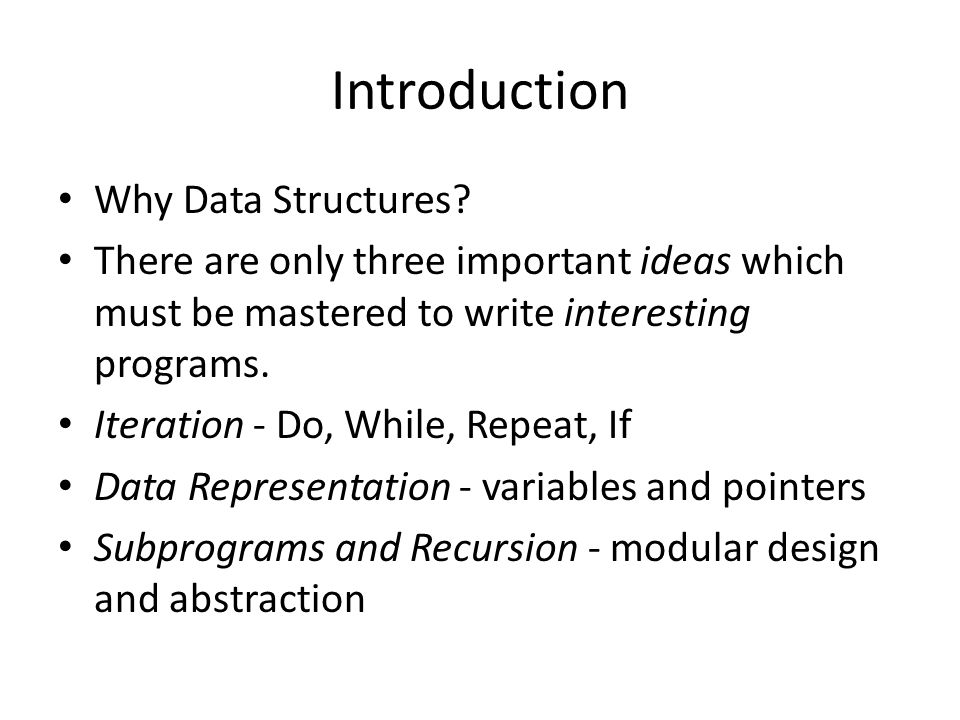

3 Introduction Why Data Structures? There are only three important ideas which must be mastered to write interesting programs. Iteration - Do, While, Repeat, If Data Representation - variables and pointers Subprograms and Recursion - modular design and abstraction

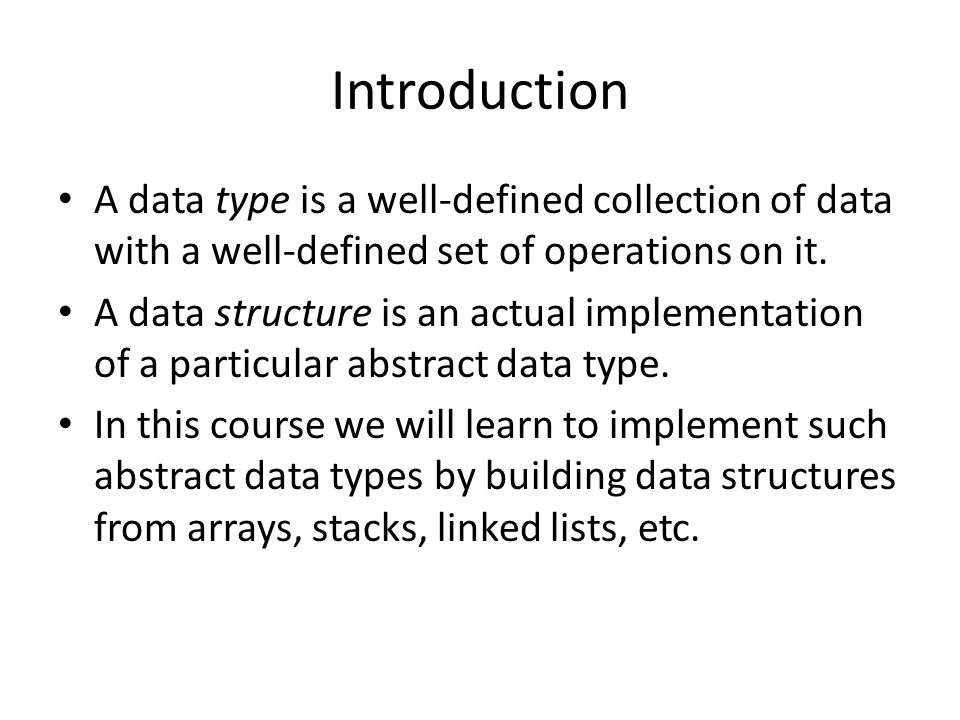

4 Introduction A data type is a well-defined collection of data with a well-defined set of operations on it. A data structure is an actual implementation of a particular abstract data type. In this course we will learn to implement such abstract data types by building data structures from arrays, stacks, linked lists, etc.

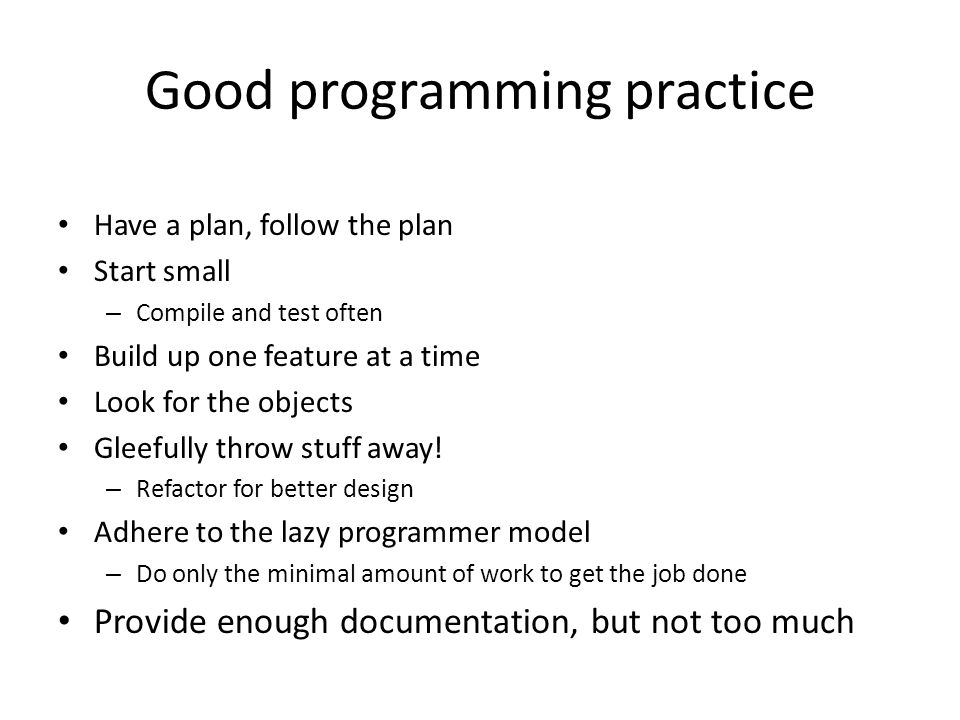

5 Good programming practice Have a plan, follow the plan Start small – Compile and test often Build up one feature at a time Look for the objects Gleefully throw stuff away! – Refactor for better design Adhere to the lazy programmer model – Do only the minimal amount of work to get the job done Provide enough documentation, but not too much

6 Programming Proverbs KISS - ``Keep it simple, stupid.'' - Don't use fancy features when simple ones suffice. RTFM - ``Read the fascinating manual.'' - Most complaints from the compiler can be solved by reading the book. Logical errors are something else. Make your documentation short but sweet. - Always document your variable declarations, and tell what each subprogram does. Every subprogram should do something and hide something - If you cannot concisely explain what your subprogram does, it shouldn't exist. This is why I write the header comments before I write the subroutine. Program defensively - Add the debugging statements and routines at the beging, because you know you are going to need them later. A good program is a pretty program. - Remember that you will spend more time reading your programs than we will.

7 Principles of Good Design Strong Cohesion: Each module (function) should perform one well-defined task. Advantages – Facilitates reuse in other projects – Easy to maintain – Robust Example – a function to search for an integer in an array.

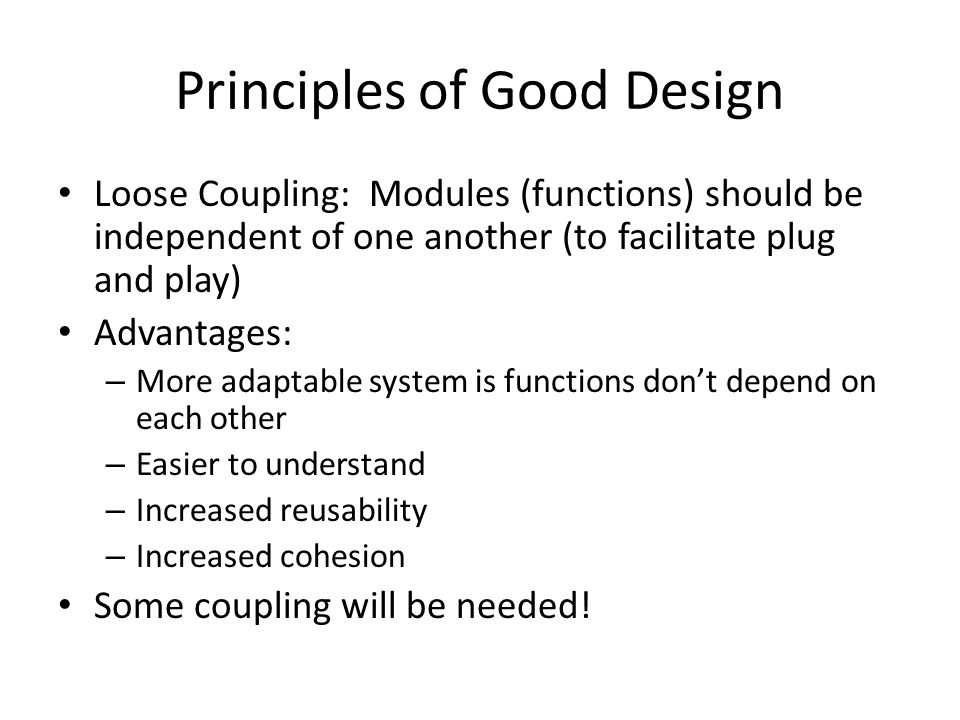

8 Principles of Good Design Loose Coupling: Modules (functions) should be independent of one another (to facilitate plug and play) Advantages: – More adaptable system is functions don’t depend on each other – Easier to understand – Increased reusability – Increased cohesion Some coupling will be needed!

9 Principles of Good Design Good Interfaces: Class methods allow you to do everything you need to do, and nothing extra – A class interface declares publicly accessible methods (and data) Describes only way for programmers to interact with the class – Classes should be easy to understand, and so have few methods Desire to provide power is at odds with this goal – Complete interface Provides methods for any reasonable task consistent with the responsibilities of the class Important that an interface is complete – Minimal interface Provides only essential methods Classes with minimal interfaces are easier to understand, use, and maintain Less important than completeness

10 Pre and Post Conditions Precondition: Conditions that must exist at the beginning of a function Postcondition: Conditions at the end of the function. Thought of as a promise. If the preconditions are met by the calling function, the function promises the postconditions will be true when the function returns.

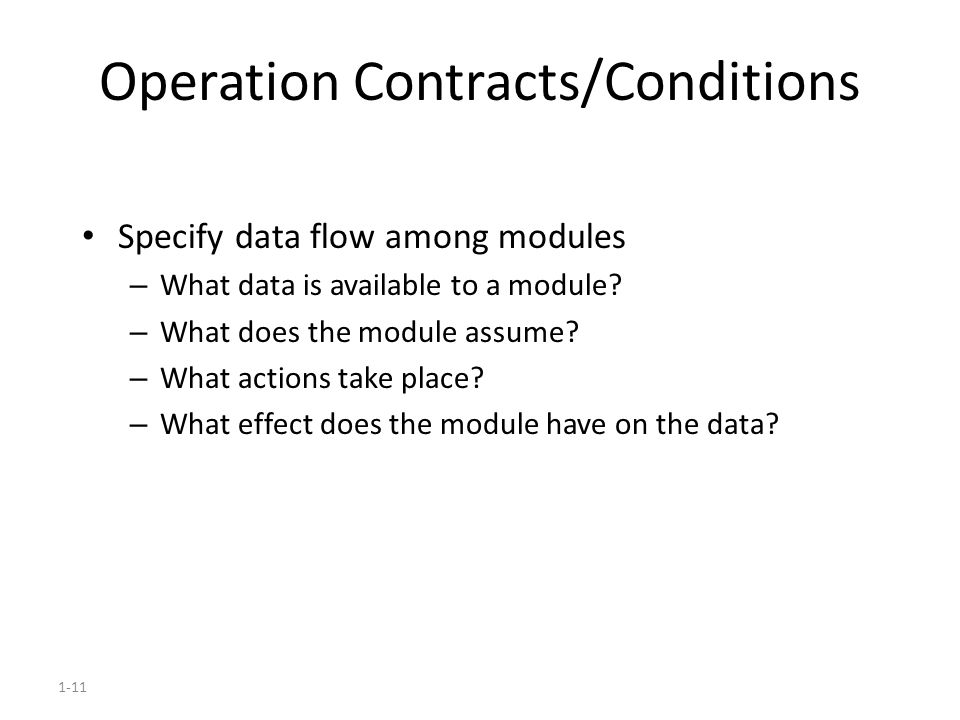

11 1-11 Operation Contracts/Conditions Specify data flow among modules – What data is available to a module? – What does the module assume? – What actions take place? – What effect does the module have on the data?

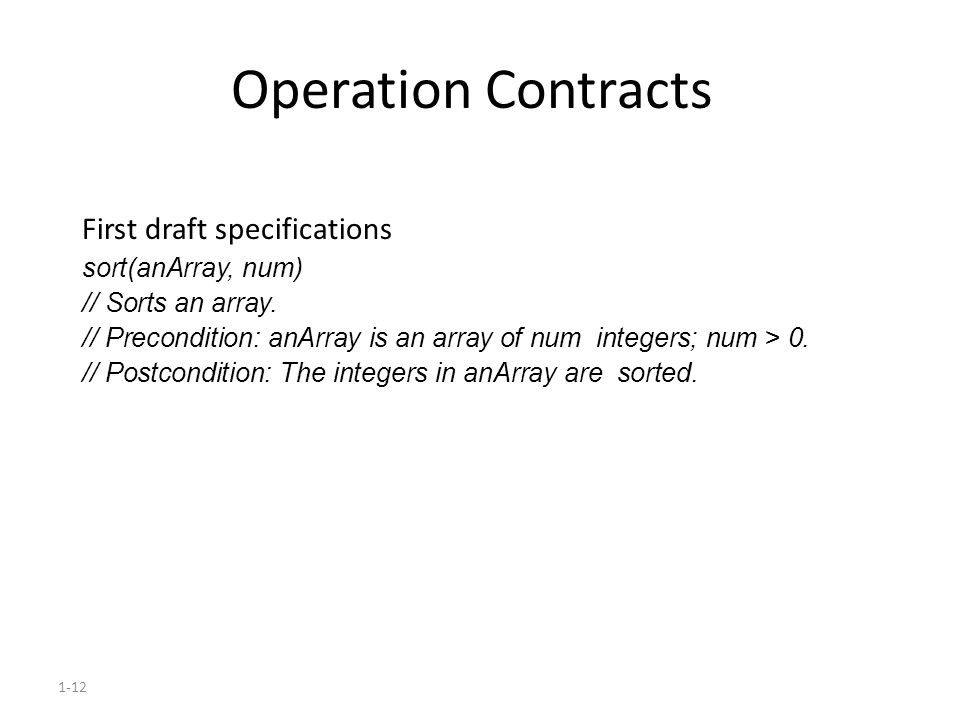

12 1-12 Operation Contracts First draft specifications sort(anArray, num) // Sorts an array. // Precondition: anArray is an array of num integers; num > 0. // Postcondition: The integers in anArray are sorted.

13 1-13 Operation Contracts Revised specifications sort(anArray, num) // Sorts an array into ascending order. // Precondition: anArray is an array of num // integers; 1 <= num <= MAX_ARRAY, where // MAX_ARRAY is a global constant that specifies // the maximum size of anArray. // Postcondition: anArray[0] <= anArray[1] <=... // <= anArray[num-1], num is unchanged.

14 1-14 Verification Assertion: A statement about a particular condition at a certain point in an algorithm – Preconditions and postconditions are examples of assertions Invariant: A condition that is always true at a certain point in an algorithm Loop invariant: A condition that is true before and after each execution of an algorithm’s loop – Can be used to detect errors before coding is started

15 1-15 Verification Loop invariant (continued) – The invariant for a correct loop is true: Initially, after any initialization steps, but before the loop begins execution Before every iteration of the loop After every iteration of the loop After the loop terminates

16 Principles of OO Programming Encapsulation: data and methods combined in one object – Also called information hiding Inheritance: Objects can inherit properties from other object Polymorphism: Some object properties are determined at run time.
