1 Interaction Diagrams Software Engineering BIT8

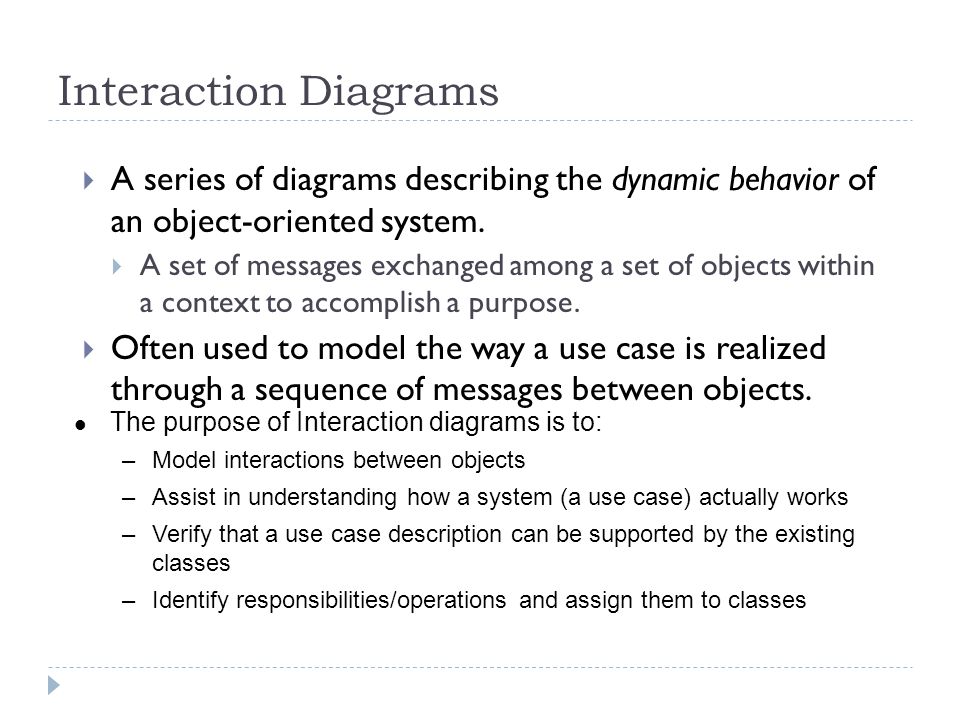

2 Interaction Diagrams  A series of diagrams describing the dynamic behavior of an object-oriented system.  A set of messages exchanged among a set of objects within a context to accomplish a purpose.  Often used to model the way a use case is realized through a sequence of messages between objects. The purpose of Interaction diagrams is to: –Model interactions between objects –Assist in understanding how a system (a use case) actually works –Verify that a use case description can be supported by the existing classes –Identify responsibilities/operations and assign them to classes

3 Interaction Diagrams  UML  Collaboration Diagrams  Emphasizes structural relations between objects  Sequence Diagram  The subject of this Lab

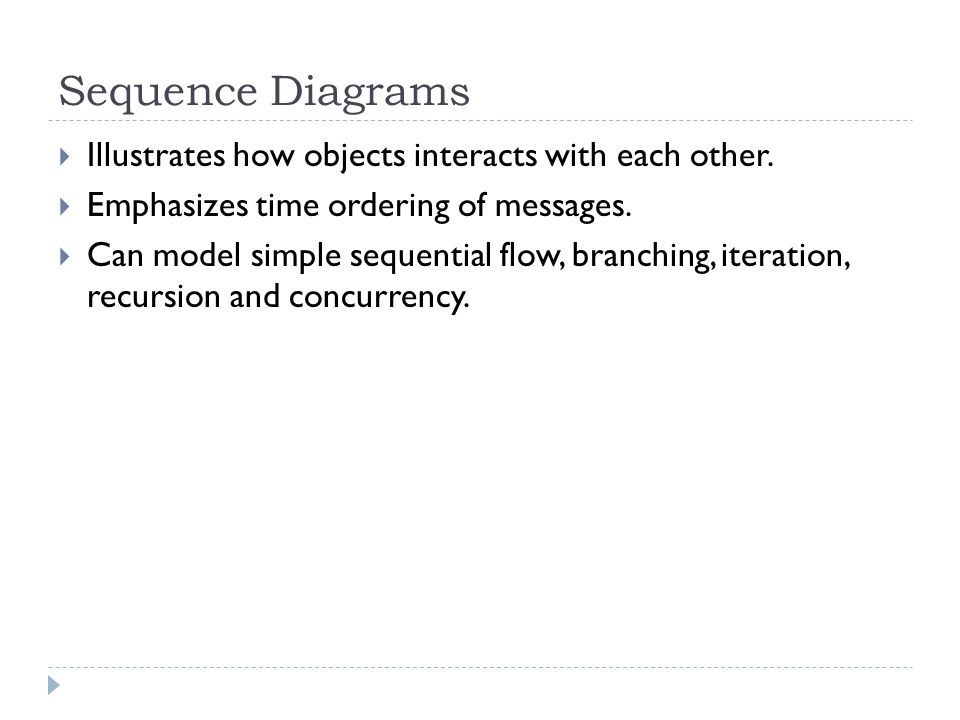

4 Sequence Diagrams  Illustrates how objects interacts with each other.  Emphasizes time ordering of messages.  Can model simple sequential flow, branching, iteration, recursion and concurrency.

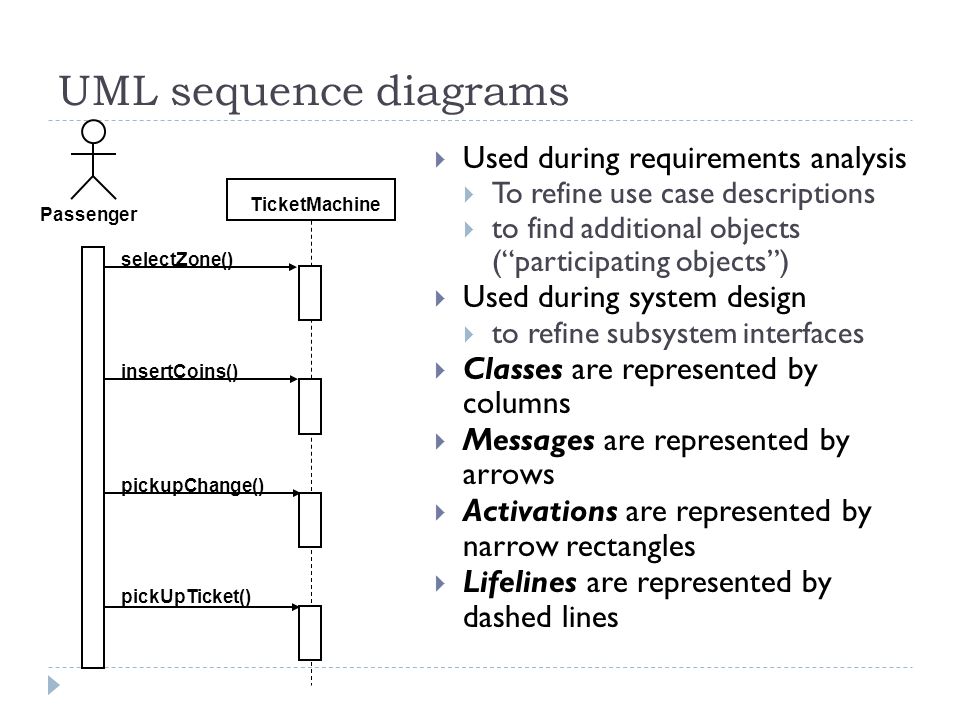

5 UML sequence diagrams  Used during requirements analysis  To refine use case descriptions  to find additional objects (“participating objects”)  Used during system design  to refine subsystem interfaces  Classes are represented by columns  Messages are represented by arrows  Activations are represented by narrow rectangles  Lifelines are represented by dashed lines selectZone() pickupChange() pickUpTicket() insertCoins() Passenger TicketMachine

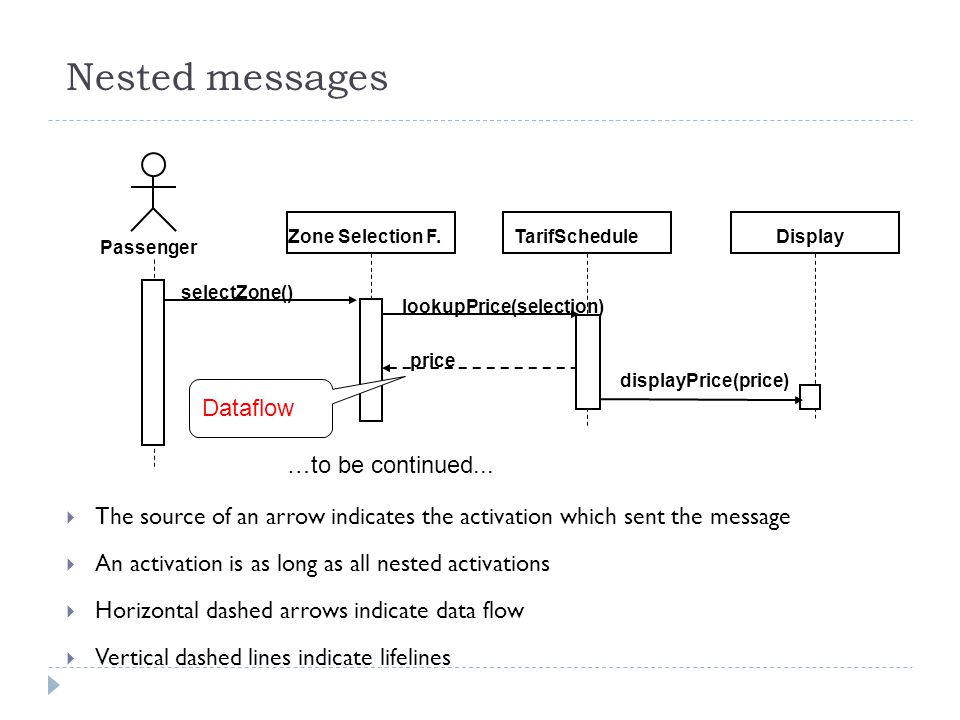

6 Nested messages  The source of an arrow indicates the activation which sent the message  An activation is as long as all nested activations  Horizontal dashed arrows indicate data flow  Vertical dashed lines indicate lifelines selectZone() Passenger Zone Selection F. TarifScheduleDisplay lookupPrice(selection) displayPrice(price) price Dataflow …to be continued...

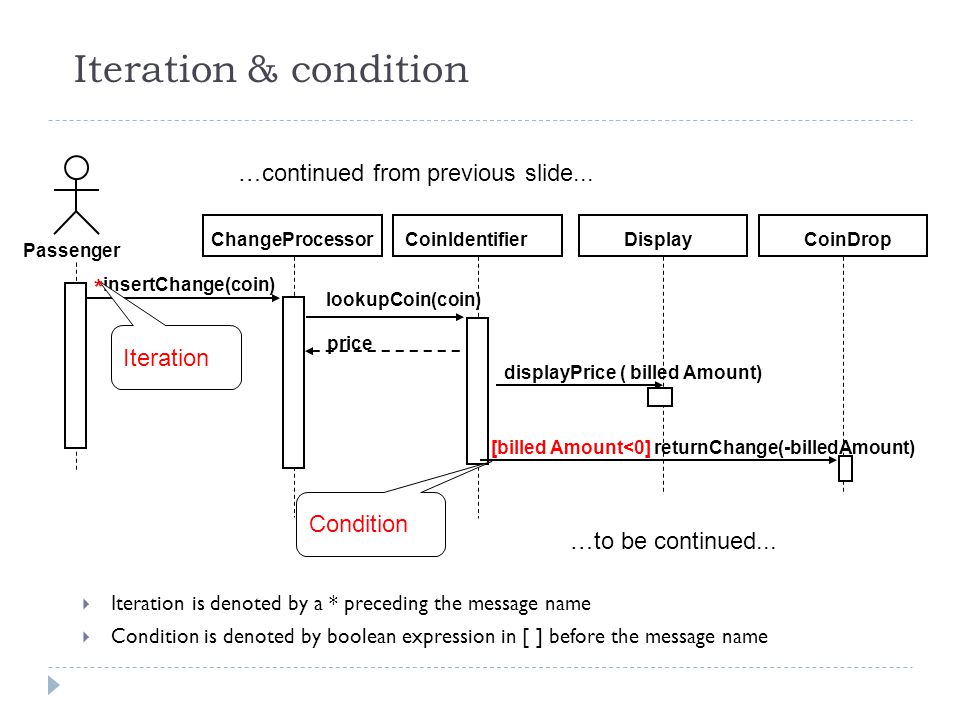

7 Iteration & condition  Iteration is denoted by a * preceding the message name  Condition is denoted by boolean expression in [ ] before the message name Passenger ChangeProcessor insertChange(coin) CoinIdentifierDisplayCoinDrop displayPrice ( billed Amount) lookupCoin(coin) price [billed Amount<0] returnChange(-billedAmount) Iteration Condition …to be continued... …continued from previous slide... *

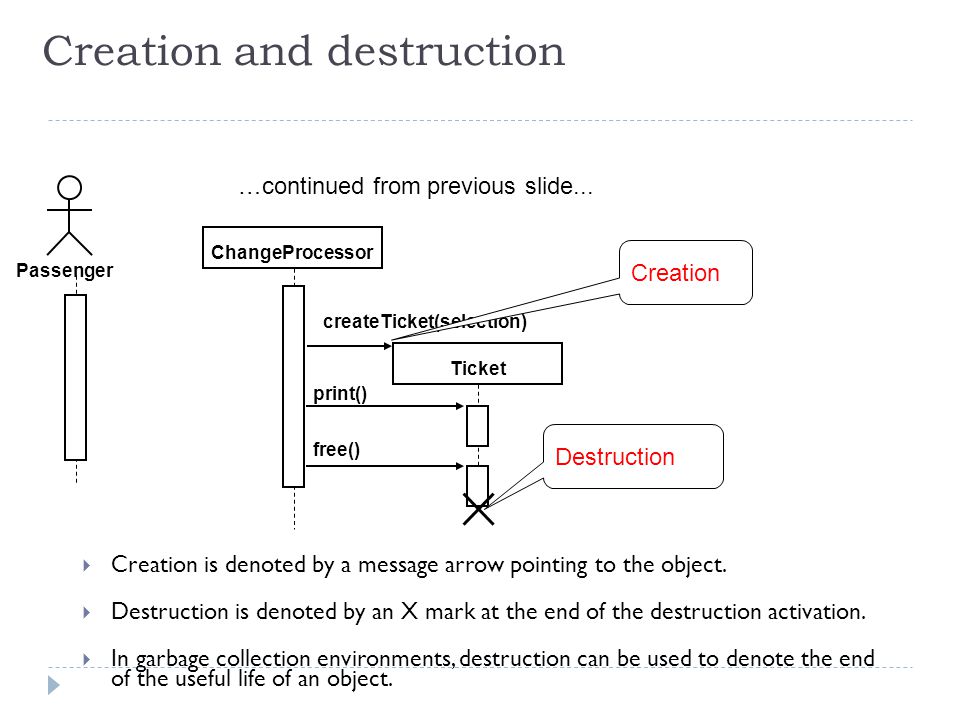

8 Creation and destruction  Creation is denoted by a message arrow pointing to the object.  Destruction is denoted by an X mark at the end of the destruction activation.  In garbage collection environments, destruction can be used to denote the end of the useful life of an object. Passenger ChangeProcessor …continued from previous slide... Ticket createTicket(selection) free() Creation Destruction print()

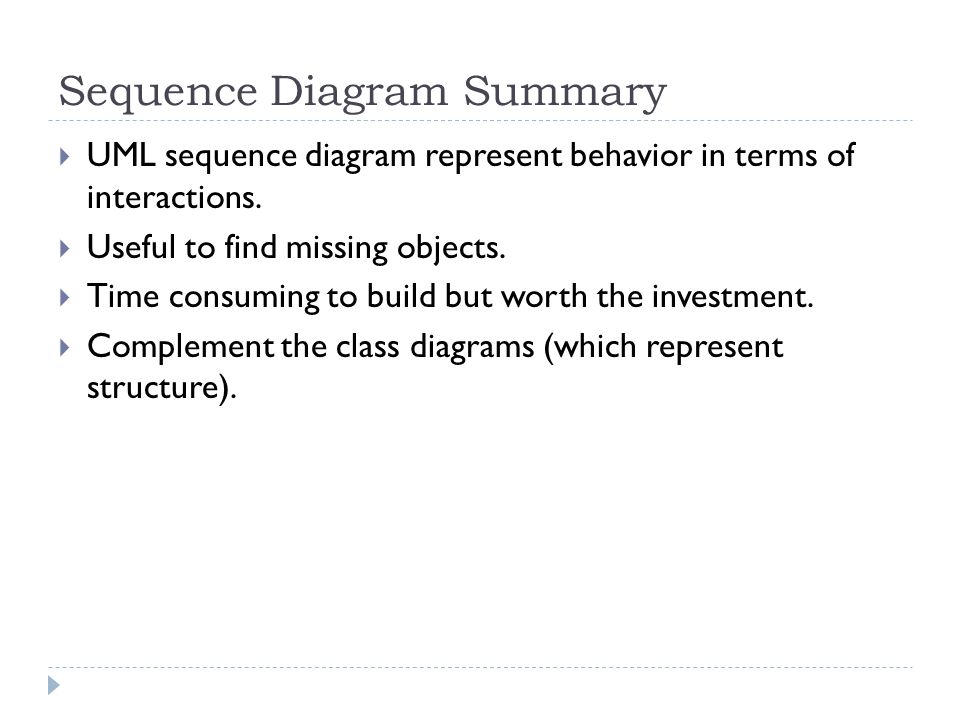

9 Sequence Diagram Summary  UML sequence diagram represent behavior in terms of interactions.  Useful to find missing objects.  Time consuming to build but worth the investment.  Complement the class diagrams (which represent structure).

10 Thank You!
