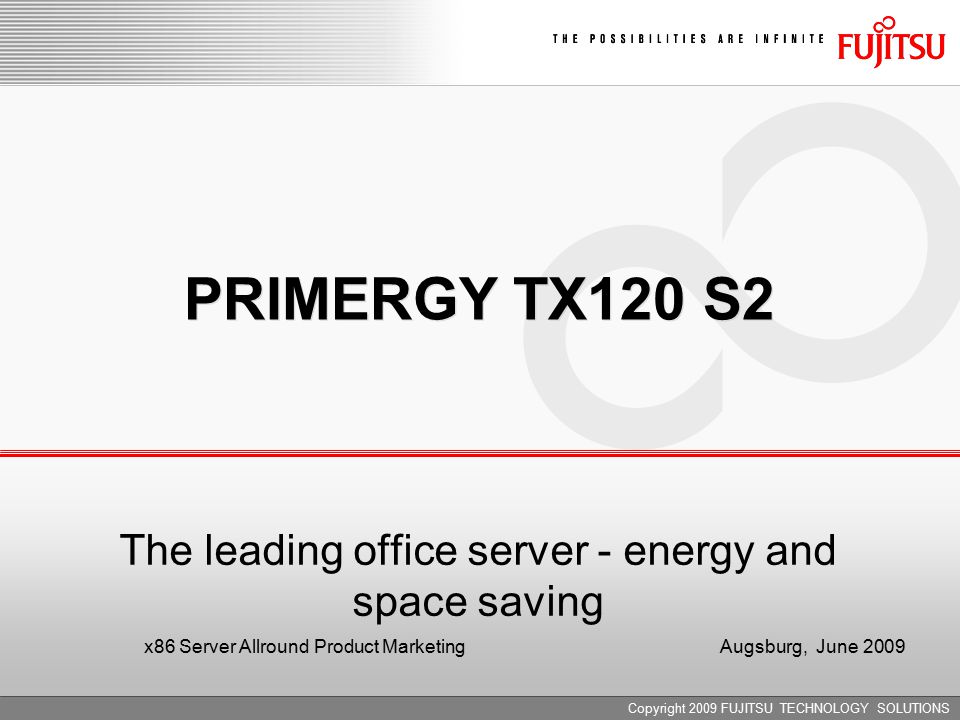

1. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS PRIMERGY TX120 S2 The leading office server - energy and space saving x86 Server Allround Product Marketing Augsburg, June 2009

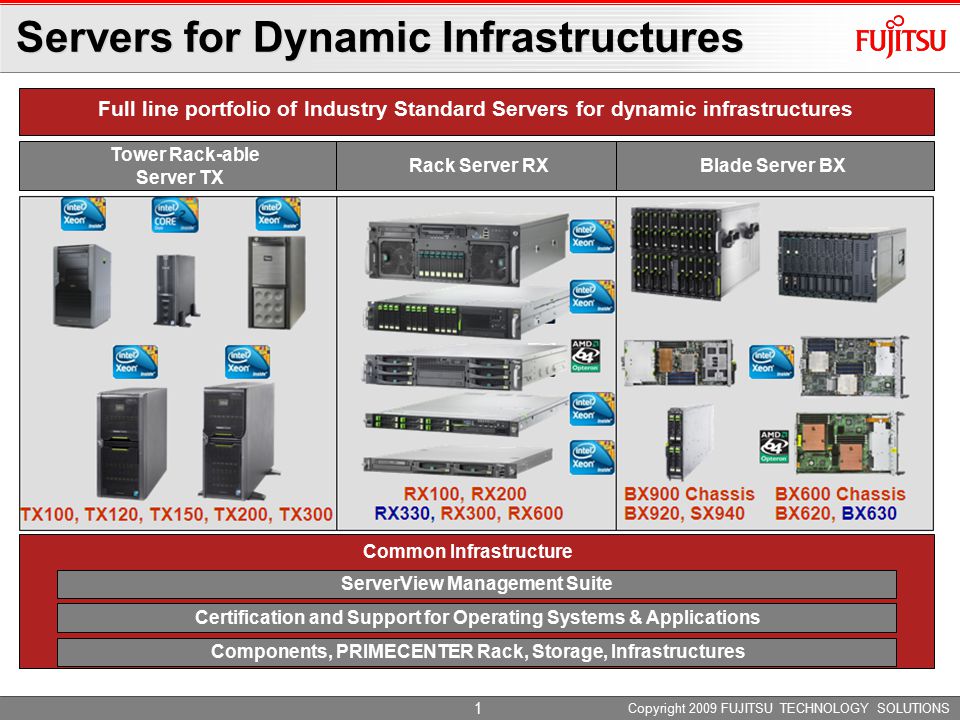

2. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 1 Servers for Dynamic Infrastructures Blade Server BX Tower Rack-able Server TX Rack Server RX Full line portfolio of Industry Standard Servers for dynamic infrastructures Certification and Support for Operating Systems & Applications ServerView Management Suite Components, PRIMECENTER Rack, Storage, Infrastructures Common Infrastructure

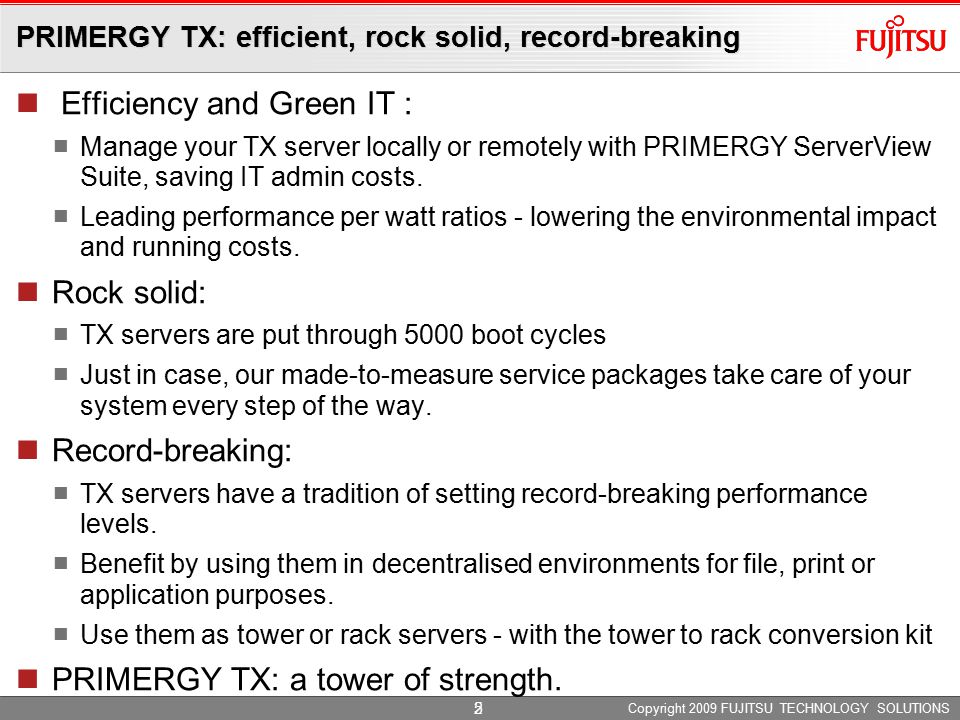

3. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 2 Efficiency and Green IT : Manage your TX server locally or remotely with PRIMERGY ServerView Suite, saving IT admin costs. Leading performance per watt ratios - lowering the environmental impact and running costs. Rock solid: TX servers are put through 5000 boot cycles Just in case, our made-to-measure service packages take care of your system every step of the way. Record-breaking: TX servers have a tradition of setting record-breaking performance levels. Benefit by using them in decentralised environments for file, print or application purposes. Use them as tower or rack servers - with the tower to rack conversion kit PRIMERGY TX: a tower of strength. PRIMERGY TX: efficient, rock solid, record-breaking 5

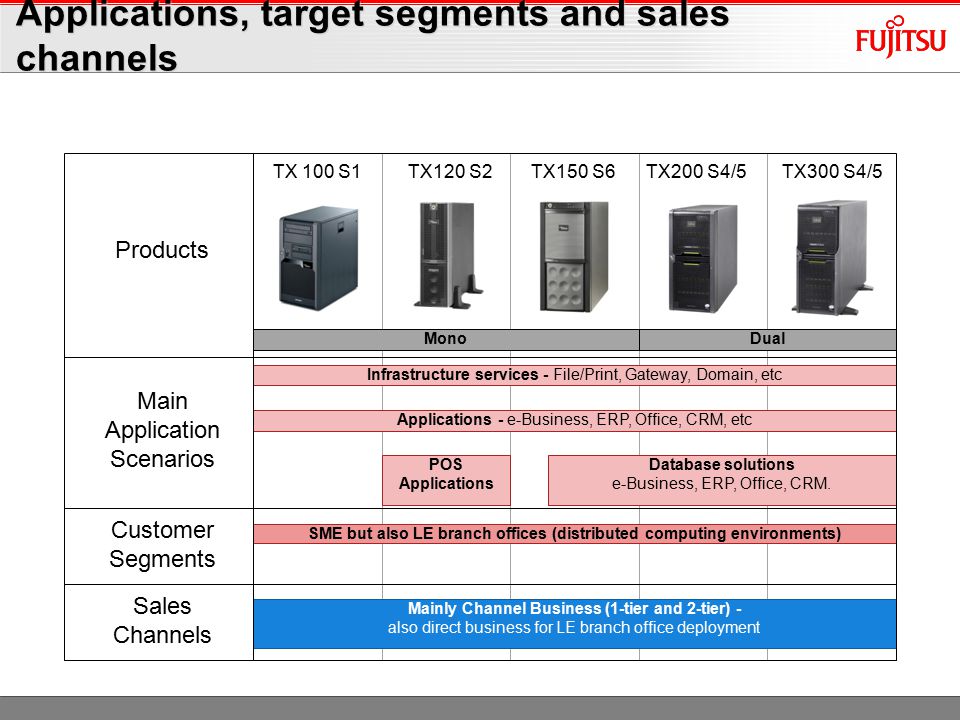

4. Applications, target segments and sales channels TX300 S4/5TX150 S6TX200 S4/5TX 100 S1TX120 S2 MonoDual Infrastructure services - File/Print, Gateway, Domain, etc Applications - e-Business, ERP, Office, CRM, etc Database solutions e-Business, ERP, Office, CRM. POS Applications SME but also LE branch offices (distributed computing environments) Mainly Channel Business (1-tier and 2-tier) - also direct business for LE branch office deployment Products Main Application Scenarios Customer Segments Sales Channels

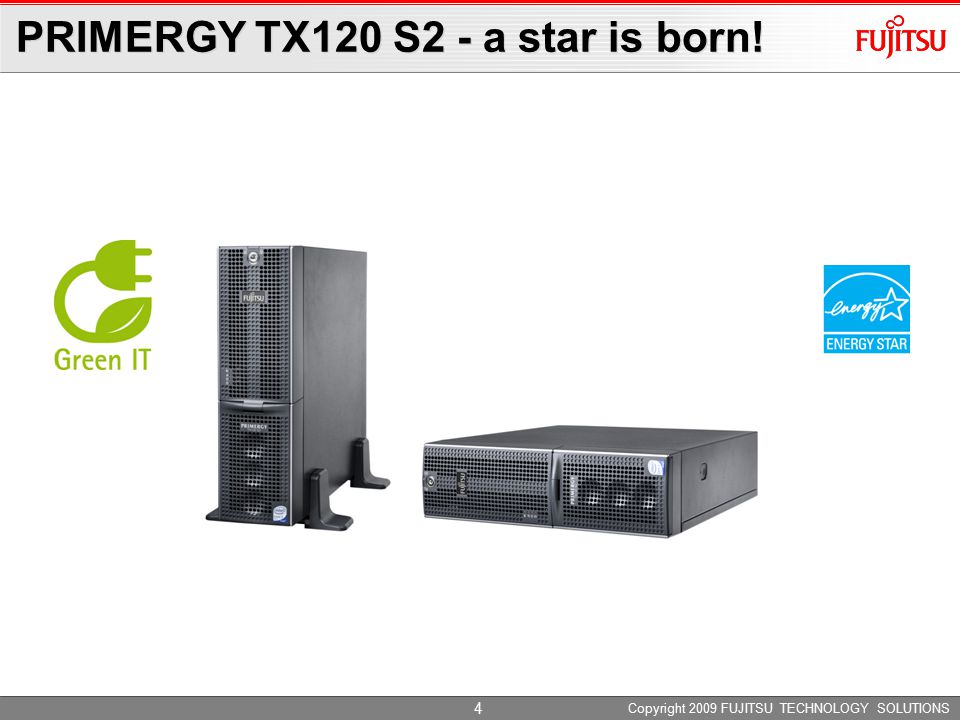

5. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 4 PRIMERGY TX120 S2 - a star is born!

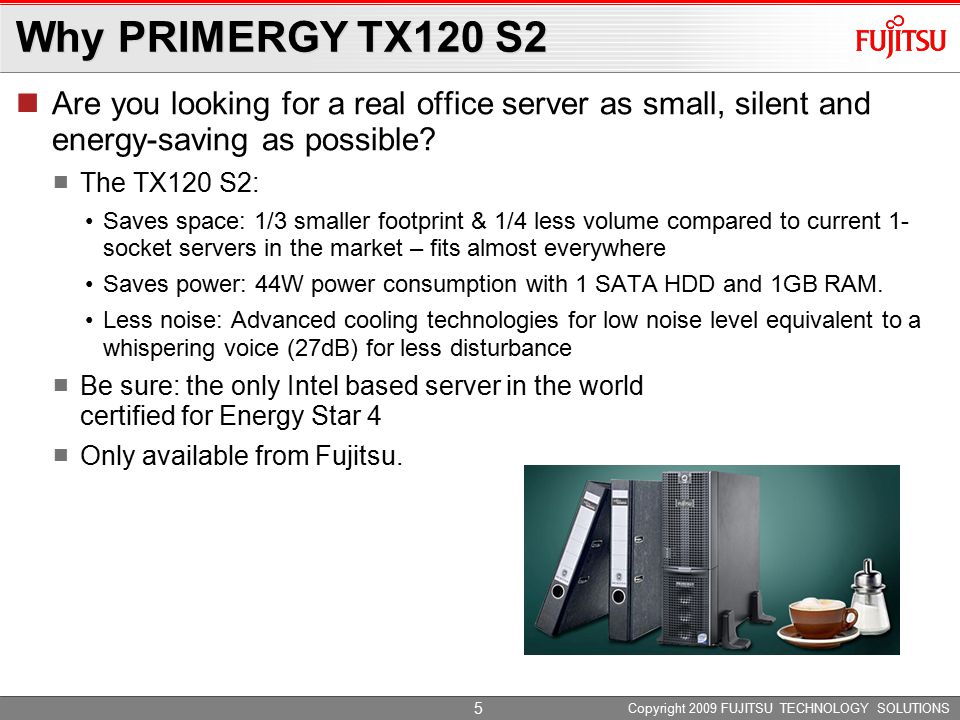

6. Why PRIMERGY TX120 S2 Are you looking for a real office server as small, silent and energy-saving as possible? The TX120 S2: Saves space: 1/3 smaller footprint & 1/4 less volume compared to current 1- socket servers in the market – fits almost everywhere Saves power: 44W power consumption with 1 SATA HDD and 1GB RAM. Less noise: Advanced cooling technologies for low noise level equivalent to a whispering voice (27dB) for less disturbance Be sure: the only Intel based server in the world certified for Energy Star 4 Only available from Fujitsu. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 5

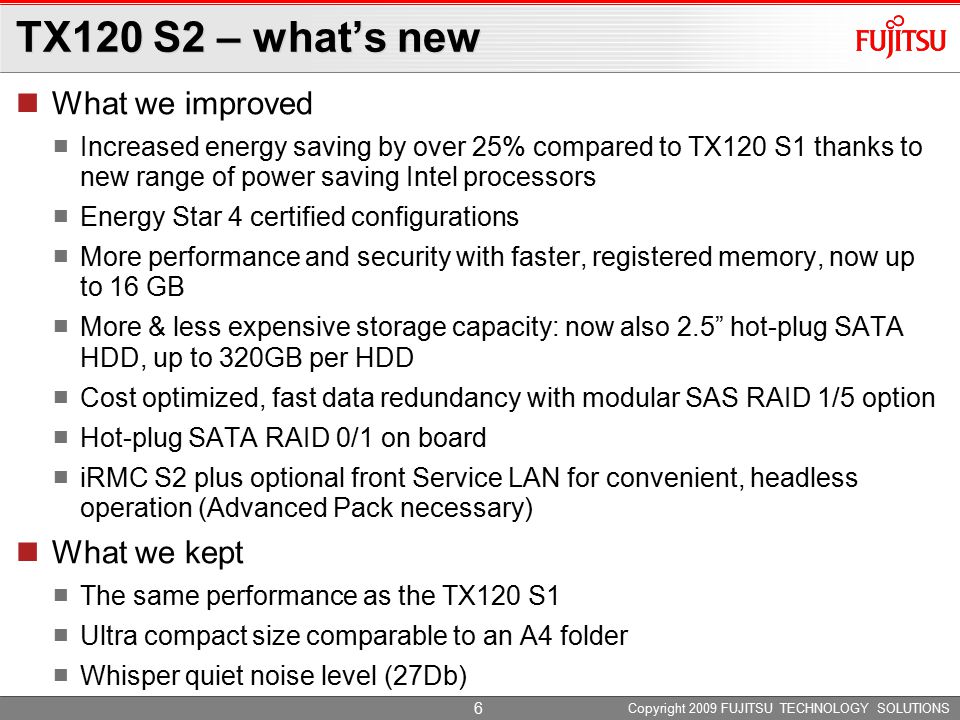

7. 6 TX120 S2 – what’s new What we improved Increased energy saving by over 25% compared to TX120 S1 thanks to new range of power saving Intel processors Energy Star 4 certified configurations More performance and security with faster, registered memory, now up to 16 GB More & less expensive storage capacity: now also 2.5” hot-plug SATA HDD, up to 320GB per HDD Cost optimized, fast data redundancy with modular SAS RAID 1/5 option Hot-plug SATA RAID 0/1 on board iRMC S2 plus optional front Service LAN for convenient, headless operation (Advanced Pack necessary) What we kept The same performance as the TX120 S1 Ultra compact size comparable to an A4 folder Whisper quiet noise level (27Db)

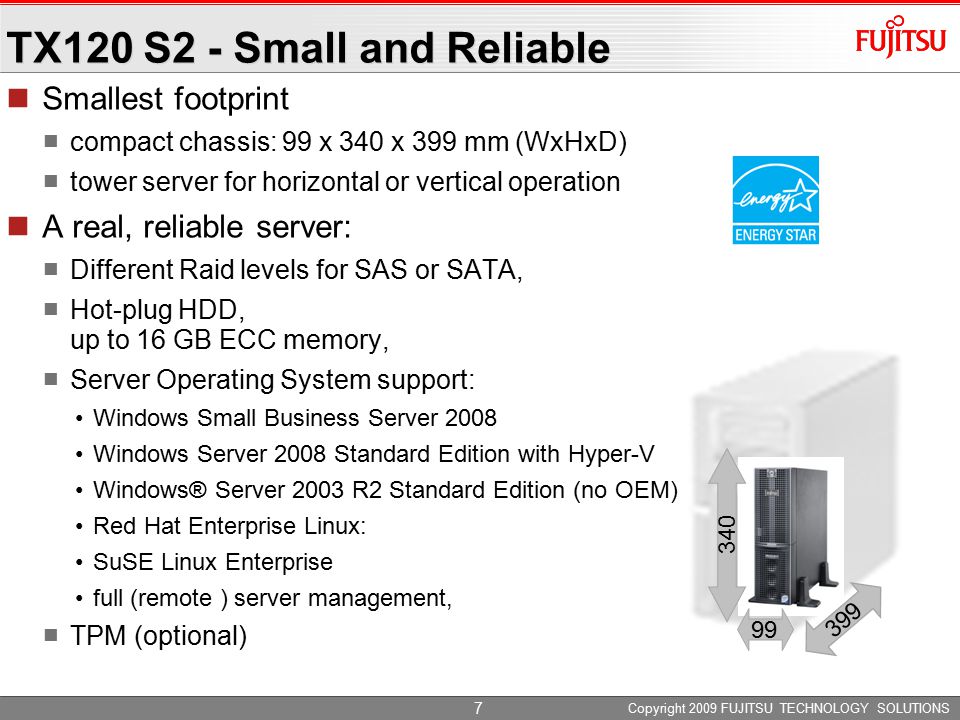

8. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 7 TX120 S2 - Small and Reliable Smallest footprint compact chassis: 99 x 340 x 399 mm (WxHxD) tower server for horizontal or vertical operation A real, reliable server: Different Raid levels for SAS or SATA, Hot-plug HDD, up to 16 GB ECC memory, Server Operating System support: Windows Small Business Server 2008 Windows Server 2008 Standard Edition with Hyper-V Windows® Server 2003 R2 Standard Edition (no OEM) Red Hat Enterprise Linux: SuSE Linux Enterprise full (remote ) server management, TPM (optional) 399 99 340

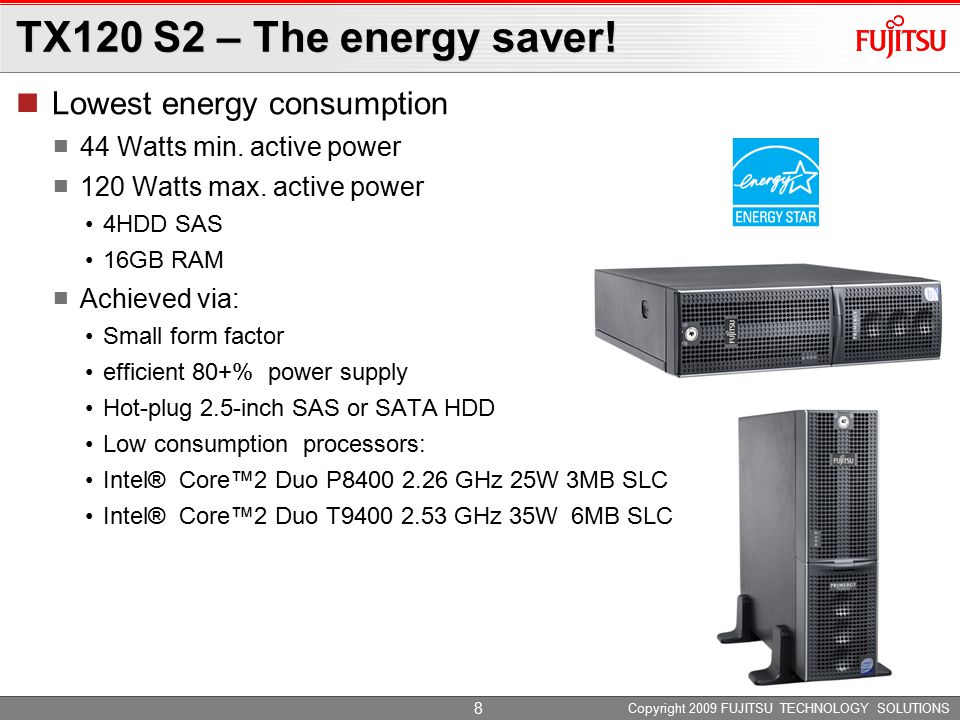

9. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 8 TX120 S2 – The energy saver! Lowest energy consumption 44 Watts min. active power 120 Watts max. active power 4HDD SAS 16GB RAM Achieved via: Small form factor efficient 80+% power supply Hot-plug 2.5-inch SAS or SATA HDD Low consumption processors: Intel® Core™2 Duo P8400 2.26 GHz 25W 3MB SLC Intel® Core™2 Duo T9400 2.53 GHz 35W 6MB SLC

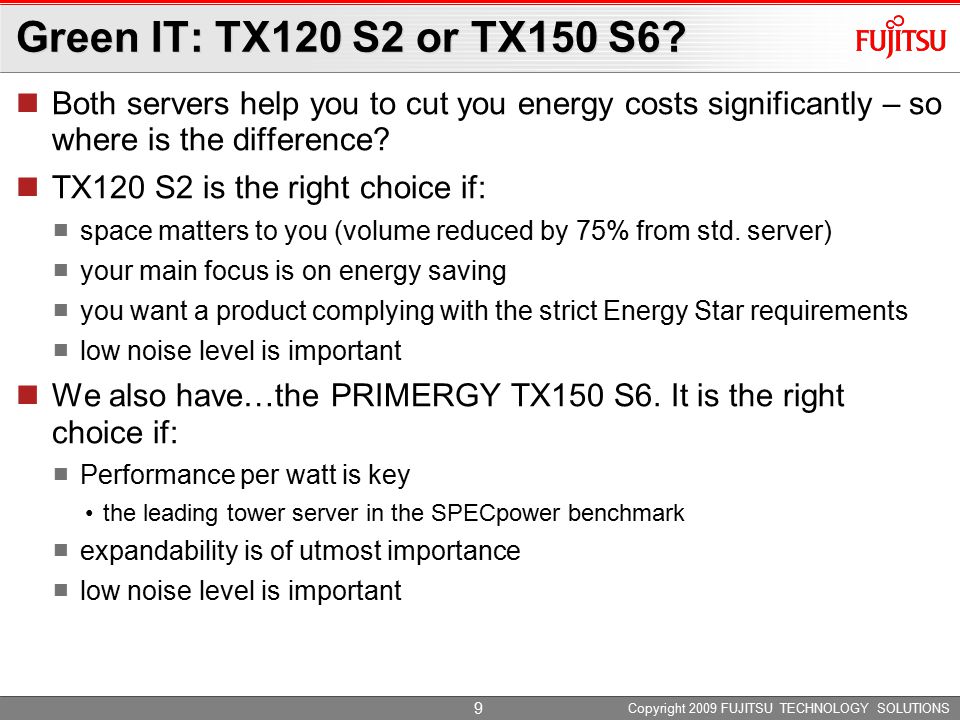

10. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 9 Green IT: TX120 S2 or TX150 S6? Both servers help you to cut you energy costs significantly – so where is the difference? TX120 S2 is the right choice if: space matters to you (volume reduced by 75% from std. server) your main focus is on energy saving you want a product complying with the strict Energy Star requirements low noise level is important We also have…the PRIMERGY TX150 S6. It is the right choice if: Performance per watt is key the leading tower server in the SPECpower benchmark expandability is of utmost importance low noise level is important

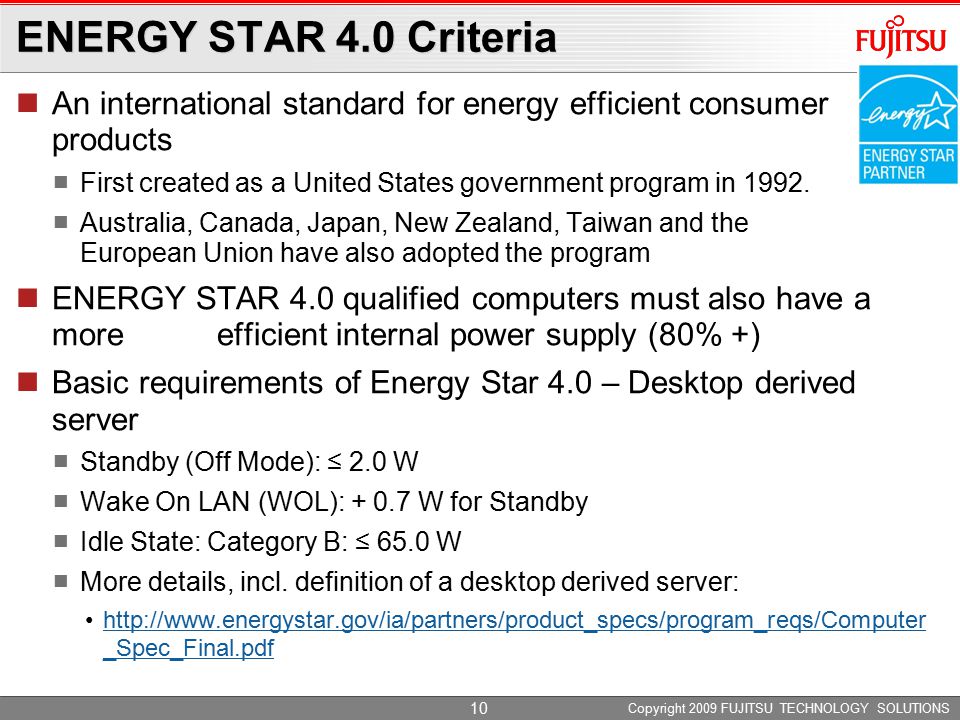

11. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 10 ENERGY STAR 4.0 Criteria An international standard for energy efficient consumer products First created as a United States government program in 1992. Australia, Canada, Japan, New Zealand, Taiwan and the European Union have also adopted the program ENERGY STAR 4.0 qualified computers must also have a more efficient internal power supply (80% +) Basic requirements of Energy Star 4.0 – Desktop derived server Standby (Off Mode): ≤ 2.0 W Wake On LAN (WOL): + 0.7 W for Standby Idle State: Category B: ≤ 65.0 W More details, incl. definition of a desktop derived server: http://www.energystar.gov/ia/partners/product_specs/program_reqs/Computer _Spec_Final.pdfhttp://www.energystar.gov/ia/partners/product_specs/program_reqs/Computer _Spec_Final.pdf

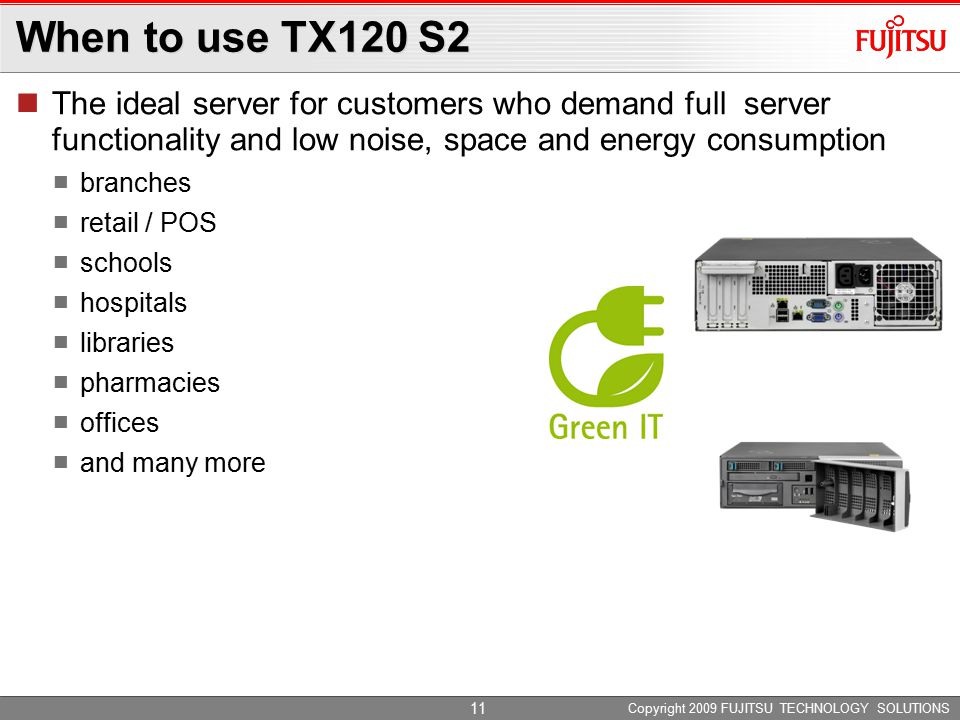

12. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 11 When to use TX120 S2 The ideal server for customers who demand full server functionality and low noise, space and energy consumption branches retail / POS schools hospitals libraries pharmacies offices and many more

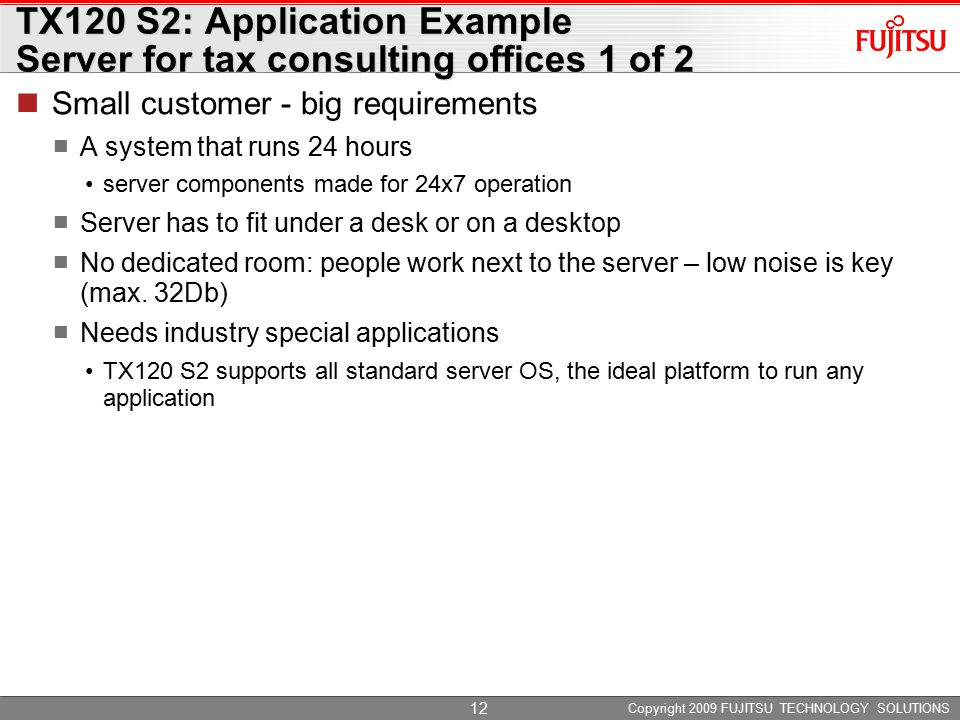

13. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 12 TX120 S2: Application Example Server for tax consulting offices 1 of 2 Small customer - big requirements A system that runs 24 hours server components made for 24x7 operation Server has to fit under a desk or on a desktop No dedicated room: people work next to the server – low noise is key (max. 32Db) Needs industry special applications TX120 S2 supports all standard server OS, the ideal platform to run any application

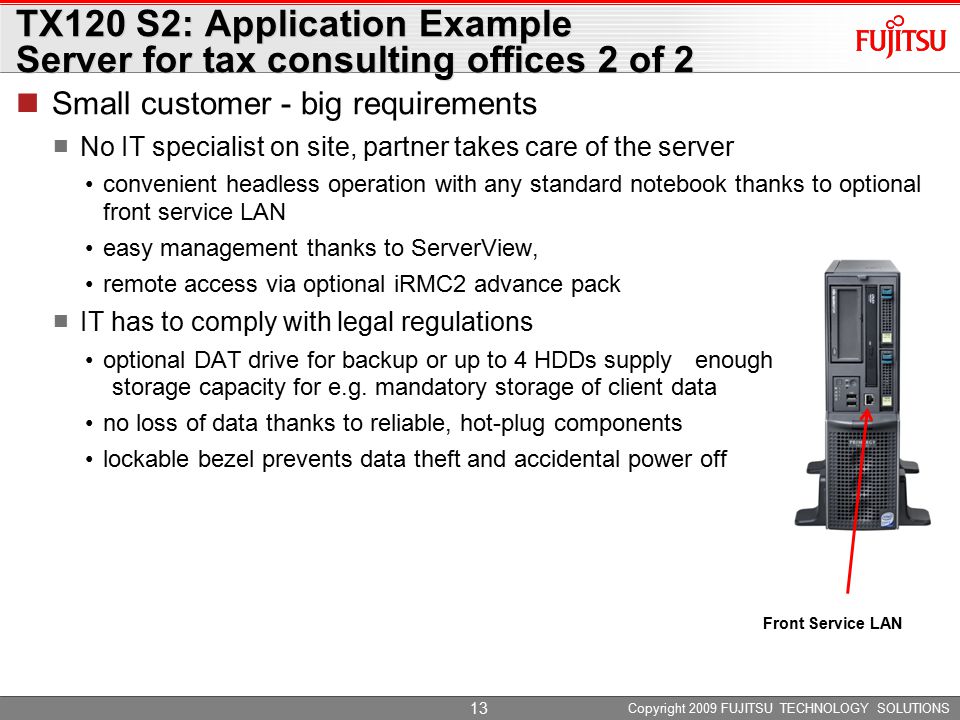

14. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 13 TX120 S2: Application Example Server for tax consulting offices 2 of 2 Small customer - big requirements No IT specialist on site, partner takes care of the server convenient headless operation with any standard notebook thanks to optional front service LAN easy management thanks to ServerView, remote access via optional iRMC2 advance pack IT has to comply with legal regulations optional DAT drive for backup or up to 4 HDDs supply enough storage capacity for e.g. mandatory storage of client data no loss of data thanks to reliable, hot-plug components lockable bezel prevents data theft and accidental power off Front Service LAN

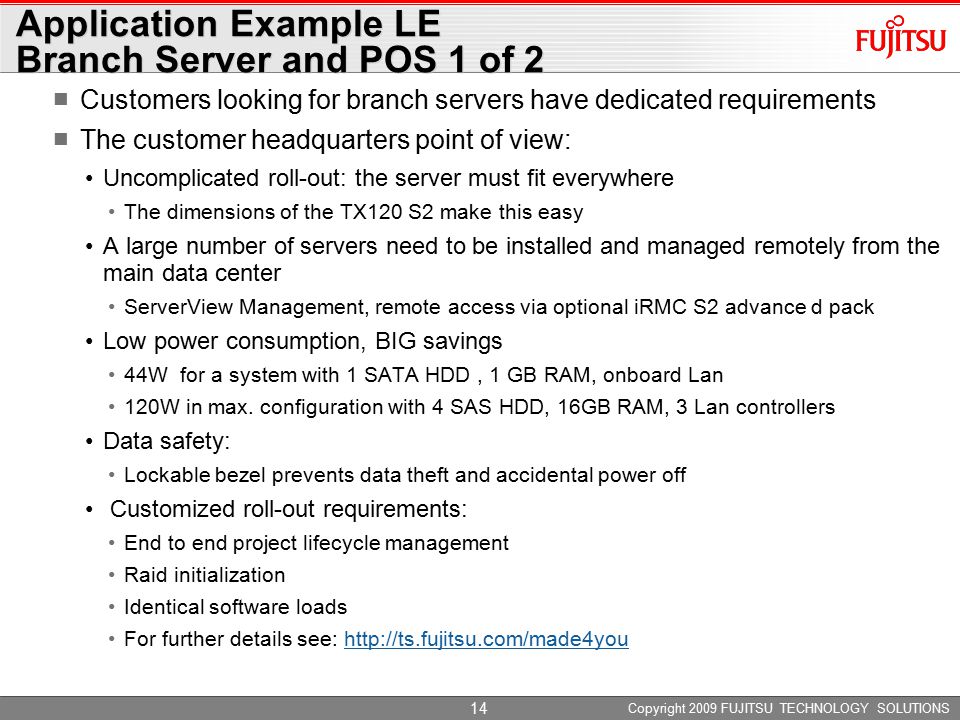

15. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 14 Application Example LE Branch Server and POS 1 of 2 Customers looking for branch servers have dedicated requirements The customer headquarters point of view: Uncomplicated roll-out: the server must fit everywhere The dimensions of the TX120 S2 make this easy A large number of servers need to be installed and managed remotely from the main data center ServerView Management, remote access via optional iRMC S2 advance d pack Low power consumption, BIG savings 44W for a system with 1 SATA HDD, 1 GB RAM, onboard Lan 120W in max. configuration with 4 SAS HDD, 16GB RAM, 3 Lan controllers Data safety: Lockable bezel prevents data theft and accidental power off Customized roll-out requirements: End to end project lifecycle management Raid initialization Identical software loads For further details see: http://ts.fujitsu.com/made4youhttp://ts.fujitsu.com/made4you

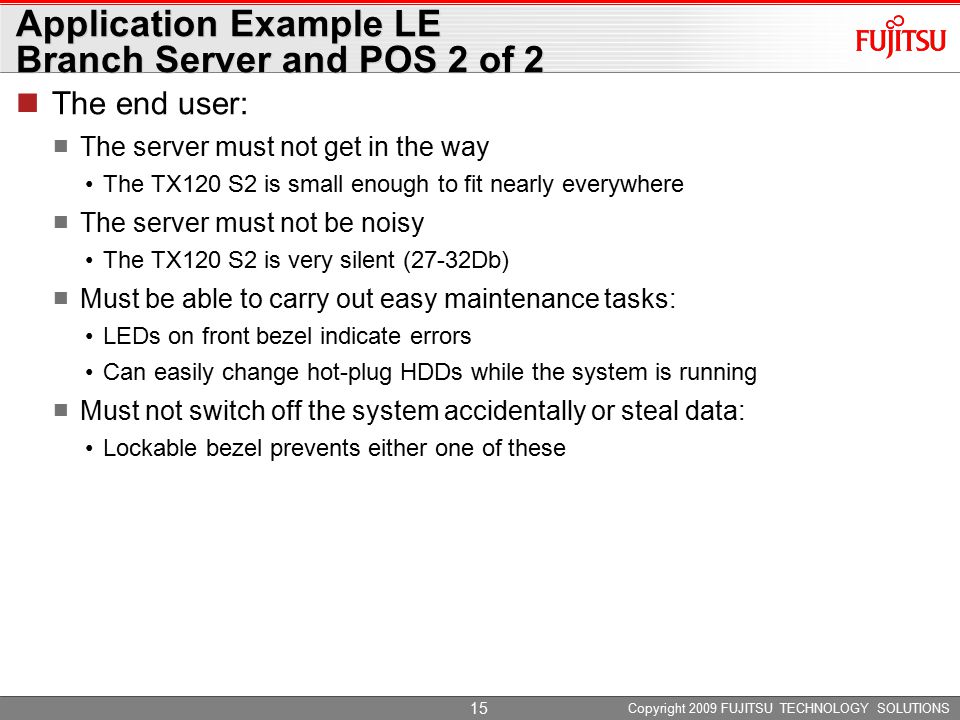

16. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 15 Application Example LE Branch Server and POS 2 of 2 The end user: The server must not get in the way The TX120 S2 is small enough to fit nearly everywhere The server must not be noisy The TX120 S2 is very silent (27-32Db) Must be able to carry out easy maintenance tasks: LEDs on front bezel indicate errors Can easily change hot-plug HDDs while the system is running Must not switch off the system accidentally or steal data: Lockable bezel prevents either one of these

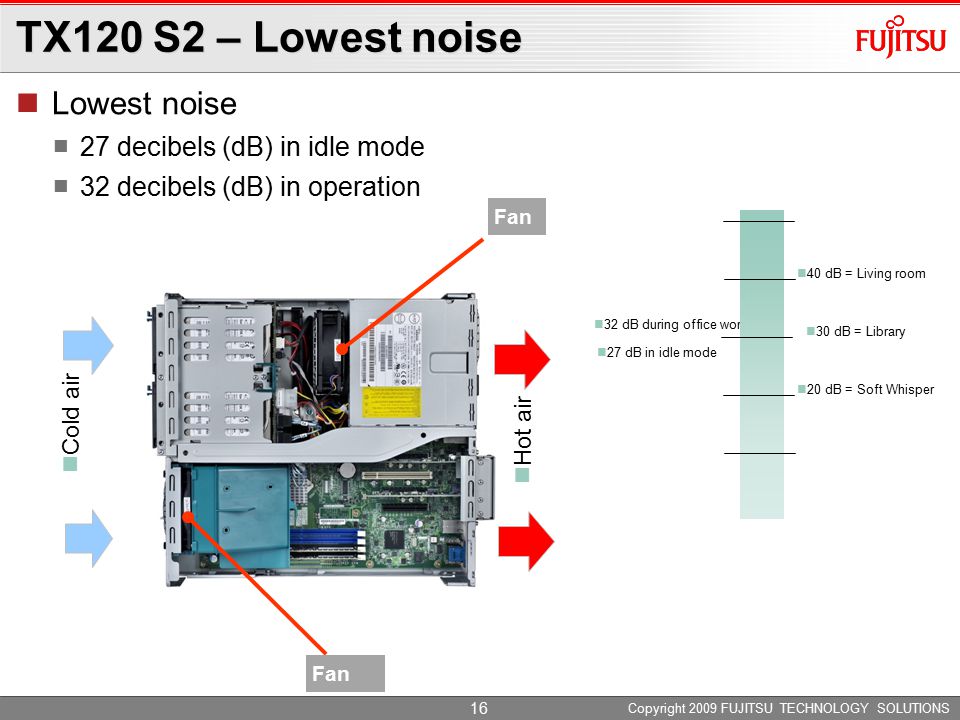

17. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 16 TX120 S2 – Lowest noise Lowest noise 27 decibels (dB) in idle mode 32 decibels (dB) in operation Fan Cold air Hot air 40 dB = Living room 30 dB = Library 20 dB = Soft Whisper 27 dB in idle mode 32 dB during office work

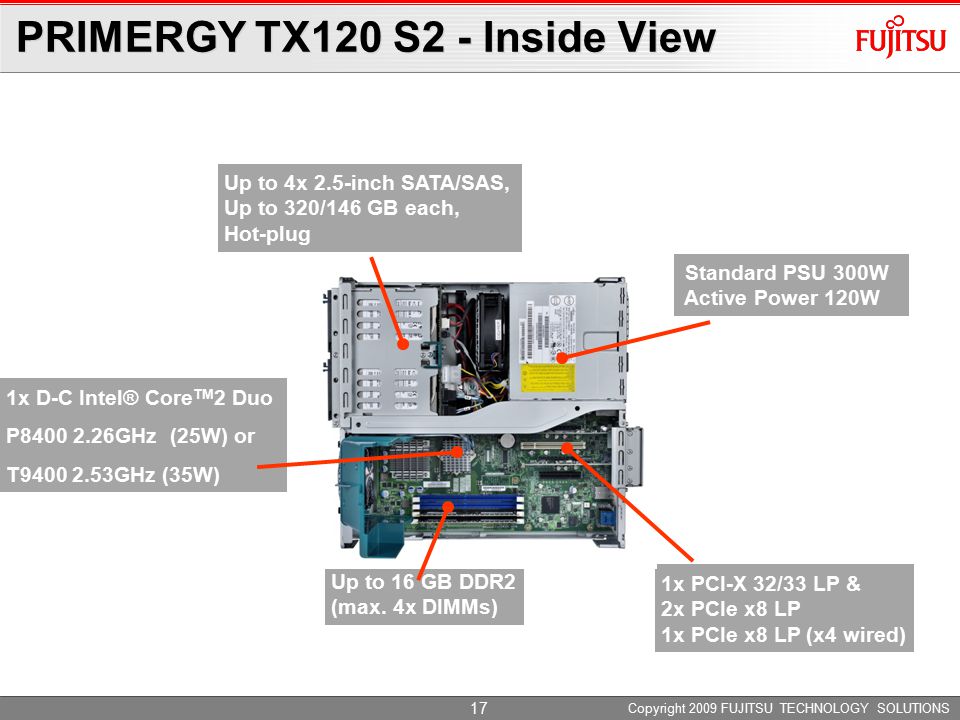

18. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 17 PRIMERGY TX120 S2 - Inside View Up to 16 GB DDR2 (max. 4x DIMMs) 1x D-C Intel® Core TM 2 Duo P8400 2.26GHz (25W) or T9400 2.53GHz (35W) Standard PSU 300W Active Power 120W Up to 4x 2.5-inch SATA/SAS, Up to 320/146 GB each, Hot-plug 1x PCI-X 32/33 LP & 2x PCIe x8 LP 1x PCIe x8 LP (x4 wired)

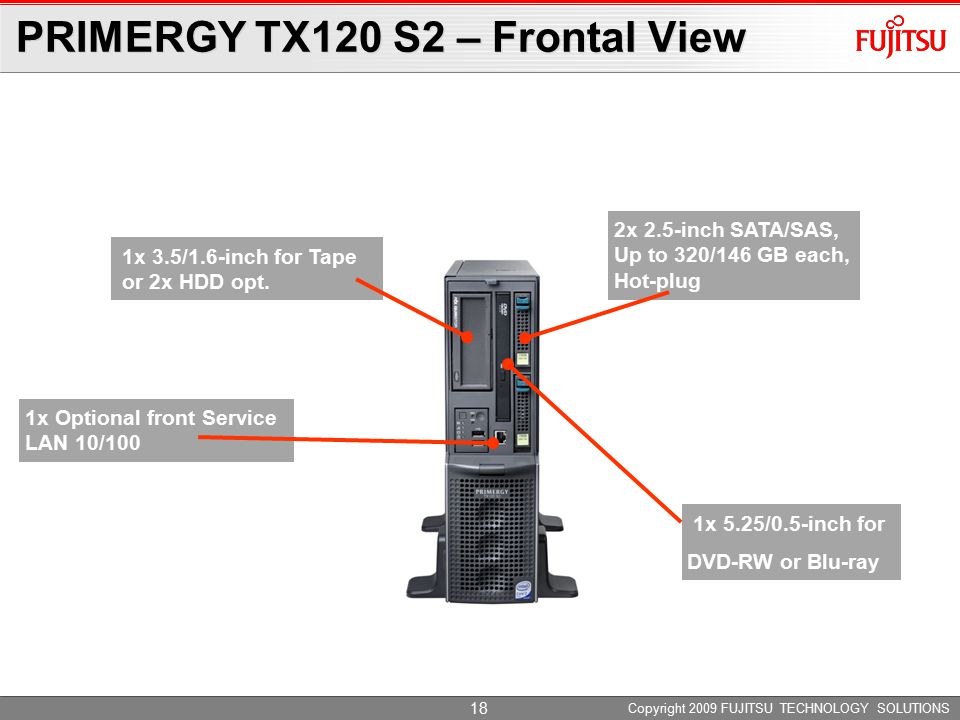

19. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 18 1x Optional front Service LAN 10/100 1x 3.5/1.6-inch for Tape or 2x HDD opt. 2x 2.5-inch SATA/SAS, Up to 320/146 GB each, Hot-plug 1x 5.25/0.5-inch for DVD-RW or Blu-ray PRIMERGY TX120 S2 – Frontal View

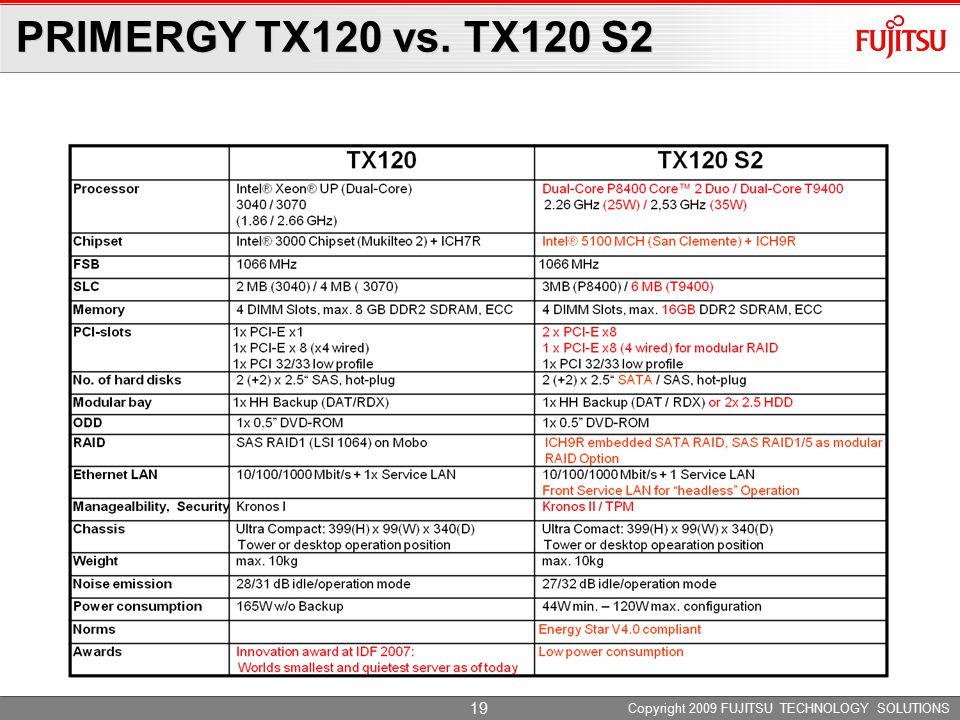

20. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 19 PRIMERGY TX120 vs. TX120 S2

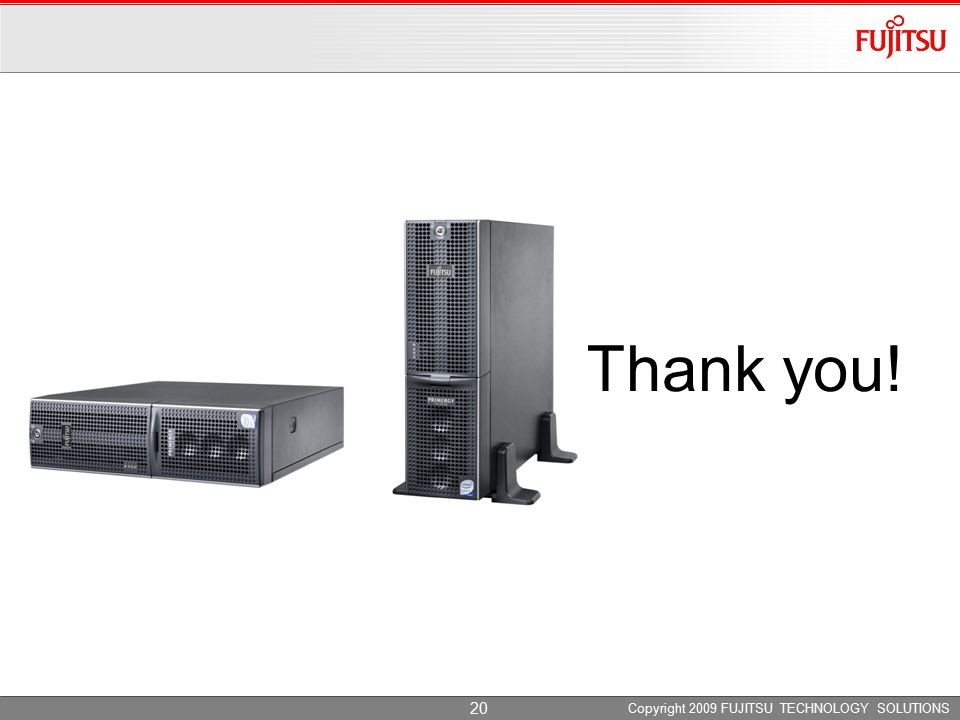

21. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 20 Thank you!

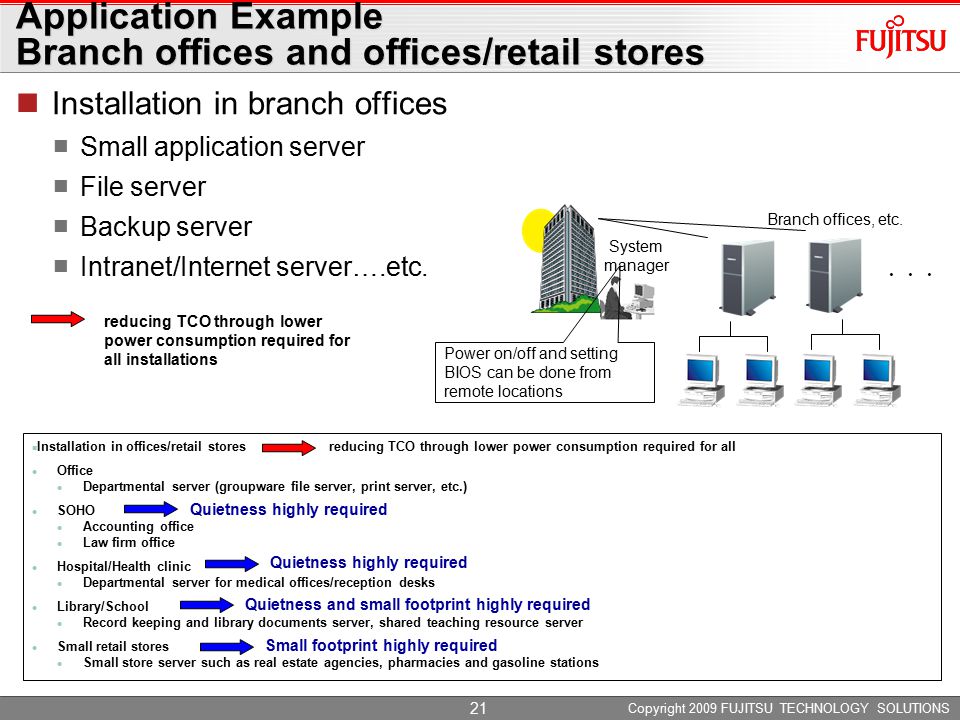

22. Copyright 2009 FUJITSU TECHNOLOGY SOLUTIONS 21 Application Example Branch offices and offices/retail stores Installation in branch offices Small application server File server Backup server Intranet/Internet server….etc. Installation in offices/retail stores reducing TCO through lower power consumption required for all Office Departmental server (groupware file server, print server, etc.) SOHO Accounting office Law firm office Hospital/Health clinic Departmental server for medical offices/reception desks Library/School Record keeping and library documents server, shared teaching resource server Small retail stores Small store server such as real estate agencies, pharmacies and gasoline stations ・・・ System manager Branch offices, etc. Power on/off and setting BIOS can be done from remote locations Quietness highly required Quietness and small footprint highly required Small footprint highly required reducing TCO through lower power consumption required for all installations
