1. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network, Enhanced Chapter 9: Planning and Managing Certificate Services

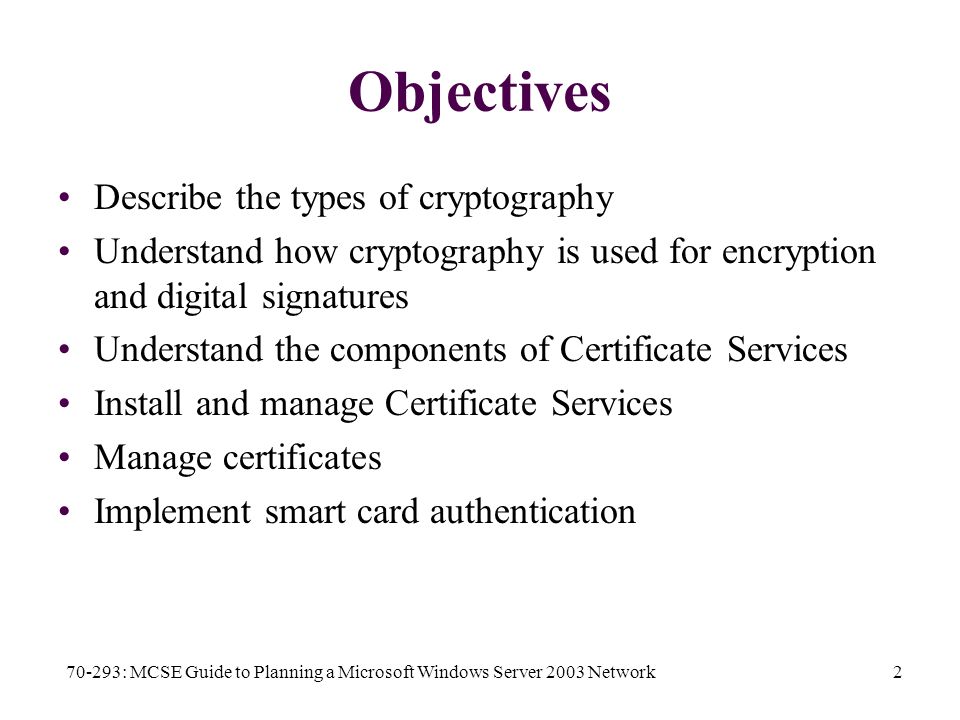

2. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network2 Objectives Describe the types of cryptography Understand how cryptography is used for encryption and digital signatures Understand the components of Certificate Services Install and manage Certificate Services Manage certificates Implement smart card authentication

3. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network3 Cryptography Cryptography: encrypting/decrypting data to ensure they are read only by the intended recipient Encrypted messages are unreadable Decryption Reverse of encryption Makes the data readable again

4. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network4 Cryptography (continued) Four objectives of cryptography Confidentiality Integrity Nonrepudiation Authentication

5. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network5 Cryptography (continued) Cryptography uses keys: A large number (a series of numbers, letters, and symbols) Large and difficult to guess Used with an algorithm to encrypt and decrypt data Three types of encryption Symmetric Asymmetric Hash

6. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network6 Symmetric Encryption Uses a single key A computer can symmetrically encrypt large amounts of data quickly Used when encrypting files and large amounts of data across network transmissions

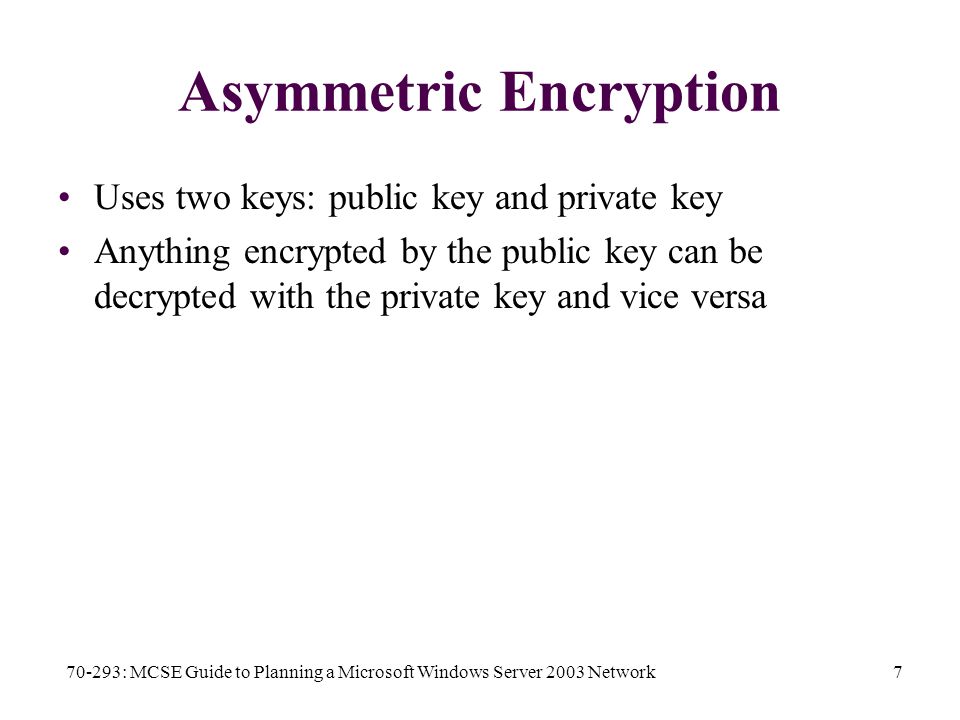

7. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network7 Asymmetric Encryption Uses two keys: public key and private key Anything encrypted by the public key can be decrypted with the private key and vice versa

8. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network8 Hash Encryption Hash encryption is unique because it is one-way Hash algorithm uses a single key to convert data to a hash value The hash value is a summary of the data The purpose of a hash value is to be a unique identifier, not to secure data

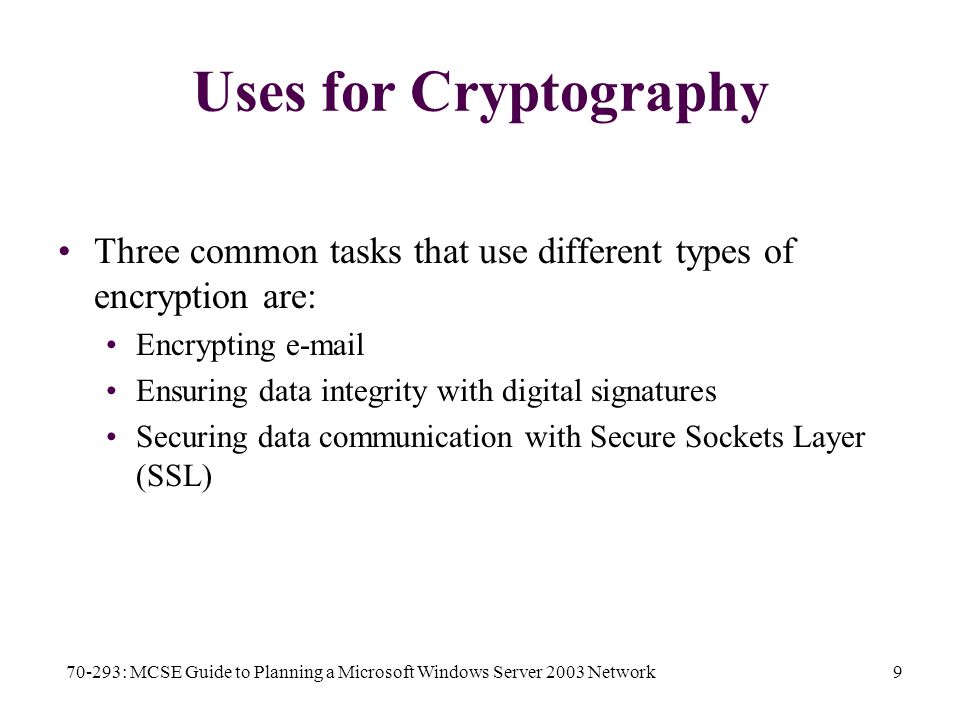

9. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network9 Uses for Cryptography Three common tasks that use different types of encryption are: Encrypting e-mail Ensuring data integrity with digital signatures Securing data communication with Secure Sockets Layer (SSL)

10. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network10 Encrypting E-mail Encrypting e-mail ensures that a message in transit cannot be read by unauthorized people Uses the public and private keys of the recipient: Sender creates an e-mail message E-mail software encrypts using the recipient’s public key Recipient’s public key may be published in a directory or given to the sender via e-mail before encryption Encrypted message is then sent to the recipient Recipient’s e-mail software decrypts the message using the recipient’s private key

11. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network11 Encrypting E-mail (continued)

12. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network12 Digital Signatures A digital signature is a hash value that is encrypted and attached to a message Ensures that a message has not been modified in transit and that it truly came from the named sender This is important when electronically delivering information such as contracts and agreements The public and private keys of the sender are used for a digital signature

13. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network13 Digital Signatures (continued)

14. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network14 Secure Sockets Layer Secure Sockets Layer (SSL) is a Transport Layer protocol that can be used with any application protocol that is designed to communicate with it SSL secures communication between Web servers and Web browsers, e-mail clients and e-mail servers, and other service combinations Servers are the only participants in SSL that must be configured with a public key and a private key

15. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network15 Secure Sockets Layer (continued)

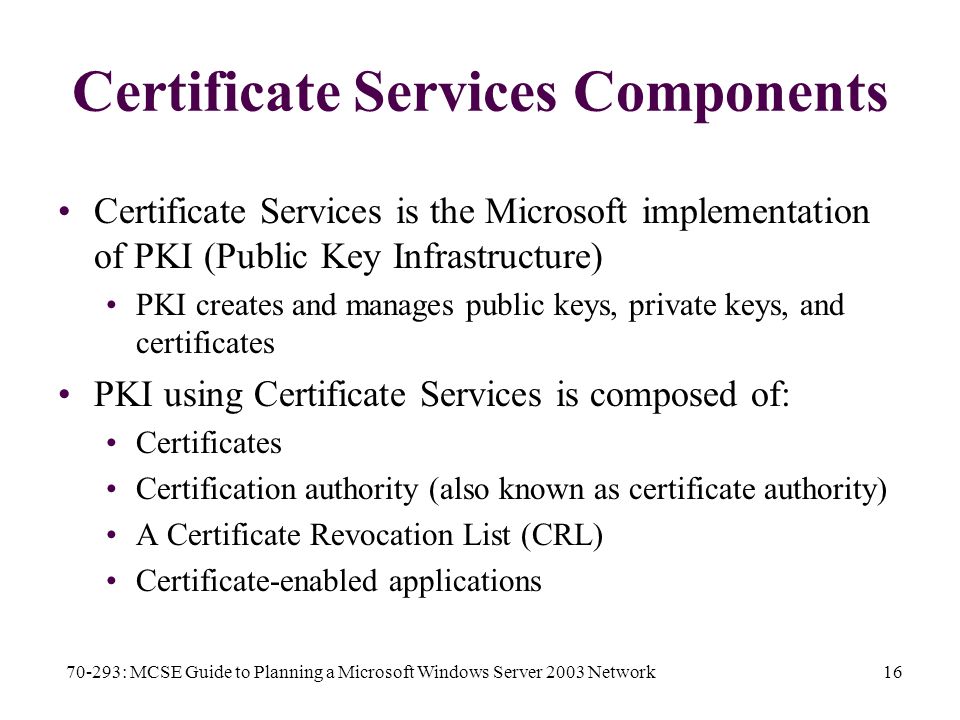

16. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network16 Certificate Services Components Certificate Services is the Microsoft implementation of PKI (Public Key Infrastructure) PKI creates and manages public keys, private keys, and certificates PKI using Certificate Services is composed of: Certificates Certification authority (also known as certificate authority) A Certificate Revocation List (CRL) Certificate-enabled applications

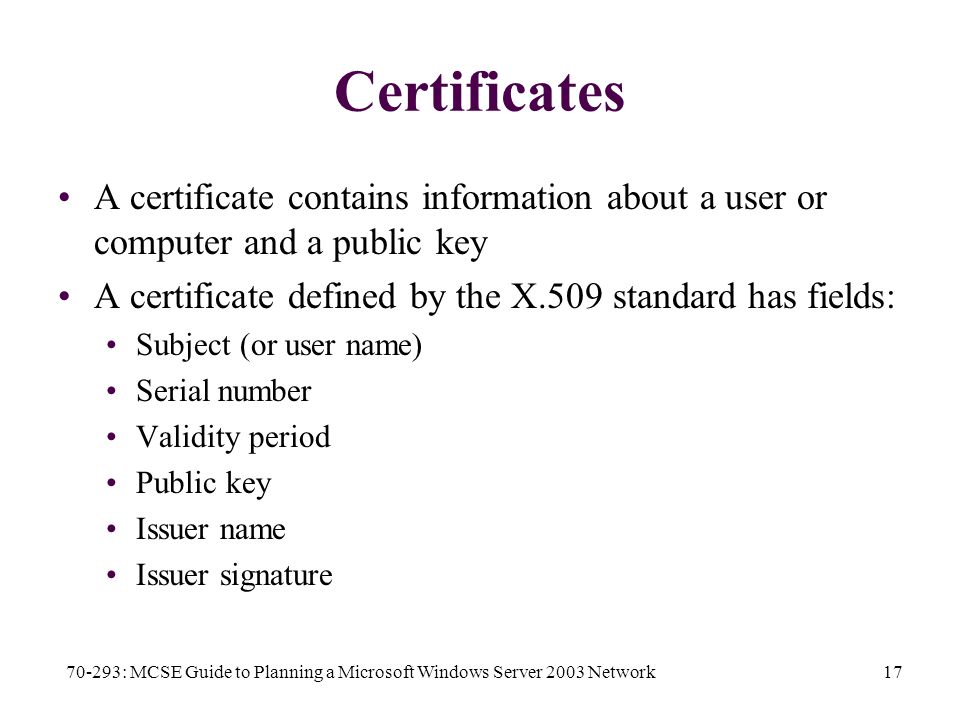

17. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network17 Certificates A certificate contains information about a user or computer and a public key A certificate defined by the X.509 standard has fields: Subject (or user name) Serial number Validity period Public key Issuer name Issuer signature

18. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network18 Certification Authority A certification authority (CA) is a server that issues certificates to client computers, applications, or users The CA is responsible for taking certificate-signing requests from clients and approving them As part of the approval process, the identity of the requester is verified

19. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network19 Activity 9-1: Viewing Trusted Root Certification Authorities The purpose of this activity is to view the trusted root certification authorities installed by default on Windows Server 2003

20. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network20 Certificate Revocation List The certification authority maintains a Certificate Revocation List (CRL), which is a list of certificates issued by the CA that are no longer valid The administrator adds certificates to this list It is not created automatically Each certificate issued by the CA has an expiration date

21. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network21 Certificate-enabled Applications Windows client computers can store certificates in a place that can be used by multiple applications Many certificate-enabled applications running on Windows use this central windows store, but other applications store certificates in a private database Common applications for certificates include: e-mail clients Web browsers smart cards

22. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network22 Installing and Managing Certificate Services Two classes of CAs Enterprise Stand-alone An enterprise CA Integrates with Active Directory Has an expanded feature set Can use certificate templates Certificate creation process is entirely automated

23. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network23 Installing and Managing Certificate Services (continued) A stand-alone certification: Does not integrate with Active Directory Unable to issue certificates automatically based on a user object in Active Directory All certificate requests must be manually approved by an administrator Certificate templates cannot be used by a stand-alone certification authority Cannot issue certificates used for smart card authentication

24. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network24 Certificate Hierarchy Chain of trust where client computers and applications are assured that a certificate is valid The hierarchy is either a root certification authority or a subordinate certification authority A subordinate certification authority is certified by another certification authority After certification, subordinate can issue certificates based on the trusted status of the certification authority that certified it

25. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network25 Certificate Hierarchy (continued)

26. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network26 Installing Certificate Services When installing a CA you must choose which type: Enterprise root CA Standalone root CA Enterprise subordinate CA Stand-alone subordinate CA. Can configure custom settings for the key pair and CA certificate

27. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network27 Activity 9-2: Installing Certificate Services The purpose of this activity is to install Certificate Services and configure your server as an enterprise root certification authority

28. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network28 Back Up and Restore Certificate Services Certificate Services is normally backed up as part of the daily backup process on Windows Server 2003 Certificate Services is included with the backup of system state data Can back up and restore manually just Certificate Services using the CA snap-in

29. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network29 Activity 9-3: Backing Up Certificate Services The purpose of this activity is to perform a manual backup of Certificate Services

30. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network30 Activity 9-4: Restoring the Certificate Services Database The purpose of this activity is to perform a manual restore of Certificate Services

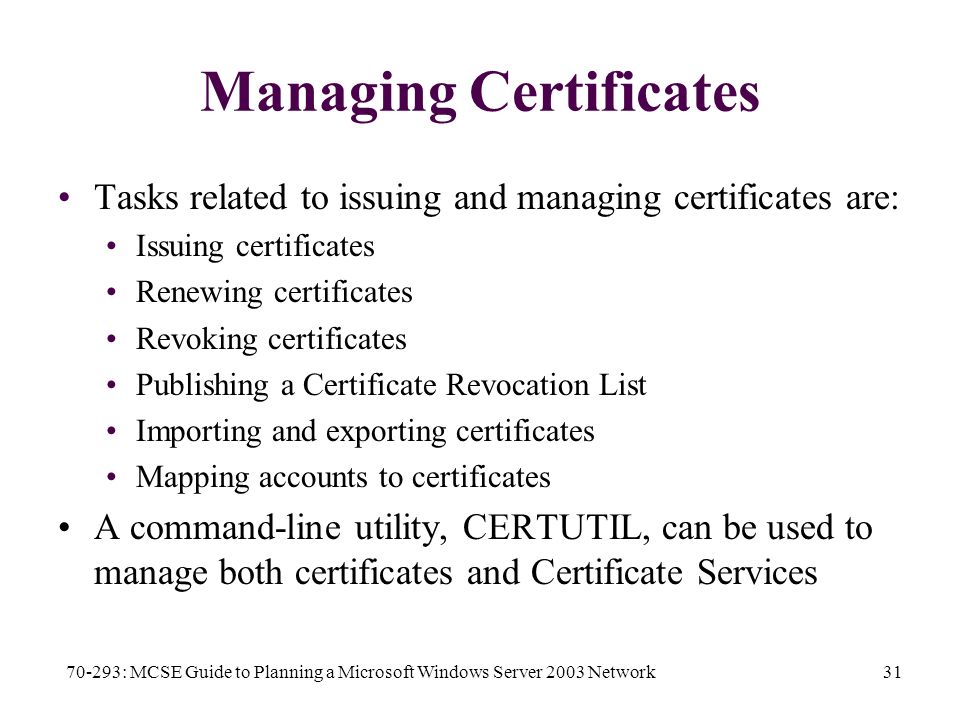

31. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network31 Managing Certificates Tasks related to issuing and managing certificates are: Issuing certificates Renewing certificates Revoking certificates Publishing a Certificate Revocation List Importing and exporting certificates Mapping accounts to certificates A command-line utility, CERTUTIL, can be used to manage both certificates and Certificate Services

32. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network32 Issuing Certificates Certificates can be requested using Certificate Request Wizard Certificate Services Web pages Autoenrollment The Certificate Request Wizard and autoenrollment are available only for enterprise certification authorities Certificate Services Web pages can be used by both stand-alone and enterprise certificate authorities

33. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network33 The Certificate Request Wizard The Certificate Request Wizard is run by users to create certificates The types of certificates that can be created are controlled by certificate templates The administrator can create, configure, and control access to these templates Users can create certificates based on the templates to which they have either read or enroll permissions

34. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network34 Activity 9-5: Requesting a Certificate The purpose of this activity is to request a user certificate using the Certificate Request Wizard

35. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network35 Certificate Services Web Pages The Certificate Services Web pages can be used to request certificates from both enterprise certification authorities and stand-alone certification authorities IIS is required for the Certificate Services Web pages

36. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network36 Autoenrollment Autoenrollment issues certificates automatically To enable autoenrollment: Duplicate an existing certificate using Certificate Templates snap-in Select Publish certificate in Active Directory On the Security tab, add the required users or groups, and assign them the enroll and autoenroll permissions Enable the new certificate template in the CA snap-in Configure a group policy to enable Enroll certificates automatically

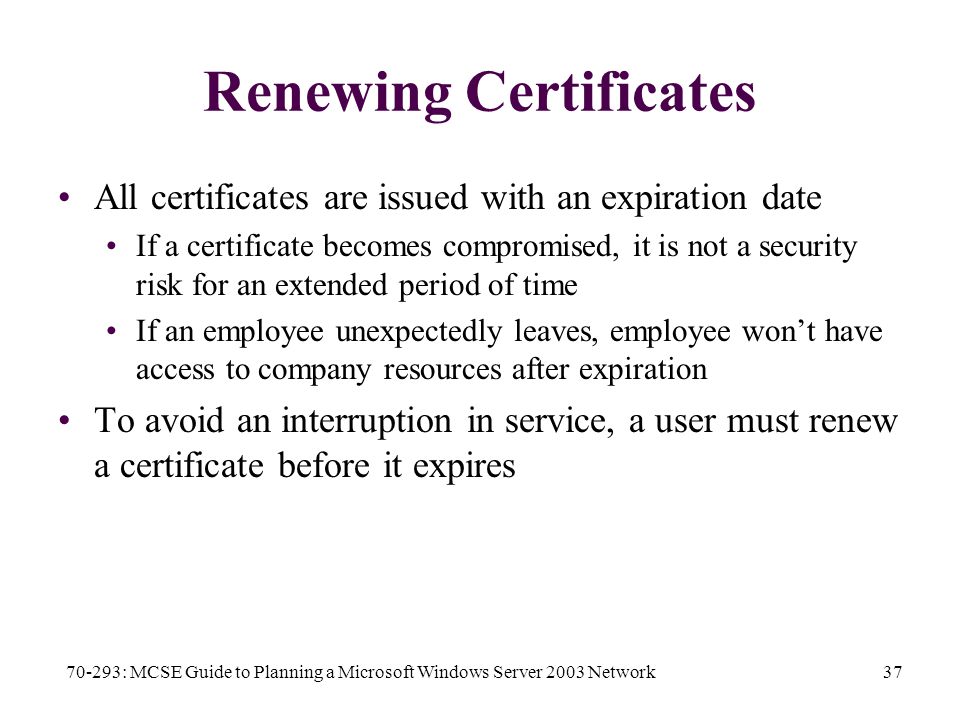

37. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network37 Renewing Certificates All certificates are issued with an expiration date If a certificate becomes compromised, it is not a security risk for an extended period of time If an employee unexpectedly leaves, employee won’t have access to company resources after expiration To avoid an interruption in service, a user must renew a certificate before it expires

38. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network38 Revoking Certificates When a certificate has been compromised or a user has left the company, you need to revoke it This places the certificate on the CRL of the certification authority Windows 2000 and newer clients automatically download the CRL for Active Directory A CRL has a default lifetime of seven days

39. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network39 Activity 9-6: Revoking a Certificate The purpose of this activity is to revoke a certificate and publish a new CRL

40. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network40 Importing and Exporting Certificates If you want to move or copy certificates from one computer to another, you can choose from these standard formats: DER encoded binary X.509 Base-64 encoded X.509 Cryptographic Message Standard Personal Information Exchange

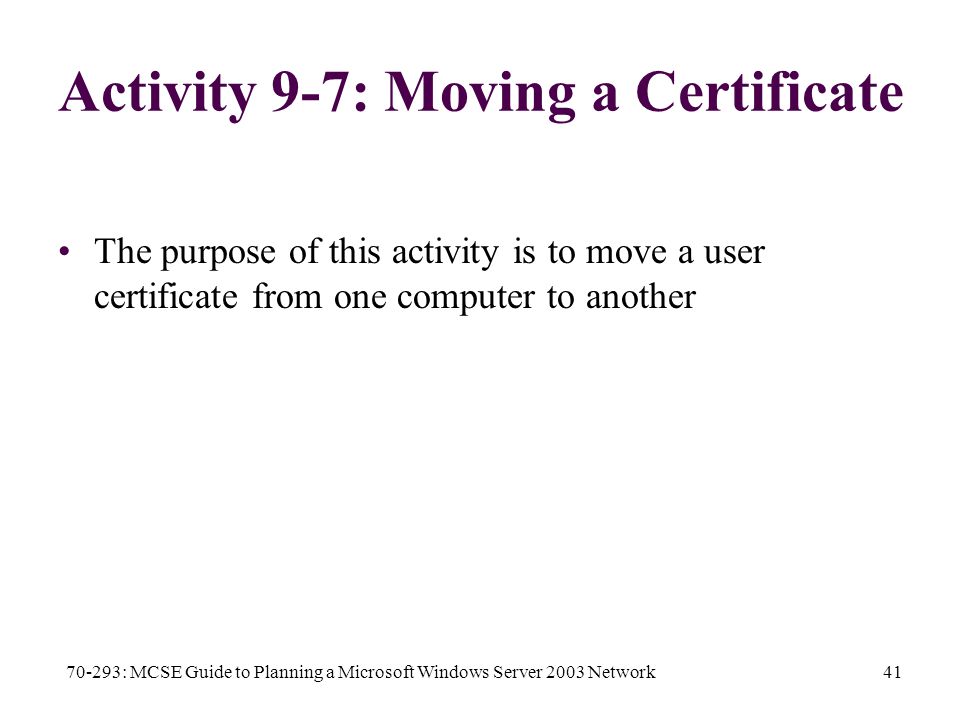

41. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network41 Activity 9-7: Moving a Certificate The purpose of this activity is to move a user certificate from one computer to another

42. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network42 Smart Card Authentication Smart cards are the strongest form of authentication supported by Windows Server 2003 Users are required to have the device (the smart card) and enter a personal identification number (PIN) When smart cards are implemented, users are issued a physical card that contains a certificate The PIN decrypts the certificate stored on the card

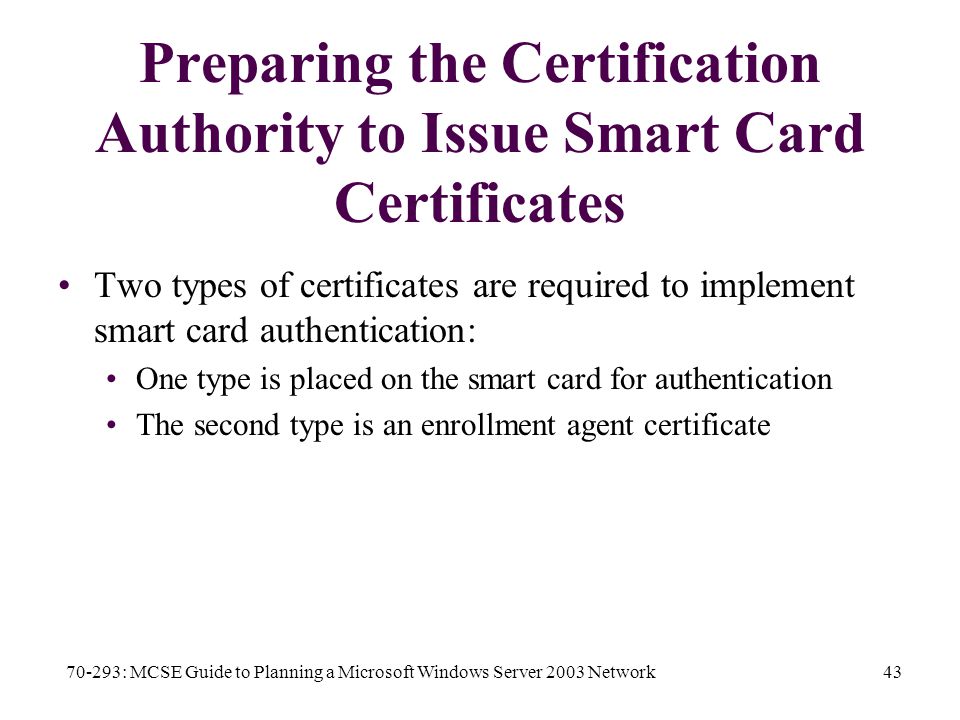

43. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network43 Preparing the Certification Authority to Issue Smart Card Certificates Two types of certificates are required to implement smart card authentication: One type is placed on the smart card for authentication The second type is an enrollment agent certificate

44. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network44 Preparing a Smart Card Certificate Enrollment Station A smart card certificate enrollment station is a computer that is used to configure smart cards It must have a properly configured smart card reader A smart card reader is a device that smart cards are inserted into to read their contents

45. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network45 Configuring a Smart Card for User Logon An enrollment agent configures smart cards for users through the Certificate Services Web pages on a CA Select the following: Template that will be used to create the certificate CA that will issue the certificate Cryptographic service provider of the smart card Enrollment agent certificate that will sign the request The user the certificate is for

46. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network46 Configuring a Smart Card for User Logon (continued) To create the smart card, click the Enroll button and place the smart card in the smart card reader Enter the PIN to be used on the smart card If a certificate already exists on the smart card, you are prompted to overwrite it

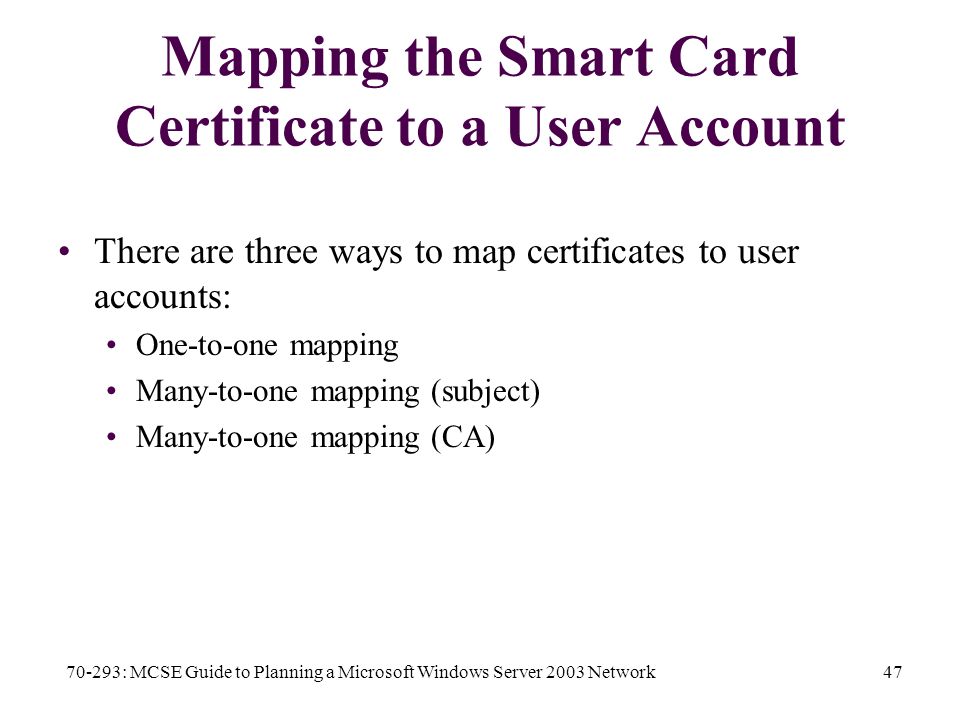

47. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network47 Mapping the Smart Card Certificate to a User Account There are three ways to map certificates to user accounts: One-to-one mapping Many-to-one mapping (subject) Many-to-one mapping (CA)

48. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network48 Attaching a Smart Card Reader to the Client Workstation Each computer using smart cards must have a smart card reader Many computers have these available as an option Also commonly available as USB devices

49. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network49 Summary Encryption makes data unreadable Decryption is the reverse of encryption Cryptography can ensure or perform confidentiality, integrity, nonrepudiation, and authentication Types of encryption include: Symmetric Asymmetric Hash

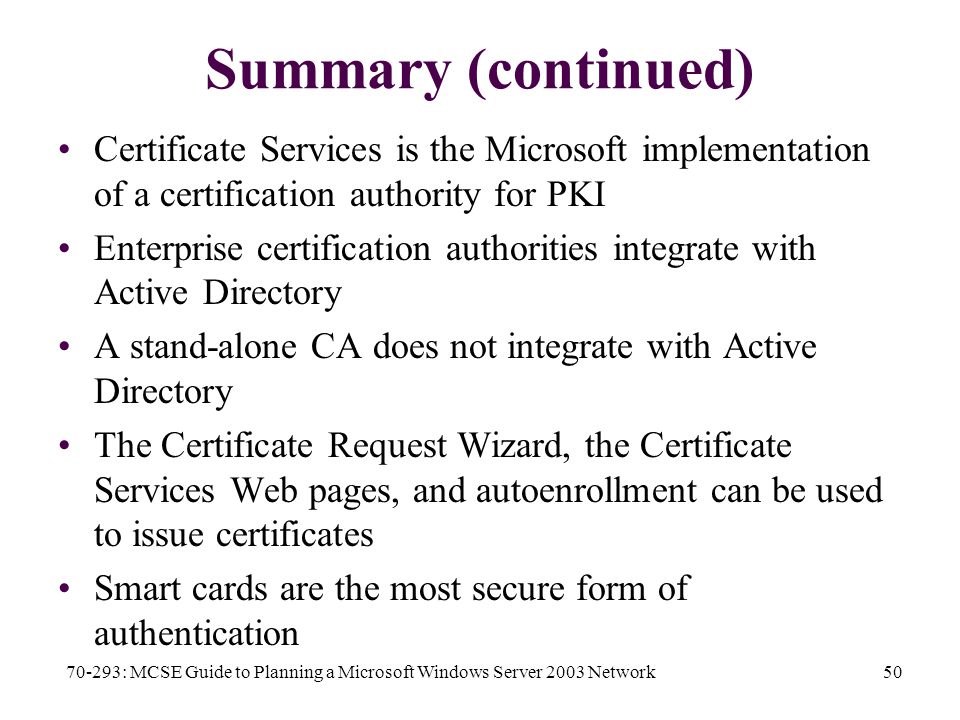

50. 70-293: MCSE Guide to Planning a Microsoft Windows Server 2003 Network50 Summary (continued) Certificate Services is the Microsoft implementation of a certification authority for PKI Enterprise certification authorities integrate with Active Directory A stand-alone CA does not integrate with Active Directory The Certificate Request Wizard, the Certificate Services Web pages, and autoenrollment can be used to issue certificates Smart cards are the most secure form of authentication
