1. Lecture 23 (mini-lecture): A Brief Introduction to Network Analysis Parts of the Network Analysis section of this lecture were borrowed from a UC Berkeley GIS Center Short Course, written by Anders Flodmark: slides are noted ------Using GIS-- Introduction to GIS

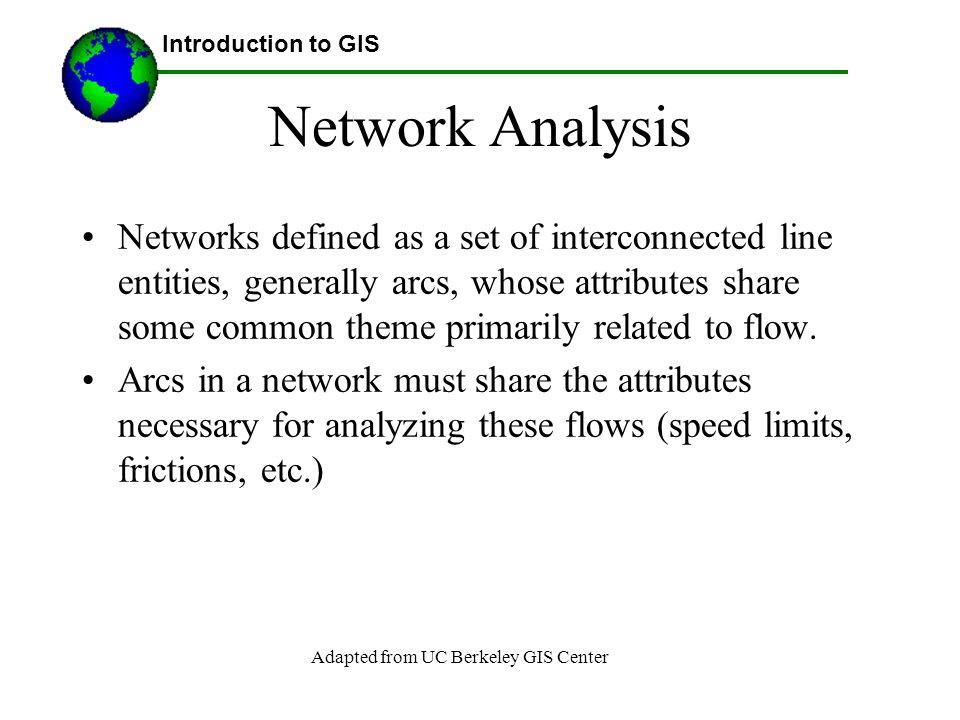

2. Network Analysis Networks defined as a set of interconnected line entities, generally arcs, whose attributes share some common theme primarily related to flow. Arcs in a network must share the attributes necessary for analyzing these flows (speed limits, frictions, etc.) ------Using GIS-- Introduction to GIS Adapted from UC Berkeley GIS Center

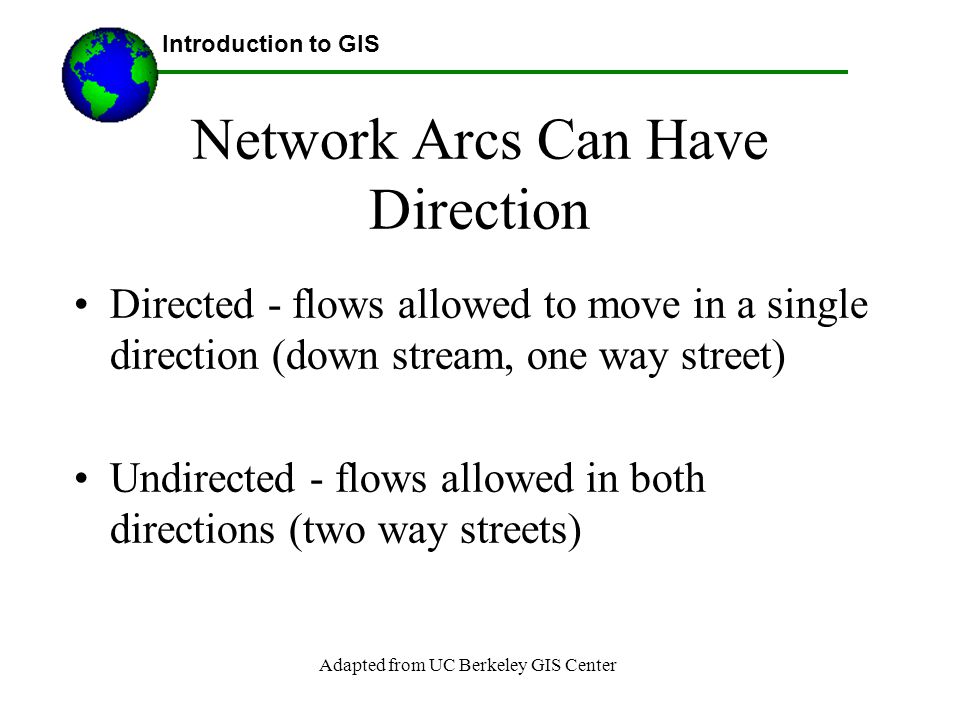

3. Network Arcs Can Have Direction Directed - flows allowed to move in a single direction (down stream, one way street) Undirected - flows allowed in both directions (two way streets) ------Using GIS-- Introduction to GIS Adapted from UC Berkeley GIS Center

4. A network is a system of linear features connected at intersections and interchanges. These intersections and interchanges are called nodes Arc Node ------Using GIS-- Introduction to GIS Basic elements of a network Adapted from UC Berkeley GIS Center The linear feature connecting any given pair of nodes is called an arc.

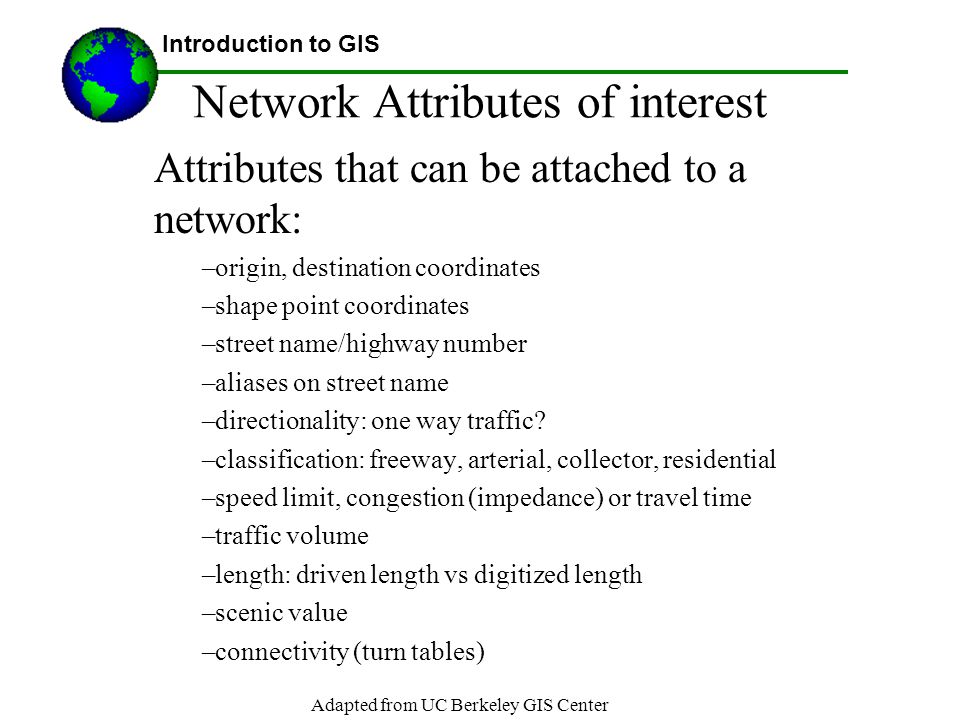

5. Network Attributes of interest Attributes that can be attached to a network: –origin, destination coordinates –shape point coordinates –street name/highway number –aliases on street name –directionality: one way traffic? –classification: freeway, arterial, collector, residential –speed limit, congestion (impedance) or travel time –traffic volume –length: driven length vs digitized length –scenic value –connectivity (turn tables) ------Using GIS-- Introduction to GIS Adapted from UC Berkeley GIS Center

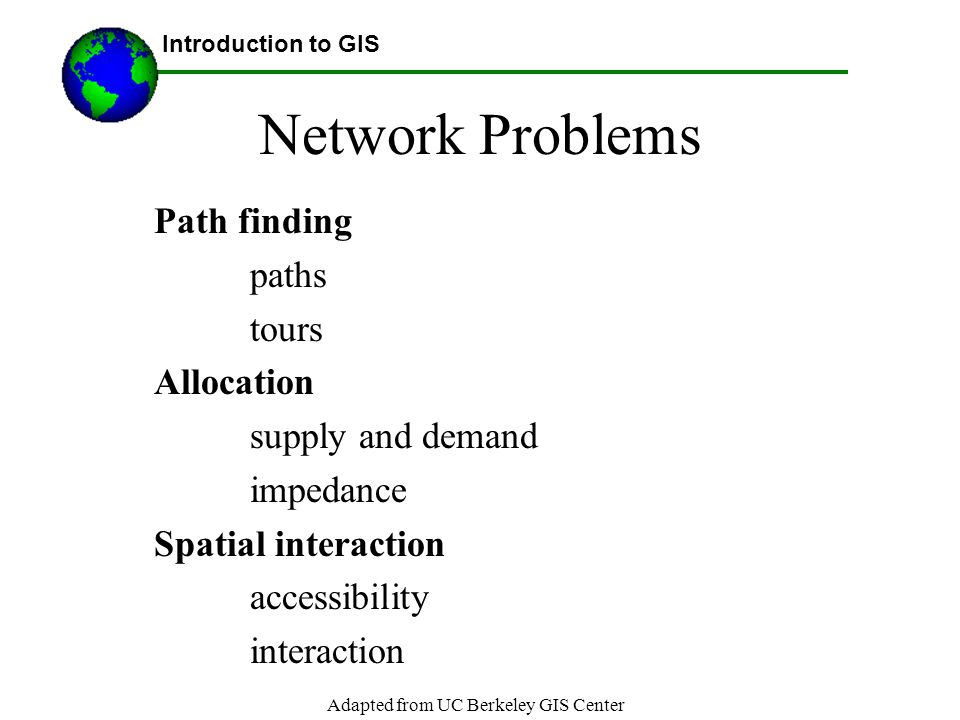

6. Network Problems Path finding paths tours Allocation supply and demand impedance Spatial interaction accessibility interaction ------Using GIS-- Introduction to GIS Adapted from UC Berkeley GIS Center

7. Path finding Finding the shortest or least-cost manner in which to visit a series of locations in a network. The cost may be determined by distance or by travel-time or a combination of factors calculated as a cost value. Distance that factors in things that slow you down is known as functional distance Often the parameter that is minimized in path finding is travel time. This factors in things like topography, traffic volume, average speed, stops etc. ------Using GIS-- Introduction to GIS Adapted from UC Berkeley GIS Center

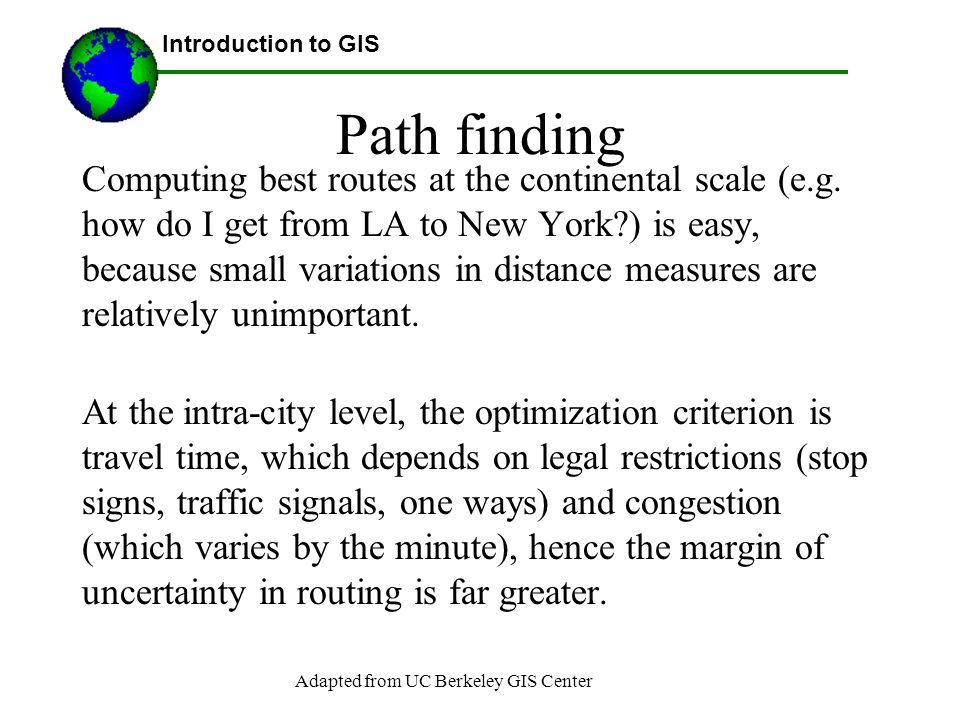

8. Computing best routes at the continental scale (e.g. how do I get from LA to New York?) is easy, because small variations in distance measures are relatively unimportant. At the intra-city level, the optimization criterion is travel time, which depends on legal restrictions (stop signs, traffic signals, one ways) and congestion (which varies by the minute), hence the margin of uncertainty in routing is far greater. ------Using GIS-- Introduction to GIS Path finding Adapted from UC Berkeley GIS Center

9. This would not happen if Ponch and John had Path finding software ------Using GIS-- Introduction to GIS “Ponch, there’s a 4-12 going on at the video arcade, what’s the fastest way to get there?” “Gee, I dunno John, let’s get off our bikes so we can look at our big, cumbersome map, and try to figure it out?”

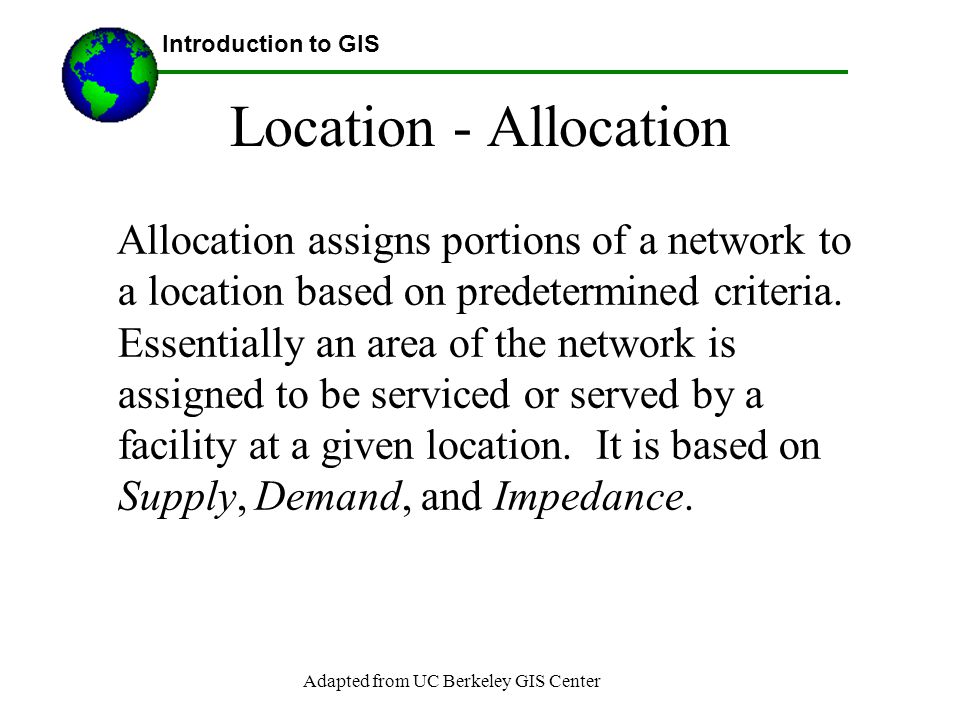

10. Location - Allocation Allocation assigns portions of a network to a location based on predetermined criteria. Essentially an area of the network is assigned to be serviced or served by a facility at a given location. It is based on Supply, Demand, and Impedance. ------Using GIS-- Introduction to GIS Adapted from UC Berkeley GIS Center

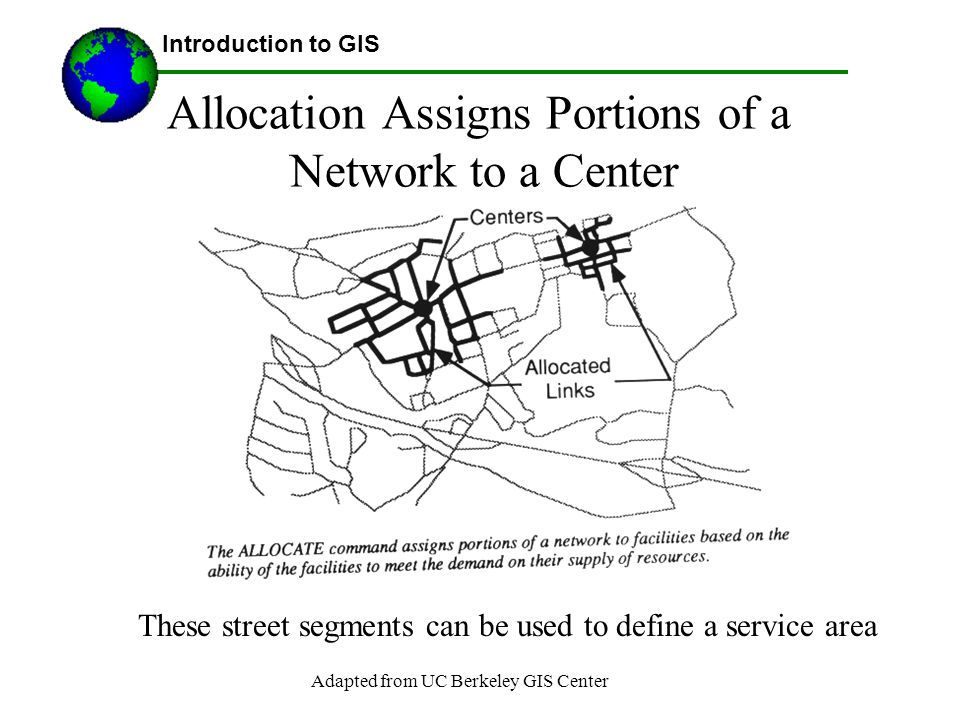

11. Allocation Assigns Portions of a Network to a Center ------Using GIS-- Introduction to GIS These street segments can be used to define a service area Adapted from UC Berkeley GIS Center

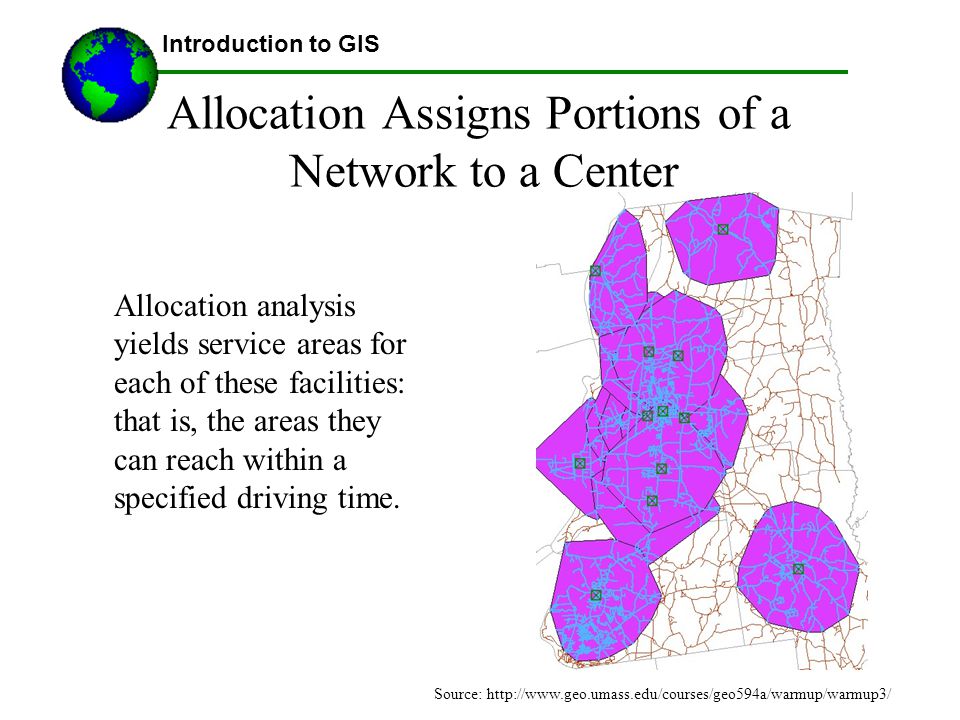

12. Allocation Assigns Portions of a Network to a Center ------Using GIS-- Introduction to GIS Source: http://www.geo.umass.edu/courses/geo594a/warmup/warmup3/ Allocation analysis yields service areas for each of these facilities: that is, the areas they can reach within a specified driving time.

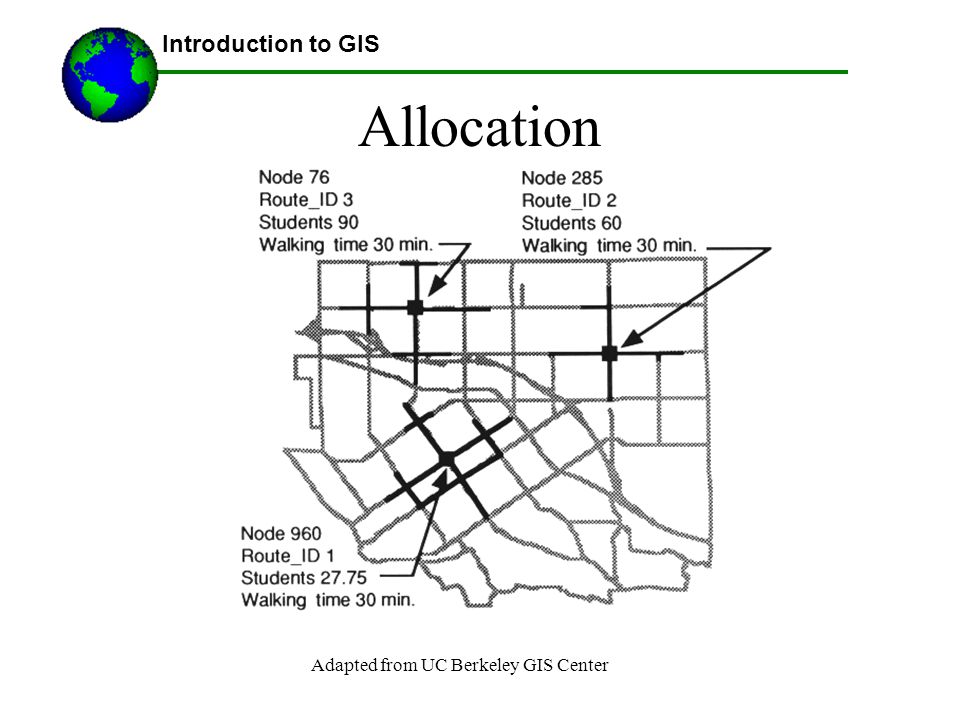

13. Allocation ------Using GIS-- Introduction to GIS Adapted from UC Berkeley GIS Center

14. Spatial interaction Accessibility = How Connected is a Node Accessibility is an aggregate measure of how reachable a location is from other locations. ------Using GIS-- Introduction to GIS Adapted from UC Berkeley GIS Center

15. Accessibility ------Using GIS-- Introduction to GIS Adapted from UC Berkeley GIS Center

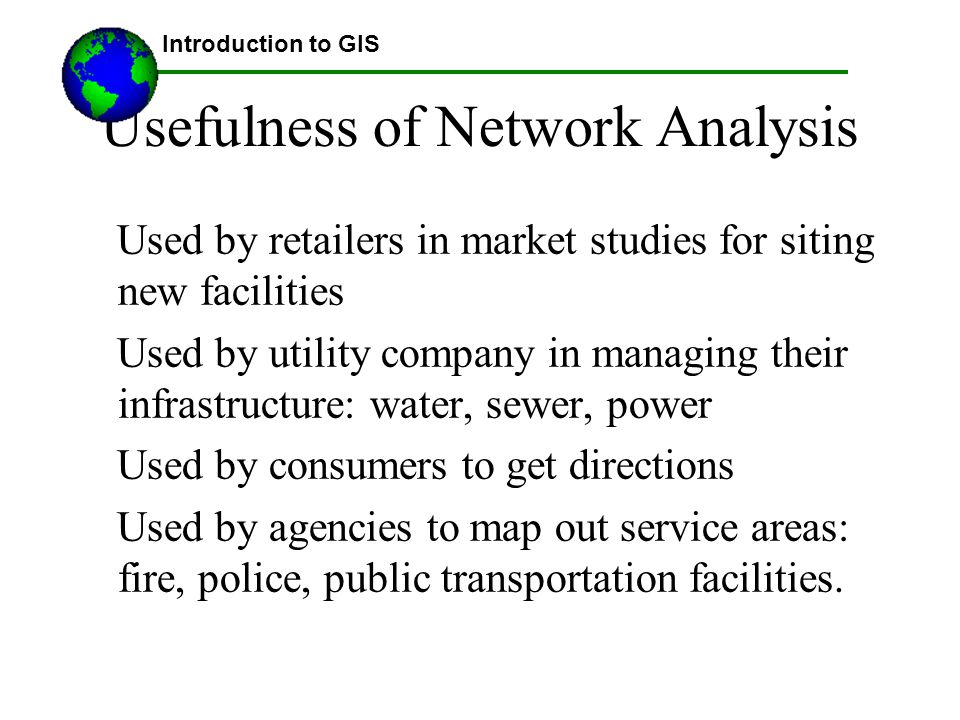

16. Usefulness of Network Analysis Used by retailers in market studies for siting new facilities Used by utility company in managing their infrastructure: water, sewer, power Used by consumers to get directions Used by agencies to map out service areas: fire, police, public transportation facilities. ------Using GIS-- Introduction to GIS
