1. G.Casale – G.Serazzi 1 Quantitative System Evaluation with Java Modelling Tools Giuliano Casale Giuseppe Serazzi Quantitative System Evaluation with Java Modelling Tools Giuliano Casale Giuseppe Serazzi Politecnico di Milano Dip. Elettronica e Informazione Milan, Italy Imperial College London g.casale@imperial.ac.uk Politecnico di Milano giuseppe.serazzi@polimi.it Tutorial – ICPE 2011

2. G.Casale – G.Serazzi 2 tutorial outline  overview of Java Modelling Tools (http://jmt.sf.net)  case study 1 (CS1)  case study 1 (CS1): bottlenecks identification, performance evaluation, optimal load  case study 2 (CS2)  case study 2 (CS2): model with multiple exit paths  case study 3 (CS3)  case study 3 (CS3): resource contention  case study 4 (CS4)  case study 4 (CS4): multi-tier applications, web services

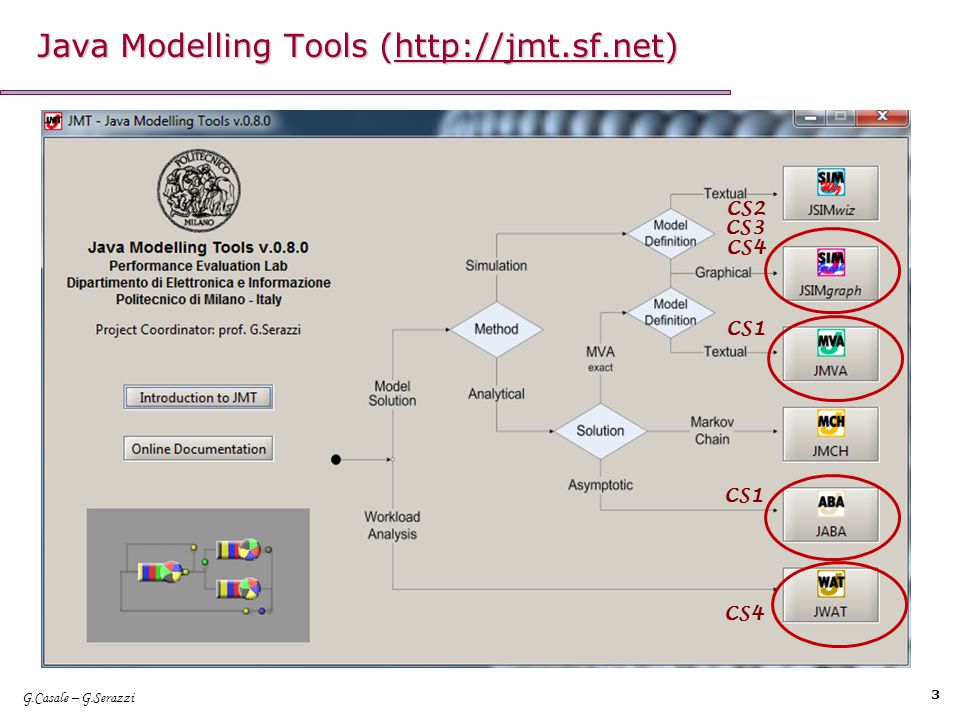

3. G.Casale – G.Serazzi 3 Java Modelling Tools (http://jmt.sf.net) CS4 CS1 CS2 CS3

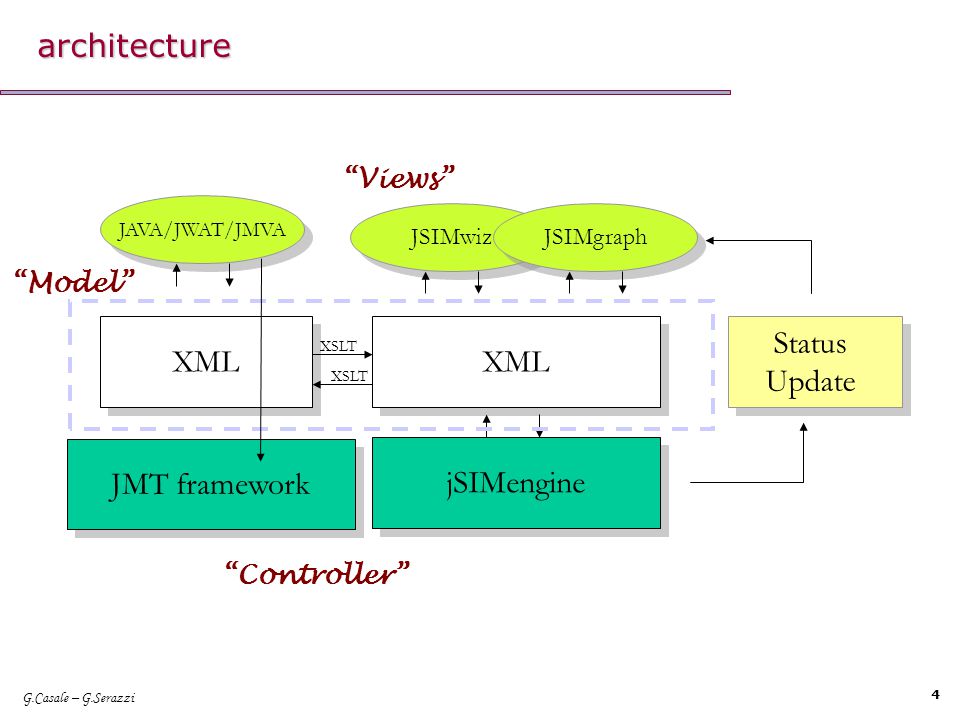

4. G.Casale – G.Serazzi 4 architecture XML jSIMengine JAVA/JWAT/JMVA JSIMwiz JSIMgraph XML XSLT Status Update “Views” “Model” “Controller” JMT framework

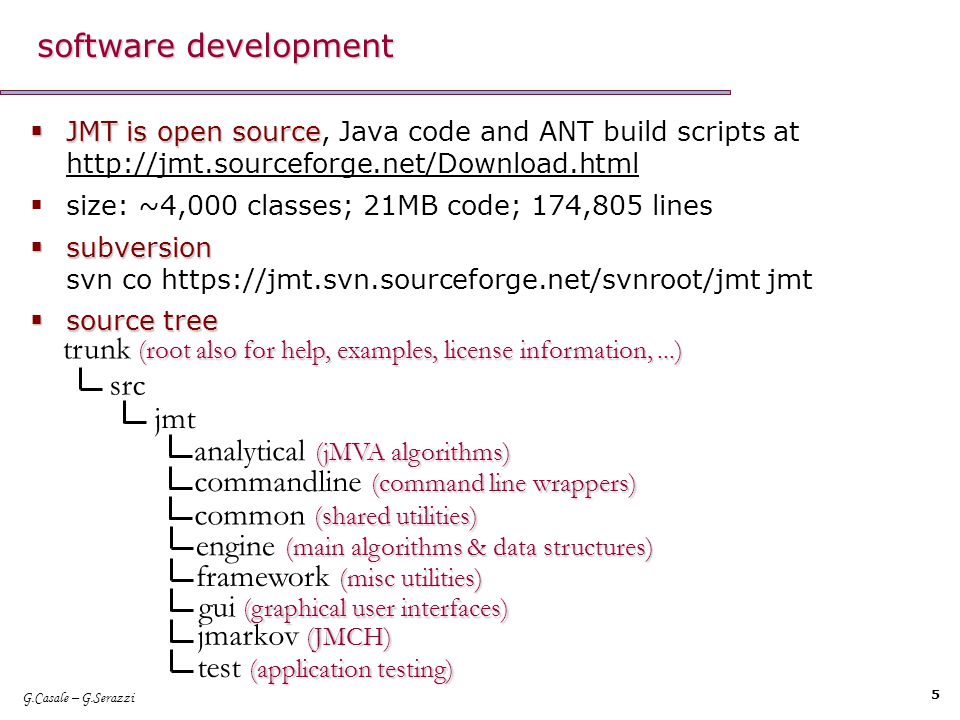

5. G.Casale – G.Serazzi 5 software development  JMT is open source  JMT is open source, Java code and ANT build scripts at http://jmt.sourceforge.net/Download.html  size: ~4,000 classes; 21MB code; 174,805 lines  subversion  subversion svn co https://jmt.svn.sourceforge.net/svnroot/jmt jmt  source tree (root also for help, examples, license information,...) trunk (root also for help, examples, license information,...) src jmt (jMVA algorithms) analytical (jMVA algorithms) (command line wrappers) commandline (command line wrappers) (shared utilities) common (shared utilities) (main algorithms & data structures) engine (main algorithms & data structures) (misc utilities) framework (misc utilities) (graphical user interfaces) gui (graphical user interfaces) (JMCH) jmarkov (JMCH) (application testing) test (application testing)

6. G.Casale – G.Serazzi 6 core algorithms - jMVA Mean Value Analysis (MVA) Mean Value Analysis (MVA) algorithm (e.g., [Lazowska et al., 1984] )  fast solution of product-form queueing networks  open  open models: efficient solution in all cases  closed  closed models: efficient for models with up to 4-5 classes Product-form queueing networks Product-form queueing networks solvable by MVA  PS/FCFS/LCFS/IS scheduling  Identical mean service times for multiclass FCFS  Mixed models (open + closed), load-dependent  Service at a queue does not depend on state of other queues  No blocking, finite buffers, priorities  Some theoretical extensions exist, not implemented in jMVA

7. G.Casale – G.Serazzi 7 core algorithms – jSIMengine: simulation  components in the simulation are defined by 3 sections  discrete-event simulation engine external arrivals (open class) queueing station component sections admit serve complete route

8.  transient filtering flowchart G.Casale – G.Serazzi 8 core algorithms – jSIMengine: statistical analysis [Heidelberger&Welch, CACM, 1981] [Pawlikowski, CSUR, 1990] [Spratt, M.S. Thesis, 1998] Transient (Steady State)

9. G.Casale – G.Serazzi 9 core algorithms – jSIMengine: simulation stop  simulation stops automatically confidence level maximum relative error traditional control parameters 9

10. CASE STUDY 1: Bottlenecks identification Performance evaluation Optimal load closed model multiclass workload JABA + JMVA Politecnico di Milano Dip. Elettronica e Informazione Milan, Italy G.Casale – G.Serazzi 10

11. 11 Outline  objectives  system topology  bottlenecks detection and common saturation sectors  performance evaluation  optimal loading G.Casale – G.Serazzi

12. 12 characteristics of the system  e-business services: a variety of activities, among them information retrieval and display, data processing and updating (mainly data intensive) are the most important ones  two classes of requests with different resource loads and performance requirements  presentation tier: light load (less demanding than that of the other two tiers)  application tier: business logic computations  data tier: store and fetch DB data (search, upload, download)  to reduce the number of parameters (and to simplify obtaining their values) we have choosen to parameterize the model in term of global loads L i, i.e., service demands D i G.Casale – G.Serazzi

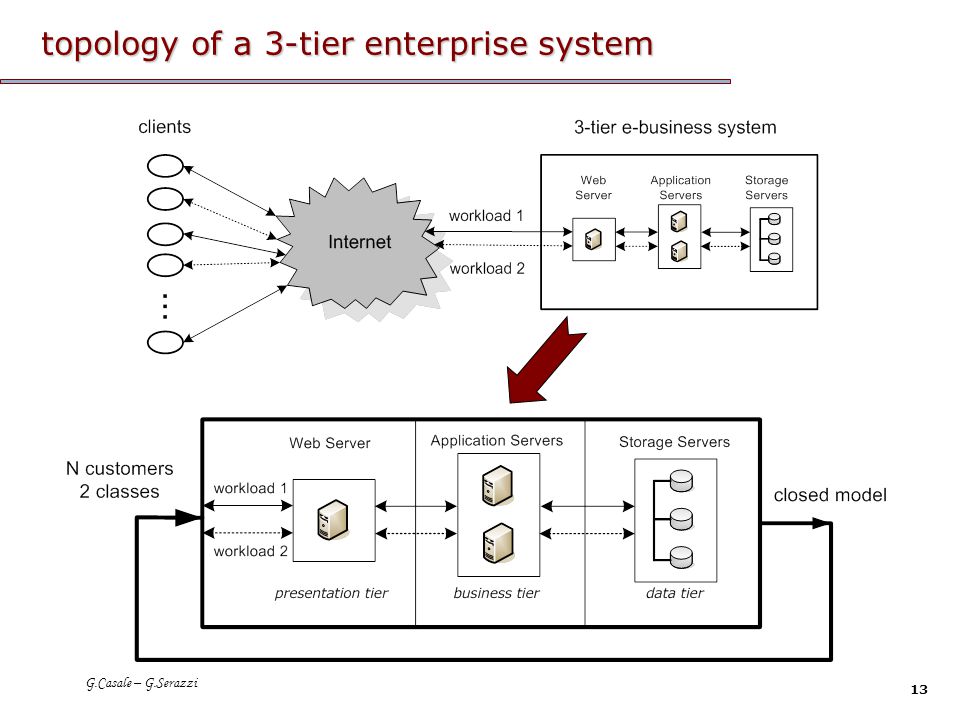

13. 13 topology of a 3-tier enterprise system G.Casale – G.Serazzi

14. 14 workload parameters i r  resource Loadings matrix: Service Demands, i resources, r classes D ir = V ir * S ir  global number of customers: N=100  system population: N={N 1, N 2 } {1,99} → {99,1}  population mix: β={β 1, β 2 }, fraction of jobs per class,  β variable: study of the optimal load (optimal mix)  asymptotic behavior: β constant, N increasing G.Casale – G.Serazzi

15. 15 Service Demands (resource Loadings) natural bottleneck of class 1 (Storage 2) natural bottleneck of class 2 (Storage 1) Storage 3: potential system bottleneck name of the model G.Casale – G.Serazzi

16. 16 What-if analysis (JMVA with multiple executions) fraction of class 1 requests number of models requested (may be not all not executed) parameter that changes among different executions G.Casale – G.Serazzi

17. 17 Bottlenecks switching (JABA asymptotic analysis) global loadings of class 1 global loadings of class 2 bottlenecks fraction of class 2 jobs that saturate two resources concurrently (Common Saturation Sector) bottlenecks G.Casale – G.Serazzi

18. 18 throughput and Response time {N=1,99}-{99,1}, JMVA class 1 class 2 system Common Saturation Sector class 1 class 2 system Common Saturation Sector throughput X Response times equiload 0.0181 r/ms 0.48 5.5 ms G.Casale – G.Serazzi

19. 19 Utilizations and Power {N=1,99}–{99,1} Common Saturation Sector Storage 3 Storage 1 Storage 2 Utilizations Power (X/R) class 1 class 2 system best QoS to class 1 best QoS to class 2 G.Casale – G.Serazzi

20. 20 optimized load: service demands and bottlenecks multiple bottlenecks equi-utilization line 2 Class 1 94.5 95 G.Casale – G.Serazzi

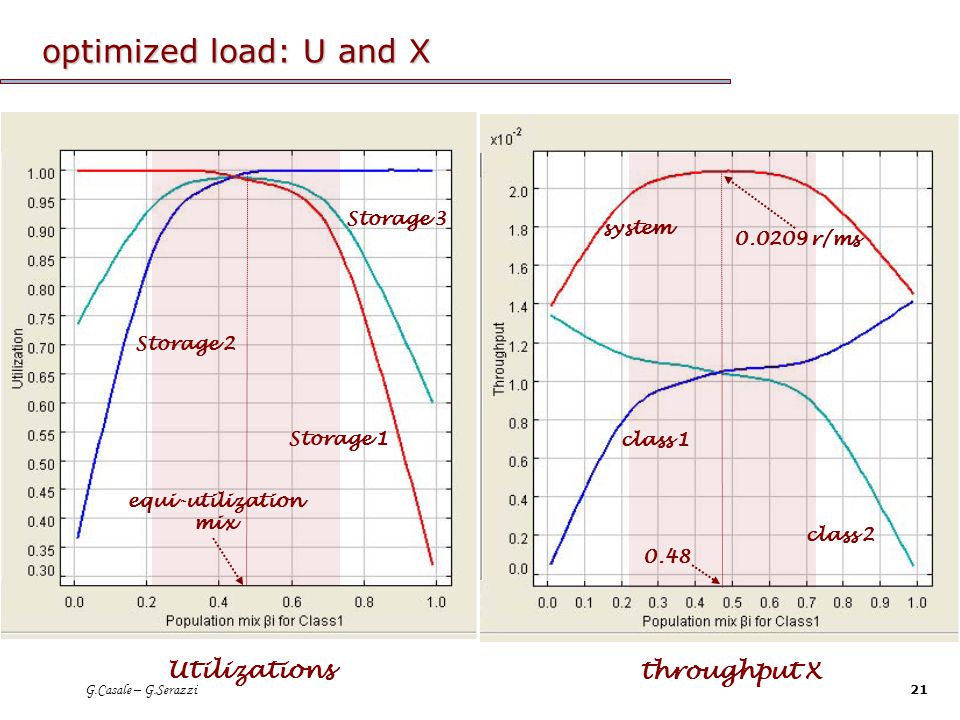

21. 21 optimized load: U and X equi-utilization mix Storage 1 Storage 2 Storage 3 Utilizations throughput X class 2 class 1 system 0.0209 r/ms 0.48 G.Casale – G.Serazzi

22. 22 optimized load: Response times and Residence times Response times system class 1 class 2 Common Saturation Sector Storage 3 Storage 1 Storage 2 Residence times 4.78 ms 0.48 4.78 ms 0.48 G.Casale – G.Serazzi

23. CASE STUDY 2: model with multiple exit paths open model single class workload different routing policies JSIMgraph Politecnico di Milano Dip. Elettronica e Informazione Milan, Italy G.Casale – G.Serazzi 23

24. 24 Outline  objectives  system topology  what-if analysis  performance with “probabilistic” routing  performance with “least utilization” routing  performance with “Joint the Shortest Queue” routing G.Casale – G.Serazzi

25. 25 objectives system response time  fallacies in using the index system response time also in single class models multiple  open model with multiple exit paths (sinks), e.g., drops, alternative processing, multi-core, load balancing, clouds,... response time per sinksystem res ponse time  differencies between response time per sink and system res ponse time routing policies  impact on performance of different routing policies G.Casale – G.Serazzi

26. 26 Casale - Serazzi system topology source of requests selection of the routing policy λ = 1 req/s S = 0.3 sec S = 1 sec S = 0.2 sec exponential distributions 0.5 utilizations path 2 path 1

27. 27 What-if analysis settings number of models requested final arrival rate initial arrival rate control parameter enable the what-if analysis G.Casale – G.Serazzi

28. 28 n. of customers N in the two paths (prob. routing) mean N = 9.13 j mean N = 0.37 j path 1 path 2 G.Casale – G.Serazzi

29. 29 Utilizations (per path) with prob. routing path 1 path 2 U = 0.89 U = 0.27 G.Casale – G.Serazzi

30. 30 system Response time (prob. routing) mean R = 5.51 s perf. indices collected no requested precision number of models executed in this run (What-if)

31. 31 Response time per path (prob. routing) mean R = 0.72 s path 1 path 2 mean R = 10.38 s system response time R = 5.5 sec G.Casale – G.Serazzi

32. 32 Utilizations with “least utilization” routing path 1 path 2 U = 0.41 utilizations well balanced G.Casale – G.Serazzi

33. 33 Response times with “least utilization” routing path 1 path 2 R = 3.55 sec R = 0.88 sec system response time R = 1.5 sec G.Casale – G.Serazzi

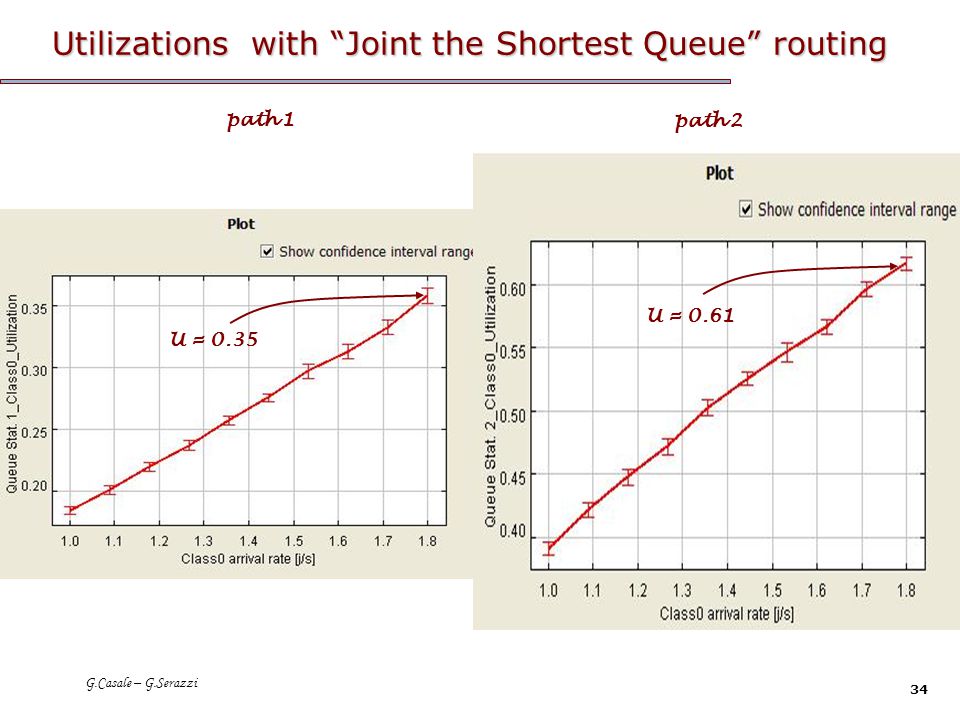

34. 34 Utilizations with “Joint the Shortest Queue” routing path 1 path 2 U = 0.61 U = 0.35 G.Casale – G.Serazzi

35. 35 N of customers with JSQ routing path 1 path 2 N = 0.88 N = 0.47 G.Casale – G.Serazzi

36. 36 Response times with JSQ routing path 1 path 2 R = 1.72 sec R = 0.70 sec system response time R = 1.05 sec G.Casale – G.Serazzi

37. 37 CASE STUDY 3 Resource Contention (use of Finite Capacity Regions - FCR) contention of components hardware: I/O devices, memory, servers,... software: threads, locks, semaphores,... bandwidth open model single class workload JSIMgraph Politecnico di Milano Dip. Elettronica e Informazione Milan, Italy

38. G.Casale – G.Serazzi 38 modeling contention  fixed number of hw/sw components (threads, db locks, semaphores,...)  clients compete for the available component free  request execution time  request execution time: wait time for the next free component + wait time for the hardware resources (CPU, I/O,...) + execution time  request interarrival times exponentially distributed  payload of different sizes (exponentially distributed)  evaluate  evaluate the execution time of requests when the number of clients ranges from 1 to 20 and the number of components ranges from 1 to 10 (∞), evaluate the drop rate and the wait time in queue for the next available component  implement several models with different level of completeness

39. G.Casale – G.Serazzi 39 threads (resource hw/sw) contention (simple model) server... sink threads = 1÷∞ clients thread requests queue (inside the server)... λ=1÷20 r/s CPU I/O D CPU =0.010s D I/O =0.047s

40. G.Casale – G.Serazzi 40 model definition (unlimited threads and queue size) λ = 1 ÷ 20 req/sec source of requests queue resource sink name of the model fraction of capacity used selection of perf.indices simulation results fraction of n.o of requests

41. G.Casale – G.Serazzi 41 input parameters (service demands) mean service time = 0.010 s mean service time = 0.047 s

42. G.Casale – G.Serazzi 42 system Response time (λ=20 req/sec) confidence interval transient duration the number of samples analyzed is greater than the max defined here perf.indexes selected default values of parameters actual sim. parameters

43. 43 λ=1÷20 req/s, unlimited threads & queue size (JSIMgraph) U I/O = λ D I/O = 20*0.047 = 0.94 (exact) Utilization of I/O throughput system Response time same as λ no limitations R = 0.784 s (sim) 0.931 (sim) X = 19.86 r/s system Power R = 0.795 s (exact) G.Casale – G.Serazzi

44. 44 Number of requests (unlimited threads & queue size) 0.25 req. 15.39 req N = 15.64 req (sim) N = XR = 15.91 req (exact)

45. G.Casale – G.Serazzi 45 set of a Finite Capacity Region – FCR step 1 – select the components of the FCR step 2 – set the FCR region with constrained number of customers drop queue

46. G.Casale – G.Serazzi 46 FCR parameters global capacity of the FCR max number of requests per class in the FCR drop the requests when the region capacity is reached (for both the constraints)

47. G.Casale – G.Serazzi 47 system Number of requests (limited n. threads and drop) 5 threads unlimited 10 threads 15 threads

48. G.Casale – G.Serazzi 48 Utilization of I/O server (limited n. threads and drop) 10 threads unlimited 15 threads 5 threads

49. G.Casale – G.Serazzi 49 system Response time (limited n. threads and drop) 5 threads 10 threads unlimited 15 threads

50. G.Casale – G.Serazzi 50 external finite queue for limited threads server... sink threads = 5 clients queue for threads with finite capacity (outside the server) λ=20 r/s server D server =0.047s Blocking After Service policy queue drop policy  the queue for threads is limited (e.g., to limit the number of connections in case of denial of service attack, to guarantee a negotiated response time for the accepted requests,...)  the requests arriving when the queue is full are rejected (drop policy)  the number of threads is limited and the requests are queued in a resource different from the server (load balancer, firewall,...)  evaluate the combination of different admission policies

51. G.Casale – G.Serazzi 51 set Block After Service (BAS) blocking policy max number of requests in the station station with finite capacity selection of the BAS policy BAS policy: requests are blocked in the sender station when the max capacity of the receiver is reached

52. G.Casale – G.Serazzi 52 λ=20 req/s NRUXDrop Queue and Server stations Q Qsize= ∞ Q S Ser=5, queue S 0 16.11 0 0.77 0 0.95 20.060 Q Qsize= ∞ Q S Ser=5, BAS S 11.03 4.77 0.53 0.24 0 0.923 19.820 Q Qsize=5 drop Q S Ser=5, BAS S 0.94 3.82 0.05 0.20 0 0.88 18.761.14 Q Qsize= ∞ Q S Ser=5, drop S 0 2.34 0 0.136 0 0.812 17.162.866 Server Queue ∞ 5 ∞ Server Queue∞ 5 BAS Server Queue5 5 BAS drop Server Queue ∞ 5 drop different admission policies for Queue and Server

53. G.Casale – G.Serazzi 53 CASE STUDY 4 Multi-Tier Applications and Web Services (Worker Threads, Workflows, Logging, Distributions) closed models single class and multiclass workloads fork-join JSIMgraph+JWAT Politecnico di Milano Dip. Elettronica e Informazione Milan, Italy

54. G.Casale – G.Serazzi 54 performance evaluation of a multi-tier application performance evaluation of a multi-tier application transactional workload application server (AS) database (DB)  multi-tier application serves a transactional workload which requires processing by an application server (AS) and by a database (DB) worker threads  the AS serves requests using a fixed set of worker threads admission control  requests waiting for a worker thread are queued by the admission control system  utilization measurements  utilization measurements available for the AS and for the DB –know both for AS and DB the average service time S –e.g., linear regression estimate U=SX+Y, U = utilization, X = throughput, Y =noise  evaluate  evaluate response time for increasing worker threads

55. G.Casale – G.Serazzi 55 transaction lifecycle Worker thread admission time Service time (1) Queueing time DB query time (1) Service time (2) Service time (3) DB query time (2) Server Response time Network latency (1) Network latency (2) Client-Side Application Server Request Response time Request arrives Response arrives Admission control Load context in memory Data access CPU DB Server Worker Thread Simultaneous Resource Possession

56. G.Casale – G.Serazzi 56 modelling abstraction (easier to define and study) Server admission time Service time (1) Queueing time DB query time (1) Service time (2) Service time (...) DB query time (2) Server Response time Network latency (1) Network latency (2) Client-Side Server-Side Request Response time Request arrives Response arrives Admission control Load context in memory Data access CPU CPU+I/O Application Server Steps DB Server Steps Worker Thread

57. G.Casale – G.Serazzi 57 modelling multi-tier applications Exponential Distributions Scpu = 0.072s Sdb = 0.032s Zload = 0.015s FCR Admission Policy FCR Capacity FCR 4 Servers (Cores) FCR Admission Queue is Hidden ! PS scheduling N=300 app users send to jMVA simulate

58. G.Casale – G.Serazzi 58 simulation vs jMVA model FCR not included in product-form model

59. G.Casale – G.Serazzi 59 SAP Business Suite [Li, Casale, Ellahi; ICPE 2010] M MVA MM S S SIM REAL R R R S Quad-Core Server N=300 users Response Time

60. G.Casale – G.Serazzi 60 what-if analysis – adding a web service class service composition engine  some requests now access the service composition engine of the multi-tier application to create a business travel plan composed on the fly  services are composed on the fly from external providers (travel agencies, flight booking service) according to a workflow  worker thread remains busy for the entire duration of the web service workflow  evaluate  evaluate end-to-end response time for each class

61. G.Casale – G.Serazzi 61 business trip planning (BTP) web service FCR Class-Based Admission N=300 app users Nbtp=50 BTP users pBTP=1.0 Sbtp =?, Exp?

62. G.Casale – G.Serazzi 62 BTP web service sub-model Logger S0=?, Exp? Zsce=0.025s, Exp N=1 WS instance S1=?, Exp? S2=?, Exp?

63. G.Casale – G.Serazzi 63 jWAT – Workload Analysis Tool Specify Format Column-Oriented Log File Load Data Data Format Templates

64. G.Casale – G.Serazzi 64 Ignore Negative Samples jWAT – data filtering

65. G.Casale – G.Serazzi 65 jWAT – descriptive statistics Scatter plots Histogram c=std. dev. /mean Hyper-Exp (c >1)

66. G.Casale – G.Serazzi 66 Outliers? Scatter plot jWAT – scatter plot

67. G.Casale – G.Serazzi 67 BTP web service sub-model log inter-arrival times Zsce=0.025s, Exp N=1 WS instance S2=0.911 HyperExp c=2.9081 S1=2.151, HyperExp c=1.689 S0=0.967 HyperExp c=3.1434

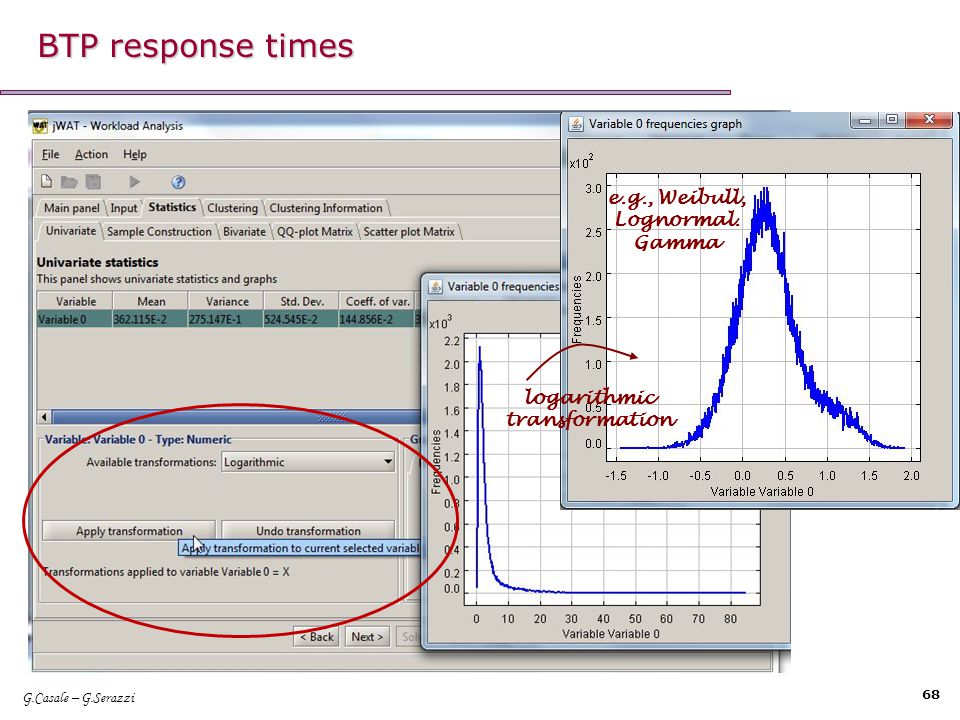

68. G.Casale – G.Serazzi 68 BTP response times logarithmic transformation e.g., Weibull, Lognormal. Gamma

69. G.Casale – G.Serazzi 69 response time distribution – logger components Sbtp = 3.611s Gamma c=1.44 timestamp, class id, job id global.csv job id (same throughout simulation) job class logger id

70. G.Casale – G.Serazzi 70 response time distribution analysis cumulative distribution 95 th percentile [seconds] cdf (matlab)

71. CONCLUSION Politecnico di Milano Dip. Elettronica e Informazione Milan, Italy 71

72. G.Casale – G.Serazzi 72 Final remarks  Analysis with Java Modelling Tools (http://jmt.sf.net) –Queueing network simulation –Bottlenecks identification –Workload analysis –Mean value analysis –...  JMT-Based examples and exercises (http://perflib.net)  Topics not covered by this tutorial –jMCH –Burstiness analysis –Trace-driven simulation –...  JMT discussion forum: http://sourceforge.net/forum/?group_id=163838

73. G.Casale – G.Serazzi 73 References  G.Casale, G.Serazzi. Quantitative System Evaluation with Java Modelling Tools (Tutorial). in Proc. of ACM/SPEC ICPE 2011 (companion paper).  M.Bertoli, G.Casale, G.Serazzi. User-Friendly Approach to Capacity Planning Studies with Java Modelling Tools, in Proc. of SIMUTOOLS 2009.  M.Bertoli, G.Casale, G.Serazzi. JMT - Performance Engineering Tools for System Modeling. ACM Perf. Eval. Rev., 36(4), 2009  M.Bertoli, G.Casale, G.Serazzi. The JMT Simulator for Performance Evaluation of Non Product-Form Queueing Networks, in Proc. of SCS Annual Simulation Symposium 2007, 3-10, Norfolk, VA, Mar 2007.  M.Bertoli, G.Casale, G.Serazzi. Java Modelling Tools: an Open Source Suite for Queueing Network Modelling and Workload Analysis, in Proc. of QEST 2006, 119-120, Sep 2006.  E.Lazowska, J.Zahorjan, G.S.Graham, K.C.Sevcik, Quantitative System Performance: Computer System Analysis Using Queueing Network Models, Prentice-Hall, 1994.  K.Pawlikowski: Steady-State Simulation of Queuing Processes: A Survey of Problems and Solutions. ACM Comput. Surv. 22(2): 123-170, 1990.  P.Heidelberger and P.D.Welch. A spectral method for confidence interval generation and run length control in simulations. Comm. ACM. 24, 233-245, 1981.  S.C.Spratt. Heuristics for the startup problem. M.S. Thesis, Department of Systems Engineering, University of Virginia, 1998.
