1 The Bright Future of Wireless Communications
Free Space Optics The Bright Future of Wireless Communications

2 Lasers in Free Space?

3 What is FSO? Line of sight free space (wireless) transmission technology Utilizes light (laser) to transfer data Delivers high speed secure connection Offers economical solution (low power consumption, no wide radiation)

4 Optical Transmission Fibre Optic TX Fibre Optic Transceiver RX
Optical fibre Laser transmitter Receiver Diode TX optics RX Optics Optical fibre

5 Optical Transmission Free Space TX Transmitter Free Space Optics
Receiver RX Laser transmitter Receiver Diode TX optics RX Optics

6 Why Free Space Optics? License-free operation High bandwidth
High data security No interference issues Rapid deployment/re-deployment Excellent price/performance (low cost per bit)

7 Link Dynamic Range Power Budget Margin Receiver sensitivity Distance

8 Multibeam Systems To increase power To Compensate building swaying
To introduce redundancy

9 Reliable Operation %

10 Eye Safety Optical apertures/surfaces NOHD Values Human eye
7 mm Human eye Optical apertures/surfaces TX optics: 1962 mm2 Footprint: mm2 Human eye: 38 mm2 NOHD Values 1.8 m – 85 m

11 Birds, UFO’s,… Chance to block the beam < 10-12 Chance for UFO…?

12 Competitive Analysis Fibre Leased Line Radio Microwave

13 Alternative To Fibre Cost of installation Speed of installation
Flexibility

14 Alternative To Leased Line
Bandwidth Cost of ownership vs. leasing cost

15 Alternative To ISM Band Radio
Bandwidth Reliability Security

16 Alternative To Microwave
Licensing Speed Price Difficulty of installation

17 Application Summary Laser Link -High Speed -No frequency license
-Secure -Rapid deployment Microwave Frequency license Speed Microwave Frequency license Speed Security? Headquarters Branch Office Fiber Optic Cable Expensive Long installation time

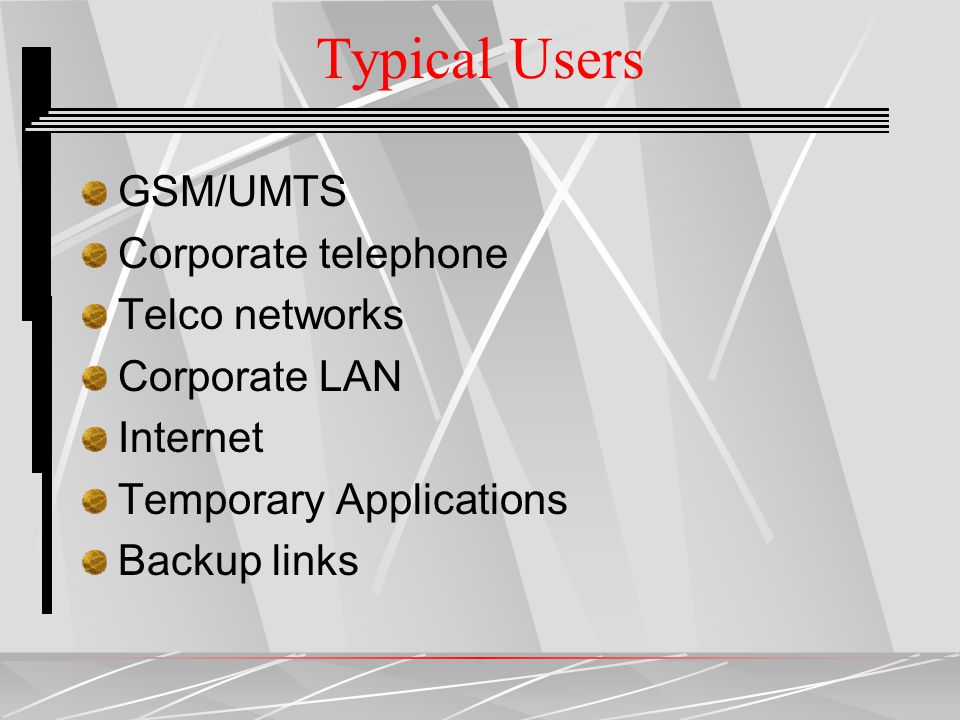

18 Typical Users GSM/UMTS Corporate telephone Telco networks
Corporate LAN Internet Temporary Applications Backup links

19 Corporate Networks - LAN
100 Mbps LAN A LAN B

20 Corporate Networks - Telephone
2 Mbps (E1) Local subscribers Local subscribers Telephone Exchange Telephone Exchange

21 Carriers – Last Mile Access
Fat pipe to corporate users Support residential areas Set up alternative routes Expand bandwidth

22 Carriers – Last Mile Access
Existing Network Corporate Users Residential Area Industrial Areas

23 Mobile Operators – BTS Access
2 Mbps – 34 Mbps (E1-E3) Base Station Controller (BSC) Base Transmitter Station (BTS)

24 ISP’s – Metro Area Networks
Point of Presence (POP) Residential Residential Corporate Users Residential

25 Temporary Installations
Disaster recovery Satisfy prompt or temporary needs Office leasing (corporate) Rapid network expansion (Telco)

26 Backup Links To provide 24 hours a day availability
High speed secure connection Alternative data path

27 Market Analysis Customer Base Market Expectations Reasons

28 Customer Base Carriers and Telco’s Internet Service Providers
Landline and wireless services Last mile access Internet Service Providers Companies and corporations of all size Campuses Hospitals Factories Offices

29 Market Expectations Merrill Lynch: FreeSpace Optics 15 May 2001

30 Need for Bandwidth Convergence in communication
Increasing number of subscribers Demanding wireless apps (3G, UMTS) Internet boom
