1. 10.2 Characteristics of Computer Memory RAM provides random access Most RAM is volatile

2. 10.3 Static and Dynamic RAM Technologies Static RAM –The miniature circuit contains many transistors that operate continuously Dynamic RAM –Uses a circuit that acts like a capacitor –An external refresh circuit must periodically read the data value and write it back again

4. From Essentials of Computer Architecture by Douglas E. Comer. ISBN 0131491792. © 2005 Pearson Education, Inc. All rights reserved.

5. 10.4 Measures of Memory Technology Density –Tends to double approximately every 18 months. Latency and Cycle times –The time required to fetch information differs from the time required to store information.

6. 10.7 Latency and Memory Controllers Latency is an insufficient measure of performance A performance measure needs to measure the time required for successive operations

7. From Essentials of Computer Architecture by Douglas E. Comer. ISBN 0131491792. © 2005 Pearson Education, Inc. All rights reserved.

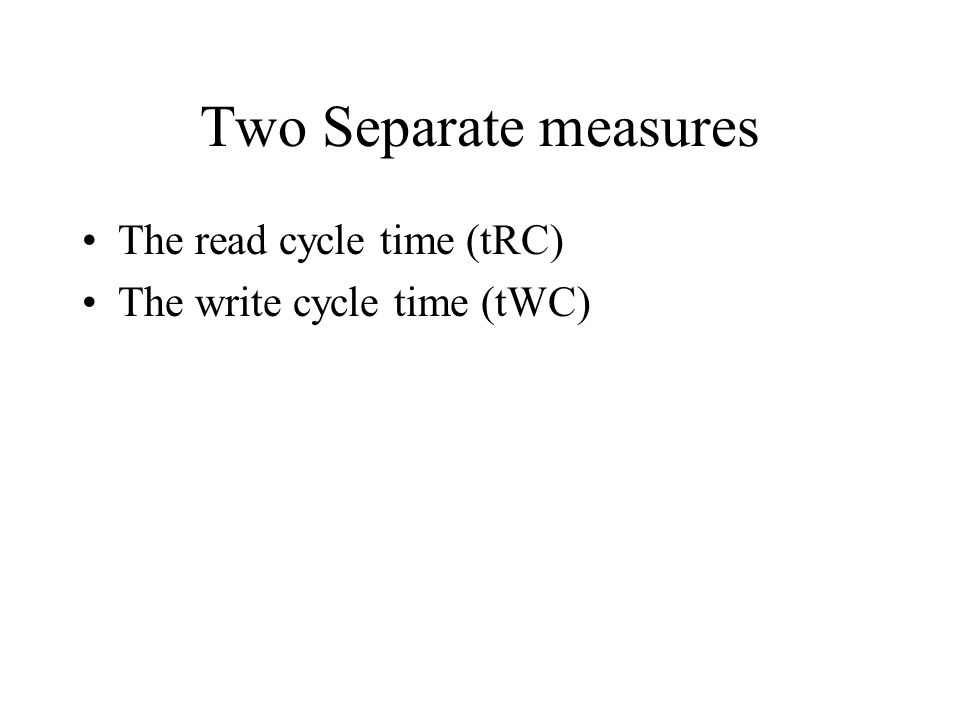

8. Two Separate measures The read cycle time (tRC) The write cycle time (tWC)

9. 10.8 Synchronized Memory Technologies The clock pulses used with the memory system are aligned with the clock pulses used to run the processor. SDRAM –Synchronized Dynamic RAM SSRAM –Synchronized Static RAM

10. 10.9 Multiple Data Rate Memory Technologies Double data rate Quadruple data rate

11. From Essentials of Computer Architecture by Douglas E. Comer. ISBN 0131491792. © 2005 Pearson Education, Inc. All rights reserved.

12. 10.12 Memory Access and Memory Bus A memory controller provides the interface between a physical memory and a processor that uses the memory To achieve high performance, memory systems use parallelism

13. From Essentials of Computer Architecture by Douglas E. Comer. ISBN 0131491792. © 2005 Pearson Education, Inc. All rights reserved.

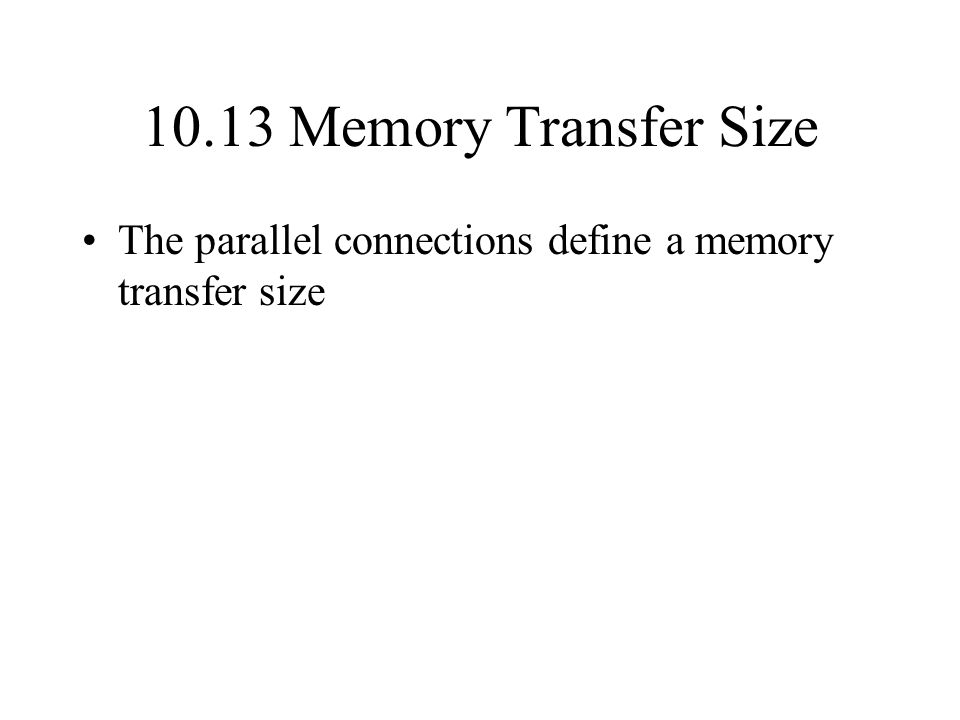

14. 10.13 Memory Transfer Size The parallel connections define a memory transfer size

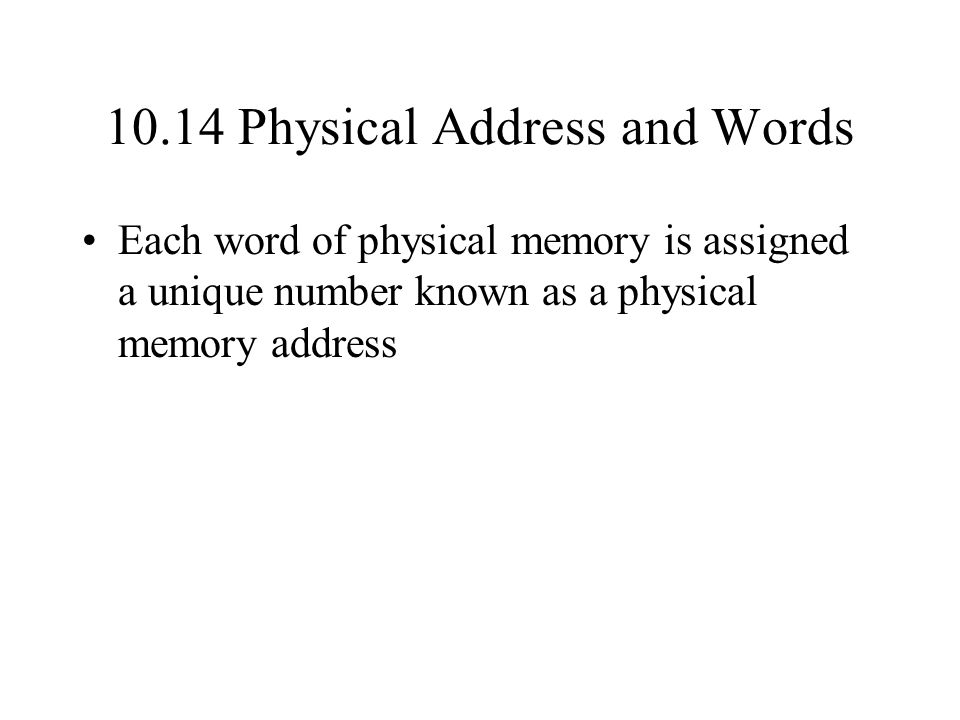

15. 10.14 Physical Address and Words Each word of physical memory is assigned a unique number known as a physical memory address

16. From Essentials of Computer Architecture by Douglas E. Comer. ISBN 0131491792. © 2005 Pearson Education, Inc. All rights reserved.

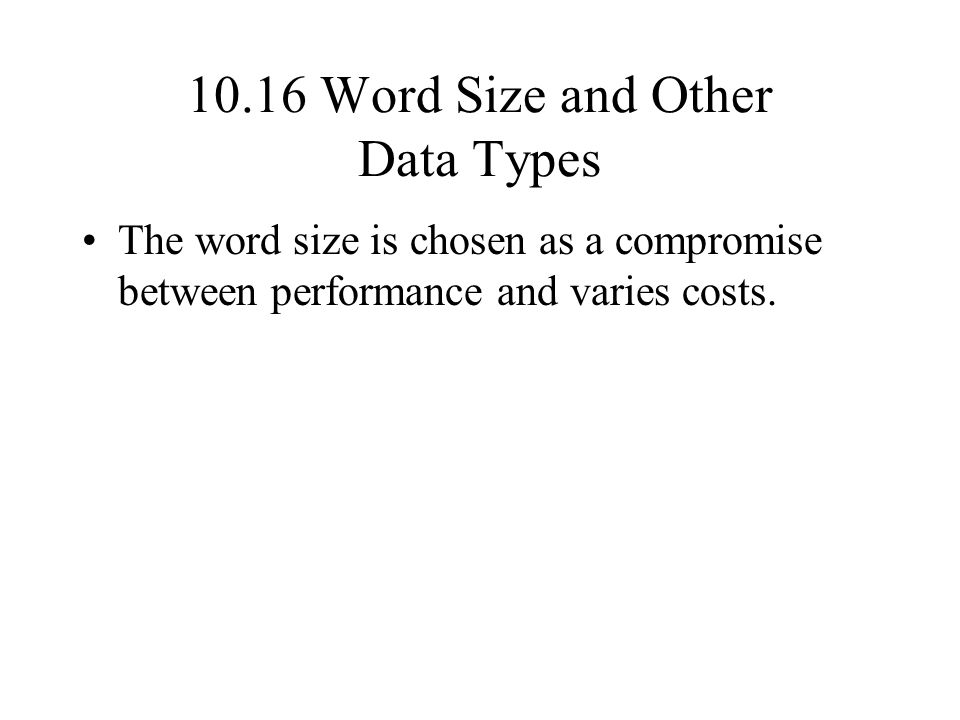

17. 10.16 Word Size and Other Data Types The word size is chosen as a compromise between performance and varies costs.

18. 10.17 An Extreme Case: Byte Addressing Two important consequences –Byte addressing requires more addresses –The memory controller must support byte transfer

19. From Essentials of Computer Architecture by Douglas E. Comer. ISBN 0131491792. © 2005 Pearson Education, Inc. All rights reserved.

21. 10.19 Using Powers of Two Word address can be computed by extracting everything except the two low order bits.

22. From Essentials of Computer Architecture by Douglas E. Comer. ISBN 0131491792. © 2005 Pearson Education, Inc. All rights reserved.

23. 10.20 Byte Alignment and Programming Aligning data on boundaries that corresponding to the physical word size can improve program performance.

24. From Essentials of Computer Architecture by Douglas E. Comer. ISBN 0131491792. © 2005 Pearson Education, Inc. All rights reserved.

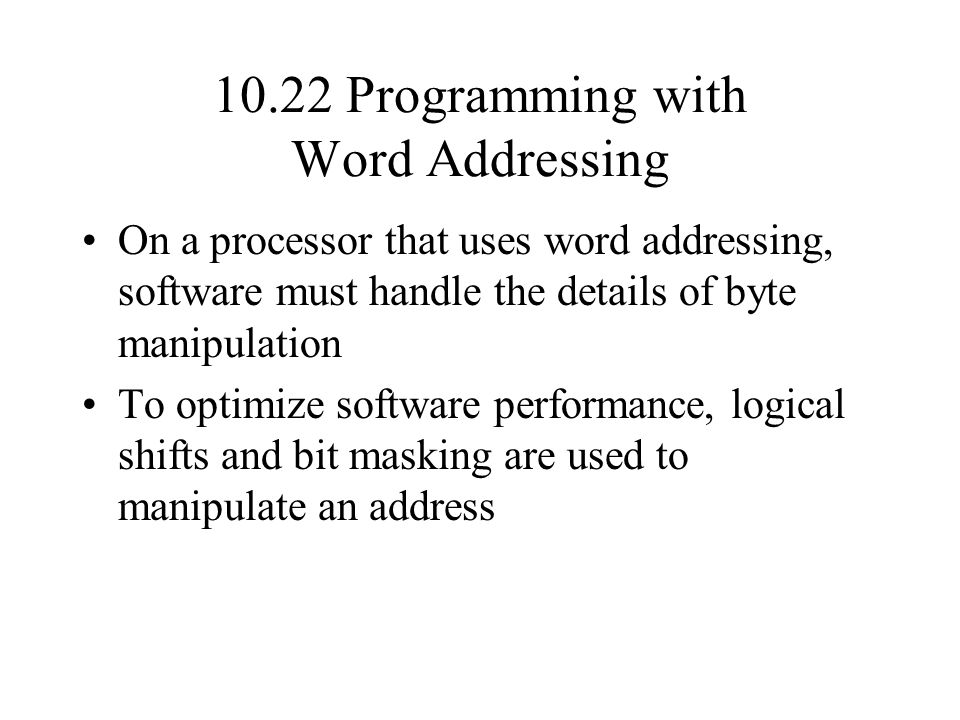

25. 10.22 Programming with Word Addressing On a processor that uses word addressing, software must handle the details of byte manipulation To optimize software performance, logical shifts and bit masking are used to manipulate an address

26. 10.23 Measures of Memory Size Physical memory is organized into a set of M words that each contain N bytes. To make controller hardware efficient, M and N are each chosen to be powers of two

27. From Essentials of Computer Architecture by Douglas E. Comer. ISBN 0131491792. © 2005 Pearson Education, Inc. All rights reserved.

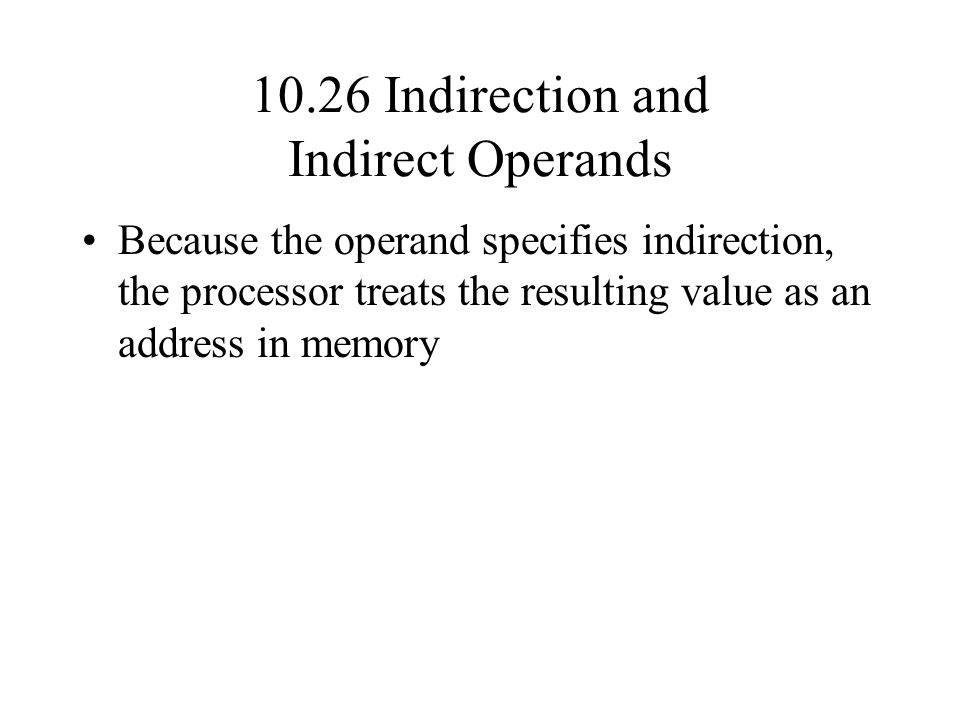

30. 10.26 Indirection and Indirect Operands Because the operand specifies indirection, the processor treats the resulting value as an address in memory

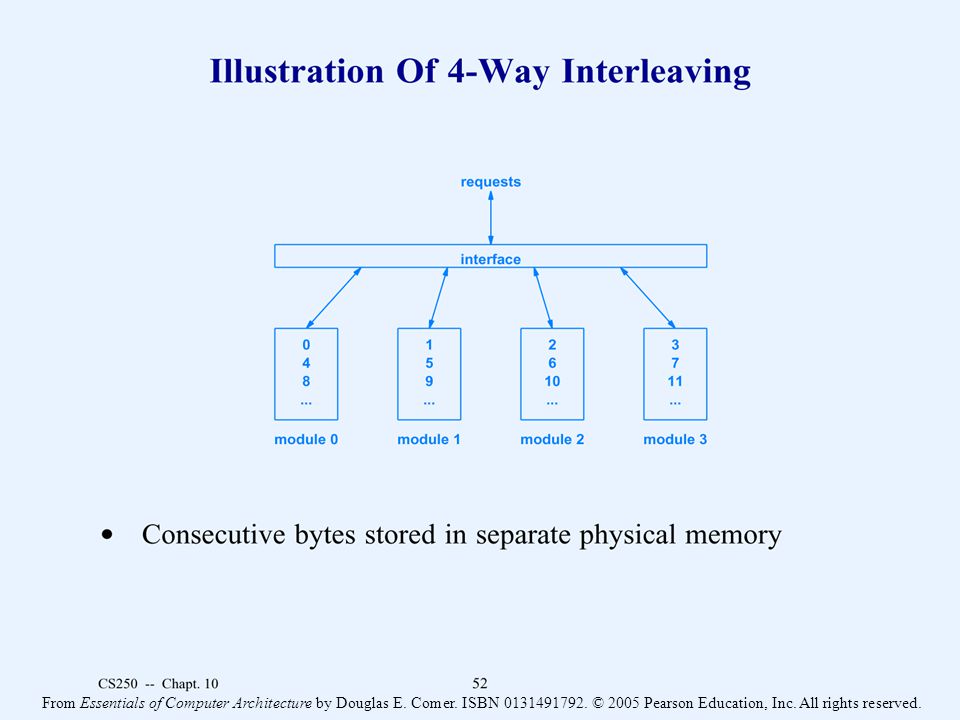

31. 10.27 Memory Banks and Interleaving Instead of a single memory and a single controller, the processor connect to multiple memory banks that each has its own controller. Interleaving spreads consecutive bytes of memory across separate physical memory modules

32. From Essentials of Computer Architecture by Douglas E. Comer. ISBN 0131491792. © 2005 Pearson Education, Inc. All rights reserved.

33. 10.28 Content Addressable Memory A Content Addressable Memory includes hardware for high speed searching. A search key is the same size as a slot in the CAM Each slot contains hardware that performs the comparison

34. From Essentials of Computer Architecture by Douglas E. Comer. ISBN 0131491792. © 2005 Pearson Education, Inc. All rights reserved.

35. 10.29 Ternary CAM A Ternary CAM only performs the match on bits that have the value zero or one.
